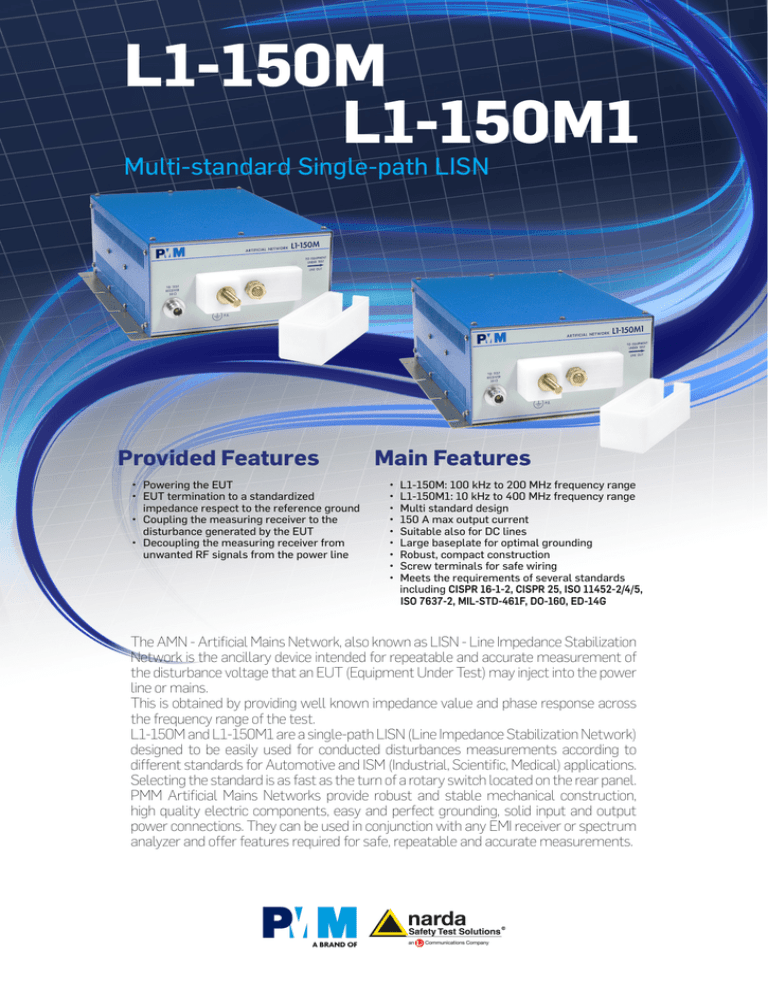

L1-150M L1-150M1 Multi-standard Single-path LISN Provided Features

L1-150M L1-150M1 Multi-standard Single-path LISN Provided Features
Multi-standard Single-path LISN
Provided Features
Powering the EUT
EUT termination to a standardized
impedance respect to the reference ground
Coupling the measuring receiver to the
disturbance generated by the EUT
Decoupling the measuring receiver from
unwanted RF signals from the power line
Main Features
L1-150M: 100 kHz to 200 MHz frequency range
L1-150M1: 10 kHz to 400 MHz frequency range
Multi standard design
150 A max output current
Suitable also for DC lines
Large baseplate for optimal grounding
Robust, compact construction
Screw terminals for safe wiring
Meets the requirements of several standards
including CISPR 16-1-2, CISPR 25, ISO 11452-2/4/5,
ISO 7637-2, MIL-STD-461F, DO-160, ED-14G
The AMN - Artificial Mains Network, also known as LISN - Line Impedance Stabilization
Network is the ancillary device intended for repeatable and accurate measurement of
the disturbance voltage that an EUT (Equipment Under Test) may inject into the power
line or mains.
This is obtained by providing well known impedance value and phase response across
the frequency range of the test.
L1-150M and L1-150M1 are a single-path LISN (Line Impedance Stabilization Network)
designed to be easily used for conducted disturbances measurements according to
different standards for Automotive and ISM (Industrial, Scientific, Medical) applications.
Selecting the standard is as fast as the turn of a rotary switch located on the rear panel.
PMM Artificial Mains Networks provide robust and stable mechanical construction,
high quality electric components, easy and perfect grounding, solid input and output
power connections. They can be used in conjunction with any EMI receiver or spectrum
analyzer and offer features required for safe, repeatable and accurate measurements.
L1-150M, L1-150M1
Multi-standard Single-path LISN
100 kHz to 200 MHz
10 kHz to 400 MHz
100 A
150 A
600 Vdc
300 Vac
DC to 440 Hz
(5 μH+0/1 Ω)//50 Ω
N female, 50 Ω
Screw terminal M10
Screw terminal M10
2x Screw terminal M10
-10 to +45 °C
-25 to +70 °C
230 x 105 x 410 mm
5 kg
Ordering Information:
L1-150M - L1-150M1 Artificial Network
Includes: Operating Manual, RF Cable, N-BNC adapter,
Calibration Certificate
Electrical safety and presence
of ground protection relays do
require the installation of properly
rated insulating transformer(s)
between mains power line and
AMN line inputs.
High mains noise may require
the installation of properly rated
mains filters to reduce the level of
unwanted signals.
Optional accessories:
SBRF4: RF switching box
Automatic (in conjunction with PMM receivers) and
manual switching of up to four single-path AMN. Internal
50 Ohm terminations and switchable 150 kHz high-pass
filter. Low insertion loss.
Max. operating frequency: 108 MHz.
Related Products
RFI Filters
7010/00: EMI receiver 150 kHz to 1 GHz
7010/01: EMI receiver 9 kHz to 1 GHz
7010/02: EMI receiver 9 kHz to 30 MHz
7010/03: EMI receiver 9 kHz to 3 GHz
9010: EMI receiver 10 Hz to 30 MHz
9010F: EMI receiver 10 Hz to 30 MHz
9010/03P: EMI receiver 10 Hz to 300 MHz
9010/30P: EMI receiver 10 Hz to 3 GHz
9010/60P: EMI receiver 10 Hz to 6 GHz
Sales Office:
Via Leonardo da Vinci, 21/23
20090 Segrate (Milano) - ITALY
Phone: +39 02 2699871
Fax: +39 02 26998700
L2-16B: single phase AMN, 16 A
L3-32: 4 lines, 3-phase AMN, 32 A
L3-64: 4 lines, 3-phase AMN, 63 A
L3-64/690: 4 lines, 3-phase AMN, 63 A
L3-100: 4 lines, 3-phase AMN, 100 A
L3-500: 4 lines, 3-phase AMN, 500 A
L1-500: single phase AMN, 500 A
L2-D: Delta LISN for telecom, 2 A, 150 Ω
E-Mail: [email protected]
Internet: www.narda-sts.it
FIL-L2-16F: single phase RFI filter, 16 A
FIL-L2-24M: single phase RFI filter, 24 A
FIL-L3-32M: 3-phase+neutral RFI filter, 32 A
FIL-L3-70M: 3-phase+neutral RFI filter, 70 A
Via Benessea, 29/B
17035 Cisano sul Neva (SV) - ITALY
Phone: +39 0182 58641
Fax: +39 0182 586400
L1150-FEN-40704 - Specifications subject to changes without prior notice
Frequency range
Continuous rated
output current
Max. output current @ 45 °C
Max. permissible
operating voltages
EUT supply frequency range
Equivalent circuit
RF output connector
EUT connection
Line input connection
Ground connection
Operating temperature
Storage temperature
Dimensions (W x H x D)
