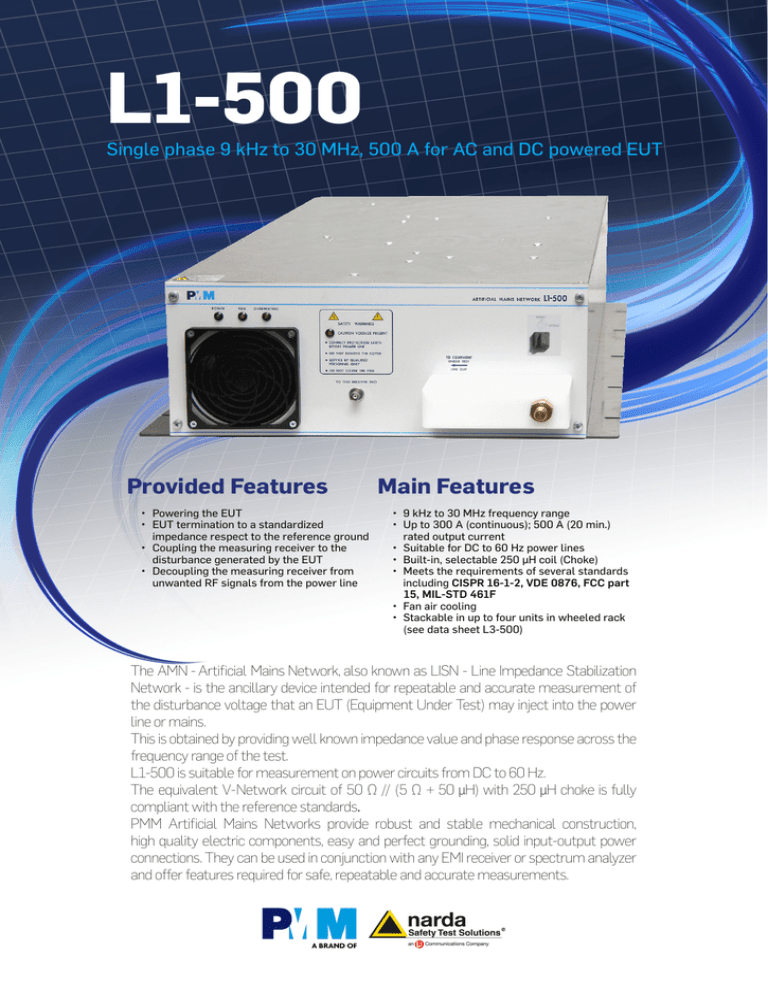

L1-500 Provided Features Main Features

L1-500 Provided Features Main Features
L1-500
Single phase 9 kHz to 30 MHz, 500 A for AC and DC powered EUT
Provided Features
•
•
•
•
Powering the EUT
EUT termination to a standardized
impedance respect to the reference ground
Coupling the measuring receiver to the
disturbance generated by the EUT
Decoupling the measuring receiver from
unwanted RF signals from the power line
Main Features
• 9 kHz to 30 MHz frequency range
• Up to 300 A (continuous); 500 A (20 min.)
rated output current
• Suitable for DC to 60 Hz power lines
• Built-in, selectable 250 µH coil (Choke)
• Meets the requirements of several standards
including CISPR 16-1-2, VDE 0876, FCC part
15, MIL-STD 461F
• Fan air cooling
• Stackable in up to four units in wheeled rack
(see data sheet L3-500)
The AMN - Artificial Mains Network, also known as LISN - Line Impedance Stabilization
Network - is the ancillary device intended for repeatable and accurate measurement of
the disturbance voltage that an EUT (Equipment Under Test) may inject into the power
line or mains.
This is obtained by providing well known impedance value and phase response across the
frequency range of the test.
L1-500 is suitable for measurement on power circuits from DC to 60 Hz.
The equivalent V-Network circuit of 50 Ω // (5 Ω + 50 μH) with 250 μH choke is fully
compliant with the reference standards.
PMM Artificial Mains Networks provide robust and stable mechanical construction,
high quality electric components, easy and perfect grounding, solid input-output power
connections. They can be used in conjunction with any EMI receiver or spectrum analyzer
and offer features required for safe, repeatable and accurate measurements.
L1-500
Single phase 9 kHz to 30 MHz, 500 A for AC and DC powered EUT
SPECIFICATIONS
Frequency range
9 kHz to 30 MHz
Maximum rated output current
500 A (20 min., starting
•
Electrical safety and presence
of ground protection relays do
require the installation of properly
rated insulating transformer(s)
between mains power line and
AMN line inputs.
•
High mains noise may require
the installation of properly rated
mains filters to reduce the level of
unwanted signals.
test at max 25 °C
LISN internal temperature)
300 A (continuous)
Maximum operating voltage
(L/N) (L/PE)
400 Vac; 565 Vdc
Power line frequency range
DC - 60 Hz
Equivalent circuit
50 Ω // [5 Ω + 50 µH]
with 250 µH Choke or Bypass
Ordering Information:
L1-500 single phase 9 kHz to 30 MHz, 500 A for AC and
DC powered EUTs
RF output
BNC female
EUT, power line, ground connectors
M14 bolts
Operating temperature
-10 °C to +40 °C
Storage temperature
-25 °C to +75 °C
Dimensions (W x H x D) Weight
(510 x 175 x 830 mm) 55 kg
Services AC supply
230 V - 50/60 Hz, 50 VA
Air cooling fans
2 x 120 mm
LED indicators
Power, fan, overheating, AC present
Contactor
250 V AC/DC - 10 A max
Optional accessories:
SBRF4 RF switching box
Automatic (in conjunction with PMM receivers) and
manual switching of up to four
single-path AMN. Internal 50 Ohm
terminations and
switchable 150 kHz high-pass
filter. Low insertion loss.
Max. operating frequency: 108 MHz
Related Products
Receivers
LISN
RFI Filters
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
7010/00: EMI receiver 150 kHz to 1 GHz
7010/01: EMI receiver 9 kHz to 1 GHz
7010/02: EMI receiver 9 kHz to 30 MHz
7010/03: EMI receiver 9 kHz to 3 GHz
9010: EMI receiver 10 Hz to 30 MHz
9010F: EMI receiver 10 Hz to 30 MHz
9010/03P: EMI receiver 10 Hz to 300 MHz
9010/30P: EMI receiver 10 Hz to 3 GHz
9010/60P: EMI receiver 10 Hz to 6 GHz
Sales Office:
Via Leonardo da Vinci, 21/23
20090 Segrate (Milano) - ITALY
Phone: +39 02 2699871
Fax: +39 02 26998700
L2-16B: single phase AMN, 16 A
L3-32: 4 lines, 3-phase AMN, 32 A
L3-64: 4 lines, 3-phase AMN, 63 A
L3-64/690: 4 lines, 3-phase AMN, 63 A
L3-100: 4 lines, 3-phase AMN, 100 A
L1-150M: single-path, 50 Ohm AMN, 150 A
L1-150M1: single-path, 50 Ohm AMN, 150 A
L3-500: 4 lines, 3-phase AMN, 500 A
L2-D: Delta LISN for telecom, 2 A, 150 Ω
E-Mail: [email protected]
Internet: www.narda-sts.it
FIL-L2-16F: single phase RFI filter, 16 A
FIL-L2-24M: single phase RFI filter, 24 A
FIL-L3-32M: 3-phase+neutral RFI filter, 32 A
FIL-L3-70M: 3-phase+neutral RFI filter, 70 A
Headquarter:
Via Benessea, 29/B
17035 Cisano sul Neva (SV) - ITALY
Phone: +39 0182 58641
Fax: +39 0182 586400
L1500-FEN-40705 - Specifications subject to changes without prior notice
L1-500 equivalent circuit
