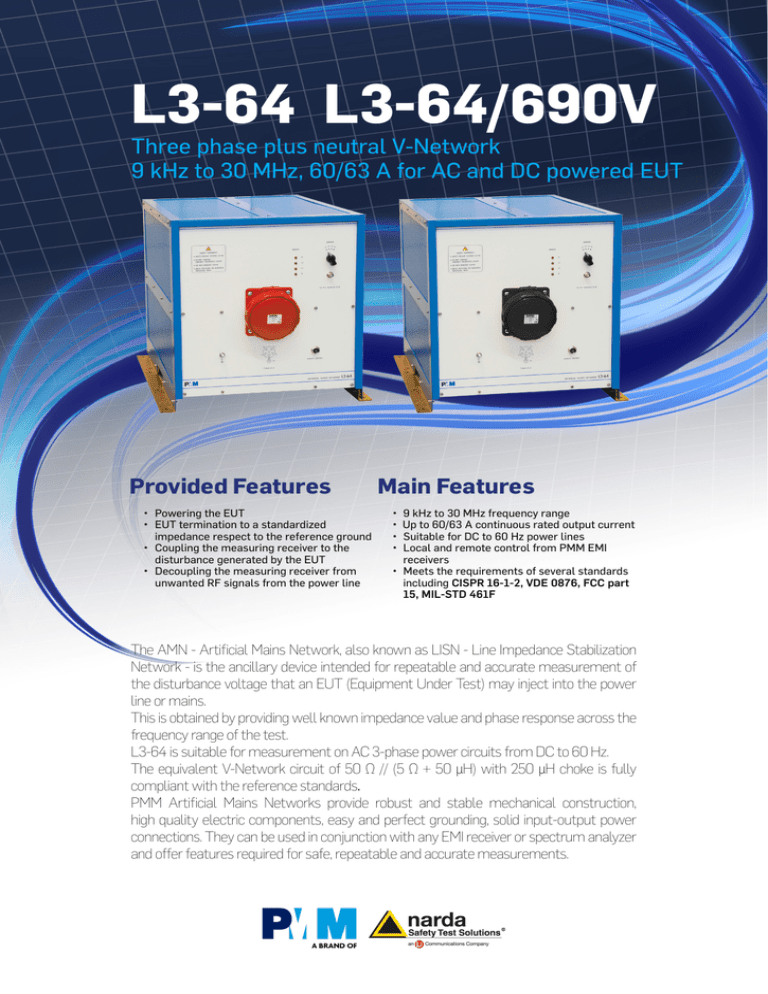

L3-64 L3-64/690V
Three phase plus neutral V-Network
9 kHz to 30 MHz, 60/63 A for AC and DC powered EUT
Provided Features
•
•
•
•
Powering the EUT
EUT termination to a standardized
impedance respect to the reference ground
Coupling the measuring receiver to the
disturbance generated by the EUT
Decoupling the measuring receiver from
unwanted RF signals from the power line
Main Features
• 9 kHz to 30 MHz frequency range
• Up to 60/63 A continuous rated output current
• Suitable for DC to 60 Hz power lines
• Local and remote control from PMM EMI
receivers
• Meets the requirements of several standards
including CISPR 16-1-2, VDE 0876, FCC part 15, MIL-STD 461F
The AMN - Artificial Mains Network, also known as LISN - Line Impedance Stabilization
Network - is the ancillary device intended for repeatable and accurate measurement of
the disturbance voltage that an EUT (Equipment Under Test) may inject into the power
line or mains.
This is obtained by providing well known impedance value and phase response across the
frequency range of the test.
L3-64 is suitable for measurement on AC 3-phase power circuits from DC to 60 Hz.
The equivalent V-Network circuit of 50 Ω // (5 Ω + 50 μH) with 250 μH choke is fully
compliant with the reference standards.
PMM Artificial Mains Networks provide robust and stable mechanical construction,
high quality electric components, easy and perfect grounding, solid input-output power
connections. They can be used in conjunction with any EMI receiver or spectrum analyzer
and offer features required for safe, repeatable and accurate measurements.
L3-64, L3-64/690V
Three phase plus neutral V-Network
9 kHz to 30 MHz, 60/63 A for AC and DC powered EUT
SPECIFICATIONS
L3-64
Frequency range
9 kHz to 30 MHz
L3-64/690V
Max. continuous rated
output current
Max. operating voltage (L/PE) (N/PE)
(L/L) (L/N)
9 kHz to 30 MHz
IEC60309
UL1682 UL1686
63 A
63 A
60 A
230 Vac; 325 Vdc
400 Vac; 565 Vdc
347 Vac; 490 Vdc
400 Vac; 565 Vdc
690 Vac; 975 Vdc
600 Vac; 850 Vdc
Input mains frequency range
DC to 60 Hz
Equivalent circuit
50 Ω // [5 Ω + 50 µH]
with 250 µH choke
DC to 60 Hz
50 Ω // [5 Ω + 50 µH]
with 250 µH choke
RF output
BNC female
Test item
63 A IEC connector
4P5W connector
Operating temperature
-10 °C to +40 °C
-10 °C to +40 °C
Storage temperature
-25 °C to +75 °C
-25 °C to +75 °C
Overall Dimensions mm (W x H x D)
465 x 450 x 740 mm
Weight
50 kg
BNC female
465 x 450 x 730 mm
50 kg
Ordering Information:
L3-64 3-phase Artificial Mains Network
L3-64/690V 3-phase Artificial Mains Network with
CSA-listed connectors (Canada)
Includes: IEC mains plug, RF cable, LISN remote control
cable, user’s manual, calibration certificate.
Optional accessories:
LISN service kit
(AC-BNC adapter for LISN verification and calibration)
•
Electrical safety and presence
of ground protection relays do
require the installation of properly
rated insulating transformer(s)
between mains power line and
AMN line inputs.
•
High mains noise may require
the installation of properly rated
mains filters to reduce the level of
unwanted signals.
