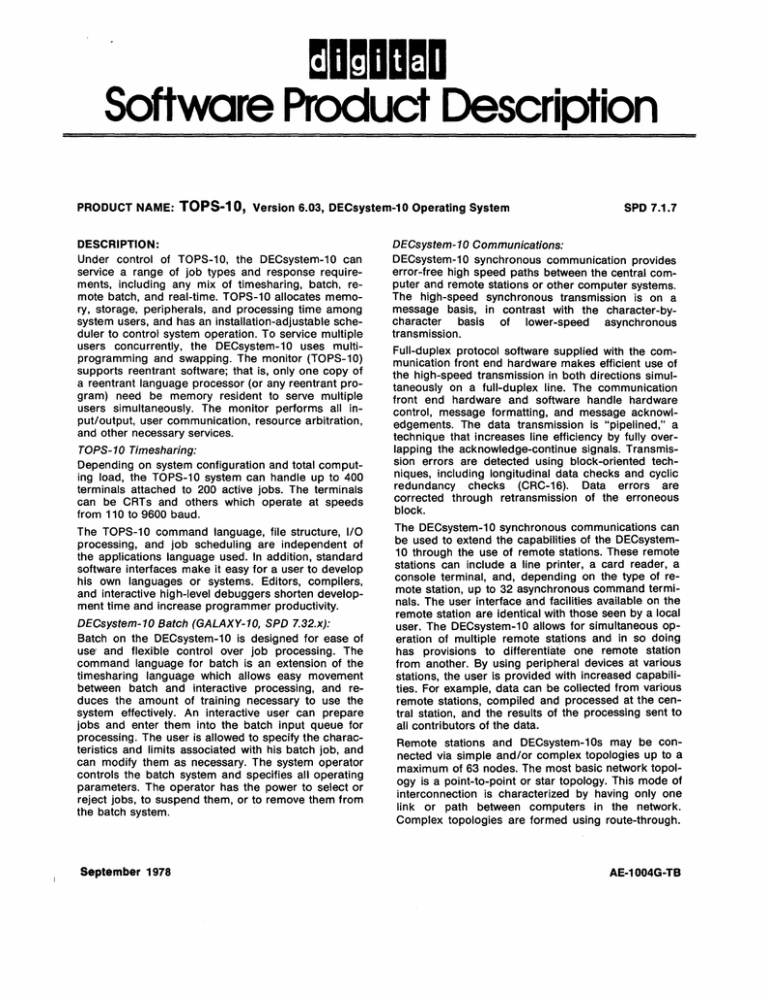

Software Product Description
PRODUCT NAME:
TOPS-10,
Version 6.03, DECsystem-10 Operating System
DESCRIPTION:
Under control of TOPS-10, the DECsystem-10 can
service a range of job types and response requirements, including any mix of timesharing, batch, remote batch, and real-time. TOPS-10 allocates memory, storage, peripherals, and processing time among
system users, and has an installation-adjustable scheduler to control system operation. To service multiple
users concurrently, the DECsystem-10 uses multiprogramming and swapping. The monitor (TOPS-10)
supports reentrant software; that is, only one copy of
a reentrant language processor (or any reentrant program) need be memory resident to serve multiple
users simultaneously. The monitor performs all input/output, user communication, resource arbitration,
and other necessary services.
TOPS-10 Timesharing:
Depending on system configuration and total computing load, the TOPS-10 system can handle up to 400
terminals attached to 200 active jobs. The terminals
can be CRTs and others which operate at speeds
from 110 to 9600 baud.
The TOPS-10 command language, file structure, I/O
processing, and job scheduling are independent of
the applications language used. In addition, standard
software interfaces make it easy for a user to develop
his own languages or systems. Editors, compilers,
and interactive high-level debuggers shorten development time and increase programmer productivity.
DECsystem-10 Batch (GALAXY-10, SPD 7.32.x):
Batch on the DECsystem-10 is designed for ease of
use- and flexible control over job processing. The
command language for batch is an extension of the
timesharing language which allows easy movement
between batch and interactive processing, and reduces the amount of training necessary to use the
system effectively. An interactive user can prepare
jobs and enter them into the batch input queue for
processing. The user is allowed to specify the characteristics and limits associated with his batch job, and
can modify them as necessary. The system operator
controls the batch system and specifies all operating
parameters. The operator has the power to select or
reject jobs, to suspend them, or to remove them from
the batch system.
September 1978
SPD 7.1.7
DECsystem-10 Communications:
DECsystem-10 synchronous communication provides
error-free high speed paths between the central computer and remote stations or other computer systems.
The high-speed synchronous transmission is on a
message basis, in contrast with the character-bycharacter basis of lower-speed asynchronous
transmission.
Full-duplex protocol software supplied with the communication front end hardware makes efficient use of
the high-speed transmission in both directions simul:"
taneously on a full-duplex line. The communication
front end hardware and software handle hardware
control, message formatting, and message acknowledgements. The data transmission is "pipelined," a
technique that increases line efficiency by fully overlapping the acknowledge-continue signals. Transmission errors are detected using block-oriented techniques, including longitudinal data checks and cyclic
redundancy checks (CRC-16). Data errors are
corrected through retransmission of the erroneous
block.
The DECsystem-10 synchronous communications can
be used to extend the capabilities of the DECsystem10 through the use of remote stations. These remote
stations can include a line printer, a card reader, a
console terminal, and, depending on the type of remote station, up to 32 asynchronous command terminals. The user interface and facilities available on the
remote station are identical with those seen by a local
user. The DECsystem-10 allows for simultaneous operation of multiple remote st~tions and in so doing
has provisions to differentiate one remote station
from another. By using peripheral devices at various
stations, the user is provided with increased capabilities. For example, data can be collected from various
remote stations, compiled and processed at the central station, and the results of the processing sent to
all contributors of the data.
Remote stations and DECsystem-10s may be connected via simple and/or complex topologies up to a
maximum of 63 nodes. The most basic network topology is a pOint-to-point or star topology. This mode of
interconnection is characterized by having only one
link or path between computers in the network.
Complex topologies are formed using route-through.
AE-1004G-TB
SPD 7.1.7
TOPS-10, Version 6.03
-2-
Route-through is the ability to send information/data
between two computers that are not directly or physically connected to each other, but which are indirectly
connected through intermediate computers.
More than one DECsystem-10 may be in a single network. When this occurs, the DECsystem-10s may be
connected directly or via a remote station. This allows
terminals anywhere in the network to select on an
individual basis which DECsystem-10 they wish to be
connected to. This concept is known as network virtual terminals.
User Command Language:
Through an easy-to-use command language, the user
controls the running of his job. Specifically, he can:
• Compile, execute, and debug programs
• Create and edit files; list, append, and delete files
• Use available resources such as mag tapes, private
disk packs, or other peripherals
• Communicate with the system operator and request
such services as the mounting and dismounting of
disk packs and magnetic tapes
• Start, suspend, or terminate his job
• Spool output to line printer, card punch, paper tape
punch, and plotter
• Determine status of the system and the resources
available
• Request time and resource accounting of his use of
the system
• Send messages to other terminals in the system
Real-time Processing:
Among the features of the real-time software are: fast
response, high throughput, and system security.
High-priority queues, the ability to lock jobs in memory, disk transfer priority, and direct access to realtime devices are all provided on a privileged basis.
Real-time programs can be written in FORTRAN or
assembly language.
DECsystem-10 File Handling:
File service for disk packs and drums is designed for
convenience and efficiency. RP04/RP06 disk packs
can be dual ported for high availability and increased
performance. Each user can have as many files as he
desires on any of the available file storage devices.
The system administrator establishes limits on the total amount of space each user's files can occupy.
Each file is referred to by name, so that the user is
not required to know where a file is physically located.
File storage is dynamically allocated during program
operation, so there is no need to preallocate space
before a file is established; however, pre-allocati(;m
may be done to guarantee the availability of space at
some later time. Files can be shared concurrently
(even with different access methods) among specified
users through the use of protection codes. Updating a
file is performed by either of two methods - superceding or updating in place.
Virtual Memory (KI and KL monitors only. Included
with KL 10 based systems. Available as an option under a separate license for KI10 based systems.):
On KI10 and KL 10 processors, operating system support of virtual memory is provided. Thus the user can
run programs with address space greater than the
physical memory actually utilized and can take advantage of typical program characteristics to reduce
memory demands for a program. A unique feature of
DECsystem-10 virtual memory is that it exists as an
option. The system administrator decides which users
need the facility, and controls are provided to both
the user and the administrator to allow them to tune
the system to their needs.
Error Handling:
TOPS-10 has extensive error detection, logging, and
recovery procedures for virtually all types of peripheral and memory failures. Error recovery provides system continuation and availability. Error logging provides the maintenance engineer and system ad ministrator with valuable information regarding hardware
failures, and aids in their diagnosis and correction.
Utilities:
The following is a list of TOPS-10 utility programs:
BACKUP
Disk/Magtape Save/Restore
Batch Controller
BA TCON
BOOT11
Loads/Dumps PDP-11 connected
through DL 10
Disk bootstrap loader
BOOTS
Magtape bootstrap loader
BOOTM
Invokes selected utilities (using
COMPIL
Concise Command Language)
Cross Reference listing generator
CREF
Monitor extension utility
DAEMON
Interactive Debugging Program
DDT
Directory Lister
DIRECT
File Compare utility
FILCOM
File Exchange utility
FILEX
Provides interactive access to inforHELP
mation on system facilities and commands
Program HELP file subroutine
HELPER
System
and terminal line initializaINITIA
tion utility
Removes a user from the system
KJOB
Line-oriented interactive editor
LINED
Linkage editor and loader
LlNK-10
Verifies and processes log-in proLOGIN
cedure
Removes a user from the system
LOGOUT
Macro Assembler
MACRO-10
Binary
file library maintenance utility
MAKLIB
System
Generation utility
MONGEN
Processes
operator device mount
OMOUNT
requests
Allows multiple programs to be conOPSER
trolled from a single terminal
File Manipulation utility
PIP
Places entries in system queues
QUEUE
TOPS-10, Version 6.03
SPD 7.1.7
-3-
REACT
SCDSET
SETSRC
SPOOL
SPRINT-10
SYSERR
SYSINF
SYSTAT
TECO
UMOUNT
WTBOOT
User profile system management
utility
Scheduler control utility
Disk search list utility
Output device spooling utility
Card reader spooling utility
Generates reports from system error
file
Interprocess communications controller
System status utility
Interactive text editor
Processes user device mount requests
Writes disk bootstraps
The following utilities are distributed with TOPS-10.
All have Category C support.
AID
MIC
ALCFIL
MONEY
BUSS-10
MONTST
CHKPNT
MTCOPY
CREDIR
PAL-10
DELFIL
PLEASE
DMPFIL
QUOLST
DSKLST
REATTA
DSKRAT
REDALL
DTBOOT
RUNOFF
DTCOPY
SCRIPT
DUMP
SOS
FACTPR
SOUP
FAILSA
SPACE
FILDAE
STRUB
FUDGE
SYSDPY
GLOB
SYSERR
GRIPE
TWICE
MINIMUM HARDWARE REQUIRED:
• DECsystem-10 with KA10, K110, or KL 10 central
processing unit, console terminal, and 128K words
of memory, or KL 1OE with 256K words of memory
• RP02, RP03, RP04, or RP06 disk pack drive with
controller
• 7- or 9-track magnetic tape transport with controller
OPTIONAL HARDWARE:
Multi-Processor Systems:
1055 Dual KA 10 Processors
1077 Dual KI10 Processors
1099 Dual KL 10 Processors
Memories:
Up to a system total of 256K words memory (KA10)
or up to 4 million words memory (K110 or KL 10), as
follows:
MA 10 Core Memory (KA)
MB10 Core Memory (KA)
MD10 Core Memory (KA)
ME10 Core Memory (KA, KI)
MF10 Core Memory (KA, KI, KL)
MG10 Core Memory (KA, KI, KL)
MH10 Core Memory (KA, KI, KL)
Disk Systems:
• RC10 fixed-head disk controller with RD10 fixedhead disk drives or RM10B drum (KA, KI)
• RP10, RP10C disk pack controller with RP02 or
RP03 disk pack drives (KA, KI, KL)
• RH 10 MASSBUS controller with RS04 fixed-head
disk drives, RP04 or RP06 disk pack (KA, KI, KL)
• RH20 MASSBUS controller with RP04 or RP06 disk
pack (KL)
Magnetic Tape Systems:
• TM10A, TM10B controller with TU10, TU20, or
TU30 magnetic tape transports (KA, KI)
• TM10B controller with TU40 or TU41 magnetic tape
transports (KA, KI, KL)
• TC10C controller with TSU43 magnetic tape transports (KA, KI)
• RH10 MASSBUS controller with TE16 magnetic
tape transport (KA, KI, KL)
• RH20 MASSBUS controller with TE16 or TU45
magnetic tape transport (KL)
• TU70, TU71, or TU72 magnetic tape tranports with
controllers (KI, KL)
• TD10C DECtape controller with TU55 or TU56 DECtape transports (KA, KI, KL)
Punched Card Equipment:
BA 10 hardcopy controller with:
CR10A, B, C, 0 punched card readers (KA, KI, KL)
CR10E console model reader (KA, KI, KL)
CR10F table model reader (KA, KI, KL)
CP10D card punch (KA, KI, KL)
Line Printers:
BA 10 hardcopy controller with:
LP10A, B, C, 0, E line printer (KA, KI, KL)
LP10F line printer (KA, KI, KL)
LP10H line printer (KA, KI, KL)
LP100 line printer controller (KA, KI, KL)
LP05 line printer (KA, KI, KL)
LP07 line printer (KA, KI, KL)
Plotters:
BA 10 hardcopy controller with XY10 plotter control
(KA, KI)
XY10A Calcomp plotter model 565 (KA, KI)
XY10B Calcomp plotter model 563 (KA, KI)
Communications:
DC10A, B, E asynchronous communications controller
(KA, KI, KL)
DC10H 2741 controller (KA, KI)
DC76 asynchronous communications front end (KA,
KI, KL)
DN87 synchronous/asynchronous front end (KA, KI,
KL)
DN87S synchronous/asynchronous front end (KL)
DN85 synchronous front end (KA, KI, KL)
DC75NP synchronous front end (KA, KI, KL)
DN61 IBM 2780/3780 bisync front end (KI, KI)
DN62S IBM 2780/3780 bisync front end (KL)
DN92 remote job entry station
DN80,81,82 remote job entry/terminal concentrator
stations (uses DN87, DN85, or DC75NP) (KA, KI, KL)
TOPS-10, Version 6.03
$PO 7.1.7
-4-
DC71 NP/DC72NP remote job entry/terminal concentrator stations (uses DN87, DN85, or DC75NP) (KA,
KI, KL)
DC68 asynchronous communications front-end (KA,
KI)
Terminals:
Up to 512 LT33, LT35, LT37, LA30, LA36, LA37, VT05,
VT06, VT50, VT52, or 2741 terminals (KA, KI, KL)
Miscellaneous:
DK10 programmable real-time clock (KA, KI, KL)
DF10, DF10C data channel (KA, KI, KL)
DAS33 buffered data channel (KA, KI, KL)
MX10, MX10C memory port multiplexer (KA, KI, KL)
DA28 DMA interface (KA, KI, KL)
PREREQUISITE SOFTWARE:
None
OPTIONAL SOFTWARE:
FORTRAN-10 (with FORDDT)
ALGOL-10
BASIC-10
COBOL 68 DEC-10
KI10 Virtual memory support (included with KL)
GALAXY-10
IQL Interactive Query Language
MCS-10 Message Control System
DBMS-10
SORT-10
APL-BASIC
APL-SF
DECnet-10
TRAINING CREDITS:
THIRTEEN (13) - Applies only to options that include
support services. Consult the latest Educational Services Catalog at your local office for the available
courses, course requirements, and guidelines.
SUPPORT CATEGORY:
A - Software Support will be provided as stated in
the Software Support Categories Addendum to this
SPD.
UPDATE POLICY:
Software Updates, if any, released by DIGITAL during
the one (1) year period following installation, will be
provided to the customer for a media charge (includes no installation). After the first year, updates, if
any, will be made available according to then prevailing DIGITAL policies.
ORDERING INFORMATION:
All binary licensed software, including any subsequent updates, is furnished under the licensing provisions of DIGITAL's Standard Terms and Conditions of
Sale, which provide in part that the software and any
part thereof may be used on only the single CPU on
which the software is first installed, and may be copied, in whole or in part (with the proper inclusion of
the DIGITAL copyright notice and any DIGITAL
proprietary notices on the software) only for use on
such CPU. All source licensed software is furnished
only under the terms and conditions of a separate
Software Program Sources Agreement between Purchaser and DIGITAL.
Source and/or listing options are only available after
the purchase of at least one binary license and after a
source license agreement is in effect.
The following key (F, K, L, M, P, Z) represents the
distribution media for the product and must be specified at the end of the order number, e.g., QS029-EF
= sources on 7-track magnetic tape.
F = 7-track Magnetic Tape
K = RP04 Disk Pack
L = RP06 Disk Pack
M
1600 bpi 9-track Magnetic Tape
P = 800 bpi 9-track Magnetic Tape
Z = No hardware dependency
Standard Options
TOPS-10 is not available as a separate product. The
following systems receive TOPS-10 software as indicated:
1050
Single-use license, sources and binaries, documentation, support services
for KA 10 systems
1070
Single-use license, sources and binaries, documentation, support services
for KI10 systems
1080
Single-use license, sources and binaries, documentation, support services
for KL 10 systems
1090
Single-use license, sources and binaries, documentation, support for KL 108
systems
Source/Listing Options
QS029 -E- Source license, sources, no documentation, no support services (media: K,
L)
ADDITIONAL
QS910 -SQS920 -SQS922 -SQS924
-S~
QHK01 -KQHK02 -KQHK04 -KQHK14 -GQHK20 -GQHK10 -GQHK12 -G-
SERVICES:
Per Call Consulting Service (media: Z)
Monthly Consulting Service (media: Z)
6-Month Resident Consulting Service
(media: Z)
12-Month Resident Consulting Service
(media: Z)
Distribution Service (media: F, M, P)
Maintenance Service (media: F, M, P)
TOPS-10, Version 6.03 (For KA 10 Sites
subcribing to QHK01) (media: F, M, P)
Software Notebook Update Service (requires QHK01 or QHK02) (media: Z)
Software Notebook (requires QHK01 or
QHK02) (media: Z)
Additional Bulletin Subscription Service
(requires QHK01 or QHK02) (media: Z)
Additional Dispatch Subscription Service (requires QHK02) (media: Z)
TOPS-10, Version 6.03
SPD 7.1.7
-5-
ADDENDUM
SOFTWARE SUPPORT CATEGORIES
Each software product (hereinafter 'SOFTWARE') with a designated Support Category A or 8 in the applicable Software Product
Description (SPD) existing at the time of order will be the current release at the time of delivery and will conform to the SPD.
DIGITAL's sole obligation shall be to correct defects (nonconformance of the SOFTWARE to the SPD) as described below. Any
SOFTWARE with a designated Support Category C will be furnished on an 'as is' basis.
For SOFTWARE with a designated Support Category A or 8, DIGITAL will provide the services set forth below without additional
charge.
CATEGORY A
1. Upon notification by customer to the nearest DIGITAL office that the computer system, including all required prerequisite
hardware and software, is ready for the installation of the SOFTWARE, DIGITAL will install such SOFTWARE in any location
within the contiguous forty-eight (48) United States, the District of Columbia, or a country in which DIGITAL or a subsidiary
of DIGITAL has a software service facility. The notification must be received by DIGITAL and the system must be ready for
installation within thirty (30) days after the delivery of the SOFTWARE to customer or DIGITAL will have no obligation to
install. Installation will consist of: (1) verification that all components of the SOFTWARE have been received by customer, (2)
loading the SOFTWARE, and (3) executing a DIGITAL sample procedure.
2. During the ninety (90) day period after installation, if the customer encounters a problem with the current unaltered release
of the SOFTWARE which DIGITAL determines to be a defect in the SOFTWARE, DIGITAL will provide the following remedial
service (on site where necessary): (1) if the SOFTWARE is inoperable, apply a temporary correction (TC) or make a
reasonable attempt to develop an emergency by-pass, and (2) assist the customer to prepare a Software Performance
Report (SPR) and submit it to DIGITAL.
3. During the one (1) year period following installation, if the customer encounters a problem with the SOFTWARE which his
diagnosis indicates is caused by a SOFTWARE defect, the customer may submit an SPR to DIGITAL. DIGITAL will respond
to problems reported in SPRs which are caused by defects in the current unaltered release of the SOFTWARE via the
Maintenance Periodical for the SOFTWARE, which reports SPRs received, code corrections, temporary corrections, generally
useful emergency by-passes and/or notice of the availability of corrected code. Software Updates, if any, released by
DIGITAL during the one (1) year period, will be provided to the customer on DIGITAL's standard distribution media as
speCified in the applicable SPD. The customer will be charged only for the media on which such updates are provided,
unless otherwise stated in the applicable SPD, at DIGITAL's then current media prices.
CATEGORY 8
During the one (1) year period following delivery, the services provided to the customer will be the same as set forth in 3 above.
CATEGORY C
SOFTWARE is provided on an 'as is' basis. Any software services, if available, will be provided at the then current charges.
DIGITAL shall have the right to make additional charges for any additional effort required to provide services resulting from
customer use of other than current unaltered release of the SOFTWARE operated in accordance with the SPD.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
