Software Product Description ~D~DDmD PDP-11 COBOL,

Software Product Description ~D~DDmD PDP-11  COBOL,
~D~DDmD

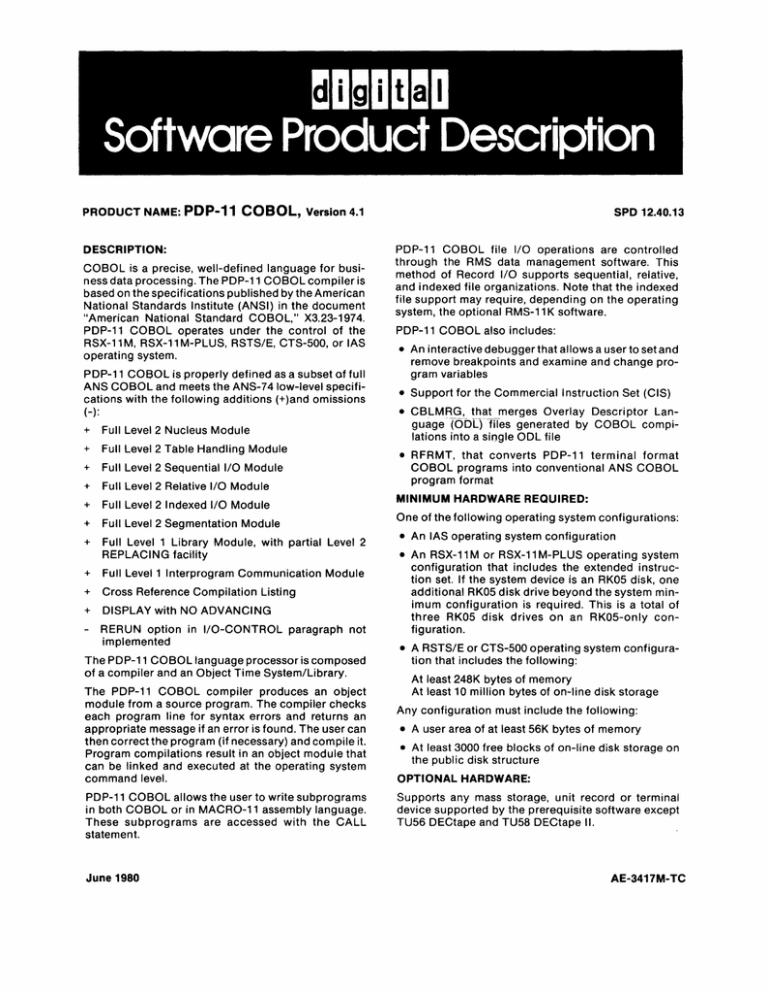

Software Product Description
PRODUCT NAME:
PDP-11 COBOL,
Version 4.1
DESCRIPTION:
COBOL is a precise, well-defined language for business data processing. The PDP-11 COBOL compiler is
based on the specifications published by the American
National Standards Institute (ANSI) in the document
"American National Standard COBOL," X3.23-1974.
PDP-11 COBOL operates under the control of the
RSX-11 M, RSX-11 M-PLUS, RSTS/E, CTS-500, or lAS
operating system.
PDP-11 COBOL is properly defined as a subset of full
ANS COBOL and meets the ANS-74 low-level specifications with the following additions (+)and omissions
(- ):
+
Full Level 2 Nucleus Module
+
Full Level 2 Table Handling Module
+
Full Level 2 Sequential I/O Module
+
Full Level 2 Relative I/O Module
+
Full Level 2 Indexed I/O Module
+
Full Level 2 Segmentation Module
+
Full Level 1 Library Module, with partial Level 2
REPLACING facility
+
Full Level 1 Interprogram Communication Module
+
Cross Reference Compilation Listjng
+
DISPLAY with NO ADVANCING
-
RERUN option in I/O-CONTROL paragraph not
implemented
The PDP-11 COBOL language processor is composed
of a compiler and an Object Time System/Library.
The PDP-11 COBOL compiler produces an object
module from a source program. The compiler checks
each program line for syntax errors and returns an
appropriate message if an error is found. The user can
then correct the program (if necessary) and compile it.
Program compilations result in an object module that
can be linked and executed at the operating system
command level.
PDP-11 COBOL allows the user to write subprograms
in both COBOL or in MACRO-11 assembly language.
These subprograms are accessed with the CALL
statement.
June 1980
SPD 12.40.13
PDP-11 COBOL file I/O operations are controlled
through the RMS data management software. This
method of Record I/O supports sequential, relative,
and indexed file organizations. Note that the indexed
file support may require, depending on the operating
system, the optional RMS-11 K software.
PDP-11 COBOL also includes:
• An interactive debugger that allows a user to set and
remove breakpoints and examine and change program variables
• Support for the Commercial Instruction Set (CIS)
• CBLMRG, that merges Overlay Descriptor Language ~ (OOLT-files generated by COBOL compilations into a Single ODL file
• RFRMT, that converts PDP-11 terminal format
COBOL programs into conventional ANS COBOL
program format
MINIMUM HARDWARE REQUIRED:
One of the following operating system configurations:
• An lAS operating system configuration
• An RSX-11 M or RSX-11 M-PLUS operating system
configuration that includes the extended instruction set. If the system device is an RK05 disk, one
additional RK05 disk drive beyond the system minimum configuration is required. This is a total of
three RK05 disk drives on an RK05-only configuration.
• A RSTS/E or CTS-500 operating system configuration that includes the following:
At least 248K bytes of memory
At least 10 million bytes of on-line disk storage
Any configuration must include the following:
• A user area of at least 56K bytes of memory
• At least 3000 free blocks of on-line disk storage on
the public disk structure
OPTIONAL HARDWARE:
Supports any mass storage, unit record or terminal
device supported by the prerequisite software except
TU56 DECtape and TU58 DECtape II.
AE-3417M-TC
SPO 12.40.13
PDP-11 COBOL, Version 4.1
-2-
PREREQUISITE SOFTWARE:
One of the following operating systems that includes
RMS-11:
• RSTS/E, Version 7.0 or, CTS-500, Version 5.0 (includes RMS-11 K, Version 1.B multikey ISAM
support)
ORSX-11 M, Version 3.2
• RSX-11 M-PLUS, Version 1.0 (includes RMS-11 K,
Version 1.8 multikey ISAM support)
• lAS, Version 3.0
The following key (0, E, H, M, Q, T, V, Z) represents the
distribution media for the product and must be specified at the end of the order number, e.g., QP011-AD =
binaries on 9-track BOO BPI Magtape (NAZI).
D
9-track BOO BPI Magtape (NRZI)
E = RK05 Disk Cartridge
H = RL02 Disk Cartridge
M = 9-track 1600 BPI Magtape (PE)
Q
RL01 Disk Cartridge
T
RK06 Disk Cartridge
V
RK07 Disk Cartridge
Z
No hardware dependency
OPTIONAL SOFTWARE:
• RMS-11 K, Version 1.B for multikey ISAM support
(RSX-11 M or lAS systems only)
For RSTSIE and CTS-500 Systems
QP011
-A- Single-use license, binaries, documentation, support services (media; 0, E, H, M,
Q, T, V)
QP011
-C- Single-use license, binaries, documentation, no support services (media: 0, E,
H, M, Q, T, V)
QP011
-D- Single-use license only,·no binaries, no
documentation, no support services
(media: Z)
• SORT-11, Version 2.0 (RSX-11 M, RSX-11 M-PLUS,
or lAS systems only)
TRAINING CREDITS:
None
SUPPORT CATEGORY:
DIGITAL SUPPORTED
PDP-11 COBOL is a DIGITAL Supported Software
Product.
SOFTWARE INSTALLATION:
DIGITAL INSTALLED
DIGITAL installation is required for Software Product
Support. There is no charge for installation if performed at the time of system installation. DIGITAL
installed software products, except for operating systems, are subject to an add-on installation fee when
purchased subsequent to system installation.
For RSX-11M and RSX-11M-PLUS Systems
QP012
-A- Single-use license, binaries, documentation, support services (media: 0, E, H, M,
Q, T, V)
QP012
-C- Single-use license, binaries, documentation, no support services (media: 0, E,
H, M, Q, T, V)
QP012
-0- Single-use license only, no binaries, no
documentation, no support services
(media: Z)
SOFTWARE PRODUCT SUPPORT
PDP-11 COBOL includes standard warranty services
as defined in the Software Support Categories Addendum of this SPD.
For lAS Systems
QP013
-A- Single-use license, binaries, documentation, support services (media: 0, E, M, Q,
QP013
-C- Single-use license, binaries, documentation, no support services, (media: 0, E,
M, Q, T)
QP013
-0- Single-use license only, no binaries, no
documentation, no support services
(media: Z)
ORDERING INFORMATION:
All binary licensed software, including any subsequent
updates, is furnished under the licensing provisions of
DIGITAL's Standard Terms and Conditions of Sale,
wh ich provide in part that the software and any part
thereof may be used on only the single CPU on which
the software is first installed, and may be copied, in
whole or in part (with the proper inclusion of the
DIGITAL copyright notice and any DIGITAL proprietary notices on the software) only for use on such CPU.
All source licensed software is furnished only under
the terms and conditions of a separate Software Program Sources License Agreement between Purchaser
and DIGITAl.
Options with no support services are only available
after the purchase of one supported license.
A single-use license only option is a licenseto copy the
software previously obtained under license.
T)
Update Options
Users of PDP-11 COBOL whose specified Support
Category warranty has expired can order under
license the following software update at the then current charge for such update. The update is distributed
in binary form on the appropriate medium and includes
no installation or other services unless specifically
stated.
SPD 12.40.13
PDP-11 COBOL, Version 4.1
-3For RSTS/E and CTS-500 Systems
Miscellaneous Options
QP011
-H- Binaries, documentation (media; D, E, H,
M,Q, T, V)
For RS TS/ E and C TS-500 Systems
QP011
-H- Right to copy for single-use (under existing license), no binaries, no documentation (media; Z)
QP011
-G- Documentation only kit (media: Z)
For RSX-11M and RSX-11M-PLUS Systems
QP012
-G- Documentation only kit (media: Z)
For RSX-11M and RSX-11M-PLUS Systems
For lAS Systems
QP012
-H- Binaries, documentation (media: D, E, H,
M, Q, T, V)
QP013
QP012
-H- Right to copy for single-use (under existing license), no binaries, no documentation (media: Z)
For lAS Systems
QP013
-H- Binaries, documentation (media: D, E,
M, Q, T)
QP013
-H- Rightto copy for single-use (under existing license), no binaries, no documentation (media: Z)
-G- Documentation only kit (media: Z)
ADDITIONAL SERVICES:
Post-warranty Software Product Services for this software product are available with the prerequisite being
the purchase of the RSTS/E, RSX-11 M, RSX-11 MPLUS, or lAS Self-Maintenance Service for Software. Customers should contact their local DIGITAL office for
additional information.
