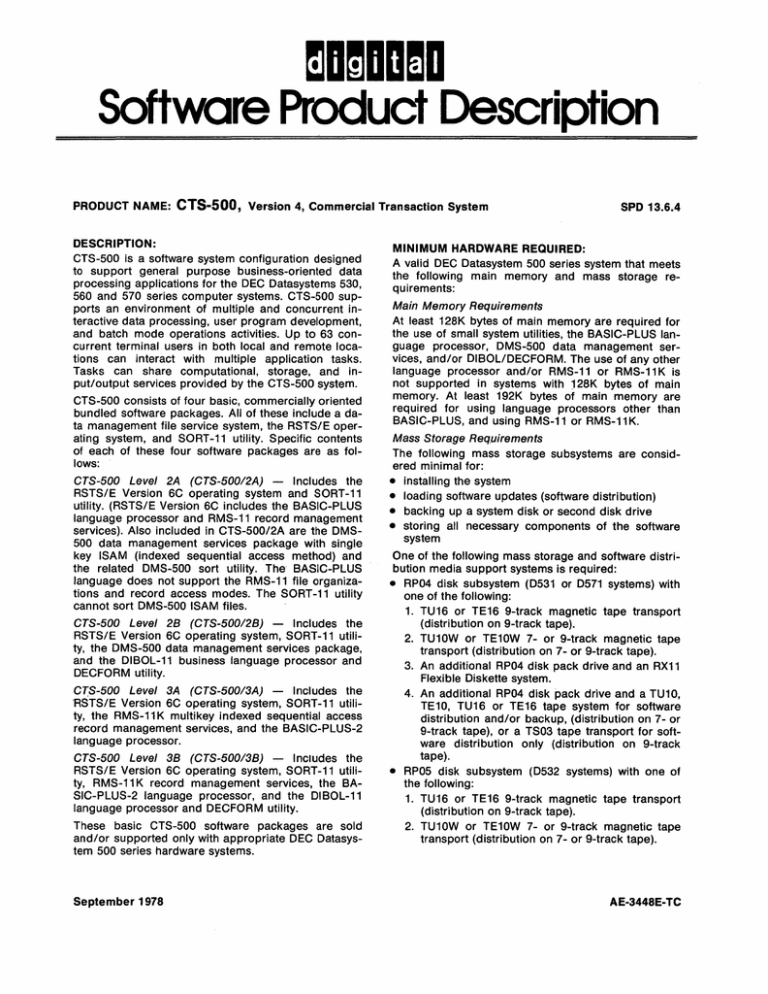

Software Product Description
PRODUCT NAME:
CTS-500,
Version 4, Commercial Transaction System
DESCRIPTION:
CTS-500 is a software system configuration designed
to support general purpose business-oriented data
processing applications for the DEC Datasystems 530,
560 and 570 series computer systems. CTS-SOO supports an environment of multiple and concurrent interactive data processing, user program development,
and batch mode operations activities. Up to 63 concurrent terminal users in both local and remote locations can interact with multiple application tasks.
Tasks can share computational, storage, and input/output services provided by the CTS-500 system.
CTS-500 consists of four basic, commercially oriented
bundled software packages. All of these include a data management file service system, the RSTS/E operating system, and SORT -11 utility. Specific contents
of each of these four software packages are as follows:
CTS-500 Level 2A (CTS-50012A) Includes the
RSTS/E Version 6C operating system and SORT-11
utility. (RSTS/E Version 6C includes the BASIC-PLUS
language processor and RMS-11 record management
services). Also included in CTS-500/2A are the DMS500 data management services package with single
key ISAM (indexed sequential access method) and
the related DMS-500 sort utility. The" BASIC-PLUS
language does not support the RMS-11 file organizations and record access modes. The SORT -11 utility
cannot sort DMS-500 ISAM files.
CTS-500 Level 28 (CTS-500128) Includes the
RSTS/E Version 6C operating system, SORT -11 utility, the DMS-500 data management services package,
and the DIBOL-11 business language processor and
DECFORM utility.
CTS-500 Level 3A (CTS-50013A) Includes the
HSTS/E Version 6C operating system, SORT -11 utility, the RMS-11 K multikey indexed sequential access
record management services, and the BASIC-PLUS-2
language processor.
CTS-500 Level 38 (CTS-500138) InCludes the
RSTS/E Version 6C operating system, SORT-11 utility, RMS-11 K record management services, the BASIC-PLUS-2 language processor, and the DI BOL-11
language processor and DECFORM utility.
These basic CTS-500 software packages are sold
and/or supported only with appropriate DEC Datasystem 500 series hardware systems.
September 1978
SPD 13.6.4
MINIMUM HARDWARE REQUIRED:
A valid DEC Datasystem 500 series system that meets
the following main memory and mass storage requirements:
Main Memory Requirements
At least 128K bytes of main memory are required for
the use of small system utilities, the BASIC-PLUS language processor, DMS-500 data management services, and/or DIBOLlDECFORM. The use of any other
language processor and/or RMS-11 or RMS-11 K is
not supported in systems with ~ 28K bytes of main
memory. At least 192K bytes of main memory are
required for using language processors other than
BASIC-PLUS, and using RMS-11 or RMS-11 K.
Mass Storage Req,uirements
The following mass storage subsystems are considered minimal for:
• installing the system
• loading software updates (software distribution)
• backing up a system disk or second disk drive
• storing all necessary components of the software
system
One of the following mass storage and software distribution media support systems is required:
• RP04 disk subsystem (D531 or D571 systems) with
one of the following:
1. TU16 or TE16 9-track magnetic tape transport
(distribution on 9-track tape).
2. TU10W or TE10W 7- or 9-track magnetic tape
transport (distribution on 7- or 9-track tape).
3. An additional RP04 disk pack drive and an RX11
Flexible Diskette system.
4. An additional RP04 disk pack drive and a TU10,
TE10, TU16 or TE16 tape system for software
distribution and/or backup, (distribution on 7- or
9-track tape), or a TS03 tape transport for software distribution only (distribution on 9-track
tape).
• RP05 disk subsystem (D532 systems) with one of
the following:
1. TU16 or TE16 9-track magnetic tape transport
(distribution on 9-track tape).
2. TU10W or TE10W 7- or 9-track magnetic tape
transport (distribution on 7- or 9-track tape).
AE-3448E-TC
SPD 13.6.4
CTS·SOO, Version 4
·2·
3. An additional RPOS disk pack drive and an RX11
Flexible Diskette system.
4. An additional RPOS disk pack drive with a TU10,
TE10, TU16, or TE16 tape system for software
distribution and/or backup, (distribution on 7- or
9-track tape), or a TS03 tape drive for software
distribution only (distribution on 9-track tape).
• RP06 disk subsystem (0533 systems) with one of
the following:
1. TU16 9-track magnetic tape transport (distribution on 9-track tape).
2. TU10W or TE10W 7- or 9-track magnetic tape
transport (distribution on 7-or 9-track tape).
3. An additional RP06 disk pack drive and an RX11
Flexible Diskette system.
4. An additional RP06 disk pack drive with a TU10,
TU16, TE10, or TE16 tape transport sub-system
backup and distribution, (distribution on 7- or 9track tape), or a TS03 tape transport for software distribution only (distribution on 9-track
tape).
• RPR02 or RP03 disk subsystem (0530 or OS540
systems) with one of the following:
1. TU16 or TE16 9-track magnetic tape transport
(distribution on 9-track tape).
2. TU10W or TE10W 7- or 9-track magnetic tape
transport (distribution on 7-or 9-track tape).
3. An additional RPR02 or RP03 and an RX11 Flexible Diskette system.
4. An additional RPR02 or RP03 with a TE10, TU 16,
or TE16 tape system for software distribution
and/or backup (distribution on 7- or 9-track
tape), or a TS03 tape transport for distribution
only (distribution on 9-track tape).
• RM03 disk subsystem (0570 systems only) with one
of the following:
1. TU16 or TE16 9-track magnetic tape transport
and appropriate controller (distribution on 9track tape).
2. TU10W or TE10W 7- or 9-track magnetic tape
transport (distribution on 7- or 9-track tape).
3. An additional RM03 disk pack drive and an
RX11 Flexible Diskette system.
4. An additional RM03 disk pack drive with either a
TU10W, TW10W, TU16, or TE16 tape system for
software distribution and/or backup, or a TS03
tape transport for distribution only (distribution
on 7- or 9-track tape).
• Dual RK05J, or RK05F and RK05J, disk ~ubsystem
(0534 systems only) with one of the follOWing:
1. An additional (third) RK05J or a second RK05J
drive (for systems ~ith RKOSF).
2. A TU10W or TE10W, a 7- or 9-track TU16, or a
9-track TE16 magnetic tape sub-system for
backup and/or distribution, or a TS03 tape drive
for distribution only.
NOTE:
The volume other than the system disk
cartridge (the second) requires backup on
peripheral storage devices other than the
system device. Note that the amount of
disk storage available on a minimal RK05
based system may not be sufficient to
support all the bundled CTS-500 and optionally supported software.
• An RK06 disk subsystem (0537, 0567, or OS77 systems) with either one of the following:
1. A second RK06 or TS03 tape drive for software
distribution only (distribution on RK06 or 9-track
tape).
2. Two additional RK06 drives or one additional
RK06 and a TU10, TE10, (7- or 9-track) TU16 or
(9-track) TE16 tape system for backup of second
RK06. A TS03 tape drive can also be included in
place of either one of the above, for software
distribution only.
NOTE:
A second disk drive or another mass storage device is required for backup of the
system storage device.
• An RL01 disk subsystem (0535 system) with one of
the following:
1. TU16 and TE16 9-track magnetic tape transport
and appropriate controller (distribution on 9track tape).
2. TU10W or TE10W 7- or 9-track magnetic tape
transport (distribution on 7- or 9-track tape).
3. An additional RL01 disk drive with either a
TU10W, TW10W, TU16, or TE16 tape system for
software distribution and/or backup, or a TS03
tape transport for distribution only (distribution
on 7- or 9-track tape).
• An RK07 disk subsystem (0538 system) with either
one of the following:
1. A second RK07 or TS03 tape drive for software
distribution only (distribution on RK07 or 9-track
tape).
2. Two additional RK07 drives or one additional
RK07 and a TU10, TE10, (7- or 9-track) TU16 or
(9-track) TE16 tape system for backup of second
RK07. TS03 tape drive can also be included in
place of either one of the above, for software
distribution only.
OPTIONAL HARDWARE:
Mass Storage Devices
• Up to a system total of eight RK05J OECpack cartridge drives (for dual RK05J systems only).
• Up to a system total of four RK05J or RK05F l?ECpack drives (for fixed/removable RK05 cartndge
drive based system only).
• Additional parity main memory up to a total of 2S6K
bytes (248K addressable) for 0530 and 0560 systems and up to 3.84M bytes for 0570 systems.
CTS-500, Version 4
SPD 13.6.4
-3-
• Floating Point Processor (FP11-C) or Floating Point
Instruction Set (FP11-A).
• Up to a system total of eight RK06 disk drives attached to RK06 based systems.
• Up to a system total of eight RL01 disk drives attached to RL01 based systems.
• Up to a system total of eight RK07 disk drives attached to RK07 based systems.
• Up to a system total of eight RPR02 or RP03 disk
drives attached to an RPR02 or RP03 based on
0530 or DSS40 or DSS45 system. Can be a mixed
drive configuration on 0530 (RP11 or RP11-E controller only).
• Up to a system total of eight RP04, RPOS or RP06
drives on an RP04, RPOS or RP06 based system.
May be mixed drive configurations. RP06 packs
cannot be mounted on RP04 or RPOS drives.
• RF11 Fixed Head Disk System with up to eight
drives; or RJS03/RJS04 swapping disk for 0530
series (RWS03/RWS04 for 0570 series) with a total
of four drives maximum.
• RX11 Flexible Diskette System with total of up to
eight diskette drives. These may be used only for
software media interchange or distribution.
• TJU16 or TJE16 (0530 and DS540 systems only) or
TWU16 or TWE16 (for 0570 systems only) 9-track
SOO/1600 bpi tape subsystem with up to seven additional TU16 and/or TE16 tape drives (8 total maximum).
• TME11-A, -B 7- or 9-track 800 bpi tape system with
up to seven additional (8 maximum) TE10W-B or
TE10W-A tape drives.
• TMB11 system with a total of two TS03 drives.
Terminals and Unit Record Equipment
• Up to eight LA 11, LP11, or LS11 local (not more
than 25 feet from CPU) line printers.
• One (1) CR11, CD11, or CM11 card reader.
• System total of 63 terminals (keyboard-printer
and/or keyboard display printer only of the following types: LA30, LA35, LA36, LT33, LT35, VT05,
VTSO, VT52, RT02, VTSO-H and/or IBM 2741 or
equivalent).
• Up to 8 remote LA180S (LA180-C or LA1S0-E)
print-only (serial asynchronous communications line
interface) terminals will be supported as a spooled
line printer only subject to the following constraints
and/or conditions:
1. The LA 180S print-only terminal must be connected to the CTS-SOO system by a full-duplex
line. Operation of this device is not supported by
the CTS-500 terminal driver software.
2. The LA 180S must be handled as a spooled line
printer by the CTS-500 operating system.
3. No provision is made by either the software or
hardware to ensure integrity of the data transmitted/received on the channel or line.
4. CTS-500 software does not automatically clear
or recover one LA 180S-specific synchronization
condition. Manual operator intervention is required.
• Up to 15 of the 63 user terminals can be interfaced
by single line asynchronous interface line controllers (Le. KL 11, DC11, DL 11). The remaining 48 must
be interfaced by 16- or 8-line asynchronous
multiplexers, (Le. DH11-AD, DH11-AE, DZ11·E, or
DZ11-A). The DH 11-A multiplexers must be
equipped with a DM11-BB modem control option if
auto answer and/or certain other features provided
by EIA, RS-232, or CCITT recommendation V.24
compatible interfaces are to be used by the system.
The DZ11 multiplexer is capable of supporting full
modem control of Bell system type 103 and 113
modems, or equivalent, only.
PREREQUISITE SOFTWARE:
None
OPTIONAL SOFTWARE:
• PDP-11 COBOL Version 3 or later
• FORTRAN IV for RSTS/E, Version 2 or later
• APL-11, Version 1
• RPG II for RMS-11 K, Version 8 or later (option for
level 3A or 3B)
• RPG II for CTS-500, Version 7.08 (option for level
2A or 28)
• RMS-11 K, Version 1.5/BASIC-PLUS-2 (option for
CTS-SOO/3A)
• DATATRIEVE-11, Version 1
• CTS-SOO/2780, Version 3.0 (RSTS/E-2780)
• DI80L-11/DECFORM, Version 4C (option for level
2A systems)
• DIBOL-11/DECFORM, Version 40 (option for level
2A, 28, and 3A systems)
TRAINING CREDITS:
For CTS-500/2A and CTS-500/3A:
Three (3)
For CTS-500/2B and CTS-500/3B:
Four (4)
Applies only to options that include support services.
Consult the latest Educational Services Catalog at
your local office for the available RSTS/E and/or 01BOL/DECFORM courses, course requirements, and
guidelines.
SUPPORT CATEGORY:
A - Software Support will be provided as stated in
the Software Support Categories Addendum to this
SPO.
UPDATE POLICY:
Software Updates, if any, released by DIGITAL during
the one (1) year period following installation, will be
provided to the customer for a media charge (includes no installation). After the first year, updates, if
any, will be made available according to then prevailing DIGITAL policies.
SPD 13.6.4
CTS-SOO, Version 4
-4-
ORDERING INFORMATION:
All binary licensed software, including any subsequent updates, is furnished under the licensing provisions of DIGITAL's Standard Terms and Conditions of
Sale, which provide in part that the software and any
part thereof may be used on only the single CPU on
which the software is first installed, and may be
copied, in whole or in part (with the proper inclusion
of the DIGITAL copyright notice and any DIGITAL
proprietary notices on the software) only for use on
such CPU. All source licensed software is furnished
only under the terms and conditions of a separate
Software Program Sources Agreement between Purchaser and DIGITAL.
Standard options with no support services are only
available after the purchase of one supported license.
When a software license is ordered without support
services, the category of support applicable to such
software is Category C.
A single-use license only option is a license to copy
the software previously obtained under license, and
use such software in accordance with DIGITAL's
Standard Terms and Conditions of Sale. The category
of support applicable to such copied software is Category C.
The following character keys are used in the hardware/software system order codes to represent the
processor type, system device, software configuration
level, form of power and software option. They must
appear in the proper position in the order number, as
indicated below:
05---
-
x-
L
Power and software support
category (or license onlyoption).
[Reserved for configuration revision level and/or RK05 disk
type.]
' -_ _ _ CTS-500 Software configuration
level.
' - - - - - - System storage device.
L-._ _ _ _ _ .
Processor (CPU) type.
Processor Type:
3 = PDP-11/34
6 = POP-11/60
7 = PDP-11/70
System Device:
1
RP04 disk pack based system
RP06 disk pack based system
3
4
RK05 DECpack based system
RL01 disk cartridge based system
5
RM03 disk pack based system
6
7
RK06 disk cartridge based system
8
RK07 disk cartridge based system
Software Configuration Level:
A
CTS-500 Level 2A (CTS-500/2A)
B = CTS-500 Level 2B (CTS-500/2B)
C = CTS-500 Level 3A (CTS-500/3A)
o = CTS-500 Level 3B (CTS-500/3B)
Power and Software Option
A = 60 Hz power, single-use license, binaries, documentation, and support services.
o = 50 Hz power, single-use license, binaries, documentation, and support services.
Y = 60 Hz power, single-use license only, no binaries, no documentation, and no support services.
Z = 50 Hz power, single-use license only, no binaries, no documentation, and no support services.
For example:
D534A CD 0530 system (includes POP-11/34 CPU,
dual RK05J OECpack, CTS-500/2A
software configuration level, and 50Hz
power supply), single-use license, binaries, documentation and support
vices.
ser-
Standard Options
053-- -C- 0530 system, single-use license, binaries, documentation, support services
(System Device: 1, 3, 5, 6, 7, 8; Software Configuration Level: A, B, C, 0;
Power and Software Option: A, D)
053-- -C- 0530 system, single-use license only
(System Device: 1, 3, 5, 6, 7, 8; Software Configuration Level: A, B, C, 0;
Power and License: Y, Z)
0534- -C- 0530 system with two RK05-J removable disk cartridge drives, single-use license, binaries, documentation, support services (Software Configuration
Level: A, B, C, 0; Power and License:
A, D)
0534- -C- 0530 system with two RK05-J removable disk cartridge drives, single-use license only (Software Configuration
Level: A, B, C, 0; Power and License:
Y, Z)
0534- -0- 0530 system with one RK05-J removable disk cartridge drive and one
RK05-F non-removable disk cartridge
drive, single-us~ license only (Software
Configuration Level: A, B, C, 0; Power
and License: Y, Z)
056-- -A- 0560 system, single-user license binaries, documentation support services
(System Device: 1, 3, 6, or 7; Software
Configuration Level: A, B, C, 0; Power
and License: A, D)
056-- -A- 0560 system, single-use license only
(System Device: 1, 3, 6 or 7; Software
Configuration Level: A, B, C, 0; Power
and License: Y, Z)
057---A- 0570 system, single-use license, binaries, documentation, support services
(System Device: 1, 3, 6, 7; Software
Configuration Level: A, B, C, 0; Power
and License: A, D)
SPD 13.6.4
CTS-500, Version 4
-5-
057- - -A- 0570 system, single-use license only
(System Device: 2, 3, 7; Software Configuration Level: A, B, C, D; Power and
License: Y, Z)
The following key (0, E, F, a, T, v, Z) represents the
distribution media for the product and must be specified at the end of the order number, e.g., ap512-AD
= binaries on 9-track magnetic tape.
o
E
F
a
T
V
Z
9-track Magnetic Tape
RK05 Disk Cartridge
7-track Magnetic Tape
RL01 Disk Cartridge
RK06 Disk Cartridge
RK07 Disk Cartridge
No hardware dependency
Upgrade Options
To CTS-500 Level 2B:
The following option is available as an upgrade kit
from CTS-300 Version 1 or later for use on the same
single CPU on which CTS-300 Version 1 or later is
licensed. The license previously granted for CTS-300
Version 1 or later shall be extended to cover this upgrade.
ap512 -A- Single-use license, binaries, documentation, support services (includes three
(3) training credits) (media: D, E, F, a,
T, V)
ap512 -C- Single-use license, binaries,
documentation, no support services
(media: 0, E, F, a, T, V)
To CTS-500 Leve/3B:
The following option is available as an upgrade kit
from CTS-300 Version 1 or later for use on the same
single CPU on which CTS-300 Version 1 or later is
licensed. The license previously granted for CTS-300
Version 1 or later shall be extended to cover this upgrade.
ap524 -A- Single-use license, binaries, documentation, support services '(includes three
(3) training credits) (media: D, E, F, a,
T, V)
ap524 -C- Single-use license, binaries, documentation, no support services (media: D,
E, F, a, T, V)
Update Options
Users of CTS-SOO Version 3 whose specified Support
Category warranty has expired, or whose RSTS/E
Standard Program Update Service has expired, may
order under their CTS-SOO license the following software update at the then current charge for such update. The update is distributed in binary form on the
appropriate medium and includes no installation or
other services unless specifically stated otherwise.
aR430 -H- RSTS/E Version 6C binaries, documentation (media: 0, E, F, T)
ap601 -H- SORT-11 Version 2 binaries, documentation (media: D, E, T)
ADDITIONAL SERVICES:
aR430 -3- RSTS/E Standard Binary Program
Update Service (media: D, E, F, T)
aR430 -1- RSTS/E Dispatch Subscription Service
(media: Z)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
