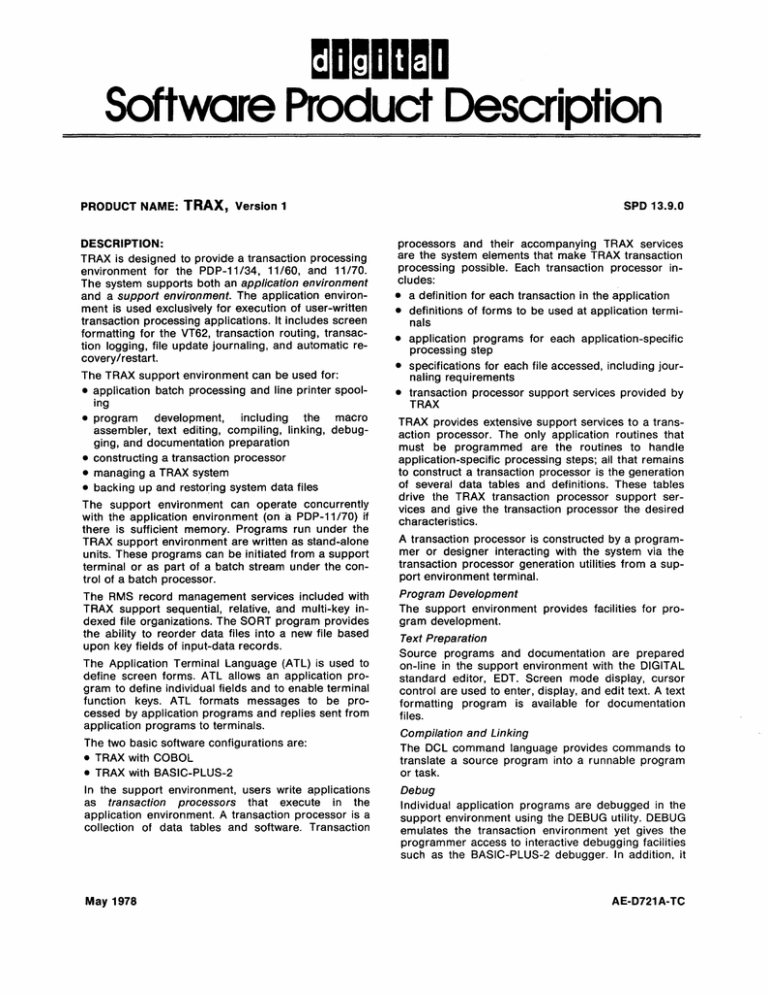

Software Product Description
PRODUCT NAME:
TRAX,
Version 1
DESCRIPTION:
TRAX is designed to provide a transaction processing
environment for the PDP-11/34, 11/60, and 11170.
The system supports both an application environment
and a support environment. The application environment is used exclusively for execution of user-written
transaction processing applications. It includes screen
formatting for the VT62, transaction routing, transaction logging, file update journaling, and automatic recovery/restart.
The TRAX support environment can be used for:
• application batch processing and line printer spooling
• program
development,
including the macro
assembler, text editing, compiling, linking, debugging, and documentation preparation
• constructing a transaction processor
• managing a TRAX system
• backing up and restoring system data files
The support environment can operate concurrently
with the application environment (on a PDP-11/70) if
there is sufficient memory. Programs run under the
TRAX support environment are written as stand-alone
units. These programs can be initiated from a support
terminal or as part of a batch stream under the control of a batch processor.
The RMS record management services included with
TRAX support sequential, relative, and multi-key indexed file organizations. The SORT program provides
the ability to reorder data files into a new file based
upon key fields of input-data records.
The Application Terminal language (ATl) is used to
define screen forms. ATl allows an application program to define individual fields and to enable terminal
function keys. ATl formats messages to be processed by application programs and replies sent from
application programs to terminals.
The two basic software configurations are:
• TRAX with COBOL
• TRAX with BASIC-PlUS-2
In the support environment, users write applications
as transaction processors that execute in the
application environment. A transaction processor is a
collection of data tables and software. Transaction
May 1978
SPD 13.9.0
processors and their accompanying TRAX services
are the system elements that make TRAX transaction
processing possible. Each transaction processor includes:
• a definition for each transaction in the application
• definitions of forms to be used at application terminals
• application programs for each application-specific
processi ng step
• specifications for each file accessed, including journaling requirements
• transaction processor support services provided by
TRAX
TRAX provides extensive support services to a transaction processor. The only application routines that
must be programmed are the routines to handle
application-specific processing steps; all that remains
to construct a transaction processor is the generation
of several data tables and definitions. These tables
drive the TRAX transaction processor support services and give the transaction processor the desired
characteristics.
A transaction processor is constructed by a programmer or designer interacting with the system via the
transaction processor generation utilities from a support environment terminal.
Program Development
The support environment provides facilities for program development.
Text Preparation
Source programs and documentation are prepared
on-line in the support environment with the DIGITAL
standard editor, EDT. Screen mode display, cursor
control are used to enter, display, and edit text. A text
formatting program is available for documentation
files.
Compilation and Linking
The Del command language provides commands to
translate a source program into a runnable program
or task .
Debug
Individual application programs are debugged in the
support environment using the DEBUG utility. DEBUG
emulates the transaction environment yet gives the
programmer access to interactive debugging facilities
such as the BASIC-PLUS-2 debugger. In addition, it
AE-D721 A-Te
TRAX, Version 1
SPD 13.9.0
-2allows the programmer, either interactively or via a
file, to provide the input messages for the application
program to process. All external calls made by the
application program are logged in a file or on the
support terminal.
When all application programs are individually tested,
a debug transaction processor can be constructed to
run in the application environment. This incorporates
a full trace facility as well as software error logging
for the operator's use.
System and Data Integrity
Data integrity, availability, and reliability are provided
by backup, restore, automatic restart, and security facilities.
Record locking ensures that simultaneous updates to
a record do not destroy the integrity of the user's file
set. The system staging facilities protect file sets from
transaction aborts. Journaling can provide parallel
recording of changes to staged data files as transaction execution tasks are completed. Facilities are provided for off-line application of recorded changes to a
backup copy of an application's file set to fully restore
the file set in the event of a system failure. Off-line
facilities can back up user data file sets or restore
them from previous backup copies. The system recovers from system or user transaction aborts and
resource interlocks between transactions.
TRAX recovers from most system crashes, including
power failure. Transactions in progress will be aborted, with the system performing all required cleanup
operations. If a transaction instance has been
completed, but the system is in the process of applying staged file updates when the crash occurred, then
upon restart the system will perform all necessary operations to assure that the updates are correctly applied.
Application Terminal Security
Application terminal security is provided by utilities
that establish sign-on/sign-off definitions, work classes, and user authorizations.
A work class is a list of transactions stored as part of
the transaction processor. When associated with a
terminal station or a user identifier, a work class determines the transactions permitted a station or user.
A given transaction can be included in any number of
work classes.
Batch and Spooling
A centralized QUEUE facility within the support environment allows the generation of multiply-named
work queues and the subsequent submission of batch
or line printer spooling jobs to named queues. The
submission can occur from a support terminal, from a
program running in the support environment, or from
a transaction application program running in a transaction processor. Multiple batch processors and line
printer spoolers can operate concurrently.
Software Performance Monitoring
A set of utilities can be used to produce extensive
transaction processor statistics. These utilities keep
track of various system parameters and provide a
picture of the transaction processor operation over
chosen periods of time. The statistics collected include station, cache, transaction, and data file statistics as well as general system statistics.
The reports provided by these utilities contain userselected data. The report generation utility can run
independently of the sample gathering so that reports
can be generated during off hours or as a low priority
background job.
Software Error Logging
Software error logging provides the ability to log all
transaction processor-detected errors to a disk file
and optionally to a support terminal. A utility can be
used to select and format the software error entries
into an error log report.
Software error logging detects malfunctioning applications software and provides a tool to debug an online transaction system. The software error log also
reports terminal status errors and hardware errors
that were detectable only by software.
Hardware Error Logging
Hardware error logging monitors the hardware reliability of the system.
It detects and records information about hardware errors as they occur whether or not the errors are recoverable.
The analysis and report utilities can be used to detect
increased error frequency and can thus aid the scheduling of maintenance.
System Generation
System generation includes interactive dialogue and
hardware auto-sizing. Everything the system can do
by itself is done without involving the operator. All
TRAX options are fully installed by answering "yes" to
a question and mounting the option tape; no special
installation instructions are required. When the
generation is complete, a copy of the system is stored
on magnetic tape so system generation need not be
repeated.
Patching is fully automated; all control and patch data
reside on a single magnetic tape.
On-line Diagnostics
A set of diagnostiCS can be run from the support environment while normal system operation continues.
Possible hardware problems can be investigated without terminating normal system operation.
MINIMUM HARDWARE REQUIRED:
The minimum hardware configurations described below will support four VT62 terminals with a transaction processor cache (user area) of 32K bytes.
• PDP-11/34, or PDP-11/60 (no WCS support), with
at least 192K bytes of memory
• PDP-11/70 with at least 256K bytes of memory (at
least 384K bytes of memory are required to operate
the
application
and
support
environments
concurrently)
with
• KT11 Memory Management Unit
SPD 13.9.0
TRAX, Version 1
-3-
• LA36 Console terminal
• KW11-L or KW11-P clock, or DL 11-WA/WB console
interface and line frequency clock
• One of the following disk systems
1. RK711 (11/34, 11/60 only) disk cartridge controller, and drive, and an additional RK07 disk
drive.
2. RJM02 (11/34, 11160 only) disk pack controller
and drive.
3. RWM03 (11/70 only) disk pack controller and
drive.
4. RJ P04 (RWP04 for 11/70) disk pack controller
and drive.
5. RJP05 (RWP05 for 11/70) disk pack controller
and drive.
6. RJP06 (RWP06 for 11170) disk pack controller
and drive.
• One of the following magnetiC tape systems:
1. TJE16 (TWE16 for 11/70) magnetic tape controller (includes one TE16 transport).
2. TJU45 (TWU45 for 11/70) magnetic tape controller (includes one TU45 transport).
3. TJU16 (TWU16 for 11/70) magnetic tape controller (includes one TU16 transport).
OPTIONAL HARDWARE:
• Additional memory to a system total of 248K bytes
for 11/34 and 11/60, or additional memory to a system total of 3840K bytes for 11170.
• FP11 Floating Point Processor
• KE11-F Floating Instruction Set
• KW11-C Calendar Clock
• 96-character, 132-column LP11 line printer
• LA180P
MASS STORAGE:
• RK07, RP04, RP05, or RP06 disk pack drives (with
appropriate controller)
• RM02 disk pack drives (with appropriate controller)
• RM03 disk pack drives (with appropriate controller)
• TU16, TE16, or TU45 tape transports (with
appropriate controller)
One of the following (for 11170 systems only)
• An additional RWM03 disk pack controller
• An additional RWP04 disk pack controller
• An additional RWP05 disk pack controller
• An additional RWP06 disk pack controller
TERMINALS:
• Up to 16 LA36 or VT52 support environment terminals connected by DZ-11A, -B, or -E interfaces or
DL-11 D interfaces. Up to 8 LA36 or VT52 support
environment terminals when operating the support
environment and the application environment concurrently.
Up to a total of 64 application environment terminals
(VT62, LA180P (attached to VT62) or LA180S) using:
1. At most 48 asynchronous terminal lines provided
by a dedicated KMC11-A and DZ11-A, -B, or -E
interfaces.
2. At most 16 synchronous terminal lines provided
by a dedicated KMC11-A and DUP11 interface(s). Each DUP11 can support up to a maximum of 8 VT62 terminals.
NOTE:
An asynchronous or synchronous terminal
line can support a maximum of 8
multidropped terminals.
PREREQUISITE SOFTWARE:
None
OPTIONAL SOFTWARE:
TRAX/COBOL (available only for TRAX with
TRAX/BASIC-PLUS-2)
TRAX/BASIC-PLUS-2 (available only for TRAX with
TRAX/COBOL)
TRAX/TL (Transaction Link)
TRAX/3271-TL
TRAINING CREDITS:
FOUR (4) - Applies only to options that include support services. Consult the latest Educational Services
Catalog at your local office for the available courses,
course requirements, and guidelines.
SUPPORT CATEGORY:
A - Software Support will be provided as stated in
the Software Support Categories Addendum to this
SPD.
UPDATE POLICY:
Software Updates, if any, released by DIGITAL during
the one (1) year period following installation, will be
provided to the customer for a media charge (includes no installation). After the first year, updates, if
any, will be made available according to then prevailing DIGITAL policies.
ORDERING INFORMATION:
All binary licensed software, including any subsequent updates, is furnished under the licensing
provisions of DIGITAL's Standard Terms and Conditions of Sale, which provide in part that the software
and any part thereof may be used on only the single
CPU on which the software is first installed, and may
be copied, in whole or in part (with the proper inclusion of the DIGITAL copyright notice and any DIGITAL
proprietary notices on the software) only for use on
such CPU. All source licensed software is furnished
only under the terms and conditions of a separate
Software Program Sources Agreement between Purchaser and DIGITAL.
Standard options with no support services are only
available after the purchase of one supported license.
When a software license is ordered without support
services, the category of support applicable to such
software is Category C.
A Single-use license only option is a license to copy
the software previously obtained under license, and
use such software in accordance with DIGITAL's
Standard Terms and Conditions of Sale. The category
of support applicable to such copied software is Category C.
SPD 13.9.0
TRAX, Version 1
-4The following key (M, Z) represents the distribution
media for the product and must be specified at the
end of the order number, e.g., QP408-AM = binaries
on 9-track magnetic tape.
M = 1600 bpi 9-track Magnetic Tape
Z = No hardware dependency
Standard Options
This software is not available as a separate product
(except as specified under upgrade options). Package
systems are available that include TRAX software.
Upgrade Options
The following option is available to licensed users of
RSTS/E and COBOL-11, lAS and COBOL-11, or RSX11 M and COBOL-11. This option is only available to
users who purchased a license for RSTS/E, lAS, or
RSX-11 M before April 27, 1978. Use is limited to the
single CPU on which such license presently exists,
and is governed by the provisions of such license.
QP407 -AMSingle-use license for TRAX with
TRAX/COBOL, binaries, documentation, support services
The following option is available to licensed users of
RSTS/E and BASIC-PLUS-2, lAS and BASIC-PLUS-2,
or RSX-11 M and BASIC-PLUS-2. This option is only
available to users who purchased a license for
RSTS/E, lAS, or RSX-11M before April 27, 1978. Use
is limited to the single CPU on which su~icense
presently exists, and is governed by the proviSions of
such license.
QP408 -AMSingle-use license for TRAX with
TRAX/BASIC-PLUS-2, binaries, documentation, support services
NOTE:
User should be aware that TRAX may not
support all of the hardware supported by
the RSTS/E, lAS, or RSX-11 M operating
systems.
ADDITIONAL SERVICES:
None
ADDENDUM
SOFTWARE SUPPORT CATEGORIES
Each software product (hereinafter 'SOFTWARE') with a designated Support Category A or B in the applicable Software Product
Description (SPD) existing at the time of order will be the current release at the time of delivery and will conform to the SPD.
DIGITAL's sole obligation shall be to correct defects (nonconformance of the SOFTWARE to the SPD) as described below. Any
SOFTWARE with a designated Support Category C will be furnished on an 'as is' basis.
For SOFTWARE with a designated Support Category A or B, DIGITAL will provide the services set forth below without additional
charge.
CATEGORY A
1. Upon notification by customer to the nearest DIGITAL office that the computer system, including all required prerequisite
hardware and software, is ready for the installation of the SOFTWARE, DIGITAL will install such SOFTWARE in any location
within the contiguous forty-eight (48) United States, the District of Columbia, or a country in which DIGITAL or a subsidiary
of DIGITAL has a software service facility. The notification must be received by DIGITAL and the system must be ready for
installation within thirty (30) days after the delivery of the SOFTWARE to customer or DIGITAL will have no obligation to
install. Installation will consist of: (1) verification that all components of the SOFTWARE have been received by customer, (2)
loading the SOFTWARE, and (3) executing a DIGITAL sample procedure.
2. During the ninety (90) day period after installation, if the customer encounters a problem with the current unaltered release
of the SOFTWARE which DIGITAL determines to be a defect in the SOFTWARE, DIGITAL will provide the following remedial
service (on site where necessary): (1) if the SOFTWARE is inoperable, apply a temporary correction (TC) or make a
reasonable attempt to develop an emergency by-pass, and (2) assist the customer to prepare a Software Performance
Report (SPR) and submit it to DIGITAL
3. During the one (1) year period following installation, if the customer encounters a problem with the SOFTWARE which his
diagnosis indicates is caused by a SOFTWARE defect, the customer may submit an SPR to DIGITAL. DIGITAL will respond
to problems reported in SPRs which are caused by defects in the current unaltered release of the SOFTWARE via the
Maintenance Periodical for the SOFTWARE, which reports SPRs received, code corrections, temporary corrections, generally
useful emergency by-passes and/or notice of the availability of corrected code. Software Updates, if any, released by
DIGITAL during the one (1) year period, will be provided to the customer on DIGITAL's standard distribution media as
specified in the applicable SPD. The customer will be charged only for the media on which such updates are provided,
unless otherwise stated in the applicable SPD, at DIGITAL's then current media prices.
CATEGORY B
During the one (1) year period following delivery, the services provided to the customer will be the same as set forth in 3 above.
CATEGORY C
SOFTWARE is provided on an 'as is' basis. Any software services, if available, will be provided at the then current charges.
DIGIT AL shall have the right to make additional charges for any additional effort required to provide services resulting from
customer use of other than current unaltered release of the SOFTWARE operated in accordance with the SPD.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
