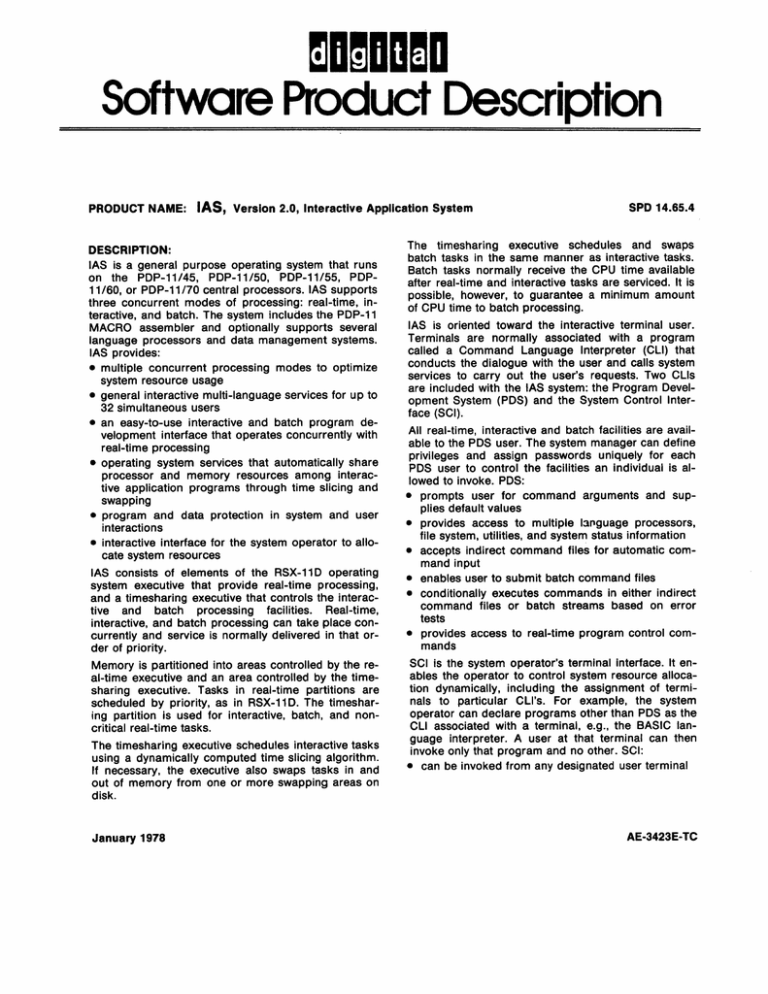

Software Product Description
PRODUCT NAME:
lAS,
Version 2.0, Interactive Application System
DESCRIPTION:
lAS is a general purpose operating system that runs
on the PDP-11/45, PDP-11/50, PDP-11/55, PDP11/60, or PDP-11 /70 central processors. lAS supports
three concurrent modes of processing: real-time, interactive, and batch. The system includes the PDP-11
MACRO assembler and optionally supports several
language processors and data management systems.
lAS provides:
• multiple concurrent processing modes to optimize
system resource usage
• general interactive multi-language services for up to
32 simultaneous users
• an easy-to-use interactive and batch program development interface that operates concurrently with
real-time processing
• operating system services that automatically share
processor and memory resources among interactive application programs through time slicing and
swapping
• program and data protection in system and user
interactions
• interactive interface for the system operator to allocate system resources
lAS consists of elements of the RSX-11 D operating
system executive that provide real-time processing,
and a timesharing executive that controls the interactive and batch processing facilities. Real-time,
interactive, and batch processing can take place concurrently and service is normally delivered in that order of priority.
Memory is partitioned into areas controlled by the real-time executive and an area controlled by the timesharing executive. Tasks in real-time partitions are
scheduled by priority, as in RSX-11 D. The timesharing partition is used for interactive, batch, and noncritical real-time tasks.
The timesharing executive schedules interactive tasks
using a dynamically computed time slicing algorithm.
If necessary, the executive also swaps tasks in and
out of memory from one or more swapping areas on
disk.
January 1978
SPD 14.65.4
The timesharing executive schedules and swaps
batch tasks in the same manner as interactive tasks.
Batch tasks normally receive the CPU time available
after real-time and interactive tasks are serviced. It is
possible, however, to guarantee a minimum amount
of CPU time to batch processing.
lAS is oriented toward the interactive terminal user.
Terminals are normally associated with a program
called a Command Language Interpreter (CLI) that
conducts the dialogue with the user and calls system
services to carry out the user's requests. Two CLls
are included with the lAS system: the Program Development System (PDS) and the System Control Interface (SCI).
All real-time, interactive and batch facilities are available to the PDS user. The system manager can define
privileges and assign passwords uniquely for each
PDS user to control the facilities an individual is allowed to invoke. PDS:
• prompts user for command arguments and supplies default values
• provides access to multiple 13nguage processors,
file system, utilities, and system status information
• accepts indirect command files for automatic command input
• enables user to submit batch command files
• conditionally executes commands in either indirect
command files or batch streams based on error
tests
• provides access to real-time program control commands
SCI is the system operator's terminal interface. It enables the operator to control system resource allocation dynamically, including the assignment of terminals to particular CLI's. For example, the system
operator can declare programs other than PDS as the
CLI associated with a terminal, e.g., the BASIC language interpreter. A user at that terminal can then
invoke only that program and no other. SCI:
• can be invoked from any deSignated user terminal
AE-3423E-TC
SPD 14.65.4
lAS, Version 2.0
-2-
• can be used to control allocation of resources to
users and CLI assignment to terminals
• can be used to monitor system status and tune the
system dynam ically
PDS, SCI, and most other system programs provided
with lAS are shareable and reentrant. Utility programs
include:
• a complete set of file control utilities, such as file
dump, file verification, volume preservation, disk
save and compression, file comparison
• two editors: an interactive character-oriented editor
and a line-oriented batch editor
• program development utilties such as the MACRO
assembler, the Task Builder linker with automatic
overlay support, and the on-line debugger which is
linkable to individual tasks
• system generation program
• program library management program
• PLOT55 graphics subroutine for using graphics features of the VT55 terminal
• Linker (Task Builder) with automatic overlay support
Users writing their own CLis or other application programs can call the Timesharing Control Services
(TCS) for controlling and executing tasks and sub
task. User-written interactive programs:
• can be multi-tasked and engage in event flag communication
• can be shareable, reentrant, and share common
data areas
• can execute concurrently with other application
tasks, be time slice scheduled and swapped
User-written Command Language Interpreters can also:
.
• run other tasks to multiple levels
• engage
in
inter-task
communication
send/receive directives or "command lines"
using
Programs in all three processing modes have access
to the lAS file system, which is compatible with the
RSX-11 family of operating systems. Protection is separately controlled for four categories of user (system, owner, group, world) for four types of access
(read, write, extend, delete). Magnetic tape labels are
checked and ANSI standard magtape format is supported.
Other facilities are:
• spooling of output to printers and non-interactive
terminals
• spooled batch input from record-oriented devices
and from files submitted by users
•
•
•
•
accounting information recorded for interactive and
batch users showing CPU and memory usage and
connect time
automatic logging (on disk) of peripheral device errors and memory parity errors
optional user mode diagnostic device exercisers for
on-line checkout of peripherals
block mode terminal support
MINIMUM HARDWARE REQUIRED:.
One of the following processor systems with
bootstrap, KW11 clock, console terminal, supported
user terminal and at least 64K words of memory:
• PDP-11/45, 11/55, 11/60 with memory management unit (11/60 WCS not supported)
• PDP-11170
One of the following mass storage packages:
• RK11 disk cartridge controller (includes one RK05J
drive) and two additional RK05J drives
• RK611 disk pack controller (includes one RK06
drive) and one additional RK06 drive
• One each of the following disk and magnetic tape
systems:
Disks:
1. RK611 disk pack controller (includes one RK06
drive)
2. RPR11 disk pack controller (includes one RPR02
disk drive)
3. RP11 disk pack controller (includes one RP03
disk drive)
4. RJP04/05/06 (or RWP04/05/06 for 11/70) disk
pack controller (includes RP04/05/06 drive)
5. RWM03 disk pack controller (includes one RM03
drive)
Magnetic Tape:
1. One TU10, TE10, TU16, TE16 or TU45 with appropriate controller.
A 96K wordPDP-11170 system configured with an
RP04, RP05 or RP06 drive is recommended for support of 10-12 terminal users executing both batch and
interactive tasks.
The 64K word PDP-11/45 system is the minimum for
supporting a two terminal system running either interactive or batch tasks. This system provides only a
20K to 24K word user area depending on which device handlers are memory resident.
OPTIONAL HARDWARE:
Additional memory to a system total of 124K words
on other than PDP-11/70 systems or 1920K words
on PDP-11/70 systems.
• FP11 Floating Point Processor
•
lAS, Version 2.0
SPD 14.65.4
-3-
• KW11-L or KW11-P clock, or DL 11-WA/WB console
interface and line frequency clock
liD Peripherals:
• LA30, LA36, LT33, LT3S, VTOS, VTOSB, VTSO
terminal family
• PR11 paper tape reader or PC11 paper tape reader
with punch
• CR11, CM11, CDA 11-A or -E card reader
• CTS11 card reader/punch (available from Computer Special Systems)
• LA3S, LS11, LA180, LA180S, LP11, or LV11 line
printer (plotter not supported by operating system)
Magnetic Tape Devices:
• TA 11 cassette system
• TC11 DECtape system
• TU10, TE10, TS07, TU16, TE16 and TU4S tape
drives with the appropriate controller.
Disk Devices:
• RX11 floppy disk system
• RK11 disk cartridge system
• RK611 disc cartridge system
• RPR11 disk pack system
• RP11 disk pack system
• RJP04/0S/06 disk pack systems (RWP04/0S/06 for
11/70)
• RWM03 disk pack system
• RF11 fixed head disk
• RJS03/RWS03, RJS04/RWS04 fixed head disk systems
Communications:
• DL 11 serial single line interface
• DJ11 serial line multiplexor
• DH11 programmable serial line multiplexor
• DM11-BB modem control multiplex for DH11
• DZ11 serial 8 line multiplexor
Laboratory/Industrial Control
• AD01 analog/digital converter
• AFC11 analog/digital converter
• UDC11 Universal Digital Controller
• IDA11-AA Contact sense module
• IDA 11-AB Contact sense module
• IDA 11-BA Contact interrupt module
• IDA 11-BB Contact interrupt module
• IDA 11-CA I/O converter
• IDA 11-DA Solid state AC/DC driver
• IDA 11-EA Flip-flop DC driver
• IDA 11-FA Single shot driver
•
•
•
•
•
•
•
•
•
IDA 11-GA Latch i ng output relay
IDA 11-HA Flip-flop output relay
IDA11-JA Single shot output relay
IAA 11-AA Multi-range A/D converter
IAA 11-BA D/ A converter
IAA11-BB D/A converter
IAA 11-BC 0/ A converter
IAA11-BD D/A converter
Data Acquisition:
LPS11 Laboratory Peripheral System with LPS11-S,
LPSAD-12, LPSKW, and LPSDR-A. Options:
1. BA408 gain ranging option for LPS11
2. LPSAM multiplexor expansion to LPSAD-12
3. LPSAM-SG gain ranging option to LPSAM
4. LPSVC digital/analog converters and display
control
S. LPSAM-E multiplexor expansion
(requires
LPS11-E in place of LPS11-S)
PREREQUISITE SOFTWARE:
None
OPTIONAL SOFTWARE:
The following software is available under a separate
license agreement. (See appropriate SPD for specific
req uirements):
DBMS-11
BASIC-11/IAS-RSX
DECNET /IAS Network Software
PDP-11 COBOL
SORT-11
CORAL-66
FORTRAN IV /IAS-RSX
FORTRAN IV-PLUS
RMS-11K v'-ICS/ICR Handler
RJE/HASP
UN1004/RSX-IAS
MUX 200/RSX-IAS
TRAINING CREDITS:
Five (S) - Applies only to options that include support services. Consult the latest Educational Services
Catalog at your local office for available courses,
course reqUirements, and guidelines.
SUPPORT CATEGORY:
A - Software Support will be provided as stated in
the Software Support Categories Addendum to this
SPD.
lAS, Version 2.0
SPD 14.65.4
-4-
UPDATE POLICY:
Software Updates, if any, released by DIGITAL during
the one (1) year period following installation, will be
provided to the customer for a media charge (includes no installation). After the first year, updates, if
any, will be made available according to then prevailing DIGITAL policies.
ORDERING INFORMATION:
This software is furnished under a license for use on
a single CPU and can be copied and modified (with
inclusion of DIGITAL's copyright notice) only for use
on such CPU, except as may otherwise be provided
in writing by DIGITAL.
Standard options with no support services are only
available after the purchase of one supported license.
When a software license is ordered without support
services, the category of support applicable to such
software is Category C. A single-use license only
("D") option is a license to copy the software product
previously obtained under license, and use such software in accordance with the licensing provisions of
Digital's Standard Terms and Conditions of Sale. The
category of support applicable to such copied software is Category C.
Source and/or listing options are only available after
the purchase of at least one supported license and
after a source license agreement is in effect.
The following key (D, E, R, T, Z) represents the distribution media for the product and must be specified at
the end of the "Q" number, i.e., QR300-AD = binaries
on 9-track magnetic tape.
D
9-track Magnetic Tape
E
RK05 Disk
R
Microfiche
T
RK06 Disk
Z
No hardware dependency
Standard Options
QR300 -A- Single-use license, binaries, documentation and key source modules, support
services (media: D, E, T)
QR300 -C- Sin g Ie - use I ice n s e , bin a r i e s ,
documentation and key source modules, no support services (media: 0, E,
T)
QR300 -D- Single-use license only, no binaries, no
docomentation, no support services
(media: Z)
Upgrade Options
The following options are available as an upgrade kit
from RSX-11 D for use on the same single CPU on
which RSX-11 D is licensed. The license previously
granted for RSX-11 D shall be extended to cover this
upgrade.
QR303 -A- Single-use license, binaries, key source
modules, documentation, support services (media: D, E, T)
QR303 -C- Single-use license, binaries, key source
modules, documentation, no support
services (media: D, E, T)
Update Options
Users of prior versions of lAS, whose specified Support Category warranty has expired, or whose Standard Program Update Service has expired, may order
under license the following software update at the
then current charge for such update. The update is
distributed in binary form on the appropriate medium
and includes no installation or other services unless
specifically stated otherwise.
QR300 -H- Binaries, documentation (media: D, E)
Users of lAS whose specified Support Category warranty has not expired may order under license the
following software update for the then current media
charge. The update is distributed in binary form on
the appropriate medium and includes no installation
or other services unless specifically stated otherwise.
QR300 -W- Binaries, documentation (media: D, E)
Users who have a single use license only option may
order under license the following license only update.
QR300 -H- Single-use license only (media: Z)
Source/Listing Options
QR300 -M- All program sources (media: D, E, T)
plus listing on Microfiche
QR300 -F- All program source listings (media: R)
Source/Listing Update Options
The following options are available to licensed users
as updates to source/listing options. The update is
distributed in source form on the appropriate medium
and includes no installation or other services unless
specifically stated otherwise.
QR300 -N- Sources plus listings on microfiche update (media: D, E)
QR300 -N- Source listing update (media: R)
Miscellaneous Options
QR300 -G- Pre-delivery kit (media: Z)
SPD 14.65.4
lAS, Version 2.0
-5-
ADDITIONAL SERVICES:
QR300 -3- Standard binary program update service for RK05 based systems (media: D,
E)
QR304 -3- Standard binary program update service for RK05 based systems (includes
service for FORTRAN IV IRSX, lAS)
(media: D, E)
ADDENDUM
SOFTWARE SUPPORT CATEGORIES
Each software product (hereinafter 'SOFTWARE') with a designated Support Category A or B in the applicable Software Product
Description (SPD) existing at the time of order will be the current release at the time of delivery and will conform to the SPD.
DIGITAL's sole obligation shall be to correct defects (nonconformance of the SOFTWARE to the SPD) as described below. Any
SOFTWARE with a designated Support Category C will be furnished on an 'as is' basis.
For SOFTWARE with a deSignated Support Category A or B, DIGITAL will provide the services set forth below without additional
charge.
CATEGORY A
1. Upon notification by customer to the nearest DIGITAL office that the computer system, including all required prerequisite
hardware and software, is ready for the installation of the SOFTWARE, DIGITAL will install such SOFTWARE in any location
within the contiguous forty-eight (48) United States, the District of Columbia, or a country in which DIGITAL or a subsidiary
of DIGITAL has a software service facility. The notification must be received by DIGITAL and the system must be ready for
installation within thirty (30) days after the delivery of the SOFTWARE to customer or DIGITAL will have no obligation to
install. Installation will consist of: (1) verification that all components of the SOFTWARE have been received by customer, (2)
loading the SOFTWARE, and (3) executing a DIGITAL sample procedure.
2. During the ninety (90) day period after installation, if the customer encounters a problem with the current unaltered release
of the SOFTWARE which DIGITAL determines to be a defect in the SOFTWARE, DIGITAL will provide the following remedial
service (on site where necessary): (1) if the SOFTWARE is inoperable, apply a temporary correction (TC) or make a
reasonable attempt to develop an emergency by-pass, and (2) assist the customer to prepare a Software Performance
Report (SPR) and submit it to DIGITAL.
3. During the one (1) year period following installation, if the customer encounters a problem with the SOFTWARE which his
diagnosis indicates is caused by a SOFTWARE defect, the customer may submit an SPR to DIGITAL. DIGITAL will respond
to problems reported in SPRs which are caused by defects in the current unaltered release of the SOFTWARE via the
Maintenance Periodical for the SOFTWARE, which reports SPRs received, code corrections, temporary corrections, generally
useful emergency by-passes and/or notice of the availability of corrected code. Software Updates, if any, released by
DIGITAL during the one (1) year period, will be provided to the customer on DIGITAL's standard distribution media as
specified in the applicable SPD. The customer will be charged only for the media on which such updates are provided,
unless otherwise stated in the applicable SPD, at DIGITAL's then current media prices.
CATEGORY B
During the one (1) year period following delivery, the services provided to the customer will be the same as set forth in 3 above.
CATEGORY C
SOFTWARE is provided on an 'as is' basis. Any software services, if available, will be provided at the then current charges.
DIGITAL shall have the right to make additional charges for any additional effort required to provide services resulting from
customer use of other than current unaltered release of the SOFTWARE operated in accordance with the SPD.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
