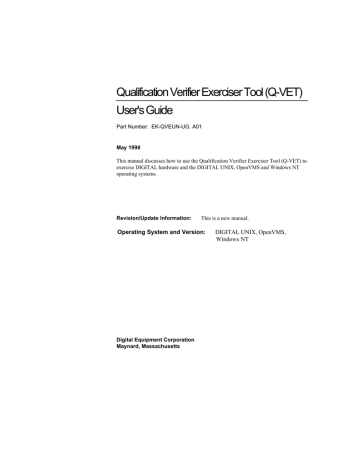

Qualification Verifier Exerciser Tool (Q-VET)

User's Guide

Part Number: EK-QVEUN-UG. A01

May 1998

This manual discusses how to use the Qualification Verifier Exerciser Tool (Q-VET) to exercise DIGITAL hardware and the DIGITAL UNIX, OpenVMS and Windows NT operating systems.

Revision/Update Information:

This is a new manual.

Operating System and Version:

DIGITAL UNIX, OpenVMS,

Windows NT

Digital Equipment Corporation

Maynard, Massachusetts

May 1998

Digital Equipment Corporation makes no representations that the use of its products in the manner described in this publication will not infringe on existing or future patent rights, nor do the descriptions contained in this publication imply the granting of licenses to make, use, or sell equipment or software in accordance with the description.

Possession, use, or copying of the software described in this publication is authorized only pursuant to a valid written license from Digital or an authorized sublicensor.

© Digital Equipment Corporation 1998. All rights reserved.

The following are trademarks of Digital Equipment Corporation: DIGITAL, OpenVMS and the DIGITAL logo.

The following are third-party trademarks:

Microsoft and MS-DOS are registered trademarks and Windows is a trademark of Microsoft Corporation.

UNIX is a registered trademark in the United States and other countries licensed exclusively through X/Open

Company, Ltd.

All other trademarks or registered trademarks are the property of their respective holders.

Table of Contents

1 Qualification Verifier Exerciser Tool (Q-VET) Overview

Q-VET Overview ................................................................................................................... 1–1

New Q-VET Features ............................................................................................................. 1–2

Q-VET Functionality .............................................................................................................. 1–3

Interfacing With Q-VET......................................................................................................... 1–3

Generic Exercisers.................................................................................................................. 1–4

2 DIGITAL UNIX and OpenVMS Q-VET

Online Help ............................................................................................................................ 2–1

Getting Started with the DIGITAL UNIX DECwindows Motif Interface ................................ 2–2

Starting a Q-VET Session ................................................................................................ 2–3

Understanding the Main Window..................................................................................... 2–4

Learning to Use Q-VET.......................................................................................................... 2–7

Selecting Devices for a Q-VET Run ................................................................................ 2–7

Loading Predefined Scripts ....................................................................................... 2–7

Choosing Nodes or Devices From the Device Area. .................................................. 2–7

Deselecting Processes ...................................................................................................... 2–9

Adding and Dropping Processes......................................................................................2–11

Duplicating a Process......................................................................................................2–12

Modifying Process Parameters ........................................................................................2–13

Setting the Run Time for All Processes...........................................................................2–16

Setting the Pass Count for All Processes .........................................................................2–17

Setting Timeout for All Processes ...................................................................................2–18

Setting the CPU Affinity for All Processes......................................................................2–19

Setting the Error Threshold for All Processes..................................................................2–20

Modifying Other Options ................................................................................................2–20

Starting a Q-VET Run ....................................................................................................2–22 iii

Viewing Test Results......................................................................................................2–24

Viewing a Run Summary ......................................................................................... 2–24

Viewing the System Error Log.................................................................................2–26

Suspending, Continuing, and Terminating a Q-VET Run or Process............................... 2–27

Suspending, Continuing, and Terminating a Q-VET Run.........................................2–28

Suspending, Continuing, and Terminating Individual Processes...............................2–29

Saving and Restoring Setup ............................................................................................2–32

Saving the Setup State ............................................................................................. 2–32

Restoring a Setup State ............................................................................................ 2–32

Editing and Executing Script Files ...........................................................................2–35

Running Q-VET Qual Tests............................................................................................2–40

Terminating a Q-VET Session ........................................................................................2–41

3 Windows NT Q-VET

Online Help.............................................................................................................................3–1

Getting Started With the Windows NT Interface .....................................................................3–2

Starting a Q-VET Session Windows NT Systems ............................................................3–3

Understanding the Main Window .....................................................................................3–3

Learning to Use Q-VET ..........................................................................................................3–5

Selecting Devices for a Q-VET Run .................................................................................3–5

Loading Predefined Scripts ........................................................................................3–5

Choosing Nodes or Devices From the Device Area....................................................3–6

Deselecting Processes .......................................................................................................3–7

Adding and Dropping Processes .......................................................................................3–8

Duplicating a Process ..................................................................................................... 3–10

Modifying Process Parameters........................................................................................3–11

Setting the Run Time for All Processes........................................................................... 3–14

Setting the Pass Count for All Processes .........................................................................3–15

Setting Timeout for All Processes................................................................................... 3–16

Setting the CPU Affinity for All Processes .....................................................................3–17

Setting the Error Threshold for All Processes ................................................................. 3–17

Modifying Other Options................................................................................................3–18

Starting a Q-VET Run ....................................................................................................3–19

Viewing Test Results......................................................................................................3–21

Viewing a Run Summary ......................................................................................... 3–22

Viewing the System Event Log................................................................................3–23

Suspending, Continuing, and Terminating a Q-VET Run or Process............................... 3–24

Suspending, Continuing, and Terminating a Q-VET Run.........................................3–24

Suspending, Continuing, and Terminating Individual Processes...............................3–27

Saving, Clearing, and Restoring Setup............................................................................ 3–31

Saving a Setup State ................................................................................................3–31 iv

Restoring a Setup State ............................................................................................3–32

Editing and Executing Script Files ..................................................................................3–33

Running Q-VET Qual Tests ............................................................................................3–37

Terminating a Q-VET Session ........................................................................................3–38

4 Q-VET Command Interface

Online Help ............................................................................................................................ 4–1

Getting Started with the Q-VET Command Interface.............................................................. 4–2

Starting Q-VET Session................................................................................................... 4–2

Learning to Use Q-VET.......................................................................................................... 4–3

Viewing Process Definitions ............................................................................................ 4–4

Starting a Q-VET Run ..................................................................................................... 4–6

Viewing a Run Summary ................................................................................................. 4–6

Deselecting Processes ...................................................................................................... 4–6

Selecting Devices for a Q-VET Run ................................................................................ 4–7

Setting the Run Time for All Processes............................................................................ 4–7

Setting the Pass Count for All Processes .......................................................................... 4–8

Setting the CPU Affinity for All Processes....................................................................... 4–8

Setting the Error Threshold for All Processes................................................................... 4–9

Duplicating a Process....................................................................................................... 4–9

Starting, Suspending, Continuing, and Terminating Processes ......................................... 4–9

Modifying Other Options ................................................................................................4–11

Adding and Dropping Processes......................................................................................4–12

Modifying Process Parameters ........................................................................................4–13

Editing and Executing Command Scripts ........................................................................4–15

Terminating a Q-VET Session ........................................................................................4–18

Menu Entries and Command Equivalents........................................................................4–18

Commands and Arguments ....................................................................................................4–21

Entering Q-VET Commands ...........................................................................................4–22

Script Files .....................................................................................................................4–22

Creating Scripts .......................................................................................................4–23

Specifying User Responses in Scripts.......................................................................4–23

Using the Wait Command ........................................................................................4–24

Frequently Used Arguments............................................................................................4–24

Node Names and Lists .............................................................................................4–24

Device Names and Lists...........................................................................................4–25

Path Names..............................................................................................................4–25

Group Names and Lists ............................................................................................4–26

Test Numbers and Lists............................................................................................4–26

Subtest Numbers ......................................................................................................4–27

Process Numbers and Lists.......................................................................................4–27 v

vi

Time ........................................................................................................................4–28

Execution States .............................................................................................................4–28

Setup State............................................................................................................... 4–28

Active State ............................................................................................................. 4–29

Suspend State ..........................................................................................................4–29

Test Organization ...........................................................................................................4–33

Test Groups .............................................................................................................4–33

Tests ........................................................................................................................4–33

Subtests ...................................................................................................................4–34

Run-Time Modes............................................................................................................4–34

Command Descriptions .........................................................................................................4–35 accept....................................................................................................................................4–36 add ........................................................................................................................................4–39 certify....................................................................................................................................4–41 comment-line character .........................................................................................................4–42 connect..................................................................................................................................4–43 continuation character ...........................................................................................................4–45 continue ................................................................................................................................4–46 control-c................................................................................................................................4–48 control-z................................................................................................................................4–50 deselect .................................................................................................................................4–51 disable...................................................................................................................................4–53 disconnect .............................................................................................................................4–57 display errorlog .....................................................................................................................4–59 drop.......................................................................................................................................4–60 duplicate process ...................................................................................................................4–62 edit ........................................................................................................................................4–64 enable....................................................................................................................................4–65 execute ..................................................................................................................................4–70 exit ........................................................................................................................................4–71 foreign...................................................................................................................................4–72 help .......................................................................................................................................4–73 install ....................................................................................................................................4–75 load .......................................................................................................................................4–77 quit........................................................................................................................................4–80 remove ..................................................................................................................................4–81 save .......................................................................................................................................4–83 select .....................................................................................................................................4–85 set .........................................................................................................................................4–90 show......................................................................................................................................4–96 start .....................................................................................................................................4–105 stop .....................................................................................................................................4–106 system .................................................................................................................................4–108

terminate .............................................................................................................................4–109 vet .......................................................................................................................................4–111 wait .....................................................................................................................................4–114 write errorlog.......................................................................................................................4–116

A Error Messages

B Generic Exerciser Information

C Menu Entries and Command Equivalents

D Available Device Tests

E The Jacketed_Test Device

F Data Patterns

Figures

Figure 2-1 Q-VET Main Window - DIGITAL UNIX Systems ................................2–4

Figure 3-1 Q-VET Main Window - Windows NT Systems .....................................3–4

Tables

Table 4-1 Q-VET Menu Entries and Command Equivalents .................................4–18

Table 4-2 Execution States and Commands ..........................................................4–29

Table 4-3 Effect of [Ctrl/C] ..................................................................................4–48

Table A-1 Formatted Message Output ...................................................................A–2

Table B-1 CPU Exerciser Option........................................................................... B–2

Table B-2 Memory Exerciser Options.................................................................... B–3

Table B-3 Disk Exerciser Options.......................................................................... B–5

Table B-4 File Exerciser Options......................................................................... B–10

Table B-5 Tape Exerciser Options ....................................................................... B–14

Table B-6 Network Exerciser Options ................................................................. B–15

Table B-7 Printer Exerciser Options .................................................................... B–19 vii

viii

Table B-8 Terminal Exerciser Options ................................................................ B–20

Table B-9 Video Exerciser Options ..................................................................... B–21

Table C-1 File Menu ............................................................................................. C–1

Table C-2 Setup Menu........................................................................................... C–2

Table C-3 Windows Menu..................................................................................... C–3

Table C-4 Run Menu ............................................................................................. C–4

Table C-5 Scripts Menu......................................................................................... C–5

Table C-6 Options Menu ....................................................................................... C–6

Table C-7 Maintenance Menu ............................................................................... C–7

Table D-1 Available Tests for Devices .................................................................. D–1

Preface

The Qualification Verifier Exerciser Tool (Q-VET) User's Guide discusses how to use

Q-VET for system and option testing and quality assurance. on systems running three different operating systems:

DIGITAL UNIX using the DECwindows Motif and CDE interface

OpenVMS

Windows NT

The Q-VET interfaces for the DIGITAL UNIX and OpenVMS operating systems have been combined in this manual due to their great similarities. The interface to Windows

NT is depicted in its own chapter.

This is the first release of combined documentation for Q-VET; it is a general overview and guide to Q-VET, and does not include extensive details about individual tests.

Intended Audience

This guide is intended for who use Q-VET for any of the following:

System and options qualification

Verifying installation and system acceptance

Maintaining and troubleshooting installed systems

Testing system integration

Performing quality assurance

Testing device drivers

Performing load and stress testing

Certifying hardware during the manufacturing process ix

x

Document Structure

The Qualification Verifier Exerciser Tool (Q-VET) User's Guide consists of four chapters, six appendices, and glossary organized as follows:

Chapter 1 is an overview of Q-VET and the standard exerciser tests that it contains to facilitate system maintenance and quality assurance.

Chapter 2 shows how to use Q-VET with the DIGITAL UNIX or OpenVMS operating systems.

Chapter 3 shows how to use Q-VET with the Windows NT operating system.

Chapter 4 shows how to use Q-VET with the Command Interface.

Appendix A describes the types of messages Q-VET displays and lists and explains frequently displayed messages.

Appendix B lists and explains option information that you can supply to generic

Q-VET exercisers and discusses the detail of error reports and the summary information that each exerciser displays.

Appendix C provides a comparison of equivalent menu entries and commands.

Appendix D Describes the available device tests.

Appendix E Describes the jacketed test device and it’s use in running tests foriegn to

Q-VET.

Appendix F describes the data patterns for various tests.

The Glossary lists and defines specific Q-VET terms.

Conventions

The following conventions are used in this manual:

Convention Example

MBR, MBL

command input

system output

Description

MBR refers to the rightmost button on the mouse; MBL refers to the leftmost button.

This bold typeface is used to indicate Q-VET commands as they should be entered by the user.

This typeface is used to indicate system output or the exact name of a command, option, partition, path name, directory, or file.

Italic typeface

Braces { }

Brackets [ ]

[Ctrl/X]

[Enter]

This typeface is used to indicate variables that must be defined by the user (i.e. path name, directory, file name).

Also, titles of information sources are in italic, and occasionally italic is used for emphasis in the text.

Italics such as n or x are used to indicate numeric variables.

Surround a list of arguments from which you may choose one.

Surround optional arguments.

A key sequence such as Ctrl/X indicates that you must hold down the key labeled Ctrl while you press another key or a pointing device button.

Indicates a key on your keyboard.

xi

1

Qualification Verifier Exerciser Tool

(Q-VET) Overview

Q-VET Overview

The Qualification Verifier Exerciser Tool (Q-VET) evolved from the DIGITAL DEC-VET project. Q-VET is a state-of-the-art tool suite developed and supported primarily for use in system and option Qualifications, ECO Verifications and operating system/driver

Exercising in engineering and manufacturing environments.

The complete kit incorprates both internal and external test tools which are controlled by the Q-VET test manager. Q-VET runs at a much higher stress level than the original

DEC-VET product. It is not intended for use by end-user customers as an installation verifier.

Q-VET provides a consistent human interface or GUI which allows the user to exercise the hardware and software in the same way on every system. It can also be controlled via the serial console on DIGITAL UNIX and OpenVMS systems.

Q-VET supports various exerciser configurations, ranging from a single device to full system loading in a distributed testing environment. Exercisers can run either sequentially or concurrently.

Q-VET supplies a set of standard qualification scripts and menus for ease of use and repeatability. Custom scripts can be written by any user.

This chapter discusses:

New Q-VET Features

The Q-VET Functionality

Interfacing with Q-VET

Generic Exercisers

Qualification Verifier Exerciser Tool (Q-VET) 1–1

Qualification Verifier Exerciser Tool

(Q-VET) Overview

New Q-VET Features

The following are some of the features in Q-VET (which were not available in DEC-VET).

Qual testing scripts selectable from the GUI or from serial console.

Automatic configuration of testing scripts, at Q-VET start time (drive/partition select, etc.)

DumpMedia utility for examining data directly on drives (for error checking)

Automatic re-format/re-disklabel after completing drive write testing.

Automatic system tuning during DIGITAL UNIX and OpenVMS installation.

Does NOT prompt for verification of 'write enable' before write testing!

21 additional memory, disk, file and network data patterns.

Extended coverage (blocks, packets, etc) of hard drives, memory, network and file tests.

Multi-screen/head video support.

Defaults to testing 100% of physical memory amount. (DEC-VET is 5% of the VA swap space)

4 additional memory tests

5 (6 for NT) additional CPU tests including various floating point screens.

2 additional disk tests on DIGITAL UNIX and Windows NT, 1 additional on

OpenVMS

2 additional tape tests on DIGITAL UNIX (tapex and tapex-compression)

1 additional video test on DIGITAL UNIX and OpenVMS (mpc)

1 additional terminal test (scrolling 'H' used for FCC/VDE) (DIGITAL UNIX and

OpenVMS)

Q-VET runs x11perf, ico and mpc as a graphics and system loads (DIGITAL UNIX and OpenVMS)

'crash_test' system crash dump check/test.

'boot_loop' system cycle test

Support for Intel Windows NT

64 bit and 32 bit memory data tests (32 bit for NT, 64 bit when Windows NT supports it)

1–2 Qualification Verifier Exerciser Tool (Q-VET)

Qualification Verifier Exerciser Tool

(Q-VET) Overview

Automatic summary report generation, which includes a scan of the system error/event logs during the test (shows all tests and errors)

For NT, some of the Microsoft HCTs are launched as additional tests within the various exercises i.e. HCT CoProcessor test will be run as test 10 of the CPU exerciser, the HCT Virtual Memory test will be run as test 5 of the Q-VET memory exerciser.

"jacketed_test" device for running most any external test from Q-VET

Q-VET Functionality

Q-VET can be used to:

Qualify systems and options

Test system integration

Perform quality assurance

Test device drivers

Perform load and stress tests on single devices, systems, and networks

Certify hardware during the manufacturing process

Interfacing With Q-VET

Q-VET provides a consistent user interface to all exercisers through either the command line or DECwindows Motif interface for DIGITAL UNIX, or through Windows NT.

Q-VET controls all exerciser runs, allowing several exercisers to run at once on the same or separate devices. It also controls exercisers running on other nodes, when those nodes are connected through Q-VET to the controlling node.

Q-VET allows the user to specify the following for each run:

Devices to be tested and nodes on which they reside

Number of exercisers run on each device and specific exerciser options

Length of time exercisers are run

Stopping or looping when an error is encountered

Level of detail in error reports

Working from a single node, the user can start, suspend, resume, or terminate exercisers and obtain information for each exerciser, regardless of the node on which it is running.

Qualification Verifier Exerciser Tool (Q-VET) 1–3

Qualification Verifier Exerciser Tool

(Q-VET) Overview

Generic Exercisers

Q-VET comes with a standard set of exercisers, as follows (see Appendix B for additional information on these exercisers):

CPU Exerciser

Tests typical system processor functions including binary operations, integer computations, floating-point computations, and data conversion.

Memory Exerciser

Tests dynamic allocation and deallocation of virtual memory and verifies test patterns written.

Disk Exerciser

Tests logical and physical disk I/O by performing read and write operations and verifies test patterns written.

File Exerciser

Tests reading and writing to ordinary disk files and verifies test patterns written.

Tape Exerciser

Tests reading and writing to tape device files (including file mark detection, spacing, rewind, end-of-tape detection) and verifies test patterns written.

Network Exerciser

Tests underlying protocol (including caches, buffers, and queues), physical network adapters, local and remote networks, destination adapters, network services, and echo daemons for TCP/IP and/or DECnet.

Printer Exerciser

Prints out a file containing a test pattern of all the ascii characters from " " (blank space) through "~". This pattern is shifted one place each time on each subsequent line. Two pages are printed out, totaling more lines than the 95 available patterns.

Thus it verifies that all ascii characters can be printed at each position. It also offers the option to print out a special postscript file displaying a vertical shaded bar graph, as well as the ability to print out user specified ascii and postscript files.

Terminal Exercisers (Two Tests)

The first terminal exerciser test displays to the terminal screen a file containing a test pattern of all the ascii characters from " " (blank space) through "~". This pattern is shifted one place each time on each subsequent line. Thus it verifies that all ascii characters can be printed at each position during its 95 lines of patterns.

The second terminal exerciser test utilizes scrolling “H’s” for FCC testing.

Video Exerciser

Displays various video test patterns and graphics. These verify the console's ability to

1–4 Qualification Verifier Exerciser Tool (Q-VET)

Qualification Verifier Exerciser Tool

(Q-VET) Overview accurately display graphics, text, and shades of color. The user is required to indicate any failures if the screen display does not appear to look as it should.

Boot Loop Exerciser

Tests system booting capabilities and configurations by automatically rebooting the system.

Crash Test Exerciser

Verifies system panic dumping of memory. Also used for memory testing

(addressing) and drive testing.

X11exer Exerciser

1

Performs three Xwindows-based video tests; promarily used for video DMA loading.

Jacketed Device Exerciser

A general purpose test control psuedo-device which can be set up to start/stop, and error-check almost any type of program or test. See Appendix E.

Do_it Exerciser

2

This is a DMA burst generator which uses disk and video in short bursts. It is used in system and memory testing.

1

Available for DIGITAL UNIX and OpenVMS only.

2

Available for DIGITAL UNIX and OpenVMS only.

Qualification Verifier Exerciser Tool (Q-VET) 1–5

2

DIGITAL UNIX and OpenVMS Q-VET

This chapter gets you started with using Q-VET on the DIGITAL UNIX and OpenVMS operating systems by providing easy-to-follow examples of its use. (If you are using the

Windows NT operating system, see Chapter 3.)

Online Help

Almost all Q-VET windows and dialog boxes provide a Help button. You can click on any

Help button at any time to view a Help display corresponding to that window or box, or you can click on Help on the Main Window menu bar. Most Help window topics also have subtopics that you can view by double-clicking on the subtopic name, as shown in the following example.

Qualification Verifier Exerciser Tool (Q-VET) 2–1

DIGITAL UNIX and OpenVMS Q-VET

2–2 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Getting Started with the DIGITAL UNIX DECwindows Motif

Interface

This section reproduces a Q-VET session using the DECwindows Motif interface on the

DIGITAL UNIX and the OpenVMS operating systems. The session has been designed so that you can follow the examples.

The session does not use every available function. To obtain more information on an item, click on the Help button in the menu bar or in the window in which the item appears. A

Help window with detailed information is displayed.

Starting a Q-VET Session

Issue the vet command at the system prompt:

% vet &

Note: the “&” is recommended, but not a requirement.

A Q-VET information box should be displayed indicating that the system sizer is running.

This box will disappear once the system sizing process is completed.

3

Q-VET’s main window is displayed.

3

The system sizing process finds the devices that are connected to a system and obtains device information needed by Q-VET programs.

Qualification Verifier Exerciser Tool (Q-VET) 2–3

DIGITAL UNIX and OpenVMS Q-VET

Understanding the Main Window

Figure 2-1 Q-VET Main Window - DIGITAL UNIX Systems

The Q-VET Main Window (Figure 2-1) contains the following areas:

Title Bar

The title bar displays the facility name (Q-VET) and the window management buttons.

2–4 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Menu Bar

The menu bar lists the menus that you select to perform Q-VET functions.

Device Work Area Area

The Device Work Area displays the nodes and devices whose names are contained in Q-VET’s configuration database, that is, its database of testable devices.

Use the scroll bars to display text that exceeds the size of the display window.

The Device Work Area contains the Select Devices button. You click on the

Select Devices button to select devices for testing, after highlighting them.

Qualification Verifier Exerciser Tool (Q-VET) 2–5

DIGITAL UNIX and OpenVMS Q-VET

Pane Separator

The Pane Separator lets you change the size of the work areas relative to one another by clicking on the rectangle at its right and dragging it up or down.

Process Work Area

The Process Work Area displays the nodes and devices you have selected for testing, along with their corresponding process numbers, test groups, status,

Errors, Pass #, and Test #."Errors" indicate error count during the run. "Test #" identifies the current test # being performed. "Pass #" identifies the current pass

Use the scroll bars to display text that exceeds the size of the display window.

When you first start a Q-VET session, the Process Work Area is empty.

The Process Work Area provides four buttons, Start All, Suspend, Continue, and

Terminate All. Click on these buttons to start, temporarily suspend, continue, and terminate running test processes.

2–6 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Learning to Use Q-VET

The following sections outline how to perform basic operations in Q-VET

Selecting Devices for a Q-VET Run

The Q-VET run is defined by the nodes or devices placed or “listed” in the Process Area of the Q-VET Main Window. To set up processes for nodes or devices in the Process Area, you must “Select” the nodes or devices. Nodes or devices may be selected in two ways:

1. Loading a predefined “Script” to create processes to test all devices on the system.

2. Choosing them selectively from the Device Area

Loading Predefined Scripts

Using the Q-VET Load option is the simplest way to test your system. The Load option automatically creates processes for most devices on your system.

To use this feature, pull down the Scripts option on the Q-VET Menu Bar, choose Load, and then select any or all of the following scripts.

Script

CPU Select

Disk Select

Tape Select

Video Select

Phase 1 Engineering

Includes:

All tests for all CPUs on your system

All tests for disks on your system.

All tests for tape drives on your system.

All tests for all video options on your system.

All tests for all devices on your system.

Processes for the devices you selected appear in the Process Work Area.

Choosing Nodes or Devices From the Device Area.

Q-VET sessions can be customized to allow you to specify which tests you would like to run. Each test can be customized using various options, provided by the Q-VET exercisers. These examples will only show how to change some of the options. To find out about other options, please refer to the online Help.

To select specific nodes or devices listed in the Device Area, you must first highlight them in one of the three ways listed.

For a single device or node, point to it and press Mouse Button 1 (MB1), the left hand button on your mouse.

For multiple contiguous devices, point to the first device, hold down MB1, and drag the pointer down the list of devices; release MB1 while pointing to the last device.

Qualification Verifier Exerciser Tool (Q-VET) 2–7

DIGITAL UNIX and OpenVMS Q-VET

For multiple noncontiguous devices, highlight the first device or series of devices by pointing or pointing and dragging. Highlight the next device or devices by pointing at them and pressing [Ctrl/MB1]. You can use this technique to highlight as many noncontiguous devices as you want.

After highlighting the devices or nodes, you must select them to be listed in the Process

Area by either clicking the “Select Devices” button at the bottom of the Device Area, or placing the cursor on the highlighted item or items, clicking MB3, and choosing “Select

Devices”.

To select devices from the Device Work Area for testing:

1. Highlight the names of the nodes or devices that you want to select.

For this example, the cpu device has been highlighted.

2. Click on the Select Devices button below the Device Work Area or click on Setup on the Menu Bar and choose the Select Devices. The process definitions are displayed in the Process Work Area.

You can also keep the pointer in the Device Work Area and press MB3. A popup menu displays valid operations. Point to the Select Devices entry and release MB3.

2–8 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

The devices you selected appear in the Process Work Area.

Deselecting Processes

To deselect processes and remove them from a Q-VET run:

1. In the Process Work Area, highlight the names of the nodes or devices that you want to remove by clicking or clicking and dragging.

2. Choose the Set Up menu's Deselect entry.

3. The highlighted entries disappear from the Process Work Area.

4. You can also keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations. Point to the Deselect entry and release

MB3.

Qualification Verifier Exerciser Tool (Q-VET) 2–9

DIGITAL UNIX and OpenVMS Q-VET

Adding and Dropping Processes

You can add processes to a Q-VET run or drop processes from it. This allows you to increase or decrease the system load gradually.

To add or drop processes:

1. In the Process Work Area, highlight the processes that you want to add to a run or drop from it.

2. Click on the Set Up menu.

3. Click on either Add or Drop.

4. You can also keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations. Point to the Add or Drop entry and release

MB3. Examples of a Drop and an Add are shown below.

Highlighted for Drop:

2–10 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Previously dropped process highlighted to be added:

All processes contained in the Process Work Area before you click start a Q-VET run are automatically added. If you include additional processes during a Q-VET run, these processes are automatically dropped. You must add them before they begin executing.

Duplicating a Process

To make one or more copies of an existing process, highlight the processes you wish to duplicate in the Process Work Area, and perform one of the following:

Choose the Set Up menu's Duplicate entry.

Keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations. Point to the Duplicate entry and release

MB3.

__________________________ Note _____________________________

Some processes can only be run one at a time; you will receive a message indicating this at start time.

____________________________________________________________

Qualification Verifier Exerciser Tool (Q-VET) 2–11

DIGITAL UNIX and OpenVMS Q-VET

The highlighted entries are duplicated in the Process Work Area.

Repeat the above once for each duplicate you want to make.

Modifying Process Parameters

To modify a process definition's parameters:

1. In the Process Work Area, highlight the process.

2. Click on the Set Up menu.

3. Click on the menu's Show/Modify Parameters... entry.

4. You can also keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations . Point to the Show/Modify entry and release

MB3.

The Show/Modify Parameters dialog box is displayed.

__________________________ Note _____________________________

The Show/Modify Parameters dialog box and it’s dialog windows will differ from the example according to the process you have chosen to modify.

____________________________________________________________

2–12 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Qualification Verifier Exerciser Tool (Q-VET) 2–13

DIGITAL UNIX and OpenVMS Q-VET

5. Use the dialog box to view and modify process parameters and options that apply only

to this process. You can:

Set a run time and/or pass count

Select or deselect specific tests within the selected test group

Modify various process options using click boxes and fill-in dialog windows

If you select several processes in the Process Work Area, you can use the Next button in the Show/Modify Parameters dialog box to examine and change process parameters one process at a time.

1. Click on the Set Up menu.

2. Click on the menu's Show/Modify Parameters... entry; the Show/Modify Parameters screen appears.

3. Read the contents of the displayed dialog box.

4. Click on Next to view the dialog box associated with the next process.

5. Click on Cancel.

__________________________ Note _____________________________

A list of available tests for each device is presented in Appendix D.

____________________________________________________________

Setting the Run Time for All Processes

To set the run time for all processes:

4

1. In the main window's Option menu choose Set Runtime...

The Set Runtime dialog box is displayed.

2. Set the run time by sliding the slide bars, clicking on the stepper buttons, or typing numbers in the text fields.

3. Click on the OK button to activate your settings. (Click on the Reset button to restore the current run time.)

4

A process's run time is the total time for which it is allowed to execute.

2–14 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Setting the Pass Count for All Processes

To set the pass count for all processes:

1. In the main window's Options menu, choose Set Passcount.

The Set Passcount dialog box is displayed.

2. Set the pass count by sliding the slide bar, clicking on the stepper buttons, or typing numbers in the text field. If you set the pass count at 0; Q-VETwill ignore the pass count and use only the run-time value to end the run.

3. Click on the OK button to activate your settings. (Click on the Reset button to restore the current pass count.)

__________________________ Note _____________________________

The execution time of one pass is not the same for every exerciser.

____________________________________________________________

Qualification Verifier Exerciser Tool (Q-VET) 2–15

DIGITAL UNIX and OpenVMS Q-VET

Setting Timeout for All Processes

To set the timeout interval for all processes:

1. In the main window's Options menu, choose Set Timeout...

The Timeout dialog box is displayed.

2. Click on the Enable or Disable button.

3. If you choose to enable timeout, set the timeout interval you wish in seconds by either sliding the horizontal scale and/or typing a new upper value in the right hand box.

2–16 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

4. Click on the OK button to activate your settings. (Click on the Reset button to restore the current timeout setting.)

Setting the CPU Affinity for All Processes

CPU affinity refers to which CPU the process is bound to (set to run on).

To set the cpu affinity for all processes:

1. In the main window's Options menu, choose Set Affinity...

The Set Affinity dialog box is displayed.

2. Choose the node if there are more than one.

3. Set the subprocess default affinity processor id by clicking on the empty box, then entering the appropriate id number.

4. Click on the OK button to activate your settings. (Click on the Reset button to restore the current affinity id.)

Setting the Error Threshold for All Processes

To set the error threshold for all processes:

1. In the main window's Options menu, choose Set Error_Threshold...

The Error Threshold dialog box is displayed.

Qualification Verifier Exerciser Tool (Q-VET) 2–17

DIGITAL UNIX and OpenVMS Q-VET

2. Click on the appropriate Node.

3. Set the error threshold you wish by either sliding the horizontal scale and/or typing a new upper value in the right hand box.

4. Click on the OK button to activate your settings. (Click on the Reset button to restore the current error threshold setting.)

Modifying Other Options

If you choose the Options menu's Other... entry, a dialog box is displayed that lets you modify several Q-VET run-time options. Click on the dialog box's Help button to read about the options.

To modify Other options:

1. Click on the Options menu

2. Click on the Other... entry

The Q-VET Other Options Dialogue Window is displayed.

2–18 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

To set Other options, do the following.

1. Click on the desired option button(s).

Qualification Verifier Exerciser Tool (Q-VET) 2–19

DIGITAL UNIX and OpenVMS Q-VET

2. Click on the OK button.

For this example, we enabled stopping on hard and fatal errors.

Starting a Q-VET Run

To start a Q-VET run, click on the Start All button in the Process Work Area. This starts the run that was set up by the Select or Load options.,

If this is your first run in this Q-VET session,, a Log File Screen will appear. This screen shows a default location where a log of all Q-VET activity will be posted. If you wish to change the default location, you may place your cursor in the edit box and type a new location.

Click OK.

2–20 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

__________________________ Note _____________________________

If you have previously started a test run during this session, Q-VET skips the

Log File Screen. (If you wish to change the log file location, you may exit

Q-VET and start a new session to obtain the Log File Screen).

If a run was started using the Qual Menu (see Running Q-VET Qual Tests), the run log filename will automatically be chosen as

/usr/field/tool_logs/vet_err_nnnnnn-mm-dd-yyyy.log

where nnnnnn is the nodename of the system under test, and mm-dd-yyyy is the date when the test was started.

____________________________________________________________

The Q-VET_run window is displayed. It shows the events that occur during the run--process start, error reports, and process completion.

Wait for the run to complete, or suspend and terminate the test when you desire.

Qualification Verifier Exerciser Tool (Q-VET) 2–21

DIGITAL UNIX and OpenVMS Q-VET

Viewing Test Results

Test results can appear in many places. Error messages are displayed in the Run Display window. The Summary window contains brief error messages and run statistics. The

System Error Log contains errors that were detected by the system during the run.

__________________________ Note _____________________________

When the session is terminated, a summary file containing test summary information and any system errors which may have occured during the test run is generated. This summary file can be found in the \dec\vet\tool_logs directory in

DIGITAL UNIX, and its equivalent in Open VMS, sys$specific:[sysmgr.tool_logs].

This file will always be named vet_sum_nnnnnn_mm-dd-yyyy.log

.

____________________________________________________________

Viewing a Run Summary

To view a run summary during or after a run:

1. Choose the Summary... entry from the Windows menu.

A summary window is displayed. It shows the state of the Q-VET run at the time you invoked the window.

2–22 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

2. During a run you can: b) Click on the Update button to update the display.

c) Enter specific devices or processes in the Summary window's Device/Process

Filter field. This causes Q-VET to display summaries for only these devices or processes the next time Update is selected.

d) Click on the Save As... button to save the summary in a file.

Qualification Verifier Exerciser Tool (Q-VET) 2–23

DIGITAL UNIX and OpenVMS Q-VET

__________________________ Note _____________________________

When the session is terminated, a summary file containing test summary information and any system errors which may have occured during the test run is generated. This summary file can be found in the usr/field/tool_logs directory.

____________________________________________________________

Viewing the System Error Log

To view the System Error Log:

1. Click on Window in the Main Menu and choose System Error Log.

2–24 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

2. The default (or most recent) report format is shown in the Error Log Report Formatter box. You can reformat the report by entering new parameters and clicking Reset if you wish.

3. Scroll down the display window to view the errrors in the format you have chosen.

4. When you are done, exit the window by clicking File and choosing Exit.

Suspending, Continuing, and Terminating a Q-VET Run or Process

You can suspend, continue, or terminate an entire Q-VET run, or individual processes.

The Run Menu is divided into upper and lower sections. The upper section lists Start All,

Suspend, Continue All, and Terminate All; these choices affect the entire Q-VET run, i.e.

all processes whether highlighted or not. The lower section of the Run Menu lists

Suspend, Continue and Terminate; these choices affect individual processes which have been highlighted.

Suspending, Continuing, and Terminating a Q-VET Run

Use the buttons on the bottom of the Process Work Area to suspend a Q-VET run, continue a suspended run, or terminate a run.

Clicking the Suspend button suspends all Q-VET internal tests. (Note that it does not suspend external tests started by Q-VET processes.) Each one's status is listed as suspended in the Process Work Area.

Qualification Verifier Exerciser Tool (Q-VET) 2–25

DIGITAL UNIX and OpenVMS Q-VET

Clicking the Continue button causes all processes resume executing. Each one's status is listed as active in the Process Work Area.

To terminate a Q-VET run while it is running, click on the Suspend button then click on the Terminate All button. This terminates the execution of all processes whether or not they have completed. Each one's status is listed as idle in the Process Work Area.

Suspending, Continuing, and Terminating Individual Processes

After you have started a run, you can suspend, continue, or terminate individual processes by using Run menu entries.

The Run menu's Start All, Suspend, Continue, and Terminate All entries are identical to the buttons under the Process Work Area. They affect all processes.

2–26 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

To suspend, continue, or terminate individual processes:

1. In the Process Work Area, highlight the names of the processes that you want to suspend, continue, or terminate.

2. Click on the Run menu.

3. Click on Suspend, Continue, or Terminate.

In this example, two cpu processes have been highlighted.

The Suspend option in the Run menu is chosen to stop the two cpu processes. Q-VET stops the two processes.

Qualification Verifier Exerciser Tool (Q-VET) 2–27

DIGITAL UNIX and OpenVMS Q-VET

In this example, all processes have been suspended; and one cpu process has been highlighted and continued by selecting the Continue option in the Run menu.

__________________________ Note _____________________________

If tests were started using the Qual Menu, they can only be terminated by clicking the Terminate button in the Qual Status window.

____________________________________________________________

In this example, all processes have been highlighted and terminated by selecting the

Terminate All option from the Run Menu.

2–28 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Saving and Restoring Setup

You can save or clear the current configuration displayed in the Device Work and Process

Work Areas, current process parameters, and Q-VET options, and you can recall this saved state later during the current Q-VET session or in future ones.

Saving the Setup State

To save the current setup state, do the following:

1. Click on the Set Up menu.

2. Click on the Set Up menu's Save Setup... entry.

The Save Setup dialog box is displayed.

3. You can save the setup in the default file whose name is provided.

4. Or you can save the setup in a file of another name:

Point within the Save Setup as File selection box and click on MB1.

Delete the file name that already appears.

Enter the name of the file in which you want to save the setup.

Click on the OK button to save the state in that file.

Restoring a Setup State

To restore a saved setup state:

1. Click on the Set Up menu.

2. Click on the menu's Restore Setup... entry.

The Restore Setup dialog box is displayed.

Qualification Verifier Exerciser Tool (Q-VET) 2–29

DIGITAL UNIX and OpenVMS Q-VET

3. Specify a filename by clicking on a filename in the Files field or by typing a filename in the Selection field.

4. Click on the OK button.

Q-VET clears the current setup state, restores the state contained in the specified file, and updates the main window.

2–30 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Editing and Executing Script Files

You can edit and execute script files by selecting the Scripts menu. A script or command file is a file containing commands that Q-VET can execute.

Use the script buffer to create and execute temporary scripts. Use script files to save your scripts permanently.

To edit the script buffer:

5

1. Click on the Scripts menu.

2. Click on the menu's Edit entry.

3. Choose the Script Buffer... entry of the submenu.

The Script Buffer dialog box is displayed.

5

The script buffer's contents are not permanent. The first time you issue the edit command during a

Q-VET session, the script buffer is empty. The commands you enter can be overwritten during the session. The script buffer's contents are lost when you terminate the session.

Qualification Verifier Exerciser Tool (Q-VET) 2–31

DIGITAL UNIX and OpenVMS Q-VET

4. Activate the text field by pointing within it and clicking on MB1.

5. Enter one Q-VET command per line in the text field; use lower case letters.

2–32 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

6. After you have finished entering commands, click on the Save button. (Q-VET does not execute commands, unless you have clicked on Save.)

Qualification Verifier Exerciser Tool (Q-VET) 2–33

DIGITAL UNIX and OpenVMS Q-VET

To execute commands in the script buffer:

1. Click on the Scripts menu.

2. Click on the menu's Execute entry.

3. Choose the Script Buffer entry of the submenu. Q-VET will now execute the commands.

To create or edit a permanent script file:

1. Click on the Scripts menu.

2. Choose the menu's Edit entry.

3. Choose the File... entry of the submenu.

The Edit Script dialog box is displayed, so that you can select a file name.

2–34 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

To execute commands in a permanent script file:

1. Click on the Scripts menu.

2. Choose the menu's Execute entry.

3. Choose the File... entry of the submenu.

The Execute Script dialog box is displayed, so that you can select a file. (This is essentially the same screen as the Edit Script dialog box.)

Qualification Verifier Exerciser Tool (Q-VET) 2–35

DIGITAL UNIX and OpenVMS Q-VET

Running Q-VET Qual Tests

Q-VET provides several predefined Qual Tests. You can run Q-VET Qual Tests by doing the following:

1. Click on Qual_Tests on the Q-VET Menu Bar.

2. Choose “Cert. Tests” from the pull down menu.

3. Choose “Engineering” from the next pull down menu.

The Q-VET Qual Status screen appears.

4. Use the Start or Terminate buttons on the bottom of the screen to start or terminate the

Qual Tests. The Cancel button lets you exit the screen without taking action, and the dev/Detail button lets you view the qual test details for a particular device.

2–36 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL UNIX and OpenVMS Q-VET

Terminating a Q-VET Session

To terminate the Q-VET session:

1. Be sure all processes have been terminated.

2. Click on the File menu.

3. Click on the menu's Exit entry.

Qualification Verifier Exerciser Tool (Q-VET) 2–37

3

Windows NT Q-VET

This chapter gets you started with using Q-VET on the Windows NT operating system by providing easy-to-follow examples of its use. (If you are using the DIGITAL UNIX or

OpenVMS operating systems, see Chapter 2.)

Online Help

Help can be obtained from the Help Menu, or Help buttons in the dialog boxes, which provide a Help display corresponding to that dialog box. Most Help topics have hot spots which allow you to view other topics. The hot spots are underlined and appear in green.

When you click on a hot spot, the corresponding help text appears.

The Help Menu provides entries for obtaining the contents for Q-VET help (shown in the following figure), searching for keywords in Q-VET help, and obtaining information on how to use the Help facility.

To obtain context sensitive help on a child window or dialog box, select the window or dialog box and press the F1 key. A help window appears with information on the window or dialog box. In order to get information on the main Q-VET window in this manner, you must close all the child windows.

To obtain context sensitive help on a menu entry, press the Shift and F1 keys at the same time. The cursor changes to an arrow and question mark indicating context sensitive help.

To obtain help on an entry, position the cursor over the entry and click MBR. A help window appears displaying information on that menu entry.

Qualification Verifier Exerciser Tool (Q-VET) 3–1

Windows NT Q-VET

Getting Started With the Windows NT Interface

This section reproduces a Q-VET session using the Windows NT interface.

The section does not describe every available function. To obtain more information on an item, click on the Help button in the menu bar or in the window in which the item appears.

A Help window with detailed information is displayed.

3–2 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

__________________________ Note _____________________________

Q-VET for the Windows NT operating system includes a Tool Bar which provides clickable buttons for available functions from the particular point that you are at in Q-VET. Once you are familiar with Q-VET, these buttons may be used as shortcuts to desired screens or functions in lieu of the menu selections or mouse button clicks suggested in the examples below.

____________________________________________________________

Starting a Q-VET Session Windows NT Systems

In order to start Q-VET, issue the vet command in the Command Prompt window, or click on the Q-VET icon in the Q-VET program group.

Understanding the Main Window

The Q-VET Main Window is now visible.

Qualification Verifier Exerciser Tool (Q-VET) 3–3

Windows NT Q-VET

Figure 3-1 Q-VET Main Window - Windows NT Systems

This window contains the following areas:

Title Bar - The title bar displays the facility name (Q-VET) and the window management buttons.

Menu Bar - The menu bar lists the menus that you select to perform Q-VET functions.

Tool Bar - The tool bar contains buttons which are equivalent to frequently used menu entries.

Device Work Area - The Device Work Area displays the nodes and devices whose names are contained in Q-VET’s configuration database, that is, its database of testable devices.

3–4 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

Process Work Area - The Process Work Area displays the nodes and devices you have selected for testing, along with their corresponding process numbers, test groups, and status.

When you first start Q-VET, the Process Work Area is empty.

Information Display Bar - This display bar contains two fields:

The Info field displays various information, such as completion messages from the Q-

VET sizer. Be sure to check the Info field for messages when you invoke Q-VET and when you connect to other nodes.

The State field changes according to what state the Q-VET run is in. There are four states that Q-VET can operate in: setup, active, suspend, and qual. (The qual state is entered when the qual status window is visible.)

Q-VET sizing information will display briefly in the information display bar while Q-VET is loading.

Learning to Use Q-VET

The following sections outline how to perform basic operations in Q-VET.

Selecting Devices for a Q-VET Run

The Q-VET run is defined by the nodes or devices placed or “listed” in the Process Area of the Q-VET Main Window. To set up processes for nodes or devices in the Process Area, you must “Select” the nodes or devices. Nodes or devices may be selected in two ways:

1. Loading a predefined “Script” to create processes to test all devices on the system.

2. Choosing them selectively from the Device Area

Loading Predefined Scripts

Using the Q-VET Load option is the simplest way to test your system. The Load option automatically creates processes for most devices on your system.

To use this feature, pull down the Scripts option on the Q-VET Menu Bar, choose Load, and then select any or all of the following scripts.

Script

CPU Select

Disk Select

Tape Select

Video Select

Phase 1 Engineering

Includes:

All tests for your CPU

All tests for disks on your system.

All tests for tape drives on your system.

All tests for video options on your system.

All tests for all devices on your system.

Qualification Verifier Exerciser Tool (Q-VET) 3–5

Windows NT Q-VET

Processes for the devices you selected appear in the Process Work Area.

Choosing Nodes or Devices From the Device Area

Q-VET sessions can be customized to allow you to specify which tests you would like to run. Each test can be customized using various options, provided by the Q-VET exercisers. These examples will only show how to change some of the options. To find out about other options, please refer to the online Help.

To select specific nodes or devices listed in the Device Area, you must first highlight them in one of the three ways listed.

For a single device or node, point to it and press Mouse Button 1 (MB1), the left hand button on your mouse.

For multiple contiguous devices, point to the first device, hold down MB1, and drag the pointer down the list of devices; release MB1 while pointing to the last device.

For multiple noncontiguous devices, highlight the first device or series of devices by pointing or pointing and dragging. Highlight the next device or devices by pointing at them and pressing the Ctrl key on your keyboard and MB1 simultaneously

[Ctrl/MB1]. You can use this technique to highlight as many noncontiguous devices as you want.

After highlighting the devices or nodes, you must select them to be listed in the Process

Area by either clicking Set Up in the Menu Bar and choosing Select Devices, or placing the cursor on the highlighted item or items, clicking MB3, and choosing “Select Devices”.

To select devices from the Device Work Area for testing:

1. Highlight the names of the nodes or devices that you want to select.

For this example, the cpu and memory devices have been highlighted.

3–6 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

2. Click on Set Up on the Menu Bar and choose the Select Devices entry. The process definitions are displayed in the Process Work Area.

You can also keep the pointer in the Device Work Area and press MB3. A popup menu displays valid operations. Point to the Select Devices entry and release MB3.

The devices you selected appear in the Process Work Area.

Deselecting Processes

To deselect processes and remove them from a Q-VET run:

1. In the Process Work Area, highlight the names of the nodes or devices that you want to remove by clicking or clicking and dragging.

2. Choose the Set Up menu's Deselect entry.

3. The highlighted entries disappear from the Process Work Area.

Qualification Verifier Exerciser Tool (Q-VET) 3–7

Windows NT Q-VET

4. You can also keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations. Point to the Deselect entry and release

MB3.

5. The process dissapears from the Process Work Area.

Adding and Dropping Processes

You can add processes to a Q-VET run or drop processes from it. This allows you to increase or decrease the system load gradually.

To add or drop processes:

1. In the Process Work Area, highlight the processes that you want to add to a run or drop from it.

2. Click on the Set Up menu.

3. Click on either Add or Drop.

4. You can also keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations. Point to the Add or Drop entry and release

MB3. Examples of a Drop and an Add are shown below.

3–8 Qualification Verifier Exerciser Tool (Q-VET)

Processes highlighted for Drop:

Windows NT Q-VET

Qualification Verifier Exerciser Tool (Q-VET) 3–9

Windows NT Q-VET

Previously dropped processes highlighted to be added:

All processes contained in the Process Work Area before you start the Q-VET run are automatically added. If you include additional processes during a Q-VET run, these processes are automatically dropped. You must add them before they begin executing.

Duplicating a Process

To make one or more copies of an existing process, highlight the processes you wish to duplicate in the Process Work Area, and perform one of the following:

Choose the Set Up menu's Duplicate entry.

Keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations. Point to the Duplicate entry and release

MB3.

3–10 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

__________________________ Note _____________________________

Some processes can only be run one at a time; you will receive a message indicating this at start time.

____________________________________________________________

The highlighted entries are duplicated in the Process Work Area.

Repeat the above once for each duplicate you want to make.

Modifying Process Parameters

To modify a process definition's parameters:

1. In the Process Work Area, highlight the process.

2. Click on the Set Up menu.

Qualification Verifier Exerciser Tool (Q-VET) 3–11

Windows NT Q-VET

3. Click on the menu's Show/Modify Parameters... entry.

4. You can also keep the pointer in the Process Work Area and press MB3.

A popup menu displays valid operations . Point to the Show/Modify entry and release

MB3.

The Show/Modify Parameters dialog box is displayed.

__________________________ Note _____________________________

The Show/Modify Parameters dialog box and it’s dialog windows will differ from the example according to the process you have chosen to modify.

____________________________________________________________

3–12 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

5. Use the dialog box to view and modify process parameters and options that apply only

to this process. You can:

Set a run time and/or pass count.

Select or deselect specific tests within the selected test group. A check mark next to the test indicates whether it has been selected or not (the checkmark is lined out (\) if the test has been deselected).

Modify various process options using click boxes and fill-in dialog windows.

Qualification Verifier Exerciser Tool (Q-VET) 3–13

Windows NT Q-VET

If you select several processes in the Process Work Area, you can use the Next button in the Show/Modify Parameters dialog box to examine and change process parameters one process at a time.

1. Click on the Set Up menu.

2. Click on the menu's Show/Modify Parameters... entry; the Show/Modify Parameters screen appears.

3. Read the contents of the displayed dialog box, and modify as necessary using the buttons and fill-in boxes.

4. Click on Next to view the dialog box associated with the next process if more than one is highlighted.

5. Click on OK, Reset, or Cancel as necessary.

__________________________ Note _____________________________

A list of available tests for each device is presented in Appendix D.

____________________________________________________________

Setting the Run Time for All Processes

1. In the main window's Option menu choose Set Runtime...

The Set Runtime dialog box is displayed.

2. Set the run time by sliding the slide bars, clicking on the stepper buttons, or typing numbers in the text fields.

3. Click on the OK button to activate your settings. (Click on the Reset button to restore the current run time.)

3–14 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

__________________________ Note _____________________________

A distinct relationship exists between pass count and run time. If you set both pass count and run time, the first condition that is satisfied ends the Q-VET run.

____________________________________________________________

Setting the Pass Count for All Processes

To set the pass count for all processes:

1. In the main window's Options menu, choose Set Passcount...

The Set Passcount dialog box is displayed.

2. Set the pass count by sliding the slide bar, clicking on the stepper buttons, or typing numbers in the text field. If you set the pass count at 0; Q-VETwill ignore the pass count and use only the run-time value to end the run.

3. Click on the OK button to activate your settings. (Click on the Reset button to restore the current pass count.)

Qualification Verifier Exerciser Tool (Q-VET) 3–15

Windows NT Q-VET

__________________________ Note _____________________________

The execution time of one pass is not the same for every exerciser.

____________________________________________________________

Setting Timeout for All Processes

To set the timeout interval for all processes:

1. In the main window's Options menu, choose Set Timeout...

The Timeout dialog box is displayed.

1. Click on the Enable or Disable button.

2. If you choose to enable timeout, set the timeout interval you wish in seconds by either sliding the horizontal scale and/or typing a new upper value in the right hand box.

3. Click on the OK button to activate your settings. (Click on the Reset button to restore the current timeout setting.)

3–16 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

Setting the CPU Affinity for All Processes

CPU affinity refers to which CPU the process is bound to (set to run on).

To set the cpu affinity for all processes:

1. In the main window's Options menu, choose Set Affinity...

The Set Affinity dialog box is displayed.

1. Choose the node if there are more than one.

2. Set the subprocess default affinity processor id by clicking on the empty box, then entering the appropriate id number.

3. Click on the OK button to activate your settings. (Click on the Reset button to restore the current affinity id.)

Setting the Error Threshold for All Processes

To set the error threshold for all processes:

1. In the main window's Options menu, choose Set Error_Threshold...

The Error Threshold dialog box is displayed.

Qualification Verifier Exerciser Tool (Q-VET) 3–17

Windows NT Q-VET

1. Click on the appropriate Node.

2. Set the error threshold you wish by either sliding the horizontal scale and/or typing a new upper value in the right hand box.

3. Click on the OK button to activate your settings. (Click on the Reset button to restore the current error threshold setting.)

Modifying Other Options

If you choose the Options menu's Other... entry, a dialog box is displayed that lets you modify several Q-VET run-time options. Click on the dialog box's Help button to read about the options.

To modify Other options:

1. Click on Options in the Menu bar.

2. Click on the Other... entry.

The Q-VET Other Options Dialogue Window is displayed.

3–18 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

To set Other options, do the following.

1. Click on the desired option button(s).

2. Click on the OK button.

Starting a Q-VET Run

To start a Q-VET run, click on Run in the Menu Bar and choose Start All. This starts the run that was set up by the Select or Load options.

If this is your first run in this Q-VET session, a Run Log Filename screen will appear.

This screen asks if you wish to specify an error log and run information filename. If you do not specify a filename, the run information will only be saved in the system log. If you do specify a filename, information displayed in the run window during this and all subsequent runs in this Q-VET session will be appended to the specified file.

If you wish to specify a filename, click Yes.

Qualification Verifier Exerciser Tool (Q-VET) 3–19

Windows NT Q-VET

__________________________ Note _____________________________

If you have previously started a test run during this session, Q-VET skips the

Run Log Filename Screen. (If you wish to change the log file location, you may exit Q-VET and start a new session to obtain the Run Log Filename screen).

If a run was started using the Qual Menu (see Running Q-VET Qual Tests), the run log filename will automatically be chosen as c:

/dec/vet/tool_logs/vet_err_nnnnnn-mm-dd-yyyy.log,

where c: is the drive

Q-VET is installed on, nnnnnn is the nodename of the system under test, and mm-dd-yyyy is the date when the test was started.

____________________________________________________________

The Q-VET Run Display window appears. It shows the events that occur during the run--process start, error reports, and process completion.

3–20 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

Wait for the run to complete, or suspend and terminate the test when you desire.

Viewing Test Results

Test results can appear in many places. Error messages are displayed in the Run Display window. The Summary window contains brief error messages and run statistics. The

System Event Log contains errors that were detected by the system during the run.

__________________________ Note _____________________________

When the session is terminated, a summary file containing test summary information and any system errors which may have occured during the test run is generated. This summary file can be found in the \dec\vet\tool_logs directory in

DIGITAL UNIX, and its equivalent in Open VMS, sys$specific:[sysmgr.tool_logs].

____________________________________________________________

Qualification Verifier Exerciser Tool (Q-VET) 3–21

Windows NT Q-VET

Viewing a Run Summary

You can view a summary of the run any time during the run or after its completion.

To view a run summary:

1. Click on Window in the Menu Bar, and choose Summary Display.

A summary window is displayed showing the state of the Q-VET run at the time you invoked the window.

During a run you can view a summary for any individual device or process by using the

Summary Filter as follows:

1. While viewing the Summary Window, Select the Summary Filter... entry from the

Windows menu.

The Summary Filter dialog box appears which allows you to specify individual devices for which you would like a summary.

2. Enter the desired device or process in the Device/Process Filter field.

3. Click on OK.

3–22 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

4. The Summary Window is updated to show information for the individual device or process you requested.

__________________________ Note _____________________________

The summary filter affects all summary displays until you clear the filter.

Clearing the filter field causes a summary for all devices to be displayed.

____________________________________________________________

While viewing the summary, you can click on the File menu Save As option to save the summary in a file.

Viewing the System Event Log

To view the System Event Log:

1. Click on Window in the Main Menu and choose Event Viewer.

2. To get a detailed description of an entry:

3. Double click on an entry in the Event Viewer Window. An Event Detail window will be displayed.

Qualification Verifier Exerciser Tool (Q-VET) 3–23

Windows NT Q-VET

4. Click on Close to exit the Event Detail Window.

5. Select the exit entry from the Log menu to exit the Event Viewer Window.

Suspending, Continuing, and Terminating a Q-VET Run or Process

You can suspend, continue, or terminate an entire Q-VET run, or individual processes by choosing Run from the Menu Bar. The Run Menu is divided into upper and lower sections. The upper section lists Start All, Suspend, Continue All, and Terminate All; these choices affect the entire Q-VET run, i.e. all processes whether highlighted or not.

The lower section of the Run Menu lists Suspend, Continue and Terminate; these choices affect individual processes which have been highlighted.

Suspending, Continuing, and Terminating a Q-VET Run

Click on Run in the Menu Bar to suspend a Q-VET run, continue a suspended run, or terminate an entire Q-VET run.

3–24 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

Choosing Suspend from the upper section of the Run menu suspends all Q-VET internal tests. (Note that it does not suspend external tests started by Q-VET processes.) Each one's status is listed as suspended in the Process Work Area.

Qualification Verifier Exerciser Tool (Q-VET) 3–25

Windows NT Q-VET

Choosing Continue All from the upper section of the Run menu causes all processes to resume executing. Each one's status is listed as active in the Process Work Area.

To terminate a Q-VET run while it is running, you must first suspend the processes which are running.

Click on the Run Menu and choose Suspend then choose Terminate All. This terminates the execution of all processes whether or not they have completed. Each one's status is listed as idle in the Process Work Area.

3–26 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

Suspending, Continuing, and Terminating Individual Processes

After you have started a run, you can suspend, continue, or terminate individual processes by using the lower section of Run menu entries. . .

To suspend, continue, or terminate individual processes:

1. In the Process Work Area, highlight the names of the processes that you want to suspend, continue, or terminate.

2. Click on the Run menu.

3. In the lower section of the Run menu, click on Suspend, Continue, or Terminate as desired.

In this example, two cpu processes have been highlighted.

Qualification Verifier Exerciser Tool (Q-VET) 3–27

Windows NT Q-VET

Choose the Suspend option in the lower section of the Run menu to stop the highlighted processes. Q-VET stops the processes.

3–28 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

Qualification Verifier Exerciser Tool (Q-VET) 3–29

Windows NT Q-VET

In this example, all processes have been suspended; and one cpu process has been highlighted and continued by selecting the Continue option from the lower Run menu.

3–30 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

In this example, all processes have been highlighted and terminated by selecting the

Terminate option from the Run menu.

Saving, Clearing, and Restoring Setup

You can save or clear the current configuration displayed in the Device Work and Process

Work Areas, current process parameters, and Q-VET options, and you can recall this saved state later during the current Q-VET session or in future ones.

Saving a Setup State

To save the current setup state, follow these steps.

1. Click on the Set Up menu.

2. Click on the Set Up menu’s Save Setup entry.

The Save Setup dialog box is displayed.

Qualification Verifier Exerciser Tool (Q-VET) 3–31

Windows NT Q-VET

3. You can save the setup in the default file whose name is provided, or you can save the setup in a file of another name:

Point within the File Name selection field and click on MB1.

Delete the file name that already appears.

Enter the name of the file in which you want to save the setup.

4. Click on the Save button to save the state in the file.

Restoring a Setup State

To restore a saved setup state:

1. Click on the Set Up menu. Click on the menu’s Restore Setup entry. The Restore

Setup dialog box is displayed.

3–32 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

1. Specify a file name by clicking on a file name in the list or by typing a file name in the File Name field.

2. Click on the Open button.

Q-VET clears the current setup state and restores the state contained in the specified file.

The contents of the Device and Process work areas are first cleared before the saved devices and processes are restored.

Editing and Executing Script Files

You can edit and execute script files by selecting the Scripts menu. A script or command file is a file containing commands that Q-VET can execute.

Use the script buffer to create and execute temporary scripts. Use script files to save your scripts permanently.

To edit the script buffer:

6

1. Click on Scripts in the Menu Bar.

2. Click on the menu's Edit entry.

6

The script buffer's contents are not permanent. The first time you issue the edit command during a

Q-VET session, the script buffer is empty. The commands you enter can be overwritten during the session. The script buffer's contents are lost when you terminate the session.

Qualification Verifier Exerciser Tool (Q-VET) 3–33

Windows NT Q-VET

3. Choose the Script Buffer... entry of the submenu.

The Script Buffer dialog box is displayed.

4. Activate the text field by pointing within it and clicking on MB1.

5. Enter one Q-VET command per line in the text field.

3–34 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

To execute commands in the script buffer:

1. Click on the Scripts menu.

2. Click on the menu's Execute entry.

3. Choose the Script Buffer entry of the submenu. Q-VET will now execute the commands in the script buffer..

To create a permanent script file, do the following:

1. Save the script buffer by pulling down the File Menu and choosing either Save or

(Save As to give it a filename you select). The Save Script screen appears.

Qualification Verifier Exerciser Tool (Q-VET) 3–35

Windows NT Q-VET

2. Click on Save.

To edit a permanent script file, do the following

1. Click on the Scripts menu.

2. Choose the menu's Edit entry.

3. Choose the File... entry of the submenu.

The Edit Script dialog box is displayed, so that you can select a file name.

3–36 Qualification Verifier Exerciser Tool (Q-VET)

Windows NT Q-VET

To execute a permanent script file:

1. Click on the Scripts menu.

2. Choose the menu's Execute entry.

3. Choose the File... entry of the submenu.

The Execute Script dialog box is displayed, so that you can select a file. (This is essentially the same screen as the Edit Script dialog box.)

Running Q-VET Qual Tests

Q-VET provides several predefined Qual Tests. You can run Q-VET Qual Tests by doing the following:

1. Click on Qual_Tests on the Menu Bar.

2. Choose “Cert. Tests” from the pull down menu.

3. Choose “Engineering” from the next pull down menu.

The Q-VET Qual Status screen appears.

Qualification Verifier Exerciser Tool (Q-VET) 3–37

Windows NT Q-VET

4. Use the Start or Terminate buttons to start or terminate the Qual Tests. The Cancel button lets you exit the screen without taking action, and the Detail button lets you view the qual test details for a particular device.

Terminating a Q-VET Session

You can exit the Q-VET session by clicking on the Exit entry in the File Menu.

3–38 Qualification Verifier Exerciser Tool (Q-VET)

4

Q-VET Command Interface

This chapter discusses the Q-VET command interface which is applicable for all operating systems - DIGITAL UNIX, OpenVMS, and Windows NT.

Online Help

When you need assistance with a specific Q-VET command, you can issue help

command-name to view a description of the command.

For this example, enter

help load

Q-VET_setup> help load

Creates a default load for the system configuration that

you are testing. You then issue the start command to start

the run.

Format: load { none }

{ with default }

{ with [cpu n1] [memory n2] [file n3] [network n4] [video n5]

[disk n6] }

When you issue the load command without arguments, the Q-VET Software

.

.

.

Q-VET_setup>

Issuing the help command without arguments lists available topics about which you can obtain information.

Qualification Verifier Exerciser Tool (Q-VET) 4–1

Q-VET Command Interface

Getting Started with the Q-VET Command Interface

This section reproduces a Q-VET session using its command interface. The session has been designed so that you can follow the examples.

The session does not use every available command-line function display. You can also use Q-VET’s online help (see Online Help) to find out about commands, keywords, and arguments.

Starting Q-VET Session

__________________________ Note _____________________________

Before you start Q-VET, make sure that you have followed the system setup procedures described in Chapter 2 for the DIGITAL UNIX and OpenVMS operating systems, and Chapter 3 for the Windows NT operating system. This includes making sure that you have the proper corresponding versions of Q-VET and

DIGITAL UNIX, OpenVMS, or Windows NT installed.

____________________________________________________________

Issue the

vet

command at your system prompt:

% vet -nw

You need not specify

nw, if your DIGITAL UNIX system does not support

DECwindows Motif or you have not set the DISPLAY environment variable. (See

Chapter 2.)

After you issue the

vet command, a message should be displayed indicating that the system sizer is running.

7

Running system sizer on node chaaly . . . please wait

Should you see a different message beforehand, one indicating that a discrepancy exists between the expectant operating system's version number and the existing operating system's version number, then you'll need to follow the instructions that are displayed.

These instructions will inform you of Q-VET’s current version number, along with the expected operating system's version number that is known to be compatible with that version of Q-VET. It will also inform you of the existing operating system's version

7

The system sizing process finds the devices that are connected to a system and obtains device information needed by Q-VET programs.

4–2 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface number and indicate that you should update either the version of Q-VET, or the version of the operating system, so that a known compatible pair will be run together.

After the sizer completes, you may also see another informational message indicating that the sizer process could not access all devices on your system.

Sizer was unable to open all files in /dev.

System configuration information may not be complete.

You can ignore this message: it indicates only that you do not have the proper privileges to access some devices on your system. You can still run Q-VETand test the devices that you can access.

Q-VET’s user prompt is displayed:

Q-VET_setup>

To view a list of the devices that were identified by the system sizer, issue the

show devices all

command.

Q-VET_setup> show devices all

SYSTEM DEVICE TYPE SUBTYPE SIZE STATUS

chaaly memory V_MEM 67100672

chaaly file FILE_DATA

chaaly cpu CPU risc

chaaly network NETWORK tcpdec

chaaly /dev/rmt0l TAPE tk70 LOCAL_RW

chaaly /dev/nrmt0l TAPE tk70 LOCAL_RW

chaaly /dev/rmt0h TAPE tk70 LOCAL_RW

chaaly /dev/nrmt0h TAPE tk70 LOCAL_RW

chaaly terminal TERMINAL

chaaly printer PRINTER

chaaly video VIDEO

Q-VET_setup>

Learning to Use Q-VET

The following sections outline how to perform basic operations in Q-VET. Each section first describes how to perform the operation in general. At the end of each section is an example which you can try to perform using the information given in the beginning of the section. The examples start with “For this example...”. Each example depends on all previous examples being performed first.

Qualification Verifier Exerciser Tool (Q-VET) 4–3

Q-VET Command Interface

Viewing Process Definitions

To view process definitions, issue the show process command.

Q-VET_setup> show process all

Process 1, group exer for device cpu

Status is NOT LOADED

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 0 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Requested passcount: 1

Completed passcount: 0

Options:

error_check_level : 3

cpu_affinity (id # or "NONE") : none

Error Threshold: 0

Process 2, group exer for device memory

Status is NOT LOADED

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 0 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Requested passcount: 1

Completed passcount: 0

Options: memory_to_allocate : <defined at runtime> min_segment_size : <defined at runtime> max_segment_size : <defined at runtime> pattern : 0 enable_writes : yes error_check_level : 3 cpu_affinity (id # or "NONE") : none

Error Threshold: 0

Process 3, group exer for device network

Status is NOT LOADED

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 0 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

4–4 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Requested passcount: 1

Completed passcount: 0

Options: transport (1=TCP 2=UDP 3=DECnet) : 1 interface (1=sockets 2=XTI) : 1 nodes_list : <defined at runtime> single_step (TCP/DECnet) : no packet_size : 1024 total_bytes (per connect) : 0 total_writes (UDP only) : 1 packets (total targets) : 5000 pattern : 0 delay : 0 error_check_level : 3 cpu_affinity (id # or "NONE") : none

Error Threshold: 0

Process 4, group exer for device file

Status is NOT LOADED

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 0 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Requested passcount: 1

Completed passcount: 0

Options: file_name : <defined at runtime> enable_writes : yes reads_per_iteration : 1 block_size : 512 start_block : 0 end_block : 499 step : 0 iterations : 1000 delay : 0 pattern : 0 error_check_level : 3 read_only_verify : no key : <defined at runtime> save_file : no cpu_affinity (id # or "NONE") : none

Error Threshold: 0

Qualification Verifier Exerciser Tool (Q-VET) 4–5

Q-VET Command Interface

Starting a Q-VET Run

To start a Q-VET run, issue the start command. In this example, issuing the command starts the run that you set up when you issued the load command.

Q-VET displays messages describing events that occur during the run. The messages indicate when each process starts and stops, display testing error reports, and indicate when the run is complete.

Wait for the completion of the run that you have started before going on to Viewing a

Run Summary.

Viewing a Run Summary

To view a run summary during or after a run, issue the show summary command. The summary displays the state of the Q-VET run at the time you issued the command.

Deselecting Processes

Deselecting a process removes it from the Q-VET run. To deselect processes, issue the

deselect processes command, including the numbers of the processes you wish to deselect, for example:

deselect processes 1 3

For this example, deselect all processes created by the load command.

Q-VET_setup> deselect processes all

Selecting Devices for a Q-VET Run

To view the list of available devices, issue the show devices all command.

To select devices for testing, issue the select devices command.

For this example, select the cpu and memory devices.

Q-VET_setup> show devices all

SYSTEM DEVICE TYPE SUBTYPE SIZE STATUS

chaaly memory V_MEM 67100672

chaaly file FILE_DATA

chaaly cpu CPU risc

chaaly network NETWORK tcpdec

4–6 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

chaaly /dev/rmt0l TAPE tk70 LOCAL_RW

chaaly /dev/nrmt0l TAPE tk70 LOCAL_RW

chaaly /dev/rmt0h TAPE tk70 LOCAL_RW

chaaly /dev/nrmt0h TAPE tk70 LOCAL_RW

chaaly terminal TERMINAL

chaaly printer PRINTER

chaaly video VIDEO

Q-VET_setup> select devices cpu memory

Process 10, group exer for device cpu

Process 11, group exer for device memory

Q-VET_setup>

Setting the Run Time for All Processes

To view the current run time settings, issue the show runtime command.

8

To set the run time for all processes, issue the set runtime command. Do not include device names or process numbers in the command.

For this example, set the run time to 3 minutes.

Q-VET_setup> set runtime 3

Q-VET_setup> show runtime

Process 10 Runtime:

Requested runtime: 0 hours 3 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 0 seconds

Remaining runtime: 0 hours 3 minutes 0 seconds

Process 11 Runtime:

Requested runtime: 0 hours 3 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 0 seconds

Remaining runtime: 0 hours 3 minutes 0 seconds

Q-VET_setup>

Setting the Pass Count for All Processes

To view the current pass count, issue the show passcount command.

8

A process's run time is the total time for which it is allowed to execute.

Qualification Verifier Exerciser Tool (Q-VET) 4–7

Q-VET Command Interface

To set the pass count for all processes, issue the set passcount command. Do not include device names or process numbers in the command.

For this example, set the pass count to 0. This causes Q-VET to ignore the pass count and use only the run-time value to end the run.

Q-VET_setup> set passcount 0

Q-VET_setup> show passcount

Process 10 Passcount:

Requested passcount: 0

Completed passcount: 0

Process 11 Passcount:

Requested passcount: 0

Completed passcount: 0

Q-VET_setup>

Setting the CPU Affinity for All Processes

To view the current cpu affinity id, issue the show affinity command.

To set the cpu affinity for all processes, issue the set affinity command.

Setting the Error Threshold for All Processes

To view the current error_threshold value, issue the show error_threshold command.

To set the error threshold for all processes, issue the set error_threshold command.

For this example, set the error threshold value to 5. This causes Q-VET to halt when a total of 5 errors occurs from any combination of processes.

Q-VET_setup> set error_threshold 5

Q-VET_setup> show error_threshold

Process 10 Error Threshold: 5

Process 11 Error Threshold: 5

Process 12 Error Threshold: 5

Q-VET_setup>

4–8 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Duplicating a Process

To make one or more copies of an existing process definition, issue the duplicate

process command.

For this example, make two additional copies of the cpu process.

Q-VET_setup> duplicate process 10 2

Process 12, group exer for device cpu

Process 13, group exer for device cpu

Starting, Suspending, Continuing, and Terminating Processes

To start this run, issue the start command. . .

Q-VET_setup> start

...starting [Process 10, Pass 1] group exer for device cpu.

...starting [Process 11, Pass 1] group exer for device memory.

...starting [Process 12, Pass 1] group exer for device cpu.

...starting [Process 13, Pass 1] group exer for device cpu.

Wait approximately 30 seconds. Issue the stop command. All processes temporarily suspend executing and enter the suspend execution state.

Q-VET_active> stop

...stopping [Process 13] group exer for device cpu.

...stopping [Process 10] group exer for device cpu.

...stopping [Process 12] group exer for device cpu.

...stopping [Process 11] group exer for device memory.

Q-VET_suspend>

Issue the continue command. All processes resume executing and enter the active execution state.

Q-VET_suspend> continue

...continuing [process 10] group exer for device cpu.

...continuing [process 11] group exer for device memory.

...continuing [process 12] group exer for device cpu.

...continuing [process 13] group exer for device cpu.

Issue the stop command again.

Q-VET_active> stop

...stopping [Process 10] group exer for device cpu.

...stopping [Process 13] group exer for device cpu.

...stopping [Process 12] group exer for device cpu.

Qualification Verifier Exerciser Tool (Q-VET) 4–9

Q-VET Command Interface

...stopping [Process 11] group exer for device memory.

Q-VET_suspend> )

Issue the terminate command. All processes stop executing permanently; their status is idle.

Q-VET_suspend> terminate

...terminated [process 10] group exer for device cpu.

...terminated [process 11] group exer for device memory.

...terminated [process 12] group exer for device cpu.

...terminated [process 13] group exer for device cpu.

Q-VET_setup>

To suspend, continue, or terminate individual processes, issue the stop processes,

continue processes, and terminate processes commands.

For this example, enter start again. Then stop two processes.

Q-VET_setup> start

...starting [Process 10, Pass 1] group exer for device cpu.

...starting [Process 11, Pass 1] group exer for device memory.

...starting [Process 12, Pass 1] group exer for device cpu.

...starting [Process 13, Pass 1] group exer for device cpu.

Q-VET_active> stop processes 10 11

...stopping [Process 11] group exer for device memory.

...stopping [Process 10] group exer for device cpu.

Suspend all processes.

Q-VET_suspend> stop

...stopping [Process 13] group exer for device cpu.

...stopping [Process 12] group exer for device cpu.

Continue one process. Then continue the remaining processes.

Q-VET_suspend> continue process 12

...continuing [process 12] group exer for device cpu.

Q-VET_active> continue

...continuing [process 10] group exer for device cpu.

...continuing [process 11] group exer for device memory.

...continuing [process 13] group exer for device cpu.

Suspend the processes again and terminate them.

Q-VET_active> stop

...stopping [Process 12] group exer for device cpu.

4–10 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

...stopping [Process 13] group exer for device cpu.

...stopping [Process 11] group exer for device memory.

Q-VET_suspend> terminate

...terminated [process 10] group exer for device cpu.

...terminated [process 11] group exer for device memory.

...terminated [process 12] group exer for device cpu.

Modifying Other Options

To modify several Q-VET run-time options, issue the enable/disable or set commands.

For this example, enable the stopping on hard and fatal errors.

Q-VET_setup> enable stop hard fatal

Adding and Dropping Processes

You can add processes to a Q-VET run or drop processes from it. This allows you to increase or decrease the system load gradually.

To add or drop processes, issue the add and drop commands.

All processes defined before you issue the start command are automatically added to the run. If you define additional processes during a Q-VET run, these processes are automatically dropped. You must add them before they will begin executing.

For this example:

1. Drop all processes from your local node.

Q-VET_setup> drop process all

2.

Add one process to your local node.

Q-VET_setup> add process 10

3.

Start the run.

Q-VET_setup> start

...starting [Process 10, Pass 1] group exer for device cpu.

...starting [Process 1, Pass 1] group exer for device cpu.

Qualification Verifier Exerciser Tool (Q-VET) 4–11

Q-VET Command Interface

...starting [Process 2, Pass 1] group exer for device memory.

*** End of message ***

4.

Gradually add the remaining local processes one at a time.

Q-VET_active> add process 11

...starting [Process 11, Pass 1] group exer for device memory.

Q-VET_active> add process 12

...starting [Process 12, Pass 1] group exer for device cpu.

Q-VET_active> add process 13

...starting [Process 13, Pass 1] group exer for device cpu.

5.

Wait for the run to complete.

*** From node poges ***

...completed [process 1] group exer for device cpu.

*** End of message ***

...completed [process 10] group exer for device cpu.

...completed [process 12] group exer for device cpu.

...completed [process 13] group exer for device cpu.

...completed [process 2] group exer for device memory.

...testing completed. Total errors reported by all processes = 0.

*** End of message ***

...completed [process 11] group exer for device memory.

...testing completed. Total errors reported by all processes = 0.

Q-VET_setup>

Modifying Process Parameters

You can modify a process definition's parameters by:

Setting a run time and/or pass count that applies only to this process.

Selecting or deselecting specific tests within the selected test group.

Modifying process options.

4–12 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

For this example:

1.

Issue the show process command to view one of your process definitions.

9

Q-VET_setup> show process 11

Process 11, group exer for device memory

Status is IDLE

Requested runtime: 0 hours 3 minutes 0 seconds

Elapsed runtime: 0 hours 3 minutes 0 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Requested passcount: 1

Completed passcount: 1

Options:

memory_to_allocate : <defined at runtime>

min_segment_size : <defined at runtime>

max_segment_size : <defined at runtime>

pattern : 0

enable_writes : yes

error_check_level : 3

cpu_affinity (id # or "NONE") : none

Error Threshold: 0

2.

Set a run time for this process.

Q-VET_setup> set runtime 0:0:20 for 11

3.

Change the options for this process.

Q-VET_setup> select option enable_writes no for 11

Q-VET_setup> select option pattern 3 for 11

4.

View the process definition again.

Q-VET_setup> show process 11

Process 11, group exer for device memory

9

A process definition is a description of a process that is created during a Q-VET run. The process definition contains all process-specific run-time parameters that the process uses when it executes.

Qualification Verifier Exerciser Tool (Q-VET) 4–13

Q-VET Command Interface

Status is IDLE

Requested runtime: 0 hours 0 minutes 20 seconds

Elapsed runtime: 0 hours 3 minutes 0 seconds

Remaining runtime: 0 hours 0 minutes 20 seconds

Requested passcount: 0

Completed passcount: 1

Options:

memory_to_allocate : <defined at runtime>

min_segment_size : <defined at runtime>

max_segment_size : <defined at runtime>

pattern : 3

enable_writes : no

error_check_level : 3

cpu_affinity (id # or "NONE") : none

Error Threshold: 0

Editing and Executing Command Scripts

You can edit and execute command scripts with the edit and execute commands. A command script is a file containing commands that Q-VET can execute.

10

Use the script buffer to create and execute temporary scripts. Use script files to save your scripts permanently. Always use lower case letters in the script buffer.

To edit the script buffer, issue the edit command without a filename. This invokes the editor defined by your EDITOR environment variable. Use this editor to enter Q-VET commands. When done, exit from the editor.

To execute commands in the script buffer, issue the execute command.

To save the script buffer contents in a permanent file, issue the save command.

To create or edit a permanent script file, issue the edit command followed by a file name. This invokes the editor defined by your EDITOR environment variable.

To execute the commands contained in a permanent script file, issue the execute command followed by the file's name.

10

Script Files discusses creating script files to run under Q-VET.

4–14 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

For this example:

1.

Edit the script buffer.

Q-VET_setup> edit

2.

Place the following commands in the buffer:

deselect processes all select group exer for cpu set runtime 0:0:30 start wait show summary

3. Exit from the editor.

4. Execute the script buffer contents.

Q-VET_setup> execute

5.

Save the script buffer contents in a permanent file.

Q-VET_setup> save my_file.script

6.

Open the file you just created so that you can edit it.

Q-VET_setup> edit my_file.script

7.

Change the file's second line from:

select group exer for cpu

to

select group exer for memory

8.

Execute the file you have just modified.

Q-VET_setup> execute myfile.script

Qualification Verifier Exerciser Tool (Q-VET) 4–15

Q-VET Command Interface

Terminating a Q-VET Session

To end a Q-VET session, issue the exit or quit command.

Q-VET_setup> exit

Menu Entries and Command Equivalents

Table 4-1 lists the Q-VET menu entries and their command equivalents.

Table 4-1 Q-VET Menu Entries and Command Equivalents

Add

Menu Entry

Set Path

Write Error Log

Foreign

Exit

Connect Node

Connect Device

Disconnect

Duplicate

Deselect

Drop

Function

File Menu

Displays the current Q-VET path list.

Modifies the path list.

Writes a text string to the operating system error log file.

Selects for execution a program that was not designed specifically to run under Q-VET.

Terminates the Q-VET session on all nodes and returns control to the operating system.

Setup Menu

Connects a node.

Adds a device's definition to the configuration database.

Removes a node or device from the configuration database.

Creates one or more duplicate copies of processes.

Deselects a process or processes.

Drops processes from the current run.

Adds processes to the current run.

Equivalent show path set path write errorlog foreign

exit or quit

connect nodes connect devices disconnect devices disconnect nodes duplicate process deselect processes drop processes add processes

4–16 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Menu Entry

Change Group

Show/Modify Parameters

Load

Save Setup

Restore Setup

Clear Setup

Run Display

Summary

Groups

System Error Log

Command Line

Start All

Stop All

Continue All

Function

Changes the group for a process.

Allows you to examine and change the constituent tests, run time, pass count, error threshold, cpu affinity, and other options of a selected process.

Creates a default system load.

Saves the contents of Q-VET’s

Device Work and Process Work

Areas and the settings of

Q-VET’s process options.

Restores a Q-VET setup state that you have saved with Save

Setup.

Clears the contents of the Device

Work Area and the Process

Work Area. All process definitions are removed.

Windows Menu

Displays output of current run.

Displays a summary of the current or most recent Q-VET run.

Displays information about the test groups installed in the

Q-VET database.

Displays the contents of the operating system error log file.

Lets you enter Q-VET commands directly.

Run Menu

Starts a q-vet run.

Temporarily stops the execution of Q-VET processes.

Resumes execution of suspended processes.

Equivalent select groups select options select tests set passcount set runtime set error_threshold set affinity load

no equivalent no equivalent

deselect devices all deselect processes all disconnect nodes all

Standard Q-VET output after sta issued

show summary show groups all display errorlog

Q-VET prompt in command line

start stop

[Ctrl/C] continue

Qualification Verifier Exerciser Tool (Q-VET) 4–17

Q-VET Command Interface

Menu Entry

Terminate All

Stop

Continue

Terminate

Function

Permanently terminates suspended processes.

Temporarily stops the execution of specified processes.

Resumes execution of specified processes.

Permanently terminates specified processes.

Scripts Menu

Equivalent terminate stop processes stop devices continue processes continue devices terminate processes terminate devices

Execute Script Buffer

Execute File

Edit Script Buffer

Edit File

Executes the contents of the script buffer.

Executes the contents of a script file.

Opens the script buffer for editing.

Opens a new or existing script file for editing.

Options Menu execute execute filename.

edit edit filename

Set Runtime

Sets the run time of all Q-VET processes.

set runtime

Set Passcount

Sets the pass count for all

Q-VET processes.

set passcount

Set Timeout

Sets the time interval Q-VET uses to determine if processes are "hung."

enable timeout set timeout

Set Affinity

Sets the cpu affinity id for all

Q-VET processes.

set affinity

Set Error_Threshold

Sets the error threshold for a

Q-VET run.

set error_threshold

Other

Sets parameters that control a

Q-VET run.

The following options, displayed in the Other Options dialog box, are included for complet

Error Display

enable logging error

Trace Display

Stop on...

Enables a level of error-reporting detail.

Enables a type of trace display.

Stops on an error type.

enable trace enable stop

4–18 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Menu Entry

Loop on...

Mode

Execution

Error Logging

Install/Remove Files...

Set Default Group...

Accept...

Device Work Area

Process Work Area

Function

Creates an execution loop on an error type.

Selects any combination of runtime modes.

Controls execution type---serial or parallel.

Enables or disables Q-VET’s writing messages to the system's error log, during execution of

Q-VET runs.

Maintenance Menu

Displays the contents of

Q-VET’s program database.

Allows you to add new files to the database and delete existing ones.

Designates a test group as the default of a device type.

Runs acceptance procedures for new systems and devices.

Main Window Areas

Displays connected nodes and devices.

Displays process definitions.

Equivalent enable loop enable mode set execution enable/disable logging error show installed install remove select default accept show devices show process

Commands and Arguments

This section discusses Q-VET commands and covers the following topics:

Entering Q-VET Commands

Script Files

Frequently Used Arguments

Execution States

Test Organization

Qualification Verifier Exerciser Tool (Q-VET) 4–19

Q-VET Command Interface

Run-Time Modes

The section in this chapter, Command Descriptions, describes the format and syntax of each command.

Entering Q-VET Commands

Each Q-VET command consists of a command and, optionally, a keyword or qualifier and one or more arguments. (Frequently Used Arguments discusses frequently used arguments and their form.)

As with other commands, you must terminate each Q-VET command by pressing

[Return].

Remember the following when you enter Q-VET commands, keywords, and arguments:

You can enter Q-VET commands, keywords, and arguments in uppercase or lowercase characters, or both.

If the argument is a list, use spaces to separate the items, for example:

Q-VET_setup> select devices cpu memory

You indicate a range of numbers in an argument by using a hyphen (-) to separate the first and last numbers of a series, for example:

Q-VET_setup> show process 1 2 4-6 9

You can abbreviate a Q-VET command to the minimum number of letters Q-VET needs to distinguish it from any other command.

You can enter a comment by beginning a command line with an exclamation point

(!) or a pound sign (#). See the discussion of the comment-line character later in this chapter.

You can enter a continuation character to continue a command on the next line.

The operating system under which Q-VET runs determines the continuation character that is used. See the discussion of the continuation character later in this chapter.

Script Files

Scripts can contain any valid series of Q-VET commands, responses to user prompts, and comments. Q-VET executes the commands contained in a script after you issue the

execute command. Q-VET searches for scripts by following either the default path list or the path list that you have defined with the set path command. Issue the show path command to find the current directory path list.

4–20 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Creating Scripts

You can create scripts outside of a Q-VET session by using an editor or you can issue the edit command to create scripts during a Q-VET session. The edit command invokes an editor of your choice; you choose the editor by defining the EDITOR environment variable before running Q-VET, as in the following example for csh:

% setenv EDITOR emacs

If you do not define EDITOR, Q-VET invokes the default editor.

Each command or response contained in a script must appear on a new line. You must start a comment line by entering either the ! or # character.

If you issue the edit command without specifying a file name, Q-VET places the commands you type in its script buffer. Issue the execute command to execute the commands. Issue the save command to save the commands contained in the script buffer in a permanent file.

Specifying User Responses in Scripts

Q-VET and Q-VET programs sometimes request responses to user prompts. You place such responses in a script as follows:

1. Precede each response with the response> prompt, followed by a space.

2. Place each response on a new line.

3. List the responses in the script in the same order in which Q-VET expects them.

The following is an example of a user response contained in a script:

select group exer with options for cpu

! response to "error_check_level" question

response> 2

If you do not include expected responses in a script, one of these events may occur:

If Q-VET is not running in interactive mode, Q-VET takes default responses during the run.

If Q-VET is running in interactive mode, Q-VET prompts for responses during the run.

(Run-Time Modesand the description of the set command discuss modes of Q-VET operation.)

This feature lets you create a script that contains all the parameters of a Q-VET run, except the user responses. The user can run the script, customizing the run dynamically

Qualification Verifier Exerciser Tool (Q-VET) 4–21

Q-VET Command Interface by responding to on-the-spot user prompts.

Using the Wait Command

Issue the wait command in a script to control when the next command is read. The wait command without a time interval causes Q-VET to complete the run initiated by the start before processing the next command.11

The following is an example of issuing a wait command in a script:

# Select device rr0c select device /dev/rr0c

# Set pass count to 15 set passcount 15

# Start run.

start

# Wait for run to complete.

wait

# Display run summary.

show summary

Frequently Used Arguments

The following sections discuss the most frequently specified arguments to the Q-VET commands.

Node Names and Lists

Several commands accept the node-name and node-list arguments. The following general rules apply:

Node names are network node names.

In the connect command, the format of the name specifies the transport mechanism used in referencing the node. Append a colon (:) to represent TCP/IP;append two colons (::) to represent DECnet.

The following command connects anode that supports the TCP/IP mechanism:

VET_SETUP> connect nodes micros:

Specifying the transport is not necessary in other commands.

11

In active state (see Execution States) Q-VET immediately fetches the command following the

start command in a script file. By issuing wait, you control when Q-VET reads the next command.

4–22 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

The node-list argument is a list of node names. A blank character (space) must separate items in the list.

Device Names and Lists

Several commands accept the device-name and device-list arguments. The following general rules apply:

Device names have a combination of letters and numbers, for example, rrz1c and

rmt0h, and include the path name to the device, such as /dev/rrz1c.

Device names can include node names, such as mynode: /dev/rra1c, as in the command:

Q-VET_setup> select devices testnode:/dev/rrz1c

If you enter a device name without a node name, Q-VET assumes that the device is local.

The device-list argument is a list of one or more devices, optionally including the path, node, or both to which a device belongs. A blank character (space) must separate items in the list. If you enter all as the device-list, Q-VET acts on all devices.

Issue the show devices all command to find the names of devices connected to your system.

Path Names

Several commands accept the path argument. In addition, a path description can precede a device or file name.

The following general rules apply:

A device name includes the path name to that device, for example, /dev/rra0c. (If you enter a device name without a node name, Q-VET assumes that the device is local.)

A file specification can include the path name to that file, for example,

/exer/disk/old/ra_exer

Path names can include node names, such as: mynode:/dev /rra1c

If you do not include a path name when specifying a file, Q- searches the directory path search list to locate the file.

Issue the show path command to view the current directory path search list.

Qualification Verifier Exerciser Tool (Q-VET) 4–23

Q-VET Command Interface

Group Names and Lists

Several commands accept the group-name and group-list arguments. The following general rules apply:

Each group has a name that can consist of letters, numbers, and the underscore character, for example, MEMEXER_2.

The group-list argument is a list of one or more groups. A blank character (space) must separate items in the list.

Issue the show groups all for all command to find the names of all test groups.

Test Numbers and Lists

Several commands accept the test-number and test-list arguments. The following general rules apply:

Each test in a test group has an identifying number.

The test-list argument is a list or range of test numbers. A hyphen must separate the first and last numbers of a range.

A blank character (space) must separate items in the list.

If you enter all as the test-list, Q-VET acts on all tests.

Issue the show groups group-list for device-name command to find the number of each test in the specified groups for the specified devices

Subtest Numbers

Several commands accept the subtest-number argument. The following general rules apply:

Q-VET displays a message every time a process executes a new subtest, if you have previously issued the enable trace command. The message indicates the subtest number.

You can find subtest numbers by reading Q-VET documentation or by referring to the header portion of error reports.

You can sometimes enter last_subtest in place of subtest-number. In this case,

Q-VET acts on the subtest specified in the select groups command as the last subtest.

4–24 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Process Numbers and Lists

Several commands accept the process-number and process-list arguments. The following general rules apply:

Whenever Q-VET creates a process, it assigns the process an identifying number and displays a message indicating the process number.

The process-list argument can be one of the following:

A process number

A list of numbers

A range of numbers, whose first and last numbers are separated by a hyphen

A combination of the above

The last argument, which refers to the most recently referenced process number

The all argument, which indicates all

A blank character (space) must separate items in the process list.

Issue the show process all command to display all processes and their attributes.

Time

Several commands accept the time argument.

The time argument can take the following forms:

mm hh:mm hh:mm:ss

where:

hh is a whole number indicating hours

mm is a whole number indicating minutes

ss is a whole number indicating seconds

Qualification Verifier Exerciser Tool (Q-VET) 4–25

Q-VET Command Interface

If you specify one number without the delimiter (:), Q-VET interprets the argument as minutes. There is no practical limit to the number. If you specify 4:344:97987 as a time, Q-VET interprets the argument as 4 hours, 344 minutes, and 97987 seconds.

Execution States

When you run Q-VET it operates in one of three execution states:

Setup state

Active state

Suspend state

Q-VET displays a different prompt for each state.

Table 4-2 lists the commands that you may enter in each execution state.

Setup State

When you activate Q-VET, it enters setup state and displays the setup state prompt:

% vet

Running system sizer on node mingo4 ... please wait.

Q-VET_setup>

You can execute any user command except the following in the setup state:

continue stop terminate wait

Active State

After you have selected the test groups and devices to run, enter the start command to put Q-VET in the active state and begin executing tests:

Q-VET_setup> start

Q-VET_active>

4–26 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Suspend State

If you enter the stop command or press [Ctrl/C] while Q-VET is in the active state,

Q-VET suspends testing and enters the suspend state. The suspend state prompt is:

Q-VET_suspend>

Issue the continue command to cause Q-VET to resume executing in active state; issue the terminate command or press [Ctrl/C] to cause Q-VET to enter the setup state.

Table 4-2 Execution States and Commands

Command

accept add devices add processes certify connect continue control-c deselect devices deselect groups deselect processes deselect tests disable error_display disable logging disable loop disable mode disable scrolling disable stop disable timeout disable trace disconnect display errorlog drop devices drop processes duplicate processes edit enable error_display enable logging

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Setup

Yes

Yes

Yes

Yes

Yes

No

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

No

Yes

No

Yes

No

No

No

No

No

Active

No

Yes

Yes

No

No

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

No

Yes

No

Yes

No

No

No

No

No

Suspend

No

Yes

Yes

No

No

Yes

Yes

Qualification Verifier Exerciser Tool (Q-VET) 4–27

Q-VET Command Interface enable loop enable mode enable scrolling enable stop enable timeout enable trace execute exit foreign help install load quit remove save select default select devices select groups select options select tests set execution set affinity set error_threshold set logfile set passcount set path set runtime set screen_size set timeout show devices show affinity show error_display show error_threshold show execution show groups show installed show logging

4–28 Qualification Verifier Exerciser Tool (Q-VET)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

No

Yes

No

Yes

Yes

Yes

Yes

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

Yes

No

No

No

Yes

No

Yes

Yes

Yes

No

Yes

Yes

Yes

No

Yes

No

Yes

Yes

Yes

Yes

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

Yes

Yes

No

Yes

No

Yes

No

Yes

Yes

Yes

show loop show mode show nodes show passcount show path show process show runtime show screen_size show scrolling show selected devices show selected groups show stop show summary show timeout show trace show version start stop system terminate devices terminate processes wait write errorlog

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

No

No

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

No

No

Yes

Q-VET Command Interface

Qualification Verifier Exerciser Tool (Q-VET) 4–29

Q-VET Command Interface

Test Organization

Pagebrk

Q-VET tests are organized into the following categories:

Test Groups

Tests

Subtests

Test Groups

A Q-VET test group is the primary Q-VET testing entity; it consists of one or more tests. Each test group provides a complete testing function; for example, a group called

DEVICE_EXERCISER might test each I/O function on disk drives.

The select groups command selects a group for execution. Generally, users want to run all the tests associated with the selected group. However, you can use the

select/deselect tests command to include or exclude specific tests belonging to the selected group.

When a Q-VET program is added to the program database, you can specify a default test group to associate witha device. Q-VET runs this group by default, if you do not select another group for execution before issuing the start command.

Tests

A Q-VET test is a set of one or more device-testing procedures (subtests) that have been grouped together; for example, the group DEVICE_EXERCISERthat tests RAtype disks might consist of two tests: a read-only test and a read/write test.

When you issue the select groups command to select a test group for execution, you can specify arguments to include or exclude tests from the group.You can also use the

select tests command to specify tests.

Each test in a test group is independent of the others. Unlike a subtest its execution is never contingent upon the outcome of another test.

4–30 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Pagebrk

Subtests

A subtest is a set of one or more device-testing procedures. All subtests are written to be members of a test. Subtests are not necessarily independent of each other; one subtest might depend on the execution of the previous subtest. You cannot select specific subtests for execution.

There is no limit to the number of subtests in each test. Subtests are numbered from one to the maximum number of subtests in the test of which they are a part.

Subtests are the parts of a test on which Q-VET can loop when it encounters an error, that is, repeatedly call the same subtest.

You use the enable loop command to direct Q-VET to loop when it finds an error. In addition, you can use the select groups last_subtest command to specify that a test execute all subtests up to and including a particular subtest and then loop on that subtest.

Run-Time Modes

Q-VET provides five user-selectable run-time modes. These modes are not related to each other. You can use the enable mode command to activate any combination of them.

The modes are as follows:

Automated---This mode is enabled when Q-VET is running under the control of a higher-level automated environment, such as an automated testing system used by manufacturing. When Q-VET operates in this mode, process startup, pass count, and completion messages are suppressed.

This mode is disabled by default.

Interactive---This mode is enabled when a user is present to respond to queries displayed on a terminal. When Q-VET operates in this mode, it sends its requests to the user's terminal and fetches input from either the user or a script file.

This mode is enabled by default; however, if it is disabled, Q-VET does not prompt for user responses and instead takes default values.

Quick---This mode is a shortened mode of operation.

Some Q-VET programs provide a quick mode of operation. Use the enable mode

quick command to activate them. The documentation of Q-VET programs tells

Qualification Verifier Exerciser Tool (Q-VET) 4–31

Q-VET Command Interface you whether they provide quick mode operation.

This mode is disabled by default.

Truncate---When this mode is enabled and a Q-VET process reports a device error, subsequent passes of that process execute only up to the subtest that preceded the failing one; then Q-VET starts the next pass.

You use this mode as an aid in isolating intermittent errors; you use it to identify the minimum hardware activity needed to cause the error.

This mode is disabled by default.

Verify---This mode causes script file input lines to be displayed as Q-VET reads them from the file. (Note - not all tests support this mode.)

This mode is disabled by default.

You use the enable mode command to select the run-time mode or modes under which you want Q-VET to operate. You use the disable mode command to deselect the runtime modes.

Command Descriptions

This section is an alphabetical listing of all Q-VET commands. Each command description contains the following elements, as needed:

Description---A brief description of the command's function

Format---The syntax for using the command

Keywords and arguments---A list of keywords and arguments that can modify the command and a description of each one's effect

Restrictions---A list of factors that affect the use of the command

Examples---An example of how to use the command

4–32 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

accept

Description

Executes a Q-VET run that is part of Digital Equipment Corporation's customer acceptance procedure for new systems and devices.

After you have issued the accept command, Q-VET prompts for a DIGITAL order number before it begins acceptance testing. Q-VET tests devices for a minimum of 10 minutes.

Format

accept { none }

{ [selected] [for runtime time] [with output file-spec] }

Keywords and Arguments none

Q-VET tests all devices connected to the local node that have default test groups assigned to them.

selected

Run the acceptance procedure on previously selected devices.

Before issuing the accept command, issue the select devices command to select the device or devices to test. The default test group assigned to each device tests the device. You can choose to run another group by issuing the select groups group-name

for device-name command or you can choose another test group to be the default for the device by issuing the select default group-name for device-name command.

for runtime time

Run the acceptance procedure for the specified amount of time, if this amount is greater than the default minimum amount. There is no maximum time limit.

The section Time describes the time argument.

with output file-spec

Create and print an output file (file-spec) containing both test start and end times and a place for signatures. The following example shows an accept command output file.

COPYRIGHT DIGITAL EQUIPMENT CORPORATION 1993 ALL RIGHTS RESERVED

Qualification Verifier Exerciser Tool (Q-VET) 4–33

Q-VET Command Interface

Verification Acceptance Process for DEC order number 123-456-7890

started on Wed Feb 24 10:02:13 1993

Acceptance tested system VETSYS for 10 minutes.

________________________________.

________________________________

Completed acceptance on Wed Feb 24 10.12.58 1993

Restrictions

You can issue the accept command only while is operating in the setup execution state.

You cannot run the accept command distributively on remote nodes.

Devices to test must be available and correctly configured.

You cannot issue commands in active mode, while acceptance testing is in progress.

4–34 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Pagebrk

Example

Q-VET_setup> select devices file cpu memory

Process 4, group exer for device file

Process 5, group exer for device cpu

Process 6, group exer for device memory

Q-VET_setup> show selected devices

file

cpu

memory

Q-VET_setup> accept selected for runtime 00:11:00 with output vettest.txt

This is the Digital System Acceptance routine.

Please type DEC order number to continue or <CR> to exit routine: (string [

]):

123-456-7890 [Return]

These devices which were previously selected will be tested.

vetsys FILE FILE_DATA LOCAL R_W

vetsys CPU CPU DEC 3000 Model 500

vetsys MEMORY V_MEM 16777216 LOCAL R_W

COPYRIGHT DIGITAL EQUIPMENT CORPORATION 1993 ALL RIGHTS RESERVED

Verification Acceptance Process for DEC order number 123-456-7890

started on Wed Feb 24 10:02:13 1993

...starting [Process 1, Pass 1] group exer for device file

...starting [Process 3, Pass 1] group exer for device cpu

...starting [Process 4, Pass 1] group exer for device memory

...runtime has expired for [Process 1] group exer for device file

...runtime has expired for [Process 3] group exer for device cpu

...runtime has expired for [Process 4] group exer for device memory

...completed [Process 3] group exer for device cpu

...completed [Process 4] group exer for device memory

...completed [Process 1] group exer for device file

...testing completed. Total errors = 0

The signoff form for this run is in the file vettest.txt.

Completed acceptance on Wed Feb 24 10:13:28 1993

Q-VET_setup> exit

Qualification Verifier Exerciser Tool (Q-VET) 4–35

Q-VET Command Interface

add

Description

Adds processes or devices to the Q-VET run. Both the add and drop commands let you alter the test load dynamically.

If you issue the select groups, select devices, or duplicate process command to select processes before you issue the start command, Q-VET automatically adds the selected processes to the run.

If you issue the select groups, select devices, or duplicate process command to select processes after you have issued the start command, you must issue the add command to add them to the run; otherwise, they will not execute.

Use the drop command to remove processes from the run.

Format

add { devices device-list [on node-list] }

{ processes process-list [on node-list] }

Keywords and Arguments devices device-list [on node-list]

Add all selected processes for the devices that you specify in device-list. Device

Names and Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

processes process-list [on node-list]

Add the processes specified in process-list to the current run. Process Numbers and

Lists describes the process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument. None concerning execution state: you can issue this command while Q-VET is operating in the setup, active, or suspend execution state.

Restrictions

None concerning execution state: you can issue this command while Q-VET is operating in the setup, active, or suspend execution state.

4–36 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Processes selected after you have issued the start command will not execute until you add them by using the add command.

If you use the on node-list phrase, you cannot include node names in a device name or device list.

Example

Q-VET_setup> select devices file

Process 1, group exer for device file

Q-VET_setup> duplicate processes 1 3

Process 2, group exer for device file

Process 3, group exer for device file

Process 4, group exer for device file

Q-VET_setup> drop processes 2 3 4

Q-VET_setup> start .

.

.

.

Q-VET_active> add processes 2 3 .

.

.

.

Q-VET_active> add processes 4

Qualification Verifier Exerciser Tool (Q-VET) 4–37

Q-VET Command Interface

certify

Description

Performs simple quality assurance testing of programs written to execute under Q-VET

All programs selected for a Q-VET run are tested.

You issue the certify command instead of the start command.

Quality assurance testing of a Q-VET program includes the display of all error reports, even i.f the corresponding failure does not occur.

Format certify

Restrictions

You can issue the certify command only while Q-VET is operating in the setup execution state.

You must have selected a device or group before issuing the certify command.

The certify command is valid only on the local node.

Example

Q-VET_setup> select devices cpu

Q-VET_setup> select groups exer for file

Q-VET_setup> certify

4–38 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

comment-line character

Description

Begins a comment line. You can use either the ! or the # character.

Q-VET treats a command line whose first nonblank character is either # or ! as a comment line and does not try to execute its contents.

You use the comment-line character when you document script files.If you have used the enable logging terminal command to enable logging, you can enter a comment line at your terminal, and Q-VET records it in the log file.

Format

{ ! Line of comments }

{ # Line of comments }

Example

Q-VET_setup> ! adding device /dev/rra1c to increase load

Q-VET_setup> add devices /dev/rra1c

Qualification Verifier Exerciser Tool (Q-VET) 4–39

Q-VET Command Interface

connect

Description

Adds hardware devices to the configuration database, that is, to the database of testable devices. Q-VET cannot test a device, unless the configuration database contains its description.

When you activate Q-VET it runs a system sizing process on the local system and fills in the configuration database. You issue the connect devices command to define a device that the system sizing process has not previously recognized. You issue the connect

nodes command to run the system sizing process on a remote node(s), place the corresponding device definitions in the configuration database, and establish communication with it.

You issue the show devices all command to view the contents of the configuration database.

__________________________ Note _____________________________

Q-VET does not verify that the device you added with the connect command is available, until it executes the corresponding exerciser.

____________________________________________________________

Format

Connect { nodes [nosizer] [affinity cpu-id]

node-list

}

{ node local }

{ node

node name using transport type

}

{ devices [on

node-list

] }

Keywords and Arguments nodes [nosizer] [affinity cpu-id] node-list

Add devices existing on remote systems to Q-VET’s configuration database. The optional nosizer keyword disables the system sizing process on the remote node. The optional affinity keyword may be included to specify a specific processor to run the remote Q-VET processes on. If processor affinity is not supported by the remote node or an invalid cpu-id is specified the conection will be terminated. Node Names and

Lists describes the node-list argument.

node local

Add devices to the configuration database for the local system, that is, the system on which Q-VET is executing. Q-VET does this automatically when you start a Q-VET session.

4–40 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

You can use this command to rerun the system sizing process on the local node.

node node name using transport type

Add devices to the configuration database for the remote node specified by the node name. The transport argument indicates which transport mechanism is to be used when a connection is established with the node specified. The two valid transport mechanisms are decnet and tcpip.

devices device-list [on node-list]

Enter device descriptions into the configuration database. Use this command if you must add a device to the configuration database that is not recognized by the Q-VET sizing process.

After you issue the connect device command, Q-VET prompts you for the device characteristics to be entered in the configuration database.

Device Names and Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

You can issue the connect command only Q-VET is operating in the setup execution state.

When Q-VET terminates, the configuration and sizing information are not saved.

If you use the on node-list phrase, you cannot include node names in a device name or device list.

Example

Q-VET_setup> connect devices mynode:/dev/rrz1c

Enter component type (string [MISC]): disk

Enter component subtype (string [UNKNOWN]): rz56

Enter component size (decimal [0]): <Return>

Enter component status (string [LOCAL_RO]): LOCAL_RW

Q-VET_setup> show devices mynode:/dev/rrz1c

SYSTEM DEVICE TYPE SUBTYPE SIZE STATUS mynode /dev/rrz1c DISK rz56 LOCAL_RW

Qualification Verifier Exerciser Tool (Q-VET) 4–41

Q-VET Command Interface

continuation character

Description

Continues a command on the next line. You may use either a backslash (\) or hyphen (-).

Format

-

\

Restriction

The continuation character works only if it is preceded by a space, as in the example below.

Example

Q-VET_setup> select groups exer with options \ reads_per_iteration 5 iterations 100 for /dev/rra0c

4–42 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

continue

Description

Resumes execution of a specific suspended process or all suspended processes.

The discussions of the stop command and [Ctrl/C] explain how to suspend running processes. A process may also be suspended if it detects an error and you have previously issued the enable stop command. The discussion of the enable stop command describes the Q-VET stop-on-error feature.

Format

continue { none }

{ devices

device-list [on node-list

] }

{ processes

process-list [on node-list

] }

Keywords and Arguments none

Resume executing all suspended processes on all nodes.

devices device-list [on node-list]

Resume executing suspended processes associated with the devices specified in device-

list. Device Names and Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and

Listsdescribes the node-list argument.

processes process-list [on node-list]

Resume executing the suspended processes listed in process-list. Process Numbers and Lists describes the process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

You cannot issue the continue command Q-VET is operating in the setup execution state.

If you use the on node-list phrase, you cannot include node names in a device name or device list.

Qualification Verifier Exerciser Tool (Q-VET) 4–43

Q-VET Command Interface

Example

Q-VET_setup> select groups exer for network

Process 1, group exer for device network

Q-VET_setup> start

...starting [Process 1, Pass 1] group exer for device network.

Q-VET_active> stop ...stopping [Process 1] group exer for device network.

Q-VET_suspend> continue devices network

...continuing [Process 1] group exer for device network.

4–44 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

control-c

Description

Pressing [Ctrl/C] does one of the following:

Terminates a Q-VET session, if Q-VET is operating in the setup execution state, unless

Q-VET is executing a script file.

Causes Q-VET to reenter the setup execution state, if it is executing a script file.

Suspends executing processes and enters the suspend execution state, if Q-VET is operating in the active state

Causes Q-VET to enter the setup execution state, if Q-VET is operating in the suspend state

Table 4-3 lists the effects of pressing [Ctrl/C].

Table 4-3 Effect of [Ctrl/C]

Original

State

setup

Active

Suspend

Non-Script

New State

Shell

Suspend setup

Script

New State

setup

Suspend setup

After you have pressed [Ctrl/C] to place Q-VET in the suspend execution state, you can issue the continue command to cause Q-VET to reenter the active state.

Format

[CtrlC]

Restriction

When you are running Q-VETin a distributed environment and you press [Ctrl/C], Q-

VET enters the suspend execution state if the remote nodes are operating in either the suspend or the setup execution state. In a distributed environment, Q-VET enters the setup execution state, only if all remote nodes are also operating in the setup execution state.

Qualification Verifier Exerciser Tool (Q-VET) 4–45

Q-VET Command Interface

Example

Q-VET_setup> select devices /dev/rra1c /dev/rra2c

Process 1, group exer for device /dev/rra1c

Process 2, group exer for device /dev/rra2c

Q-VET_setup> start

.

.

.

Q-VET_active> [Ctrl/C]

...stopping [Process 2] group exer for device /dev/rra2c.

...stopping [Process 1] group exer for device /dev/rra1c.

Q-VET_suspend>

4–46 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

control-z

Description

Suspends Q-VET and all processes running under it. Control is returned to the operating system.

Format

[Ctrl/Z]

Example

Q-VET_suspend> [Ctrl/Z]

%

Qualification Verifier Exerciser Tool (Q-VET) 4–47

Q-VET Command Interface

deselect

Description

Removes a previously selected device, test group, or test; removes one or more processes from the current Q-VET run.

See the discussion of the select command for information on how to select devices, groups, tests, and processes for execution.

Format deselect { devices device-list [on node-list ] }

{ groups group-list for device-name [on node-list ] }

{ tests test-list for process-list [on node-list ] }

{ processes process-list [on node-list ] }

Keywords and Arguments devices device-list [on node-list]

Deselect the devices specified in device-list and do not test them. Device Names and

Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

groups group-list for device-name [on node-list]

Deselect all test groups that you specify in group-list for the device that you specify with device-name. Group Names and Lists describes the group-name and group-list arguments.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

tests test-list for process-list [on node-list]

Deselect the tests that you specify in test-list for a particular process. Test Numbers and Lists describes the test-list argument. This keyword and argument do not change the state of the tests that you have not listed in test-list. Process Numbers and Lists describes the process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

4–48 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

processes process-list [on node-list]

Remove the process(es) that you specify in process-list. Process Numbers and Lists describes the process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

You can issue the deselect command only while Q-VET is operating in the setup execution state.

If you use the on node-list phrase, you cannot include node names in a device name or device list.

Example

Q-VET_setup> select devices /dev/rra1c /dev/rra2c /dev/rra3c on mynode

Process 1, group exer for device /dev/rra1c

Process 2, group exer for device /dev/rra2c

Process 3, group exer for device /dev/rra3c

Q-VET_setup> deselect devices /dev/rra2c on mynode

Qualification Verifier Exerciser Tool (Q-VET) 4–49

Q-VET Command Interface

disable

Description

Disables Q-VET features that are enabled by default or were previously enabled. (See the discussions of the corresponding enable commands.)

Format

disable { error_display

display-type

}

{ logging

logging-type

}

{ loop

loop-type

}

{ mode

mode-type

}

{ scrolling }

{ stop

stop-type

}

{ timeout }

{ trace

trace-type

}

Keywords and Arguments error_display display-type

Shut off the display of error messages from all nodes during a Q-VET run. The description of the enable error_display command discusses the following display types:

basic full extended all

Issue the enable error_display command to enable a level of reporting.

logging logging-type

Disable logging to a terminal log file or the system error log file. The description of the

enable logging command contains a detailed discussion of logging types, which are as follows:

terminal command errors

You issue the enable logging command to enable the logging types.

4–50 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

loop loop-type

Disable the looping options on all nodes.The description of the enable loop command contains a detailed discussion of loop types, which are as follows:

all hard last_subtest soft

You issue the enable loop command to enable looping on error.

mode mode-type

Deselect the run-time mode. The description of the enable mode command contains a detailed discussion of mode types, which are as follows:

automated interactive quick truncate verify

Run-Time Modes discusses Q-VET run-time modes. You issue the enable mode command to select the run-time mode.

scrolling

Disable noncontinuous scrolling of user display text on the local node. If scrolling is disabled, user terminal output text is displayed continuously without stopping.

You issue the enable scrolling command to enable user prompting on the local node after Q-VET has displayed screen-size lines. See the discussion of the set screen_size command.

stop stop-type

Disable the stop-on-error options on all nodes. The description of the enable stop command contains a detailed discussion of stop types, which are as follows:

hard soft

Qualification Verifier Exerciser Tool (Q-VET) 4–51

Q-VET Command Interface

fatal all

You issue the enable stop command to enable stop types.

timeout

Disable the ability of Q-VET to identify and stop "hung" processes. If timeoutchecking is enabled, Q-VET attempts to stop processes that have not communicated with it within a predetermined time span.

Timeout-checking is enabled by default. You can also issue the enable timeout command to reenable the Q-VET timeout feature, if it has been disabled during the current session.

trace trace-type

Disable the trace message display types on all nodes. The description of the enable

trace command contains a detailed discussion of trace types, which are as follows:

test subtest debug all

You issue enable trace to enable trace types.

4–52 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Restrictions

You can issue the disable command with the following keywords while Q-VET is operating in the setup, active, or suspend execution state:

Example

error_display

loop

scrolling

stop

timeout

You can issue the disable logging and disable mode commands only while Q-VET is operating in the setup execution state.

A command line may contain only one disable command and one keyword and its corresponding arguments.

Q-VET_setup> disable mode interactive

Q-VET_setup> disable scrolling

Q-VET_setup> disable trace all

Qualification Verifier Exerciser Tool (Q-VET) 4–53

Q-VET Command Interface

disconnect

Description

Removes nodes or devices from the configuration database, that is, from the database of testable devices. The discussion of the connect command explains how to add a device or node to the Q-VET configuration database.

Format

disconnect { nodes

node-list

}

{ node local }

{ devices

device-list [on node-list

] }

Keywords and Arguments nodes node-list

Remove all the specified nodes' devices from the database. Node Names and Lists describes the node-list argument.

node local

Remove the local system devices from the database.

devices device-list [on node-list]

Remove the devices specified in device-list. Device Names and Lists describes the

device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect.If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

You can issue the disconnect command only while Q-VET is operating in the setup execution state.

If you use the on node-list phrase, you cannot include node names in a device name or device list.

4–54 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Pagebrk <RESTRICTIONS>(LIST) <ONLINE_POPUP>(restrictions) <RITEM>You can issue the disconnect command only while Error!

Reference source not found.is operating in the setup execution state.

Example

Q-VET_setup> disconnect devices /dev/rra0c

Q-VET_setup> show devices /dev/rra0c

No matching devices f ound in configuration database.

Qualification Verifier Exerciser Tool (Q-VET) 4–55

Q-VET Command Interface

display errorlog

Description

Displays the operating system's error log file. You may specify system log qualifiers with this command.display errorlog [with argument-list]

Format

display errorlog [with argument-list]

Arguments argument-list

The argument list may contain any valid qualifiers for the system error log report facility.If you do not specify an argument list, the display errorlog command displays all errors that have occurred on the current day.

Restrictions

None concerning execution state: you can issue this command while Q-VET is operating in the setup, active, or suspend execution state.

Use this command only if the operating system under Q-VET is running has an error log report generator.

You need superuser privileges to display the error log.

Example

In this example, the user issues the display errorlog command to view the contents of the error log since 01-Jan-1993.

Q-VET_setup> display errorlog with “-t s:01-Jan-1993”

4–56 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

drop

Description

Drops specified processes and devicesfrom the current run.

You can use the drop command to drop some or all selected devices or processes before you issue the start command; you can then use the add command to add one or more devices or processes at a time to load the system gradually. You also drop devices or processes gradually from a fully loaded system after you have issued the

start command.

Q-VET stops dropped processes if they are running.

Format

drop { devices device-list [on node-list] }

{ processes process-list [on node-list] }

Keywords and Arguments devices device-list [on node-list]

Drop all specified processes for the devices specified in device-list. Device Names and

Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

processes process-list [on node-list]

Drop processes selected in process-list. Process Numbers and Lists describes the

process-list argument.

The optional phrase on node-listspecifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

None concerning execution state: you can issue this command while Q-VET is operating in the setup, active, or suspend execution state.

If you use the on node-list phrase, you cannot include node names in a device name or device list.

Qualification Verifier Exerciser Tool (Q-VET) 4–57

Q-VET Command Interface

Example

Q-VET_setup> drop devices all

Q-VET_setup> add device /dev/rra0c

Q-VET_setup> enable loop hard

Q-VET_setup> start

...starting [Process 1, Pass 1] group exer for device /dev/rra0c.

Q-VET_active> add device /dev/rra1c

...starting [Process 1, Pass 1] group exer for device /dev/rra1c.

Q-VET_active> add device /dev/rra2c

...starting [Process 1, Pass 1] group exer for device /dev/rra2c.

4–58 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

duplicate process

Description

Creates duplicate copies of a process definition. The copies contain all the processspecific run-time parameters of the original process.

After you have duplicated a process definition, you can use the following commands to act on the process's contents or show its characteristics:

add drop show continue select stop deselect set terminate

Format duplicate process process-number

[ duplication-count

] [on node-list

]

Arguments

process-number [duplication-count] [on node-list]

Duplicate the process specified by process-number. Process Numbers and Lists describes the process-number argument.

The optional duplication-count argument specifies the number of copies; if you omit this argument, Q-VET makes only one copy.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

None concerning execution state: you can issue this command while Q-VET is operating in the setup, active, or suspend execution state.

If you issue the duplicate process command while Q-VET is operating in the active execution state, the duplicate processes are initially dropped and must be added (see add command) to begin executing.

Qualification Verifier Exerciser Tool (Q-VET) 4–59

Q-VET Command Interface

If the duplication-count exceeds system-wide process limits, the duplicate command will duplicate only up to the process limits.

Example

Q-VET_setup> select device file

Process 1, group exer for device file

Q-VET_setup> duplicate proc 1 3

Process 2, group exer for device file

Process 3, group exer for device file

Process 4, group exer for device file

4–60 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

edit

Description

Creates or modifies a script. Script Files discusses script files.

When you issue the edit command, Q-VET invokes the text editor, as previously defined by your system.

Format

edit { none }

{ file-spec }

Arguments none

Q-VET opens the script buffer for editing and invokes the text editor. Issue the save command to save the script buffer contents permanently. (See the note below.) Issue the execute command to execute the commands contained in the script buffer.

file-spec

Edit the script file specified by file-spec. Issue the execute file-spec command to execute the commands contained in the file.

Restriction

You can issue the edit command only when Q-VET is operating in the setup execution state.

__________________________ Note _____________________________

The script buffer's contents are not permanent. The first time you issue the edit command during a Q-VET session, the script buffer is empty. The commands you enter can be overwritten later. The script buffer's contents are lost when you terminate the Q-VET session.

____________________________________________________________

Example

Q-VET_setup> edit my_script_file

Qualification Verifier Exerciser Tool (Q-VET) 4–61

Q-VET Command Interface

enable

Description

Controls Q-VET run-time characteristics.

Keywords and Arguments error_display display-type

Control the level of error reporting on all nodes. Display types can be as follows:

basic---Enables display of basic error messages; enabled by default.

Basic messages display a short statement identifying the kind of error being reported, such as write-check error for a disk. Every test contains a basic error message that it displays if it encounters an error.

full---Enables display of basic and full error messages; enabled by default.

Full messages contain more information about errors than basic messages, for example, the contents of relevant device registers. A test need not contain this level of detail.

extended---Enables display of basic, full, and extended error messages; enabled by default.

Extended messages display data when large amounts are available, for example, the contents of a large data buffer. A test need not contain this level of detail.

logging logging-type

Enable Q-VET to write to terminal log files and to error log files. The logging-type argument can be as follows:

terminal---Enables logging of all terminal input and output both to your terminal and to a log file that you have specified with a set logfile command.

If you have not specified a log file, Q-VET uses the default log file,

vet_termlog.

command---Enables logging of all commands (input to your terminal) to a command file that you have specified with the set comfile command.

4–62 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

If you have not specified a command file, Q-VET uses the default command file,

vet_command_log.

errors---Enables writing of messages to the system error log file. Logging of error messages is enabled by default,if you have the appropriate privileges for writing to the system error log file.

loop loop-type

Control looping within a Q-VET process when it encounters an error. The loop-type argument can be as follows:

all---Causes a process to start looping on the current subtest when either a hard error or a soft error is encountered.

hard---Causes a process to start looping on the current subtest when a hard error is encountered; disabled by default.

last_subtest---Causes a process to start looping on the subtest specified with the

select groups command's last_subtest modifier.

soft---Causes a process to start looping on the current subtest when a soft error is encountered; disabled by default.

Appendix A discusses types of errors encountered during tests.

mode mode-type

Select any combination of various Q-VET run-time modes. The mode-type argument can be as follows:

automated---Enabled when Q-VET is running under the control of a higher-level automated environment, such as a manufacturing automated testing system; disabled by default. When Q-VET operates in this mode, process startup, pass count, and completion messages are suppressed.

interactive---Indicates that a user is present to respond to queries displayed on a terminal; enabled by default.

If interactive mode is enabled, Q-VET fetches responses to user prompting messages from either the user's terminal or a command script if one is active. If

interactive is disabled,

Q-VET does not request user responses but takes the default values of all requests.

quick---Causes tests to run in quick mode if they support it. Quick mode is a shortened mode of operation; disabled by default.

Qualification Verifier Exerciser Tool (Q-VET) 4–63

Q-VET Command Interface

truncate---If enabled and a Q-VET process reports an error, subsequent passes of that process execute only up to the subtest before the failing one; Q-VET then starts the next pass. Truncate mode helps to isolate intermittent errors by attempting to identify the minimum hardware activity needed to cause the error; disabled by default.

verify---Causes script file input lines to be displayed as they are read from the file; disabled by default.

scrolling

Enable noncontinuous scrolling of user display text. Scrolling is continuous by default.

If you enable scrolling, Q-VET displays screen-size lines and then asks you to press

[Return] to view the next screen. Q-VET initially sets the screen size to the current size of your terminal screen. (See the discussion of the set screen_size command.)

stop stop-type

Causes Q-VET to stop executing a process once it detects and reports an error. This option is effective on all nodes. The stop-type argument can be as follows:

hard---Causes a Q-VET process to stop execution on the first occurrence of a device hard error; disabled by default.

soft---Causes a Q-VET process to stop execution on the first occurrence of a device soft error; disabled by default.

fatal---Causes a Q-VET process to stop execution on the first occurrence of a device fatal error; disabled by default.

all---Equivalent to issuing the enable stop hard, enable stop soft, and enable

stop fatal commands.

Appendix A discusses types of errors.

timeout

Enables Q-VET’s ability to identify and stop "hung" processes. If this option is enabled, Q-VET terminates processes that have not communicated with it within a specified time span. Timeout checking is enabled by default.(See the description of the

set timeout command.)

4–64 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Pagebrk trace trace-type

Control the display of trace messages during a

Q-VET run. Trace messages include the name of the currently executing subtest and optional programmer-supplied information. The trace-type argument can be as follows:

test---Causes Q-VET to display the name of each test when it begins and completes;disabled by default.

subtest---Causes Q-VET to display the name of each subtest when it completes; disabled by default.

debug---Causes Q-VET to display programmer-defined trace messages;disabled by default.

all---Equivalent to issuing the enable trace test, enable trace subtest, and enable

trace debug commands.

Restrictions

You can issue the enable command with the following keywords while Q-VET is operating in the setup, active, or suspend execution state:

error_display loop scrolling stop timeout trace

You can issue the enable logging and enable mode commands only while Q-VET is operating in the setup execution state.

Qualification Verifier Exerciser Tool (Q-VET) 4–65

Q-VET Command Interface

Pagebrk

Examples

Q-VET_setup> enable logging terminal

™

Tue Dec 31 10:37:02 1993

Terminal logging is enabled. The logfile is vet_termlog.

Q-VET_setup> drop devices all

š

Q-VET_setup> add device memory

›

Q-VET_setup> enable loop hard

œ

In order to isolate failures on device memory, the user:

terminal.

4–66 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

execute

Description

Runs the commands in your script buffer or in a script file. Issue an enable mode

verify command to view script command lines as they are executed.

Argument none

Execute the commands contained in the script buffer.

script-file [on node-list]

Execute the commands contained in script-file. Script Files discusses the format and contents of Q-VET script files.

The optional phrase on node-list specifies the node(s) on which the script is executed.

If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Restriction

Example

You can issue the execute command only while Q-VET is operating in the setup execution state.

Q-VET_setup> execute diskseek on

mynode yournode hisnode

Qualification Verifier Exerciser Tool (Q-VET) 4–67

Q-VET Command Interface

exit

Description

Terminates a Q-VET session on both the local and remote node(s) and returns control to the operating system. The exit command is equivalent to the quit command.

__________________________ Note _____________________________

If you issue the exit command while Q-VET is operating in the suspend execution state, Q-VET first terminates all suspended processes and then terminates the Q-VET session.

____________________________________________________________

Format exit

Restriction

Example

You can issue the exit command only while Q-VET is operating in the setup or suspend execution state.

Q-VET_setup> exit

4–68 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

foreign

Description

Selects for execution a program that does not conform to the Q-VET interfaces, that is, was not designed specifically to run under Q-VET.

You issue the start command to run the program.

__________________________ Note _____________________________

A file specified in a foreign command executes during the Q-VET run; in contrast,an operating-system-level command issued in a system command executes immediately.

____________________________________________________________

Format foreign command-string

Argument

command string

Specify the name of the program to run and its options or qualifiers, if required.

Restrictions

You can issue the foreign command only while Q-VET is operating in the setup execution state.

Programs that do not conform to Q-VET interfaces are unaffected by Q-VET execution control commands, except add, drop, start, and terminate.

Example

Q-VET_setup> foreign my_program

Process 1, FOREIGN: ./my_program

Q-VET_setup> foreign my_program -a option1 -b \

option2

Process 2, FOREIGN: ./my_program -a option1 -b option2

Q-VET_setup> foreign your_program -a -b -c

Process 3, FOREIGN: ./your_program -a -b -c

Qualification Verifier Exerciser Tool (Q-VET) 4–69

Q-VET Command Interface

help

Description

Displays information about Q-VET commands, keywords, and arguments.

The help command:

Displays a list of available Q-VET commands

Describes the context in which the commands are used

Explains run-time parameters

Format help [ topic

[ subtopic

]]

Arguments none

Display a list of commands and other topics about which help is available.

topic [subtopic]

Display information about the topic and the optional subtopic.

Restriction

None concerning execution state: you may issue this command while Q-VET is operating in the setup, active, or suspend execution state.

Example

Q-VET_setup> help

Type a topic or subtopic keyword to get help text

Type "?" for a list of subtopics

Type RETURN to back up to the previous topic level help

Displays information about Q-VET

commands, keywords, and arguments.

4–70 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Format:

help [topic [subtopic]]

The help command without a topic displays a list of commands

about which help is available.

Topics available: accept add certify command_summary comment-line connect continuation continue control-c control-z deselect disable disconnect display drop duplicate edit enable execute exit foreign help install load quit remove save select set show system start stop terminate vet wait write

Help topic:

Q-VET_setup>

Qualification Verifier Exerciser Tool (Q-VET) 4–71

Q-VET Command Interface

install

Description

Adds a Q-VET program to the program database file.

Before you can run a Q-VET program, you must install it in Q-VET’s program database, which contains information about each Q-VET program known to Q-VET including:

File name

Supported device types

List of the options and default values

List of groups

List of tests for each group

The Q-VET installation procedure automatically installs all Q-VET generic exercisers in the system permanent program database.

Use the show installed command to view the file names of installed Q-VET programs.

If you want a group that is part of the installed file to constitute the default test group for a device, you must then issue the select default command.

Format

install [

install-type

]

file-spec

[on

node-list

]

Arguments

[install-type] file-spec [ on node-list]

The optional install-type can be permanent or temporary. Differences are as follows:

A program installed by means of the permanent argument becomes part of the permanent Q-VET program database and is available during all subsequent Q-VET sessions. This is the default.

A program installed by means of the temporary argument is installed in a temporary database and is available only during the current Q-VET session.

4–72 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

__________________________ Note _____________________________

If you install a file specifying the temporary installation type, you must remove the file specifying the temporary installation type.

____________________________________________________________

The file-spec argument names the file to install.

The optional on node-list specifies the node(s) on which this command takes effect.If

you omit this phrase, the local node is the default. Node Names and Lists describes the

node-list argument.

Restrictions

You can issue the install command only while Q-VET is operating in the setup execution state.

The temporary database takes precedence over the permanent database. Thus, if a group name is the same in the temporary and permanent databases, only the group in the temporary database is selected.

You cannot install a Q-VET program if you have already issued the select command to select a device or process. Deselect processes or devices before issuing the install command.

If a permanent database file does not exist, Q-VET creates one.

The temporary database file that you create is deleted when you terminate the Q-

VET session.

Example

Q-VET_setup> install vet_exer_file

Installation completed successfully for vet_exer_file

Q-VET_setup> select default exer for file

Qualification Verifier Exerciser Tool (Q-VET) 4–73

Q-VET Command Interface

load

Description

Creates a default load for the system configuration that you are testing.

When you issue the load command, Q-VET sets up a system load of Q-VET processes to test it. Q-VET’s ability to run many exerciser processes simultaneously means that system loads needed for installation verification and other systemwide testing can be created.

After you issue the load command, you can issue the show selected groups for all or the show processes all command to see what groups and devices the load command has selected. You then issue the start command to start the run.

If you have already issued the connect command to connect a remote node(s), Q-VET includes the node(s) in the system load.

__________________________ Note _____________________________

If you want to add a tape to the devices tested, you must select the device before you start the run.

____________________________________________________________

Format

load { none }

{ with default }

{ with cpu n1 memory n2 file n3 network n4 disk n5 }

Keywords and Arguments none

If you issue the command without keywords or arguments, Q-VET prompts you for the number of processes to load for each device---cpu, memory, file, network, and disk. If you do not enter a reply and press [Return], Q-VET takes the default number of processes.

Q-VET also prompts you for the number of disks to include in the load. If you do not enter a reply and press [Return], Q-VET takes the default number of disks.

with default

Create a default load of one process per device for the system that you are testing.

Devices tested include the cpu, memory, file system, network, and disk(s).

with cpu n1 memory n2 file n3 network n4 disk n5

4–74 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Specify the number of processes to run for each device that you specify (cpu, memory,

file, network, and disk). You may enter one or more device types and the corresponding number of processes. If you do not specify a device, Q-VET takes the corresponding default number of processes.

Examples

In the following example, the user enters the load command without keywords; Q-VET prompts for the number of processes corresponding to each device and the number of disk drives to test.

In each case, the user accepts the default by pressing [Return] without entering a response. The system loads the default tests and returns the Q-VET_setup> prompt.

The user must issue the start command to start the tests.

Q-VET_setup> load

Enter number of processes for CPU device (decimal [1]): [Return]

Enter number of processes for MEMORY device (decimal [1]): [Return]

Enter number of processes for NETWORK device (decimal [1]): [Return]

Enter number of processes for FILE device (decimal [1]): [Return]

Enter number of processes for DISK device (decimal [1]): [Return]

Enter number of disks (decimal [5]): [Return]

Process 1, group exer for device cpu

Process 2, group exer for device memory

Process 3, group exer for device network

Process 4, group exer for device file .

.

.

.

Q-VET_setup> start

In the following example, the user wishes to run the default exercisers and enters only the load with defaults command. The system loads the default tests and returns the Q-

VET_setup> prompt. The user must issue the start command to start the tests.

Q-VET_setup> load with defaults

Process 1, group exer for device cpu

Process 2, group exer for device memory

Process 3, group exer for device network

Process 4, group exer for device file

Process 5, group exer for device /dev/rra0a

Qualification Verifier Exerciser Tool (Q-VET) 4–75

Q-VET Command Interface

Process 6, group exer for device /dev/ra0a

Process 7, group exer for device /dev/rra0b

Process 8, group exer for device /dev/ra0b

Process 9, group exer for device /dev/rra0c

Q-VET_setup> start

In this example, the user enters the load with cpu 4 command and argument to direct

Q-VET to run four processes on the CPU. Q-VET runs the default number of processes on all other devices. The user also specifies that only one disk drive is to be tested out of a possible five. The system loads the tests and returns the Q-VET_setup> prompt. The user must issue the start command to start the tests.

Q-VET_setup> load with cpu 4

Enter number of disks (decimal [5]): 1

Process 1, group exer for device cpu

Process 2, group exer for device cpu

Process 3, group exer for device cpu

Process 4, group exer for device cpu

Process 5, group exer for device memory

Process 6, group exer for device network

Process 7, group exer for device file

Process 8, group exer for device /dev/rra0a

Q-VET_setup> start

4–76 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

quit

Description

Terminates a Q-VET session and returns control to the operating system. The quit command is equivalent to the exit command. You can issue the quit command only while Q-VET is operating in the setup or suspend execution state.

Format quit

Restriction

You can issue the quit command only while Q-VET is operating in the setup or suspend execution state.

Example

Q-VET_setup> quit

%

Qualification Verifier Exerciser Tool (Q-VET) 4–77

Q-VET Command Interface

remove

Description

Removes a Q-VET program from the Q-VET program database, which contains information about each Q-VET program.

The remove command is the opposite of the install command. See the discussion of the

install command for detailed information.

You issue the show installed command to view the file names of installed Q-VET programs.

Format remove install-type file-spec [on node-list ]

Arguments

install-type file-spec [on node-list]

The install-type can be either temporary or permanent. If you install a file specifying the temporary installation type, you must remove the file specifying the temporary installation type.

The file-spec argument specifies the name of the Q-VET program to remove from the database.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

Restriction

You can issue the remove command only while Q-VET is operating in the setup execution state.

4–78 Qualification Verifier Exerciser Tool (Q-VET)

Example

Q-VET_setup> show installed

Installed files (temporary):

vet_exer_cpu

Installed files (/usr/sbin/vet_database):

vet_exer_file

Q-VET_setup> remove temporary vet_exer_cpu

Q-VET_setup> remove permanent vet_exer_file

Q-VET Command Interface

Qualification Verifier Exerciser Tool (Q-VET) 4–79

Q-VET Command Interface

save

Description

When you use the edit command without a file specification to create a new script file,

Q-VET stores that file in its script buffer. You use the save command to save the contents of the script buffer after you have terminated the editing session.

Format save file-spec

Argument

file-spec

Save the contents of the script buffer in the file specified by the file-spec argument.

Restriction

You can issue the save command only while Q-VET is operating in the setup execution state.

__________________________ Note _____________________________

The script buffer's contents are not permanent. Save a newly edited script buffer in a file before you exit from the current Q-VET session, if you want a permanent copy.

____________________________________________________________

4–80 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Example

Q-VET_setup> edit

™

.

.

.

Q-VET_setup> save /usr/users/my_dir/myfile

š ›

™ The user initiates an editing session.

š The user edits the script buffer and terminates the editing session.

› The user later saves the contents of the script buffer in /usr/users/my_dir/myfile after

ending the editing session.

Qualification Verifier Exerciser Tool (Q-VET) 4–81

Q-VET Command Interface

select

Description

Chooses the devices that you want to test,the test groups, tests, and options that you want to run. Sets the default group for a device in the program database.

Format select { devices device-list [on node-list] }

{ groups group-list [with selection-criteria] for device-name [on node-list] }

{ tests test-list [last_subtest subtest-number] for process-number [on node-list] }

{ options [options-list] for process-number [on node-list] }

{ default group-name for device-name [on node-list] }

Keywords and Arguments devices device-list [on node-list]

Specify the hardware devices to be tested. Device Names and Lists describes the

device-list argument. If a default group exists, Q-VET assigns it to the device.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

groups group-list [with selection-criteria] for device-name [on node-list]

Select device-name for testing if it has not already been selected. Select the test groups to test the device and optionally select run-time options and the tests to be run. If you issue multiple select groups commands for the same device, Q-VET creates multiple process definitions.

Group Names and Lists describes the group-list argument. The device-name argument specifies the device to test.

The optional phrase with selection-criteria chooses run-time options and includes or excludes the tests that will be run on device-name:

options [option-list]

Select group-specific run-time options. You can list them in options-list or omit them. If you omit them, Q-VET prompts you for the values of the group's options.

The following example illustrates both ways of indicating run-time options.

4–82 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

included_tests test-list [last_subtest subtest-number]

Run only the tests specified in test-list. Test Numbers and Lists describes the test-

list argument. The tests must belong to the test group that you have indicated.

Issue the show groups command to display the numbers of the tests belonging to a group.

The optional last_subtest subtest-number argument is the number of the last subtest to execute in the last (highest-numbered) selected test. Subtest Numbers describes the subtest-number argument.

If you use a set passcount or set runtime command to specify multiple program passes and issue the enable loop last_subtest command, the program loops on this subtest, as shown in the following example.

excluded_tests test-list

Run all tests belonging to the group except those specified in test-list. Test

Numbers and Lists describes the test-list argument. The tests must belong to the test group that you have indicated. Issue the show groups command to display the numbers of the tests belonging to a group.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

tests test-list [ last_subtest subtest-number] for process-number [on node-list]

Modify the selected test list for a particular process.

The test-list argument specifies the tests to be selected. Test Numbers and Lists describes the test-list argument.

Although you cannot select specific subtests for execution, you can use the optional

last_subtest argument to specify that a test execute only up to and including a particular subtest. Subtest Numbers describes the subtest-number argument.

You can then issue the select groups command with the last_subtest argument to request that Q-VET loop on that subtest. Refer to Subtests for a further discussion of looping.

The process-number argument specifies the process. You can specify last for this argument; last refers to the most recently referenced process number.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Qualification Verifier Exerciser Tool (Q-VET) 4–83

Q-VET Command Interface

options [option-list] for process-number [on node-list]

Modify the group-specific run-time options for a particular process.

If you specify the options-list argument, Q-VET modifies only the options that are listed; otherwise, Q-VET prompts for new values for all options.

The process-number argument indicates the process. You can specify last for this argument; last refers to the most recently referenced process number.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

default group-name for device-name [on node-list]

Select the group that is to be the default group for the specified device type. If you install a file and want it to become the default test group of a device, you must issue the

select default command. Identifying information about the default group is stored in the program database. Use the show groups command to find a device's default group.

Group Names and Lists describes the group-name argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

default group-name for device-name [on node-list]

Select the group that is to be the default group for the specified device type. If you install a file and want it to become the default test group of a device, you must issue the select default command. Identifying information about the default group is stored in the program database. Use the show groups command to find a device's default group.

Group Names and Lists describes the group-name argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

If you use the on node-list phrase, you cannot include node names in a device name or device list.

You can issue the select devices, select groups, select options, and select tests commands while Q-VET is operating in the setup, active, or suspend execution state.

4–84 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Examples

You can issue the select default command only while Q-VET is operating in the setup execution state.

Issuing the select options command to change a started process has no effect until the next time the process is started.

In this example, the user enters the select groups command with options and specifies them in the command line.

Q-VET_suspend> select group exerciser with options \

reads_per_iteration 5 iterations 100 for /dev/rra0c

In this example, the user enters the select groups command with options without specifying them in the command line. Q-VET prompts for the missing options.

Q-VET_suspend> select group exer with options for file

Process 1, group exer for device file file_name (string [""]): enable_writes ("yes" or "no"[yes]): reads_per_iteration (decimal [1]): block_size (decimal [512]): start_block (decimal [0]): end_block (decimal [499]): step (decimal [0]): iterations (decimal [1000]): delay (decimal [0]): pattern (decimal [0]): error_check_level (decimal [3]): read_only_verify ("yes" or "no"[no]): key (decimal []): save_file ("yes" or "no"[no]):

Q-VET_setup>

Qualification Verifier Exerciser Tool (Q-VET) 4–85

Q-VET Command Interface

In this example, the user enters select groups command with included tests.

Q-VET_suspend> enable loop last_subtest

™

Q-VET_suspend> select group exerciser with included_tests \

1-5 last_subtest 14 for /dev/rra1c

š

™ Enables looping on the last subtest of the group about to run; that is, subtest 14.

š The user selects tests 1 through 5 in the exerciser test group to run on device

/dev/rra1c and directs that test 5 execute only through subtest 14. (This is the last subtest.) The Q-VET pass completes after this subtest, unless the program finds an error, in which case it loops on subtest 14. See Subtests for a further discussion of looping.

4–86 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

set

Description

Establishes run-time characteristics such as execution mode, pass count, directory path, and run time. You also use the set command to specify the log file to which terminal

I/O is written or the number of lines of the terminal display.

Format set { affinity cpu-id [on node-list ] }

{ error_threshold threshold [for process-list ] [on node-list ] }

{ execution execution-type [on node-list ] }

{ comfile file-spec }

{ logfile file-spec }

{ passcount pass-number [for process-list] [on node-list ] }

{ passcount pass-number [for device-list ] [on node-list ] }

{ path path-list [on node-list ] }

{ runtime time [for process-list ] [on node-list ] }

{ runtime time [for device-list ] [on node-list ] }

{ screen_size number-of-lines }

{ timeout seconds }

Keywords and Arguments affinity cpu-id [on node-list]

Establishes the default processor affinity for Q-VET subprocesses.

Q-VET subprocesses establish their processor affinity (if required) when they are first started. The default subprocess affinity automatically defaults to that of the Q-VET manager if the set affinity command is not specified. Changing the default processor affinity has no effect on existing Q-VET subprocesses.

error_threshold threshold [for process-list] [on node-list]

Defines the error threshold for the overall run or for a particular process that has been selected.

If the error threshold for the overall run is reached, all the processes (which are currently executing) will be stopped and Q-VET will transition to the suspend state.

If the error threshold for a particular process is reached, it (the process) will be stopped.

The state transition of Q-VET will depend on the current state of all other processes which have been selected.

Qualification Verifier Exerciser Tool (Q-VET) 4–87

Q-VET Command Interface

execution execution-type [on node-list]

Control whether execution of multiple processes occurs in parallel or serially. The

execution-type argument can be one of the following:

parallel---All Q-VET processes execute concurrently. This execution type is the default.

serial---Only one Q-VET process executes at a time and completes running before the next process starts executing. If multiple process definitions exist for one device, these processes complete in the order in which they were selected, before the processes for the next device begin.

_________________________Caution____________________________

During serial execution, each process completes a run before the next process is started. That is, each process must satisfy the conditions established by the set

passcount or set runtime command before Q-VET starts the next process. If you have selected infinite run time and pass count, the first process started will run forever and no others will start.

____________________________________________________________

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

comfile file-spec

Specifies the location and name of a file in which to store commands entered during

Q-VET execution. If you do not use set comfile file-spec specifically to establish a command file, Q-VET uses a default file, vet_command_log.

Issue the enable logging command command to write to the command file.

logfile file-spec

Specify the location and name of a file in which to store terminal I/O created during Q-

VET execution. This command affects both the local and remote nodes. If you do not use set logfile file-spec specifically to establish a log file, Q-VET uses a default file,

vet_termlog. Issue the enable logging command to write to the log file.

passcount pass-number [for process-list] [on node-list]

Indicate the number of passes that each Q-VET process will execute before stopping.

The pass-number specifies the number of passes. A pass is the one-time execution of all selected tests in a particular Q-VET process.

4–88 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

A pass count of 0 specifies infinite passes. The default value is 1, unless you have issued the set runtime command to indicate a discrete run time, in which case the default pass count is 0.

If you issue both the set passcount and set runtime commands to specify both pass count and run time, the first condition that is satisfied ends the Q-VET run. This condition can be either passcount or runtime.

The optional phrase for process-list sets the pass count only for processes that you specify with the process-list argument. Process Numbers and Lists describes the

process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase and have specified no process-list argument, the command takes effect on all connected nodes. Node Names and Lists describes the

node-list argument.

passcount pass-number [for device-list] [on node-list]

Indicate the number of passes that each Q-VET process will execute before stopping.

The pass-number specifies the number of passes. A pass is the one-time execution of all selected tests in a particular Q-VET process.

A pass count of 0 specifies infinite passes. The default value is 1, unless you have issued the set runtime command to indicate a discrete run time, in which case the default pass count is 0.

If you issue both the set passcount and set runtime commands to specify both pass count and run time, the first condition that is satisfied ends the Q-VET run. This condition can be either passcount or runtime.

The optional device-list argument is a list of one or more devices, optionally including the path, node, or both to which a device belongs. A blank character (space) must separate items in the list.

You issue the show devices all command to find the names of devices connected to your system.

Path names can include node names. (If you enter a device name without a node name,

Q-VET assumes that the device is local.)

You can often enter the wildcard character (*) to match all remaining characters.

If you enter all as the device-list, Q-VET acts on all devices.

path path-list [on node-list]

Qualification Verifier Exerciser Tool (Q-VET) 4–89

Q-VET Command Interface

Define a list of directory paths. Path Names describes the path argument. The path-list argument is a list of directory path names. A blank character (space) must separate items in the list.

Q-VET uses the path list as a directory search list. When Q-VET looks for a file to read or execute, it follows each directory path specification in the list in the order in which it was named, until it finds the first occurrence of the file.

Q-VET initially sets the path list to the user's current working directory plus the directory in which Q-VET resides.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

runtime time [for process-list] [on node-list]

Indicate the total run time for which each Q-VET process is allowed to execute. The section Time describes the time argument.

A run time of 0 indicates infinite time; the default value is 0. Since the default pass count is 1, the length of a Q-VET run is one pass, unless otherwise specified.

If you use the set passcount command to specify the pass count with the set runtime command to specify run time, the first condition completed (either pass count or run time) ends the Q-VET run. If you use the set runtime command to specify run time but no pass count, tests execute until the run time expires, even if multiple passes are required to attain the specified run time.

If you use the set execution command to set the execution mode to serial and select multiple devices,each Q-VET process executes for the specified run time.

The optional phrase for process-list sets the run time only for specified processes.

Process Numbers and Lists describes the process-list argument. You cannot specify the

process-list argument and the device-list argument in the same command.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase and have specified no process-list argument, the command takes effect on all connected nodes. Node Names and Listsdescribes the

node-list argument.

runtime time [for device-list] [on node-list]

Indicate the total run time for which each Q-VET process testing the specified device(s) is allowed to execute. The section Time describes the time argument.

A run time of 0 indicates infinite time; the default value is 0. Since the default pass count is 1, the length of a Q-VET run is one pass, unless otherwise specified.

4–90 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

If you use the set passcount command to specify the pass count with the set runtime command to specify run time, the first condition completed (either pass count or run time) ends the Q-VET run. If you use the set runtime command to specify run time but no pass count, tests execute until the run time expires, even if multiple passes are required to attain the specified run time.

If you use the set execution command to set the execution mode to serial and select multiple devices, each Q-VET process executes for the specified run time.

The optional phrase for device-list sets the run time only for the specified devices.

Device Names and Lists describes the device-list argument. You cannot specify the

process-list argument and the device-list argument in the same command.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase and have specified no device-list argument, the command takes effect on all connected nodes. Node Names and Lists describes the node-list argument.

screen_size number-of-lines

Specify the number of lines of text to be displayed for each screen. If you issue an

enable scrolling command to enable noncontinuous scrolling, the screen size is automatically set to the current size of your terminal screen.

The number-of-lines argument specifies the number of lines that will be displayed at a time; to display more lines, press [Return].

timeout seconds

Specify the timeout interval in seconds. The timeout interval is the amount of time Q-

VET waits between checks to see if Q-VET programs are running. See also

enable/disable timeout.and set timeout

Qualification Verifier Exerciser Tool (Q-VET) 4–91

Q-VET Command Interface

Restrictions

You can issue the set passcount, set runtime, and set screen_size commands while Q-VET is operating in the setup, active, or suspend execution state.

You can issue the set execution, set logfile, set path, and set timeout commands only while Q-VET is operating in the setup execution state.

A command line may contain only one set command and one keyword and its corresponding arguments.

Examples

Q-VET_setup> deselect devices all

Q-VET_setup> select devices /dev/rra2c /dev/rra3c

Q-VET_setup> set execution serial

Q-VET_setup> set runtime 1:00

4–92 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

show

Description

Displays the system devices, test groups and processes, or the current status of the

Q-VET options, modes, and features that you can set or enable.

Format show { affinity [on node-list ] }

{ devices device-list [on node-list ] }

{ error_display }

{ error_threshold [on node-list ] }

{ execution [on node-list ] }

{ groups group-list for device-name [on node-list ] }

{ installed [on node-list ] }

{ logging }

{ loop }

{ mode }

{ nodes }

{ passcount [on node-list ] }

{ path [on node-list ] }

{ process process-list [on node-list] }

{ runtime [on node-list ] }

{ screen_size }

{ scrolling }

{ selected devices [on node-list ] }

{ selected groups for device-name [on node-list ] }

{ stop }

{ summary [ summary-criteria ] [on node-list ] }

{ timeout }

{ trace }

{ types types-list [on node-list ] }

{ version }

Qualification Verifier Exerciser Tool (Q-VET) 4–93

Q-VET Command Interface

Keywords and Arguments affinity [on node-list]

Displays the cpu-id for the Q-VET manager's processor affinity as well as the default cpu-id for the processor affinity for Q-VET subprocesses. The Q-VET manager's processor affinity is established when Q-VET is invoked or when a remote node is connected. If no processor affinity has been established (or processor affinity is not supported) then a cpu-id of "none" will be displayed.

devices device-list [on node-list]

Display hardware information about the devices that you specify in device-list. Specify

all to view a list of all devices on all nodes. Device Names and Lists describes the

device-list argument.

Q-VET obtains information such as device names, device types, storage capacity, and device status from the configuration database.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

error_display

Display the current status of the error message display options, as established by the

enable/disable error_display commands. Error reporting levels are as follows:

basic full extended error_threshold [on node-list]

Display the current error threshold for the overall run as well as for each process, as established by the set error_threshold command.

execution [on node-list]

Display the current execution type, as established by the set execution command. The descriptions of the set command discusses the parallel and serial execution types.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

4–94 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

groups group-list for device-name [on node-list]

Display the number and a brief description of each test in the groups specified in

group-list that correspond to the devices specified by device-name. Device Names and

Lists describes the device-name argument. The device's default group is labeled as such. Group Names and Lists describes the group-name and group-list arguments.

If you enter all as the group list, you can specify device-list instead of device-name.

Device Names and Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

installed [on node-list]

List the file names of the Q-VET programs that have been installed. See the description of the install command.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

logging

Display the current status (enabled or disabled) of error and terminal I/O logging, as set by the enable logging and disable logging commands.

loop

Display the current status of the looping options, as established by the enable loop command. Loop types are as follows:

hard---Causes a process to start looping on the current subtest when a hard error is encountered; disabled by default.

soft---Causes a process to start looping on the current subtest when a soft error is encountered; disabled by default.

all---Causes a process to start looping on the current subtest when either a hard error or a soft error is encountered.

last_subtest---Causes a process to start looping on the subtest specified with the

select groups last_subtest command.

mode

Display the current status of the default run-time modes or the mode established by the

enable mode command.

Qualification Verifier Exerciser Tool (Q-VET) 4–95

Q-VET Command Interface

Mode types are as follows:

automated---Enabled when Q-VET is running under the control of a higher-level automated environment, such as a manufacturing automated testing system; disabled by default. When Q-VET operates in this mode, process startup, pass count, and completion messages are suppressed.

interactive---Indicates that a user is present to respond to queries displayed on a terminal; enabled by default. If enabled, Q-VET fetches responses to requests from either the user's terminal or a command script, if one is active. If disabled, Q-

VET does not request user responses but takes the default values of all requests.

quick---Causes tests to run in quick mode, if they support it. Quick mode is a shortened mode of operation; disabled by default.

truncate---If enabled and a Q-VET process reports a device error, subsequent passes of that process execute only up to the subtest before the failing one; Q-VET then starts the next pass. Truncate mode helps to isolate intermittent errors by attempting to identify the minimum hardware activity needed to cause the error; disabled by default.

verify---Causes script file input lines to be displayed as they are read from the file; disabled by default.

nodes

Display the nodes currently listed in the configuration database and their operating system, transport type, and sizer version.

passcount [on node-list]

Display the current value of the pass count for each process, as established by the set

passcount command.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

path [on node-list]

Display the current directory path search list, as established by the set path command.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

process process-list [on node-list]

4–96 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Display the contents of process definitions. Process Numbers and Lists describes the

process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect.If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

runtime [on node-list]

Display the currently selected run time of each process, as established by the set

runtime command.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

screen_size

Display the current user display screen size, as established by the set screen_size command.

scrolling

Display whether continuous scrolling of user display text is enabled or disabled, as established by the enable scrolling command.

selected devices [on node-list]

Display a list of all devices currently selected for testing, as established by the select

devices command.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the command takes effect on all connected nodes. Node

Names and Lists describes the node-list argument.

selected groups for device-name [on node-list]

Display the name of each selected group for the specified device, as established by the

select groups command.

If you enter all as the device name, Q-VET displays information about all devices.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

stop

Display the current status of the stop-on-error options, as established by the enable stop command. Stop types are as follows:

Qualification Verifier Exerciser Tool (Q-VET) 4–97

Q-VET Command Interface

hard---Causes a Q-VET process to stop execution on the first occurrence of a device hard error; disabled by default.

soft---Causes a Q-VET process to stop execution on the first occurrence of a device soft error; disabled by default.

fatal---Causes a Q-VET process to stop execution on the first occurrence of a device fatal error; disabled by default.

all---Equivalent to issuing the enable stop hard, enable stop soft, and enable stop

fatal commands.

summary [summary-criteria] [on node-list]

Display a summary of the most recent Q-VET run. Summaries consist of the following:

A general display of Q-VET information, such as the run time, number of passes, and errors for each process.

A process-specific display associated with the selected test groups. Test groups may or may not display such information.

The optional summary-criteria argument can be one of the following:

with output file-spec [on node-list]

The optional phrase with output file-spec sends the summary report to a device or a file other than the user's terminal.

The file-spec argument specifies the file.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default.

for device-list [with output file-spec] [on node-list]

The optional phrase for device-list displays the summary for the devices specified in device-list. Device Names and Lists describes the device-list argument.

The optional phrase with output file-spec argument sends the summary to a device or a file other than the user's terminal.

The file-spec argument specifies the file.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default.

4–98 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

for process-list [with output file-spec] [on node-list]

The optional phrase for process-list, displays summaries only for the specified processes. Process Numbers and Lists describes the process-list argument.

The optional phrase with output file-spec argument sends the summary to a device or a file other than the user's terminal.

The file-spec argument specifies the file.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default.

timeout

Display whether timeout checking is enabled, and, if it is, the timeout interval in seconds under which Q-VET is running.

The timeout interval is the amount of time Q-VET waits between checks to see if Q-

VET programs are running.

trace

Display the current status of the trace message display options, as established by the

enable trace command. Trace types are as follows:

test---Causes Q-VET to display the name of each test as it begins.

subtest---Causes Q-VET to display the name of each subtest as it begins.

debug---Causes Q-VET to display programmer-defined trace messages.

all---Equivalent to issuing the enable trace test, enable trace subtest, and enable

trace debug commands.

types types-list [on node-list]

Displays information about the types that you specify in types-list.

The types-list argument is a list of one or more device types. A blank character (space) must separate items in the list.

You issue the show types all command to find the names of device types connected to your system.

If you enter all as the types-list, Q-VET acts on all types.

version

Display the Q-VET version number.

Qualification Verifier Exerciser Tool (Q-VET) 4–99

Q-VET Command Interface

Restrictions

None concerning execution state: you may issue this command while Q-VET is operating in the setup, active, or suspend execution state.

If you use the on node-list phrase, you cannot include node names in a device name or device list.

A command line may contain only one show command with its corresponding keyword and argument.

Examples

In this example, the user issues the show devices all command to view a list of all devices that are known to Q-VET.

Q-VET_setup> show devices all

SYSTEM DEVICE TYPE SUBTYPE SIZE STATUS

------ ----- ---- ------- ---- ------

chaaly memory V_MEM 25165824

chaaly file FILE_DATA

chaaly cpu CPU risc

chaaly network NETWORK tcpdec

chaaly /dev/rmt0l TAPE tk70 LOCAL_RW

chaaly /dev/nrmt0l TAPE tk70 LOCAL_RW

chaaly /dev/rmt0h TAPE tk70 LOCAL_RW

chaaly /dev/nrmt0h TAPE tk70 LOCAL_RW

chaaly terminal TERMINAL

chaaly printer PRINTER

chaaly video VIDEO

Q-VET_setup>

In this example, the user issues the show groups all for tape command to view a list of the available tests of a tape device.

Q-VET_setup> show groups all for tape

Group: exer

Devices: tape

File: vet_exer_tape

Tests: 1 - Tape Write/verify/space records Test

2 - Tape Write/verify/space file test

Group: tape_all

Devices: tape

File: vet_exer_tape

Tests: 1 - Tape Write/verify/space records Test

4–100 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

2 - Tape Write/verify/space file test

3 - Physical EOT test

Q-VET_setup>

In this example, the user runs the cpu exerciser and then issues the show summary command to view a summary of testing and test results.

Q-VET_setup> select group exer for cpu

Q-VET_setup> start

...starting [Process 1, Pass 1] group exer for device cpu.

...completed [process 1] group exer for device cpu.

...testing completed. Total errors = 0.

Q-VET_setup> show summary

Summary of all processes:

Process 1: Group exer for device cpu

Total Errors for all processes: 0

====================================================

Process 1: Group exer for device cpu

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 57 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Requested passcount: 1

Completed passcount: 1

.

.

.

End of summary.

Q-VET_setup>

Qualification Verifier Exerciser Tool (Q-VET) 4–101

Q-VET Command Interface

start

Description

Starts a Q-VET run.

You issue the start command after you have selected the devices to be tested and the test groups that will test them. Issuing the start command runs the Q-VET processes that exercise the devices.

After you issue the start command, Q-VET enters the active execution state and begins to execute the processes. The active execution state prompt is displayed only after you press [Return].

Format start

Restriction

You can issue the start command only while Q-VET is operating in the setup execution state.

Example

Q-VET_setup> select devices memory

Process 1, group exer for device memory

Q-VET_setup> start

...starting [Process 1, Pass 1] group exer for device memory.

...completed [process 1] group exer for device memory.

...testing completed. Total errors = 0.

Q-VET_setup>

4–102 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

stop

Description

Stops the execution of Q-VET processes.

After you issue the stop command, all specified processes stop executing. If all processes are stopped, Q-VET enters the suspend execution state.

Format stop { none }

{ processes process-list [on node-list ] }

{ devices device-list [on node-list ] }

Keywords and Arguments none

Stop all processes on all nodes. Issuing the stop command without arguments is equivalent to pressing [Ctrl/C] during a Q-VET run.

devices device-list [on node-list]

Stop all processes associated with the devices specified in device-list. Device Names and Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

processes process-list [on node-list]

Stop the processes specified in process-list. Process Numbers and Lists describes the

process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase,the local node is the default. Node Names and Lists describes the node-list argument.

Qualification Verifier Exerciser Tool (Q-VET) 4–103

Q-VET Command Interface

Restrictions

If you use the on node-list phrase, you cannot include node names in a device name or device list.

You can issue the stop command only while Q-VET is operating in the active execution state.

Example

Q-VET_setup> start

...starting [Process 1, Pass 1] group exer for device memory.

Q-VET_active> stop

...stopping [Process 1] group exer for device memory.

Q-VET_suspend>

4–104 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

system

Description

Passes a command to the operating system for execution.

You can pass any command that you ordinarily specify at the operating system prompt.

When the command completes, control returns to Q-VET.

__________________________ Note _____________________________

An operating-system-level command issued in a system command executes immediately; a file specified in a foreign command executes during the Q-VET run.

____________________________________________________________

Format system command-line

Argument

command-line

Specify a command line to pass to the operating system for execution. The command-

line argument must contain a valid command with valid keywords and arguments if needed.

Restriction

None concerning execution state: you may issue this command while Q-VET is operating in the setup, active, or suspend execution state.

Example

Q-VET_setup> system ls -l /exer/disk/old

Qualification Verifier Exerciser Tool (Q-VET) 4–105

Q-VET Command Interface

terminate

Description

Terminates specific or all stopped processes and returns Q-VET to the setup execution mode. (You use the stop command to stop running processes.)

Format terminate { none }

{ devices device-list [on node-list ] }

{ processes process-list [on node-list ] }

Keywords and Arguments none

Terminate all suspended processes on all connected nodes, and display the setup prompt.

devices device-list [on node-list]

Terminate the suspended processes that are associated with the devices specified in

device-list. Device Names and Lists describes the device-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

processes process-list [on node-list]

Terminate the processes specified in process-list. Process Numbers and Lists describes the process-list argument.

The optional phrase on node-list specifies the node(s) on which this command takes effect. If you omit this phrase, the local node is the default. Node Names and Lists describes the node-list argument.

Restrictions

If you use the on node-list phrase, you cannot include node names in a device name or device list.

You can issue the terminate command only while Q-VET is operating in the suspend state.

4–106 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

Example

Q-VET_setup> start

...starting [Process 1, Pass 1] group exer for device file.

[Ctrl/C]

...stopping [Process 1] group exer for device file.

Q-VET_suspend> terminate

...terminated [process 1] group exer for device file.

Q-VET_setup>

Qualification Verifier Exerciser Tool (Q-VET) 4–107

Q-VET Command Interface

vet

Description

Starts a Q-VET session.

You issue the vet command at your system prompt.

Format vet { none }

{ element1 [ element2 ] [ element3 ] ... [ element n ] }

Arguments none

Start a Q-VET session. Q-VET sizes the system

Depending on how your session environment has been set up, Q-VET either enters command-line mode and displays the setup prompt, and you control the session by entering Q-VET commands; or it displays its main window using DECwindows Motif or

Windows NT, and you control the session with the mouse and keyboard.

You can control whether Q-VET operates in window or command-line mode along with many other operations by specifying command elements.

element1 [element2] [element3] ... [element n]

For example, create processes according to your arguments, run the processes, and return control to the operating system once testing has completed.

Each element consists of an option possibly followed by an argument. If the option takes more than one argument, surround the argument list with quotation marks and separate arguments with spaces, as in the following example. Options and arguments are as follows:

-affinity cpu-id

Specifies a specific processor to run the Q-VET processes on.

-d device-list

Specify the devices to be tested. Device Names and Lists describes the device-list argument.

-display display-device-name

Redirect the display to the specified display device (DECwindows Motif only).

4–108 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

-f file-name

Specify a script file (file-name) containing Q-VET commands to be executed by

Q-VET.

-F

Specify the default script file (vet_script.com) to be executed by Q-VET.

-g group-list

Run the test groups listed in group-list. Group Names and Lists describes the group-list argument. If this option is absent and you specify -d, Q-VET executes the default group.

/int=char

(OpenVMS only) Do not use the OpenVMS interface; use the command interface.

-nw

(DIGITAL UNIX and Windows NT only) Do not use Q-VET’s DECwindows

Motif or Windows NT interfaces. Instead use Q-VET's command interface.

-p passcount

Run the test groups for the number of passes specified in passcount. If this option is absent and you specify -d, the test group runs for a default pass count of 1 or the specified run time, whichever completes first.

-r time

Run the test groups for the amount of time specified in time. If this option is absent and you specify -d, Q-VET runs the test groups for the specified pass count.

The section Time describes the time argument.

-s

Display a run summary after the run has completed.

-[no]sizer

Run or do not run the Q-VET system sizer when Q-VET is started. Running the sizer is the default.

Examples

In this example, the user issues the vet command with the -nw display option. Q-VET starts a new session using its command-line interface. After running Q-VET, the user terminates the Q-VET session, and control returns to the operating system.

% vet -nw

Running system sizer on node mynode ... please wait.

Q-VET_setup>

Qualification Verifier Exerciser Tool (Q-VET) 4–109

Q-VET Command Interface

.

.

.

Q-VET_setup> exit

%

In this example, the user issues the vet command with options to exercise tape drives

/dev/rmt0h and /dev /rmt2h using the default test group. The user specifies that the run will last for 30 passes or 15 minutes, whichever completes first.

Once the run has completed, Q-VET returns control to the operating system.

% vet -d "/dev/rmt0h /dev/rmt2h" -p 30 -r 15

Running system sizer on node mynode ... please wait.

...starting [Process 1, Pass 1] group exer for device /dev/rmt0h.

...starting [Process 2, Pass 1] group exer for device /dev/rmt2h.

...runtime has expired for [Process 1] group exer for device /dev/rmt0h.

...runtime has expired for [Process 2] group exer for device /dev/rmt2h.

...completed [Process 1] group exer for device /dev/rmt0h.

...completed [Process 2] group exer for device /dev/rmt2h.

...testing completed. Total errors = 0

%

4–110 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

wait

Description

Controls the amount of elapsed time before Q-VET reads the next script file command.

Each command that you do not want to be executed immediately must be preceded by the wait command, as in the example below.

Format wait { none }

{ time }

Arguments none

Do not read any more lines from the script file, until this Q-VET run is complete.

time

Specify the amount of time Q-VET waits before reading the next line of the script file.

The section Time describes the time argument.

Qualification Verifier Exerciser Tool (Q-VET) 4–111

Q-VET Command Interface

Example

Pagebrk

# Select devices "file".

select devices file

# Set runtime to 30 minutes.

set run 30

# Start run.

start

# Wait for run to complete.

wait

# Display run summary.

show summary

# Duplicate the process.

duplicate process last

# Drop the new process.

drop process last

# Start the run.

start

# Wait 15 minutes.

wait 15

# Add the new process.

add process last

# Wait for run to complete.

wait

# Display run summary.

show summary

4–112 Qualification Verifier Exerciser Tool (Q-VET)

Q-VET Command Interface

write errorlog

Description

Writes a text string into your operating system's error log.

Format write errorlog " text-string "

Arguments

"text-string"

Write the text string to the operating system error log. If the operating system includes this feature, the text string is placed in the error log.

Restrictions

None concerning execution state: you may issue this command while Q-VET is operating in the setup, active, or suspend execution state.

This command works only if the operating system under which Q-VET runs includes an error log facility and you are running Q-VET as superuser. If the operating system includes this feature, the text string is placed in the error log.

You must have previously set error logging with the enable logging errors command.

Error logging is enabled by default, if you have the appropriate user privileges.

Example

Q-VET_suspend> write errorlog "Multiple seek errors on -

drive #2 called system manager 2 PM PST"

Qualification Verifier Exerciser Tool (Q-VET) 4–113

A

Error Messages

The Q-VET manager and exercisers communicate with you by displaying messages.

These inform you of progress,request information, and signal errors.

This appendix lists and, if necessary, explains Q-VET error messages. When these messages require user action, the explanation also indicates the necessary steps to take.

__________________________ Note _____________________________

All errors are logged to the system error log as well as the run display or console.

____________________________________________________________

This appendix covers the following topics:

Q-VET manager message format

Q-VET manager error messages

Q-VET exerciser error message format and types

Q-VET exerciser error messages

Q-VET Manager Message Format

Q-VET manager messages are displayed in pop-up message boxes for the DECwindows

Motif interface and in-line for the command interface. Most messages are selfexplanatory; therefore, the following section lists only those which need more explanation, require user action, or are internal errors.

Qualification Verifier Exerciser Tool (Q-VET) A–1

Error Messages

Messages Beginning with ?

Most Q-VET manager messages are informational, and the Q-VET manager continues executing after it displays them. When the Q-VET manager encounters an error, it prefaces the associated message with a question mark (?). Generally the Q-VET manager does not process the command that caused the error.

Messages Containing Formatting Directives

The messages listed below often contain formatting directives---that is, lowercase letters preceded by a "

%

". Q-VET fills in these directives with the associated values before displaying the message. Table A-1 lists the directives and their meaning.

Table A-1 Formatted Message Output

Formatting Directive Meaning

%d

Decimal number

%o

%s

%x

Octal number

Character string

Hexadecimal number

Messages

?Attempt to open message catalog failed in vet_mgr_database: %s.

Meaning: Q-VET was unable to open the file containing its messages.

User Action: Check the protection of the messages file and the settings of the

NLSPATH and LANG variables.

?Can't continue unless run was stopped.

Meaning: A

continue

command was typed while the current run was in progress.

User Action: Stop the run before issuing the

continue command.

?Device not known: %s

Meaning: Q-VET was expecting a device name but found the displayed string instead.

User Action: Check for the correct command syntax or the correct device name in the command.

?Installation timed out while installing file: %s

A–2 Qualification Verifier Exerciser Tool (Q-VET)

Error Messages

Meaning: The Q-VET manager received no response within a specified amount of time when installing a file in the program database. This indicates that the file may not be in an appropriate format for a Q-VET program.

User Action: Rebuild the file in an appropriate format (see the Q-VET

Programmer’s Guide) or use the

foreign

command to run it under Q-VET.

%s is an unknown host.

Meaning: Q-VET did not find the name of the remote host in the network database file.

User Action: If you are using the TCP/IPtransport. update

/etc/hosts

with required information about the remote host. If you are using DECnet, update the NCP database with required information about the remote host.

Message not available.

Meaning: Q-VET could not find a message in the message catalog.

User Action: Check the settings of the NLSPATH and LANG environment variables

(see Chapter 2).

?No matching system name for %s.

Meaning: Q-VET did not find the system name that was entered in the configuration database. Either you entered an incorrect system name or the specified system was not connected to the configuration database.

User Action: If you entered an incorrect name, reenter the command using the name of a connected system. If the system was not connected, issue the connect node command specifying the unconnected system name and the transport.

...[Process %d] group %s for device %s is hung. Killing process.

Meaning: The specified process has not maintained contact with the Q-VET manager. Often, the user has specified options resulting in Q-VET program operations that take longer than normal to complete, for example specifying a huge transfer size for the disk, file, or tape exerciser. If this error occurs, the Q-VET manager calls the termination procedure to stop the process.If you want a Q-VET program to perform operations that take more time than normal to complete, you must either disable timeouts for that run or increase the timeout interval.

User Action:If Q-VET unsuccessfully attempts to stop a process, you must issue system-level commands to stop it. For the next Q-VET run, either disable timeouts or increase the timeout interval.

?Requested operation not allowed in %s state.

Meaning: The previous command is invalid in the current Q-VET state.

Qualification Verifier Exerciser Tool (Q-VET) A–3

Error Messages

User Action: Enter only commands that are valid for this state. To reenter the previous command, you must first enter a command that activates a state in which it is valid.

?Too many processes selected. Maximum system process limit is %d.

Meaning: No more devices may be selected for this run. Each device selection or duplication causes the creation of a process, and the system or user process limit has been exceeded.

User Action: To select specific devices, first deselect some processes.

Unable to connect to remote node %s.

Meaning: The local node was unable to connect to the remote node.

User Action: Perform the following actions, depending on the transport medium:

Transport

DECnet

TCP/IP

Action

Make sure that the command script (VETDNET) ensuring

Q-VET DECnet communication was updated and placed in the proper location (/usr/sbin).

Make sure that the dnet_spawner daemon is executing.)

Make sure that the remote node's server databases (/etc/services and /etc/inetd.conf) contain the proper server information for Q-

VET.

Make sure that the /etc/INETd daemon is executing. )

Unable to get local INET address.

Meaning: Using TCP/IP, the remote node was unable to get the INET address for the local node.

User Action: Update the /etc/hosts file to include the remote node's information.

Unable to get remote INET address

Meaning: Using TCP/IP, the local node was unable to get the INET address for the remote node.

A–4 Qualification Verifier Exerciser Tool (Q-VET)

Error Messages

User Action: Update the /etc/hosts file to include the remote node's information.

Manager Internal Errors

The following is a list of internal manager errors. These seldom require user action. Those listed as programmer errors are caused by errors in a Q-VET program.

?Bad database file.

?VET manager - Pipe read error. Errno = %d.

?VET manager - Pipe write error. Errno = %d.

?Error closing file: %s

?Error creating output pipe.

?Error creating pipe.

?Error from fcntl, errno = %d.

?Error in options procedure, terminating process %d.

Meaning: Programmer error.

?Group descriptor table not terminated, or too big.

Meaning: Programmer error.

?Invalid sizer packet received from node %s

?Invalid status returned by process %d: , group %s, test %d, subtest %d

Meaning: Programmer error.

?Invalid subprocess list number: %d.

Meaning: The specified number does not have a corresponding number on the internal subprocess list maintained by Q-VET.

?Options list not terminated.

Meaning: Programmer error.

?Process %d made invalid call to vet_end_display.

Meaning: Programmer error.

?PROCESS%d - Pipe read error. Errno = %d.

?PROCESS%d - Pipe write error. Errno = %d.

?Process %d still owns the display.

?Received an illegal message from remote node %s.

Qualification Verifier Exerciser Tool (Q-VET) A–5

Error Messages

Meaning: Q-VET received an unrecognizable message from the specified remote node.

?Received unexpected signal

?Response packet overflow in %s.

Meaning: A response packet sent to Q-VET was too large.

?Software error! , FILE = %s, LINE = %d, PROCEDURE = %s

Meaning: Programmer error. The formatting directives give the error's location.

?Supported device list not terminated, or too big.

Meaning: Programmer error.

?Test descriptor table not terminated.

Meaning: Programmer error.

Unable to create and bind the device socket.

Meaning: Programmer error.

Exerciser Error Message Format and Types

Exerciser error messages have the same format whether Q-VET is operating in

DECwindows Motif or command mode. These messages are displayed as part of the Q-

VET manager's run information. The following is a sample exerciser error message with an explanation of its format:

*** HARD ERROR

™

1

š

from process 1

›

, group exer

œ

for device memory



***

File vet_exer_memory.exe

ž

, test 1

Ÿ

, subtest 1



, Tue Jan 28 11:03:36 1992

¡

Did not read expected data.

¢

*** End of error report from process 1 ***

™ The error type

š The number of the error within that type

› The number of the process that detected the error

œ The name of the test group that was executing

 The name of the device that the test group was testing

ž The name of the program file that was executing

Ÿ The number of the test that was executing

  The number of the subtest that was executing

A–6 Qualification Verifier Exerciser Tool (Q-VET)

Error Messages

¡ The date and time that the error occurred

¢ A description of the error

Q-VET reports six types of error messages, as follows:

User errors - These occur when you enter invalid input, for example, an incorrect process option.

*** USER ERROR 1 from process 1, group exer for device file ***

File vet_exer_file, test 0, subtest 0 -Fri Jun 14 10:03:20 1991

Bad start_block number.

*** End of error report from process 1 ***

Device Setup errors - These occur before a test runs if the Q-VET program you are running finds that the hardware is improperly set up, for example, when a device is off line or there is insufficient disk space to perform the tests.

*** SETUP ERROR 1 from process 1, group exer for device file ***

File vet_exer_file, test 1, subtest 1, Fri Jun 14 10:24:52 1991

Insufficient disk space.

*** End of error report from process 1 ***

Device soft errors - These occur when a Q-VET program encounters device errors from which it is possible to recover. The test can try to recover, for example, by restarting the operation.

***SOFT ERROR 1 from process 1, group exer for device /dev/rra1c ***

File disk_functional, test 2, subtest 5, Fri Jun 14 10:33:25 1991

Read-compare error...will retry operation.

*** End of error report from process 1 ***

Device hard errors - These occur when a Q-VET program encounters errors from which it is impossible to recover, such as a disk seek error. Repeated attempts to complete an operation that continually generates a soft error end in a Q-VET program reporting a hard error.

Device fatal errors-These errors are so serious that it is impossible to continue testing, for example, when a device does not respond to a repeated operation. After a Q-VET program reports a device fatal error, it stops testing.

*** FATAL ERROR 1 from process 1, group exer for device file ***

File vet_exer_file, test 1, subtest 1, Fri Jun 14 10:49:08 1991

Bad return status from LSEEK.

*** End of error report from process 1 ***

Software fatal errors-These are catastrophic errors that occur during a Q-VET test program. These errors are unrelated to device testing but make further testing impossible. An example of a software fatal error is a test process that issues a system

Qualification Verifier Exerciser Tool (Q-VET) A–7

Error Messages service call but receives a return status indicating no access rights. After a Q-VET program reports a software fatal error, it stops testing.

*** SOFTWARE ERROR 1 from process 1, group exer for device memory ***

File vet_exer_memory, test 1, subtest 1, Fri Jun 14 10:54:08 1991

Attempt to use bad pattern detected.

*** End of error report from process 1 ***

Exerciser Messages

The following messages appear as error descriptions in device exerciser error messages.

CPU Exerciser Messages

Scalar binary operations test failed.

Scalar conversions test failed floating point conversions.

Scalar conversions test failed integer conversions.

Scalar floating point computations test failed.

Scalar integer computations test failed.

Memory Exerciser Message

Attempt to use bad pattern detected.

Meaning: An invalid pattern was specified.

User Action: Specify a valid pattern.

Bad memory_to_allocate , min_segment_size, max_segment_size combination.

Meaning: An invalid combination of exerciser options was specified.

User Action: Use different option values.

Can't allocate %d byte segment.

Meaning: No free memory is available to allocate this segment.

First mismatch at byte %d - Expected: %2.2x, Actual: %2.2x.

Disk Exerciser Messages

Expected value: %d, Actual value: %d

Failure status returned from CLOSE.

Failure status returned from LSEEK.

Failure status returned from OPEN.

Failure status returned from READ

A–8 Qualification Verifier Exerciser Tool (Q-VET)

Error Messages

Failure status returned from WRITE.

First mismatch: Logical block %d, byte %d Expected: %2.2x, Actual: %2.2x

Invalid start block, end block, step combination.

Meaning: Bad options were specified. End block must be greater than start block.

User Action:Use different option values.

File Exerciser Messages

Expected value: %d, Actual value: %d

Failure status returned from CLOSE.

Failure status returned from LSEEK.

Failure status returned from OPEN.

Failure status returned from READ

Failure status returned from UNLINK

Failure status returned from WRITE.

First mismatch: Logical block %d, byte %d Expected: %2.2x, Actual: %2.2x

Insufficient disk space.

Invalid start block, end block, step combination.

Meaning: Bad options were specified. End block must be greater than start block.

User Action:Use different option values.

Tape Exerciser Messages

End of tape (EOT) was detected.

Meaning: An unexpected end-of-tape (EOT) was detected during a write operation.

Error assigning an I/O channel.

Meaning: The system detected an error when assigning a channel for the tape device. A system call error may have generated this condition or the system may be set up incorrectly for running Q-VET on remote nodes.

User Action:

Verify that another user has not mounted the same tape device.

Ensure that the network software (DECnet or TCP/IP) is present and operating.

Verify that Q-VET is correctly installed in the remote node.

Verify that the remote and local nodes were properly set up for running Q-VET.

Qualification Verifier Exerciser Tool (Q-VET) A–9

Error Messages

Error deassigning an I/O channel.

Meaning: The system detected an error when deassigning the I/O channel for the tape device. Remote execution of Q-VET may have terminated before the local node deassigned the channel.

User Action: Verify that execution of Q-VET terminated on the remote node.

Error dismounting tape.

Meaning: The system detected an error when trying to dismount a tape.

User Action: Try using a shell-level command to dismount the tape after the Q-VET session has terminated.

Error rewinding tape.

Error spacing backward %d files.

Error spacing backward %d records.

Error spacing forward %d files.

Error spacing forward %d records on device %s.

Error writing a filemark.

Expected value: %d, Actual value: %d

Failure status returned from CLOSE.

Failure status returned from OPEN.

Failure status returned from READ

Failure status returned from WRITE.

File header mismatch detected.

Meaning: After the exerciser performed a read operation, it checked the file header and found a mismatch between the file header and the current file count.

Incorrect tape media used in drive

User Action: Remove incorrect media and replace with correct media for drive type.

Pattern header error detected.

Meaning: After the tape exerciser performed a read operation, it performed a header check and detected an invalid pattern header.

Record header mismatch detected.

Meaning: After the exerciser performed a read operation, it made a record-header check and found a mismatch between the record header and the current record count.

A–10 Qualification Verifier Exerciser Tool (Q-VET)

Error Messages

Tape is off-line, not inserted in drive, or the incorrect media type is being used.

User Action: Terminate the exerciser, place the device on line, and restart the exerciser.

Tape is WRITE LOCKED!

User Action: Terminate the exerciser, unlock the write protection, and restart the exerciser.

Unable to clear serious exception for device %s.

Meaning: On DIGITAL UNIX systems, serious exceptions are generated on the tape device when testing of the tape exceeds the end-of-tape mark (EOT). An error occurred while the clearing of the exception was being performed.

Unable to obtain device type information.

Unable to obtain status information.

Network Exerciser Messages

Expected value: %d, Actual value: %d

Node: %s - Asynchronous QIO read failed.

Node: %s - Can't assign channel (w/mail box).

Node: %s - Duplicate packet received (%d).

Node: %s - Echo service not known by target.

Node: %s - Error binding network endpoint (t_bind failed).

Node: %s - Error closing transport endpoint (t_close failed).

Node: %s - Error connecting to target.

Node: %s - Error connecting to target (t_connect failed).

Node: %s - Error creating network end point (t_open failed).

Node: %s - Error creating socket.

Node: %s - Error setting for asynchronous I/O (fcntl failed).

Node: %s - Error setting socket's ACL.

Packet %d never received.

Node: %s - Error setting socket's ACL.

Node: %s - Error unbinding transport endpoint (t_unbind failed).

Node: %s - Packet lost (echo never received).

Qualification Verifier Exerciser Tool (Q-VET) A–11

Error Messages

Node: %s - Packet size too large for server mirror object.

Node: %s - QIO failed trying to connect channel to target.

Node: %s - Received packet data mismatch.

Node: %s - Received packet out of order.

Node: %s - Received packet with invalid header data.

Node: %s - Recv call timed-out.

Node: %s - Recv returned bad status.

Node: %s - Recv returned bad transfer count.

Node: %s - Send returned bad status.

Node: %s - Send returned bad transfer count.

Node: %s - Unknown node name.

Packet byte %d - Expected value: %2.2x, Actual value: %2.2x.

Packet %d never received. Selected transport not available.

Status from lib$asn_wth_mbx() = %d.

Status returned (t_errno) : %d (%s).

XTI interface does not support DECnet.

Printer Exerciser Messages

A queue name was not specified. Please supply a queue name.

A queue has not been specified. Due to user's response, testing is not being performed.

Error opening file %s.

Error writing to file %s.

Error accessing the file %s. Errno = %d

Error printing the file %s. Errno = %d

Error printing the file %s. Error code = %d

Terminal Exerciser Messages

Unknown

Error getting screen size.

Error opening device %s.

Error writing to device %s.

A–12 Qualification Verifier Exerciser Tool (Q-VET)

Error Messages

The device %s is allocated to another process.

The device %s is an invalid device name.

The device %s does not exist on the host system.

The device %s is on a remote system.

The device %s does not have proper access privileges.

No I/O channel is available for assignment.

Video Exerciser Messages

Invalid time specified. Entry was %d sec. (Range is 2 to 360 sec.)

Invalid Top position. Entry was %d sec. (Range is 0 to %d.)

Invalid Left position. Entry was %d sec. (Range is 0 to %d.)

Invalid Height. Entry was %d sec. (Range is 200 to %d.)

Invalid Width. Entry was %d sec. (Range is 486 to %d.)

User declared: Video %s failed.

User closed window before tests finished.

Qualification Verifier Exerciser Tool (Q-VET) A–13

B

Generic Exerciser Information

The Q-VET exer group and qual group are comprehensive sets of exercisers targeted at system I/O and at processor and system testing. The exercisers execute in the Q-VET environment to perform exercise-oriented testing of system hardware and hardware interface software (I/O subsystems).

Each exerciser supports various run-time options that allow you to customize it. After you have specified values for options or taken their defaults, Q-VET passes these values to the exerciser when it is started.

Options generally include data patterns that are written to and read from devices in order to test them; options always include error-check levels, that is, the level of detail written in error reports.

Each exerciser generates a summary display if you request one. The display consists of the following general information:

Exerciser characterization---The exerciser's run-time options.

Time data---Start time, summary update time, elapsed time, and CPU time used.

Operational statistics---Operations completed and performance-related data, according to the exerciser's functions and content.

Error data---Error entries describing the first two errors and last occurring error; each error entry includes the error designation and the system time and date of the error.

The following sections list generic exerciser options, test patterns where applicable, and error-check levels, and describe summary displays.

CPU Exerciser Information

The following sections list the CPU exerciser option and error-check levels, and describe its summary display.

Qualification Verifier Exerciser Tool (Q-VET) B–1

Generic Exerciser Information

CPU Exerciser Options

Table B-1 lists the generic CPU exerciser options.

Table B-1 CPU Exerciser Option

Option Name prime_limit error_check_level go_delay seconds delete_tmp_log cpu_affinity cp_iterations

(Windows NT only)

Description

Maximum range of prime numbers.

Error-check level, which may be set to 1, 2, or 3.

Startup delay 0-15 seconds default

Delete or save temp files on success

ID number of the cpu which the created subprocess is to run on.

Co-processor HCT iterations per pass, default 500.

cp_threads

(Windows NT only)

Co-processor HCT process threads, default 17.

CPU Exerciser Error-Check Levels

CPU exerciser error-check levels are as follows:

Level 1 results in no error checking.

Levels 2 and 3 cause results to be checked. Q-VET reports invalid results as Device

Hard Errors.

CPU Exerciser Summary Display

The CPU exerciser display consists only of general information.

Memory Exerciser Information

The following sections list the memory exerciser options, test patterns, and error-check levels, and describe its summary display.

Memory Exerciser Options

Table B-2 lists generic memory exerciser options in the order in which the exerciser prompts you for them.

B–2 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

Table B-2 Memory Exerciser Options

Option Name maximum_ memory min_segment_size max_segment_size pattern enable_writes error_check_level ignore_swap_space

Description

Total virtual memory to test in bytes: once the total of segments allocated reaches this value, the exerciser begins decreasing memory usage until no memory is allocated; this constitutes one test pass. The default for test 1 is 50% of physical memory. Setting

maximum_ memory

will change the default memory allocation for all memory tests. This can be overridden by setting the memory allocation for each test individually, i.e.

xma2_pages, memx_target_size

, and

gray_pages

.

Minimum segment size in bytes: minimum segment size must be greater than 0 and less than or equal to maximum memory size; to force a fixed segment size, set minimum segment size equal to maximum segment size.

Maximum segment size in bytes: maximum segment size must be less than or equal to maximum memory; to force a fixed segment size, set maximum segment size equal to minimum segment size.

Sets a data pattern to be used for writing.

Appendix F lists supported test patterns.

When clear, this option disables data pattern write operations on getting a segment. The test then consists only of allocating and deallocating memory segments. If write operations are disabled, data checking is not performed. Return status from allocating and deallocating segments is always checked.

Error-check level, which may be set to 1, 2, or

3.

Disables checking estimates for memory paging.

xma2_pages

Amount of memory in 512 byte pages. Default is 100% of physical memory.

Qualification Verifier Exerciser Tool (Q-VET) B–3

Generic Exerciser Information

xma2_iterations per pass xma2_data_pattern xma2_test_complement data xma2_data_increment value memx_time per pass

(DIGITAL UNIX only)

memx_target_size

(DIGITAL UNIX only)

gray_pages gray_errors report limit delete_tmp_log on success cpu_affinity

Default.

16 hex char. base data.

Y or N.

Value added to base data pattern, incremented each pass.

In minutes.

% physical memory. Default is 100%.

Amount of memory in “memory page size”.

Default is 100% of physical.

Error limit for gray code tests. Default is 10.

Y or N.

ID number of the cpu which the created subprocess is to run on.

Memory Exerciser Test Patterns

Appendix F lists supported memory exerciser test patterns.

Memory Exerciser Error-Check Levels

Memory exerciser error-check levels are as follows:

Level 1---Return status from a service call that allocates or disposes of memory segments is checked. An invalid return status generates a Device Fatal Error. There is no data-comparison checking.

Level 2---In addition to level-1 checking, the beginning and end of each segment are verified for data-comparison errors immediately before the segment is deallocated (if data write operations are enabled). A data-comparison error generates a Device Hard

Error.

B–4 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

Level 3---In addition to level-2 checking, each segment is fully verified for datacomparison errors immediately before it is deallocated (if data write operations are enabled). A data-comparison error generates a Device Hard Error.

Memory Exerciser Summary Display

In addition to general information, the memory exerciser summary displays total segments allocated during the run.

Disk Exerciser Information

The following sections list the disk exerciser options, test patterns, and error-check levels, and describe its summary display.

Disk Exerciser Options

Table B-3 lists generic disk exerciser options, in the order in which the exerciser prompts you for them.

Table B-3 Disk Exerciser Options

Option Name enable_writes warning_prompt reads_per_iteration

(test 1 and test 2)

block_size

(test 1)

start_block

(test 1 and test 2)

end_block

(test 1 and test 2)

Description

Causes the exerciser to perform a disk write operation, delay, read from the same location, and compare data. By default no write operations are performed.

Indicates whether the user will be alerted or not with a verification message before performing destructive operations. If set to "no" the warning is disabled;

"yes" enables it. The default is “no”.

The number of read operations performed on each iteration: each read and comparison operation counts as one read operation. To disable read operations, set this option to 0.

The transfer or I/O size in bytes. This value determines the logical block size and must be a power of 2 value between 512 bytes and 128 Kbytes. The default block size is 512 bytes.

The first block number of a range of logical blocks to be tested.

The last block number of a range of logical blocks to be tested. The default end block is the last disk block.

Qualification Verifier Exerciser Tool (Q-VET) B–5

Generic Exerciser Information

step

(test 1 and test 2)

iterations

(test 1 and test 2)

delay

(in msec)

pattern error_check_level

The step value for seek operations (in logical blocks).

Step values may be positive, negative, or random. A value of 0 signifies random, which is the default. To force a step value of 0, set the start_block value equal to the end_block value.

Specify number of iterations to perform. One test iteration consists of the following:

Perform a disk write operation

Delay

Perform extra number of seek/read/delays

Seek to previously written block, read and compare data

Seek to new location

Delay

Specifying 0 iterations will cause the exerciser to test all blocks from the start_block value to the end_block value using the step value specified, for each pass of the disk exerciser. If the difference between the two values is less than 20 and a random step value is chosen, then it will use a step value of 1 or -1, whichever is more appropriate. If the difference is greater than 20 and a random step size is issued, then at least 20 iterations(blocks] ) will be performed. The default number of iterations is 50,000 for hard drives,

200 for CD-ROMs, and floppy drives. This value is divided by 10 for test 2.

Specifies the delay between any two consecutive read or write operations, as measured in

{CLK_TCK}ths of a second. Used to set the duty cycle; “0” is 100%. The default delay is 0 for hard drives, 1000 for CD-ROMs, and 120 for floppy drives.

Sets a data pattern to be used for writing. A data header precedes the test data block, regardless of the pattern. If the I/O size is less than the header size, the header is excluded (disabling some error-check ability). Appendix F lists supported test patterns.

Sets the error-check level to 1, 2, or 3.

B–6 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

read_only_verify key delete_temp_logs cpu_affinity

Enables data checking when an exerciser is performing read-only. (By default, data checks are performed only when write operations are enabled.)

Use this option to read only data written with the same key option (if random patterns and/or random seeking is performed). This option has no effect if write operations are enabled.

Sets the randomizing key used to generate random seek/pattern values. A random key is chosen if not specified.

Delete or save temporary files.

ID number of the cpu which the created subprocess is to run on.

Caching and buffering enable. The default is enabled.

caching

(Windows NT only)

hct_threads

(Windows NT only)

hct_time

(Windows NT only)

Process threads to test against the drive. The default is based on system configuration.

Stress hct run time. The default is based on drive type.

__________________________ Note _____________________________

Running multiple disk exercisers that are writing to the same block range on the same device may result in invalid data comparison errors.

____________________________________________________________

Disk Exerciser Test Patterns

Appendix F lists supported disk exerciser test patterns.

The written test data include a header which contains the following:

PID of the exerciser process

Logical block number

Pattern

Random offset used for random pattern (0 if not random pattern)

If you request a block size that is too small to contain the header, the header is not included in the test data.

Qualification Verifier Exerciser Tool (Q-VET) B–7

Generic Exerciser Information

Disk Exerciser Error-Check Levels

Disk exerciser error-check levels are as follows:

Level 1---The following checks are made and reported as a Device Fatal Error:

Unable to open device

Bad return status from system close and lseek calls

Level 2---Same as level 1, plus the following Device Hard Errors:

Bad return status from system read and write operation calls

Invalid data header

Level 3---Same as level 2, plus full data verification. A data mismatch error is reported as a Device Hard Error.

Each byte in the block of data that was written is read back and verified against what was written. This requires large amounts of processor overhead and reduces I/O throughput, but improves error detection.

Disk Exerciser Summary Display

In addition to general information, the disk exerciser summary displays the following statistics:

Iterations completed

Total write operations

Total read operations

Total seek operations

Total bytes written: (total write operations] ) * (I/O size)

Total bytes read: (total read operations) * (I/O size)

Average I/O rate: (total I/O operations) / (elapsed system time)

Average data rate: (total bytes transferred) / (elapsed system time)

File Exerciser Information

The following sections list the file exerciser options, test patterns, and error-check levels, and describe its summary display.

File Exerciser Options

Table B-4 lists generic file exerciser options in the order in which the exerciser prompts you for them.

B–8 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

Table B-4 File Exerciser Options

Option Name file_name enable_writes reads_per_iteration block_size start_block end_block step

Description

Sets the name of the temporary work file. If an existing file name is specified, the file is not deleted at completion. If the file name is a directory name, a temporary work file with a default name will be created in the named directory and is deleted by default at completion.

When clear, the exerciser will not write to a file, then delay, read, and compare. Writes are enabled by default.

Number of read operations performed on each iteration: each read operation and comparison of a previous write operation counts as one read operation. To disable read operations, set to 0. The default number of reads_per_iteration is 1.

The transfer or I/O size in bytes. This value determines the logical block size.The default size is

512 bytes. Too large a block size causes Q-VET to time out. The actual point of failure varies according to such things as system I/O rate and system load.

Block size should not exceed 20,000 bytes, unless you are certain that Q-VET will not time out.

Specifies the first block number of a range of logical blocks to be tested. Must be greater than or equal to 0. The default start_block is block 0.

Specifies the last block number of a range of logical blocks to be tested. The default size is 499 (500 total).

Step value for seeks (in logical blocks). Step values may be positive, negative, or random. A step value of 0 signifies random. This value is the default. To force a step value of 0, set the start block value equal to the end block value.

Qualification Verifier Exerciser Tool (Q-VET) B–9

Generic Exerciser Information

iterations delay pattern error_check_level read_only_verify key save_file cpu_affinity

Specifies how many iterations to perform. One test iteration consists of the following:

Perform a file write operation

Delay

Perform extra number of seek/read/delays

Seek to previously written block, read and compare data

Seek to new file location

Delay

Specifying 0 iterations causes the test to run forever.

A test running forever can still end if the overall exerciser session run time (set by the user) is exceeded. The default number of iterations is 1000.

Specifies the delay between any two consecutive read or write operations, as measured in

{CLK_TCK}ths of a second. The default delay is 0.

Sets a data pattern to be used for writing. A data header precedes the test data block, regardless of the pattern. If the I/O size is less than the header size, the header is excluded (disabling some errorcheck ability). Appendix F lists supported test patterns.

Sets the error-check level to 1, 2, or 3.

Enables data checking when an exerciser is performing read-only. (By default, data checks are performed only when write operations are enabled.)

Use this option to read only data written with the same key option (if random patterns and/or random seeking is performed). This option has no effect if write operations are enabled.

Sets the randomizing key used to generate random seek/pattern values. A random key is chosen if not specified.

Disables normal deletion of the work file at completion. If an existing file is named, the file is never deleted.

ID number of the cpu which the created subprocess is to run on.

B–10 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

__________________________ Note _____________________________

If two exercisers are started that write to the same file, invalid data comparison errors may occur.

____________________________________________________________

File Exerciser Test Patterns

Appendix F lists supported file exerciser test patterns.

The written test data include a header which contains the following:

PID of the exerciser process

Logical block number

Pattern

Random offset used for random pattern (0 if not random pattern)

If you request a block size that is too small to contain the header, the header is not included in the test data.

File Exerciser Error-Check Levels

File exerciser error-check levels are as follows:

Level 1---The following checks are made and reported as a Device Fatal Error:

Unable to create exerciser work file

Unable to open device file

Insufficient disk space

Bad return status from system close and lseek calls

Level 2---Same as level 1, plus the following Device Hard Errors:

Bad return status from system read and write operation calls

Invalid data header---the data header is not checked if write operations are disabled

Level 3---Same as level 2, plus full data verification. A data mismatch error is reported as a Device Hard Error.

Each byte in the block of data that is written is read back and verified against what was written. This requires large amounts of processor overhead and reduces I/O throughput, but improves error detection.

Qualification Verifier Exerciser Tool (Q-VET) B–11

Generic Exerciser Information

File Exerciser Summary Display

In addition to general information, the file exerciser summary displays the following:

Iterations completed

Total write operations

Total read operations

Total seek operation operations

Total bytes written: (total write operations] ) * (I/O size)

Total bytes read: (total read operations) * (I/O size)

Average I/O rate: (total I/O operations) / (elapsed system time)

Average data rate: (total bytes transferred) / (elapsed system time)

Tape Exerciser Information

Q-VET contains two standard tape test groups---exer and tape_all. Group exer contains a records test (test 1) and a file test (test 2); group tape_all, which takes considerably more time to run, includes an EOT (end-of-tape) test. The options that the groups take are identical (see Tape Exerciser Options.

Issue the show groups all for tape command to learn which groups are supported for the tape device, for example:

VET_setup> show groups all for tape

Group: exer

Devices: tape

File: vet_exer_tape.exe

Tests: 1 - Tape Write/verify/space records Test

2 - Tape Write/verify/space file test

Group: tape_all

Devices: tape

File: vet_exer_tape.exe

Tests: 1 - Tape Write/verify/space records Test

2 - Tape Write/verify/space file test

3 - Physical EOT test

VET_setup>

The following sections list the tape exerciser options, test patterns, and error-check levels, and describe its summary display.

B–12 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

Tape Exerciser Options

Table B-5 lists generic tape exerciser options in the order in which each exerciser prompts you for them.

Table B-5 Tape Exerciser Options

Option Name start_at_bot number_of_records record_size number_of_files pattern delay enable_rewind warning_prompt cpu_affinity ignore_features

check

(Windows NT only)

Description

Starts each test at the beginning-of-tape mark (BOT) rather than where the last test ended.

Selects the number of records to write for tests 1 and 2.

Sets the record size for tests 1 and 2. Setting this option to -1 allows writing random length records.

Sets the number of files to write in test 2.

Sets a data pattern to be used for writing. Appendix

F lists supported tape exerciser test patterns for tests

1 and 2.

Specifies the delay between any two consecutive read or write operations, as measured in

{CLK_TCK}ths of a second.

When clear, this option disables the final rewind command issued when the exerciser completes.

Indicates whether the user will be alerted or not with a verification message before performing destructive operations. If set to "no" the warning is disabled;

"yes" enables it.

ID number of the cpu which the created subprocess is to run on.

Drive is checked for supported tape movement features. The default is no.

Tape Exerciser Test Patterns

Appendix F lists supported tape exerciser test patterns for tests 1 and 2.

The written test data includes a header which contains the following:

File number

Record number

Qualification Verifier Exerciser Tool (Q-VET) B–13

Generic Exerciser Information

If you request a record size that is too small to contain the header, the header is not included in the test data.

Tape Exerciser Summary Display

In addition to general information, the tape exerciser summary displays the following:

Total records written (excluding file marks)

Total records read (excluding file marks)

Total file marks written

Total file marks read

Total bytes transferred: sum of records written and read

Average data rate: (total bytes transferred] ) / (elapsed system time)

Network Exerciser Information

The following sections list the network exerciser options, test patterns, and error-check levels, and describe its summary display.

Network Exerciser Options

Table B-6 lists generic network exerciser optionsin the order in which the exerciser prompts you for them.

Table B-6 Network Exerciser Options

Option Name transport nodes_list single_step packet_size

Description

Sets the connection transport to use (TCP, UDP,

DECnet).

Specifies one or more destination nodes. Spaces separate the node names. You may include ACL information if required, for example, node1"my-name my-password."The default is to use the local node.

Enables single-step mode (TCP or DECnet only).

Default is stream mode.

Sets packet size. Setting to 0 disables write and read operations. The test consists of creating and closing network connections only.

B–14 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

total_bytes total_writes packets pattern delay error_check_level cpu_affinity

Total bytes to transfer without reestablishing connection. Transfer bytes include write and read operations. Setting to 0 keeps the connection for the life of the exerciser.

Number of write operations to perform before attempting any read operations (UDP only).

Total packets to transfer before terminating. Total packets transferred is the sum of all connections' successful write and read operations. Specifying 0 packets causes the test to run forever. An exerciser running forever can still end if the run time (set by the user) is exceeded. If a packet size of 0 is selected, this option is interpreted as the total number of connections to establish.

Sets a data pattern to be used for writing. A data header precedes the test data block, regardless of the pattern.

If the I/O size is less than the header size, the header is excluded and some error-check ability is disabled.

Appendix F lists supported network exerciser test patterns.

Specifies the delay between any two consecutive read or write operations, as measured in {CLK_TCK}ths of a second.

Error-check level, which may be set to 1, 2, or 3.

ID number of the cpu which the created subprocess is to run on.

Network Exerciser Test Patterns

Appendix F lists supported test patterns.

The written test data include a header which contains the following:

PID of exerciser process---With the packet sequence number, verifies that the proper packet is returned

Packet sequence number---Checks for lost or out-of-order return packets

Pattern ID---Pattern number for this packet; verifies pattern bytes

Send time stamp---Used to calculate round trip (echo] ) time

Qualification Verifier Exerciser Tool (Q-VET) B–15

Generic Exerciser Information

If you request a packet size that is too small to contain the header, the header is not included in the test data.

Network Exerciser Error-Check Levels

Network exerciser error-check levels are as follows:

Level 1---The following are checked and reported as a Device Fatal Error:

Inability to map a specified node name to a valid address.

Bad return status from any service call while trying to establish a network connection.

Bad return status from any service call while trying to write or read to a network connection.

Level 2---Same as level 1, plus the following are checked and reported as a Device

Hard Error:

Unexpected or unreadable packet header.

The packet echo times out, if a packet does not echo within the timeout period

(TCP and DECnet transports only). For each packet written, the echo packet is expected to return within a fixed amount of time.

Duplicate packet echoed

Level 3---Same as level 2, plus full data comparisons. A bad data comparison is reported as a Device Hard Error.

Network Exerciser Summary Display

In addition to general information, the network exerciser summary displays the following:

Total number of network connections made

Connection rate: (total connections) / (elapsed system time)

Total write and read operations for each node

I/O rate for each node: (total I/O operations) / (elapsed system time)

Bandwidth for each node: (total bytes transferred) / (elapsed system time)

Efficiency: (total bytes transferred for all nodes) / (total CPU time used)

B–16 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

Printer Exerciser Information

The following sections list the printer exerciser options and describe its summary display.

Printer Exerciser Options

Table B-7 lists generic printer exerciser options in the order in which the exerciser prompts you for them.

Table B-7 Printer Exerciser Options

Option Name queue_name queue_type page_width line_limit file_name cpu_affinity

Description

Specifies the name of the printer queue where the file is sent.

Specifies a valid printer type of ASCII, PS, or OTHER.

The default value is ASCII.

Specifies the width of the printout in characters. The default value is 80. This option only applies to the ASCII queue type with the default file.

Specifies the number of lines that will be printed. The default value is 160. This option only applies to the ASCII queue type with the default file.

Sets the name of a file that contains data to be printed to the specified queue.

ID number of the cpu which the created subprocess is to run on.

Printer Exerciser Summary Display

In addition to general information, the printer exerciser summary displays the following:

Queue name:

Queue type:

Page width:

Line limit:

File name:

Time Data:

Exerciser start-up time:

Qualification Verifier Exerciser Tool (Q-VET) B–17

Generic Exerciser Information

Summary update time:

Elapsed real system time: (in seconds)

CPU Times - user and kernel: (in seconds)

Terminal Exerciser Information

The following sections list the terminal exerciser options, and describe its summary display.

Terminal Exerciser Options

Table B-8 lists generic terminal exerciser options in the order in which the exerciser prompts you for them.

Table B-8 Terminal Exerciser Options

Option Name term_name_list line_limit file_name display_width pause_screen iterations_per_test

Description

Specifies one or more destination displays in a terminal list. Each terminal in the list should be separated by a space character.

Specifies the number of rows the ripple pattern will be displayed.

Sets the name of a file that contains data to be displayed to the display. If a file is not specified, then the ripple pattern is displayed.

Specifies the number of characters to be displayed on each row.

Causes the exerciser to pause on each page waiting for an input. A "yes" or carriage-return input causes the next page to be displayed, otherwise the exerciser is terminated.

Number of times to repeat lines per pass.

cpu_affinity

ID number of the cpu which the created subprocess is to run on.

Terminal Exerciser Summary Display

In addition to general information, the terminal exerciser summary displays the following:

B–18 Qualification Verifier Exerciser Tool (Q-VET)

Generic Exerciser Information

Terminal list:

Line limit:

File name:

Display width per term.:

Pause screen:

Time Data:

Exerciser start-up time:

Summary update time:

Elapsed real system time: (in seconds)

CPU Times - user, kernel: (in seconds)

Terminal type(s):

Number of lines displayed:

Chars' displayed per term.:

Avg. data rate per term.: (bytes/sec)

Video Exerciser Information

The following sections list the video exerciser options, and describe its summary display.

Video Exerciser Options

Table B-9 lists generic video exerciser.

Table B-9 Video Exerciser Options

Option Name test_time top_window left_window

Description

The duration of each test can be set by the user. The minimum time is 2 seconds. The duration value is in seconds.

Specifies where to position the top edge of the window on the video screen. The position value is specified in pixels.

Specifies where to position the left edge of the window on the video screen. The position value is specified in pixels.

Qualification Verifier Exerciser Tool (Q-VET) B–19

Generic Exerciser Information

height_window width_window

Log_color soft errors mpc_bitmap

12 mpc_stipple mpc_lines mpc_arc mpc_segments mpc_rectangle mpc_points mpc_pattern mpc_detached mpc_error_limit screen_number cpu_affinity

Specifies the vertical size of the window in pixels.

Specifies the horizontal size of the window in pixels.

Y or N.

Y or N.

Y or N.

Y or N.

Y or N.

Y or N.

Y or N.

Y or N.

Y or N.

Y or N.

Number of errors before reporting/stopping.

0-6.

ID number of the cpu which the created subprocess is to run on.

__________________________ Note _____________________________

Mpc cannot be run with the X11perf or Do_it exercises.

____________________________________________________________

Video Exerciser Summary Display

In addition to general information, the video exerciser summary displays the following:

Window position from top and left side:

Window size for width and height:

Time Data:

Exerciser start-up time:

Summary update time:

12

mcp_ options are available for DIGITAL UNIX and OpenVMS only.

B–20 Qualification Verifier Exerciser Tool (Q-VET)

Elapsed real system time: (in seconds)

CPU Times - user, kernel: (in seconds)

Error Data:

Video Test Errors:

Generic Exerciser Information

Qualification Verifier Exerciser Tool (Q-VET) B–21

C

Menu Entries and Command Equivalents

This Appendix shows menu entries and their corresponding Command interface equivalents. On Windows NT systems, there is also an equivalent toolbar icon for some pull-down menu selections.

Table C-1 File Menu

Menu Entry Function Command

Set Path Displays the current Q-VET path list.

show path set path

Modifies the path list.

Write Error Log Writes a text string to the operating system error log file.

Foreign

Exit

write errorlog

Selects for execution a program that was not designed specifically to run under Q-VET.

foreign

Terminates the Q-VET session on all nodes and returns control to the operating system.

exit or quit

Qualification Verifier Exerciser Tool (Q-VET) C–1

Menu Entries and Command Equivalents

Table C-2 Setup Menu

Menu Entry

Select Devices

Function

Selects devices for testing.

Command select devices select groups

Connect Node Connects a node.

Connect Device Adds a device’s definition to the configuration database.

Disconnect Removes a node or device from the configuration database.

Duplicate

Deselect

Drop

Add

Change Group

Show/Modify

Parameters

connect node connect devices disconnect devices disconnect nodes

Creates one or more duplicate copies of processes.

duplicate process

Deselects a process or processes.

deselect processes

Drops processes from the current run.

drop processes

Adds processes to the current run.

add processes

Changes the group for a process.

select groups

Allows you to examine and change the tests, run time, pass count, and other options of a selected process.

select options select tests set passcount

Load

Save Setup

set runtime

Creates a default system load.

Saves the current configuration displayed in Q-VET’s Device

Work Areas and the settings of Q-

VET’s process options.

load

no equivalent

C–2 Qualification Verifier Exerciser Tool (Q-VET)

Menu Entries and Command Equivalents

Setup Menu (cont.)

Menu Entry

Restore Setup

Clear Setup

Function

Restores a Q-VET setup state that you have saved with Save Setup.

Clears the contents of the Device

Work Area and the Process Work

Area. All process definitions are removed.

Command

no equivalent

deselect devices all deselect processes all disconnect nodes all

Table C-3 Windows Menu

Menu Entry Function

Cascade Arranges all MDI Child Windows in a cascade format.

Tile Horizontally Arranges all MDI Child Windows in a horizontal format (they are wide rather than tall).

Tile Vertically Arranges all MDI Child Windows in a vertical format (they are tall rather than wide).

Arrange Icons Arranges all minimized MDI

Child Windows.

Close Active

Device Work

Area

Process Work

Area

Closes the currently selected MDI

Child Windows.

Displays the nodes and devices in the configuration database in an

MDI Child Window.

Displays the current subprocesses that have been defined in an MDI

Child Window.

Command

no equivalent no equivalent no equivalent no equivalent no equivalent

show devices show processes

Qualification Verifier Exerciser Tool (Q-VET) C–3

Menu Entries and Command Equivalents

Windows Menu (cont.)

Menu Entry

Run Display

Function

Displays output of current run in an MDI Child Window.

Command

Standard Q-VET output after the

start

command is issued

Summary

Display

Summary Filter... Limits the Summary Display to a specified device or process list.

Groups...

Displays all tests currently installed in the Q-VET Database.

Command Line... Allows you to enter Q-VET commands.

Active Windows

List

Displays a summary of the current or most recent Q-VET run in an

MDI Child Window.

Displays a list of active windows.

The window that has focus is displayed with a check mark. You can change the focus to another window by clicking on that window in the list.

show summary show summary for..

show groups all

Q-VET prompt in command line mode no equivalent

Table C-4 Run Menu

Menu Entry

Start All

Stop All

Continue All

Terminate All

Continue

Function Command

Starts a Q-VET run.

Resumes execution of suspended processes.

start

Temporarily stops the execution of

Q-VET processes.

stop

[Ctrl/C]

continue

Permanently terminates suspended processes.

terminate

Resumes execution of specified processes.

continue processes continue devices

C–4 Qualification Verifier Exerciser Tool (Q-VET)

Menu Entries and Command Equivalents

Run Menu (cont.)

Menu Entry

Stop

Terminate

Function

Permanently terminates specified processes.

Command

Temporarily stops the execution of specified processes.

stop processes stop devices terminate processes terminate devices

Table C-5 Scripts Menu

Menu Entry

Execute Script

Buffer

Execute File...

Function Command

Executes the contents of the script buffer.

execute

Executes the contents of a script file.

execute

Opens the script buffer for editing.

edit

filename

Edit Script

Buffer...

Edit File...

Opens a new or existing script file for editing.

edit

filename

Qualification Verifier Exerciser Tool (Q-VET) C–5

Menu Entries and Command Equivalents

Table C-6 Options Menu

Menu Entry

Set

Error_Threshold

Function

Sets the number of errors that are allowed for the overall run or for particular process(s).

Command

Set Run Time...

Sets the run time of all Q-VET processes.

Set Pass Count Sets the pass count for all Q-VET processes.

Set Timeout Sets the time interval Q-VET uses to determine if processes are

“hung”.

Set Affinity...

Sets the default processor affinity to be used when defining a subprocess.

set runtime set passcount enable timeout set timeout set affinity cpu_id set error_threshold

Other Options...

Sets parameters that control a Q-

VET run.

See following table

The following options, displayed in the Other Options dialog box, are included for completeness:

Error Display

Trace Display

Enables a level of error-reporting detail.

Enables a type of trace display.

enable error_display enable trace

C–6 Qualification Verifier Exerciser Tool (Q-VET)

Menu Entries and Command Equivalents

Options Menu (cont.)

Menu Entry

Stop on...

Loop on...

Mode

Execution

Error Logging

Function

Stops on an error type.

Creates an execution loop on an error.

Selects any combination of runtime modes.

Controls execution type - serial or parallel.

Enables or disables Q-VET’s writing messages to the system event log, during execution of Q-

VET runs.

Command enable stop enable loop enable mode set execution enable/disable logging error

Table C-7 Maintenance Menu

Menu Entry

Install/Remove

Files...

Set Default

Group...

Accept

Function

Displays the contents of Q-VET’s program database.

Command show installed

Allows you to add new files to the database and delete existing ones.

install remove select default

Designates a test group as the default of a device type.

Runs acceptance procedures for new systems and devices.

accept

Qualification Verifier Exerciser Tool (Q-VET) C–7

D

Available Device Tests

The process tests available for each device under the DIGITAL UNIX, OpenVMS, and

Windows NT operating systens are described in Table D-1.

Table D-1 Available Tests for Devices

Device

CPU

Disk

Available Tests

CPU Binary Operations Test

CPU Scalar Integer Computations Test

CPU Scalar Floating Point Computations

Test

CPU Scalar Data Conversions Test

CPU Whetstone Synthetic Benchmark

CPU Gausian Emination Matrix

CPU Floating Point Screening

CPU Double Precision Matrix Inversion

CPU Prime Numbers Count/Check

CPU CoProcessor (HCT)

Fixed Block Size Test

DIGITAL

UNIX

OpenVMS

Windows

NT

x x x x x x x x x x x x x x x x x x x x x

Qualification Verifier Exerciser Tool (Q-VET) D–1

Available Device Tests

Device

Tape

Available Tests

Variable Block Size (512-64k)Test

Sequential Diskx Test

64k Quadword Marker Test

Disk Stress (HCT)

Tape Write/Verify/space records Test

Tape Write/Verify/space file Test

Tapex and mt Tests

Video

File

Memory

Demo - Solid Rectangles

Demo - Lines

Demo - Open Rectangles

Text Test

Dot Matrix Test

Line Matrix Test

Bars Step Up/Down Test

Multiburst Test

Shaded Boxes Test

Graphics Line Test

Gray Level Test

Bit Map Test

Palette Test

MPC Test

File Unit/Read Test

Virtual Memory Test (Q-VET)

MVB_loop Test

Grey Code Tests memx Tests

XMA2(SITP)

Virtual Memory Test (HCT)

Network Network Echo Stress Test

D–2 Qualification Verifier Exerciser Tool (Q-VET)

DIGITAL

UNIX

OpenVMS

x x x

Windows

NT

x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x

Device Available Tests

x11exer x11perf-all ico mpc - no data check

Do_it

Crash

Boot_loop

Jacketed

Available Device Tests

DIGITAL

UNIX

OpenVMS

Windows

NT

x x x x x x x x x x

Qualification Verifier Exerciser Tool (Q-VET) D–3

E

The Jacketed_Test Device

Q-Vet runs system and device tests as well as 'external' tests such as UNIX diskx, tapex, memx, x11perf, SITP xma2, and some of the HCTs. Other tests which are not a part of

Q-VET can be run using the 'jacketed test control procedure' by selecting the Jacketed Test

Device which has been included in the Device Work Area. The Jacketed Test is a pseudodevice based on the 'jacket test control' procedures that Q-Vet uses to launch and monitor the current 'external' tests.

The Jacketed Test allows other qual groups to take advantage of Q-Vet features and incorporate their own tests without the need to change Q-Vet source code. The Foreign command in the Q-VET Setup Menu also allows you to run non-Q-VET tests, but does not provide as many control features, error checking, or summary logging.

The 'device' will control the external test with options passed in to it via the standard device Q-Vet options parameters GUI or from the Q-Vet command line inteface (Q-Vet scripts). The test, of course, can not prompt for responses, it must be runable by a command string (the usual method for most tests).

Advantages

Using the Jacketed Test Device offers the following advantages.

You have full control of the test and how its run, because you are supplying the command string that you would use to run the test from a console window or a batch script. You don't have to accept a default setup from Q-Vet.

There is no Q-Vet source code to worry about. You make any changes you want to your test image or script and Q-Vet will do whatever you want, by supplying the appropriate options to the jacketed_test device(s).

Qualification Verifier Exerciser Tool (Q-VET) E–1

Jacketed Test Device

Running a Jacketed Test

To run a Jacketed Test, select the jacketed_test device in the Device Work Area. Select the jacketed_test process which appears in the Process Work Area, and choose

Show/Modify Parameters from the Setup Menu. The Show/Modify Parameters screen appears.

You may choose the following options from the Show/Modify Parameters screen. A minimum of only 1 argument is nneded for some tests. You can use the standard Q-Vet options to control run time, pass count, cpu affinity, error threshold, etc.

Option

image cmd path

Description

Name of test image or shell script. (w/o path)

The argument string that is used by the image; includes test options or whetever.

example: -s -e -b 1024 (can be blank)

Directory where test resides. If not specified, uses Q-Vet default.

Log

OK_check

Bad_Check

Name of test output file that Q-Vet should check. If this option is blank, Q-Vet will redirect stderr and stdout to a log file which it will created, identify and check.

A text string that Q-Vet should check for to determine (from the log file) that the test completed OK. If this option is blank Q-Vet will ignore it.

A Text string for Q-Vet to check the log for which indicates a error or failure. If blank, Q-Vet will ignore it.

go_delay Delay before start of test. Default 0 seconds. Use -1 for random of 0-30; max 1000 seconds. This will allow tests to run staggered or random if so needed.

halt_error The default is Yes delete_tmp_log The default is to delete run logs on success (standard Q-Vet option) affinity The default is none (standard Q-Vet option)

E–2 Qualification Verifier Exerciser Tool (Q-VET)

Jacketed Test Device

Q-Vet will run the device (like all other devices) as follows.

1. Q-Vet processes the options, making sure they are valid.

2. Q-Vet sets up the device, in this case, by making sure that the image file exists in the path specified and that it is executable. It also creates a log file if necessary.

3. The 'image' is started with the supplied 'cmd' string (after the go_delay, if not zero). If a Logfile was not specified, Q-Vet will redirect the tests output to a file. This file name will be based on the image name, the path, and a process id (supplied by Q-

Vet). A message will display the log name.

4. Q-Vet will then ensure that the test started ok and will monitor it in the system process table.

5. When the test completes, (or bombs out) Q-Vet will check the log file (based on the options) and report/log errors to the system log and the Q-Vet summary, just like all the other Q-Vet devices.

6. The Q-Vet summary will show the number of passes completed, time run, number of errors, etc.

Productivity Tips

The following are suggestions and tips for use of the Jacketed Test Device.

You can have any number of Q-Vet 'jacketed_test' devices running at the same time, with or without the standard Q-Vet devices. This is of course limited by the test image itself, what resorces does it use, system tuning, etc. (these are things that you should consider for any test you are running anyway).

Q-Vet will include the 'image' name in all reports and messages, so you can identify tests.

You can run a 'jacked_test' device' and change it's run parameters from the Q-Vet

GUI. It is not necessary to write any code or scripts.

You can use the standard Q-Vet script editor from the Q-Vet GUI to create custom ways to start/stop your tests. You can also use any other editor to create a script. The command syntax to Q-Vet is exactly the same as for the other Q-Vet devices.

script entry example:

select group exer with options

image "diskx" cmd "-b 1204"

You can setup all your 'jacketed_test' devices, and then save the completed Q-Vet setup to a file that can be reused; just like all Q-Vet devices.

Qualification Verifier Exerciser Tool (Q-VET) E–3

Jacketed Test Device

You can write a simple 'setup' procedure which could build a Q-Vet script based on the system configuration, then run this Q-Vet script from the Q-Vet GUI or from the command line. This is what Q-Vet does for it's own internal and external tests (Qual

Scripts).

Another 'automated' feature that you could supply, would be to have a script start

Q-Vet, and then allow Q-Vet to 'size' the system and build its scripts. Your procedure can then insert your "jacketed_test" devices into the scripts that Q-Vet creates. Thus you can use the existing Q-Vet 'Qual Scripts' menu to run your tests even more easily.

Your script can also 'unload' one or more of the standard Q-Vet devices so that they could not be run.

E–4 Qualification Verifier Exerciser Tool (Q-VET)

F

Data Patterns

Data Patterns for Q-Vet Disk Test 1 and Test 2

Pattern Number Name

9

10

11

6

7

8

2

3

4

5

0

1

15

16

17

12

13

14

18

19 pattern_cycle_all = 0 pattern_all_ones pattern_all_zeros pattern_checker pattern_alt_checker pattern_all_three pattern_all_a pattern_all_five pattern_three_c pattern_c_three pattern_alt_one_zero pattern_alt_zero_one pattern_scan pattern_freq_burst_wc1 pattern_freq_burst_wc2 pattern_zero_three pattern_three_zero pattern_f_e pattern_e_f pattern_dibit_wc

/* 0xFF */

/* 00 */

/* AA55 */

/* 55AA */

/* 33 (cont_freq_wc) */

/* AA */

/* 55 */

/* 33CC */

/* CC33 */

/* FF00 */

/* 00FF */

/* 39C39C39 */

/* 2667 3333 */

/* 6667 3326 */

/* 03 */

/* 30 */

/* FEEF */

/* EFFE */

/* (71C7 C71C 1C71) */

Qualification Verifier Exerciser Tool (Q-VET) F–1

Data Patterns

20 pattern_random /* random byte data */

Data Format for Q-VET "64k Block Quadword Marker Test"

The following are features of the 64k Block Quadword Marker Test.

65536 byte xfers to random blocks.

Unique data - assuming 64k xfer and "block number" based on xfer size.

Each Quadword in a transfer looks like this:

13

0 0xFF FF 15 16 0xFF FF FF 39 40 0xFF FF 55 56 0xFF 63 qw_offset block number iteration drive ID

Bits

0:15

16:39

40:55

56:63

Description

quadword offset into the 65535 byte block block number (of size 65536) iteration or I/O operation of current pass.

drive ID

For Windows NT the drive ID is base 36 and will look like this in the miscompare printout: ascii drive name: A B C ... G H ... X Y Z

hex value: A B C ... 10 11 ... 21 22 23

For DIGITAL UNIX and OpenVMS, the ID is just Hex value of drive number. For

Windows NT only, the floppy device is F0.

Use the DumpMedia program to read the actual data on the failing drive.

13

Shown this way because miscompares are printed low to high byte

F–2 Qualification Verifier Exerciser Tool (Q-VET)

Data Patterns

Data Header for Q-Vet Disk Test

The following data header applies to Q-Vet Disk Tests.

u32bit_int exerciser_id; /* process ID */ s64bit_int u32bit_int u32bit_int u32bit_int current_block; pattern; random_offset; /* within random pool */ block_size;

/* current pattern */

/* current xfer size */

Data Patterns for Q-Vet Memory Test (Test 1) .

Number Name

9

10

11

6

7

8

2

3

4

5

0

1

15

16

17

18

12

13

14 pattern_cycle_all = 0, pattern_all_FF, pattern_all_zeros, pattern_checker, pattern_alt_checker, pattern_all_three, pattern_all_a, pattern_all_five, pattern_three_c, pattern_c_three, pattern_alt_zero_one, pattern_alt_one_zero, pattern_two_zero_four, pattern_a_zero_six, pattern_scan, pattern_zero_three, pattern_three_zero, pattern_f_e, pattern_e_f,

Pattern

/* 0xFF */

/* 00 */

/* AA55 */

/* 55AA */

/* 3333 */

/* AA */

/* 55 */

/* 33CC */

/* CC33 */

/* 00FF */

/* FF00 */

/* 2004 */

/* A006 */

/* 39C3 */

/* 03 */

/* 30 */

/* FEEF */

/* EFFE */

Qualification Verifier Exerciser Tool (Q-VET) F–3

Data Patterns

23

24

25

19

20

21

22 pattern_all_eight, pattern_all_four, pattern_all_two, pattern_all_one, pattern_all_six, pattern_all_nine, pattern_random

/* 8888 */

/* 4444 */

/* 2222 */

/* 1111 */

/* 6666 */

/* 9999 */

/* random bytes

Data Patterns for Q-Vet Network Test.

Pattern Number Name

6

7

8

4

5

0

1

2

3

12

13

14

15

9

10

11 pattern_cycle_all = 0, pattern_all_ones, pattern_all_zeros, pattern_checker, pattern_alt_checker, pattern_all_three, pattern_all_a, pattern_all_five, pattern_three_c, pattern_c_three, pattern_alt_one_zero, pattern_alt_zero_one, pattern_scan, pattern_freq_burst_wc1, pattern_freq_burst_wc2, pattern_random

/* 0xFF */

/* 00 */

/* AA55 */

/* 55AA */

/* 33 */

/* AA */

/* 55 */

/* 33CC */

/* CC33 */

/* FF00 */

/* 00FF */

/* 39C3 */

/* 2667 3333 */

/* 6667 3326 */

/* random bytes */

F–4 Qualification Verifier Exerciser Tool (Q-VET)

Data Patterns

Data Patterns for Q-Vet File Test

.

Number Name

9

10

11

12

13

14

6

7

8

3

4

5

0

1

2 pattern_cycle_all = 0, pattern_random, pattern_all_ones, pattern_all_zeros, pattern_cont_freq_wc, pattern_freq_burst_wc1, pattern_freq_burst_wc2, pattern_dibit_wc, pattern_checker, pattern_alt_checker, pattern_all_a, pattern_all_five, pattern_three_c, pattern_c_three, pattern_scan

Pattern

/* random bytes */

/* 0xFF */

/* 00 */

/* 0x3333 */

/* 2667 3333 */

/* 6667 3326 */

/* 71C7 C71C 1C71 */

/* 0xAA55 */

/* 0x55AA */

/* 0xAA */

/* 0x55 */

/* 0x33CC */

/* 0xCC33 */

/* 0x39C3 */

Data Patterns for Tape Exerciser Tests

.

Number Name

0 pattern_cycle_all

1

2

3

4 pattern_random pattern_all ones pattern_all_zeros pattern_alt_one_zero

Pattern

Cycle through all the following patterns in sequence (default)

Random data

All ones pattern: FFFF

All zeros pattern: 0000

Alternating bytes of all zeros and all ones: FF00

Qualification Verifier Exerciser Tool (Q-VET) F–5

Data Patterns

5

6

7 pattern_two_one_zero pattern_four_one_zero pattern_three_one_zero

Alternating two bytes of ones and two bytes of zeros:

FFFF0000

Alternating four bytes of ones and four bytes of zeros:

FFFFFFFF00000000

Alternating three bytes of ones and one byte of zeros:

FFFFFF00

6 Qualification Verifier Exerciser Tool (Q-VET)

Glossary

Automated Mode

The mode that permits Q-VET to run under the control of a higher-level automated environment, such as an automated testing system used in the manufacturing process.

Disabled by default.

Basic-level error report

A short statement identifying the kind of error being reported, such as a write-check error for a disk. Every error report contains a basic error message that it displays if an error is encountered.

Command file

See Script file.

Configuration database

Q-VET’s database of testable devices.

Device

For testing purposes, any subset of the system under test. It can be a particular device unit, a controller, an adapter, or a processor. It can also be a software-defined system subset, such as the "file system."

Device fatal errors

Errors that are so serious that it is impossible to continue testing. After the Q-VET program reports a device fatal error, it stops testing.

Glossary-1

Glossary

Device hard errors

Errors from which it is impossible for a Q-VET program to recover, such as a disk-seek error. Generally, repeated attempts to complete an operation that continually generates a soft error ends in the Q-VET program reporting a hard error.

Device setup errors

Occur before a test runs if the Q-VET program finds that the hardware is improperly set up, for example, when a device is off line or a loopback connector has not been attached.

Device soft errors

Occur when the Q-VET program encounters device errors from which it can recover.

Device under test

The portion of the system that is the target of the tests being run. The device under test need not be local to the system running Q-VET nor a piece of hardware.

Error reporting

Three levels of detail are reported:

Basic (see Basic-level error report)

Full (see Full-level error report)

Extended (see Extended-level error report)

Error types

Six types of errors are reported:

Device fatal errors (see Device fatal errors)

Device hard errors (see Device hard errors)

Device setup errors (see Device setup errors)

Device soft errors (see Device soft errors)

Software fatal errors (see Software fatal errors)

User errors (see User errors)

Execution state

The state in which the Q-VET operates; one of the following:

Active state

Setup state

Glossary-2

Glossary

Suspend state

Exerciser

A Q-VET program that is designed to generate large amounts of activity in a piece of system hardware or on the operating system.

Extended-level error report

Displays data when large amounts are available, such as the contents of a large data buffer.

An error report need not contain this level of detail.

Full-level error report

Contains more information about an error than a basic-level message, such as the contents of all relevant device registers. An error report need not contain this level of detail.

Group

See Test group.

Interactive mode

The mode that tells Q-VET that a user is monitoring the Q-VET run and is available to respond to prompting messages. Enabled by default.

Loop

The repeated execution of a single subtest. If you enable "looping-on-error" and an error occurs, Q-VET repeatedly executes the subtest that has reported the error, but only up to the point at which the error is reported.

Modes

One of a number of possible states of operation. See Run-time modes.

Organization of tests

See Test organization.

Pass

The execution of all selected tests on a particular device one time.

Process

The basic entity scheduled by the system software. Q-VET executes each test group selected for a device as a separate process.

Glossary-3

Glossary

Process definition

A description of a process that Q-VET will create during a Verification Software run. The process definition contains all process-specific run-time parameters that the process uses when it executes.

Process number

Number assigned to a process. Process numbers are used as arguments to some commands.

Q-VET process numbers are not the same as system process numbers, which identify processes existing outside of Q-VET.

Program database

Q-VET’s database of test programs. Contains information about each test program known to Q-VET including:

File name

Supported devices

List of options

List of groups

List of tests for each group

Quick mode

A mode that shortens the time it takes a test group to complete a pass. Not all test groups provide quick mode. Disabled by default.

Run

The execution of all selected test groups in all processes for the selected number of times.

A Q-VET run may consist of several passes.

Run-time modes

One of five modes:

Automated (see Automated mode)

Interactive (see Interactive mode)

Quick (see Quick mode)

Truncate (see Truncate mode)

Verify (see Verify mode)

Glossary-4

Glossary

Script file

A file containing commands that Q-VET can execute. Each line of the script is either a

Q-VET command or the response to a user prompting message. The execute command starts the execution of a script file.

Sizing process

The process that finds the devices that are connected to a system and obtains device information needed by the Q-VET programs. By default, the Q-VET runs the sizing process to size the local system when you initiate a Q-VET session.

Software fatal errors

Catastrophic errors that occur during a Q-VET program. These errors are unrelated to device testing but make further testing impossible.

Subtest

A set of one or more procedures that test a device. Subtests are written to be members of a test and are not necessarily independent of each other. There is no limit to the number of subtests in each test. Subtests are numbered sequentially from one.

Subtests are the parts of a test on which Q-VET can loop when it encounters an error.

Test

A set of one or more device testing procedures or subtests that have have been grouped together. Each test in a test group is independent of the others. Its execution never depends on the previous execution of another test.

Test group

A set of one or more tests that form a complete testing function; the primary Q-VET testing entity. One test group is always the default group for the device.

Test organization

Organized into the following groups:

Test groups (see Test group)

Tests (see Test)

Subtests (see Subtest)

Truncate mode

The mode in which, after Q-VET reports a device error, passes of that process are executed only up to the subtest before the failed one.

Glossary-5

Glossary

User errors

Errors resulting from users' entering invalid values for process options.

Verify mode

The mode in which the commands contained in a script file are displayed as Q-VET reads them from the file. Disabled by default.

Verification Software run

See Run.

Glossary-6

6

64k Block Quadword Marker Test data format, F–2

A

Accept Command, 4–33

Acceptance Procedure new devices and systems, 4–33

Active State, 4–26

Add Command, 4–36

Adding Processes command interface, 4–11

DIGITAL UNIX systems, 2–10

OpenVMS systems, 2–10

Windows NT systems, 3–8

Arguments, frequently used, 4–22 device-list, 4–23 device-name, 4–23 group-list, 4–24 group-name, 4–24 node-list, 4–22 node-name, 4–22 path, 4–23 path-list, 4–23 process-list, 4–25 process-number, 4–25 subtest-number, 4–24 test-list, 4–24 test-number, 4–24

Index

time, 4–25

Automated Run-Time mode, 4–31

B

Boot loop exerciser generic, 1–5

C

Certify Command, 4–38

Choosing Nodes or Devices

DIGITAL UNIX systems, 2–7

OpenVMS systems, 2–7

Windows NT systems, 3–6

Command wait, 4–22

Command Descriptions, 4–32

Command Equivalents file menu, C–1 maintenance menu, C–7 options menu, C–6 run menu, C–4 scripts menu, C–5 setup menu, C–2 windows menu, C–3

Command Interface, 4–2 adding processes, 4–11 continuing individual processes, 4–9 cpu affinity, setting, 4–8 deselecting processes, 4–6

DIGITAL UNIX systems, 4–2

Index–1

Index dropping processes, 4–11 duplicating a process, 4–9 editing script files, 4–14 error threshold, setting, 4–8 executing script files, 4–14 frequently used arguments, 4–22 modifying other options, 4–11 modifying process parameters, 4–12

OpenVMS systems, 4–2 pass count, setting, 4–7 process definitions, viewing, 4–4 run summary, viewing, 4–6 run time, setting, 4–7 selecting devices, 4–6 starting a Q-VET session, 4–2 starting a run, 4–6 starting individual processes, 4–9 stopping individual processes, 4–9 suspending individual processes, 4–9 terminating individual processes, 4–9 viewing process definitions, 4–4

Windows NT systems, 4–2

Command line, getting starte, 4–16

Command Scripts, 4–20

Commands, 4–32 accept, 4–33 add, 4–36 certify, 4–38 comment-line character, 4–39 connect, 4–40 continuation character, 4–42 continue, 4–43 control-c, 4–45 control-z, 4–47 corresponding execution states, 4–27 deselect, 4–48 disable, 4–50 disconnect, 4–54 display errorlog, 4–56 drop, 4–57 duplicate process, 4–59 edit, 4–61 enable, 4–62 entering, 4–20 equivalent menu entries, 4–16 execute, 4–67

Index–2

exit, 4–68 foreign, 4–69 help, 4–70 install, 4–72 load, 4–74 quit, 4–77 remove, 4–78 save, 4–80 select, 4–82 set, 4–87 show, 4–93 start, 4–102 stop, 4–103 system, 4–105 terminate, 4–106 vet, 4–108 wait, 4–111 write errorlog, 4–113

Comment-line characte, 4–39

Comment-Line Character Command, 4–39

Configuration database, 4–40 adding devices to, 4–41

Connect Command, 4–40

Continuation characte, 4–42

Continuation Character Command, 4–42

Continue Command, 4–43

Continuing Individual Processes command interface, 4–9

Windows NT systems, 3–27

Control-C Command, 4–45

Control-Z Command, 4–47

CPU Affinity setting

Windows NT, 3–17

CPU Affinity, Setting command interface, 4–8

DIGITAL UNIX systems, 2–17

OpenVMS systems, 2–17

Windows NT systems, 3–17

CPU Exerciser, B–1 error check levels, B–2 options, B–2

CPU exerciser message, A–8

CPU Exerciser Messages, A–8

CPU exerciser, generic, 1–4

Crash test exerciser

generic, 1–5

Creating scripts, 4–21

Creating Permanent Script Files

DIGITAL UNIX systems, 2–34

OpenVMS systems, 2–34

Windows NT systems, 3–35

D

Data Patterns disk tests, F–3

Disk Tests 1 and 2, F–1 file test, F–5 memory test 1, F–3 network test, F–4 tape exerciser tests, F–5

DECwindows Motif interface

DIGITAL UNIX systems, 2–3

Default Group, selecting, 4–84

Deselect comman, 4–49

Deselect Command, 4–48

Deselecting Processes command interface, 4–6

DIGITAL UNIX systems, 2–9

OpenVMS systems, 2–9

Windows NT systems, 3–7

Device Tests operating system-specific, D–1

Device Work Area, Main Window

DIGITAL UNIX systems, 2–5

OpenVMS systems, 2–5

Windows NT systems, 3–4

Device-List Argument, 4–23

Device-Name Argument, 4–23

Devices acceptance procedure, 4–33 adding, 4–36 adding to configuration database, 4–41 deselecting, 4–48 displaying information about, 4–94 displaying information about selected, 4–97 dropping, 4–57 removing from configuration database, 4–54 removing from run, 4–48 resuming execution of suspended processes,

4–43

Index selecting for testing, 4–82 stopping execution of associated processes,

4–103 terminating associated suspended processes,

4–106

DIGITAL UNIX Device Tests, D–1

DIGITAL UNIX Systems adding processes, 2–10 choosing nodes or devices, 2–7 command interface, 4–2 cpu affinity, setting, 2–17 creating permanent script files, 2–34

DECwindows Motif interface, 2–3 deselecting processes, 2–9 dropping processes, 2–10 duplicating a process, 2–11 editing permanent script files, 2–34 editing script files, 2–31 errror threshold, setting, 2–17 executing permanent script files, 2–35 executing script files, 2–31 main window, 2–4 modifying other options, 2–18 modifying process parameters, 2–12 pass count, setting, 2–15 predefined scripts, 2–7 qual tests, 2–36 restoring setup, 2–29 run summary, viewing, 2–22 run time, setting, 2–14 running Q-VET qual tests, 2–36 saving setup, 2–29 selecting devices, 2–7 setup, restoring, 2–29 setup, saving, 2–29 starting a Q-VET session, 2–3 starting a run, 2–20 suspending individual processes, 2–26 system error log, viewing, 2–24 terminating a Q-VET session, 2–37 test results, viewing, 2–22 timeout, setting, 2–16

DIGITAL UNIX Systems Interface, 2–3

Disable Command, 4–50

Disable Mode, 4–32

Disconnect Command, 4–54

Index–3

Index

Disk Exerciser, B–5 error check levels, B–8 options, B–5 summary display, B–8 test patterns, B–7

Disk exerciser message, A–9

Disk Exerciser Messages, A–8

Disk exerciser, generic, 1–4

Disk Tests data patterns, F–3

Disk Tests 1 and 2 data patterns, F–1

Display Errorlog Command, 4–56

Display types, 4–62

Error Logging, 4–56

Displaying Information, 4–93

Do_it exerciser generic, 1–5

Drop Command, 4–57

Dropping Processes command interface, 4–11

DIGITAL UNIX systems, 2–10

OpenVMS systems, 2–10

Windows NT systems, 3–8

Duplicate Process Command, 4–59

Duplicating a Process command interface, 4–9

DIGITAL UNIX systems, 2–11

OpenVMS systems, 2–11

Windows NT systems, 3–10

Duplicating processes

Windows NT, 3–11

E

Edit Command, 4–61

Editing Permanent Script Files

DIGITAL UNIX systems, 2–34

OpenVMS systems, 2–34

Windows NT systems, 3–36

Editing Script Files command interface, 4–14

DIGITAL UNIX systems, 2–31

OpenVMS systems, 2–31

Windows NT systems, 3–33

Enable Command, 4–62

Enable Mode, 4–32

Index–4

Ending a Q-VET Session command interface, 4–16

DIGITAL UNIX systems, 2–37

OpenVMS systems, 2–37

Windows NT systems, 3–38

Ending a Session quit command, 4–77

Entering Commands, 4–20

Error controlling level of reporting, 4–62 finding information about current display, 4–

94 manager messages, A–2 message format, A–6 messages disable reporting, 4–50 display types, 4–50 operating system log, 4–113

Error Log, System

DIGITAL UNIX systems, 2–24

OpenVMS systems, 2–24

Windows NT systems, 3–23

Error Message preceded by a question mark, A–2

Error Message Format, A–6

Error Messages cpu exerciser, A–8 disk exerciser, A–8 file exerciser, A–9 listing and explanations, A–1 memory exerciser, A–8 network exerciser, A–11 printer exerciser, A–12 tape exerciser, A–9 terminal exerciser, A–12 video exerciser, A–13

Error Threshold setting

Windows NT, 3–18

Error Threshold, Setting command interface, 4–8

DIGITAL UNIX systems, 2–17

OpenVMS systems, 2–17

Windows NT systems, 3–17

Errors internal messages, A–5

Event Log, System

Windows NT systems, 3–23

Execute Command, 4–67

Executing Permanent Script Files

DIGITAL UNIX systems, 2–35

OpenVMS systems, 2–35

Windows NT systems, 3–37

Executing Script Files commmand interface, 4–14

DIGITAL UNIX systems, 2–31

OpenVMS systems, 2–31

Windows NT systems, 3–33

Execution modes, 4–88 types, displaying information about, 4–94

Execution States, 4–26 active state, 4–26 commands, 4–27 setup state, 4–26 suspend state, 4–27

Exerciser cpu, B–1 disk, B–5 file, B–8 memory, B–2 network, B–14 printer, B–17 tape, B–12 terminal, B–18 video, B–19

Exerciser General Information, B–1

Exerciser Messages cpu, A–8 disk, A–8 file, A–9 memory, A–8 network, A–11 printer, A–12 tape, A–9 terminal, A–12 video, A–13

Exercisers general information, B–1 generic, 1–4

Exercisers, generic boot loop, 1–5

Index

CPU, 1–4 crash test, 1–5 disk, 1–4 do_it, 1–5 file, 1–4 jacketed device, 1–5 memory, 1–4 network, 1–4 printer, 1–4 tape, 1–4 terminal, 1–4 video, 1–4

X11exer, 1–5

Exercisers, standard networ, B–16 printe, B–18 termina, B–19

Exit Command, 4–68

External (Non-Q-VET) Tests, E–1 running, E–2

F

File Exerciser, B–8 options, B–8 summary display, B–12 test patterns, B–11

File exerciser message, A–9

File Exerciser Messages, A–9

File exerciser, generic, 1–4

File Menu command equivalents, C–1

File Test data patterns, F–5

File, selecting foreign for execution, 4–69

Foreign Command, 4–69

Formatting Directives, A–2

Functions

Q-VET, 1–3

G

Generic Exercisers, 1–4

Group-List Argument, 4–24

Group-Name Argument, 4–24

Groups, 4–30 deselecting, 4–48

Index–5

Index displaying information about selected, 4–97 removing from run, 4–48 selecting for testing, 4–82

H

Help Command, 4–70

Help, Online command interface, 4–1

DIGITAL UNIX systems, 2–1

OpenVMS systems, 2–1

Windows NT systems, 3–1

I

Information displaying, 4–93

Information Display Bar, Main Window

Windows NT systems, 3–5

Install Command, 4–72

Installation Types, 4–72

Interactive Run-Time mode, 4–31

Interface

Command, 4–2

DIGITALL UNIX systems, 2–3

OpenVMS systems, 2–3

Windows NT systems, 3–2

Interface, Command starting a Q-VET session, 4–2

J

Jacketed Test Device, E–1 running, E–2 tips for running, E–3

Jacketed test exerciser generic, 1–5

Jacketed Tests, E–1

L

Load command

Windows NT, 3–14 creating optimum

Windows NT, 3–14

Load Command, 4–74

Log default file, 4–62

Index–6

specifying name and location, 4–88

Logging disabling, 4–50 displaying information about status, 4–95 enabling, 4–62

Looping, 4–31 controlling, 4–63 disabling, 4–51 displaying information about current options,

4–95 types of loop, 4–63

M

Main Window

DIGITAL UNIX systems, 2–4 menu bar, DIGITAL UNIX systems, 2–5 menu bar, OpenVMS systems, 2–5

OpenVMS systems, 2–4

Windows NT systems, 3–3

Maintenance Menu command equivalents, C–7

Manager Message Format, A–1

Memory Exerciser, B–2 error check levels, B–4 options, B–2 summary display, B–5 test patterns, B–4

Memory exerciser message, A–8

Memory Exerciser Messages, A–8

Memory exerciser, generic, 1–4

Memory Test 1 data patterns, F–3

Menu Bar, Main Window

DIGITAL UNIX systems, 2–5

OpenVMS systems, 2–5

Windows NT systems, 3–4

Menu Entries equivalent commands, 4–16

Menu, File command equivalents, C–1

Menu, Maintenance command equivalents, C–7

Menu, Optios command equivalents, C–6

Menu, Run command equivalents, C–4

Menu, Scripts command equivalents, C–5

Menu, Setup command equivalents, C–2

Menu, Windows command equivalents, C–3

Message manager format, A–1

Messages

CPU exercise, A–8 cpu exerciser, A–8 disabling trace, 4–52 disk exercise, A–9 disk exerciser, A–8 file exercise, A–9 file exerciser, A–9 internal errors, A–5 manager errors, A–2 memory exercise, A–8 memory exerciser, A–8 network exercise, A–12 network exerciser, A–11 printer exercise, A–12 printer exerciser, A–12 tape exercise, A–11 tape exerciser, A–9 terminal exercise, A–13 terminal exerciser, A–12 video exercise, A–13 video exerciser, A–13

Modes, 4–63 run-time, 4–31 selecting run-time, 4–63

Modes, Run-Time automated, 4–31 interactive, 4–31 quick, 4–31 truncate, 4–32 verify, 4–32

Mode-Type, 4–63

Modifying Other Options command interface, 4–11

DIGITAL UNIX systems, 2–18

OpenVMS systems, 2–18

Windows NT systems, 3–18

Modifying Process Parameters

Index command interface, 4–12

DIGITAL UNIX systems, 2–12

OpenVMS systems, 2–12

Windows NT systems, 3–11

N

Network exerciser, B–14 error check levels, B–16 generic, 1–4 options, B–14 standard, B–16 summary display, B–16 test patterns, B–15

Network exerciser message, A–12

Network Exerciser Messages, A–11

Network Test data patterns, F–4

Node-List Argument, 4–22

Node-Name Argument, 4–22

Nodes adding to configuration database, 4–40 removing from configuration database, 4–54

O

Open Systems qual tests, 2–36 running Q-VET qual tests, 2–36

Open VMS Systems selecting devices, 2–7

OpenVMS Device Tests, D–1

OpenVMS Systems adding processes, 2–10 choosing nodes or devices, 2–7 command interface, 4–2 cpu affinity, setting, 2–17 creating permanent script files, 2–34 deselecting processes, 2–9 dropping processes, 2–10 duplicating a process, 2–11 editing permanent script files, 2–34 editing script files, 2–31 errror threshold, setting, 2–17 executing permanent script files, 2–35 executing script files, 2–31 main window, 2–4

Index–7

Index modifying other options, 2–18 modifying process parameters, 2–12 pass count, setting, 2–15 predefined scripts, 2–7 restoring setup, 2–29 run summary, viewing, 2–22 run time, setting, 2–14 saving setup, 2–29 setup, saving, 2–29 setup,restoring, 2–29 starting a Q-VET session, 2–3 starting a run, 2–20 stopping a run, 2–25 stopping individual processes, 2–26 system error log, viewing, 2–24 terminating a Q-VET session, 2–37 test results, viewing, 2–22 timeout, setting, 2–16

OpenVMS Systems Interface, 2–3

Operating System-Specific Tests, D–1

Options modifying for run, 4–84 run-time, selecting, 4–82 standard network exercise, B–16 printer exercise, B–18 terminal exercise, B–19

Options Menu command equivalents, C–6

Overview

Q-VET, 1–1, 1–2

P

Parallel Execution Mode, 4–88

Pass Count displaying information about, 4–96

Pass Count, Setting command interface, 4–7

DIGITAL UNIX systems, 2–15

OpenVMS systems, 2–15

Windows NT systems, 3–15

Passcount establishing, 4–88, 4–89

Path displaying current directory path, 4–96 name, establishing, 4–90

Index–8

Path Argument, 4–23

Path-Name Argument, 4–23

Permanent Installation Type, 4–72

Permanent Script Files, Creating

DIGITAL UNIX systems, 2–34

OpenVMS systems, 2–34

Windows NT systems, 3–35

Permanent Script Files, Editing

DIGITAL UNIX systems, 2–34

OpenVMS systems, 2–34

Windows NT systems, 3–36

Permanent Script Files, executing

DIGITAL UNIX systems, 2–35

OpenVMS systems, 2–35

Windows NT systems, 3–37

Predefined Scripts

DIGITAL UNIX systems, 2–7

OpenVMS systems, 2–7

Windows NT systems, 3–5

Printer exerciser, B–17 generic, 1–4 options, B–17 standard, B–18 summary display, B–17

Printer exerciser message, A–12

Printer Exerciser Messages, A–12

Process adding to test run, 4–36 continuing suspended, 4–43 deselecting, 4–49 displaying information about definition, 4–97 dropping from run, 4–57 duplicating, 4–59

Windows NT, 3–11 removing from run, 4–49 stopping execution, 4–103 terminating suspended, 4–106

Process Definitions, Viewing command interface, 4–4

Process Work Area, Main Window

DIGITAL UNIX systems, 2–6

OpenVMS systems, 2–6

Windows NT systems, 3–5

Process-List Argument, 4–25

Process-Number Argument, 4–25

Program database, 4–72

Programs, displaying information about, 4–95

Q

Qual Tests

DIGITAL UNIX systems, 2–36

Open systems, 2–36

Windows NT systems, 3–37

Quality assurance of Q-VET programs, 4–38

Question Mark preceding a message, A–2

Quick Run-Time Mode, 4–31

Quit Command, 4–77

Q-VET basic options, 1–3 functions, 1–3 overview, 1–1, 1–2

Q-VET Programs quality assurance, 4–38

R

Remove Command, 4–78

Removing Program From Database, 4–78

Restoring Setup

DIGITAL UNIX systems, 2–29

OpenVMS systems, 2–29

Windows NT systems, 3–32

Run displaying summary, from command line, 4–

98

Run Menu command equivalents, C–4

Run Summary, Viewing command interface, 4–6

DIGITAL UNIX systems, 2–22

OpenVMS systems, 2–22

Windows NT systems, 3–22

Run Time establishing, 4–90

Run Time, Setting command interface, 4–7

DIGITAL UNIX systems, 2–14

OpenVMS systems, 2–14

Windows NT systems, 3–14

Running Q-VET Qual Tests

DIGITAL UNIX systems, 2–36

Index

Open systems, 2–36

Windows NT systems, 3–37

Runtime displaying information about current, 4–97 establishing, 4–90 infinite, 4–90 of zero, 4–90

Run-time characteristics controlling, 4–62 characteristics, establishing, 4–87 modes, 4–31 deselecting, 4–51 displaying current, 4–95 selecting, 4–63 modes, establishing, 4–88 options, selecting, 4–82

S

Save Command, 4–80

Saving Setup

DIGITAL UNIX systems, 2–29

OpenVMS systems, 2–29

Windows NT systems, 3–31

Screen Size displaying information about current, 4–97 setting, 4–91

Script buffer executing commands within, 4–67 files postponing execution of commands i, 4–

111

Script Buffer saving contents after editing session, 4–80

Script Files, 4–20 postponing execution of commands, 4–111 running, 4–67

Script Files, Editing command interface, 4–14

DIGITAL UNIX systems, 2–31

OpenVMS systems, 2–31

Windows NT systems, 3–33

Script Files, Executing command interface, 4–14

DIGITAL UNIX systems, 2–31

Index–9

Index

OpenVMS systems, 2–31

Windows NT systems, 3–33

Scripts, 4–20 creating, 4–21 specifying user responses, 4–21

Scripts Menu command equivalents, C–5

Scrolling disabling, 4–51 displaying information about current, 4–97 enabling, 4–64

Select Command, 4–82

Selecting Devices command interface, 4–6

DIGITAL UNIX systems, 2–7

OpenVMS systems, 2–7

Windows NT systems, 3–5

Serial Execution Mode, 4–88

Set affinity, 4–87 error_threshold, 4–87, 4–94

Set Command, 4–87

Setup Menu command equivalents, C–2

Setup State, 4–26

Setup, restoring

DIGITAL UNIX systems, 2–29

OpenVMS systems, 2–29

Windows NT systems, 3–32

Setup, saving

DIGITAL UNIX systems, 2–29

OpenVMS systems, 2–29

Windows NT systems, 3–31

Show affinity, 4–94

Show Command, 4–93

Start Command, 4–102

Starting a Q-VET Session command interface, 4–2

DIGITAL UNIX systems, 2–3

OpenVMS systems, 2–3

Windows NT systems, 3–3

Starting a Run command interface, 4–6

DIGITAL UNIX systems, 2–20

OpenVMS systems, 2–20

Index–10

Windows NT systems, 3–19

Starting a Session vet command, 4–108

Starting Individual Processes command interface, 4–9

Stop Command, 4–103

Stop types, 4–64

Stop-on-error controlling, 4–64 disabling, 4–51 displaying information about current options,

4–97

Stopping a Q-VET Session

DIGITAL UNIX systems, 2–37

OpenVMS systems, 2–37

Windows NT systems, 3–38

Stopping a run

OpenVMS systems, 2–25

Windows NT systems, 3–24

Stopping Individual Processes command interface, 4–9

OpenVMS systems, 2–26

Windows NT systems, 3–27

Subests, 4–31

Subtest-Number Argument, 4–24

Summary viewing run from command line, 4–98

Suspend State, 4–27

Suspending a run

Windows NT systems, 3–24

Suspending Individual Processes command interface, 4–9

DIGITAL UNIX systems, 2–26

Windows NT systems, 3–27

System command, 4–105 and foreign command, difference, 4–105

System Error Log, Viewing

DIGITAL UNIX systems, 2–24

OpenVMS systems, 2–24

System Event Log, Viewing

Windows NT systems, 3–23

T

Table execution states and commands, 4–27

Tape Exerciser, B–12

options, B–13 summary display, B–14 test patterns, B–13

Tape exerciser message, A–11

Tape Exerciser Messages, A–9

Tape Exerciser Tests data patterns, F–5

Tape exerciser, generic, 1–4

Temporary Installation Type, 4–72

Terminal exerciser, B–18 generic, 1–4 options, B–18 standard, B–19 summary display, B–18

Terminal exerciser message, A–13

Terminal Exerciser Messages, A–12

Terminate command, 4–106

Terminating a Q-VET Session command interface, 4–16

DIGITAL UNIX systems, 2–37

OpenVMS systems, 2–37

Windows NT systems, 3–38

Terminating Individual Processes command interface, 4–9

Windows NT systems, 3–27

Terminating Session exit command, 4–68 quit command, 4–77

Test Categories, 4–30 subtests, 4–31 test groups, 4–30 tests, 4–30

Test Groups, 4–30

Test Patterns disk exerciser, B–7 file exerciser, B–11 memory exerciser, B–4

Network Exerciser, B–15 tape exerciser, B–13

Test Results, Viewing

DIGITAL UNIX systems, 2–22

OpenVMS systems, 2–22

Windows NT systems, 3–21

Test-List Argument, 4–24

Test-Number Argument, 4–24

Tests, 4–30

Index deselecting, 4–48 displaying name and number, 4–95 removing from run, 4–48 selecting for run, 4–83

Tests, Device operating system-specific, D–1

Time Argument, 4–25

Timeout disabling, 4–52 enabling, 4–64 setting

DECwindows Moti, 2–17

Windows NT, 3–16

Timeout, Setting

DIGITAL UNIX systems, 2–16

OpenVMS systems, 2–16

Windows NT systems, 3–16

Title Bar, Main Window

DIGITAL UNIX systems, 2–4

OpenVMS systems, 2–4

Trace

Windows NT systems, 3–4 controlling run-time display, 4–65 disabling messages, 4–52 types, 4–52

Truncate Run-Time Mode, 4–32

U

User Responses specifying in scripts, 4–21

V

Verification Software function, 1–3 interfacing wit, 1–3

Verify Run-Time Mode, 4–32

Vet Command, 4–108

Video exerciser, B–19 generic, 1–4 options, B–19 summary display, B–20

Video exerciser message, A–13

Video Exerciser Messages, A–13

Viewing Process Definitions command interface, 4–4

Index–11

Index

W

Wait Command, 4–22, 4–111

Windows Menu command equivalents, C–3

Windows NT Device Tests, D–1

Windows NT Interface, 3–2

Windows NT Systems adding processes, 3–8 choosing nodes or devices, 3–6 command interface, 4–2 continuing individual processes, 3–27 cpu affinity, setting, 3–17 creating permanent script files, 3–35 deselecting processes, 3–7 dropping processes, 3–8 duplicating a process, 3–10 editing permanent script files, 3–36 editing script files, 3–33 errror threshold, setting, 3–17 executing permanent script files, 3–37 executing script files, 3–33 interface, 3–2 main window, 3–3 modifying other options, 3–18 modifying process parameters, 3–11 pass count, setting, 3–15 predefined scripts, 3–5 qual tests, 3–37 restoring setup, 3–32 run summary, viewing, 3–22 run time, setting, 3–14 running Q-VET qual tests, 3–37 saving setup, 3–31 selecting devices, 3–5 setup, saving, 3–31 setup,restoring, 3–32 starting a Q-VET session, 3–3 starting a run, 3–19 stopping a run, 3–24 stopping individual processes, 3–27 suspending a run, 3–24 suspending individual processes, 3–27 system event log, viewing, 3–23 terminating a Q-VET session, 3–38 terminating individual processes, 3–27 test results, viewing, 3–21 timeout, setting, 3–16

Write errorlog Command, 4–113

X

X11exer exerciser generic, 1–5

Index–12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
