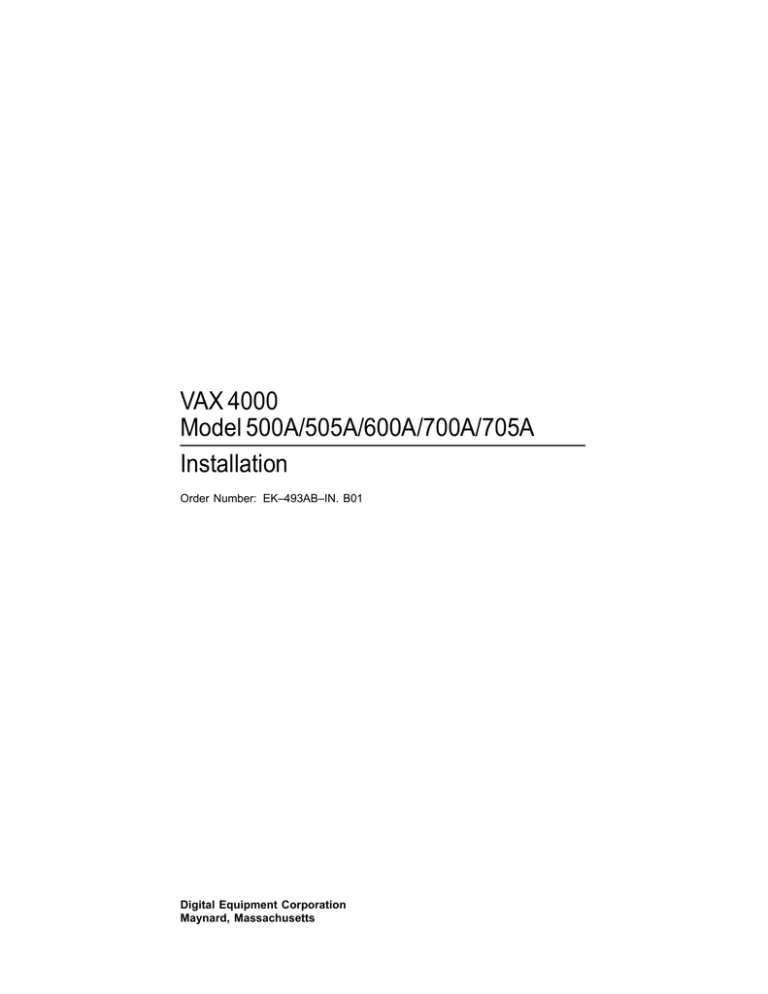

VAX 4000

Model 500A/505A/600A/700A/705A

Installation

Order Number: EK–493AB–IN. B01

Digital Equipment Corporation

Maynard, Massachusetts

First Edition, March 1990

Seventh Edition, July 1994

The information in this document is subject to change without notice and should not be construed as a commitment by Digital Equipment Corporation.

Digital Equipment Corporation assumes no responsibility for any errors that may appear in this document.

The software, if any, described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license. No responsibility is assumed for the use or reliability of software or equipment that is not supplied by Digital Equipment Corporation or its affiliated companies.

Restricted Rights: Use, duplication or disclosure by the U.S. Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227–7013.

Copyright © Digital Equipment Corporation 1990, 1994. All Rights Reserved.

The Reader’s Comments form at the end of this document requests your critical evaluation to assist in preparing future documentation.

The following are trademarks of Digital Equipment Corporation: CompacTape, CX, DDCMP, DEC,

DECconnect, DECdirect, DECnet, DECscan, DECserver, DECUS, DECwindows, DELNI, DEMPR,

DESQA, DESTA, DSRVB, DSSI, IVAX, KDA, KLESI, KRQ50, MicroVAX, MSCP, Q–bus, Q22–bus,

RA, RQDX, RV20, SA, SDI, ThinWire, TK, TMSCP, TQK, TS05, TU, VAX, VAX 4000, VAXcluster,

VAX DOCUMENT, VAXELN, VAXlab, VAXserver, VMS, VT, and the DIGITAL logo.

All other trademarks and registered trademarks are the property of their respective holders.

FCC NOTICE: The equipment described in this manual generates, uses, and may emit radio frequency. The equipment has been type tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such radio frequency interference.

Operation of the equipment in a residential area may cause interference, in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

Warning: The VAX 4000 Model 705A is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Achtung! Der VAX 4000 Modell 705A ist ein Gerät der Funkstörgrenzwertklasse A. In

Wohnbereichen können bei Betrieb dieses Geräts Rundfunkstörngen auftreten, in welchen Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.

Attention! Le VAX 4000 modèle 705A est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l’utilisateur de prendre les mesures spécifiques appropriées.

S2578

This document was prepared using VAX DOCUMENT Version 2.1.

Contents

3

4

1

2

5

6

7

7.1

7.2

7.3

7.4

7.5

7.5.1

7.5.2

7.6

8.5

9

10

11

12

7.6.1

7.6.2

8

8.1

8.2

8.3

8.4

Verify Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . .

Check the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Position the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Open the System Doors . . . . . . . . . . . . . . . . . . . . . . . . . . .

Install the Console Terminal . . . . . . . . . . . . . . . . . . . . . . .

Set the System Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect Additional Devices to the System . . . . . . . . . . . . .

Connecting Terminals and Serial Printers . . . . . . . . . .

Connecting Parallel Printers . . . . . . . . . . . . . . . . . . . .

Connecting Synchronous Modems . . . . . . . . . . . . . . . .

Connecting Asynchronous Modems . . . . . . . . . . . . . . .

Connecting to an Ethernet Network at the H3604

Console Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Making a ThinWire Network Connection . . . . . . . .

Making a Standard Network Connection . . . . . . . .

Connecting to an Ethernet Network at the DESQA

Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Making a ThinWire Network Connection . . . . . . . .

Making a Standard Network Connection . . . . . . . .

Connect an Expander . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connecting the Q–Bus Cables . . . . . . . . . . . . . . . . . . .

Connecting the DSSI Cable . . . . . . . . . . . . . . . . . . . . .

Connecting the KZQSA External Cable . . . . . . . . . . . .

Connecting the Power Control Bus Cable . . . . . . . . . .

Connecting the Ground Cable . . . . . . . . . . . . . . . . . . .

Connect the System Power Cable . . . . . . . . . . . . . . . . . . . .

Turn On the System and Select a Language . . . . . . . . . . .

Close the System Doors . . . . . . . . . . . . . . . . . . . . . . . . . . .

After Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

10

16

19

23

25

29

5

6

1

2

33

34

38

49

50

53

55

40

41

46

48

56

56

58

61

62 iii

Index

iv

1 Verify Site Preparation

Caution

Review your system warranty. It may require that a Digital service representative install your system to prevent damage to equipment or software.

If you are installing a DSSI VAXcluster configuration, and you are a licensed self-maintenance customer, you should be familiar with the contents of your DSSI

VAXcluster Installation and Troubleshooting manual.

Caution

If you are installing a DSSI configuration, to prevent system performance degradation or data corruption caused by excessive ground offset voltages, make sure your site power distribution system does not have any of the grounding faults listed in your Site Preparation manual.

The installation instructions that follow assume:

• Your site meets all the requirements listed in the system Site Preparation manual.

• All cables that you plan to connect to your system are in place and clearly labeled.

Terminal data cables?

Telephone cables?

Network cables?

• You have the following tools (not included in your shipment).

Scissors

Flat-blade screwdriver

Phillips (cross-point) screwdriver

Adjustable wrench

Voltmeter calibrated for millivolts

1

2 Check the Shipment

1.

Find the Product Delivery Document. It is inside or attached to one of the shipping cartons.

Digital Equipment Corporation

Product Delivery Document

Documentation Issue Date

Customer Order No.

Dec No.

Product Delivery No.

Shipped To Invoice To

MLO-007108

2

2.

Make sure your shipment is complete by checking that each item listed as shipped on the Product Delivery Document appears on a Content Listing or on a Barcode Label on the outside of one of the cartons in your shipment.

DEC NO.

Line

Item

Model No.

Shipped

Content Listing

Description

Date:

Serial No.

Rev Qty

681QJ-B9

A01 AY0121DS23

MLO-010176

A Content Listing may also be attached to a smaller container (bag or box) packed inside a shipping carton.

3

3.

Use the unpacking illustrations on the cartons as a guide to unpack your shipment.

Warning

The system weighs 68 kilograms (150 pounds) with all options installed.

To prevent personal injury, two or more people should move the system.

Customer

Hardware

Information Kit

Includes:

Installation Checklist

VMS FIS Guide

Anti Static Anti Static

Keys to Front Door

Power Cable

Console Terminal Cable

(17-01364-02)

Ground Wire Cable

(12-13756-A8)

DSSI Bus Node ID Plugs

(12-28766-19)

KZQSA

Bus Node ID Plugs

(12-28766-28)

Installation

Checklist

System

KZQSA

Internal Cable

(BC06P-2F)

Note:

Unpacking is illustrated on the exterior of the shipping carton.

MLO-007181

4.

Check the contents of each carton against the Content Listing to ensure you received all items.

4

5.

If any item is missing or damaged:

Contact your delivery agent.

Contact your Digital sales representative.

3 Position the System

Warning

To prevent personal injury, do not use the handholds to lift the system.

Hand Holds

Slides Front to Back

Rolls Left to Right

MLO-004012

For now, leave space behind the system for routing cables.

5

4 Open the System Doors

1.

Find a key (two are provided).

Anti Static

MLO-007110

2.

Insert that key in the rotary lock, and turn it to the bottom position.

Door Handle

Rotary Lock

MLO-007111

6

3.

Open the doors by pulling the handle on the upper door.

MLO-004013

4.

Review the meaning of the following warning symbols which appear on the power supply.

Indicates a risk of electric shock.

To reduce the risk of injury, do not remove modules, Integrated

Storage Elements (ISEs), the tape drive, or the power supply. No user-serviceable parts are inside. Refer servicing questions to your

Digital service representative or to your licensed self-maintenance personnel.

7

5 Install the Console Terminal

1.

Use the instructions in your terminal installation guide to connect the various parts of the terminal.

2.

Turn on the terminal.

3.

After the terminal passes its self-test, perform the setup operations.

Be sure to:

• Read all the applicable documentation provided with your terminal.

• Follow the setup instructions for your terminal.

Note

A Digital terminal is shipped with the baud rate set to 9600. If you want to use that rate, you can ignore the baud rate setup instructions.

4.

Turn off the terminal.

5.

Find the console terminal cable.

MLO-007112

8

6.

Connect the terminal cable to the modular jack on the rear of the terminal, as described in your terminal installation guide.

Note

Shading in this and subsequent illustrations indicates the general location of the connections you will make.

Terminal

Cable

Ground

Lead

MLO-007182

7.

Insert the terminal cable into the modular jack on the system console module, and connect the cable ground lead, as shown above.

9

6 Set the System Controls

1.

Check the setting of the Power switch on the power supply. It should be off

(set at 0).

I

O

MLO-007113

10

2.

Check the settings on each Integrated Storage Element (ISE):

• The Write-Protect button should be out (write-enabled position).

• The Run/Ready button should be in (ready position).

• Verify that uniquely numbered bus node ID plugs are inserted into the

ISEs.

Bus Node

ID Plug

OR

Write-Protect

Button

Run/Ready

Button

Bus Node

ID Plugs

MLO-007702

Note

If a bus node ID plug is missing from an ISE, refer to your system

Operation manual for corrective action.

11

3.

Check the setting of the Halt button on the system control panel. It should be out (run position).

Halt Button

MLO-007115

12

4.

Check the settings on the console module:

• The Power-Up Mode switch should be set to Language Inquiry (uppermost position, indicated by a human profile).

• The Baud Rate Select switch should be set to the same rate you used for your console terminal.

• The Break Enable/Disable switch should be set to break enabled (up, indicated by a | ).

Power-Up

Mode Switch

Baud Rate

Select Switch

Baud

300___________0

600___________1

1200__________2

2400__________3

4800__________4

9600__________5

19200_________6

38400_________7

Break Enable/

Disable Switch

5

MLO-007116

13

5.

Check the settings on the tape drive:

• If a TF-series tape drive is installed in your system:

Make sure the Cartridge Insert/Release handle is closed (pushed in).

Verify that a bus node ID plug is inserted into the drive.

Use Cleaning Handle

To Load

Light

Wait

Open this

Handle

Insert Tape

Close this

Handle

To Unload

Wait

Open this

Handle

Remove Tape

Cartridge Insert/

Release Handle

Bus Node

ID Plug

MLO-007171

14

• If a TK-series tape drive is installed in your system, make sure the

Cartridge Insert/Release handle is closed (pushed in).

Cartridge

Insert/Release

Handle

MLO-007180

15

7 Connect Additional Devices to the System

You can connect additional devices at this time, or you can complete the installation (go to Section 8) before connecting the devices.

• If you have devices that must be connected before you start up system software, connect them now.

CAUTION

To prevent damage to equipment or software, make sure the Power switch on the power supply panel is off (set at 0).

Make all connections directly to the appropriate system module cover.

16

1.

Begin with the module at the far right.

-SA

M3108

-PA

-SA

M3108

-PA

-SA

M3108

-PA

-SA

M3108

-PA

J1 J1

J2 J2

12 11 10 9 8 7 6 a.

12 11 10 9 8 7 6 b.

MLO-010175

2.

As you complete connections for each module, move left to the next module.

a.

If your system has two DSSI ports and looks like ‘‘a’’ in the above illustration, then slots 6 through 12 are available for Q–bus option modules.

b.

If your system has four DSSI ports and looks like ‘‘b’’ in the above illustration, then slots 6 through 10 are available for Q–bus option modules and slots 11 and 12 are DSSI bus bulkheads.

Refer to Section 8 to connect the expander.

17

Each module cover has an identifying label at the top, which shows the option number and module number.

XXXXX

-XX

MXXXX

-XX

Option Number

Module Number

MLO-007118

The following sections tell you how to connect devices to the modules described in this manual. Connections to other modules are described in the device installation guides.

Section 7.1 — terminals and serial printers (CXA16 or CXB16 module)

Section 7.2 — parallel printers (LPV11 module)

Section 7.3 — synchronous modems (DSV11 module)

Section 7.4 — asynchronous modems (CXY08 module)

Section 7.5 — Ethernet device (H3604 console module)

Section 7.6 — Ethernet device (DESQA module)

18

7.1 Connecting Terminals and Serial Printers

You can connect up to 16 terminals and/or serial printers for each CXA16 or

CXB16 module installed in your system.

1.

Find a cable concentrator and its cable.

H3104 Cable

Concentrator

BC16D Cable

2.

Find the CXA16 or CXB16 module.

MLO-007120

CXA16

-AA

M3118

-YA

OR

CXB16

-AA

M3118

-YB

MLO-007119

19

3.

Insert the cable into a connector on the module.

• If you are connecting two cables, connect the first to the connector labeled

8–15 on the module cover.

• If you are connecting one cable, connect it to the connector labeled 0–7.

CXA16

-AA

M3118

-YA

0-7

Bail

Latch

0-7

8-15

8-15

Feed Cable Under System and Up Through Opening.

MLO-007121

Secure the connection by pressing the bail latches until they snap into place.

20

4.

Insert the other end of the cable into the cable concentrator.

MLO-007122

Secure the connection by pressing the bail latches until they snap into place.

5.

Insert each printer and terminal cable into one of the modular jacks on the cable concentrator.

To Terminals and Printers

Modular

Jack

MLO-007123

6.

Make sure a terminal or printer is connected to the other end of each cable, as described in your terminal or printer documentation.

21

If the printer or terminal does not have a modular jack connection, use a passive adapter.

H8575-A

H8575-B

OR

......

... ...

.

MLO-007124

Follow the same procedure for connecting a second BC16D cable to the module, except insert the cable into the connector labeled 0–7.

You can mount the cable concentrator on a wall.

To Wall

MLO-000651

22

7.2 Connecting Parallel Printers

You can connect up to two parallel printers for each LPV11 module installed in your system.

1.

Find a BC27L–30 cable.

2.

Find the LPV11 module.

MLO-007126

LPV11

-SA

M8086

-YA

MLO-007125

23

3.

Insert one end of the cable into the lower connector labeled J2 on the module.

LPV11

J1

Bail

Latch

J2

Feed Cable Under System and Up Through Opening.

MLO-007127

Secure the connection by pressing the bail latches until they snap into place.

4.

Insert the other end of the cable into the printer, as described in your printer documentation.

Follow the same procedure for connecting a second printer to the LPV11 module, except insert the cable into the upper connector labeled J1 on the module cover.

24

7.3 Connecting Synchronous Modems

You can connect up to two synchronous modems for each DSV11 module installed in your system.

1.

Find the DSV11 module.

DSV11

-SA

M3108

-PA

MLO-007128

25

2.

Find one of the following adapter-extension cable pairs.

Adapter Cables

BC19E-02

Extension Cables

BC55D-25

BC19F-02

BC19B-02

BC19D-02

BC19L-25

BC55D-25

BC22F

MLO-007129

26

3.

Connect the socket end of the adapter cable to the module.

DSV11

-SA

M3108

-PA

0

1

MLO-007130

27

4.

Connect the extension cable to the other end of the adapter cable.

MLO-007132

If necessary, you can use 4–40 threaded standoffs and a screwdriver to secure the connection.

5.

Connect the other end of the extension cable to the modem, as described in your modem documentation.

28

7.4 Connecting Asynchronous Modems

You can connect up to eight asynchronous modems to the CXY08 module.

1.

Find a BC19N–12 cable.

2.

Find the CXY08 module.

CXY08

-AA

M3119

-YA

MLO-007133

MLO-007134

29

3.

Insert the single-connector end of the cable into a connector on the module.

• If you are connecting two cables, connect the first to the connector labeled

4–7 on the module cover.

• If you are connecting one cable, connect it to the connector labeled 0–3.

CXY08

-AA

M3119

-YA

0-3

Bail

Latch

0-3

4-7

4-7

Feed Cable Under System and Up Through Opening.

MLO-007135

Secure the connection by pressing the bail latches until they snap into place.

30

4.

Attach one to four modem cables to the four connectors on the opposite end of the BC19N–12 cable.

Passive Adapter

MLO-007136

If necessary, you can use 4–40 threaded standoffs and a screwdriver to secure the adapter to the BC19N–12 cable.

31

If you want to place the modem farther away from the system, attach a

BC22F extension cable between the BC19N–12 cable connector and the modem.

Extension Cable

MLO-007189

If necessary, you can use 4–40 threaded standoffs and a screwdriver to secure the BC19N–12 to BC22F connection and the BC22F to adapter connection.

5.

Refer to your modem documentation for the location of the modem connector.

To connect a second BC19N–12 cable, repeat the same procedure, except insert the cable into the connector labeled 0–3.

32

7.5 Connecting to an Ethernet Network at the H3604 Console

Module

An Ethernet Connector switch on the console module activates a ThinWire or a standard connector. You must select one.

• To select the ThinWire connector, slide the switch down. Then go to

Section 7.5.1.

• To select the standard connector, slide the switch up. Then go to Section 7.5.2.

Ethernet

Connector

Switch

MLO-007183

33

7.5.1 Making a ThinWire Network Connection

Make sure the Ethernet Connector switch is down.

1.

Remove the T-connector from the module.

ThinWire Ethernet

Connector

MLO-007138

34

2.

Remove one or both terminators from the T-connector.

• If your system is at the end of a network segment (requires one connection to the network):

MLO-007184

• If your system is between two other network devices (requires two connections to the network):

MLO-007139

35

3.

Connect one or two ThinWire cables to the T-connector.

• If your system requires one connection to the network:

MLO-007140

• If your system requires two connections to the network:

MLO-007141

4.

Insert the T-connector into the ThinWire connector on the module.

36

ThinWire Ethernet

Connector

MLO-007142

5.

Connect the ThinWire cable(s) to one or two of the following ThinWire

Ethernet devices, as described in your network documentation.

• Multiport repeater

• Singleport repeater

• Adapter in another system or workstation

Note

Contact your network manager or Digital service representative if you have questions about network configurations.

37

7.5.2 Making a Standard Network Connection

Make sure the Ethernet Connector switch is up.

1.

Find the Ethernet transceiver cable.

MLO-007143

2.

Make sure the sliding lock on the standard Ethernet connector is in the up position.

Sliding Lock

MLO-007144

3.

Insert the plug end of the cable into the connector.

Slide the lock down to secure the connection, and make sure the Ethernet

Connector switch remains up.

38

4.

Connect the other end of the cable to one of the following devices, as described in your network documentation.

• Transceiver

• Interconnect

• Adapter in another system or workstation

Note

Contact your network manager or Digital service representative if you have questions about network configurations.

39

7.6 Connecting to an Ethernet Network at the DESQA Module

An Ethernet Connector switch on the DESQA module activates a ThinWire or a standard connector. You must select one.

• To select the ThinWire connector, set that switch to the out position. Then go to Section 7.6.1.

• To select the standard connector, set that switch to the in position. Then go to

Section 7.6.2.

Ethernet

Connector

Switch

J4

J2

3

2

1

1.5A SB

250V

FUSE

DESQA

-SA

M3127

-PA

MLO-007145

40

7.6.1 Making a ThinWire Network Connection

Make sure the Ethernet Connector switch is out.

1.

Find the ThinWire T-connector and terminators.

MLO-007167

2.

Remove one or both terminators from the T-connector.

• If your system is at the end of a network segment (requires one connection to the network):

MLO-007185

41

• If your system is between two other network devices (requires two connections to the network):

MLO-007139

3.

Connect one or two ThinWire cables to the T-connector.

• If your system requires one connection to the network:

42

MLO-007140

• If your system requires two connections to the network:

MLO-007141

43

4.

Insert the T-connector into the ThinWire connector on the module.

ThinWire Ethernet

Connector

Feed Cable Under System and Up Through Opening.

MLO-007147

44

5.

Use the cable clamp shipped with the module to form the upper cable in a loop.

Recommended

Diameter Is

10 Centimeters (4 Inches)

Cable Clamp

MLO-004020

6.

Connect the ThinWire cable(s) to one or two of the following ThinWire

Ethernet devices, as described in your network documentation.

• Multiport repeater

• Singleport repeater

• Adapter in another system or workstation

Note

Contact your network manager or Digital service representative if you have questions about network configurations.

45

7.6.2 Making a Standard Network Connection

Make sure the Ethernet Connector switch is in.

1.

Find the Ethernet transceiver cable.

MLO-007143

2.

Make sure the sliding lock on the standard Ethernet connector is in the up position.

Sliding Lock

MLO-007149

46

3.

Insert the plug end of the cable into the connector.

Slide the lock down to secure the connection, and make sure the Ethernet

Connector switch remains in.

4.

Connect the other end of the cable to one of the following devices, as described in your network documentation.

• Transceiver

• Interconnect

• Adapter in another system or workstation

Note

Contact your network manager or Digital service representative if you have questions about network configurations.

47

8 Connect an Expander

If you are not installing a factory-configured expander with your system, go to

Section 9.

If you are installing a factory-configured expander with your system:

1.

Begin the installation of the expander as described in the manual shipped with the expander. Make sure you connect the expander cables that will also be connected to your system.

2.

Return to this manual to connect the expander cables to the applicable system connections described in the following sections.

Expander Cable(s)

Q–bus cables

DSSI cable

KZQSA external cable

Power control bus cable

Ground cable

Expander

B400X

B400X, R400X, or SF12

B400X

B400X, R400X, or SF12

B400X, R400X, or SF12

Section

8.1

8.2

8.3

8.4

8.5

Caution

If you are installing a DSSI configuration, to prevent system performance degradation or data corruption caused by excessive ground offset voltages, connect a ground cable between the expander and your system as described in Section 8.5.

3.

Complete the installation of the expander as described in the expander manual.

4.

Complete the installation of your system by completing the procedures remaining in this manual (continue with Section 9).

48

8.1 Connecting the Q–Bus Cables

1.

Find the two Q–bus cables labeled BC04V–09. One end of each cable should be connected to the expander.

2.

Connect the free ends of those cables to the two Q–bus Out connectors on your system.

a.

Connect the plug end of one of the cables to connector J1.

M9404

J2

J1

Feed Cables Under System and Up Through Opening.

b.

Connect the socket end of the other cable to connector J2.

MLO-007131

49

8.2 Connecting the DSSI Cable

1.

Find the DSSI cable labeled BC21M–09. One end should be connected to the expander.

2.

Remove the terminator from the DSSI In/Out connector labeled Bus 0 or Bus

1.

Bus 1

MLO-010216

50

Bus 0

MLO-010217

51

3.

Connect the free end of the cable to that connector.

MLO-007160

4.

If applicable, install the terminator (removed in step 2) on the expander as shown in the expander installation manual.

52

8.3 Connecting the KZQSA External Cable

1.

Find the KZQSA external cable labeled BC06P–06. One end should be connected to an expander box.

2.

Remove the terminator from the lower connector on the KZQSA module.

MLO-007161

53

3.

Connect the free end of the cable to that connector.

Bail Latch

MLO-007162

4.

If applicable, install the terminator (removed in step 2) on the expander as shown in the expander installation manual.

54

8.4 Connecting the Power Control Bus Cable

Caution

To maintain system operation, do not use the Power Control Bus cable in a DSSI VAXcluster configuration.

1.

Find the Power Control Bus cable labeled 17–02638–01. One end should be connected to the SI connector on the expander.

2.

Connect the free end of that cable to the MO connector.

MLO-007163

55

8.5 Connecting the Ground Cable

1.

Find the Ground cable labeled 12–13756–A8. One end should be connected to the expander.

2.

Connect the free end of that cable to the Ground Wire Out bolt.

MLO-007164

9 Connect the System Power Cable

CAUTION

Do not connect your computer system to an IT power system (a power system without a directly grounded neutral conductor). To prevent damage, your system should be plugged into a dedicated (isolated) ground circuit.

1.

Make sure the system Power switch is set to off (0).

56

2.

Make sure all devices connected to your system are turned off.

Printer?

External modem?

Console terminal?

Expander?

3.

Find the power cable shipped with your system.

100 - 125 V

200 - 250 V

MLO-007165

4.

Make sure the plug end of that cable matches your wall outlet or other power source.

57

5.

Insert the socket end of the cable into the power supply connector.

MLO-007166

6.

Insert the plug end of the cable into your wall outlet or other power source.

10 Turn On the System and Select a Language

Caution

Do not operate your system without Digital module covers. They protect the equipment, maintain proper airflow for cooling, and provide EMI-RFI containment that meets international regulatory standards.

1.

Turn on your console terminal.

Wait until the terminal performs its self-tests successfully.

2.

If an expander is connected to your system, turn it on.

Make sure the AC indicator on the expander power supply glows orange. If a Power Control Bus cable is installed, the expander will not power up until the system is turned on.

3.

Turn on your system.

Make sure the AC Present indicator, next to the Power switch, glows orange.

58

Within a few moments the following language selection menu, or something like it, appears on your console terminal.

Note

If you are using an older terminal that does not support multiple languages, this menu does not appear and the system defaults to English

(United States/Canada).

KA6nn-A Vn.n VMB n.n

1 Dansk

2) Deutsch (Deutschland/Österreich)

3) Deutsch (Schweiz)

4) English (United Kingdom)

5) English (United States/Canada)

6) Español

7) Français (Canada)

8) Français (France/Belgique)

9) Français (Suisse)

10) Italiano

11) Nederlands

12) Norsk

13) Português

14) Suomi

15) Svenska

(1..15): )

4.

Select a language by typing its number and

Return

.

Note

If you do not select a language within 30 seconds, the system defaults to

English (United States/Canada).

Within a few moments the console terminal displays a series of numbers as the system tests itself. This example shows that display after successful testing.

KA6nn-A Vn.n, VMB n.n

Performing normal system tests.

66..65..64..63..62..61..60..59..58..57..56..55..54..53..52..51..

50..49..48..47..46..45..44..43..42..41..40..39..38..37..36..35..

34..33..32..31..30..29..28..27..26..25..24..23..22..21..20..19..

18..17..16..15..14..13..12..11..10..09..08..07..06..05..04..03..

Tests completed.

>>>

59

If the self-tests do not complete successfully, refer to your system

Troubleshooting and Diagnostics manual to find the source of the problem.

5.

If the self-tests complete successfully, save the language you selected by turning the Power-Up Mode switch to Run mode.

MLO-004264

60

11 Close the System Doors

Note

If you plan to run diagnostic software immediately following the installation, leave the upper door open. If you plan to start up factoryinstalled software immediately following the installation, leave both doors open.

1.

Push gently at the top right of the upper door and the bottom right of the lower door.

MLO-004030

2.

Turn the key to the middle position (both doors locked) or to the top position

(upper door unlocked).

The installation is complete. You can now place the system anywhere you want.

61

12 After Installation

1.

Read your system Operation manual to learn how to use the system. Then make sure the system is turned on and operating normally.

2.

If you installed a configuration consisting of two or more enclosures connected by a common DSSI bus, use a voltmeter to make sure the ground offset voltage between any two enclosures does not exceed one of the limits listed below.

Total Bus Length

Up to 20 meters (65 feet)

20 to 25 meters (65 to 82 feet)

Allowable Ground Offset Voltage

DC AC (rms)

200 millivolts

40 millivolts

70 millivolts

14 millivolts

Total bus length includes all DSSI cable lengths, internal and external. Your

DSSI VMScluster Installation and Troubleshooting manual tells you how to calculate internal cable lengths.

To measure the ground offset voltage, connect the voltmeter leads to bare

(unpainted) metal on each enclosure. If the voltage exceeds one of the limits, call your Digital service representative.

Note

The ground offset voltage may vary over time, if equipment is added to your system or plugged into your power outlets. Therefore, this measurement does not guarantee that the voltage will remain within acceptable limits.

3.

Run the diagnostic software for your system as described in your system

Troubleshooting and Diagnostics manual.

4.

If you have factory-installed software on your system, see the VMS Factory

Installed Software User Guide for the startup procedure. Otherwise, install the software that you ordered with your system.

Note

Systems with VMS factory-installed software have a yellow sticker on the front panel of the ISE containing that software.

62

17–02638–01 cable, 55

12–13756–A8 cable, 56

A

Additional devices, connecting, 16

After installation, 62

Asynchronous modems, connecting, 29

Attaching

See Connecting or Installing

B

BC04V–09 cable, 49

BC06P–06 cable, 53

BC16D cable, 19

BC19–B cable, 26

BC19–D cable, 26

BC19–E cable, 26

BC19–F cable, 26

BC19L cable, 26

BC19N–12 cable, 29

BC21M–09 cable, 50

BC22F cable, 26

BC27L–30 cable, 23

BC55D cable, 26

Boxes, checking, 2

C

Cable concentrator, 19

Cables

17–02638–01, 55

12–13756–A8, 56

BC04V–09, 49

Index

Cables (cont’d)

BC06P–06, 53

BC16D, 19

BC19–B, 26

BC19–D, 26

BC19–E, 26

BC19–F, 26

BC19L, 26

BC19N–12, 29

BC21M–09, 50

BC22F, 26

BC27L–30, 23

BC55D, 26 console terminal, 8

DSSI, 48

DSSI, connecting, 50

Ethernet transceiver, 38, 46 expander, 48 ground, 48 ground, connecting, 56

KZQSA external, 48

KZQSA external, connecting, 53 power control bus, 48 power control bus, connecting, 55 power, system, 57

Q–bus, 48

Q–bus, connecting, 49 system power, 57 system power, connecting, 56

ThinWire Ethernet, 36, 42 transceiver, Ethernet, 38, 46

Cartons, checking, 2

Checking shipment, 2

Index–1

Closing system doors, 61

Concentrator, cable, 19

Connecting additional devices, 16 asynchronous modems, 29 console terminal, 8 devices, additional, 16

DSSI cable, 50

Ethernet network, console module, 33

Ethernet network, DESQA module, 40 expander, 48 ground cable, 56

KZQSA external cable, 53 modems, asynchronous, 29 modems, synchronous, 25 parallel printers, 23 power cable, system, 56 power control bus cable, 55 printers, parallel, 23 printers, serial, 19

Q–bus cables, 49 serial printers, 19 standard Ethernet cable, console module, 38 standard Ethernet cable, DESQA module, 46 synchronous modems, 25 system power cable, 56 terminals and serial printers, 19

ThinWire Ethernet cable, console module, 34

ThinWire Ethernet cable, DESQA module, 41

Console

See Console module or Console terminal

Console module connecting Ethernet network, 33 connecting standard Ethernet cable,

38 connecting ThinWire Ethernet cable,

34 setting controls, 13

Console terminal cable, 8 connecting, 8 installing, 8 setup operations, 8

Control panel

See System, control panel

Controls, setting system, 10

CXA16–AA option, 19

CXB16–AA option, 19

CXY08–AA option, 29

D

DESQA module, connecting

Ethernet network, 40 standard Ethernet cable, 46

ThinWire Ethernet cable, 41

DESQA–SA option, 40

Devices, connecting additional, 16

Doors closing, 61 opening, 6

DSSI cable, 48 connecting, 50

DSV11–SA option, 25

E

Ethernet cable

See Standard Ethernet cable or

ThinWire Ethernet cable

Ethernet network, connecting console module, 33

DESQA module, 40

Ethernet transceiver cable, 38, 46

Expander cables, 48 connecting, 48

Index–2

G

Ground cable, 48 connecting, 56

H

H3604 console module

See Console module

I

Installing console terminal, 8

Integrated Storage Elements, setting controls, 11

ISEs

See Integrated Storage Elements

K

KZQSA external cable, 48 connecting, 53

L

Language, selecting, 58

LPV11–SA option, 23

M

M3018 module, 25

M3118–YA module, 19

M3118–YB module, 19

M3119–YA module, 29

M3127–PA module, 40

M8086–YA module, 23

Modems asynchronous, connecting, 29 synchronous, connecting, 25

Module identification labels, 18 numbers, 18

Modules

See also Options

M3018, 25

Modules (cont’d)

M3118–YA, 19

M3118–YB, 19

M3119–YA, 29

M3127–PA, 40

M8086–YA, 23

Moving system, 5

N

Network

See Ethernet network

O

Opening system doors, 6

Option numbers, 18

Options

CXA16–AA, 19

CXB16–AA, 19

CXY08–AA, 29

DESQA–SA, 40

DSV11–SA, 25

LPV11–SA, 23

P

Parallel printers, connecting, 23

Positioning system, 5

Postinstallation procedures, 62

Power cable

See System, power cable

Power control bus cable, 48 connecting, 55

Power supply

See System power supply

Preoperational procedures, 62

Preparation, verifying site, 1

Printers parallel, connecting, 23 serial, connecting, 19

Index–3

Q

Q–bus cables, 48 connecting, 49

R

RF-series Integrated Storage Elements, setting controls, 11

S

SCP

See System, control panel

Selecting language, 58

Serial printers, connecting, 19

Setting system controls, 10 console module, 13

Integrated Storage Elements, 11 power supply, 10 system control panel, 12 tape drives, 14

Setup operations, console terminal, 8

Shipment, checking, 2

Site preparation, verifying, 1

Standard Ethernet cable, connecting console module, 38

DESQA module, 46

Synchronous modems, connecting, 25

System control panel, setting controls, 12 controls, setting, 10 doors, closing, 61 doors, opening, 6 expander connections, 48 positioning, 5 power cable, 57 power cable, connecting, 56 power supply, setting controls, 10 turning on, 58

T

Tape drives setting controls, 14

TF85/TF86, setting controls, 14

TK-series, setting controls, 15

Terminal

See also Console terminal

Terminals and serial printers, connecting,

19

TF85/TF86 tape drive, setting controls,

14

ThinWire Ethernet cable, 36, 42

ThinWire Ethernet cable, connecting console module, 34

DESQA module, 41

TK-series tape drive, setting controls, 15

Transceiver cable, Ethernet, 38, 46

Turning on system and selecting language,

58

V

Verifying site preparation, 1

Index–4

Reader’s Comments

VAX 4000

Model 500A/505A/600A/700A/705A

Installation

EK–493AB–IN. B01

Your comments and suggestions help us improve the quality of our publications.

Thank you for your assistance.

Fair

I rate this manual’s:

Accuracy (product works as manual says)

Completeness (enough information)

Clarity (easy to understand)

Organization (structure of subject matter)

Figures (useful)

Examples (useful)

Index (ability to find topic)

Page layout (easy to find information)

Excellent Good

I would like to see more/less

Poor

What I like best about this manual is

What I like least about this manual is

I found the following errors in this manual:

Page Description

Additional comments or suggestions to improve this manual:

For software manuals, please indicate which version of the software you are using:

Name/Title

Company

Mailing Address

Dept.

Phone

Date

Do Not Tear – Fold Here and Tape

d TM

BUSINESS REPLY MAIL

FIRST CLASS PERMIT NO. 33 MAYNARD MASS.

POSTAGE WILL BE PAID BY ADDRESSEE

DIGITAL EQUIPMENT CORPORATION

Information Design and Consulting

MRO1–3/K10

200 FOREST STREET

MARLBORO, MA 01752-3011

Do Not Tear – Fold Here

No Postage

Necessary

If Mailed in the

United States

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
