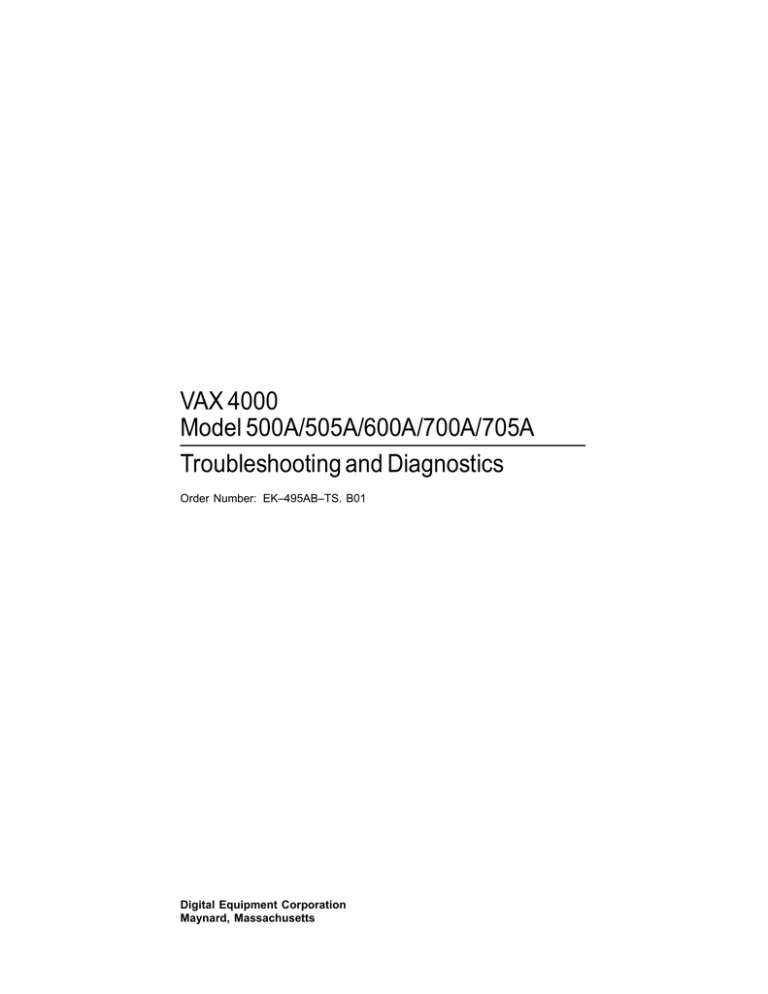

VAX 4000

Model 500A/505A/600A/700A/705A

Troubleshooting and Diagnostics

Order Number: EK–495AB–TS. B01

Digital Equipment Corporation

Maynard, Massachusetts

First Printing, December 1991

Revised, February 1992

Revised, April 1992

Revised, July 1992

Revised, July 1993

Revised, July 1994

The information in this document is subject to change without notice and should not be construed as a commitment by Digital Equipment Corporation.

Digital Equipment Corporation assumes no responsibility for any errors that may appear in this document.

The software, if any, described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license. No responsibility is assumed for the use or reliability of software or equipment that is not supplied by Digital Equipment Corporation or its affiliated companies.

Restricted Rights: Use, duplication or disclosure by the U.S. Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227–7013.

Copyright © Digital Equipment Corporation 1991, 1992, 1993, 1994. All Rights Reserved.

The Reader’s Comments form at the end of this document requests your critical evaluation to assist in preparing future documentation.

The following are trademarks of Digital Equipment Corporation: CompacTape, CX, DDCMP, DEC,

DECconnect, DECdirect, DECnet, DECscan, DECserver, DECUS, DECwindows, DELNI, DEMPR,

DESQA, DESTA, DSRVB, DSSI, IVAX, KDA, KLESI, KRQ50, MicroVAX, MSCP, Q–bus, Q22–bus,

RA, RQDX, RV20, SA, SDI, ThinWire, TK, TMSCP, TQK, TS05, TU, VAX, VAX 4000, VAXcluster,

VAX DOCUMENT, VAXELN, VAXlab, VAXserver, VMS, VT, and the DIGITAL logo.

All other trademarks and registered trademarks are the propery of their respective holders.

FCC NOTICE: The equipment described in this manual generates, uses, and may emit radio frequency. The equipment has been type tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such radio frequency interference.

Operation of the equipment in a residential area may cause interference, in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

S2580

This document was prepared using VAX DOCUMENT Version 2.1.

Contents

Preface

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 Troubleshooting During Power-Up

1.1

1.2

1.2.1

1.2.2

1.2.3

1.2.4

Autobooting the System Software . . . . . . . . . . . . . . . . . . .

Troubleshooting Power-Up Problems . . . . . . . . . . . . . . . . .

Problems During Self-Tests . . . . . . . . . . . . . . . . . . . . .

General Problems During Boot Sequence . . . . . . . . . . .

Problems Booting from an EF/RF-Series Integrated

Storage Element (ISE) . . . . . . . . . . . . . . . . . . . . . . . . .

Problems Booting from a Tape Drive . . . . . . . . . . . . . .

2 Troubleshooting During Normal Operation

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

2.9

System Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EF/RF-Series Integrated Storage Element (ISE)

Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RRD3 Compact Disc Drive Problems . . . . . . . . . . . . . . . . .

TF-Series Tape Drive Problems . . . . . . . . . . . . . . . . . . . . .

TK50 Tape Drive Problems . . . . . . . . . . . . . . . . . . . . . . . .

TK70 Tape Drive Problems . . . . . . . . . . . . . . . . . . . . . . . .

TLZ07 Cassette Tape Drive and Autoloader Problems . . . .

TZ86 Tabletop Cartridge Tape Subsystem Problems . . . . .

TZ87 Tabletop Cartridge Tape Subsystem Problems . . . . .

3 Running the MicroVAX Diagnostic Monitor (MDM)

3.1

3.2

3.2.1

3.2.2

MDM Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparing to Run MDM . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparing to Run MDM on a Diskless or Tapeless

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparing to Run MDM on an EF/RF-Series

Integrated Storage Element (ISE) or Hard Disk . . . . .

v

2–1

2–4

2–5

2–6

2–7

2–8

2–9

2–10

2–12

1–1

1–2

1–2

1–4

1–5

1–6

3–1

3–2

3–2

3–3 iii

3.2.3

3.2.3.1

3.2.3.2

3.3

3.3.1

3.3.1.1

3.3.1.2

3.3.2

3.4

3.5

3.5.1

3.5.2

3.5.3

3.5.3.1

3.5.3.2

3.5.4

3.5.5

3.5.6

3.6

Preparing to Run MDM on a DSSI VAXcluster . . . . . .

MDM on a DSSI VAXcluster with One TK70 Tape

Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MDM on a DSSI VAXcluster with Two TK70 Tape

Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting MDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tape Drive Instructions . . . . . . . . . . . . . . . . . . . . . . . .

Booting MDM Manually . . . . . . . . . . . . . . . . . . . . .

Booting MDM Automatically . . . . . . . . . . . . . . . . .

RRD-Series Disc Instructions . . . . . . . . . . . . . . . . . . . .

MDM Introductory Display . . . . . . . . . . . . . . . . . . . . . . . .

Main Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test the System Option . . . . . . . . . . . . . . . . . . . . . . . .

Display System Configuration and Devices Option . . .

Display the System Utilities Menu Option . . . . . . . . . .

IOADDRES Function . . . . . . . . . . . . . . . . . . . . . . .

Update Drive Unit Number for RRD-Series

Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Display the Service Menu Option . . . . . . . . . . . . . . . . .

Display the Connect/Ignore Menu Option . . . . . . . . . .

Select Single Device Tests Option . . . . . . . . . . . . . . . .

Exiting MDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A System Controls and Indicators

B Write-Protecting an EF/RF-Series ISE

B.1

B.2

Software Write-Protect for EF/RF-Series ISEs . . . . . . . . . .

Hardware Write-Protect for EF/RF ISEs . . . . . . . . . . . . . .

Index

Figures

A–1

A–2

A–3

A–4

System Control Panel and Power Supply . . . . . . . . . . .

EF/RF-Series ISE and Console Module . . . . . . . . . . . .

TK70 and TK50 Tape Drives . . . . . . . . . . . . . . . . . . . .

TF-Series Tape Drive . . . . . . . . . . . . . . . . . . . . . . . . . .

3–3

3–4

3–5

3–6

3–6

3–7

3–7

3–8

3–9

3–9

3–10

3–11

3–13

3–13

3–14

3–14

3–14

3–15

3–16

B–1

B–2

A–2

A–3

A–4

A–5 iv

Preface

Troubleshooting is the process of isolating and diagnosing problems. When your system does not operate as described in your Operation manual, use the information in this manual to isolate and diagnose the problem.

This manual contains three chapters and two appendixes:

• Chapter 1 lists problems you may experience at power-up and provides corrective actions.

• Chapter 2 lists problems you may experience during normal operation and provides corrective actions.

• Chapter 3 tells you how to run the MicroVAX Diagnostic Monitor (MDM), a diagnostic tool you can use to test your system periodically or to isolate a particular problem.

• Appendix A contains illustrations showing the location of your system controls and indicators.

• Appendix B describes how to write-protect your EF/RF-Series ISE.

If the corrective actions suggested in Chapters 1 and 2 do not solve the problem, call your Digital Services representative.

The following conventions are used in this manual.

Convention

Key

Ctrl/C

NOTE

CAUTION

Meaning

A terminal key used in text and examples. For example,

Break indicates that you press the Break key on your terminal keyboard.

Hold down the Ctrl key while you press the C key.

Provides general information about the current topic.

Provides information to prevent damage to equipment or software.

v

1

Troubleshooting During Power-Up

After you turn on your system, the processor performs a series of self-tests and startup routines. After successful completion of the self-tests, if the Break

Enable/Disable switch is set to disable (down), your system autoboots system software.

1.1 Autobooting the System Software

Your system boots automatically (autoboots) from a specified drive if you have specified a boot device by way of the command SET BOOT device-name from console mode. Your system continues to boot from the specified drive each time it is turned on, until you specify a different device by entering the SET BOOT device-name command again.

Your system stores the following console parameters in nonvolatile memory.

Parameter

Language

ControlP

Halt

Values

1 - 15

0,1 (disabled,enabled)

Comment

Sets the language and the keyboard type used under the console

Sets ControlP as a halt condition instead of a break, if the break enable switch is set for enable.

Defines the action on halt

DSSI_ID Bus 0/A

DSSI_ID Bus 1/B

0 - 4 (or DEFAULT,

RESTART, REBOOT,

HALT, RESTART_

REBOOT)

0 - 7

0 - 7

The DSSI node ID for the CPU

DSSI adapter 0

The DSSI node ID for the CPU

DSSI adapter 1

Troubleshooting During Power-Up 1–1

Parameter

DSSI_ID Bus 2/C

DSSI_ID Bus 3/D

Values

0 - 7

0 - 7

Comment

The DSSI node ID for the CPU

DSSI adapter 2

The DSSI node ID for the CPU

DSSI adapter 3

Sets the default R5 boot flag BFLG

BOOT

Hex number up to 8 digits

Boot device Sets the default boot device

If ac power is lost, this information is retained. When ac power is restored, type SHOW SAVED_STATE at the >>> prompt. Your system displays these parameters with the values they had at the time of the ac power loss. You can then change any of these values. To boot your system, type B at the >>> prompt.

If you do not enter the SET BOOT device-name command, your system boots from the Ethernet port, EZA0.

1.2 Troubleshooting Power-Up Problems

Refer to the descriptions of problems and corrective actions in the following sections. If the action(s) listed do not solve the problem, call your Digital service representative.

1.2.1 Problems During Self-Tests

Problem Possible Cause

No response when

Power switch turned on; AC

Present indicator not lit.

System not plugged in.

Corrective Action

Set Power switch to 0. Plug in system. Set Power switch to 1.

No power at wall outlet.

Use different wall outlet or check circuit breaker controlling power to wall outlet.

Power switch (circuit breaker) tripped (in position 0).

Power cable incorrectly installed.

Wait 1 minute, then set Power switch to position 1. If it trips again, call your Digital Services representative.

Set Power switch to 0. Check that cable is fully seated in socket. Set

Power switch to 1.

1–2 Troubleshooting During Power-Up

Problem

AC Present indicator lit;

DC OK indicator not lit.

Possible Cause

Power Control Bus cable connected to Secondary

In (SI) connector on power supply.

BA400-series expander not turned on.

Power supply or module failure.

Console terminal off.

Corrective Action

Turn on system or expander connected to Power Bus Out (MO) connector on power supply.

Turn on expander.

Call your Digital Services representative.

Turn on console terminal.

System has power; AC

Present and DC OK indicators lit; nothing displays on console terminal.

System has power; DC

OK indicator lit; nothing displays on console terminal; LED on console module displays

E or F.

Console terminal off line.

Hold key activated.

Console terminal cable incorrectly installed.

Console terminal setup not done correctly.

Baud rate of system and terminal do not match.

Power-Up Mode switch on console module set to

T.

Terminal defective.

If printer connected to obtain copy of console interaction, fault in printer.

Problem in CPU.

Problem in CPU.

Put terminal on line as described in terminal document.

Deactivate hold key.

Make sure cable is installed properly at both ends.

Reread setup instructions in terminal manual.

Set terminal baud rate to match system rate.

Set that switch to Run (indicated by arrow).

Turn off terminal and turn it on again. If it fails self-tests, call your

Digital Services representative.

Turn off printer and turn it on again. If it fails self-tests, call your

Digital Services representative.

Call your Digital Services representative.

Call your Digital Services representative.

Troubleshooting During Power-Up 1–3

Problem

Self-tests halt; error message or error summary displays on console terminal.

Language Selection

Menu does not appear.

Possible Cause

System detected error while running self-tests.

Corrective Action

Copy number following question mark in error message or summary and call your Digital service representative.

Check that baud rate on console terminal agrees with system rate.

Baud rate on console terminal different from baud rate on system.

Terminal does not support multinational character set (MCS).

Obtain terminal that supports

MCS, or use the default language

(English). If this is not a problem continue.

1.2.2 General Problems During Boot Sequence

Problem Possible Cause Corrective Action

System returns to BOOT prompt after 4 minutes.

>>>

displays on console terminal.

Sanity timer enabled on

DESQA module.

Break Enable/Disable switch set to enable (up); system in console mode.

User-defined halt action set to HALT.

Disable sanity timer as described in DESQA Option Installation

Guide.

To autoboot, set Break Enable

/Disable switch on console module to disable (down). Reset system by pressing Restart button on system control panel. To boot manually from console mode, use BOOT device-name command.

From console mode, enter SET

HALT DEFAULT command.

>>>

displays on console terminal; Break Enable

/Disable switch set to disable (down).

?54 RETRY

displays twice on console terminal.

Countdown does not continue from 2 through

0; Break Enable/Disable switch set to disable

(down).

No bootable medium found.

System cannot load software from disk drive, tape drive or Ethernet.

See actions listed for boot device in subsequent sections.

See actions listed for boot device in subsequent sections.

1–4 Troubleshooting During Power-Up

1.2.3 Problems Booting from an EF/RF-Series Integrated Storage

Element (ISE)

Problem Possible Cause Corrective Action

Countdown continues from 2 through 0; console terminal displays operating system error messages;

Write-Protect button in (glows orange). For

EF/RF ISEs,

Mounted wrtlck

displays when

DCL command SHOW

DEVICE DI is issued.

Countdown continues from 2 through 0; console terminal displays console error messages.

Countdown does not continue from 2 through

0; Break Enable/Disable switch set to disable

(down); Run/Ready button out.

Fault indicator lit or blinking.

System disk write-protected.

System disk contains no bootable software.

System disk off line.

Problem in controller or

ISE.

Push in and release Write-Protect button to out (unlit) position.

Make sure Write-Protect button corresponds to system disk. For

EF/RFs, remove Write-Protect per

Appendix B.

Install system software.

Press Run/Ready button to in position. Press Restart button on system control panel.

Bus node ID plug not installed.

If Fault indicator stops blinking, system may have corrected itself. Run MDM as described in Chapter 3. If Fault indicator remains lit, call your Digital

Services representative.

Install unique Bus node ID plug.

Troubleshooting During Power-Up 1–5

1.2.4 Problems Booting from a Tape Drive

Problem Possible Cause Corrective Action

Countdown does not continue from 2 to 0 or system boots from another device (wrong software displays on console terminal).

No tape cartridge in tape drive.

Insert cartridge containing system software into tape drive.

Fixed disk on line.

Tape not bootable (does not contain bootstrap program).

Tape worn or damaged.

Problem in controller or tape drive.

Place fixed disk off line.

Use bootable tape to start system software.

Try another tape cartridge.

Call your Digital Services representative.

1–6 Troubleshooting During Power-Up

2

Troubleshooting During Normal

Operation

Problems that occur during normal operation of your system may result from a system defect, faulty setting, or incorrect procedure.

The following sections list problems, possible causes, and corrective actions. If the action(s) listed do not solve the problem, call your Digital Services representative.

2.1 System Problems

Problem Possible Cause

System has power; DC

OK indicator lit; nothing displays on console terminal; LED on console module displays

E or F.

System loses power; AC

Present indicator not lit.

Problem in CPU.

System loses power; DC

OK indicator not lit.

System loses power;

Power switch off

(position 0).

Corrective Action

Call your Digital Services representative.

System not plugged into wall outlet.

Set Power switch to 0. Plug in system. Set Power switch to 1.

No power at wall outlet.

Use different wall outlet or check circuit breaker controlling power to wall outlet.

Power cable incorrectly installed.

Power supply failed.

Power switch (circuit breaker) tripped.

Set Power switch to 0. Check that cable is seated in socket. Set

Power switch to 1.

Turn off system and call your

Digital Services representative.

Wait 1 minute, then set Power switch to 1. If it trips again, call your Digital Services representative.

Troubleshooting During Normal Operation 2–1

Problem

Alarm sounding and

Over Temperature

Warning indicator flashing.

Over Temperature

Condition indicator lit; system loses power; Power switch on (position 1).

Possible Cause

Systems internal temperature rising and approaching maximum limit.

System shut down to prevent overheating.

System loses power; Fan

Failure indicator lit;

Power switch on

(position 1).

System halts;

>>>

displayed on console terminal.

One or two fans failed.

Break or

Ctrl/P pressed.

Corrective Action

Make sure that the system air vents are not blocked. Keep system away from heat sources, Check room temperature per your Site

Preperation manual.

Make sure vents are clear, system is not near heat source, and room temperature is within guidelines in

Site Preparation manual. Then set

Power switch to 0. Wait 5 minutes.

Set Power switch to 1. If system shuts down again, call your Digital

Services representative.

Call your Digital Services representative.

Terminal display halts.

System reboots.

For DSSI configuration: performance degrades, operating system crashes, or

Closed

Virtual

Circuit

or

Closing

Virtual Circuit

displays on console terminal.

Hold Screen key on terminal pressed.

Terminal data cable disconnected.

Restart button pressed.

Ground offset voltage between enclosures exceeds limit listed in system Installation manual.

Type C and press

Return

. To prevent recurrences, set Break

Enable/Disable switch to disable

(down) and press Run/Ready button to restart system. Pressing

Restart button reboots system.

Press Hold Screen key again.

Reconnect data cable.

Let rebooting complete. To prevent recurrences, ask your Digital

Services representative to disable

Restart button.

Make sure site power distribution system does not have any grounding faults listed in system

Site Preparation manual. Then measure ground offset voltage(s) as described in system Installation manual.

Make sure ground cable connects any two enclosures sharing common DSSI bus.

2–2 Troubleshooting During Normal Operation

Problem Possible Cause

Loose or missing DSSI terminators.

Damaged DSSI cable or cable connector.

DSSI bus length exceeds limit specified in DSSI

VMScluster Installation and Troubleshooting

manual.

Non-Digital device connected to DSSI bus.

Corrective Action

Make sure terminators are installed properly.

Replace cable.

Call your Digital Services representative.

Call your Digital service representative.

Troubleshooting During Normal Operation 2–3

2.2 EF/RF-Series Integrated Storage Element (ISE)

Problems

Problem Possible Cause Corrective Action

Write error message displayed; Write-

Protect button glows orange. For EF/RF

ISEs,

Mounted wrtlck

displays when

DCL command SHOW

DEVICE DI is issued.

Fault indicator lit or blinking.

ISE write-protected.

Press and release Write-Protect button. For EF/RF, remove Write-

Protect per Appendix B.

Install that plug.

Read error message displayed; Run/Ready button out.

Bus node ID plug not installed.

Two or more devices have same node ID on same bus.

Problem in controller or

ISE.

ISE not spun up.

Make sure all devices and controllers or adapters on same bus have unique IDs.

If Fault indicator stops blinking, system may have corrected itself. Run MDM as described in Chapter 3. If Fault indicator remains lit, call your Digital service representative.

Press Run/Ready button to in position. After green indicator lights, ISE is available for use.

2–4 Troubleshooting During Normal Operation

2.3 RRD3 Compact Disc Drive Problems

Problem Possible Cause Corrective Action

The drive does not accept the disc.

The eject button fails to release the disc tray.

The disc is upside-down in the tray or it is not placed correctly in the tray.

A disc is already present.

The eject button is disabled by software.

The system does not have power.

The RRD43 compact disc drive is faulty.

Remove the disc from the tray and reinsert it properly.

Remove the disc and replace it with a new one.

Reenable the eject button or manually release the disc tray.

Set the system unit on/off switch to the on ( | ) position and press the eject button again.

If you want to release the disc tray manually, see MicroVAX 3100

Model 85/95 Operator Information

for instructions. If the problem persists, contact your Digital services representative.

Troubleshooting During Normal Operation 2–5

2.4 TF-Series Tape Drive Problems

Problem Possible Cause Corrective Action

Tape not software write-enabled.

Drive not loaded, or unloaded by software.

Cartridge has TK50 or TK70 format (drive cannot write to those devices).

Bad cartridge or improperly written calibration tracks.

Software operating system error.

Problem in drive.

Load drive. Ensure that yellow indicator is lit.

Use cartridge with correct format.

Try another cartridge.

Reboot operating system.

Does not mount or read

/write.

Problem in cartridge.

Call your Digital Services representative.

Try another cartridge.

Dirty read/write heads.

Dirty read/write heads.

Use yellow head-cleaning cartridge.

Use yellow head-cleaning cartridge.

Orange Use Cleaning

Tape light lit.

Four lights blinking.

Failed self-test or detected hard error.

Green light on; yellow light not lit.

Cartridge stuck in drive; tape on takeup reel.

Cartridge load error.

Hard drive error.

Cartridge does not load.

Mispositioned leader.

Push Unload button. If lights continue blinking, call your Digital

Services representative.

Try another cartridge. If problem persists, call your Digital Services representative.

Press Unload button. If problem persists, call your Digital Services representative.

Try another cartridge.

2–6 Troubleshooting During Normal Operation

2.5 TK50 Tape Drive Problems

Problem

Red light blinking; no unusual sounds.

Red light blinking; whirring sound.

Cartridge release handle does not move.

Cartridge release handle does not lock.

Cartridge does not unload.

Passes self-test; does not work.

Possible Cause

Problem in drive.

Tape leader not coupled properly.

Self-test in progress.

Drive active.

Cartridge not inserted properly.

Load/Unload button in load (in) position.

Load/Unload button not working properly.

Problem in controller or connection between drive and controller.

Corrective Action

Press Load/Unload button four times. If problem persists, do not use drive or remove cartridge.

Call your Digital Services representative.

Turn off system. Do not remove cartridge. Call your Digital

Services representative.

Press Unload button and wait for red light to go out and green light to remain on. Then try again.

Press Unload button and wait for red light to go out and green light to remain on. Then try again.

Reinsert cartridge. If problem persists, call your Digital Services representative.

Press button to unload (out) position. Wait for red light to go out and green light to remain on before trying to remove cartridge.

Press button to load (in) position, wait a few seconds, then press button to unload (out) position.

After red light goes off and green light comes on, move cartridge release handle. If problem persists, call your Digital Services representative.

Call your Digital service representative.

Troubleshooting During Normal Operation 2–7

2.6 TK70 Tape Drive Problems

Problem

Green light blinking after tape insertion.

Orange, yellow, and green lights blinking.

Handle does not move.

Possible Cause

Tape leader defective.

Problem in drive.

Self-test in progress.

Drive active.

Handle does not lock.

Cartridge not inserted properly.

Cartridge does not unload.

Unload button not working properly.

Passes self-test; does not work.

Problem in controller or connection between drive and controller.

Corrective Action

Pull handle open and remove cartridge. Use another cartridge.

Press Unload button once. If orange and green lights go out and yellow light starts blinking, cartridge is unloading. After green light comes on and you hear beep, remove cartridge. If three lights start blinking after you press

Unload button, fault is not cleared.

Do not remove cartridge. Call your

Digital Services representative.

Do not move handle while yellow light is on. Press Unload button and wait for orange and yellow lights to go off and green light to remain on. Then try again.

Do not move handle while yellow light is on. Press Unload button and wait for yellow light to go off and green light to remain on. Then try again.

Reinsert cartridge. If problem persists, call your Digital Services representative.

Unload cartridge with command described in your system software manuals.

Call your Digital Services representative.

2–8 Troubleshooting During Normal Operation

2.7 TLZ07 Cassette Tape Drive and Autoloader Problems

The embedded TLZ07 is only supported when the HSD05 DSSI-to-SCSI bus adapter option is installed in the system backplane. For more information about

HSD05 and supported devices, see HSD05 DSSI–to–SCSI Bus Adapter Operation

Information for BA400–Based VAX 4000 Systems.

Problem

Unable to back up or copy data to cassette tape.

Write-Protect LED flashes amber.

Both LEDs flash rapidly, in unison.

After applying power, nothing happens. All indicators off.

Unit not available to system.

Possible Cause Corrective Action

Cassette write-protected.

Set write-protect tab on cassette to write-enabled.

No tape in drive.

Excessive tape errors.

Dirty heads or bad media.

Drive error, possibly a hard failure.

No tape loaded.

Drive not plugged in.

SCSI ID switches set to incorrect address.

Defective SCSI cable.

Insert tape.

Perform head cleaning procedure

(see TLZ07 Cassette Tape Drive

and Autoloader Owner’s Manual, section 6.1). If error repeats, try another tape.

Eject tape. Perform head cleaning procedure (see TLZ07 Cassette

Tape Drive and Autoloader Owner’s

Manual, section 6.1). If error repeats, try another tape.

Eject tape. Power off and power on the drive. If error repeats, Call

Multivendor Customer Services.

Load tape.

Check ac power.

Check SCSI ID switch.

Make sure power cable is plugged in.

Be sure SCSI cable connections are secure.

Troubleshooting During Normal Operation 2–9

2.8 TZ86 Tabletop Cartridge Tape Subsystem Problems

Problem Possible Cause Corrective Action

Your system does not recognize the TZ86.

The TZ86 does not power up.

All four indicators on the TZ86 front panel blink.

Your system is not configured to see the

SCSI ID.

The SCSI ID is not unique.

Configure your system to see the

ID. For example, use SYSGEN

AUTOCONFIG on the VMS operating system.

Change the SCSI ID and reconfigure the system. The new

ID will be effective at the next power-on.

Check your SCSI adapter installation.

The parameters for your SCSI adapter are incorrect.

The SCSI signal cable is loose.

The SCSI terminator is not present or is loose.

Make sure the connector on each end of the cable is fully seated.

Install the terminator; make sure the terminator is fully seated.

The SCSI bus is not correctly terminated.

The SCSI terminator is not at the end of the bus, or more than two terminators are present.

The SCSI bus is too long, or too many devices are on the bus.

If the TZ86 is the last or only device on the bus, make sure the terminator is installed on the TZ86.

If the TZ86 is not the last or only device on the bus, check the cable connections and make sure the terminator is installed at the end of the bus.

Be sure to install a terminator at each end of the bus. One terminator is usually installed at the system.

Limit the bus length to the ANSI

SCSI standard of 6 meters (19 feet) and the number of devices on the bus (including the system) to eight.

Check your system configuration rules.

The TZ86 has no power.

Check the TZ86 power cord connections, with the TZ86 power switch off.

A drive fault has occurred.

Press the Unload button on the

TZ86 front panel to clear the error.

If the error does not clear, call

Digital Services.

2–10 Troubleshooting During Normal Operation

Problem Possible Cause

You are finding fatal or nonfatal errors for which you cannot determine the cause.

Failure to mount or read

/write with new or used cartridge.

The bus termination or SCSI signal cable connections may be incorrect.

The ac power source grounding may be incorrect.

Bad cartridge.

Dirty drive head.

Tape calibration failed.

VMS INITIALIZE command fails with parity error.

Green light is on and tape does not move

(yellow light stays on, does not blink).

Cartridge load error.

All four lights are blinking.

Drive failed selftest or detected a hard error during operation.

Corrective Action

Make sure the SCSI bus is terminated.

Use an ac outlet for the TZ86 on the same ac line that is powering the system.

Retry with another cartridge.

Use CleaningTape III.

Try another cartridge.

Inspect the cartridge for a mispositioned leader (refer to

Tx86 Series Cartridge Tape

Subsystem Owner’s Manual for

Diagram of Cartridge Leader).

Replace the cartridge if its leader is mispositioned.

Inspect the drive for a damaged, misplaced, or unhooked leader

(refer to Tx86 Series Cartridge

Tape Subsystem Owner’s Manual

for Diagram of Cartridge Leader).

Call Digital Services if the drive leader is not in the correct position.

Try to clear the error by pressing the Unload button. If the error does not clear (the tape does not rewind and unload and the four lights blink), you have a hardware failure. Call Digital Services.

Troubleshooting During Normal Operation 2–11

2.9 TZ87 Tabletop Cartridge Tape Subsystem Problems

Problem Possible Cause Corrective Action

Your system does not recognize the TZ87.

The TZ87 does not power up.

All indicators on the

TZ87 front panel blink.

Your system is not configured to see the

SCSI ID.

The SCSI ID is not unique.

Configure your system to see the

ID. For example, use SYSGEN

AUTOCONFIG on the VMS operating system.

Change the SCSI ID and reconfigure the system. The new

ID will be effective at the next power-on.

Check your SCSI adapter installation.

The parameters for your SCSI adapter are incorrect.

The SCSI signal cable is loose.

The SCSI terminator is not present or is loose.

Make sure the connector on each end of the cable is fully seated.

Install the terminator; make sure the terminator is fully seated.

The SCSI bus is not correctly terminated.

The SCSI terminator is not at the end of the bus, or more than two terminators are present.

The SCSI bus is too long, or too many devices are on the bus.

If the TZ87 is the last or only device on the bus, make sure the terminator is installed on the TZ87.

If the TZ87 is not the last or only device on the bus, check the cable connections and make sure the terminator is installed at the end of the bus.

Be sure to install a terminator at each end of the bus. One terminator is usually installed at the system.

Limit the bus length to the ANSI

SCSI standard of 6 meters (19 feet) and the number of devices on the bus (including the system) to eight.

Check your system configuration rules.

The TZ87 has no power.

Check the TZ87 power cord connections, with the TZ87 power switch off.

A drive fault has occurred.

Press the Unload button on the

TZ87 front panel to clear the error.

If the error does not clear, call

Digital Services.

2–12 Troubleshooting During Normal Operation

Problem Possible Cause

You are finding fatal or nonfatal errors for which you cannot determine the cause.

Failure to mount or read

/write with new or used cartridge.

The bus termination or SCSI signal cable connections may be incorrect.

The ac power source grounding may be incorrect.

Bad cartridge.

Dirty drive head.

Tape calibration failed.

VMS INITIALIZE command fails with parity error.

Green light is on and tape does not move

(yellow light stays on, does not blink).

Cartridge load error.

All lights are blinking.

Drive failed selftest or detected a hard error during operation.

Corrective Action

Make sure the SCSI bus is terminated.

Use an ac outlet for the TZ87 on the same ac line that is powering the system.

Retry with another cartridge.

Use CleaningTape III.

Try another cartridge.

Inspect the cartridge for a mispositioned leader (refer to

TZ87 Series Cartridge Tape

Subsystem Owner’s Manual for

Diagram of Cartridge Leader).

Replace the cartridge if its leader is mispositioned.

Inspect the drive for a damaged, misplaced, or unhooked leader

(refer to TZ87 Series Cartridge

Tape Subsystem Owner’s Manual

for Diagram of Cartridge Leader).

Call Digital Services if the drive leader is not in the correct position.

Try to clear the error by pressing the Unload button. If the error does not clear (the tape does not rewind and unload and the four lights blink), you have a hardware failure. Call Digital Services.

Troubleshooting During Normal Operation 2–13

3

Running the MicroVAX Diagnostic

Monitor (MDM)

The MicroVAX Diagnostic Monitor (MDM) is an optional software package containing diagnostic tests that isolate and identify faults in your system.

MDM also lets you display your system configuration and test how devices work together.

MDM is on tape, in a cartridge labeled MV DIAG CUST TK50. MDM operating instructions begin in Section 3.2.

Caution

If your system is connected to a cluster, notify your cluster manager before halting the system to load MDM.

You generally run MDM in four situations:

• Before you install software on a new system

• After you add a device to your system

• After you receive an error message or experience a system problem

• When you want to test your system periodically to ensure that all components are operating correctly

3.1 MDM Limitations

MDM tests internal devices in your system, but it performs limited diagnostics.

• MDM reads from each drive and checks each controller, but it does not write to the drives because that could destroy data.

Running the MicroVAX Diagnostic Monitor (MDM) 3–1

Note

MDM tests a tape or diskette drive only after the medium (tape or diskette) is inserted into the drive.

• MDM checks devices on the system as well as the system and interconnects.

• MDM checks terminal interfaces (but not terminals) by means of feedback connectors.

If your devices pass the tests but you still experience problems, call your Digital

Services representative for further testing.

If you require more complete diagnostic testing, purchase the MicroVAX

Maintenance Kit. That kit includes a system maintenance guide and the service diagnostic tests. The MDM version you receive with your system is a subset of the service version.

Caution

Only qualified service personnel should use the service diagnostic tests.

3.2 Preparing to Run MDM

Running MDM on some systems requires additional or special procedures:

Read Section 3.2.1 if you plan to run MDM on a diskless or tapeless system.

Read Section 3.2.2 if you plan to install MDM on a hard disk or RF-series

Integrated Storage Element.

Read Section 3.2.3 if you plan to run MDM on a DSSI VAXcluster.

You can run MDM on an RRD-series disc drive by using the MDM CDROM Kit.

3.2.1 Preparing to Run MDM on a Diskless or Tapeless System

To run MDM on a diskless or tapeless system that is part of a local area network, you must:

• Obtain a MicroVAX Ethernet Server Customer Diagnostics Kit.

• Run MDM using the diagnostics in that kit, labeled MV DIAG ENET CUST.

3–2 Running the MicroVAX Diagnostic Monitor (MDM)

Refer to the MicroVAX Diagnostic Monitor Ethernet Server User’s Guide at this time. After you install and downline load MDM, refer again to that manual for instructions on running MDM.

Note

If you have a diskless or tapeless system that is not part of a local area network, you cannot run MDM. To diagnose problems, call your Digital

Services representative.

3.2.2 Preparing to Run MDM on an EF/RF-Series Integrated

Storage Element (ISE) or Hard Disk

You can install MDM on an EF/RF-series ISE or hard-disk drive by using the

MDM Hard Disk Kit. Installation of that kit requires your completion of the

Diagnostic Software Installation Acknowledgment. See the MicroVAX Diagnostic

Monitor Hard Disk User’s Guide for licensing requirements and installation instructions.

3.2.3 Preparing to Run MDM on a DSSI VAXcluster

Note

The MDM Hard Disk Kit is required for a two-system DSSI VAXcluster where one host is a tapeless system, and the other uses the TK70 tape drive.

TF-series tape drives are DSSI devices and can be shared between systems in a DSSI VAXcluster. Both systems in a two-system DSSI

VAXcluster can boot MDM from the same drive, However you must run

MDM separately from each host.

Before running MDM:

• Your system must be properly configured.

• The Digital Storage Systems Interconnect (DSSI) cable connecting the multiple hosts must be installed.

You must run MDM separately for each host. For TK70 based systems, the procedure to use depends on whether one host is a tapeless system (no tape drive) or each host has its own tape drive.

Use the procedure in Section 3.2.3.1 to prepare to run MDM in a DSSI

VAXcluster with one TK70 tape drive.

Running the MicroVAX Diagnostic Monitor (MDM) 3–3

Use the procedure in Section 3.2.3.2 to prepare to run MDM in a DSSI

VAXcluster with a TK70 tape drive in each host.

3.2.3.1 MDM on a DSSI VAXcluster with One TK70 Tape Drive

To run MDM on a DSSI VAXcluster with one TK70 tape drive (one or more tapeless hosts):

• Use the MDM Hard Disk Kit.

• Complete the Diagnostic Software Installation Acknowledgment.

• Install the kit on a hard disk or an EF/RF-series ISE as described in the

MicroVAX Diagnostic Monitor Hard Disk User’s Guide.

After the installation is complete, use the following procedure to run MDM.

1.

If software is installed on your system: a.

Warn all users to log off.

b.

Perform system shutdown as described in your software manuals.

2.

Set the Break Enable/Disable switch on the host to be tested to enable (up).

3.

Insert a blank tape cartridge into the tape drive and lock it in place.

4.

Restart the host to be tested.

5.

Enter one of these commands, where u is the unit number of the disk containing the Hard Disk Kit and c is the controller port letter.

BOOT/100 DIAu (CPU-based DSSI)

BOOT/100 DUcu (KFQSA adapter or KDA50 controller)

The system prompts for the boot file name by displaying

Bootfile:

6.

Enter one of these file names.

[SYS0.SYSEXE]MDMSHA.SYS (CPU-based DSSI)

[SYS0.SYSEXE]MDM.SYS (KFQSA adapter or KDA50 controller)

Then press

Return to continue booting.

7.

Run MDM as described in Section 3.3.

8.

After you complete the tests on the first host: a.

Make sure the Break Enable/Disable switch is set to enable (up) and press the Restart button on that host.

b.

After the countdown completes and the

>>>

prompt displays, boot MDM from the second system using the procedure described in steps 2 through

6.

3–4 Running the MicroVAX Diagnostic Monitor (MDM)

c.

Run MDM as you did for the first system.

3.2.3.2 MDM on a DSSI VAXcluster with Two TK70 Tape Drives

To run MDM on a DSSI VAXcluster with two tape drives in each system:

Note

You can also use the MDM Hard Disk Kit as described in the previous section.

1.

If software is installed on your system: a.

Warn all users to log off.

b.

Perform system shutdown as described in your software manuals.

2.

Set the Break Enable/Disable switch on the host to be tested to enable (up).

3.

Make sure the Write Protect switch on the tape cartridge containing the

MDM diagnostic is in the Write Protect Position.

4.

Insert the tape cartridge containing MDM into the tape drive and lock it in place.

5.

Restart (turn on) both hosts.

6.

After the self-test countdown completes and the

>>>

prompt displays, enter the command BOOT MUcu, where c is the controller designator and u is the drive unit number, to boot the tape.

7.

Run MDM as described in Section 3.3.

8.

After you complete the tests on the first host: a.

Remove the tape cartridge, by following the procedure described in your

Operation manual, and press the Restart button on that host.

b.

After the self-test countdown completes and the

>>>

prompt displays, insert the tape cartridge into the tape drive in the second system and lock it in place.

c.

Enter the command BOOT MUcu, where c is the controller designator and u is the drive unit number, to boot the tape.

d.

Run MDM as you did for the first system.

Running the MicroVAX Diagnostic Monitor (MDM) 3–5

3.3 Starting MDM

You must start MDM differently for different media:

If you are booting MDM from a tape drive, read Section 3.3.1.

If you are booting MDM from an RRD-series disc drive, read Section 3.3.2.

If you are booting MDM from a hard disk or an EF/RF-series ISE, refer to the

MicroVAX Diagnostic Monitor Hard Disk User’s Guide.

Caution

Unless instructed to do so, do not change any settings or manipulate devices while the tests are running. MDM interprets any change of state as an error.

3.3.1 Tape Drive Instructions

Before you run MDM, be sure you understand the instructions in your Operation manual for using the tape drive.

MDM runs the same way whether or not system software is loaded.

• You can boot MDM manually from a TF-series, TK50 or TK70 tape drive

(Section 3.3.1.1).

• You can use the autoboot feature to boot MDM only from a TK50 or TK70 tape drive (Section 3.3.1.2).

Note

If your system is part of a local area network (LAN), you can reduce the time required to load MDM by obtaining the MicroVAX Ethernet

Server Customer Diagnostics Kit. That kit lets you install MDM on a host system and downline load MDM to other systems that are part of the

LAN, using the DECnet/Ethernet network facilities.

3–6 Running the MicroVAX Diagnostic Monitor (MDM)

3.3.1.1 Booting MDM Manually

Use this procedure to boot MDM from a TF-series, TK50 or TK70 tape drive.

1.

If software is installed on your system: a.

Warn all users to log off.

b.

Perform system shutdown as described in your software manuals.

2.

Make sure the write protect switch on the tape cartridge is in the writeprotect position.

3.

If your system contains software, write-protect all disk drives and RF-series

ISEs.

4.

Move the Break Enable/Disable switch to enable (up).

5.

Restart the system.

6.

After the green light on the tape drive glows steadily (orange and yellow lights go out), insert the tape cartridge containing MDM into the tape drive and lock it in place.

7.

Tell your system to load MDM from the tape cartridge:

For a TK50 or TK70 tape drive, enter the command BOOT MUcu, where c is the controller designator and u is the drive unit number.

For a TF-series tape drive, enter the command BOOT/100 MImc, where m is the DSSI bus adapter and c is the drive unit number. Then, when your system displays name).

Bootfile:

, enter [SYS0.SYSEXE]MDM.SYS (the boot file

Loading MDM takes several minutes. A green light on a TK50 drive or a yellow light on a TK70 or TF-series drive blinks while loading occurs.

Section 3.4 describes the display you see after loading completes.

8.

After loading completes, make sure all EF/RF-series ISEs are on line.

3.3.1.2 Booting MDM Automatically

Use this procedure to boot MDM from a TK50 or TK70 tape drive. Do not use this procedure for a TF-series tape drive.

1.

If software is installed on your system: a.

Warn all users to log off.

b.

Perform system shutdown as described in your software manuals.

2.

Enter the command SET BOOT MUcu.

Running the MicroVAX Diagnostic Monitor (MDM) 3–7

3.

Make sure the write protect switch on the tape cartridge is in the writeprotect position.

4.

Remove any removable disks, and place all fixed-disk drives and RF-series

ISEs off line.

5.

Write-protect all disk drives and EF/RF-series ISEs.

6.

Turn off your system.

7.

Set the Break Enable/Disable switch to disable (down).

8.

Turn on your system.

9.

After the green light on the tape drive glows steadily, insert the tape cartridge containing MDM into the drive and lock it in place.

Loading MDM takes several minutes. A green light on a TK50 drive or a yellow light on a TK70 drive blinks while loading occurs. Section 3.4

describes the display you see after loading completes.

10. After loading completes, make sure all EF/RF-series ISEs are on line.

3.3.2 RRD-Series Disc Instructions

If you are using an RRD-series disc drive connected to a KZQSA adapter or

KRQ50 controller, use the following procedure to boot MDM.

1.

If software is installed on your system: a.

Warn all users to log off.

b.

Perform system shutdown as described in your software manuals.

2.

Place all hard-disk drives and EF/RF-series ISEs off line.

3.

Turn off your system.

4.

Set the Break Enable/Disable switch to disable (down).

5.

Turn on your system (and the disc drive).

6.

Insert the disc caddy into the disc drive: a.

Remove the disc from its package.

b.

Insert the disc into the caddy (See MDM CDROM booklet.).

c.

Insert the caddy into the drive slot:

For an RRD40 drive, push the caddy in until it stops. Then withdraw the caddy. The disc remains in the drive.

For another RRD-series drive, the caddy stays in the drive. Do not remove it.

3–8 Running the MicroVAX Diagnostic Monitor (MDM)

7.

Tell your system to load MDM from the disc:

For a KZQSA adapter, enter the command BOOT DKxnnn, where x is the adapter designator and nnn is the drive unit number.

For a KRQ50 controller, enter the command BOOT/100 DUcu, where c is the controller designator and u is the drive unit number. Then, when your system displays boot file name).

Bootfile:

, enter [SYS0.SYSEXE]MDMCD.SYS (the

Loading MDM takes several minutes. Section 3.4 describes the display you see after loading completes.

8.

After loading completes, place all hard disks and EF/RF-series ISEs on line.

3.4 MDM Introductory Display

After MDM is loaded, the introductory display appears. Make sure the date and time in that display are correct.

• If the date and time are correct, press

Return to continue.

• If the date and time are not correct, type the correct date and time using the format shown in the display. For example, enter 10–JUN–1991 02:30 and press

Return to continue.

The Main Menu appears. Section 3.5 describes the options on that menu.

3.5 Main Menu Options

The Main Menu provides six options as shown below.

MAIN MENU

1 - Test the System

Release nnn

2 - Display System Configuration and Devices

3 - Display the System Utilities Menu

Version xx.xx

4 - Display the Service Menu

5 - Display the Connect/Ignore Menu

6 - Select Single Device Tests

Type the number; then press the RETURN key.

Note

The MDM release and version numbers are represented by nnn and xx.xx

respectively in the displays provided throughout this chapter.

Running the MicroVAX Diagnostic Monitor (MDM) 3–9

Select an option by typing its number and

Return

.

The next six sections describe the options on the Main Menu.

3.5.1 Test the System Option

The Test the System option tests the devices it sees in your system and how they work together. You can select this option at any time without jeopardizing data.

After you select this option, the diagnostics are prepared for testing. If this is the first option you selected, the diagnostics are loaded. Loading takes several minutes. After loading completes, you are prompted to press

Return

.

After you press

Return

, an explanation of the testing procedures appears.

When you are ready to begin the test, press

Return

. Your system displays

Device Tests

.

Begin

As each device passes the test, it is listed on your terminal screen.

Note

Because of the similarity of some communication options, MDM sees them as the same device. A CXA16 and CXB16 appear the same to

MDM. A generic device name, DH–CX0, is listed for such options, and the last letter in each name shows the difference. For example, DH–CX0A indicates one option, DH–CX0B a second, and so forth.

If a device fails the test, you receive a failure message which identifies:

The device tested

When the failure occurred

The field-replaceable unit (FRU)

Copy the failure message and report it to your Digital Services representative.

This shows an example of an unsuccessful test.

BEGIN FUNCTIONAL TEST

Device Result

SGCA .................

FAILURE DETECTED

A failure was detected while testing the

OPTION: SGCA Ethernet controller

The Field Replaceable Unit (FRU) identified is the:

3–10 Running the MicroVAX Diagnostic Monitor (MDM)

Ethernet controller

If your system has serious problems, the following message appears.

All devices disabled, no tests run.

Report that message to your Digital Services representative.

After a failure message appears, the testing stops.

After all devices pass the first part of the test, the exerciser tests begin. Those tests take about 4 minutes and test how the devices work together. If the devices pass, you receive a success message.

At the end of the tests, press

Return to return to the Main Menu.

From the Main Menu you can exit MDM as described in Section 3.6 or you can select one of the other options.

3.5.2 Display System Configuration and Devices Option

The Display System Configuration and Devices option identifies devices recognized by MDM.

After you select this option, the diagnostics are prepared for testing. If this is the first option you selected, the diagnostics are loaded. Loading takes several minutes. After loading completes, you are prompted to press

Return

.

After you press

Return

, the configuration is displayed:

MAIN MENU

SYSTEM CONFIGURATION AND DEVICES

Release nnn Version

CPUA ... VAX 4000 CPU

KA6nn MC=01 FW=3.9

MEMA ...

VAX 4000 memory system

64 Megabytes. 131072 Pages.

MS690 ... 32MB memory module

MS690 ... 32MB memory module

PDIA ... SHAC DSSI Subsystem

SHAC Ver. 3.6

RF73 ...

Unit #0, Dssi Disk, Online

TF85/TF86 ...

Unit #1, Dssi Tape, Online

RF73 ...

Unit #11, Dssi Disk, Online

SGCA ... Second Generation Ethernet Controller

SGEC V4 08-00-2B-19-60-66

PDIB ... SHAC DSSI Subsystem

SHAC Ver. 3.6

Press the RETURN key to return to the previous menu. > xx.xx

Running the MicroVAX Diagnostic Monitor (MDM) 3–11

Up to two lines of information are provided for each device:

One line lists the name of the device and gives a brief description.

A second line may indicate the revision level of the device.

The revision level can refer to hardware or microcode. For example, the KA6nn

CPU described above is at revision 3.9 for microcode (MC=01).

Besides the general information listed for each device, more information for specific devices may be given. Some examples:

• CPUA — Type of CPU, presence of a floating-point unit

• MEMA — Total amount of memory in megabytes and pages, number and type of memory modules

• KFQSA — Type of DSSI device and its unit number for each ISE

• KDA50 — Unit number, drive type, controller revision number

• PDIA — DSSI adapter, for Bus 0 embedded in KA6nn CPU

• DESQA — Ethernet station address

• SGCA — On-board Ethernet controller, embedded in KA6nn CPU

• PDIB — DSSI adapter for Bus 1, embedded in KA6nn CPU

• Communication devices — Type of device and whether it has modem control

In addition to showing information about testable device options, MDM displays messages indicating the presence of nontestable system devices. If a device is in your system but is not listed in the System Configuration and Devices display, one of the following two messages can indicate the reason.

No Dg xxx ... Diagnostic not loaded

MDM displays a

No Dg

(no diagnostic) message for each nontestable Digital device in your system, where xxx indicates the device. For example, if

MDM cannot find the TK70 tape drive diagnostic, the message

No Dg TKA

is displayed. TKA indicates that the device is a TK tape drive. Such a message can appear when:

The medium is not installed properly.

The diagnostic is not on the medium.

Unknown ... Diagnostic not loaded

The

Unknown

(unknown device) message indicates that a device not recognized by MDM is attached to your system. That message appears when:

A device is configured to a nonstandard CSR address.

3–12 Running the MicroVAX Diagnostic Monitor (MDM)

A Digital device that has no diagnostic is attached to your system. That can occur if a device not supported on your system is attached.

A non-Digital device is attached to your system.

After all devices are listed, you can return to the Main Menu by pressing

Return

.

From the Main Menu you can exit MDM as described in Section 3.6 or you can select one of the other options.

3.5.3 Display the System Utilities Menu Option

The Display the System Utilities Menu option displays the System Utilities

Menu. If system utilities in addition to the IOADDRES function are available on your system, they are listed on that menu.

After you select this option, the diagnostics are prepared for testing. If this is the first option you selected, the diagnostics are loaded. Loading takes several minutes. After loading completes, you are prompted to press

Return

.

After you press

Return

, the System Utilities Menu appears:

MAIN MENU

SYSTEM UTILITIES

Utility selections are:

1 - IOADDRES

2 - RRAA - Update drive unit number for RRD40 controller A.

3 - RRAB - Update drive unit number for RRD40 controller B.

Note

If your system does not have an RRD-series drive connected to a KRQ50 controller, only one function, IOADDRES, is available.

Select a function by typing its number and

Return

.

3.5.3.1 IOADDRES Function

Note

The IOADDRES function is for users of Industrial VAX systems. It is described in the Industrial VAX troubleshooting manual.

Running the MicroVAX Diagnostic Monitor (MDM) 3–13

The IOADDRES function gives you a list of standard CSR addresses and interrupt vectors that MDM uses in testing devices. The first available CSR and interrupt vector for configuring devices with a nonstandard address is also given. IOADDRES does not look at devices on the bus; it lists devices supported by Digital Customer Services.

The devices in your system were configured at the factory. Any new devices added to your system should be configured by a Digital Services representative.

3.5.3.2 Update Drive Unit Number for RRD-Series Function

The Update Drive Unit Number function lets you update the unit number for an

RRD-series disc drive connected to a KRQ50 controller. Refer to the appropriate

RRD-series disc drive owner’s manual for instructions.

3.5.4 Display the Service Menu Option

The Display the Service Menu option is available only if you purchased the

MicroVAX Maintenance Kit. That kit contains service diagnostics and the system maintenance guide.

Caution

Only qualified service personnel should use the MicroVAX Maintenance

Kit.

3.5.5 Display the Connect/Ignore Menu Option

Note

The Connect/Ignore Menu is for users of Industrial VAX systems. Its options are described in the Industrial VAX troubleshooting manual.

The Display the Connect/Ignore Menu option lets you customize MDM diagnostics. You can load your own diagnostics on a device, as well as load

MDM diagnostics on a device with a nonstandard CSR address and interrupt vector.

See the Industrial VAX Troubleshooting manual; use this option with caution.

3–14 Running the MicroVAX Diagnostic Monitor (MDM)

3.5.6 Select Single Device Tests Option

The Select Single Device Tests option lets you run tests for a single device.

• A functional test is performed on the device circuits.

• An exerciser test ensures that the device works properly.

After you select this option, the diagnostics are prepared for testing. If this is the first option you selected, the diagnostics are loaded. Loading takes several minutes. After loading completes, you are prompted to press

Return

.

After you press

Return

, a list of the devices in your system is displayed:

MAIN MENU

SELECT SINGLE DEVICE TEST

Release nnn Version xx.xx

Select the device number to be tested.

The functional tests will be run followed by the exercisers for 4 minutes.

1 - CPUA - VAX 4000 CPU

2 - MEMA - VAX 4000 memory system

3 - PDIA - SHAC DSSI Subsystem

4 - SGCA - Second Generation Ethernet Controller

5 - PDIB - SHAC DSSI subsystem

Type the number; then press the RETURN key, or type 0 and press the RETURN key to return to the Main Menu. >

Note

Because of the similarity of some communication options, MDM sees them as the same device. A CXA16 and CXB16 appear the same to

MDM. A generic device name, DH–CX0, is listed for such options, and the last letter in each name shows the difference. For example, DH–CX0A indicates one option, DH–CX0B a second, and so forth.

Select a device for testing by typing its number and

Return

.

After you press

Return

, your system configures the device diagnostics and testing begins. If the device passes the functional test, a message to that effect appears and the exerciser test begins. The exerciser test runs for approximately 4 minutes.

Running the MicroVAX Diagnostic Monitor (MDM) 3–15

This shows an example of a successful test.

BEGIN FUNCTIONAL TEST

Device Result

CPUA ...................

PASSED

BEGIN EXERCISER TEST

Results are reported at the end of the testing.

SINGLE DEVICE TEST PASSED

If a device fails the test, you receive a failure message which identifies:

The device tested

When the failure occurred

The field-replaceable unit (FRU)

Copy the failure message and report it to your Digital Services representative.

This shows an example of an unsuccessful test.

BEGIN FUNCTIONAL TEST

Device Result

SGCA .................

FAILURE DETECTED

A failure was detected while testing the

OPTION: SGCA Ethernet controller

The Field Replaceable Unit (FRU) identified is the:

Ethernet controller

After a failure message appears, the testing stops.

Press

Return to return to the Select Single Device Test menu for more testing.

To exit MDM, press

Break or the Restart button.

3.6 Exiting MDM

Exit MDM in one of the following ways.

• Press

Break

.

• Press and then release the Halt button.

• Press the Restart button.

Remove the tape cartridge as described in your Operation manual.

3–16 Running the MicroVAX Diagnostic Monitor (MDM)

If you ran MDM on a new system, you are ready to install your software. Set the write protect button to write-enable and then follow the instructions in your software manuals.

If you ran MDM on a system containing software, you must reboot that software.

You can reboot your system software in one of two ways:

• At the console mode prompt (

>>>

), use the command BOOT Dxxx, where

Dxxx is the device name of the fixed disk or EF/RF-series ISE containing your system software.

Use DUxx for an RA-series disk drive, or an EF/RF-series ISE with a

KFQSA adapter.

Use DIxx for an EF/RF-series ISE with a CPU-based DSSI.

After your system software is loaded, set the Break Enable/Disable switch to disable (down) to avoid halting the system by pressing

Break

.

• Set the Break Enable/Disable switch to disable (down) and press the Restart button. That begins the self-test sequence and loads system software.

Running the MicroVAX Diagnostic Monitor (MDM) 3–17

A

System Controls and Indicators

The illustrations in this appendix show the controls and indicators on your system:

Figure A–1: System Control Panel and Power Supply

Figure A–2: Integrated Storage Element and Console Module

Figure A–3: TK70 and TK50 Tape Drives

Figure A–4: TF-Series and TLZ04 Tape Drives

System Controls and Indicators A–1

Figure A–1 System Control Panel and Power Supply

System Control

Panel

Over Temperature

Warning Indicator

DC OK Indicator

Halt Button

Restart Button

Power Supply

Power Switch

AC Present Indicator

DC OK Indicator

Fan Failure

Indicator

Over Temperature

Condition Indicator

Power Bus

Connectors

Power Cable

Connector

MLO-004050

A–2 System Controls and Indicators

Figure A–2 EF/RF-Series ISE and Console Module

Integrated Storage Element

RF3x/7x RF3x2

Bus Node

ID Plugs

Bus Node

ID Plug

Fault

Indicator

Write-Protect

Button

Run/Ready

Button

Fault

Indicator

Run/Ready

Indicator

Console Module

Power-Up

Mode Switch

Baud Rate

Select Switch

LED Display

Baud

300___________0

600___________1

1200__________2

2400__________3

4800__________4

9600__________5

19200_________6

38400_________7

Bus 0

Y

DSSI

Connectors

X

Bus 1

Modified

Modular Jack

Break Enable/

Disable Switch

Bus Node ID Plugs

Ethernet Connector

Switch

Standard Ethernet

Connector

ThinWire Ethernet

Connector

MLO-010219

System Controls and Indicators A–3

Figure A–3 TK70 and TK50 Tape Drives

TK70 TAPE DRIVE

Orange Light

Yellow Light

Green Light

Unload Button

Handle

TK50 TAPE DRIVE

Load/Unload

Button,

Red Light

Handle Closed

Green

Indicator

Light

MLO-005341

A–4 System Controls and Indicators

Figure A–4 TF-Series Tape Drive

TF85 TAPE DRIVE

Orange Light

Yellow Light

Orange Light

Green Light

Bus Node

ID Plug

Use Cleaning

Handle

TF85

Unload

To Load

Light

Wait

Open this

Handle

Insert Tape

Close this

Handle

To Unload

Wait

Open this

Handle

Remove Tape

Cartridge Insert/

Release Handle

MLO-010214

System Controls and Indicators A–5

B

Write-Protecting an EF/RF-Series ISE

You may want to write-protect an ISE containing sensitive data you do not want changed or accidentally erased.

For all 3.5-inch drives, you write-protect an ISE by setting the Write-Protect button to in (lit). For the EF/RF ISE, which has no Write-Protect button, you set write-protection through VMS commands or through firmware commands in console mode, explained later in this section.

The Write-Protect button controls whether the system can write data to the ISE.

The system can read from the ISE regardless of the setting of the Write-Protect button. When the Write-Protect button is out (not lit), the system can write to the ISE.

Your system disk (the ISE containing system software) and ISEs containing work areas for users should be write-enabled, the normal operating setting.

B.1 Software Write-Protect for EF/RF-Series ISEs

Since the EF/RF does not have a Write-Protect button, the software write-protect is the primary method for write-protecting an EF/RF.

The software write-protect is available through VMS using the MOUNT utility with the /NOWRITE qualifier.

To software write-protect an ISE, enter the following DCL command from the

VMS operating system.

MOUNT <device_name> <volume_label>/SYSTEM/NOWRITE

where <device_name> is the device name, as shown using the VMS DCL command SHOW DEVICE DI, and <volume_label> is the volume label for the device. For example,

$ MOUNT $1$DIA1 OMEGA/SYSTEM/NOWRITE

will software write-protect device $1$DIA1.

Write-Protecting an EF/RF-Series ISE B–1

Dismounting, and then remounting the device (without using the /NOWRITE qualifier), will write-enable the device.

Use the VMS DCL command SHOW DEVICE DI to check the protection status of the drive. A write-protected drive will show a device status of

Mounted wrtlck

.

Refer to your VMS documentation for more information on using the MOUNT

Utility.

Caution

When you dismount then mount the device again, it will no longer be write-protected.

B.2 Hardware Write-Protect for EF/RF ISEs

The hardware write-protect provides a more permanent write-protection than the software write-protect in that once you hardware write-protect an EF/RF it remains write-protected regardless of the availability of the operating system or if the system is powered-down. In addition, a hardware write-protect cannot be removed using the MOUNT command. The hardware write-protect simply provides the same degree of write-protection available to EF/RF-series ISEs that have a Write-Protect button.

You should consider hardware write-protecting an EF/RF in the following situations.

• If you want to write-protect an EF/RF ISE when the VMS operating system is not available, such as before running the MicroVAX Diagnostic Monitor

(MDM).

• If you want to ensure that an EF/RF remains write-protected, since the hardware write-protect cannot be removed using the VMS command MOUNT and will remain in effect even if the operating system is brought down.

You can hardware write-protect an EF/RF from VMS or through firmware commands entered at the console prompt (>>>). Use the following instructions.

1.

Access the Diagnostic and Utility Program (DUP) driver for the device you want to write-protect.

• To access the DUP driver from console mode: a.

Enter console mode by pressing the Halt Button or powering up the system with the Break Enable/Disable switch set to enable (up, position 1).

B–2 Write-Protecting an EF/RF-Series ISE

Caution

Halting your system without following the shutdown procedure described in your system software manuals may result in loss of data.

b.

Access the DUP driver by setting host to the specific device you want to write protect.

Use the following command for embedded DSSI.

SET HOST/DUP/DSSI/BUS:<bus_number> <node_number> PARAMS

where <bus_number> is the DSSI bus number (0,1,2,3), and <node_ number> is the bus node ID (0–6) for the device on the bus (bus number and node number are listed in the SHOW DSSI display).

Use the following command for KFQSA-based DSSI.

SET HOST/DUP/UQSSP/DISK <controller_number> PARAMS

where <controller_number> is the controller number (listed in the

SHOW UQSSP display) for the device on the bus.

• To access the DUP driver from VMS: a.

Connect to the Diagnostic and Utility Program (DUP) and load its driver using the VMS System Generation Utility (SYSGEN) as shown below.

$ MCR SYSGEN

SYSGEN> CONNECT/NOADAPTER FYA0

SYSGEN> EXIT

$ b.

Access the DUP driver by setting host to the specific device you want to write protect. Use the following command.

SET HOST/DUP/SERVER=MSCP$DUP/TASK=PARAMS <node_name>

where <node_name> is the device node name (the node name, in parenthesis, is listed in the SHOW DEVICE DI display).

2.

At the

PARAMS>

prompt, enter

SET WRT_PROT 1

which you are currently connected.

to write-protect the ISE to

Note

To verify that you have set host to the intended drive, you can enter the command LOCATE at the PARAMS> prompt. The LOCATE command causes the drive’s Fault indicator to blink momentarily.

Write-Protecting an EF/RF-Series ISE B–3

3.

Enter

SHOW WRT_PROT

to verify the WRT_PROT parameter is set to 1.

4.

After you have completed setting and examining the WRT_PROT device parameter, enter the WRITE command at the

PARAMS>

prompt to save the device parameter. The change is recorded to nonvolatile memory.

5.

Enter the EXIT command at the utility for the specified device.

PARAMS>

prompt to exit the DUP driver

This is an example of setting a hardware write-protect through firmware.

>>>SET HOST/DUP/DSSI/BUS:0 1 PARAMS

Starting DUP server...

Copyright (c) 1992 Digital Equipment Corporation

PARAMS>SET WRT_PROT 1

PARAMS>WRITE

PARAMS>SHOW WRT_PROT

Parameter Current Default Type Radix

--------- ------------------------------------------

WRT_PROT

PARAMS>EXIT

1 0 Boolean 0/1

Exiting...

Stopping DUP server...

>>>

This is an example of setting a hardware write-protect through VMS.

$ MCR SYSGEN

SYSGEN> CONNECT/NOADAPTER FYA0

SYSGEN> EXIT

$ SET HOST/DUP/SERVER=MSCP$DUP/TASK=PARAMS R35F3C

Starting DUP server...

Copyright (c) 1992 Digital Equipment Corporation

PARAMS>SET WRT_PROT 1

PARAMS>WRITE

PARAMS>SHOW WRT_PROT

Parameter Current Default Type Radix

--------- ------------------------------------------

WRT_PROT

PARAMS>EXIT

1 0 Boolean 0/1

Exiting...

Stopping DUP server...

$

To remove the hardware write-protection, repeat the above procedure, only set the WRT_PROT value to 0.

B–4 Write-Protecting an EF/RF-Series ISE

You can verify that the device is write-protected while running VMS—when you issue the VMS DCL command SHOW DEVICE DI, a write-protected drive will show a device status of

Mounted wrtlck

. If you issue the VMS command SHOW

DEVICE/FULL, a write-protected drive will be listed as

software write-locked

.

Note

You cannot remove hardware write-protection using the VMS MOUNT utility.

Write-Protecting an EF/RF-Series ISE B–5

Index

A

Autobooting system software, 1–1

B

Boot sequence power-up problems, 1–4

Booting integrated storage element, power-up problems, 1–5 tape drive, power-up problems, 1–6

Booting MicroVAX Diagnostic Monitor

See MicroVAX Diagnostic Monitor, starting

C

Caddy, disc

See RRD-series disc

CDROM

See RRD-series disc

CDROM Kit, MicroVAX Diagnostic

Monitor, 3–2

Compact disc

See RRD-series disc

Connect/Ignore option, MicroVAX

Diagnostic Monitor Main Menu, 3–14

Controls and indicators, system, A–1

D

Diagnostic monitor

See MicroVAX Diagnostic Monitor

Disc caddy

See RRD-series disc

Disc, compact

See RRD-series disc

Diskless or tapeless system

See System, diskless or tapeless

Display System Configuration and Devices option, MicroVAX Diagnostic Monitor

Main Menu, 3–11

Display the Connect/Ignore Menu option,

MicroVAX Diagnostic Monitor Main

Menu, 3–14

Display the Service Menu option,

MicroVAX Diagnostic Monitor Main

Menu, 3–14

Display the System Utilities Menu option,

MicroVAX Diagnostic Monitor Main

Menu, 3–13

DSSI VAXcluster system, preparing to run

MicroVAX Diagnostic Monitor, 3–3

DSSI VAXcluster, preparing to run

MicroVAX Diagnostic Monitor one TK70 tape drive, 3–4 two tape drives, 3–5

Index–1

E

Error messages

All devices disabled, 3–11

No Dg, 3–12

Unknown, 3–12

Exiting MicroVAX Diagnostic Monitor,

3–16

H

Hard Disk Kit, MicroVAX Diagnostic

Monitor, 3–3

Hard disk, preparing to run MicroVAX

Diagnostic Monitor, 3–3

I

Indicators, system, A–1

Integrated storage element operation problems, 2–4 power-up booting problems, 1–5

Introductory display, MicroVAX Diagnostic

Monitor, 3–9

IOADDRES function, MicroVAX

Diagnostic Monitor System Utilities

Menu, 3–13

ISE

See Integrated storage element

K

KZQSA adapter, booting MicroVAX

Diagnostic Monitor, 3–8

L

Leaving MicroVAX Diagnostic Monitor,

3–16

Limitations, MicroVAX Diagnostic

Monitor, 3–1

M

Main Menu options, MicroVAX Diagnostic

Monitor, 3–9

MDM

See MicroVAX Diagnostic Monitor

Messages

See Error messages

MicroVAX Diagnostic Monitor booting disc drive, 3–8

KZQSA adapter, 3–8

RRD-series disc drive, 3–8

CDROM Kit, 3–2 disc caddy, preparing, 3–8

Display System Configuration and

Devices option, Main Menu, 3–11

Display the Connect/Ignore Menu option, Main Menu, 3–14

Display the Service Menu option, Main

Menu, 3–14

Display the System Utilities Menu option, Main Menu, 3–13 exiting, 3–16

Hard Disk Kit, 3–3 introductory display, 3–9

IOADDRES function, System Utilities

Menu, 3–13 leaving, 3–16 limitations, 3–1

Main Menu options, 3–9 medium, 3–1 preparing RRD-series disc caddy, 3–8 preparing to run, 3–2 preparing to run, diskless or tapeless system, 3–2 preparing to run, DSSI VAXcluster,

3–3 preparing to run, DSSI VAXcluster, one

TK70 tape drive, 3–4 preparing to run, DSSI VAXcluster, two tape drives, 3–5

Index–2

MicroVAX Diagnostic Monitor (cont’d) preparing to run, EF/RF-series integrated storage element or hard disk, 3–3 preparing to run, hard disk, 3–3 preparing to run, RRD-series disc, 3–2 preparing to run, tapeless system, 3–2

RRD-series disc caddy, preparing, 3–8 running, 3–1

Select Single Device Tests option, Main

Menu, 3–15 starting, 3–6 starting, booting TK50/TK70 tape, 3–6 starting, booting TK70 tape automatically, 3–7 starting, booting TK70 tape manually,

3–7 starting, RRD-series disc, 3–8

Test the System option, Main Menu,

3–10

Update Drive Unit Number for RRD40 function, System Utilities Menu,

3–14 when to run, 3–1

MicroVAX Ethernet Server Customer

Diagnostics Kit, 3–2

Monitor

See MicroVAX Diagnostic Monitor

N

Normal operation problems

See Operation problems

Normal operation, troubleshooting, 2–1

O

Operation problems integrated storage element, 2–4 system, 2–1

TF-series tape drive, 2–6

TK50 tape drive, 2–7

TK70 tape drive, 2–8

TLZ07 cassette tape drive, 2–9

Operation problems (cont’d)

TZ86 tabletop cartridge tape subsystem, 2–10

TZ87 tabletop cartridge tape subsystem, 2–12

P

Power-up problems, 1–1 boot sequence, 1–4 booting integrated storage element,

1–5 booting tape drive, 1–6 integrated storage element, booting,

1–5 self-test, 1–2 tape drive booting, 1–6 troubleshooting, 1–2

Preparing disc caddy, RRD-series disc,

3–8

Preparing to run MicroVAX Diagnostic

Monitor

See MicroVAX Diagnostic Monitor, preparing to run

Problems

See Operation problems or Power-up problems

R

Rebooting system after running MicroVAX

Diagnostic Monitor, 3–17

RF-series integrated storage element

See Integrated storage element preparing to run MicroVAX Diagnostic

Monitor, 3–3

ROM

See RRD-series disc

RRD-series disc booting MicroVAX Diagnostic Monitor from KZQSA adapter, 3–8 preparing disc caddy, 3–8 preparing to run MicroVAX Diagnostic

Monitor, 3–2

Index–3

RRD-series disc (cont’d) starting MicroVAX Diagnostic Monitor,

3–8

RRD43 compact disc drive, 2–5 eject button fault, 2–5 troubleshooting, 2–5

RRD43 compact disc drive troubleshooting, 2–5

Running MicroVAX Diagnostic Monitor,

3–1

S

Select Single Device Tests option,

MicroVAX Diagnostic Monitor Main

Menu, 3–15

Self-test power up, 1–1 power-up problems, 1–2

Software

See System, software

Starting MicroVAX Diagnostic Monitor

See MicroVAX Diagnostic Monitor, starting

Storage element

See Integrated storage element

System controls and indicators, A–1 diskless or tapeless, preparing to run

MicroVAX Diagnostic Monitor, 3–2

DSSI VAXcluster, preparing to run

MicroVAX Diagnostic Monitor, 3–3

DSSI VAXcluster, preparing to run

MicroVAX Diagnostic Monitor, one

TK70 tape drive, 3–4

DSSI VAXcluster, preparing to run

MicroVAX Diagnostic Monitor, two tape drives, 3–5 indicators, A–1 operation problems, 2–1 software, autobooting, 1–1 tapeless, preparing to run MicroVAX

Diagnostic Monitor, 3–2

T

Tape drive cassette operation problems, 2–9 power-up problems, booting, 1–6

TF-series operation problems, 2–6

TK50 operation problems, 2–7

TK70 operation problems, 2–8

Tape subsystem operation problems, 2–10, 2–12

Tapeless system

See System, tapeless

Test the System option, MicroVAX

Diagnostic Monitor Main Menu, 3–10

TF-series tape drive operation problems,

2–6

TK50 tape drive operation problems, 2–7

TK50/TK70 tape, starting MicroVAX

Diagnostic Monitor, 3–6

TK70 tape drive operation problems, 2–8

TLZ07 cassette tape drive operation problems, 2–9

Troubleshooting

MicroVAX Diagnostic Monitor, 3–1 normal operation, 2–1 power up, 1–1 power-up problems, 1–2

RRD43, 2–5

TZ86 tabletop cartridge tape subsystem operation problems, 2–10

TZ87 tabletop cartridge tape subsystem operation problems, 2–12

U

Update Drive Unit Number for RRD40 function, MicroVAX Diagnostic

Monitor System Utilities Menu, 3–14

Utilities menu

See MicroVAX Diagnostic Monitor,

Display the System Utilities Menu option

Index–4

W

Write-enabling a storage element, B–1 an EF/RF storage element, B–1 to B–5 an RF35 storage element, B–1 to B–5

Write-protecting a storage element, B–1 an EF/RF storage element, B–1 to B–5 an RF35 storage element, B–1 to B–5

Index–5

Reader’s Comments

VAX 4000

Model 500A/505A/600A/700A/705A

Troubleshooting and Diagnostics

EK–495AB–TS. B01

Your comments and suggestions help us improve the quality of our publications.

Thank you for your assistance.

Fair

I rate this manual’s:

Accuracy (product works as manual says)

Completeness (enough information)

Clarity (easy to understand)

Organization (structure of subject matter)

Figures (useful)

Examples (useful)

Index (ability to find topic)

Page layout (easy to find information)

Excellent Good

I would like to see more/less

Poor

What I like best about this manual is

What I like least about this manual is

I found the following errors in this manual:

Page Description

Additional comments or suggestions to improve this manual:

For software manuals, please indicate which version of the software you are using:

Name/Title

Company

Mailing Address

Dept.

Phone

Date

Do Not Tear – Fold Here and Tape

d TM

BUSINESS REPLY MAIL

FIRST CLASS PERMIT NO. 33 MAYNARD MASS.

POSTAGE WILL BE PAID BY ADDRESSEE

DIGITAL EQUIPMENT CORPORATION

Information Design and Consulting

MRO1–3/K10

200 FOREST STREET

MARLBORO, MA 01752-3011

Do Not Tear – Fold Here

No Postage

Necessary

If Mailed in the

United States

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
