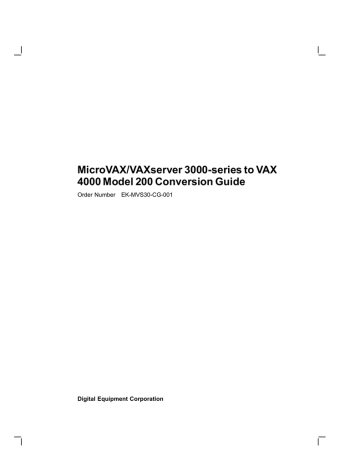

MicroVAX/VAXserver 3000-series to VAX 4000 Model 200 Conversion Guide Order Number EK-MVS30-CG-001

MicroVAX/VAXserver 3000-series to VAX 4000 Model 200 Conversion Guide Order Number EK-MVS30-CG-001

MicroVAX/VAXserver 3000-series to VAX

4000 Model 200 Conversion Guide

Order Number EK-MVS30-CG-001

Digital Equipment Corporation

February 1991

The information in this document is subject to change without notice and should not be construed as a commitment by Digital Equipment Corporation. Digital Equipment

Corporation assumes no responsibility for any errors that may appear in this document.

The software described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license.

No responsibility is assumed for the use or reliability of software on equipment that is not supplied by Digital Equipment Corporation or its affiliated companies.

Restricted Rights: Use, duplication, or disclosure by the U. S. Government is subject to restrictions as set forth in subparagraph ( c ) ( 1 ) ( ii ) of the Rights in Technical Data and

Computer Software clause at DFARS 252.227–7013.

Copyright © Digital Equipment Corporation 1991

All Rights Reserved.

Printed in U.S.A.

The following are trademarks of Digital Equipment Corporation: DECnet, MicroVAX, VAX,

VAXcluster, VAXserver, VMS, and the DIGITAL logo.

This document was prepared and published by Educational Services Development and

Publishing, Digital Equipment Corporation.

Contents

About This Guide

v

1 VAXserver/MicroVAX 3300/3400 Conversion

1.1

Summary of Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–1

1.2

Unpacking the Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–2

1.3

Before Installing the Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–5

1.4

Installing the Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–6

A Module Return Procedure and Forms

A.1

Return Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A–1

A.2

Digital Forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A–2

A.3

Customer Administrative Services (CAS) District Offices . . . A–11

Figures

1–1 Removing Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–6

1–2 Removing Console Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–7

1–3 Removing CPU I/O Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–8

1–4 Attaching CPU Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–9

1–5 Conversion and Serial Label Location . . . . . . . . . . . . . . . . . . 1–10

1–6 Label Locations on System Without Panels . . . . . . . . . . . . . .

1–11

1–7 Medallion Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12 iii

iv Contents

Tables

1 Conversion Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

v

1–1 Conversion Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–2

1–2 VMS Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–5

About This Guide

This guide describes how to convert from a VAXserver 3300/3400 system to a VAXserver 4000-200 system and from a MicroVAX 3300/3400 system to a VAX4000-200 system. This guide also contains forms to be returned with the old system module.

Intended Audience

This document is intended for Digital Customer Services personnel and licensed self-maintenance customers.

Conversion Kits

Table 1 lists the system (before conversion), conversion kit number, and the upgrade (after conversion).

Table 1 Conversion Kits

System

MicroVAX 3300/3400

VAXserver 3300/3400

Conversion

Kit Number

660SU–AA

–AB

–AC

–AD

660SU–BA

–BB

–BC

–BD

Upgrade

VAX 4000-200

VAXserver 4000-200 v

vi About This Guide

Customer Responsibilities

Customers should not install this conversion kit unless they are qualified self-maintenance customers. Only qualified maintenance personnel should perform the installation procedure. If you are not a qualified self-maintenance customer, call Digital Customer Services to schedule a system conversion.

It is the customer’s responsibility to perform a software backup before a

Digital Customer Services representative arrives at your site.

When the conversion is complete, return the old CPU module to Digital.

Appendix A contains forms that need to be completed by the Customer

Services representative. The customer and Digital Customer Services representative must sign the forms.

Digital Customer Services Responsibilities

The Customer Service Representative should contact the customer to ensure that the customer’s software is backed up before arriving at the site.

After installation of the conversion kit, the Customer Services representative must complete the following forms and remove them from this document by tearing them along the perforated line. The forms must be signed by the customer and the Customer Services representative. The following forms are in Appendix A.

• Customer Services Worksheet

• Installation Receipt–Customer Copy

• Installation Receipt–Customer Services Copy

• Return Material Checklist

The Customer Services representative should give the customer the signed Installation Receipt–Customer Copy. The representative should include the signed Installation Receipt–Customer Services Copy with the

CPU module that is being returned to Digital to ensure the customer receives credit.

About This Guide vii

Organization

This document contains one chapter and one appendix:

Chapter

1

Appendix A

Description

Describes how to install the conversion kit on a VAXserver 3300

/3400 or MicroVAX 3300/3400 system.

Contains forms for the return of the customer module and a list of the Customer Administrative Services (CAS) district offices.

Conventions

The following conventions are used in this guide:

Convention

CAUTION

NOTE

Meaning

Provides information to prevent damage to equipment or software.

Provides general information about the current topic.

Related Document

The following document is a related document:

Documentation

KA660 CPU System Maintenance

Order Number

EK-498AA-MG

1

VAXserver/MicroVAX 3300/3400

Conversion

This chapter describes how to convert from a VAXserver 3300/3400 system to a VAXserver 4000-200 system, and from a MicroVAX 3300/3400 system to a VAX4000-200 system.

CAUTION

Memory module MS650-AA will not function with a KA660-XX

CPU module. When a KA640 CPU is removed and the system is converted to a KA660–XX system:

• Install an MS650-BA (16-Mbyte) memory or MS650-BB memory.

1.1 Summary of Conversion

The tasks required to convert from a VAXserver 3300/3400 system to a

VAXserver 4000-200 system and from a MicroVAX 3300/3400 system to a

VAX 4000-200 system, are summarized below.

To begin the conversion, go to Section 1.2.

1.

Have the customer back up the system software.

2.

Run the diagnostics to verify system operation.

3.

Unpack and inventory the conversion kit.

4.

Remove the front panel.

5.

Remove the CPU I/O cover cables.

6.

Remove the CPU I/O cover.

7.

Disconnect the CPU module cables.

8.

Remove the old CPU module.

9.

Install the new KA660–AA/BA (M7626) CPU module.

1–1

1–2 VAXserver/MicroVAX 3300/3400 Conversion

10. If necessary, upgrade the old memory module/s to MS650-BA/BB.

11. Connect all cables.

12. Reinstall the CPU I/O panel.

13. Install the new medallion and labels.

14. Replace the front panel.

15. Run the diagnostics to verify system operation.

16. Have the customer verify that the system boots and operates correctly.

17. Complete the forms in Appendix A.

1.2 Unpacking the Kit

1.

Make sure there is no external damage on the shipping container, such as dents, holes, or crushed corners.

2.

Unpack the conversion kit and check its contents against the shipping invoice.

CAUTION

Modules can be damaged by static discharge if an antistatic wrist strap and antistatic mat are not used during handling.

The wrist strap and mat are in the antistatic kit in the

Customer Services toolkit.

Table 1–1 lists the kit contents.

Table 1–1 Conversion Kit Contents

Description Kit Variations

3

AA AB AC AD BA BB BC BD

– – – – X X X X Server CPU module

(P/N: M7626-BA)

Server CPU module label

(P/N: 36-26883-A7)

VAX CPU module

(P/N: M7626-AA)

X

X

X

X

X

X

X

X

3

The (X) in the column represents parts that are included in the kit. The dash (–) represents parts that are not included in the kit.

VAXserver/MicroVAX 3300/3400 Conversion 1–3

Table 1–1 (Cont.) Conversion Kit Contents

Description Kit Variations

3

VAX CPU module label

(P/N: 36-26883-A6)

AA AB AC AD BA BB BC BD

X X X X – – – –

X X X X X X X X Conversion label

(P/N: 36-15946-00)

VAX 4000-200 (BA213)

(P/N: 74-34425-46)

VAXserver 4000-200 (BA213)

(P/N: 74-34425-48)

VAX 4000-200 (BA215)

(P/N: 74-36884–09)

VAXserver 4000-200 (BA215)

(P/N: 74-36884-13)

Memory module

(P/N: MS650-BB)

Memory module label

(MS650-BB) (P/N: 36-26883-

B8)

VAX 4000-200 bill board label (BA213)

(P/N: 36-27354-39)

VAXserver 4000-200 bill board label (BA213)

( P/N: 36-27354-43)

VAX 4000-200 bill board label (BA215)

(P/N: 36-29304-08)

VAXserver 4000-200 bill board label (BA215)

( P/N: 36-29304-10)

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

-

X

X

X

X

X

X

X

X

3

The (X) in the column represents parts that are included in the kit. The dash (–) represents parts that are not included in the kit.

1–4 VAXserver/MicroVAX 3300/3400 Conversion

Table 1–1 (Cont.) Conversion Kit Contents

Description Kit Variations

3

AA AB AC AD BA BB BC BD

BA213-series serial label

(P/N: 36-27838-55)

BA215-series serial label

(P/N: 36-29305-09)

Conversion Guide

(P/N: EK-MVS30-CG)

VAX 4000-200 Customer

Hardware Information Kit

(P/N: QZ-K25AA-GZ)

VAX 4000-200 Hardware

Information Kit

(P/N: QZ-K25AB-GZ)

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

3

The (X) in the column represents parts that are included in the kit. The dash (–) represents parts that are not included in the kit.

Table 1–2 lists the VMS licenses included with the kit.

VAXserver/MicroVAX 3300/3400 Conversion 1–5

Table 1–2 VMS Licenses

Description Variation

3

AA AB AC AD BA BB BC BD

VMS 1-20 user

(P/N: QL-001AS-BJ)

DECnet VAX END NODE

(P/N: QL-D04AS-AA)

VMS file and application server

(P/N: QL-001AC-BA)

DECnet VAX F/F

(P/N: QL-D05AC-AA)

VAXcluster

(P/N: QL-VBRA2-AA)

VMS /UX connect

(P/N: QL-VHRA9-JB)

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

3

The (X) in the column represents parts that are included in the kit. The dash (–) represents parts that are not included in the kit.

3.

Unpack the CPU module and place it on a grounded antistatic mat.

4.

Save the packing material for when you return the old module.

5.

If any item is missing or damaged:

• Contact the customer’s sales representative.

• Contact the customer’s delivery agent.

1.3 Before Installing the Kit

1.

Have the customer back up the system software before Customer

Services arrives. It is the customer’s responsibility to back up the system software.

2.

Power up the system and run diagnostics to verify system operation.

3.

Turn off the system power before installing the kit.

1–6 VAXserver/MicroVAX 3300/3400 Conversion

1.4 Installing the Kit

To install the conversion kit:

1.

Turn the key switch to the bottom position and lower the access door.

2.

Remove the front panel as shown in Figure 1–1.

1

2

Lift and

Remove Panel

Latch

MLO-002609

Figure 1–1 Removing Front Panel

3.

If the console cable is present, remove the console cable as shown in

Figure 1–2.

4.

If the Ethernet cable is present, remove the Ethernet cable from the

I/O panel.

CAUTION

Use the antistatic wrist strap and the antistatic mat when working with the modules.

VAXserver/MicroVAX 3300/3400 Conversion 1–7

Console

Cable

Locking Tab

Squeeze Locking Tab and Pull From Jack

Figure 1–2 Removing Console Cable

5.

Remove the CPU I/O panel as shown in Figure 1–3.

MLO-002610

1–8 VAXserver/MicroVAX 3300/3400 Conversion

To Release: Push In and Turn

Counterclockwise 1/4-Turn

To Fasten: Push In and Turn

Clockwise 1/4-Turn

Attach Antistatic

Wrist Strap to

System Chassis

MLO-002615

Figure 1–3 Removing CPU I/O Panel

6.

Disconnect the CPU module cables.

7.

Remove the old CPU module from slot 1.

8.

Install the new KA660–AA/BA CPU module in slot 1.

NOTE

If there are any MS650-AA memory modules installed in the system, you must remove the modules from the system and install either the MS650-BA or MS650-BB memory module(s).

A 3-connector memory cable is provided in the memory kit for a 2-memory module connection.

9.

Remove the 50-pin daisy-chain memory cable that connects the memory modules to the CPU module, if applicable.

10. Install the new memory modules, if applicable.

11. Reconnect the memory modules and DSSI cables to the CPU module.

VAXserver/MicroVAX 3300/3400 Conversion 1–9

12. Connect the new CPU I/O panel over slots 1 and 2.

13. Attach the new CPU labels to the CPU I/O panel as shown in

Figure 1–4.

MS650

B A / B B

M 7 6 2 2

B A / B B

MS650

BA/BB

M7622

-AA

MS640

AA/BA

M7626

KA660

A A / B A

M7626

MLO-003644

L J - 0 0 5 3 7 - T I 0

Figure 1–4 Attaching CPU Labels

14. Replace the front panel.

15. Power up the system and run the system diagnostics to verify system operation.

16. Attach the new serial label and logo/model label over the existing serial label and logo/model labels as shown in Figure 1–5 and

Figure 1–6.

17. Attach the conversion label as shown in Figure 1–5 and Figure 1–6.

1–10 VAXserver/MicroVAX 3300/3400 Conversion

Existing

Serial Label

Conversion

Label

V

A

220-240

4.7

Hz

W

Model

SN

50-60

670

708A

Listed

E.O.P. Equip.

Made in U.S.A.

Fabrique aux Etats-Unis

Also classified by Underwriters

Laboratories Inc. in accordance with

IEC Publications 435 and 380.

Series BA213 CPU MOD

This epuipment complies with the requirements in Part 15 of FCC Rules for a Class A computing device.

Operation of this equipment in a residential area may cause unacceptable interference to Radio and TV reception requiring the operator to take whatever steps are necessary to correct the interference.

FTZ C-386/87

C83/7/903A

DEC Product Conversion Label

From:

To:

By: Date:

MLO-002613

LJ-00573-TI0

Figure 1–5 Conversion and Serial Label Location

VAXserver/MicroVAX 3300/3400 Conversion 1–11

MicroVAX 3400

Existing

Logo/Model

Label

Product Conversion Label

From:

To:

By: Date:

Conversion

Label

MLO-003960

LJ-00531-TI0

Figure 1–6 Label Locations on System Without Panels

18. Remove the old medallion, using a flat-blade screwdriver to lift it off the front panel.

19. Attach the new medallion as shown in Figure 1–7.

1–12 VAXserver/MicroVAX 3300/3400 Conversion

VAXserver 4000-200

VAX 4000-200

Figure 1–7 Medallion Location

20. Have the customer reinstall the system backup data.

21. Fill out the forms in Appendix A.

MLO-002614

L J - 0 0 4 8 6 - T I 0

A

Module Return Procedure and Forms

Return of the old CPU modules to Digital is required. Customer Services personnel must ensure that the instructions to repackage and return the old CPU module to Digital are followed. The instructions apply only to

U.S. area installations.

For installations outside the U.S. area, contact the local Digital office for return destination instructions.

A.1 Return Procedure

The conversion agreement with Digital is not complete untl you take the following steps.

1.

Obtain the serial number of the system being upgraded. (Customer

Administrative Services (CAS) cannot process the order without this serial number.)

2.

Ensure that the serial number is on the Purchase Order.

3.

Issue a hardcopy quotation to the customer, referencing the serial number, and state the following:

"Return of the replaced modules to Digital is a condition of sale for this upgrade. Failure to return the modules will result in a penalty charge. Installation of hardware by Digital Customer

Services personnel is required."

4.

Pack the old modules using the packaging material set aside from the carton of the conversion kit (quad-height module box).

Pack the modules first in the nickel-plated bag, then in the pink plastic wrapping, and finally in the box.

5.

Complete the Customer Services Worksheet in Section A.2. It documents the work you performed.

Return the worksheet to your contract administrator at the branch office.

A–1

A–2 Module Return Procedure and Forms

6.

Contact your local Digital Customer Administrative Services (CAS) office to obtain information for the Installation Receipt and the Return

Material Checklist in Section A.2. Section A.3 lists the CAS district offices and their phone numbers.

Ask the CAS representative for a return authorization (RA) number.

CAS will contact the customer to arrange for carrier pickup and return of the module to Digital.

7.

Complete both copies of the Installation Receipt.

The Installation Receipt–Customer Copy is the customer’s receipt. It shows that the installation was completed and that Customer Services contacted CAS.

Return the Installation Receipt–Customer Services Copy to Customer

Services along with the old modules to ensure that the customer does not incur a penalty charge.

8.

Complete the Return Material Checklist.

Return the checklist with the old modules.

9.

Place the self-adhesive mailing label on the module box you are returning.

Write the return authorization (RA) number in the space provided on the label.

10. Seal the box for shipment.

Refer questions regarding the return procedure to the local account representative.

NOTE

A nonreturn charge will be assessed to customers who do not return their old CPU modules.

A.2 Digital Forms

This section contains the:

• Customer Services Worksheet

• Installation Receipt–Customer Copy

• Installation Receipt–Customer Services Copy

• Return Material Checklist

Module Return Procedure and Forms A–3

Customer Services Worksheet

This form acts as a verification of the work performed on the system and as a check on the procedures used. Please fill out this form and return it to your Contract Administrator for updating the customer’s contract.

Customer:

System Serial Number:

Old System Model Number:

Old CPU Module Serial Number:

New System Name:

New System Model Number:

New CPU Module Serial Number:

Module Return Procedure and Forms A–5

Installation Receipt—Customer Copy

For VAX 4000-200, and VAXserver 4000-200 system conversions.

This form acts as a customer receipt and as verification for Customer

Services that the 660SU–XX conversion kit was installed.

Customer

Services:

Complete both copies of this form. Then, give a copy to the customer and a copy to the local CAS office for filing with customer documents.

Customer: Digital will contact you within the next several days to arrange for package pickup and return. Keep this copy as your record of installation by Digital.

NOTE

Contact the local CAS office to obtain the RA (return authorization) number. See Section A.3 for the closest CAS office.

You should have the Digital order number available. Be sure to note the name of the person you speak with.

Name of CAS representative:

Branch Office: pickup and return.

, will arrange for package

Return Authorization (RA) Number:

Digital Order Number:

Old CPU Module Serial Number:

Converted to:

New CPU Module Serial Number:

Installation was performed on this date:

Module Packed for Return:

Phone Number: Customer Name:

Customer Signature:

Customer Services Representative Signature:

Module Return Procedure and Forms A–7

Installation Receipt—Customer Services Copy

For VAX 4000-200, and VAXserver 4000-200 system conversions.

This form acts as a customer receipt and as verification for Customer

Services that the 660SU–XX conversion kit was installed.

Customer

Services:

Complete both copies of this form. Then, give a copy to the customer and a copy to the local CAS office for filing with customer documents.

Customer: Digital will contact you within the next several days to arrange for package pickup and return. Keep this copy as your record of installation by Digital.

NOTE

Contact the local CAS office to obtain the RA (return authorization) number. See Section A.3 for the closest CAS office.

You should have the Digital order number available. Be sure to note the name of the person you speak with.

Name of CAS representative:

Branch Office: pickup and return.

, will arrange for package

Return Authorization (RA) Number:

Digital Order Number:

Old CPU Module Serial Number:

Converted to:

New CPU Module Serial Number:

Installation was performed on this date:

Module Packed for Return:

Phone Number: Customer Name:

Customer Signature:

Customer Services Representative Signature:

Module Return Procedure and Forms A–9

Return Material Checklist

For VAX 4000-200, VAXserver 4000-200, and VAX 4000-300 system conversions.

This form must be filled out and returned with the old modules to ensure that the customer does not incur a penalty charge.

Return Authorization (RA) Number:

Digital Order Number:

Customer Name:

Customer Address:

Customer Contact:

********* Include this form with your module return*********

Module Return Procedure and Forms A–11

A.3 Customer Administrative Services (CAS)

District Offices

Name, Location Phone Number

Allegheny District, Pittsburgh

Carolinas District, Columbia

Chicago District, Chicago

Connecticut District, Meriden

CSS District, Nashua

DECdirect District, Nashua

Florida District, Tampa

Greater Boston District, Waltham

Great Lakes District, Detroit

Los Angeles District, Culver City

Midsouth District, Memphis

New England District, Bedford

New Jersey Commercial District,

Piscataway

New Jersey Financial District, New York

New York Financial District, New York

New York Suburban District, Tarrytown

North Central District, Minneapolis

North Texas/Oklahoma District, Dallas

Northwest District, Bellevue

Ohio Valley District, Cincinnati

Philadelphia District, Blue Bell

Rocky Mountain District, Englewood

Santa Clara District, Santa Clara

Southeast District, Atlanta

Southern California District, Costa Mesa

South Texas District, Houston

(412) 244–7410

(803) 798–6477

(312) 806–2478

(203) 634–5325

(603) 884–6549

(603) 884–9115

(813) 882–6822

(617) 895–5455

(313) 344–2285

(213) 417–4232

(901) 761–6712

(603) 472–6061

(201) 562–4728

(212) 714–2648

(212) 714–2648

(914) 524–5284

(612) 851–2225

(214) 404–6135

(206) 462–2540

(513) 984–7739

(215) 834–4115

(303) 649–3073

(408) 496–4274

(404) 257–2282

(714) 850–7606

(713) 953–3918

A–12 Module Return Procedure and Forms

Name, Location

Southwest District, Tempe

Upstate New York District, Rochester

U.S. Distribution/Sales District, Marlboro

Virginia District, Landover

Washington DC District, Landover

Washington DC District, FDA Landover

Phone Number

(602) 894–4747

(716) 385–7152

(508) 480–4259

(301) 306–2566

(301) 459–2890

(301) 459–2292

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
