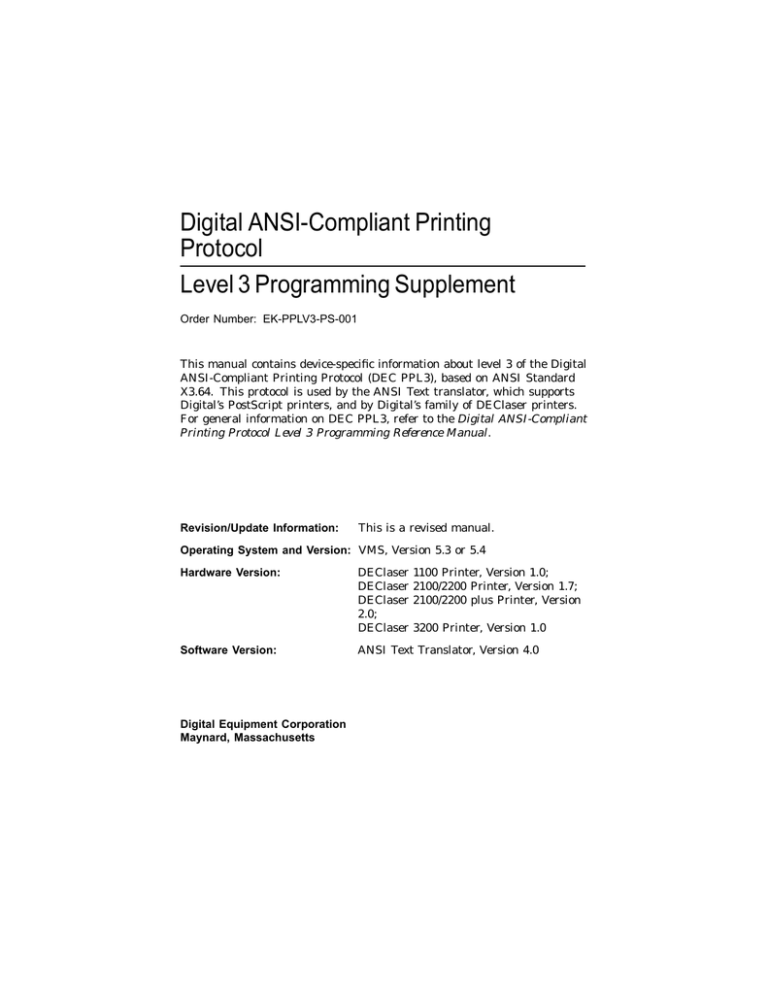

Digital ANSI-Compliant Printing
Protocol
Level 3 Programming Supplement
Order Number: EK-PPLV3-PS-001
This manual contains device-specific information about level 3 of the Digital
ANSI-Compliant Printing Protocol (DEC PPL3), based on ANSI Standard
X3.64. This protocol is used by the ANSI Text translator, which supports
Digital’s PostScript printers, and by Digital’s family of DEClaser printers.
For general information on DEC PPL3, refer to the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
Revision/Update Information:
This is a revised manual.
Operating System and Version: VMS, Version 5.3 or 5.4
Hardware Version:
Software Version:
Digital Equipment Corporation
Maynard, Massachusetts
DEClaser
DEClaser
DEClaser
2.0;
DEClaser
1100 Printer, Version 1.0;
2100/2200 Printer, Version 1.7;
2100/2200 plus Printer, Version
3200 Printer, Version 1.0
ANSI Text Translator, Version 4.0
First Printing, June 1990,
Revised, January 1991
Revised, October 1991
The information in this document is subject to change without notice and should not be
construed as a commitment by Digital Equipment Corporation.
Digital Equipment Corporation assumes no responsibility for any errors that may appear in this
document.
Any software described in this document is furnished under a license and may be used or copied
only in accordance with the terms of such license. No responsibility is assumed for the use or
reliability of software or equipment that is not supplied by Digital Equipment Corporation or its
affiliated companies.
Restricted Rights: Use, duplication, or disclosure by the U.S. Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer
Software clause at DFARS 252.227-7013.
© Digital Equipment Corporation 1990, 1991.
All rights reserved.
Printed in U.S.A.
The Reader’s Comments form at the end of this document requests your critical evaluation to
assist in preparing future documentation.
The following are trademarks of Digital Equipment Corporation: DEC, DEClaser, Digital, LA70,
LA75, LN01, LN03, LN03 Image, LN03 PLUS, LN03R ScriptPrinter, PrintServer, PrintServer
20, PrintServer 40, PrintServer 40 Plus, ScriptPrinter, ULTRIX, VAX, VAX DOCUMENT, VMS,
and the DIGITAL logo.
ANSI is a registered trademark of the American National Standards Institute, Inc. CaPSL is
a trademark of Canon Inc. LaserJet and PCL are registered trademarks of Hewlett-Packard
Company. IBM and Proprinter are registered trademarks of International Business Machines
Corporation. PostScript is a registered trademark of Adobe Systems, Inc. Tektronix is a
registered trademark of Tektronix, Inc.
S1590
This document is available on CDROM.
This document was prepared with VAX DOCUMENT, Version 1.2.
dt
Digital ANSI-Compliant Printing Protocol Level 3 Programming Supplement
Change Notice
AD–PBWHA–T1
November 1990
The DEClaser 2100 and the DEClaser 2200 printers display some device-specific
behavior that is not reflected in the Digital ANSI-Compliant Printing Protocol Level
3 Programming Supplement. Please make these changes to your document.
Page 12-5:
Mapping Page Size to Physical Sheet Size
Add the following text after the bulleted list:
On the DEClaser 2200 printer, tumbled pages are printed differently if landscape
orientation is selected.
•
Sheets printed in duplex normal mode with landscape orientation selected are
printed so that pages can be bound along the short edge.
•
Sheets printed in duplex tumbled mode with landscape orientation selected are
printed so that pages can be bound along the long edge.
Page 13-3:
Replace the paragraph that follows Table 13–2 (to the end of page 13–3) with the
following paragraph:
Font cartridges modify the default Select Graphic Rendition (SGR) values. These
modifications occur during power-up, Soft Terminal Reset (DECSTR), or Reset to
Initial State (RIS). A Select Conformance Level (DECSCL) command causes SGR
assignments to return to the values listed in Table 13–2, whether or not a font
cartridge is installed.
Page 15-2:
Add the following text at the end of Section 15.1:
The DEClaser printers perform a conditional Sheet Feed upon receipt of a Soft
Terminal Reset (DECSTR). Other Digital printers perform a conditional Form Feed
upon receipt of a Soft Terminal Reset (DECSTR). If your document is to be printed
in duplex mode on a DEClaser 2200, do not send a DECSTR command between
pages. This results in simplex printing.
Page 2
Page 15-5:
Set Sheet Size (DECSSS)
Add the following immediately after Table 15–3:
The DEClaser 2100 and 2200 printers default to A-size paper if the page size
selected is smaller than the smallest size available.
Page 19-1:
Add the following after the first set of bullets:
To select DEC PPL3 mode from CaPSL emulation mode, specify the following
sequence:
<ESC>
1/11
%
2/5
>
3/14
To select DEC PPL3 from emulation modes in other Digital printers, specify the
Return from Other Coding Systems (ROCS) sequence documented in the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
© Digital Equipment Corporation 1990. All rights reserved.
S1587
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
xvii
Part I ANSI Text Translator
1 Overview
2 Logical to Physical Image
2.1
2.1.1
2.1.2
2.2
2.3
2.4
2.5
Translator Resolution . . . . . . . . . . . . . . . .
Horizontal Resolution . . . . . . . . . . . .
Vertical Resolution . . . . . . . . . . . . . . .
Printable Area . . . . . . . . . . . . . . . . . . . . .
Mapping Page Size to Physical Sheet Size
Positioning Accuracy . . . . . . . . . . . . . . . .
Justification . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2–1
2–1
2–2
2–4
2–4
2–6
2–6
Initial States Independent of Paper Size and Orientation . . . . . .
Initial States Based on Paper Size and Orientation . . . . . . . . . . .
3–1
3–3
3 Initial State Values
3.1
3.2
4 Maximum ANSI Text Translator Values
4.1
4.2
Maximum Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Values for Translator Features . . . . . . . . . . . . . . . . . .
4–1
4–1
iii
5 Paper Handling
5.1
5.2
5.3
Duplex Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Designating the Input Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set Sheet Size (DECSSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5–1
5–1
5–3
6 Status and Error Reporting
7 Fonts for the ANSI Text Translator
7.1
7.2
7.3
7.3.1
7.3.2
7.3.3
7.4
Load Font File (DECLFF) Considerations . . . . . . . . . . . . . . . .
Font Repertory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Built-In Font File Repertory . . . . . . . . . . . . . . . . . . . . . . . . . .
Type Family Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Built-In Type Family Names and IDs, Font IDs, and Font
File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Font Metrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Built-In Algorithmic Transformations . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
7–1
7–1
7–2
7–2
..
..
..
7–3
7–6
7–6
Macro Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Miscellaneous Considerations and Restrictions . . . . . . . . . . . . . .
Valid Set Raster Attributes (DECGRA) Command . . . . . . . . .
Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8–1
8–2
8–2
8–3
8 Sixel Considerations
8.1
8.2
8.2.1
8.2.2
9 Alternative Protocols
10 Printer-Specific ANSI Text Translator Considerations
10.1
ScriptPrinter and LN03 Image Printers . .
10.1.1
Downline Loaded Font Capacity . . . . .
10.1.2
Selecting the ANSI Text Translator . . .
10.1.3
Default Settings . . . . . . . . . . . . . . . . . .
10.1.4
Printable Area . . . . . . . . . . . . . . . . . . .
10.1.5
Sixel Graphics Resolution . . . . . . . . . .
10.1.6
Hints, Problems, and Solutions . . . . . .
10.2
PrintServer Network Printers . . . . . . . . . .
10.2.1
Downline Loaded Font Capacity . . . . .
10.2.2
Selecting the ANSI Text Translator . . .
10.2.3
Default Settings . . . . . . . . . . . . . . . . . .
10.2.4
Printable Area . . . . . . . . . . . . . . . . . . .
iv
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
10–1
10–2
10–2
10–3
10–3
10–4
10–4
10–5
10–6
10–6
10–7
10–8
10.2.5
Sixel Graphics Resolution . . . . . . .
10.2.6
Hints, Problems, and Solutions . . .
10.2.7
ANSI Text Performance . . . . . . . . .
10.3
DEClaser Printers . . . . . . . . . . . . . . . .
10.3.1
Downline Loaded Font Capacity . .
10.3.2
Selecting the ANSI Text Translator
10.3.3
Default Settings . . . . . . . . . . . . . . .
10.3.4
Printable Area . . . . . . . . . . . . . . . .
10.3.5
Sixel Graphics Resolution . . . . . . .
10.3.6
Hints, Problems, and Solutions . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
10–8
10–9
10–10
10–10
10–11
10–11
10–11
10–12
10–14
10–15
Printer Resolution . . . . . . . . . . . . . . . . . . .
Horizontal Resolution . . . . . . . . . . . . .
Vertical Resolution . . . . . . . . . . . . . . .
Printable Area . . . . . . . . . . . . . . . . . . . . . .
Paper Sizes . . . . . . . . . . . . . . . . . . . . .
Envelope Sizes . . . . . . . . . . . . . . . . . . .
Mapping Page Size to Physical Sheet Size .
Positioning Accuracy . . . . . . . . . . . . . . . . .
Justification . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
12–1
12–1
12–2
12–4
12–4
12–4
12–5
12–7
12–7
Initial States Independent of Paper Cassette . . . .
Power Up Initial States Based on Paper Cassette
Factory Defaults in Nonvolatile Memory . . . . . . .
Macro Values in NVM . . . . . . . . . . . . . . . . . . . . .
Protocol Selection in NVM . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
13–1
13–5
13–6
13–7
13–8
Part II DEClaser 2100/2200 Printers
11 Overview
12 Logical to Physical Image
12.1
12.1.1
12.1.2
12.2
12.2.1
12.2.2
12.3
12.4
12.5
13 Initial State Values
13.1
13.2
13.3
13.4
13.5
v
14 Maximum Printer Values
14.1
14.2
Maximum Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Values for Printer Features . . . . . . . . . . . . . . . . . . . . .
14–1
14–1
15 Paper Handling
15.1
15.2
15.3
Duplex Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Designating the Input Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set Sheet Size (DECSSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15–1
15–3
15–4
16 Status and Error Reporting
16.1
16.2
16.3
Device Attributes Report (DAR) Parameters . . . . . . . . . . . . . . . .
Device Attributes (Secondary) Report (DA2R) Parameters . . . . . .
Error Parameters for Device Status Reports . . . . . . . . . . . . . . . .
16–2
16–4
16–7
17 Fonts for DEClaser 2100/2200 Printers
17.1
Load Font File (DECLFF) Considerations . . . . . . . . . . . . . . . . .
17.2
Font Repertory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17.3
Built-In Font File Repertory . . . . . . . . . . . . . . . . . . . . . . . . . . .
17.3.1
Type Family Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17.3.2
Built-In Type Family Names and IDs, Font IDs, and Font
File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17.3.3
Font Metrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17.4
Built-in Algorithmic Transformations . . . . . . . . . . . . . . . . . . . .
17.4.1
Memory Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17.4.2
Spacing Criterion Fallback . . . . . . . . . . . . . . . . . . . . . . . . .
17.4.3
Fallback Metrics for Mixed Font Files (DEClaser 2100/2200
plus Printers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17.5
Font List (DEClaser 2100/2200 plus Printers) . . . . . . . . . . . . . .
17.6
Font File Validation Test Report (DEClaser 2100/2200 plus
Printers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
17–1
17–1
17–2
17–2
.
.
.
.
.
17–3
17–8
17–8
17–9
17–10
.
.
17–10
17–10
.
17–10
18.1
Macro Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18.2
Miscellaneous Considerations and Restrictions . . . . . . . . . . . . . .
18.2.1
Valid Set Raster Attributes (DECGRA) Commands . . . . . . . .
18.2.2
Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18–1
18–2
18–2
18–3
18 Sixel Considerations
vi
19 Alternative Protocols
Part III
DEClaser 1100 Printer
20 Overview
21 Logical to Physical Image
21.1
21.1.1
21.1.2
21.2
21.2.1
21.2.2
21.3
21.4
21.5
Printer Resolution . . . . . . . . . . . . . . . . . . .
Horizontal Resolution . . . . . . . . . . . . .
Vertical Resolution . . . . . . . . . . . . . . .
Printable Area . . . . . . . . . . . . . . . . . . . . . .
Paper Sizes . . . . . . . . . . . . . . . . . . . . .
Envelope Sizes . . . . . . . . . . . . . . . . . . .
Mapping Page Size to Physical Sheet Size .
Positioning Accuracy . . . . . . . . . . . . . . . . .
Justification . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
21–1
21–1
21–2
21–4
21–4
21–4
21–5
21–7
21–7
Initial States Independent of Paper Cassette .
Initial States Based on Paper Cassette . . . . .
Factory Defaults in Nonvolatile Memory . . . .
Macro Values in NVM . . . . . . . . . . . . . . . . . .
Protocol Selection in NVM . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
22–1
22–5
22–5
22–6
22–8
Maximum Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Values for Printer Features . . . . . . . . . . . . . . . . . . . . .
23–1
23–1
22 Initial State Values
22.1
22.2
22.3
22.4
22.5
23 Maximum Printer Values
23.1
23.2
24 Paper Handling
24.1
24.2
24.3
Duplex Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Designating the Input Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set Sheet Size (DECSSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24–1
24–2
24–3
vii
25 Status and Error Reporting
25.1
25.2
25.3
Device Attributes Report (DAR) Parameters . . . . . . . . . . . . . . . .
Device Attributes (Secondary) Report (DA2R) Parameters . . . . . .
Error Parameters for Device Status Reports . . . . . . . . . . . . . . . .
25–2
25–3
25–5
26 Fonts for the DEClaser 1100 Printer
26.1
Load Font File (DECLFF) Considerations . . . . . . . . . . . . . . . .
26.2
Font Repertory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26.3
Built-In Font File Repertory . . . . . . . . . . . . . . . . . . . . . . . . . .
26.3.1
Type Family Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26.3.2
Built-In Type Family Names and IDs, Font IDs, and Font
File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26.3.3
Font Metrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26.4
Built-In Algorithmic Transformations . . . . . . . . . . . . . . . . . . .
26.4.1
Memory Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26.4.2
Fallback Metrics for Mixed Font Files . . . . . . . . . . . . . . . .
26.4.3
Spacing Criterion Fallback . . . . . . . . . . . . . . . . . . . . . . . . .
26.5
Font List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26.6
Font File Validation Test Report . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
26–1
26–1
26–2
26–3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
26–3
26–8
26–9
26–10
26–10
26–10
26–10
26–11
27.1
Macro Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27.2
Miscellaneous Considerations and Restrictions . . . . . . . . . . . . . .
27.2.1
Valid Set Raster Attributes (DECGRA) Commands . . . . . . . .
27.2.2
Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27–1
27–2
27–2
27–3
27 Sixel Considerations
28 Alternative Protocols
29 Memory Management
Part IV
viii
DEClaser 3200 Printer
30 Overview
31 Logical to Physical Image
31.1
31.1.1
31.1.2
31.2
31.2.1
31.2.2
31.3
31.4
Printer Resolution . . . . . . . . . . . . . . . . . . .
Horizontal Resolution . . . . . . . . . . . . .
Vertical Resolution . . . . . . . . . . . . . . .
Printable Area . . . . . . . . . . . . . . . . . . . . . .
Paper Sizes . . . . . . . . . . . . . . . . . . . . .
Envelope Sizes . . . . . . . . . . . . . . . . . . .
Mapping Page Size to Physical Sheet Size .
Positioning Accuracy . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
31–1
31–1
31–2
31–4
31–4
31–5
31–5
31–7
Initial States Independent of Paper Cassette . . . . . . . . . . . . . . . .
Initial States Based on Paper Size . . . . . . . . . . . . . . . . . . . . . . . .
Factory Defaults in Nonvolatile Memory . . . . . . . . . . . . . . . . . . .
32–1
32–4
32–5
32 Initial State Values
32.1
32.2
32.3
33 Maximum Printer Values
33.1
33.2
Maximum Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Values for Printer Features . . . . . . . . . . . . . . . . . . . . .
33–1
33–1
34 Paper Handling
34.1
34.2
34.3
34.4
Duplex Printing . . . . . . . . . . . . . . . . . .
Designating the Input Tray . . . . . . . . .
Set Sheet Size (DECSSS) . . . . . . . . . .
Select Input Tray Failover (DECSITF) .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
34–1
34–2
34–3
34–5
Control Representation Mode (CRM) . . . . . . . . . . . . . . . . .
Device Attributes (Secondary) Report (DAR) Parameters .
Device Attributes (Secondary) Report (DA2R) Parameters .
Error Parameters for Device Status Reports . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
35–2
35–2
35–4
35–6
35 Status and Error Reporting
35.1
35.2
35.3
35.4
ix
36 Fonts for the DEClaser 3200 Printer
36.1
Load Font File (DECLFF) Considerations . . . .
36.2
Font Repertory . . . . . . . . . . . . . . . . . . . . . . . . .
36.3
Built-in Font File Repertory . . . . . . . . . . . . . . .
36.3.1
Type Family Names . . . . . . . . . . . . . . . . . .
36.3.2
Built-in Type Family Names and IDs, Font
File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . .
36.3.3
Font Metrics . . . . . . . . . . . . . . . . . . . . . . .
36.4
Built-in Algorithmic Transformations . . . . . . .
36.4.1
Memory Use . . . . . . . . . . . . . . . . . . . . . . . .
36.4.2
Spacing Criterion Fallback . . . . . . . . . . . . .
36.4.3
Fallback Metrics for Mixed Font Files . . . .
36.5
Font File Validation Test Report . . . . . . . . . . .
............
............
............
............
IDs, and Font
............
............
............
............
............
............
............
.
.
.
.
.
.
.
.
36–1
36–2
36–2
36–3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
36–3
36–7
36–8
36–9
36–9
36–10
36–10
37.1
Macro Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37.2
Miscellaneous Considerations and Restrictions . . . . . . . . . . . . . .
37.2.1
Valid Set Raster Attributes (DECGRA) Commands . . . . . . . .
37.2.2
Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37–1
37–2
37–2
37–3
37 Sixel Considerations
38 Alternative Protocols
Part V Appendixes
A Comparison of DEC PPL3 Commands by Printer
B Command Parameter Summaries
C Command Dictionary Supplement
DECFSR — Font Status Report (DECLFF, Ps2=2 or 3) . . . . . . . .
DECSITF — Select Input Tray Failover . . . . . . . . . . . . . . . . . . .
x
C–2
C–4
D DEC PPL3 Printer Documentation
Index
Examples
5–1
15–1
15–2
16–1
16–2
24–1
25–1
25–2
34–1
34–2
35–1
35–2
Selecting an Input Tray with the Translator . . . . . . . . . . .
Set Duplex Print Mode Command for DEClaser 2100/2200
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting an Input Tray for DEClaser 2100/2200 Printers .
DA Request and DAR Example for DEClaser 2100/2200
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DA2 Request and DA2R Response for DEClaser 2200 plus
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set Duplex Print Mode Command for the DEClaser 1100
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DA Request and DAR Example for the DEClaser 1100
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DA2 Request and DA2R Response for the DEClaser 1100
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set Duplex Print Mode Command for the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting an Input Tray for DEClaser 3200 Printer . . . . . .
DA Request and DAR Example for the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DA2 Request and DA2R Response for the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
5–3
..
..
15–2
15–4
..
16–3
..
16–6
..
24–2
..
25–3
..
25–5
..
..
34–2
34–3
..
35–3
..
35–6
Figures
2–1
2–2
12–1
12–2
Page Size Smaller Than Physical Sheet Size on the ANSI
Text Translator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page Size Larger Than Physical Sheet Size on the ANSI Text
Translator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page Size Smaller Than Physical Sheet Size on DEClaser
2100/2200 Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page Size Larger Than Physical Sheet Size on DEClaser
2100/2200 Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–5
2–6
12–6
12–7
xi
21–1
21–2
31–1
31–2
Page Size Smaller Than Physical Sheet Size on the DEClaser
1100 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page Size Larger Than Physical Sheet Size on the DEClaser
1100 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page Size Smaller Than Physical Sheet Size on DEClaser
3200 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page Size Larger Than Physical Sheet Size on DEClaser
3200 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21–6
21–7
31–6
31–7
Tables
2–1
2–2
2–3
3–1
3–2
3–3
4–1
5–1
7–1
7–2
7–3
8–1
10–1
10–2
10–3
10–4
12–1
12–2
xii
Horizontal Pitches — ANSI Text Translator (Standard 300
Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vertical Pitches — ANSI Text Translator (Standard 300
Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Minimum Printable Areas of the Translator by Paper
Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial State Values — ANSI Text Translator . . . . . . . . . . . . .
Initial State Values of Select Graphic Rendition (SGR)
Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial State Values Based on Paper Size and Orientation . . .
Maximum Values Supported by the ANSI Text Translator . . .
Tray Selection With the ANSI Text Translator . . . . . . . . . . . .
Type Family Names in the ANSI Text Translator . . . . . . . . .
Built-In Font File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Font Metrics for the ANSI Text Translator . . . . . . . . . . . . . .
Macro Parameter Values for the ANSI Text Translator (Grid
Sizes in Centipoints) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printable Areas on the ScriptPrinter and the LN03 Image
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printable Areas on PrintServer Network Printers . . . . . . . . .
Printable Areas on DEClaser 1150 and DEClaser 2150/2250
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Envelope Sizes Supported by DEClaser 1150 and DEClaser
2150/2250 Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horizontal Pitches — DEClaser 2100/2200 Printers
(Standard 300 Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vertical Pitches — DEClaser 2100/2200 Printers (Standard
300 Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–2
2–3
2–4
3–2
3–3
3–4
4–1
5–2
7–2
7–4
7–6
8–1
10–3
10–8
10–13
10–13
12–2
12–3
12–3
12–4
13–1
13–2
13–3
13–4
13–5
13–6
14–1
15–1
15–2
15–3
16–1
16–2
16–3
16–4
16–5
17–1
17–2
17–3
17–4
18–1
21–1
21–2
Printable Areas of the DEClaser 2100/2200 Printers in
Centipoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum and Minimum Envelope Sizes for the DEClaser
2100/2200 Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial State Values for DEClaser 2100/2200 Printers . . . . . .
Initial State Values of Select Graphic Rendition (SGR)
Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initialization Based on Paper Size . . . . . . . . . . . . . . . . . . . . .
Factory Defaults in NVM for the DEClaser 2100/2200
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Macro Values in NVM for DEClaser 2100/2200 Printers . . . .
DEClaser 2100/2200 Printers Protocol — NVM Selection and
Installed Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Values Supported by DEClaser 2100/2200
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Duplex Print Mode Fallbacks for the DEClaser 2100/2200
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tray Selection on DEClaser 2100/2200 Printers . . . . . . . . . . .
Set Sheet Size (DECSSS) Parameters . . . . . . . . . . . . . . . . . .
Parameters for Primary DA Response for DEClaser
2100/2200 Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAR Parameters (Alias Response) for DEClaser 2100/2200
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parameters for DA2 Responses for DEClaser 2100/2200
Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protocol Codes for DA2R Responses . . . . . . . . . . . . . . . . . . . .
Error Parameters for Extended Printer Device Status
Reports for DEClaser 2100/2200 Printers . . . . . . . . . . . . . . .
Type Family Names in DEClaser 2100/2200 Printers . . . . . .
Built-In Font File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Font Metrics for the DEClaser 2100/2200 Printers . . . . . . . .
Parameters for Load Font File (DECLFF) for the DEClaser
2100/2200 plus Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Macro Parameter Values for DEClaser 2100/2200 Printers
(Grid Sizes in Centipoints) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horizontal Pitches — DEClaser 1100 Printer (Standard 300
Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vertical Pitches — DEClaser 1100 Printer (Standard 300
Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12–4
12–5
13–1
13–3
13–5
13–6
13–7
13–8
14–1
15–1
15–3
15–4
16–3
16–4
16–5
16–6
16–7
17–3
17–4
17–8
17–11
18–1
21–2
21–3
xiii
21–3
21–4
22–1
22–2
22–3
22–4
22–5
23–1
24–1
24–2
24–3
25–1
25–2
25–3
25–4
25–5
26–1
26–2
26–3
26–4
27–1
31–1
31–2
31–3
xiv
Printable Areas of the DEClaser 1100 Printer in
Centipoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum and Minimum Envelope Sizes for the DEClaser
1100 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial State Values for the DEClaser 1100 Printer . . . . . . . .
Initial State Values of Select Graphic Rendition (SGR)
Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initialization Based on Paper Size . . . . . . . . . . . . . . . . . . . . .
Factory Defaults in NVM for the DEClaser 1100 Printer . . . .
Macro Values in NVM for the DEClaser 1100 Printer . . . . . .
Maximum Values Supported by the DEClaser 1100
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Duplex Print Mode Fallbacks for the DEClaser 1100
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tray Selection on the DEClaser 1100 Printer . . . . . . . . . . . . .
Set Sheet Size (DECSSS) Parameters . . . . . . . . . . . . . . . . . .
Parameters for Primary DA Responses for the DEClaser
1100 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAR Parameters (Alias Response) for the DEClaser 1100
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parameters for DA2R Responses for the DEClaser 1100
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protocol Codes for DA2R Responses . . . . . . . . . . . . . . . . . . . .
Error Parameters for Extended Device Status Reports for the
DEClaser 1100 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type Family Names in the DEClaser 1100 Printer . . . . . . . .
Built-In Font File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Font Metrics for the DEClaser 1100 Printer . . . . . . . . . . . . .
Parameters for Load Font File (DECLFF) for the DEClaser
1100 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Macro Parameter Values for the DEClaser 1100 Printer (Grid
Sizes in Centipoints) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horizontal Pitches — DEClaser 3200 Printer (Standard 300
Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vertical Pitches — DEClaser 3200 Printer (Standard 300
Dots/Inch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printable Areas of the DEClaser 3200 Printer in
Centipoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21–4
21–4
22–2
22–4
22–5
22–5
22–7
23–1
24–1
24–3
24–3
25–2
25–3
25–4
25–5
25–6
26–3
26–4
26–8
26–11
27–2
31–2
31–3
31–4
31–4
32–1
32–2
32–3
32–4
33–1
34–1
34–2
34–3
34–4
34–5
35–1
35–2
35–3
35–4
36–1
36–2
36–3
36–4
37–1
38–1
A–1
A–2
A–3
A–4
B–1
B–2
Printable Area for Variable Size Paper for the DEClaser
3200 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial State Values for the DEClaser 3200 Printer . . . . . . . .
Initial State Values of Select Graphic Rendition (SGR)
Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initialization Based on Paper Size . . . . . . . . . . . . . . . . . . . . .
Factory Defaults in NVM for the DEClaser 3200 Printer . . .
Maximum Values Supported by the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Duplex Print Mode Fallbacks for the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tray Selection on the DEClaser 3200 Printer . . . . . . . . . . . .
Set Sheet Size (DECSSS) Parameters . . . . . . . . . . . . . . . . . .
Discrete Paper Sizes for the DEClaser 3200 Printer . . . . . . .
DECSITF Parameters for the DEClaser 3200 Printer . . . . . .
Parameters for Primary DA Response for the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAR Parameters (Alias Response) for the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parameters for DA2 Responses for the DEClaser 3200
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error Parameters for Extended Printer Device Status
Reports for the DEClaser 3200 Printer . . . . . . . . . . . . . . . . .
Type Family Names in the DEClaser 3200 Printer . . . . . . . .
Built-in Font File IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Font Metrics for the DEClaser 3200 Printer . . . . . . . . . . . . .
Parameters for Load Font File (DECLFF) for the DEClaser
3200 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Macro Parameter Values for the DEClaser 3200 Printer
(Grid Sizes in Centipoints) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protocols Supported by the DEClaser 3200 Printer . . . . . . . .
Comparison of DEC PPL3 Commands . . . . . . . . . . . . . . . . . .
Comparison of Extensions to the Protocol . . . . . . . . . . . . . . .
Comparison of Exceptions to the Protocol . . . . . . . . . . . . . . .
Alternative Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Generic Error Codes for DEC PPL3 Device Status
Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Explanations of DEC PPL3 Font File Validation Tests . . . . .
31–5
32–1
32–3
32–4
32–5
33–1
34–1
34–3
34–4
34–5
34–6
35–2
35–3
35–4
35–6
36–3
36–4
36–8
36–10
37–1
38–1
A–2
A–13
A–19
A–20
B–2
B–3
xv
Preface
Intended Audience
The Digital ANSI-Compliant Printing Protocol Level 3 Programming
Supplement is for programmers interested in the following:
•
Creating applications for specific level 3 devices
•
Understanding how documents may appear on different level 3 devices
Devices include both printers and host-based translators.
Document Structure
This manual contains the following parts, chapters, and appendixes:
Part I — ANSI Text Translator
•
Chapter 1 provides a brief overview of the ANSI Text translator.
•
Chapter 2 explains the relationship between the logical information and
the printing of the physical page in the translator environment.
•
Chapter 3 lists initial state and job startup values for the translator.
•
Chapter 4 lists maximum values for translator features.
•
Chapter 5 explains paper handling when you are using the translator.
•
Chapter 6 lists unsupported reporting commands.
•
Chapter 7 lists fonts available to the translator.
•
Chapter 8 lists sixel implementation characteristics specific to the
translator.
•
Chapter 9 discusses protocol switching when you are using the translator.
•
Chapter 10 provides translator information specific to the ScriptPrinter
printer and the LN03 Image printer, the PrintServer family of network
printers, and the DEClaser family of PostScript printers.
xvii
Part II — DEClaser 2100/2200 Printers
•
Chapter 11 describes the printer models.
•
Chapter 12 explains the relationship between the logical information and
the printing of the physical page in the DEClaser environment.
•
Chapter 13 discusses reset and power-up values and lists initial state
values for the printer.
•
Chapter 14 lists maximum values for printer features.
•
Chapter 15 explains paper handling for the printer.
•
Chapter 16 describes reporting commands and lists error messages.
•
Chapter 17 lists fonts available to the printer.
•
Chapter 18 discusses sixel implementation specific to the DEClaser
2100/2200 printers.
•
Chapter 19 discusses protocol switching when you are using the DEClaser
2100/2200 printers.
Part III — DEClaser 1100 Printer
xviii
•
Chapter 20 provides a brief overview of the DEClaser 1100 printer.
•
Chapter 21 explains the relationship between the logical information and
the printing of the physical page in the DEClaser environment.
•
Chapter 22 discusses reset and power-up values and lists initial state
values for the printer.
•
Chapter 23 lists maximum values for printer features.
•
Chapter 24 explains paper handling for the printer.
•
Chapter 25 describes reporting commands and lists error messages.
•
Chapter 26 lists fonts available to the printer.
•
Chapter 27 discusses sixel implementation specific to the DEClaser 1100
printer.
•
Chapter 28 discusses protocol switching when using the DEClaser 1100
printer.
•
Chapter 29 discusses memory management and the DEClaser 1100 printer.
Part IV — DEClaser 3200 Printer
•
Chapter 30 describes the DEClaser 3200 printer.
•
Chapter 31 explains the relationship between the logical information and
the printing of the physical page in the DEClaser 3200 printer.
•
Chapter 32 discusses reset and power-up values and lists initial state
values for the printer.
•
Chapter 33 lists maximum values for printer features.
•
Chapter 34 explains paper handling for the printer.
•
Chapter 35 describes reporting commands and lists error messages.
•
Chapter 36 lists the fonts that come with the DEClaser 3200 printer.
•
Chapter 37 discusses sixel implementation specific to the DEClaser 3200
printer.
•
Chapter 38 discusses protocol switching when you are using the DEClaser
3200 printer.
Appendixes
•
Appendix A compares the DEC PPL3 commands implemented in various
Digital level 3 printers.
•
Appendix B lists generic code error parameters for extended Device Status
Reports (DSR), and font file validation error and warning parameters for
Font Status Reports (DECFSR, DECLFF Ps2 = 2 or 3).
•
Appendix C documents new DEC PPL3 commands not listed in the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
•
Appendix D lists other books associated with the Digital ANSI-Compliant
Printing Protocol and level 3 printers.
Conventions
DEC PPL3 is used throughout the manual to indicate level 3 of the Digital
ANSI-Compliant Printing Protocol. The following conventions are used
throughout this manual:
Convention
Meaning
UPPERCASE
Mnemonics for DEC PPL3 commands as well as DCL commands and
parameters are printed in text in uppercase.
xix
Convention
Meaning
{}
Braces enclose lists from which you must choose one alternative. The
choices are listed vertically or separated by the vertical bar symbol ( | ).
...
When an item in command formats is followed by a horizontal ellipsis,
you can repeat the item one or more times.
Bold
Indicates words the first time they appear and indicates ULTRIX
commands, options, and file names in text.
Italics
Indicates variables in ULTRIX, VMS, and DEC PPL3 commands.
monospaced
type
Illustrates a DEC PPL3 command. Below each character is a
column/row number that indicates the coded character’s position in
a standard code table, for example:
CSI 2
!
v
9/11 3/2 2/1 7/6
SP
xx
Indicates a space character (2/0) as part of the format of a DEC PPL3
command (CSI 3 SP x). Spaces appear between characters in commands
for clarity; they are not part of the command syntax unless indicated
with the SP character.
Part I
ANSI Text Translator
Part I of the Digital ANSI-Compliant Printing Protocol Level 3 Programming
Supplement describes the level 3 Digital ANSI-Compliant Printing Protocol
(DEC PPL3) implementation specific to the translator. For general information
on the Digital ANSI-Compliant Printing Protocol, based on ANSI X3.64, see
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
•
Chapter 1 provides a brief overview of the ANSI Text translator.
•
Chapter 2 explains the relationship between the logical information and
the printing of the physical page in the translator environment.
•
Chapter 3 lists initial state and job startup values for the translator.
•
Chapter 4 lists maximum values for the translator.
•
Chapter 5 explains paper handling when using the translator.
•
Chapter 6 lists unsupported reporting commands.
•
Chapter 7 lists fonts available to the translator.
•
Chapter 8 lists sixel implementation characteristics specific to the
translator.
•
Chapter 9 discusses protocol switching when using the translator.
•
Chapter 10 provides translator information specific to the ScriptPrinter
printer and the LN03 Image printer, the PrintServer family of network
printers, and the DEClaser family of PostScript printers.
1
Overview
The ANSI Text translator converts files that conform to level 3 of the Digital
ANSI-Compliant Printing Protocol, based on ANSI X3.64, into Adobe’s
PostScript page description language for printing on Digital’s PostScript
printers.
Not all Digital Postscript printers use every feature available in the ANSI
translator. For example, not all Digital printers support the same paper sizes.
For information on ANSI translation specific to the ScriptPrinter serial-line
printer and the LN03 Image printer, see Section 10.1. For information
specific to the PrintServer family of network printers, see Section 10.2.
For information specific to the DEClaser family of PostScript printers, see
Section 10.3.
Changes to the ANSI Text translator for Version 4.0 are as follows:
•
Availability of soft font kits to emulate the functionality of font cartridges
(See the DECprint Printing Services User’s Guide for more information.)
•
Subscript and superscript attributes now compatible with other DEC PPL3
printers
•
Print command support of /HEADER and /SPACE through the symbiont
(See the DECprint Printing Services User’s Guide for more information.)
Overview 1–1
2
Logical to Physical Image
This chapter contains the following topics related to creating the physical
image:
•
Translator resolution, Section 2.1
•
Printable area, Section 2.2
•
Mapping the page size to the physical sheet size, Section 2.3
•
Positioning accuracy, Section 2.4
•
Justification, Section 2.5
2.1 Translator Resolution
The ANSI Text translator provides an internal addressing capability of 1/7200
inch (centipoint addressing) and the PostScript interpreter uses an imaging
resolution of 300 x 300 dots/inch for supported devices. This addressing
capability and imaging resolution support a wide range of standard font
pitches and sixel graphics resolutions.
2.1.1 Horizontal Resolution
The ANSI Text translator supports the horizontal pitch values listed in
Table 2–1 for the selective parameters (Ps) of the Set Horizontal Pitch
(DECSHORP) and the Select Horizontal Spacing (SHS) commands. The
table lists the average width of characters (target pitch) in characters/inch if
this value is exact. If characters/inch is only an approximate value, the table
provides the target value in inches with the approximate characters/inch value
in parentheses.
Logical to Physical Image 2–1
Table 2–1 Horizontal Pitches — ANSI Text Translator (Standard 300
Dots/Inch)
Target Pitch
(Char/Inch)
Target Value
(Centipoints)
Actual Pitch
(Char/Inch)
Actual Value
(Centipoints)
5
1440.00
5.000
1440
6
1200.00
6.000
1200
(6.6) 10/66 in.
1090.90
6.605
1090
(8.25) 8/66 in.
872.72
8.265
872
(8.55) 28/240 in.
840.00
8.550
840
9
800.00
9.000
800
10
720.00
10.000
720
696.00
10.344
696
12
600.00
12.000
600
12.77
563.82
12.788
563
545.45
13.210
545
480.00
15.000
480
(10.3) 29/300 in.
(13.2) 5/66 in.
15
(16.5) 4/66 in.
436.36
16.510
436
(17.1) 14/240 in.
420.00
17.100
420
400.00
18.000
400
18
The macro parameter values for sixel graphics grid sizes and aspect ratios
provided by the ANSI Text translator are shown in Table 8–1.
2.1.2 Vertical Resolution
The ANSI Text translator provides the vertical addressing capability for
pitches required for existing fonts and graphics mode. For the fallback values
for sixel graphics vertical grid sizes, see Table 8–1. Table 2–2 lists vertical
pitch values supported for the selective parameters (Ps) of the Set Vertical
Pitch (DECVERP) and the Select Vertical (Line) Spacing (SVS) commands. The
second column, labeled Actual Value, gives the amount of white space between
the lines in centipoints for each pitch selection.
2–2 Logical to Physical Image
Table 2–2 Vertical Pitches — ANSI Text Translator (Standard 300 Dots/Inch)
Target Pitch
(Lines/Inch)
Actual Value
(Centipoints)
2
3600
3
2400
4
1800
6
1200
8
900
12
600
Target Pitch
(Lines/A-size
Printable Area)
Actual Value
(Centipoints)
22
3456
33
2304
44
1728
66
1152
88
864
132
576
Target Pitch
(Lines/30 Millimeters)
Actual Value
(Centipoints)
3
2856
4
2136
6
1416
12
720
Note
The translator implements values for the Spacing Pitch Increment
(SPI) command as requested.
Logical to Physical Image 2–3
2.2 Printable Area
Table 2–3 shows the minimum printable area in centipoints specified by Digital
for paper sizes supported by the ANSI Text translator and selected with the
PRINT command as follows:
$ PRINT/PARAMETER=(DATA_TYPE=ANSI,PAGE_SIZE=logical-size)
For the maximum printable area of the paper sizes supported on the
ScriptPrinter device and the LN03 Image printer, see Table 10–1. For the
maximum printable area of the paper sizes supported on the PrintServer
network printers, see Table 10–2. For the printable area of the paper sizes for
the Page Format Select (PFS) and the Variable Page Format Select (DECVPFS)
commands, see the respective commands in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
Table 2–3 Minimum Printable Areas of the Translator by Paper Size
Paper Size
(Conventional Units)
Width
(Centipoints)
Length
(Centipoints)
A (8 1/2 in. x 11 in.)
57600
75600
A3 (297 mm x 420 mm)
80568
115488
A4 (210 mm x 297 mm)
55872
80568
A5 (148 mm x 210 mm)
38400
55920
B (11 in. x 17 in.)
75600
118800
B4 (250 mm x 353 mm)
69264
99567
B5 (176 mm x 250 mm)
48000
69264
Legal (8 1/2 in. x 14 in.)
56700
97200
Executive (7 1/2 in. x 10 1/2 in.)
50400
72000
2.3 Mapping Page Size to Physical Sheet Size
The Page Format Select (PFS) and Variable Page Format Select (DECVPFS)
commands, or the PAGE_SIZE parameter on the PRINT command, provide
a page size. The physical sheet size depends on the physical dimensions of
the paper selected with a size switch on the printer or with the SHEET_SIZE
parameter to the PRINT command. When the page size does not match the
physical sheet size, the ANSI Text translator keeps the page and physical sheet
aligned at the bottom left-hand corner.
2–4 Logical to Physical Image
•
If the page size is smaller than the physical sheet size, the translator
leaves white space on the right and top edges. See Figure 2–1.
•
If the page size is larger than physical sheet size, the translator does not
image characters that extend beyond the boundaries of the printable area
in both the horizontal and vertical directions. See Figure 2–2.
Note
You can modify physical page mapping with the NUMBER_UP
parameter to the PRINT command.
Figure 2–1 Page Size Smaller Than Physical Sheet Size on the ANSI Text
Translator
Physical Sheet Size
Page Size
MLO-005350
Logical to Physical Image 2–5
Figure 2–2 Page Size Larger Than Physical Sheet Size on the ANSI Text
Translator
Page Size
Physical Sheet Size
MLO-005351
2.4 Positioning Accuracy
The ANSI Text translator rounds to the nearest pixel at imaging time, keeping
distances in centipoints. Positioning is accurate to 1/2 pixel. For vectors,
drawn with the Draw Vector (DECVEC) and Draw Relative Vector (DECRVEC)
commands, values between 0 and 24 centipoints round to 1 pixel.
2.5 Justification
The ANSI Text translator discards the right bearing of the rightmost character
on the line and the left bearing of the leftmost character on the line.
2–6 Logical to Physical Image
3
Initial State Values
The topics discussed in this chapter include the following:
•
Initial state values for the translator, independent of paper size and page
orientation, Section 3.1
•
Initial state values based on paper size and page orientation, Section 3.2
Values in setup modules and forms that include setup modules can override
initial state values.
3.1 Initial States Independent of Paper Size and Orientation
Table 3–1 and Table 3–2 list the values used by the translator at job startup
and for Select Conformance Level (DECSCL), Soft Terminal Reset (DECSTR),
and Reset to Initial State (RIS) commands. These values are independent of
paper size and page orientation.
Initial State Values 3–1
Table 3–1 Initial State Values — ANSI Text Translator
Variable or
Control Function
Origin (DECOPM)
Position Unit Mode
1
DECSCL
Job Startup
DECSTR
RIS
Reset
Reset
Reset
Reset
Reset
Reset
Vertical spacing
Font-dependent
Font-dependent
Font-dependent
Horizontal spacing
Font-dependent
Font-dependent
Font-dependent
Decipoints
Decipoints
Decipoints
Active position
Origin
Origin
Origin
Horizontal tabs2
Every eight
Every eight
Every eight
Line Feed/New Line
Reset
Reset
Reset
CR/New Line Mode
Reset
Reset
Reset
Size unit
1
Pitch Select Mode
3
Set
Set
Set
Proportional spacing
Reset
Reset
Reset
Justify
Disabled
Disabled
Disabled
SGR attributes
Disabled
Disabled
Disabled
Vertical tabs4
Every VAI
Every VAI
Every VAI
G0
ASCII
ASCII
ASCII
G1
ASCII
ASCII
ASCII
G2
User Preference
User Preference
User Preference
G3
User Preference
User Preference
User Preference
GL
G0
G0
G0
GR
G2
G2
G2
GSS
10 points
10 points
10 points
GSM
100,100
100,100
100,100
Autowrap
Set
Set
Set
User Preference Set
DEC Supplemental
DEC Supplemental
Unchanged
1
Because Position Unit Mode (PUM) is reset by default, Select Size Unit (SSU) is ignored for most
commands.
2
Horizontal tabs are set every eight columns, starting with column 9 (9,17, . . . ). They fill the
entire tab table.
3
When DECPSM is reset, the Horizontal Advance Increment (HAI) is font-dependent.
4
Vertical tabs are set every line or Vertical Advance Increment (VAI) and fill the entire tab table.
(continued on next page)
3–2 Initial State Values
Table 3–1 (Cont.) Initial State Values — ANSI Text Translator
Variable or
Control Function
DECSCL
CRM
Unchanged
Tray selection (feeder)
5
Job default
5
Job Startup
DECSTR
RIS
Reset
Unchanged
Job default
Job default
Job default is the tray selected when the translator begins processing.
Table 3–2 Initial State Values of Select Graphic Rendition (SGR) Numbers
SGR
Assignment Type
ID
Meaning
10
Type family
DBULTN1
DEC Builtin1 family
11
Type family
RCOURIR
Courier family
12
Type family
RELITE0
Elite family
13
Font collection plus
RCOURIRJ02SK00GG
Courier 10 point, 10 pitch
14
Font collection plus
RELITE0L02SK00GG
Elite 10 point, 12 pitch
15
Font collection plus
RCOURIR101VK00GG
Courier 6.7 point, 13.6 pitch
16
Font collection plus
RCOURIR202SK00GG
Courier 10 point, 10.3 pitch
17
Type family
DBULTN1
DEC Builtin1 family
18
Type family
DBULTN1
DEC Builtin1 family
19
Type family
DBULTN1
DEC Builtin1 family
Soft font kits can modify the default Select Graphic Rendition (SGR) values.
These modifications occur during power-up, Soft Terminal Reset (DECSTR),
Reset to Initial State (RIS), and for the Select Conformance Level (DECSCL)
command. The translator also references modifications to the SGR values
made by the soft font kits on the Assign Type Family or Font (DECATFF)
command when the string is null.
3.2 Initial States Based on Paper Size and Orientation
The bounds and the Select Graphic Rendition (SGR) parameter are determined
at job startup and depend on the paper size and orientation you select using
parameters to the PRINT command. Table 3–3 lists the bounds as a parameter
of the Page Format Select (PFS) command or a Variable Page Format Select
(DECVPFS) command. For PFS and DECVPFS values, see the description
of the respective commands in the Digital ANSI-Compliant Printing Protocol
Level 3 Programming Reference Manual.
Initial State Values 3–3
Table 3–3 Initial State Values Based on Paper Size and Orientation
Size
Orientation
Bounds Definition
SGR1
A
Portrait
PFS ?20
10
A
Landscape
PFS ?21
15
A3
Portrait
DECVPFS for
A3-size paper
16
A3
Landscape
DECVPFS for
A3-size paper
15
A4
Portrait
PFS ?22
16
A4
Landscape
PFS ?23
15
A5
Portrait
DECVPFS for
A5-size paper
16
A5
Landscape
DECVPFS for
A5-size paper
15
B
Portrait
PFS ?26
10
B
Landscape
PFS ?27
15
B4
Portrait
DECVPFS for
B4-size paper
16
B4
Landscape
DECVPFS for
B4-size paper
15
B5
Portrait
DECVPFS for
B5-size paper
16
B5
Landscape
DECVPFS for
B5-size paper
15
Legal
Portrait
PFS ?24
10
Legal
Landscape
PFS ?25
15
Executive
Portrait
DECVPFS for
executive-size paper
10
Executive
Landscape
DECVPFS
executive-size paper
15
1
The symbiont defines the SGR values. These values may change with different symbionts.
3–4 Initial State Values
4
Maximum ANSI Text Translator Values
This chapter lists the maximum parameter values supported by the ANSI
translator. The topics include:
•
Maximum parameter values, Section 4.1
•
Maximum values for translator features, Section 4.2
4.1 Maximum Parameter Values
The ANSI Text translator has the following limits for parameter values:
•
Graphics repeat function (DECGRI) — 32K (32,767) limit. The translator
sets values that exceed this limit to the limit value.
•
Grid size parameter — 99 units for maximum horizontal grid size; 1000 for
maximum aspect ratio (99,000 units for maximum vertical grid size).
4.2 Maximum Values for Translator Features
Table 4–1 lists the maximum values supported by the ANSI Text translator.
Table 4–1 Maximum Values Supported by the ANSI Text Translator
Translator Features
Maximum
Horizontal tabs
204
Vertical tabs
204
Number of trays
{3 | 2 | 1}1
Number of entries in
font dictionary
256
1
The number of trays depends on the destination. See Section 5.2 for more information on input
tray destinations.
(continued on next page)
Maximum ANSI Text Translator Values 4–1
Table 4–1 (Cont.) Maximum Values Supported by the ANSI Text Translator
Translator Features
Maximum
Font RAM size
No limitation (virtual memory of the operating system)
Built-in bitmap RAM or
graphics buffer
Full page bitmap of any supported paper size
Number of cartridge kits
Depends on the number of entries in the font dictionary and
the font RAM size
4–2 Maximum ANSI Text Translator Values
5
Paper Handling
The following options specific to the ANSI Text translator are discussed in this
chapter:
•
Duplex printing, Section 5.1
•
Input tray selection, Section 5.2
•
Set sheet size, Section 5.3
5.1 Duplex Printing
The ANSI Text translator does not support the Set Duplex Print Mode
(DECSDPM) command. For duplex printing with ANSI Text translator jobs,
use the SIDES parameter on the PRINT command line. Currently, the only
printers supported by the ANSI Text translator that print on both sides of the
paper are the PrintServer 20 network printer and the DEClaser 2250 and 3250
printers.
5.2 Designating the Input Tray
The ANSI Text translator supports the Automatic Sheet Feeder (Input Tray)
Control (DECASFC) command to select the appropriate tray for printers that
have multiple trays:
CSI Ps ! v
9/11 3/xx 2/1 7/6
DECASFC causes a conditional Form Feed. Subsequent sheets come from the
tray as indicated in the selective parameter (Ps) value in Table 5–1.
Paper Handling
5–1
Table 5–1 Tray Selection With the ANSI Text Translator
DEClaser
2250
Printer2
Single
Tray
Printers3
DEClaser
3250
Printer5
Ps
Tray Selected
PrintServer
Printers
0
No tray change
x
x
x
x
1
Top tray
x
x
x
x
2
Bottom tray
x
3
Large capacity
input tray
x
3
Envelope feeder1
x
4
x
x
x5
x
1
The envelope feeder is available as an option for the DEClaser 2250 printer and can be selected
only with Ps = 3.
2
When using special, one-sided paper, feed the paper faceup.
3
Single tray printers supported by the translator include the DEClaser 1150 and 2150 printers, the
ScriptPrinter printer, and the LN03 Image printer.
4
The DEClaser 1150 can be configured with an optional cassette tray.
5
The LCIT is an option. The optional MMF for the DEClaser 3250 can not be accessed via the
ANSI Text translator. When using special, one-sided paper, feed the paper face down.
If your system manager has not changed the value, the default DECASFC
parameter for the input tray is Ps = 3, which selects the large capacity input
tray.
If your printer does not have multiple trays, the printer ejects the current page
upon receipt of the command and continues printing from the same tray.
Override the DECASFC default with the following parameter to the PRINT
command:
•
On a VMS system:
$ PRINT/PARAMETER=(INPUT_TRAY={TOP|MIDDLE|BOTTOM|LCIT})
The BOTTOM and LCIT parameters both select the large capacity input
tray.
•
On an ULTRIX system:
% lpr -Iinput_tray
Select input_tray from top, middle, bottom, or LCIT. LCIT and bottom both
select the large capacity input tray.
5–2 Paper Handling
If you have a DECASFC command in the file to be printed, it overrides the
PRINT command and parameters.
Example 5–1 shows the command that selects the top input tray.
Example 5–1 Selecting an Input Tray with the Translator
CSI 1 ! v
9/11 3/1 2/1 7/6
5.3 Set Sheet Size (DECSSS)
The ANSI Text translator does not support the Set Sheet Size (DECSSS)
command. On devices supported by the translator, trays have tags that
identify the size of the paper.
Paper Handling
5–3
6
Status and Error Reporting
The ANSI Text translator does not support the following DEC PPL3 commands
that relate to reporting:
•
Cursor Position Report (CPR)
•
Device Attributes (DA) request
•
Device Attributes Report (DAR)
•
Device Attributes (Secondary) DA2 request
•
Device Attributes (Secondary) Report (DA2R)
•
Request Font Status (DECRFS)
•
Font Status Report (DECFSR)
•
Device Status Request (DSR)
•
Device Status Report (DSR)
For information on these commands, refer to the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
Status and Error Reporting 6–1
7
Fonts for the ANSI Text Translator
This chapter discusses the following font-related topics:
•
Load Font File (DECLFF) considerations, Section 7.1
•
Font file repertory, Section 7.2
•
Available built-in fonts, Section 7.3
•
Algorithmic transformations for rendering attributes, Section 7.4
For more information on fonts and font selection, refer to the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
7.1 Load Font File (DECLFF) Considerations
The ANSI Text translator can store up to 256 font files for downline loading to
the PostScript printer. Font files that are downline loaded using the Load Font
File (DECLFF) command must follow the Common Font File Format (CFFF).
For information, refer to the Font File Format User’s Manual.
7.2 Font Repertory
The ANSI Text translator font repertory consists of the following:
•
Built-in fonts
•
Digital Standard Font Files available in CFFF format, including soft font
kits, that can be downline loaded
•
Customer-provided font files in CFFF format that can be downline loaded
•
Built-in algorithmic transformations
Fonts for the ANSI Text Translator 7–1
7.3 Built-In Font File Repertory
The ANSI Text translator has 20 built-in font files. These font files support the
combination of five character sets in four fonts. The following fonts reside in
the ANSI Text translator:
•
Courier 10-point 10-pitch normal portrait (Normal means that the font is
not bold, italic, or otherwise attributed.)
•
Courier 10-point 10.3-pitch normal portrait
•
Courier 6.7-point 13.6-pitch normal landscape
•
Elite 10-point 12-pitch normal portrait (type style used by translator is
Courier 10-point 12-pitch)
For each font, the following character sets reside in the printer:
•
ASCII
•
DEC Supplemental
•
DEC Technical
•
DEC Special Graphics (VT100 Line Drawing)
•
ISO Latin-1 Supplemental
7.3.1 Type Family Names
Table 7–1 lists the type families and the associated type family IDs built into
the ANSI Text translator.
Table 7–1 Type Family Names in the ANSI Text Translator
Type Family Name
Type Family ID
(Seven Characters)
DEC Builtin1
DBULTN11
Courier
RCOURIR2
Elite 12
RELITE02
PI font
D0000001
1
The ‘‘D’’ in the type family IDs for DEC Builtin1 and PI font indicates that the name is registered
with Digital, but is not registered internationally.
2
The ‘‘R’’ in the type family IDs for Courier and Elite 12 indicates that these names are either
registered internationally or are in the public domain.
7–2 Fonts for the ANSI Text Translator
7.3.2 Built-In Type Family Names and IDs, Font IDs, and Font File IDs
Table 7–2 lists type family names, type family IDs, font IDs, and font file IDs
built into the ANSI Text translator.
Each of the 20 font files contains a character set that has a style, an
orientation, a point size, and a horizontal spacing. Table 7–2 contains 40
entries. The translator recognizes each font under two names:
•
A name that is either internationally registered or in the public domain:
for example, Courier or Elite 12
•
A name registered by Digital: for example, Builtin or PI
For example, the following two entries are the same:
•
Courier ASCII, 10 point, 10 pitch, Portrait font —
(RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
•
DEC BUILTIN1 ASCII, 10 point, 10 pitch, Portrait font —
(DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
In the ANSI Text translator, a font file has a 31-character name. The first
seven characters are the type family ID, the first 12 characters are the font
collection ID, and the first 16 characters define the font ID. The following
example shows how the type families, font collections, fonts, and font files are
related:
•
A type family ID — DBULTN1
•
A font collection ID — DBULTN1J02SK
•
A font ID — DBULTN1J02SK00GG
•
A font file ID — DBULTN1J02SK00GG0001UZZZZ02F000
In Table 7–2, the font ID, the font collection ID, and the font file ID are
indicated by arrows.
Note
Spaces appear in the IDs for clarity; they are not part of the IDs.
Fonts for the ANSI Text Translator 7–3
Table 7–2 Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
1. Type Family Name: DEC Builtin1 — Type Family ID: DBULTN1
10
10
ASCII
1
10
10
DEC Supplemental
10
10
ISO Latin-1 Supplemental
10.3
10
ASCII
10.3
10
DEC Supplemental1
10.3
10
ISO Latin-1 Supplemental
12
10
ASCII
12
10
DEC Supplemental1
12
10
ISO Latin-1 Supplemental
13.6
6.7
ASCII
13.6
6.7
DEC Supplemental1
13.6
6.7
ISO Latin-1 Supplemental
DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
2. Type Family Name: Courier — Type Family ID: RCOURIR
10
10
ASCII
1
10
10
DEC Supplemental
10
10
DEC Technical
10
10
DEC Special Graphics
10
10
ISO Latin-1 Supplemental
10.3
10
ASCII
10.3
10
DEC Supplemental1
10.3
10
DEC Technical
10.3
10
DEC Special Graphics
10.3
10
ISO Latin-1 Supplemental
13.6
6.7
ASCII
1
RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for user preference.
(continued on next page)
7–4 Fonts for the ANSI Text Translator
Table 7–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
2. Type Family Name: Courier — Type Family ID: RCOURIR
13.6
6.7
DEC Supplemental1
13.6
6.7
DEC Technical
13.6
6.7
DEC Special Graphics
13.6
6.7
ISO Latin-1 Supplemental
RCOURIR 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
3. Type Family Name: Elite 12 — Type Family ID: RELITE0
12
10
ASCII
1
12
10
DEC Supplemental
12
10
DEC Technical
12
10
DEC Special Graphics
12
10
ISO Latin-1 Supplemental
RELITE0 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
4. Type Family Name: PI Font — Type Family ID: D000000
10
10
DEC Technical
10
10
DEC Special Graphics
10.3
10
DEC Technical
10.3
10
DEC Special Graphics
12
10
DEC Technical
12
10
DEC Special Graphics
13.6
6.7
DEC Technical
13.6
6.7
DEC Special Graphics
1
D000000 J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for user preference.
Fonts for the ANSI Text Translator 7–5
7.3.3 Font Metrics
Table 7–3 lists the metrics in centipoints for the fonts built into the ANSI Text
translator.
Table 7–3 Font Metrics for the ANSI Text Translator
CFFF Field
Courier 10
Courier 10.3
Elite 12
Total vertical size
1152
1152
1152
864
Above baseline offset
–840
–840
–840
–648
Below baseline offset
312
312
312
216
1
360
336
288
264
720
696
600
528
Maximum space size2
1440
1392
1200
1056
Superscript vertical3
–576
–576
–576
–432
Subscript vertical
576
576
576
432
Underline offset
(height, thickness)
240, 72
240, 72
240, 72
168, 48
Strike-through offset
(height, thickness)
–264, 72
–264, 72
–264, 72
–192, 48
Overline offset
(height, thickness)
–912, 72
–912, 72
–912, 72
–480, 48
Minimum space size
Width of space
3
1
In general, minimum space is calculated as 33% to 50% of width of space.
2
In general, maximum space is calculated as 200% of width of space.
3
In general, superscript and subscript offsets are one-half of the total vertical size.
Courier 13.6
7.4 Built-In Algorithmic Transformations
When the print job requires a font with a particular set of attributes, the
translator first searches the current repertory for a font that contains the
proper character set, in the proper style, in the proper horizontal and vertical
size, with the desired attributes.
If the search fails to find a font with the desired attributes, the ANSI Text
translator attempts to approximate the desired attributes by using algorithmic
transformations on the existing repertory.
7–6 Fonts for the ANSI Text Translator
The ANSI Text translator provides fallback algorithmic transformations for the
following:
•
Bold (with shadow bold)
•
Portrait/landscape orientation (rotating)
•
Italic (by slanting the character)
•
Underline
•
Strike-through
•
Overline
•
National Replacement Character Sets (NRCS)
The ANSI Text translator always uses algorithmic transformations for the
following:
•
Horizontal spacing
•
Vertical spacing
•
Double underline
The ANSI Text translator does not provide fallbacks for the following
attributes:
•
Size scaling of any type
•
Kerning
When the selected font is proportional and the requested font is monospaced,
the ANSI Text translator left-justifies the proportional characters within the
monospaced cell.
Fonts for the ANSI Text Translator 7–7
8
Sixel Considerations
This chapter discusses two topics related to sixel graphics:
•
Macro parameter values, Section 8.1
•
Miscellaneous considerations and restrictions to translation, Section 8.2
8.1 Macro Parameter Values
Table 8–1 compares the target values and the values implemented by the ANSI
Text translator for the macro parameter (Ps1) of the sixel mode graphics device
control string:
DCS Ps1; Ps2; Pn3 q picture_definition ST
Ps1 is a selective parameter that specifies the horizontal grid size and aspect
ratio. Grid size measurements are given in centipoints.
Table 8–1 Macro Parameter Values for the ANSI Text Translator (Grid Sizes in
Centipoints)
Target Values
Ps1
Approximate
Horizontal
Grid Size1
Translator Values
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
Horizontal
Grid Size
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
0
54.60
200:100
100
48
200:100
96
1
54.60
200:100
100
48
200:100
96
2
22.22
450:100
100
21
451:100
96
3
33.33
300:100
100
32
300:100
96
1
For true target values in 1/660 in., see the sixel information in the Digital ANSI-Compliant Printing Protocol
Level 3 Programming Reference Manual.
(continued on next page)
Sixel Considerations 8–1
Table 8–1 (Cont.) Macro Parameter Values for the ANSI Text Translator (Grid Sizes in
Centipoints)
Target Values
Ps1
Approximate
Horizontal
Grid Size1
Translator Values
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
Horizontal
Grid Size
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
4
40.00
250:100
100
38
252:100
96
5
54.60
183:100
100
48
200:100
96
6
66.66
150:100
100
64
150:100
96
7
76.90
130:100
100
74
129:100
96
8
89.20
112:100
100
86
111:100
96
9
100.00
100:100
100
96
100:100
96
1
For true target values in 1/660 in., see the sixel information in the Digital ANSI-Compliant Printing Protocol
Level 3 Programming Reference Manual.
8.2 Miscellaneous Considerations and Restrictions
Section 8.2.1 and Section 8.2.2 discuss valid Set Raster Attributes (DECGRA)
commands and restrictions to the translation of sixel graphics.
8.2.1 Valid Set Raster Attributes (DECGRA) Command
The ANSI Text translator ignores a DECGRA command if the translator
receives any of the following before the command:
•
Graphics Repeat Introducer control character — DECGRI (!)
•
Graphics Carriage Return control character — DECGCR ($)
•
Graphics Next Line control character — DECGNL (–)
•
Sixel data
Digital recommends that software always send a Set Raster Attributes
(DECGRA) command before sending the sixel data and any other sixel graphics
command.
8–2 Sixel Considerations
8.2.2 Restrictions
The following restrictions apply when you use the ANSI Text translator to
convert sixel graphics to the PostScript page description language:
•
Colors map to black. This causes most color pictures to come out dark and
not very clear.
•
Sixel translation ignores extent parameters (Pn3 and Pn4) of the Set
Raster Attributes (DECGRA) command.
•
Sixel translation ignores the background select parameter (Ps2 of the sixel
device control string). The translator assumes a white background.
•
The maximum value for the horizontal grid size is 99 current units. (See
the Select Size Unit (SSU) command in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.)
•
The maximum value for the aspect ratio is 1000. The horizontal grid size
multiplied by the aspect ratio provides a maximum vertical grid size of
99,000 current units. (See the Select Size Unit (SSU) command in the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.)
Sixel Considerations 8–3
9
Alternative Protocols
The ANSI Text translator does not support protocol switching. Therefore, the
translator ignores the following DEC PPL3 commands:
•
Select Other Coding System (SOCS)
•
Return from Other Coding System (ROCS)
•
IBM Proprinter Emulation Mode (DECIPEM)
For information on these commands, see the Digital ANSI-Compliant Printing
Protocol Level 3 Programming Reference Manual.
Alternative Protocols 9–1
10
Printer-Specific ANSI Text Translator
Considerations
This chapter contains information on ANSI text translation specific to the
following printers:
•
ScriptPrinter and LN03 Image printers, Section 10.1
•
PrintServer network printers, Section 10.2
•
DEClaser printers, Section 10.3
10.1 ScriptPrinter and LN03 Image Printers
This section contains information on ANSI translation specific to the
ScriptPrinter and LN03 Image printers. The following topics are discussed:
•
Downline loaded font capacity, Section 10.1.1
•
Selection of the ANSI Text translator, Section 10.1.2
•
Default settings for the printers, Section 10.1.3
•
Printable area, Section 10.1.4
•
Sixel graphics resolution, Section 10.1.5
•
Hints, problems, and solutions when using the translator, Section 10.1.6
For more information on the DEC PPL3 printer protocol, see the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
Printer-Specific ANSI Text Translator Considerations 10–1
10.1.1 Downline Loaded Font Capacity
The LN03R ScriptPrinter and the LN03 Image printers support fonts that
reside permanently in the translator and fonts that are downline loaded in
Digital Common Font File Format (CFFF). (See the Font File Format User’s
Manual for format information.) The translator converts downline loaded
CFFF font files into the PostScript page description language before use. Up
to 256 font files are available for downline loading for the printer when you
use the ANSI Text translator, Version 4.0. With Version 3.1, 32 font files are
available for downline loading to the printer.
Note
The downline loaded font capacity of the ANSI Text translator typically
exceeds the font capacity of the printer. If the memory allotted to load
fonts in the printer is full, the translator deletes all fonts from the
printer memory before loading the new font. Your file prints more
slowly if the translator needs to clear the printer memory before it can
load the font you requested.
10.1.2 Selecting the ANSI Text Translator
To print your ANSI Text or sixel file on the ScriptPrinter printer or the LN03
Image printer, send it to a VMS print queue that uses this translator by
default or use the VMS PRINT command with a DATA_TYPE parameter of
ANSI:
$ PRINT/QUEUE=printername file-spec[,...]/PARAMETERS=(DATA_TYPE=ANSI)
The ANSI Text translator implements the following parameters to the PRINT
command:
•
/PAGE_ORIENTATION
•
/PAGE_SIZE
For more information on using the ANSI Text translator with the ScriptPrinter
printer or the LN03 Image printer, see the DECprint Printing Services User’s
Guide.
10–2 Printer-Specific ANSI Text Translator Considerations
10.1.3 Default Settings
Table 3–1 and Table 3–2 list the initial state values that do not change with
the default settings. See Table 3–3 for a list of the bounds and the Select
Graphic Rendition (SGR) parameter determined at job startup depending on
the paper size and orientation.
Several initial state values change in the ANSI Text translator depending on
paper size and orientation (portrait and landscape). The ScriptPrinter and
LN03 Image printers support the following sheet sizes:
A (Letter)
8 1/2 in. x 11 in. (216 mm x 279 mm)
A4
210 mm x 297 mm (8 34/127 in. x 11 88/127 in.)
However, with the layup feature provided with DECprint Printing Services
software, you can map any logical page size supported by the translator to
the physical sheet size regardless of the printer. For information on the layup
feature, see the DECprint Printing Services User’s Guide and the DECprint
Printing Services System Manager’s Guide.
You can change the default setting by using the /PAGE_SIZE=logical-size
and /PAGE_ORIENTATION=logical-orientation parameters to the PRINT
command.
10.1.4 Printable Area
Table 10–1 shows the printable area in centipoints of the paper sizes supported
on the ScriptPrinter and LN03 Image printers.
Table 10–1 Printable Areas on the ScriptPrinter and the LN03 Image Printers
Paper Size
(Conventional Units)
Width
(Centipoints)
Length
(Centipoints)
A (8 1/2 in. x 11 in.)
57600
76776
A4 (210 mm x 297 mm)
57600
81600
For minimum printable areas of other paper sizes supported by the ANSI Text
translator, see Table 2–3.
Printer-Specific ANSI Text Translator Considerations 10–3
10.1.5 Sixel Graphics Resolution
To achieve the fastest printing with sixel graphics on the LN03R ScriptPrinter
printer, use a resolution of 75 dots/inch by selecting the following settings:
•
Positioning Unit Mode (PUM) command set — CSI 11 h (9/11 3/1 3/1 6/8)
•
Select Size Unit (SSU) command set to pixels, 1/300 in. — CSI 7 SP I (9/11
3/7 2/0 4/9)
•
Horizontal grid size parameter (Pn3 of the sixel protocol selector) equal to
4
•
Aspect ratio parameters of the Set Raster Attributes (DECGRA) command
set to any 1:1 aspect ratio, for example, 1:1 or 2:2
When you select a resolution, keep the following in mind:
•
If you select an aspect ratio other than 300 dots/inch, the printer uses a
resolution conversion algorithm to provide a good-quality picture from your
selected grid.
•
If you select a resolution greater than 75 dots/inch, the printer does not
receive information as fast as it can process information.
•
If you select an integral ratio (300/resolution = integer), the printer takes
less time to print than if you select a nonintegral ratio.
10.1.6 Hints, Problems, and Solutions
This section provides information on selecting page format and landscape
pages.
Page Format
Use any of the following to select the page format:
•
The Page Format Select (PFS) command:
CSI Ps SP J
9/11 *** 2/0 4/10
•
The Variable Page Format Select (DECVPFS) command:
CSI Ps1 ;
Pn2 ;
...
9/11 *** 3/11 *** 3/11
•
;
Pn11 SP z
3/11 **** 2/0 7/10
The PAGE_SIZE parameter to the PRINT command:
$ PRINT/PARAMETERS=(PAGE_SIZE=logical-size)
When you call the translator, it defaults to A-size paper, unless the system
manager or user has changed the parameter.
10–4 Printer-Specific ANSI Text Translator Considerations
Landscape Pages
You can do either of the following to print with the landscape orientation:
•
Use the LANDSCAPE option with the PAGE_ORIENTATION parameter
on the PRINT command:
$ PRINT/PARAMETERS=(PAGE_ORIENTATION=LANDSCAPE)
•
Use the following DEC PPL3 commands:
A Page Format Select (PFS) command with Ps = 1, 3, 5, 7, 9, ?21, ?23,
?25, or ?27
A Select Graphic Rendition (SGR) command with Ps = 15 (provides a
pitch of 13.6 characters/inch)
A Set Horizontal Tab Stops (DECSHTS) command with tabs set every
eight characters
A Reset to Initial State (RIS) or Soft Terminal Reset (DECSTR) command
received after these commands returns the option to the page orientation
selected by the VMS PRINT command or the system manager.
10.2 PrintServer Network Printers
This section contains information on ANSI translation specific to the
PrintServer family of network printers. The following topics are discussed:
•
Downline loaded font capacity, Section 10.2.1
•
Selection of the ANSI Text translator, Section 10.2.2
•
Default settings, Section 10.2.3
•
Printable area, Section 10.2.4
•
Sixel graphics resolution, Section 10.2.5
•
Hints, problems, and solutions when using PrintServer printers,
Section 10.2.6
•
ANSI implementation considerations, Section 10.2.7
For more information on the DEC PPL3 printer protocol, see the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
Printer-Specific ANSI Text Translator Considerations 10–5
10.2.1 Downline Loaded Font Capacity
A PrintServer system supports fonts that reside permanently in the translator
and fonts that are downline loaded in Digital Common Font File Format
(CFFF). (See the Font File Format User’s Manual for format information.)
The translator converts downline loaded CFFF font files into the PostScript
page description language before use. Up to 256 font files are available for
downline loading to a PrintServer network printer when you use the ANSI
Text translator, Version 4.0. With Version 3.1, 32 font files are available for
downline loading to the printer.
10.2.2 Selecting the ANSI Text Translator
To print your ANSI Text or sixel file on a PrintServer network printer, send
it to a VMS print queue that uses this translator by default, or use the
appropriate command for your operating system.
•
On a VMS system, use the PRINT command with a DATA_TYPE
parameter of ANSI:
$ PRINT/QUEUE=LPSxx$server/PARAMETERS=(DATA_TYPE=ANSI) file-spec
•
On an ULTRIX system, use the lpr command with a data_type option of
ansi:
% lpr -Pqueuename -Dansi file-spec
On an ULTRIX system, if the data_type option is not included in the lpr
command, the print daemon uses the data type described in the /etc/printcap
file. The default data type in this file is ansi. If no data type entry is found
in the /etc/printcap file, the daemon sends the file to the printer without
translation.
You must specify the name of the destination printer. This printer should be
the one that your system administrator defined in the /etc/printcap file.
Note
ULTRIX lpr commands are case-sensitive.
For more information on the DATA_TYPE parameter to the PRINT command
on a VMS system, refer to the DECprint Printing Services User’s Guide. For
more information on the data_type option to the lpr command on an ULTRIX
system, refer to the User’s Guide: PrintServer Client for ULTRIX.
10–6 Printer-Specific ANSI Text Translator Considerations
10.2.3 Default Settings
Table 3–1 and Table 3–2 list the initial state values that do not change with
the default setting. See Table 3–3 for a list of the bounds and the Select
Graphic Rendition (SGR) parameters determined at job startup, depending on
the paper size and orientation.
Several initial state values in the ANSI Text translator change, depending
on the default paper size and orientation (portrait or landscape). You can
select the following paper sizes with the PRINT command for the PrintServer
network printers:
A (Letter)
8 1/2 in. x 11 in. (216 mm x 279 mm )
B
11 in. x 17 in. (279 mm x 432 mm )
A3
297 mm x 420 mm (11 88/127 in. x 16 68/127 in.)
A4
210 mm x 297 mm (8 34/127 in. x 11 88/127 in.)
B4
250 mm x 353 mm (9 107/127 in. x 13 114/127 in.)
A5
148 mm x 210 mm (5 105/127 in. x 8 34/127 in.)
B5
176 mm x 250 mm (6 118/127 in. x 9 107/127 in.)
Legal
8 1/2 in. x 14 in. (216 mm x 356 mm )
Executive
7 1/2 in. x 10 1/2 in. (191 mm x 267 mm )
If the system manager did not change the initial setting, the default setting is
A-size paper, portrait orientation. You can change the default settings to print
your file in the following ways:
•
On a VMS system, use the /PAGE_SIZE=logical-size, /SHEET_
SIZE=physical-size, and /PAGE_ORIENTATION=logical-orientation
parameters on the PRINT command.
•
On an ULTRIX system, use the lpr -Fpage_size, lpr -Ssheet_size, or
lpr -Opage_orientation options to the line printer daemon (lpd).
For more information on VMS PRINT command qualifiers, refer to the
DECprint Printing Services User’s Guide. ULTRIX users refer to the User’s
Guide: PrintServer Client for ULTRIX.
Printer-Specific ANSI Text Translator Considerations 10–7
10.2.4 Printable Area
Table 10–2 shows the printable area of the paper sizes supported on the
PrintServer network printers.
Table 10–2 Printable Areas on PrintServer Network Printers
Paper Size
(Conventional Units)
Width
(Centipoints)
Length
(Centipoints)
A (8 1/2 in. x 11 in.)
60024
78024
B (11 in. x 14 in.)
78024
121224
A3 (297 mm x 420 mm)
83016
117888
A4 (210 mm x 297 mm)
58368
83016
A5 (148 mm x 210 mm)
40776
58368
B4 (250 mm x 353 mm)
71668
102000
B5 (176 mm x 250 mm)
50424
71668
Legal (8 1/2 in. x 14 in.)
60024
99624
Executive (7 1/2 in. x 10 1/2 in.)
52824
74424
10.2.5 Sixel Graphics Resolution
To achieve the fastest printing with sixel graphics on a PrintServer network
printer, use a resolution of 300 dots/inch by selecting the following settings:
•
Positioning Unit Mode (PUM) command set — CSI 11 h (9/11 3/1 3/1 6/8)
•
Select Size Unit (SSU) command set to pixels, 1/300 in. — CSI 7 SP I (9/11
3/7 2/0 4/9)
•
Horizontal grid size parameter (Pn3 of the sixel protocol selector) equal to
1
•
Aspect ratio parameters of the Set Raster Attributes (DECGRA) command
set to any 1:1 aspect ratio, for example, 1:1 or 2:2
If you select a different integer ratio (300/resolution = integer) or a noninteger
ratio, then the printer uses a resolution conversion algorithm to provide a
good-quality picture from your selected grid. Noninteger ratios take longer to
print than integer ratios.
10–8 Printer-Specific ANSI Text Translator Considerations
10.2.6 Hints, Problems, and Solutions
This section provides information on selecting page format and landscape
pages.
Page Format
On a VMS system, use any of the following to select the page format:
•
The Page Format Select (PFS) command:
CSI Ps SP J
9/11 *** 2/0 4/10
•
The Variable Page Format Select (DECVPFS) command:
CSI Ps1 ;
Pn2 ;
...
9/11 *** 3/11 *** 3/11
•
;
Pn11 SP z
3/11 **** 2/0 7/10
The PAGE_SIZE parameter to the PRINT command:
$ PRINT/PARAMETERS=(PAGE_SIZE=logical-size)
On an ULTRIX system, use any of the following to select the page format:
•
The Page Format Select (PFS) command:
CSI Ps SP J
9/11 *** 2/0 4/10
•
The Variable Page Format Select (DECVPFS) command:
CSI Ps1 ;
Pn2 ;
...
9/11 *** 3/11 *** 3/11
•
;
Pn11 SP z
3/11 **** 2/0 7/10
The page_size option to the printer daemon:
% lpr -Fpage_size
When you call the translator on a VMS system or call a filter for translation on
an ULTRIX system, page size defaults to A-size, unless the system manager or
a user has changed the orientation.
Landscape Pages
On a VMS system, use the LANDSCAPE parameter option to the PRINT
command:
$ PRINT/PARAMETERS=(PAGE_ORIENTATION=LANDSCAPE)
On an ULTRIX system, use the -Olandscape option to the lpr command:
% lpr -Olandscape
Printer-Specific ANSI Text Translator Considerations 10–9
You can also use the following DEC PPL3 commands to select the same option:
•
A Page Format Select (PFS) command with Ps = 1, 3, 5, 7, 9, ?21, ?23, ?25,
?27
•
A Select Graphic Rendition (SGR) command with Ps = 15 (provides a pitch
of 13.6 characters/inch)
•
A Set Horizontal Tab Stops (DECSHTS) command with tabs set every eight
characters
A Reset to Initial State (RIS) or Soft Terminal Reset (DECSTR) command
received after these commands returns the option to the page orientation
selected by the VMS PRINT command or the system manager.
10.2.7 ANSI Text Performance
The ANSI Text translator drives your PrintServer network printer at its rated
speed, under the following conditions:
•
The pages consist only of text, with less than 3000 characters/page.
•
The page size is either of the following:
A-size
8 1/2 in. x 11 in. (216 mm x 279 mm)
A4-size
210 mm x 297 mm (8 34/127 in. x 11 88/127 in.)
•
The required fonts reside in the printer font memory.
•
The host computer is suitably loaded.
10.3 DEClaser Printers
This section contains information on ANSI translation specific to the DEClaser
1150, 2150/2250, and 3250 printers. The following topics are discussed:
•
Downline loaded font capacity, Section 10.3.1
•
Selection of the ANSI Text translator, Section 10.3.2
•
Default settings, Section 10.3.3
•
Printable area, Section 10.3.4
•
Sixel graphics resolution, Section 10.3.5
•
Hints, problems, and solutions when using DEClaser printers,
Section 10.3.6
For more information on the DEC PPL3 printer protocol, see the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
10–10 Printer-Specific ANSI Text Translator Considerations
10.3.1 Downline Loaded Font Capacity
The DEClaser printers support fonts that reside permanently in the translator
and fonts that are downline loaded in Digital Common Font File Format
(CFFF). (See the Font File Format User’s Manual for format information.) The
translator converts downline loaded CFFF font files into the PostScript page
description language before use. Up to 256 font files are available for downline
loading to a DEClaser printer when you use the ANSI Text translator, Version
4.0.
Note
The downline loaded font capacity of the ANSI Text translator typically
exceeds the font capacity of the printer. If the memory allotted to load
fonts in the printer is full, the translator deletes all fonts from the
printer memory before loading the new font. Your file prints more
slowly if the translator needs to clear the printer memory before it can
load the font you requested.
10.3.2 Selecting the ANSI Text Translator
To print your ANSI Text or sixel file on a DEClaser printer, send it to a
VMS print queue that uses this translator by default or use the VMS PRINT
command with a DATA_TYPE parameter of ANSI:
$ PRINT/QUEUE=printername file-spec[,...]/PARAMETERS=(DATA_TYPE=ANSI)
The ANSI Text translator implements the following parameters to the PRINT
command:
•
/PAGE_ORIENTATION
•
/PAGE_SIZE
10.3.3 Default Settings
Table 3–1 and Table 3–2 list the initial state values that do not change with
the default setting. See Table 3–3 for a list of the bounds and the Select
Graphic Rendition (SGR) parameters determined at job startup, depending on
the paper size and orientation.
Several initial state values in the ANSI Text translator change, depending on
the default paper size and orientation (portrait or landscape). The DEClaser
1150 printer and DEClaser 2150/2250 printers support the following sheet
sizes:
Printer-Specific ANSI Text Translator Considerations 10–11
A (Letter)
8 1/2 in. x 11 in. (216 mm x 279 mm )
A4
210 mm x 297 mm (8 34/127 in. x 11 88/127 in.)
A5
148 mm x 210 mm (5 105/127 in. x 8 34/127 in.)
B5
176 mm x 250 mm (6 118/127 in. x 9 107/127 in.)
Legal
8 1/2 in. x 14 in. (216 mm x 356 mm )
Executive
7 1/2 in. x 10 1/2 in. (191 mm x 267 mm )
For sheet sizes supported on the DEClaser 3250 printer, refer to Chapter 30.
However, with the layup feature provided with DECprint Printing Services
software, you can map any logical page size supported by the translator to
the physical sheet size regardless of the printer. For information on the layup
feature, see the DECprint Printing Services User’s Guide and the DECprint
Printing Services System Manager’s Guide.
You can change the default setting by using the /PAGE_SIZE=logical-size
and /PAGE_ORIENTATION=logical-orientation parameters to the PRINT
command.
10.3.4 Printable Area
Table 10–3 shows the printable area of the paper sizes supported on the
DEClaser 1150 printer and DEClaser 2150/2250 printers. For the printable
area of the paper sizes supported on the DEClaser 3250 printer, refer to
Table 31–3.
Note
On the DEClaser 3250 printer, paper sizes and envelopes which can
only be fed through the optional multi-media feeder (MMF) or the
manual feed slot can not be accessed because of a limitation in Version
4.0 of the ANSI Text translator.
10–12 Printer-Specific ANSI Text Translator Considerations
Table 10–3 Printable Areas on DEClaser 1150 and DEClaser 2150/2250
Printers
Paper Size
(Conventional Units)
Width
(Centipoints)
Length
(Centipoints)
A (8 1/2 in. x 11 in.)
58320
77616
A4 (210 mm x 297 mm)
56423
82343
A51 (148 mm x 210 mm)
39143
58056
B5 (176 x 250 mm)
48744
71376
Legal (8 1/2 in. x 14 in.)
58320
99216
Executive (7 1/4 in. x 10 1/2 in.)
49896
74016
1
1
A5- and B5-size paper can be used only with manual feed.
For minimum printable areas of other paper sizes supported by the ANSI Text
translator, see Table 2–3.
In addition, the DEClaser 1150 printer and DEClaser 2150/2250 printers
support the envelope sizes listed in Table 10–4. The DEClaser 2150/2250
printers support three ways to feed envelopes: manual feeding, the envelope
cassette option, and the envelope feeder option. The DEClaser 1150 printer
supports two ways to feed envelopes: manual feeding and the envelope cassette
option. The envelope feeder option is available only on the DEClaser 2250
printer.
Table 10–4 Envelope Sizes Supported by DEClaser 1150 and DEClaser
2150/2250 Printers
Size
Dimensions
(Millimeters)
Dimensions
(Inches)
C5
162 x 229
6 48/127 x 9 2/127
Manual
C5/6 (DL)
110 x 220
4 42/127 x 8 84/127
Manual, cassette,
feeder
Business
104 31/40 x 241 3/10
4 1/8 x 9 1/2
Manual, cassette,
feeder
7
98 17/40 x 190 1/2
3 7/8 x 7 1/2
Cassette, feeder
7x9
177 4/5 x 228 3/5
7x9
Feeding Method
Manual
(continued on next page)
Printer-Specific ANSI Text Translator Considerations 10–13
Table 10–4 (Cont.) Envelope Sizes Supported by DEClaser 1150 and
DEClaser 2150/2250 Printers
Size
Dimensions
(Millimeters)
Dimensions
(Inches)
Feeding Method
Half letter
139 7/10 x 215 9/10
5 1/2 x 8 1/2
Manual
Two-thirds A4
198 x 210
7 101/127 x 8 34/127
Manual, cassette,
feeder
10.3.5 Sixel Graphics Resolution
To achieve the fastest printing with sixel graphics on the DEClaser printers
use a resolution of 75 dots/inch by selecting the following settings:
•
Positioning Unit Mode (PUM) command set — CSI 11 h (9/11 3/1 3/1 6/8)
•
Select Size Unit (SSU) command set to pixels, 1/300 in. — CSI 7 SP I (9/11
3/7 2/0 4/9)
•
Horizontal grid size parameter (Pn3 of the sixel protocol selector) equal to
4
•
Aspect ratio parameters of the Set Raster Attributes (DECGRA) command
set to any 1:1 aspect ratio, for example, 1:1 or 2:2
When you select a resolution, keep the following in mind:
•
If you select an aspect ratio other than 300 dots/inch, the printer uses a
resolution conversion algorithm to provide a good-quality picture from your
selected grid.
•
If you select a resolution greater than 75 dots/inch, the printer does not
receive information as fast as it can process information.
•
If you select an integral ratio (300/resolution = integer), the printer takes
less time to print than if you select a nonintegral ratio.
10–14 Printer-Specific ANSI Text Translator Considerations
10.3.6 Hints, Problems, and Solutions
This section provides information on selecting page format and landscape
pages.
Page Format
Use any of the following to select the page format:
•
The Page Format Select (PFS) command:
CSI Ps SP J
9/11 *** 2/0 4/10
•
The Variable Page Format Select (DECVPFS) command:
CSI Ps1 ;
Pn2 ;
...
9/11 *** 3/11 *** 3/11
•
;
Pn11 SP z
3/11 **** 2/0 7/10
The PAGE_SIZE parameter to the PRINT command:
$ PRINT/PARAMETERS=(PAGE_SIZE=logical-size)
When you call the translator, it defaults to A-size paper, unless the system
manager or user has changed the parameter.
Landscape Pages
You can do either of the following to print with the landscape orientation:
•
Use the LANDSCAPE option with the PAGE_ORIENTATION parameter
on the PRINT command:
$ PRINT/PARAMETERS=(PAGE_ORIENTATION=LANDSCAPE)
•
Use the following DEC PPL3 commands:
A Page Format Select (PFS) command with Ps = 1, 3, 5, 7, 9, ?21, ?23,
?25, or ?27
A Select Graphic Rendition (SGR) command with Ps = 15 (provides a
pitch of 13.6 characters/inch)
A Set Horizontal Tab Stops (DECSHTS) command with tabs set every
eight characters
A Reset to Initial State (RIS) or Soft Terminal Reset (DECSTR) command
received after these commands returns the option to the page orientation
selected by the VMS PRINT command or the system manager.
Printer-Specific ANSI Text Translator Considerations 10–15
Part II
DEClaser 2100/2200 Printers
Part II describes the level 3 Digital ANSI-Compliant Printing Protocol (DEC
PPL3) implementation specific to DEClaser 2100/2200 printers. The Digital
ANSI-Compliant Printing Protocol is based on ANSI X3.64.
•
Chapter 11 describes the printer models.
•
Chapter 12 explains the relationship between the logical information and
the printing of the physical page in the DEClaser environment.
•
Chapter 13 discusses reset and power-up values and lists initial state
values for the printer.
•
Chapter 14 lists maximum values for printer features.
•
Chapter 15 explains paper handling for the printer.
•
Chapter 16 describes reporting commands and lists error messages.
•
Chapter 17 lists fonts available to the printer.
•
Chapter 18 discusses sixel implementation specific to the printer.
•
Chapter 19 discusses protocol switching when using the DEClaser
2100/2200 printers.
11
Overview
DEClaser 2100/2200 printers are high-quality laser printers that can print
text, graphics, and images on standard office envelopes, transparencies, and
gummed labels and on the following paper sizes:
•
A (Letter)
•
A4
•
A5
•
B5
•
Legal
•
Executive (184 mm x 267 mm, 7 1/4 in. x 10 1/2 in.)
DEClaser 2100/2200 printers implement level 3 of the Digital ANSI-Compliant
Printing Protocol (DEC PPL3) as described in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
The DEClaser 2100 printer is a simplex model; the DEClaser 2200 printer
provides duplex printing capabilities.
Both printer models can print up to eight pages/minute.
DEClaser 2100/2200 plus Printers
The DEClaser 2100/2200 plus printers vary slightly from the DEClaser
2100/2200, Version 1.7 printers. Unless noted, ‘‘DEClaser 2100’’ refers
to both the DEClaser 2100, Version 1.7 and DEClaser 2100 plus
printers. ‘‘DEClaser 2200’’ refers to both the DEClaser 2200, Version
1.7 and DEClaser 2200 plus printers.
Overview 11–1
12
Logical to Physical Image
This chapter contains the following topics related to creating the physical
image:
•
Printer resolution, Section 12.1
•
Printable area, Section 12.2
•
Mapping the logical page to the physical sheet size, Section 12.3
•
Positioning accuracy, Section 12.4
•
Justification, Section 12.5
12.1 Printer Resolution
DEClaser 2100/2200 printers have an addressing capability and imaging
resolution that support a wide range of standard font pitches and sixel
graphics resolutions.
Internal addressing capability:
1/7200 inch (centipoint addressing)
Imaging resolution:
300 x 300 dots/inch
12.1.1 Horizontal Resolution
The DEClaser 2100/2200 printers support the horizontal pitch values listed
in Table 12–1 for the selective parameters (Ps) of the Set Horizontal Pitch
(DECSHORP) and the Select Horizontal Spacing (SHS) commands. Table 12–1
lists the average width of characters (target pitch) in characters/inch if this
value is exact. If characters/inch is only an approximate value, then the table
provides the target value in inches with the approximate characters/inch value
in parentheses.
Logical to Physical Image 12–1
Table 12–1 Horizontal Pitches — DEClaser 2100/2200 Printers (Standard 300
Dots/Inch)
Target Pitch
(Char/Inch)
Target Value
(Centipoints)
Printer Pitch
(Char/Inch)
Printer Value
(Centipoints)
5
1440.00
5.000
1440
6
1200.00
6.000
1200
(6.6) 10/66 in.
1090.90
6.605
1090
(8.25) 8/66 in.
872.72
8.265
872
(8.55) 28/240 in.
840.00
8.550
840
9
800.00
9.000
800
10
720.00
10.000
720
696.05
10.344
696
600.00
12.000
600
545.45
13.210
545
480.00
15.000
480
(16.5) 4/66 in.
436.36
16.510
436
(17.1) 14/240 in.
420.00
17.100
421
400.00
18.000
400
(10.3) 29/300 in.
12
(13.2) 5/66 in.
15
18
The macro parameter values for sixel grid sizes and aspect ratios provided by
DEClaser 2100/2200 printers are shown in Table 18–1.
12.1.2 Vertical Resolution
The DEClaser 2100/2200 printers’ vertical addressing can provide the pitches
required for existing fonts and graphics mode. Table 12–2 lists the vertical
pitch values supported for the selective parameters (Ps) of the Set Vertical
Pitch (DECVERP) and the Select Vertical (Line) Spacing (SVS) commands.
Column 2 of Table 12–2, labeled Printer Value, gives the amount of white space
between the lines in centipoints for each pitch selection.
12–2 Logical to Physical Image
Table 12–2 Vertical Pitches — DEClaser 2100/2200 Printers (Standard 300
Dots/Inch)
Target Pitch
(Lines/Inch)
Printer Value
(Centipoints)
2
3600
3
2400
4
1800
6
1200
8
900
12
600
Target Pitch
(Lines/A-size
Printable Area)
Printer Value
(Centipoints)
22
3456
33
2304
44
1728
66
1152
88
864
132
576
Target Pitch
(Lines/30 Millimeters)
Printer Value
(Centipoints)
3
2856
4
2136
6
1416
12
720
Note
The DEClaser 2100/2200 printers implement values for the Spacing
Pitch Increment (SPI) command as requested.
Logical to Physical Image 12–3
12.2 Printable Area
This section discusses the printable area for paper sizes and the maximum and
minimum envelope sizes that DEClaser 2100/2200 printers support.
12.2.1 Paper Sizes
Table 12–3 shows the minimum printable area specified by Digital and the
printable area of the DEClaser 2100/2200 printers in centipoints for supported
paper sizes.
Table 12–3 Printable Areas of the DEClaser 2100/2200 Printers in Centipoints
DEClaser Printer
Minimum
Paper Size
(Conventional Units)
Width
Length
Width
Length
A (8 1/2 in. x 11 in.)
57600
75600
57768
76320
A4 (210 mm x 297 mm)
55872
80568
56088
81288
1
38400
55920
38544
56640
B5 (176 mm x 250 mm)1
48000
69264
48144
69960
Legal (8 1/2 in. x 14 in.)
57600
97200
57768
97920
Executive (7 1/4 in. x
10 1/2 in.)
50400
72000
49632
72744
A5 (148 mm x 210 mm)
1
A5- and B5-size paper can be used only with manual feed.
12.2.2 Envelope Sizes
You can feed envelopes to DEClaser 2100/2200 printers manually or with the
envelope cassette option. An additional option, an envelope feeder, is available
for the DEClaser 2200 model. Table 12–4 lists the maximum and minimum
envelope sizes supported for each method.
12–4 Logical to Physical Image
Table 12–4 Maximum and Minimum Envelope Sizes for the DEClaser
2100/2200 Printers
Feeding Method
Minimum Size
Maximum Size
Manual
100 mm x 190 mm
4 in. x 7 1/2 in.
216 mm x 356 mm
8 1/2 in. x 14 in.
Cassette option
95 mm x 190 mm
3 7/10 in. x 7 1/2 in.
180 mm x 260 mm
4 1/2 in. x 10 1/5 in.
Feeder option1
90 mm x 190 mm
3 3/5 in. x 7 1/2 in.
120 mm x 250 mm
4 7/10 in. x 9 4/5 in.
1
The envelope feeder option is available only for the DEClaser 2200 printers.
12.3 Mapping Page Size to Physical Sheet Size
The Page Format Select (PFS) and Variable Page Format Select (DECVPFS)
commands specify the page size. The physical sheet size depends on the paper
cassette selected. When the page size does not match the physical sheet size,
the DEClaser 2100/2200 printers keep the page and physical sheet aligned at
the top left-hand corner.
•
If the page size is smaller than the physical sheet size, the printer leaves
white space on the right and bottom edges. See Figure 12–1.
•
If the page size is larger than the physical sheet size, the printer does
not image characters that extend beyond the boundaries of the printable
area in both the horizontal and vertical directions. See Figure 12–2. In
landscape mode, if the top left area extends outside the physical sheet area,
it is not imaged.
•
Sheets printed in duplex normal mode with landscape orientation print so
that pages can be bound along the long edge.
•
Sheets printed in duplex tumbled mode with landscape orientation selected
are printed so that pages can be bound along the short edge.
Logical to Physical Image 12–5
DEClaser 2200 printer, Version 1.7
On the DEClaser 2200, Version 1.7 printer, handling of tumbled pages
with landscape orientation is different from the DEClaser 2200 plus
printer:
•
Printing in duplex normal mode with landscape orientation
provides pages that can be bound along the short edge.
•
Printing in duplex tumbled mode with landscape orientation
provides pages that can be bound along the long edge.
Figure 12–1 Page Size Smaller Than Physical Sheet Size on DEClaser
2100/2200 Printers
Page Size
Physical Sheet Size
MLO-005352
12–6 Logical to Physical Image
Figure 12–2 Page Size Larger Than Physical Sheet Size on DEClaser
2100/2200 Printers
Physical Sheet Size
Page Size
MLO-005353
12.4 Positioning Accuracy
DEClaser 2100/2200 printers keep distance in centipoints. When converting
from centipoints to pixels for imaging, the DEClaser 2100/2200 printers
truncate the fractional portion of pixels. Positioning is accurate to 1 pixel.
For vectors drawn with the Draw Vector (DECVEC) and Draw Relative Vector
(DECRVEC) commands, values between 0 and 24 centipoints round to 1 pixel.
12.5 Justification
DEClaser 2100/2200 printers do not discard either the right bearing of the
rightmost character on the line or the left bearing of the leftmost character on
the line.
Logical to Physical Image 12–7
13
Initial State Values
The topics discussed in this chapter include the following:
•
Initial state values that are independent of the paper size in the selected
paper cassette, Section 13.1
•
Initial state values based on the paper cassette, Section 13.2
•
Factory defaults in nonvolatile memory, Section 13.3
•
Macro values in nonvolatile memory, Section 13.4
•
Protocol selections for nonvolatile memory, Section 13.5
13.1 Initial States Independent of Paper Cassette
Tables 13–1 and 13–2 list the values used for power-up and the Select
Conformance Level (DECSCL), Soft Terminal Reset (DECSTR), and Reset to
Initial State (RIS) commands, independent of the paper cassette selection.
Table 13–1 Initial State Values for DEClaser 2100/2200 Printers
Variable or
Control Function
DECSCL
Power-Up
DECSTR
RIS
Front Panel
Origin (DECOPM)
Reset
Reset
Reset
Reset
Position Unit
Mode1
Reset
Reset
Reset
Reset
Vertical spacing
Font-dependent
Font-dependent
Font-dependent
Font-dependent
Horizontal spacing
Font-dependent
Font-dependent
Font-dependent
Font-dependent
Decipoints
Decipoints
Decipoints
Decipoints
Size unit
1
1
Because Position Unit Mode (PUM) is reset by default, Select Size Unit (SSU) is ignored for most commands.
(continued on next page)
Initial State Values 13–1
Table 13–1 (Cont.) Initial State Values for DEClaser 2100/2200 Printers
Variable or
Control Function
DECSCL
Power-Up
DECSTR
RIS
Front Panel
Active position
Origin
Origin
Origin
Origin
Every eight
Every eight
Every eight
Every eight
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Proportional
spacing
Reset
Reset
Reset
Reset
Justify
Disabled
Disabled
Disabled
Disabled
SGR attributes
Disabled
Disabled
Disabled
Disabled
Vertical tabs4
Every VAI
Every VAI
Every VAI
Every VAI
G0
ASCII
ASCII
ASCII
ASCII
G1
ASCII
ASCII
ASCII
ASCII
G2
User Preference
User Preference
User Preference
User Preference
G3
User Preference
User Preference
User Preference
User Preference
GL
G0
G0
G0
G0
GR
G2
G2
G2
G2
GSS
10 points
10 points
10 points
10 points
GSM
100,100
100,100
100,100
100,100
Horizontal tabs
2
Line Feed/New
Line
CR/New Line Mode
Pitch Select Mode
3
5
Autowrap
Set
NVM
RAM
RAM
User Preference Set
DEC
Supplemental
NVM
Unchanged
Last Setting6
Unsolicited status
reports
Disabled
Disabled
Unchanged
Disabled7
2
Horizontal tabs are set every eight columns, starting with column 9 (9,17, . . . ) and fill the entire tab table.
3
When DECPSM is reset, the Horizontal Advance Increment (HAI) is font-dependent.
4
Vertical tabs are set every line or Vertical Advance Increment (VAI) and fill the entire tab table.
5
NVM indicates that the initial state value is stored in the nonvolatile memory.
6
‘‘Last Setting’’ is the value that was last set in the menu associated with the variable. This applies to all
variables in the ‘‘Initial’’ menu. These settings can only take effect after a front panel reset.
7
A front panel reset generates an initialization message, if enabled in the macro. (Only on the DEClaser
2100/2200 plus printer.)
(continued on next page)
13–2 Initial State Values
Table 13–1 (Cont.) Initial State Values for DEClaser 2100/2200 Printers
Variable or
Control Function
DECSCL
Power-Up
DECSTR
RIS
Front Panel
Downloaded fonts
Deleted
None
Unchanged
Deleted8
CRM
Unchanged
Reset
Unchanged
Reset
Tray selection
(feeder)
Upper
NVM
Unchanged
RAM
DECSNC (copy)
1
1
Unchanged
RAM
DECMM (paint)
Partial paint
NVM
Unchanged
Last Setting
DECSDPM
9
Simplex
NVM
Unchanged
RAM
Failover10
Disabled
NVM
Unchanged
RAM
DECSSS (paper)
Letter
(portrait)
NVM
Unchanged
Key11
C1 Receive
8-Bit
8-Bit
Unchanged
8-Bit
12
SOCS Protocol
Unchanged
NVM
DEC PPL3
DSR Events
Unchanged
Cleared
Unchanged
Cleared8
8
On the DEClaser 2100/2200, Version 1.7 printers, a front panel reset has no effect.
9
The Initial state of the DECSDPM parameter is true simplex normal.
10
Unchanged
DECSITF only applies to the DEClaser 2100/2200 plus printers.
11
On the DEClaser 2100/2200 plus printers, a front panel reset identifies the physical paper size by the
cassette key. On the DEClaser 2100/2200, Version 1.7 printers, a front panel reset has no effect.
12
On the DEClaser 2100/2200 plus printers, a DECSTR causes a return to DEC PPL3 in Proprinter X24E and
PCL modes, but not in PostScript. A RIS does not cause a change to the current protocol.
Table 13–2 Initial State Values of Select Graphic Rendition (SGR) Numbers
SGR
Assignment Type
ID
Meaning
10
Type family
DBULTN1
DEC Builtin1 family
11
Type family
RCOURIR
Courier family
12
Type family
RELITE0
Elite family
1
13
Font collection plus
RCOURIRJ02SK00GG
14
Font collection plus
RELITE0L02SK00GG1
1
Courier 10 point, 10 pitch
Elite 10 point, 12 pitch
The DEClaser 2100/2200 printers need only 15 bytes.
(continued on next page)
Initial State Values 13–3
Table 13–2 (Cont.) Initial State Values of Select Graphic Rendition (SGR)
Numbers
SGR
15
Assignment Type
Font collection plus
ID
Meaning
RCOURIR101VK00GG
1
1
Courier 6.7 point, 13.6 pitch
16
Font collection plus
RCOURIR202SK00GG
17
Type family
DBULTN1
DEC Builtin1 family
18
Type family
DBULTN1
DEC Builtin1 family
19
Type family
DBULTN1
DEC Builtin1 family
1
Courier 10 point, 10.3 pitch
The DEClaser 2100/2200 printers need only 15 bytes.
Font cartridges modify the default Select Graphic Rendition (SGR) values.
These modifications occur during the following instances:
•
Power-up
•
Soft Terminal Reset (DECSTR)
•
Reset to Initial State (RIS)
•
Select Conformance Level (DECSCL)
The printer also references modifications to the SGR values made by the font
cartridge on the Assign Type Family or Font (DECATFF) command when the
string is null.
DEClaser 2100/2200 Printers, Version 1.7
On the DEClaser 2100/2200, Version 1.7 printers, a Select Conformance
Level (DECSCL) command causes SGR assignments to return to the
Table 13–2 values, whether or not a font cartridge is installed.
13–4 Initial State Values
13.2 Power Up Initial States Based on Paper Cassette
Table 13–3 lists the bounds and the Select Graphic Rendition (SGR) font
selection parameter determined at power up initialization. The bounds and
parameter depend on the paper size in the selected paper cassette. Table 13–3
lists the bounds based on one of the following:
•
A parameter of the Page Format Select (PFS) command
•
The Variable Page Format Select (DECVPFS) command
•
The Set Sheet Size (DECSSS) command
For PFS and DECVPFS values, see the description of the respective commands
in the Digital ANSI-Compliant Printing Protocol Level 3 Programming
Reference Manual.
Table 13–3 Initialization Based on Paper Size
Paper Size
Bounds Definition
SGR
A
PFS ?20
10
A4
PFS ?22
16
Legal
PFS ?24
10
Executive
DECVPFS for executive-size paper
10
Envelope cassette
Envelope feeder
Manual Feed
A-size or A4-size paper, depending on the
setting of the paper feature in NVM.
10 or 16
Initial State Values 13–5
13.3 Factory Defaults in Nonvolatile Memory
Table 13–4 lists the factory defaults in the nonvolatile memory (NVM).
Table 13–4 Factory Defaults in NVM for the DEClaser 2100/2200 Printers
Item1
Factory
Default1
Variable (Control Function)2
Feeder
Upper
Tray selection (DECASFC)
Copy
1
Number of copies (DECSNC)
AutoNL
On
Autowrap (DECAWM)
Macro
00
User Preference Set (DECAUPSS)
Printer generic response (DAR)
No power-up message3
Paint
Partial
96 Kbytes of memory reserved (DECMM)
4
Paper
Letter
Sheet size (DECSSS)
Duplex
Off
True simplex normal (DECSDPM)
Message
English
N/A
Layout offsetX
+0.0
N/A
Layout offsetY
+0.0
N/A
I/F
RS232C
N/A
Baud
4800
N/A
Rsmode
8S
N/A
DTR
Fix-H
N/A
XON/XOFF
On
N/A
ETX/ACK
Off
Protocol
selection
PostScript
N/A
5
Select Other Coding System (SOCS)
1
Columns 1 and 2 describe the terms used on the front panel, except for protocol selection.
2
This table contains the default NVM values for the variables listed in column 1 of Table 13–1.
3
Only on the DEClaser 2100/2200 plus printer.
4
A4 size for worldwide models.
5
Available if the PostScript cartridge is installed. For protocol selection fallbacks, see Table 13–6.
13–6 Initial State Values
13.4 Macro Values in NVM
The Device Attribute Report (DAR) is a function of the printer ID selected in
NVM. The printer ID is determined during power-up initialization.
The printer ID cannot be changed through software. It is determined only at
initialization. Table 13–5 lists the macro values for nonvolatile memory.
Table 13–5 Macro Values in NVM for DEClaser 2100/2200 Printers
Value
Meaning
User Preference Supplemental Set
00
DEC Supplemental
10
ISO Latin-1 Supplemental
20
JIS Katakana1
30
ISO Latin-Hebrew Supplemental
40
DEC Hebrew Supplemental
50
DEC 7-bit Hebrew
60
DEC Technical
Initialization Message2
0
Initialization message disabled
5
Initialization message enabled
Printer ID
0
DEC PPL3 generic response (factory default)
1
LN03 alias response
1
This character set is not in a built-in font. It must be downline loaded or obtained from a font
cartridge.
2
The initialization message is only on the DEClaser 2100/2200 plus printer. If enabled, the printer
sends the initialization message during power-up or a front panel reset.
Initial State Values 13–7
The macro value is calculated as follows:
Macro Value =
Printer ID +
Initialization Message ID1 +
User Preference Supplemental Set
1
Available only on the DEClaser 2100/2200 plus printer.
For example, a Printer ID value of 1, with the initialization message enabled
(5), and a User Preference Supplemental Set value of 10 has a macro value of
16.
An undefined value for User Preference Supplemental Set is treated as 00.
13.5 Protocol Selection in NVM
Selection of the protocol depends on the following:
•
Protocol stored in NVM
•
Protocol cartridge installed in the printer at power-up
If the protocol stored in NVM matches the installed protocol cartridge, the
DEClaser 2100/2200 printers select that protocol at power-up. Otherwise, the
printers select DEC PPL3 at power-up.
DEClaser 2100/2200, Version 1.7 Printers
On the DEClaser 2100/2200, Version 1.7 printers, NVM selection is
shown in Table 13–6.
Table 13–6 DEClaser 2100/2200 Printers Protocol — NVM Selection
and Installed Cartridge
Stored in
NVM
No Cartridge
PostScript
Cartridge
CaPSL
Cartridge
Both
Cartridges
PostScript
DEC PPL3
PostScript
CaPSL
PostScript
CaPSL
DEC PPL3
PostScript
CaPSL
CaPSL
DEC PPL3
DEC PPL3
DEC PPL3
DEC PPL3
DEC PPL3
13–8 Initial State Values
14
Maximum Printer Values
This chapter lists the maximum parameter values supported by the DEClaser
2100/2200 printers. The topics include:
•
Maximum parameter values, Section 14.1
•
Maximum values for printer features, Section 14.2
14.1 Maximum Parameter Values
DEClaser 2100/2200 printers have the following parameter value limitations:
•
Graphics repeat function (DECGRI) — 32K (32,768) limit. The printer sets
values that exceed this limit to the limit value.
•
Grid size parameter — 99 units for maximum horizontal grid size; 1000 for
maximum aspect ratio (99,000 units for maximum vertical grid size).
14.2 Maximum Values for Printer Features
Table 14–1 lists the maximum values supported by DEClaser 2100/2200
printers.
Table 14–1 Maximum Values Supported by DEClaser 2100/2200 Printers
Printer Feature
Maximum Value
Horizontal tabs
160
Vertical tabs
160
Number of trays
See Section 15.2
Number of entries in font dictionary
768
(continued on next page)
Maximum Printer Values 14–1
Table 14–1 (Cont.) Maximum Values Supported by DEClaser 2100/2200
Printers
Printer Feature
Maximum Value
Built-in font RAM size
{284 | 796} Kbytes1
Built-in bitmap RAM or graphics buffer
{284 | 796} Kbytes1
Option font ROM size
See cartridge
Optional bitmap RAM
{1 | 2 | 3} Mbytes2
Optional download RAM
{1 | 2 | 3} Mbytes2
Number of cartridge slots
2
1
For the DEClaser 2100 printer, RAM size is 284 Kbytes; for the DEClaser 2200 printer, RAM size
is 796 Kbytes.
2
The total of both optional bitmap RAM and optional download RAM cannot exceed 3 Mbytes.
14–2 Maximum Printer Values
15
Paper Handling
The following options specific to the DEClaser 2100/2200 printers are discussed
in this chapter:
•
Duplex printing, Section 15.1
•
Input tray selection, Section 15.2
•
Set sheet size, Section 15.3
15.1 Duplex Printing
The DEClaser 2100 printer implements simplex (one-sided) printing; the
DEClaser 2200 printer implements duplex (two-sided) printing.
You select the print mode with the Set Duplex Print Mode (DECSDPM)
command.
•
A DEClaser 2200 printer cannot tumble the front face of a sheet.
•
A DEClaser 2100 printer cannot print physical duplex, nor can it tumble
the front face of a sheet.
For a description of the DECSDPM command, see the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
Table 15–1 lists the duplex modes and shows the fallback modes for each
printer model when you select an unsupported DECSDPM parameter.
Table 15–1 Duplex Print Mode Fallbacks for the DEClaser 2100/2200 Printers
Ps
Duplex Mode
2100 Model
2200 Model
1
True simplex normal
1
1
2
True simplex tumbled
1
1
(continued on next page)
Paper Handling
15–1
Table 15–1 (Cont.) Duplex Print Mode Fallbacks for the DEClaser 2100/2200
Printers
Ps
Duplex Mode
2100 Model
2200 Model
3
True duplex normal
5
3
4
True duplex tumbled
5
4
5
Duplex master normal
5
5
6
Duplex master tumbled
5
5
7
Simplex compressed normal
1
7
8
Simplex compressed tumbled
1
8
Example 15–1 shows two forms of the DECSDPM command. The first
command with Ps = 1 selects a true simplex normal mode; Ps = 3 selects a
true duplex normal mode. ‘‘Normal’’ indicates that the printer does not print
documents tumbled.
Example 15–1 Set Duplex Print Mode Command for DEClaser 2100/2200
Printers
CSI 1 SP x
9/11 3/1 2/0 7/8
CSI 3 SP x
9/11 3/3 2/0 7/7
DEClaser 2100/2200, Version 1.7 Printers
The DEClaser 2100/2200, Version 1.7 printers perform a conditional
Sheet Feed upon receipt of a Soft Terminal Reset (DECSTR).
Other Digital printers perform a conditional Form Feed upon receipt
of a Soft Terminal Reset (DECSTR). If your document is to be printed
in duplex mode on a DEClaser 2200, Version 1.7 printer, do not send a
DECSTR command between pages; this results in simplex printing.
15–2 Paper Handling
15.2 Designating the Input Tray
The DEClaser 2100 printer has one input tray and a manual feed slot. An
optional envelope cassette is available for the printer that fits in the tray slot.
You can also feed envelopes manually.
The DEClaser 2200 printer has two input trays (top tray and bottom tray) and
a manual feed slot. In addition to manually feeding envelopes, you can also
print envelopes on the DEClaser 2200 printer with the following options:
•
An optional envelope cassette that can be installed in the top tray slot and
selected from the top tray slot
•
An optional envelope feeder that can be installed and selected from the
envelope feeder slot
Use the Automatic Sheet Feeder (Input Tray) Control (DECASFC) command to
select the appropriate tray or feed slot:
CSI Ps ! v
9/11 3/xx 2/1 7/6
The DECASFC command causes a conditional Form Feed. Subsequent sheets
come from the tray as indicated in the selective parameter Ps in Table 15–2:
Table 15–2 Tray Selection on DEClaser 2100/2200 Printers
Ps
Tray Selected
2100 Model
2200 Model
0
No tray change
x
x
1
Top tray
x
x
2
Bottom tray
x
1
3
Envelope feeder
99
Manual feed slot
1
x
x
x
The envelope feeder is available as an option and can be selected only with Ps = 3.
The DEClaser 2100/2200 printers treat an unsupported parameter as Ps = 0.
Example 15–2 shows the commands to select — first, the top input tray and
second, the manual feed slot.
Paper Handling
15–3
Example 15–2 Selecting an Input Tray for DEClaser 2100/2200 Printers
CSI 1 ! v
9/11 3/1 2/1 7/6
CSI 9 9 ! v
9/11 3/9 3/9 2/1 7/6
For a description of the DECASFC command, see the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
15.3 Set Sheet Size (DECSSS)
Use the Set Sheet Size (DECSSS) command to provide the paper size when
paper size information is not available.
CSI Pn1 ;
Ps2 ;
Pn3 ;
Pn4 SP {
9/11 *** 3/11 *** 3/11 *** 3/11 *** 2/0 7/11
Table 15–3 lists the supported parameters for the DEClaser 2100/2200
printers.
Table 15–3 Set Sheet Size (DECSSS) Parameters
Value
Meaning
Ps1
0
Any slot
1
Top tray
99
Manual feed slot
Ps2
NA
Key number (ignored)
Pn3
n
Width of the paper (defined as leading edge)
Pn4
n
Length of the paper
Parameters Pn3 and Pn4 are expressed in pixels, decipoints, or centipoints, as
defined by Select Size Unit (SSU), regardless of the setting of Positioning Unit
Mode (PUM).
15–4 Paper Handling
The smallest paper size you can define with DECSSS for DEClaser 2100/2200
printers is 97 mm x 148 mm. If you select a page that is smaller than the
smallest size, the DEClaser 2100/2200 printers default to the minimum paper
size.
DEClaser 2100/2200, Version 1.7 Printers
DEClaser 2100/2200, Version 1.7 printers default to A-size paper if the
page size selected is smaller than the smallest size available.
For more information on the Set Sheet Size (DECSSS) command, see the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
Paper Handling
15–5
16
Status and Error Reporting
The topics discussed in this chapter include the following:
•
Device Attributes Report (DAR) parameters, Section 16.1
•
Device Attributes (Secondary) Report (DA2R) parameters, Section 16.2
•
Error parameters for Device Status Reports, Section 16.3
This chapter discusses reports and lists the error parameters for printer device
status reports for DEClaser 2100/2200 printers. These printers send the
following reports:
•
CPR — Reports current cursor position
•
DAR — Responds to a Device Attributes (DA) request, Section 16.1
•
DA2R — Responds to a Device Attributes (secondary) DA2 request,
Section 16.2
•
DECFSR (1 or 0) — Reports fonts currently available
•
DECFSR (2 or 0) — Reports the memory available for downline loading in
bytes
•
DECFSR (DECLFF Ps2 = 2 or 3) — Reports font validation errors and
warnings (DEClaser 2100/2200 plus printers only)
•
DSR — Responds to a Device Status Report or an error if unsolicited
reports are enabled, Section 16.3
For information on the Cursor Position Report (CPR) and the Font Status
Report (DECFSR) commands, refer to the Digital ANSI-Compliant Printing
Protocol Level 3 Programming Reference Manual.
Status and Error Reporting 16–1
16.1 Device Attributes Report (DAR) Parameters
Device Attributes Report (DAR) parameters allow the printer to identify itself
as either of the following:
•
A Digital level 3 printer — DAR (generic response)
•
A previous model Digital printer (to allow backward compatibility) — DAR
(alias response)
To request product identification for DEClaser 2100/2200 printers, the host
must send a Device Attributes (DA) command:
CSI c
9/11 6/3
or
CSI 0 c
9/11 3/0 6/3
DEClaser 2100/2200 printers respond to a Device Attributes (DA) command by
sending a DAR (generic response):
CSI ?
Ps1 ;
Ps2 ;
...
9/11 3/15 *** 3/11 *** 3/11 . . .
;
Psn c
3/11 *** 6/3
For DEClaser 2100/2200 printers, Ps1 is 73 (3/7 3/3). This identifies the
printers as Digital level 3 devices.
Ps2 to Psn indicate which extensions or enhancements the DEClaser 2100/2200
printers support.
16–2 Status and Error Reporting
Table 16–1 lists the character form (Ps2 to Psn) and code for each extension.
Table 16–1 Parameters for Primary DA Response for DEClaser 2100/2200
Printers
Character
Form
Code
Extension
4
3/4
Sixel graphics
6
3/6
Sheet feeder
8
3/8
Legal-size paper handling
9
3/9
Variable Page Format Select (DECVPFS)
10
3/1 3/0
Vector drawing
11
3/1 3/1
Multiple copies
12
3/1 3/2
Hebrew
16
3/1 3/6
Logical duplex
18
3/1 3/8
Physical duplex1
1
The physical duplex extension applies only to the DEClaser 2200 printer.
Example 16–1 shows a primary DA request to a DEClaser 2100 printer and a
typical DAR (generic response) from the DEClaser 2100 printer:
Example 16–1 DA Request and DAR Example for DEClaser 2100/2200
Printers
CSI c
or
CSI 0 c
CSI ? 73;4;6;8;9;10;11;12;16 c
Status and Error Reporting 16–3
Table 16–2 lists the DAR (alias response) parameters supported by the
DEClaser 2100/2200 printers for backwards compatibility.
Table 16–2 DAR Parameters (Alias Response) for DEClaser 2100/2200
Printers
Character
Form
Code
Option
26
3/2 3/6
LN03 (base unit)
DEClaser 2100/2200 printers can be configured to send only the number 26 for
compatibility with the LN03 printer:
CSI ? 26 c
For more information on the Device Attributes Report (DAR) command, refer to
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
16.2 Device Attributes (Secondary) Report (DA2R)
Parameters
A secondary Device Attributes Report (DA2R) provides the following
information about DEClaser 2100/2200 printers:
•
Identifies the printer model (2100 or 2200)
•
Names the firmware revision
•
Lists the amount of memory in megabytes
•
Indicates whether a protocol cartridge is installed
To request this information, the host sends a Device Attributes (Secondary)
(DA2) command:
CSI >
c
9/11 3/14 6/3
or
CSI 0 >
c
9/11 3/0 3/14 6/3
In response to a secondary DA request, DEClaser 2100/2200 printers send a
Device Attributes (Secondary) Report (DA2R):
CSI >
Ps1 ;
Ps2 ;
Ps3 ;
Ps4 c
9/11 3/14 *** 3/11 *** 3/11 *** 3/11 *** 6/3
16–4 Status and Error Reporting
Table 16–3 lists the DA2R parameters supported by DEClaser 2100/2200
printers.
Table 16–3 Parameters for DA2 Responses for DEClaser 2100/2200 Printers
Character
Form
Code
Description
Ps1
46
3/4 3/6
DEClaser 2100 printer
47
3/4 3/7
DEClaser 2200 printer
Ps2
xx
3/x 3/x
Firmware revision x.x
Ps3
0
3/0
No additional memory installed
1
3/1
1-Mbyte memory card
2
3/2
2-Mbyte memory card
3
3/3
3-Mbyte memory card
Ps4
Ps4 is the sum of the codes of the installed
protocols. Table 16–4 lists the protocol codes.
Ps51
yy
3/y 3/y
Minor firmware revision yy
00
3/0 3/0
Version x.x-00
1
Only on the DEClaser 2100/2200 plus printers
Status and Error Reporting 16–5
Table 16–4 Protocol Codes for DA2R Responses
Code
Protocol
1
PostScript
2
CaPSL
4
IBM Proprinter X24E1
8
HP PCL 41
16
Reserved
32
1
...
Only on the DEClaser 2100/2200 plus printers
Example 16–2 shows a DA2 request and a DA2R response from a DEClaser
2200 plus printer, firmware Version 2.0–00, with a 3-Mbyte memory card and
no protocol cartridge.
Example 16–2 DA2 Request and DA2R Response for DEClaser 2200 plus
Printers
CSI > c
or
CSI > 0 c
CSI > 47;20;3;0;00 c
For more information on the Device Attributes (Secondary) Report (DA2R), see
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
16–6 Status and Error Reporting
16.3 Error Parameters for Device Status Reports
Table 16–5 lists error parameters reported by DEClaser 2100/2200 printers for
extended DSR reports. Each error parameter has a unique code that pinpoints
the specific failure and a generic code that indicates the general type of failure.
For example, in the error message ?218 ?36:
•
?218 is the specific code for a paper jam in the duplex transport path
•
?36 is a generic code for paper jams
Refer to Table B–1 for a list of generic codes and their meanings.
For more information on Device Status Reports and parameters, see the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
Table 16–5 Error Parameters for Extended Printer Device Status Reports for
DEClaser 2100/2200 Printers
Specific
Code
Generic
Code
Class
Meaning
Controller Errors
?0
?57
Special
First report since initialization1;2
?0
?20
S:U
No malfunction detected
?101
?41
E
Complex data
?102
?41
E
Lost characters
?103
?44
E
Font memory full
?104
?44
S
Font dictionary full
?105
?41
E
Page memory full
?111
?42
E
Downline loaded font warning
?112
?42
E
Downline loaded font error (load aborted)
1
Only on the DEClaser 2100/2200 plus printers
2
If initialization message is enabled, see Section 13.4.
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special–Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
Status and Error Reporting 16–7
Table 16–5 (Cont.) Error Parameters for Extended Printer Device Status
Reports for DEClaser 2100/2200 Printers
Specific
Code
Generic
Code
Class
Meaning
Controller Errors
?113
?47
E
Error overflow (more than can be recorded)
?116
?43
E
Invalid parameter in control function
?117
?41
E
Justify buffer overflow
?122
?42
E
Inconsistent font file metrics1
?123
?40
E
No font file with current character set
?131
?22
E
Line error on received character
?132
?23
E
Line error — input buffer overflow
?133
?55
E:U
Data syntax switch failed; emulation not present
or not installed
?134
?21
E:U
Font removed while printing
?142
?56
S:U
Insufficient memory for requested memory
configuration
?163
?21
S:U
Expansion board ROM failure
?168
?21
S:U
Expansion board interface failure (major)
?169
?21
S:U
Expansion board interface failure (minor)
Engine Errors
–
?24
S:U
Printer is off line1
?201
?34
S:U
Fixing (fuser) unit error
?202
?34
S:U
Optical system error
?203
?33
S
Toner low
?204
?34
S:U
Optical motor error
1
Only on the DEClaser 2100/2200 plus printers
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special–Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
16–8 Status and Error Reporting
Table 16–5 (Cont.) Error Parameters for Extended Printer Device Status
Reports for DEClaser 2100/2200 Printers
Specific
Code
Generic
Code
Class
Meaning
Engine Errors
?206
?27
S:U
Paper tray empty
?209
?33
E:U
User requested print check
?211
?34
S:U
Engine nonvolatile RAM error
?212
?26
S:U
Printer cover open
?216
?36
S:U
Paper jam
?218
?36
S:U
Paper jam in duplex transport path
?221
?37
S:U
Invalid command (internal)
?225
?37
S:U
Internal memory overflow error
?239
?21
S:U
No EP-S cartridge
?267
?34
S:U
Image data transfer timeout
?268
?34
S:U
Signal timeout
?269
?34
S:U
Illegal signal
?272
?34
S:U
Internal status parity error
?278
?34
S:U
Undefined operator call
?279
?34
S:U
Undefined service call
?280
?34
S:U
CPU timeout
?282
?34
S:U
Sub-CPU communications error
?283
?34
S:U
Sub-CPU microwire error
?289
?34
S:U
Duplex printing module error
Media Errors or Requests
?310
?51
S:U
Load A4-size paper cassette
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special–Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
Status and Error Reporting 16–9
Table 16–5 (Cont.) Error Parameters for Extended Printer Device Status
Reports for DEClaser 2100/2200 Printers
Specific
Code
Generic
Code
Class
Meaning
Media Errors or Requests
?311
?51
S:U
Load B5-size paper cassette
?312
?51
S:U
Load Letter-size paper cassette
?313
?51
S:U
Load Legal-size paper cassette
?314
?51
S:U
Load executive-size paper cassette
?315
?51
S:U
Load paper paper_size cassette
?316
?51
S:U
Load option
?320
?52
S:U
Request manual feed A4-size paper
?321
?52
S:U
Request manual feed B5-size paper
?322
?52
S:U
Request manual feed Letter-size paper
?323
?52
S:U
Request manual feed Legal-size paper
?324
?52
S:U
Request manual feed executive-size paper
?325
?52
S:U
Request manual feed paper paper_size
?331
?53
S:U
Selected media cannot be printed duplex
?332
?53
S:U
Cannot continue auto feed operation:
paper out or not the requested size
?335
?53
S:U
Envelope cassette is in the wrong slot
?336
?53
S:U
Paper size requested not available in current tray
?340
?54
S:U
Output tray in wrong position for duplex printing
?341
?54
S:U
Output tray in wrong position for selected media
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special–Sent (if enabled) as the first parameter on power-on or front panel reset operation
16–10 Status and Error Reporting
17
Fonts for DEClaser 2100/2200 Printers
This chapter discusses the following topics related to fonts for DEClaser
2100/2200 printers:
•
Load Font File (DECLFF) considerations, Section 17.1
•
Font file repertory, Section 17.2
•
Available built-in fonts, Section 17.3
•
Algorithmic transformations for rendering attributes, Section 17.4
For more information on fonts and font selection, refer to the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
17.1 Load Font File (DECLFF) Considerations
DEClaser 2100 printers have 284 Kbytes of built-in font memory available
for downline loading of font files. DEClaser 2200 printers have 796 Kbytes of
built-in font memory available for downline loading of font files. Both printer
models can store up to 768 font files.
Font files that are downline loaded into the memory by the Load Font File
(DECLFF) command must follow the Common Font File Format (CFFF). For
information, see the Font File Format User’s Manual.
17.2 Font Repertory
The font repertory of DEClaser 2100/2200 printers consists of the following:
•
Built-in fonts
•
Standard font cartridges
•
Digital Standard Font Files available in CFFF format that can be downline
loaded
•
Customer-provided font files in CFFF format that can be downline loaded
•
Built-in algorithmic transformations
Fonts for DEClaser 2100/2200 Printers 17–1
17.3 Built-In Font File Repertory
DEClaser 2100/2200 printers have 36 built-in font files. These font files
support the combination of nine character sets and four fonts. The following
fonts reside in the DEClaser 2100/2200 printers:
•
Courier 10-point 10-pitch normal portrait (Normal means that the font is
not bold, italic, or otherwise attributed.)
•
Courier 10-point 10.3-pitch normal portrait
•
Courier 6.7-point 13.6-pitch normal landscape
•
Elite 10-point 12-pitch normal portrait
For each font, the following character sets reside in the printer:
•
ASCII
•
DEC Supplemental
•
ISO Latin-1 Supplemental
•
DEC Technical
•
DEC Special Graphics (VT100 Line Drawing)
•
DEC 7-Bit Hebrew
•
DEC Hebrew Supplemental
•
ISO Latin-Hebrew Supplemental
•
Legal
17.3.1 Type Family Names
Table 17–1 lists the type families and the associated type family IDs built into
the DEClaser 2100/2200 printers.
17–2 Fonts for DEClaser 2100/2200 Printers
Table 17–1 Type Family Names in DEClaser 2100/2200 Printers
Type Family Name
Type Family ID
(Seven Characters)
DEC Builtin1
DBULTN11
Courier
RCOURIR2
Elite 12
RELITE02
PI font
D0000001
1
The ‘‘D’’ in the type family IDs for DEC Builtin1 and PI font indicates that the name is registered
with Digital, but is not registered internationally.
2
The ‘‘R’’ in the type family IDs for Courier and Elite 12 indicates that these names are either
registered internationally or are in the public domain.
17.3.2 Built-In Type Family Names and IDs, Font IDs, and Font File IDs
Table 17–2 lists type family names, type family IDs, font IDs, and font file IDs
built into DEClaser 2100/2200 printers.
Each of the 36 font files contains a character set that has a style, an
orientation, a point size, and a horizontal spacing. Table 17–2 contains 72
entries. The DEClaser 2100/2200 printers recognize two font names:
•
A name that is either internationally registered or in the public domain,
for example, Courier or Elite 12
•
A name registered by Digital, for example, Builtin or PI
For example, the following two entries are the same:
•
Courier ASCII, 10 point, 10 pitch, Portrait font —
(RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
•
DEC Builtin1 ASCII, 10 point, 10 pitch, Portrait font —
(DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
A font file has a 31-character name. The first seven characters are the type
family ID, the first 12 characters are the font collection ID, and the first
16 characters define the font ID. The following example shows how the type
families, fonts, and font files are related:
•
A type family ID — DBULTN1
•
A font collection ID — DBULTN1J02SK
Fonts for DEClaser 2100/2200 Printers 17–3
•
A font ID — DBULTN1J02SK00GG
•
A font file ID — DBULTN1J02SK00GG0001UZZZZ02F000
In Table 17–2, the font ID, the font collection ID, and the font file ID are
indicated by arrows.
Note
Spaces appear in the IDs for clarity; they are not part of the IDs.
Table 17–2 Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
1. Type Family Name: DEC Builtin1 — Type Family ID: DBULTN1
10
10
10
10
10
10
10
10
10
10
10
10
DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental
DBULTN1 J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental DBULTN1 J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
DBULTN1 J 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 J 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 J 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
ASCII
1
Supplemental
DBULTN1 J 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
1
DEC Supplemental
DBULTN1 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental DBULTN1 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
DBULTN1 2 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 2 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 2 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
10
10
Legal
10.3
10
ASCII
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
Legal
12
10
ASCII
12
10
DEC Supplemental1
Supplemental
1
DBULTN1 2 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for user preference.
(continued on next page)
17–4 Fonts for DEClaser 2100/2200 Printers
Table 17–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
1. Type Family Name: DEC Builtin1 — Type Family ID: DBULTN1
12
10
12
10
12
10
12
10
DBULTN1 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
DBULTN1 L 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 L 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 L 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental
Supplemental
12
10
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
DBULTN1 L 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
ASCII
DBULTN1 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental1
DBULTN1 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental DBULTN1 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
DBULTN1 1 01V K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 1 01V K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 1 01V K 00 G G 00 6DK ZZZZ 02 F 0 0 0
Legal
Supplemental
DBULTN1 1 01V K 00 G G 00 244 ZZZZ 02 F 0 0 0
Legal
2. Type Family Name: Courier — Type Family ID: RCOURIR
10
10
10
10
10
10
10
10
10
10
10
10
10
10
RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental
RCOURIR J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DEC Technical
RCOURIR J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
DEC Special Graphics
RCOURIR J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental RCOURIR J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
RCOURIR J 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RCOURIR J 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RCOURIR J 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
10
10
Legal
10.3
10
ASCII
10
10
ASCII
1
Supplemental
1
RCOURIR J 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for user preference.
(continued on next page)
Fonts for DEClaser 2100/2200 Printers 17–5
Table 17–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Character Set
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
2. Type Family Name: Courier — Type Family ID: RCOURIR
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
DEC Supplemental1
RCOURIR 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DEC Technical
RCOURIR 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
DEC Special Graphics
RCOURIR 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental RCOURIR 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
RCOURIR 2 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RCOURIR 2 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RCOURIR 2 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
Supplemental
10.3
10
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
RCOURIR 2 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
ASCII
RCOURIR 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental1
RCOURIR 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
DEC Technical
RCOURIR 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
DEC Special Graphics
RCOURIR 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental RCOURIR 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
RCOURIR 1 01V K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RCOURIR 1 01V K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RCOURIR 1 01V K 00 G G 00 6DK ZZZZ 02 F 0 0 0
Legal
Supplemental
13.6
6.7
Legal
RCOURIR 1 01V K 00 G G 00 244 ZZZZ 02 F 0 0 0
3. Type Family Name: Elite 12 — Type Family ID: RELITE0
12
10
ASCII
12
10
DEC Supplemental1
12
10
DEC Technical
12
10
DEC Special Graphics
12
10
ISO Latin-1 Supplemental
1
RELITE0 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for user preference.
(continued on next page)
17–6 Fonts for DEClaser 2100/2200 Printers
Table 17–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Character Set
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
3. Type Family Name: Elite 12 — Type Family ID: RELITE0
12
10
12
10
12
10
RELITE0 L 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RELITE0 L 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RELITE0 L 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
Supplemental
12
10
Legal
RELITE0 L 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
4. Type Family Name: PI Font — Type Family ID: D000000
10
10
DEC Technical
10
10
DEC Special Graphics
10.3
10
DEC Technical
10.3
10
DEC Special Graphics
12
10
DEC Technical
12
10
DEC Special Graphics
13.6
6.7
DEC Technical
13.6
6.7
DEC Special Graphics
D000000 J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
Fonts for DEClaser 2100/2200 Printers 17–7
17.3.3 Font Metrics
Table 17–3 lists the metrics in centipoints for the fonts built into the DEClaser
2100/2200 printers. The first value in the heading represents the point size;
the second value represents the pitch. For example, Courier 10, 10 is a Courier
10-point, 10-pitch font.
Table 17–3 Font Metrics for the DEClaser 2100/2200 Printers
Field
Courier
10, 10
Courier
10, 10.3
Elite
10, 12
Total vertical size
1152
1152
1152
864
Above baseline offset
–840
–840
–840
–648
Below baseline offset
312
312
312
216
Minimum space size1
360
336
288
264
Nominal space size
720
696
600
528
1440
1392
1200
1056
Maximum space size
Superscript vertical
2
3
Courier
6.7, 13.6
–576
–576
–576
–432
Subscript vertical3
576
576
576
432
Underline offset
(height, thickness)
240, 72
240, 72
240, 72
168, 48
Strike-through offset
(height, thickness)
–264, 72
–264, 72
–264, 72
–192, 48
Overline offset
(height, thickness)
–912, 72
–912, 72
–912, 72
–480, 48
1
In general, minimum space is calculated as 33% to 50% of width of space.
2
In general, maximum space is calculated as 200% of width of space.
3
In general, superscript and subscript offsets are one-half of the total vertical size.
17.4 Built-in Algorithmic Transformations
When the print job requires a font with a particular set of attributes, DEClaser
2100/2200 printers search the current repertory for a font that contains the
proper character set, in the proper style, in the proper horizontal and vertical
size, with the desired attributes.
If the search fails to find a font with the desired attributes, DEClaser
2100/2200 printers attempt to approximate the desired attributes by using
algorithmic transformations on the existing repertory.
17–8 Fonts for DEClaser 2100/2200 Printers
DEClaser 2100/2200 printers provide fallback algorithmic transformations for
the following:
•
Bold (shadow bold)
•
Portrait/landscape orientation (rotation)
•
Italic (character underline)
•
Underline
•
Strike-through
•
Overline
•
National Replacement Character Sets (NRCS)
DEClaser 2100/2200 printers use algorithmic transformations for the following:
•
Horizontal spacing
•
Vertical spacing
•
Double underline
Fallbacks are not provided for the following attributes:
•
Size scaling of any type
•
Italics fallback by slanting the character
•
Kerning
17.4.1 Memory Use
Only one algorithmic transformation uses memory: rotating the font to fit the
page orientation. By default, DEClaser 2100/2200 printers store transmitted
font file characters in portrait orientation. When you require landscape
printing, the printer conserves memory by rotating only the fonts that the
printer uses rather than all selected fonts.
If you require a font in landscape orientation only, you can further reduce the
amount of memory that is used by specifying the orientation in the font_record
of the Load Font File (DECLFF) command. To store a copy of the font in
landscape format only, precede the font_record with an equal sign (=, 3/13):
DCS 0; 1; 1 y = font_record; comment_record ST
For more information on the Load Font File (DECLFF) command, refer to
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
Fonts for DEClaser 2100/2200 Printers 17–9
17.4.2 Spacing Criterion Fallback
When the selected font is proportional and the requested font is monospaced,
the DEClaser 2100/2200 printers left-justify the proportional characters within
the monospaced cell.
17.4.3 Fallback Metrics for Mixed Font Files (DEClaser 2100/2200 plus
Printers)
The DEClaser 2100/2200 plus printers do not support fallback metrics for
all categories of mixed text; however, the printers do support a fallback for
inconsistent metrics when performing NRCS pairing. A Device Status Report
(DSR) may be sent by the printer when inconsistent metrics are detected.
17.5 Font List (DEClaser 2100/2200 plus Printers)
The DEClaser 2100/2200 plus printers report the font SGR assignments
contained in the font cartridges when printing the font list. The SGR
assignment (as written in the cartridge) is displayed one line per SGR listing
after the cartridge title line.
17.6 Font File Validation Test Report (DEClaser 2100/2200
plus Printers)
The DEClaser 2100/2200 plus printers generate reports of errors and warnings
that occur during font file validation. You may use these reports for debugging
purposes if you are designing font files for level 3 printers according to the
Common Font File Format (CFFF).
Refer to Appendix C for a description of the Font Status Report (DECFSR)
command.
17–10 Fonts for DEClaser 2100/2200 Printers
You request this report through the second parameter (Ps2 = 2 or 3) of the
Load Font File (DECLFF) command as described in Table 17–4. You can
also request font file validation information to be printed through the second
parameter (Ps2 = 4) of DECLFF.
Table 17–4 Parameters for Load Font File (DECLFF) for the DEClaser
2100/2200 plus Printers
Ps2
Action
0 or omitted
Print summary sheet.
1
Do not print summary sheet.
2
Send font error and warning information. Response is Font Status
Report (DECFSR, DECLFF Ps2 = 2 or 3).
3
Same as 0 and 2.
4
Print font error and warning information on a separate sheet.
Any other value
Do not print summary sheet or send status report.
Fonts for DEClaser 2100/2200 Printers 17–11
18
Sixel Considerations
This chapter discusses three topics related to sixel graphics:
•
Macro parameter values, Section 18.1
•
Valid Set Raster Attributes (DECGRA) commands, Section 18.2.1
•
Restrictions, Section 18.2.2
18.1 Macro Parameter Values
Table 18–1 compares the target values and the values implemented by
DEClaser 2100/2200 printers for the macro parameter (Ps1) of the sixel mode
graphics device control string:
DCS Ps1; Ps2; Pn3 q picture_definition ST
Ps1 is a selective parameter that specifies the horizontal grid size and aspect
ratio. Grid size measurements are given in centipoints.
Table 18–1 Macro Parameter Values for DEClaser 2100/2200 Printers (Grid Sizes in
Centipoints)
Target Values
Ps1
Approximate
Horizontal
Grid Size1
DEClaser 2100/2200 Values
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
Horizontal
Grid Size
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
0
54.60
200:100
100
48
200:100
96
1
54.60
200:100
100
48
200:100
96
2
22.22
450:100
100
21
451:100
96
1
For true target values in 1/660 in., see the sixel information in the Digital ANSI-Compliant Printing Protocol
Level 3 Programming Reference Manual.
(continued on next page)
Sixel Considerations 18–1
Table 18–1 (Cont.) Macro Parameter Values for DEClaser 2100/2200 Printers (Grid
Sizes in Centipoints)
Target Values
Ps1
Approximate
Horizontal
Grid Size1
DEClaser 2100/2200 Values
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
Horizontal
Grid Size
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
3
33.33
300:100
100
32
300:100
96
4
40.00
250:100
100
38
252:100
96
5
54.60
183:100
100
48
200:100
96
6
66.66
150:100
100
64
150:100
96
7
76.90
130:100
100
74
129:100
96
8
89.20
112:100
100
86
111:100
96
9
100.00
100:100
100
96
100:100
96
1
For true target values in 1/660 in., see the sixel information in the Digital ANSI-Compliant Printing Protocol
Level 3 Programming Reference Manual.
18.2 Miscellaneous Considerations and Restrictions
Section 18.2.1 and Section 18.2.2 discuss valid Set Raster Attributes
(DECGRA) commands and restrictions to the printing of sixel graphics.
18.2.1 Valid Set Raster Attributes (DECGRA) Commands
DEClaser 2100/2200 printers ignore a DECGRA command if they receive any
of the following:
•
Graphics Repeat Introducer control character — DECGRI (!)
•
Graphics Carriage Return control character — DECGCR ($)
•
Graphics Next Line control character — DECGNL (–)
•
Sixel data
Digital recommends that software always send a Set Raster Attributes
(DECGRA) command before sending the sixel data and any other sixel graphics
command.
18–2 Sixel Considerations
18.2.2 Restrictions
The following restrictions apply when you print sixel graphics on DEClaser
2100/2200 printers:
•
Colors map to black. This causes most color pictures to come out dark and
not very clear.
•
Sixel printing ignores extent parameters (Pn3 and Pn4) of the Set Raster
Attributes (DECGRA) command.
•
Sixel printing ignores the background select parameter (Ps2 of the sixel
device control string). The printer assumes a white background.
•
The maximum value for the horizontal grid size is 99 current units. (See
the Select Size Unit (SSU) command in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.)
•
The maximum value for the aspect ratio is 1000. The horizontal grid size
multiplied by the aspect ratio provides a maximum vertical grid size of
99,000 current units. (See the Select Size Unit (SSU) command in the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.)
Sixel Considerations 18–3
19
Alternative Protocols
DEClaser 2100/2200 printers support the following DEC PPL3 protocol
switching commands:
•
Select Other Coding System (SOCS)
•
Return from Other Coding System (ROCS)
•
IBM Proprinter Emulation Mode (DECIPEM) (DEClaser 2100/2200 plus
printers only)
See your Digital sales representative for the protocols available for the
DEClaser 2100/2200 printers.
DEClaser 2100/2200, Version 1.7 Printers
On the DEClaser 2100/2200, Version 1.7 printers, select DEC PPL3
from CaPSL emulation mode using the following escape sequence:
ESC
1/11
%
>
2/5 3/14
To select DEC PPL3 from emulation modes in other Digital printers,
specify the Return from Other Coding Systems (ROCS) sequence in
the Digital ANSI-Compliant Printing Protocol Level 3 Programming
Reference Manual.
Alternative Protocols 19–1
Part III
DEClaser 1100 Printer
Part III describes the level 3 Digital ANSI-Compliant Printing Protocol (DEC
PPL3) implementation specific to the DEClaser 1100 printer. The Digital
ANSI-Compliant Printing Protocol is based on ANSI X3.64.
•
Chapter 20 provides a brief overview of the DEClaser 1100 printer.
•
Chapter 21 explains the relationship between the logical information and
the printing of the physical page in the DEClaser environment.
•
Chapter 22 discusses reset and power-up values and lists initial state
values for the printer.
•
Chapter 23 lists maximum values for printer features.
•
Chapter 24 explains paper handling for the printer.
•
Chapter 25 describes reporting commands and lists error messages.
•
Chapter 26 lists fonts available to the printer.
•
Chapter 27 discusses sixel implementation specific to the printer.
•
Chapter 28 discusses protocol switching when using the DEClaser 1100
printer.
•
Chapter 29 discusses memory management considerations for the
DEClaser 1100 printer.
20
Overview
The DEClaser 1100 printer is a high-quality laser printer that can print
text, graphics, and images on standard office envelopes, transparencies, and
gummed labels and on the following paper sizes:
•
A (Letter)
•
A4
•
Legal
•
Executive (184 mm x 267 mm, 7 1/4 in. x 10 1/2 in.)
DEClaser 1100 printers implement level 3 of the Digital ANSI-Compliant
Printing Protocol (DEC PPL3) as described in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
The DEClaser 1100 printer is a simplex printer and can print up to four
pages/minute.
Overview 20–1
21
Logical to Physical Image
This chapter contains the following topics related to creating the physical
image:
•
Printer resolution, Section 21.1
•
Printable area, Section 21.2
•
Mapping the logical page to the physical sheet size, Section 21.3
•
Positioning accuracy, Section 21.4
•
Justification, Section 21.5
21.1 Printer Resolution
The DEClaser 1100 printer has an addressing capability and imaging
resolution support a wide range of standard font pitches and sixel graphics
resolutions.
Internal addressing capability
1/7200 inch (centipoint addressing)
Imaging resolution
300 x 300 dots/inch
21.1.1 Horizontal Resolution
The DEClaser 1100 printer supports the horizontal pitch values listed in
Table 21–1 for the selective parameters (Ps) of the Set Horizontal Pitch
(DECSHORP) and the Select Horizontal Spacing (SHS) commands. Table 21–1
lists the average width of characters (target pitch) in characters/inch if this
value is exact. If characters/inch is only an approximate value, then the table
provides the target value in inches with the approximate characters/inch value
in parentheses.
Logical to Physical Image 21–1
Table 21–1 Horizontal Pitches — DEClaser 1100 Printer (Standard 300
Dots/Inch)
Target Pitch
(Char/Inch)
Target Value
(Centipoints)
Printer Pitch
(Char/Inch)
Printer Value
(Centipoints)
5
1440.00
5.000
1440
6
1200.00
6.000
1200
(6.6) 10/66 in.
1090.90
6.605
1090
(8.25) 8/66 in.
872.72
8.265
872
(8.55) 28/240 in.
840.00
8.550
840
9
800.00
9.000
800
10
720.00
10.000
720
696.00
10.344
696
600.00
12.000
600
545.45
13.210
545
480.00
15.000
480
(16.5) 4/66 in.
436.36
16.510
436
(17.1) 14/240 in.
420.00
17.100
420
400.00
18.000
400
(10.3) 29/300 in.
12
(13.2) 5/66 in.
15
18
The macro parameter values for sixel graphics grid sizes and aspect ratios
provided by the DEClaser 1100 printer are shown in Table 27–1.
21.1.2 Vertical Resolution
The DEClaser 1100 printer’s vertical addressing can provide the pitches
required for existing fonts and graphics mode. Table 21–2 lists the vertical
pitch values supported for the selective parameters (Ps) of the Set Vertical
Pitch (DECVERP) and the Select Vertical (Line) Spacing (SVS) commands.
Column 2 of Table 21–2, Printer Value, gives the amount of white space
between the lines in centipoints for each pitch selection.
21–2 Logical to Physical Image
Table 21–2 Vertical Pitches — DEClaser 1100 Printer (Standard 300
Dots/Inch)
Target Pitch
(Lines/Inch)
Printer Value
(Centipoints)
2
3600
3
2400
4
1800
6
1200
8
900
12
600
Target Pitch
(Lines/A-size
Printable Area)
Printer Value
(Centipoints)
22
3456
33
2304
44
1728
66
1152
88
864
132
576
Target Pitch
(Lines/30 Millimeters)
Printer Value
(Centipoints)
3
2856
4
2136
6
1416
12
720
Note
The DEClaser 1100 printer implements values for the Spacing Pitch
Increment (SPI) command as requested.
Logical to Physical Image 21–3
21.2 Printable Area
The printable area for paper sizes and the maximum and minimum envelope
sizes supported by the DEClaser 1100 printer are discussed in Section 21.2.1
and Section 21.2.2.
21.2.1 Paper Sizes
Table 21–3 shows the minimum printable area specified by Digital and the
printable area of the DEClaser 1100 printer in centipoints for supported paper
sizes.
Table 21–3 Printable Areas of the DEClaser 1100 Printer in Centipoints
DEClaser 1100 Printer
Minimum
Paper Size
(Conventional Units)
Width
Length
Width
Length
A (8 1/2 in. x 11 in.)
57600
75600
57768
76320
A4 (210 mm x 297 mm)
55872
80568
56088
81288
Legal (8 1/2 in. x 14 in.)
57600
97200
57768
97920
Executive (7 1/4 in. x 10 1/2 in.)
50400
72000
48600
72720
21.2.2 Envelope Sizes
The multipurpose tray can be used to feed envelopes into the DEClaser 1100
printer. An additional option, an envelope cassette, is available. Table 21–4
lists the maximum and minimum envelope sizes supported for each method.
Table 21–4 Maximum and Minimum Envelope Sizes for the DEClaser 1100
Printer
Feeding Method
Minimum Size
Maximum Size
Multipurpose tray
97 mm x 148 mm
3 3/5 in. x 5 4/5 in.
216 mm x 356 mm
8 1/2 in. x 14 in.
Cassette option
98 mm x 190 mm
3 7/10 in. x 7 1/2 in.
162 mm x 250 mm
6 1/3 in. x 9 4/5 in.
21–4 Logical to Physical Image
21.3 Mapping Page Size to Physical Sheet Size
The Page Format Select (PFS) and Variable Page Format Select (DECVPFS)
commands specify the page size. The physical sheet size depends on the paper
cassette selected. When the page size does not match the physical sheet size,
the DEClaser 1100 printer keeps the page and physical sheet aligned at the
top left-hand corner.
•
If the page size is smaller than the physical sheet size, the printer leaves
white space on the right and the bottom edges. See Figure 21–1.
•
If the page size is larger than the physical sheet size, the printer does
not image characters that extend beyond the boundaries of the printable
area in both the horizontal and vertical directions. See Figure 21–2. In
landscape mode, if the top left area extends outside the physical sheet area,
it is not imaged.
Logical to Physical Image 21–5
Figure 21–1 Page Size Smaller Than Physical Sheet Size on the DEClaser
1100 Printer
Page Size
Physical Sheet Size
MLO-005352
21–6 Logical to Physical Image
Figure 21–2 Page Size Larger Than Physical Sheet Size on the DEClaser
1100 Printer
Physical Sheet Size
Page Size
MLO-005353
21.4 Positioning Accuracy
The DEClaser 1100 printer keeps distance in centipoints. When converting
from centipoints to pixels for imaging, the DEClaser 1100 printer truncates
the fractional portion of pixels. Positioning is accurate to 1 pixel. For vectors
drawn with the Draw Vector (DECVEC) and Draw Relative Vector (DECRVEC)
commands, values between 0 and 24 centipoints round to 1 pixel.
21.5 Justification
The DEClaser 1100 printer does not discard either the right bearing of the
rightmost character on the line or the left bearing of the leftmost character on
the line.
Logical to Physical Image 21–7
22
Initial State Values
The topics discussed in this chapter include the following:
•
Initial state values that are independent of the paper size in the selected
paper cassette, Section 22.1
•
Initial state values based on the paper cassette, Section 22.2
•
Factory defaults in nonvolatile memory, Section 22.3
•
Macro values in nonvolatile memory, Section 22.4
•
Protocol selections for nonvolatile memory, Section 22.5
22.1 Initial States Independent of Paper Cassette
Tables 22–1 and 22–2 list the values used in the following instances,
independent of the paper cassette selection:
•
Power-up
•
Front panel reset
•
Select Conformance Level (DECSCL) command
•
Soft Terminal Reset (DECSTR) command
•
Reset to Initial State (RIS) command
Initial State Values 22–1
Table 22–1 Initial State Values for the DEClaser 1100 Printer
Variable or
Control Function
DECSCL
Power-Up
DECSTR
RIS
Front Panel
Origin (DECOPM)
Reset
Reset
Reset
Reset
Position Unit
Mode1
Reset
Reset
Reset
Reset
Vertical spacing
Font-dependent
Font-dependent
Font-dependent
Font-dependent
Horizontal spacing
Font-dependent
Font-dependent
Font-dependent
Font-dependent
Size unit1
Decipoints
Decipoints
Decipoints
Decipoints
Origin
Origin
Origin
Origin
Every eight
Every eight
Every eight
Every eight
Reset
Reset
Reset
Reset
CR/New Line Mode
Reset
Reset
Reset
Reset
Pitch Select Mode
Reset
Reset
Reset
Reset
Proportional
spacing
Reset
Reset
Reset
Reset
Justify
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Vertical tabs
Every VAI
Every VAI
Every VAI
Every VAI
G0
ASCII
ASCII
ASCII
ASCII
G1
ASCII
ASCII
ASCII
ASCII
G2
User Preference
User Preference
User Preference
User Preference
G3
User Preference
User Preference
User Preference
User Preference
Active position
Horizontal tabs
2
Line Feed/New
Line
SGR attributes
3
GL
G0
G0
G0
G0
GR
G2
G2
G2
G2
GSS
10 points
10 points
10 points
10 points
GSM
100,100
100,100
100,100
100,100
1
Because Position Unit Mode (PUM) is reset by default, Select Size Unit (SSU) is ignored for most commands.
2
Horizontal tabs are set every eight columns, starting with column 9 (9,17, . . . ) and fill the entire tab table.
3
Vertical tabs are set every line or Vertical Advance Increment (VAI) and fill the entire tab table.
(continued on next page)
22–2 Initial State Values
Table 22–1 (Cont.) Initial State Values for the DEClaser 1100 Printer
Variable or
Control Function
DECSCL
Autowrap (autoNL)
Set
User Preference Set
(macro)6
Power-Up
5
Front Panel
RAM
RAM
DEC Supplemental NVM
Unchanged
Last setting7
Unsolicited status
reports
Disabled
Unchanged
Disabled8
Downloaded fonts
Deleted
None
Unchanged
Deleted
CRM
Unchanged
Reset
Unchanged
Reset
Tray selection
(feeder)
Cassette9
NVM
Unchanged
RAM
DECSNC (copy)
1
1
Unchanged
RAM
DECMM (paint)
Partial paint
NVM
Unchanged
Last setting
DECSDPM (duplex)
True simplex
True simplex
Unchanged
True simplex
DECSSS (paper)
Letter (portrait)
NVM
Unchanged
Key10
C1 Receive
8-Bit
8-Bit
Unchanged
8-Bit
4
NVM
4
DECSTR
RIS
Disabled
NVM indicates that the initial state value is stored in the nonvolatile memory of the DEClaser 1100 printer.
5
RAM (random access memory) indicates that the initial state value is stored in the volatile memory of the
DEClaser 1100 printer.
6
Macro contains the Printer ID and initialization message as well as the User Preference Supplemental Set.
7
Last setting is the value associated with the variable that was last set in the menu. This applies to variables
in the ‘‘Initial’’ menu. These values take effect after a front panel reset.
8
A front panel reset generates an initialization message, if enabled in the macro.
9
If the paper cassette is not installed, the initial state value is multipurpose tray.
10
If the tray selection is cassette, the printer takes the paper size from the cassette key. If the tray selection
is the multipurpose tray, the printer takes the paper size from RAM.
Initial State Values 22–3
Table 22–2 Initial State Values of Select Graphic Rendition (SGR) Numbers
SGR
Assignment Type
ID
Meaning
10
Type family
DBULTN1
DEC Builtin1 family
11
Type family
RCOURIR
Courier family
12
Type family
RELITE0
Elite family
1
13
Font collection plus
RCOURIRJ02SK00GG
14
Font collection plus
RELITE0L02SK00GG1
Elite 10 point, 12 pitch
15
Font collection plus
RCOURIR101VK00GG1
Courier 6.7 point, 13.6 pitch
16
Font collection plus
RCOURIR202SK00GG
1
17
Type family
DBULTN1
DEC Builtin1 family
18
Type family
DBULTN1
DEC Builtin1 family
19
Type family
DBULTN1
DEC Builtin1 family
1
Courier 10 point, 10 pitch
Courier 10 point, 10.3 pitch
The DEClaser 1100 printer needs only 15 bytes.
Font cartridges modify the default Select Graphic Rendition (SGR) values.
These modifications occur during the following instances:
•
Power-up
•
Soft Terminal Reset (DECSTR)
•
Reset to Initial State (RIS)
•
Select Conformance Level (DECSCL)
The printer also references modifications to the SGR values made by the font
cartridge on the Assign Type Family or Font (DECATFF) command when the
string is null.
22–4 Initial State Values
22.2 Initial States Based on Paper Cassette
Table 22–3 lists the bounds and the Select Graphic Rendition (SGR) parameter
determined at initialization. The bounds and parameter depend on the paper
size you loaded into the selected paper cassette. Table 22–3 lists the bounds as
one of the following:
•
A parameter of the Page Format Select (PFS) command
•
The Variable Page Format Select (DECVPFS) command
•
The Set Sheet Size (DECSSS) command
Table 22–3 Initialization Based on Paper Size
Paper Size
Bounds Definition
SGR
A
PFS ?20
10
A4
PFS ?22
16
Legal
PFS ?24
10
Executive
DECVPFS for executive-size paper
10
Envelope or
multipurpose tray
A- or A4-size paper, depending on the
setting of the paper feature in NVM
10 or 16
22.3 Factory Defaults in Nonvolatile Memory
Table 22–4 lists the factory defaults in the nonvolatile memory (NVM) for the
DEClaser 1100 printer.
Table 22–4 Factory Defaults in NVM for the DEClaser 1100 Printer
Item1
Factory
Default 1
Variable (Control Function)2
Feeder
Cassette
Tray selection (DECASFC)
Copy
1
Number of copies (DECSNC)
AutoNL
On
Autowrap (DECAWM)
1
Columns 1 and 2 describe the terms used on the front panel of the DEClaser 1100 printer.
2
This table contains the default NVM values for the DEClaser 1100 printer for the variables that
are listed in column 1 of Table 22–1.
(continued on next page)
Initial State Values 22–5
Table 22–4 (Cont.) Factory Defaults in NVM for the DEClaser 1100 Printer
Item1
Factory
Default 1
Macro
00
Paint
Partial
Variable (Control Function)2
User Preference Set (DECAUPSS)
Printer generic response (DAR)
No power-up message
3
96 Kbytes of memory reserved (DECMM)
Paper
Letter
Sheet size (DECSSS)
Message
English
N/A
I/F
RS232C
N/A
Baud
4800
N/A
Rsmode
8S
N/A
DTR
Fix-H
N/A
XON/XOFF
On
N/A
ETX/ACK
Off
N/A
Protocol
selection
PostScript
Select Other Coding System (SOCS)
1
Columns 1 and 2 describe the terms used on the front panel of the DEClaser 1100 printer.
2
This table contains the default NVM values for the DEClaser 1100 printer for the variables that
are listed in column 1 of Table 22–1.
3
A4 size for worldwide models.
22.4 Macro Values in NVM
The Device Attribute Report (DAR) is a function of the printer ID selected in
NVM. The printer ID is determined during power-up initialization.
The printer ID cannot be changed through software. It is determined only at
initialization. Table 22–5 lists the macro values for nonvolatile memory.
22–6 Initial State Values
Table 22–5 Macro Values in NVM for the DEClaser 1100 Printer
Value
Meaning
User Preference Supplemental Set
00
DEC Supplemental
10
ISO Latin-1 Supplemental
20
JIS Katakana1
30
ISO Latin-Hebrew Supplemental
40
DEC Hebrew Supplemental
50
DEC 7-bit Hebrew
60
DEC Technical
Initialization Message2
0
Initialization message disabled
5
Initialization message enabled
Printer ID
0
DEC PPL3 generic response (factory default)
1
LN03 alias response
1
This character set is not in a built-in font. It must be downline loaded or obtained from a font
cartridge.
2
If enabled, the printer sends the initialization message during power-up or a front panel reset.
The macro value is calculated as follows:
Macro Value =
Printer ID +
Initialization Message ID +
User Preference Supplemental Set
For example, a Printer ID value of 1, with the initialization message enabled
(5), and a User Preference Supplemental Set value of 10 has a macro value of
16.
An undefined value for User Preference Supplemental Set is treated as 00; an
undefined value for Printer ID is treated as 0.
Initial State Values 22–7
22.5 Protocol Selection in NVM
Selection of the protocol depends on:
•
Protocol stored in NVM
•
Protocol cartridge installed in the printer at power-up
If the protocol stored in NVM matches the installed protocol cartridge, the
DEClaser 1100 printer selects that protocol at power-up. Otherwise, the
printer selects DEC PPL3 at power-up.
22–8 Initial State Values
23
Maximum Printer Values
This chapter lists the maximum parameter values supported by the DEClaser
1100 printer. The topics include:
•
Maximum parameter values, Section 23.1
•
Maximum values for printer features, Section 23.2
23.1 Maximum Parameter Values
The DEClaser 1100 printer has the following parameter value limitations:
•
Graphics repeat function (DECGRI) — 32K (32,767) limit. The printer sets
values that exceed this limit to the limit value.
•
Grid size parameter — 99 units for maximum horizontal grid size; 1000 for
maximum aspect ratio (99,000 units for maximum vertical grid size).
23.2 Maximum Values for Printer Features
Table 23–1 lists the maximum values supported by the DEClaser 1100
printer.
Table 23–1 Maximum Values Supported by the DEClaser 1100 Printer
Printer Feature
Maximum Value
Horizontal tabs
160
Vertical tabs
160
Number of trays
Number of entries in font dictionary
Number of cartridge slots
2
768
2
(continued on next page)
Maximum Printer Values 23–1
Table 23–1 (Cont.) Maximum Values Supported by the DEClaser 1100 Printer
Printer Feature
Built-in font RAM size
Maximum Value
1
284 KB min.
Built-in bitmap RAM or graphics buffer
Option font ROM size
1
284 KB min.
See cartridge
Optional bitmap RAM2
{1 | 2} MB
2
Optional download RAM
{1 | 2} MB
1
The Built-in font memory and the Built-in bitmap memory comprise the same Built-in RAM
memory.
2
The optional bitmap memory and download memory comprise the same optional RAM memory;
they cannot exceed 2.5 MB.
23–2 Maximum Printer Values
24
Paper Handling
The following options specific to the DEClaser 1100 printer are discussed in
this chapter:
•
Duplex printing, Section 24.1
•
Input tray selection, Section 24.2
•
Set sheet size, Section 24.3
24.1 Duplex Printing
The DEClaser 1100 printer implements simplex (one-sided) printing. The
printer supports logical duplex printing but does not support physical duplex
or tumbled printing.
The Set Duplex Print Mode (DECSDPM) command sets the print mode.
Table 24–1 lists the duplex modes and shows the fallback modes for the
DEClaser 1100 printer when you select an unsupported DECSDPM parameter.
For a description of the DECSDPM command, see the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
Table 24–1 Duplex Print Mode Fallbacks for the DEClaser 1100 Printer
Ps
Duplex Mode
1100 Model
1
True simplex normal
1
2
True simplex tumbled
1
3
True duplex normal
5
4
True duplex tumbled
5
5
Duplex master normal
5
6
Duplex master tumbled
5
(continued on next page)
Paper Handling
24–1
Table 24–1 (Cont.) Duplex Print Mode Fallbacks for the DEClaser 1100 Printer
Ps
Duplex Mode
1100 Model
7
Simplex compressed normal
1
8
Simplex compressed tumbled
1
Example 24–1 shows two forms of the DECSDPM command. The first
command with Ps = 1 selects a true simplex normal mode; Ps = 3, a true
duplex normal mode, selects duplex master normal. ‘‘Normal’’ indicates that
the printer does not tumble the front page.
Example 24–1 Set Duplex Print Mode Command for the DEClaser 1100
Printer
CSI 1 SP x
9/11 3/1 2/0 7/8
CSI 3 SP x
9/11 3/3 2/0 7/7
24.2 Designating the Input Tray
The DEClaser 1100 printer has a multipurpose tray and several optional paper
cassettes available.
Use the Automatic Sheet Feeder (Input Tray) Control (DECASFC) command to
select the appropriate tray:
CSI Ps
!
v
9/11 3/xx 2/1 7/6
The DECASFC command causes a conditional Sheet Feed. Subsequent sheets
come from the tray as indicated in the selective parameter Ps. Table 24–2 lists
the tray selection parameters for the DEClaser 1100 printer.
24–2 Paper Handling
Table 24–2 Tray Selection on the DEClaser 1100 Printer
Ps
Tray Selected
0
No tray change
1
Multipurpose tray1
2
Cassette tray
1
When using the multipurpose tray, place special one-sided paper, such as letterhead, facedown on
the tray.
24.3 Set Sheet Size (DECSSS)
Table 24–3 lists the Set Sheet Size parameters for the DEClaser 1100 printer.
Table 24–3 Set Sheet Size (DECSSS) Parameters
Value
Meaning
Ps1
0
Any slot
1
Multipurpose tray
2
Paper cassette (if present)
Ps2
N/A
Key number (ignored)
Pn3
n
Width of the paper (defined as leading edge)
Pn4
n
Length of the paper
Parameters Pn3 and Pn4 are expressed in pixels, decipoints, or centipoints, as
defined by Select Size Unit (SSU), regardless of the setting of Positioning Unit
Mode (PUM).
Paper Handling
24–3
The smallest paper size you can define with DECSSS for the DEClaser 1100
printer is 97 mm x 148 mm. If you select a page size that is smaller than the
smallest size, the DEClaser 1100 printer defaults to the minimum paper size.
For more information on the Set Sheet Size (DECSSS) command, see the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
24–4 Paper Handling
25
Status and Error Reporting
The topics discussed in this chapter include the following:
•
Device Attributes Report (DAR) parameters, Section 25.1
•
Device Attributes (Secondary) Report (DA2R) parameters, Section 25.2
•
Error parameters for Device Status Reports, Section 25.3
This chapter discusses the DEClaser 1100 printer reports and lists the error
parameters for printer device status reports. The DEClaser 1100 printer sends
the following reports:
•
CPR — Reports current cursor position
•
DAR — Responds to a Device Attributes (DA) request, Section 25.1
•
DA2R — Responds to a Device Attributes (secondary) DA2 request,
Section 25.2
•
DECFSR (1 or 0) — Reports fonts currently available
•
DECFSR (2 or 0) — Reports the memory available (in bytes) for downline
loading
•
DECFSR (DECLFF Ps2=2 or 3) — Reports font validation errors and
warnings
•
DSR — Responds to a Device Status Report or an error if unsolicited
reports are enabled, Section 25.3
For information on the Cursor Position Report (CPR) command and the Font
Status Report (DECFSR) command with parameters 0, 1, or 2, refer to the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
Status and Error Reporting 25–1
25.1 Device Attributes Report (DAR) Parameters
Device Attributes Report (DAR) parameters allow the printer to identify itself
as either of the following:
•
A Digital level 3 printer — DAR (generic response)
•
A previous model Digital printer (to allow backward compatibility) — DAR
(alias response)
To request product identification for the DEClaser 1100 printer, the host must
send a Device Attributes (DA) command.
CSI c
9/11 6/3
or
CSI 0 c
9/11 3/0 6/3
The DEClaser 1100 printer responds to a Device Attributes (DA) command by
sending a DAR (generic response).
CSI ?
Ps1 ;
Ps2 ;
...
9/11 3/15 *** 3/11 *** 3/11 . . .
;
Psn c
3/11 *** 6/3
For the DEClaser 1100 printer, Ps1 is 73 (3/7 3/3). This identifies the printer
as a Digital level 3 device.
Ps2 to Psn indicate which extensions or enhancements that the DEClaser 1100
printer supports. Table 25–1 lists the character form (Ps2 to Psn) and code for
each extension.
Table 25–1 Parameters for Primary DA Responses for the DEClaser 1100
Printer
Character
Form
Code
Extension
4
3/4
Sixel graphics
6
3/6
Sheet feeder
8
3/8
Legal-size paper handling
9
3/9
Variable Page Format Select (DECVPFS)
10
3/1 3/0
Vector drawing
11
3/1 3/1
Multiple copies
12
3/1 3/2
Hebrew
16
3/1 3/6
Logical duplex
25–2 Status and Error Reporting
Example 25–1 shows a primary DA request to a DEClaser 1100 printer and a
typical DAR (generic response).
Example 25–1 DA Request and DAR Example for the DEClaser 1100 Printer
CSI c
or
CSI 0 c
CSI ? 73;4;6;8;9;10;11;12 c
Table 25–2 lists the DAR (alias response) parameters supported by the
DEClaser 1100 printer for backward compatibility.
Table 25–2 DAR Parameters (Alias Response) for the DEClaser 1100 Printer
Character
Form
Code
Option
26
3/2 3/6
LN03 (base unit)
The DEClaser 1100 printer can be configured to send only the number 26 for
compatibility with the LN03 printer.
CSI ? 26 c
For more information on the Device Attributes Report (DAR) command, refer to
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
25.2 Device Attributes (Secondary) Report (DA2R)
Parameters
A secondary Device Attributes Report (DA2R) provides the following
information about the DEClaser 1100 printer:
•
Printer model
•
Major firmware revision
•
Amount of memory in megabytes
•
Which protocol cartridge is installed
•
Minor firmware revision
To request this information, the host sends a Device Attributes (Secondary)
(DA2) command.
CSI >
c
9/11 3/14 6/3
or
CSI >
0
c
9/11 3/14 3/0 6/3
Status and Error Reporting 25–3
In response to a secondary DA request, the DEClaser 1100 printer sends a
Device Attributes (Secondary) Report (DA2R).
CSI >
Ps1 ;
Ps2 ;
Ps3 ;
Ps4
9/11 3/14 *** 3/11 *** 3/11 *** 3/11 ***
Ps5 c
*** 6/3
Table 25–3 lists DA2R parameters supported by the DEClaser 1100 printer.
Table 25–3 Parameters for DA2R Responses for the DEClaser 1100 Printer
Character
Form
Code
Description
Ps1
51
3/5 3/1
DEClaser 1100
Ps2
xx
3/x 3/x
Major firmware revision x.x
10
3/1 3/0
Version 1.0-yy
Ps3
0
3/0
No additional memory installed
1
3/1
1-Mbyte memory card
2
3/2
2-Mbyte memory card
Ps4
Ps4 is the sum of the codes of the installed
protocols. Table 25–4 lists the protocol codes.
Ps5
yy
3/y 3/y
Minor firmware revision yy
00
3/0 3/0
Version xx-00
25–4 Status and Error Reporting
Table 25–4 Protocol Codes for DA2R Responses
Code
Protocol
1
PostScript
2
CaPSL
4
IBM Proprinter
8
HP PCL 4
16
reserved
32
...
For more information, see the user’s guide of your protocol option cartridge.
Example 25–2 shows a DA2 request and a DA2R response from a DEClaser
1100 printer, firmware Version 1.0, with a 2-Mbyte memory card and no
protocol cartridge.
Example 25–2 DA2 Request and DA2R Response for the DEClaser 1100
Printer
CSI > c
or
CSI > 0 c
CSI > 51;10;2;0;00
25.3 Error Parameters for Device Status Reports
Table 25–5 lists error parameters reported by the DEClaser 1100 printer for
extended DSR reports. Each error parameter has a specific code that pinpoints
the specific failure and a generic code that indicates the general type of failure.
Refer to Table B–1 for a list of generic codes and their meanings.
Status and Error Reporting 25–5
Table 25–5 Error Parameters for Extended Device Status Reports for the
DEClaser 1100 Printer
Specific
Code
Generic
Code
Class
Meaning
Controller Errors
?0
?57
Special
First report since initialization1
?0
?20
S:U
No malfunction detected
?101
?41
E
Complex data
?102
?41
E
Lost characters
?103
?44
E
Font memory full
?104
?44
S
Font dictionary full
?105
?41
E
Page memory full
?111
?42
E
Downline loaded font warning
?112
?42
E
Downline loaded font error (load aborted)
?113
?47
E
Error overflow (more than can be recorded)
?116
?43
E
Invalid parameter in control function
?117
?41
E
Justify buffer overflow
?123
?40
E
No font file with current character set
?122
?42
E
Inconsistent font file metrics
?131
?22
E
Line error on received character
?132
?23
E
Line error — input buffer overflow
?133
?55
E:U
Data syntax switch failed; emulation not present
or not installed
?134
?21
E:U
Font removed while printing
?142
?56
S:U
Insufficient memory for requested memory
configuration
?163
?21
S:U
Expansion board ROM failure
1
If initialization message is enabled, see Section 22.4.
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special—Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
25–6 Status and Error Reporting
Table 25–5 (Cont.) Error Parameters for Extended Device Status Reports for
the DEClaser 1100 Printer
Specific
Code
Generic
Code
Class
Meaning
Engine Errors
–
?24
S:U
Printer is off line
?201
?34
S:U
Fixing (fuser) unit error
?202
?34
S:U
Optical system error
?204
?34
S:U
Optical motor error
?206
?27
S:U
Paper tray empty
?209
?33
E:U
User requested print check
?211
?34
S:U
Engine nonvolatile RAM error
?212
?26
S:U
Printer cover open or
No EP-L cartridge
?216
?36
S:U
Paper jam
?221
?37
S:U
Invalid command (internal)
?225
?37
S:U
Internal memory overflow error
?267
?34
S:U
Image data transfer timeout
?268
?34
S:U
Signal timeout
?269
?34
S:U
Illegal signal
?272
?34
S:U
Internal status parity error
?278
?34
S:U
Undefined operator call
?279
?34
S:U
Undefined service call
?280
?34
S:U
CPU timeout
?282
?34
S:U
Sub-CPU communications error
?283
?34
S:U
Sub-CPU microwire error
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special—Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
Status and Error Reporting 25–7
Table 25–5 (Cont.) Error Parameters for Extended Device Status Reports for
the DEClaser 1100 Printer
Specific
Code
Generic
Code
Class
Meaning
Media Errors or Requests
?310
?51
S:U
Load A4-size paper cassette
?312
?51
S:U
Load Letter-size paper cassette
?313
?51
S:U
Load Legal-size paper cassette
?314
?51
S:U
Load executive-size paper cassette
?315
?51
S:U
Load paper paper_size cassette
?316
?51
S:U
Load option
?320
?52
S:U
Request manual feed A4-size paper
?322
?52
S:U
Request manual feed Letter-size paper
?323
?52
S:U
Request manual feed Legal-size paper
?324
?52
S:U
Request manual feed executive-size paper
?325
?52
S:U
Request manual feed paper paper_size
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special—Sent (if enabled) as the first parameter on power-on or front panel reset operation
25–8 Status and Error Reporting
26
Fonts for the DEClaser 1100 Printer
This chapter discusses the following topics related to fonts for the DEClaser
1100 printer:
•
Load Font File (DECLFF) considerations, Section 26.1
•
Font file repertory, Section 26.2
•
Available built-in fonts, Section 26.3
•
Algorithmic transformations for rendering attributes, Section 26.4
26.1 Load Font File (DECLFF) Considerations
The DEClaser 1100 printer has 284 Kbytes of built-in font memory available
for downline loading and can store up to 768 font files. Memory can be
upgraded to 2.5 MB, of which 2.284 MB is available for fonts.
Font files that are downline loaded into the memory of the DEClaser 1100
printer by the Load Font File (DECLFF) command must follow the Common
Font File Format (CFFF). (See Section 26.6.)
26.2 Font Repertory
The DEClaser 1100 printer font repertory consists of the following:
•
Built-in fonts
•
Standard font cartridges
•
Digital Standard Font Files available in CFFF format that can be downline
loaded
•
Customer-provided font files in CFFF format that can be downline loaded
•
Built-in algorithmic transformations
Fonts for the DEClaser 1100 Printer 26–1
26.3 Built-In Font File Repertory
The DEClaser 1100 printer has 36 built-in font files. These font files support
the combination of nine character sets and four fonts. The following fonts
reside in the DEClaser 1100 printer:
•
Courier 10-point 10-pitch normal portrait
•
Courier 10-point 10.3-pitch normal portrait
•
Courier 6.7-point 13.6-pitch normal landscape
•
Elite 10-point 12-pitch normal portrait
‘‘Normal’’ means that the font is not bold, italic, or otherwise attributed.
For each font, the following character sets reside in the printer:
•
ASCII
•
DEC Supplemental
•
ISO Latin-1 Supplemental
•
DEC Technical
•
DEC Special Graphics (VT100 Line Drawing)
•
DEC 7-Bit Hebrew
•
DEC Hebrew Supplemental
•
ISO Latin-Hebrew Supplemental
•
Legal
26–2 Fonts for the DEClaser 1100 Printer
26.3.1 Type Family Names
Table 26–1 lists the type families and the associated type family IDs built into
the DEClaser 1100 printer.
Table 26–1 Type Family Names in the DEClaser 1100 Printer
Type Family Name
Type Family ID
(Seven Characters)
DEC Builtin1
DBULTN11
Courier
RCOURIR2
Elite 12
RELITE02
PI font
D0000001
1
The ‘‘D’’ in the type family IDs for DEC Builtin1 and PI font indicates that the name is registered
with Digital, but is not registered internationally.
2
The ‘‘R’’ in the type family IDs for Courier and Elite 12 indicates that these names are either
registered internationally or are in the public domain.
26.3.2 Built-In Type Family Names and IDs, Font IDs, and Font File IDs
Table 26–2 lists type family names, type family IDs, font IDs, and font file IDs
built into the DEClaser 1100 printer.
Each of the 36 font files contains a character set that has a style, an
orientation, a point size, and a horizontal spacing. Table 26–2 contains 72
entries. The printer recognizes each font under two names:
•
A name that is either internationally registered or in the public domain,
for example, Courier or Elite 12
•
A name registered by Digital, for example, Builtin or PI
For example, the following two entries are the same:
•
Courier ASCII, 10 point, 10 pitch, Portrait font —
(RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
•
DEC Builtin1 ASCII, 10 point, 10 pitch, Portrait font —
(DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
Fonts for the DEClaser 1100 Printer 26–3
In the DEClaser 1100 printer, a font file has a 31-character name. The first
seven characters are the type family ID, the first 12 characters are the font
collection ID, and the first 16 characters define the font ID. The following
example shows how the type families, fonts, and font files are related:
•
A font file ID — DBULTN1J02SK00GG0001UZZZZ02F000
•
A type family ID — DBULTN1
•
A font collection ID — DBULTN1J02SK
•
A font ID — DBULTN1J02SK00GG
In Table 26–2, the font ID, the font collection ID, and the font file ID are
indicated by arrows.
Note
Spaces appear in the IDs for clarity and are not part of the IDs.
Table 26–2 Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
1. Type Family Name: DEC Builtin1 — Type Family ID: DBULTN1
10
10
ASCII
1
DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
10
10
DEC Supplemental
10
10
ISO Latin-1
Supplemental
10
10
DEC 7-Bit Hebrew
10
10
DEC Hebrew
Supplemental
10
10
ISO Latin-Hebrew
Supplemental
DBULTN1 J 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
10
10
Legal
10.3
10
ASCII
10.3
10
DEC Supplemental1
DBULTN1 J 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
1
DBULTN1 J 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DBULTN1 J 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
The character set-ID field of 01O formerly identified DEC Supplemental. It is now for user preference.
(continued on next page)
26–4 Fonts for the DEClaser 1100 Printer
Table 26–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Character Set
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
1. Type Family Name: DEC Builtin1 — Type Family ID: DBULTN1
10.3
10
ISO Latin-1
Supplemental
DBULTN1 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
10.3
10
DEC 7-Bit Hebrew
10.3
10
DEC Hebrew
Supplemental
DBULTN1 2 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
10.3
10
ISO Latin-Hebrew
Supplemental
DBULTN1 2 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
10.3
10
Legal
12
10
ASCII
12
10
DEC Supplemental1
12
10
ISO Latin-1
Supplemental
DBULTN1 2 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
12
10
DEC 7-Bit Hebrew
12
10
DEC Hebrew
Supplemental
12
10
ISO Latin-Hebrew
Supplemental
DBULTN1 L 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
12
10
Legal
13.6
6.7
ASCII
13.6
6.7
DEC Supplemental1
13.6
6.7
ISO Latin-1
Supplemental
DBULTN1 L 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
13.6
6.7
DEC 7-Bit Hebrew
13.6
6.7
DEC Hebrew
Supplemental
13.6
6.7
ISO Latin-Hebrew
Supplemental
DBULTN1 1 01V K 00 G G 00 6DK ZZZZ 02 F 0 0 0
13.6
6.7
Legal
DBULTN1 1 01V K 00 G G 00 244 ZZZZ 02 F 0 0 0
1
DBULTN1 L 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DBULTN1 L 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 24D ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 1TG ZZZZ 02 F 0 0 0
The character set-ID field of 01O formerly identified DEC Supplemental. It is now for user preference.
(continued on next page)
Fonts for the DEClaser 1100 Printer 26–5
Table 26–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
2. Type Family Name: Courier — Type Family ID: RCOURIR
10
10
ASCII
1
RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
10
10
DEC Supplemental
10
10
DEC Technical
10
10
DEC Special Graphics
10
10
ISO Latin-1
Supplemental
10
10
DEC 7-Bit Hebrew
10
10
DEC Hebrew
Supplemental
10
10
ISO Latin-Hebrew
Supplemental
RCOURIR J 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
10
10
Legal
10.3
10
ASCII
10.3
10
DEC Supplemental1
10.3
10
DEC Technical
10.3
10
DEC Special Graphics
10.3
10
ISO Latin-1
Supplemental
RCOURIR J 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
10.3
10
DEC 7-Bit Hebrew
10.3
10
DEC Hebrew
Supplemental
10.3
10
ISO Latin-Hebrew
Supplemental
RCOURIR 2 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
10.3
10
Legal
13.6
6.7
ASCII
13.6
6.7
DEC Supplemental1
13.6
6.7
DEC Technical
RCOURIR 2 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
1
RCOURIR J 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
RCOURIR 2 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
The character set-ID field of 01O formerly identified DEC Supplemental. It is now for user preference.
(continued on next page)
26–6 Fonts for the DEClaser 1100 Printer
Table 26–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
2. Type Family Name: Courier — Type Family ID: RCOURIR
RCOURIR 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
13.6
6.7
DEC Special Graphics
13.6
6.7
ISO Latin-1
Supplemental
13.6
6.7
DEC 7-Bit Hebrew
13.6
6.7
DEC Hebrew
Supplemental
13.6
6.7
ISO Latin-Hebrew
Supplemental
RCOURIR 1 01V K 00 G G 00 6DK ZZZZ 02 F 0 0 0
13.6
6.7
Legal
RCOURIR 1 01V K 00 G G 00 244 ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 24D ZZZZ 02 F 0 0 0
RCOURIR 1 01V K 00 G G 00 1TG ZZZZ 02 F 0 0 0
3. Type Family Name: Elite 12 — Type Family ID: RELITE0
12
10
ASCII
1
RELITE0 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
12
10
DEC Supplemental
12
10
DEC Technical
12
10
DEC Special Graphics
12
10
ISO Latin-1
Supplemental
12
10
DEC 7-Bit Hebrew
12
10
DEC Hebrew
Supplemental
12
10
ISO Latin-Hebrew
Supplemental
RELITE0 L 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
12
10
Legal
RELITE0 L 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
RELITE0 L 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
4. Type Family Name: PI Font — Type Family ID: D000000
10
10
DEC Technical
10
10
DEC Special Graphics
1
D000000 J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
The character set-ID field of 01O formerly identified DEC Supplemental. It is now for user preference.
(continued on next page)
Fonts for the DEClaser 1100 Printer 26–7
Table 26–2 (Cont.) Built-In Font File IDs
Pitch
Type
Size
Font File ID————————————————>
Font ID————————–>
Font Collection ID—->
Character Set
4. Type Family Name: PI Font — Type Family ID: D000000
10.3
10
DEC Technical
10.3
10
DEC Special Graphics
12
10
DEC Technical
12
10
DEC Special Graphics
13.6
6.7
DEC Technical
13.6
6.7
DEC Special Graphics
D000000 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
26.3.3 Font Metrics
Table 26–3 lists the metrics in centipoints for the fonts built into the DEClaser
1100 printer. The first value in the heading represents the point size; the
second value represents the pitch. For example, Courier 10,10 is a Courier
10-point, 10-pitch font.
Table 26–3 Font Metrics for the DEClaser 1100 Printer
Field
Courier
10,10
Courier
10,10.3
Elite
10,12
Total vertical size
1152
1152
1152
864
Above baseline offset
–840
–840
–840
–648
Below baseline offset
312
312
312
216
Minimum space size1
360
336
288
264
Nominal space size
720
696
600
528
1440
1392
1200
1056
–576
–576
–576
–432
576
576
576
432
Maximum space size
Superscript vertical
Subscript vertical3
3
2
Courier
6.7,13.6
1
In general, minimum space is calculated as 33% to 50% of width of space.
2
In general, maximum space is calculated as 200% of width of space.
3
In general, superscript and subscript offsets are one-half of the total vertical size.
(continued on next page)
26–8 Fonts for the DEClaser 1100 Printer
Table 26–3 (Cont.) Font Metrics for the DEClaser 1100 Printer
Courier
10,10
Courier
10,10.3
240,72
240,72
240,72
168,48
Strike-through offset
(height, thickness)
–264,72
–264,72
–264,72
–192,48
Overline offset
(height, thickness)
–912,72
–912,72
–912,72
–480,48
Field
Underline offset
(height, thickness)
Elite
10,12
Courier
6.7,13.6
26.4 Built-In Algorithmic Transformations
When the print job requires a font with a particular set of attributes, the
DEClaser 1100 printer first searches the current repertory for a font that
contains the proper character set, in the proper style, in the proper horizontal
and vertical size, with the desired attributes.
If the search fails to find a font with the desired attributes, the DEClaser 1100
printer attempts to approximate the desired attributes by using algorithmic
transformations on the existing repertory.
The DEClaser 1100 printer provides fallback algorithmic transformations for
the following:
•
Bold (shadow bold)
•
Portrait/landscape orientation (rotation)
•
Italic (character underline)
•
Underline
•
Strike-through
•
Overline
•
National Replacement Character Sets (NRCS)
The DEClaser 1100 printer always uses algorithmic transformations for the
following:
•
Horizontal spacing
•
Vertical spacing
•
Double underline
Fonts for the DEClaser 1100 Printer 26–9
The DEClaser 1100 printer does not provide fallbacks for the following
attributes:
•
Size scaling of any type
•
Italics fallback by slanting the character
•
Kerning
26.4.1 Memory Use
Rotating the font to fit the page orientation is the only algorithmic
transformation that uses memory. By default, the DEClaser 1100 printer
stores transmitted font file characters in portrait orientation. When you
require landscape printing, the printer conserves memory by rotating only the
fonts that the printer uses rather than all fonts that are selected.
If you require a font in landscape orientation only, you can further reduce the
amount of memory that is used by specifying the orientation in the font_record
section of the Load Font File (DECLFF) command. To store a copy of the font
in landscape format only, precede the font_record with an equal sign (=, 3/13):
DCS 0; 1; 1 y =font_record; comment_record ST
26.4.2 Fallback Metrics for Mixed Font Files
The DEClaser 1100 printer does not support fallback metrics for all categories
of mixed text; however, the printer does support a fallback for inconsistent
metrics when performing NRCS pairing. The printer sends a Device Status
Report (DSR), if enabled, when inconsistent metrics are detected.
26.4.3 Spacing Criterion Fallback
When the selected font is proportional and the requested font is monospaced,
the DEClaser 1100 printer left-justifies the proportional characters within the
monospaced cell.
26.5 Font List
The DEClaser 1100 printer reports the font SGR assignments contained in the
font cartridges when printing the font list. The SGR assignment (as written in
the cartridge) is displayed one line per SGR listing after the cartridge title line.
26–10 Fonts for the DEClaser 1100 Printer
26.6 Font File Validation Test Report
The DEClaser 1100 printer generates a report of errors and warnings that
occur during font file validation. You may use this report for debugging
purposes if you are designing font files for Digital level 3 printers according to
the Common Font File Format (CFFF).
Refer to Appendix C for a description of the Font Status Report (DECFSR)
command. You request this report through the second parameter (Ps2 = 2 or 3)
of the Load Font File (DECLFF) command as described in Table 26–4.
Table 26–4 Parameters for Load Font File (DECLFF) for the DEClaser 1100
Printer
Ps2
Action
0 or omitted
Print summary sheet.
1
Do not print summary sheet.
2
Send font error and warning information. Response is Font Status
Report (DECFSR, DECLFF Ps2=2 or 3).
3
Same as 0 and 2.
Any other value
Do not print summary sheet or send status report.
Fonts for the DEClaser 1100 Printer 26–11
27
Sixel Considerations
This chapter discusses three topics related to sixel graphics:
•
Macro parameter values, Section 27.1
•
Valid Set Raster Attributes (DECGRA) commands, Section 27.2.1
•
Restrictions, Section 27.2.2
27.1 Macro Parameter Values
Table 27–1 compares the target values and the values implemented by the
DEClaser 1100 printer for the macro parameter (Ps1) of the sixel mode
graphics device control string:
DCS Ps1; Ps2; Pn3 q picture_definition ST
Ps1 is a selective parameter that specifies the horizontal grid size and
aspect ratio. Grid size measurements are given in centipoints. Ps2 and
Pn3 are described in the Digital ANSI-Compliant Printing Protocol Level 3
Programming Reference Manual.
Sixel Considerations 27–1
Table 27–1 Macro Parameter Values for the DEClaser 1100 Printer (Grid Sizes
in Centipoints)
Target Values
Ps1
Approximate
Horizontal
Grid Size1
DEClaser 1100 Printer Values
Aspect
Ratio
Vert:Horiz
Vert.
Grid
Size
Horiz.
Grid
Size
Aspect
Ratio
Vert:Horiz
Vert.
Grid
Size
0
54.60
200:100
100
48
200:100
96
1
54.60
200:100
100
48
200:100
96
2
22.22
450:100
100
21
451:100
96
3
33.33
300:100
100
32
300:100
96
4
40.00
250:100
100
38
252:100
96
5
54.60
183:100
100
48
200:100
96
6
66.66
150:100
100
64
150:100
96
7
76.90
130:100
100
74
129:100
96
8
89.20
112:100
100
86
111:100
96
9
100.00
100:100
100
96
100:100
96
1
For true target values in 1/660 in., see the sixel information in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
27.2 Miscellaneous Considerations and Restrictions
Section 27.2.1 and Section 27.2.2 discuss valid Set Raster Attributes
(DECGRA) commands and restrictions to the printing of sixel graphics.
27.2.1 Valid Set Raster Attributes (DECGRA) Commands
The DEClaser 1100 printer ignores a DECGRA command if the printer receives
any of the following:
•
Graphics Repeat Introducer control character — DECGRI (!)
•
Graphics Carriage Return control character — DECGCR ($)
•
Graphics Next Line control character — DECGNL (–)
•
Sixel data
Digital recommends that software always send a Set Raster Attributes
(DECGRA) command before sending the sixel data and any other sixel graphics
command.
27–2 Sixel Considerations
27.2.2 Restrictions
The following restrictions apply when you print sixel graphics on the DEClaser
1100 printer:
•
Colors map to black. This causes most color pictures to come out dark and
not very clear.
•
Sixel printing ignores extent parameters (Pn3 and Pn4) of the Set Raster
Attributes (DECGRA) command.
•
Sixel printing ignores the background select parameter (Ps2 of the sixel
device control string). The printer assumes a white background.
•
The maximum value for the horizontal grid size is 99 current units. (See
the Select Size Unit (SSU) command in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.)
•
The maximum value for the aspect ratio is 1000. The horizontal grid size
multiplied by the aspect ratio provides a maximum vertical grid size of
99,000 current units. (See the Select Size Unit (SSU) command in the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.)
Sixel Considerations 27–3
28
Alternative Protocols
The DEClaser 1100 printer supports the following DEC PPL3 protocol
switching commands:
•
Select Other Coding System (SOCS)
•
Return from Other Coding System (ROCS)
•
IBM Proprinter Emulation Mode (DECIPEM)
See your Digital sales representative for the protocols available for the
DEClaser 1100 printer.
Alternative Protocols 28–1
29
Memory Management
The DEClaser 1100 printer does not support Ps5 of the Memory Management
(DECMM) command. For more information on DECMM, see the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
Memory Management 29–1
Part IV
DEClaser 3200 Printer
Part IV describes the level 3 Digital ANSI-Compliant Printing Protocol (DEC
PPL3) implementation specific to the DEClaser 3200 printer. The Digital
ANSI-Compliant Printing Protocol is based on ANSI X3.64.
•
Chapter 30 provides a brief overview of the DEClaser 3200 printer.
•
Chapter 31 explains the relationship between the logical information and
the printing of the physical page in the DEClaser 3200 printer.
•
Chapter 32 discusses reset and power-up values and lists initial state
values for the printer.
•
Chapter 33 lists maximum values for printer features.
•
Chapter 34 explains paper handling for the printer.
•
Chapter 35 describes reporting commands and lists error messages.
•
Chapter 36 lists the fonts that come with the DEClaser 3200 printer.
•
Chapter 37 discusses sixel implementation specific to the printer.
•
Chapter 38 discusses protocol switching when using the DEClaser 3200
printer.
30
Overview
The DEClaser 3200 printer is a high-quality laser printer that can print
text, graphics, and images on standard office envelopes, transparencies, and
gummed labels and on the following paper sizes:
•
Half Letter (8.5 in. x 5.5 in.)
•
Letter (8.5 in. x 11 in.)
•
8.5 in. x 12.4 in.
•
Legal (8.5 in. x 14 in.)
•
Executive (7.25 in. x 10.5 in.)
•
8 in. x 10 in.
•
8 in. x 13 in.
•
ISO A4 (210 mm x 297 mm)
•
8.3 in. x 13 in.
•
8.5 in. x 10.8 in.
•
ISO A5 (148 mm x 210 mm)
•
JIS B5 (182 mm x 257 mm)
The DEClaser 3200 printer implements level 3 of the Digital ANSI-Compliant
Printing Protocol (DEC PPL3) as described in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
The DEClaser 3200 printer has both simplex and duplex printing
capabilities. The printer can print up to 13 pages/minute for simplex printing
and up to 11 pages/minute for duplex printing.
Overview 30–1
31
Logical to Physical Image
This chapter contains the following topics related to creating the physical
image:
•
Printer resolution, Section 31.1
•
Printable area, Section 31.2
•
Mapping the logical page to the physical sheet size, Section 31.3
•
Positioning accuracy, Section 31.4
31.1 Printer Resolution
The DEClaser 3200 printer has an internal addressing capability of 1/7200
inch (centipoint addressing) and provides an imaging resolution of 300 x 300
dots/inch. This addressing capability and imaging resolution support a wide
range of standard font pitches and sixel graphics resolutions.
31.1.1 Horizontal Resolution
The DEClaser 3200 printer supports the horizontal pitch values listed in
Table 31–1 for the selective parameters (Ps) of the Set Horizontal Pitch
(DECSHORP) and the Select Horizontal Spacing (SHS) commands. Table 31–1
lists the average width of characters (target pitch) in characters/inch if this
value is exact. If characters per inch is only an approximate value, then the
table provides the target value of character width in fractions of an inch per
character with the approximate characters per inch value in parentheses.
Logical to Physical Image 31–1
Table 31–1 Horizontal Pitches — DEClaser 3200 Printer (Standard 300
Dots/Inch)
Target Pitch
(Char/Inch)
Target Value
(Centipoints)
Printer Pitch
(Char/Inch)
Printer Value
(Centipoints)
5
1440.00
5.000
1440
6
1200.00
6.000
1200
(6.6) 10/66 in.
1090.90
6.605
1090
(8.25) 8/66 in.
872.72
8.265
872
(8.55) 28/240 in.
840.00
8.550
840
9
800.00
9.000
800
10
720.00
10.000
720
696.05
10.344
696
600.00
12.000
600
545.45
13.210
545
480.00
15.000
480
(16.5) 4/66 in.
436.36
16.510
436
(17.1) 14/240 in.
420.00
17.100
420
400.00
18.000
400
(10.3) 29/300 in.
12
(13.2) 5/66 in.
15
18
The macro parameter values for sixel grid sizes and aspect ratios provided by
the DEClaser 3200 printer are shown in Table 37–1.
31.1.2 Vertical Resolution
The DEClaser 3200 printer’s vertical addressing can provide the pitches
required for existing fonts and for sixel graphics mode. Table 31–2 lists
the vertical pitch values supported for the selective parameters (Ps) of the
Set Vertical Pitch (DECVERP) and the Select Vertical (Line) Spacing (SVS)
commands.
31–2 Logical to Physical Image
Table 31–2 Vertical Pitches — DEClaser 3200 Printer (Standard 300
Dots/Inch)
Target Pitch
(Lines/Inch)
Printer Value1
(Centipoints)
2
3600
3
2400
4
1800
6
1200
8
900
12
600
Target Pitch
(Lines/A-size
Printable Area)
Printer Value1
(Centipoints)
22
3456
33
2304
44
1728
66
1152
88
864
132
576
Target Pitch
(Lines/30 Millimeters)
Printer Value1
(Centipoints)
3
2856
4
2136
6
1416
12
720
1
These values represent the amount of white space between lines for each pitch value.
Note
The DEClaser 3200 printer supports pitch values specified by the
Spacing Pitch Increment (SPI) command as requested.
Logical to Physical Image 31–3
31.2 Printable Area
This section discusses the printable area for paper sizes and the maximum and
minimum envelope sizes that the DEClaser 3200 printer supports.
If a character extends beyond the printable area, the character is truncated
and no portion of the character is printed.
31.2.1 Paper Sizes
Table 31–3 shows the minimum printable area specified by Digital and the
printable area of the DEClaser 3200 printer in centipoints for supported paper
sizes.
Table 31–3 Printable Areas of the DEClaser 3200 Printer in Centipoints
DEClaser Printer
Minimum
Paper Size
(Conventional Units)
Width
Length
Width
Length
Half Letter (8.5 in. x 5.5 in.)1
36000
57600
39600
60312
Letter (8.5 in. x 11 in.)
57600
75600
61200
78312
8.5 x 12.4 (215 mm x 315 mm)
57345
85691
60912
88392
Legal (8.5 in. x 14 in.)
57600
97200
61200
99912
8 x 10 (8 in. x 10 in.)
54000
68400
57600
71112
8 x 13 (8 in. x 13 in.)
54000
90000
57600
92712
ISO A4 (210 mm x 297 mm)
55872
80568
59544
83352
8.3 x 13 (210 mm x 330 mm)
55872
88943
59544
92640
8.5 x 10.8 (215 mm x 275 mm)
57345
74353
60912
77088
ISO A5 (148 mm x 210 mm)
38400
55920
38544
69960
1
48000
69264
49920
70151
48800
72000
52200
74712
1
JIS B5 (182 mm x 257 mm)
Executive (7.25 in. x 10.5 in.)
1
Paper size can be used only with manual feed or the optional multi-media feeder.
31–4 Logical to Physical Image
Table 31–4 lists the minimum and maximum printable areas for media fed into
the manual feed slot on the DEClaser 3200 printer.
Table 31–4 Printable Area for Variable Size Paper for the DEClaser 3200
Printer
Feeding Method
Minimum Size
Maximum Size
Manual feed slot
100 mm x 190 mm
4.125 in. x 7.5 in.
29700 cpt1 x 54000 cpt1
257 mm x 364 mm
10.12 in. x 14.33 in.
72864 cpt1 x 103176 cpt1
Multi-media feeder
100 mm x 215 mm
4.125 in. x 7.5 in.
29700 cpt1 x 61200 cpt1
257 mm x 297 mm
8.5 in x 11.69 in.
72864 cpt1 x 84168 cpt1
1
Centipoint is abbreviated as cpt.
The manual feed slot supports the standard single sheet feeder and an optional
multi-media feeder (MMF) for variable size paper. These manual slot feeders
can support the paper sizes listed in Table 31–3.
31.2.2 Envelope Sizes
You can feed envelopes in to the DEClaser 3200 printer with the standard
manual single sheet feeder or the optional multi-media feeder (MMF). These
feeders support the following envelope sizes:
•
U.S. No. 10 envelope (4.125 in x 9.5 in.)
•
C5 envelope (162 mm x 229 mm)
•
DL envelope (110 mm x 220 mm)
See Table 31–4 for the maximum and minimum sizes supported for variable
size media.
31.3 Mapping Page Size to Physical Sheet Size
The Page Format Select (PFS) and Variable Page Format Select (DECVPFS)
commands specify the page size. The physical sheet size depends on the paper
cassette selected. When the page size does not match the physical sheet size,
the DEClaser 3200 printer keeps the page and physical sheet aligned at the
top left-hand corner.
•
If the page size is smaller than the physical sheet size, the printer leaves
white space on the right and bottom edges. See Figure 31–1.
Logical to Physical Image 31–5
•
If the page size is larger than the physical sheet size, the printer does not
image characters that extend beyond the boundaries of the printable area
in both the horizontal and vertical directions. See Figure 31–2.
•
Sheets printed in duplex normal mode with landscape orientation print so
that pages can be bound along the long edge.
•
Sheets printed in duplex tumbled mode with landscape orientation selected
are printed so that pages can be bound along the short edge.
Figure 31–1 Page Size Smaller Than Physical Sheet Size on DEClaser 3200
Printer
Page Size
Physical Sheet Size
MLO-005352
31–6 Logical to Physical Image
Figure 31–2 Page Size Larger Than Physical Sheet Size on DEClaser 3200
Printer
Physical Sheet Size
Page Size
MLO-005353
31.4 Positioning Accuracy
The DEClaser 3200 printer rounds to the nearest pixel at imaging time and
keeps distance in centipoints. Positioning is accurate to 1/2 pixel. For vectors
drawn with the Draw Vector (DECVEC) and Draw Relative Vector (DECRVEC)
commands, values between 0 and 24 centipoints round to 1 pixel.
Logical to Physical Image 31–7
32
Initial State Values
The topics discussed in this chapter include the following:
•
Initial state values that are independent of the paper size in the selected
paper cassette, Section 32.1
•
Initial state values based on the paper cassette, Section 32.2
•
Factory defaults in nonvolatile memory, Section 32.3
32.1 Initial States Independent of Paper Cassette
Tables 32–1 and 32–2 list the values used for power-up and the Select
Conformance Level (DECSCL), Soft Terminal Reset (DECSTR), and Reset to
Initial State (RIS) commands, independent of the paper cassette selection.
Table 32–1 Initial State Values for the DEClaser 3200 Printer
Variable or
Control Function
DECSCL†
Power-Up‡
DECSTR
RIS
Reset
Reset
Reset
Reset
Reset
Reset
Vertical spacing
Font-dependent
Font-dependent
Font-dependent
Horizontal spacing
Font-dependent
Font-dependent
Font-dependent
Size unit1
Decipoints
Decipoints
Decipoints
Active position
Origin
Origin
Origin
Origin (DECOPM)
Position Unit Mode
1
1
Because Position Unit Mode (PUM) is reset by default, Select Size Unit (SSU) is ignored for most
commands.
†When ‘‘RECALL FACT DEFAULTS’’ is selected from the DEClaser 3200 front panel, these values
are used.
‡When ‘‘PRINTER RESET’’ is selected from the DEClaser 3200 front panel, these values are used.
(continued on next page)
Initial State Values 32–1
Table 32–1 (Cont.) Initial State Values for the DEClaser 3200 Printer
Variable or
Control Function
DECSCL†
Power-Up‡
DECSTR
RIS
Horizontal tabs2
Every eight
Every eight
Every eight
Line Feed/New Line
Reset
NVM
NVM
CR/New Line Mode
Reset
Reset
Reset
3
Reset
Reset
Reset
Proportional spacing
Reset
Reset
Reset
Justify
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Pitch Select Mode
SGR attributes
4
Vertical tabs
Every VAI
Every VAI
Every VAI
G0
ASCII
ASCII
ASCII
G1
ASCII
ASCII
ASCII
G2
User Preference
User Preference
User Preference
G3
User Preference
User Preference
User Preference
GL
G0
G0
G0
GR
G2
G2
G2
GSS
10 points
10 points
10 points
GSM
100,100
100,100
100,100
5
Autowrap
Set
NVM
NVM
User Preference Set
DEC Supplemental
NVM
Unchanged
Unsolicited status
reports
Disabled
Disabled
Unchanged
Downloaded fonts
Deleted
None
Unchanged
CRM
Unchanged
Reset
Unchanged
Tray selection (feeder)
Tray 1
NVM
Unchanged
2
Horizontal tabs are set every eight columns, starting with column 9 (9,17, . . . ) and fill the entire
tab table.
3
When DECPSM is reset, the Horizontal Advance Increment (HAI) is font-dependent.
4
Vertical tabs are set every line or Vertical Advance Increment (VAI) and fill the entire tab table.
5
NVM indicates that the initial state value is stored in the nonvolatile memory.
†When ‘‘RECALL FACT DEFAULTS’’ is selected from the DEClaser 3200 front panel, these values
are used.
‡When ‘‘PRINTER RESET’’ is selected from the DEClaser 3200 front panel, these values are used.
(continued on next page)
32–2 Initial State Values
Table 32–1 (Cont.) Initial State Values for the DEClaser 3200 Printer
Variable or
Control Function
DECSCL†
Power-Up‡
DECSTR
RIS
DECSNC (copy)
1
1
Unchanged
DECMM (reservation)
Partial
NVM
Unchanged
6
DECSDPM
Simplex
7
NVM
Unchanged
8
Letter
(portrait)
NVM
Unchanged
8-Bit
8-Bit
Unchanged
Initialization message
Unchanged
NVM
Unchanged
Device ID
Unchanged
NVM
Unchanged
Failover
Disabled
NVM
Unchanged
Automatic Test Mode
Unchanged
Disabled
Unchanged
Document finishing
No offset
No offset
Unchanged
DECSSS (paper size)
C1 Receive
6
The initial state of the DECSDPM command is true simplex normal.
7
See Section 34.3 for the paper size specifications for the various input trays.
8
The paper size specification for the adjustable paper cassette is saved in nonvolatile memory
only. If the paper size specification for the manual feed slot or multi-media feeder is installed, it is
initialized to Letter (portrait).
†When ‘‘RECALL FACT DEFAULTS’’ is selected from the DEClaser 3200 front panel, these values
are used.
‡When ‘‘PRINTER RESET’’ is selected from the DEClaser 3200 front panel, these values are used.
Table 32–2 Initial State Values of Select Graphic Rendition (SGR) Numbers
SGR
Assignment Type
ID
Meaning
10
Type family
DBULTN1
DEC Builtin1 family
11
Type family
RCOURIR
Courier family
12
Type family
RELITE0
Elite family
13
Font collection plus
RCOURIRJ02SK00GG
Courier 10 point, 10 pitch
14
Font collection plus
RELITE0L02SK00GG
Elite 10 point, 12 pitch
15
Font collection plus
RCOURIR101VK00GG
Courier 6.7 point, 13.6 pitch
(continued on next page)
Initial State Values 32–3
Table 32–2 (Cont.) Initial State Values of Select Graphic Rendition (SGR)
Numbers
SGR
Assignment Type
ID
Meaning
16
Font collection plus
RCOURIR202SK00GG
Courier 10 point, 10.3 pitch
17
Type family
DBULTN1
DEC Builtin1 family
18
Type family
DBULTN1
DEC Builtin1 family
19
Type family
DBULTN1
DEC Builtin1 family
Font cartridges modify the default Select Graphic Rendition (SGR) values.
These modifications occur during power-up, Soft Terminal Reset (DECSTR),
or Reset to Initial State (RIS), and for Select Conformance Level (DECSCL).
The printer also references modifications to the SGR values made by the font
cartridge on the Assign Type Family or Font (DECATFF) command when the
string is null.
32.2 Initial States Based on Paper Size
Table 32–3 lists the bounds and the Select Graphic Rendition (SGR) fontselection parameter determined at initialization.
For fixed size paper trays, the bounds and parameter depend on the paper
size of the selected paper tray. Table 32–3 lists the bounds for fixed size paper
trays based on a parameter of the Page Format Select (PFS) command. For
PFS values, see the description of the command in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
For variable size trays, the bounds depend on the paper size stored in
nonvolatile memory selected by the front panel or by the Select Sheet Size
(DECSSS) command. See Section 34.3.
Table 32–3 Initialization Based on Paper Size
Paper Size
Bounds Definition
SGR
Letter
PFS ?20
10
A4
PFS ?22
16
Legal
PFS ?24
10
(continued on next page)
32–4 Initial State Values
Table 32–3 (Cont.) Initialization Based on Paper Size
Paper Size
Bounds Definition
SGR
Variable size tray
A1
DECSSS2
10
Variable size tray
B1
DECSSS2
10
Large capacity input tray
Letter or A4, depending on the model
Multi-media feeder
DECSSS2
10
Manual feed slot
DECSSS2
10
1 See
Section 34.3 for paper size specification for variable size trays in each input tray slot.
2 See
Table 34–3 for the initial state of DECSSS.
32.3 Factory Defaults in Nonvolatile Memory
Table 32–4 lists the factory defaults in the nonvolatile memory (NVM).
Table 32–4 Factory Defaults in NVM for the DEClaser 3200 Printer
Item1
Factory
Default1
Variable (Control Function)
Affected
PROTOCOL
DEC PPL3
Protocol
TRAY
SELECTION
(PPL3)
TRAY 1
Tray Selection and Failover
DUPLEX
(PPL3)
SIMPLEX
NORMAL
DECSDPM
NEW LINE
(PPL3)
OFF
Line Feed/New Line
MEM MGT
(PPL3)
PARTIAL
DECMM (reservation)
AUTOWRAP
(PPL3)
ON
Autowrap
USER PREF
SET (PPL3)
DEC
SUPPLMT
SET
User Preference Set
1
Columns 1 and 2 are the terms used on the front panel.
(continued on next page)
Initial State Values 32–5
Table 32–4 (Cont.) Factory Defaults in NVM for the DEClaser 3200 Printer
Factory
Default1
Variable (Control Function)
Affected
DEVICE ID
(PPL3)
DEC PPL3
Device ID
POWER-UP
MESSAGE
(PPL3)
OFF
Initialization message
CTRL REPN
MODE
(PPL3)
OFF
Control Representation Mode (CRM)
ALARM
ONCE
N/A
ADJUSTABLE
CASSETTE
LETTER
DECSSS (paper size)
COMM
INTERFACE
SERIAL
N/A
BAUD RATE
9600
N/A
PARITY
8 BIT NONE
N/A
FLOW
CONTROL
XON/XOFF
2-WAY
N/A
DISPLAY
LANGUAGE
ENGLISH
N/A
COMM ERROR
CONTINUE
N/A
Item1
1
Columns 1 and 2 are the terms used on the front panel.
32–6 Initial State Values
33
Maximum Printer Values
This chapter lists the maximum parameter values supported by the DEClaser
3200 printer. The topics include:
•
Maximum parameter values, Section 33.1
•
Maximum values for printer features, Section 33.2
33.1 Maximum Parameter Values
The DEClaser 3200 printer has the following parameter value limitations:
•
Graphics repeat function (DECGRI) — 32K (32767) limit. The printer sets
values to the limit value.
•
Grid size parameter — 99 units for maximum horizontal grid size; 1000 for
maximum aspect ratio (99000 units for maximum vertical grid size).
33.2 Maximum Values for Printer Features
Table 33–1 lists the maximum values supported by DEClaser 3200 printer.
Table 33–1 Maximum Values Supported by the DEClaser 3200 Printer
Printer Feature
Maximum Value
Horizontal tabs
168
Vertical tabs
168
Number of trays
See Section 34.2
Number of entries in font dictionary
256 + 100 for each MB of optional RAM
Built-in download font RAM size
approximately 700 KB
1
1
In the DEClaser 3200 printer, font RAM and bitmap RAM share the built-in 700 KB RAM.
(continued on next page)
Maximum Printer Values 33–1
Table 33–1 (Cont.) Maximum Values Supported by the DEClaser 3200 Printer
Printer Feature
Maximum Value
Built-in bitmap RAM or graphics buffer
approximately 700 KB1
Optional bitmap RAM
{2 | 4 | 6 | 8 | 10} MB2
Optional download RAM
{2 | 4 | 6 | 8 | 10} MB2
Number of font cartridge slots
2
1
In the DEClaser 3200 printer, font RAM and bitmap RAM share the built-in 700 KB RAM.
2
The total of both optional bitmap memory and optional download memory cannot exceed 10 MB.
You must remove 512 KB of built-in RAM to install all 10 MB of optional memory.
33–2 Maximum Printer Values
34
Paper Handling
The following options specific to the DEClaser 3200 printer are discussed in
this chapter:
•
Duplex printing, Section 34.1
•
Input tray selection, Section 34.2
•
Set sheet size, Section 34.3
•
Select input tray failover, Section 34.4
34.1 Duplex Printing
The DEClaser 3200 printer implements simplex (one-sided), duplex (two-sided),
and tumble printing with the following exceptions:
•
Paper must be at least 10.5 in. (266.7 mm) in length to print in physical
duplex mode.
•
The manual feed slot and the optional multi-media feeder support printing
only in simplex mode.
You select the print mode with the Set Duplex Print Mode (DECSDPM)
command or from the front panel. Table 34–1 lists the duplex modes and
shows the fallback modes for the printer when an exception occurs. For a
description of the DECSDPM command, see the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
Table 34–1 Duplex Print Mode Fallbacks for the DEClaser 3200 Printer
Ps
Duplex Mode
3200 Model
1
True simplex normal
1
(continued on next page)
Paper Handling
34–1
Table 34–1 (Cont.) Duplex Print Mode Fallbacks for the DEClaser 3200 Printer
Ps
Duplex Mode
3200 Model
2
True simplex tumbled
2
3
True duplex normal
5
4
True duplex tumbled
6
5
Duplex master normal
5
6
Duplex master tumbled
6
7
Simplex compressed normal
1
8
Simplex compressed tumbled
2
Example 34–1 shows two forms of the DECSDPM command. The first
command with Ps = 1 selects a true simplex normal mode; Ps = 3, a true
duplex normal mode, selects duplex master normal. ‘‘Normal’’ indicates that
the printer does not print documents tumbled.
Example 34–1 Set Duplex Print Mode Command for the DEClaser 3200
Printer
CSI 1 SP x
9/11 3/1 2/0 7/8
CSI 3 SP x
9/11 3/3 2/0 7/8
34.2 Designating the Input Tray
The DEClaser 3200 printer has two input trays (top tray and bottom tray) and
a manual feed slot. The input tray slots support either fixed size or adjustable
paper cassettes. The manual feed slot accommodates the standard single-sheet
feeder, an optional multi-media feeder, or an optional large capacity input tray.
Use the Automatic Sheet Feeder (Input Tray) Control (DECASFC) command to
select the appropriate tray or feed slot:
CSI Ps ! v
9/11 3/xx 2/1 7/6
34–2 Paper Handling
The DECASFC command causes a conditional Form Feed. Subsequent sheets
come from the tray as indicated in the selective parameter Ps in Table 34–2:
Table 34–2 Tray Selection on the DEClaser 3200 Printer
Ps
Tray Selected
0
No tray change
1
Top tray
2
Bottom tray
3
Large capacity input tray1
4
Multi-media feeder1;2
99
Manual feed slot2
1
You can select this feeder with the specified parameter when the option is installed.
2
The manual feed slot is not available when the multi-media feeder is installed.
The DEClaser 3200 printer treats both an unsupported parameter and a
parameter value for an option that is not available as Ps = 0.
Example 34–2 shows the commands to select — first, the top input tray, and
second, the manual feed slot.
Example 34–2 Selecting an Input Tray for DEClaser 3200 Printer
CSI 1 ! v
9/11 3/1 2/1 7/6
CSI 9 9 ! v
9/11 3/9 3/9 2/1 7/6
For a description of the DECASFC command, see the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.
34.3 Set Sheet Size (DECSSS)
The DEClaser 3200 printer supports an adjustable paper cassette with two
keys (A and B) for the standard input slots. In addition, the printer supports
several paper sizes for each keyed adjustable cassette for each of the input tray
slots. You specify the paper size from the front panel or with the Set Sheet
Size (DECSSS) command.
Paper Handling
34–3
The DEClaser 3200 printer also requires that you specify paper size for the
manual feed slot and the optional multi-media feeder when they are available.
You specify the paper size for the multi-media feeder or the manual feed slot
by using DECSSS.
Use the Set Sheet Size (DECSSS) command to provide the paper size when
paper size information is not available.
CSI Ps1 ;
Ps2 ;
Pn3 ;
Pn4 SP {
9/11 *** 3/11 *** 3/11 *** 3/11 *** 2/0 7/11
Table 34–3 lists the supported parameters for the DEClaser 3200 printer for
the adjustable paper cassette, the multi-media feeder, and the manual feed
slot.
Table 34–3 Set Sheet Size (DECSSS) Parameters
Ps1
Ps2
Input Tray
0
1
Top or Bottom tray with Key ‘‘A’’
0
2
Top or Bottom tray with Key ‘‘B’’
1
1
Top tray, Key ‘‘A’’
1
2
Top tray, Key ‘‘B’’
2
1
Bottom tray, Key ‘‘A’’
2
2
Bottom tray, Key ‘‘B’’
4
any
Multi-media Feeder1
99
any
Manual feed slot2
1
You can specify the size of this tray only when this option is installed.
2
You can specify the size of this tray only when the multi-media feeder is not installed.
Parameters Pn3 and Pn4 are expressed in pixels, decipoints, or centipoints,
as defined by Select Size Unit (SSU), regardless of the setting of Positioning
Unit Mode (PUM). Parameters Pn3 and Pn4 specify the sheet’s width and
length, respectively. The DEClaser 3200 printer restricts these values for the
adjustable paper cassette to the values listed in Table 34–4. You may save one
of these discrete values in nonvolatile memory.
If the DECSSS command does not match the paper size in Table 34–4, the
printer selects a paper size equal to or larger than the requested size. The
printer front panel displays the selected paper size and you may save this
value in nonvolatile memory.
34–4 Paper Handling
The DEClaser 3200 printer does not restrict the size of paper fed through the
manual feed slot or through the optional multi-media feeder.
Table 34–4 Discrete Paper Sizes for the DEClaser 3200 Printer
Paper
Size1
Letter
Conventional Units
Centipoints
Width
Length
Width
Length
11 in.
61200
79200
315 mm
61200
93528
61200
100800
8.5 in.
8.5 x 12.4
215 mm
Legal
8.5 in.
14 in.
Executive
7.25 in.
10.5 in.
52200
75600
8 x 10
8 in.
10 in.
57600
72000
8 x 13
8 in.
13 in.
57600
93600
A4
210 mm
297 mm
59544
84168
8.3 x 13
210 mm
330 mm
59544
93528
8.5 x 10.8
215 mm
275 mm
60912
77976
1
Paper size names listed in this column are displayed on the DEClaser 3200 front panel.
For more information on the Set Sheet Size (DECSSS) command, see the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
34.4 Select Input Tray Failover (DECSITF)
The DEClaser 3200 printer supports a composite tray definition for failover.
When a paper tray that is part of the composite tray is empty, the DEClaser
3200 printer selects paper from the next tray in the composite tray definition
instead of reporting a paper-out error condition. You can define the composite
tray from the printer front panel or with the Select Input Tray Failover
(DECSITF) command.
CSI Ps1
9/11 ***
;
3/11
...
...
;
Psn SP w
3/11 *** 2/0 7/7
Table 34–5 lists the parameter values available for the composite tray
definition for the DEClaser 3200 printer.
Paper Handling
34–5
Table 34–5 DECSITF Parameters for the DEClaser 3200 Printer
Value
Meaning
Ps1
0
Disable composite input trays
1
Composite tray 1
Ps2 to Psn
1
Top tray
2
Bottom tray
3
Large capacity input tray1
1
You can only select these feeders with the specified parameter when the option is installed.
For more information on Select Input Tray Failover (DECSITF) command, see
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual (or Appendix C).
If the large capacity input tray is installed and is part of the composite tray
definition, the DEClaser 3200 printer attempts to feed from the LCIT first.
The manual feed slot or multi-media feeder (if installed) may not be part of the
composite tray definition.
34–6 Paper Handling
35
Status and Error Reporting
The topics discussed in this chapter include the following:
•
Control Representation Mode, Section 35.1
•
Device Attributes Report parameters, Section 35.2
•
Device Attributes (secondary) Report parameters, Section 35.3
•
Error parameters for Device Status Reports, Section 35.4
This chapter discusses reports and lists the error parameters for printer device
status reports for DEClaser 3200 printer. The printer sends the following
reports:
•
CPR — Reports current cursor position
•
DAR — Response to a Device Attributes (DA) request, Section 35.2
•
DA2R — Response to a Device Attributes (secondary) DA2 request,
Section 35.3
•
DECFSR (1 or 0) — Reports fonts currently available
•
DECFSR (2 or 0) — Reports the memory available for downline loading in
bytes
•
DECFSR (DECLFF, Ps2 = 2 or 3) — Reports font validation errors and
warnings.
•
DSR — Response to a Device Status Report or an error if unsolicited
reports are enabled, Section 35.4
For information on the Cursor Position Report (CPR) and the Font Status
Report (DECFSR) commands, refer to the Digital ANSI-Compliant Printing
Protocol Level 3 Programming Reference Manual.
Status and Error Reporting 35–1
35.1 Control Representation Mode (CRM)
The Control Representation mode can be set by the software or from the front
panel. If Control Representation mode is enabled by the software, it is disabled
from the software only. If Control Representation mode is enabled from the
front panel, it is disabled from the front panel only.
35.2 Device Attributes (Secondary) Report (DAR) Parameters
Device Attributes Report (DAR) parameters allow the printer to identify itself
as either of the following:
•
A Digital level 3 printer — DAR (generic response)
•
A previous model Digital printer (to allow backward compatibility) — DAR
(alias response)
To request product identification for the DEClaser 3200 printer, the host must
send a Device Attributes (DA) command:
CSI c
9/11 6/3
or
CSI 0 c
9/11 3/0 6/3
The DEClaser 3200 printer responds to a Device Attributes (DA) command by
sending a DAR (generic response):
CSI ?
Ps1 ;
Ps2 ;
...
9/11 3/15 *** 3/11 *** 3/11 . . .
;
Psn c
3/11 *** 6/3
For the DEClaser 3200 printer, Ps1 is 73 (3/7 3/3). This identifies the printer
as a Digital level 3 device.
Ps2 to Psn indicate which extensions or enhancements the DEClaser 3200
printer supports. Table 35–1 lists the character form (Ps2 to Psn) and code for
each extension.
Table 35–1 Parameters for Primary DA Response for the DEClaser 3200
Printer
Character
Form
Code
Extension
4
3/4
Sixel graphics
6
3/6
Sheet feeder
8
3/8
Legal-size paper handling
(continued on next page)
35–2 Status and Error Reporting
Table 35–1 (Cont.) Parameters for Primary DA Response for the DEClaser
3200 Printer
Character
Form
9
Code
Extension
3/9
Variable Page Format Select (DECVPFS)
10
3/1 3/0
Vector drawing
11
3/1 3/1
Multiple copies
12
3/1 3/2
Hebrew character sets
16
3/1 3/6
Logical duplex printing
18
3/1 3/8
Physical duplex printing
19
3/1 3/9
Front face tumble printing
Example 35–1 shows a primary DA request to a DEClaser 3200 printer and
the DAR (generic response) from the DEClaser 3200 printer:
Example 35–1 DA Request and DAR Example for the DEClaser 3200 Printer
CSI c
or
CSI 0 c
CSI ? 73;4;6;8;9;10;11;12;16;18;19 c
Table 35–2 lists the DAR (alias response) parameters supported by the
DEClaser 3200 printer for backwards compatibility.
Table 35–2 DAR Parameters (Alias Response) for the DEClaser 3200 Printer
Character
Form
Code
Option
26
3/2 3/6
LN03 (base unit)
The DEClaser 3200 printer can be configured to send a response compatible
with the LN03 printer:
CSI ? 26 c
For more information on the Device Attributes Report (DAR) command, refer to
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
Status and Error Reporting 35–3
35.3 Device Attributes (Secondary) Report (DA2R)
Parameters
A Secondary Device Attributes Report (DA2R) provides the following
information about the DEClaser 3200 printer:
•
Identifies the printer model
•
Names the firmware revision
•
Lists the amount of memory in megabytes
•
Indicates whether protocol cartridges are installed
•
Identifies input paper handling options
•
Identifies engine or controller options
To request this information, the host sends a Device Attributes (Secondary)
(DA2) command:
CSI >
c
9/11 3/14 6/3
or
CSI 0 >
c
9/11 3/0 3/14 6/3
In response to a secondary DA request, the DEClaser 3200 printer sends a
Device Attributes (Secondary) Report (DA2R):
CSI >
Ps1 ;
Ps2 ;
Ps3 ;
Ps4 c
9/11 3/14 *** 3/11 *** 3/11 *** 3/11 *** 6/3
Table 35–3 lists the DA2R parameters supported by the DEClaser 3200
printer.
Table 35–3 Parameters for DA2 Responses for the DEClaser 3200 Printer
Character
Form
Code
Description
Ps1
53
3/5 3/3
DEClaser 3200 printer
Ps2
xx
3/x 3/x
Firmware revision x.x
10
3/1 3/0
Version 1.0-yy
(continued on next page)
35–4 Status and Error Reporting
Table 35–3 (Cont.) Parameters for DA2 Responses for the DEClaser 3200
Printer
Character
Form
Code
Description
Ps3
0
3/0
No memory card installed
2
3/2
one 2-MB memory card
4
3/4
two 2-MB memory cards
6
3/6
three 2-MB memory cards
8
3/8
four 2-MB memory cards
10
3/1 3/0
five 2-MB memory cards
Ps4
8
3/8
HP PCL 4
9
3/9
HP PCL 4 + PostScript cartridge
Ps5
yy
3/y 3/y
Firmware edit revision yy
00
3/0 3/0
Version x.x-00
Ps6
0
3/0
No input paper handing options
1
3/1
Large capacity input tray
2
3/2
Multi-media feeder
Ps7
0
3/0
No internal options
1
3/1
Coprocessor installed
Example 35–2 shows a DA2 request and a DA2R response from a DEClaser
3200 printer, firmware Version 1.0, with three 2-MB memory cards, a
PostScript option installed, firmware edit Version 3, with no input paper
handling options, and a coprocessor installed:
Status and Error Reporting 35–5
Example 35–2 DA2 Request and DA2R Response for the DEClaser 3200
Printer
CSI > c
or
CSI > 0 c
CSI > 53;10;6;9;03;0;1 c
For more information on the Device Attributes (Secondary) Report (DA2R), see
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
35.4 Error Parameters for Device Status Reports
Table 35–4 lists error parameters reported by the DEClaser 3200 printer for
extended DSR reports. Each error parameter has a unique code that pinpoints
the specific failure and a generic code that indicates the general type of failure.
For example, in the error message ?218 ?36:
•
?218 is the specific code for a paper jam in the duplex transport path
•
?36 is a generic code for paper jams
Refer to Table B–1 for a list of generic codes and their meanings.
For more information on Device Status Reports and parameters, see the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
Table 35–4 Error Parameters for Extended Printer Device Status Reports for
the DEClaser 3200 Printer
Specific
Code
Generic
Code
Class
Meaning
Controller Errors
?0
?57
Special
First report since initialization
?0
?20
S:U
No malfunction detected
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special—Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
35–6 Status and Error Reporting
Table 35–4 (Cont.) Error Parameters for Extended Printer Device Status
Reports for the DEClaser 3200 Printer
Specific
Code
Generic
Code
Class
Meaning
Controller Errors
?101
?41
E
Complex data
?102
?41
E
Lost characters
?103
?44
E
Font memory full
?104
?44
S
Font dictionary full
?105
?41
E
Page memory full
?111
?42
E
Downline loaded font warning
?112
?42
E
Downline loaded font error (load aborted)
?113
?47
E
Error overflow (more than can be recorded)
?117
?41
E
Justify buffer overflow
?122
?42
E
Inconsistent font file metrics
?123
?40
E
No font file with current character set
?129
?22
E
Unknown communication fault
?130
?22
E
DSR/DTR line error
?131
?22
E
Line error on received character
?132
?23
E
Line error — input buffer overflow
?133
?55
S:U
Protocol switch failed: emulation not present, not
installed, or protocol board or cartridge failed
?142
?56
S:U
Insufficient memory for requested memory
configuration
?151
?21
S:U
Cartridge 1 failure
?152
?21
S:U
Cartridge 2 failure
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special—Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
Status and Error Reporting 35–7
Table 35–4 (Cont.) Error Parameters for Extended Printer Device Status
Reports for the DEClaser 3200 Printer
Specific
Code
Generic
Code
Class
Meaning
Controller Errors
?164
?21
S:U
Expansion board RAM failure
?165
?34
S:U
Coprocessor failure
Engine Errors
?200
?59
S
Fuser powered down (power saver)
?201
?34
S:U
Fixing (fuser) unit error
?203
?33
S
Toner low
?206
?27
S:U
Paper tray empty
?211
?34
S:U
Engine nonvolatile RAM error
?212
?26
S:U
Printer cover open
?213
?24
S:U
Printer is off line
?214
?36
S:U
Paper transport or eject jam
?215
?36
S:U
Paper misfeed jam
?216
?36
S:U
Paper jam
?218
?36
S:U
Paper jam in duplex transport path
?230
?50
S:U
Output tray is full
?231
?21
S:U
Output-tray offset failure
?291
?35
S:U
Developer CRU fault
?292
?35
S:U
Photoreceptor CRU fault
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special—Sent (if enabled) as the first parameter on power-on or front panel reset operation
(continued on next page)
35–8 Status and Error Reporting
Table 35–4 (Cont.) Error Parameters for Extended Printer Device Status
Reports for the DEClaser 3200 Printer
Specific
Code
Generic
Code
Class
Meaning
Media Errors or Requests
?319
?51
S:U
Input tray missing
?329
?52
S:U
Request for manual feed
Key to Error Class
S—State (cleared when error condition corrected)
E—Event (cleared when error report transmitted)
S:U—State (same as S, but additionally triggers unsolicited reports when enabled)
E:U—Event (same as E, but additionally triggers unsolicited reports when enabled)
Special—Sent (if enabled) as the first parameter on power-on or front panel reset operation
Status and Error Reporting 35–9
36
Fonts for the DEClaser 3200 Printer
This chapter discusses the following topics related to fonts for the DEClaser
3200 printer:
•
Load font file (DECLFF) considerations, Section 36.1
•
Font file repertory, Section 36.2
•
Custom font cartridges
•
Available built-in fonts, Section 36.3
•
Algorithmic transformations for rendering attributes, Section 36.4
•
Font file validation test report, Section 36.5
For more information on fonts and font selection, refer to the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
36.1 Load Font File (DECLFF) Considerations
The DEClaser 3200 printer has approximately 700 Kbytes of built-in font
memory available for downline loading of font files and can store up to 256 font
files. The memory for downline loading fonts can be increased with optional
memory. See Chapter 33, which lists the values for the maximum RAM
memory.
Font files that are downline loaded into the memory by the Load Font File
(DECLFF) command must follow the Common Font File Format (CFFF). For
information, see the Font File Format User’s Manual.
If you select a guaranteed imaging mode with the Memory Management
(DECMM) command, bitmap memory is reserved. This reduces the memory
available for downline loading fonts. See the description of DECMM in the
Font File Format User’s Manual.
Fonts for the DEClaser 3200 Printer 36–1
36.2 Font Repertory
The font repertory of DEClaser 3200 printer consists of the following:
•
Built-in fonts
•
Standard or custom font cartridges
•
Digital Standard Font Files available in CFFF format that can be downline
loaded
•
Customer-provided font files in CFFF format that can be downline loaded
•
Built-in algorithmic transformations
36.3 Built-in Font File Repertory
The DEClaser 3200 printer has 36 built-in font files. These font files support
the combination of nine character sets and four fonts. The following fonts
reside in the DEClaser 3200 printer:
•
Courier 10-point 10-pitch normal portrait (normal means that the font is
not bold, italic, or otherwise attributed)
•
Courier 10-point 10.3-pitch normal portrait
•
Courier 6.7-point 13.6-pitch normal landscape
•
Elite 10-point 12-pitch normal portrait
For each font, the following character sets reside in the printer:
•
ASCII
•
DEC Supplemental
•
ISO Latin-1 Supplemental
•
DEC Technical
•
DEC Special Graphics (VT100 Line Drawing)
•
DEC 7-Bit Hebrew
•
DEC Hebrew Supplemental
•
ISO Latin-Hebrew Supplemental
•
Legal
36–2 Fonts for the DEClaser 3200 Printer
36.3.1 Type Family Names
Table 36–1 lists the type families and the associated type family IDs built into
the DEClaser 3200 printer.
Table 36–1 Type Family Names in the DEClaser 3200 Printer
Type Family Name
Type Family ID
(Seven Characters)
DEC Builtin1
DBULTN11
Courier
RCOURIR2
Elite 12
RELITE02
PI font
D0000001
1
The ‘‘D’’ in the type family IDs for DEC Builtin1 and PI font indicates that the name is registered
with Digital, but is not registered internationally.
2
The ‘‘R’’ in the type family IDs for Courier and Elite 12 indicates that these names are either
registered internationally or are in the public domain.
36.3.2 Built-in Type Family Names and IDs, Font IDs, and Font File IDs
Table 36–2 lists type family names, type family IDs, font IDs, and font file IDs
built into DEClaser 3200 printer.
Each of the 36 font files contains a character set that has a style, an
orientation, a point size, and a horizontal spacing. Table 36–2 contains 72
entries. The DEClaser 3200 printer recognizes two font names for each font
file:
•
A name that is either internationally registered or in the public domain,
for example, Courier or Elite 12
•
A name registered by Digital, for example, Builtin or PI
For example, the following two entries are the same:
•
Courier ASCII, 10 point, 10 pitch, Portrait font —
(RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
•
DEC Builtin1 ASCII, 10 point, 10 pitch, Portrait font —
(DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0)
Fonts for the DEClaser 3200 Printer 36–3
A font file has a 31-character name. The first seven characters are the type
family ID, the first 12 characters are the font collection ID, and the first
16 characters define the font ID. The following example shows how the type
families, fonts, and font files are related:
•
A type family ID — DBULTN1
•
A font collection ID — DBULTN1J02SK
•
A font ID — DBULTN1J02SK00GG
•
A font file ID — DBULTN1J02SK00GG0001UZZZZ02F000
In Table 36–2, the font ID, the font collection ID, and the font file ID are
indicated by arrows.
Note
Spaces appear in the IDs for clarity; they are not part of the IDs.
Table 36–2 Built-in Font File IDs
Pitch
1.
Type
Size
Font File ID————————————————–>
Font ID————————>
Font Collection ID->
Character Set
Type Family Name: DEC Builtin1 — Type Family ID: DBULTN1
10
10
10
10
10
10
10
10
10
10
10
10
DBULTN1 J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental
DBULTN1 J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental DBULTN1 J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
DBULTN1 J 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 J 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 J 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
ASCII
1
Supplemental
10
10
Legal
10.3
10
ASCII
10.3
10
DEC Supplemental1
10.3
10
ISO Latin-1 Supplemental
1
DBULTN1 J 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DBULTN1 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for User Preference.
(continued on next page)
36–4 Fonts for the DEClaser 3200 Printer
Table 36–2 (Cont.) Built-in Font File IDs
Pitch
1.
Type
Size
Font File ID————————————————–>
Font ID————————>
Font Collection ID->
Character Set
Type Family Name: DEC Builtin1 — Type Family ID: DBULTN1
10.3
10
10.3
10
10.3
10
DBULTN1 2 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 2 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 2 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
Supplemental
10.3
10
12
10
12
10
12
10
12
10
12
10
12
10
DBULTN1 2 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
ASCII
DBULTN1 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
1
DEC Supplemental
DBULTN1 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental DBULTN1 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
DBULTN1 L 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 L 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 L 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
Legal
Supplemental
DBULTN1 L 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
DBULTN1 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
1
DEC Supplemental
DBULTN1 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental DBULTN1 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
DBULTN1 1 01V K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental DBULTN1 1 01V K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
DBULTN1 1 01V K 00 G G 00 6DK ZZZZ 02 F 0 0 0
12
10
Legal
13.6
6.7
ASCII
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
Supplemental
2.
10
DBULTN1 1 01V K 00 G G 00 244 ZZZZ 02 F 0 0 0
Legal
Type Family Name: Courier — Type Family ID: RCOURIR
10
ASCII
1
10
10
DEC Supplemental
10
10
DEC Technical
10
10
DEC Special Graphics
1
RCOURIR J 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
RCOURIR J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for User Preference.
(continued on next page)
Fonts for the DEClaser 3200 Printer 36–5
Table 36–2 (Cont.) Built-in Font File IDs
Pitch
2.
Type
Size
Character Set
Font File ID————————————————–>
Font ID————————>
Font Collection ID->
Type Family Name: Courier — Type Family ID: RCOURIR
10
10
10
10
10
10
10
10
RCOURIR J 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
RCOURIR J 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RCOURIR J 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RCOURIR J 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental
Supplemental
10
10
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
10.3
10
RCOURIR J 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
ASCII
RCOURIR 2 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental1
RCOURIR 2 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DEC Technical
RCOURIR 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
DEC Special Graphics
RCOURIR 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental RCOURIR 2 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
RCOURIR 2 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RCOURIR 2 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RCOURIR 2 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
Legal
Supplemental
10.3
10
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
13.6
6.7
RCOURIR 2 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
ASCII
RCOURIR 1 01V K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental1
RCOURIR 1 01V K 00 G G 00 245 ZZZZ 02 F 0 0 0
DEC Technical
RCOURIR 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
DEC Special Graphics
RCOURIR 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental RCOURIR 1 01V K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
RCOURIR 1 01V K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RCOURIR 1 01V K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RCOURIR 1 01V K 00 G G 00 6DK ZZZZ 02 F 0 0 0
Legal
Supplemental
13.6
1
6.7
Legal
RCOURIR 1 01V K 00 G G 00 244 ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for User Preference.
(continued on next page)
36–6 Fonts for the DEClaser 3200 Printer
Table 36–2 (Cont.) Built-in Font File IDs
Pitch
3.
Type
Size
Font File ID————————————————–>
Font ID————————>
Font Collection ID->
Character Set
Type Family Name: Elite 12 — Type Family ID: RELITE0
12
10
12
10
12
10
12
10
12
10
12
10
12
10
12
10
RELITE0 L 02S K 00 G G 00 01U ZZZZ 02 F 0 0 0
DEC Supplemental
RELITE0 L 02S K 00 G G 00 245 ZZZZ 02 F 0 0 0
DEC Technical
RELITE0 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
DEC Special Graphics
RELITE0 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
ISO Latin-1 Supplemental RELITE0 L 02S K 00 G G 00 6DD ZZZZ 02 F 0 0 0
DEC 7-Bit Hebrew
RELITE0 L 02S K 00 G G 00 24D ZZZZ 02 F 0 0 0
DEC Hebrew Supplemental RELITE0 L 02S K 00 G G 00 1TG ZZZZ 02 F 0 0 0
ISO Latin-Hebrew
RELITE0 L 02S K 00 G G 00 6DK ZZZZ 02 F 0 0 0
ASCII
1
Supplemental
12
4.
10
Legal
Type Family Name: PI Font — Type Family ID: D000000
10
10
DEC Technical
10
10
DEC Special Graphics
10.3
10
DEC Technical
10.3
10
DEC Special Graphics
12
10
DEC Technical
12
10
DEC Special Graphics
13.6
6.7
DEC Technical
13.6
6.7
DEC Special Graphics
1
RELITE0 L 02S K 00 G G 00 244 ZZZZ 02 F 0 0 0
D000000 J 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 J 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 2 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 2 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 L 02S K 00 G G 00 01C ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01Q ZZZZ 02 F 0 0 0
D000000 1 01V K 00 G G 00 01C ZZZZ 02 F 0 0 0
The character set ID field of 01O formerly identified DEC Supplemental. It is now used for User Preference.
36.3.3 Font Metrics
Table 36–3 lists the metrics in centipoints for the fonts built into the DEClaser
3200 printer.
Fonts for the DEClaser 3200 Printer 36–7
Table 36–3 Font Metrics for the DEClaser 3200 Printer
Field
Total vertical size
Minimum space size
1
Nominal space size
Courier 10
Courier 10.3
Elite 12
Courier 13.6
1152
1152
1152
864
360
336
288
264
720
696
600
528
2
1440
1392
1200
1056
Above baseline offset3
–840
–840
–840
–648
3
312
312
312
216
–576
–576
–576
–432
Subscript vertical
576
576
576
432
Underline offset3
240
240
240
168
72
72
72
48
–264
–264
–264
–192
72
72
72
48
–912
–912
–912
–480
72
72
72
48
Maximum space size
Below baseline offset
Superscript vertical
3
3
Underline thickness
Strike-through offset
3
Strike-through thickness
Overline offset
3
Overline offset
(height, thickness)
1
In general, minimum space is calculated as 33% to 50% of width of space.
2
In general, maximum space is calculated as 200% of width of space.
3
Vertical offsets are relative to the baseline.
36.4 Built-in Algorithmic Transformations
When the print job requires a font with a particular set of attributes, the
DEClaser 3200 printer searches the current repertory for a font that contains
the proper character set, in the proper style, in the proper horizontal and
vertical size, with the desired attributes.
If the search fails to find a font with the desired attributes, DEClaser 3200
printer attempts to approximate the desired attributes by using algorithmic
transformations on the existing repertory.
The DEClaser 3200 printer provides fallback algorithmic transformations for
the following:
•
Bold (shadow bold)
•
Portrait/landscape orientation (rotation)
36–8 Fonts for the DEClaser 3200 Printer
•
Italic (character underline)
•
Underline
•
Strike-through
•
Overline
•
National Replacement Character sets (NRCS)
The DEClaser 3200 printer uses algorithmic transformations for the following:
•
Horizontal spacing
•
Vertical spacing
•
Double underline
Fallbacks are not provided for the following attributes:
•
Size scaling of any type
•
Italics fall back by slanting the character
•
Kerning
36.4.1 Memory Use
Only one algorithmic transformation uses memory: rotating the font to fit the
page orientation. By default, the DEClaser 3200 printer stores transmitted
font file characters in portrait orientation. When you require landscape
printing, the printer conserves memory by rotating only the fonts that the
printer uses rather than all selected fonts.
If you require a font in landscape orientation only, you can further reduce the
amount of memory that is used by specifying the orientation in the font_record
of the Load Font File (DECLFF) command. To store a copy of the font in
landscape format only, precede the font_record with an equal sign (=, 3/13):
DCS 0; 1; 1 y =font_record; comment_record ST
For more information on the Load Font File (DECLFF) command, refer to
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.
36.4.2 Spacing Criterion Fallback
When the selected font is proportional and the requested font is monospaced,
the DEClaser 3200 printer left-justifies the proportional characters within the
monospaced cell.
Fonts for the DEClaser 3200 Printer 36–9
36.4.3 Fallback Metrics for Mixed Font Files
The DEClaser 3200 printer does not support fallback metrics for all categories
of mixed text; however, the printers do support a fallback for inconsistent
metrics when performing NRCS pairing. A Device Status report (DSR) may be
sent by the printer when inconsistent metrics are detected.
36.5 Font File Validation Test Report
The DEClaser 3200 printer generates a report of errors and warnings that
occur during font file validation. You may use this report for debugging
purposes if you are designing font files for Digital level 3 printers according to
the Common Font File Format (CFFF).
Refer to Appendix C for a description of the Font Status Report (DECFSR)
command. You request this report through the second parameter (Ps2 = 2 or 3)
of the Load Font File (DECLFF) command as described in Table 26–4.
Table 36–4 Parameters for Load Font File (DECLFF) for the DEClaser 3200
Printer
Ps2
Action
0 or omitted
Print summary sheet.
1
Do not print summary sheet.
2
Send font error and warning information. Response is Font Status
Report (DECFSR, DECLFF Ps2=2 or 3).
3
Same as 0 and 2.
Any other value
Do not print summary sheet or send status report.
36–10 Fonts for the DEClaser 3200 Printer
37
Sixel Considerations
This chapter discusses three topics related to sixel graphics:
•
Macro parameter values, Section 37.1
•
Valid Set Raster Attributes (DECGRA) commands, Section 37.2.1
•
Restrictions, Section 37.2.2
37.1 Macro Parameter Values
Table 37–1 compares the target values and the values implemented by the
DEClaser 3200 printer for the macro parameter (Ps1) of the sixel mode
graphics device control string:
DCS Ps1; Ps2; Pn3 q picture_definition ST
Ps1 is a selective parameter that specifies the horizontal grid size and aspect
ratio. Grid size measurements are given in centipoints.
Table 37–1 Macro Parameter Values for the DEClaser 3200 Printer (Grid Sizes in
Centipoints)
Target Values
Ps1
Approximate
Horizontal
Grid Size1
DEClaser 3200 Values
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
Horizontal
Grid Size
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
0
54.60
200:100
100
48
200:100
96
1
54.60
200:100
100
48
200:100
96
2
22.22
450:100
100
21
451:100
96
1
For true target values in 1/660 in., see the sixel information in the Digital ANSI-Compliant Printing Protocol
Level 3 Programming Reference Manual.
(continued on next page)
Sixel Considerations 37–1
Table 37–1 (Cont.) Macro Parameter Values for the DEClaser 3200 Printer (Grid Sizes
in Centipoints)
Target Values
Ps1
Approximate
Horizontal
Grid Size1
DEClaser 3200 Values
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
Horizontal
Grid Size
Aspect Ratio
Vert:Horiz
Vertical
Grid
Size
3
33.33
300:100
100
32
300:100
96
4
40.00
250:100
100
38
252:100
96
5
54.60
183:100
100
48
200:100
96
6
66.66
150:100
100
64
150:100
96
7
76.90
130:100
100
74
129:100
96
8
89.20
112:100
100
86
111:100
96
9
100.00
100:100
100
96
100:100
96
1
For true target values in 1/660 in., see the sixel information in the Digital ANSI-Compliant Printing Protocol
Level 3 Programming Reference Manual.
37.2 Miscellaneous Considerations and Restrictions
Section 37.2.1 and Section 37.2.2 discuss valid Set Raster Attributes
(DECGRA) commands and restrictions to the printing of sixel graphics.
37.2.1 Valid Set Raster Attributes (DECGRA) Commands
The DEClaser 3200 printer ignores a DECGRA command if the command
includes any of the following sixel control codes or sixel data:
•
Graphics Repeat Introducer control character — DECGRI (!)
•
Graphics Carriage Return control character — DECGCR ($)
•
Graphics Next Line control character — DECGNL (–)
•
Sixel data
•
Graphics Color Introducer — DECGCI (#) (this is otherwise ignored by the
monochrome DEClaser 3200 printer)
Digital recommends that software always send a Set Raster Attributes
(DECGRA) command before sending the sixel data or any other sixel graphics
command.
37–2 Sixel Considerations
37.2.2 Restrictions
The following restrictions apply when you print sixel graphics on the DEClaser
3200 printer:
•
Colors map to black. This causes most color pictures to come out dark and
not very clear.
•
Sixel printing ignores the extent parameters (Pn3 and Pn4) of the Set
Raster Attributes (DECGRA) command.
•
Sixel printing ignores the background select parameter (Ps2 of the sixel
device control string). The printer assumes a white background.
•
The maximum value for the horizontal grid size is 99 current units. (See
the Select Size Unit (SSU) command in the Digital ANSI-Compliant
Printing Protocol Level 3 Programming Reference Manual.)
•
The maximum value for the aspect ratio is 1000. The horizontal grid size
multiplied by the aspect ratio provides a maximum vertical grid size of
99,000 current units. (See the Select Size Unit (SSU) command in the
Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual.)
Sixel Considerations 37–3
38
Alternative Protocols
The DEClaser 3200 printer supports the following DEC PPL3 protocol
switching commands:
•
Select Other Coding System (SOCS)
•
Return from Other Coding System (ROCS)
Table 38–1 lists the protocols available for the DEClaser 3200 printer.
Table 38–1 Protocols Supported by the DEClaser 3200 Printer
Resident Protocol
Optional Protocols
Digital ANSI-Compliant Printing
Protocol, level 3 (DEC PPL3)
PostScript Interpreter
LaserJet IID Printer Emulation (LJ2D)
Alternative Protocols 38–1
Part V
Appendixes
This part consists of appendixes that provide the following information
concerning DEC PPL3 devices:
•
Appendix A compares the Digital ANSI-Compliant Printing Protocol
commands supported by the LN03 PLUS printer, the ANSI Text translator,
DEClaser 2100/2200 printers, DEClaser 2100/2200 plus printers, DEClaser
1100 printer, and the DEClaser 3200 printer.
•
Appendix B lists generic code error parameters for extended Device Status
Reports (DSR) and font file validation error and warning parameters for
Font Status Reports (DECFSR, DECLFF Ps2 = 2 or 3).
•
Appendix C documents new DEC PPL3 commands not listed in the Digital
ANSI-Compliant Printing Protocol Level 3 Programming Reference Manual.
•
Appendix D lists other books associated with the Digital ANSI-Compliant
Printing Protocol and level 3 printers.
A
Comparison of DEC PPL3 Commands by
Printer
Table A–1 compares the Digital ANSI-Compliant Printing Protocol (DEC PPL3)
commands supported by the LN03 PLUS desktop laser printer, the ANSI Text
translator, the DEClaser 2100/2200 printers, the DEClaser 2100/2200 plus
printers, the DEClaser 1100 printer, and the DEClaser 3200 printer. The
table lists the commands according to levels and extensions of the Digital
ANSI-Compliant Printing Protocol. Each command is classified as belonging to
a level or to an extension of the protocol.
Each level of the protocol includes the commands of all lower-numbered levels.
Level 3 of the protocol (DEC PPL3) contains the commands of level 1 (DEC
PPL1) and level 2 (DEC PPL2), as well as those commands labeled level 3.
Level 2 contains the commands labeled DEC PPL1 and DEC PPL2.
Table A–2 compares commands that are extensions to the protocol and
Table A–3 compares commands that are exceptions to the protocol. Table A–4
compares device support of alternative protocols.
Comparison of DEC PPL3 Commands by Printer A–1
Table A–1 Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
BEL — Bell
–
–
–
–
–
BS — Backspace
o
o
o
o
o
CAN — Cancel
o
o
o
o
o
CR — Carriage Return
o
o
o
o
o
DEL — Delete
o
o
o
o
o
FF — Form Feed
o
o
o
o
o
HT — Horizontal Tab
o
o
o
o
o
Command
DEC PPL1 Commands
C0 Control Characters
LF — Line Feed
o
o
o
o
o
LS0 (SI) —
Locking Shift 0 (Shift In)
o
o
o
o
o
LS1 (SO) —
Locking Shift 1 (Shift Out)
o
o
o
o
o
NUL — Null
o
o
o
o
o
SUB — Substitute
o
o
o
o
o
VT — Vertical Tab
o
o
o
o
o
PLD — Partial Line Down
o
o
o
o
o
PLU — Partial Line Up
o
o
o
o
o
SS2 — Single Shift 2
o
o
o
o
o
C1 Control Characters
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
A–2 Comparison of DEC PPL3 Commands by Printer
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
SS3 — Single Shift 3
o
o
o
o
o
Understanding 8-bit
C1 characters
o
o
o
o
o
Understanding 7-bit
ESC Fe form of C1
o
o
o
o
o
Ignore unimplemented
control strings
o
o
o
o
o
Command
DEC PPL1 Commands
Character Set Repertoire
and Designation
ASCII
o
o
o
o
o
British
o
o
o
o
o
French
o
o
o
o
o
German
o
o
o
o
o
Norwegian/Danish
o
o
o
o
o
DEC Finnish
o
o
o
o
o
DEC French-Canadian
o
o
o
o
o
DEC Dutch
o
o
o
o
o
DEC Norwegian/Danish
o
o
o
o
o
DEC Swedish
o
o
o
o
o
DEC Swiss
o
o
o
o
o
DEC Portuguese
–
o
o
o
o
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–3
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
ISO Italian
o
o
o
o
o
ISO Spanish
o
o
o
o
o
JIS Roman
o
o
o
o
o
Command
DEC PPL1 Commands
DEC Special Graphics
o
o
o
o
o
DEC Supplemental
o
o
o
o
o
DEC Technical
o
o
o
o
o
LA120 fallback
DEC Finnish
o
o
o
o
o
LA120 fallback
DEC French-Canadian
o
o
o
o
o
LA120 fallback
DEC Norwegian/Danish
o
o
o
o
o
LA120 fallback
DEC Swedish
o
o
o
o
o
DECSCL —
Reset to Digital defaults
–
o
o
o
o
DECSHORP —
Set HAI1 to desired value
n2
o
o
o
o
Command Dictionary
1 Horizontal
Advance Increment.
2 For
specific information on the implementation of this command, refer to the documentation for
the device.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
A–4 Comparison of DEC PPL3 Commands by Printer
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
DECSLPP —
Set Lines Per Page
o
o
o
o
o
DECSTR —
Soft Terminal Reset (RIS)
o
o
o
o
o
DECVERP —
Set VAI3 to desired value
n2
o
o
o
o
LS2 —
Locking Shift for G2
o
o
o
o
o
LS3 —
Locking Shift for G3
o
o
o
o
o
LS1R —
Locking Shift for G1 Right
o
o
o
o
o
LS2R —
Locking Shift for G2 Right
o
o
o
o
o
LS3R —
Locking Shift for G3 Right
o
o
o
o
o
RIS — Reset to
Initial State (DECSTR)
o
o
o
o
o
SGR — Off, bold,
underline — Ps = 0,1,22,4,24
o
o
o
o
o
SP — Space
o
o
o
o
o
Command
DEC PPL1 Commands
2 For
specific information on the implementation of this command, refer to the documentation for
the device.
3 Vertical
Advance Increment.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–5
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
DA — Request
Device Attributes
o
–
o
o
o
DAR — Report
CSI?71c — Level 1 Printer
–
–
–
–
–
DA2 — Request
Device Attributes (Secondary)
–
–
o
o
o
DA2R — Report
Device Attributes (Secondary)
–
–
o
o
o
DSR — Request
Device Status Report
o
–
o
o
o
DSR — Base
solicited responses — Ps = 0,3,5
o
–
o
o
o
DSR — Unsolicited/
generic format — Ps = ?1,2,3
o
–
o
o
o
HTS — Horizontal Tab Set
o
o
o
o
o
IND — Forward Index
o
o
o
o
o
NEL — Next Line
o
o
o
o
o
VTS — Vertical Tab Set
o
o
o
o
o
Command
DEC PPL1 Commands
Interrogation
DEC PPL2 Commands
C1 Control Characters
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
A–6 Comparison of DEC PPL3 Commands by Printer
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
DEC Supplemental [new sequence]
–
o
o
o
o
ISO Latin-1 Supplemental [96]
–
o
o
o
o
User-Preference Supplemental
–
o
o
o
o
Legal
–4
–4
o
o
o
ASCEF — Announce Subset of
Code Extension Facilities (F = L,M,N)
–
o
o
o
o
CUU — Cursor Up
o
o
o
o
o
DECAUPSS — Assign User
Preference Supplemental Set
–
o
o
o
o
DECAWM — Autowrap Mode
o
o
o
o
o
DECCAHT —
Clear All Horizontal Tabs (TBC = 3)
o
o
o
o
o
DECCAVT —
Clear All Vertical Tabs (TBC = 4)
o
o
o
o
o
DECCRNLM —
Carriage Return/New Line Mode
o
o
o
o
o
DECHTS — Horizontal Tab Set (HTS)
o
o
o
o
o
Command
DEC PPL2 Commands
Character Set Repertoire
and Designation
Command Dictionary
4 This
character set is available in cartridge or downline loaded font files.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–7
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
DECPSM — Horizontal Pitch Select
Mode
o
o
o
o
o
DECSHTS — Set Horizontal Tab Stops
o
o
o
o
o
DECSLRM — Set Left and Right
Margins
o
o
o
o
o
DECSTBM — Set Top and Bottom
Margins
o
o
o
o
o
DECSVTS — Set Vertical Tabs
o
o
o
o
o
DECVTS — Vertical Tab Set (VTS)
o
o
o
o
o
LNM — Line Feed/New Line Mode
o
o
o
o
o
HPA — Horizontal Position Absolute
o
o
o
o
o
HPR — Horizontal Position Relative
o
o
o
o
o
S7C1R — Select 7-bit C1 Receive
o
N/A
o
o
o
S8C1R — Select 8-bit C1 Receive
o
N/A
o
o
o
SGR — Italics — Ps = 3,23
o
o
o
o
o
SGR — Strike-through — Ps = 9,29
o
o
o
o
o
SGR — Font selection — Ps = 10—19
o
o
o
o
o
SGR — Subscript/superscript —
Ps = ?0,?4,?5,?24
–
o
o
o
o
SGR — Overline — Ps = 53,55,?0,?6,?26
–
o
o
o
o
TBC — Tabulation Clear — Ps = 0,1,2,3,4
o
o
o
o
o
VPA — Vertical Position Absolute
o
o
o
o
o
Command
DEC PPL2 Commands
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
A–8 Comparison of DEC PPL3 Commands by Printer
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
o
o
o
o
o
DAR — Report CSI?72c — Level 2
Printer
–
–
–
–
–
DECFSR —
Font Status Report — Ps = 3
(cartridge)
–
–
–
–
–
DECRFS —
Request Cartridge Font Status
–
–
–
–
–
o
o
o
o
o
DECATFF —
Assign Type Family or Font
n
o
o
o
o
DECDTFF—
Delete Type Family or Font File
o
o
o
o
o
DECLFF —
Load Digital CFFF Font File
o
o
o
o
o
Command
DEC PPL2 Commands
VPR — Vertical Position Relative
Interrogation
DEC PPL3 Commands
C1 Control Characters
RI — Reverse Index
Command Dictionary
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–9
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
DECOPM —
Origin Placement Mode
o
o
o
o
o
DECPSP —
Proportional Spacing Mode
o
o
o
o
o
DECSCL —
Select Conformance Level 3
–
o
o
o
o
GSM —
Graphic Size Modification
o
o
o
o
o
GSS —
Graphic Size Selection
o
o
o
o
o
HPB —
Horizontal Position Backwards
o
o
o
o
o
JFY —
Justify — Ps = 0,2,?2
o
o
o
o
o
PFS —
Page Format Select — Ps = 0—7,
?20—?23 (Letter and A4 paper)
o
o
o
o
o
PUM —
Positioning Unit Mode
o
o
o
o
o
SHS —
Select Horizontal Spacing
o
o
o
o
o
SPI —
Spacing Increment
o
o
o
o
o
Command
DEC PPL3 Commands
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
A–10 Comparison of DEC PPL3 Commands by Printer
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
SSU —
Select Size Unit — Ps = 0,2,7 (decipoint,
pixel)
o
o
o
o
o
SSU —
Select Size Unit — Ps = ?1 (centipoint)
–
o
o
o
o
SVS —
Select Vertical Spacing
o
o
o
o
o
VPB —
Vertical Position Backwards
o
o
o
o
o
CPR — Cursor Position Report
o
–
o
o
o
DAR — Report CSI?73c —
Level 3 Printer
–
–
o
o
o
DSR — Request CPR —
Ps = 6
o
–
o
o
o
DSR — Extended Response Format
o
–
o
o
o
DECFSR —
Font Status Report —
Ps = 1,2
o
–
o
o
o
Command
DEC PPL3 Commands
Interrogation
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–11
Table A–1 (Cont.) Comparison of DEC PPL3 Commands
Command
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
–
–
–6
o
o
–
–
–6
o7
o8
–
–
o
o
DEC PPL3 Commands
DECFSR5 —
Validation Test Report —
Ps = 4
DECLFF —
Request Validation Test Report —
Ps = 2 or 3
Ps = 4
–
–
–6
DECRFS — Request Font Status
o
–
o
5 This
command is described in Appendix C.
6 This
command is available on the DEClaser 2100/2200 plus printers, see Section 17.6
7 This
command is described in Section 26.6.
8 This
command is described in Section 36.5.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
A–12 Comparison of DEC PPL3 Commands by Printer
Table A–2 Comparison of Extensions to the Protocol
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
o
o
o
o
o
–
–
o
o
o
–1
–1
–1
–1
–1
–
–
–
–
–
DECASFC — Sheet Feeder (one tray) —
Ps = 0,1
–
o
o
o
o
DECASFC — Two-tray control — Ps = 2
–
o
o
o
o
Command
Sixel Extension (4)
Command Dictionary
DCS —
Sixel Graphics Mode — q(7/01)
Interrogation
DAR —
Report extension parameter — ;4
Katakana Extension (5)
Character Set Repertoire and Designation
JIS Katakana
Interrogation
DAR — Report extension parameter — ;5
Sheet Feeder Extension (6)
Command Dictionary
1 This
character set is available with downline loaded font files.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–13
Table A–2 (Cont.) Comparison of Extensions to the Protocol
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
–
o
o
–
o
DECASFC — Four-tray control — Ps = 4
–
–
–
–
o
DECASFC — Manual feed — Ps = 99
–
–
o
–
o
–
–
o
o
o
–
o
o
o
o
–
–
o
o
o
o
o
o
o
Command
Sheet Feeder Extension (6)
DECASFC — Three-tray control — Ps =
3
Interrogation
DAR — Report extension parameter — ;6
Legal-Size Paper Handling Extension (8)
Command Dictionary
PFS — Page Format Select —
Ps = 8, 9, ?24, ?25
Interrogation
DAR — Report extension parameter — ;8
Variable Page Format Selection Extension (9)
Command Dictionary
DECVPFS — Variable Page Format
Select
–
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
A–14 Comparison of DEC PPL3 Commands by Printer
Table A–2 (Cont.) Comparison of Extensions to the Protocol
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
–
–
o
o
o
DECRVEC — Draw Relative Vector
–
o
o
o
o
DECVEC — Draw Vector
o
o
o
o
o
–
–
o
o
o
–
–
o
o
o
–
–
o
o
o
Command
Variable Page Format Selection Extension (9)
Interrogation
DAR — Report extension parameter — ;9
Vector Drawing Extension (10)
Command Dictionary
Interrogation
DAR — Report extension parameter —
;10
Multiple Copies Extension (11)
Command Dictionary
DECSNC — Set Number of Copies
2
Interrogation
DAR — Report extension parameter —
;11
2 This
extension is implemented by the symbiont.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–15
Table A–2 (Cont.) Comparison of Extensions to the Protocol
Command
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
Hebrew Extension (12)
Character Set Repertoire and Designation
DEC Hebrew-7
–1
–1
o
o
o
DEC Hebrew Supplemental
–1
–1
o
o
o
ISO Latin-Hebrew Supplemental
–1
–1
o
o
o
–
–
o
o
o
–
–
o
o
o
o
o
o
o
o
o
Interrogation
DAR — Report extension parameter —
;12
Logical Duplex Extension (16)
Command Dictionary
DECNS — Newsheet
DECSDPM — Duplex Printing Mode —
Ps = 1,5
–
–
–
–
2
Interrogation
DAR — Report extension parameter —
;16
1 This
character set is available with downline loaded font files.
2 This
extension is implemented by the symbiont.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
A–16 Comparison of DEC PPL3 Commands by Printer
Table A–2 (Cont.) Comparison of Extensions to the Protocol
Command
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
–
–2
o4
f
o
–
–
o3
–
o
–
–4
f
f
o
–
–
–
–
o
Physical Duplex Extension (18)
Command Dictionary
DECSDPM — Duplex Printing Mode —
Ps = 3,4,7,8
Interrogation
DAR — Report extension parameter —
;18
Front Face Tumbling Extension (19)
Command Dictionary
DECSDPM — Duplex Printing Mode —
Ps = 2,6
Interrogation
DAR — Report extension parameter —
;19
2 This
extension is implemented by the symbiont.
3 Implemented
in the DEClaser 2200 printer; not implemented in the DEClaser 2100 printer.
4 Implemented
in the DEClaser 2200 printer. The DEClaser 2100 printer does a fallback
implementation.
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
(continued on next page)
Comparison of DEC PPL3 Commands by Printer A–17
Table A–2 (Cont.) Comparison of Extensions to the Protocol
Command
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
–
o
–
–
–
–
–
–
–
–
B-Size Paper Handling Extension (22)
Command Dictionary
PFS — Page Format Select —
Ps = ?26,?27
Interrogation
DAR — Report extension parameter —
;22
Table Key:
o — Command present
n — Command present, partial implementation
f — Command present, fallback implementation
– — Command not present
A–18 Comparison of DEC PPL3 Commands by Printer
Table A–3 Comparison of Exceptions to the Protocol
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
CSI ? 10;3 c — LA100
o
–
–
–
–
CSI ? 26 c — LN03
o
–
o
o
o
CSI ? 13 c — LQP02
Command
DAR — Compatibility Reports
o
–
–
–
–
DECID — Request ID
o
–
–
–
–
CRM — Control Representation Mode
–
o
o
o
o
–
–2
o
o
o
–
–
–3
–
o
–
–
o
o
o
DECMM — Memory Management
DECSITF1
— Select Input Tray Failover
DECSSS — Set Sheet Size
1 Refer
to Appendix C for the description of this command.
2 Sufficient
memory is available in the ANSI translator. Implementation of this command is not
required.
3 This
command is available on the DEClaser 2100/2200 plus printer.
Table Key:
o — Command present
– — Command not present
Comparison of DEC PPL3 Commands by Printer A–19
Table A–4 Alternative Protocols
LN03
PLUS
Printer
ANSI
Translator
DEClaser
2100/2200
Printers
DEClaser
1100
Printer
DEClaser
3200
Printer
DECIPEM —
IBM Proprinter Emulation Mode
o1
–
–2
–
–
DECTEK —
Tektronix 4010/4014 Emulation
o
–
–
–
–
SOCS —
Select Other Coding System
(CaPSL)
–
–
o1
o1
–
SOCS —
Select Other Coding System
(IBM Proprinter)
–
–
–2
o1
–
SOCS —
Select Other Coding System
(LaserJet IID Printer Emulation)
–
–
–2
o1
o
SOCS —
Select Other Coding System
(PostScript)
–
–
o1
o1
o1
ROCS —
Return from Other Coding System
–
–
o
o
o
Command
1 This
alternative protocol requires an optional cartridge or module board in this printer.
2 This
command is available on the DEClaser 2100/2200 plus printers and requires an optional
cartridge.
Table Key:
o — Command present
– — Command not present
A–20 Comparison of DEC PPL3 Commands by Printer
B
Command Parameter Summaries
Table B–1 lists generic error parameters defined in DEC PPL3 for extended
Device Status Reports (DSR). This table is for reference only. Refer to
product-specific parts of this document for a list of reports implemented for a
particular printer.
Table B–2 lists and provides a brief explanation for font file validation error
and warning parameters for the Font Status Report (DECFSR, DECLFF
Ps2 = 2 or 3) command. This command reports problems found during the
font file validation process. Specific fields in the Common Font File Format
(CFFF) are referenced in Table B–2 to explain the validation problems.
Refer to Appendix B of the Digital ANSI-Compliant Printing Protocol Level 3
Programming Reference Manual and the Font File Format User’s Manual for
more information on these CFFF fields.
Command Parameter Summaries B–1
Table B–1 Generic Error Codes for DEC PPL3 Device Status Reports
Generic Code
Meaning
20
No malfunction detected
21
Hardware failure
22
Communication I/O failure (event)
23
Input buffer overflow (event)
24
Printer off line
26
Cover open
27
Paper out
33
Toner low
34
Call Digital Services; major failure
35
Perform user maintenance
36
Paper jam
40
Character not available (event)
41
Line content error
42
Font downline load or validation error (event)
44
Font memory exceeded (event)
46
Toner collection bottle full
47
Too many errors (Since last extended report, device detected more
errors than can be queued.)
50
Output tray full
51
No error; paper tray request
52
No error; manual feed request
53
Input tray configuration error or conflict
54
Output tray configuration error or conflict
55
Alternate protocol error
56
Memory management error or conflict
57
Initialization message
59
Device warming up
B–2 Command Parameter Summaries
Several font file validation tests compare pointers against the number of bytes
of data in the font file being tested. In Table B–2, this value is referred to as
byte_count.
Table B–2 Explanations of DEC PPL3 Font File Validation Tests
Test Number
and Category
Name of Validation Test
Brief Explanation
31
Warning
Inconsistent font weight
The Font Weight [3.4.11] is not equal to
the Weight [A.2.6] component of the font
file ID.1
32
Warning
Inconsistent Italics style
The italics bit in Flags [3.4.1] is not equal
to the corresponding bit of the Style [A.2.5]
component in the font file ID.1
33
Warning
Inconsistent Underline
style
The underline bit in Flags [3.4.1] is not
equal to the corresponding bit of the Style
[A.2.5] component in the font file ID.1
34
Warning
Inconsistent Overline
style
The overline bit in Flags [3.4.1] is not
equal to the corresponding bit of the Style
[A.2.5] component in the font file ID.1
35
Warning
Inconsistent Strikethrough style
The strike-through bit in Flags [3.4.1] is
not equal to the corresponding bit of the
Style [A.2.5] component in the font file ID.1
36
Warning
Inconsistent Monospaced
style
The setting of the monospaced bit in Flags
[3.4.1] does not match the Spacing [A.2.2]
component of the font file ID.1
37
Warning
Inconsistent Type size
Type Size [3.4.8] is not equal to the Type
Size [A.2.3] component of the font file ID.1
38
Warning
Inconsistent identifiers
The common bytes of the Type Family ID
[3.4.3], the Font ID [3.4.5], and the Font
File ID [3.3.4] are not the same.1
41
Error
Insufficient data
Number of Bytes [3.3.1] is greater than
byte_count.
42
Error
Length too small
The Character Directory [3.6] pointer is
greater than byte_count.
43
Error
Font File Identifier:
incorrect length
The Font File ID [3.3.4] must be 31
characters long.
1
This warning indicates that the font file may be treated differently in some level 3 printers.
(continued on next page)
Command Parameter Summaries B–3
Table B–2 (Cont.) Explanations of DEC PPL3 Font File Validation Tests
Test Number
and Category
Name of Validation Test
Brief Explanation
44
Error
Character set identifier:
incorrect length
The maximum length of the Character Set
Designator [3.4.2] string is 32 bytes.
45
Error
Multiple font segments
unsupported
Multiple font segments are not supported.
The address and size of the Font Segment
Table [3.3.11] and the Number of Font
Segments [3.7.1] must be zero.
46
Error
Bad pointer: String Pool
Region
The String Pool Region [3.3.13] pointer is
greater than byte_count.
47
Error
Bad pointer: character
definition
The Character Definition Region [3.3.15]
pointer is greater than byte_count.
48
Error
Font File Identifier:
illegal format
The Font File ID [3.3.4] contains illegal
characters.
49
Error
Compressed rasters
unsupported
Compressed raster format is not
supported. The corresponding bit in
Organizational Flags [3.3.17] must be
reset.
50
Error
Rotated fonts unsupported
Rotated fonts are not supported. The
Rotation [A.2.8] component of the font file
ID must be zero.
51
Error
Font Parameter Region
size incorrect
The Font Parameter Region [3.3.9] size is
not 124 bytes.
52
Warning
Large Value flag set
The Large Value flag of the Organizational
Flags [3.3.17] is set.2
53
Error
Character parameter
size incorrect
The Size of Character Parameters [3.3.18]
must be 8 or 16.
54
Error
Font resolution
unsupported
Only 300 dots/inch font files are supported.
The Resolution [A.2.12] component of the
font file ID must be ‘‘F’’.
55
Error
Aspect Ratio unsupported
Pixel Aspect Ratio [3.4.14] must indicate a
1:1 ratio.
56
Warning
Character Subsets
unsupported
The only valid Character Subset [A.2.10] is
‘‘ZZZZ’’.2
2
This warning has no effect on font file processing in current level 3 printers.
(continued on next page)
B–4 Command Parameter Summaries
Table B–2 (Cont.) Explanations of DEC PPL3 Font File Validation Tests
Test Number
and Category
Name of Validation Test
Brief Explanation
57
Error
Encoding unsupported
Only binary encoding is supported. The
File Encoding [A.2.11] component of the
font file ID must be ‘‘02’’.
58
Error
Fractional spacing:
undefined
If byte 8 of the Spacing [A.2.2] component
of the font file ID is ‘‘E’’ to ‘‘S’’, then byte
29 of the Spacing [A.2.2] component must
have a value of ‘‘0’’ to ‘‘9’’ or ‘‘A’’ to ‘‘J’’.
59
Error
Character range: First
Character incorrect
First Character [3.3.16.1] is less than 32
(Space).
60
Error
Character range: Last
Character incorrect
Last Character [3.3.16.2] is greater than
127 (DEL).
61
Error
Error character: Flag
flag not set
The Flag flag in the error character Flags
[3.11.1.2] is not set.
62
Error
Error character: TYPE1
field incorrect
The TYPE1 [3.11.2.2] field in the error
character definition must be 81h.
63
Error
Error character:
multiple font segments
The error character flags cannot indicate
multiple segments. Bit 31 of the Error
Character Locator [3.3.16.5] must be reset.
64
Error
Bad pointer: character
definition
A character definition pointer (Primary
Locator [3.6.1]) is greater than byte_count.
65
Error
Character replacement
unsupported
Character replacement is not supported.
Bit 31 of the Primary Locator [3.6.1] for
each character definition must be reset.
66
Error
Character: Flag flag not
set
The Flag flag in Flags [3.11.1.2] for each
character definition must be set.
67
Error
Character: TYPE1 field
incorrect
The TYPE1 [3.11.2.2] field in each
character definition must be 81h.
68
Warning
Portrait byte_count
error
Portrait Byte Count [3.3.19.7] is not equal
to byte_count for the portrait version of the
font file. The actual byte_count is used.
69
Error
Character range:
inversion
Last Character [3.3.16.2] is less than First
Character [3.3.16.1]
70
Error
Critical parameter is
zero
Width of Space [3.5.4.4] is zero or the
numerator or denominator of Font
Horizontal Proportional Fraction [3.4.13] is
zero.
(continued on next page)
Command Parameter Summaries B–5
Table B–2 (Cont.) Explanations of DEC PPL3 Font File Validation Tests
Test Number
and Category
Name of Validation Test
Brief Explanation
71
Warning
Spacing: inconsistent
Average Character Width [3.4.9] does
not equal Width of Space [3.5.4.4] in a
monospaced font. If different, Width of
Space [3.5.4.4] is used.
72
Error
Character: inconsistent
character width
Width of Space [3.5.4.4] does not equal the
Nominal Width [3.11.1.3] of each character
definition in a monospaced font.
73
Error
Type Size too large
Type Size [3.4.8] is greater than 216 points
(3 inches).
74
Error
Total Vertical Size too
large
Total Vertical Size [3.5.5.4] is greater than
216 points (3 inches).
79
Warning
Landscape byte_count
error
Landscape Byte Count [3.3.19.8] is not
equal to byte_count for the landscape
version of the font file. The actual byte_
count is used.
83
Warning
Mixed byte_count error
Mixed Byte Count [3.3.19.9] is not equal
to the byte_count for both the portrait
and landscape version of the font file. The
actual byte_count is used.
101
Error
Bad pointer: error
character
Error Character Locator [3.3.16.8] is
greater than byte_count.
102
Warning
Bad pointer: font
attribute region
The Font Attributes [3.3.8] pointer is
greater than byte_count.1
103
Warning
Bad pointer: font
parameter region
The Font Parameters [3.3.9] pointer is
greater than byte_count.1
104
Error
Bad pointer: Type
Family Name
The Type Family Name [3.4.4] pointer is
greater than byte_count.
105
Warning
Character: orientation
unsupported
Orientation [3.11.2.1] for each character
definition must be zero. Level 3 printers
will ignore nonzero values and treat the
character orientation as zero.
1
This warning indicates that the font file may be treated differently in some level 3 printers.
(continued on next page)
B–6 Command Parameter Summaries
Table B–2 (Cont.) Explanations of DEC PPL3 Font File Validation Tests
Test Number
and Category
Name of Validation Test
Brief Explanation
106
Error
Bad pointer: character
definition
A character definition pointer (Primary
Locator [3.6.1], including the error
character definition pointer) is greater
than byte_count. This error also occurs if
the character definition pointer plus the
size of the character raster (Rows [3.11.2.4]
* Columns [3.11.2.5]) is greater than byte_
count.
107
Error
Bad pointer: Character
Set Designator
The Character Set Designator pointer
[3.4.2] is greater than byte_count.
108
Error
Bad pointer: Font
Segment Table
The Font Segment Table [3.3.11] is greater
than byte_count.
109
Error
Character Directory
incomplete
The size of the Character Directory
(based on Character Directory [3.6], Last
Character [3.3.16.2], and First Character
[3.3.16.1]) exceeds byte_count.
Command Parameter Summaries B–7
C
Command Dictionary Supplement
This appendix provides definitions of new DEC PPL3 commands not listed in
the Digital ANSI-Compliant Printing Protocol Level 3 Programming Reference
Manual. These commands are implemented on some level 3 printers only, see
Appendix A.
Command Dictionary Supplement C–1
DECFSR — Font Status Report (DECLFF, Ps2=2 or 3)
DECFSR — Font Status Report (DECLFF, Ps2=2 or 3)
List of errors and warnings incurred during font download.
Source: Device
Destination: Symbiont
Format
ESC P
4
"
{
report_string
1/11 5/0 3/4 2/2 7/11 *********
ESC
1/11
\
5/12
Description
Sent in response to Load Font File (DECLFF) after the download process has
occurred. This report is sent only if Ps2 of the DECLFF command equals 2 or
3.
Report_string represents the list of downline loaded errors and warnings
that occurred during the font download. One report is sent for each font file
loaded. The warning and error codes are listed in Appendix B. Within each
report, warnings and errors are sent in the order in which they are listed in
Appendix B. Use Device Status Report (DSR) to determine the severity (error
or warning) of the returned codes. Errors are considered fatal. If the printer
encounters an error, the download is aborted and the report is terminated.
Report_string contains the following information in this order:
1. Font File ID (CFFF 3.3.5) followed by a comma (,).
This field contains the received font file ID, even if it was incomplete or
missing.
2. Carriage Return and Line Feed (<CR> and <LF>).
3. List of errors (or warnings), separated by semicolons (;)
Carriage Returns and Line Feeds (<CR> and <LF>) may occur in long
reports.
4. String terminator <ESC>\.
An example of a font error report follows:
<ESC>P4"{RCOURIRJ02SK00GG0001UZZZZ02F000,<CR><LF>
52;56;71;75;68<CR><LF>
<ESC>\
C–2 Command Dictionary Supplement
DECFSR — Font Status Report (DECLFF, Ps2=2 or 3)
If no error or warning occurs, the device returns a code of 0 (3/0), as follows:
<ESC>P4"{RCOURIRJ02SK00GG0001UZZZZ02F000,<CR><LF>
0<ESC>\
Error Handling
If DECLFF is sent with Ps2 = 2 or 3, but no font_record (see DECLFF), the
printer ignores the request for a report. No DECFSR is sent.
If the Font File ID (CFFF 3.3.5) does not contain 31 characters, the device
reports as much of the field as possible. Therefore, it is possible for this field to
be blank in the report.
Command Dictionary Supplement C–3
DECSITF — Select Input Tray Failover
DECSITF — Select Input Tray Failover
Designates the input trays used for failover. The term failover means the
printer will select another input tray if the selected input tray runs out of
paper.
Source: Symbiont
Destination: Level 3 Exception
CSI
9/11
;
Psn SP w
3/11 *** 2/0 7/7
Format
Ps1
***
;
Ps2 ;
...
3/11 *** 3/11 . . .
Description
This command defines the paper tray failover rules for the device. A
composite tray may be defined by the DECSITF command, across which
paper tray failover may occur. When a paper tray that is part of a composite
tray becomes empty, the device will failover to the next tray in the composite
tray definition, instead of reporting a paper-out error condition.
Selective parameters for DECSITF are as follows:
Ps1
Action
0
1
Disable all composite input trays
Define composite tray 1
Subsequent parameters identify the trays that comprise the composite tray
specified by Ps1. The value of these parameters is equal to the input tray
selection parameter value for the Automatic Sheet Feeder Control (DECASFC)
command.
Ps2–Psn
Action
n
Designates the tray as a member of a composite tray.
The paper trays that may be part of a composite tray are device dependent. For
more information on paper handling on your device, refer to the appropriate
part and chapter in this manual.
C–4 Command Dictionary Supplement
DECSITF — Select Input Tray Failover
The trays comprising a composite tray must all have the same paper size,
defined by either a key on the input tray or by the Set Sheet Size (DECSSS)
command. This is determined at the time of failover, not when the command is
received.
This command only affects sheets printed subsequent to the receipt of this
command. The command DECSITF cannot be used to clear a paper-out
condition. A member of the composite tray need not be present when the
command is received but must be present at the time of failover, or the device
considers the next tray in the composite tray definition.
When all of the paper trays in the composite tray definition are empty, a paperout condition occurs. Printing resumes when any of the trays in the composite
tray definition is reloaded. If multiple trays are loaded, the device resumes
printing from the same tray from which the last page was printed.
Side Effects
The device performs a conditional Sheet Feed upon receipt of DECSITF.
The interactions between Automatic Sheet Feeder Control (DECASFC) and
DECSITF can be stated as follows:
•
The device always attempts to print the first page after DECASFC n from
tray n. If tray n is empty, the device checks the composite tray definition
for possible failover.
•
DECSITF (a, b, . . . ) changes the composite tray definition. The device
always attempts to print the first page after DECSITF from tray n
(established by DECASFC). If tray n is empty at imaging time, the
device checks the new composite tray definition (a, b, . . . ) for failover
possibilities.
•
The device images all other pages from the same tray as the previous
page. If there is a paper-out condition in that tray, the device checks the
composite tray definition (a, b, . . . ) for failover possibilities.
Error Handling
If an unsupported Ps1 is received, the command is ignored and a conditional
Sheet Feed is performed.
If a subsequent parameter is received that is not associated with an input tray,
or is associated with an input tray that is not supported for failover, only that
parameter is ignored.
Command Dictionary Supplement C–5
D
DEC PPL3 Printer Documentation
This appendix contains a listing of DEC PPL3 printer and programming
documents and documentation kits and their respective order numbers. For
ordering instructions, see How To Order Additional Documentation, at the end
of this book.
Books associated with the Digital ANSI-Compliant Printing Protocol and level
3 printers are as follows:
DEClaser 1100 Printer
•
Complete documentation kit (order number: EK–D1100–DK)
•
DEClaser 1100 Printer Installation Guide
•
DEClaser 1100 Printer Operator’s Guide
DEClaser 2100 Printer
•
Complete documentation kit (order number: (EK–D2100–DK)
•
DEClaser 2100 Printer Installation Guide
•
DEClaser 2100 Printer Operator’s Guide
DEClaser 2200 Printer
•
Complete documentation kit (order number: (EK–D2200–DK)
•
DEClaser 2200 Printer Installation Guide
•
DEClaser 2200 Printer Operator’s Guide
DEClaser 2100 plus Printer
•
Complete documentation kit (order number: (EK–DECLA–DK)
•
DEClaser 2100 plus Printer Installation Guide
•
DEClaser 2100 plus Printer Operator’s Guide
DEC PPL3 Printer Documentation D–1
DEClaser 2200 plus Printer
•
Complete documentation kit (order number: (EK–DECLB–DK)
•
DEClaser 2200 plus Printer Installation Guide
•
DEClaser 2200 plus Printer Operator’s Guide
DEClaser 3200 Printer
•
Complete documentation kit (order number: (EK–D3200–DK)
•
DEClaser 3200 Printer Installation Guide
•
DEClaser 3200 Printer Operator’s Guide
•
DEClaser 3200 Printer Quick Reference Guide (EK–DEC32–RF)
DECprint Printing Services Software for VMS
•
Complete documentation kit (order number: QA–YNCAA–GZ)
•
DECprint Printing Services Software Installation Guide
•
DECprint Printing Services User’s Guide
•
DECprint Printing Services System Manager’s Guide
Digital ANSI-Compliant Level 3 Printing Protocol
•
Complete documentation kit (order number: EK–PPLV3–DK)
•
Digital ANSI-Compliant Printing Protocol Level 3 Programming
Reference Manual (EK-PPLV3-PM)
•
Digital ANSI-Compliant Printing Protocol Level 3 Programming
Supplement ( EK–PPLV3–PS)
DECprint Utility for PostScript to Sixel Printing for VMS
•
Complete documentation kit (order number: QA–VZPAA–GZ)
•
Installation/User’s Guide: DECprint Utility for PostScript to Sixel
Printing for VMS
PrintServer Client Software for ULTRIX
This documentation kit applies only for ULTRIX operating systems, Version 4.0
and lower.
•
Complete documentation kit (order number: QA–VVMAA–GZ)
•
Installation Guide: PrintServer Client for ULTRIX
•
User’s Guide: PrintServer Client for ULTRIX
D–2 DEC PPL3 Printer Documentation
•
Reference Card: PrintServer Client for ULTRIX
•
Release Notes: PrintServer Client for ULTRIX
PrintServer Source Kit for ULTRIX
•
Documentation can be ordered only as part of a media kit (order number:
QB–VVMA9–YM)
•
Porting Guide: PrintServer TCP/IP Client for ULTRIX
•
Release Notes: PrintServer TCP/IP Client for ULTRIX
Other Programming Documentation
•
Font File Format User’s Guide (EK–CFFFM–UG)
DEC PPL3 Printer Documentation D–3
Index
A
B
Addressing capability
ANSI Text translator, 2–1
DEClaser 1100 printer, 21–1
DEClaser 2100/2200 printers, 12–1
DEClaser 3200 printer, 31–1
Algorithmic transformations
font attributes
ANSI Text translator, 7–6
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–8
DEClaser 3200 printer, 36–8
memory use
DEClaser 1100 printer, 26–10
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–9
Alternative protocols
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
DEClaser 3200 printer, 38–1
Attributes
ANSI Text translator, 7–6
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–8
DEClaser 3200 printer, 36–8
Automatic Sheet Feeder Control (DECASFC)
command
ANSI Text translator, 5–1
DEClaser 1100 printer, 24–2
DEClaser 2100/2200 printers, 15–3
DEClaser 3200 printer, 34–2
Bold attribute
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–8
C
Character sets
ANSI Text translator, 7–2
DEClaser 1100 printer, 26–2
DEClaser 2100/2200 printers, 17–2
DEClaser 3200 printer, 36–2
Commands
comparison by printer, A–1
generic error parameter summary, B–1
Control representation mode
DEClaser 3200 printer, 35–2
CPR
See Cursor Position Report (CPR)
command
Cursor Position Report (CPR) command
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1
DEClaser 3200 printer, 35–1
Index–1
D
DA2R (Device Attributes (Secondary) Report)
command
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1
DEClaser 3200 printer, 35–1
DAR (Device Attributes Report) command
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1
DEClaser 3200 printer, 35–1
Debugging software
font error and warning report, 36–10,
C–2
DECASFC
See Automatic Sheet Feeder Control
(DECASFC) command
DECFSR (Font Status Report) command,
36–10, B–1, C–2
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1,
17–10
DEClaser 3200 printer, 35–1
DECGRA, 37–2
DECIPEM (IBM Proprinter Emulation Mode)
command
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
DEClaser 1150 printer
ANSI translation specific to, 10–10 to
10–15
downline loaded font capacity, 10–2,
10–11
printing ANSI/sixel files, 10–11
DEClaser 2150/2250 printer
downline loaded font capacity, 10–2
DEClaser 2150/2250 printers
ANSI translation specific to, 10–10 to
10–15
downline loaded font capacity, 10–11
printing ANSI/sixel files, 10–11
DEClaser 3250 printer
ANSI translation specific to, 10–1 to
10–5
Index–2
DEClaser 3250 printer (Cont.)
downline loaded font capacity, 10–2
printing ANSI/sixel files, 10–6
DECLFF (Load Font File) command
ANSI Text translator, 7–1
DEClaser 1100 printer, 26–1, 26–10,
26–11
DEClaser 2100/2200 printers, 17–1, 17–9,
17–11
DEClaser 3200 printer, 36–1, 36–9
DECSDPM (Set Duplex Print Mode)
command
ANSI Text translator, 5–1
DEClaser 1100 printer, 24–1
DEClaser 2100/2200 printers, 15–1
DEClaser 3200 printer, 34–1
DECSHORP (Set Horizontal Pitch) command
ANSI Text translator, 2–1
DEClaser 1100 printer, 21–1
DEClaser 2100/2200 printers, 12–1
DEClaser 3200 printer, 31–1
DECSITF (Select Input Tray Failover)
command, C–4
for the DEClaser 3200 printer, 34–5
DECSSS (Set Sheet Size) command
ANSI Text translator, 5–3
DEClaser 1100 printer, 24–3
DEClaser 2100/2200 printers, 15–4
DEClaser 3200 printer, 34–3
Default settings
DEClaser 1100 printer, 22–1, 22–5
DEClaser 1150 printer, 10–11
DEClaser 2100/2200 printers, 13–1
DEClaser 2150/2250 printers, 10–11
DEClaser 3250 printer, 10–3, 10–7,
10–11
LN03 Image printer, 10–3, 10–7
PrintServer printers, 10–7
ScriptPrinter printer, 10–3
SGR numbers
ANSI Text translator, 3–3
DEClaser 1100 printer, 22–4
DEClaser 2100/2200 printers, 13–4
DEClaser 3200 printer, 32–3
with paper cassette
Default settings
with paper cassette (Cont.)
DEClaser 1100 printer, 22–5
DEClaser 2100/2200 printers, 13–5
with paper size
DEClaser 3200 printer, 32–4
with paper size and orientation
ANSI Text translator, 3–3
Device Attributes (Secondary) Report (DA2R)
DEClaser 1100 printer, 25–1, 25–3
DEClaser 2100/2200 printers, 16–1, 16–4
DEClaser 3200 printer, 35–1, 35–4
Device Attributes Report (DAR)
alias response parameters
DEClaser 1100 printer, 25–3
DEClaser 2100/2200 printers, 16–4
DEClaser 3200 printer, 35–3
DEClaser 1100 printer, 25–2
DEClaser 2100/2200 printers, 16–2
DEClaser 3200 printer, 35–2
generic response parameters
DEClaser 1100 printer, 25–2
DEClaser 2100/2200 printers, 16–3
DEClaser 3200 printer, 35–2
Device Status Report (DSR)
command
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1
DEClaser 3200 printer, 35–1
error parameters
DEClaser 1100 printer, 25–5
DEClaser 2100/2200 printers, 16–7
DEClaser 3200 printer, 35–6
Documentation
DEC PPL3 printers, D–1
Double underline
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–9
Downline loaded font capacity
DEClaser 1150 printer, 10–11
DEClaser 2150/2250 printers, 10–11
PrintServer printers, 10–6
ScriptPrinter and LN03 Image printers,
10–2
DSR (Device Status Report) command
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1
DEClaser 3200 printer, 35–1
generic error codes, B–2
Duplex printing
ANSI Text translator, 5–1
DEClaser 1100 printer, 24–1
DEClaser 2100/2200 printers, 15–1
DEClaser 3200 printer, 34–1
E
Envelope sizes
DEClaser 1100 printer, 21–4
DEClaser 2100/2200 printers, 12–4
DEClaser 2150/2250 printers, 10–13
DEClaser 3200 printer, 31–5
Error and status reporting
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1
DEClaser 3200 printer, 35–1
Error parameters
Device Status Reports, B–2
DEClaser 1100 printer, 25–5
DEClaser 2100/2200 printers, 16–7
DEClaser 3200 printer, 35–6
generic error codes, B–2
Error parameter summary, B–1
Extensions
comparison by printer, A–1
F
Factory defaults in NVM
DEClaser 1100 printer printer, 22–5
DEClaser 2100/2200 printers, 13–6
DEClaser 3200 printer, 32–5
Failover, C–4
Fallback metrics, 17–10, 26–10, 36–10
Font
reporting errors and warnings, C–2
Font file validation, B–3
DEClaser 1100 printer, 26–11
DEClaser 2100/2200 printers, 17–10
Index–3
Font file validation (Cont.)
DEClaser 3200 printer, 36–10
summary of errors, B–1
Font list, 17–10, 26–10
Font metrics
for the ANSI Text translator, 7–6
for the DEClaser 1100 printer, 26–8
for the DEClaser 2100/2200 printers,
17–8
for the DEClaser 3200 printer, 36–7
Font repertory
ANSI Text translator, 7–1
built-in fonts, 7–2
DEClaser 1100 printer, 26–1
built-in fonts, 26–2
DEClaser 2100/2200 printers, 17–1
built-in fonts, 17–2
DEClaser 3200 printer, 36–2
built-in fonts, 36–2
Fonts, downline loaded
in DEClaser 1150 printer, 10–11
in DEClaser 2150/2250 printers, 10–11
in PrintServer printers, 10–6
in ScriptPrinter or LN03 Image printers,
10–2
Font Status Report (DECFSR) command,
C–2
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1,
17–10
DEClaser 3200 printer, 35–1
H
Horizontal resolution
ANSI Text translator, 2–1
DEClaser 1100 printer, 21–1
DEClaser 2100/2200 printers, 12–1
DEClaser 3200 printer, 31–1
Horizontal spacing
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 3200 printer, 36–9
Index–4
I
IBM Proprinter Emulation Mode (DECIPEM)
command
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
Initial state values
DEClaser 1100 printer, 22–1
DEClaser 1150 printer, 10–11
DEClaser 2100/2200 printers, 13–1
DEClaser 2150/2250 printers, 10–11
DEClaser 3250 printer, 10–11
LN03 Image printer, 10–3
PrintServer printers, 10–7
ScriptPrinter printer, 10–3
SGR numbers
ANSI Text translator, 3–3
DEClaser 1100 printer, 22–4
DEClaser 2100/2200 printers, 13–3
DEClaser 3200 printer, 32–3
with paper cassette
DEClaser 1100 printer, 22–5
DEClaser 2100/2200 printers, 13–5
with paper size
DEClaser 3200 printer, 32–4
with paper size and orientation
ANSI Text translator, 3–3
Input tray
ANSI Text translator, selecting with, 5–1
DEClaser 1100 printer, selecting on, 24–2
DEClaser 2100/2200 printers, selecting
on, 15–3
DEClaser 3200 printer, selecting on, 34–2
failover, C–4
Italic attribute
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–8
J
Justification, 2–6
DEClaser 1100 printer, 21–7
DEClaser DEClaser 2100/2200 printers,
12–7
K
Kerning
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–10
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–9
L
LN03 Image printer
ANSI translation specific to, 10–1, 10–5
printing ANSI/sixel files, 10–2
Load Font File (DECLFF) command
ANSI Text translator, 7–1
DEClaser 1100 printer, 26–1, 26–10,
26–11
DEClaser 2100/2200 printers, 17–1, 17–9,
17–11
DEClaser 3200 printer, 36–1, 36–9
M
Macro parameter
ANSI Text translator values, 8–1
DEClaser 1100 printer values, 27–1
DEClaser 2100/2200 printer values, 18–1
DEClaser 3200 printer values, 37–1
Macro values, NVM
for DEClaser 1100 printer, 22–6
for DEClaser 2100/2200 printers, 13–7
Maximum values
ANSI Text translator, 4–1
DEClaser 1100 printer, 23–1
DEClaser 2100/2200 printers, 14–1
DEClaser 3200 printer, 33–1
Memory use, reducing
DEClaser 1100 printer, 26–10
Memory use, reducing (Cont.)
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–9
Miscellaneous considerations and
restrictions, 37–2
N
National Replacement Character sets
(NRCS)
DEClaser 3200 printer, 36–8
National Replacement Character Sets
(NRCS)
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
NVM
factory defaults
DEClaser 1100 printer printer, 22–5
DEClaser 2100/2200 printers, 13–6
DEClaser 3200 printer, 32–5
macro values
for DEClaser 1100 printer, 22–6
for DEClaser 2100/2200 printers,
13–7
O
Orientation
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–8
Overline attribute
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–8
P
Page format, orientation
DEClaser 1150 printer, 10–15
DEClaser 2150/2250 printers, 10–15
LN03R ScriptPrinter printer, 10–4
PrintServer printers, 10–9
Index–5
Page size, mapping to physical sheet size
ANSI Text translator, 2–4
DEClaser 1100 printer, 21–5
DEClaser 2100/2200 printers, 12–5
DEClaser 3200 printer, 31–5
Paper handling, 34–1
Paper tray
failover, C–4
Parameters
warning, B–1
Parameter values, maximum
ANSI Text translator, 4–1
DEClaser 1100 printer, 23–1
DEClaser 2100/2200 printers, 14–1
DEClaser 3200 printer, 33–1
Position accuracy
DEClaser 1100 printer, 21–7
DEClaser 3200 printer, 31–7
DEClaser DEClaser 2100/2200 printers,
12–7
Printable area
ANSI Text translator, 2–4
DEClaser 1100 printer, 21–4
DEClaser 1150 printer, 10–12
DEClaser 2100/2200 printers, 12–4
DEClaser 2150/2250 printers, 10–12
DEClaser 3200 printer, 31–4
LN03 Image printer, 10–3
PrintServer printers, 10–8
ScriptPrinter printer, 10–3
Printer
commands compared by, A–1
Printer documentation, D–1
Printer identification, 35–2
DEClaser 1100 printer, 25–2
DEClaser 2100/2200 printers, 16–2
Printer reports
ANSI translator, 6–1
DEClaser 1100 printer, 25–1
DEClaser 2100/2200 printers, 16–1
DEClaser 3200 printer, 35–1
Printing ANSI files
on DEClaser 2150/2250 printers, 10–11
on LN03 Image printer, 10–2
on PrintServer printers, 10–6
Index–6
Printing ANSI files (Cont.)
on ScriptPrinter printer, 10–2
on the DEClaser 1150 printer, 10–11
Printing sixel files
on DEClaser 2150/2250 printers, 10–11
on LN03 Image printer, 10–2
on PrintServer printers, 10–6
on ScriptPrinter printer, 10–2
on the DEClaser 1150 printer, 10–11
PrintServer printers
downline loaded font capacity, 10–6
printing ANSI/sixel files, 10–6
Protocols, alternative
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
DEClaser 3200 printer, 38–1
R
Reports
ANSI Text translator, 6–1
Device Attributes (Secondary) Report
(DA2R)
DEClaser 1100 printer, 25–3
DEClaser 2100/2200 printers, 16–4
DEClaser 3200 printer, 35–4
Device Attributes Report (DAR)
DEClaser 1100 printer, 25–2
DEClaser 2100/2200 printers, 16–2
DEClaser 3200 printer, 35–2
font errors and warnings, C–2
font status, C–2
Resolution
ANSI Text translator, 2–1
DEClaser 1100 printer, 21–1
DEClaser 2100/2200 printers, 12–1
DEClaser 3200 printer, 31–1
horizontal
ANSI Text translator, 2–1
DEClaser 1100 printer, 21–1
DEClaser 2100/2200 printers, 12–1
DEClaser 3200 printer, 31–1
vertical
ANSI Text translator, 2–2
DEClaser 1100 printer, 21–2
Resolution
vertical (Cont.)
DEClaser 2100/2200 printers, 12–2
DEClaser 3200 printer, 31–2
Return from Other Coding System (ROCS)
command
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
DEClaser 3200 printer, 38–1
ROCS (Return from Other Coding System)
command
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
DEClaser 3200 printer, 38–1
S
Scaling
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–10
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–9
ScriptPrinter printer
ANSI translation specific to, 10–1, 10–5
downline loaded font capacity, 10–2
printing ANSI/sixel files, 10–2
Select Input Tray Failover (DECSITF)
command, C–4
for the DEClaser 3200 printer, 34–5
Select Other Coding System (SOCS)
command
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
DEClaser 3200 printer, 38–1
Set Duplex Print Mode (DECSDPM)
command
ANSI Text translator, 5–1
DEClaser 1100 printer, 24–1
DEClaser 2100/2200 printers, 15–1
DEClaser 3200 printer, 34–1
Set Horizontal Pitch (DECSHORP) command
ANSI Text translator, 2–1
DEClaser 1100 printer, 21–1
Set Horizontal Pitch (DECSHORP) command
(Cont.)
DEClaser 2100/2200 printers, 12–1
DEClaser 3200 printer, 31–1
Set Sheet Size (DECSSS) command
ANSI Text translator, 5–3
DEClaser 1100 printer, 24–3
DEClaser 2100/2200 printers, 15–4
DEClaser 3200 printer, 34–3
Sheet feeder, C–4
Sixel graphics
macro parameter values
ANSI Text translator, 8–1
DEClaser 1100 printer, 27–1
DEClaser 2100/2200 printers, 18–1
DEClaser 3200 printer, 37–1
resolution
DEClaser 1150 printer, 10–14
DEClaser 2150/2250 printers, 10–14
PrinterServer printers, 10–8
ScriptPrinter printer, 10–4
SOCS (Select Other Coding System)
command
ANSI Text translator, 9–1
DEClaser 1100 printer, 28–1
DEClaser 2100/2200 printers, 19–1
DEClaser 3200 printer, 38–1
Spacing criterion fallback, 7–7, 17–10, 36–9
DEClaser 1100 printer, 26–10
Status and error reporting, 35–1
Strike-through attribute
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–8
T
Tray selection, C–4
Two-sided printing
ANSI Text translator, 5–1
DEClaser 1100 printer, 24–1
DEClaser 2100/2200 printers, 15–1
DEClaser 3200 printer, 34–1
Type families
ANSI Text translator, 7–2
Index–7
Type families (Cont.)
DEClaser 1100 printer, 26–3
DEClaser 2100/2200 printers, 17–2
DEClaser 3200 printer, 36–3
Type family names, 36–3
U
Underlining attributes
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–8
Index–8
V
Validation tests
for downline loaded font files, B–3
Valid set raster attributes commands
(DECGRA), 37–2
Vertical resolution
ANSI Text translator, 2–2
DEClaser 1100 printer, 21–2
DEClaser 2100/2200 printers, 12–2
DEClaser 3200 printer, 31–2
Vertical spacing
ANSI Text translator, 7–7
DEClaser 1100 printer, 26–9
DEClaser 2100/2200 printers, 17–9
DEClaser 3200 printer, 36–9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
