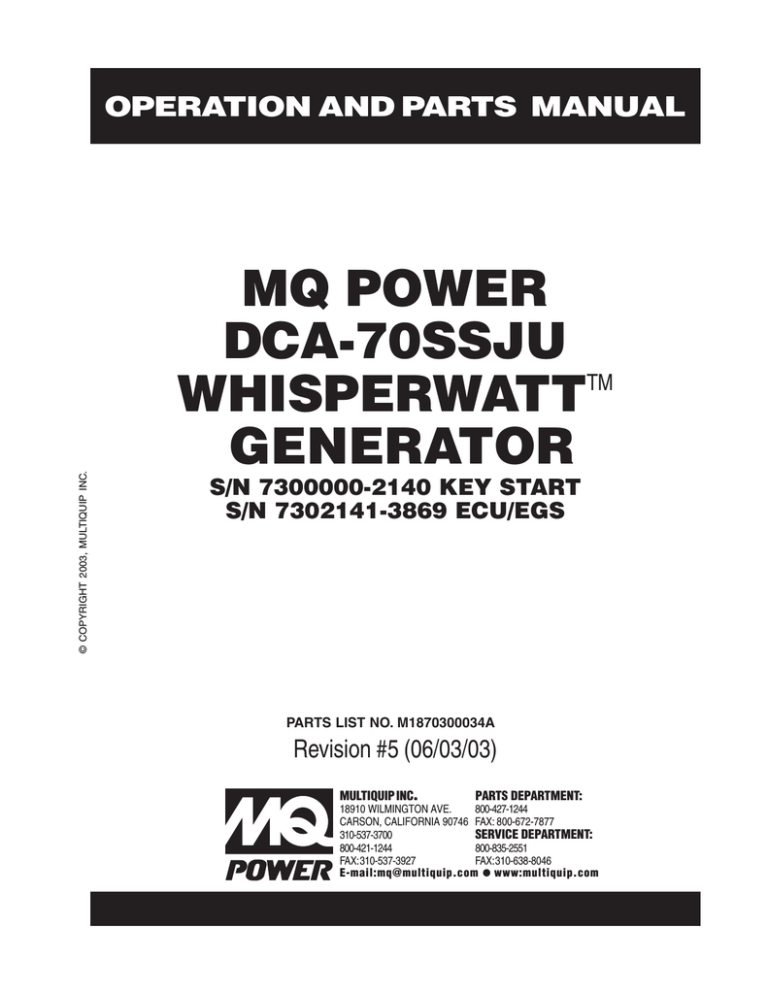

PARTS AND OPERATION MANUAL
© COPYRIGHT 2003, MULTIQUIP INC.
OPERATION AND PARTS MANUAL
MQ POWER
DCA-70SSJU
TM
WHISPERWATT
GENERATOR
S/N 7300000-2140 KEY START
S/N 7302141-3869 ECU/EGS
PARTS LIST NO. M1870300034A
Revision #5 (06/03/03)
MULTIQUIP INC..
PARTS DEPARTMENT:
18910 WILMINGTON AVE.
800-427-1244
CARSON, CALIFORNIA 90746 FAX: 800-672-7877
SERVICE DEPARTMENT:
310-537-3700
800-421-1244
800-835-2551
FAX: 310-537-3927
FAX: 310-638-8046
E-mail:[email protected]  www:multiquip.com
PAGE 2 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
HERE'S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
PARTS DEPARTMENT
800-427-1244 or 310-537-3700
FAX: 800-672-7877 or 310-637-3284
SERVICE DEPARTMENT
800-421-1244
FAX: 310- 537-4259
TECHNICAL ASSISTANCE
800-478-1244
FAX: 310- 631-5032
WARRANTY DEPARTMENT
888-661-4279, or 310-661-4279
FAX: 310- 537-1173
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 3
TABLE OF CONTENTS
MQ POWER DCA70SSJU
AC GENERA
TOR
GENERATOR
Here's How To Get Help .................................................... 3
Table Of Contents ............................................................. 4
Parts Ordering Procedures ............................................... 5
Specifications ................................................................... 6
Dimensions (Top, Side, Front) ........................................... 7
Safety Message Alert Symbols .................................... 8-9
Rules for Safe Operation ........................................... 10-13
Installation ................................................................. 14-15
Towing Safety Precaution ............................................... 16
Trailer Specifications ................................................. 17-19
Generator Decals ....................................................... 20-21
General Information ........................................................ 22
Major Components ......................................................... 23
Generator Control Panel ................................................. 24
Engine Operating Panel (up to S/N 73002140) ............... 25
Engine Operating Panel (S/N 73002140~) ................. 26-27
Output Terminal Panel Familiarization ........................ 28-30
Load Application ............................................................. 31
Generator Outputs ..................................................... 32-33
Gauge Reading ............................................................... 33
Output Terminal Panel Connections ........................... 34-35
Pre Setup .................................................................. 36-40
Generator Start-up Procedure (Manual) ..................... 41-44
Generator Start-up Procedure (Auto Mode) .................... 45
Generator Shut-Down Procedure .................................... 46
Maintenance .............................................................. 47-49
Trailer Brakes Maintenance ............................................ 50
Trailer Maintenance .................................................... 51-52
Trailer Wiring Diagram ..................................................... 53
Generator Wiring Diagram ............................................... 54
Engine Wiring Diagram (w/ Controller) ............................ 55
Engine Wiring Diagram (Ignition Switch) ......................... 56
Engine Troubleshooting .............................................. 57-58
Generator Troubleshooting .............................................. 59
Engine Controller Troubleshooting ................................... 60
Explanation of Code in Remarks Column ....................... 62
Suggested Spare Parts .................................................. 63
COMPONENT DRA
WINGS
DRAWINGS
Name Plate And Decals ............................................ 64-65
Generator Assembly .................................................. 66-69
Control Box Assembly ............................................... 70-75
Engine & Radiator Assembly ..................................... 76-79
Engine Operating Panel Assembly ............................ 80-83
Output Terminal Assembly ......................................... 84-85
Battery Assembly ...................................................... 86-87
Muffler Assembly ...................................................... 88-89
Fuel Tank Assembly .................................................. 90-95
Enclosure Assembly ................................................. 96-97
Rubber Seal Assembly .............................................. 98-99
Terms and Condition of Sale — Parts .......................... 100
NOTE
Specification and part
number are subject to
change without notice.
PAGE 4 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
PARTS ORDERING PROCEDURES
When ordering parts,
please supply the following information:
❒
❒
❒
❒
❒
❒
❒
Dealer account number
Dealer name and address
Shipping address (if different than billing address)
Return fax number
Applicable model number
Quantity, part number and description of each part
Specify preferred method of shipment:
Note: Unless otherwise indicated by customer, all
✓ FedEx or UPS Ground
orders are treated as “Standard Orders”, and will
✓ FedEx or UPS Second Day or Third Day
ship within 24 hours. We will make every effort to
✓ FedEx or UPS Next Day
ship “Air Shipments” the same day that the order is
✓ Federal Express Priority One
received, if prior to 2PM west coast time. “Stock
Orders” must be so noted on fax or web forms.
✓ DHL
✓
Truck
Here’s how to get help...
Please have the model and serial number on
hand when calling.
Parts Department
800-427-1244
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
Mayco Parts
800-306-2926
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
Service Department
800-478-1244
310-537-3700
Fax: 310-537-4259
MQ Power Service Department
800-835-2551
Fax: 310-638-8046
310-537-3700
Warranty Department
800-421-1244, Ext. 279
310-537-3700, Ext. 279
Fax: 310-537-1173
Multiquip’s Main Phone Numbers
800-421-1244
Fax: 310-537-3927
310-537-3700
MULTIQUIP INC.
18910 WILMINGTON AVENUE
POST OFFICE BOX 6254
CARSON, CALIFORNIA 90749
310-537-3700 • 800-421-1244
FAX: 310-537-3927
E-MAIL: [email protected]
WWW: multiquip.com
Place Your Parts Order Via Web or Fax
For Even More Savings!
Extra Discounts!
All parts orders which include complete part numbers
and are received by our automated web parts order
system, or by fax qualify for the following extra
discounts:
Ordered
via
Fax
Standard
orders
3%
Web
5%
Stock orders
($750 list and above)
10%
10%
Special freight allowances
when you order 10 or more
line items via Web or Fax!**
FedEx Ground Service at no charge for freight
No other allowances on freight shipped by any other
carrier.
NOTE: DISCOUNTS ARE SUBJECT TO CHANGE
Direct TOLL-FREE access
to our Parts Department:
Toll-free nationwide — 800-427-1244
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 5
DCA-70SSJU SERIES — SPECIFICATIONS
Table 1. Generator Specifications
Model
DCA-70SSJU
Type
Revolving field, self ventilated, open protected type synchronous
generator
Armature Connection
Star with Neutral
Zig Zag
P ha s e
3
Single
Standby Output
77 KVA (61.6 KW)
44 KW
Prime Output
70 KVA (56 KW)
40KW
Voltage
240V or 480V
240/120V
Frequency
60 Hz
S pe e d
1800 r pm
Power Factor
0.8
1
Aux. AC Power
Single Phase, 60 Hz
Voltage
120 V
Output
4.8 KW (2.4 KW x 2)
Engine Specifications
Model
JOHN DEERE 4045TF 150
Type
4 Cycle, water-cooled, direct injection, turbo-charged
No. of Cylinders
4 cylinders
Bore x Stroke
4.19 in. x 5 in. (106 mm x 127 mm)
Rated Output
90HP/1800 rpm
Displacement
274 cu. in. (4500 cc)
Starting
Electric
Coolant Capacity
6.9 gal. (26 liters)
Lube Oil Capacity
3.4 gal. (13 liters)
4.7 gal. (17.9L)/hr at full load
3.5 gal. (13.3L)/hr at 3/4 load
2.6 gal. (9.9L)/hr at 1/2 load
1.6 gal. (6.1L)/hr at 1/4 load
Fuel Consumption
Battery
12V- 120AH
Fuel
#2 Diesel Fuel
PAGE 6 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — DIMENSIONS (TOP, SIDE AND FRONT)
Figure 1. Dimensions
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 7
DCA70SSJU — SAFETY MESSAGE ALERT SYMBOLS
FOR YOUR SAFETY AND THE SAFETY OF OTHERS!
Safety precautions should be followed at all times when operating
this equipment. Failure to read and understand the Safety
Messages and Operating Instructions could result in injury to
yourself and others.
NOTE
This Owner's Manual has been
developed to provide complete
instructions for the safe and
efficient operation of the MQ Power
Model DCA70SSJU Series
WHISPERWATT™ GENERATOR.
Before using this GENERATOR, ensure that the operating
individual has read and understands all instructions in this
manual.
SAFETY MESSAGE ALERT SYMBOLS
The three (3) Safety Messages shown below will inform you
about potential hazards that could injure you or others. The
Safety Messages specifically address the level of exposure to
the operator, and are preceded by one of three words: DANGER,
WARNING, or CAUTION.
HAZARD SYMBOLS
Lethal Exhaust Gases
Engine exhaust gases contain poisonous
carbon monoxide. This gas is colorless and
odorless, and can cause death if inhaled.
NEVER operate this equipment in a confined
area or enclosed structure that does not
provide ample free flow air.
Explosive Fuel
Diesel fuel is extremely flammable, and its
vapors can cause an explosion if ignited. DO
NOT start the engine near spilled fuel or
combustible fluids. DO NOT fill the fuel tank
while the engine is running or hot. DO NOT
overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or
sparks from the ignition system. Store fuel in
approved containers, in well-ventilated areas
and away from sparks and flames. NEVER
use fuel as a cleaning agent.
Burn Hazards
DANGER:
You WILL be KILLED or
SERIOUSLY injured if you DO NOT follow
directions.
Engine components can generate extreme heat.
To prevent burns, DO NOT touch these areas
while the engine is running or immediately after
operations. NEVER operate the engine with
heat shields or heat guards removed.
WARNING:
You CAN be KILLED or
SERIOUSLY injured if you DO NOT follow
directions.
CAUTION: You CAN be injured if you
DO NOT follow directions.
Rotating Parts
NEVER operate equipment with covers, or
guards removed. Keep fingers, hands, hair
and clothing away from all moving parts to
prevent injury.
Potential hazards associated with trowel operation will be
referenced with "Hazard Symbols" which appear throughout
this manual, and will be referenced in conjunction with Safety
"Message Alert Symbols".
PAGE 8 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA70SSJU — SAFETY MESSAGE ALERT SYMBOLS
Accidental Starting
ALWAYS place the engine ON/OFF switch
in the OFF position, when the trowel is not
in use.
Over Speed Conditions
NEVER tamper with the factory settings of the
engine governor or settings. Personal injury
and damage to the engine or equipment can
result if operating in speed ranges above
maximum allowable.
Respiratory Hazard
ALWAYS wear approved respiratory protection.
Sight and Hearing hazard
ALWAYS wear approved eye and hearing
protection.
Equipment Damage Messages
This generator, other property, or
NOTE
the surrounding environment could
be damaged if you do not follow
instructions.
Other important messages are provided throughout this manual
to help prevent damage to your trowel, other property, or the
surrounding environment.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 9
DCA-70SSJU SERIES — RULES FOR SAFE OPERATION
■ NEVER touch the hot exhaust
manifold, muffler or cylinder. Allow
Failure to follow instructions in this manual may
these parts to cool before servicing
lead to serious injury or even death! This
engine or generator.
equipment is to be operated by trained and
qualified personnel only! This equipment is for
industrial use only.
The following safety guidelines should always be used when ■ High Temperatures – Allow the engine to cool before
operating the DCA-70SSJU Series Generator:
performing service and maintenance functions. Contact
with hot! components can cause serious burns.
GENERAL SAFETY
CAUTION
CAUTION:
■ DO NOT operate or service this equipment
before reading this entire manual.
■ This equipment should not be operated by persons under 18
years of age.
■ NEVER operate this equipment without proper
protective clothing, shatterproof glasses, steeltoed boots and other protective devices required
by the job.
■ NEVER operate this equipment when not feeling
well due to fatigue, illness or taking medicine.
■ NEVER operate this equipment under the
influence or drugs or alcohol.
■ NEVER use accessories or attachments, which are not
recommended by MQ Power for this equipment. Damage to
the equipment and/or injury to user may result.
■ Manufacture does not assume responsibility for any accident
due to equipment modifications.
■ Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
■ ALWAYS check the machine for loosened threads or bolts
before starting.
■ NEVER operate the generator in an explosive atmosphere or
near combustible materials. An explosion or fire could result
causing severe bodily harm or even death.
■ The engine of this
generator requires an
adequate free flow of
cooling air. NEVER
operate the generator
in any enclosed or
narrow area where free
flow of the air is
restricted. If the air flow
is restricted it will
cause serious damage to the generator or engine and
may cause injury to people. The generator engine gives
off DEADLY carbon monoxide gas.
■ ALWAYS make sure generator is properly grounded.
■ NEVER use gas piping as an electrical ground.
■ DO NOT place hands or fingers inside generator engine
compartment when engine is running.
■ ALWAYS make sure generator installation is accordance with
national and local electrical codes.
■ ALWAYS have a qualified electrician perform the generator
wiring installation.
■ NEVER power cables or cords lay in water.
■ NEVER stand in water while AC power from the generator
is being transfer to a load.
■ NEVER use a defective or frayed power cable. Check the
cable for cuts in the insulation.
■ NEVER use a extension cord that is frayed or damaged where
the insulation has been cut.
■ ALWAYS make certain that proper extension cord has been
selected for the job See Table 5.
■ The electrical voltage required to operate the generator can
cause severe injury or even death through physical contact
with live circuits. Turn all circuit breakers OFF before
performing maintenance on the generator.
PAGE 10 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — RULES FOR SAFE OPERATION
■ ALWAYS make sure that electrical circuits are properly
grounded per the National Electrical Code (NEC) and local
codes before operating generator. Severe injury or death! by
electrocution can result from operating an ungrounded
generator.
■ ALWAYS be sure the operator is familiar with proper safety
precautions and operations techniques before using generator.
■ ALWAYS store equipment properly when it is not being used.
Equipment should be stored in a clean, dry location out of the
reach of children.
■ ALWAYS read, understand, and follow
procedures in Operator’s Manual before
attempting to operate equipment.
DANGER
DANGER:
Never use damaged or worn cables when
connecting equipment to the generator.
Make sure power
connecting
cables
are
securely connected to the
generator’s output terminals,
insufficient tightening of the
terminal connections may cause
damage to the generator and
electrical shock.
WET
DANGER
DANGER:
DANGER
DANGER:
HANDS
NEVER grab or
touch a live
power cord with
wet hands , the POWER
CORD
possibility exists (POWER
ON)
of electrical shock, electrocution, and even
death!
.
DANGER
DANGER:
■ Backfeed to a utility system can cause electrocution and or
property damage. DO NOT connect to any building's electrical
system except through an approved device or after building
main switch is opened. ALWAYS have a licensed electrician
perform the installation
CAUTION
CAUTION:
DO NOT touch or open any of the below
mentioned components while the
generator is running. Always allow
sufficient time for the engine and generator
to cool before performing maintenance.
Radiator
1. Radiator Cap - Removing the radiator cap while the engine
is hot will result in high pressurized, boiling water to gush
out of the radiator, causing severe scalding to any persons
in the general area of the generator.
2. Coolant Drain Plug - Removing the coolant drain plug
while the engine is hot will result in hot coolant to gush out
of the coolant drain plug, therefore causing severe scalding
to any persons in the general area of the generator.
3. Engine Oil Drain Plug - Removing the engine oil drain
plug while the engine is hot will result in hot oil to gush out
of the oil drain plug, therefore causing severe scalding to
any persons in the general area of the generator.
Maintenance Safety
■ NEVER lubricate components or attempt service on a running
machine.
■ ALWAYS allow the machine a proper
amount of time to cool before servicing.
■ NEVER touch output terminals during operation. This is
extremely dangerous. ALWAYS stop the machine and ■ Keep the machinery in proper running condition.
place the circuit breaker in the “OFF” position when contact ■ Fix damage to the machine immediately and always replace
with the output terminals is required. There exists the
broken parts.
possibility of electrocution, electrical shock or burn,
1
which can cause severe bodily harm or even death!
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 11
DCA-70SSJU— RULES FOR SAFE OPERATION
■ NEVER Run engine without air filter. Severe engine
damage may occur.
■ ALWAYSservice air cleaner frequently to prevent engine
malfunction.
■ ALWAYS disconnect the negative battery terminal before
performing service on the generator.
Battery
The battery contains acids that can cause injury to the eyes
and skin. To avoid eye irritation, always wear safety glasses.
Use well insulated gloves when picking up the battery. Use
the following guidelines when handling the battery:
■ ALWAYS be sure the operator is familiar with proper safety
precautions when operating the generator set.
■ ALWAYS store equipment properly when not in use.
■ DO NOT leave the generator running in the manual mode
unattended.
1. DO NOT drop the battery. There is the possibility of risk
that the battery may explode.
■ DO NOT allow unauthorized people to operate this
equipment.
2. DO NOT expose the battery to
open flames, sparks, cigarettes
etc. The battery contains
■ ALWAYS read, understand, and follow procedures in
combustible gases and liquids. If
Operator’s Manual before attempting to operate equipment.
these gases and liquids come in
■ Refer to the John Deere Engine Owner's Manual for
contact with a flame or spark, an
engine technical questions or information.
explosion could occur.
DANGER:
Pay close attention to
ventilation when operating
the generator inside
tunnels and caves. The
engine exhaust contains noxious elements.
Engine exhaust must be routed to a
ventilated area.
Generator Grounding
To guard against electrical shock and possible damage to
the equipment, it is important to provide a good EARTH
ground.
Article 250 (Grounding) of the National Electrical Code
(NEC) provides guide lines for proper grounding and specifies
that the cable ground shall be connected to the grounding
system of the building as close to the point of cable entry
as practical.
ALWAYS be sure to use the ground terminal (green wire)
when connecting a load to the UVWO output terminals.
3. ALWAYS keep the battery charged. If the battery is not
charged a buildup of combustible gas will occur.
4. ALWAYS keep battery charging and cables in good working
condition. Repair or replace all worn cables.
5. ALWAYS recharge the battery in an vented air
environment, to avoid risk of a dangerous concentration
of combustible gases.
6. In case the battery liquid (dilute sulfuric acid) comes in
contact with clothing or skin, rinse skin or clothing
immediately with plenty of water.
7. In case the battery liquid (dilute sulfuric acid) comes in
contact with your eyes, rinse eyes immediately with plenty
of water, then contact the nearest doctor or hospital, and
seek medical attention.
Transporting
■ ALWAYS shutdown engine before transporting.
■ Tighten both fuel tank caps securely.
■ If generator is mounted on a trailer, make sure trailer
complies with all local and state safety transportation
laws. See next page “Towing Safety Precautions” for
basic towing techniques.
PAGE 12 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU— RULES FOR SAFE OPERATION
Towing Safety Precautions
■ Avoid sharp turns.
CAUTION:
■ Trailer should be adjusted to a level position at all times
when towing.
Conform to Department of Transportation
(DOT) Safety Towing Regulations before
towing generator.
To reduce the possibility of an accident while transporting
the generator on public roads, always make sure the trailer
that supports the generator and the towing vehicle are in
good operating condition and both units are mechanically
sound.
■ Raise and lock trailer wheel stand in up position when
transporting.
■ DOT Requirements include the following:
 Connect and test electric brake operation.
 Secure portable power cables in cable tray with
tie wraps.
Emergencies
■ ALWAYS know the location of the nearest fire extinguisher.
The following list of suggestions should be used when towing
your generator:
■ Make sure the hitch and coupling of the towing vehicle
are rated equal to, or greater than the trailer "gross vehicle
weight rating" (GVWR) of 6,000 lbs.
■ ALWAYS inspect the hitch and coupling for wear. NEVER
tow a trailer with defective hitches, couplings, chains
etc.
■ Check the tire air pressure on both towing vehicle and
trailer. Trailer tires should be inflated to 50 psi cold.
Also check the tire tread wear on both vehicles.
■ ALWAYS make sure the trailer is equipped with a "Safety
Chain".
■ ALWAYS attach trailer’s safety chains to towing vehicle
properly.
■ ALWAYS know the location of the nearest and first aid kit.
■ In emergencies always know the location of the
nearest phone or keep a phone on the job site.
Also know the phone numbers of the nearest
ambulance, doctor and fire department. This
information will be invaluable in the case of an
emergency.
■ ALWAYS make sure the vehicle and trailer directional,
backup, brake, and trailer lights are connected and
working properly.
■ The maximum speed for highway towing is 45 MPH
unless posted otherwise. Recommended off-road towing
is not to exceed 10 MPH or less depending on type of
terrain.
■ Place chock blocks underneath wheel to prevent rolling,
while parked.
■ Use the trailer’s swivel jack to adjust the trailer height to
a level position while parked.
■ Avoid sudden stops and starts. This can cause skidding,
or jack-knifing. Smooth, gradual starts and stops will
improve towing.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 13
DCA-70SSJU— INSTALLATION
Figure 2.
Typical Generator Grounding Application
PAGE 14 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU— INSTALLATION
Outdoor Installation
Generator Grounding
Install the generator in a area that is free of debris,
bystanders, and overhead obstructions. Make sure the
generator is on secure level ground so that it cannot slide or
shift around. Also install the generator in a manner so that
the exhaust will not be discharged in the direction of nearby
homes.
To guard against electrical shock and possible damage to
the equipment, it is important to provide a good EARTH
ground.
The installation site must be relatively free from moisture
and dust. All electrical equipment should be protected from
excessive moisture. Failure to do will result in deterioration
of the insulation and will result in short circuits and grounding.
Article 250 (Grounding) of the National Electrical Code (NEC)
provides guide lines for proper grounding and specifies that
the cable ground shall be connected to the grounding system
of the building as close to the point of cable entry as
practical.
NEC articles 250-64(b) and 250-66 set the following
grounding requirements:
Foreign materials such as dust, sand, lint and abrasive
materials have a tendency to cause excessive wear to
engine and alternator parts.
1. Use one of the following wire types to connect the
generator to earth ground.
CAUTION
CAUTION:
b. Aluminum - 8 AWG (8.4 mm2) or larger.
2. When grounding the generator (Figure 2) connect the
ground cable between the lock washer and the nut on
the generator and tighten the nut fully. Connect the other
end of the ground cable to earth ground.
Pay close attention to ventilation when
operating the generator inside tunnels and
caves. The engine exhaust contains
noxious elements. Engine exhaust must
be routed to a ventilated area.
a. Copper - 10 AWG (5.3 mm2) or larger.
3. NEC article 250-52(c) specifies that the earth ground
rod should be buried aminimum of 8 ft. into the ground.
Indoor Installation
Exhaust gases from diesel engines are extremely poisonous.
Whenever an engine is installed indoors the exhaust fumes
must be vented to the outside. The engine should be installed
at least two feet from any outside wall. Using an exhaust
pipe which is too long or too small can cause excessive
back pressure which will cause the engine to heat
excessively and possibly burn the valves.
NOTE
When connecting the generator to
any buildings electrical system
ALWAYS consult with a licensed
electrician.
Mounting
The generator must be mounted on a solid foundation (such
as concrete) and set firmly on the foundation to isolate
vibration of the generator when it is running. The generator
must set at least 6 inches above the floor or grade level (in
accordance to NFPA 110, Chapter 5-4.1). DO NOT remove
the metal skids on the bottom of the generator. They are to
resist damage to the bottom of the generator and to maintain
alignment.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 15
DCA-70SSJU SERIES — TOWING SAFETY PRECAUTIONS
Towing Safety Precautions
CAUTION
CAUTION:
Check with your local county or state safety
towing regulations before towing your
generator.
To reduce the possibility of an accident while transporting
the generator on public roads, always make sure the trailer
(Figure 4) that supports the generator and the towing vehicle
are in good operating condition and both units are
mechanically sound.
The following list of suggestions should be used when towing
your generator:
■ Make sure the hitch and coupling of the towing vehicle
are rated equal to, or greater than the trailer "gross vehicle
weight rating" (GVWR).
■ ALWAYS inspect the hitch and coupling for wear. NEVER
tow a trailer with defective hitches, couplings, chains
etc.
■ Check the tire air pressure on both towing vehicle and
trailer. Also check the tire tread wear on both vehicles.
■ ALWAYS make sure the trailer is equipped with a "Safety
Chain".
■ ALWAYS attach trailer’s safety chain to bumper of towing
vehicle.
■ ALWAYS make sure the vehicle and trailer directional,
backup, brake, and trailer lights are connected and
working properly.
■ The maximum speed for highway towing is 55 MPH
unless posted otherwise. Recommended off-road towing
is not to exceed 15 MPH or less depending on type of
terrain.
■ Place chocked blocks underneath wheel to prevent
rolling, while parked.
■ Place support blocks underneath the trailer’s bumper to
prevent tipping, while parked.
■ Use the trailer’s hand winch to adjust the height of the
trailer, then insert locking pin to lock wheel stand in place,
while parked.
■ Avoid sudden stops and starts. This can cause skidding,
or jackknifing. Smooth, gradual starts and stops will
improve gas milage.
■ Avoid sharp turns to prevent rolling.
■ Remove wheel stand when transporting.
■ DO NOT transport generator with fuel in tank.
Figure 3. Generator with Trailer
PAGE 16 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — TRAILER SPECIFICATIONS
CAUTION
CAUTION:
ALWAYS make sure the trailer is in good
operating condition. Check the tires for
proper inflation and wear. Also check the
wheel lug nuts for proper tightness.
Explanation of Chart:
This section is to provide the user with trailer service and
maintenance information. The service and maintenance
guidelines referenced in this section apply a wide range of
trailers. Remember periodic inspection of the trailer will ensure safe towing of the equipment and will prevent damage
to the equipment and personal injury.
It is the purpose of this section to cover the major maintenance components of the trailer. The following trailer components will be discussed in this section:
 Brakes
 Tires
 Lug Nut Torquing
 Suspension
 Electrical
 Brake Troubleshooting Tables
Use the following definitions when reading Table 2.
1. Fuel Cell - Provides an adequate amount of fuel for the
equipment in use. Fuel cells must be empty when transporting equipment.
2. Braking System - System employed in stopping the
trailer. Typical braking systems are electric, surge, hydraulic, hydraulic-surge and air.
3. GVWR- Gross Vehicle Weight Rating (GVWR), is the
maximum number of pounds the trailer can carry, including the fuel cell (empty).
4. Frame Length - Measurement is from the ball hitch to
the rear bumper (reflector).
5. Frame Length - Measurement is from fender to fender
6. Jack Stand - Trailer support device with maximum pound
requirement from the tongue of the trailer.
7. Coupler - Type of hitch used on the trailer for towing.
8. Tire Size - Indicates the diameter of the tire in inches
(10,12,14, etc.), and the width in millimeters
(175,185,205, etc.). The tire diameter must match the
diameter of the tire rim.
9. Tire Ply - The tire ply (layers) number is rated in letters;
2-ply,4-ply,6-ply, etc.
10. Wheel Hub - The wheel hub is connected to the trailer’s
axle.
11. Tire Rim - Tires mounted on a tire rim. The tire rim must
match the size of the tire.
12. Lug Nuts - Used to secure the wheel to the wheel hub.
Always use a torque wrench to tighten down the lug nuts.
See Table 17 and Figure 67 for lug nut tightening and
sequence.
13. Axle - Indicates the maximum weight the axle can support in pounds, and the diameter of the axle expressed
in inches. Please note that some trailers have a double
axle. This will be shown as 2-6000 lbs., meaning two
axles with a total weight capacity of 6000 pounds.
14. Suspension - Protects the trailer chassis from shocks
transmitted through the wheels. Types of suspension
used are leaf, Q-flex, and air ride.
15. Electrical - Electrical connectors (looms) are provided
with the trailer so the brake lights and turn signals can
be connected to the towing vehicle.
16. Application - Indicates which units can be employed
on a particular trailer.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 17
DCA-70SSJU SERIES — TRAILER SPECIFICATIONS
Table 2. Trailer Specifications
MODEL
APPLICATION
FU E L
C E LL
BRAKE
SYSTEM
GVWR
FRAME
LENGTH
FRAME
WIDTH
JACK
STAND
TRLR-10W
SDW225,
SGW250,TLW300
NO
NO
1900LB S
96"
50"
800LB .
FULL TILT WHEEL
TRLR-10
D C A 10,
TLG12, DCA15
NO
NO
1900LB S
96"
50"
800LB .
FULL TILT WHEEL
TRLR-10XF
DCA10, TLG12, D C A 15,
TLW-300
52 GAL
NO
1900LB S
96"
50"
800LB .
FULL TILT WHEEL
TRLR-225W
WELDERS,
D A 7000S S
NO
NO
2200LB S
85"
42"
800LB .
FULL TILT WHEEL
TRLR-BLW400
BLW-400
NO
ELECTRIC
2700LB S
W/MAST
154"
W/O 124"
55"
(78"
TALL)
800LB .
FULL TILT WHEEL
TRLR-50X
DCA-25
NO
NO
2700LB S
124"
55"
800LB .
FULL TILT WHEEL
TRLR-50XF
DCA-25
41 GAL
NO
2700LB S
124"
55"
800LB .
FULL TILT WHEEL
TRLR-70W
DCA-45, -60,
70
NO
SURGE
7000LB S
186"
77"
2000LB .
FLAT PAD
TRLR-70X
DCA-45, -60,
70
OPT
SURGE
7000LB S
138"
66"
2000LB .
FLAT PAD
TRLR-70XF
DCA-45, -60,
70
53 GAL
SURGE
7000LB S
138"
66"
2000LB .
FLAT PAD
TRLR-100XF
DCA-100, 125
150 GAL
HYDRAULIC
SURGE
7000LB S
190"
76"
2000LB .
FLAT PAD
TRLR-85/125
DCA-85, 100,
125
145 GAL
HYDRAULIC
10000LB S
186"
77"
2000LB .
FLAT PAD
TRLR-150XF
DCA-150, 180
200 GAL
HYDRAULIC
SURGE
11160LBS
204"
84"
5000 LB .
FLAT PAD
TRLR-220XF
DCA-220
250 GAL
HYDRAULIC
SURGE
14000LB S
222"
83"
5000 LB .
FLAT PAD
TRLR-300XF
DCA-300
250 GAL
HYDRAULIC
SURGE
18000LB S
238"
83"
5000 LB .
FLAT PAD
TRLR-400XF
DCA-400
350 GAL
ELECTRIC
18000LB S
238"
83"
5000 LB .
FLAT PAD
TRLR-600XF
DCA-600, 800
550 GAL
AIR
30000LB S
384"
96"
5000 LB .
FLAT PAD
TRLR-800SX
DCA-600, 800
550 GAL
AIR
30000LB S
384"
96"
5000 LB .
FLAT PAD
PAGE 18 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — TRAILER SPECIFICATIONS
Table 2. Specifications (Con't)
MODEL
COUPLER
TIRES
WHEELS
AXLE
HUBS
SUSPENSION
ELECTRICAL
TRLR-10W
2" B A LL C LA S S
2 ADJUSTABLE
175-13C
13"X4.50"
2200# 2X 2
5 LUG
3 LE A F
4 WIRE LOOM
W/
4 POLE FLAT
TRLR-10
2" B A LL C LA S S
2 ADJUSTABLE
175-13C
13"X4.5"
2200#2X 2
5 LUG
3 LE A F
4 POLE FLAT
TRLR-10XF
2" B A LL C LA S S
2 ADJUSTABLE
175-13C
13"X4.5"
2200#2X 2
5 LUG
3 LE A F
4 POLE FLAT
TRLR-225W
2" B A LL C LA S S
2 ADJUSTABLE
175-13B
13X4.5"
2200#2X 2
5 LUG
Q F LE X
4 POLE FLAT
TRLR-BLW
400
2" B A LL C LA S S
2 ADJUSTABLE
175-13C
13 X 4.5"
2200#2X 2
5 LUG
3 LE A F
4 POLE FLAT
TRLR-50X
2" B A LL C LA S S
B78-13LRC
13"X4.50"
3500lbs.
2-3/8"
5 LUG
4 LE A F
4 POLE
RUBBER FLAT
TRLR-50XF
2" B A LL C LA S S
B78-13LRC
13"X4.50"
3500lbs.
2-3/8"
5 LUG
4 LE A F
4 POLE
RUBBER FLAT
TRLR-70W
2" B A LL C LA S S
3" ADJUSTABLE
205-14C
BIAS (4)
14" X 5"
3500lbs.
3"
5 LUG
5 LE A F
4 POLE
RUBBER FLAT
TRLR-70X
2" B A LL C LA S S
3" ADJUSTABLE
205-14C
BIAS (4)
14" X 5"
3500lbs
3"
5 LUG
5 LE A F
4 POLE
RUBBER FLAT
TRLR-70XF
2" B A LL C LA S S
3" ADJUSTABLE
205-14C
BIAS (4)
14" X 5"
3500lbs.
3"
5 LUG
5 LE A F
4 POLE
RUBBER FLAT
TRLR-100XF
ADJUSTABLE 25/6 OPT 3" EYE
205-15C
BIAS (4)
14"X5.5"
3500lbs
3"
5 LUG
5 LE A F
4 WIRE LOOM
TRLR-85/125
ADJUSTABLE 25/6 OPT 3" EYE
ST225/75R15D
RADIAL (4)
14"x6"
(2)-6000lbs
6 LUG
7 LE A F
4 WIRE LOOM
TRLR-150XF
3" BALL EYE
750-16 E
BIAS (4)
16" X 7"
(2)-6000lbs
8 LUG
7 LE A F
4 WIRE LOOM
TRLR-220XF
3" EYE
ADJUSTABLE
ST235/85R16E
RADIAL(4)
16" X 7"
(2)-7000lbs
8 LUG
Q F LE X
4 WIRE LOOM
TRLR-300XF
3" EYE
ADJUSTABLE
ST235/85R16E
RADIAL(6)
16" X 7"
(2)-6000lbs
8 LUG
Q F LE X
4 WIRE LOOM
TRLR-400XF
3" EYE
ADJUSTABLE
ST235/85R16E
RADIAL(6)
16" X 7"
(3)-7000lbs.
8 LUG
Q F LE X
4 WIRE LOOM
TRLR-600XF
5TH WHEEL
ST215/75R17.5H
RADIAL (8)
16" X 7"
(3)-10000lbs
8 LUG
7 LE A F
6 WIRE LOOM
TRLR-800AR
5TH WHEEL
ST215/75R17.5H
RADIAL (8)
16" X 7"
(3)-10000lbs
8 LUG
AIR-RIDE
6 WIRE LOOM
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 19
DCA-70SSJU SERIES — GENERATOR DECALS
The DCA-70SSJU Series generator is equipped with a number of safety decals. These decals are provided for operator
safety and maintenance information. The illustration below and on the preceding page show the decals as they appear on
the machine. Should any of these decals become unreadable, replacements can be obtained from your dealer.
PAGE 20 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — GENERATOR DECALS
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 21
DCA-70SSJU SERIES — GENERAL INFORMATION
DCA-70SSJU Series Familiarization
Generator
The MQ Power Model DCA-70SSJU Series is a 26 kW
generator (Figure 4) that is designed as a high quality
portable (requires a trailer for transport) power source for
telecom sites, lighting facilities, power tools, submersible
pumps and other industrial and construction machinery.
Engine Operating Panel
The “Engine Operating Panel” is provided with the following:
 Tachometer
 Water Temperature Gauge
 Oil Pressure Gauge
 Charging Ammeter Gauge
 Engine Throttle Handle (Up to S/N 7302410)
 Fuel Level Gauge
 Engine Speed Switch (S/N 7302141~)
 Cold Starting Button
 Panel Light
 Panel Light Switch
 Ignition/Preheat Switch ( Up to S/N 7302410)
 Auto ON/OFF Engine Controller (S/N 7302141~)
Generator Control Panel
The “Generator Control Panel” is provided with the following:
 Output Voltage Adjustment Knob
 Frequency Meter (Hz)
 AC Ammeter (Amps)
 AC Voltmeter (Volts)
 Ammeter Change-Over Switch
 Voltmeter Change-Over Switch
 Voltage Regulator
 Over-Current Relay
Output Terminal Panel
The “Output Terminal Panel” is provided with the following:
 Three 250 VAC output receptacles (CS-6369), 50 amps
 Three auxilliary circuit breakers, 250V @50 amps
 Two 125 VAC output receptacles, (GFCI), 20 amps
 Two GFCI circuit breakers, [email protected] 20amps
 Five output terminal lugs (3Ø power)
Control Box
The “Control Box” is provided with the following:
 3-Pole, 250 VAC, 175 amp Main Circuit Breaker
 Automatic Voltage Regulator
 Current Transformer
 Emergency Relay
Open Delta Excitation System
The DCA-70SSJU Series generator is equipped with the state
of the art "Open-Delta" excitation system. The open delta
system consist of an electrically independent winding wound
among stationary windings of the AC output section.
There are four connections of the open delta A, B, C and D.
During steady state loads, the power from the voltage regulator
is supplied from the parallel connections of A to B, A to D, and
C to D. These three phases of the voltage input to the voltage
regulator are then rectified and are the excitation current for the
exciter section.
When a heavy load, such as a motor starting or a short circuit
occurs, the automatic voltage regulator (AVR) switches the
configuration of the open delta to the series connection of B to
C. This has the effect of adding the voltages of each phase ot
provide higher excitation to the exciter section and thus better
voltage response during the application of heavy loads.
The connections of the AVR to the AC output windings are for
sensing only. No power is required from these windings.
The open-delta design provides virtually unlimited excitation
current, offering maximum motor starting capabilities. The
excitation does not have a "fixed ceiling" and responds
according the demands of the required load.
Engine
The DCA-70SSJU and DCA-70SSJU2 are powered by a 4
cycle, water cooled, turbocharged JOHN DEERE Model
4045TF150 Diesel Engine. This engine is designed to meet
every performance requirement for the generator. Reference Table
1 for engine specifications.
In keeping with MQ Power's policy of constantly improving its
products, the specifications quoted herein are subject to change
without prior notice.
Mechanical Governor System
The mechanical governor system control the RPM of the
engine. When the engine demands increase or decrease, the
mechanical governor system regulates the frequency variation to ±.5%. The electronic governor option increases
frequency variation to ±0.25%.
Extension Cables
When electric power is to be provided to various tools or loads
at some distance from the generator, extension cords are
normally used. Cables should be sized to allow for distance in
length and amperage so that the voltage drop between the
generator and point of use (load) is held to a minimum. Use the
cable selection chart (Table 5) as a guide for selecting proper
extension cable size.
PAGE 22 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — MAJOR COMPONENTS
Figure 4. Major Components
Table 3. Generator Major Components
ITEM NO.
DESCRIPTION
1
Muffler Assembly
2
Engine Assembly
3
Enclosure Assembly
4
Generator Assembly
5
Output Terminal Assembly
6
Fuel Tank Assembly
7
Battery Assembly
8
Generator Control Panel Assembly
9
Engine Operating Panel Assembly
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 23
DCA-70SSJU SERIES — GENERATOR CONTROL PANEL
Figure 5. Generator Control Panel
The definitions below describe the controls and functions of Located behind the generator control panel is the Generator
the DCA-70SSJU Series " Generator Control Panel" Control Box. This box contains some of the necessary
electronic components required to make the genertator
(Figure 5).
1. Main Circuit Breaker – This three-pole, 175 amp main function.
2.
3.
4.
The “Control Box” is equipped with the following major
components:
 Over-Current Relay
 Voltage Rectifer
 Starter Relay
 Engine Controller (Computer Controlled)
Ammeter Change-Over Switch – This switch allows  Current Transformer
the AC ammeter to indicate the current flowing to the  Voltage Selector Switch
load connected to any phase of the output terminals, or
to be switched off. This switch does not effect the
Remember the overcurrent
generator output in any fashion, it is for current reading
relay monitors the current
only.
flowing from the UWVO output
breaker is provided to protect the UVWO output
terminals from overload.
AC Ammeter – Indicates the amount of current the
load is drawing from the generator per leg selected by
the ammeter phase-selector switch.
Voltmeter Change-Over Switch – This switch allows
the AC voltmeter to indicate phase to phase voltage
between any two phases of the output terminals or to
be switched off.
5.
Voltage Regulator Control – Allows ±15% manual
adjustment of the generator’s output voltage.
6.
Frequency Meter – Indicates the output frequency in
hertz (Hz). Normally 60 Hz ±1 Hz .
7.
AC Voltmeter – Indicates the output voltage present
at the UVWO terminals.
NOTE
terminals to the load.
In the event of a short circuit or
over current condition, it will
automatically trip the main 250
amp breaker.
To restore power to the UWVO output terminals, press the
reset button on the overcurrent relay and place the main
circuit breaker in the closed position (ON).
PAGE 24 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE OPERATING PANEL
Figure 6. Engine Operating Panel Up To S/N 73002140
The definitions below describe the controls and functions of
the DCA-70SSJU - "Engine Operating Panel " (Figure 6), up
to S/N 73002140.
1.
2.
3.
4.
5.
6.
Fuel Gauge - Indicates amount of diesel fuel available.
7.
Tachometer – Indicates engine speed in RPM’s for 60
Hz operation. This meter should indicate 1800 RPM’s
when the rated load is applied. In addition a built in hour
meter will record the number of operational hours that
the generator has been in use.
Panel Light – Normally used in dark areas or at night
time. When activated, panel lights will illuminate. When
the generator is not in use be sure to turn the panel
light switch to the OFF position.
8.
Panel Light Switch – When activated will turn on control
panel light.
9.
Oil Pressure Gauge – During normal operation this
gauge be should read in the “GREEN” zone. When 10.
starting the generator the oil pressure may read a little
bit higher, but after the engine warms up the oil pressure
should return to the green zone.
11.
Water Temperature Gauge – During normal operation
this gauge be should read in the “GREEN” zone.
12.
Charging Ammeter Gauge – Indicates the current
being supplied by the engine’s alternator which provides
current for generator’s control circuits and battery
charging system.
Engine Speed Throttle- This lever controls the speed
of the engine (low or high).
Ignition Switch – Turns the engine on, off or to preheat
the engine.
Cold Starting Button – Used to warm the engine glow
plugs in cold weather conditions. Press and hold the
engine cold starting button until the button illuminates.
Water Temperature Warning Light - Indicates if the
coolant is low. This warning will shut off the engine.
Oil Pressure Warning Light - This will indicate if the
oil pressure is too low or high. This warning will shut off
the engine.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 25
DCA-70SSJU SERIES — ENGINE OPERATING PANEL
Figure 7. Engine Operating Panel From S/N 73002141~
PAGE 26 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE OPERATING PANEL
The definitions below describe the controls and functions of
the DCA-70SSJU2 "Engine Operating Panel " (Figure 7)
from S/N 73002141~.
1. Panel Light – Normally used in dark areas or at night
time. When activated, panel lights will illuminate. When
the generator is not in use be sure to turn the panel
light switch to the OFF position.
2.
3.
4.
5.
Also the engine controller will shutdown the generator in the
event of low oil pressure, high coolant temperature, low
Oil Pressure Gauge – During normal operation this coolant level, and loss of magnetic pickup. These conditions
gauge be should read between 42 to 71 psi. When can be observed by monitoring the LED status indicators on
starting the generator the oil pressure mar read a little the front of the controller module.
bit higher, but after the engine warms up the oil pressure A. Off/Manual/Auto Switch – This switch controls the
should return to the green zone.
running of the generator. If this switch is left in the "OFF"
position,
the generator will not run. When this switch is
Water Temperature Gauge – During normal operation
o
o
set to the manual position, the generator will start
this gauge be should read between 165 and 203 F.
immediately.
Charging Ammeter Gauge – Indicates the current
Panel Light Switch – When activated will turn on control
panel light.
being supplied by the engine’s alternator which provides
current for generator’s control circuits and battery
charging system.
6.
7.
During cranking cycle , The MPEC will attempt to crank the
engine for 10 seconds before disengaging. If the engine does
not engage (start) by the third attempt, the engine will be
shutdown by the engine controller’s "OVER CRANK
PROTECTION" mode. If the engine engages at a speed
(RPM's) that is not safe, the controller will shutdown the
engine by initializing the "Over Speed Protection" mode.
Fuel Gauge - Indicates amount of diesel fuel available.
If the generator is to be connected to a building's AC
power source via a transfer switch (isolation), place
the switch in the auto position. In this position the
generator will monitor the AC line output from the
building's power source.
Tachometer – Indicates engine speed in RPM’s for 60
Hz operation. This meter should indicate 1800 RPM’s B. Low Oil Pressure – Indicates the engine pressure
has fallen below 15 psi. The oil pressure is detected
when the rated load is applied. In addition a built in hour
using variable resistive values from the oil pressure
meter will record the number of operational hours that
sending unit. This is considered a major fault.
the generator has been in use.
8. Engine Speed Switch - This switch controls the speed C. High Coolant Temperature – Indicates the engine
temperature has exceeded 215°F. The engine
of the engine (low or high).
temperature is detected using variable resistive values
9. Cold Starting Button – Used to warm
from the temperature sending unit. This is considered
the engine glow plugs in cold weather
a major fault.
conditions. Press and hold the engine
D. Overcrank Shutdown – Indicates the unit has
cold starting button until the button
attempted to start a pre- programmed number of times,
illuminates.
and has failed to start. The number of cycles and
10. Auto
On/Off
Engine
duration are programmable. It is pre-set at 3 cycles
Controller – This controller as
with a 10 second duration. This is considered a major
a vertical row of status LED's
fault.
(inset), that when lit, indicate
E. Overspeed Shutdown – Indicates the engine is running
that an engine malfunction
at an unsafe speed. This is considered a major fault.
(fault), has been detected.
F. Engine Running – Indicates that engine is running at
When a fault has been detected
a safe operating speed.
the engine controller will
evaluate the fault and all major
faults will shutdown the
generator.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 27
DCA-70SSJU SERIES — OUTPUT TERMINAL PANEL FAMILIARIZATION
Output Terminal Panel
Output Terminal Familiarization
The “Output Terminal Panel ” (Figure 8) is provided with The Output Terminal Panel (Figure 8) shown below is located
on the right-hand side (left from control panel) of the generator.
the following:
Lift up on the cover to gain access to receptacles and terminal
 Three (3) 240V output receptacles, 50 amp
lugs.
 Three (3) Circuit Breakers 240V @50 amps
 Two (2) 120V GFCI receptacles, 20 amp
 Two (2) GFCI Circuit Breakers [email protected] 20 amps
NOTE
Terminal legs “O” and “Ground”
are considered bonded grounds.
 One Main Circuit Breaker 250V @175 amps
 Five (5) Output Terminal Lugs
Figure 8. Output Terminal Panel
PAGE 28 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — OUTPUT TERMINAL PANEL FAMILIARIZATION
120 VAC GFCI Receptacles
There are two 120 VAC, 20 amp GFCI (Duplex Nema 5-20R)
recepacles provided on the output terminal panel. These
receptacles can be accessed in any voltage selector switch
position. Each receptacle is protected by a 20 amp circuit
breaker. These breakers are located directly above the GFCI
receptacles. Remember the load output (current) of both
GFCI receptacles is dependent on the load requirements of
the UVWO terminals.
Pressing the reset button resets the GFCI receptacle after
being tripped. Pressing the "Test Button" (See Figure 9) in
the center of the receptacle will check the GFCI function.
Both receptacles should be tested at least once a month.
Each auxilliary receptacle is protected by a 50 amp circuit
breaker. These breakers are located directly above the GFCI
receptacles. Remember the load output (current) on all three
receptacles is dependent on the load requirements of the
UVWO terminals.
Turn the voltage regulator control knob (Figure 11) on the
control panel to obtain the desired voltage. Turning the knob
clockwise will increase the voltage, turning the knob counterclockwise will decrease the voltage.
Figure 11. Voltage Regulator Control Knob
Figure 9. G.F.C.I. Receptacle
Removing the Plastic Face Plate (UVWO Terminals)
The UVWO terminal lugs are protected by a plastic face
plate cover (Figure 12). Un-lock the locking latch, and lift the
terminal cover to gain access to the plastic face plate.
Remove the screws securing the face plate to the terminal
enclosure, then lift the plastic hinged face plate.
After the load wires have been securely attached to the
UVWO terminals, reinstall the plastic face plate. Place the
terminal cover in the down position and secure the locking
latch.
Twist Lock Dual Voltage 120/240 VAC Receptacles
There are three 240 VAC, 50 amp auxilliary twist-lock (CS6369) recepacles (Figure 10) provided on the output terminal
panel.These receptacles can only be accessed when the
voltage selector switch is placed in the single-phase 240/
120 position.
Figure 12. Plastic Face Plate (UVWO Terminals)
Figure 10. 240 VAC Twist-Lock
Auxiliary Receptacles
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 29
DCA-70SSJU SERIES — OUTPUT TERMINAL PANEL FAMILIARIZATION
Connecting Loads
Loads can be connected to the generator by the UVWO terminal
lugs or the convienience receptacles. (See Figure 13). Make
sure to read the operation manual before attempting to connect
a load to the generator.
To protect the UVWO output terminals from overload, a 3pole, 175 amp, main circuit breaker is provided. Make sure
to switch ALL circuit breakers to the "OFF" position prior to
starting the engine.
Over Current Relay
An over current relay (Figure 14) is connected to the main
circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the reset button on the over current relay must be pressed. The over current relay is located in the control box.
Figure 14. Over Current Relay
Figure 13. Connecting Loads
PAGE 30 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — LOAD APPLICATION
Single Phase Load
Three Phase Load
Always be sure to check the nameplate on the generator
and equipment to insure the wattage, amperage and
frequency requirements are satisfactorily supplied by the
generator for operating the equipment.
Generally, the wattage listed on the nameplate of the
equipment is its rated output. Equipment may require 130—
150% more wattage than the rating on the nameplate, as
the wattage is influenced by the efficiency, power factor and
starting system of the equipment.
When calculating the power requirements for 3-phase power
use the following equation:
Motors and motor-driven
equipment draw much greater
current for starting than during
operation.
NOTE
If wattage is not given on the
equipment's name plate,
NOTE
approximate wattage may be An inadequate size connecting cable which cannot carry the
determined by multiplying required load can cause a voltage drop which can burn out
nameplate voltage by the the appliance or tool and overheat the cable. See Table 5.
nameplate amperage.
 When connecting a resistance load such as an
WATTS = VOLTAGE x AMPERAGE
incandescent lamp or electric heater, a capacity of up to
The power factor of this generator is 0.8. See Table 4 below
the generating set’s rated output (kW) can be used.
when connecting loads.
 When connecting a fluorescent or mercury lamp, a
capacity of up to the generating set’s rated output (kW)
Table 4. Power Factor By Load
multiplied by 0.6 can be used.
Type Of Load
Power Factor
Single-phase induction motors
0.4 - 0.75
Electric heaters, incandescent
lamps
1 .0
Fluorescent lamps, mercury lamps
0.4 - 0.9
Electronic devices, communication
equipment
1.0
Common power tools
0.8
 When connecting an electric drill or other power tools,
pay close attention to the required starting current
capacity.
When connecting ordinary power tools, a capacity of up to
the generating set’s rated output (kW) multiplied by 0.8 can
be used.
CAUTION:
Before connecting this generator to any
building’s electrical system, a licensed
electrician must install an isolation (transfer)
switch. Serious injury or death may result
without this transfer switch.
Table 5. Cable Selection (60 Hz, Single Phase Operation)
Load In Watts
Current in
Amperes At 120 At 240
Volts
Volts
Maximum Allowable Cable Length
#10 Wire
#12 Wire
#14 Wire
#16 Wire
6 0 0 ft .
375 ft.
250 ft.
2.5
30 0
600
1000 ft.
5
600
1200
500 ft.
300 ft.
200 ft.
1 2 5 ft .
7.5
900
1800
350 ft.
200 ft.
125 ft.
1 0 0 ft .
10
1200
2400
250 ft.
1 5 0 ft .
100 ft.
15
1800
3600
150 ft.
100 ft.
65 ft.
20
2400
4800
125 ft.
75 ft.
50 ft.
NOTE
If 3Ø load (kVA) is not given on
the equipment nameplate,
approximate 3Ø load output
maybe determined by multiplying
voltage by amperage by 1.732.
CAUTION: Equipment damage can result from low voltage.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 31
DCA-70SSJU SERIES — GENERATOR OUTPUTS
Generator Output Voltages
Generator Amperage
A wide range of voltages are available to supply voltage for Tables 7 and 8 describe the generator’s current output capamany different applications. Voltages are selected by using bility for both 1Ø-phase and 3Ø phase applications.
the voltage selector switch (Figure 15). To obtain some of
the voltages as listed in Table 6 (see below) will require a
Table 7. Generator Ampere
fine adjustment using the voltage regulator (VR) control
Ratings — 1Ø
knob located on the control panel.
kW
240V
120V
Voltage Selector Switch
20
83
166
25
104
208
The voltage selector switch (Figure 15) is located above
the UVWO Hard Wire Hook-up Panel. It has been provided
30
225
250
for ease of voltage selection.
35
145
291
40
166
333
45
187
375
50
208
417
60 (Max)
250
500
Table 8. Generator Ampere Ratings — 3Ø
Figure 15. Voltage Selector Switch
Voltage Selector Switch Locking Button
The voltage selector switch has a locking button to protect
the generator and load from being switched while the engine
is running. To lock the voltage selector switch, press and
hold the red button located at the bottom of the switch.
kW
208V
240V
480V
20
59
60
30
25
87
75
38
30
104
90
45
35
121
105
53
40
139
120
60
45
156
136
68
50
174
152
76
60
208
181
99
CAUTION:
NEVER change the position of the voltage
selector switch while the engine is running.
ALWAYS place circuit breaker in the open
position before selecting voltage.
Table 6. Voltages Available
Three Phase
(Sw itchable)
208 VOLT
220 VOLT
240 VOLT
416 VOLT
440 VOLT
480 VOLT
Single Phase
(Sw itchable)
120 VOLT
127 VOLT
139 VOLT
240 VOLT
254 VOLT
277 VOLT
PAGE 32 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — GENERATOR OUTPUTS/GAUGE READING
GFCI Receptacle Load Capability
The load capability of the GFCI receptacles is directly related to the voltage being supplied at either the UVWO terminals or the 3 twist lock auxilliary receptacles.
Tables 9 and 10 show what amount of current is available at
the GFCI receptacles when the UVWO terminals and twist
lock receptacles are in use. Be careful that your load does
not to exceed the available current capability at the receptacles.
Use this position for
3Ø, 208V/1Ø,120V
Table 9. GFCI Receptacle Load Capability
KVA in Use
(UVWO Terminals)
3Ø 240/480V
82
77.8
73.7
69.5
65.4
Available Load Current
(AMPS)
GFCI Duplex NEMA
5-20R 120V
0
5 amps per receptacle
10 amps per receptacle
15 amps per receptacle
20 amps per receptacle
Figure 16. Voltage Selector Switch 240/139V Three Phase
Position (for 3Ø, 208V, 120V voltage)
Table 10. GFCI Receptacle Load Capability
KW in Use
Twist-Lock (CS6369)
1Ø 240/120V
60
58.8
57.6
56.4
55.2
Available Load Current
(AMPS)
GFCI Duplex NEMA
5-20R 120V
0
5 amps per receptacle
10 amps per receptacle
15 amps per receptacle
20 amps per receptacle
Figure 17. AC Voltmeter
Change-Over Switch
Figure 18 AC Voltmeter
Gauge
(Volt reading on W-U Lug)
40
20
0
How to Read the Output Terminal Gauge.
The gauge and selector switch on the control panel DO NOT
effect the generator output. They are provided to help observe how much power is being supplied, produced at the
UVWO terminals lugs.
When the Voltage selector switch is in the 3Ø,240/139V
position (See Figure 16), place the AC Voltmeter ChangeOver Switch (Figure 17) to the W-U position and the AC
Ammeter Change-Over Switch (Figure 19) to the U or W
position to read the output on the selected leg.
60
75
A
Figure 19. AC Ammeter
Change-Over Switch
NOTE
Figure 20. AC Ammeter
(Amp reading on U lug)
The ammeter and voltmeter
gauges are only active when the
UVWO terminals are in use.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 33
DCA-70SSJU SERIES — OUTPUT TERMINAL PANEL CONNECTIONS
UVWO Terminal Output Voltages
3Ø 208V/1Ø120V UVWO Terminal Output Voltages
Various output voltages can be obtained using the UVWO 1. Place the voltage selector switch in the 3Ø 240/139
output terminal lugs. The voltages at the terminals are deposition as shown in Figure 24.
pendent on the position of the Voltage Selector Switch and
Use this position for
the adjustment of the Voltage Regulator Control Knob.
3Ø-208 or 1Ø120V.
Remember the voltage selector switch determines the range
of the output voltage. The voltage regulator (VR) allows the
user to increase or decrease the selected voltage.
Figure 24. Voltage Selector
Switch 3Ø-208V/1Ø-120V
Three-Phase Position
3Ø 240/139 UVWO Terminal Output Voltages
1. Place the voltage selector switch in the 3Ø 240/139
position as shown in Figure 21.
2. Connect the load wires to the UVWO terminals as shown
in Figure 25.
Figure 21. Voltage Selector Switch 240/139V
Three-Phase Position
2. Connect the load wires to the UVWO terminals as shown
in Figure 22.
Figure 25. UVWO Terminal Lugs
3Ø-208V/120V Connections
3. Turn the voltage regulator knob (Figure 26) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
Figure 22. UVWO Terminal Lugs
240/139V Three Phase Connections
Figure 26. Voltage Regulator Knob (208V)
3. Turn the voltage regulator knob (Figure 23) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
NOTE
To achieve a 3Ø 208V output
the voltage selector switch must
be in the 3Ø-240/139 position
and the voltage regulator must
be adjusted to 208V.
Figure 23. Voltage Regulator Knob (139V/240V)
PAGE 34 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — OUTPUT TERMINAL PANEL CONNECTIONS
3Ø 480/277 UVWO Terminal Output Voltages
1Ø 240V/120V UVWO Terminal Output Voltages
1. Place the voltage selector switch in the 3Ø 480/277 1. Place the voltage selector switch in the 1Ø 240/120
position as shown in Figure 27.
position as shown in Figure 30.
Figure 27. Voltage Selector Switch 480/277V
Three-Phase Position
Figure 30. Voltage Selector Switch 240/120V
Single-Phase Position
2. Connect the load wires to the UVWO terminals as shown
in Figure 28.
2. Connect the load wires to the UVWO terminals as shown
in Figure 31.
Figure 28. UVWO Terminal Lugs
240/139V Three Phase Connections
Figure 31. UVWO Terminal Lugs
1Ø-240V/120V Connections
3. Turn the voltage regulator knob (Figure 29) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
3. Turn the voltage regulator knob (Figure 32) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
Figure 29. Voltage Regulator Knob (139V/240V)
Figure 32. Voltage Regulator Knob (1Ø-240/120V)
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 35
DCA-70SSJU SERIES — PRE-SETUP
Circuit Breakers
Fuel Check
To protect the generator from an overload, a 3-pole, 110 amp,
main circuit breaker is provided to protect the UVW output
terminals from overload. In addition two single-pole, 20 amp
GFCI circuit breakers are provided to protect the GFCI
receptacles from overload. Three 50 amp load circuit breakers
have also been provided to protect the auxiliary receptacles
from overload. Make sure to switch ALL circuit breakers to
the "OFF" position prior to starting the engine.
DANGER:
Fuel spillage on a hot! engine can cause
a fire or explosion. If fuel spillage occurs,
wipe up the spilled fuel completely to
prevent fire hazards. NEVER! smoke
around or near the generator.
Lubrication Oil
Fill the engine crankcase with lubricating oil through the filler
hole, but DO NOT overfill. Make sure the generator is level.
and verify that the oil level is maintained between the two
Refilling the Fuel System
notches (Figure 33) on the dipstick. See Table 11 for proper
The DCA70SSJU Series genset may (if equipped with a trailer
selection of engine oil.
or skid) have a double fuel tank system (Figure 34), which
consists of an internal generator fuel tank, and a trailer
mounted fuel tank. It is also possible the genset can be
equipped with a skid mounted fuel tank (Figure 35). The
skid type fuel system does not use the internal generator
fuel tank.
Figure 33. Engine Oil Dipstick
When checking the engine oil, be sure to check if the oil is
clean. If the oil is not clean, drain the oil by removing the oil
drain plug, and refill with the specified amount of oil as outlined
in the Isuzu Engine Owner's Manual. Oil should be warm
before draining.
Other types of motor oils may be substituted if they meet
the following requirements:





Use the instructions in this section that applies to your type
of fuel tank system.
ALWAYS fill the fuel tank with clean and fresh #2 diesel
fuel. DO NOT fill the fuel tanks beyond their capacities.
Pay attention to the fuel tank capacity when replenishing
fuel.The fuel tank cap must be closed tightly after filling.
Handle fuel in a safety container. If the container does not
have a spout, use a funnel. Wipe up any spilled fuel
immediately.
API Service Classification CH-4
API Service Classification CG-4
API Service Classification CF-4
ACEA Specification E3
ACEA Specification E2
Table 11. Recommended Motor Oil
Temperature Range
Type Oil
77oF and greater
(25oC and greater)
SAE15W-40 or SAE40
32oF to 77oF
(0oC to 25oC)
SAE 10W-30 or SAE30
-22oF to -32oF
(-30oC0oC)
SAE10W-30 or SAE10
Figure 34. Double Fuel Tank System
WARNING:
ONLY properly trained personel who have
read and understand this section should refill
the double fuel tank system.
Use #2 diesel fuel.
PAGE 36 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — PRE-SETUP
CAUTION:
ALWAYS! fill trailer tank first with #2 diesel
fuel, before filling secondary internal tank.
Figure 35. Skid Type Fuel Tank System
Refueling Procedure:
DANGER:
Diesel fuel and its vapors are dangerous
to your health and the surrounding
environment. Avoid skin
contact and/or inhaling
fumes.
1.
Level Tanks – make sure fuel cells are level with the
ground. Failure to do so will cause fuel to spill from the
tank before reaching full capacity. See Figure 36.
WARNING:
Figure 37. Fuel Tank Filling Order
ALWAYS! place trailer on firm level ground
before refueling.
Figure 36. Only Fill on Level Ground
2.
NOTE
ONLY! use #2 diesel fuel when
refueling.
NOTE
Fuel from the secondary inner
tank will eventually drain into the
primary trailer tank.
Trailer Fuel Tank First – The trailer fuel tank is the
primary fuel tank and holds a larger capacity of fuel.
The fuel in the trailer will be filtered and sent to the
engine. ALWAYS fill trailer fuel tank (Figure 37) first.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 37
DCA-70SSJU SERIES — PRE-SETUP
3.
NEVER overfill trailer fuel tank – It is important to 5.
read the trailer fuel gauge when filling trailer fuel tank.
DO NOT wait for fuel to rise in filler neck (See Figure 38).
Figure 38. Full Trailer Tank
WARNING:
DO NOT OVER-FILL fuel system. Leave room
for fuel expansion . Fuel expands when heated.
4.
Once the trailer tank is full, the secondary inner tank
can be filled (See Figure 39). Notice how the trailer
filler tube level rises when the internal tank is filled.
Figure 40 below reflects a full fuel system.
Figure 40. Full Fuel System
6.
Fuel from the engine return line will drain into the secondary
internal fuel tank. This fuel will eventually drain into the
primary trailer tank in order to return to the engine.
WARNING:
It is recommended to only fill the internal secondary
take to 3/4 full in order to allow for fuel return, fuel
expansion, and to avoid spillage. See Figure 41
for fuel expansion.
Figure 41. Fuel Expansion
Figure 39. Filling Secondary Internal Fuel Tank
PAGE 38 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — PRE-SETUP
Coolant (Ethylane Glycol [Green] / Water — 50/50 mix)
Use only drinkable tap water. If hard water or water with
many impurities is used, the inside of the engine and radiator
may become coated with deposits and cooling efficiency
will be reduced.
An anticorrosion additive added to the water will help prevent
deposits and corrosion in the cooling system. See the engine
manual for further details.
CAUTION:
If adding coolant/antifreeze
mix to the radiator, DO
NOT remove the radiator
cap until the unit has completely cooled. The
possibility of hot! coolant exists which can cause severe
burns.
When the antifreeze is mixed with
water, the antifreeze mixing ratio
must be less than 50%.
NOTE
Cleaning the Radiator
The engine may overheat if the radiator fins become
overloaded with dust or debris. Periodically clean the radiator
fins with compressed air. Cleaning inside the machine is
dangerous, so clean only with the engine turned off and the
negative battery terminal disconnected.
Air Cleaner
Periodic cleaning/replacement is necessary. Inspect it in
accordance with the Isusu Engine Owner's Manual.
Fan Belt Tension
A slack fan belt may contribute to overheating, or to
Day-to-day addition of coolant is done from the recovery insufficient charging of the battery. Inspect the fan belt for
tank. When adding coolant to the radiator, DO NOT remove damage and wear and adjust it in accordance with the John
the radiator cap until the unit has completely cooled. See Deere Engine Owner's Manual.
Table 12 for engine, radiator, and recovery tank coolant The fan belt tension is proper if the fan belt bends 10 to 15
capacities. Make sure the coolant level in the recovery tank mm (Figure 42) when depressed with the thumb as shown
is always between the "H" and the "L" markings.
below.
Table 12. Coolant Capacity
Engine and Radiator
6.9 Gal. (26 liters)
Reserve Tank
2 Quar ts (1.9 liters)
Operation Freezing Weather
When operating in freezing weather, be certain the proper
amount of antifreeze (Table 13) has been added.
Table 13. Anti-Freeze Operating Temperatures
Freezing Point
Boiling Point
°C
°F
°C
°F
40
-24
-12
106
222
50
-37
-34
108
226
Figure 42. Fan Belt Tension
CAUTION
CAUTION:
NEVER! place hands near
the belts or fan while the
generator set is running.
Vol %
Anti-Freeze
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 39
DCA-70SSJU SERIES — PRE-SETUP
Battery
When connecting battery do the following:
This unit is of negative ground DO NOT connect in reverse. 1. NEVER connect the battery cables to the battery
Always maintain battery fluid level between the specified
terminals when the ignition switch is in either the Premarks. Battery life will be shortened, if the fluid level are not
Heat, RUN, or START position. ALWAYS make sure
properly maintained. Add only distilled water when
that the ignition switch is in the STOP position when
connecting the battery.
replenishment is necessary.
DO NOT over fill. Check to see whether the battery cables 2. Place a small amount of battery terminal treatment
are loose. Poor contact may result in poor starting or
compound around both battery terminals. This will ensure
malfunctions. Always keep the terminals firmly tightened.
a good connection and will help prevent corrosion around
Coating the terminals with an approved battery terminal
the battery terminals.
treatment compound. Replace battery with only
If the battery cable is connected
recommended type battery. The battery type used in this
incorrectly, electrical damage to the
generator is BCI Group 27.
generator
will occur. Pay close
NOTE
The battery is sufficiently charged if the specific gravity of
attention to the polarity of the
the battery fluid is 1.28 (at 68° F). If the specific gravity
battery when connecting the
should fall to 1.245 or lower, it indicates that the battery is
battery.
dead and needs to be recharged or replaced.
Battery Cable Installation
CAUTION
CAUTION:
ALWAYS be sure the battery cables (Figure 43) are properly
connected to the battery terminals as shown below. The
RED cable is connected to the positive terminal of the battery,
and the BLACK cable is connected to the negative terminal
of the battery.
CAUTION
CAUTION:
Inadequate battery connections may cause
poor starting of the generator, and create
other malfunctions.
Alternator
The polarity of the alternator is negative grounding type. When
ALWAYS disconnect the negative an inverted circuit connection takes place, the circuit will be
terminal FIRST and reconnect in short circuit instantaneously resulting the alternator failure.
DO NOT put water directly on the alternator. Entry of water
negative terminal LAST.
into the alternator leads an electrolyte corrosion causing an
alternator failure.
Before charging the battery with an external electric source,
be sure to disconnect the battery cables.
Wiring
Inspect the entire generator for bad or worn electrical wiring
or connections. If any wiring or connections are exposed
(insulation missing) replace wiring immediately.
Piping and Hose Connection
Figure 43. Battery Connections
Inspect all piping, oil hose, and fuel hose connections for
wear and tightness. Tighten all hose clamps and check hoses
for leaks.
If any hose (fuel or oil) lines are defective replace them
immediately.
PAGE 40 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — GENERATOR START-UP PROCEDURE (MANUAL)
WARNING:
2. Connect the load to the UVWO terminals or auxiliary
receptacles as shown in Figure 46. These load
The engine's exhaust contains harmful
connection points can be found on the output terminal
panel. To gain access to the UVWO terminals or other
emissions. ALWAYS have adequate
power receptacles, unlock the access cover and lift the
ventilation when operating. Direct exhaust
door.
away from nearby personnel.
3. The UVWO terminals are protected by a plastic cover,
Before Starting
remove this cover to gain access to the terminals.
Engine Operating Panel S/N 73002140 and below
Tighten terminal nuts securely to prevent load wires from
slipping out.
CAUTION:
NEVER! manually start the engine with the
main, GFCI or auailliary circuit breakers
in the ON (closed) position.
NOTE
Figure 46. Load Connections
Steps 1 thru 19 are referenced for
Engine Operating Panels up to
S/N 73002140 (Figure 44).This unit
has a ignition key switch and a
throttle lever. It does not have an
MPEC unit.
4. Close all engine enclosure doors (Figure 47).
Figure 44. Engine Operating Panel
Up to S/N 73002140
Figure 47. Engine Enclosure Doors
1. Place the main, G.F.C.I. and aux. circuit breakers (Figure 45)
in the “OFF” position prior to starting the engine.
5. When starting the generator in COLD weather conditions,
turn the ignition key to the “PREHEAT ” position (Figure 48). In
warm weather conditions, pre-heating is not necessary. Skip to
step 7.
Figure 48. Engine Ignition Switch (Pre-Heat)
Figure 45. Main, Aux. and GFCI
Circuit Breakers (OFF)
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 41
DCA-70SSJU SERIES — GENERATOR START-UP PROCEDURE (MANUAL)
6. Press and hold the engine cold starting button 11. The generator's frequency meter (Figure 54) should be
(Figure 49) until the button illuminates (ON).
displaying the 60 cycle output frequency in HERTZ.
Figure 49. Cold Starting Button
Figure 54. Frequency Meter (Hz)
7. Place the voltage selector switch
in the desired voltage position
(Figure 50).
Figure 50. Voltage Selector
Switch
12. The generator's AC-voltmeter (Figure 55) will display the
generator’s output in VOLTS. If the voltage is not within
the specified tolerance, use the voltage adjustment
control knob (Figure 56) to increase or decrease the
desired voltage.
STARTING (MANUAL)
Engine Operating Panel up to S/N 73002140
8. Place the engine throttle control in the “LOW” position
(Figure 51).
Figure 55. Voltmeter
Figure 51. Engine Throttle Control
Figure 56. Voltage Adjust Control Knob
9. Turn the ignition key to the “START” position (Figure 52)
and listen for the engine to begin cranking. After the
engine starts release the ignition key.
Figure 52. Engine Ignition Switch (Start)
13. The ammeter (Figure 57) will
indicate zero amps with no load
applied. When a load is applied,
the ammeter will indicate the
amount of current that the load is
drawing from the generator.
Figure 57. Ammeter (No Load)
10. Once the engine has started, let it run for 3-5 minutes,
then turn the throttle handle control (Figure 53) to the 14. The engine oil pressure gauge
“HIGH” position.
(Figure 58) will indicate the oil
pressure (kg/ cm2) of the engine.
Under normal operating conditions
the oil pressure is approximately
Figure 53. Engine Throttle Control
Figure 58. Oil Pressure Gauge
PAGE 42 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — GENERATOR START-UP PROCEDURE (MANUAL)
15. The coolant temperature gauge (Figure 59) will indicate
the coolant temperature. Under normal operating
conditions the coolant temperature should be between
165 and 215 degrees Fahrenheit (Green Zone).
18. Observe the generator's ammeter (Figure 62) and verify
it reads the anticipated amount of current with respect
to the load. The ammeter will only display a current
reading if a load is in use.
Figure 59. Coolant Temperature Gauge
Figure 62. Ammeter (Load)
16. The tachometer gauge (Figure 60) will indicate the
speed of the engine when the generator is operating.
Under normal operating conditions this speed is
approximately 1800 RPM’s.
19. The generator will run until manually stopped or an
abnormal condition occurs.
Figure 60. Engine Tachometer Gauge
17. Place the main, GFCI, and aux. circuit breakers in the
“ON” position (Figure 61).
Figure 61. Main, Aux. and GFCI
Circuit Breakers (ON)
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 43
DCA-70SSJU SERIES — GENERATOR START-UP PROCEDURE (MANUAL)
WARNING:
23. Set engine speed switch to “LOW ” (Figure 65).
The engine's exhaust contains harmful
emissions. ALWAYS have adequate
ventilation when operating. Direct exhaust
away from nearby personnel.
Figure 65. Engine Speed Switch (Low)
Before Starting
Engine Operating Panel S/N 73002141~
CAUTION:
NEVER! manually start the engine with the
main, GFCI or auailliary circuit breakers in
the ON (closed) position.
Steps 20 thru 31 are referenced
for Engine Operating Panel S/N
73002141~ (Figure 63). This unit
does not have a key ignition
switch or a throttle lever. It does
have an “engine speed switch”
that is used in conjunction with
the MPEC unit.
24. Place the Auto-Off/Reset-Manual switch in the
“MANUAL” position to start the engine (Figure 66). Once
the engine starts, let the engine run for 1-2 minutes.
Listen for any abnormal noises.
Figure 66. Auto-Off/Reset-Manual Switch
25. Once the engine is warm and the engine is running properly,
set the engine speed switch to “HIGH ” (Figure 67).
Figure 67. Engine Speed Switch (High)
Figure 63. Engine Operating Panel
S/N 73002141~
26. Verify that the "Engine Running" status LED on the MPEC
unit (Figure 68) is "ON" (lit) after the engine has been started.
20. Perform steps 1 through 4 in the Before Starting section
(page 41-42) as outlined in the Manual Generator
Start-up Procedure (Engine Operating Panel up to
S/N 73002140).
21. In cold weather conditions, perform step 6 in the Before
Starting section (page 42) as outlined in the Manual
Generator Start-up Procedure (Engine Operating Panel
up to S/N 73002140). Otherwise skip to step 22.
Figure 68. Engine Running LED (ON)
22. Place the voltage selector switch
in the desired voltage position
(Figure 64).
27. Continue operating the generator as outlined in steps 11
thru 19 (pages 42-43).
Figure 64. Voltage Selector
Switch
PAGE 44 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — GENERATOR START-UP PROCEDURE (AUTO MODE)
DANGER:
Before connecting this
generator to any
building’s electrical
system, a licensed
electrician must install
an isolation (transfer)
switch. Serious injury or death may result without this
transfer switch.
CAUTION:
CAUTION:
30. Place the Off/Manual/Auto switch (Figure 70) in the
“AUTO“ position .
When connecting the generator to a
isolation (transfer) switch, ALWAYS have
power applied to the generator's internal
battery charger. This will ensure that the
engine will not fail due to a dead battery.
When the generator is set in the
“AUTO” mode, the generator will
automically start in the event of
comercial power falling below a
prescribed level by means of a
contact closure that is generated
automatically by a transfer switch.
NOTE
The Engine Speed Switch must be set
to the “HIGH” position when running in the
Auto-Start mode. Failing to set the switch
in the proper position can result in damage
to your generator when it turns on.
Figure 70. Off/Manual Auto Switch (AUTO)
31. Continue to follow the steps outlined in the “Manual
Start-up” procedure (start at step 11, page 42).
WARNING:
When running the generator in the “AUTO“
mode, remember the generator can start up
at any time without warning. NEVER attempt
to perform any maintenance when the
generator is in the auto mode.
28. Perform steps 20 through 22 in the Before Starting
section (pages 44) as outlined in the Manual Starting
Procedure.
29. Set the engine speed switch (Figure 69) to the “HIGH”
position.
Figure 69. Engine Speed Switch (High)
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 45
DCA-70SSJU SERIES — GENERATOR SHUT-DOWN PROCEDURE
Shutdown Procedure - Ignition Switch
(Up to S/N 73002140)
To shutdown the generator use the following procedure:
1. Place both the MAIN, GFCI and LOAD circuit breakers
as shown in Figure 45 to the "OFF“ position.
2. Place the engine throttle control in the “LOW” position
(Figure 71).
Figure 71. Engine Throttle Control (Low)
3. Let the engine cool by running it for 3-5 minutes with no
load applied.
4. Turn the Ignition Key Switch (Figure 72) to the “OFF“
position.
Figure 72. Engine Ignition Switch (Stop)
Shutdown Procedure - Engine Controller
(S/N 73002141~)
To shutdown the generator use the following procedure:
1. Place both the MAIN, GFCI and LOAD circuit breakers
as shown in Figure 45 to the "OFF“ position.
2. Place the engine speed switch in the “LOW” position
(Figure 73).
Figure 73. Engine Speed Switch (Low)
3. Let the engine cool by running it for 3-5 minutes with no
load applied.
4. Place the Auto-Off/Reset-Manual switch (Figure 74) to
the “OFF/Reset“ position.
Figure 74. Off/Manual Auto Switch (Off)
5. Remove all loads from the generator.
5. Verify that the all status LED on the MPEC display
(Figure 68) are "OFF" (not lit).
Emergency Shutdown Procedure - Ignition Switch
(Up to S/N 73002140)
1. To shut-down the engine in the event of an emergency,
switch the MAIN, GFCI and LOAD (Figure 61) circuit
breakers to “OFF” position.
6. Remove all loads from the generator.
Emergency Shutdown Procedure - Engine Controller
(S/N 73002141~)
1. To shut-down the engine in the event of an emergency,
switch the MAIN, GFCI and LOAD (Figure 45) circuit
2. Turn the ignition switch key to the “STOP” position
breakers to “OFF” position.
(Figure 72).
2. Place the Auto-Off/Reset-Manual switch (Figure 74) to
the “OFF/Reset“ position.
CAUTION
CAUTION:
NEVER stop the engine suddenly except
in an emergency. DO NOT use the
emergency stop switch a as method of
shutting down the generator. This switch is
ONLY to be used in the event of an
emergency.
PAGE 46 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — MAINTENANCE
TABLE 14. INSPECTION/MAINTENANCE
10 Hrs
DAILY
Check Engine Fluid Levels
X
Check Air Cleaner
X
Check Battery Acid Level
X
Check Fan Belt Condition
X
Check for Leaks
X
Check for Loosening of Par ts
X
250 Hrs
Replace Engine Oil and Filter *1
X
Clean Air Filter
X
Drain Bottom of Fuel Tank
X
Clean Unit, Inside and Outside
X
500 Hrs
1000 Hrs
ENGINE
Change Fuel Filter *2
X
Clean Radiator and Check Coolant Protection Level
X
Test Fuel Injection Nozzle
X
Replace Air Filter Element
X
Check all Hoses and Clamps
X
Check Valve Clearance
X
Check Injection Nozzle
X
X
Clean Inside of Fuel Tank
GENERATOR
X
Measure Insulation Resistance Over 3M ohms
X
*1 Replace engine oil anf filter at 100 hours, first time only.
*2 Replace fuel filter at 250 Hours, first time only.
General Inspection
Prior to each use, the generator should be cleaned and inspected
for deficiencies. Check for loose, missing or damaged nuts, bolts
or other fasteners. Also check for fuel, oil, and coolant leaks.
Engine Side (Refer to the Engine Instruction Manual)
Air Cleaner
Every 50 hours: Remove air cleaner element and clean the heavy
duty paper element with kerosene, or foam element with liquid
detergent and hot water. Wrap foam element in a cloth and
squeeze dry. For heavy duty paper element, wipe excess
kerosene with towel.
Air Cleaner with Dust Indicator
This indicator is attached to the air cleaner. When the air cleaner
element is clogged, air intake restriction becomes greater and
the dust indicator signal shows “RED” meaning the element
needs changing. After changing the air element, press the dust
indicator button to reset the indicator.
Service Daily
If the engine is operating in very dusty or dry grass conditions, a
clogged air cleaner will result. This can lead to a loss of power,
excessive carbon buildup in the combustion chamber and high
fuel consumption. Change air cleaner more frequently if these
conditions exists.
Fuel Addition
Add diesel fuel (the grade may vary according to season and
locations). Always pour through the mesh filter.
Removing Water from the Fuel Tank
After prolonged use, water and other impurities accumulate in
the bottom of the tank. Occasionally remove the drain cock and
drain the contents. During cold weather, the more empty volume
inside the tank, the easier it is for water to condense. This can be
reduced by keeping the tank full with diesel fuel.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 47
DCA-70SSJU SERIES — MAINTENANCE
Air Removal
If air enters the fuel injection system of a diesel engine,
starting becomes impossible. After running out of fuel, or
after disassembling the fuel system, bleed the system
according to the following procedure.
To restart after running out of fuel, turn the switch to the
“ON” position for 15-30 seconds. Try again, if needed. This
unit is equipped with an automatic air bleeding system.
Flushing Out Radiator and Replacing Coolant
 Open both cocks located at the crankcase side and at
the lower part of the radiator and drain coolant. Open the
radiator cap while draining. Remove the overflow tank
and drain.
 Check hoses for softening and kinks. Check clamps for
signs of leakage.
 Flush the radiator by running clean tap water through
radiator until signs of rust and dirt are removed. DO NOT
Cleaning the Fuel Strainer
clean radiator core with any objects, such as a
Clean the fuel strainer if it contains dust or water. Remove
screwdriver.
dust or water in the strainer cap and wash it in gasoline.
Securely fasten the fuel strainer cap so that fuel will not  Tighten both cocks and replace the overflow tank.
leak. Check the fuel strainer every 200 hours of operation or  Replace with coolant (Table 12 for correct mixture).
once a month.
 Close radiator cap tightly.
Check Oil Level
CAUTION:
Check the crankcase oil level prior to each use, or when the
fuel tank is filled. Insufficient oil may cause severe damage
Allow engine to cool when flushing out
to the engine. Make sure the generator is level. The oil level
radiator. Flushing the radiator while hot!
must be between the two notches on the dipstick as shown
will damage radiator.
in Figure 32.
Replacing Oil Filter
 Detach the oil filter by loosening center bolt and remove
the element together with the filter body.
 Apply a film of oil to the gasket for the cartridge.
 Install the filter body together with the element and fix
them by tightening the center bolt.
 After the oil cartridge has been replaced, the engine oil
will drop slightly. Run the engine for a while and check
for leaks before adding more oil if needed. Clean
excessive oil from engine.
Replacing Fuel Filter
 Replace the fuel filter cartridge with new one every 400
hours or so.
 Loosen the drain plug at the lower top of the fuel filter.
Drain the fuel in the fuel body together with the mixed
water. DO NOT spill the fuel during disassembly.
 Vent any air.
Generator Storage
For longe term storage of the generator the following is
recommended:
 Fill the fuel tank completely. Treat with a fuel stabilizer
if necessary.
 Completely drain the oil from the crankcase and refill if
necessary with fresh oil.
 Clean the entire generator, internal and external.
 Cover the generating set and store in a clean, dry place.
 Disconnect the battery.
 Make sure engine coolant is at proper level.
 If generator is mounted on a trailer, jack trailer up and
place on block so tires do touch the ground or remove
tires.
Feed Pump Strainer Cleaning
The strainer is incorporated in the feed pump inlet side joint
bolt. Clean the strainer with compressed air and rinse it in
the fuel oil.
PAGE 48 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — MAINTENANCE
Jacket Water Heater and Internal Battery Charger 120
VAC Input Receptacles (OPTIONAL)
This generator is equipped with two 120 VAC, 20 amp input
receptacles located on the output terminal panel.
The purpose of these receptacles is to provide power via
commercial power to the jacket water heater and internal
battery charger.
These receptacles will ONLY function when commercial
power has been supplied to them (Figure 75). To apply
commercial power to these receptacles, a power cord of
adequate size will be required (See Table 5).
If the generator will be used daily, the battery should normally
not require charging. If the generator will be idle (not used)
for long periods of time, apply power to the battery charger
receptacle via commercial power using an power cord of
adequate size.
NOTE
To ensure adequate starting
capability, always have power
applied to the generator's
internal battery charger.
When using the generator in hot climates there is no reason
to apply power to jacket water heater. However, if the
generator will be used in cold climates it is always a good
idea to apply power to the jacket water heater at all times. To
apply power to the jacket water heater simply apply power to
the jacket water heater receptacle via commercial power
using an power cord of adequate size.
Figure 75. DCA-45SIU2 Battery Charger &
Jacket Water Heater Power Connections
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 49
DCA-70SSJU SERIES — TRAILER BRAKES MAINTENANCE
Brakes
Trailer brakes should be inspected the first 200 miles of
operation. This will allow the brake shoes and drums to seat
properly. After the first 200 mile interval, inspect the brakes
every 3,000 miles. If driving over rough terrain, inspect the
brakes more frequently.
Figure 74 displays the major hydraulic surge brake
components that will require inspection and maintenance.
Please inspect these components as required using steps 1
through 8 as listed below:
Brake Adjustment
1. Place the trailer on jack stands. Make sure the jack
stands are placed on secure level ground.
2. Check the wheel and drum for free rotation.
3. Remove the adjusting hole cover from the adjusting slot
at the bottom brake backing plate.
4. With a screwdriver or standard adjusting tool, rotate the
star wheel of the adjuster assembly to expand the brake
shoes.
5. Adjust the brake shoes outward until the pressure of the
lining against the wheel drum makes the wheel difficult
to turn.
6. Adjust, rotate the star wheel in the opposite direction
until the wheel rotates freely with slight lining drag.
7. Replace the adjusting hole cover and lower the trailer to
the ground.
8. Repeat steps 1 through 7 on the remaining brakes.
Hydraulic Surge Brakes
Hydraulic surge brakes (Figure 76) should not require any
special attention with the exception of routine maintenance
such as shoe and lining replacement. Brake lines should be
periodically checked for cracks, kinks, or blockage.
Figure 76. Hydraulic Brake Components
Actuator
Hydraulic surge braking requires the installation of an actuator
at the tongue of the trailer. Remember the surge or push of
the trailer toward the tow vehicle automatically synchronizes
the trailer brakes with the tow vehicle brakes. As the trailer
pushes against the tow vehicle the actuator telescopes
together and applies force to the master cylinder, supplying
hydraulic pressure to the trailer brakes.
Periodically check and test the surge “actuator ” to make
sure that it is functioning correctly. Never use an undersize
actuator.
Table 15. Hydraulic Brake Troubleshooting
Symptom
Possible Cause
No Brakes
Brake line broken or kinked?
Repair or replace.
Brake lining glazed?
Reburnish or replace.
Weak Brakes or Brakes Pull to
One Side
Solution
Trailer overloaded?
Correct weight.
Brake drums scored or grooved?
Machine or replace.
Tire pressure correct?
Inflate all tires equally.
Tires unmatched on the same axle?
Match tires.
Brake components loose, bent or broken?
Replace components.
Locking Brakes
Brake drums out-of-round?
Replace.
System lubricated?
Lubricate.
Noisy Brakes
Brake components correct?
Replace and correct.
Brake lining thickness incorrect or not
adjusted correctly?
Install new shoes and
linings.
Enough brake fluid or correct fluid?
Replace rubber par ts
fill with dot 4 fluid.
Dragging Brakes
PAGE 50 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — TRAILER MAINTENANCE
Tires/Wheels/Lug Nuts
Tires and wheels are a very important and critical
components of the trailer. When specifying or replacing the
trailer wheels it is important the wheels, tires, and axle are
properly matched.
CAUTION:
Suspension
The leaf suspension springs and associated components
(Figure 77) should be visually inspected every 6,000 miles
for signs of excessive wear, elongation of bolt holes, and
loosening of fasteners. Replace all damaged parts
(suspension) immediately. Torqued suspension components
as detailed in Table 17.
DO NOT attempt
to repair or modify
a wheel. DO NOT
install in inner
tube to correct a leak through the rim. If the
rim is cracked, the air pressure in the inner tube may cause
pieces of the rim to explode (break off) with great force and
cause serious eye or bodily injury.
Tire Wear/Inflation
Tire inflation pressure is the most important factor in tire life.
Pressure should be checked cold before operation DO NOT
bleed air from tires when they are hot!. Check inflation
pressure weekly during use to insure the maximum tire life
and tread wear.
Table 16 (Tire Wear Troubleshooting) will help pinpoint the
causes and solutions of tire wear problems.
TABLE 16. TIRE WEAR TROUBLESHOOTING
WEAR PATTERN
SOLUTION
CAUSE
Adjust pressure to
particular load per tire
manufacturer.
Adjust pressure to
particular load per tire
manufacturer.
Make sure load does
not exceed axle rating.
Align wheels.
Center Wear
Over Inflation.
Edge Wear
Under Inflation.
Side Wear
Loss of camber
or overloading.
Toe Wear
Incorrect toe-in.
Align wheels.
Cupping
Out-of-balance.
Check bearing adjustment
and balance tires.
Flat Spots
Wheel lockup &
tire skidding.
Avoid sudden stops when
possible and adjust brakes.
Figure 77. Major Suspension Components
Table 17. Suspension Torque Requirements
Item
Torque (Ft.-Lbs.)
3/8" U-BOLT
MIN-30 MAX-35
7/16" U-BOLT
MIN-45 MAX-60
1/2" U-BOLT
MIN-45 MAX-60
SHACKLE BOLT
SPRING EYE BOLT
SHOULDER TYPE
SHACKLE BOLT
SNUG FIT ONLY. PARTS MUST ROTATE FREELY.
LOCKING NUTS OR COTTER PINS ARE PROVIDED
TO RETAIN NUT-BOLT ASSEMBLY.
MIN-30 MAX-50
CAUTION:
ALWAYS wear safety glasses when removing
or installing force fitted parts. Failure to comply
may result in serious injury.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 51
DCA-70SSJU SERIES — TRAILER MAINTENANCE
Lug Nut Torque Requirements
It is extremely important to apply and maintain proper wheel
mounting torque on the trailer. Be sure to use only the
fasteners matched to the cone angle of the wheel. Proper
procedure for attachment of the wheels is as follows:
1. Start all wheel lug nuts by hand.
2. Torque all lug nuts in sequence (see Figure 78). DO NOT
torque the wheel lug nuts all the way down. Tighten each
lug nut in 3 separate passes as defined by Table 18.
3. After first road use, retorque all lug nuts in sequence.
Check all wheel lug nuts periodically.
Table 18. Tire Torque Requirements
Wheel Size
First Pass
FT-LBS
Second Pass
FT-LBS
Third Pass
FT-LBS
12"
20-25
35-40
50-65
13"
20-25
35-40
50-65
14"
20-25
50-60
90-120
15"
20-25
50-60
90-120
16"
20-25
50-60
90-120
Figure 78. Wheel Lug Nuts Tightening Sequence
NOTE
NEVER use an pneumatic air
gun to tighten wheel lug nuts.
PAGE 52 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — TRAILER WIRING DIAGRAM
Figure 79. Trailer/Towing Vehicle Wiring Diagram
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 53
DCA-70SSJU SERIES — GENERATOR WIRING DIAGRAM
Figure 80. Generator Wiring Diagram
PAGE 54 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE WIRING DIAGRAM (WITH CONTROLLER)
Figure 81. Engine Wiring Diagram (Controller)
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 55
DCA-70SSJU SERIES — ENGINE WIRING DIAGRAM (WITH IGNITION SWITCH)
Figure 82. Engine Wiring Diagram (with Ignition Switch)
PAGE 56 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — TROUBLESHOOTING (ENGINE)
Practically all breakdowns can be prevented by proper handling and maintenance inspections, but in the event of a
breakdown, use the tables shown for diagnosis based on the Engine Troubleshooting (Table 19). If the problem cannot be
remedied, consult our company's business office or service plant.
TABLE 19. ENGINE TROUBLESHOOTING
SYMPTOM
Engine does not star t.
POSSIBLE PROBLEM
SOLUTION
No fuel?
Replenish fuel.
Air in the fuel system?
Bleed system.
Water in the fuel system?
Remove water from fuel tank.
Fuel pipe clogged?
Clean fuel pipe.
Fuel filter clogged?
Clean or change fuel filter.
Excessively high viscosity of
fuel or engine oil at low
temperature?
Use the specified fuel or engine oil.
Fuel with low cetane number?
Use the specified fuel.
Fuel leak due to loose injection
pipe retaining nut?
Tighten nut.
Incorrect injection timing?
Adjust.
Fuel cam shaft worn?
Replace.
Injection nozzle clogged?
Clean injection nozzle.
Injection pump malfunctioning?
Repair or replace.
Seizure of crankshaft, camshaft,
piston, cylinder liner or bearing?
Repair or replace.
Compression leak from
cylinder?
Replace head gasket, tighten cylinder head bolt, glow plug and
nozzle holder.
Improper valve timing?
Correct or replace timing gear.
Piston ring and liner worn?
Replace.
Excessive valve clearance?
Adjust.
Star ter malfunctioning?
Repair or replace.
Wiring disconnected?
Connect wiring.
Star ter does not run.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 57
DCA-70SSJU SERIES — TROUBLESHOOTING (ENGINE)
TABLE 19. ENGINE TROUBLESHOOTING (CONTINUED)
SYMPTOM
Engine revolution is not smooth.
Either white or blue exhaust gas
is observed.
Either black or dark gray
exhaust gas is observed.
Deficient output.
POSSIBLE PROBLEM
SOLUTION
Fuel filter clogged or dir ty?
Clean or change.
Air cleaner clogged?
Clean or change.
Fuel leak due to loose injection
pipe retaining nut?
Tighten nut.
Injection pump malfunctioning?
Repair or replace.
Incorrect nozzle opening
pressure?
Adjust.
Injection nozzle stuck or
clogged?
Repair or replace.
Fuel over flow pipe clogged?
Clean.
Governor malfunctioning?
Repair.
Excessive engine oil?
Reduce to the specified level.
Piston ring and liner worn or
stuck?
Repair or replace.
Incorrect injection timing?
Adjust.
Deficient compression?
Adjust top clearance.
Overload?
Lessen the load.
Low grade fuel used?
Use the specified fuel.
Fuel filter clogged?
Clean or change.
Air cleaner clogged?
Clean or change.
Deficient nozzle injection?
Repair or replace the nozzle.
Incorrect injection timing?
Adjust.
Engine's moving par ts seem to
be seizing?
Repair or replace.
Uneven fuel injection?
Repair or replace the injection pump.
Deficient nozzle injection?
Repair or replace the nozzle.
Compression leak?
Replace head gasket, tighten cylinder head bolt, glow plug and
nozzle holder.
PAGE 58 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — TROUBLESHOOTING (GENERATOR)
Practically all breakdowns can be prevented by proper handling and maintenance inspections, but in the event of a
breakdown, use the tables shown for diagnosis based on the Engine and Radiator Troubleshooting (Table 20) . If the
problem cannot be remedied, consult our company's business office or service plant.
TABLE 20. GENERATOR TROUBLESHOOTING
SYMPTOM
No Voltage Output
Low Voltage Output
High Voltage Output
Circuit Breaker Tripped
POSSIBLE PROBLEM
SOLUTION
AC Voltmeter defective?
Check output voltage using a voltmeter.
Is wiring connection loose?
Check wiring and repair.
Is AVR defective?
Replace if necessary.
Defective Rotating Rectifier?
Check and replace.
Is engine speed correct?
Turn engine throttle lever to "High".
Is wiring connections loose?
Check wiring and repair.
Defective AVR?
Replace if necessary.
Is wiring connections loose?
Check wiring and repair.
Defective AVR?
Replace if necessary.
Shor t Circuit in load?
Check load and repair.
Over current?
Confirm load requirements and reduce.
Defective circuit breaker?
Check and replace.
Over current Relay actuated?
Confirm load requirement and replace.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 59
DCA-70SSJU SERIES — TROUBLESHOOTING (ENGINE CONTROLLER)
Practically all breakdowns can be prevented by proper handling and maintenance inspections, but in the event of a
breakdown, use Table 21 (Engine Controller Troubleshooting) as a basic guideline for troubleshooting the Microprocessor
Engine Controller unit (MPEC). If the problem cannot be remedied, consult our company's business office or service plant.
TABLE 21. ENGINE CONTROLLER TROUBLESHOOTING (MPEC)
Sympton
Low oil pressure light
is o n .
Low coolant level light
is on.
High coolant
temper ture light is on.
Possible Cause
Solution
Low oil level?
Fill oil level.
Oil pressure sending unit failure?
Replace oil pressure sending unit.
Time delay malfuntion in Controller?
Refer to dealer.
Wire shor ted?
Inspect/repair wire.
Low coolant level?
Fill coolant level.
Sending unit failure?
Replace sending unit.
Low battery voltage?
Replace/charge battery.
Fan belt tension incorrect?
Tighten/replace fan belt.
Air flow is not circulation through radiator?
Clean/repair radiator grill.
Doors open?
Close doors.
Exhaust leaking?
Replace/repair gaskets or faulty par t.
Generator being overloaded?
Check/reduce load.
Thermostat failure?
Replace thermostat.
Air intake blocked?
Clear all air intakes.
Temperature switch failure?
Replace temperature switch.
No or low Fuel?
Fill fuel level.
Controller needs to be calibrated?
Refer to dealer.
RPM engine speed too high?
Adjust RPM.
Governor actuator needs to be adjusted?
Adjust governor actuator.
Governor controller needs to be adjusted?
Adjust governor controller.
Engine Controller needs to be calibrated?
Refer to dealer.
Overcrank light is on.
Overspeed light is on.
Loss of MPU light(s) or Magnetic pick up out of adjustment?
on.
Magnetic pick up dir ty?
Adjust magnetic pick up.
Clean magnetic pick up.
PAGE 60 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
NOTE PAGE
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 61
EXPLANATION OF CODE IN REMARKS COLUMN
How to read the marks and remarks used in this parts book.
Items Found In the “Remarks” Column
Serial Numbers-Where indicated, this indicates a serial number
range (inclusive) where a particular part is used.
Model Number-Where indicated, this shows that the
corresponding part is utilized only with this specific model number
or model number variant.
Items Found In the “Items Number” Column
All parts with same symbol in the number column, , #, +, %,
or <, belong to the same assembly or kit
*
NOTE
NOTE
If more than one of the same
reference number is listed, the last
one listed indicates newest (or
latest) part available.
The contents of this catalog are
subject to change without notice.
PAGE 62 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — SUGGESTED SPARE PARTS
DCA-70SSJU
W/JOHN DEERE 4045TF150 DIESEL ENGINE
1 TO 5 UNITS
Qty.
P/N
Description
1 ............ 0601820671 ..................AUTOMATIC VOLTAGE REGULATOR
1 ............ 47230107 ......................KNOB, SELECTOR SWITCH
1 ............ 0601840073 ..................RHEOSTAT, VOLTAGE REGULATOR
1 ............ 0601840121 ..................KNOB, RHEOSTAT
3 ............ 0602011490 ..................FAN BELT
20 .......... 0602041290 ..................OIL FILTER
20 .......... 0602042590 ..................FUEL FILTER
10 .......... 0602046357 ..................AIR ELEMENT
1 ............ M2310500203 ...............RADIATOR HOSE, UPPER .................. S/N7300001 TO S/N7300267
1 ............ M2310500303 ...............RADIATOR HOSE, LOWER ................. S/N7300001 TO S/N7300267
1 ............ M2310500403 ...............RADIATOR HOSE, LOWER ................. S/N7300001 TO S/N7300267
1 ............ M2310500503 ...............RADIATOR HOSE, UPPER .................. S/N7300268~
1 ............ M2310500603 ...............RADIATOR HOSE, LOWER ................. S/N7300268~
1 ............ 0602100056 ..................STARTER SWITCH .............................. S/N7300001 TO S/N73002140
1 ............ AR51481 ........................KEY, STARTER SWITCH ..................... S/N7300001 TO S/N73002140
1 ............ 06021030912 ................LAMP, PILOT ALARM
1 ............ 0601810245 ..................BULB, PILOT LAMP
1 ............ 0602123263 ..................WATER TEMPERATURE UNIT
1 ............ 0602122272 ..................OIL PRESSURE UNIT
1 ............ 0605505070 ..................FUEL TANK CAP
5 ............ 0602042420 ..................FUEL TANK IN-LINE FILTER
1 ............ 1625165103 ..................BONNET CAP
1 ............ 1625165204 ..................BONNET CAP CHAIN ASSEMBLY
1 ............ 0602123261 ..................WATER TEMPERTURE UNIT .............. S/N 7300646~
2 ............ 0601808803 ..................CIRCUIT BREAKER, QOU120B 20A
3 ............ 0601808804 ..................CIRCUIT BREAKER, QOU250B 50A
NOTE
Part number on this Suggested Spare
Parts list may supercede/replace the
P/N shown in the text pages of this book.
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 63
DCA-70SSJU SERIES — NAMEPLATE AND DECALS
NAMEPLATE AND DECALS
PAGE 64 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — NAMEPLATE AND DECALS
NAMEPLATE AND DECALS.
NO.
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
PART NO.
M1550000204
M1550000703
M2550000002
M2550000102
M2552000203
M2550000304
M9500000004
M9500100004
M9500100104
M9500300004
M9500300104
M9500500004
M9500500104
M9503000004
M9503000103
M9503100004
M9503200004
M9510100004
M9520100503
M9520100503
M9510200002
M9520000004
M9520000104
M9520000204
M9520100004
M9520100503
M9520100503
M9520100204
M9520100304
M9520100404
M9520200003
M9520200104
M2560100003
M2560100103
M2560100203
M2560100403
M2560100304
M2560100504
M3552000103
C9522100003
C9505300004
9039209064
PART NAME
QTY.
REMARKS
DECAL, NOTE ........................................................... 1 ............... M15000020
DECAL, AUXILLARY OUTPUT .................................. 1 ............... M15000070
DECAL, GENERATOR CONTROL ............................ 1 ............... M25000000
DECAL, ENGINE OPERATING .................................. 1 ............... M25000010
DECAL, ENGINE OPERATING .................................. 1 ............... M25200020
DECAL, NOTE ........................................................... 1 ............... M25000030
DECAL, OIL DRAIN PLUG ......................................... 1 ............... M90000000
DECAL, WATER ......................................................... 1 ............... M90010000
DECAL, WATER DRAIN PLUG ................................... 1 ............... M90010010
DECAL, NEGATIVE .................................................... 1 ............... M90030000
DECAL, POSITIVE ..................................................... 1 ............... M90030010
DECAL, DIESEL FUEL ............................................... 1 ............... M90050000
DECAL, FUEL DRAIN PLUG ..................................... 1 ............... M90050010
DECAL, WARNING .................................................... 2 ............... M90300000
DECAL, WATER OIL CHECK ..................................... 1 ............... M90300010
DECAL, WARNING .................................................... 1 ............... M90310000
DECAL, WARNING .................................................... 1 ............... M90320000
DECAL, CAUTION ..................................................... 1 ............... M91010000
DECAL, WARNING, M91010010 ................................ 1 ............... REPLACES M9510100104
DECAL, WARNING, M91010020 ................................ 1 ............... REPLACES M9510100204
DECAL, MQ ............................................................... 1 ............... M91020000
DECAL, GROUND ..................................................... 1 ............... M92000000
DECAL, AMMETER CHNG.-OVR SW. ....................... 1 ............... M92000010
DECAL, VOLTMETER CHNG.-OVR SW. .................... 1 ............... M92000020
DECAL, WARNING .................................................... 2 ............... M92010000
DECAL, WARNING, M92010010 ................................ 1 ............... REPLACES M9520100104
DECAL, WARNING .................................................... 1 ............... M92010050
DECAL, CAUTION ..................................................... 1 ............... M92010020A
DECAL, SAFETY INSTRUCTIONS ............................ 1 ............... M92010030
DECAL, DANGER ...................................................... 1 ............... M92010040
DECAL, CONNECT. OUTPUT CABLE ....................... 1 ............... M92020000
DECAL, OVER CURRENT RELAY ............................. 1 ............... M92020010
STRIPE, WHISPERWATT
1
STRIPE, MQ POWER
2
STRIPE
2
STRIPE
2
STRIPE, 70
1
STRIPE, 70
1
DECAL, OPERATING PROCEDURES ....................... 1 ............... M35200010
DECAL, CAUTION ..................................................... 2 ............... C92210000
DECAL, CAUTION ..................................................... 1 ............... C90530000
DECAL, START CONTACT ........................................ 1 ............... S-4468
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 65
DCA-70SSJU SERIES — GENERATOR ASSY.
GENERATOR ASSY.
PAGE 66 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — GENERATOR ASSY.
GENERATOR ASSY.
NO.
PART NO.
1
2
3
4
5
6
7
8
9*
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
8101070033
0012810030
8101611004
8101015003
012010030
0042610000
8101026013
0601821349
0601822601
8001020004
8001020504
012210020
0040010000
0601000209
0071906311
8101614003A
0343204170
EM923344
B5130100303
0845041904
8101315202
8101350013
0012110070
0042610000
031110160
0010110045
0040010000
03111060
8101310014
8131312014
8101331003
0105050616
8101333003
0010106030
0040006000
952404470
012210035
39
39
40
0012810030
0012810035
030210250
41
42
43
43
43
44
45
8111332014
0605000010
0030012000
0040012000
031112230
0070506306
020106050
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
B5110100602
PART NAME
QTY.
REMARKS
ROTOR ASSY. .......................... 1 ....................INCLUDE ITEMS W/
FIELD ASSY.
1
FAN
1
HEX HEAD BOLT
8
COUPLING DISK
5
BALANCING PLATE
1
HEX HEAD BOLT ..................... 8 ....................REPLACES 0012110030
LOCK WASHER
8
SET PLATE RECTIFIER
1
RECTIFIER ............................... 2 ....................PT3610
SURGE ABSORBER ................ 1 ....................ERZ-M14JK621A
INSULATOR WASHER
1
INSULATOR WASHER
1
HEX HEAD BOLT ..................... 4 ....................REPLACES 0010110020
LOCK WASHER
4
BALANCING WEIGHT KIT
1
BEARING .................................. 1 ....................6311DDUC3
COUPLING RING ..................... 1 ....................REPLACES M2163400003
HEX HEAD BOLT
8
LOCK WASHER ....................... 8 ....................REPLACES 0043604000
STATOR ASSY.
1
GROMMET
2
END BRACKET
1
FIELD ASSY. EXCITER
1
HEX HEAD BOLT
4
LOCK WASHER
4
PLAIN WASHER ....................... 4 ....................REPLACES 0041210000
HEX HEAD BOLT
6
LOCK WASHER
6
PLAIN WASHER ....................... 6 ....................REPLACES 0041210000
COVER BEARING
1
GASKET BEARING
1
COVER END BRACKET
1
HEX HEAD BOLT ................... 10 ....................REPLACES 0017106012
COVER END BRACKET
1
HEX HEAD BOLT
2
LOCK WASHER
1
PLAIN WASHER ....................... 2 ....................REPLACES 0041206000
HEX HEAD BOLT ................... 12 ....................S/N7300001 TO 7301260
..........................................................................REPLACES 0010310035
HEX HEAD BOLT ................... 12 ....................S/N7301261 TO 7302210
HEX HEAD BOLT ................... 12 ....................S/N7302211~
LOCK WASHER ...................... 12 ....................S/N7300001 TO 7301260
..........................................................................REPLACES 0042510000
COVER FAN
1
RUBBER SUSPENSION
2
HEX NUT
2
LOCK WASHER
2
PLAIN WASHER ....................... 2 ....................REPLACES 0041212000
BEARING
1
NUT .......................................... 1 ....................REPLACES 0600815000
*
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 67
DCA-70SSJU SERIES — CONTROL BOX ASSY.
CONTROL BOX ASSY.
PAGE 68 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — CONTROL BOX ASSY.
CONTROL BOX ASSY.
NO.
1
1
1
2
3
4
5
6
7
7
8
PART NO.
M2213000102
M2213000122
M2215000103
0601808812
0021005080
0601823863
0021304015
0601820671
0027105010
0027105015
0601806139
9
10
11
12
13
13
14
15
16
17
17A
18
18
19
20
21
22
23
24
24
25
26
011106015
0601820845
0601820846
M1260600004
0021304015
OEMAA8
0027104010
M2213500103
011106015
M2923100004
47230107
M2213600203
M2213600213
EDGEGES
0027104010
011106015
M2213600314
011106015
011106015
0040506000
M2223000103
0601807630
26
27
0601807641
0601808955
27
28
0601808987
0601801040
PART NAME
QTY.
REMARKS
CONTROL BOX .................................................... 1 ............ UP TO S/N7301040
CONTROL BOX .................................................... 1 ............ S/N7301041 TO S/N7302140
CONTROL BOX .................................................... 1 ............ S/N7302141~
CIRCUIT BREAKER .............................................. 1 ............ KAF3617510213P175A
MACHINE SCREW
4
RELAY UNIT ......................................................... 2 ............ MSA9013A
MACHINE SCREW ............................................... 4 ............ REPLACES 0027104015
AUTOMATIC VOLTAGE REGULATOR ................. 1 ............ NTA-5A-2DB
MACHINE SCREW ............................................... 4 ............ S/N7300001 TO S/N7301200
MACHINE SCREW ............................................... 4 ............ S/N7301201~
CURRENT TRANSFORMER, 5A .......................... 3 ............ REPLACES 814943150 AND
.............................................................................................. 0601806117
MACHINE SCREW ............................................... 6 ............ REPLACES 0027106015
OVER CURRENT RELAY ..................................... 1 ............ LR2D1308
KIT OVER CURRENT RELAY, LA7D1064
1
FITTING BRACKET .............................................. 1 ............ S/N7300001 TO S/N7301040
MACHINE SCREW ............................................... 2 ............ REPLACES 0027104015
HEX NUT .............................................................. 2 ............ REPLACES 0207004000
MACHINE SCREW ............................................... 2 ............ S/N7300001 TO S/N7301040
CONTROL BOX COVER
1
HEX HEAD BOLT .................................................. 4 ............ REPLACES 0016906015
SELECTOR SWITCH ........................................... 1 ............ VY-80/S
KNOB, SELECTOR SWITCH
1
SWITCH BRACKET .............................................. 1 ............ S/N7300001 TO S/N7300003
SWITCH BRACKET .............................................. 1 ............ S/N7300004~
EDGING................................................................ 2 ............ REPLACES 0330000295
MACHINE SCREW
4
HEX HEAD BOLT .................................................. 6 ............ REPLACES 0016906015
SWITCH COVER
1
HEX HEAD BOLT .................................................. 4 ............ REPLACES 0016906015
HEX HEAD BOLT .................................................. 8 ............ REPLACES 0016906015
TOOTHED WASHER
1
CONTROL PANEL
1
FREQUENCY METER, 264250DJDJ9 ................. 1 ............ UP TO S/N7302695
.............................................................................................. REPLACES 0601807696
FREQUENCY METER, FCF6 45~65Hz 240V ...... 1 ............ S/N7302696~
AC AMMETER, 260240LSX1JBP ......................... 1 ............ UP TO S/N7302695
.............................................................................................. REPLACES 0601808943
AC AMMETER, ACF-6 .......................................... 1 ............ S/N7302696~
CHANGE-OVER SWITCH AMMETER .................. 1 ............ SL-2AS
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 69
DCA-70SSJU SERIES — CONTROL BOX ASSY. (CONT.)
CONTROL BOX ASSY. (CONT.)
PAGE 70 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — CONTROL BOX ASSY. (CONT.)
CONTROL BOX ASSY. (CONT.)
NO.
PART NO.
PART NAME
QTY. REMARKS
29
0601806813
AC VOLTMETER, 260244SJSJ1 ........................ 1 .... UP TO S/N7302695
................................................................................... REPLACES 0601806896
29
0601806859
AC VOLTMETER, SCF-6 ................................... 1 .... S/N7302696~
30
0601801041
CHANGE-OVER SWITCH VOLTMETER ............ 1 .... SL-2VS
31
0601840073
REOSTAT, VOLTAGE REGULATOR
1
32
0601840121
KNOB
1
33
M1223100004
ST0PPER
1
34
0027105015
MACHINE SCREW ............................................ 2 .... S/N7300001 TO S/N7300505
34
0027105010
MACHINE SCREW ............................................ 2 .... S/N7300506~
35
0027105015
MACHINE SCREW ............................................ 4 .... S/N7300001 TO S/N7300505
35
0027105010
MACHINE SCREW ............................................ 4 .... S/N7300506~
36
M9220100004
SET SCREW
1
37
0080200007
SNAP RING
1
38
0602202525
CONTROLLER 0530000593 ............................. 1 .... S/N7300001 TO S/N7300645
39
0027105015
MACHINE SCREW ............................................ 2 .... S/N7300001 TO S/N7300645
40
0601823707
RELAY, CA1A12V-N-5ACA-12135 ...................... 1 .... S/N7300001 TO S/N7300645
41
0027105015
MACHINE SCREW ............................................ 1 .... S/N7300001 TO S/N7300645
42
0601826052
RELAY, HH62S-FDC12V .................................... 2 .... S/N7300001 TO S/N7300645
43
0027103010
MACHINE SCREW ............................................ 4 .... S/N7300001 TO S/N7300645
44
0602202592
STARTER RELAY AT141011
1
45
011106015
MACHINE SCREW ............................................ 2 .... REPLACES 0027106015
46
0601821370
RECTIFIER DE4503 .......................................... 1 .... REPLACES 0601823240
47
0027104020
MACHINE SCREW ............................................ 1 .... S/N7300261~
48
0602200478
EMERGENCY RELAY, A1070160602,3 ............. 1 .... S/N7300646 TO S/N7302140
49
0027105040
MACHINE SCREW ............................................ 2 .... S/N7300646 TO S/N7302140
50
DYN110794000012 CONTROLLER .................................................. 1 .... S/N7302141~
................................................................................... REPLACES 0602202599
51
MSP6724
SPEED SENSOR ............................................... 1 .... S/N7302141~
................................................................................... REPLACES 0602120485
52
0027105015
MACHINE SCREW ............................................ 4 .... S/N7302141~
53
LY2DUS12VDC
RELAY ............................................................... 1 .... S/N7302141~
................................................................................... REPLACES 0601827656
53
PTF08A
BASE ................................................................. 1 .... S/N7302141~
................................................................................... REPLACES 0601823109
53
PYCA1
CLIP ................................................................... 2 .... S/N7302141~
................................................................................... REPLACES 0601824400
54
0027104020
MACHINE SCREW ............................................ 2 .... S/N7302141~
55
M2246700004
WIRE HARNESS GENERATOR ........................ 1 .... S/N7300001 TO S/N7300365
55
M2246700014
WIRE HARNESS GENERATOR ........................ 1 .... S/N7300365 TO S/N7301090
55
M2246700024
WIRE HARNESS GENERATOR ........................ 1 .... S/N7301091~
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 71
DCA-70SSJU SERIES — ENGINE AND RADIATOR ASSY.
ENGINE AND RADIATOR ASSY.
PAGE 72 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE AND RADIATOR ASSY.
ENGINE AND RADIATOR
NO.
PART NO.
1
M2923200004
1
M2923200004
1A
0602011490
2
0602041290
3
0602042590
4
0602014297
4
RE502668
5
M2303200303
6
0131151240
7
0040012000
8
0605000009
9
0030012000
10
0040012000
11
031112230
12
0602011998
12
0602011999
13
C2810034100
14
15
16
17
18
0605515148
0602010780
0602060011
0602061000
0012110090
18
19
0012110095
011008015
20
21
22
22
23
23
27
28
29
29
30
30
31
32
0043004000
0043104000
M2310200304
M2310200314
M2310200204
M2310200214
011008020
0138102000
M2310500203
M2310500503
M2310500303
M2310500603
M2310500403
M2310400004
ASSY.
PART NAME
QTY. REMARKS
ENGINE, JOHN DEERE 4045T ................... 1 ......... S/N7300001 TO S/N7302045
ENGINE, JOHN DEERE 4045TF150 ........... 1 ......... S/N7302046~
FAN BELT
1
ELEMENT OIL FILTER ................................. 1 ......... RE59754A
ELEMENT FUEL FILTER ............................. 1 ......... RE62418
ELECTRIC HEATER; RE29658 .................... 1 ......... S/N7300001 TO S/N7300720
ELECTRIC HEATER ASSY. .......................... 1 ......... S/N7000721~
ENGINE FOOT
2
HEX HEAD BOLT ......................................... 6 ......... REPLACES 0010312030
LOCK WASHER
6
RUBBER SUSPENSION
2
HEX NUT
2
LOCK WASHER
2
PLAIN WASHER ........................................... 2 ......... REPLACES 0041212000
RADIATOR ................................................... 1 ......... S/N7300001 TO S/N7300267
RADIATOR ................................................... 1 ......... S/N7300268~
SHROUD ..................................................... 1 ......... S/N7300001 TO S/N7300267
.................................................................................. REPLACES 0602010690
HOSE BAND ................................................ 1 ......... S/N7300001 TO S/N7300267
FAN COVER ................................................ 1 ......... S/N7300001 TO S/N7300267
BLOWER FAN ............................................. 1 ......... 320606
FAN SPACER ............................................... 1 ......... R81911
FAN BOLT;19M7811 .................................... 4 ......... S/N7300001 TO S/N7300220;
.................................................................................. REPLACES 0602060500
HEX HEAD BOLT ......................................... 4 ......... S/N7300401~
HEX HEAD BOLT ......................................... 6 ......... S/N7300001 TO S/N7300267
.................................................................................. REPLACES 0013004308
LOCK WASHER ........................................... 4 ......... S/N7300001 TO S/N7300267
PLAIN WASHER ........................................... 4 ......... S/N7300001 TO S/N7300267
RADIATOR BRACKET ................................. 1 ......... S/N7300001 TO S/N7300003
RADIATOR BRACKET ................................. 1 ......... S/N7300004 TO S/N7300267
RADIATOR BRACKET ................................. 1 ......... S/N7300001 TO S/N7300003
RADIATOR BRACKET ................................. 1 ......... S/N7300004 TO S/N7300267
HEX HEAD BOLT ......................................... 6 ......... REPLACES 0016908020
PLUG ........................................................... 1 ......... S/N7300001 TO S/N7300267
RADIATOR HOSE, UPPER .......................... 1 ......... S/N7300001 TO S/N7300267
RADIATOR HOSE, UPPER .......................... 1 ......... S/N7300268~
RADIATOR HOSE, LOWER ......................... 1 ......... S/N7300001 TO S/N7300267
RADIATOR HOSE, LOWER ......................... 1 ......... S/N7300268~
RADIATOR HOSE, LOWER ......................... 1 ......... S/N7300001 TO S/N7300267
DRAIN PIPE ................................................. 1 ......... S/N7300001 TO S/N7300267
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 73
DCA-70SSJU SERIES — ENGINE AND RADIATOR ASSY. (CONT.)
ENGINE AND RADIATOR ASSY.
PAGE 74 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE AND RADIATOR ASSY. (CONT.)
ENGINE AND RADIATOR
NO.
PART NO.
33
0605515199
33
0605515201
34
0605515147
35
781204003B
36
37
38
M9200200004
0150000018
011206020
39
40
41
41
41
41
42
42
43
43
44
0199900685
0605515106
0602046233
0602046582
0602046357
0602046365
0602040650
0602040651
0602040590
0602040554
011008020
46
46
47
47
48
49
50
51
52
53
54
54
55
56
57
57
58
59
60
M2373100103
M2375100003
0605515146
0605515146
0602022563
0602021165
0602022561
0602022562
0602022792
0602021070
0602021572
0269200600
M9300000103
0802081104
M2316100104
M2316100204
0199100200
0193601500
M2260600014
ASSY.
PART NAME
QTY.
REMARKS
HOSE BAND ................................................ 1 ......... S/N7300001 TO S/N7300267
HOSE BAND ................................................ 1 ......... S/N7300268~
HOSE BAND ................................................ 3 ......... S/N7300268~
DRAIN JOINT .............................................. 1 ......... S/N7300001 TO S/N7300267
.................................................................................. REPLACES M2320300103
DRAIN BOLT ................................................ 1 ......... S/N7300001 TO S/N7300267
O RING ........................................................ 1 ......... S/N7300001 TO S/N7300267
HEX HEAD BOLT ......................................... 2 ......... S/N7300001 TO S/N7300267
.................................................................................. REPLACES 0016906020
DRAIN HOSE ............................................... 1 ......... S/N7300001 TO S/N7300267
HOSE BAND ................................................ 2 ......... S/N7300001 TO S/N7300267
AIR CLEANER, FWG080061 ....................... 1 ......... S/N7300001 TO S/N7302330
AIR CLEANER, FPG082527 ........................ 1 ......... S/N7302331~
ELEMENT AIR CLEANER, P18-1054 .......... 1 ......... S/N7300001 TO S/N7302330
ELEMENT AIR CLEANER, P828889 ............ 1 ......... S/N7302331~
INDICATOR AIR CLEANER .......................... 1 ......... S/N7300001 TO S/N7302330
INDICATOR AIR CLEANER .......................... 1 ......... S/N7302331~
BAND AIR CLEANER ................................... 2 ......... S/N7300001 TO S/N7302330
BAND AIR CLEANER ................................... 1 ......... S/N7302331~
HEX HEAD BOLT ......................................... 4 ......... S/N7300001 TO S/N7302330
.................................................................................. REPLACES 0016908020
HOSE AIR CLEANER .................................. 1 ......... S/N7300001 TO S/N7302330
HOSE AIR CLEANER .................................. 1 ......... S/N7302331~
HOSE BAND ................................................ 2 ......... S/N7300001 TO S/N7302330
HOSE BAND ................................................ 1 ......... S/N7302331~
ADAPTER
1
O RING ........................................................ 1 ......... S/N7300001 TO S/N7300991
90 ELBOW
1
UNION ......................................................... 1 ......... S/N7300001 TO S/N7302330
SWIVEL ....................................................... 1 ......... S/N7300001 TO S/N7302140
CAP
1
DRAIN HOSE ............................................... 1 ......... S/N7300001 TO S/N7302140
DRAIN HOSE ............................................... 1 ......... S/N7302141~
RESERVE TANK
1
CAP RESERVE TANK ................................... 1 ......... REPLACES M9300100003
BRACKET RESERVE TANK ......................... 1 ......... S/N7300001 TO S/N7300003
BRACKET RESERVE TANK ......................... 1 ......... REPLACES M9300100003
HOSE
1
HOSE........................................................... 1 ......... S/N7300001 TO S/N7300267
RELAY BRACKET ........................................ 1 ......... S/N7300001 TO S/N7301310
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 75
DCA-70SSJU SERIES — ENGINE AND RADIATOR ASSY. (CONT.)
ENGINE AND RADIATOR ASSY.
PAGE 76 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE AND RADIATOR ASSY. (CONT.)
ENGINE AND RADIATOR
NO.
PART NO.
60
M2260600024
61
0602202597
61
0602202592
62
0602220621
63
0017105015
63
011106015
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
ASSY.
PART NAME
QTY. REMARKS
RELAY, BRACKET........................................ 1 ......... S/N7301311~
RELAY, AL81719 .......................................... 1 ......... S/N7300001 TO 7301310
RELAY, AT141011 ........................................ 1 ......... S/N7301311~
TERMINAL COVER ..................................... 1 ......... S/N7300001 TO S/N7300003
HEX HEAD BOLT ......................................... 1 ......... S/N7300001 TO S/N7301310
MACHINE SCREW ...................................... 2 ......... S/N7301311~
.................................................................................. REPLACES 0027106015
M2483400014
ALTERNATOR COVER
1
011206020
HEX HEAD BOLT ......................................... 2 ......... REPLACES 0016906020
011008020
HEX HEAD BOLT ......................................... 2 ......... S/N7 300004~
.................................................................................. REPLACES 0016908020
030210250
LOCK WASHER ........................................... 4 ......... S/N7300221~
.................................................................................. REPLACES 0042510000
1718939010
OIL SWITCH ................................................ 1 ......... S/N 7300646~
.................................................................................. REPLACES 0602122281
M9200100704
ADAPTER .................................................... 1 ......... S/N7300646~
1518183040
WATER SWITCH .......................................... 1 ......... S/N 7300646~
.................................................................................. REPLACES 0602123282
M9200100404
ADAPTER .................................................... 1 ......... S/N 7300646~
012210020
HEX HEAD BOLT ......................................... 1 ......... S/N7301311~
.................................................................................. REPLACES 0017110020
M2375200004
BRACKET, AIR CLEANER ........................... 1 ......... S/N7302331~
011008020
HEX HEAD BOLT ......................................... 4 ......... S/N7302331~
.................................................................................. REPLACES 0016908020
020108060
HEX NUT ..................................................... 4 ......... S/N7302331~
.................................................................................. REPLACES 0207008000
0605515200
HOSE BAND ................................................ 1 ......... S/N7302331~
0605511395
VALVE, XV500P-8 ........................................ 1 ......... S/N7302141~
0603306590
CONNECTOR .............................................. 1 ......... S/N7302141~
0603300285
ROCK NUT .................................................. 1 ......... S/N7302141~
0603306395
HOSE JOINT ............................................... 1 ......... S/N7302141~
DYNC70025000012 ACTUATOR .................................................. 1 ......... S/N7302141~
.................................................................................. REPLACES0602150093
M3356200004
STOPPER BRACKET .................................. 1 ......... S/N7302141~
012210020
HEX HEAD BOLT ......................................... 1 ......... S/N7302141~
.................................................................................. REPLACES 0017110020
011206020
HEX HEAD BOLT ......................................... 1 ......... S/N7302141~
.................................................................................. REPLACES 0016906020
0207006000
HEX NUT ..................................................... 1 ......... S/N7302141~
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 77
DCA-70SSJU SERIES — ENGINE OPERATING PANEL ASSY.
ENGINE OPERATING ASSY.
S/N7300001 TO S/N7302140
S/N73002141~
PAGE 78 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE OPERATING PANEL ASSY.
ENGINE OPERATING ASSY.
NO.
1
2
PART NO.
M1354300304
0601840190
3
020108060
4
5
0605804150
031108160
6
7
M1354200004
020108060
8
020108060
9
10
10
11
12
0605010550
M2354300104
M2354300114
0602180106
020108060
13
14
0602180107
0039308000
15
952404470
15
952404470
16
16
16
16A
17
17
0602100056
0602100028
0602100029
AR51481
0601831594
0601831585
PART NAME
QTY. REMARKS
SLIDE LEVER .................................................... 1 .......... S/N7300001 TO S/N7302140
KNOB ................................................................ 1 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES M9320000004
HEX. NUT .......................................................... 1 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES 0036003000
SPRING ............................................................. 1 .......... S/N7300001 TO S/N7302140
PLAIN WASHER ................................................ 2 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES 0041208000
BRACKET .......................................................... 1 .......... S/N7300001 TO S/N7302140
HEX. NUT .......................................................... 1 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES 0207008000
HEX. NUT .......................................................... 1 .......... S/N7300001 TO S/N7302140;
......................................................................................... REPLACES 0030008000
SNAP PIN .......................................................... 1 .......... S/N7300001 TO S/N7302140
GOVERNOR ROD ............................................. 1 .......... S/N 730001 TO S/N7300003
GOVERNOR ROD ............................................. 1 .......... S/N7300004 TO S/N7302140
BALL JOINT ....................................................... 1 .......... S/N7300001 TO S/N7302140
HEX. NUT .......................................................... 1 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES 0030008000
BALL JOINT ....................................................... 1 .......... S/N7300001 TO S/N7302140
HEX. NUT .......................................................... 1 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES 0036508000
HEX. NUT .......................................................... 2 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES 0207006000
PLAIN WASHER ................................................ 2 .......... S/N7300001 TO S/N7302140
......................................................................................... REPLACES 0041206000
STARTER SWITCH;AR58126............................ 1 .......... S/N7300001 TO S/N7302140
SET NUT ........................................................... 1 .......... S/N7300001 TO S/N7302140
SET WASHER .................................................... 1 .......... S/N7300001 TO S/N7302140
KEY, STARTER SWITCH ................................... 1 .......... S/N7300001 TO S/N7302140
COLD STARTING BUTTON, R39554 ............... 1 .......... S/N7300001 TO S/N7301510
COLD STARTING BUTTON, 44047 .................. 1 .......... S/N7301511~
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 79
DCA-70SSJU SERIES — ENGINE OPERATING PANEL ASSY. (CONT.)
ENGINE OPERATING ASSY. (CONT.)
S/N7300001 TO S/N7302140
S/N73002141~
PAGE 80 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENGINE OPERATING PANEL ASSY. (CONT.)
ENGINE OPERATING ASSY. (CONT.)
NO.
PART NO.
PART NAME
QTY.
REMARKS
17
0601831584
CAP ................................................................... 1 .......... S/N7300001 TO S/N7301510
17
0601831586
CAP ................................................................... 1 .......... S/N7301511~
17
0602202450
WIRING READ ................................................... 1 .......... S/N7300001 TO S/N7300220
17
0602202451
WIRING READ ................................................... 1 .......... S/N7300001 TO S/N7300220
18
0602120096
TACHOMETER .................................................. 1 .......... 103678
19
0602122094
OIL PRESSURE GAUGE, 106068 ..................... 1 .......... S/N7300001 TO S/N7300645
19
0602122093
OIL PRESSURE GAUGE, 100174 ..................... 1 .......... S/N7300646~
20
0602122272
UNIT, OIL PRESSURE, 102225 ......................... 1 .......... REPL.0602122207&0602122271
21
0602123091
WATER TEMPERATURE GAUGE, 106078 ........ 1 .......... S/N7300001 TO S/N7300645
21
0602123092
WATER TEMPERATURE GAUGE, 100182 ........ 1 .......... S/N7300646~
22
0602123263
UNIT, WATER TEMPERATURE, 0208900 ......... 1 .......... S/N7300001 TO S/N7300645
22
0602123261
UNIT, WATER TEMPERATURE, 0202500 ......... 1 .......... S/N7300646~
23
0602121080
CHARGING AMMETER ..................................... 1 .......... 100158
24
0602125090
FUEL GAUGE .................................................... 1 .......... 100176
25
0602103092
ALARM LAMP .................................................... 2 .......... S/N7300001 TO S/N7302140
25
0601810245
BULB, 18V ......................................................... 2 .......... S/N7300001 TO S/N7302140
26
0601810141
PANEL LIGHT
1
27
0601831330
SWITCH, PANEL LIGHT .................................... 1 .......... 90-0001
28
ECU9988NJD ENGINE CONTROLLER ................................... 1 .......... S/N7302141~
......................................................................................... REPLACES 0602202545
29
0027104035
MACHINE SCREW ............................................ 2 .......... S/N7302141~
29
OEMAA8
HEX NUT ........................................................... 2 .......... S/N7302141~
......................................................................................... REPLACES 0207004000
30
82608
SWITCH, 7562K4 .............................................. 1 .......... S/N7302141~
......................................................................................... REPLACES 0601831340
31
0601831395
SWITCH, 7302K36 ............................................ 1 .......... S/N7302141~
32
M2357200042 WIRE HARNESS, ENGINE ................................ 1 .......... UP TO S/N7301310
32
M2357200052 WIRE HARNESS, ENGINE ................................ 1 .......... S/N7301311 TO S/N7302140
32
M2357200062 WIRE HARNESS, ENGINE ................................ 1 .......... S/N730141~
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 81
DCA-70SSJU SERIES — OUTPUT TERMINAL ASSY.
OUTPUT TERMINAL ASSY.
S/N7300061 TO S/N7302140
PAGE 82 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — OUTPUT TERMINAL ASSY.
OUTPUT TERMINAL ASSY.
NO.
PART NO.
PART NAME
QTY.
REMARKS
1
8081860103
TERMINAL PANEL ..................................... 1............... S/N7300001 TO S/N7300365
..................................................................................... REPLACES M2230700003
1
M2230700113
TERMINAL PANEL ..................................... 1............... S/N7300366~
2
M2233000004
OUTUT TERMINAL BOLT .......................... 4............... S/N7300001 TO S/N7300365
2
M2233000004
OUTPUT TERMINAL BOLT ....................... 5............... S/N7300366~
3
M2233100004
TIE BOLT ................................................... 4............... S/N7300001 TO S/N7300365
3
M2233100004
TIE BOLT ................................................... 5............... S/N7300366~
4
0039312000
HEX NUT ................................................... 8............... S/N7300001 TO S/N7300365
4
0039312000
HEX NUT ................................................. 10 ............... S/N7300366~
5
0040012000
LOCK WASHER ....................................... 12 ............... S/N7300001 TO S/N7300365
5
0040012000
LOCK WASHER ....................................... 15 ............... S/N7300366~
6
0041412000
PLAIN WASHER ....................................... 16 ............... S/N7300001 TO S/N7300365
6
0041412000
PLAIN WASHER ....................................... 20 ............... S/N7300366~
7
M2233700004
STUD BOLT ............................................... 1............... S/N7300001 TO S/N7300365
8
0039306000
HEX NUT ................................................... 5............... S/N7300001 TO S/N7300365
9
0040006000
PLAIN WASHER ......................................... 2............... S/N7300001 TO S/N7300365
10
0041406000
PLAIN WASHER ......................................... 5............... S/N7300001 TO S/N7300365
11
0012108035
HEX HEAD BOLT ....................................... 5............... S/N7300001 TO S/N7300365
..................................................................................... REPLACES 0016908035
12
M2236100403
TERMINAL COVER ................................... 1............... S/N7300001 TO S/N7300060
12
M2236100413
TERMINAL COVER ................................... 1............... S/N7300061 TO S/N7301140
12
M2236100423
TERMINAL COVER ................................... 1............... S/N7301141 TO S/N7301260
12
M2236100433
TERMINAL COVER ................................... 1............... S/N7301261 TO S/N7302175
12
M2236100003
TERMINAL COVER ................................... 1............... S/N7302176~
13
M2236100504
OUTPUT WINDOW ................................... 1............... S/N73012611 TO S/N7302175
13
M3236100104
OUTPUT WINDOW ................................... 1............... S/N7302176~
14
0605010040
HINGE
2
15
0027103010
MACHINE SCREW
4
15
0207003000
HEX NUT ................................................... 4............... REPLACES 0030003000
15
58413
PLAIN WASHER ......................................... 4............... REPLACES 0041203000
16
0027103010
MACHINE SCREW
4
16
0207003000
HEX NUT ................................................... 4............... REPLACES 0030003000
17
011206020
HEX HEAD BOLT ....................................... 2............... REPLACES 0016906020
18
011106015
HEX HEAD BOLT ....................................... 4............... REPLACES 0016906015
19
M1236400004
CABLE OUTPUT COVER .......................... 1............... S/N7300001 TO S/N7300140
19
M3236400004
CABLE OUTPUT COVER .......................... 1............... S/N73000141~
20
M1236300004
SUPPORTER, CABLE OUTLET CVR. ....... 1............... S/N7300001 TO S/N7300140
20
M3236300004
SUPPORTER, CABLE OUTLET CVR. ....... 1............... S/N7300141~
21
011206020
HEX HEAD BOLT ....................................... 6............... REPLACES 0016906020
22
0601808803
CIRCUIT BREAKER ................................... 2............... QOU120B1P20A
23
0601808804
CIRCUIT BREAKER ................................... 3............... QOU250B2P50A
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 83
DCA-70SSJU SERIES — OUTPUT TERMINAL ASSY. (CONT.)
OUTPUT TERMINAL ASSY. (CONT.)
PAGE 84 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — OUTPUT TERMINAL ASSY. (CONT.)
OUTPUT TERMINAL ASSY. (CONT.)
NO.
PART NO.
PART NAME
QTY.
REMARKS
24
M1260700304
BREAKER FITTING COVER
1
25
0222100150
CUSHION RUBBER
1
26
0016906020
HEX HEAD BOLT
2
27
011206020
RECEPTACLE, GF5342125V 20A X 2 ....... 2............... S/N7300001 TO S/N7300365
..................................................................................... REPLACES 0601812540
27
0601812597
RECEPTACLE, GF530EM 125V 20A X2 ... 2............... S/N7300366~
..................................................................................... REPLACES 0601812598
28
0601811034
RECEPTACLECS, 6369 250V 50A ............ 3............... S/N7300001 TO S/N7300365
..................................................................................... REPLACES 0601812548
28
0601812538
RECEPTACLE, CS6369 250V 50A ............ 3............... S/N7300366~
29
0021304015
MACHINE SCREW .................................. 10 ............... REPLACES 0027104015
29
0030004000
HEX NUT ................................................. 10 ............... REPLACES 0207004000
30
M2236100303
TERMINAL COVER ................................... 1............... S/N7300001 TO S/N7302175
30
M2455400003
TERMINAL COVER ................................... 1............... S/N7302176~
31
012212045
HEX HEAD BOLT ....................................... 2............... REPLACES 0010112045
32
031112230
PLAIN WASHER ......................................... 2............... REPLACES 0041212000
33
M9310200004
STAY RUBBER
2
34
0030012000
NUT
2
35
M2354200004
SUPPORTER, GOVERNOR ROD ............. 1............... S/N7300061 TO S/N7302140
36
011106015
HEX HEAD BOLT ....................................... 2............... S/N7300061 TO S/N7302140
..................................................................................... REPLACES 0016906015
37
0603306775
PLUG ......................................................... 2............... S/N7302176~
38
0021304015
MACHINE SCREW .................................... 4............... S/N7302176~
..................................................................................... REPLACES 0027104015
39
0601815194
TERMINAL ................................................. 1............... S/N7302141~
40
0021304015
MACHINE SCREW .................................... 2............... S/N7302141~
..................................................................................... REPLACES 0027104015
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 85
DCA-70SSJU SERIES — BATTERY ASSY.
BATTERY ASSY.
PAGE 86 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — BATTERY ASSY.
BATTERY ASSY.
NO.
1
PART NO.
551010280
2
3
4
5
6
6
7
8
M9310500014
M9103000304
0602220920
0040006000
M1346400004
M1346400204
M2346400104
011008020
0040508000
9
10
10
11
11
12
0017112025
0040512000
012210020
0040510000
M1346400004
13
M1346400104
PART NAME
QTY.
REMARKS
BATTERY ................................................... 1............... 627MFD
..................................................................................... REPLACES 0602220187
BATTERY SHEET
1
BATTERY BAND
1
BATTERY BOLT SET
2
LOCK WASHER
2
BATTERY CABLE ....................................... 1............... S/N7300001 TO S/N7302045
BATTERY CABLE ....................................... 1............... S/N7302046~
BATTERY CABLE
1
HEX HEAD BOLT ....................................... 1............... REPLACES 0016908020
TOOTHED WASHER
1
CABLE, GROJND ...................................... 1............... MAKE LOCALLY
HEX HEAD BOLT
1
TOOTHED WASHER
1
HEX HEAD BOLT ....................................... 1............... REPLACES 0017110020
TOOTHED WASHER
1
TERMINAL COVER ................................... 1............... S/N7300001 TO S/N7300003
..................................................................................... REPLACES M9310000304
TERMINAL COVER ................................... 1............... S/N7300001 TO S/N7300003
..................................................................................... REPLACES M9310000204
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 87
DCA-70SSJU SERIES — MUFFLER ASSY.
MUFFLER ASSY.
S/N7300001 TO S/N7300800
S/N7300001 TO S/N7300800
S/N7300001 TO S/N7300800
PAGE 88 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — MUFFLER ASSY.
MUFFLER ASSY.
NO.
PART NO.
1
0602300162
1
0602300166
2
M2330400204
2
012210025
3
020108060
3
031108160
4
4
4
4
5
5
5
6
6
6
7
M2333000303
M2333000313
M2333000323
M2333000333
M2333000203
M2333000213
M2333000223
M2333300104
0602325065
0602325066
011008040
8
9
10
11
M2333200004
0012108035
M2333100204
011008020
12
13
13
14
14
15
0602325022
M2330400304
M2330400314
M2333300003
M2333300013
011106015
15
011106015
16
17
18
0602326060
0602325022
011106015
18
0207000600
PART NAME
QTY.
REMARKS
MUFFLER .......................... 1 ................. S/N7300001 TO S/N7300800
MUFFLER .......................... 1 ................. S/N7300801~
U BOLT .............................. 2 ................. S/N7300001 TO S/N7300800
HEX HEAD BOLT ............... 4 ................. S/N7300801~
................................................................ REPLACES 0016910025
HEX NUT ........................... 4 ................. S/N7300001 TO S/N7300800
................................................................ REPLACES 0037908000
PLAIN WASHER ................ 4 ................. S/N7300001 TO S/N7300800
................................................................ REPLACES 0041208000
EXHAUST PIPE .................. 1 ................. S/N7300001 TO S/N7300020
EXHAUST PIPE .................. 1 ................. S/N7300021 TO S/N7300180
EXHAUST PIPE .................. 1 ................. S/N7300181 TO S/N7300363
EXHAUST PIPE .................. 1 ................. S/N7300364~
EXHAUST PIPE .................. 1 ................. S/N7300001 TO S/N7300020
EXHAUST PIPE .................. 1 ................. S/N7300021 TO S/N7300180
EXHAUST PIPE .................. 1 ................. S/N7300181 TO S/N7300800
SEAL CLAMP ..................... 1 ................. S/N7300001 TO S/N7300003
CLAMP ............................... 1 ................. S/N7300004 TO S/N7300400
CLAMP ............................... 1 ................. S/N7300401~
HEX HEAD BOLT ............... 2 ................. S/N7300001 TO S/N7300003
................................................................ REPLACES 0010108040
GASKET ............................ 1 ................. REPLACES M2333200014
HEX HEAD BOLT ............... 4 ................. REPLACES 0016908035
TAIL PIPE ........................... 1 ................. S/N7300001 TO S/N7300800
HEX HEAD BOLT ............... 1 ................. S/N7300001 TO S/N7300800
................................................................ REPLACES 0016908020
CLAMP ............................... 1 ................. REPLACES 0602325089
COVER .............................. 1 ................. S/N7300001 TO S/N7300180
COVER .............................. 1 ................. S/N7300181~
BRACKET .......................... 1 ................. S/N7300001 TO S/N7300180
BRACKET .......................... 1 ................. S/N7300181~
HEX HEAD BOLT ............... 4 ................. S/N7300001 TO S/N7300140
................................................................ REPLACES 0016906015
HEX HEAD BOLT ............... 2 ................. S/N7300141~
................................................................ REPLACES 0016906015
U BOLT SET
1
CLAMP ............................... 1 ................. S/N7300001 TO S/N7300800
HEX. HEAD BOLT .............. 2 ................. S/N7302141~
................................................................ REPLACES 0016906015
HEX. NUT .......................... 2 ................. S/N7302141~
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 89
DCA-70SSJU SERIES — FUEL TANK ASSY.
FUEL TANK ASSY.
PAGE 90 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — FUEL TANK ASSY.
FUEL TANK ASSY.
NO.
1
2
3
4
5
6
PART NO.
M2363000102
0605505070
M2363200104
M9310500104
011008020
020108060
6
6
0207308000
031108160
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
0222100178
M9200000003
M9200200004
0150000018
011206020
M1363400104
0605515198
0602042420
0602042601
0191300450
0191301600
0191302000
0605515189
0605515109
0602220911
PART NAME
QTY.
REMARKS
FUEL TANK
1
CAP, FUEL TANK
1
TANK BAND
2
SUPPORTER SHEET
4
HEX HEAD BOLT ....................................... 2............... REPLACES 0016908020
HEX NUT ................................................... 2............... S/N7300001 TO S/N7300610
..................................................................................... REPLACES 0037908000
HEX NUT ................................................... 2............... S/N7300611~
PLAIN WASHER ........................................ 2............... S/N7300001 TO S/N7300610
..................................................................................... REPLACES 0041208000
RUBBER SHEET
4
DRAIN JOINT
1
DRAIN BOLT
1
O RING
1
HEX HEAD BOLT ....................................... 2............... REPLACES 0016906020
DRAIN HOSE
1
HOSE BAND .............................................. 2............... REPLACES 0605515198
FUEL FILTER ............................................. 1............... PTG15P
LEAK-OFF LINE ........................................ 1............... RE67050
SUCTION HOSE
1
SUCTION HOSE
1
RETURN HOSE
1
HOSE BAND
1
HOSE BAND
5
CLAMP
1
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 91
DCA-70SSJU SERIES — ENCLOSURE ASSY.
ENCLOSURE ASSY.
ADD THE FOLLOWING DIGITS AFTER THE PART NUMBER
WHEN ORDERING ANY PAINTED PANEL TO INDICATE
COLOR OF UNIT:
5 -BLACK
1-ORANGE
6 -CATERPILLAR YELLOW
2-WHITE
3 -SPECTRUM GRAY 7 -CATO GOLD
4 -SUNBELT GREEN
THE SERIAL NUMBER MAY BE REQUIRED.
PAGE 92 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENCLOSURE ASSY.
ENCLOSURE ASSY.
NO.
PART NO.
1
M2413000102
1
M2413000112
1
M2413000212
1
M2415000203
2
M1413400004
3
011008020
4
M2423000102
4
M2423000112
4
M2423000212
4
4
5
6
6
7
8
8
9
M2425000003
M2493101203
0016908020
M2423200214
M2493101104
011008020
M2423200303
M2423200313
011008020
9
011008020
10
10
11
12
12
12
13
14
14
14
14
15
16
16
17
17
18
18
19
20
M2433000203
M2435000203
M2433000303
0010114030
030214350
031114260
012212030
M2443000102
M2443000112
M2445000103
M2493300904
011008020
M2443300703
M2443300713
M2443300613
M2493300704
M2443300513
M2493300604
0207006000
01100802
20
01100802
PART NAME
QTY.
REMARKS
BASE ......................................................... 1............... S/N7300001 TO S/N7300003
BASE ......................................................... 1............... S/N7300004 TO S/N7301200
BASE ......................................................... 1............... S/N7301201 TO S/N7302140
BASE ......................................................... 1............... S/N7302141~
UNDER COVER
1
HEX HEAD BOLT ....................................... 2............... REPLACES 0016908020
FRONT FRAME ......................................... 1............... S/N7300001 TO S/N7300003
FRONT FRAME ......................................... 1............... S/N7300004 TO S/N7300180
FRONT FRAME ......................................... 1............... S/N7300181 TO 7302140
..................................................................................... REPLACES M2423000202
..................................................................................... AND M242300122
FRONT FRAME ......................................... 1............... S/N7302141~
ACOUSTIC SHEET ................................... 1............... REPLACES M2493101213
HEX HEAD BOLT
6
COVER, FRONT FRAME
1
ACOUSTIC SHEET
1
HEX HEAD BOLT ..................................... 11 ............... REPLACES 0016908020
INNER COVER, FRONT FRAME ............... 1............... S/N7300001 TO S/N7300003
INNER COVER, FRONT FRAME ............... 1............... S/N7300004~
HEX HEAD BOLT ....................................... 6............... S/N7300001 TO S/N7300003
..................................................................................... REPLACES 0016908020
HEX HEAD BOLT ....................................... 7............... S/N7300004~
..................................................................................... REPLACES 0016908020
CENTER FRAME ....................................... 1............... S/N7300001 TO S/N7302175
CENTER FRAME ....................................... 1............... S/N7302176
CENTER FRAME
1
HEX HEAD BOLT
8
LOCK WASHER ......................................... 8............... REPLACES 0040014000
PLAIN WASHER ......................................... 8............... REPLACES 0041214000
HEX HEAD BOLT ..................................... 10 ............... REPLACES 0017112030
REAR FRAME ............................................ 1............... S/N7300001 TO S/N7300003
REAR FRAME ............................................ 1............... S/N7300004 TO S/N7302175
REAR FRAME ............................................ 1............... S/N7302176~
ACOUSTIC SHEET
1
HEX HEAD BOLT ....................................... 4............... REPLACES 0016908020
REAR COVER .............................................1 .............. S/N7300001 TO 7300003
REAR COVER .............................................1 .............. S/N7300004~
DUCT, REAR COVER
1
ACOUSTIC SHEET
1
DUCT, REAR COVER
1
ACOUSTIC SHEET
1
HEX NUT
16
HEX HEAD BOLT ....................................... 8............... S/N7300001 TO S/N7300003
..................................................................................... REPLACES 0016908020
HEX HEAD BOLT ....................................... 9............... S/N7300004~
..................................................................................... REPLACES 001690802
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 93
DCA-70SSJU SERIES — ENCLOSURE ASSY. (CONT.)
ENCLOSURE ASSY. (CONT.)
ADD THE FOLLOWING DIGITS AFTER THE PART NUMBER
WHEN ORDERING ANY PAINTED PANEL TO INDICATE
COLOR OF UNIT:
5 -BLACK
1-ORANGE
6 -CATERPILLAR YELLOW
2-WHITE
3 -SPECTRUM GRAY 7 -CATO GOLD
4 -SUNBELT GREEN
THE SERIAL NUMBER MAY BE REQUIRED.
PAGE 94 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENCLOSURE ASSY. (CONT.)
ENCLOSURE ASSY. (CONT.)
NO.
PART NO.
PART NAME
QTY.
REMARKS
21
M2443200103
REAR DOOR ....................................... 1 ..................... S/N7300001 TO S/N7300003
21
M2443200123K
REAR DOOR ....................................... 1 ..................... S/N7300004 TO S/N7300680
..................................................................................... REPLACES M2443200113
21
M2443200123
REAR DOOR ....................................... 1 ..................... S/N7300681~
22
M1443600004
WINDOW PLATE ................................. 1 ..................... S/N7300001 TO S/N7300260
22
M1443600104
WINDOW PLATE ................................. 1 ..................... S/N7300261 TO 7300680
22
M1443600204
WINDOW PLATE ................................. 1 ..................... S/N7300681~
23
020106050
HEX NUT ............................................. 6 ..................... UP TO 7300680
..................................................................................... REPLACES 0207306000
23
020106050
HEX NUT ............................................. 8 ..................... S/N7300681~
..................................................................................... REPLACES 0207306000
23
952404470
PLAIN WASHER ................................ 12 ..................... S/N7300001 TO S/N7300610
..................................................................................... REPLACES 0041206000
23
952404470
PLAIN WASHER .................................. 6 ..................... S/N7300611 TO 7300680
..................................................................................... REPLACES 0041206000
23
952404470
PLAIN WASHER ................................... 8 ..................... S/N7300681~
..................................................................................... REPLACES 0041206000
24
B9114000002
DOOR HANDLE ASSY ........................ 1 ..................... REPLACES M9113000002
25
0027106016
MACHINE SCREW .............................. 4 ..................... REPLACES 0021806015
25
020106050
HEX NUT ............................................. 4 ..................... REPLACES 0030006000
26
M9110100204
HINGE
2
27
M9116100004
WASHER
2
28
011008020
HEX HEAD BOLT ................................. 3 ..................... REPLACES 0016908020
29
0845031504
BLIND PLUG ........................................ 2 ..................... REPLACES M9310000004
30
M2463000102
ROOF PANEL ...................................... 1 ..................... S/N7300001 TO S/N7300267
30
M2463000202
ROOF PANEL ...................................... 1 ..................... S/N7300268~
30
M2493500123
ACOUSTIC SHEET ............................. 1 ..................... REPLACES M2493500103
..................................................................................... AND M2493500113
31
M2463500104
OVER COVER, FRONT FRAME .......... 1 ..................... S/N7300001 TO S/N7300800;
..................................................................................... REPLACES M2463500104
31
M2463500114
OVER COVER, FRONT FRAME .......... 1 ..................... S/N7300801~
32
011008020
HEX HEAD BOLT ............................... 18 ..................... REPLACES 0016908020
33
1625165103
BONNET CAP ...................................... 1 ..................... REPLACES M9310000103
34
1625165204
CHAIN ASSY ........................................ 1 ..................... REPLACES M1483600204
35
M2453200102
SPLASHER PANEL .............................. 1 ..................... S/N7300001 TO S/N7300140
35
M2236100504
ACOUSTIC SHEET ............................. 1 ..................... S/N7300001 TO S/N7300140
35
M2453200112
SPLASHER PANEL .............................. 1 ..................... S/N7300141 TO S/N7301140
35
M2236100504
ACOUSTIC SHEET ............................. 1 ..................... S/N7300141 TO S/N7301140
35
M2453200122
SPLASHER PANEL .............................. 1 ..................... S/N7301141 TO S/N7301260
35
M2236100504
ACOUSTIC SHEET ............................. 1 ..................... S/N7301141 TO S/N7301260
35
M2453200132
SPLASHER PANEL .............................. 1 ..................... S/N7301261 TO S/N7302175
35
M2236100504
ACOUSTIC SHEET ............................. 1 ..................... S/N7301261 TO S/N7302175
35
M2455200203
SPLASHER PANEL .............................. 1 ..................... S/N7302176~
35
M3236100104
ACOUSTIC SHEET ............................. 1 ..................... S/N7302176~
36
011208060
HEX HEAD BOLT ................................. 4 ..................... REPLACES 0016908055
37
011008020
HEX HEAD BOLT ................................. 2 ..................... REPLACES 0016908020
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 95
DCA-70SSJU SERIES — ENCLOSURE ASSY. (CONT.)
ENCLOSURE ASSY. (CONT.)
ADD THE FOLLOWING DIGITS AFTER THE PART NUMBER
WHEN ORDERING ANY PAINTED PANEL TO INDICATE
COLOR OF UNIT:
5 -BLACK
1-ORANGE
6 -CATERPILLAR YELLOW
2-WHITE
3 -SPECTRUM GRAY 7 -CATO GOLD
4 -SUNBELT GREEN
THE SERIAL NUMBER MAY BE REQUIRED.
PAGE 96 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — ENCLOSURE ASSY. (CONT.)
ENCLOSURE ASSY. (CONT.)
NO.
PART NO.
PART NAME
QTY.
REMARKS
38
M2453000503
SIDE DOOR
1
38
M2493400904
ACOUSTIC SHEET
1
39
M2453000603
SIDE DOOR
1
39
M2493401104
ACOUSTIC SHEET
1
40
M2453000703
SIDE DOOR ......................................... 1 ..................... S/N7300001 TO S/N7302175
40
M2455000103
SIDE DOOR ......................................... 1 ..................... S/N7302176~
40
M2493401904
ACOUSTIC SHEET ............................. 1 ..................... S/N7300001 TO S/N7302175
40
M2495400304
ACOUSTIC SHEET ............................. 1 ..................... S/N7302176~
41
M2453000803
SIDE DOOR ......................................... 1 ..................... S/N7300001 TO S/N7302175
41
M2453000813
SIDE DOOR ......................................... 1 ..................... S/N7302176~
41
M2493401204
ACOUSTIC SHEET
1
42
M2453300503
DUCT
1
42
M2493401004
ACOUSTIC SHEET
1
43
M2453300603
DUCT
1
43
M2493401304
ACOUSTIC SHEET
1
44
0207006000
HEX NUT
13
45
B9114000002
DOOR HANDLE ASSY ........................ 3 ..................... REPLACES M9113000002
46
0027106016
MACHINE SCREW ............................ 12 ..................... REPLACES 0021806015
46
020106050
HEX NUT ........................................... 12 ..................... REPLACES 0030006000
47
M9110100204
HINGE
4
48
M9110100304
HINGE
4
49
M9116100004
WASHER
8
50
011008020
HEX HEAD BOLT ................................. 9 ..................... REPLACES 0016908020
51
0601850097
DOOR STOPPER
8
52
0027208025
MACHINE SCREW
8
53
0845031504
BLIND PLUG ........................................ 8 ..................... REPLACES M9310000004
54
0600500090
EMBLEM
1
55
0021106015
MACHINE SCREW
2
56
011008020
HEX HEAD BOLT ................................. 1 ..................... REPLACES 0016908020
56
0040508000
TOOTHED WASHER
1
57
M2455600004
DOOR BRACKET
1
58
0111006015
HEX HEAD BOLT ................................. 3 ..................... REPLACES 0016906015
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 97
DCA-70SSJU SERIES — RUBBER SEAL ASSY.
RUBBER SEAL ASSY.
S/N 7300001 TO S/N 7300260
PAGE 98 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
DCA-70SSJU SERIES — RUBBER SEAL ASSY.
RUBBER SEALS ASSY.
NO.
PART NO.
1
0228901580
2
0229200825
3
0228900670
4
0228901090
5
M2490300004
5
M2492300004
6
0228800590
6
0228800665
7
0228900500
7
0228900425
8
0228900860
9
0228900630
10
0229200900
11
0229200840
12
0228800770
13
0228800540
14
0228800580
15
0228100565
15
0228100550
16
0228100170
16
0228100170
17
NS2016
18
19
20
0228100170
0228100360
0228100180
PART NAME
QTY.
REMARKS
RUBBER SEAL
2
RUBBER SEAL
1
RUBBER SEAL
1
RUBBER SEAL
4
RUBBER SEAL .......................................... 1............... S/N7300001 TO S/N7302175
RUBBER SEAL .......................................... 1............... S/N7302176~
RUBBER SEAL .......................................... 1............... S/N7300001 TO 7302175
RUBBER SEAL .......................................... 1............... S/N7302176~
RUBBER SEAL .......................................... 1............... S/N7300001 TO S/N7302175
RUBBER SEAL .......................................... 1............... S/N7302176~
RUBBER SEAL
1
RUBBER SEAL
1
RUBBER SEAL
2
RUBBER SEAL
1
RUBBER SEAL
2
RUBBER SEAL
1
RUBBER SEAL
1
RUBBER SEAL ...........................................2 .............. S/N7300001 TO S/N7300680
RUBBER SEAL ...........................................1 .............. S/N7300681~
RUBBER SEAL ...........................................2 .............. S/N7300001 TO S/N7300680
RUBBER SEAL ...........................................1 .............. S/N7300681~
RUBBER SEAL ...........................................1 .............. S/N7300681~
..................................................................................... REPLACES 0228100350
RUBBER SEAL ...........................................1 .............. S/N7300681~
RUBBER SEAL ...........................................1 .............. S/N7300681~
RUBBER SEAL ...........................................1 .............. S/N7300681~
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 99
Effective: October 1, 2002
PAYMENT TERMS
TERMS AND CONDITIONS OF SALE — PARTS
5.
Parts must be in new and resalable
condition, in the original Multiquip package (if any), and with Multiquip part
numbers clearly marked.
6.
The following items are not returnable:
Terms of payment for parts are net 10 days.
FREIGHT POLICY
All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a signed
manifest has been obtained from the carrier,
and any claim for shortage or damage must be
settled between the consignee and the carrier.
a. Obsolete parts. (If an item is in the
price book and shows as being
replaced by another item, it is
obsolete.)
MINIMUM ORDER
The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.
RETURNED GOODS POLICY
1.
2.
A Returned Material Authorization must
be approved by Multiquip prior to shipment.
To obtain a Return Material Authorization,
a list must be provided to Multiquip Parts
Sales that defines item numbers, quantities, and descriptions of the items to be
returned.
a. The parts numbers and descriptions
must match the current parts price
list.
b. The list must be typed or computer
generated.
c. The list must state the reason(s) for
the return.
d. The list must reference the sales
order(s) or invoice(s) under which the
items were originally purchased.
e. The list must include the name and
phone number of the person requesting the RMA.
3.
A copy of the Return Material Authorization must accompany the return shipment.
4.
Freight is at the sender’s expense. All
parts must be returned freight prepaid to
Multiquip’s designated receiving point.
Multiquip reserves the right to quote and sell
direct to Government agencies, and to Original
Equipment Manufacturer accounts who use
our products as integral parts of their own
products.
SPECIAL EXPEDITING SERVICE
b. Any parts with a limited shelf life
(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.
A $35.00 surcharge will be added to the invoice
for special handling including bus shipments,
insured parcel post or in cases where Multiquip
must personally deliver the parts to the carrier.
c. Any line item with an extended dealer
net price of less than $5.00.
f. Paint, chemicals, and lubricants.
Multiquip shall not be liable here under for
damages in excess of the purchase price of the
item with respect to which damages are claimed,
and in no event shall Multiquip be liable for loss
of profit or good will or for any other special,
consequential or incidental damages.
g. Decals and paper products.
LIMITATION OF WARRANTIES
h. Items purchased in kits.
No warranties, express or implied, are made in
connection with the sale of parts or trade accessories nor as to any engine not manufactured
by Multiquip. Such warranties made in connection with the sale of new, complete units are
made exclusively by a statement of warranty
packaged with such units, and Multiquip neither assumes not authorizes any person to
assume for it any other obligation or liability
whatever in connection with the sale of its
products. Apart from such written statement of
warranty, there are no warranties, express,
implied or statutory, which extend beyond the
description of the products on the face hereof.
d. Special order items.
Return shipments will be accepted and credit
will be allowed, subject to the following provisions:
Rebates for price declines and added charges
for price increases will not be made for stock
on hand at the time of any price change.
e. Electrical components.
7.
The sender will be notified of any
material received that is not acceptable.
8.
Such material will be held for five
working days from notification, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.
9.
Credit on returned parts will be issued at
dealer net price at time of the original
purchase, less a 15% restocking charge.
10. In cases where an item is accepted, for
which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.
LIMITATIONS OF SELLER’S LIABILITY
11. Credit issued will be applied to future
purchases only.
PRICING AND REBATES
Prices are subject to change without prior
notice. Price changes are effective on a specific date and all orders received on or after
that date will be billed at the revised price.
PAGE 100 — DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD) — REV. #5 (06/03/03)
NOTE PAGE
1
DCA-70SSJU SERIES — OPERATION AND PARTS MANUAL (STD)— REV. #5 (06/03/03) — PAGE 101
PARTS AND OPERATION MANUAL
OPERATION AND PARTS MANUAL
HERE'S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
PARTS DEPARTMENT
800-427-1244 or 310-537-3700
FAX: 800-672-7877 or 310-637-3284
SERVICE DEPARTMENT
800-421-1244
FAX: 310- 537-4259
TECHNICAL ASSISTANCE
800-478-1244
FAX: 310- 631-5032
WARRANTY DEPARTMENT
888-661-4279, or 310-661-4279
FAX: 310- 537-1173
MULTIQUIP INC..
PARTS DEPARTMENT:
18910 WILMINGTON AVE.
800-427-1244
CARSON, CALIFORNIA 90746 FAX: 800-672-7877
SERVICE DEPARTMENT:
310-537-3700
800-421-1244
800-835-2551
FAX: 310-537-3927
FAX: 310-638-8046
E-mail:[email protected]  www:multiquip.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
