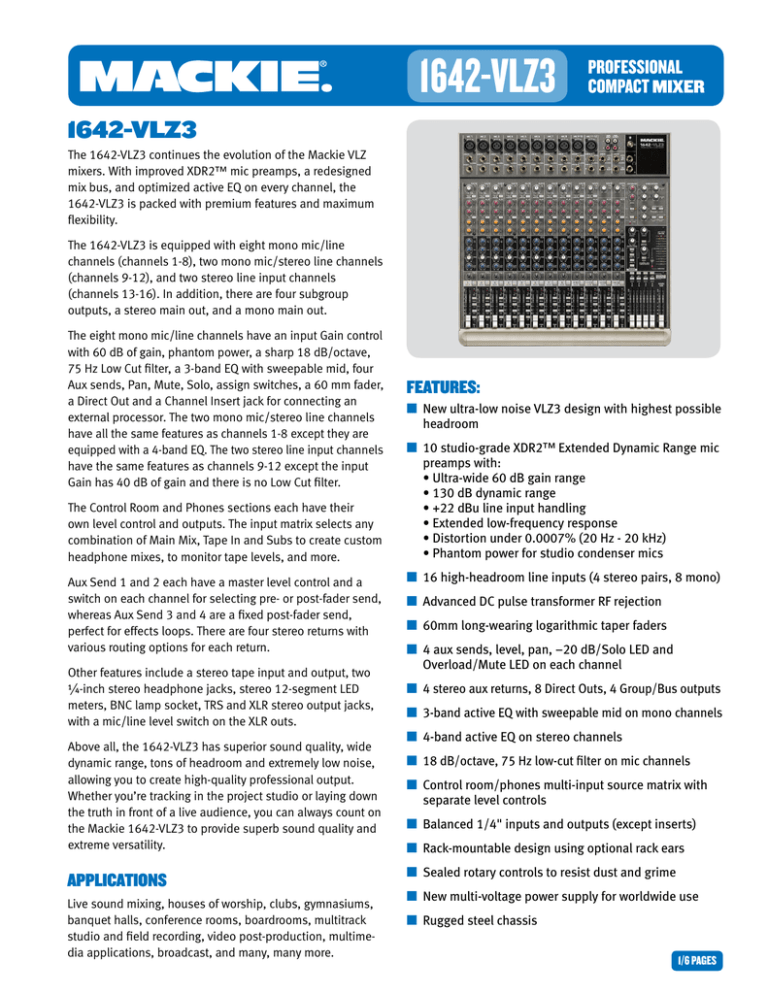

1642-VLZ3 PROFESSIONAL COMPACT MIXER

1642-VLZ3 PROFESSIONAL COMPACT MIXER
1642-VLZ3
PROFESSIONAL
COMPACT MIXER
1642-VLZ3
The 1642-VLZ3 continues the evolution of the Mackie VLZ
mixers. With improved XDR2™ mic preamps, a redesigned
mix bus, and optimized active EQ on every channel, the
1642-VLZ3 is packed with premium features and maximum
flexibility.
The 1642-VLZ3 is equipped with eight mono mic/line
channels (channels 1-8), two mono mic/stereo line channels
(channels 9-12), and two stereo line input channels
(channels 13-16). In addition, there are four subgroup
outputs, a stereo main out, and a mono main out.
The eight mono mic/line channels have an input Gain control
with 60 dB of gain, phantom power, a sharp 18 dB/octave,
75 Hz Low Cut filter, a 3-band EQ with sweepable mid, four
Aux sends, Pan, Mute, Solo, assign switches, a 60 mm fader,
a Direct Out and a Channel Insert jack for connecting an
external processor. The two mono mic/stereo line channels
have all the same features as channels 1-8 except they are
equipped with a 4-band EQ. The two stereo line input channels
have the same features as channels 9-12 except the input
Gain has 40 dB of gain and there is no Low Cut filter.
The Control Room and Phones sections each have their
own level control and outputs. The input matrix selects any
combination of Main Mix, Tape In and Subs to create custom
headphone mixes, to monitor tape levels, and more.
Aux Send 1 and 2 each have a master level control and a
switch on each channel for selecting pre- or post-fader send,
whereas Aux Send 3 and 4 are a fixed post-fader send,
perfect for effects loops. There are four stereo returns with
various routing options for each return.
Other features include a stereo tape input and output, two
¼-inch stereo headphone jacks, stereo 12-segment LED
meters, BNC lamp socket, TRS and XLR stereo output jacks,
with a mic/line level switch on the XLR outs.
Above all, the 1642-VLZ3 has superior sound quality, wide
dynamic range, tons of headroom and extremely low noise,
allowing you to create high-quality professional output.
Whether you’re tracking in the project studio or laying down
the truth in front of a live audience, you can always count on
the Mackie 1642-VLZ3 to provide superb sound quality and
extreme versatility.
APPLICATIONS
Live sound mixing, houses of worship, clubs, gymnasiums,
banquet halls, conference rooms, boardrooms, multitrack
studio and field recording, video post-production, multimedia applications, broadcast, and many, many more.
FEATURES:
■ New ultra-low noise VLZ3 design with highest possible headroom
■ 10 studio-grade XDR2™ Extended Dynamic Range mic preamps with:
• Ultra-wide 60 dB gain range
• 130 dB dynamic range
• +22 dBu line input handling
• Extended low-frequency response
• Distortion under 0.0007% (20 Hz - 20 kHz)
• Phantom power for studio condenser mics
■ 16 high-headroom line inputs (4 stereo pairs, 8 mono)
■ Advanced DC pulse transformer RF rejection
■ 60mm long-wearing logarithmic taper faders
■ 4 aux sends, level, pan, –20 dB/Solo LED and Overload/Mute LED on each channel
■ 4 stereo aux returns, 8 Direct Outs, 4 Group/Bus outputs
■ 3-band active EQ with sweepable mid on mono channels
■ 4-band active EQ on stereo channels
■ 18 dB/octave, 75 Hz low-cut filter on mic channels
■ Control room/phones multi-input source matrix with separate level controls
■ Balanced 1/4" inputs and outputs (except inserts)
■ Rack-mountable design using optional rack ears
■ Sealed rotary controls to resist dust and grime
■ New multi-voltage power supply for worldwide use
■ Rugged steel chassis
1/6 PAGES
1642-VLZ3
PROFESSIONAL
COMPACT MIXER
1642-VLZ3 SPECIFICATIONS
Main Mix Noise
Impedances
(20 Hz to 20 kHz bandwidth, 1/4" Main Out, channel gains @ unity
gain, channel EQs flat, all channels assigned to Main Mix, odd channels panned left, even channels panned right)
Mic In
Main Mix fader @ unity, channel faders down
–86.5 dBu
Main Mix fader @ unity, channel faders @ unity
–86.0 dBu
Signal-to-Noise Ratio, ref. +4 dBu
90 dBu
2.5 kohms
Alll other inputs
10 kohms or greater
Tape Out
1.1 kohms
All other outputs
120 ohms
3-Band EQ (channels 1-8)
Total Harmonic Distortion (THD)
High Shelving
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
Mic In to Insert Send
<0.0007%
Attenuation/Crosstalk
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, Line In, 1/4"
Main Out, Gain @ unity)
Channel Mute switch engaged
–82 dBu
Channel Gain knob down
–82 dBu
Mid Peaking
±15 dB @ 80 Hz
Low Cut Filter
18 dB/octave, –3 dB @ 75 Hz
4-Band EQ (channels 9-16)
High Shelving
±15 dB @ 12 kHz
Hi Mid Peaking
±15 dB @ 2.5 kHz
Low Mid Peaking
±15 dB @ 400 Hz
Low Shelving
(Mic In to any output)
Low Cut Filter (ch. 9-12)
+0 dB/–1 dB
20 Hz to 40 kHz
+0 dB/–3 dB
20 Hz to 60 kHz
Equivalent Input Noise (EIN)
±15 dB @ 12 kHz
±15 dB sweep 100 Hz-8 kHz
Low Shelving
Frequency Response
±15 dB @ 80 Hz
18 dB/octave, –3 dB @ 75 Hz
Power Consumption
120 VAC, 50/60 Hz
50 watts
Fuse Rating
(Mic in to Insert Send out, max gain)
150 ohm termination, 20 Hz to 20 kHz bandwidth
–129.5 dBu
Common Mode Rejection Ratio (CMRR)
Mic In to Insert Send out, max gain @ 1 kHz
2.5 kohms
Channel Insert Return
better than –70 dB
Maximum Levels
100-120 VAC
1A slo blo, 5 x 20 mm
220-240 VAC
0.5A slo blo, 5 x 20 mm
Physical Properties (packaged product)
Height
21.0 in / 533 mm
Width
20.0 in / 508 mm
Mic In
+22 dBu
Depth
10.0 in / 254 mm
All other inputs
+22 dBu
Shipping Weight
26.0 lb / 11.8 kg
Main Mix TRS Out and XLR Out
+28 dBu
All other outputs
+22 dBu
Physical Properties (product)
Height
16.7 in / 425 mm
Width
16.6 in / 421 mm
Depth
5.2 in / 131 mm
Net Weight
18.2 lb / 8.3 kg
Options
Rackmount Brackets for 1642-VLZ PRO/1642-VLZ3
Ordering Information
1642-VLZ3 16-Ch. Compact Recording/SR Mixer, US
P/N 0018455-00
1642-VLZ3 16-Ch. Compact Recording/SR Mixer, EU
P/N 0018455-01
1642-VLZ3 16-Ch. Compact Recording/SR Mixer, JP
P/N 0018455-02
2/6 PAGES
1642-VLZ3
PROFESSIONAL
COMPACT MIXER
1642-VLZ3 DIMENSIONS
1. WEIGHT APPROX. 18.2 lb [8.3 kg].
2. SHIPPING WEIGHT APPROX. 26.0 lb [11.8 kg].
3/6 PAGES
1642-VLZ3
PROFESSIONAL
COMPACT MIXER
1642-VLZ3 FRONT AND REAR PANELS
4/6 PAGES
1
3
2
LOW CUT
75Hz
HPF
MACKIE 1642-VLZ 3
BLOCK DIAGRAM
9th Feb 2007
MIC TRIM
MIC IN
(Chs 9/10 & 11/12 only)
3
DIRECT OUT
(CH'S 1-8 ONLY)
1
STEREO INPUT CHANNEL
(1 OF 4)
LINE IN R
LINE IN L
MONO INPUT CHANNEL
(1 OF 8)
LINE IN
MIC IN
2
PHANTOM POWER
(GLOBAL SWITCH)
TRIM
R
L
AUX RETURN 4
R
L
AUX RETURN 3
R
L
AUX RETURN 2
R
AUX RETURN 1
L
STEREO TRIM
(Chs 13/14 & 15/16 only)
800
3K
PRE
80
3K
12K
HI
12K
AUX 4
AUX 3
AUX 2
AUX 1
GAIN
HI
EFX TO
MON
EFX TO
MON
LEVEL
LEVEL
LEVEL
SOLO
ASSIGN TO
C-R/PHNS
ONLY
1-2/3-4
MAIN/SUBS
PFL
SIP R
SIP L
4
PFL
3
2
1
R
L
SIP R
SOLO
PAN
ASSIGN
SIP L
PFL
4
2
1
R
L
SIP R
SOLO
ASSIGN
3
PAN
SIP L
FADER
TO SOLO LED
MUTE
TO SOLO LED
LEVEL
AUX 2
AUX 1
FREQ
FADER
AUX 4
AUX 3
MUTE
PRE
MID
EQ
OL (FLICKER)
MUTE (GLOW)
80 100?8K 12K
LO
–20 (FLICKER)
SOLO (GLOW)
4-BAND STEREO EQ
800
LO MID MID
80
HI
OL (FLICKER)
MUTE (GLOW)
LO MID MID
–20 (FLICKER)
SOLO (GLOW)
LOW CUT
75Hz
HPF
INSERT
R
TAPE IN
L
ASSIGN
TO MIX
FADER
3-4
1-2
SOLO
AUX MIX
ASSIGN TO MAIN MIX
SUB 2 MIX
FADER
R
L
R
L
LEVEL
LEVEL SET
(PFL) LED
SIP/PFL
SOLO LEVEL
TAPE
MAIN
ASSIGN TO MAIN MIX
SUB 1 MIX
SOLO MIX
SOLO
RELAY
(FROM SUB 4 OUT)
(FROM SUB 3 OUT)
TAPE LEVEL
MAIN MIX
MAIN INSERT
C-R/
PHONES
SOURCE
RUDE SOLO LED
AUX SEND 3
(AUX SEND 4 IDENTICAL)
AUX SEND 1
(AUX SEND 2 IDENTICAL)
SUB 6 OUT
(SUBMIX 4/8 IDENTICAL)
SUB 2 OUT
SUB 5 OUT
(SUBMIX 3/7 IDENTICAL)
22
10
7
4
2
0
2
4
7
10
20
30
METERS
(0VU = 0dBu)
+4/–10dB PAD
(XLR only)
C-R LEVEL
PHONES
LEVEL
SUB 1 OUT
C-R/PHONES MIX
MAIN MIX
FADER
MONO LEVEL
3
2
3
2
R
L
1
1
R
L
CONTROL ROOM OUT
PHONES OUT B
PHONES OUT A
TAPE OUT
1/4" BAL
MAIN MIX RIGHT OUT
XLR BAL
XLR BAL
MAIN MIX LEFT OUT
1/4" BAL
MAIN MIX MONO OUT
1642-VLZ3
PROFESSIONAL
COMPACT MIXER
1642-VLZ3 BLOCK DIAGRAM
CR/PHN R
CR/PHN L
LOGIC
PFL
SIP R
SIP L
AUX 4
AUX 3
AUX 2
AUX 1
MAIN R
MAIN L
SUB 4
SUB 3
SUB 2
SUB 1
5/6 PAGES
1642-VLZ3
PROFESSIONAL
COMPACT MIXER
Electronic files for this product are available at:
www.mackie.com
Specification Sheet
Owner’s Manual
1642VLZ3_SS.PDF
1642VLZ3_OM.PDF
www.mackie.com
16220 Wood-Red Road NE
Woodinville, WA 98072 USA
800-898-3211, Fax 425-487-4337, [email protected]
Since we are always striving to make our products better by incorporating new and improved materials, components, and manufacturing
methods, we reserve the right to change these specifications at any
time without notice. “Mackie” and the “Running Man” figure are registered trademarks of LOUD Technologies Inc. All other brand names
mentioned are trademarks or registered trademarks of their respective holders, and are hereby acknowledged.
Part No. SW0774 Rev. A 06/09
©2009 LOUD Technologies Inc. All Rights Reserved.
6/6 PAGES
