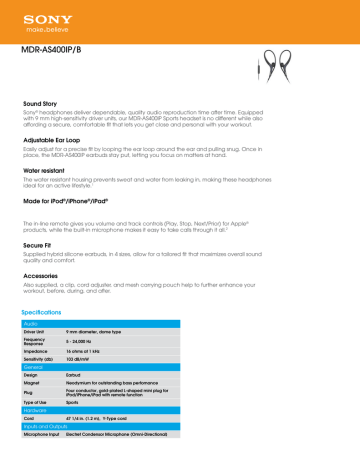

MDR-AS400IP/B Sound Story

MDR-AS400IP/B Sound Story
MDR-AS400IP/B
Sound Story
Sony® headphones deliver dependable, quality audio reproduction time after time. Equipped
with 9 mm high-sensitivity driver units, our MDR-AS400IP Sports headset is no different while also
affording a secure, comfortable fit that lets you get close and personal with your workout.
Adjustable Ear Loop
Easily adjust for a precise fit by looping the ear loop around the ear and pulling snug. Once in
place, the MDR-AS400IP earbuds stay put, letting you focus on matters at hand.
Water resistant
The water resistant housing prevents sweat and water from leaking in, making these headphones
ideal for an active lifestyle.1
Made for iPod®/iPhone®/iPad®
The in-line remote gives you volume and track controls (Play, Stop, Next/Prior) for Apple®
products, while the built-in microphone makes it easy to take calls through it all.2
Secure Fit
Supplied hybrid silicone earbuds, in 4 sizes, allow for a tailored fit that maximizes overall sound
quality and comfort.
Accessories
Also supplied, a clip, cord adjuster, and mesh carrying pouch help to further enhance your
workout, before, during, and after.
Specifications
Audio
Driver Unit
9 mm diameter, dome type
Frequency
Response
5 - 24,000 Hz
Impedance
16 ohms at 1 kHz
Sensitivity (db)
103 dB/mW
General
Design
Earbud
Magnet
Neodymium for outstanding bass perfomance
Plug
Four conductor, gold-plated L-shaped mini plug for
iPod/iPhone/iPad with remote function
Type of Use
Sports
Hardware
Cord
47 1/4 in. (1.2 m), Y-Type cord
Inputs and Outputs
Microphone Input
Electret Condensor Microphone (Omni-Directional)
Open Circuit
Output Level
-42 dB (0 dB=1 V/Pa)
Power
Power Handling
Capacity
100 mW (IEC)
Speaker
Diaphragm
PET
Type
Closed, dynamic
Weights and Measurements
Cord Length
(Approx.)
47 1/4 in (1.2 m)
Weight (Approx.)
.35 Oz. (10 g) Without Cord
Accessories
Supplied
Accessories
Earbuds - SS(2), S (2) M (2)(attached at factory), L (2)
Cord Adjuster (1)
Clip (1)
Carrying Pouch (1)
Operating Instructions (1)
Warranty Card (1)
1. Do not allow continuous contact with water or sweat.
iPhone 5
2. Compatible iPod/iPhone/iPad models
iPhone 4S
iPod touch (5th generation)
iPhone 4
iPod touch (4th generation)
iPhone 3GS
iPod touch (3rd generation)
iPad (4th generation)
iPod touch (2nd generation)
iPad (3rd generation)
iPod nano (7th generation)
iPad 2
iPod nano (6th generation)
iPad
iPod nano (5th generation)
iPad mini
iPod nano (4th generation)
© 2013 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without
iPod classic 120GB 160GB (2009)
written permission is prohibited. Sony and the Sony make. believe logo are trademarks of
iPod shuffle (4th generation)
Sony. Apple is a registered trademark of Apple Inc. Features and specifications are subject
iPod shuffle (3rd generation)
to change without notice. Non-metric weights and measures are approximate and may
vary. /Updated: March 13, 2013
