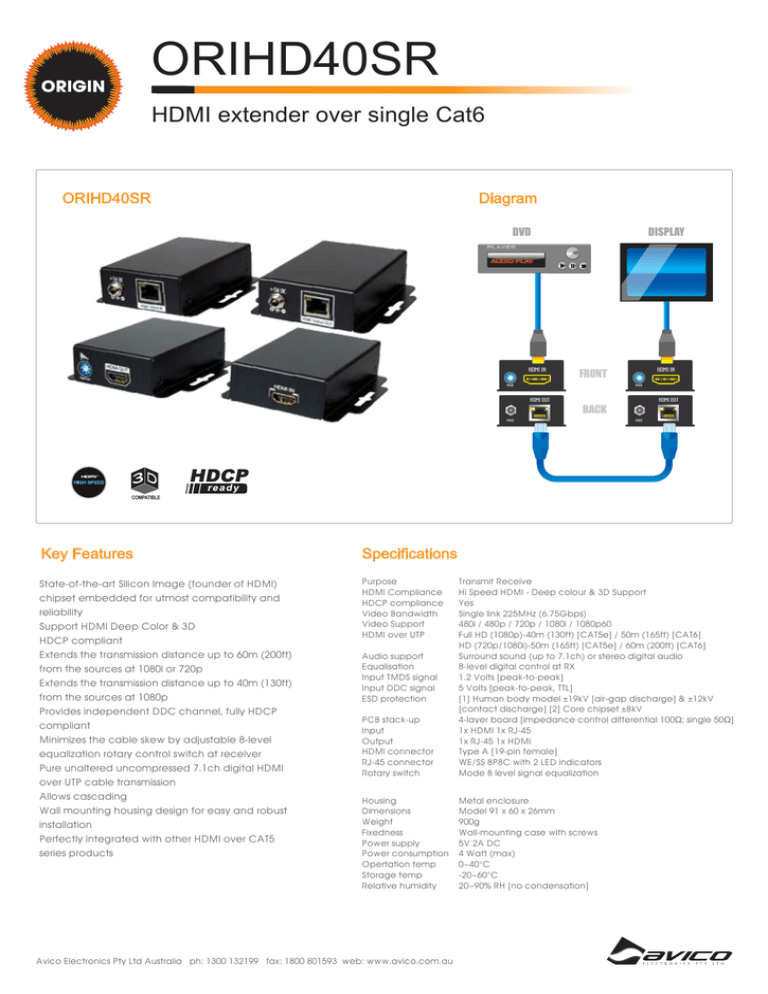

ORIHD40SR
HDMI extender over single Cat6
ORIHD40SR
Diagram
DVD
DISPLAY
player
HDMI IN
FRONT
MODE
HDMI IN
MODE
HDMI OUT
HDMI OUT
BACK
MODE
MODE
COMPATIBLE
Key Features
Specifications
State-of-the-art Silicon Image (founder of HDMI)
chipset embedded for utmost compatibility and
reliability
Support HDMI Deep Color & 3D
HDCP compliant
Extends the transmission distance up to 60m (200ft)
from the sources at 1080i or 720p
Extends the transmission distance up to 40m (130ft)
from the sources at 1080p
Provides independent DDC channel, fully HDCP
compliant
Minimizes the cable skew by adjustable 8-level
equalization rotary control switch at receiver
Pure unaltered uncompressed 7.1ch digital HDMI
over UTP cable transmission
Allows cascading
Wall mounting housing design for easy and robust
installation
Perfectly integrated with other HDMI over CAT5
series products
Purpose
HDMI Compliance
HDCP compliance
Video Bandwidth
Video Support
HDMI over UTP
PCB stack-up
Input
Output
HDMI connector
RJ-45 connector
Rotary switch
Transmit Receive
Hi Speed HDMI - Deep colour & 3D Support
Yes
Single link 225MHz (6.75Gbps)
480i / 480p / 720p / 1080i / 1080p60
Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6]
HD (720p/1080i)-50m (165ft) [CAT5e] / 60m (200ft) [CAT6]
Surround sound (up to 7.1ch) or stereo digital audio
8-level digital control at RX
1.2 Volts [peak-to-peak]
5 Volts [peak-to-peak, TTL]
[1] Human body model ±19kV [air-gap discharge] & ±12kV
[contact discharge] [2] Core chipset ±8kV
4-layer board [impedance control differential 100Ω; single 50Ω]
1x HDMI 1x RJ-45
1x RJ-45 1x HDMI
Type A [19-pin female]
WE/SS 8P8C with 2 LED indicators
Mode 8 level signal equalization
Housing
Dimensions
Weight
Fixedness
Power supply
Power consumption
Opertation temp
Storage temp
Relative humidity
Metal enclosure
Model 91 x 60 x 26mm
900g
Wall-mounting case with screws
5V 2A DC
4 Watt (max)
0~40°C
-20~60°C
20~90% RH [no condensation]
Audio support
Equalisation
Input TMDS signal
Input DDC signal
ESD protection
Avico Electronics Pty Ltd Australia ph: 1300 132199 fax: 1800 801593 web: www.avico.com.au
