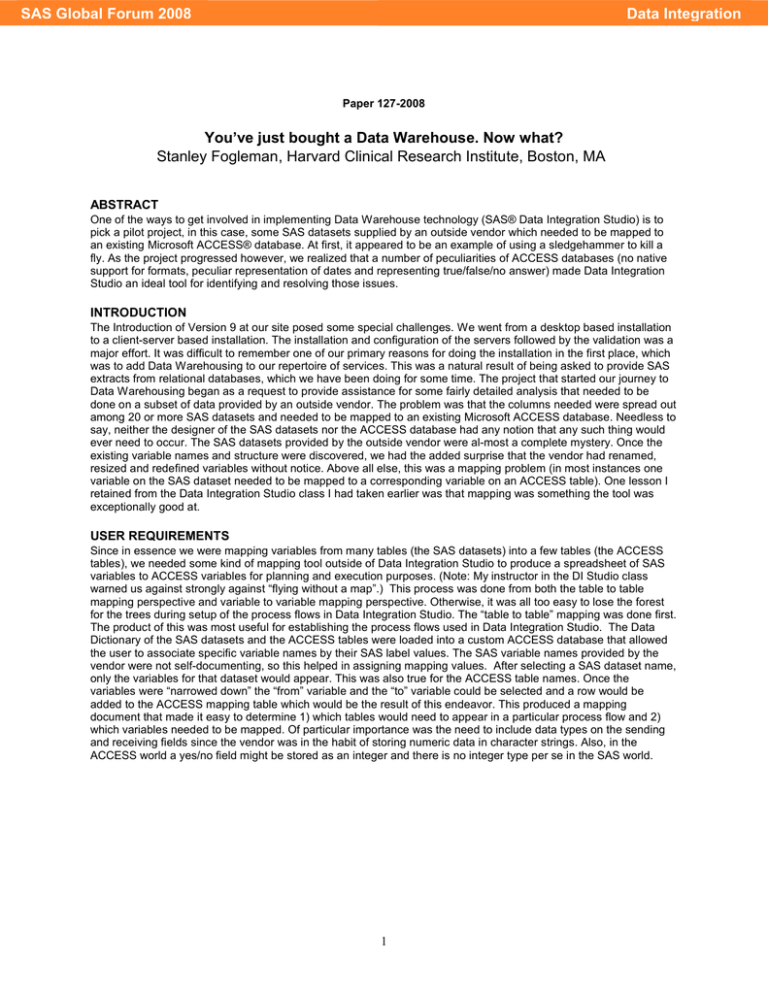

SAS Global Forum 2008
Data Integration
Paper 127-2008
You’ve just bought a Data Warehouse. Now what?
Stanley Fogleman, Harvard Clinical Research Institute, Boston, MA
ABSTRACT
One of the ways to get involved in implementing Data Warehouse technology (SAS® Data Integration Studio) is to
pick a pilot project, in this case, some SAS datasets supplied by an outside vendor which needed to be mapped to
an existing Microsoft ACCESS® database. At first, it appeared to be an example of using a sledgehammer to kill a
fly. As the project progressed however, we realized that a number of peculiarities of ACCESS databases (no native
support for formats, peculiar representation of dates and representing true/false/no answer) made Data Integration
Studio an ideal tool for identifying and resolving those issues.
INTRODUCTION
The Introduction of Version 9 at our site posed some special challenges. We went from a desktop based installation
to a client-server based installation. The installation and configuration of the servers followed by the validation was a
major effort. It was difficult to remember one of our primary reasons for doing the installation in the first place, which
was to add Data Warehousing to our repertoire of services. This was a natural result of being asked to provide SAS
extracts from relational databases, which we have been doing for some time. The project that started our journey to
Data Warehousing began as a request to provide assistance for some fairly detailed analysis that needed to be
done on a subset of data provided by an outside vendor. The problem was that the columns needed were spread out
among 20 or more SAS datasets and needed to be mapped to an existing Microsoft ACCESS database. Needless to
say, neither the designer of the SAS datasets nor the ACCESS database had any notion that any such thing would
ever need to occur. The SAS datasets provided by the outside vendor were al-most a complete mystery. Once the
existing variable names and structure were discovered, we had the added surprise that the vendor had renamed,
resized and redefined variables without notice. Above all else, this was a mapping problem (in most instances one
variable on the SAS dataset needed to be mapped to a corresponding variable on an ACCESS table). One lesson I
retained from the Data Integration Studio class I had taken earlier was that mapping was something the tool was
exceptionally good at.
USER REQUIREMENTS
Since in essence we were mapping variables from many tables (the SAS datasets) into a few tables (the ACCESS
tables), we needed some kind of mapping tool outside of Data Integration Studio to produce a spreadsheet of SAS
variables to ACCESS variables for planning and execution purposes. (Note: My instructor in the DI Studio class
warned us against strongly against “flying without a map”.) This process was done from both the table to table
mapping perspective and variable to variable mapping perspective. Otherwise, it was all too easy to lose the forest
for the trees during setup of the process flows in Data Integration Studio. The “table to table” mapping was done first.
The product of this was most useful for establishing the process flows used in Data Integration Studio. The Data
Dictionary of the SAS datasets and the ACCESS tables were loaded into a custom ACCESS database that allowed
the user to associate specific variable names by their SAS label values. The SAS variable names provided by the
vendor were not self-documenting, so this helped in assigning mapping values. After selecting a SAS dataset name,
only the variables for that dataset would appear. This was also true for the ACCESS table names. Once the
variables were “narrowed down” the “from” variable and the “to” variable could be selected and a row would be
added to the ACCESS mapping table which would be the result of this endeavor. This produced a mapping
document that made it easy to determine 1) which tables would need to appear in a particular process flow and 2)
which variables needed to be mapped. Of particular importance was the need to include data types on the sending
and receiving fields since the vendor was in the habit of storing numeric data in character strings. Also, in the
ACCESS world a yes/no field might be stored as an integer and there is no integer type per se in the SAS world.
1
SAS Global Forum 2008
Data Integration
SAS VERSUS ACCESS VARIABLE DIFFERENCES
Formats do not exist as such in ACCESS (i.e., there is no built-in functionality to associate a variable value
to a “decoded” value). In a sense, then, it is pointless to spend much time on trying to bring the decoded
values over from the SAS environment to the ACCESS environment. Since the majority of the time the
data was intended for use in statistical analyses, we decided to keep the raw values and provide the end
users with a dictionary of decoded values. In SAS, we are used to a numeric value of zero meaning “false”
and any other value resolving to “true”. (In fact, the IF statement responds positively to it!) In the ACCESS
world, there are no such associations, and any meaning must be derived programmatically. So in some
instances we would need to map “true”, “false” and “no answer” values to their corresponding
programmatically expected values in the ACCESS world. The Data Validation transform was particularly
useful for that. Dates presented another challenge. In the ACCESS world, there are only datetime values,
so it was necessary to append the time value for midnight to any date field where the time was not
specified so the values would transfer correctly. Another challenge was whether the ACCESS database
was set up to accept null values in particular fields.
DATA INTEGRATION STUDIO LIMITATIONS (SELF-IMPOSED)
We intentionally used a limited toolset (data transformations) for Data Integration Studio in part because of our
unfamiliarity with the application and in part to keep debugging as simple as possible. The only Data Transforms
used were SQL Join, Data Validation and Loader. We needed to be able to isolate and resolve problems quickly and
I was afraid as a developer of getting in over my head. Hindsight being 20/20, it might have been prudent to take
advantage of the reporting options which the tool offered, particularly in the “data exception” area (to catch missing
dates or blank responses, for example.)
DI STUDIO LIMITATIONS (OF THE TOOL ITSELF)
We originally had the idea to use the tool as an interactive development facility, but it is more correct to say that the
tool was designed to produce job flows to run(outside of Data Integration Studio) in batch mode. Since we had no
guarantee that the vendor files would have the same skeletal structure over time (and in fact, variables were added
and re-named in the course of the study!), it was unrealistic to assume that we would be able to use the “write once
– run many” analogy for which the tool was obviously designed. Another limitation we ran into was for the support of
user-defined formats. The tool was designed with one of two options: 1) to use a system defined library for a for-mat
catalog 2) to use a search path to search through several catalogs. Neither of these options was particularly
appealing. The first option presumed that there is some kind of “master format catalog” in use at the site. The
second option assumes unique naming of formats, something on which I would not wager on. SAS Tech support was
nice enough to provide us with a custom transformation to add a libname “on the fly” to the job in question. I found it
confusing to use the “Source Designer” for Target datasets. SAS Tech Support clarified this somewhat by pointing
out that the Target designer was designed for “newly minted” SAS datasets. Since the ACCESS table was very much
in existence at the time the project started, the “Source Designer” needed to be used in its place. Confused? So was
I. Sometimes the need to look up a function and check its syntax after coding conspired to take one’s mind off the
task at hand.
BUILDING THE DATA MART
Once the values were mapped and spreadsheets produced showing the source dataset name and variable to the
ACCESS table and variable, it was possible to start building data marts. A data mart is defined as a set of dimensional tables supporting a business process1. To keep it from becoming overly complicated, it was decided to create flows by their ultimate target. For example, one area of interest was records pertaining to hospitalization. All the
SAS datasets which fit this category were placed in a job process. Also, for the release of Data Integration Studio we
were using (3.3), SAS Tech Support discouraged us from making the job flows too dense because of the amount of
metadata which needed to be moved from one repository to another during the “check in” and “check out” process. I
understand this has been improved considerably in more recent releases of Data Integration Studio.
2
SAS Global Forum 2008
Data Integration
PRELIMINARY HOUSEKEEPING
An analogy that might be helpful is a single page of a flowchart equating to a job process. (Of course, job processes
can have hundreds of files and job processes, but this is a much simpler example.)
A small amount of housekeeping: First the libraries have to be created and defined using management con-sole.
The analogy is to using a libname statement in a SAS program. The metadata for the files needs to be imported after
the libraries have been defined. Then, also in Management Console, a custom or project repository should be
defined. A useful way to think of the repository is as a large container for all of your job flows. I used a project
repository because I wanted to have the change control capabilities afforded by a project repository. Since we have
both a Application Server as well as a Metadata Server, I used Relative naming to refer to the location of the folders
containing the Project Metadata Repository. The temptation (in Windows, at least) is to refer to drives by their Letter
designations. This will cause you nothing but grief, as the server which accesses this data may have no letter drive
mapped to it. Also, I wanted to be able to “check in” the process flows at the end of the project. (Note: SAS Tech
Support advises that future releases of Data Integration Studio may not have a custom repository). Then a new
metadata profile pointing to the project repository was defined. Also, we discovered that the vendor supplied
datasets did not have a unique identifier that we wished to use as a standard key (it was only available on one of the
SAS datasets and available through a pair of columns to all of the subsidiary SAS datasets). We could have chosen
to do a join for each of the tables, but for simplicity’s sake, we elected to create a SAS dataset view outside of Data
Integration Studio to get the one variable we needed on all of the source SAS datasets. This did much to make the
flow simple and straightforward. As it turns out, the views are treated as dataset objects, so there were no additional
headaches once we went down this path. (Other than remembering to build them each time the new batch of SAS
datasets from the vendor arrived.)
USING DI STUDIO
In Data Integration Studio, I would then log in using the newly created metadata profile and create “empty” process
flows us-ing the “Process Designer” tool. After this point, a series of repetitive steps occurred. The ACCESS dataset
icon (representing an ACCESS table) was dragged into the process flow window. (An alternate way of doing this
would be to use the ‘Source Designer”. This automatically generates a “loader” icon pointing to the table that was
dropped and an empty container from which the corresponding SAS dataset is “dragged and dropped” from their
source library onto a project flow. The loader icon is clicked on and a dialog box with several tabs appears. Select
the “Mapping” tab. This will display the two tables side by side. (Note: If there are any variables in common which are
of the same type and the “auto-mapping” feature is turned on, mapping will occur automatically). Using the
spreadsheets created by the ACCESS application mentioned in the previous section, all the “SAS” variables that
needed to be “carried forward” were mapped to their “ACCESS” counterparts.
MAPPING THE DATA
Mapping can be done in the tool in a myriad of ways, but the most straightforward were to click and highlight the
source column and click and highlight the target column and select “new mapping”. Another equally valid way is to
highlight a source column and then drag an arrow from the source column to its target. I found the first option to be
more convenient since the variables were rarely close together in order in either the source or the target table. At
the time the variables were mapped, if the two data set types or lengths are inconsistent, a “data expression wizard”
will appear from which you will have the opportunity to enter a SAS function. For example, I transformed a one
character string into a number using the function:
INPUT(PUT(MY_SAS_CHAR_VAR
,$1.),1.)
Also frequently used was the function: to turn a SAS date into an ACCESS datetime:
DHMS(MY_SAS_DATE_DT ,0,0,0)
Some of the fields (containing comments) on either end were much wider than necessary to accommodate the data
they contained. Substringing the variables worked on the sending end to “shorten” the field to avoid a mapping
warning. (Note: a mapping warning will appear any time there is a type conflict between the sending and receiving
fields).
3
SAS Global Forum 2008
Data Integration
USING DATA VALIDATION
I also made use of the “Data Validation” process object as a way to deal with peculiar situations in the vendor data.
For instance, a yes/no/no answer field might be character on the sending (SAS) end and a blank might represent “no
answer”. It was being mapped to a numeric field on the ACCESS end, so it was necessary to substitute a numeric
value (zero, for example) for a space to avoid a load error when the process flow ran. To account for this condition I
used the “custom validation” tab. Clicking on the “new” button offers you the range of variables on the particular
dataset in question. There is also a “condition” field to specify the test. There is a rudimentary expression builder, but
I found it faster to code the test once and copy the condition into notepad and use “cut and paste”. Amusing note: At
times, I was making heavier use of notepad than I was of Data Integration Studio! One of the problems in using the
expression builder is that the wealth of functions available to you as a developer makes it difficult to find the one
you’re looking for! I found it better to have function selection “worked out beforehand” because it was cumbersome
to have to stop and troll for the correct one when one was focused on mapping the data (not necessarily a
complementary thought process!) The search was somewhat complicated by the fact that the numeric fields seemed
to have various amounts of padding added to them. (So the number which was supposed to be in the field was not
necessarily left-justified, which is what I would have expected!) Using the TRIM and LEFT functions in combination
made this a lot easier.
USING COMPLEX FUNCTION CALLS
For complex function calls, it was necessary to “eyeball” the resulting function for syntax because the wizard has no
validation tool “built in.” It is a good idea to have a parallel SAS session running for quick validation of function calls.
I ran into the situation all too often where I left a period or comma out and would fail on a syntax error when the flow
would execute. Looking through the SAS log generated by the execution could be a daunting task. Also, sometimes
the SAS function would not work as I expected it to (i.e., would produce no result or a different result than the one I
would have liked), so it was necessary to dummy up some data in a SAS session until the SAS function was working
as expected. I am hopeful that future releases of Data Integration Studio will have some coding intelligence built in
for the expression builder. It is awkward, to say the least, to have a parallel SAS session running at the same time as
Data Integration Studio. The tool allows for a discrete action depending on whether the condition is true or false. It
also allows for you to report that the condition has been reached in an exception report. For simplicity’s sake, I only
coded for a “true “condition (there were only three possible values for this field, any-way), and did not utilize the
exception report. As each step was completed, I ran the flow inside Data Integration Studio and debugged as
necessary. This process had to be repeated when the end user had reviewed the data.
PECULIARITIES
The SAS datasets originated in Europe, so the dates had peculiar formatting. We noticed that the European date
format carried over to the ACCESS database, even though we made no effort to do so! We also noticed that Data
Integration Studio attempted to build indexes on certain fields, even though we had not asked it to do so! ACCESS
would complain when SAS tried to drop a table that was already empty – this was frustrating if we encountered this
mid-stream and had to start over. We eventually decided to use “truncate” for the ACCESS tables which eliminated
all the rows prior to loading the data. For the load technique in Data Integration Studio, the default option was to
append, so we had to be very careful to check this for all of the tables to make sure that we were refreshing the
tables instead. A decision had to be made for “Yes-No” fields if no information was provided, because they were
being mapped to “Check-Box” fields on ACCESS.
4
SAS Global Forum 2008
Data Integration
CONCLUSION
Use of Data Integration Studio imposed a certain discipline and structure on the project that would have been found
wanting otherwise. In order to use the tool effective(or at all!) I needed fairly extensive mapping documents. Had I
been coding this as an ad hoc SAS project, it might have been more difficult to adhere to such rigid standards. Since
there were three people involved in the project (one from a different department), all with competing schedules and
deadlines, it was important that tasks and responsibilities were allocated discretely and roles reviewed at a team
meeting do that we were not interfering with each other and also spending time in a productive fashion, which was in
itself a benefit! By having several “mock loads” of the database, we were able to narrow down our list of issues to a
handful (e.g. missing data, unexpected data). This helped us focus our time on eliminating known problems and
gave us a certain confidence that data was being loaded correctly to the ACCESS tables. Data Integration Studio
could be improved by providing a mapping facility similar to Information Map Studio and adding the ability to validate
SAS expressions “on-the-fly”. One of the hardest things about learning to use the tool is the requirement to think at a
higher level of abstraction than would be necessary if you were a single SAS coder “pushing out code”. I found that
during the process of having two systems learn to talk to each other, I was forced to ask questions about the data
that might have been ignored or passed over in a conventionally coded process. (For example: Do we need to
archive the ACCESS tables created each time the process runs?) There is a natural tendency as a programmer to
want to “get to the coding” as quickly as possible. It is more often the case than not in using Data Integration Studio
that one must spend more time in planning than in execution. I believe the real value of using a data warehousing
tool is in getting an organization to behave differently which will not come about (sadly) until several projects have
been completed or are underway. Another danger was having the project collapse of its own weight due to everchanging user requirements. As it was, we were able to “reign in” change requests from the users to those which
would have a genuine benefit to the outcome.
SAS and all other SAS Institute Inc. product or service names are registered trademarks or trademarks of SAS
Institute Inc. in the USA and other countries. ® indicates USA registration.
Other brand and product names are trademarks of their respective companies.
REFERENCES
Kimball, Ralph. The Data Warehouse ETL Toolkit. New York: John Wiley and Sons. 2004. p.20
ACKNOWLEDGMENTS
This paper is dedicated to the memory of Randy Scott Maloney (1957-2007), a colleague and lifelong friend.
CONTACT INFORMATION
Your comments and questions are valued and encouraged. Contact the author at:
Stanley Fogleman
Harvard Clinical Research Institute
930 Commonwealth Ave West
Boston MA 02215
5

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
