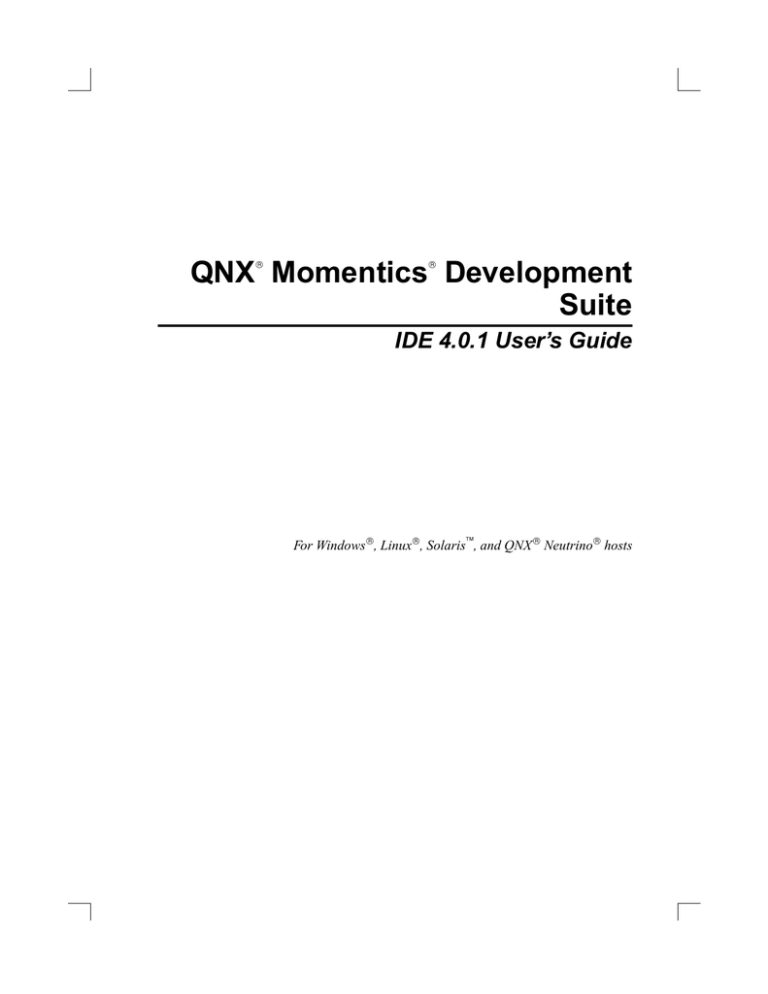

QNX Momentics Development

QNX Momentics Development

QNX

®

Momentics

®

Development

Suite

IDE 4.0.1 User’s Guide

For Windows

®

, Linux

®

, Solaris

, and QNX

®

Neutrino

®

hosts

© 2002–2007, QNX Software Systems GmbH & Co. KG. All rights reserved.

Published under license by:

QNX Software Systems International Corporation

175 Terence Matthews Crescent

Kanata, Ontario

K2M 1W8

Canada

Voice: +1 613 591-0931

Fax: +1 613 591-3579

Email:

[email protected]

Web:

http://www.qnx.com/

Publishing history

June 2004

September 2005

March 2007

First edition (QNX Momentics 6.3.0)

Second edition (QNX Momentics 6.3.0 Service Pack 2)

Third edition (QNX Momentics IDE 4.0.1)

Electronic edition published 2007

Contents

1

About This Guide xxi

How to use this guide xxiii

Assumptions xxv

Note to Windows users xxvii

Technical support options xxvii

IDE Concepts

What is an IDE?

3

1

An IDE for building embedded systems

Starting the IDE 4

3

Starting the IDE for the first time 5

Starting the IDE from the command line

Workbench 8

Using the QNX Help system

Navigating the Help 11

9

7

Help bookmarks 12

Tips and tricks 12

Perspectives 13

Views and editors 14

Views 14

Editors 14

Projects and workspace 15

Specifying a workspace location 16

How the IDE characterizes projects using natures 17

Host and target computers 18

Contents

iii

iv

Contents

2

3

Target agent (the

qconn

daemon) 18

Launcher 19

Resources 19

Wizards 19

Keyboard shortcuts 19

Preferences 20

Version coexistence 20

Specifying which OS version to build for 22

Environment variables 23

Preparing Your Target 25

Host-target communications 27

IP communications 28

Serial communications 30

qconn

over Qnet 31

Installing the

qconn

update 31

Example: Debugging via PPP 32

Connecting with Phindows 35

Developing C/C++ Programs 37

The C/C++ Development perspective 39

Wizards and Launch Configurations 40

Controlling your projects 40

Opening files 41

Closing projects 41

Opening projects 41

Filtering files 42

Outlines of source and binary files 43

Creating projects 44

Choosing an indexer 46

Building projects 47

Enabling the autobuild feature 47

Building all projects 49

4

Cleaning and rebuilding all projects 49

Building selected projects 50

Cleaning selected projects 50

Autosave before building 50

Configuring project build order 51

Creating personal build options 53

Adding a

use

message 54

Running projects 55

Deleting projects 59

Writing code 59

C/C++ editor layout 59

Finishing function names 60

Inserting code templates 61

Adding

#include

directives 64

Hover help 65

Adding and removing comments in code 66

Customizing the C/C++ editor 66

Using other editors 68

Creating files from scratch 69

More development features 70

Tracking remaining work 70

Code synopsis 73

Checking your build 74

Accessing source files for functions 76

Opening headers 76

Managing Source Code 79

CVS and the IDE 81

Local history feature 82

Project files (

.project

and

.cdtproject

) 82

Core Eclipse documentation on using CVS in the IDE 82

Importing existing source code into the IDE 84

Projects within projects 85

Contents

v

vi

Contents

5

Filesystem drag-and-drop 91

CVS repository 91

Import wizard 95

Linked resources 96

Using container projects 97

Creating a container project 98

Setting up a build configuration 100

Editing existing configurations 101

Importing a BSP or other QNX source packages 104

Step 1: Use File

Import. . .

104

Step 2: Select the package 106

Step 3: Select the source projects 107

Step 4: Select a working set 107

Step 5: Build 109

Exporting projects 110

Using the Export. . . command 111

Debugging Programs 117

Introduction 119

Debugging your program 120

Building an executable for debugging 120

Launching your program 121

Controlling your debug session 124

Using the controls 126

Debug launch controls 130

Disassembly mode 131

More debugging features 132

Inspecting variables 132

Using breakpoints and watchpoints 136

Evaluating your expressions 142

Inspecting your registers 143

Inspecting a process’s memory 144

Inspecting shared-library usage 147

6

Monitoring signal handling 147

Viewing your output 150

Interacting with GDB 151

Building OS and Flash Images 153

Introducing the QNX System Builder 155

Toolbar buttons 158

Binary Inspector 159

Boot script files 160

QNX System Builder projects 161

The scope of the QNX System Builder 161

Overview of images 162

The components of an image, in order of booting 162

Types of images you can create 166

Project layout 171

Overview of workflow 173

Creating a project for an OS image 173

Creating a project for a flash filesystem image 175

Building an OS image 175

Create new image 176

Combine images 177

Downloading an image to your target 180

Downloading via a serial link 180

Downloading via TFTP 183

Downloading using other methods 185

Configuring your QNX System Builder projects 186

Managing your images 187

Configuring image properties 190

Configuring project properties 198

Optimizing your system 202

Optimizing all libraries in your image 203

Optimizing a single library 204

Restoring a slimmed-down library 205

Contents

vii

viii

Contents

7

8

9

Moving files between the host and target 205

Moving files to the target 207

Moving files from the target to the host 207

Developing Photon Applications 209

What is PhAB?

211

PhAB and the IDE 212

Using PhAB 213

Creating a QNX Photon Appbuilder project 213

Closing PhAB 214

Reopening PhAB 214

Editing code 214

Building a QNX Photon Appbuilder project 215

Importing an existing standalone QNX Photon Appbuilder project 216

Starting Photon applications 217

Profiling an Application 219

Introducing the Application Profiler 221

Types of profiling 222

Profiling your programs 223

Building a program for profiling 224

Running and profiling a process 226

Profiling a running process 228

Postmortem profiling 231

Controlling your profiling sessions 233

Understanding your profiling data 235

Usage by line 235

Usage by function 237

Usage by thread 238

Call counts 239

Using Code Coverage 243

10

Code coverage in the IDE 245

Types of code coverage 245

How the coverage tool works 246

Enabling code coverage 248

Enabling code coverage for Standard Make projects 248

Starting a coverage-enabled program 249

Importing

gcc

code coverage data from a project 252

Associated views 253

Code Coverage Sessions View 254

Examining data line-by-line 255

Code Coverage Properties View 259

Code Coverage Report View 260

Generating a report 261

Changing views 261

Printing a report 262

Saving a report 262

Refreshing a report 262

Finding Memory Errors 263

Introduction 265

Memory management in QNX Neutrino 266

What the Memory Analysis perspective can reveal 273

Analyzing your program 276

Interpreting errors during memory analysis 282

Illegal deallocation of memory 286

NULL pointer dereference 288

Buffer overflow 291

Using freed memory 294

Reading uninitialized memory 296

Resource (memory) leaks 297

Functions checked for memory errors during memory analysis

299

Error message summary (memory analysis) 300

Contents

ix

11

12

Memory analysis GUI flags and corresponding environment variables 302

Using a file to log the trace 304

Analyzing a running program 305

Launching with debug

malloc

306

Attaching to a running process 306

Analyzing shared objects 307

Associated views 308

Memory analysis session 308

Memory analysis editor 313

Getting System Information 331

Introduction 333

What the System Information perspective reveals 334

Key terms 335

Logging system information 337

Viewing captured system information 339

Associated views 341

Controlling your system information session 342

Examining your target system’s attributes 346

Watching your processes 348

Examining your target system’s memory (inspecting virtual address space) 355

Tracking heap usage 359

Examining process signals 363

Getting channel information 363

Tracking file descriptors 366

Tracking resource usage 367

Tracking the use of adaptive partitioning 373

Analyzing Your System with Kernel

Tracing 383

Introducing the QNX System Profiler 385

x

Contents

13

Before you begin 387

Configuring a target for system profiling 389

Launching the Log Configuration dialog 390

Selecting options in the wizard 391

Capturing instrumentation data in event log files 394

Viewing and interpreting the captured data 396

Trace Search panel 399

Properties view 400

Filtering a profile 400

System Profiler use cases 401

Locating sources of high CPU usage 401

Mapping and isolating client CPU load from server CPU load

407

Examining Interrupt Latency 411

Locating Events of Interest 418

Associated views 426

System Profiler editor 427

Bookmarks view 435

Client/Server CPU Statistics view 435

Condition Statistics view 436

CPU Migration pane 441

Event Owner Statistics view 442

General Statistics view 443

Raw Event Data pane 443

Overview view 444

Partition Summary pane 445

Thread State Snapshot pane 446

Timeline State Colors pane 447

Trace Event Log view 448

Why Running? pane 449

Common Wizards Reference 451

Introduction 453

Contents

xi

xii

Contents

14

Creating a C/C++ project 456

How to create a C/C++ project 457

Tabs in the New C/C++ Project wizard 461

Creating a target 472

Converting projects 474

Converting to a QNX project 474

Completing the conversion 475

Importing projects 487

Importing an existing container project into a workspace 489

Importing an existing project into a workspace 491

Importing external features 493

Importing external plugins and fragments 493

Importing a file system 493

Importing GCC coverage data from a project 497

Importing a QNX Board Support Package 499

Importing a QNX

mkifs

Buildfile 503

Importing a QNX source package 504

Importing a team project set 505

Importing an archive file 506

Launch Configurations Reference 509

What is a launch configuration?

511

Types of launch configurations 511

Running and debugging the first time 513

Debugging a program the first time 514

Running a program the first time 515

Running and debugging subsequent times 517

Launching a selected program 517

Launching from a list of favorites 517

Launching the last-launched program 518

Setting execution options 518

Main tab 519

Arguments tab 521

B

C

D

A

Environment tab 523

Download tab 523

Debugger tab 525

Source tab 528

Common tab 530

Tools tab 532

Tutorials 535

Before you start. . .

537

Tutorial 1: Creating a Standard Make C/C++ project 537

Tutorial 2: Creating a QNX C/C++ project 540

Tutorial 3: Importing an existing project into the IDE 541

Tutorial 4: Importing a QNX BSP into the IDE 543

Step 1: Use File

Import. . .

543

Step 2: Select the package 544

Step 3: Select the source projects 545

Step 4: Select a working set 546

Step 5: Build 548

Where Files Are Stored 551

Utilities Used by the IDE 555

What’s New 559

What’s new in IDE 4.0.1?

561

Support for Windows Vista 561

IDE supports self-hosted Neutrino and Solaris 562

Eclipse updates 562

General improvements 562

Improvements to upgrading your software 562

Download Center updates 563

Documentation updates 563

What was new in IDE 4.0?

563

Contents

xiii

xiv

Contents

E

Application Profiler perspective 563

System Profiler perspective 564

Memory Analysis perspective 568

System Information perspective 570

System Builder perspective 572

Managed Make for QNX projects 572

C/C++ development 573

Debugging 581

What was new in the IDE in 6.3.0 SP3?

582

What was new in the IDE in 6.3.0 SP2?

582

General IDE 582

C/C++ user interface 589

C/C++ debug and launch 592

C/C++ project configuration and build 598

C/C++ editing and source navigation 602

QNX Momentics tools 608

What was new in the IDE in 6.3.0 SP1?

615

Migrating from Earlier Releases 617

Introduction 619

From 6.3.0 SP1, SP2, or SP3 to IDE 4.0

620

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3 620

Migrating your workspace 621

Migrating your projects 621

Migration issues 623

From 6.2.1 to 6.3.0

627

Migrating your workspace 627

Migrating your projects 629

From 6.2.0 to 6.3.0

631

Migrating your projects 631

Glossary 633

Index 639

Contents

xv

List of Figures

The IDE User’s Guide at a glance.

xxiii

This chapter introduces key concepts used in the IDE.

Selecting a workspace directory.

5

3

The Workbench window.

9

This chapter explains how to set up host-target communications.

27

This chapter shows you how to create and manage your C or C++ projects.

39

The C/C++ Editor.

60

The Tasks view lets you track your tasks.

72

This chapter describes managing source code from within the

IDE.

81

The Check Out As wizard.

93

This chapter shows you how to work with the debugger.

119

Use the QNX System Builder to create OS and flash images for your target.

155

Typical boot order.

163

Use the PhAB visual design tool to develop Photon apps.

211

This chapter shows you how to use the application profiler.

221

The QNX Application Profiler perspective.

222

Use the Code Coverage tool to help test your code.

245

Use the QNX Memory Analysis perspective to solve memory problems.

265

Process memory layout on an x86.

268

This chapter shows you how to work with the System Information perspective.

333

List of Figures

xvii

Use the System Profiler to analyze your system via instrumentation.

385

The System Profiler’s Go To Event command.

398

The System Profiler’s Client/Server CPU Statistics view.

436

The System Profiler’s CPU Migration pane.

441

The System Profiler’s Raw Event Data view.

444

The System Profiler’s Overview view.

444

The System Profiler’s Partition Summary pane.

446

The System Profiler’s Thread State Snapshot view.

447

The System Profiler’s Timeline State Colors view.

448

The System Profiler’s Why Running? view.

449

This chapter describes the IDE’s wizards.

453

The Import wizard.

488

Importing a container project.

490

Selecting container components to import.

491

Importing an existing project.

492

Importing code from the filesystem.

494

The Select Types dialog lets you filter imported files by selecting one or more extensions.

495

Browsing for a project or folder.

496

Importing resources.

497

Importing GCC coverage data.

498

Referenced projects and comments.

499

Importing a BSP.

500

Selecting source projects from a BSP archive.

501

Selecting a working set from a BSP archive.

502

Importing a

mkifs .build

file.

503

Importing a QNX Source Package.

504

Importing a Team Project Set.

506

Importing code from a ZIP archive.

507

You must set up a Launch Configuration before you can run or debug a program.

511

xviii

List of Figures

Here are several tutorials to help you get going with the IDE.

537

This appendix shows you where to find key files used by the IDE.

553

This appendix lists the utilities used by the IDE.

557

This chapter identifies the changes made to the QNX Momentics

IDE.

561

The new Progress view, showing the progress of a CVS checkout and a Workspace build background operation.

584

You can easily migrate your old workspace and projects to this release.

619

List of Figures

xix

About This Guide

About This Guide

xxi

How to use this guide

The IDE User’s Guide at a glance.

How to use this guide

This User’s Guide describes the Integrated Development Environment

(IDE), which is part of the QNX Momentics development suite. The guide introduces you to the IDE and shows you how to use it effectively to build your QNX Neutrino-based systems.

The workflow diagram above shows how the guide is structured and suggests how you might use the IDE. Once you understand the basic concepts, you’re ready to begin the typical cycle of setting up your projects, writing code, debugging, testing, and finally fine-tuning your target system.

Each chapter begins with the workflow diagram, but with the chapter’s bubble highlighted to show where you are in the book. Note that in the online version each bubble is a link.

About This Guide

xxiii

How to use this guide

This release of the IDE is based on Eclipse 3.2. If you have an older version of the IDE, see the Migrating from Earlier Releases appendix in this guide.

The following table may help you find information quickly:

xxiv

About This Guide

To:

Learn about the workspace, perspectives, views, and editors

Use the IDE’s help system

Run through the IDE tutorials

Learn about migrating from earlier versions of the IDE

Connect your host and target

Create projects

Create Photon projects

Go to:

IDE Concepts

IDE Concepts

Tutorials

Migrating from Earlier Releases

Preparing Your Target

Developing C/C++ Programs

Developing Photon

Applications

Developing C/C++ Programs

Managing Source Code

Compile your code

Import existing code into the

IDE

Debug your program

Import a QNX BSP source package

Set execution options for your programs

Check code into CVS

Debugging Programs

Managing Source Code

Launch Configurations

Reference

Managing Source Code

continued. . .

Assumptions

To:

Run QNX Neutrino on your target

Examine execution stats (e.g.

call counts) in your programs

Exercise a test suite

Find and fix a memory leak in a program

See process or thread states, memory allocation, etc.

Examine your system’s performance, kernel events, etc.

Learn how to use one of the

IDE’s wizards

Look up a keyboard shortcut

Learn where the IDE stores important files

Learn what utilities the IDE uses

Learn about what’s new in this release

Find the meaning of a special term used in the IDE

Go to:

Building OS and Flash Images

Profiling an Application

Using Code Coverage

Finding Memory Errors

Getting System Information

Analyzing Your System with

Kernel Tracing

Common Wizards Reference

IDE Concepts

Where Files Are Stored

Utilities Used by the IDE

What’s New in the IDE

Glossary

Assumptions

This guide assumes the following:

On your host you’ve already installed the QNX Momentics suite, which includes a complete QNX Neutrino development environment.

About This Guide

xxv

Assumptions

You’re familiar with the architecture of the QNX Neutrino RTOS.

You can write code in C or C++.

Throughout this manual, we use certain typographical conventions to distinguish technical terms. In general, the conventions we use conform to those found in IEEE POSIX publications. The following table summarizes our conventions:

xxvi

About This Guide

Reference

Code examples

Command options

Commands

Environment variables

File and pathnames

Function names

Keyboard chords

Example if( stream == NULL )

-lR make

PATH

/dev/null

exit()

Ctrl-Alt-Delete

Keyboard input

Keyboard keys

Program output

Programming constants

something you type

Enter

login:

NULL

Programming data types

Programming literals

unsigned short

0xFF

,

"message string"

Variable names

stdin

User-interface components

Cancel

We use an arrow (

→) in directions for accessing menu items, like this:

You’ll find the Other... menu item under

Perspective

Show View.

Assumptions

We use notes, cautions, and warnings to highlight important messages:

Notes point out something important or useful.

CAUTION: Cautions tell you about commands or procedures that may have unwanted or undesirable side effects.

!

WARNING: Warnings tell you about commands or procedures that could be dangerous to your files, your hardware, or even yourself.

Note to Windows users

In our documentation, we use a forward slash (

/

) as a delimiter in all pathnames, including those pointing to Windows files.

We also generally follow POSIX/UNIX filesystem conventions.

Technical support options

To obtain technical support for any QNX product, visit the Support +

Services area on our website (

www.qnx.com

). You’ll find a wide range of support options, including community forums.

QNX, Neutrino, Photon, Photon microGUI, Momentics, and Aviage are trademarks, registered in certain jurisdictions, of QNX Software

Systems GmbH & Co. KG. and are used under license by QNX

Software Systems International Corporation. All other trademarks belong to their respective owners.

About This Guide

xxvii

In this chapter. . .

What is an IDE?

Starting the IDE

3

4

Workbench

8

Using the QNX Help system

Perspectives

13

Views and editors

14

Projects and workspace

15

Host and target computers

18

9

Target agent (the

qconn

daemon)

18

Launcher

19

Resources

19

Wizards

19

Keyboard shortcuts

19

Preferences

20

Version coexistence

20

Chapter 1

IDE Concepts

Chapter 1

IDE Concepts

1

What is an IDE?

This chapter introduces key concepts used in the IDE.

What is an IDE?

Welcome to the Integrated Development Environment (IDE), a powerful set of tools in the QNX Momentics development suite. The

IDE is based on the Eclipse Platform developed by Eclipse.org, an open consortium of tools vendors (including QNX Software

Systems).

The IDE incorporates into the Eclipse framework several

QNX-specific plugins designed for building projects for target systems running the QNX Neutrino RTOS. The tools suite provides a single, consistent, integrated environment, regardless of the host platform you’re using (Windows, Linux, Solaris, or QNX Neutrino).

Plugins from most vendors should work within the Eclipse framework in the same way.

An IDE for building embedded systems

The IDE provides a coherent, easy-to-use work environment for building your applications. If you’ve used an IDE before, then you already have a good idea of the convenience and power this kind of toolset can offer.

Chapter 1

IDE Concepts

3

Starting the IDE

Through a set of related windows, the IDE presents various ways of viewing and working with all the components that comprise your system. In terms of the tasks you can perform, the toolset lets you:

organize your resources (projects, folders, files)

edit resources

collaborate on projects with a team

compile, run, and debug your programs

build OS and flash images for your embedded systems

analyze and fine-tune your system’s performance

The IDE doesn’t require that you abandon the standard QNX tools and

Makefile

structure. On the contrary, it relies on those tools. If you continue to build programs at the command line, you can also benefit from the IDE’s unique and powerful tools, such as the QNX System

Analysis tool and the QNX System Profiler, which can literally show you, in dynamic, graphical ways, exactly what your system is doing.

Starting the IDE

Depending on which host you’re using, after you install QNX

Momentics, you’ll see a desktop icon and/or a menu item labeled

“Integrated Development Environment” in the start or launch menu.

To start the IDE, click the icon or select the menu item.

4

Chapter 1

IDE Concepts

Starting the IDE

On Solaris, you must start the IDE from the command-line:

$QNX_HOST/usr/qde/eclipse/qde˜-vmargs˜-Xms256m˜-Xmx512m

On Neutrino, don’t start the IDE from the command line if you’ve used the

su

command to switch to a different user because the IDE won’t be able to attach to your Photon session, and it will fail to start.

Starting the IDE for the first time

The first time you start the IDE on Windows, the Workspace

Launcher dialog prompts you for a location to store your workspace.

All of your IDE projects are stored in this directory.

Selecting a workspace directory.

By default, the IDE offers to put your workspace in

home_directory

/ide4-workspace

on Neutrino, Linux, and Solaris, and

C:/QNX632/ide4-workspace

on Windows.

To store your workspace in another location:

Chapter 1

IDE Concepts

5

Starting the IDE

Click Browse. . . and select a directory for your workspace.

To continue loading the IDE, click OK.

Check the Use this as the default and do not ask again box to always use the selected workspace when launching the IDE.

To change the default workspace location on Neutrino, Linux, and

Solaris, launch

qde

with the

-data

workspace_path option, where

workspace_path is the location to your working directory.

The IDE welcomes you

After you choose a workspace location, the IDE displays a Welcome window with several options that help introduce you to the QNX

Momentics IDE:

Icon Description

Information: Provides links to overviews within the IDE, including the Documentation Roadmap,

Team Support (an important topic if you use CVS),

Workbench Basics, and the C/C++ Online

Documentation.

6

Chapter 1

IDE Concepts

Tutorials: Provides links to the tutorials for building your first QNX applications.

continued. . .

Starting the IDE

Icon Description

Samples: Provides links to samples to help you explore QNX Momentics by installing various prefabricated samples.

What’s New: Provides links to documents describing the new features in this release, and information about migrating from a previous release.

Open Workbench: Opens the workbench window and minimizes the Welcome page.

You can return to this Welcome window at any time by choosing

Help

Welcome.

Starting the IDE from the command line

You can start the IDE by running the

qde

command:

1

2

For Windows, navigate to the directory where the

qde.exe

executable is located (for example, for Windows hosts,

C:/QNX632/host/win32/x86/usr/qde/eclipse

), and run the following command:

./qde qde

For all other hosts (Neutrino, Linux, and Solaris), navigate to the directory where the

qde

script resides. Run this command:

Chapter 1

IDE Concepts

7

Workbench

Don’t run the

eclipse

command, even though it may seem to work.

Always use

qde

instead, because it configures the proper

QNX-specific environment.

For details about directing the IDE at a particular workspace location, see the topic “Specifying a workspace location” in this chapter.

For more information about starting the IDE, including advanced execution options for developing or debugging parts of Eclipse itself, see Tasks

Running Eclipse in the Workbench User Guide.

Workbench

When you first start the QNX Momentics IDE, it shows the Welcome window. To advance directly to the workbench, choose the workbench icon at the right.

8

Chapter 1

IDE Concepts

Using the QNX Help system

The Workbench window.

For details about the Workbench menu, see Reference

User

interface information

Workbench menus in the Workbench User

Guide. For a basic tutorial about using the workbench UI, see Getting

Started

Basic tutorialThe Workbench in the Workbench User

Guide.

Using the QNX Help system

The IDE includes a help system that is an HTML server which runs in its own window, separate from the workbench. This means that the help system isn’t a perspective or a view.

To open the IDE Help:

Chapter 1

IDE Concepts

9

Using the QNX Help system

From the main menu, select Help

Help Contents.

If you’re using an external web browser, the IDE starts a web server running on a random port (alternatively, you can specify a port in the

Preferences window using Window

Preferences. . . HelpHelp

Server). You can access the help system through this port using any web browser; you aren’t limited to the browser launched by the IDE.

If your help system uses a random port, opening and closing the help several times can confuse some anti-spyware programs, and they may conclude that the help system is a malignant program trying to do nefarious activities with your computer. At this point, the anti-spyware program will either block the program from opening ports (which will disable the Online Help), or warn you about the strange activity.

Unless you’re extremely low on RAM, keep the Online Help system open until you’re finished using the IDE. This prevents any lets you refer to the online documentation quickly whenever you need to.

anti-spyware programs from confusing the IDE with a virus, and also

10

Chapter 1

IDE Concepts

Using the QNX Help system

Navigating the Help

The left pane of the Help window is the bookshelf , which has links to the various documentation sets. Click one of the links to view a document. You can return to the bookshelf at any time by clicking the

Table of Contents button ( ).

The Contents pane includes at least the following titles:

Workbench User Guide

Written by Eclipse.org, the book explains Eclipse concepts and core IDE functionality, and includes tutorials about using the workbench. Although some of the workbench topics are covered briefly here in this IDE User’s Guide, you can find complete documentation about using the workbench in the

Eclipse Workbench User Guide.

QNX Momentics

The QNX documentation set includes the following titles:

• A Roadmap to QNX Momentics

Dinkum library documentation

High Availability Toolkit

Phindows for QNX Neutrino

Photon Multilingual Input

Photon microGUI for QNX Neutrino

Power Management

QNX Neutrino RTOS 6.3 (featuring the System Architecture

Guide, User’s Guide, Utilities Reference, and Library

Reference)

System Analysis Toolkit

Documentation for DDKs, and much, much more

QNX Momentics IDE User’s Guide

Featuring this User’s Guide. Describes the QNX Integrated

Development Environment, how to set up and start using the tools to build QNX-based target systems, etc.

Chapter 1

IDE Concepts

11

Using the QNX Help system

QNX Momentics IDE Cheat Sheets

Some title pages have content on them, some don’t. If you click a title, and the right side of the window remains blank, you’ve selected a “placeholder” title page. Simply expand the title entry to see its contents.

Help bookmarks

To create a bookmark for any help page:

1

On the Help browser’s toolbar, click the Bookmark Document button ( ).

2

To see your bookmarks, click the Bookmarks ( ) tab at the bottom of the Contents pane.

To learn more about the IDE’s Help system, follow these links in the

Eclipse Workbench User Guide: Concepts

Help system.

Tips and tricks

When you select the Tips and Tricks item from the Help menu, you’ll see a list of tips and tricks pages. Select the page for the

Eclipse platform, which covers several topics:

workbench (fast views, opening an editor with drag-and-drop, navigation, global find/replace, etc.)

help (help bookmarks, help working sets)

CVS (CVS working sets, restoring deleted files, quick sync, etc.)

12

Chapter 1

IDE Concepts

Perspectives

Perspectives

A perspective is a task-oriented arrangement of the workbench window.

For example, if you’re debugging, you can use the preconfigured

Debug perspective, which sets up the IDE to show all the tools related to debugging. If you wanted to work with the elements and tools related to profiling, you’d open the QNX Application Profiler perspective.

You can customize a perspective by adding or removing elements. For example, if you wanted to have certain profiling tools available whenever you’re debugging, you could add those elements to the

Debug perspective.

Perspectives generally consist of these components:

toolbars

views

editors

Perspectives govern which views appear on your workbench. For example, when you’re in the Debug perspective, the following main views are available (in the default configuration):

Debug

Breakpoints

Variables

Console

Outline

Tasks

Chapter 1

IDE Concepts

13

Views and editors

Views and editors

Views

Views organize information in various convenient ways. For example,

the Outline view shows you a list of all the function names when you’re editing a C file in the C/C++ editor. The Outline view is dynamic; if you declare a function called mynewfunc(), the Outline view immediately lists the function.

Views give you different presentations of your resources. For example, the Navigator view shows the resources (projects, folders, files) you’re working on. Like individual panes in a large window, views let you see different aspects of your entire set of resources.

Views provide:

insight into editor contents (e.g. Outline view)

navigation (e.g. Navigator view)

information (e.g. Tasks view)

control (e.g. Debug view)

Editors

You use editors to browse or change the content of your files. Each editor in the IDE is designed for working with a specific type of file.

The editor that you’ll likely use most often is the C/C++ editor.

The editor area is a section of the workbench window reserved for editors. Views can be anywhere on the workbench, except in the editor area.

The IDE lets you rearrange views and editors so they’re beside each other (tiled), or stacked on top of each other (tabbed).

14

Chapter 1

IDE Concepts

Projects and workspace

You can use a different text editor other than the one included with the

IDE; however, you will lose the integration of the various views and perspectives. For example, within the text editor of the IDE, you can:

set breakpoints and then see them in the Breakpoints view

assign “to-do” markers on particular lines and see them in the

Tasks view

obtain context sensitive help as you pause your cursor over a function name in your code.

For more information about the features of the text editor included with the IDE, see Concepts

Editors and

Reference

PreferencesText Editors in the Workbench User’s

Guide.

To use an alternate editor, we recommend that you:

1

2

Edit your files outside of the IDE.

Ensure that you save your files in the correct workspace location. For example, on Windows configurations, you might use the following location:

C:/QNX632/ide4-workspace/

project_name

3

To refresh the resources, from within the IDE, use the Refresh command (right-click menu in the Navigator view or the C/C++

Projects view).

Projects and workspace

Projects are generic containers for your source code,

Makefile

s, and binaries. Before you perform any work in the IDE, you must first create projects to store your work. One of the more common projects is a QNX C/C++ Project.

Chapter 1

IDE Concepts

15

Projects and workspace

Throughout this guide, we use the term “C/C++” as shorthand to cover both C and C++ projects; however, the titles of elements within the IDE itself are often explicit (e.g. “QNX C Project,” “QNX C++

Project,” etc.).

When you create a file within a project, the IDE also creates a record

(local history) of every time you change that file, and how you change it.

Your workspace is a folder where you keep your projects. For the exact location of your workspace folder on your particular host, see

“Where Files Are Stored” in the appendix in this guide.

Specifying a workspace location

To redirect the IDE to reference different workspaces:

From the directory where the

qde.exe

executable (Windows) or the

qde

script (all other hosts) resides, run the following command:

./qde -data

path

_

to

_

workspace

where path_to_workspace is the location of your working directory.

This command launches the IDE and specifies where you want the

IDE to create (or look for) the workspace folder.

Don’t use spaces when naming a project or file — they might cause problems with some tools, such as the

make

utility.

For Unix-type hosts (such as Solaris, Linux, and QNX Neutrino), filenames are case-sensitive, but for Windows they’re not. For this example,

Hello.c

and

hello.c

refer to the same file in Windows, but they are two separate files for a Unix-type system.

reason, don’t use case alone to distinguish files and projects. For

16

Chapter 1

IDE Concepts

Projects and workspace

How the IDE characterizes projects using natures

The IDE associates projects with natures that define the characteristics of a given project. For example, a Standard Make C

Project has a “C nature,” whereas a QNX C Project has a C nature as well as a QNX C nature, and so on.

QNX C or C++ projects assume the QNX recursive

Makefile

hierarchy to support multiple target architectures; Standard Make

C/C++ projects do not.

For more information about the QNX recursive

Makefile

hierarchy, see the Conventions for Makefiles and Directories chapter in the

Neutrino Programmer’s Guide.

The natures inform the IDE what can and can’t be done with each project. The IDE also uses the natures to filter out projects that would be irrelevant in certain contexts (for example, a list of QNX System

Builder projects won’t contain any C++ library projects).

The following table contains the most common projects and their associated natures:

Project

Simple Project

Associated natures

n/a

Standard Make C Project C

Standard Make C++ Project C, C++

QNX C Project

QNX C Library Project

C, QNX C

C, QNX C

C, C++, QNX C

C, C++, QNX C

QNX C++ Project

QNX C++ Library Project

QNX System Builder Project QNX System Builder

continued. . .

Chapter 1

IDE Concepts

17

Host and target computers

The IDE saves these natures and other information in the files called

.project

and

.cdtproject

in each project. To ensure that these natures persist in your source control system, such as CVS, include these files when you commit the project.

The IDE doesn’t directly support nested projects; each project must be organized as a discrete entity. However, the IDE does support project dependencies by allowing a project to reference other projects that reside in your workspace. Container projects also let you logically nest projects by collecting several projects together.

Host and target computers

The host is the computer where the IDE resides (e.g. Windows). The

target is the computer where QNX Neutrino and your program run.

Target agent (the qconn daemon)

The

qconn

daemon is the target agent written specifically to support the IDE. It facilitates communication between the host and target computers.

If you’re running the IDE on a QNX Neutrino PC (self-hosted), your target computer may also be the host computer. In this case, you must continue to run

qconn

, even though your host computer is essentially connected to itself.

For more information about connection methods, see the Launch

Configurations Reference chapter in this guide.

18

Chapter 1

IDE Concepts

Launcher

Launcher

Before you can run a program, you must tell the launcher of the IDE what program to run, the target to run it on, the arguments to pass to the program, and so on.

If you want to run the program on another target or run with different options (e.g. with profiling enabled), you must create a new launch

configuration or copy a previous one and modify it, as required.

Resources

Resources is a collective term for your projects, folders, and files.

Wizards

Wizards guide you through a sequence of tasks. For example, to

create a QNX C Project, you run a wizard that guides you through all of the steps to gather required information before creating a project.

For more information about wizards, see the Common Wizards

Reference chapter in this guide.

Keyboard shortcuts

You’ll find many keyboard shortcuts for various UI tasks throughout the IDE. For instructions about creating your own shortcuts, follow these links in the Workbench User Guide:

Reference

PreferencesKeys

Some existing shortcuts and some commands that can be assigned to shortcuts apply only to Java code and projects. For example, the

Ctrl-G

, works only with Java code.

“Search for Declaration in Workspace” command, which is bound to

Chapter 1

IDE Concepts

19

Preferences

Preferences

The Preferences dialog (in the Window menu) lets you customize the behavior of your environment, such as when to build your projects, which target processors to build for, and how to open new perspectives.

Besides global preferences, you can also set preferences on a

per-project basis using the Properties item in right-click menus.

Version coexistence

The QNX Momentics 6.3 development suite lets you install and work with multiple versions of Neutrino (from 6.2.1 and later) — you can choose the version of the OS from which you want to build programs.

When you install QNX Momentics, you receive a set of configuration files that indicate where you’ve installed the software. The

QNX_CONFIGURATION environment variable stores the location of the configuration files for the installed versions of Neutrino. On a self-hosted Neutrino computer, the default location is

/etc/qnx

.

20

Chapter 1

IDE Concepts

Version coexistence

QWinCfg for Windows hosts

On Windows hosts, you’ll find a configuration program (

QWinCfg

) for changing versions of QNX Momentics IDE.

Launch

QWinCfg

using the Start menu (e.g. All Programs

QNX

Momentics 6.3.2

Configuration).

For details about using

QWinCfg

, see its entry in the Utilities

Reference.

qconfig

utility for non-Windows hosts

The

qconfig

utility lets you configure your computer to use a specific version of Neutrino:

If you run it without any options,

qconfig

lists the versions installed on your computer.

If you specify the

-e

option, you can configure the environment for building software for a specific version of the operating system.

For example, if you’re using the Korn shell (

ksh

), you can configure your computer as follows:

eval

qconfig -n "QNX 6.3.2 Install" -e

In the previous example, notice that you must use the “back tick” character (

), not the single quote character (

).

When the IDE starts, it uses your current

qconfig

choice as the default version of the operating system. If you haven’t specified a version, the IDE chooses an entry from the directory identified by

QNX_CONFIGURATION environment variable. If you want to override the IDE, choose an appropriate build target.

Coexistence and PhAB

If you’re going to create Photon applications for QNX Neutrino 6.3.2

and 6.2.1 using PhAB, you need to use the older version of PhAB to create your application resources.

Chapter 1

IDE Concepts

21

Version coexistence

To ensure that you’re always using the older version of PhAB to create your resources:

1

Choose Window

Preferences from the menu to display the

Preferences dialog.

2

Expand the QNX item in the list, then choose Appbuilder to display the Appbuilder preferences:

3

4

5

Clear the Use default check box.

Change the Path to Photon Appbuilder to

C:/QNXsdk/host/win32/x86/usr/bin/appbuilder.bat

.

Click OK to save your changes and close the Preferences dialog.

Specifying which OS version to build for

To specify which version of Neutrino you want the IDE to build for:

1

2

3

Open the Preferences dialog (Window

Preferences).

Select QNX.

build for.

From the Select Install list, select the OS version you want to

Click Apply, then click OK.

4

22

Chapter 1

IDE Concepts

Version coexistence

Environment variables

Neutrino uses these environment variables to locate files on the host computer:

QNX_HOST The location of host-specific files.

QNX_TARGET

The location of target backends on the host machine.

QNX_CONFIGURATION

The location of the

qconfig

configuration files.

MAKEFLAGS

The location of included

*.mk

files.

TMPDIR

A directory to use for temporary files. The

gcc

compiler uses temporary files to hold the output of one stage of compilation used as input to the next stage: for example, the output of the preprocessor, which is the input to the compiler proper.

The

qconfig

utility sets these variables according to the version of

QNX Momentics that you specified.

Chapter 1

IDE Concepts

23

Chapter 2

Preparing Your Target

In this chapter. . .

Host-target communications

27

Connecting with Phindows

35

Chapter 2

Preparing Your Target

25

Host-target communications

This chapter explains how to set up host-target communications.

Host-target communications

Regardless of whether you’re connecting to a remote or a local target, you have to prepare your target machine so that the IDE can interact with the QNX Neutrino image running on the target.

The IDE supports host-target communications using either an IP or a serial connection. We recommend both. If you have only a serial link, you’ll be able to debug a program, but you’ll need an IP link in order to use any of the advanced diagnostic tools in the IDE.

Target systems need to run the target agent (

qconn

). for more information about

qconn

, see “Target agent (the

qconn

daemon)” in the IDE Concepts chapter.

website for updated versions of

qconn

, or you can use the IDE

Software Updates manager (Help

Software Updates).

Ensure that you occasionally check the Download Center on our

Chapter 2

Preparing Your Target

27

Host-target communications

IP communications

Before you can configure your target for IP communications, you must connect the target and host machines to the same network. You must already have TCP/IP networking functioning between the host and target systems.

To configure your target for IP communications, you must launch

qconn

on the target, either from a command-line shell, or the target’s boot script.

The version of QNX Momentics on your host must be the same or newer than the version of QNX Neutrino on your target, or unexpected behavior may occur. Newer features won’t be supported by an older target.

If your target’s

qconn

is out of date, its listing in the Target Navigator view will notify you to check the target properties:

28

Chapter 2

Preparing Your Target

Host-target communications

For more information, see “Installing the

qconn

update,” later in this chapter.

When you set up a launch configuration, select C/C++ QNX QConn

(IP). (See the Launch Configurations Reference chapter in this guide for more information.)

Chapter 2

Preparing Your Target

29

Host-target communications

The

pdebug

command must be present on the target system in

/usr/bin

for all debugging sessions;

qconn

launches it, as required.

The

devc-pty

manager must also be running on the target to support the Debug perspective’s Terminal view.

Serial communications

Before you can configure your target for serial communications, you must establish a working serial connection between your host and target machines.

On Linux, disable and stop

mgetty

before configuring your target for serial communications.

5

To configure your target for serial communications:

1

If it’s not already running, start the serial device driver that’s appropriate for your target. Typically, Intel x86-based machines use the

devc-ser8250

driver.

2

3

Once the serial driver is running, you’ll see a serial device listed in the

/dev

directory. To confirm it’s running, enter:

ls /dev/ser*

You’ll see an entry such as

/dev/ser1

or

/dev/ser2

.

Type the following command to start the pseudo-terminal communications manager (

devc-pty

):

devc-pty &

4

Type the following command to start the debug agent (this command assumes that you’re using the first serial port on your target):

pdebug /dev/ser1 &

The target is now fully configured.

Determine the serial port parameters by entering the following command (again, this command assumes the first serial port):

30

Chapter 2

Preparing Your Target

Host-target communications

stty </dev/ser1

This command produces a lot of output. Look for the

baud=

baudrate

entry; you’ll need this information to properly configure the host portion of the connection.

When you set up a launch configuration, select C/C++ QNX PDebug

(Serial). For information about launch configurations, see the

“Launch Configurations Reference” chapter in this guide.

qconn over Qnet

Suppose you have two targets running Neutrino, such that:

The first target can communicate with the IDE host via TCP/IP.

The second target can communicate with the first target via Qnet.

To connect to the second target with the IDE, all you need to do is start

qconn

on the second target, and instruct it to use the IP stack of the first target, like this:

SOCK=/net/

firstTargetName

qconn

If you want to start

qconn

like this every time you boot the second target, add this command to the file named

/etc/rc.d/rc.local

.

For more information about starting Neutrino, see the Controlling

How Neutrino Starts chapter of the Neutrino User’s Guide.

Installing the qconn update

After you’ve installed the IDE, you may need to update

qconn

on your target systems to take advantage of some additional features.

The IDE will work with older versions of

qconn

, but not all features will be available.

Only users with system administrator privileges can perform updates to

qconn

.

To update

qconn

on your development system:

Chapter 2

Preparing Your Target

31

Host-target communications

1

2

In the IDE, select Help

Software UpdatesQconn

Updates. . . .

Click OK to let the IDE update

qconn

on your host.

If you already have the latest version of

qconn

, or the next time you choose Software Updates

Qconn Updates. . . from the Help menu, the IDE offers to uninstall the

qconn

update.

1

2

After you update

qconn

on your Development system, you then need to update the version of

qconn

on your target system. How you do this depends on your target system; you might have to build a new image, or you might simply have to copy the new version to your target.

For example, to copy a new version of

qconn

to a target system:

Use

slay qconn

on the target to stop any existing

qconn

.

3

4

Copy $QNX_TARGET

/

target

/usr/sbin/qconn

to your target system’s

/usr/sbin

directory.

Ensure that the

qconn

in the target’s

/usr/sbin

directory is executable; if it isn’t, use

chmod +x

to make it executable.

On the target, launch the new

qconn

.

Example: Debugging via PPP

This example shows you how to prepare your target and host for debugging using a PPP connection.

Before you begin, make sure the serial ports on both the host and target systems are configured properly and can communicate with each other through a null-modem serial cable.

Setting up your target

To configure your target for PPP:

1

Create a file named

options

in the directory

/etc/ppp/options

that contains the following lines:

32

Chapter 2

Preparing Your Target

Host-target communications

debug

57600

/dev/ser1

10.0.0.1:10.0.0.0

The number 57600 refers to the baud rate. You may need to use a different value if you encounter problems using this value.

2

If it’s not already running, start

io-net -ptcpip -ppppmgr io-net

with this command:

3

Type the following command to start the PPP daemon:

pppd

4

Type the following command to start the

qconn qconn

target agent:

QNX Neutrino host

To configure your QNX Neutrino host for PPP:

1

>

Create a file named

options

in the directory

/etc/ppp/options

that contains the following lines:

debug

57600

/dev/ser1

10.0.0.1:10.0.0.0

The number 57600 refers to the baud rate. You may need to use a different value if you encounter problems using this value.

2

3

If it’s not already running, start

io-net

with this command:

io-net -ptcpip -ppppmgr

Type the following command to start the PPP daemon with the

passive

option:

pppd passive

Chapter 2

Preparing Your Target

33

Host-target communications

Windows host

To configure your Windows XP host for serial communication using

PPP:

1

2

The names of menu items and other details differ slightly on other supported versions of Windows.

In the Control Panel window, select Network Connections.

In the New Connection Wizard dialog, click Set up an

advanced connection, then click Next:

3

4

5

6

Select Connect directly to another computer, then click Next.

When prompted for the role of your target, choose Guest; click

Next.

Next.

Name your connection (e.g. “ppp_biscayne”), and then click

When prompted to select a device, choose Communications

Port (COM1), and then click Next.

34

Chapter 2

Preparing Your Target

Connecting with Phindows

7

8

When prompted to specify whether you want this connection to be for your use only, or for anyone’s, select Anyone’s use.

Click Next.

If you want Windows to create a desktop shortcut, click the option on the last page of the wizard.

9

Click Finish.

10

In the Connect name_of_target dialog, enter your user ID and password, then select Properties.

11

Select the Options tab.

12

Disable the option Prompt for name and password,

certificate, etc., then click OK.

Connecting with Phindows

The IDE lets you connect to a Photon session on a target from a

Windows host machine and interact with the remote Photon system as if you were sitting in front of the target machine.

To prepare your target for a Phindows connection:

1

2

Open a terminal window and log in as

root

.

Edit the file

/etc/inetd.conf

and add the following line (or remove the comment character if the line already exists):

phrelay stream tcp nowait root /usr/bin/phrelay phrelay -x

3

4

5

Save the file and exit the editor.

If it’s running, kill the

inetd

daemon:

slay inetd

Now restart

inetd

:

inetd

The

inetd

daemon starts and you can connect to your target using Phindows.

Chapter 2

Preparing Your Target

35

Connecting with Phindows

For details on using Phindows, see the Phindows Connectivity User’s

Guide in your QNX Momentics documentation set.

36

Chapter 2

Preparing Your Target

Chapter 3

Developing C/C++ Programs

In this chapter. . .

The C/C++ Development perspective

39

Controlling your projects

40

Creating projects

44

Building projects

47

Running projects

55

Deleting projects

59

Writing code

59

More development features

70

Chapter 3

Developing C/C++ Programs

37

The C/C++ Development perspective

This chapter shows you how to create and manage your C or C++ projects.

The C/C++ Development perspective

The C/C++ Development perspective is where you develop and build your projects. As mentioned in the IDE Concepts chapter, a project is a container for organizing and storing your files.

Besides writing code and building your projects, you may also debug and analyze your programs from the C/C++ Development perspective.

You’ll find complete documentation on the C/C++ Development perspective, including several tutorials to help you get started, in the core Eclipse platform doc set: Help

Help ContentsC/C++

Development User Guide.

The views in the C/C++ Development perspective are driven

Guide:

primarily by selections you make in the C/C++ editor and the C/C++

Projects view, which is a specialized version of the Navigator view.

Since the Navigator view is part of the core Eclipse platform, you’ll find full documentation on the Navigator view in the Workbench User

Chapter 3

Developing C/C++ Programs

39

Controlling your projects

For information on the Navigator’s:

Toolbar and icons

Right-click context menu

See these sections in the Workbench

User Guide:

Concepts

ViewsNavigator view

Reference

User interface

information

Views and

editors

Navigator View

Wizards and Launch Configurations

To create and run your first program, you’ll use two major facilities within the IDE:

wizards — for quickly creating a new project

launch configurations — for setting up how your program should run

Once you’ve used these features of the IDE for the first time, you’ll be able to create, build, and run your programs very quickly. For details about wizards and launch configurations, see the Common Wizards

Reference and Launch Configurations Reference chapters in this guide.

Controlling your projects

The C/C++ Development perspective’s C/C++ Projects view is perhaps the most important view in the IDE because you can control your projects with it. The selections you make in the C/C++ Projects view greatly affect what information the other views display.

The C/C++ Projects view gives a “virtual” or filtered presentation of all the executables, source, and shared objects that comprise your project. You can set filters for the types of files you want shown in this view.

The C/C++ Projects view has many of the same features as the

Navigator view, but it is configured specifically for C and C++

40

Chapter 3

Developing C/C++ Programs

Controlling your projects development. At first glance, the two views may seem identical, but the C/C++ Projects view:

presents the project’s executables as if they reside in a subdirectory called

Binaries

for a library project, presents the project’s libraries as if they reside in subdirectory called

Archives

hides certain files

includes Build Project and related commands in its right-click menu if auto-build is disabled

gives an outline of C/C++ source files and binary files

Opening files

To open files and display them in the editor area:

In the C/C++ Projects view, double-click the file to be opened.

The file opens in the editor area.

Closing projects

If you aren’t working on the project but would like to keep it in the

IDE, you can close it:

In the C/C++ Projects or Navigator view, right-click your project, then select Close Project.

Opening projects

To open a closed project:

In the C/C++ Projects or Navigator view, right-click your project, then select Open Project.

The project opens — you can see it in the C/C++ Projects view.

Chapter 3

Developing C/C++ Programs

41

Controlling your projects

Filtering files

To hide certain files from the C/C++ Projects view:

1

In the C/C++ Projects view, click the menu dropdown button

( ).

2

Select Filters. . . . The C Element Filters dialog appears:

3

In the filter pane, select the types of files you wish to hide. For example, if you select .*, then all files that start with a period

42

Chapter 3

Developing C/C++ Programs

Controlling your projects

4

(e.g.

.cdtproject

,

.project

, etc.) won’t appear in the

C/C++ Projects view.

Click OK. The C/C++ Projects view automatically refreshes itself and shows only the files you haven’t filtered.

Outlines of source and binary files

The C/C++ Projects view shows you an outline of the C/C++ source and header files in your project:

Note that you can also use the Outline view to see the structure of your projects. (For more information about the Outline view, see the

“Code synopsis” section in this chapter.)

The C/C++ Projects view shows you the outlines of binary files as well. You can examine the structure of executables or object files to see the elements that you defined or used in the file, as well as implicitly used elements, such as malloc(), _init(), and errno:

Chapter 3

Developing C/C++ Programs

43

Creating projects

Creating projects

If you’re creating an application from scratch, you’ll probably want to create a QNX C Project or QNX C++ Project, which relies on the

QNX recursive

Makefile

hierarchy to support multiple CPU targets.

For more information about the QNX recursive

Makefile

hierarchy, see the Conventions for Makefiles and Directories chapter in the

Neutrino Programmer’s Guide.

If you want to import an existing project, see “Importing existing source code into the IDE” in the Managing Source Code chapter in this guide.

Use the New Project wizard whenever you want to create a new project in the IDE.

To create a simple “hello world” type of program:

1

In the C/C++ Development perspective, click the New C/C++

Project button in the toolbar:

44

Chapter 3

Developing C/C++ Programs

Creating projects

(You can use the dropdown menu to create different types of

C/C++ projects.)

The New Project wizard appears.

There are actually several ways to open the New Project wizard. For details about the wizards, see the Common Wizards Reference chapter in this guide.

2

Name your project, and then select the type:

Application

Static library

Shared library

Shared + Static library

Static + Static shared library

Shared library without export

6

3

4

5

Although the wizard allows it, don’t use any of the following characters in your project name:

| !

$ ( " ) &

: ; \ ’ * ? [ ] # ˜ = % < > { }

Using these characters in a project name will cause problems later.

Click Next.

Select the Build Variants tab.

If you want to build both debug and release variants of your program, select the build variant that matches your target type, such as X86 (Little Endian) or PPC (Big Endian). If you don’t want to build both debug and release variants, expand the item for your target type and disable Debug or Release.

Click Finish. The IDE creates your project and displays the source file in the editor.

Chapter 3

Developing C/C++ Programs

45

Creating projects

Choosing an indexer

The C/C++ search features use an index of symbols (from the source code in your projects, and from external header files) to find the locations of declarations and references.

To specify the indexer:

for a project, open the project’s Properties dialog, and then select

C/C++ Indexer from the list on the left.

as the default indexer for new projects, choose

Window

Preferences. . . , expand C/C++ in the list on the left, and then choose Indexer.

In either case, you have the following choices:

Full indexer Parses your project in the same manner that a compiler does. It starts at each compilation unit and parses that file and all files that it includes. This provides the most accurate index information. For large projects using complex C++ code, this indexer can slow down the IDE.

Fast indexer Similar to the Full indexer, except it parses each header file included in a project only once. For example, if a header file is included by two compilation units, the parsing of the second unit reuses the results of parsing the first unit. This is similar to how precompiled headers work. The indexing of large projects using the Fast indexer uses fewer resources than the Full indexer, but the resulting index isn’t quite as accurate.

No indexer much of the search functionality.

Disables indexing completely. This also disables

46

Chapter 3

Developing C/C++ Programs

Building projects

Building projects

Once you’ve created your project, you’ll want to build it. Note that the IDE uses the same

make

utility and

Makefile

s that are used on the command line.

The IDE can build projects automatically (i.e. whenever you change your source) or let you build them manually. When you do manual builds, you can also decide on the scope of the build.

You can watch a build’s progress and see output from the build command in the Console view. If a build generates any errors or warnings, you can see them in the Problems view.

The IDE uses a number of terms to describe the scope of the build:

Build

Clean

Build only the components affected by modified files in that particular project (i.e.

make all

).

Delete all the built components (i.e.

.o

,

.so

,

.exe

, and so on) without building anything (i.e.

make clean

).

Rebuild

Build the project from scratch (i.e.

make clean all

).

Enabling the autobuild feature

By default, the IDE builds your project only when you tell it to, but it can also build your project every time you change a file or other resource in any way (e.g. delete, copy, save, etc.). This feature is handy if you have only a few open projects and if they’re small.

To enable autobuilding:

1

From the main menu, select Window

Preferences.

2

3

4

In the left pane, expand General and select Workspace.

In the right pane, enable the Build automatically option.

Click OK to save and apply your preferences.

The IDE now builds your projects every time you change a file or other resource.

Chapter 3

Developing C/C++ Programs

47

Building projects

C/C++ projects have their own autobuild setting. To turn this on:

1

Right-click the C/C++ project, then choose Properties from the menu.

2

Select C/C++ Make Project, and then select the Make

Builder tab:

3

Enable the Build on resource save (Auto Build) option in the

Workbench Build Behavior section.

48

Chapter 3

Developing C/C++ Programs

Building projects

4

Click OK to close the project properties dialog and return to the workbench.

Building all projects

The IDE lets you manually choose to build all your open projects.

Depending on the number of projects, the size of the projects, and the number of target platforms, this could take a significant amount of time.

To build all your open projects:

From the main menu, select Project

Build All.

Cleaning and rebuilding all projects

To rebuild all projects, you should clean the projects first, and then run a build:

1

From the main menu, select Project

Clean. . . . The IDE displays the Clean dialog:

Chapter 3

Developing C/C++ Programs

49

Building projects

2

3

Select the projects you want cleaned, and check the Start a

build immediately box.

Click OK.

Building selected projects

To build selected projects:

In the C/C++ Projects view, right-click a project and select

Build Project.

Cleaning selected projects

To clean selected projects:

In the C/C++ Projects view, right-click a project and select

Clean Project.

Autosave before building

The IDE automatically saves all your changed resources before you do a manual build. To turn off this feature:

1

From the main menu, select Window

Preferences.

2

In the left pane, expand General, and then select Workspace.

50

Chapter 3

Developing C/C++ Programs

Building projects

3

In the right pane, disable the Save automatically before build option.

4

Click OK to save and apply your preferences.

The IDE no longer saves your resources before it builds your project.

Configuring project build order

You can instruct the IDE to build certain projects before others. And if a given project refers to another project, the IDE builds that project first.

Chapter 3

Developing C/C++ Programs

51

Building projects

Setting the build order doesn’t necessarily cause the IDE to rebuild all projects that depend on a given project. You must rebuild all projects to ensure that all dependencies are resolved.

To manually configure the project build order:

1

From the main menu, select Window

Preferences.

2

In the left pane, expand General, expand Workspace, and select Build Order.

3

4

5

Disable the Use default build order option.

Select a project from the list, then click the Up or Down buttons to position the project where you want it to appear in the build order list.

When you’re done, click Apply, then OK.

52

Chapter 3

Developing C/C++ Programs

Building projects

Creating personal build options

In this section, the term “targets” refers to operations that the

make

command executes during a build, not to target machines.

A

make

target is an action called by the

make

utility to perform a build-related task. For example, QNX

Makefile

s support a target named

clean

, which you invoke as

make clean

. The IDE lets you set up your own

make

targets (e.g. myMakeStuff ). You can also use a

make

target to pass options such as

CPULIST=x86

, which causes the

make

utility to build only for x86. Of course, such an option would work only if it’s already defined in the

Makefile

.

To add your own custom

make

target to the C/C++ Project view’s right-click menu:

1

In the C/C++ Projects view, right-click a project and select

Create Make Target. . . .

2

Type the name of your

make

target (e.g.

myMakeStuff

).

3

Click Create.

You’ll see your target option listed in the Build Targets dialog, which appears when you select the Build Make Target. . . item from the right-click menu of the C/C++ Projects view. Your targets also appear in the Make Targets view.

To build your project with a custom

make

target:

1

In the C/C++ Projects view, right-click a project.

2

In the context menu, select the Build Make Target. . . item.

The Build Targets dialog appears.

3

Select your custom target, then click Build.

Chapter 3

Developing C/C++ Programs

53

Building projects

To remove a

make

target:

1

Open the Make Targets view (Window

Show ViewMake

Targets). Expand your project to see your

make

targets.

2

Right-click the target you want to remove, then select Delete

Make Target.

Adding a use message

Adding a helpful “use” message to your application lets people receive an instant online reminder for command-line arguments and basic usage simply by typing

use

app_name.

Usage messages are plain text files, typically named

app

_

name.use

, which are located in the root of your application’s project directory.

For example, if you had the

nodetime

project open, its usage message might be in

nodetime.use

. This convention lets the recursive

Makefile

system automatically find your usage message data.

For information about writing usage messages, please refer to the entry for

usemsg

in the Utilities Reference.

To add a usage message to your application when using a QNX

C/C++ Project:

1

In the C/C++ Projects or Navigator view, open your project’s

common.mk

file. This file specifies common options used for building all of your active variants.

2

3

Locate the

USEFILE

entry.

If your usage message is in

app

_

name.use

, where app_name is your executable name, add a

#

character at the start of the

USEFILE

line. This lets the recursive

Makefile

system automatically pick up your usage message.

54

Chapter 3

Developing C/C++ Programs

Running projects

4

If your usage message is in a file with a different name, or you want to explicitly specify your usage message’s file name, change the

USAGE

line as follows:

USAGE=$(PROJECT_ROOT)/

usage_message.use

where usage_message.use is the name of the file containing your usage message. This also assumes that your usage message file is in the root of the project directory. If the usage message file is located in another directory, include it instead of

$(PROJECT_ROOT)

.

Build your project as usual to include the usage message.

To add a usage message to your application when using a Standard

C/C++ Project:

1

In the C/C++ Projects or Navigator view, open your project’s

Makefile

.

2

Find the rule you use to link your application’s various into the final executable.

.o

files

3

Add the following command to the rule after the link command:

usemsg [email protected]

usage_message.use

Where usage_message.use is the name of the file containing your usage message.

4

Build your project as usual to include the usage message.

Running projects

Before running an application, you must prepare your target. If it isn’t already prepared, you must do so now. For information about configuring your target, see the “Preparing Your Target” chapter in this guide.

After you build a project, you’re ready to run it. The IDE lets you run or debug your executables on either a local or a remote QNX Neutrino

Chapter 3

Developing C/C++ Programs

55

Running projects target machine. (For a description of local and remote targets, see the

IDE Concepts chapter.)

To run or debug your program, you must create both of the following:

a QNX Target System Project, which specifies how the IDE communicates with your target; once you’ve created a QNX Target

System Project, you can reuse it for every program that runs on that particular target.

a launch configuration, which describes how the program runs on your target; you’ll need to set this up only once for that particular program.

For a complete description of how to create a QNX Target System

Project, see the Common Wizards Reference chapter in this guide.

For a complete description of the Launch Configurations dialog and its available options, see the Launch Configurations Reference chapter in this guide.

To create a QNX Target System Project:

1

From the menu, select File

NewOther. . . .

2

In the list, expand QNX.

3

4

Select QNX Target System Project.

Click Next.

56

Chapter 3

Developing C/C++ Programs

Running projects

5

6

7

Type a name for your target.

Type your target’s hostname or IP address.

Click Finish.

You’ll see your new QNX Target System Project in the Navigator view.

To create a launch configuration so you can run your project:

1

2

3

Make sure you build your project first before you create a launch configuration for it. See “Building projects” above.

In the C/C++ Projects view, expand the “Binaries” folder.

Select Run As

C/C++ QNX QConn.

Right-click on your project’s executable file.

Chapter 3

Developing C/C++ Programs

57

Running projects

In the Name field, give your launch configuration a name.

4

5

In the Target Options section, select your target.

6

Click the Run button.

Console view.

Your program runs, and the IDE displays its output (if any) in the

58

Chapter 3

Developing C/C++ Programs

Deleting projects

Deleting projects

To delete a project:

1

In the C/C++ Projects view, right-click a project and select

Delete from the context menu. The IDE then prompts you to confirm the deletion.

2

Decide whether you want to delete only the project framework, or the project and its contents as well.

When you delete a project in the IDE, any launch configurations for that project are not deleted. This feature lets you delete and recreate a project without also having to repeat that operation for any corresponding launch configurations you may have created.

For more on launch configurations, see the Launch Configurations

Reference chapter in this guide.

Writing code

The C/C++ editor is where you write and modify your code. As you work in the editor, the IDE dynamically updates many of the other views (even if you haven’t saved your file).

C/C++ editor layout

The C/C++ editor has a gray border on each side. The marker bar might contain icons that indicate errors or other problems detected by the IDE, as well as icons for any bookmarks, breakpoints, or tasks

(from the Tasks view). The icons in the left margin correspond to the line of code.

Chapter 3

Developing C/C++ Programs

59

Writing code

The C/C++ Editor.

The border on the right margin displays red and yellow bars that correspond to the errors and warnings from the Problems view.

Unlike the left margin, the right margin displays the icons for the

entire length of the file.

Finishing function names

The Content Assist feature can help you finish the names of functions if they’re long or if you can’t remember the exact spelling.

To use Content Assist:

1

In the C/C++ editor, type one or two letters of a function’s name.

60

Chapter 3

Developing C/C++ Programs

Writing code

2

Press

Ctrl-Space

. (Or, right-click near the cursor and select

Content Assist.) A menu with the available functions appears:

3

You can do one of the following:

Continue typing. The list shortens.

Scroll with the up and down arrows. Press

Enter to select the function.

Scroll with your mouse. Double-click a function to insert it.

Close the Content Assist window by pressing

Esc .

Inserting code templates

The IDE includes another code-completion feature that can insert a template for pre-defined code structures, such as an empty

do-while

structure. If you’ve already used the Content Assist feature, you may have already noticed the code templates feature; you access it the same way.

To use code templates:

1

2

As with Content Assist, start typing, then press Ctrl-Space . (Or, right-click near the cursor and select Content Assist).

at the top of the list:

Any code templates that match the letters you’ve typed display

Chapter 3

Developing C/C++ Programs

61

Writing code

The IDE lets you enable as many of these templates as you require, edit them as you see fit, create your own templates, and so on.

To edit a template or add one of your own:

1

2

From the main menu, select Window

Preferences.

In the left pane, select C/C++

EditorTemplates.

62

Chapter 3

Developing C/C++ Programs

Writing code

3

To edit a template, select it, and then click Edit.

Chapter 3

Developing C/C++ Programs

63

Writing code

4

To add your own template, click New. A dialog for adding new templates displays:

5

6

7

In the Name field, type a name for this code template.

In the Pattern field, type the code used to form the template.

Click Insert Variables to insert variables into the template code.

Click OK when finished.

Adding

#include directives

To insert the appropriate

#include

directive for any documented

QNX Neutrino function:

1

In the C/C++ editor, double-click the function name, but don’t highlight the parentheses, or any leading tabs or spaces.

2

Right-click and select Add Include. The IDE automatically adds the

#include

statement to the top of the file, if it isn’t already there.

64

Chapter 3

Developing C/C++ Programs

Writing code

Hover help

The IDE’s hover help feature gives you the synopsis for a function while you’re coding.

To use hover help:

In the C/C++ editor, pause your pointer over a function. You’ll see a text box showing the function’s summary and synopsis information:

Chapter 3

Developing C/C++ Programs

65

Writing code

Adding and removing comments in code

You can easily add comments using either the C or C++ style, even to large sections of code. You can add two forward slash characters (

//

) at the beginning of lines to comment out large sections, even when they have other comment characters, such as

/* */

.

When you remove comments from lines, the editor removes the leading

//

characters from all lines that have them, so be careful not to accidentally uncomment sections. Also, the editor can comment or remove comments from selected lines — if you highlight a partial line, the editor comments out the entire line, not just the highlighted section.

To comment or remove comments from a block of code:

1

2

In the C/C++ editor, highlight a section of code to comment or remove comments. For a single line, position your cursor anywhere on that line.

Right-click and select Comment or Uncomment.

Customizing the C/C++ editor

You can change the font, set the background color, show line numbers, and control many other visual aspects of the C/C++ editor.

You can also configure context highlighting and change how the Code

Assist feature works. You can do all this using C/C++ Editor or Text

Editors preference dialogs:

66

Chapter 3

Developing C/C++ Programs

Writing code

Changing fonts, background color, or the display line numbers

To change fonts, background color, or show line numbers:

1

2

3

Open the Text Editor preferences dialog.

Select Window

Preferences.

In the left pane, select General

EditorsText Editors.

Changing tabs into spaces, highlighting, and folding options

To change syntax highlighting, convert tabs into spaces, and change the folding options, open the C/C++ editor preferences dialog:

1

2

Select Window

Preferences.

In the left pane, select C/C++

Editor.

Chapter 3

Developing C/C++ Programs

67

Writing code

Setting Content Assist options

To set Content Assist options, open the Content Assist preferences dialog:

1

2

Select Window

Preferences.

In the left pane, select C/C++

EditorContent Assist.

Using other editors

To use a different text editor than the one that’s included with the

IDE, you can do so, but you’ll lose the integration of the various views and perspectives. For example, within the C/C++ editor, you can set breakpoints and then see them in the Breakpoints view, or put

“to-do” markers on particular lines and see them in the Tasks view, or obtain hover help as you pause your cursor over a function name in your code, and so on.

If you want to use other editors, you can do so either externally, or within the IDE.

Using an external editor outside of the IDE

You can edit your code with an editor started externally from the IDE

(e.g. from the command line). When you’re done editing, you’ll have to synchronize the IDE with the changes.

To synchronize the IDE with the changes you’ve made using an external editor outside of the IDE:

In the C/C++ Projects view, right-click the tree pane and select

Refresh. The IDE updates the display to reflect any changes you’ve made (such as creating new files).

Using another editor within the IDE

You can specify file associations that determine the editor you want to use for each file type. For example, you can instruct the IDE to use an external program such as WordPad to edit all

.h

files. After you set that preference, you can double-click a file in the C/C++ Projects

68

Chapter 3

Developing C/C++ Programs

Writing code view, and the IDE automatically opens the file in your selected program.

If you have multiple associations for the same file extension, the IDE always opens the same editor, which is marked as the default in the list of editors for this extension, but other associations continue to be available. To open a file in an alternative editor, right-click on the file you want to open and select Open with

My editor. This change means that you are also changing the default editor for this extension.

If the IDE doesn’t have an association set for a certain file type, it uses the host OS defaults. For example, on a Windows host, if you double-click a

.doc

file, Word or WordPad automatically launches and opens the file.

For more information about file associations, follow these links in the

Eclipse Workbench User Guide: Reference

PreferencesFile

Associations.

Creating files from scratch

By default, the IDE creates a simple “hello world” C/C++ source file for you, which you may or may not want to use as a template for your own code.

To create a new C/C++ file:

1

2

Highlight the project that contains the new file you’re creating.

Click the New C/C++ Source File button on the toolbar:

3

Enter (or select) the name of the folder where you want the file

4

to reside.

Name your file, then click Finish.

Now, you will see an empty text editor window, ready for you to begin working on your new file. Also, in the title bar above the editor, your filename appears highlighted in blue.

Chapter 3

Developing C/C++ Programs

69

More development features

More development features

Besides the features already described above, the IDE has several other helpful facilities worth exploring.

Tracking remaining work

The Problems view provides you with a list of errors and warnings related to your projects. These are typically syntax errors, typos, and other programming errors identified by the compiler:

Error markers

The IDE also shows corresponding markers in several other locations:

C/C++ Projects view — on both the file that contained the compile errors, and on the project itself

Outline view — in the method (e.g. main())

C/C++ editor — on the left side, beside the offending line of code

Jumping to errors

To quickly go to the source of an error (if the IDE can determine where it is):

In the Problems view, double-click the error marker ( ) or warning marker ( ). The file containing the error or warning

70

Chapter 3

Developing C/C++ Programs

More development features opens in the editor area, with the cursor positioned on the offending line.

Filtering errors

Depending on the complexity and stage of your program, the IDE can generate an overwhelming number of errors. But you can customize the Problems view so you’ll see only the errors you want to see.

To access the error-filtering dialog:

In the Problems view, click the Filter icon ( ).

The Filters dialog lets you adjust the scope of the errors shown in the

Problems view. The more options you select, the more errors and warnings the IDE detects; all of which display in the Problems view.

Chapter 3

Developing C/C++ Programs

71

More development features

Tracking tasks

The Tasks view is part of the core Eclipse platform. For more information about this view, see these links in the Workbench User

Guide: Reference

User interface informationViews and

Editors

Tasks view.

The Tasks view lets you track your tasks.

Setting reminders

The Tasks view lets you create your own tasks for the unfinished function you’re writing, the error-handling routine you want to check, or whatever.

To add a personal task:

1

In the Tasks view, right-click the tasks pane and select Add

Task, or click the Add Task button in the Tasks view.

2

Complete the dialog for your task.

You can associate a task with an editable resource, for instance, to remind yourself to update a line of source code later:

To associate a task with a resource:

1

In one of the navigation views, double-click the resource that you want to associate the new task. The resource opens in the editor area.

72

Chapter 3

Developing C/C++ Programs

More development features

2

3

4

Right-click in the gray border at the left of the editor area, beside the line of text or source code you want to log the new task against.

In the pop-up menu, select Add Task.

When prompted, enter a brief description about the task.

Removing a task

To remove a personal task:

In the Tasks view, right-click the task and select Delete.

Code synopsis

The Outline view provides you with a structural view of your C/C++ source code:

Chapter 3

Developing C/C++ Programs

73

More development features

The view shows the elements in the source file in the order they occur, including functions, libraries, and variables. You may also sort the list alphabetically, or hide certain items (fields, static members, and nonpublic members).

If you click an entry in the Outline view, the editor’s cursor moves to the start of the item selected.

Checking your build

The Console view displays the output from the

make

utility:

74

Chapter 3

Developing C/C++ Programs

More development features

Customizing the Console view

1

2

You can choose to clear the Console view before each new build or let the output of each subsequent build grow in the display. Whenever you perform a build, you can also have the Console view appear on top of the other stacked views.

To set the preferences for the Console view:

From the main menu, select Window

Preferences.

In the left pane, select C/C++

Build Console:

Chapter 3

Developing C/C++ Programs

75

More development features

Accessing source files for functions

While editing source code in the editor, you can select a function name, press

F3

, and the editor immediately jumps to the prototype for that function (if the file is also in your project).

Press

Ctrl-F3

, and the editor immediately jumps to the function’s implementation (if the file is also in your project).

For more information about the C/C++ Development perspective, see the link Help

Help Contents in the C/C++ Development User

Guide.

Opening headers

To open a header file, right-click the file’s name in the Outline view

(for example

stdio.h

), and then choose Open.

76

Chapter 3

Developing C/C++ Programs

More development features

Many of the enhanced source navigation (including opening header files) and code development accelerators available in the C/C++ editor are extracted from the source code. To enable these features and provide the most accurate data representation, the project must be properly configured with the

include

paths and

define

directives used to compile the source.

For QNX projects, the standard

include

paths and definitions are set automatically based on the compiler and architecture. You can set additional values in the project’s properties.

For Standard C/C++ Make projects, you must define the values yourself, either manually using the Paths and Symbols tab of the project’s properties, or automatically using the Set QNX Build

Environment. . . item in the project’s context menu.

To set the

include

paths and

define

directives for a Standard

C/C++ Make project:

1

In the C/C++ Projects view, right-click your project and select

Set QNX Build Environment. . . .

The Set QNX Build Environment wizard appears:

Chapter 3

Developing C/C++ Programs

77

More development features

2

Select one or more Standard C/C++ Make projects to update, and then click Next.

The Compiler/Architecture Selection panel appears:

3

for your project, and then click Finish.

Select the appropriate Compiler, Language, and Architecture

78

Chapter 3

Developing C/C++ Programs

Chapter 4

Managing Source Code

In this chapter. . .

CVS and the IDE

81

Importing existing source code into the IDE

84

Using container projects

97

Importing a BSP or other QNX source packages

104

Exporting projects

110

Chapter 4

Managing Source Code

79

CVS and the IDE

This chapter describes managing source code from within the IDE.

CVS and the IDE

CVS is the default source-management system in the IDE. Other systems (e.g. ClearCase) are also supported.

The CVS Repository Exploring perspective lets you bring code from

CVS into your workspace. If another developer changes the source in

CVS while you’re working on it, the IDE helps you synchronize with

CVS and resolve any conflicts. You can also choose to automatically notify the CVS server whenever you start working on a file. The CVS server then notifies other developers who work on that file as well.

Finally, the CVS Repository Exploring perspective lets you check your modified code back into CVS.

The IDE connects to CVS repositories that reside only on remote on your host computer) unless it’s set up to allow CVS

pserver

,

ext

, or

extssh

connections.

servers — you can’t have a local CVS repository (i.e. one that resides

Chapter 4

Managing Source Code

81

CVS and the IDE

Local history feature

The IDE lets you “undo” changes with its local history. While you’re working on your code, the IDE automatically keeps track of the changes you make to your file; it lets you roll back to an earlier version of a file that you saved but didn’t commit to CVS.

For more information about the IDE’s local history feature, see this link in the Workbench User Guide: Reference

User interface

information

Development environmentLocal history.

Project files (

.project

and

.cdtproject

)

For each project, the IDE stores important information in these two files:

.project

.cdtproject

You must include both of these files with your project when you commit your changes into source control.

Core Eclipse documentation on using CVS in the IDE

Since the CVS Repository Exploring perspective is a core Eclipse feature, you’ll find complete documentation in the Eclipse Workbench

User Guide. Follow these links:

Tips and Tricks, scroll down to the Team - CVS section

TasksWorking in the team environment with CVS

The following table may help you find information quickly in the

Workbench User Guide:

82

Chapter 4

Managing Source Code

CVS and the IDE

If you want to:

Connect to a CVS repository

Check code out of CVS

Synchronize with a CVS repository

See who’s also working on a file

Resolve CVS conflicts

Prevent certain files from being committed to CVS

Create and apply a patch

Go to:

Tasks

Working in the team

environment with CVS

Working

with a CVS repository

Creating a

CVS repository location

Tasks

Working in the team

environment with CVS

Working

with projects shared with

CVS

Checking out a project from a

CVS repository

Tasks

Working in the team

environment with

CVS

Synchronizing with the

repository, particularly the Updating section

Tasks

Working in the team

environment with CVS

Finding out

who’s working on what: watch/edit

Tasks

Working in the team

environment with

CVS

Synchronizing with the

repository

Resolving conflicts

Tasks

Working in the team

environment with

CVS

Synchronizing with the

repository

Version control life cycle:

adding and ignoring resources

Tasks

Working in the team

environment with CVS

Working

with patches

continued. . .

Chapter 4

Managing Source Code

83

Importing existing source code into the IDE

If you want to:

Track code changes that haven’t been committed to CVS

View an online FAQ about the CVS

Repository Exploring perspective

Go to:

Tasks

Working with local history, especially the Comparing resources

with the local history section

Reference

Team Support with

CVS

CVS

Importing existing source code into the IDE

As with many tasks within the IDE, there’s more than one method to bring existing source files into your workspace:

• filesystem drag-and-drop — from a Windows host, you can drag-and-drop (or copy and paste) individual files from the filesystem into your project in your workspace.

• CVS repository — you can use the CVS Repositories view to connect to a CVS repository and check out projects, folders, or files into your workspace.

• Import wizard — this IDE wizard lets you import existing projects, files, as well as files from archives into your workspace.

• linked resources — this lets you work with files and folders that reside in the filesystem outside your project’s location in the workspace. You might use linked resources, for example, if you have a source tree that’s handled by some other source-management tool outside of the IDE. For more information about linked resources, follow these links in the Workbench User

Guide: Concepts

WorkbenchLinked resources.

Whatever method you use, you always need to set up an IDE project in your workspace in order to work with the resources you’re importing.

If you’re importing code that uses an existing build system, you may need to provide a

Makefile

with

all:

and

clean:

targets that call your existing build system.

84

Chapter 4

Managing Source Code

Importing existing source code into the IDE

For example, if you’re using the

jam

tool to build your application, your IDE project

Makefile

might look like this:

all: jam -fbuild.jam

clean: jam -fbuild.jam clean

Projects within projects

If you have an existing source hierarchy that looks something like this:

To work efficiently with this source in the IDE, each component and subcomponent should be a “subproject” within the one main project.

(You could keep an entire hierarchy as a single project if you wish, but you’d probably find it cumbersome to build and work with such a monolith.)

2

Unfortunately, the current version of the IDE doesn’t support nesting projects as such. So how would you import such a source tree? You would use the following four step process:

1

Step 1: Creating an initial project for your source code

Step 2: Creating a new project for each existing project or component in your source code tree

Chapter 4

Managing Source Code

85

Importing existing source code into the IDE

Step 1

3

4

Step 3: Linking the projects to a directory in the source tree

Step 4: Building the component project in the linked folder

For information about container projects, see “Using container projects” in this chapter.

First, in your workspace create a single project that reflects all the components that reside in your existing source tree:

1

Select File

NewProject. . . .

2

Select the type of project (e.g. Standard Make C project).

3

Name your project (e.g.

EntireSourceProjectA

).

4

To tell the IDE where the resources reside in the filesystem

(since they don’t reside in your workspace), disable the Use

Default Location option.

5

6

In the Location field, type the path to your source (or click

Browse. . . ).

Click Finish. You should now have a project that looks something like this in the C/C++ Projects view:

86

Chapter 4

Managing Source Code

Importing existing source code into the IDE

Step 2

Now, you need to create an individual project (via

File

NewProject. . . ) for each of the existing projects (or components) in your source tree. In this example, you create a separate project for each of the following source components:

ComponentA

ComponentB

SubcomponentC

SubcomponentD

Chapter 4

Managing Source Code

87

Importing existing source code into the IDE

To create individual projects:

1

Select File

NewProject. . . .

2

Select the type of project (e.g. Standard Make C project).

3

4

In the Name type a descriptive name for your project (e.g.

Project_ComponentA

).

Enable the Use default location option because you want the

IDE to create a project in your workspace for this and all the other components that comprise your project

EntireSourceProjectA

. In the next step, you’ll link each project to the actual location of the directories in your source tree.

5

Click Finish, and you’ll see

C/C++ Projects view.

Project_ComponentA

in the

Step 3

Next, you’ll link each individual project in the IDE to its corresponding directory in the source tree:

To link projects:

1

Select File

NewFolder.

2

Make sure your new project ( selected as the parent folder.

Project_ComponentA

) is

3

Type a name for the folder (e.g.

ComponentA

).

4

Click Advanced>>.

88

Chapter 4

Managing Source Code

Importing existing source code into the IDE

Step 4

5

6

7

Enable the Link to folder in the file system option.

Type the path to that folder in your source tree (or use

Browse. . . to locate and select one).

Click Finish. Now. your

Project_ComponentA

project should show a folder called

ComponentA

; the contents of which actually reside in your source tree.

Now, you need to tell the IDE to build

Project_ComponentA

in the

ComponentA

1

Project_ComponentA

, then select Properties from the context menu.

linked folder that you just created in your workspace:

In the C/C++ Projects view, right-click

Chapter 4

Managing Source Code

89

Importing existing source code into the IDE

2

Select C/C++ Make Project.

3

In the Make Builder tab, set the Build Directory to

ComponentA

in your workspace.

Now, when you start to build

Project_ComponentA

, the IDE builds it in the

ComponentA

folder in your workspace (even though the source actually resides in a folder outside your workspace).

90

Chapter 4

Managing Source Code

Importing existing source code into the IDE

!

CAUTION: Linked resources let you overlap files in your workspace, so files from one project can appear in another project. If you change a file or other resource in one location, the duplicate

resource is also affected. For example, if you delete a duplicate

resource, its original is also deleted.

Special rules apply when working with linked resources. Since a linked resource must reside directly below a project, you can’t copy or move a linked resource into other folders. If you delete a linked resource from your project, this does not cause the corresponding resource in the filesystem to also be deleted. But if you delete child resources of linked folders, this does delete those child resources from the filesystem!

Filesystem drag-and-drop

On Windows hosts, you can select files or folders and drop them into projects in the Navigator view:

1

Create a new project. If your existing code has an existing build procedure, use a Standard Make C/C++ Project. If not, you can use a QNX C/C++ Project or a Standard Make C/C++ Project.

2

3

Switch to the Navigator view.

Select one or more source files or folders from Windows

Explorer, then drag them into the project. The files are copied into your project workspace.

From Windows Explorer, you can also use Cut, Copy, and Paste to move or copy files into a project.

CVS repository

Using the CVS Repository Exploring perspective, you can check out modules or directories into existing projects, or to create new projects.

Chapter 4

Managing Source Code

91

Importing existing source code into the IDE

Importing code into the IDE from CVS differs slightly depending on what you’re importing:

an existing C/C++ project

existing C/C++ code that isn’t part of a project

existing C/C++ code that needs to be added to an existing project

Importing a C/C++ project from CVS

To check out an existing C/C++ project (either a QNX project or a

Standard Make C/C++ project) from the CVS repository into your workspace:

1

Right-click the project in the CVS Repositories view and choose Check Out from the menu.

The IDE creates a project with the same name as the CVS module in your workspace. The project is automatically recognized as a Standard Make C/C++ or QNX C/C++ project

(if the project has

.project

and

.cdtproject

files).

2

If the project is a QNX project:

2a

Right-click the new project in the Navigator or C/C++

Projects view and choose Properties.

2b

Click the Build Variants tab, which displays a warning:

2c

Select one or more of the build variants, then click OK.

Importing C/C++ code from CVS

1

To check out existing C/C++ code that isn’t part of a project:

Right-click the module or directory in the CVS Repositories view and choose Check Out As. . . from the menu.

The IDE displays the Check Out As wizard.

92

Chapter 4

Managing Source Code

Importing existing source code into the IDE

The Check Out As wizard.

2

3

Choose how to check out this project:

as a project configured using the New Project wizard or:

as a new project in the workspace or:

as a Standard Make C/C++ Project – if you need to create your own

Makefile

to integrate with an existing build process

Choose the workspace location for this project, then specify the

CVS tag to check out. Click Finish to exit the Check Out As dialog.

Chapter 4

Managing Source Code

93

Importing existing source code into the IDE

4

5

Click Next to continue.

If you’re creating or checking out a QNX project:

5a

Right-click the new project in the Navigator or C/C++

Projects view and choose Properties.

5b

Click the Build Variants tab, which displays a warning:

6

5c

Select one or more of the build variants, then click OK.

If you’re creating a Standard Make C/C++ project, create a new

Makefile

with appropriate

all:

and

clean:

targets.

Importing C/C++ code into an existing project

To import a directory full of C/C++ code into an existing project:

1

Right-click the module or directory in the CVS Repositories view and choose Check Out As. . . from the menu.

The IDE displays the Check Out As dialog.

2

Choose Check out into an existing project, and then click

Next. The IDE displays the Check Out Into dialog:

94

Chapter 4

Managing Source Code

Importing existing source code into the IDE

3

Select an existing project from the list, and then click Finish to add the code from CVS to the selected project.

Import wizard

Use the Import wizard to bring files or folders into an existing project from a variety of different sources, such as:

an existing container project

an existing project

another directory

a QNX Board Support Package

a QNX

mkifs

Buildfile

a QNX Source Package

Chapter 4

Managing Source Code

95

Importing existing source code into the IDE

a Team Project Set

a Zip file

For details, see “Importing projects” in the Common Wizards

Reference chapter.

Linked resources

As an alternative to dragging-and-dropping, you can link files and folders into a project. This method of linking resources lets you include files in your project, even if they need to reside in a specific place on your filesystem (because of a restrictive source control system, for example).

To add a linked resource to a project in the C/C++ Project or

Navigator view:

1

Right-click on a project, then select either New

File or

New

Folder.

The New File or New Folder dialog appears.

2

In the Name field, type a new name for the file or folder.

3

Click Advanced >>, and enable either the Link to file in the

file system or Link to folder in the file system option.

4

Type the full path to the file or folder, or click Browse. . . to select a specific file or folder.

5

Click Variables. . . to define any path variables for use in the file or folder path:

96

Chapter 4

Managing Source Code

Using container projects

6

Click Finish to link the file or folder into your project.

See Concepts

WorkbenchLinked resources in the Workbench

User Guide for more information about linked resources.

Using container projects

A container is a project that creates a logical grouping of subprojects.

Containers can ease the building of large multiproject systems. You can have containers practically anywhere you want on the filesystem, with one exception: containers can’t appear in the parent folders of other projects. The IDE doesn’t support the creation of projects in projects.

Containers let you specify just about any number of build

configurations (which are analogous to build variants in C/C++

projects). Each build configuration contains a list of subprojects and specifies which variant to build for each of those projects.

of subprojects (e.g. QNX C/C++ projects, Standard Make C/C++ projects, or other container projects).

Each build configuration may contain a different list and combination

Chapter 4

Managing Source Code

97

Using container projects

Creating a container project

In order to create a container, you must have at least one subproject that you want to contain.

5

6

3

4

To create a container project:

1

Select File

NewProject. . . , then QNXC/C++ Container

Project.

2

Click Next.

Name the container.

Click Next.

In the New Project dialog, click Add Project. . . .

Now select all the projects (which could be other containers) that you want to include in this container:

98

Chapter 4

Managing Source Code

Using container projects

Each subproject has an entry for

make

targets under the Target field. You can click on an entry to get a menu that lets you change the selection. The “Default” entry means “don’t pass any targets to the

make

command.” QNX C/C++ projects interpret this as “rebuild.” If a subproject is also a container project, this field represents the build configuration for that container.

You can set the default for QNX C/C++ projects by opening the

7

Preferences dialog box (Window

Preferences in the menu), then choosing QNX

Container properties.

If the project is a QNX C/C++ project, you can click in its

Variant entry to select the build variant for each project you wish to build. You can choose All (for every variant that has already been created in the project’s folder) or All Enabled (for

Chapter 4

Managing Source Code

99

Using container projects

8

9

just the variants you’ve selected). Note that the concept of variants makes sense only for QNX C/C++ projects.

If you wish, click in the Stop on error column to control whether the build process for the container stops at the first subproject to have an error or continues to build all the remaining subprojects.

If you want to reduce clutter in the C/C++ Projects view, then create a working set for your container. The working set contains all the projects initially added to the container. Note that the working set and the container have the same name.

If you later add elements to or remove elements from a container project, the working set isn’t updated automatically.

10

Click Finish. The IDE creates your container project.

To select a working set, click the down-arrow at the top of the C/C++

Projects view pane, and then select the working set you want.

Setting up a build configuration

Just as QNX C/C++ projects have build variants, container projects have build configurations. Each configuration can be entirely distinct from other configurations in the same container. For example, you could have two separate configurations, say

Development

and

Released

, in your top-level container. The

Development

configuration would build the

Development

configuration of any subcontainers, as well as the appropriate build variant for any subprojects. The

Released

configuration would be identical, except that it would build the

Released

variants of subprojects.

1

Note that the default configuration is the first configuration that was created when the container project was created.

To create a build configuration for a container:

In the C/C++ Projects view, right-click the container.

100

Chapter 4

Managing Source Code

Using container projects

2

3

4

5

Select Create Container Configuration. . . .

In the Container Build Configuration dialog, name the configuration.

Click Add Project, then select all the projects to be included in this configuration.

Change the Variant and Stop on error entries for each included project, as appropriate.

If you want to change the build order, use the Shift Up or Shift Down buttons.

6

Click OK.

Editing existing configurations

There are two ways to change existing configurations for a container project, both of which appear in the right-click menu:

Properties

Build Container Configuration

Although you can use either method to edit a configuration, you might find changing the properties easier because it shows you a tree

view of your entire container project.

Note also that you can edit only those configurations that are immediate children of the root container.

Editing via project properties

You can use the container project’s properties to:

add new configurations

add projects to existing configurations

specify which variant of a subproject to build

Chapter 4

Managing Source Code

101

Using container projects

3

4

To edit a configuration:

1

Right-click the container project and select Properties.

2

In the left pane, select Container Build Configurations.

Expand the project in the tree view on the right.

Select the configuration you want to edit. Configurations are listed as children of the container.

5

6

Click the Edit button at the right of the dialog. This opens the familiar Container Build Configuration dialog (from the New

Container wizard), which you used when you created the container.

Make any necessary changes — add, delete, reorder projects, or change which

make

target or variant you want built for any given project.

While editing a configuration, you can include or exclude a component from the build just by checking or unchecking the component. Note that if you exclude a component from being built, it’s not removed from your container.

7

Click OK, then click OK again (to close the Properties dialog).

Editing via the Build Container Configuration. . . item

You can access the Container Build Configuration dialog from the container project’s right-click menu.

Note that this method doesn’t show you a tree view of your container.

1

2

To edit the configuration:

Right-click the container project, then select Build Container

Configuration. . . .

Select the configuration you want to edit from the list.

102

Chapter 4

Managing Source Code

Using container projects

3

4

5

6

Click the Edit button. This opens the familiar Container Build

Configuration dialog (from the New Container wizard), which you used when you created the container.

Make any necessary changes — add, delete, reorder projects, or change which

make

target or variant you want built for any given project.

Click OK to save your changes and close the dialog.

Click Build or Cancel in the Build Container Configuration dialog.

Building a container project

Once you’ve finished setting up your container project and its configurations, it’s very simple to build your container:

1

In the C/C++ Projects view, right-click your container project.

2

3

4

Select Build Container Configuration. . . .

Choose the appropriate configuration from the dialog.

Click Build.

A project’s build variant selected in the container configuration is built, regardless of whether the variant is selected in the C/C++ project’s properties. In other words, the container project overrides the individual project’s build-variant setting during the build.

The one exception to this is the All Enabled variant in the container configuration. If the container configuration is set to build all enabled variants of a project, then only those variants that you’ve selected in the project’s build-variant properties are built.

To build the default container configuration, you can also use the

Build item in the right-click menu.

Chapter 4

Managing Source Code

103

Importing a BSP or other QNX source packages

Importing a BSP or other QNX source packages

QNX BSPs and other source packages (e.g. DDKs) are distributed as

.zip

archives. The IDE lets you import these packages into the IDE:

When you import a: The IDE creates a:

QNX BSP source package System Builder project

QNX C/C++ source package C or C++ application or library project

Step 1: Use File

Import. . .

You import a QNX source archive using the standard Eclipse import dialog:

104

Chapter 4

Managing Source Code

Importing a BSP or other QNX source packages

If you’re importing a BSP, select QNX Board Support Package. If you’re importing a DDK, select QNX Source Package.

As you can see, you can choose to import either a QNX BSP or a

“source package.” Although a BSP is, in fact, a package that contains source code, the two types are structured differently and generate

QNX Source Package, the IDE won’t create a System Builder project.

different types of projects. If you try to import a BSP archive as a

Chapter 4

Managing Source Code

105

Importing a BSP or other QNX source packages

Step 2: Select the package

After you choose the type of package you’re importing, the wizard presents you with a list of the packages found in

$QNX_TARGET/usr/src/archives

on your host:

Notice that as you highlight a package in the list, a description for that package is displayed.

1

2

To add more packages to the list:

Select the

.zip

source archive you want to add.

Click the Select Package. . . button.

106

Chapter 4

Managing Source Code

Importing a BSP or other QNX source packages

Step 3: Select the source projects

Each source package contains several components (or projects, in IDE terms). For the package you selected, the wizard gives you a list of each source project contained in the archive:

You can decide to import only certain parts of the source package; simply uncheck the entries you don’t want (they’re all selected by default). Again, as you highlight a component, you’ll see its description in the bottom pane.

Step 4: Select a working set

The last page of the import wizard lets you name your source projects. You can specify:

Chapter 4

Managing Source Code

107

Importing a BSP or other QNX source packages

Working Set Name — to group all related imported projects together as a set

Project Name Prefix — for BSPs, this becomes the name of the

System Builder project; for other source projects, this prefix lets you import the same source several times without any conflicts.

If you plan to import a source BSP and a binary BSP into the IDE, remember to give each project a different name.

108

Chapter 4

Managing Source Code

Importing a BSP or other QNX source packages

If you import dual-endian BSPs, the wizard displays this informational message:

If you add build variants, you need to copy the CPU-specific files to the new variant’s build directories.

Step 5: Build

When you finish with the wizard, it creates all the projects and brings in the source from the archive. The wizard then asks if you want to build all the projects you’ve just imported.

If you answer Yes, the IDE begins the build process, which may take several minutes (depending on how much source you’ve imported).

If you decide not to build now, you can always do a Rebuild All from the main toolbar’s Project menu at a later time.

If you didn’t import all the components from a BSP package, you can bring in the rest of them by selecting the System Builder project and opening the import wizard (right-click the project, then select existing BSP (rather than making a new one).

Import. . . ). The IDE detects your selection and then extends the

Chapter 4

Managing Source Code

109

Exporting projects

QNX BSP perspective

When you import a QNX Board Support Package, the IDE opens the

QNX BSP perspective. This perspective combines the minimum elements from both the C/C++ Development perspective and the

System Builder perspective:

Exporting projects

You can export projects to your filesystem or to an archive file by doing one of the following:

Drag a file or folder from a project to your filesystem.

110

Chapter 4

Managing Source Code

Exporting projects

Press

Alt while dragging to copy the file or folder instead of moving it out of the project.

Use the Copy (to copy) or Cut (to move) context-menu items, then

Paste the file into your filesystem.

Export to the filesystem using the Export. . . command.

Export to an archive file using the Export. . . command.

Using the Export. . . command

The Export wizard helps you export an entire project to your filesystem or an archive file.

To export one or more projects:

1

Choose File

Export. . . (or Export. . . from the Navigator context menu).

The Export wizard appears:

Chapter 4

Managing Source Code

111

Exporting projects

2

To export your project to the filesystem, choose General

File

System. To export your project to an archive file, choose

General

Archive File. Click Next.

The Export wizard’s next panel appears:

112

Chapter 4

Managing Source Code

Exporting projects

3

Select the projects you want to export. You can also select or

To select files based on their extensions, click the Select

Types. . . button. The Select Types dialog box appears: deselect specific files in each project.

Chapter 4

Managing Source Code

113

Exporting projects

4

5

Click one or more extensions, then click OK to filter the selected files in the Export wizard.

Type the name of the directory (if you’re exporting to the filesystem) or file (if you’re exporting to an archive file) in the input field.

When you’re done, click Finish.

114

Chapter 4

Managing Source Code

Exporting projects

If you export more than one project, and you import from the resulting filesystem or archive file, you’ll get one project containing all of the projects you exported.

Chapter 4

Managing Source Code

115

Chapter 5

Debugging Programs

In this chapter. . .

Introduction

119

Debugging your program

120

Controlling your debug session

124

More debugging features

132

Chapter 5

Debugging Programs

117

Introduction

This chapter shows you how to work with the debugger.

Introduction

One of the most frequently used tools in the traditional design-develop-debug cycle is the source-level debugger. In the IDE, this powerful tool provides an intuitive debugging environment that’s completely integrated with the other workbench tools, giving you the flexibility you need to best address the problems at hand.

Have you ever had to debug several programs simultaneously? Did you have to use separate tools when the programs were written in different languages or for different processors? The IDE’s source debugger provides a unified environment for multiprocess and multithreaded debugging of programs written in C, C++, Embedded

C++, or Java. You can debug such programs concurrently on one or multiple remote target systems, or locally if you’re doing Neutrino self-hosted development.

In order to use the full power of the Debug perspective, you must use executables compiled for debugging. These executables contain additional debug information that lets the debugger make direct associations between the source code and the binaries generated from that original source. In the IDE, you’ll see different icons: a running

Chapter 5

Debugging Programs

119

Debugging your program man for executables that weren’t compiled for debugging, or a bug for those that were.

The IDE debugger uses GDB as the underlying debug engine. It translates each GUI action into a sequence of GDB commands, and then processes the output from GDB to display the current state of the program being debugged.

The IDE updates the views in the Debug perspective only when the program is suspended.

Editing your source after compiling causes the line numbering to be out of step because the debug information is tied directly to the source. Similarly, debugging an optimized binary can also cause unexpected jumps in the execution trace.

Debugging your program

Building an executable for debugging

Although you can debug a regular executable, you’ll get much more information and control by building debug variants of the executables.

To build an executable with debugging information, you must pass the

-g

option to the compiler. If you’re using a QNX Make project, the filename for the debug variant has

_g

appended to it.

To specify the

-g

option from the project options:

1

2

In the C/C++ Projects view (or the Navigator view), right-click the project and select Properties.

In the left pane, select QNX C/C++ Project.

3

4

Under your selected build variants, make sure Debug is enabled:

In the right pane, select the Build Variants tab.

120

Chapter 5

Debugging Programs

Debugging your program

5

6

7

Click Apply.

Click OK.

Rebuild your project (unless you’re using the IDE’s autobuild feature).

For more information about setting project options, see the Common

Wizards Reference chapter.

Launching your program

For a full description of starting your programs and the launch configuration options, see the Launch Configurations Reference chapter.

After building a debug-enabled executable, your next step is to create a launch configuration for that executable so you can run and debug it:

Chapter 5

Debugging Programs

121

Debugging your program

1

From the main menu, select Run

Debug. . . . The launch configurations dialog appears.

2

3

Create a launch configuration as you normally would, but don’t click OK.

Select the Debugger tab.

122

Chapter 5

Debugging Programs

Debugging your program

For Neutrino, if you want to perform a local debug of your project, you can’t use the default QNX GDB debugger option. Instead, select

GDB Debugger from the Debugger list.

4

Make sure Stop at main() on startup is set.

5

Click Apply.

6

Click Debug.

If launching a debugging session doesn’t work when connected to the target with

qconn

, ensure that

pdebug

is on the target, and it is located in one of the directories in the PATH that

qconn

uses

(typically

/usr/bin

).

Chapter 5

Debugging Programs

123

Controlling your debug session

By default:

The IDE automatically changes to the Debug perspective when you debug a program. If the default is no longer set, or if you wish to change to a different perspective when you debug, see the

“Setting execution options” section in the Launch Configurations

Reference chapter.

The IDE removes terminated debugging sessions from the Debug view when you launch a new session. This frees resources on your development host and your debugging target. You can retain the completed debug sessions by unchecking the Remove terminated

launches when a new launch is created box in the

Run/Debug

Launching pane of the Preferences dialog.

Controlling your debug session

The contents of all views in the Debug perspective are driven by the selections you make in the Debug view.

The Debug view lets you manage the debugging or running of a program in the workbench. This view displays the stack frame for the suspended threads for each target you’re debugging. Each thread in your program appears as a node in the tree. The view displays the process for each program you’re running:

124

Chapter 5

Debugging Programs

Controlling your debug session

The Debug view shows the target information in a tree hierarchy as follows (shown here with a sample of the possible icons):

Session item

Launch instance

Description

Launch configuration name and type (e.g.

Stack Builder

[C/C++ QNX QConn

(IP)]

)

Debugger instance Debugger name and state

(e.g.

QNX GDB

Debugger

(Breakpoint hit)

)

Thread instance Thread number and state

(e.g.

Thread[1]

(Suspended)

)

Stack frame instance Stack frame number, function, filename, and line number

Possible icons

Chapter 5

Debugging Programs

125

Controlling your debug session

The number beside the thread label is a reference counter for the IDE,

not a thread ID (TID) number.

The IDE displays stack frames as child elements, and gives the reason for the suspension (e.g. end of stepping range, breakpoint hit, signal received, and so on). When a program exits, the IDE displays the exit code.

The label includes the thread’s state. In the example above, the thread was suspended because the program hit a breakpoint. You can’t suspend only one thread in a process; suspension affects all threads.

The Debug view also drives the C/C++ editor; as you step through your program, the C/C++ editor highlights the location of the execution pointer.

Using the controls

After you start the debugger, it stops (by default) in main() and waits for your input. (For information about changing this setting, see the

“Debugger tab” section in the Launch Configurations Reference chapter.)

The debugging controls appear in the following places (but not all together in any one place):

at the top of the Debug view as buttons

in the Debug view’s right-click context menu

in the main menu under Run (with hotkeys)

in the C/C++ editor

The controls are superseded by breakpoints. For example, if you ask the program to step over a function (i.e. run until it finishes that function) and the program hits a breakpoint, the program pauses on that breakpoint, even though it hasn’t finished the function.

The icons and menu items are context-sensitive. For example, you can use the Terminate action to kill a process, but not a stack frame.

126

Chapter 5

Debugging Programs

Controlling your debug session

Action

Resume

Suspend

Terminate

Restart

Resume without signal

Step Into

Step Over

Run to return

Resume at line

Icon Hotkey Description

F8

Run the process freely from the current point.

Regain control of the running process.

Kill the process.

F5

F6

F7

Rerun the process from the beginning.

Resume the execution of a process without delivering any pending signals.

Step forward one line, going into function calls.

Step forward one line without going into function calls.

Finish this function.

Resume the execution of the process at the specified line. Using this action to change into a different function may cause unpredictable results.

continued. . .

Chapter 5

Debugging Programs

127

Controlling your debug session

Action

Toggle Instruction

Stepping

Icon Hotkey Description

Toggle what all the operators work on

(machine instructions or source code).

You can control your debug session in various ways:

from the Debug view

using hotkeys

from the C/C++ editor

From the Debug view

You’ll probably use the Debug view primarily to control your program flow.

To control your debug execution:

1

2

In the Debug view, select the thread you wish to control.

Click one of the stepping icons (e.g. Step Into) in the Debug view’s toolbar. Repeat as desired.

3

Finish the debug session by choosing one of the debug launch controls (e.g. Disconnect). For details, see the section “Debug launch controls” in this chapter.

Using hotkeys

Even if you’re running your debug session without the Debug view showing, you can use the hotkeys (or the Run menu) to step through your program. You can enable the debug hotkeys in any perspective.

To see a list of the currently active hotkeys, press

Ctrl-Shift-L or choose Help

Key Assist. To customize the debug hotkeys:

1

Choose Window

Preferences from the menu. The

Preferences dialog is displayed.

128

Chapter 5

Debugging Programs

Controlling your debug session

2

3

Choose General

Keys in the list on the left.

Select a command from the list and click Edit.

4

To assign this command to a new hotkey, click in the Name field in the Key Sequence area of the Keys pane, and then press the key(s) for your new hotkey.

5

2

Click the Add button to assign the newly created hotkey to the selected command.

Click OK to activate your new hotkeys.

6

From the C/C++ editor

You can control your debug session using the C/C++ editor by having the program run until it hits the line your cursor is sitting on. If the program never hits that line, the program runs until it finishes or hits another breakpoint.

You can also use the C/C++ editor’s context menu to resume execution at a specific line, or to add a watch expression.

To use the C/C++ editor to debug a program:

1

In the editor, select a file associated with the process being debugged.

Left-click to insert the cursor where you want to interrupt the execution.

3

Right-click near the cursor and select Run To Line, Resume at

line or Add watch expression.

you can use Run to Line within the currently executing function.

Note that Run To Line works only in the current stack frame. That is,

Chapter 5

Debugging Programs

129

Controlling your debug session

Debug launch controls

In addition to controlling the individual stepping of your programs, you can also control the debug session itself (e.g. terminate the session, stop the program, and so on) using the debug launch controls available in the Debug view (or in the view’s right-click menu).

As with the other debug controls, these are context-sensitive; some are disabled depending on whether you’ve selected a thread, a process, and so on, in the Debug view.

Action

Terminate

Terminate & Remove

Terminate All

Disconnect

Remove All Terminated

Launches

Restart

130

Chapter 5

Debugging Programs

Icon Description

Kill the selected process.

Kill the selected process and remove it from the Debug view.

Kill all active processes in the Debug view.

Detach the debugger (i.e.

gdb

) from the selected process (useful for debugging attached processes).

Clear all the killed processes from the Debug view.

Restart the process.

Controlling your debug session

The debugger keeps the project’s files open while the program is running. Be sure to terminate the debug session before you try to rebuild the project, or else the build will fail.

Disassembly mode

You can also examine your program as it steps into functions that you don’t have source code for, such as printf(). Normally, the debugger steps over these functions, even when you click Step Into. When the instruction pointer enters functions for which it doesn’t have the source, the IDE shows the function in the Disassembly view.

To show the Disassembly view:

From the menu, choose Window

Show ViewDisassembly.

The workbench adds the Disassembly view to the Debug perspective:

If you click in this view or use the Toggle Instruction Stepping icon

( operate on machine instructions instead of the source code.

) to give focus to this view, the operators (e.g. Run to Line)

Chapter 5

Debugging Programs

131

More debugging features

More debugging features

Besides the Debug view, you’ll find several other useful views in the

Debug perspective:

To:

Inspect variables

Use this view:

Variables

Use breakpoints and watchpoints Breakpoints

Evaluate expressions Expressions

Inspect registers

Inspect a process’s memory

Inspect shared library usage

Monitor signal handling

View your output

Interact with GDB

Registers

Memory

Modules

Signals

Console

Console

Inspecting variables

The Variables view displays information about the variables in the currently selected stack frame:

132

Chapter 5

Debugging Programs

More debugging features

At the bottom of the view, the Detail pane displays the value of the selected variable.

If you happen to have multiple variables of the same name, the one most in scope is evaluated.

When the execution stops, the changed values are highlighted in yellow (by default). Like the other debug-related views, the Variables view doesn’t try to keep up with the execution of a running program; it updates the display only when execution stops.

You can decide whether or not to display the variable type (e.g.

int

) by clicking the Show Type Names toggle button ( ). The Show

Type Names button is unavailable when columns are displayed.

You can also control whether or not the IDE tracks all your program’s variables. See the “Debugger tab” section in the Launch

Configurations Reference chapter.

Tracking all the variables can reduce your program’s performance.

Inspecting global variables

By default, global variables aren’t displayed in the Variables view. To add global variables to the view:

1

In the Variables view, click the Add Global Variables button

( ).

2

Select one or more symbols in the Global Variables dialog.

Chapter 5

Debugging Programs

133

More debugging features

3

Click OK to add the selected global variables to the Variables view.

Changing variable values

While debugging a program, you may wish to manually change the value of a variable to test how your program handles the setting or to speed through a loop.

To change a variable value while debugging:

134

Chapter 5

Debugging Programs

More debugging features

1

In the Variables view, right-click the variable and select the

Change Value. . . item.

2

Enter the new value in the field.

You can also change a variable’s value in the Detail pane at the bottom of the Variables view. Click the value, change it, and then press

Ctrl-S to save the new value.

Controlling the display of variables

You can prevent the debugger from reading the value of variables from the target. You might use this feature for variables that are either very sensitive or specified as volatile. This can also improve your program’s performance.

To enable or disable a variable:

In the Variables view, right-click the variable and select either

Enable or Disable. (You can disable all the variables in your

2

To change a variable to a different type:

1

launch configuration. See the “Debugger tab” section in the

Launch Configurations Reference chapter.)

In the Variables view, right-click the variable.

Select one of the following:

Chapter 5

Debugging Programs

135

More debugging features

Cast To Type. . .

Cast the variable to the type you specify in the field (e.g.

int

).

Restore Original Type

Cancel your Cast To Type command.

Format, followed by a type

Display the variable in a different format (e.g.

hexadecimal).

Display As Array

Display the variable as an array with a length and start index that you specify. This option is available only for pointers.

Using breakpoints and watchpoints

The Breakpoints view lists all the breakpoints and watchpoints you’ve set in your open projects:

136

Chapter 5

Debugging Programs

More debugging features

A breakpoint makes your program stop whenever a certain point in the program is reached. For each breakpoint, you can add conditions to better control whether or not your program stops.

A watchpoint is a special breakpoint that stops the program’s execution whenever the value of an expression changes, without specifying where this may happen. Unlike breakpoints, which are line-specific, watchpoints are event-specific and take effect whenever a specified condition is true, regardless of when or where it occurred.

Object

Breakpoint

Watchpoint (read)

Watchpoint (write)

Watchpoint (read and write)

Icon

If the breakpoint or watchpoint is for a connected target, the IDE places a check mark on the icon. For example:

The rest of this section describes how to:

add breakpoints

add watchpoints

set properties of breakpoints and watchpoints

disable/enable breakpoints and watchpoints

Adding breakpoints

You set breakpoints on an executable line of a program. When you debug the program, the execution is suspended before that line of code is executed.

Chapter 5

Debugging Programs

137

More debugging features

To add a breakpoint:

1

In the editor area, open the file that you want to add the breakpoint to.

2

Notice that the left edge of the C/C++ editor has a blank space called a marker bar.

3

With your pointer, hover over the marker bar beside the exact line of code where you want to add a breakpoint. Right-click the marker bar and select Toggle Breakpoint.

A dot appears, indicating the breakpoint:

A corresponding dot also appears in the Breakpoints view, along with the name of the file in which you set the breakpoint:.

To add a breakpoint at the entry of a function:

In either the Outline or C/C++ Projects view, right-click a function and select Toggle Breakpoint.

Adding watchpoints

To add a watchpoint:

1

Right-click in the Breakpoints view and choose the Add

Watchpoint (C/C++). . . item.

138

Chapter 5

Debugging Programs

More debugging features

2

Enter an expression in the field. The expression may be anything that can be evaluated inside an

if

statement. (e.g.

y==1

)

3

If you want the program to stop when it reads the watch expression, check Read; to have the program stop when it writes the expression, check Write.

Click OK. The watchpoint appears in the Breakpoints view list.

4

Setting properties of breakpoints and watchpoints

After you’ve set your breakpoint or watchpoint, the IDE unconditionally halts the program when:

it reaches a line of code that the breakpoint is set on or:

the expression specified by the watchpoint becomes true

To set the properties for a breakpoint or watchpoint:

1

2

In the Breakpoints view, right-click the breakpoint or watchpoint and select the Properties. . . item. (For breakpoints only, in the C/C++ editor, right-click the breakpoint and select

Breakpoint Properties. . . .)

Use the Common panel to modify the watchpoint’s behavior.

Chapter 5

Debugging Programs

139

More debugging features

3

In the Condition field, enter the Boolean expression to evaluate. The expression may be anything that can be evaluated inside an

if

statement (e.g.

x > y

). The default is

TRUE

.

In the Ignore Count field, enter the number of times the breakpoint or watchpoint may be hit before it begins to take effect (not the number of times the condition is true). The default is 0.

To restrict the breakpoint to specific threads, make sure they’re selected in the Filtering panel:

140

Chapter 5

Debugging Programs

More debugging features

4

Click OK. When in debug mode, your program stops when it meets the conditions you’ve set for the breakpoint or watchpoint.

Disabling/enabling breakpoints and watchpoints

You may wish to temporarily deactivate a breakpoint or watchpoint without losing the information it contains.

To disable or enable a breakpoint or watchpoint:

In the Breakpoints view, right-click the breakpoint or watchpoint and select Disable or Enable. Clicking the check box in the Breakpoints view (so the breakpoint is no longer selected) also disables the breakpoint.

For breakpoints only, right-click the breakpoint in the editor area and select Disable Breakpoint or Enable Breakpoint.

To disable or enable multiple breakpoints or watchpoints:

1

2

In the Breakpoints view, use any of the following methods to select the breakpoints:

Select breakpoints and watchpoints while holding down the

Ctrl key.

Select a range of breakpoints and watchpoints while holding down the

Shift key.

From the main menu, select EditSelect All.

Right-click in the Breakpoints view and select Select All.

Right-click the highlighted breakpoints/watchpoints and select

Disable or Enable.

Removing breakpoints and watchpoints

To remove one or more breakpoints/watchpoints:

Select the breakpoint or watchpoint, right-click, and then select

Remove or Remove All.

Chapter 5

Debugging Programs

141

More debugging features

Evaluating your expressions

The Expressions view lets you evaluate and examine the value of expressions. To display this view, choose Windows

Show

View

Expressions.

The Expressions view is similar to the Variables view; for more information, see the “Inspecting variables” section in this chapter.

To evaluate an expression:

1

Right-click the Expressions view, and then choose Add Watch

Expression.

142

Chapter 5

Debugging Programs

More debugging features

2

3

Enter the expression you want to evaluate (e.g.

(x-5)*3

).

Click OK. The expression and its value appear in the

Expressions view. When the debugger suspends the program’s execution, it reevaluates all expressions and highlights the changed values.

Inspecting your registers

The Registers view displays information about the registers in the currently selected stack frame. When the execution stops, the changed values are highlighted. To display this view, choose

Windows

Show ViewRegisters.

The Registers view is similar to the Variables view; for more information, see the “Inspecting variables” section in this chapter.

Chapter 5

Debugging Programs

143

More debugging features

You can also customize the colors in the Registers view and change the default value of the Show Type Names option.

Inspecting a process’s memory

The Memory view lets you inspect and change your process’s memory. To display this view, choose Windows

Show

View

Memory. The view is initially empty, but after you’ve added an item to monitor and specified the output format, this view will look something like this:

144

Chapter 5

Debugging Programs

More debugging features

QNX Neutrino uses a virtual-addressing model wherein each process has its own range of valid virtual addresses. This means that the address you enter into the Memory view must be a virtual address that’s valid for the process you’re debugging (e.g. the address of any variable). For more on QNX Neutrino’s memory management, see the

Process Manager chapter in the System Architecture guide.

Inspecting memory

The Memory view supports the same addressing as the C language.

You can address memory using expressions such as

0x0847d3c

,

(&y)+1024

, and

*ptr

.

To inspect the memory of a process:

1

In the Debug view, select a process. Selecting a thread automatically selects its associated process.

2

In the Memory view’s Monitors pane, click the Add Memory

Monitor button ( ).

3

In the Enter address or expression to monitor field, type the address or expression, and then select OK.

Configuring output format

You can display memory in hexadecimal or ASCII, or as signed or unsigned integers:

1

In the Memory view’s Renderings pane, click the Add

Rendering(s) button ( ). The Add Memory Rendering dialog appears:

Chapter 5

Debugging Programs

145

More debugging features

2

3

4

From the dropdown menu, select the memory or expression you wish to add a new memory rendering for, or click Add New. . . to create a new memory or expression monitor.

Click, Shift -click, or Ctrl -click to choose one or more formats from the Memory Rendering(s) list.

Click OK. Each format you’ve chosen appears in a separate tab in the Memory view’s Renderings pane.

Changing memory

To change a process’s memory:

1

2

Follow the procedures for inspecting a process’s memory and configuring the output format.

In the Memory view’s Renderings pane, click in a cell, type the new value for the memory, and then press one of the following:

Enter to submit the change

146

Chapter 5

Debugging Programs

More debugging features

Esc to leave the memory unchanged

The changed memory appears in red.

!

CAUTION: Changing a process’s memory can make your program crash.

Inspecting shared-library usage

The Modules view shows you information about the shared libraries for the session you select in the Debug view. The view shows the name, base address, and size of each library. To display this view, choose Windows

Show ViewModules.

To load a library’s symbols:

Right-click a library and select Load Symbols (or Load

Symbols for All for all your libraries).

Monitoring signal handling

The Signals view provides a summary of how your debugger handles signals that are intercepted before they’re received by your program.

To display this view, choose Windows

Show ViewSignals.

Chapter 5

Debugging Programs

147

More debugging features

The view contains the following fields:

Name

Pass

The name of the signal

The debugger can filter out signals. If the signal is set to “no”, the debugger prevents it from reaching your program.

Suspend

Upon receipt of a signal, the debugger can suspend your program as if it reached a breakpoint. Thus, you can step through your code and watch how your program handles the signal.

Description

A brief description of the signal.

2

To change how the debugger handles a signal:

1

In the Signals view, select a signal (e.g.

SIGINT

) in the Name column.

Right-click the signal’s name, and then choose Signal

Properties. . . from the menu.

148

Chapter 5

Debugging Programs

More debugging features

3

In the signal’s Properties dialog, check Pass this signal to the

program to pass the selected signal to the program. Uncheck it to block this signal.

Check Suspend the program when this signal happens to suspend the program when it receives this signal. Uncheck it to let the program handle the signal as it normally would.

To send a signal to a suspended program:

1

2

If the program isn’t suspended, click the Suspend button ( ) in the Debug view.

In the Signals view, right-click your desired signal and select

Resume With Signal. Your program resumes and the debugger immediately sends the signal to it.

You can see a thread-by-thread summary of how your program handles signals using the Signal Information view. To learn more, see

Information chapter.

the “Mapping process signals” section in the Getting System

Chapter 5

Debugging Programs

149

More debugging features

Viewing your output

The Console view shows you the output of the execution of your program and lets you supply input to your program:

The console shows three different kinds of text, each in a different default color:

standard output (black)

standard error (red)

standard input (green)

If you’re connecting to your target via

qconn

, your process’s output all appears in the same color because

qconn

combines standard output and standard error into one stream.

You can choose different colors for these kinds of text on the preferences pages.

To access the Console view’s customization dialog:

1

From the menu, select Window

Preferences.

2

In the left pane, select Run/Debug

Console.

You can have more than one Console view, which is useful if you’re working on more than one application at once:

To create a new console, use the Open Console icon (

).

150

Chapter 5

Debugging Programs

More debugging features

To display a different console, use the Display Selected Console icon ( ).

To reduce switching between consoles, use the Pin Console icon

( ).

Remember that you can copy data from the console and paste it elsewhere.

Interacting with GDB

The IDE lets you use a subset of the commands that the

gdb

utility offers:

To learn more about the

gdb

utility, see its entry in the Utilities

Reference and the Using GDB appendix of the Neutrino

Programmer’s Guide.

Enabling the QNX GDB Console view

The QNX GDB Console view is part of the regular Console perspective. It appears as soon as the data is sent to it.

1

2

3

To switch to the QNX GDB Console view:

(

Click the arrow beside the Display selected console button

).

In the Debug view, select a debug session.

Choose the console whose name includes

gdb

. For example:

Chapter 5

Debugging Programs

151

More debugging features

The Console view changes to the QNX GDB Console view.

Using the QNX GDB Console view

The QNX GDB Console view lets you bypass the IDE and talk directly to GDB; the IDE is unaware of anything done in the QNX

GDB Console view. Items such as breakpoints that you set from the

QNX GDB Console view don’t appear in the C/C++ editor.

You can’t use the

Tab key for line completion because the commands are sent to GDB only when you press

Enter

.

To use the QNX GDB Console view:

In the QNX GDB Console view, enter a command (e.g.

nexti

to step one instruction):

To enter commands, you must be on the last line of the Console view.

152

Chapter 5

Debugging Programs

Chapter 6

Building OS and Flash Images

In this chapter. . .

Introducing the QNX System Builder

155

Overview of images

162

Creating a project for an OS image

173

Creating a project for a flash filesystem image

175

Building an OS image

175

Downloading an image to your target

180

Configuring your QNX System Builder projects

186

Optimizing your system

202

Moving files between the host and target

205

Chapter 6

Building OS and Flash Images

153

Introducing the QNX System Builder

Use the QNX System Builder to create OS and flash images for your target.

Introducing the QNX System Builder

One of the more distinctive tools within the IDE is the QNX System

Builder perspective, which simplifies the job of building OS images for your embedded systems. Besides generating images intended for your target board’s RAM or flash, the QNX System Builder can also help reduce the size of your images (e.g. by reducing the size of shared libraries). The Builder also takes care of tracking library dependencies for you, prompting you for any missing components.

The QNX System Builder contains a Serial Terminal view for interacting with your board’s ROM monitor or QNX Initial Program

Loader (IPL) and for transferring images (using the QNX

sendnto

protocol). The QNX System Builder also has an integrated TFTP

Server that lets you transfer your images to network-aware targets that can boot via the TFTP protocol.

When you open the QNX System Builder to create a project, you have the choice of importing/customizing an existing buildfile to generate an image or of creating one from scratch. The QNX System Builder editor lets you select which components (binaries, DLLs, libraries) you want to incorporate into your system image. As you add a

Chapter 6

Building OS and Flash Images

155

Introducing the QNX System Builder component, the QNX System Builder automatically adds any shared libraries required for runtime loading. For example, if you add the

telnet

application to a project, then the QNX System Builder knows to add

libsocket.so

in order to ensure that

telnet

can run. And when you select a binary, you’ll see relevant information for that item, including its usage message, in the Binary Inspector view.

Using standard QNX embedding utilities (

mkifs

,

mkefs

), the QNX

System Builder can generate configuration files for these tools that can be used outside of the IDE for scripted/automated system building. As you do a build, a Console view displays the output from the underlying build command. You can use the

mksbp

utility to build a QNX System Builder

project.bld

from the command-line;

mksbp

automatically calls

mkifs

or

mkefs

, depending on the kind of image being built.

Here’s what the QNX System Builder perspective looks like:

156

Chapter 6

Building OS and Flash Images

Introducing the QNX System Builder

One of the main areas in the QNX System Builder is the editor, which presents two panes side by side:

Chapter 6

Building OS and Flash Images

157

Introducing the QNX System Builder

Images Shows all the images you’re building. You can add or remove binaries and other components, view their properties, etc.

Filesystem Shows the components of your image arranged in a hierarchy, as they would appear in a filesystem on your target.

Toolbar buttons

Above the Images and Filesystem panes in the editor you’ll find several buttons for working with your image:

Add a new binary.

Add a new shared library.

158

Chapter 6

Building OS and Flash Images

Introducing the QNX System Builder

Add a new DLL.

Add a new symbolic link.

Add a new file.

Add a new inline file (i.e. a file whose contents are specified in the buildfile).

Add a new directory.

Add a new image.

Run the System Optimizer.

Rebuild the current project.

Merge two or more images into a single image.

Binary Inspector

Below the Images and Filesystem panes is the QNX Binary Inspector view, which shows the usage message for any binary you select:

Chapter 6

Building OS and Flash Images

159

Introducing the QNX System Builder

The Binary Inspector also has a Use Info tab that gives the selected binary’s name, a brief description, the date it was built, and so on.

Boot script files

All QNX BSPs ship with a buildfile, which is a type of “control” file that gives instructions to the

mkifs

command-line utility to generate an OS image. The buildfile specifies the particular startup program, environment variables, drivers, etc. to use for creating the image. The

boot script portion of a buildfile contains the sequence of commands

that the Process Manager executes when your completed image starts up on the target.

160

Chapter 6

Building OS and Flash Images

Introducing the QNX System Builder

For details on the components and grammar of buildfiles, see the section “Configuring an OS image” in the chapter Making an OS

Image in Building Embedded Systems as well as the entry for

mkifs

in the Utilities Reference.

The QNX System Builder perspective provides a convenient graphical alternative to the text-based buildfile method. While it hides most of the “gruesome” details from you, the QNX System Builder perspective also lets you see and work with things such as boot scripts.

The QNX System Builder perspective stores the boot script for your project in a

.bsh

file. If you double-click a

.bsh

file in the Navigator or System Builder Projects view, you’ll see its contents in the editor.

QNX System Builder projects

Like other tools within the IDE, the QNX System Builder perspective is project-oriented — it organizes your resources into a project of related items. Whenever you create a project in the QNX System

Builder perspective, you’ll see a

project.bld

file in the Navigator or System Builder Projects view.

The

project.bld

file drives the System Builder editor; if you select the

project.bld

, you’ll see your project’s components in the

Images and Filesystem panes, where you can add/remove items for the image you’ll be building.

As with most other tools in the IDE, you build your QNX System

Builder projects using the standard Eclipse build mechanism via

Project

Build Project.

The scope of the QNX System Builder

You can use the QNX System Builder throughout your product-development cycle:

Chapter 6

Building OS and Flash Images

161

Overview of images

At the outset — to import a QNX BSP, generate a minimal OS image, and transfer the image to your board, just to make sure everything works.

During development — to create an image along with your suite of programs and download everything to your eval board.

For your final product — to strip out the extra utilities you needed during development, reduce libraries to their bare minimum size, and produce your final, customized, optimized embedded system.

For details on importing a BSP, see the section “Importing a BSP or other QNX source packages” in the chapter Managing Source Code in this guide.

Overview of images

Before you use the QNX System Builder to create OS and flash images for your hardware, let’s briefly describe the concepts involved in building images so you can better understand the QNX System

Builder in context.

This section covers the following topics:

The components of an image, in order of booting

Types of images you can create

Project layout

Overview of workflow

The components of an image, in order of booting

Neutrino supports a wide variety of CPUs and hardware configurations. Some boards require more effort than others to embed the OS. For example, x86-based machines usually have a BIOS, which greatly simplifies your job, while other platforms require that you create a complete IPL. Embedded systems can range from a tiny

162

Chapter 6

Building OS and Flash Images

Overview of images memory-constrained handheld computer that boots from flash, to an industrial robot that boots through a network, to a multicore system with lots of memory that boots from a hard disk.

Whatever your particular platform or configuration, the QNX System

Builder helps simplify the process of building images and transferring them from your host to your target.

For a complete description of OS and flash images, see the Building

Embedded Systems guide.

The goal of the boot process is to get the system into a state that lets your program run. Initially, the system might not recognize disks, memory, or other hardware, so each section of code needs to perform whatever setup is needed in order to run the subsequent section:

1

The IPL initializes the hardware, makes the OS image accessible, and then jumps into it.

2

3

The startup code performs further initializations, and then loads and transfers control to the microkernel/process manager

(

procnto

), the core runtime component of the QNX Neutrino

OS.

The

procnto

module then runs the boot script, which performs any final setup required and runs your programs.

Typical boot order.

At reset, a typical processor has only a minimal configuration that lets code be executed from a known linearly addressable device (e.g.

Chapter 6

Building OS and Flash Images

163

Overview of images flash, ROM). When your system first powers on, it automatically runs the IPL code at a specific address called the reset vector.

IPL

When the IPL loads, the system memory usually isn’t fully accessible.

It’s up to the IPL to configure the memory controller, but the method depends on the hardware — some boards need more initialization than others.

When the memory is accessible, the IPL scans the flash memory for the image filesystem, which contains the startup code (described in the next section). The IPL loads the startup header and startup code into RAM, and then jumps to the startup code.

The IPL is usually board-specific (it contains some assembly code) and as small as possible.

Startup

The startup code initializes the hardware by setting up interrupt controllers, cache controllers, and base timers. The code detects system resources such as the processor(s), and puts information about these resources into a centrally accessible area called the system page.

The code can also copy and decompress the image filesystem components, if necessary. Finally, the startup code passes control, in virtual memory mode, to the

procnto

module.

The startup code is board-specific and is generally much larger than the IPL. Although a larger

procnto

module could do the setup, we separate the startup code so that

procnto

can be board-independent.

Once the startup code sets up the hardware, the system can reuse a part of the memory used by startup because the code won’t be needed again.

startup

or the QNX System Builder perspective won’t recognize it.

If you’re creating your own startup variant, its name must start with

164

Chapter 6

Building OS and Flash Images

Overview of images

The

procnto

module

The

procnto

module is the core runtime component of the QNX

Neutrino OS. It consists of the microkernel, the process manager, and some initialization code that sets up the microkernel and creates the process-manager threads. The

procnto

module is a required component of all bootable images.

The process manager handles (among other things) processes, memory, and the image filesystem. The process manager lets other processes see the image filesystem’s contents. Once the

procnto

module is running, the operating system is essentially up and running.

One of the process manager’s threads runs the boot script.

Several variants of

procnto

are available (e.g.

procnto-400

for

PowerPC 400 series,

procnto-smp

for x86 multicore machines, etc.).

If you’re creating your own

procnto

variant, its name must start with

procnto-

or the QNX System Builder perspective won’t recognize it.

Boot script

If you want your system to load any drivers or to run your program automatically after powering up, you should run those utilities and programs from the boot script. For example, you might have the boot script:

run a

devf

driver to access a flash filesystem image, and then run your program from that flash filesystem

create adaptive partitions, run programs in them, and set their parameters:

# Create an adaptive partition named "Debugging" with a budget

# of 20%: sched_aps Debugging 20

# Start qconn in the Debugging partition:

[sched_aps=Debugging]/usr/sbin/qconn

Chapter 6

Building OS and Flash Images

165

Overview of images

# Use the recommended security level for the partitions: aps modify -s recommended

For more information about these commands, see the Adaptive

Partitioning User’s Guide.

When you build your image, the boot script is converted from text to a tokenized form and saved as

/proc/boot/.script

. The process manager runs this tokenized script.

Types of images you can create

The IDE lets you create the following images:

OS image (

.ifs

file)

An image filesystem. A bootable image filesystem holds the

procnto

module, your boot script, and possibly other components such as drivers and shared objects.

Flash image (

.efs

file)

A flash filesystem. (The “e” stands for “embedded.”) You can use your flash memory like a hard disk to store programs and data.

Combined image

An image created by joining together any combination of components (IPL, OS image, embedded filesystem image) into a single image. You might want to combine an IPL with an OS image, for example, and then download that single image to the board’s memory via a ROM monitor, which you could use to burn the image into flash. A combined image’s filename extension indicates the file’s format (e.g.

.elf

,

.srec

, etc.).

If you plan on debugging applications on the target, you must include

pdebug

in

/usr/bin

. If the target has no other forms of storage, include it in the OS image or flash image.

166

Chapter 6

Building OS and Flash Images

Overview of images

BSP filename conventions

In our BSP docs, buildfiles, and scripts, we use a certain filename convention that relies on a name’s prefixes and suffixes to distinguish types:

Part of filename Description

.bin

.build

efs-

Suffix for binary format file

Suffix for buildfile

Prefix for QNX Embedded

Filesystem file; generated by

mkefs

.elf

ifsipl-

.openbios

.prepboot

.srec

Example ifs-artesyn.bin

sandpoint.build

efs-sengine.srec

Suffix for ELF (Executable and

Linking Format) file

Prefix for QNX Image

Filesystem file; generated by

mkifs ipl-ifs-mbx800.elf

ifs-800fads.elf

Prefix for IPL (Initial Program

Loader) file

ipl-eagle.srec

Suffix for OpenBIOS format file

ifs-walnut.openbios

Suffix for Motorola PRePboot format file

Suffix for S-record format file

ifs-prpmc800.prepboot

ifs-malta.srec

Chapter 6

Building OS and Flash Images

167

Overview of images

The QNX System Builder uses a somewhat simplified convention.

Only a file’s three-letter extension, not its prefix or any other part of the name, determines how the QNX System Builder should handle the file.

For example, an OS image file is always an

.ifs

file in the QNX

System Builder, regardless of its format (ELF, binary, SREC, etc.). To determine a file’s format in the IDE, you’ll need to view the file in an editor.

OS image (

.ifs

file)

The OS image is a bootable image filesystem that contains the startup header, startup code,

procnto

, your boot script, and any drivers needed to minimally configure the operating system:

Generally, we recommend that you keep your OS image as small as possible to realize the following benefits:

Memory conservation — When the system boots, the entire OS image gets loaded into RAM. This image isn’t unloaded from

RAM, so extra programs and data built into the image require more memory than if your system loaded and unloaded them dynamically.

Faster boot time — Loading a large OS image into RAM can take longer to boot the system, especially if the image must be loaded via a network or serial connection.

168

Chapter 6

Building OS and Flash Images

Overview of images

Stability — Having a small OS image provides a more stable boot process. The fewer components you have in your OS image, the lower the probability that it fails to boot. The components that must go in your image (startup,

procnto

, a flash driver or network components, and a few shared objects) change rarely, so they’re less subject to errors introduced during the development and maintenance cycles.

If your embedded system has a hard drive or CompactFlash (which behaves like an IDE hard drive), you can access the data on it by including a block-oriented filesystem driver (e.g.

devb-eide

) in your OS image filesystem and calling the driver from your boot script.

For details on the driver, see

devb-eide

in the Utilities Reference.

If your system has an onboard flash device, you can use it to store your OS image and even boot the system directly from flash (if your board allows this — check your hardware documentation). Note that an OS image is read-only; if you want to use the flash for read/write storage, you’ll need to create a flash filesystem image (

.efs

file).

Flash filesystem image (

.efs

file)

Flash filesystem images are useful for storing your programs, extra data, and any other utilities (e.g.

qconn

,

ls

,

dumper

, and

pidin

) that you want to access on your embedded system.

If your system has a flash filesystem image, you should include a

devf*

driver in your OS image and start the driver in your boot script. While you can mount an image filesystem only at

/

, you can specify your own mountpoint (e.g.

/myFlashStuff

) when you set up your

.efs

image in the IDE. The system recognizes both the

.ifs

and

.efs

filesystems simultaneously because the process manager transparently overlays them. To learn more about filesystems, see the

Filesystems chapter in the QNX Neutrino System Architecture guide.

Combined image

For convenience, the IDE can join together any combination of your

IPL, OS image, and

.efs

files into a single, larger image that you can transfer to your target:

Chapter 6

Building OS and Flash Images

169

Overview of images

When you create a combined image, you specify the IPL’s path and filename on your host machine. You can either select a precompiled

IPL from an existing BSP, or compile your own IPL from your own assembler and C source.

The QNX System Builder expects the source IPL to be in ELF format.

Padding separates the IPL,

.ifs

, and

.efs

files in the combined image.

Padding after the IPL

The IPL can scan the entire combined image for the presence of the startup header, but this slows the boot process. Instead, you can have the IPL scan through a range of only two addresses and place the startup header at the first address.

Specifying a final IPL size that’s larger than the actual IPL lets you modify the IPL (and change its length) without having to modify the scanning addresses with each change. This way, the starting address of the OS image is independent of the IPL size.

170

Chapter 6

Building OS and Flash Images

Overview of images

!

CAUTION: You must specify a padding size greater than the total size of the IPL to prevent the rest of the data in the combined image file from partially overwriting your IPL.

Padding before

.ifs

images

If your combined image includes one or more

.efs

images, specify an alignment equal to the block size of your system’s onboard flash.

The optimized design of the flash filesystem driver requires that all

.efs

images begin at a block boundary. When you build your combined image, the IDE adds padding to align the beginning of the

.efs

image(s) with the address of the next block boundary.

Project layout

A single QNX System Builder project can contain your

.ifs

file and multiple

.efs

files, as well as your startup code and boot script. You can import the IPL from another location or you can store it inside the project directory.

By default, your QNX System Builder project includes the following parts:

Item

Images

directory

Description

The images and generated files that the

IDE creates when you build your project.

continued. . .

Chapter 6

Building OS and Flash Images

171

Overview of images

Item Description

Overrides

directory When you build your project, the IDE first looks in this directory for a directory matching the image being built. Any files in that directory are used to satisfy the build requirements before searching the standard locations. You can use the

Overrides/

image_name directory to

easily test a change to your build. The

image_name subdirectory is created

automatically, and you must populate it with the override files your image needs.

Reductions

directory The IDE lets you reduce your image size by eliminating unused libraries, and shrinking the remaining libraries. The

IDE stores the reduced libraries in the

Reductions/

image_name directory

(where image_name is the name of the image being built).

.project

file Information about the project, such as its name and type. All IDE projects have a

.project

file.

.sysbldr_meta

file Information about the properties specific to a QNX System Builder project. This file describes where the IDE looks for files (including the

Overrides

and

Reductions

directories), the location of your IPL file, how the IDE includes

.efs

files, and the final format of your

.ifs

file.

continued. . .

172

Chapter 6

Building OS and Flash Images

Creating a project for an OS image

Item project.bld

file

.bsh

file

Description

Information about the structure and contents of your

.ifs

and

.efs

files.

This file also contains your boot script file.

Contains the boot script for your project.

Overview of workflow

Here are the main steps involved in using the IDE to get Neutrino up and running on your board:

Creating a QNX System Builder project for an OS or a flash image for your board. The process is very simple if a BSP exists for your board. If an exact match isn’t available, you may be able to modify an existing BSP to meet your needs.

Building your project to create the image.

Transferring the OS image to your board. You might do this initially to verify that the OS image runs on your hardware, and then again (and again) as you optimize your system.

Configuring your projects.

Optimizing your system by reducing the size of the libraries.

Creating a project for an OS image

To create a new QNX System Builder Project:

1

2

3

From the main menu, select File

NewProject.

Expand QNX, then select QNX System Builder Project. Click

Next.

Name your project and click Next.

Chapter 6

Building OS and Flash Images

173

Creating a project for an OS image

4

At this point, you can either import an existing buildfile (as shipped with your QNX BSPs) or select a generic type (e.g.

“ppcbe”).

We recommend that you select Import Existing Buildfile, rather than a generic option. Creating a buildfile requires a working knowledge of

boot script grammar (as described in the entry for

mkifs

in the

Utility Reference and in the Building Embedded Systems manual).

Click the Browse. . . button to select an existing buildfile. Refer to your BSP docs for the proper

.build

file for your board.

You can find buildfiles for all the BSPs installed on your system in

$QNX

_

TARGET/processor/boot/build/ on your host.

If you’re creating a generic buildfile, select your desired platform from the drop-down list.

5

includes all the components that make up the OS image.

Click Finish. The IDE creates your new project, which

174

Chapter 6

Building OS and Flash Images

Creating a project for a flash filesystem image

Creating a project for a flash filesystem image

To create a flash filesystem project:

1

From the main menu, select File

NewProject.

2

Expand QNX, then select QNX System Builder EFS Project in the right. Click Next.

3

Name your project and click Next.

4

5

Specify your target hardware (e.g. “armle”).

Click Finish. The IDE creates your new EFS project, which includes a “generic”

.efs

image; you’ll likely need to specify the block size, image size, and other properties to suit the flash on your particular board.

Building an OS image

To build your QNX System Builder projects using the standard

Eclipse build mechanism:

From the main menu, select Project

Build Project.

You can also build projects using the context menu:

1

In the Navigator or System Builder Projects view, right-click the project.

2

Select Build Project.

The System Builder Console view shows the output produced when you build your images:

Chapter 6

Building OS and Flash Images

175

Building an OS image

Output can come from any of these utilities:

mkefs

mkifs

mkimage

mkrec

objcopy

For more information, see their entries in the Utilities Reference.

You can clear the view by clicking the Clear Output button ( ).

Create new image

You can create a new image for your QNX System Builder project by using the Add New Image icon ( ) in the System Builder editor’s toolbar:

1

Click the Add New Image icon in the toolbar.

The IDE displays the Create New Image dialog box:

176

Chapter 6

Building OS and Flash Images

Building an OS image

2

Use the Create New Image dialog to:

Duplicate Selected Image — create a duplicate of the currently selected image with the given name.

Import Existing IFS Buildfile — generate the new IFS image using an existing buildfile.

Import Existing EFS Buildfile — generate the new EFS image using an existing buildfile.

Create Generic IFS image — create an empty IFS for the specified platform.

Create Generic EFS image — create an empty EFS for the specified platform.

3

Click OK to create the new image and add it to your project.

Combine images

As mentioned earlier, the QNX System Builder lets you create a combined image. You use the Combine image(s) icon ( ) to:

add an IPL to the start of your image

Chapter 6

Building OS and Flash Images

177

Building an OS image

append an EFS to your image

set the final format of your image

Adding an IPL to the start of your image

To add an IPL to the start of your image:

1

In the Images view, select your image.

2

3

Click the Combine image(s) icon ( ).

In the Create New Image dialog box, check Add IPL.

178

Chapter 6

Building OS and Flash Images

Building an OS image

!

4

5

Enter the IPL filename (or select it by clicking the browse icon).

In the Pad IPL to: field, select padding equal to or greater than the size of your IPL.

CAUTION: If the padding is less than the size of the IPL, the image won’t contain the complete IPL.

6

Click OK.

If you get a File Not Found error while building, make sure the Build

with profiling option is unchecked in all of the C/C++ projects in the

BSP working set, then rebuild all of the projects.

Right-click on a project, then choose Properties and select QNX

C/C++ Project to view the Build with profiling setting.

Adding an EFS to your image

To append a flash filesystem to your image:

1

2

3

In the Create New Image dialog, check Append Image(s).

In the Align to field, select the granularity of the padding. The padding is a multiple of your selected alignment.

Click OK.

Setting the final format of your OS image

You use the Final Processing section of the Create New Image dialog to set the final format for your image.

To change the final format of your OS image:

1

2

3

In the Create New Image dialog, check the Final Processing box.

In the Offset field, enter the board-specific offset. This setting is generally used for S-Record images.

In the ROM size field, enter the size of the ROM.

Chapter 6

Building OS and Flash Images

179

Downloading an image to your target

4

5

In the Format field, select the format from the dropdown menu

(e.g. SREC, Intel hex records, binary.)

Click OK.

For more information of the final processing of an OS image, see

mkrec

in the Utilities Reference.

Downloading an image to your target

Many boards have a ROM monitor, a simple program that runs when you first power on the board. The ROM monitor lets you communicate with your board via a command-line interface (over a serial or Ethernet link), download images to the board’s system memory, burn images into flash, etc.

The QNX System Builder has two facilities you can use to communicate with your board:

serial terminals (up to four)

TFTP server

If your board doesn’t have a ROM monitor, you probably can’t use the download services in the IDE; you’ll have to get the image onto the board some other way (e.g. JTAG). To learn how to connect to your particular target, consult your hardware and BSP documentation.

Downloading via a serial link

With the QNX System Builder’s built in serial terminals, you don’t need to leave the IDE and open a serial communications program (e.g.

HyperTerminal) in order to talk to your target, download images, etc.

The Terminal view implements a very basic serial terminal, supporting only the following control sequences:

0x00

(

NUL

),

0x07

(bell),

0x08

(backspace),

0x09

(horizontal tab),

0x0a

(newline), and

0x0d

(carriage return).

To open a terminal:

180

Chapter 6

Building OS and Flash Images

Downloading an image to your target

From the main menu, select Show View

Other. . . , then select QNX System Builder

Terminal N (where N is 1 to 4).

The Terminal view lets you set standard communications parameters

(baud rate, parity, data bits, stop bits, and flow control), choose a port

(COM1 or COM2), send a BREAK command, and so on.

To communicate with your target over a serial connection:

1

Connect your target and host machine with a serial cable.

2

Specify the device (e.g. COM 2) and the communications settings in the view’s menu:

You can now interact with your target by typing in the view.

Chapter 6

Building OS and Flash Images

181

Downloading an image to your target

Under Solaris, the Terminal view’s Device menu may list all available devices twice and display the following message on the console used to launch

qde

:

#unexpected error in javax.comm native code

Please report this bug

SolarisSerial.c, cond_wait(), rv=1 ,errno=0

This is a known problem; you can safely ignore the message.

By default on Linux hosts, the owner (

root

) and the group (

uucp

) have read-write permission on all

/dev/ttyS*

serial devices; users outside this group have no access.

If you’re logged in as a non-

root

user, and you aren’t a member of the

uucp

group, then the Serial Terminal view doesn’t display any serial devices to select from, since you don’t have access rights to any of them. To work around this problem, add non-

root

users to the

uucp

group.

4

2

3

When a connection is made, the Send File button changes to its enabled state ( ), indicating that you can now transfer files to the target.

To transfer a file using the Serial Terminal view:

1

Using either the Serial Terminal view or another method

(outside the IDE), configure your target so that it’s ready to receive an image. For details, consult your hardware documentation.

In the Serial Terminal view, click the Send File button ( ).

In the Select File to Send dialog, enter the name of your file (or click Browse).

Select a protocol (e.g.

sendnto

).

182

Chapter 6

Building OS and Flash Images

Downloading an image to your target

The QNX

sendnto

protocol sends a sequence of records (including the start record, data records, and a go record). Each record has a sequence number and a checksum. Your target must be running an

IPL (or other software) that understands this protocol.

5

Click OK. The QNX System Builder transmits your file over the serial connection.

You can click the Cancel button to stop the file transfer:

Downloading via TFTP

The QNX System Builder’s TFTP server eliminates the need to set up an external server for downloading images (if your target device supports TFTP downloads). The TFTP server knows about all QNX

System Builder projects in the system and automatically searches them for system images whenever it receives requests for service.

When you first open the TFTP Server view (in any perspective), the

QNX System Builder starts its internal TFTP server. For the remainder of the current IDE session, the TFTP server listens for incoming TFTP transfer requests and automatically fulfill them.

Currently, the QNX System Builder’s internal server supports only

TFTP read requests; you can’t use the server to write files from the target to the host development machine.

The TFTP Server view provides status and feedback for current and the view provides visual feedback: past TFTP transfers. As the internal TFTP server handles requests,

Chapter 6

Building OS and Flash Images

183

Downloading an image to your target

Each entry in the view shows:

TFTP client IP address/hostname

requested filename

transfer progress bar

transfer status message

Transferring a file

To transfer a file using the TFTP Server view:

1

Open the TFTP Server view. The internal TFTP server starts.

2

Using either the QNX System Builder’s serial terminal or another method, configure your target to request a file recognized by the TFTP server. (The TFTP Server view displays your host’s IP address.) During the transfer, the view shows your target’s IP address, the requested file, and the transfer status.

You can clear the TFTP Server view of all completed transactions by clicking its clear button ( ).

184

Chapter 6

Building OS and Flash Images

Downloading an image to your target

The internal TFTP server recognizes files in the

Images

directory of all open QNX System Builder projects; you don’t need to specify the full path.

Transferring files that aren’t in

Images

!

CAUTION: The IDE deletes the content of the

Images

directory during builds — don’t use this directory to transfer files that the QNX

System Builder didn’t generate. Instead, configure a new path, as described in the following procedure.

To enable the transfer of files that aren’t in the

Images

directory:

1

2

From the main menu, select Window

Preferences.

In the left pane of the Preferences dialog, select QNX

Tftp

Server

User Search Paths.

3

Click New, and then select your directory from the Add New

Search Path dialog.

4

Click OK.

5

Click OK. The TFTP server is now aware of the contents of your selected directory.

Downloading using other methods

If your board doesn’t have an integrated ROM monitor, you may not be able transfer your image over a serial or TFTP connection. You’ll have to use some other method instead, such as:

CompactFlash — copy the image to a CompactFlash card plugged into your host, then plug the card into your board to access the image.

Or:

Flash programmer — manually program your flash with an external programmer.

Chapter 6

Building OS and Flash Images

185

Configuring your QNX System Builder projects

Or:

JTAG/ICE/emulator — use such a device to program and communicate with your board.

For more information, see the documentation that came with your board.

Configuring your QNX System Builder projects

In order to use the QNX System Builder to produce your final embedded system, you’ll likely need to:

add/remove image items

configure the properties of an image and its items

configure the properties of the project itself

As mentioned earlier, every QNX System Builder project has a

project.bld

file that contains information about your image’s boot script, all the files in your image, and the properties of those files.

If you double-click the

project.bld

, you’ll see your project’s components in the Images and Filesystem panes in the editor area, as well as a Properties view:

186

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

Managing your images

The Images pane shows a tree of all the files in your image, sorted by type:

binaries

shared libraries

symbolic links

DLLs

other files

directories

Adding files to your image

When you add files, you can either browse your host filesystem or select one or more files from a list of search paths:

Chapter 6

Building OS and Flash Images

187

Configuring your QNX System Builder projects

Browse method If you choose files by browsing, you’ll probably want to configure the project to use an absolute

path so that the IDE always finds the exact file you

specified (provided you keep the file in the same location). Note that other users of your project would also have to reproduce your setup in order for the IDE to locate files.

Select method Select files from a preconfigured list of search locations. We recommend that you use this option because it’s more flexible and lets others easily reproduce your project on their hosts. You can add search paths to the list.

Note that the IDE saves only the filename. When you build your project, the IDE follows your search paths and uses the first file that matches your specified filename. If you specify a file that isn’t in the search path, the build will be incomplete. To learn how to configure your search paths, see the section “Configuring project properties” in this chapter.

2

To add items to your image:

1

In the Images pane, right-click the image and select Add Item, followed by the type of item you want to add:

Binary

Shared Library

DLL

Symbolic Link

File

Inline File

Directory

Select an item (e.g. Binary) from the list.

188

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

3

4

Select either the Search using the project’s search paths or the Use selected absolute path(s) option. (We recommend using search paths, because other users would be able to recreate your project more easily.)

Click OK. The QNX System Builder adds the item to your image, as you can see in the Images pane.

Deleting files

To delete files:

In either the Images or Filesystem pane, right-click your file and select Delete.

Adding directories

To add a directory to your image:

1

2

In the Filesystem pane, right-click the parent directory and select Add Item

Directory.

Specify the directory name, path, and image name. Some fields are filled in automatically.

3

Click OK. Your directory appears in the Filesystem pane.

You can also add a directory by specifying the path for an item in the

Location In Image field in the Properties view. The IDE includes the specified directory as long as the item remains in your image.

Deleting directories

To delete directories: directory and select Delete.

In either the Images or Filesystem pane, right-click your

Chapter 6

Building OS and Flash Images

189

Configuring your QNX System Builder projects

A deleted directory persists if it still contains items. To completely remove the directory, delete the reference to the directory in the

Location In Image field in the Properties view for all the items in the directory.

Configuring image properties

The Properties view lets you see and edit the properties of an image or any of its items:

190

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

Chapter 6

Building OS and Flash Images

191

Configuring your QNX System Builder projects

To change the properties of an image or item:

1

2

In the Images or Filesystem pane, select an image or one of its items.

In the Properties view, select an entry in the Value column. The value is highlighted; for some fields (e.g. CPU Type), a dropdown menu appears.

3

Type a new value or select one from the dropdown menu.

4

5

Press Enter .

Save your changes.

6

Rebuild your project.

Different properties appear for images and for the items in an image:

Image properties:

Combine

Directories

General

System (

.ifs

)

System (

.efs

)

Item properties:

General

Memory

Permissions

Image properties

Combine

These settings control how images are combined with your System

Builder project. For example, you can control how the EFS is aligned, what format the resulting image is, the location of the IPL, its image offset, and whether or not the IPL is padded to a certain size or not.

192

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

General

Directories

These settings control the default permissions for directories that you add to the image, as well as for any directories that the tools create when you build your system. For example, if you add

/usr/bin/ksh

to your system, the IDE automatically creates the

usr

and

bin

directories. (For more information on permissions, see the Managing User Accounts chapter in the Neutrino User’s Guide and the

chmod

entry in the Utilities Reference.)

Note that the values for permissions are given in octal (e.g.

777

, which means the read, write, and execute bits are set for the user, group, and other categories).

Boot Script (

.ifs

only)

Name of the file that contains the boot script portion of a buildfile. Boot script files have a

.bsh

extension (e.g.

prpmc800.bsh

).

Compressed (

.ifs

only)

If set to something other than No, the QNX

System Builder compresses the directory structure

(image filesystem) section of the image. The directory structure includes

procnto

, the boot script, and files. You might enable compression if you want to save on flash space or if the

BIOS/ROM monitor limits the size of your image.

CPU Type

Your target’s processor (e.g. armle).

Create Image

If Yes, the IDE builds this image when you build your project.

Default Target Location

The default path where the filesystem is located when the boot process completes. By default, the location is

/proc/boot

.

Chapter 6

Building OS and Flash Images

193

Configuring your QNX System Builder projects

Image Mount Point

The path where the filesystem is mounted in the filesystem. By default, the location is

/proc/boot

.

Image Name

Name of the

.ifs

file saved in the

Images

directory during a build.

Page Align Image?

If Yes, files in the image are aligned on page boundaries.

Remove File Time Stamps?

If Yes, file timestamps are replaced by the current date/time.

System (

.ifs

)

Auto Link Shared Libs?

If Yes, shared libraries referenced by the image’s binaries are automatically included in the image.

Boot File

The image filter that the QNX System Builder uses

(e.g. srec, elf) to perform further processing on the image file. For example, srec converts the image to the

Motorola S-Record format. (For more about image filters, see

mkifs

in the Utilities Reference.)

Procnto

Image Address

The base address where the image is copied to at boot time. For execute-in-place (XIP), set this to the same location as your image file on flash memory and specify the read/write memory address with the RAM

Address value, described below.

Which

procnto

binary to use (e.g.

procnto-600

,

procnto-600-smp

, etc.).

194

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

Procnto/Startup Symbol Files?

If Yes, include debugging symbol files for

procnto

and the system startup code.

Procnto $LD_LIBRARY_PATH

Path(s) where

procnto

should look for shared libraries. Separate the paths with a colon (

:

).

Procnto $PATH

Path(s) where

procnto

should look for executables.

Separate the paths with a colon (

:

).

Procnto Arguments

Command-line arguments for

procnto

.

RAM Address

The location of your read/write memory. For XIP, set the address; otherwise, set the value to Default. (Note that RAM Address is the

ram

attribute in the

mkifs

utility.)

Startup

Which startup binary to use (e.g.

startup-bios

,

startup-rpx-lite

, etc.).

Startup Arguments

Command-line arguments for the startup program.

Use APS?

If Yes, the System Builder adds the

aps

module to the invocation of

procnto

in the OS image. You need this module if you want to use adaptive partitioning on the target system.

To create partitions and run programs in them at boot time, add the appropriate commands to the image’s

.bsh

file. For more information, see “Boot script” earlier in this chapter.

Chapter 6

Building OS and Flash Images

195

Configuring your QNX System Builder projects

System ( .efs

)

These settings control the format and size of your flash filesystem image. Unless otherwise specified, the values are in bytes, but you can use the suffixes

K

,

M

, or

G

(e.g.

800

,

16K

,

2M

,

4G

). The IDE immediately rejects invalid entries.

Block Size

The size of the blocks on your flash.

Filesystem Type

The type of flash filesystem to create. Use the default (ffs3) unless you specifically need compatibility with older software that requires ffs2 format images.

Filter

The filter to use with this image, usually

flashcmp

. (The

mkefs

utility calls

flashcmp

.)

You can use any valid command-line argument, such as

flashcmp -t zip

.

Maximum Image Size

The limit for the size of the generated image. If the image exceeds the maximum size,

mkefs

fails and reports an error in the System Builder Console view. The default setting of 4 GB accommodates most images.

Minimum Image Size

The minimum size of the embedded filesystem. If the size of the filesystem is less than this size after all the specified files have been added, then the filesystem is padded to the required size. The

Spare Blocks

The number of spare blocks to be used by the default is 0 (i.e. no padding occurs).

embedded filesystem. If you want the embedded filesystem to be able to reclaim the space taken up by deleted files, set the number of spare blocks to 1 or more. The default is 1.

196

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

Item properties

General

Absolute Location

The offset in the image for this item’s data, in bytes.

Filename

The name of the file for this item (e.g.

devc-ser8250

).

Image Name

The name of the image in which this item resides.

Include In Image

If Yes, the QNX System Builder includes this item when it builds the image.

Location In Image

The directory where the item lives. If you change this setting, the directory location shown in the

Filesystem pane changes as well.

Symbolic links also have a Linked To field for the source file.

Strip File

Optional Item?

If Yes, this item is considered optional. It’s excluded from the image if the image is too large to fit in the architecture-specific maximum image size.

By default,

mkifs

strips usage messages, debugging information, and Photon resources from executable files that you include in the image.

Doing this helps reduce the size of the image. To

(especially the

+raw

attribute) and

strip

in the

Utilities Reference.

keep this information, select No. See

mkifs

Chapter 6

Building OS and Flash Images

197

Configuring your QNX System Builder projects

Set this field to No if your image includes PhAB applications.

Memory

Use these two settings (which apply to

.ifs

files only) to specify whether a program’s code and data segments should be used directly from the image filesystem (Use In Place) or copied when invoked

(Copy). For more information, see the

code

attribute in the

mkifs

documentation.

Code Segment

Copy this item’s code segment into main memory, or Use In

Place to run the executable directly from the image.

Data Segment

Copy this item’s data segment into main memory, or Use In

Place to use it directly from the image.

Permissions

Use these settings to specify the read/write/execute permissions (in octal) assigned to each item, as well as the item’s group and user IDs.

Configuring project properties

The Properties dialog for your QNX System Builder project

(right-click the project, then select Properties) lets you view and change the overall properties of your project. For example, you can add dependent projects and configure search paths.

The dialog includes the following sections:

Info

Builders

Project Preferences

198

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

Refactoring History

Search Paths

For information on external tools, follow these links in the Eclipse

Workbench User Guide: Tasks

Building resourcesRunning

external tools.

Search Paths

The Search Paths pane lets you configure where the IDE looks for the files you specified in your

project.bld

file:

The IDE provides separately configurable search paths for:

binaries

Chapter 6

Building OS and Flash Images

199

Configuring your QNX System Builder projects

shared libraries

DLLs

other files

system files

To add a search path:

1

In the Navigator or System Builder Projects view, right-click your project and select Properties.

2

In the left pane, select Search Paths.

3

In the right pane, select one of the following tabs:

Binaries

Shared Libraries

DLLs

Other Files

System Files

4

Click one of the following buttons:

Add Absolute Path — a hard-coded path

Add QNX_TARGET Path — a path with a

$QNX_TARGET prefix

Add Workspace Path — a path with a $WORKSPACE prefix

Add Project Path — a path with a

$WORKSPACE/projectName prefix

5

Another dialog appears.

Select your path or project and click OK. The IDE adds your path to the end of the list.

To manage your search paths:

200

Chapter 6

Building OS and Flash Images

Configuring your QNX System Builder projects

1

2

In the Search Path section of the Properties dialog, select one of the following tabs:

Binaries

Shared Libraries

DLLs

Other Files

System Files

Select a path, then click one of these buttons:

Move Up

Move Down

Remove Selected

!

CAUTION: The

Overrides/

image_name and

Overrides

directories must be first ones in the list. The

Reductions/

image_name and

Reductions

directories, which are listed in the Shared Libraries tab, must be next in the list.

Changing the order of the

Overrides

or

Reductions

directories may cause unexpected behavior.

3

Click OK.

Search path variables

You can use any of the following environment variables in your search paths; these are replaced by their values during processing:

CPU

CPUDIR

PLATFORM

PROJECT

QNX_TARGET

Chapter 6

Building OS and Flash Images

201

Optimizing your system

QNX_TARGET_CPU

VARIANT

WORKSPACE

Optimizing your system

Since “less is better” is the rule of thumb for embedded systems, the

QNX System Builder’s System Optimizer and the Dietician help you optimize your final system by:

reducing the size of shared libraries for your image

performing system-wide optimizations to remove unnecessary shared libraries, add required shared libraries, and reduce the size of all shared libraries in the system

!

CAUTION: If you reduce a shared library, and your image subsequently needs to access binaries on a filesystem (disk, network, etc.) that isn’t managed by the QNX System Builder, then the functions required by those unmanaged binaries may not be present.

This causes those binaries to fail on execution.

In general, shared-library optimizers such as the Dietician are truly useful only in the case of a finite number of users of the shared libraries, as you would find in a closed system (i.e. a typical embedded system).

If you have only a small number of unmanaged binaries, one workaround is to create a dummy flash filesystem image and add to this image the binaries you need to access. This dummy image is built with the rest of the images, but it can be ignored. This technique lets the Dietician be aware of the requirements of your runtime system.

202

Chapter 6

Building OS and Flash Images

Optimizing your system

Optimizing all libraries in your image

To optimize all the libraries in an image:

1

In the Navigator or System Builder Projects view, double-click your project’s

project.bld

file.

2

3

In the toolbar, click the Optimize System button ( ).

In the System Optimizer, select the optimizations that you want to make:

Remove unused libraries

When you select this option, the Dietician inspects your entire builder project and ensures that all shared libraries in the system are required for proper operation. If the

QNX System Builder finds libraries that no component in your project actually needs, you’ll be prompted to remove those libraries from your project.

Add missing libraries

This option causes the Dietician to inspect your entire project for missing libraries. If any binaries, DLLs, or shared libraries haven’t met load-time library requirements, you’ll be prompted to add these libraries to your project.

Apply diet(s) system wide

This option runs the Dietician on all the libraries selected.

The diets are applied in the proper order so that runtime dependencies aren’t broken. If you were to do this by hand, it’s possible that the dieting of one shared library could render a previously dieted shared library nonfunctional. The order of operations is key!

Chapter 6

Building OS and Flash Images

203

Optimizing your system

To ensure that your image works and is as efficient as possible, you should select all three options.

4

5

Click Next. On the next three pages, you’ll see a list of the libraries scheduled to be removed, added, or put on a diet.

Uncheck the libraries that you don’t want included in the operation, then move to the next page.

Click Finish. The System Optimizer optimizes your libraries; the reduced libraries appear in your project’s

Reductions

/image_name directory.

Optimizing a single library

Optimizing a single library doesn’t reduce the library as effectively as optimizing all libraries simultaneously, because the System Optimizer accounts for dependencies.

To reduce a library such as

libc

using the Dietician, you must iteratively optimize each individual library in your project between two and five times (depending on the number of dependency levels).

You can reduce a single library to its optimum size if it has no dependencies.

To optimize a single library in an image:

1

If your project isn’t already open, double-click its

project.bld

file in the Navigator or System Builder Projects view.

2

3

4

In the QNX System Builder editor, expand the Shared

Libraries list and select the library you want to optimize.

option.

In the toolbar, click the Optimize System button ( ).

In the System Optimizer, select the Apply diet(s) system wide

204

Chapter 6

Building OS and Flash Images

Moving files between the host and target

5

6

Click Next. In the next few pages, the Dietician shows the unnecessary libraries, any additional needed libraries, and the libraries that can be optimized.

Click Finish. The Dietician removes unused libraries, adds the additional required libraries, and generates new, reduced libraries. Reduced libraries are added to your project’s

Reductions

/image_name directory.

Restoring a slimmed-down library

If after reducing a library, you notice that your resulting image is too

“slim,” you can manually remove the reduced library from the

Reductions

directory, and then rebuild your image using a standard,

“full-weight” shared library.

To restore a library to its original state:

1

In the Navigator or System Builder Projects view, open the

Reductions

directory in your project. This directory contains the reduced versions of your libraries.

2

Right-click the library you want to remove and select Delete.

Click OK to confirm your selection. The IDE deletes the unwanted library; when you rebuild your project, the IDE uses the original version of the library.

Moving files between the host and target

The IDE’s Target File System Navigator view lets you easily move files between your host and a filesystem residing on your target.

Chapter 6

Building OS and Flash Images

205

Moving files between the host and target

If you haven’t yet created a target system, you can do so right from within the Target File System Navigator view.

To create a target system:

Right-click anywhere in the view, then select Add New Target.

Note that the Target File System Navigator view isn’t part of the default QNX System Builder perspective; you must manually bring the view into your current perspective.

To see the Target File System Navigator view:

1

From the main menu, select Window

Show ViewOther. . . .

2

Select QNX Targets, then double-click Target File System

Navigator.

The view displays the target and directory tree in the left pane, and the contents of the selected directory in the right pane:

206

Chapter 6

Building OS and Flash Images

Moving files between the host and target

If the Target File System Navigator view has only one pane, click the dropdown menu button ( ) in the title bar, then select Show table.

You can also customize the view by selecting Table Parameters or

Show files in tree.

Moving files to the target

You can move files from your host machine to your target using copy-and-paste or drag-and-drop methods.

To copy files from your host filesystem and paste them on your target’s filesystem:

1

2

In a file-manager utility on your host (e.g. Windows Explorer), select your files, then select Copy from the context menu.

In the left pane of the Target File System Navigator view, right-click your destination directory and select Paste.

To convert files from DOS to Neutrino (or Unix) format, use the

textto -l

filename

command. (For more information, see

textto

in the Utilities Reference.)

To drag-and-drop files to your target:

Drag your selected files from any program that supports drag-and-drop (e.g. Windows Explorer), then drop them in the

Target File System Navigator view.

Drag-and-drop is not supported on Neutrino hosts.

Moving files from the target to the host

To copy files from your target machine and paste them to your host’s filesystem:

1

In the Target File System Navigator view, right-click a file, then select Copy to

File System. The Browse For Folder dialog appears.

Chapter 6

Building OS and Flash Images

207

Moving files between the host and target

To import files directly into your workspace, select Copy

to

Workspace. The Select Target Folder dialog appears.

2

Select your desired destination directory and click OK.

To move files to the host machine using drag-and-drop:

Drag your selected files from the Target File System Navigator view and drop them in the Navigator or System Builder

Projects view.

Drag-and-drop is not supported on Neutrino hosts.

208

Chapter 6

Building OS and Flash Images

Chapter 7

Developing Photon Applications

In this chapter. . .

What is PhAB?

211

Using PhAB

213

Starting Photon applications

217

Chapter 7

Developing Photon Applications

209

What is PhAB?

Use the PhAB visual design tool to develop Photon apps.

What is PhAB?

The Photon microGUI includes a powerful development tool called

PhAB (Photon Application Builder), a visual design tool that

generates the underlying C/C++ code to implement your program’s

UI.

With PhAB, you can dramatically reduce the amount of programming required to build a Photon application. You can save time not only in writing the UI portion of your code, but also in debugging and testing.

PhAB helps you get your applications to market sooner and with more professional results.

PhAB lets you rapidly prototype your applications. You simply select widgets, arrange them as you like, specify their behavior, and interact with them as you design your interface.

PhAB’s opening screen looks like this:

Chapter 7

Developing Photon Applications

211

What is PhAB?

PhAB and the IDE

The IDE frequently runs command-line tools such as

gdb

and

mkefs

“behind the scenes,” but PhAB and the IDE are separate applications; each runs in its own window. You can create files, generate code snippets, edit callbacks, test your UI components, etc. in PhAB, while you continue to use the IDE to manage your project as well as debug your code, run diagnostics, etc.

PhAB was originally designed to run under the Photon microGUI on a QNX Neutrino host, but the

phindows

(“Photon in Windows”) utility lets you run PhAB on a Windows host as well. The IDE lets you see, debug, and interact with your target Photon application right

212

Chapter 7

Developing Photon Applications

Using PhAB from your host machine as if you were sitting in front of your target machine.

Using PhAB

In most respects, using PhAB inside the IDE is the same as running

PhAB as a standalone application.

For a full description of PhAB’s functionality, see the Photon

Programmer’s Guide.

Creating a QNX Photon Appbuilder project

In order to use PhAB with the IDE, you must create a QNX Photon

Appbuilder project to contain your code. This type of project contains tags and other information that let you run PhAB from within the IDE.

To create a PhAB Project:

1

From the workbench menu, select File

NewProject. . . .

2

In the list, expand QNX.

3

Select Photon Appbuilder Project, and then click Next.

4

5

6

Name your project. If you don’t want to use the default location for the project, specify a different one.

Click Next.

Select your target architecture.

If you wish to set any other options for this project, click the remaining tabs and fill in the fields. For details on the tabs in this wizard, see “New C/C++ Project wizard tabs” in the Common

Wizards Reference chapter.

7

Click Finish.

The IDE creates your project, then launches PhAB. (In

Windows, the IDE also creates a Console for PhAB window.)

Chapter 7

Developing Photon Applications

213

Using PhAB

Closing PhAB

To end a PhAB session:

From PhAB’s main menu, select File

Exit.

In Windows, don’t end a PhAB session by clicking the Close button in the top-right corner of the PhAB window; clicking this button closes the

phindows

utility session without letting PhAB itself shut down properly. Subsequent attempts to restart PhAB may fail.

To recover from improperly closing PhAB:

1

2

Close the Console for PhAB window.

Reopen your QNX Photon Appbuilder project.

Reopening PhAB

To reopen your QNX Photon Appbuilder project, select it in the

C/C++ Projects view, open the Project menu, and then click Open

Appbuilder.

Editing code

You can edit the code in your QNX Photon Appbuilder project using both PhAB and the IDE. Using PhAB, you can control the widgets and the overall layout of your program; using either PhAB or the IDE, you can edit the code that PhAB generates and specify the behavior of your callbacks.

To use PhAB to edit the code in a QNX Photon Appbuilder project:

1

2

In the C/C++ Projects view, select a QNX Photon Appbuilder project.

Click the Open Appbuilder button in the toolbar (

PhAB starts, then opens your project.

).

214

Chapter 7

Developing Photon Applications

Using PhAB

3

4

If for some reason the Open Appbuilder button isn’t in the C/C++ perspective’s toolbar:

1

From the main menu, select Window

Customize

Perspective.

2

Select the Commands tab.

Check Photon Appbuilder Actions.

Click OK. The Open Appbuilder button appears in the toolbar.

To use the IDE to edit the code in a QNX Photon Appbuilder project:

In the C/C++ Projects view, double-click the file you want to edit. The file opens in an editor.

If a file that you created with PhAB doesn’t appear in the C/C++

Projects view, right-click your project and select Refresh.

Editing files using two applications can increase the risk of accidentally overwriting your changes. To minimize this risk, close the file in one application before editing the file in the other.

Building a QNX Photon Appbuilder project

You build a QNX Photon Appbuilder project in exactly the same way as other projects. (For information on building projects, see the

“Building projects” section in the Developing Programs chapter.)

To build a QNX Photon Appbuilder project:

Appbuilder project and select Build. The IDE builds your project.

In the C/C++ Projects view, right-click your QNX Photon

Chapter 7

Developing Photon Applications

215

Using PhAB

Importing an existing standalone QNX Photon

Appbuilder project

If you have an application written in the standalone version of QNX

Photon Appbuilder, you can import it into an empty IDE-based PhAB project. Once the project is imported, you can edit the source and build the project in the IDE. To import a standalone PhAB project:

1

Open the project in standalone PhAB and make sure it uses an

Eclipse Project directory structure. To do this, select

Project

Convert to Eclipse Project.

4

5

2

3

If this option is grayed out, the project already uses an Eclipse Project directory structure.

Save the project.

Run the IDE and create a new Photon Appbuilder Project. This will run PhAB automatically, but for now cancel and exit out of

PhAB. This creates a new, empty PhAB project in your workspace.

Select File

Import. . . , and choose File system to import resources from the local filesystem. Browse to the project saved earlier by standalone PhAB, and import the following four items:

the

abapp.dfn

file

the

abapp.wsp

file

the

src

directory and contents

the

wgt

directory and contents launch PhAB from the IDE to edit the project.

At this point you can rebuild the project using the IDE, and

216

Chapter 7

Developing Photon Applications

Starting Photon applications

Starting Photon applications

You can connect to a Photon session from a Windows or QNX

Neutrino host machine and run your Photon program as if you were sitting in front of the target machine. Photon appears in a

phindows

window on your Windows host or in a

phditto

window on your

QNX Neutrino host.

The remote Photon session runs independently of your host. For example, the clipboards don’t interact, and you can’t drag-and-drop files between the two machines. The

phindows

and

phditto

utilities transmit your mouse and keyboard input to Photon and display the resulting state of your Photon session as a bitmap on your host machine.

Before you run a remote Photon session on a Windows host, you must first prepare your target machine. For details, see the “Connecting with Phindows” section in the Preparing Your Target chapter.

To start a remote Photon session:

In the Target Navigator view, right-click a target and select

Launch Remote Photon.

2

Photon appears in a Phindows window.

You can start a Photon application you created in PhAB in exactly the same way that you launch any other program in the IDE. By default, the program opens in the target machine’s main Photon session. (For more on launching, see the Launch Configurations Reference chapter in this guide.)

To run your Photon program in a remote Photon session window:

1

In the remote Photon session, open a command window (e.g. a terminal from the shelf).

In the command window, enter:

echo $PHOTON

The target returns the session, such as

/dev/ph1470499

. The number after

ph

is the process ID (PID).

Chapter 7

Developing Photon Applications

217

Starting Photon applications

4

5

3

6

In the IDE, edit the launch configuration for your QNX Photon

Appbuilder project.

Select the Arguments tab.

In the C/C++ Program Arguments field, enter

-s

followed by the value of $PHOTON. For example, enter

-s /dev/ph1470499

.

Click Apply, then Run or Debug. Your remote Photon program opens in the

phindows

or

phditto

window on your host machine.

If you close and reopen a remote Photon session, you must update your launch configuration to reflect the new PID of the new session.

218

Chapter 7

Developing Photon Applications

Chapter 8

Profiling an Application

In this chapter. . .

Introducing the Application Profiler

221

Profiling your programs

223

Controlling your profiling sessions

233

Understanding your profiling data

235

Chapter 8

Profiling an Application

219

Introducing the Application Profiler

This chapter shows you how to use the application profiler.

Introducing the Application Profiler

The QNX Application Profiler perspective lets you examine the overall performance of programs, no matter how large or complex, without following the source one line at a time. Whereas a debugger helps you find errors in your code, the QNX Application Profiler helps you pinpoint “sluggish” areas of your code that could run more efficiently.

Chapter 8

Profiling an Application

221

Introducing the Application Profiler

The QNX Application Profiler perspective.

Types of profiling

The QNX Application Profiler lets you perform:

statistical profiling

instrumented profiling

postmortem profiling (on standard

gmon.out

files)

Statistical profiling

The QNX Application Profiler takes “snapshots” of your program’s execution position every millisecond and records the current address being executed. By sampling the execution position at regular intervals, the tool quickly builds a summary of where the system is spending its time in your code.

With statistical profiling, you don’t need to use instrumentation, change your code, or do any special compilation. The tool profiles

222

Chapter 8

Profiling an Application

Profiling your programs your programs unintrusively, so it doesn’t bias the information it’s collecting.

Note, however, that the results are subject to statistical inaccuracy because the tool works by sampling. Therefore, the longer a program runs, the more accurate the results.

Instrumented profiling

If you build your executables with profiling enabled, the QNX

Application Profiler can provide call-pair information (i.e. which functions called which). When you build a program with profiling enabled, the compiler inserts snippets of code into your functions in order to report the addresses of the called and calling functions. As your program runs, the tool produces an exact count for every call pair.

Postmortem profiling

The IDE lets you examine profiling information from a

gmon.out

file produced by an instrumented application. The tool gives you all the information you’d get from the traditional

gprof

tool, but in graphical form. You can examine

gmon.out

files created by your programs, whether you built them using the IDE or the

qcc -p

command. For more on the

gprof

utility, go to

www.gnu.org

; for

qcc

, see the Utilities Reference.

Profiling your programs

Whether you plan to do profiling in real time or postmortem (using a

gmon.out

file), you should build your programs with profiling enabled before starting a profiling session.

This section includes these topics:

Building a program for profiling

Running and profiling a process

Profiling a running process

Chapter 8

Profiling an Application

223

Profiling your programs

Postmortem profiling

If you already have a

gmon.out

file, you’re ready to start a postmortem profiling session.

Building a program for profiling

Although you can profile any program, you’ll get the most useful results by profiling executables built for debugging and profiling. The debug information lets the IDE correlate executable code and individual lines of source; the profiling information reports call-pair data.

Profiling is handled by functions in

libc

; be sure to check our website for

libc

updates from time to time.

This table shows the application-profiling features that are possible with the various build variants:

Feature

Call pairs

Statistical sampling

Release version

No No

Yes (function level) Yes

No

Debug version Release v.

& profiling

Yes

Yes

Yes

(function level)

No

Debug v. & profiling

Yes

Yes

Yes Line profiling

Postmortem profiling

No Yes Yes No

To build executables with debug information and profiling enabled:

224

Chapter 8

Profiling an Application

Profiling your programs

1

2

3

4

In the C/C++ Projects view, right-click your project and select

Properties.

In the left pane, select QNX C/C++ Project.

In the right pane, select the Options tab.

Check the Build with Profiling option:

5

Select the Build Variants tab and check the Debug variant for your targets.

The QNX Application Profiler uses the information in the debuggable executables to correlate lines of code in your executable and the

7

source code. To maximize the information you get while profiling, use executables with debug information for both running and debugging.

6

Click Apply.

Click OK.

Chapter 8

Profiling an Application

225

Profiling your programs

8

Rebuild your project.

To build a Standard Make C/C++ project for profiling, compile and link using the

-p

option. For example, your

Makefile

might have a line like this:

CFLAGS=-p CXXFLAGS=-p LDFLAGS=-p

Running and profiling a process

To run and profile a process, with

qconn

on the target:

1

2

Create a QNX Application launch configuration for an executable with debug information as you normally would, but don’t click OK. You may choose either a Run or a Debug session.

On the launcher, click the Tools tab.

3

4

5

6

Click Add/Delete Tool. The Select tools to support dialog appears.

Enable the Application Profiler tool.

Click OK.

On the launcher, click the Application Profiler tab:

226

Chapter 8

Profiling an Application

Profiling your programs

7

8

9

Fill in these fields:

Profiler update interval (ms)

Use this option to control how often the Profiler polls for data. A low setting causes continuous (but low) network traffic and fast refresh rates. A high setting causes larger network data bursts and may cause higher memory usage on the target because the target must buffer the data. The default setting of 1000 should suffice.

Shared library paths

The IDE doesn’t know the location of your shared library paths, so you must specify the directory containing any libraries that you wish to profile.

Switch to this tool’s perspective on launch.

Check this option to automatically switch to the QNX

Application Profiler perspective when this launch configuration is used.

If you want the IDE to automatically change to the QNX

Application Profiler perspective when you run or debug, check the Switch to this tool’s perspective on launch box.

Click Apply.

Chapter 8

Profiling an Application

227

Profiling your programs

10

Click Run or Debug. The IDE starts your program and profiles it.

To produce full profiling information with function timing data, you need to run the application as

root

. This is the case when running through

qconn

.

If you run the application as a normal user, the profiler can generate only call-chain information.

Profiling a running process

To profile a process that’s already running on your target:

2

3

4

5

6

7

When you profile a running process, you can’t use the Console view in the IDE to interact with this process. If your running process requires user input through the Console view, use a shell to interact with the process.

1

While the application is running, open the Launch

Configurations dialog by choosing Run

Debug. . . from the menu.

Select C/C++ QNX Attach to Process w/QConn (IP) in the list on the left.

Click the New button to create a new attach-to-process configuration.

Configure things as you normally would for launching the application with debugging.

On the Tools tab, click Add/Delete Tool. . . . The Tools

Selection dialog appears.

Enable the Application Profiler tool, then click OK.

On the launcher, click the Application Profiler tab:

228

Chapter 8

Profiling an Application

Profiling your programs

8

Fill in these fields:

Profiler update interval (ms)

You use this option to control how often the Profiler polls for data. A low setting causes continuous (but low) network traffic and fast refresh rates. A high setting causes larger network data bursts and may cause higher memory usage on the target because the target must buffer the data. The default setting of 1000 should suffice.

Shared library paths

The IDE doesn’t know the location of your shared library paths, so you must specify the directory containing any

Chapter 8

Profiling an Application

229

Profiling your programs

9

libraries that you wish to profile. For a list of the library paths that are automatically included in the search path, see the appendix Where Files Are Stored.

Switch to this tool’s perspective on launch.

Check this to automatically switch to the QNX

Application Profiler perspective when using this launcher.

Click Apply, and then click Debug. The Select Process dialog is displayed, showing all of the currently running processes:

10

Select the process you want to profile, then click OK.

230

Chapter 8

Profiling an Application

Profiling your programs

Your running application won’t generate call-pair information unless you ran it with the QCONN_PROFILER environment variable set to

/dev/profiler

.

If you’re launching the application from the IDE, add

QCONN_PROFILER to the Environment tab of the launch configuration’s Properties dialog.

If you’re running the application from the command line, you can simply add QCONN_PROFILER to your shell environment, or the application’s command-line:

QCONN_PROFILER=/dev/profiler ./

appname

Postmortem profiling

The IDE lets you profile your program after it terminates, using the traditional

gmon.out

file. Postmortem profiling doesn’t provide as much information as profiling a running process:

Multithreaded processes aren’t supported. Thus, the Thread

Processor Usage view always shows the totals of all your program’s threads combined as one thread.

Call-pair information from shared libraries and DLLs isn’t shown.

Profiling a

gmon.out

file involves three basic steps:

gathering profiling information into a file

importing the file into your workspace

starting the postmortem profiling session

Gathering profiling information

The IDE lets you store your profiling information in the directory of your choice using the PROFDIR environment variable.

To gather profiling information:

Chapter 8

Profiling an Application

231

Profiling your programs

1

Create a launch configuration for a debuggable executable as you normally would, but don’t click Run or Debug.

4

5

6

7

2

3

You must have the QNX Application Profiler tool disabled in your launch configuration.

Select the Environment tab.

Click New.

In the Name field, type

PROFDIR

.

In the Value field, enter a valid path to a directory on your target machine.

Click OK.

Run your program. When your program exits successfully, it creates a new file in the directory you specified. The filename format is pid.fileName (e.g.

3047466.helloworld_g

). This is the

gmon.out

profiler data file.

Importing a

gmon.out

file

You can bring existing

gmon.out

files that you created outside the

IDE into your workspace from your target system.

To import a

gmon.out

file into your workspace:

1

Open the Target File System Navigator view (Window

Show

View

Other. . . QNX TargetsTarget File System

Navigator).

2

3

4

5

In the Target File System Navigator view, right-click your file and select Copy to. . .

Workspace. The Select target folder dialog appears.

Select the project related to your program.

Click OK.

In the C/C++ Projects view, right-click the file you imported into your workspace and select Rename.

232

Chapter 8

Profiling an Application

Controlling your profiling sessions

6

Enter

gmon.out

(or

gmon.out.

n

, where n is any numeric character). The IDE renames your file.

Starting a postmortem profiling session

To start the postmortem profiling session:

1

In the C/C++ Projects view, right-click your

gmon.out

file and select Open in QNX Application Profiler. The Program

Selection dialog appears.

2

Select the program that generated the

gmon.out

file.

3

Click OK. You can now profile your program in the QNX

Application Profiler perspective.

Controlling your profiling sessions

The Application Profiler view (Window

Show

View

Other. . . QNX Application ProfilerApplication

Profiler) lets you control multiple profiling sessions simultaneously.

You can:

terminate applications

choose the executable or library to show profiling information for in the Sampling Information, Call Information, and Thread

Processor Usage views

Chapter 8

Profiling an Application

233

Controlling your profiling sessions

Session item

Launch instance

The Application Profiler view displays the following as a hierarchical tree for each profiling session:

Profiled program

Application Profiler instance

Description

Launch configuration name and launch type (e.g.

prof201

[C/C++ QNX QConn (IP)]

)

Project name and start time

(e.g.

prof201 on localhost pid 4468773

(3/4/03 12:41 PM)

)

Program name and target computer (e.g.

Application

Profiler Attached to: prof201 <4468773> on

10.12.3.200

)

Possible icons

Executable

Shared libraries

DLLs

Unknown

To choose which executable or library to display information for in the QNX Application Profiler perspective:

In the Application Profiler view, click one of the following:

the QNX Application Profiler instance

1

an executable

a shared library

a DLL

To terminate an application running on a target:

In the Application Profiler view, select a launch configuration.

234

Chapter 8

Profiling an Application

Understanding your profiling data

2

Click the Terminate button ( ) in the view’s title bar.

To clear old launch listings from this view, click the Remove All

Terminated Launches button ( ).

To disconnect from an application running on a target:

1

In the Application Profiler view, select a running profiler.

2

Click the Disconnect button ( ) in the view’s title bar.

To clear old launch listings from this view, click the Remove All

Terminated Launches button ( ).

Understanding your profiling data

For each item you select in the Application Profiler view, other views within the QNX Application Profiler perspective display the profiling information for that item:

This view: Shows:

Application Profiler

Sampling Information

Usage by line

Usage by function

Thread Processor Usage Usage by thread

Call Information Call counts

Usage by line

The Application Profiler editor lets you see the amount of time your program spends on each line of code and in each function.

To open the editor:

1

Launch a profile session for a debuggable (i.e.

_g

) executable.

Chapter 8

Profiling an Application

235

Understanding your profiling data

2

3

In the Application Profiler view, select your program by selecting an Application Profiler instance ( ) or an executable ( ).

In the Sampling Information or Call Information view, double-click a function that you have the source for. The IDE opens the corresponding source file in the Application Profiler editor:

You may get incorrect profiling information if you change your source after compiling, because the Application Profiler editor relies on the line information provided by the debuggable version of your code.

The Application Profiler editor displays a bar graph on the left side.

The bars are color coded:

236

Chapter 8

Profiling an Application

Understanding your profiling data

Green CPU time spent within the function as a percentage of the program’s total CPU time. The green bar appears on the first line of executable code in the function.

Orange CPU time spent on a line of code as a percentage of the program’s total CPU time. Within a function, the lengths of the orange bars add up to the length of the green bar.

Blue CPU time spent on a line of code as a percentage of the function’s total CPU time. Within a function, the sum of all the blue bars spans the width of the editor’s margin.

To view quantitative profiling values:

In the Application Profiler editor, let the pointer hover over a colored bar. The CPU usage appears, displayed as a percentage and a time:

Usage by function

The Sampling Information view shows a flat profile of the item that’s currently selected in the Application Profiler view. You can examine profiling information for programs, shared libraries, and DLLs:

Chapter 8

Profiling an Application

237

Understanding your profiling data

The view lists all the functions called in the selected item. For each function, this view displays:

the total CPU time spent in the function

the CPU time spent in the function since you last reset the counters

If you select a program compiled for profiling, the view also displays:

the number of times the function has been called

the average CPU time per call

To see your function usage:

1

2

Launch a profile session for a profiling-enabled (i.e.

_g

) executable.

In the Application Profiler view, select your program by selecting an Application Profiler instance ( ) or any subordinate line. The Sampling Information view displays profiling information for your selection.

To reset the counters in the Time since last reset(s) column:

Select the Use/Calls since last reset item from the dropdown menu in the title bar for the Sampling Information view.

Usage by thread

The Thread Processor Usage view displays the CPU usage (in seconds and as a percentage of your program’s total time) for each thread of the item that’s currently selected in the Application Profiler view:

238

Chapter 8

Profiling an Application

Understanding your profiling data

You can use this information to:

identify which threads are the most and least active

determine the appropriate size of your application’s thread pool.

(If there are idle threads, you might want to reduce the size of the pool.)

To see your thread usage:

1

Launch a profile session for a profiling-enabled (i.e.

executable.

_g

)

2

In the Application Profiler view, select your program by selecting an Application Profiler instance ( ) or any subordinate line. The Thread Processor Usage view displays profiling information for your selection.

Call counts

For the item that’s currently selected in the Application Profiler view, the Call Information view shows your call counts in three panes:

Call Pairs

Call Graph

Call Pair Details.

To display your call counts:

1

Launch a profile session for a profiling-enabled (i.e.

_g

) executable.

2

In the Application Profiler view, select your program by selecting an Application Profiler instance ( ) or any subordinate line. The Call Information view displays profiling information for your selection:

Chapter 8

Profiling an Application

239

Understanding your profiling data

Call Pairs pane

The Call Pairs pane shows you where every function was called from as well as the call-pair count, i.e. the number of times each function called every other function.

Call Graph pane

The Call Graph pane shows you a graph of the function calls. Your selected function appears in the middle, in blue. On the left, in yellow, are all the functions that called your function. On the right, also in yellow, are all the functions that your function called.

240

Chapter 8

Profiling an Application

Understanding your profiling data

To see the calls to and from a function:

Click a function in:

the Function column in the Call Pairs pane or:

the Call Graph pane

You can display the call graph only for functions that were compiled with profiling enabled.

Call Pair Details pane

The Call Pair Details pane shows the information about the function you’ve selected in the Call Graph pane. The Caller and Call Count columns show the number of times each function called the function you’ve selected.

The Called and Called Count columns show the number of times your selected function called other functions. This pane shows only the functions that were compiled with profiling. For example, it doesn’t show calls to functions, such as printf(), in the C library.

Chapter 8

Profiling an Application

241

Chapter 9

Using Code Coverage

In this chapter. . .

Code coverage in the IDE

245

Enabling code coverage

248

Importing

gcc

code coverage data from a project

252

Associated views

253

Code Coverage Sessions View

254

Code Coverage Properties View

259

Code Coverage Report View

260

Chapter 9

Using Code Coverage

243

Code coverage in the IDE

Use the Code Coverage tool to help test your code.

Code coverage in the IDE

Code coverage is a way to measure how much code a particular process has executed during a test or benchmark. Using code-coverage analysis, you can then create additional test cases to increase coverage and determine a quantitative measure of code coverage, which is an indirect measure of the quality of your software

(or better, a direct measure of the quality of your tests).

Types of code coverage

Several types of metrics are commonly used in commercial code-coverage tools, ranging from simple line or block coverage (i.e.

“this statement was executed”) to condition-decision coverage (i.e.

“all terms in this Boolean expression are exercised”). A given tool usually provides a combination of types.

The coverage tool in the IDE is a visual front end to the

gcov

metrics produced by the

gcc

compiler. These coverage metrics are essentially basic block coverage and branch coverage.

The IDE presents these metrics as line coverage, showing which lines are fully covered, partially covered, and not covered at all. The IDE

Chapter 9

Using Code Coverage

245

Code coverage in the IDE also presents percentages of coverage in terms of the actual code covered (i.e. not just lines).

Block coverage

Block coverage, sometimes known as line coverage, describes whether a block of code, defined as not having any branch point within (i.e. the path of execution enters from the beginning and exits at the end) is executed or not.

By tracking the number of times the block of code has been executed, the IDE can determine the total coverage of a particular file or function. The tool also uses this information to show line coverage by analyzing the blocks on each line and determining the level of coverage of each.

Branch coverage

Branch coverage can track the path of execution taken between blocks of code. Although this metric is produced by the

gcc

compiler, currently the IDE doesn’t provide this information.

How the coverage tool works

The IDE’s code coverage tool works in conjunction with the compiler

(

gcc

), the QNX C library (

libc

), and optionally the remote target agent (

qconn

). When code coverage is enabled for an application, the compiler instruments the code so that at run time, each branch execution to a basic block is counted. During the build, the IDE produces data files in order to recreate the program’s flow graph and to provide line locations of each block.

246

Chapter 9

Using Code Coverage

Code coverage in the IDE

!

CAUTION: Since the IDE creates secondary data files at compilation time, you must be careful when building your programs in a multitargeted build environment such as QNX Neutrino.

You must either:

ensure that the last compiled binary is the one you’re collecting coverage data on, or:

enable only one architecture and debug/release variant.

Note also that the compiler’s optimizations could produce unexpected results, so you should perform coverage tests on an unoptimized, debug-enabled build.

When you build a program with the Build with Code Coverage build option enabled and then launch it using a C/C++ QNX Qconn (IP) launch configuration, the instrumented code linked into the process connects to

qconn

, allowing the coverage data to be read from the process’s data space.

But if you launch a coverage-built process with coverage disabled in the launch configuration, this causes the process to write the coverage information to a data file (

.da

) at run time, rather than read it from the process’s data space.

You should use data files only if you’re running the local launch configuration on a QNX Neutrino self-hosted development system.

Note that you can later import the data into the IDE code coverage tool. For information about importing

gcc

coverage data from a project, see “Importing

gcc

code coverage data from a project” later in this chapter.

Once a coverage session has begun, you can immediately view the data. The QNX Code Coverage perspective contains a Code Coverage

Sessions view that lists previous as well as currently active sessions.

Chapter 9

Using Code Coverage

247

Enabling code coverage

You can explore each session and browse the corresponding source files that have received coverage data.

Enabling code coverage

To build executables with code coverage enabled:

1

In the C/C++ Projects view, right-click your project and select

Properties. The properties dialog for your project appears.

2

3

4

In the left pane, select QNX C/C++ Project.

In the Build Options pane, check Build with Code Coverage.

In the Build Variants tab, check only one build variant.

5

6

If the IDE is set to build more than one variant, an error is displayed and the OK button is disabled.

7

Click OK.

In the C/C++ Projects view, right-click your project and select

Clean....

Be sure that your project is selected, and check the Start a

build immediately box, then click OK to rebuild your project.

Enabling code coverage for Standard Make projects

If you’re using your own custom build environment, rather than QNX

Makefile

s, you’ll have to manually pass the coverage option to the compiler.

1

2

To enable code coverage for non-QNX projects:

Compile using these options to

gcc

:

-fprofile-arcs -ftest-coverage

If you’re using

qcc

, compile with:

-Wc,-fprofile-arcs -Wc,-ftest-coverage

Link using the

-p

option.

248

Chapter 9

Using Code Coverage

Enabling code coverage

For example, your

Makefile

might look something like this:

objects:=Profile.o main.o

CC:=qcc -Vgcc_ntox86

CFLAGS:=-g -Wc,-ftest-coverage -Wc,-fprofile-arcs -I. -I../proflibCPP-std

LDFLAGS:=-p -g -L../proflibCPP-std -lProfLib -lcpp all: profileCPP-std clean:

-rm $(objects) profileCPP-std *.bb *.bbg

profileCPP-std: $(objects)

$(CC) $ˆ -o [email protected] $(LDFLAGS)

Starting a coverage-enabled program

To start a program and measure the code coverage:

1

Create a C/C++ QNX QConn (IP) launch configuration as you normally would, but don’t click OK yet.

2

3

4

On the launcher, click the Tools tab.

Click Add/Delete Tool. The Tools selection dialog appears.

Check the Code Coverage tool:

Chapter 9

Using Code Coverage

249

Enabling code coverage

5

6

Click OK.

Click the Code Coverage tab, and fill in these fields:

250

Chapter 9

Using Code Coverage

Enabling code coverage

Enable GCC 3 Coverage metrics collection

Check this if your application was compiled with

gcc

3.3

or later. The default is to collect code coverage

Code Coverage data scan interval (sec)

information from applications compiled with

gcc

2.95.

This option sets how often the Code Coverage tool polls for data. A low setting can cause continuous network traffic. The default setting of 5 seconds should suffice.

Chapter 9

Using Code Coverage

251

Importing

gcc

code coverage data from a project

7

Referenced projects to include coverage data from

Check any project in this list you wish to gather code-coverage data for. Projects must be built with coverage enabled.

Comments for this coverage session

Your notes about the session, for your own personal use.

The comments appear at the top of the generated reports.

Check Switch to this tool’s perspective on launch if you want to automatically go to the QNX Code Coverage perspective when you run or debug. toolsselection.gif

Click Apply.

Click Run or Debug.

8

9

Importing gcc project code coverage data from a

If you launched a code coverage-enabled build process and chose to disable code coverage in the launch configuration, the process writes the coverage information to a data file (

.da

) at run time, rather than read it from the process’s data space. This means that you can choose to import this data into the IDE Code Coverage tool at a later time.

To import

gcc

code coverage data from a project:

1

Create and build a project with code coverage selected. For information about enabling code coverage, see “Enabling code coverage” earlier in this chapter.

2

3

4

Create a launch configuration where code coverage is disabled.

Run this configuration.

Observe the target’s directory using the Target File System

Navigator tab in the Tasks view (bottom of the Workbench window) in the location where the file

project

_

name.da resides.

252

Chapter 9

Using Code Coverage

Associated views

5

6

7

8

9

By default, you will not have the Target File System

Navigator tab in your Tasks view. To add this tab to your view:

4a

Select Window

Show ViewOther.

4b

Expand QNX Targets.

4c

Select Target File System Navigator.

4d

Click OK.

For the target, right-click on the file

project

_

name.da and select

Copy to

Workspace.

In the Select Target Folder window, specify a folder location to copy the file, and click OK.

The

project

_

name.da will be visible under the C/C++ tab for the corresponding project.

On the QNX Code Coverage tab, select File

ImportGCC

Code Coverage Data from Project.

Specify the name of the session, click Browse to locate a project, and then click OK.

Click Finish.

Now, the Code Coverage tab displays the session name and imported

gcc

code coverage data for the selected project.

Associated views

The QNX Code Coverage perspective includes the following views:

Code Coverage Sessions View (controlling your session and examining data line-by-line)

Code Coverage Report View (examining your coverage report)

Code Coverage Properties View (seeing your coverage at a glance)

Chapter 9

Using Code Coverage

253

Code Coverage Sessions View

Code Coverage Sessions View

The Code Coverage Sessions view lets you control and display multiple code-coverage sessions:

The view displays the following as a hierarchical tree for each session:

Session item Description

Project

Code coverage session Launch configuration name, coverage tool, and start time (e.g.

ccov102_factor [GCC Code

Coverage] (7/2/03 2:48 PM)

)

(e.g.

ccov102_factor [ 86.67% ]

)

Project name and amount of coverage

Possible icons

continued. . .

254

Chapter 9

Using Code Coverage

Code Coverage Sessions View

Session item

File

Function

Description

Filename and amount of coverage (e.g.

ccov102_factor.c [ 86.67% ]

)

Function name and amount of coverage

(e.g.

main [ 100% ]

)

Possible icons

The IDE uses several icons in this view:

Icon Icon Color Meaning

White

Yellow

Green

No coverage

Partial coverage

Full (100%) coverage

Missing or out-of-date source file

The IDE also adds a coverage markup icon ( ) to indicate source markup in the editor. (See the “Examining data line-by-line” section, below.)

To reduce the size of the hierarchical tree, click the Collapse All (

) button.

To combine several sessions:

1

In the Code Coverage Sessions view, select the sessions you want to combine.

2

Right-click your selections and select Combine/Copy

Sessions. The IDE prompts you for a session name and creates a combined session.

Examining data line-by-line

The IDE can display the line-by-line coverage information for your source code. In the left margin, the editor displays a “covered” icon

Chapter 9

Using Code Coverage

255

Code Coverage Sessions View

( ) beside each line of source. In the right margin, the editor displays a summary of the coverage by showing green sections for fully-covered code, yellow for partial coverage, and red for no coverage:

The Code Coverage Report view provides a summary (in XML) of your session. The view lets you “drill down” into your project and see the coverage for individual files and functions:

Generating a report

To generate a report, right-click a coverage session and select

Generate Report.

By default, the IDE displays reports in the Code Coverage Report view, but you can also have the IDE display reports in an external

256

Chapter 9

Using Code Coverage

Code Coverage Sessions View browser. Using an external browser lets you compare several reports simultaneously.

Changing views

To toggle between viewing reports in the Code Coverage Report view and in an external browser:

1

2

Open the Preferences dialog (Window

Preferences).

In the left pane, select General

Web Browser.

3

In the right pane, enable/disable the Use external Web

browser check box.

4

Click OK.

Printing a report

To print a report:

In the Code Coverage Report view’s title bar, click the Print button ( ).

Saving a report

To save a report:

1

Right-click in the Code Coverage Report view to display the context menu.

2

Click Save As... to save the report./neutrino

Refreshing a report

To refresh a report:

In the Code Coverage Report view’s title bar, click the Refresh button ( ).

The Code Coverage Report view provides a summary (in XML) of your session. The view lets you “drill down” into your project and see the coverage for individual files and functions:

Chapter 9

Using Code Coverage

257

Code Coverage Sessions View

Opening a file in the Code Coverage perspective

To open a file in the QNX Code Coverage perspective:

In the Code Coverage Sessions view, expand a session and double-click a file or function.

Dispalying coverage information for a specific session

To display coverage information from a particular session:

In the Code Coverage Sessions view, right-click a session and select Coverage Markup, then select one of the following:

Mark lines not covered

Mark lines partially covered

258

Chapter 9

Using Code Coverage

Code Coverage Properties View

Mark lines fully covered

The selected icon appears beside the corresponding source in the

C/C++ editor. In the Code Coverage Sessions view, a coverage marker ( ) overlays the source file icon.

Displaying coverage information when opening a file

To automatically show coverage information when opening a file:

1

2

Open the Preferences dialog (Window

Preferences).

In the left pane, select QNX

Code Coverage.

3

In the right pane, check the desired markers in the Coverage

markup when file is opened field.

4

Click OK. The next time you open a file, the markers appear automatically. To add markers from another session, add them manually, as described above.

Removing coverage markers

To remove all coverage markers:

In the Code Coverage Sessions view’s title bar, click the

Remove All Coverage Markers button ( ).

Code Coverage Properties View

The Properties view displays a summary of the code coverage for a project, file, or function you’ve selected in the Code Coverage

Sessions view.

covered, and so on:

The Properties view tells you how many lines were covered, not

Chapter 9

Using Code Coverage

259

Code Coverage Report View

Code Coverage Report View

The Code Coverage Report view provides a summary (in XML) of your session. The view lets you “drill down” into your project and see the coverage for individual files and functions:

260

Chapter 9

Using Code Coverage

Code Coverage Report View

Generating a report

To generate a report, simply right-click a coverage session and select

Generate Report.

By default, the IDE displays reports in the Code Coverage Report view, but you can also have the IDE display reports in an external browser. Using an external browser lets you compare several reports simultaneously.

Changing views

To toggle between viewing reports in the Code Coverage Report view and in an external browser:

1

Open the Preferences dialog (Window

Preferences).

Chapter 9

Using Code Coverage

261

Code Coverage Report View

2

3

4

In the left pane, select General

Web Browser.

In the right pane, enable/disable the Use external Web

browser check box.

Click OK.

Printing a report

To print a report:

In the Code Coverage Report view’s title bar, click the Print button ( ).

Saving a report

To save a report:

1

Right-click in the Code Coverage Report view to display the context menu.

2

Click Save As... to save the report.

Refreshing a report

To refresh a report:

In the Code Coverage Report view’s title bar, click the Refresh button ( ).

262

Chapter 9

Using Code Coverage

Chapter 10

Finding Memory Errors

In this chapter. . .

Introduction

265

Analyzing your program

276

Interpreting errors during memory analysis

282

Error message summary (memory analysis)

300

Memory analysis GUI flags and corresponding environment variables

302

Using a file to log the trace

304

Analyzing a running program

305

Analyzing shared objects

307

Associated views

308

Memory analysis session

308

Memory analysis editor

313

Chapter 10

Finding Memory Errors

263

Introduction

Use the QNX Memory Analysis perspective to solve memory problems.

Introduction

Have you ever had a customer say, “The program was working fine for days, then it just crashed”? If so, chances are good that your program had a memory error — somewhere.

Debugging memory errors can be frustrating; by the time a problem appears, often by crashing your program, the corruption may already be widespread, making the source of the problem difficult to trace.

The QNX Memory Analysis perspective shows you how your program uses memory and can help ensure that your program won’t cause problems. The perspective helps you quickly pinpoint memory errors in your development and testing environments before your customers get your product.

Chapter 10

Finding Memory Errors

265

Introduction

The QNX Memory Analysis perspective may produce incorrect results when more than one IDE is communicating with the same target system. To use this perspective, make sure only one IDE is connected to the target system.

Memory management in QNX Neutrino

By design, Neutrino’s architecture helps ensure that faults, including memory errors, are confined to the program that caused them.

Programs are less likely to cause a cascade of faults because processes are isolated from each other and from the microkernel.

Even device drivers behave like regular debuggable processes:

File system

User space

Microkernel

Programs

TCP/IP stack

Device drivers

This robust architecture ensures that crashing one program has little or no effect on other programs throughout the system. When a program faults, you can be sure that the error is restricted to that process’s operation.

Neutrino’s full memory protection means that almost all the memory addresses your program encounters are virtual addresses. The process manager maps your program’s virtual memory addresses to the actual transparently split up in your system’s physical memory: physical memory; memory that is contiguous in your program may be

266

Chapter 10

Finding Memory Errors

Introduction

Virtual memory Mapping Physical memory

1

1

2

3

2

3

The process manager allocates memory in small pages (typically

4 KB each). To determine the size for your system, use the

sysconf(_SC_PAGESIZE)

function.

As you’ll see when you use the Memory Information view of the

QNX System Information perspective, the IDE categorizes your program’s virtual address space as follows:

program

stack

shared library

objects

heap

Chapter 10

Finding Memory Errors

267

Introduction

0xFFFFFFFF

Growth

Reserved

Shared libraries

Growth

Objects

Growth

Process base address

Growth

Heap

Program

Stack

Stack Guard page

0

Process memory layout on an x86.

The Memory Information and Malloc Information views of the QNX

System Information perspective provide detailed, live views of a process’s memory. See the Getting System Information chapter for more information.

Program memory

Program memory holds the executable contents of your program. The actual compiled code); the data section contains all the values of the global and static variables used during your program’s lifetime: code section contains the read-only execution instructions (i.e. your

268

Chapter 10

Finding Memory Errors

Introduction

MyProgram

(executable) int min=10; int max = 50; int main () {

}

Program's virtual memory

Program code

&min

&max

Program data

Mapping Physical memory

Stack memory

Stack memory holds the local variables and parameters your program’s functions use. Each process in Neutrino contains at least the main thread; each of the process’s threads has an associated stack.

When the program creates a new thread, the program can either allocate the stack and pass it into the thread-creation call, or let the system allocate a default stack size and address:

Program's virtual memory

Thread 1 stack

Thread 2 stack

Thread 3 stack

Thread 4 stack

Growth

When your program runs, the process manager reserves the full stack in virtual memory, but not in physical memory. Instead, the process manager requests additional blocks of physical memory only when your program actually needs more stack memory. As one function calls another, the state of the calling function is pushed onto the stack.

Chapter 10

Finding Memory Errors

269

Introduction

When the function returns, the local variables and parameters are popped off the stack.

The used portion of the stack holds your thread’s state information and takes up physical memory. The unused portion of the stack is initially allocated in virtual address space, but not physical memory:

At the end of each virtual stack is a guard page that the microkernel uses to detect stack overflows. If your program writes to an address within the guard page, the microkernel detects the error and sends the process a

SIGSEGV signal.

As with other types of memory, the stack memory appears to be contiguous in virtual process memory, but isn’t necessarily so in physical memory.

Shared-library memory

Shared-library memory stores the libraries you require for your process. Like program memory, library memory consists of both code and data sections. In the case of shared libraries, all the processes map to the same physical location for the code section and to unique locations for the data section:

270

Chapter 10

Finding Memory Errors

Introduction

CommonLibrary.so

int loops = 0;

Counterfunction() {

for (loops= ; ;) {

...

}

}

Program 1's virtual memory

Program 1 library code

&loops

Program 1 library data

Program 2's virtual memory

Program 2 library code

&loops

Program 2 library data

Mapping Physical memory

Library code

Data

Data

Object memory

Object memory represents the areas that map into a program’s virtual memory space, but this memory may be associated with a physical device. For example, the graphics driver may map the video card’s memory to an area of the program’s address space:

Video screen

Graphics driver's virtual memory Mapping Physical memory

Video card

Object memory

Video memory

Heap memory

Heap memory represents the dynamic memory used by programs at runtime. Typically, processes allocate this memory using the malloc(),

realloc(), and free() functions. These calls ultimately rely on the

mmap() function to reserve memory that the

malloc

library distributes.

The process manager usually allocates memory in 4 KB blocks, but allocations are typically much smaller. Since it would be wasteful to use 4 KB of physical memory when your program wants only 17 bytes, the

malloc

library manages the heap. The library dispenses

Chapter 10

Finding Memory Errors

271

Introduction the paged memory in smaller chunks and keeps track of the allocated and unused portions of the page:

Program's virtual memory malloc

library

Free blocks: 4, 7, 9

Used blocks: 1, 2, 3,

5, 6, 8, 7 malloc( ... )

9

8

7

6

5

4

3

2

1

Page block

Legend:

Used

Overhead

Free

Each allocation uses a small amount of fixed overhead to store internal data structures. Since there’s a fixed overhead with respect to block size, the ratio of allocator overhead to data payload is larger for smaller allocation requests.

When your program uses the malloc() function to request a block of memory, the

malloc

library returns the address of an appropriately sized block. To maintain constant-time allocations, the

malloc

library may break some memory into fixed blocks. For example, the library may return a 20-byte block to fulfill a request for 17 bytes, a

1088-byte block for a 1088-byte request, and so on.

When the

malloc

library receives an allocation request that it can’t meet with its existing heap, the library requests additional physical

272

Chapter 10

Finding Memory Errors

Introduction memory from the process manager. As your program frees memory, the library merges adjacent free blocks to form larger free blocks wherever possible. If an entire memory page becomes free as a result, the library returns that page to the system. The heap thus grows and shrinks in 4 KB increments:

Program's virtual memory Mapping Physical memory

Growth

What the Memory Analysis perspective can reveal

The main system allocator has been instrumented to keep track of statistics associated with allocating and freeing memory. This lets the memory statistics module unintrusively inspect any process’s memory usage.

When you launch your program with the Memory Analysis tool, your program uses the debug version of the

malloc

library

(

libmalloc_g.so

). Besides the normal statistics, this library also tracks the history of every allocation and deallocation, and provides cover functions for the string and memory functions (e.g. strcmp(),

memcpy(), memmove()). Each cover function validates the

corresponding function’s arguments before using them. For example, if you allocate 16 bytes, then forget the terminating

NUL character and attempt to copy a 16-byte string into the block using the strcpy() function, the library detects the error.

Chapter 10

Finding Memory Errors

273

Introduction

The debug version of the

malloc

library uses more memory than the nondebug version. When tracing all calls to malloc() and free(), the library requires additional CPU overhead to process and store the memory-trace events.

Be sure to occasionally check the Download Center on our website for updated versions of the debug

malloc

library.

The QNX Memory Analysis perspective can help you pinpoint and solve various kinds of problems, including:

memory leaks

memory errors

Memory leaks

Memory leaks can occur if your program allocates memory and then forgets to free it later. Over time, your program consumes more memory than it actually needs.

In its mildest form, a memory leak means that your program uses more memory than it should. QNX Neutrino keeps track of the exact memory your program uses, so once your program terminates, the system recovers all the memory, including the lost memory.

If your program has a severe leak, or leaks slowly but never terminates, it could consume all memory, perhaps even causing certain system services to fail.

The following tabs in the Memory Analysis editor can help you find and fix memory leaks:

Allocations tab — shows you all the instances where your program allocates, reallocates, and frees memory. The view lets you hide allocations that have a matching deallocation; the remaining allocations are either still in use or forgotten.

Errors tab — shows you all memory errors, including leaks

(unreachable blocks).

274

Chapter 10

Finding Memory Errors

Introduction

For more information about the memory analysis editor, see Viewing memory analysis data (memory analysis editor) later in this chapter.

For detailed descriptions about memory errors, see “Interpreting errors during memory analysis”.

Memory errors

Memory errors can occur if your program tries to free the same memory twice or uses a stale or invalid pointer. These “silent” errors can cause surprising, random application crashes. The source of the error can be extremely difficult to find, because the incorrect operation could have happened in a different section of code long before an innocent operation triggered a crash. For more information about how to interpret memory errors during memory analysis, see the topic

“Interpreting errors during memory analysis” later in this chapter.

In the event of a memory error, the IDE can:

stop your program’s execution and let you see all the allocations that led up to the error

report the error and try to continue

launch the debugger

The resulting action that the IDE takes depends on the setting that you chose in the Memory Analysis Tooling part of the launch configuration (see “Analyzing your program,” later in this chapter).

The Memory Analysis editor’s Errors and Statistics tabs display memory errors and — if possible — the exact line of source code that generated each error. The Trace tab lets you find the prior call that accessed the same memory address, even if your program made the call days earlier. For more information about the memory analysis later in this chapter. For detailed descriptions about memory errors, see “Interpreting errors during memory analysis”.

editor, see Viewing memory analysis data (memory analysis editor)

Chapter 10

Finding Memory Errors

275

Analyzing your program

To learn more about the common causes of memory problems, see the topic Heap Analysis: Making Memory Errors a Thing of the Past chapter of the QNX Neutrino Programmer’s Guide.

Analyzing your program

To extract the most information from your program, you should launch it with the Memory Analysis tool enabled:

1

2

3

Create a Run or Debug type of QNX Application launch configuration as you normally would, but don’t click Run or

Debug.

In the Create, manage, and run configurations dialog, click the Tools tab.

Click Add/Delete Tool.

4

In the Tools Selection dialog, check Memory Analysis

Tooling:

276

Chapter 10

Finding Memory Errors

Analyzing your program

5

6

Click OK.

Click the Memory Analysis Tooling tab.

Chapter 10

Finding Memory Errors

277

Analyzing your program

7

To configure the Memory Analysis settings for your program, click the disclosure triangle for the appropriate set of options:

Memory Errors

This group of configuration options controls the Memory

Analysis tool’s behavior when memory errors are detected.

Enable error detection

Check this to detect memory allocation, deallocation, and access errors:

-

Verify parameters in string and memory functions

278

Chapter 10

Finding Memory Errors

Analyzing your program

When enabled, check the parameters in calls to

str*() and mem*() functions for sanity.

-

Perform full heap integrity check on every allocation/deallocation

When enabled, check the heap’s memory chains for consistency before every allocation or deallocation.

Note that this checking comes with a performance penalty.

-

Enable bounds checking (where possible)

When enabled, check for buffer overruns and underruns. Note that this is possible only for dynamically allocated buffers.

When an error is detected

Memory Analysis takes the selected action when a memory error is detected. By default, it reports the error and attempts to continue, but you can also choose to launch the debugger or terminate the process.

Limit trace-back depth to

Specify the number of stack frames to record when logging a memory error.

Perform leak check every (ms)

Specify how often you want to check for leaks. Note that this checking comes with a performance penalty.

Perform leak check when process exits

When checked, look for memory leaks when the process exits, before the operating system cleans up the process’s resources.

Memory Tracing

This group of configuration options controls the Memory

Analysis tool’s memory tracing features.

Enable memory allocation/deallocation tracing

When checked, trace all memory allocations and deallocations.

Chapter 10

Finding Memory Errors

279

Analyzing your program

Limit back-trace depth to

Specify the number of stack frames to record when tracing memory events.

Minimum allocation to trace

The size, in bytes, of the smallest allocation to trace.

Use

0

to trace all allocations.

Maximum allocation to trace

The size, in bytes, of the largest allocation to trace. Use

0

to trace all allocations.

Perform tracing every (ms)

How often to collect information about your program’s allocation and deallocation activity. When setting this, consider how often your program allocates and deallocates memory, and for how long you plan to run the program.

Memory Snapshots

Controls the Memory Analysis tool’s memory snapshot feature.

Memory Snapshots

Check this to enable memory snapshots.

Perform snapshot every (ms)

Specify the number of milliseconds between each memory snapshot.

Bins counters (comma separated) ex: 2,4,6,8,...

A comma-separated list of the memory bins you want to trace.

Library search paths

A list of the libraries that you want to have backtrace information for. For more information, see “Analyzing shared objects,” later in this chapter.

Target Settings

These settings let you specify details about how memory debugging will be handled on the target system.

280

Chapter 10

Finding Memory Errors

Analyzing your program

Malloc library:

The full path on the target to the memory-debugging library, usually

$QNX_TARGET/target_architecture

/usr/lib/libmalloc_g.so.

.

Send traces to:

The full path to the device that will receive trace messages.

The default is

/dev/dbgmem

. You can also log traces to a file on the target; for more information, see “Using a file to log the trace,” later in this chapter.

Send events to:

The full path to the device that will receive memory events.

The default is

/dev/dbgmem

.

Create control thread

Enable this to use a separate thread for memory tracing operations.

For example, if you attach the Memory Analysis tool to a program that uses

fork

, it creates a second thread; however,

fork

only works with single threaded programs.

Consequently, the control thread of the Memory Analysis tool must be disabled.

Use dladdr to find dll names

Check this if you’d like to get backtrace information from shared objects that were built with debugging information.

For more information, see “Analyzing shared objects,” later in this chapter.

Show debug output on console

Enable this to show messages from the memory-debugging library in the Console view.

Data Collection

This setting lets you choose the type of database used to register the memory traces and events:

-

Neutrino Derby Data Collection

A file database that’s slower, but uses less memory.

Chapter 10

Finding Memory Errors

281

Interpreting errors during memory analysis

8

-

NTO HSQLDB Data Collection

An in-memory database. It’s fast, but before grabbing large traces, you should make sure the Java VM has enough memory. You can use the

-Xmx

option in

qde.ini

to specify the amount of memory for the Java

VM. You must restart the IDE for this option to take effect.

For example, to collect 2 million events and memory traces, you’ll need about 2 GB of memory; specify

-Xmx2048m

. The default size is 512 MB.

If you want the IDE to automatically change to the QNX

Memory Analysis perspective when you run or debug, check

Switch to this tool’s perspective on launch.

9

Click Apply to save your changes.

10

Click Run, Debug, or Profile. The IDE starts your program and lets you analyze your program’s memory.

Don’t run more than one Memory Analysis session on a given target at a time, because the results may not be accurate.

Interpreting errors during memory analysis

Although the QNX Memory Analysis perspective shows you how your program uses memory, and can quickly direct you to memory errors in your development and testing environments, you need to understand the types of memory errors that you might run into.

During memory analysis, you may encounter the following types of memory errors:

runtime errors

illegal deallocation of memory

null pointer dereference

buffer overflow

282

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

2

3

illegal function arguments

using freed memory

reading uninitialized memory

resource (memory) leaks

When memory errors occur, the IDE can:

report the error by logging the memory error, and then continue with the process

launch the debugger and stop at the code that resulted in the error

terminate the process

Regardless of which course of action the IDE takes, all of the error and non-error events are available to you in the Trace Event Log.

To include the Trace Event Log in your Task view:

Click WindowsShow ViewsOther.

Expand QNX System Profiler.

Select Trace Event Log.

Click OK.

To enable memory analysis:

1

From an existing launch configuration, select the Tools tab.

Select Add/Delete Tool.

Select Memory Analysis Tooling and click OK.

Chapter 10

Finding Memory Errors

283

Interpreting errors during memory analysis

4

Select any required memory tools and specify any desired options for that tool.

2

After you configure the IDE for memory analysis, you can begin to use the results to identify the types of memory errors in your programs, and then trace them back to your code.

To view the memory errors identified by the IDE, and then navigate to those errors:

1

After enabling Memory Analysis in a launch configuration, run that configuration.

In the Session view, double-click your desired launch configuration.

A dialog with the same name will contain a list of memory errors that the IDE encountered in your program.

284

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

In addition, an editor with multiple tabs will open at the bottom of the Workbench window.

3

Click the Errors tab.

Chapter 10

Finding Memory Errors

285

Interpreting errors during memory analysis

4

5

6

In the window that lists the types of errors, select an error.

Notice that the information in the Errors tab dynamically updates to reflect the error that you’ve selected.

On the Errors tab, double-click on an error to navigate to that error in the code editor.

Modify the code, as required, to correct the memory error for the selected error.

Illegal deallocation of memory

The illegal deallocation of memory occurs when a free() operation is performed on a pointer that doesn’t point to an appropriate heap memory segment. This type of error can occur when you attempt to do any of the following activities:

free a NULL pointer (not detected)

free a pointer to stack or static memory

free a pointer to heap memory that does not point to the beginning of an allocated block

perform a double free (when free()() is performed more than once on the same memory location)

Consequences

The illegal deallocation of memory can generate the following runtime errors:

memory corruption (a stack, heap, or static segment)

Detecting the error

immediate segmentation fault

286

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

For instructions about enabling error detection in the IDE, see

“Enabling error detection for the illegal deallocation of memory”.

In the QNX IDE, the memory analysis feature detects this error (if error detection is enabled), and it traps the illegal deallocation error when any of the following functions are called:

• free()

• realloc()

Enabling error detection for the illegal deallocation of memory

To enable error detection for the illegal deallocation of memory:

1

2

3

4

In the Launch Configuration window, select the Tools tab.

Select the Enable error detection checkbox.

Select the Enable check on realloc()/free() argument checkbox.

Click OK.

Message returned to the QNX IDE

In the IDE, you can expect the message for this type of memory error to include the following types of information and detail:

Message:

Pointer does not point to heap area

Severity: ERROR

Pointer: 0 (typically 0 for most messages)

TrapFunction: shows the free() or realloc() function where the error occurred.

Operation: displayed, where applicable

For a list of error messages returned by the Memory Analysis tool, see “Error message summary (memory analysis)”.

Chapter 10

Finding Memory Errors

287

Interpreting errors during memory analysis

How to address the illegal deallocation of memory

To help address this memory problem, try the following:

Add a condition to test that when a NULL is a pointer, to verify that it can be freed.

Don’t free stack and static memory. Ensure that the same pointer can never point to different types of memory.

Never reassign an allocated pointer (except for a NULL or other allocation). If you need to iterate over allocated memory, use another pointer (alias), or just use an index.

Nullify the pointer immediately after deallocation, unless it is a local variable which is out of scope.

Example

The following code shows an example of the illegal deallocation of memory:

int main(int argc, char ** argv){ char * str = ""; if (argc>1) { str = malloc(10);

// ...

} printf("Str: %s\n",str); free(str); return 0;

}

NULL pointer dereference

segmentation fault. It occurs when a program attempts to read or write to memory with a NULL pointer.

A NULL pointer dereference is a sub type of an error causing a

288

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

Consequences

Running a program that contains a NULL pointer dereference generates an immediate segmentation fault error.

For instructions about enabling error detection in the IDE, see

“Enabling error detection for a NULL pointer dereference”.

When the memory analysis feature detects this type of error, it traps these errors for any of the following functions (if error detection is enabled) when they are called within your program:

• free()

memory and string functions:

strcat() strdup() strncat() strcmp() strncmp() strcpy() strncpy() strlen() strchr() strrchr() index() rindex() strpbrk()

strspn() (only the first

argument)

strcspn() strstr() strtok()

The memory analysis feature doesn’t trap errors for the following functions when they are called:

memccpy() memchrv() memmove() memcpy() memcmp() memset() bcopy() bzero() memccpy() memchrv() memmove() memcpy() memcmp() memset() bcopy() bzero() bcmp() bcmp()

Enabling error detection for a NULL pointer dereference

To enable error detection for the NULL pointer dereference:

1

In the Launch Configuration window, select the Tools tab.

2

Select the Enable error detection checkbox.

Chapter 10

Finding Memory Errors

289

Interpreting errors during memory analysis

3

4

To detect the passing of a zero (0) pointer to string and memory functions, select Verify parameters in string and memory

functions.

To detect the freeing of a zero (0) pointer, select Enable check

on realloc()/free() argument.

Message returned to the QNX IDE

In the IDE, you can expect the message for this type of memory error to include the following types of information and detail:

Message:

various types of messages expected

Severity: ERROR

Pointer: 0

TrapFunction: shows the memory or string function where the error occurred.

Operation: displayed, where applicable

For a list of error messages returned by the Memory Analysis tool, see “Error message summary (memory analysis)”.

How to address a NULL pointer dereference

You can perform an explicit check for

NULL for all pointers returned by functions that can return

NULL

, and when parameters are passed to the function.

Example

The following code shows an example of a NULL pointer dereference:

} int main(int argc, char ** argv){ char buf[255]; char * ptr = NULL; if (argc>1) { ptr = argv[1];

290

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

} strcpy(str,ptr); return 0;

Buffer overflow

A buffer overflow error occurs when a program unintentionally writes to a memory area that’s out of bounds of the buffer it intended to write to.

Consequences

A buffer overflow generates the following runtime errors:

memory corruption (with an unpredictable failure in the future)

segmentation fault

Detecting the error

The Memory Analysis tool can detect a limited number of possible buffer overflows with following conditions:

when the overflow buffer belongs to the heap area

when the overflow occurred within the block’s memory overhead

(typically, the overflow is over by 1, and the overflow is trapped in the free() function)

when the overflow is corrupting the heap. Typically, with a large enough index (or negative index), you can write data into next block area, thereby making all of the heap unusable. This error is trapped in the following allocation functions: malloc(), calloc(),

realloc(), free()

when the overflow occurred in a library function:

strcat() strdup() strncat() strcmp() strncmp() strcpy() strncpy() strlen() strchr() strrchr() index() rindex() strpbrk() strspn() strcspn() strstr()

Chapter 10

Finding Memory Errors

291

Interpreting errors during memory analysis

bcmp() strtok() memccpy() memchr() memmove() memcpy() memcmp() memset() bcopy() bzero()

Enabling error detection

To enable error detection for a buffer overflow or underflow:

1

2

In the Launch Configuration window, select the Tools tab.

Select Enable error detection checkbox.

3

To detect an immediate overflow, select Verify parameters in

string and memory functions.

4

To detect a small overflow in block’s memory overhead area, select Enabled bounds checking (where possible).

5

To detect a corrupted heap, caused by overflowing other regions, select Perform full integrity check on every

allocation/deallocation.

Message returned to the QNX IDE

In the IDE, you can expect the message for this type of memory error to include the following types of information and detail:

Messages

-

allocator inconsistency - Malloc chain is corrupted, pointers out of order

-

allocator inconsistency - Malloc chain is corrupted, end before end pointer

-

pointer does not point to heap area

-

possible overwrite - Malloc block header corrupted

-

allocator inconsistency - Pointers between this segment and adjoining segments are invalid

292

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

-

data has been written outside allocated memory block

-

pointer points to heap but not to a user writable area

-

allocator inconsistency - Malloc segment in free list is in-use

-

malloc region doesn’t have a valid CRC in header

Other parameters

Severity: ERROR

Pointer: pointer that points outside of buffer

TrapFunction: memory or string function where the error was trapped (the error can also occur before the actual function in error)

Operation: UNKNOWN, malloc, malloc-realloc, calloc — how memory was allocated for the memory region we are referencing

State: In Use or FREED

How to address buffer overflow errors

Locate the code where the actual overflow occurred. Ensure that the size of the memory region is always accompanied by the pointer itself, verify all unsafe operations, and that the memory region is large enough to accommodate the data going into that location.

Example

For a list of error messages returned by the Memory Analysis tool, see “Error message summary (memory analysis)”.

a library function:

The following code shows an example of a buffer overflow trapped by

int main(int argc, char ** argv){ char * ptr = NULL;

Chapter 10

Finding Memory Errors

293

Interpreting errors during memory analysis

} ptr = malloc(12); strcpy(ptr,"Hello World!"); return 0;

The following code shows an example of a buffer overflow trapped by a post-heap check in a free() function:

int main(int argc, char ** argv){ char * ptr = NULL; ptr = malloc(12); ptr[12]=0; free(pre); return 0;

}

Using freed memory

If you attempt to read or write to memory that was previously freed, the result will be a conflict and the program will generate a memory error. For example, if a program calls the free() function for a particular block and then continues to use that block, it will create a reuse problem when a malloc() call is made.

Consequences

Using freed memory generates the following runtime errors:

memory corruption (results in an unpredictable future failure)

random data read — when the heap is re-used, other data can be in that location

Detecting the error

The Memory Analysis tool can detect only a limited number of situations where free memory is read/written with following conditions:

where library functions read a pointer that are already known to be free, those functions are:

294

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

strcat() strdup() strncat() strcmp() strncmp() strcpy() strncpy() strlen() strchr() strrchr() index() rindex() strpbrk() strspn() strcspn() strstr() strtok() memccpy() memchr() memmove() memcpy() memcmp() memset() bcopy() bzero() bcmp()

The newly allocated block contains altered data; it was modified after deallocation. The memory errors are trapped in the following memory functions:

malloc() calloc() realloc() free()

Enabling error detection

To enable error detection when using freed memory:

1

2

3

In the Launch Configuration window, select the Tools tab.

Select the Enable error detection checkbox.

4

To detect usage of freed memory, select Verify parameters in

string and memory functions.

To detect writing to a freed memory area, select Enabled

bounds checking (where possible).

Message returned to the QNX IDE

In the IDE, you can expect the message for this type of memory error to include the following types of information and detail:

Messages:

data in freed memory block has been modified

Severity: ERROR

Pointer: not specified

TrapFunction: shows the memory or string function where the error occurred (where the error was trapped).

Chapter 10

Finding Memory Errors

295

Interpreting errors during memory analysis

Operation: In Use or Free — indicates whether the memory region is being used or is available.

For a list of error messages returned by the Memory Analysis tool, see “Error message summary (memory analysis)”.

How to address freed memory usage

Set the pointer of the freed memory to NULL immediately after the

free(), unless it is a local variable that goes out of the scope in the next

line of the program.

Example

The following code shows an example using already freed memory:

int main(int argc, char ** argv){ char * ptr = NULL; ptr = malloc(13); free(ptr); strcpy(ptr,"Hello World!"); return 0;

}

Reading uninitialized memory

If you attempt to read or write to memory that was previously freed, the result will be a conflict and the program will generate a memory error because the memory is not initialized.

Consequences

Using an uninitialized memory read generates a random data read runtime error.

Detecting the error

Typically, the IDE does not detect this type of error; however, the

Memory Analysis tool does trap the condition of reading uninitialized data from a recently allocated memory region.

For a list of error messages returned by the Memory Analysis tool, see “Error message summary (memory analysis)”.

296

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

How to address random data read issues

Use the calloc() function, which always initializes data with zeros (0).

Example

The following code shows an example of an uninitialized memory read:

int main(int argc, char ** argv){ char * ptr = NULL; ptr = malloc(13); if (argc>1) strcpy(ptr,"Hello World!"); ptr[12]=0; printf("%s\n",ptr); return 0;

}

Resource (memory) leaks

Memory leaks can occur if your program allocates memory and then does not free it. For example, a resource leak can occur in a memory region that no longer has references from a process.

Consequences

Resource leaks generate the following runtime errors:

resource Exhaustion

program termination

Detecting the error

This error would be trapped during the following circumstances:

a typical program exit (versus an abnormal program exit/termination)

routine investigation (set by the programmer or tester) at regular intervals

Chapter 10

Finding Memory Errors

297

Interpreting errors during memory analysis

Enabling error detection

In the IDE, you can expect the message for this type of memory error to include the following types of information and detail:

1

In the Launch Configuration window, select the Tools tab.

2

Select the Perform leak check when process exits checkbox.

3

Optional: Specify how often to check for leaks in the Perform

leak check every (ms) field. The minimum depends on target speed; however, on average, it should be no less than 100 ms.

Message returned to the QNX IDE

In the IDE, you can expect the message for this type of memory error to include the following types of information and detail:

Message: varies

Severity: LEAK

Pointer: lost pointer

TrapFunction: blank

Operation: malloc(), realloc(), alloc(), calloc() — how memory was allocated for this leak

State: empty

For a list of error messages returned by the Memory Analysis tool, see “Error message summary (memory analysis)”.

How to address resource (memory) leaks

deallocated on all paths, including error paths.

To address resource leaks in your program, ensure that memory is

298

Chapter 10

Finding Memory Errors

Interpreting errors during memory analysis

Example

The following code shows an example of a memory leak:

int main(int argc, char ** argv){ char * str = malloc(10); if (argc>1) { str = malloc(20);

// ...

} printf("Str: %s\n",str); free(str); return 0;

}

Functions checked for memory errors during memory analysis

During memory analysis, the following functions are checked for memory errors:

string functions:

strcat() strdup() strncat() strcmp() strncmp() strcpy()

memory copy functions:

strncpy() strlen() strchr() strrchr() index() rindex() memccpy() memcpy() memchr() memmove()

allocation functions:

memcmp() memset() strpbrk() strspn() strcspn() strstr() strtok() bcopy() bzero() bcmp()

Chapter 10

Finding Memory Errors

299

Error message summary (memory analysis)

malloc() calloc() realloc() free()

Error message summary (memory analysis)

The following table shows a summary of potential error messages you might encounter during memory analysis:

Message no errors allocator inconsistency -

Malloc chain is corrupted, pointers out of order allocator inconsistency -

Malloc chain is corrupted, end before end pointer pointer does not point to heap area possible overwrite

- Malloc block header corrupted allocator inconsistency -

Pointers between this segment and adjoining segments are invalid

Caused by

A buffer overflow occurred in the heap.

A buffer overflow occurred in the heap.

The illegal deallocation of memory.

A buffer overflow occurred in the heap.

A buffer overflow occurred in the heap.

300

Chapter 10

Finding Memory Errors

Description

The heap memory is corrupted.

The heap memory is corrupted.

You attempted to free non-heap memory.

The heap memory is corrupted.

The heap memory is corrupted.

continued. . .

Error message summary (memory analysis)

Message data has been written outside allocated memory block data in free’d memory block has been modified

Caused by

A buffer overflow occurred in the heap.

Attempting to use memory that was previously freed.

Description

The program attempted to write data to a region beyond allocated memory.

The program is attempting to write to a memory region that was previously freed.

The heap memory is corrupted.

data area is not in use (can’t be freed or realloced) unable to get additional memory from the system pointer points to the heap but not to a user writable area allocator inconsistency -

Malloc segment in free list is in-use malloc region doesn’t have a valid CRC in header free’d pointer isn’t at start of allocated memory block

A buffer overflow occurred in the heap.

All memory resources are exhausted.

A buffer overflow occurred in the heap.

A buffer overflow occurred in the heap.

A buffer overflow occurred in the heap.

There are no more memory resources to allocate.

The heap memory is corrupted.

The heap memory is corrupted.

The heap memory is corrupted.

An attempt was made to deallocate the pointer that shifted from its original value when it was returned by the allocator.

An illegal deallocation of memory.

Chapter 10

Finding Memory Errors

301

Memory analysis GUI flags and corresponding environment variables

Memory analysis GUI flags and corresponding environment variables

The following table shows a summary of Memory Analysis Tool

(MAT) graphical user interface options (flags) and their corresponding environment variables:

Environment variable Where to find in MAT

GUI

MALLOC_TRACEBT=5

Memory

Tracing

Enable

memory allocation/deallocation tracing

MALLOC_CKALLOC=1 Memory

Errors

Enable error

detection

MALLOC_CKACCESS=1 Memory

Errors

Enable error

detection

MALLOC_CKCHAIN=1

Memory

Errors

Enable error

detection

MALLOC_WARN=0

Memory

Errors

Enable error

detection

MALLOC_DUMP_

LEAKS=1

detection

Memory

Errors

Enable error

302

Chapter 10

Finding Memory Errors

What option to set

Limit back-trace depth to: 5

Enable check on realloc()/free() argument

Verify the parameters in the string and memory functions

Perform a full heap integrity check on every allocation/deallocation

When an error is detected: report the error and continue

Perform leak check when process exits

continued. . .

Memory analysis GUI flags and corresponding environment variables

What option to set Environment variable Where to find in MAT

GUI

MALLOC_TRACEMIN=

20

Memory Tracing

MALLOC_BTDEPTH=10 Memory Error

MALLOC_TRACE=

/dev/dbgmem

Memory Tracing

MALLOC_ERRFILE=

/dev/null

N/A

MALLOC_FATAL=0

Memory

Errors

Enable error

detection

MALLOC_FILLAREA=1 Memory

Errors

Enable error

detection

MALLOC_TRACEMAX=

30

Memory Tracing

MALLOC_CTHREAD=1 Memory

Errors

Target Settings

MALLOC_EVENTFILE=

/dev/dbgmem

Memory

Errors

Target Settings

MALLOC_STAT_BINS=

2,4,8,16,32

Memory

Snapshots

Bin

counters

LD_PRELOAD=

/tmp/libmalloc_g.so

Target Settings

Minimum allocation to trace: 20

Limit back-trace depth to: 10

Enable memory allocation/deallocation tracing

N/A

When an error is detected: report the error and continue

Enable bounds checking

(where possible)

Maximum allocation to trace: 20

Create control thread

Send events to:

N/A

Malloc library:

/tmp/libmalloc_g.so

Chapter 10

Finding Memory Errors

303

Using a file to log the trace

Using a file to log the trace

You can perform memory analysis on a running program, or you can log the trace to a file on the target system. The advantage of logging the trace is that doing so frees up

qconn

resources; you run the process and do the analysis later.

When analyzing the data from a log file, you can’t do any backtracing.

To log the trace to a file:

1

Open the Launch configuration and go to the Memory Analysis

Tooling tab.

2

Expand the Target Settings.

3

4

By default, the Send traces to field is set to

/dev/dbgmem

, which the

qconn

agent reads. Specify the name of the file on the target system (e.g.

/tmp/log.memory

) where you’d like to send the traces instead.

Run your application on the target.

5

Copy the file back to the host, and then choose Import

libmalloc_g events from the Session view’s right-click menu.

A dialog appears:

304

Chapter 10

Finding Memory Errors

Analyzing a running program

6

7

Choose an existing session or create a new one.

Browse to the file that you copied from the target, and then click OK. The IDE reparses the file for viewing.

You can also do this on the command line by setting the appropriate environment variables. For example:

LD_PRELOAD=/tmp/libmalloc_g.so MALLOC_TRACE=/tmp/log.memory

Analyzing a running program

You can perform memory analysis on a running program, if that chapter.

program was started using the debug

malloc

library and the proper environment variables. Once the program is running, you can attach the Memory Analysis perspective and gather your data.

For more information, see “Attaching to a running process.” in this

Chapter 10

Finding Memory Errors

305

Analyzing a running program

1

2

If a program uses

fork

, the control thread of the Memory Analysis tool must be disabled because when you attach the Memory Analysis tool, it creates a second thread; however,

fork

only works with single threaded programs.

To disable the control thread option for memory analysis:

From an existing launch configuration, select the Tools tab.

3

If Memory Analysis Tooling is not currently enabled, select

Add/Delete Tool, select Memory Analysis Tooling, then click

OK.

Expand the Target Settings.

4

Disable the Create control thread option if it is currently enabled.

Click Apply.

5

6

Click Run.

For information about the Create control thread option, see

“Analyzing your program” in this chapter.

Launching with debug malloc

To start a program using the debug

malloc

library:

Launch the program using the LD_PRELOAD (set to the debug

malloc

library) and MALLOC_CTHREAD (set to

1

) environment variables:

LD_PRELOAD=/tmp/libmalloc_g.so MALLOC_CTHREAD=1 ./my_app

Attaching to a running process

As mentioned above, you can analyze memory events and traces for a running process. To do this, you need to create a launch profile, as follows:

306

Chapter 10

Finding Memory Errors

Analyzing shared objects

2

3

1

If the Run menu doesn’t include a Profile entry, add it like this:

1a

Choose Customize Perspective ... from the Window menu.

1b

Choose the Commands tab.

1c

In the list of checkboxes, enable the Profile checkbox.

1d

Click OK.

Choose Run

Profile....

Set up the launch configuration.

After launching, a dialog appears with a list of the running processes on the box. Choose the process you want to attach to; the Session view then lists it. When you select the process in the Session view, the editor displays the information about it.

When you’re done, disconnect from the process and let it continue.

Analyzing shared objects

In order to analyze shared objects, you must set up the Memory

Analysis Tooling tab in your launch configuration:

To analyze all shared objects, expand the Target Settings and enable Use dladdr to find dll names.

To analyze specific shared objects, expand Library search paths and fill in the paths to the directories containing the shared objects:

Chapter 10

Finding Memory Errors

307

Associated views

You can also check the Recurse button to search all subdirectories under a given path.

In the Session View, you can expand your session, expand your process, and then select a shared object to view its memory events and traces in a new tab in the editor.

Associated views

The QNX Memory Analysis perspective includes the following views:

Memory analysis session

Memory analysis editor

Memory analysis session

You can load these sessions into the Memory Analysis perspective, so you can search for memory management errors in your application.

The Session view lets you manage your memory analysis sessions.

308

Chapter 10

Finding Memory Errors

Memory analysis session

The view lists all of the memory analysis sessions that you’ve created in your workspace while running programs with the Memory

Analysis tool active. Each session is identified by a name, date stamp, and an icon that indicates its current state.

The icons indicate:

This memory analysis session is open and can be viewed in the Memory Analysis editor.

This session is closed and cannot currently be viewed.

This session is still running on the target; you can select the session and view its incoming traces.

If the session is running, you may need to close and reopen the tabs at the top of the editor periodically to refresh the information in the

Errors and Statistics panes.

The traces and events are being indexed. This icon appears only if you stop the memory analysis session or your process

Chapter 10

Finding Memory Errors

309

Memory analysis session terminates. If your process terminates, the running icon may still be displayed while the database is registering the events and traces; when this is done, the indexing icon appears.

Wait until indexing is finished, or the information might be incomplete.

Right-clicking on a connected session ( ) displays a menu with several options:

View

Disconnect

Import libmalloc_g events

Delete

Rename

Properties

Right-clicking on a disconnected session ( ) displays a menu with several options:

Connect

Import libmalloc_g events

Delete

Rename

Properties

Connecting to a session

Memory analysis sessions must be “connected” before they can be viewed in the Memory Analysis editor. To connect a session:

1

2

Right-click the session in the Session view.

Choose Connect from the pop-up menu.

After a moment, the session is connected ( ).

310

Chapter 10

Finding Memory Errors

Memory analysis session

Deleting a session

To delete a session:

1

Right-click the session in the Session view.

2

Choose Delete from the pop-up menu.

The IDE deletes the memory analysis session.

Disconnecting from a session

To disconnect a session and recover the resources it uses while connected:

1

2

Right-click the session in the Session view.

Choose Disconnect from the pop-up menu.

After a moment, the session is disconnected ( ).

Displaying information about a session

To view information about a session:

1

Right-click the session in the Session view.

2

Choose Properties from the pop-up menu.

The IDE displays a Properties dialog for that memory analysis session:

Chapter 10

Finding Memory Errors

311

Memory analysis session

Filtering information for a session

Occasionally, there may be too much information in a Memory

Analysis session, and you might want to filter some of this information to narrow down your search for memory errors, events, and traces.

To filter out Memory Analysis session information:

1

Expand your Memory Analysis session in the session view.

2

Select specific session components, such as library and/or thread, that you want to filter on. You can double-click any of

Analysis Allocations pane containing memory events and traces that belong to the selected component.

the session components to open a corresponding Memory

312

Chapter 10

Finding Memory Errors

Memory analysis editor

Renaming a session

To rename a memory analysis session:

1

2

Right-click the session in the Session view.

Choose Rename from the pop-up menu.

The IDE displays the Rename Session dialog.

3

Enter a new name for the session, then click OK to change the session’s name. Click Cancel to leave the name unchanged.

Viewing a session

To view a connected session in the Memory Analysis editor:

Double-click the session in the Session view.

The IDE opens the memory analysis session in the Memory Analysis editor.

Import libmalloc

_

g events

You’ll use this item after you’ve logged trace events to a file on the target system and copied the file to your host system. For more information, see “Using a file to log the trace” in the Finding Memory

Errors chapter.

Memory analysis editor

When you view a connected memory analysis session, the Memory

Analysis perspective opens that session in the main editor area of the

IDE:

Chapter 10

Finding Memory Errors

313

Memory analysis editor

The top half of the window shows details for the data selected in the bottom half, which is an overview of the entire memory analysis session data set:

314

Chapter 10

Finding Memory Errors

Memory analysis editor

The details include a table of information about the allocations. If you select an allocation, a vertical line indicates its position in the Details chart, and the backtrace (if available) is displayed below the table. If you click on a backtrace, the editor displays the associated source code (if available) in another tab.

The icons in the table indicate the type of allocation or deallocation:

An allocation with a matching deallocation.

A deallocation with a matching allocation.

An allocation without a matching deallocation.

A deallocation without a matching allocation.

The Allocations Overview can be very wide, so it could be broken into pages. You can use the Page field to move from one page to another, and you can specify the number of points to display on each page.

Chapter 10

Finding Memory Errors

315

Memory analysis editor

If the process does many allocations and deallocations, it could take some time for the traces and events to be registered, indexed, and displayed.

The tabs at the bottom let you switch between several different data views:

Allocations — trace information about allocations and deallocations.

Errors — leaks and other memory errors.

Bins — counters that track the general size of allocations and deallocations.

Bands — counters that track the allocator’s preallocated memory bands.

Usage — information about the application’s memory usage over time.

Trace Details — replays the details of the selected bins, bands, or usage, synchronized with the allocations.

Statistics — detailed information about every memory event.

Settings — settings for the running process. This tab is displayed only if the process is still running.

Selecting data

To select data in the overview:

Click and drag over the region you’re interested in.

data region you’ve selected.

The Memory Analysis perspective updates the details to reflect the

316

Chapter 10

Finding Memory Errors

Memory analysis editor

Controlling the view

The Memory Analysis editor has several icons that you can use to control the view:

Use this icon: To:

Set the Chart and Detail Pane to a horizontal layout, one beside the other

Set the Chart and Detail Pane to a vertical layout, one above the other

Display the Detail Pane if it’s currently hidden

Hide the Detail Pane so the Chart pane has more display room

Hide the Chart pane so the Detail Pane has more display room

Toggle the Overview pane on and off

Controlling the overview

You can control the Overview pane through its context menu, which is displayed when you right-click on the Overview pane:

Chapter 10

Finding Memory Errors

317

Memory analysis editor

This menu includes:

By Timestamp

Display the events sorted by their timestamp. Because several memory events can occur with the same time stamp, this might present the events in a confusing order (for example, a buffer’s allocation and deallocation events could be shown in the wrong order if they happen during the sampling interval).

By Count

Display events sorted by their event index. This is the default ordering in the Overview pane.

Filters...

Filter the displayed events by size, type, or both. You can also hide the matching allocations and deallocations, so that you see only the unmatched ones:

318

Chapter 10

Finding Memory Errors

Memory analysis editor

Zoom In

Zoom in on the selected range of events.

Zoom Out

Zoom out to the set of memory events that you previously zoomed in on.

Controlling the detail pane

You can control the Detail pane through its context menu:

1

Right-click on the Detail pane.

2

Choose a graph from the Chart Types menu:

BarChart — a plain bar chart

BarChart_3D — a 3D bar chart

Chapter 10

Finding Memory Errors

319

Memory analysis editor

Differentiator — a plain differentiator chart

Differentiator_3D — a 3D differentiator chart

Allocations tab

Errors tab

As described above, the Allocations pane shows you allocation and deallocation events over time. Select a range of events to display a chart and details for those events.

The Errors pane shows any memory errors (in red) or leaks (in blue) detected while collecting statistics. Select a line in the top pane to see a function backtrace in the lower pane.

320

Chapter 10

Finding Memory Errors

Memory analysis editor

Bins tab

The allocator keeps counters for allocations of various sizes to help gather statistics about how your application is using memory. Blocks up to each power of two (2, 4, 8, 16, etc. up to 4096) and “large” blocks (anything over 4 KB) are tracked by these counters.

The Bins pane shows the values for these counters over time:

Chapter 10

Finding Memory Errors

321

Memory analysis editor

You can disable a counter’s display by clicking its circle above the pane’s title. Click the circle again to enable that counter’s display.

When the Bins pane is displayed, the Chart pane shows allocations and deallocations for each bin at the time selected in the Detail pane.

The Detail pane lists memory events for the selected region of the

Bins pane.

The Bins pane includes these additional buttons:

Play the selected range of the Use Bins; the Bins Statistics

Stop the playing.

chart displays the usage dynamically.

Tracing can be slow, and it may also change the timing of the application, because of the logging that’s done for each allocation and

322

Chapter 10

Finding Memory Errors

Memory analysis editor deallocation. You might want to do a first pass with the bins snapshots enabled to determine the “hot spots or ranges”, and on the second pass reduce the tracing to a certain range (minimum, maximum) to filter and reduce the log set.

Bands tab

For efficiency, the QNX allocator preallocates “bands” of memory

(small buffers) for satisfying requests for small allocations. This saves you a trip through the kernel’s memory manager for small blocks, improving your performance.

The bands handle allocations of up to 16, 24, 32, 48, 64, 80, 96, and

128 bytes in size, and activity in these bands is shown on the Bands pane:

Chapter 10

Finding Memory Errors

323

Memory analysis editor

Usage tab

The Usage pane shows your application’s overall memory usage over time.

Trace Details tab

This tab plays back the allocations, synchronized with the bins, bands, or usage, depending on what you last selected. You can use this display to look for memory leaks (e.g. bins where the number of allocations is much greater than the number of deallocations):

324

Chapter 10

Finding Memory Errors

Memory analysis editor

Statistics tab

The Statistics pane gives you several different statistics views for the

Memory Analysis session.

The Allocations pane shows the number of calls to different kinds of allocations, plus a count of each allocation for a given number of bytes:

Chapter 10

Finding Memory Errors

325

Memory analysis editor

The Backtraces pane shows you a list of memory event points in your application. Select one to display a function backtrace for that event:

326

Chapter 10

Finding Memory Errors

Memory analysis editor

The Outstanding traces pane shows allocations that weren’t deallocated when the trace ended. These aren’t necessarily errors.

Chapter 10

Finding Memory Errors

327

Memory analysis editor

The Errors pane shows you a list of the different types of memory error encountered while running your application.

328

Chapter 10

Finding Memory Errors

Memory analysis editor

Settings tab

This tab lets you change the settings for a running process.

Chapter 10

Finding Memory Errors

329

Memory analysis editor

For information about the settings, see “Analyzing your program” in the Finding Memory Errors chapter.

The additional icons (from left to right) let you:

get leaks

get snapshots

get traces

apply the settings

330

Chapter 10

Finding Memory Errors

Chapter 11

Getting System Information

In this chapter. . .

Introduction

333

What the System Information perspective reveals

334

Logging system information

337

Associated views

341

Controlling your system information session

342

Examining your target system’s attributes

346

Watching your processes

348

Examining your target system’s memory (inspecting virtual address space)

355

Tracking heap usage

359

Examining process signals

363

Getting channel information

363

Tracking file descriptors

366

Tracking resource usage

367

Tracking the use of adaptive partitioning

373

Chapter 11

Getting System Information

331

Introduction

This chapter shows you how to work with the System Information perspective.

Introduction

The IDE provides a rich environment not only for developing and maintaining your software, but also for examining the details of your running target systems.

Within the IDE, you’ll find several views whose goal is to provide answers to such questions as:

Are my processes running?

What state are they in?

What resources are being used, and by which processes?

Which processes/threads are communicating with which other processes/threads?

Such questions play an important role in your overall system design.

The answers to these questions often lie beyond examining a single process or thread, as well as beyond the scope of a single tool, which is why a structured suite of integrated tools can prove so valuable.

Chapter 11

Getting System Information

333

What the System Information perspective reveals

The tools discussed in this chapter are designed to be mixed and matched with the rest of the IDE’s development components to help you gain insight into your system and thereby develop better products.

What the System Information perspective reveals

The System Information perspective provides a complete and detailed report on your system’s resource allocation and use, along with key metrics such as CPU usage, program layout, the interaction of different programs, and more:

The perspective’s metrics may prove useful throughout your development cycle, from writing and debugging your code through your quality-control strategy.

334

Chapter 11

Getting System Information

What the System Information perspective reveals

Key terms

Before we describe how to work with the System Information perspective, let’s first briefly discuss the terms used in the perspective itself. The main items are: thread The minimum “unit of execution” that can be scheduled to run.

process A “container” for threads, defining the virtual address space within which threads execute. A process always contains at least one thread. Each process has its own set of virtual addresses, typically ranging from 0 to 4 GB.

Threads within a process share the same virtual memory space, but have their own stack. This common address space lets threads within the process easily access shared code and data, and lets you optimize or group common functionality, while still providing process-level protection from the rest of the system.

scheduling priority

Neutrino uses priorities to establish the order in which threads get to execute when multiple threads are competing for CPU time.

Each thread can have a scheduling priority ranging from

1 to 255 (the highest priority), independent of the

scheduling policy. The special idle thread (in the process

manager) has priority 0 and is always ready to run. A thread inherits the priority of its parent thread by default.

You can set a thread’s priority using the

pthread_setschedparam() function.

scheduling policy

When two or more threads share the same priority (i.e.

the threads are directly competing with each other for the

CPU), the OS relies on the threads’ scheduling policy to determine which thread should run next. Three policies are available:

Chapter 11

Getting System Information

335

What the System Information perspective reveals state Only one thread can actually run at any one time. If a thread isn’t in this RUNNING state, it must either be

READY or BLOCKED (or in one of the many “blocked” variants).

message passing

The most fundamental form of communication in

Neutrino. The OS relays messages from thread to thread via a send-receive-reply protocol. For example, if a thread calls MsgSend(), but the server hasn’t yet received the message, the thread would be SEND-blocked; a thread waiting for an answer is REPLY-blocked, and so on.

channel Message passing is directed towards channels and connections, rather than targeted directly from thread to thread. A thread that wishes to receive messages first creates a channel; another thread that wishes to send a message to that thread must first make a connection by

“attaching” to that channel.

signal

round-robin

FIFO

sporadic

You can set a thread’s scheduling policy using the

pthread_setschedparam() function or you can start a

process with a specific priority and policy by using the

on -p

command (see the Utilities Reference for details).

Asynchronous event notifications that can be sent to your process. Signals may include:

simple alarms based on a previously set timer

a notification of unauthorized access of memory or hardware

a request for termination

user-definable alerts

336

Chapter 11

Getting System Information

Logging system information

The OS supports the standard POSIX signals (as in

UNIX) as well as the POSIX realtime signals. The

POSIX signals interface specifies how signals target a particular process, not a specific thread. To ensure that signals go to a thread that can handle specific signals, many applications mask most signals from all but one thread.

You can specify the action associated with a signal by using the sigaction() function, and block signals by using

sigprocmask(). You can send signals by using the raise()

function, or send them manually using the Target

Navigator view (see “Sending a signal” below).

For more information on all these terms and concepts, see the QNX

Neutrino Microkernel chapter in the System Architecture guide.

Logging system information

You can gather system information from a Neutrino target and log it to a file, and then view it later in the IDE. Here’s how:

1

2

Right-click your target in the Target Navigator, and then choose

Log With...

Log from the menu.

Select System Information Logging Configuration, and then select the New launch configuration icon ( ) to create a Log configuration.

3

4

In the Main tab of the log configuration, select the location stops.

where you’d like to store the log file.

Select the mode to use:

Snapshot mode collects all the requested data, and then

Chapter 11

Getting System Information

337

Logging system information

5

6

Continuous mode collects the data, and then continues to collect any changes to the data for the requested period of time at an interval provided (the default is 1 second).

Select the Neutrino target and optionally the processes you wish to collect data for.

If you wish, switch to the Logging Options tab and select the level of information you require:

7

Select Log.

Here are a few things to consider when setting up your log configuration:

338

Chapter 11

Getting System Information

Logging system information

Some types of data require other data. For example, if you want to collect any of the process-level data, you must select Processes in the list of system-level data, as shown in the example of the

Logging Options tab above. Similarly, if you want to collect thread-level data, you must select Threads in the list of process-level data.

If you select specific processes for logging, the IDE doesn’t log process data for any new processes (e.g. process IDs show as -1).

If you wish to log all processes, including those created during the logging operation, don’t select any processes in the process-selection area on the Main tab of the log configuration.

Viewing captured system information

Once the logging process has begun, you’ll see a progress monitor for it in the Progress view and the lower right progress area of the main

IDE window. You can cancel the logging at any time through the

Progress view.

When the logging operation finishes, the IDE presents the captured data as a target in the System Information History View. This view behaves the same way as the Target Navigator view; selecting the target or one or more processes causes the System Information views to display the corresponding data from the log.

Chapter 11

Getting System Information

339

Logging system information

To view the data captured over a period of time in continuous mode, drag the time index slider at the bottom of the System Information

History view to the point in time where you’d like to view the data; the views update to display the data at that point in time.

To view a log file from a previous logging session, select the Search log files button ( ) in the toolbar area of the System Information

History View. This presents you with a dialog showing a list of the log files the IDE has found:

340

Chapter 11

Getting System Information

Associated views

In this dialog, you can set search paths for the IDE to use to find log files that you can load into the System Information perspective. By default any log configurations that you’ve used to gather information are displayed, along with any log files that were created using it. To load a log file, select it in the tree, and then select Open Log; when the loading is complete, the data from the log file appears as a target in the System Information History view.

Associated views

You use the views in the System Information perspective for these main tasks:

To:

Control your system information session

Examine your target system’s attributes

Use this view:

Target

Navigator

System

Summary

continued. . .

Chapter 11

Getting System Information

341

Controlling your system information session

To: Use this view:

Watch your processes and view thread activity

Inspect virtual address space

Track heap usage

Examine process signals

Get channel information

Process

Information

Memory

Information

Malloc

Information

Signal

Information

System

Blocking

Graph

Track file descriptors Connection

Information

Track resource usage System

Resources

Examine your system’s use of adaptive partitioning APS View

Controlling your system information session

The selections you make in the Target Navigator view control the information you see in the System Information perspective:

342

Chapter 11

Getting System Information

Controlling your system information session

You can customize the Target Navigator view to:

sort processes by PID (process ID) or by name

group processes by PID family

control the refresh rate

To access the Target Navigator view’s customization menu, click the menu button ( ) in the Target Navigator view’s title bar.

You can reverse a selected sort order by clicking the Reverse sort button ( ) in the view’s title bar.

You can enable or disable the automatic refresh by clicking the

Automatic Refresh button ( ) in the view’s title bar. Entries in the

Chapter 11

Getting System Information

343

Controlling your system information session

Target Navigator are gray when their data is stale and needs refreshing.

If you’ve disabled automatic refresh, you can refresh the Target

Navigator view by right-clicking and choosing Refresh from the context menu.

The Target Navigator view also let you control the information displayed by the following views:

Connection Information

Malloc Information

Memory Information

Process Information

Signal Information

To control the display in the Information views:

In the Target Navigator view, expand a target and select a process: information about the selected process.

The currently-displayed Information view is updated to show

344

Chapter 11

Getting System Information

Controlling your system information session

Sending a signal

The Target Navigator view lets you send signals to the processes on your target. For example, you can terminate a process by sending it a

SIGTERM signal.

To send a signal to a process:

1

In the Target Navigator view, right-click a process and select

Deliver Signal.

2

3

Select a signal from the dropdown menu.

Click OK. The IDE delivers the signal to your selected process.

CAUTION: Delivering a signal to a process usually causes that process to terminate.

!

Updating the views

To update the views in the System Information perspective:

In the Target Navigator view, expand a target and select a process. (You can also select groups of processes by using the

Ctrl

The data displayed in the System Information perspective is updated automatically whenever new data is available.

or Shift keys.) The views reflect your selection.

Chapter 11

Getting System Information

345

Examining your target system’s attributes

Adding views to the System Information perspective

By default, some views don’t appear in the System Information perspective. To add a view to the perspective:

1

From the main menu, select Window

Show View and select a view.

2

The view appears in your perspective.

3

If you want to save a customized set of views as a new perspective, select Window

Save Perspective As from the main menu.

Some of the views associated with the System Information perspective can add a noticeable processing load to your host CPU.

You can improve its performance by:

closing the System Information perspective when you’re not using it

closing unneeded views within the perspective. You can instantly reopen all the closed views by selecting Window

Reset

Perspective from the main menu

reducing the refresh rate (as described above)

minimizing or hiding unneeded views

Examining your target system’s attributes

The System Summary view displays a listing of your target’s system servers, and processes: attributes, including your target’s processor(s), memory, active

346

Chapter 11

Getting System Information

Examining your target system’s attributes

The System Summary view includes the following panes:

System Specifications

System Memory

Processes

Chapter 11

Getting System Information

347

Watching your processes

Click the Highlight button ( ) in the view’s toolbar to highlight changes to the display since the last update.

You can change the highlight color in the Colors and Fonts preferences

(Window

PreferencesGeneralAppearanceColors and

Fonts).

System Specifications pane

The System Specifications pane displays your system’s hostname, board type, OS version, boot date, and CPU information. If your target is a multicore system, the pane lists CPU information for each core or processor.

System Memory pane

The System Memory pane displays your system’s total memory and free memory in numerical and graphical form.

Processes panes

The Processes panes display the process name, code and data size, the data usage delta, total CPU usage since starting, the CPU usage delta, and the process’s start date and time for the processes running on your selected target. The panes let you see application processes, server processes, or both. Server processes have a session ID of 1; application processes have a session ID greater than 1.

Watching your processes

The Process Information view displays information about the processes you select in the Target Navigator view. The view shows the name of the process, its arguments, environment variables, and so on. The view also shows the threads in the process and the state of each thread:

348

Chapter 11

Getting System Information

Watching your processes

The Process Information view includes the following panes:

Thread Details

Environment Variables

Process Properties

Chapter 11

Getting System Information

349

Watching your processes

Click the Highlight button ( ) in the view’s toolbar to highlight changes to the display since the last update.

You can change the highlight color in the Colors and Fonts preferences

(Window

PreferencesGeneralAppearanceColors and

Fonts).

Thread Details pane

The Thread Details pane shows information about your selected process’s threads, including the thread’s ID, priority, scheduling policy, state, and stack usage.

The Thread Details pane lets you display a substantial amount of information about your threads, but some of the column entries aren’t shown by default.

To configure the information displayed in the Thread Details pane:

1

In the Process Information view, click the menu dropdown button ( ).

2

Select Configure. The Configure dialog appears:

350

Chapter 11

Getting System Information

Watching your processes

3

You can:

Add entries to the view by selecting items from the

Available Items list and clicking Add.

Remove entries from the view by selecting items in the New

Items list and clicking Remove.

Adjust the order of the entries by selecting items in the New

Items list and clicking Shift Up or Shift Down.

4

Click OK. The view displays the entries that you specified in the New Items list.

If you right-click on a thread in the Thread Details pane, the menu includes items that let you specify the thread’s priority and scheduling algorithm, name, CPU affinity, and inherited CPU affinity:

Chapter 11

Getting System Information

351

Watching your processes

Setting the priority and scheduling algorithm:

For more information about the available priorities and scheduling algorithms, see “Thread scheduling” in the QNX Neutrino

Microkernel chapter of the System Architecture guide.

thread a name:

If you’ve installed the Core OS 6.3.2 on the target, you can give the

352

Chapter 11

Getting System Information

Watching your processes

You can also set the runmask that the thread’s children will inherit: and its own runmask:

Chapter 11

Getting System Information

353

Watching your processes

For more information, see the Multicore Processing User’s Guide.

If you right-click on a process in the target navigator or the Thread

Details pane, you get similar options, except for setting the thread name. The settings you make apply to all of the process’s threads.

Environment Variables pane

The Environment Variables pane provides the values of the environment variables that are set for your selected process. (For more information, see the Commonly Used Environment Variables appendix in the Utilities Reference.)

Process Properties pane

The Process Properties pane shows the process’s startup arguments, and the values of the process’s IDs: real user, effective user, real group, and effective group.

The process arguments are the arguments that were used to start your selected process as they were passed to your process, but not necessarily as you typed them. For example, if you type

ws *.c

, the pane might show

ws cursor.c io.c my.c phditto.c

354

Chapter 11

Getting System Information

Examining your target system’s memory (inspecting virtual address space)

swaprelay.c

, since the shell expands the

*.c

before launching the program.

The process ID values determine which permissions are used for your program. For example, if you start a process as

root

, but use the

seteuid() and setegid() functions to run the program as the user

jsmith

, the program runs with

jsmith

’s permissions. By default, all programs launched from the IDE run as

root

.

Examining your target system’s memory

(inspecting virtual address space)

The following views in the QNX System Information perspective are especially useful for examining the memory of your target system:

Malloc Information view (for heap usage and other details)

Memory Information view (for examining virtual address space)

Virtual address space

The Memory Information view displays the memory used by the process you select in the Target Navigator view:

Chapter 11

Getting System Information

355

Examining your target system’s memory (inspecting virtual address space)

The view shows the following major categories of memory usage:

Stack (red)

guard (light)

unallocated (medium)

allocated (dark)

Program (royal blue)

data (light)

code (dark)

356

Chapter 11

Getting System Information

Examining your target system’s memory (inspecting virtual address space)

Heap (blue violet)

Objects (powder blue)

Shared Library (green)

data (light)

code (dark)

Unused (white)

The Process Memory pane shows the overall memory usage. To keep large sections of memory from visually overwhelming smaller sections, the view scales the display semilogarithmically and indicates compressed sections with a split.

Below the Process Memory pane, the Process Memory subpane shows your selected memory category (e.g. Stack, Library) linearly.

The subpane colors the memory by subcategory (e.g. a stack’s guard page), and shows unused memory.

The Memory Information view’s table lists all the memory segments and the associated virtual address, size, permissions, and offset. The major categories list the total sizes for the subcategories (e.g. Library lists the sizes for code/data in the Size column). The Process Memory pane and subpane update their displays as you make selections in the table.

The Memory Information view’s table includes the following columns:

The name of the category.

The virtual address of the memory.

Name

V. Addr.

Size The size of the section of memory. For the major categories, the column lists the totals for the minor categories.

Map Flags The flags and protection bits for the memory block.

See the mmap() function’s flags and prot arguments in the Neutrino Library Reference.

Chapter 11

Getting System Information

357

Examining your target system’s memory (inspecting virtual address space)

Offset The memory block’s offset into shared memory, which is equal to the mmap() function’s off argument.

To toggle the Memory Information view’s table arrangement between a flat list and a categorized list:

Select the dropdown menu ( ) in the Memory Information view’s title bar and select Categorize.

Stack errors

Stack errors can occur if your program contains functions that are deeply recursive or use a significant amount of local data. Errors of this sort can be difficult to find using conventional testing; although your program seems to work properly during testing, the system could fail in the field, likely when your system is busiest and is needed the most.

The Memory Information view lets you see how much stack memory your program and its threads use. The view can warn you of potential stack errors.

Inefficient heap usage

Your program can experience problems if it uses the heap inefficiently. Memory-allocation operations are expensive, so your program may run slowly if it repeatedly allocates and frees memory, or continuously reallocates memory in small chunks.

The Malloc Information view displays a count of your program’s memory allocations; if your program has an unusually high turnover rate, this might mean that the program is allocating and freeing more memory than it should.

You may also find that your program uses a surprising amount of memory, even though you were careful not to allocate more memory than you required. Programs that make many small allocations can incur substantial overhead.

The Malloc Information view lets you see the amount of overhead memory the

malloc

library uses to manage your program’s heap. If

358

Chapter 11

Getting System Information

Tracking heap usage the overhead is substantial, you can review the data structures and algorithms used by your program, and then make adjustments so that your program uses its memory resources more efficiently. The Malloc

Information view lets you track your program’s reduction in overall memory usage.

To learn more about the common causes of memory problems, see

Heap Analysis: Making Memory Errors a Thing of the Past in the

QNX Neutrino Programmer’s Guide.

Tracking heap usage

The following views in the QNX System Information perspective are especially useful for examining the memory of your target system:

Malloc Information view (for heap usage and other details)

Memory Information view (for examining virtual address space)

Malloc Information view

The Malloc Information view displays statistical information from the general-purpose, process-level memory allocator:

Chapter 11

Getting System Information

359

Tracking heap usage

When you select a process in the Target Navigator view, the IDE queries the target system and retrieves the allocator’s statistics. The

IDE gathers statistics for the number of bytes that are allocated, in use, and overhead.

The view includes the following panes:

Total Heap

Calls Made

Core Requests

Distribution

360

Chapter 11

Getting System Information

Tracking heap usage

History

Total Heap

The Total Heap pane shows your total heap memory, which is the sum of the following states of memory:

used (dark blue)

overhead (turquoise)

free (lavender)

The bar chart shows the relative size of each.

Calls Made

Core Requests

The Core Requests pane displays the number of allocations that the system allocator automatically made to accommodate the needs of the program you selected in the Target Navigator view. The system allocator typically dispenses memory in increments of 4 KB (one page).

The number of allocations never equals the number of deallocations, because when the program starts, it allocates memory that isn’t released until it terminates.

Distribution

The Calls Made pane shows the number of times a process has allocated, freed, or reallocated memory by calling malloc(), free(), and realloc() functions. (See the Neutrino Library Reference.)

The Distribution pane shows a distribution of the memory allocation sizes. The pane includes the following columns:

Byte Range The size range of the memory blocks.

Chapter 11

Getting System Information

361

Tracking heap usage

Total

malloc

s and frees

The total number of calls that effectively allocate or free memory. For example, if your program reallocated memory from 10 bytes to 20 bytes, both the free count for the 0–16 byte range and the

malloc

count for the 17–32 range would increment.

Allocated The remaining number of allocated blocks. The value is equal to the number of allocations minus the number of deallocations.

% Returned The ratio of freed blocks to allocated blocks, expressed as a percentage. The value is calculated as the number of deallocations divided by the number of allocations.

Usage (min/max)

The calculated minimum and maximum memory usage for a byte range. The values are calculated by multiplying the number of allocated blocks by the minimum and maximum sizes of the range. For example, if the 65–128 byte range had two blocks allocated, the usage would be

130/160

. You should use these values for estimated memory usage only; the actual memory usage usually lies somewhere in between.

History

The History pane shows a chronology of the heap usage shown in the

Total Heap pane. The pane automatically rescales as the selected process increases its total heap.

The History pane updates the data every second, with a granularity of

1 KB. Thus, two 512-byte allocations made over several seconds trigger one update.

362

Chapter 11

Getting System Information

Examining process signals

You can choose to hide or display the Distribution and History panes:

1

In the Malloc Information view’s title bar, click the dropdown menu button ( ), followed by Show.

2

Click the pane you want displayed.

Examining process signals

The Signal Information view shows the signals for the processes selected in the Target Navigator view.

The view shows signals that are:

blocked — applies to individual threads

ignored — applies to the entire process

pending

You can send a signal to any process by using the Target Navigator view (see the section “Sending a signal” in this chapter).

Getting channel information

The System Blocking Graph view presents a color-coded display of all the active channels in the system and illustrates the interaction of threads with those channels.

Chapter 11

Getting System Information

363

Getting channel information

Interaction with resource objects are such that a thread can be blocked waiting for access to the resource or waiting for servicing (i.e. the thread is SEND-blocked on a channel).

The thread could also be blocked waiting for a resource to be released back to the thread or waiting for servicing to terminate (i.e. the thread is REPLY-blocked).

Clients in such conditions are shown on the left side of the graph, and the resource under examination is in the middle. Threads that are waiting to service a request or are active owners of a resource, or are actively servicing a request, are displayed on the right side of the graph:

364

Chapter 11

Getting System Information

Getting channel information in the legend at the top of the graph like this:

In terms of “classical” QNX terminology, you can think of the items

Chapter 11

Getting System Information

365

Tracking file descriptors

Legend item Thread state

Servicing request

Not RECEIVE-blocked (e.g. RUNNING,

blocked on a mutex, etc.)

Waiting for request RECEIVE-blocked

Waiting for reply REPLY-blocked

Waiting for service SEND-blocked

Tracking file descriptors

The Connection Information view displays the file descriptors, server, and connection flags related to your selected process’s connections.

The view also shows (where applicable) the pathname of the resource that the process accesses through the connection:

The information in this view comes from the individual resource manager servers that are providing the connection. Certain resource managers may not have the ability to return all the requested information, so some fields are left blank.

The IOFlags column describes the read (

r

) and write (

w

) status of the file. A double dash (

--

) indicates no read or write permission; a blank indicates that the information isn’t available.

366

Chapter 11

Getting System Information

Tracking resource usage

The Seek Offset column indicates the connector’s offset from the start of the file.

Note that for some FDs, an “s” appears beside the number. This means that the FD in question was created via a side channel — the connection ID is returned from a different space than file descriptors, so the ID is actually greater than any valid file descriptor.

For more information on side channels, see ConnectAttach() in the

Neutrino Library Reference.

To see the full side channel number:

1

2

In the Connection Information view, click the menu dropdown button ( ).

Select Full Side Channels.

Tracking resource usage

The System Resources view shows various pieces of information about your system’s processes. You can choose one of the following displays:

System Uptime

General Resources

Memory Resources

To select which display you want to see, click the menu dropdown button ( ) in the System Resources view.

System Uptime display

CPU usage time, and the usage as a percent of the total uptime, for all the processes running on your selected target:

The System Uptime display provides information about the start time,

Chapter 11

Getting System Information

367

Tracking resource usage

368

Chapter 11

Getting System Information

Tracking resource usage

Click the Highlight button ( ) in the view’s toolbar to highlight changes to the display since the last update.

You can change the highlight color in the Colors and Fonts preferences

(Window

PreferencesGeneralAppearanceColors and

Fonts).

General Resources display

The General Resources display provides information about CPU usage, heap size, and the number of open file descriptors, for all the processes running on your selected target.

Chapter 11

Getting System Information

369

Tracking resource usage

370

Chapter 11

Getting System Information

Tracking resource usage

Click the Highlight button ( ) in the view’s toolbar to highlight changes to the display since the last update.

You can change the highlight color in the Colors and Fonts preferences

(Window

PreferencesGeneralAppearanceColors and

Fonts).

Memory Resources display

The Memory Resources display provides information about the heap, program, library, and stack usage for each process running on your selected target:

Chapter 11

Getting System Information

371

Tracking resource usage

372

Chapter 11

Getting System Information

Tracking the use of adaptive partitioning

Click the Highlight button ( ) in the view’s toolbar to highlight changes to the display since the last update.

You can change the highlight color in the Colors and Fonts preferences

(Window

PreferencesGeneralAppearanceColors and

Fonts).

To learn more about the meaning of the values shown in the Memory

Resources display, see the Finding Memory Errors chapter in this guide.

Tracking the use of adaptive partitioning

This view displays information about the adaptive partitioning scheduling on the target system.

For more information about adaptive partitioning, see

the Adaptive Partitioning chapter of the System Architecture guide

the Adaptive Partitioning chapter in the Adaptive Partitioning

User’s Guide.

The APS view shows the budget pie chart as well as the APS System parameters and Partition Information:

Chapter 11

Getting System Information

373

Tracking the use of adaptive partitioning

If you expand the APS System information item, the view displays the following:

The Partitions item includes the following:

374

Chapter 11

Getting System Information

Tracking the use of adaptive partitioning

You can drag and drop processes or threads to move them from one partition to another. This might cause other processes or threads to move as well.

The Partition Statistics item displays the following information:

The APS Bankruptcy item displays information about bankruptcies:

Chapter 11

Getting System Information

375

Tracking the use of adaptive partitioning

The pane at the bottom of the view displays graphical information:

Partition budgets (in percentages):

CPU usage by partition (in percentages):

376

Chapter 11

Getting System Information

Tracking the use of adaptive partitioning

Critical time usage (in milliseconds):

If you right-click on your target, the menu includes some options for the adaptive partitioning scheduler:

Chapter 11

Getting System Information

377

Tracking the use of adaptive partitioning

This menu includes:

Set APS Security:

378

Chapter 11

Getting System Information

Tracking the use of adaptive partitioning

For information about the flags, see “Scheduling policies” in the entry for SchedCtl() in the Neutrino Library Reference.

Set APS Parameters:

Chapter 11

Getting System Information

379

Tracking the use of adaptive partitioning

These parameters control:

the length of the sliding averaging window over which the adaptive partitioning scheduler calculates the CPU usage

how the scheduler handles bankruptcies. For more information, see “Handling bankruptcies” in the entry for SchedCtl() in the

Neutrino Library Reference.

Modify Existing Partition:

The partition’s budget is a percentage of CPU usage, while the critical budget is in milliseconds.

380

Chapter 11

Getting System Information

Create New Partition:

Tracking the use of adaptive partitioning

The new partition’s budget is taken from its parent partition’s budget.

You can also get information about the usage of adaptive partitioning on your system over a specified period of time through the System

Profiler perspective’s Partition Summary pane. For more information, see the “Analyzing Your System with Kernel Tracing” chapter in this guide.

Chapter 11

Getting System Information

381

Chapter 12

Analyzing Your System with Kernel

Tracing

In this chapter. . .

Introducing the QNX System Profiler

385

Configuring a target for system profiling

389

Capturing instrumentation data in event log files

394

Viewing and interpreting the captured data

396

Filtering a profile

400

System Profiler use cases

401

Associated views

426

System Profiler editor

427

Bookmarks view

435

Client/Server CPU Statistics view

435

Condition Statistics view

436

CPU Migration pane

441

Event Owner Statistics view

442

General Statistics view

443

Raw Event Data pane

443

Overview view

444

Partition Summary pane

445

Thread State Snapshot pane

446

Timeline State Colors pane

447

Why Running? pane

449

Trace Event Log view

448

Chapter 12

Analyzing Your System with Kernel Tracing

383

Introducing the QNX System Profiler

Use the System Profiler to analyze your system via instrumentation.

Introducing the QNX System Profiler

The System Profiler is a tool that works in concert with the Neutrino instrumented kernel (

procnto-instr

) to provide insight into the operating system’s events and activities. Think of the System Profiler as a system-level software logic analyzer. Like the Application

Profiler, the System Profiler can help pinpoint areas that need improvement, but at a system-wide level.

The instrumented kernel can gather a variety of events, including:

kernel calls

process manager activities

interrupts

scheduler changes

context switches

user-defined trace data

You might use the System Profiler to solve such problems as:

Chapter 12

Analyzing Your System with Kernel Tracing

385

Introducing the QNX System Profiler

IPC bottlenecks (by observing the flow of messages among threads)

resource contention (by watching threads as they change states)

cache coherency in a multicore machine (by watching threads as they migrate from one CPU or core to another)

Details on kernel instrumentation (such as types and classes of events) are more fully covered in the System Analysis Toolkit (SAT) User’s

Guide.

The QNX System Profiler perspective includes several components that are relevant to system profiling:

Navigator view

Events are stored in log files (with the extension

.kev

) within projects in your workspace. These log files are associated with the System Profiler editor.

Target Navigator view

When you right-click a target machine in the Target Navigator view, you can select Log With. . .

Kernel Event Trace, which initiates the Log Configuration dialog. You use this wizard to specify which events to capture, the duration of the capture period, as well as specific details about where the generated event log file (

.kev

file) is stored.

System Profiler editor

This editor provides the graphical representation of the instrumentation events in the captured log file. Like all other

Eclipse editors, the System Profiler editor shows up in the editor area and can be brought into any perspective. This editor is automatically associated with

.kev

files, but if you have other file types that contain instrumentation data, you could associate the editor with those files as well.

386

Chapter 12

Analyzing Your System with Kernel Tracing

Introducing the QNX System Profiler

Trace Event Log view

This view lists instrumentation events, as well as their details

(time, owner, etc.), surrounding the selected position in the currently active System Profiler editor.

General Statistics view

A tabular statistical representation of events.

You can gather statistics for the entire log file or for a selected range.

Condition Statistics view

A tabular or graphical statistical representation of the conditions used in the search panel.

Event Owner Statistics view

A tabular statistical representation of events broken down per owner.

Other components help you determine why a given thread is running, examine the migration of threads from one processor or core to another, and so on. For more details, see “Associated views,” later in this chapter.

The QNX System Profiler perspective may produce incorrect results when more than one IDE is communicating with the same target system. To use this perspective, make sure only one IDE is connected to the target system.

Before you begin

As mentioned earlier, to capture instrumentation data for analysis, the instrumented kernel (

procnto-instr

) must be running. This kernel is a drop-in replacement for the standard kernel (though the instrumented kernel is slightly larger). When you’re not gathering instrumentation data, the instrumented kernel is almost exactly as fast as the regular kernel.

Chapter 12

Analyzing Your System with Kernel Tracing

387

Introducing the QNX System Profiler

To determine if the instrumented kernel is running, enter this command:

ls /proc/boot

If

procnto-instr

appears in the output, then the OS image is running the instrumented kernel.

To substitute the

procnto-instr

module in the OS image on your board, you can either manually edit your buildfile, then run

mkifs

to generate a new image, or use the System Builder perspective to configure the image’s properties.

Replacing the kernel using the System Builder

1

In the System Builder Projects view, double-click the

project.bld

file for the image you want to change.

2

In the Images pane of the System Builder editor, select the image.

3

In the Properties view, click the Procnto field (under System).

A dropdown-menu button appears in the field:

388

Chapter 12

Analyzing Your System with Kernel Tracing

Configuring a target for system profiling

4

Select

procnto-instr

, press Enter , then save your change.

5

Rebuild your project, then transfer your new OS image to your board.

Assuming you’re running the instrumented kernel on your board, you’re ready to use the System Profiler. A profiling session usually involves these three steps:

configuring a target for system profiling

capturing instrumentation data in event log files

viewing and interpreting the captured data

Configuring a target for system profiling

You can gather trace events from the instrumented kernel in two different ways. You can run a command-line utility (e.g.

tracelogger

) on your target to generate a log file, and then transfer

Chapter 12

Analyzing Your System with Kernel Tracing

389

Configuring a target for system profiling that log file back to your development environment for analysis. Or, you can capture events directly from the IDE using the Log

Configuration dialog.

In order to get timing information from the kernel, you need to run

tracelogger

as the

root

user.

If you gather system-profiling data through

qconn

in the IDE, you’re already accessing the instrumented kernel as

root

.

Using the command-line server currently offers more flexibility as to when the data is captured, but requires that you set up and configure filters yourself using the TraceEvent() API. The Log Configuration dialog lets you set a variety of different static filters and configure the duration of time that the events are logged for.

For more information on the

tracelogger

utility, see its entry in the

Utilities Reference. For TraceEvent(), see the Neutrino Library

Reference.

Launching the Log Configuration dialog

To launch the Log Configuration dialog:

In the Target Navigator view, right-click a target, then select

Log With. . .

Kernel Event Trace from the menu. If you don’t have the Target Navigator view open, choose

Window

Show ViewOther. . . , then QNX

Targets

Target Navigator.

390

Chapter 12

Analyzing Your System with Kernel Tracing

Configuring a target for system profiling

If you don’t already have a target project, you’ll have to create one.

To create a target project:

1

2

In the Target Navigator view, right-click and select Add New

Target.

Specify the required information for your new target.

You can use this target project for a number of different tasks

(debugging, memory analysis, profiling), so once you create it, you won’t have to worry about connecting to your target again. Note also that the

qconn

target agent must be running on your target machine.

Selecting options in the wizard

The Log Configuration dialog takes you through the process of selecting:

the location of the captured log file (both on the target temporarily and on the host in your workspace)

the duration of the event capture

the size of the kernel buffers

the number of

qconn

buffers

the event-capture filters (to control which events are captured)

Chapter 12

Analyzing Your System with Kernel Tracing

391

Configuring a target for system profiling

Here are the main fields in this wizard:

Tracing method, Type (Period of time)

The duration of the capture of events as defined by a time. This is the default.

Tracing method, Period length

A floating-point value in seconds representing the length of time to capture kernel events on the target.

Tracing method, Type (Iterations)

The duration of the capture of events as defined by the number of kernel event buffers.

Tracing method, Number of Iterations

Total number of full kernel event buffers to log on the target.

392

Chapter 12

Analyzing Your System with Kernel Tracing

Configuring a target for system profiling

Trace file, Mode (Save on target then upload)

In this mode, kernel event buffers are first saved in a file on the target, then uploaded to your workspace. This is the default.

Trace file, Filename on target

Name of the file used to save the kernel event buffers on the target.

Trace file, Mode (Stream)

In this mode, no file is saved on the target. Kernel event buffers are directly sent from

qconn

to the IDE.

Trace statistics File, Mode (Generate only on the target)

The information file is generated only on the target. This is the default.

Trace statistics file, Mode (Do not generate)

No file is generated.

If your target is running QNX Neutrino 6.2.1, you must use this option instead of “Generate only on the target” because the trace statistics file is not supported under QNX Neutrino 6.2.1.

Trace statistics File, Mode (Save on target then upload)

The statistical information is first saved in a file on the target, then uploaded to your workspace.

Trace statistics File, Filename on target

Name of the file used to save the statistical information on the target.

Buffers, Number of kernel buffers

Size of the static ring of buffers allocated in the kernel.

Buffers, Number of qconn buffers

Maximum size of the dynamic ring of buffers allocated in the

qconn

target agent.

Chapter 12

Analyzing Your System with Kernel Tracing

393

Capturing instrumentation data in event log files

Capturing instrumentation data in event log files

Regardless of how your log file is captured, you have a number of different options for how to regulate the amount of information actually captured:

On/Off toggling of tracing

Static per-class Off/Fast/Wide mode filters

Static per-event Off/Fast/Wide mode filters

User event-handler filters

(For more information, see the SAT User’s Guide.)

The IDE lets you access the first three of the above filters. You can enable tracing (currently done by activating the Log Configuration dialog), and then select what kind of data is logged for various events in the system.

The events in the system are organized into different classes (kernel calls, communication, thread states, interrupts, etc.). You can toggle each of these classes in order to indicate whether or not you want to generate such events for logging.

394

Chapter 12

Analyzing Your System with Kernel Tracing

Capturing instrumentation data in event log files

The data logged with events comes in the following modes:

Fast mode A small-payload data packet that conveys only the most important aspects of the particular event.

Better for performance.

Wide mode A larger-payload data packet that contains a more complete event definition, with more context.

Better for understanding the data.

Class Specific This mode lets you select Disable (no data is collected), Fast, Wide, or Event Specific for each of the following event classes:

Chapter 12

Analyzing Your System with Kernel Tracing

395

Viewing and interpreting the captured data

Control Events

Interrupts

Process and Thread

Container

Communication

Choosing Event Specific lets you select Disable,

Fast, or Wide for each event in that class.

Depending on the purpose of the trace, you’ll want to selectively enable different tracing modes for different types of events so as to minimize the impact on the overall system. For its part in the analysis of these events, the IDE does its best to work with whatever data is present. (But note that some functionality may not be available for post-capture analysis if it isn’t present in the raw event log.

;-)

)

Viewing and interpreting the captured data

Once an event file is generated and transferred back to the development host for analysis (whether it was done automatically by the IDE or generated by using

tracelogger

and manually extracted back to the IDE), you can then invoke the System Profiler editor.

Log files are loaded in a nonmodal activity that you can cancel. This lets you load multiple log files at the same time, and log file data can be normalized as a background task when it’s out of order. The display will show data up to the point where the log file has been processed.

396

Chapter 12

Analyzing Your System with Kernel Tracing

Viewing and interpreting the captured data

If you receive a “Could not find target: Read timed out” error while capturing data, it’s possible that a CPU-intensive program running at a priority the same as or higher than

qconn

is preventing

qconn

from transferring data back to the host system.

If this happens, restart

qconn

with the

qconn_prio=

option to specify a higher priority. You can use

hogs

or

pidin

to see which process is keeping the target busy, and discover its priority.

The IDE includes a custom perspective for working with the System

Profiler. This perspective sets up some of the more relevant views for easy access.

Searches in the System Profiler occur in the background, with results displayed as they’re found. The results of each search operation are managed separately and are “overlaid” on top of one another, allowing multiple search results to be graphically viewed together in the System Profiler timeline editor pane. You can configure the table that’s displayed in the search result view to display only the interesting trace event fields. The content of this table can be cut and pasted to the system clipboard as CSV-format data.

The tracing of kernel events from the IDE is performed as a background task. You can monitor the progress of the trace by opening the Progress view.

In the System Profiler editor’s Timeline pane, you can navigate to the next or previous event limited to only those event owners. This lets you follow a sequence of events generated by a particular set of event owners (for example finding the next event owned by a thread, or the messages generated by a client and server).

In locations where single events have been identified (for example, the Trace Log view, Search Results view), you can navigate directly to the event location in the System Profiler timeline editor pane by double-clicking. The selection marker is moved to the event location and, if possible, the specific event owner is scrolled into view in the timeline editor pane.

Chapter 12

Analyzing Your System with Kernel Tracing

397

Viewing and interpreting the captured data

The Navigate menu contains a Go To Type command that lets you jump directly to a specific type to allow developers to collaborate more easily with one another. Navigating by type provides direct navigation to the following:

namespace

,

typedef

,

class

,

enum

,

struct

, and

union

.

The System Profiler’s Go To Event command.

These components of the QNX System Profiler are described in detail later in this chapter:

System Profiler editor

398

Chapter 12

Analyzing Your System with Kernel Tracing

Viewing and interpreting the captured data

Bookmarks view

Client/Server CPU Statistics view

Condition Statistics view

CPU Migration pane

Event Owner Statistics view

General Statistics view

Raw Event Data pane

Overview view

Partition Summary pane

Thread State Snapshot pane

Timeline State Colors pane

Trace Event Log view

Why Running? pane

There are a number of additional components outside of the editor that you can use to examine the event data in more detail:

Trace Search panel

Invoked by Ctrl-H (or via Search

Search. . . ), this panel lets you execute more complex event queries than are possible with the Find dialog.

You can define conditions, which may include regular expressions for matching particular event data content (e.g. all MsgSend events whose calling function corresponds to mmap()). You can then evaluate these conditions and place annotations directly into the

System Profiler editor. The results are shown in the Search view.

Unlike the other search panels in the IDE, the Trace Search panel can search for events only in the currently active System Profiler editor.

Chapter 12

Analyzing Your System with Kernel Tracing

399

Filtering a profile

You use this search panel to build conditions and then combine them into an expression. A search iterates through the events from the active log file and is applied against the expression; “hits” appear in the Search Results view and are highlighted in the System Profiler editor.

By default, the Trace Search panel returns up to 1000 hits. You can change this maximum in the Preferences dialog (choose

Window

PreferencesQNXSystem Profiler).

Properties view

This view shows information about the log file that was captured, such as the date and time, as well as the machine the log file was captured on.

Filtering a profile

The IDE lets you filter profile data so that you can look at a subset of the captured information. You can specify filtering on the following items:

processes

events

saved filters

To filter profile data:

1

2

3

After you’ve begun running your process(es) and started kernel logging for a project, you can select System

Profiler

DisplaySwitch PaneTimeline to change to the

Timeline editor state.

Right-click on the Timeline canvas and select Filter.

Specify your desired filtering options on the following tabs:

Notice that the Timeline will dynamically change (for the specified time range) based on the filtering selections you make.

400

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

On the Owners tab, select only those processes that you want to observe system profile data for. Click Deselect All to quickly deselect all of the processes, and then you can select only those that you want to monitor.

On the Events tab, you can specify the events that you want to filter on, such as interrupts, communication, kernel calls, and various other events. Click Deselect All to quickly deselect all of the events, and then you can select only those that you want to monitor.

On the Saved Filters tab, you can filter in or out based on custom filters; these are pre-existing filters within the IDE.

For example, If you select CPU Usage and then click the

Show Only button, the IDE will filter out any event owners that didn’t use CPU time. Click the Add button to add the currently selected item to the list of items being filtered; the results will dynamically display in the Timeline. Click

Remove to filter out the selected item; its corresponding data will be removed from the Timeline.

System Profiler use cases

This section describes some cases where you’d use the System

Profiler:

locating sources of high CPU usage

mapping and isolating client CPU load from server CPU load

examining interrupt latency

locating events of interest

Locating sources of high CPU usage

In many cases you want to know where in time your CPU cycles are being consumed and who is doing the consuming. The System

Profiler provides several tools to help extract this information and

“drill down” to quickly and easily determine the source and distribution of CPU consumption.

Chapter 12

Analyzing Your System with Kernel Tracing

401

System Profiler use cases

Requirements

To extract CPU usage metrics using the System Profiler tools, the captured log file must contain at a minimum, the Neutrino RUNNING thread state. If the RUNNING thread state is logged in wide mode, then additional information regarding CPU usage distribution over priority and partitions can also be calculated.

If you need to determine the CPU load caused by interrupts, then you must also log the Interrupt Entry/Exit events.

Procedure

To start, open the target log file in the System Profiler editor. By default the initial display should show the Summary editor pane; if this isn’t the case, then you can get to the Summary editor pane via the menu item System Profiler

DisplaySwitch PaneSummary.

The Summary editor pane shows a high-level overview of the log file contents:

402

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

The System Activity section displays the distribution of time spent in the log file, carved into these broad categories:

Chapter 12

Analyzing Your System with Kernel Tracing

403

System Profiler use cases

Idle

Interrupts The amount of time that has been spent servicing hardware interrupts in this log file.

System

The amount of time that the idle thread(s) spent running in this log file.

The amount of time that has been spent making kernel calls (measured between kernel entry and exit events).

This time doesn’t include any of the time spent handling hardware interrupts.

User The amount of time that nonidle threads spend in the

Neutrino RUNNING state, minus the time spent performing kernel calls or in interrupt handlers.

Using these metrics, you can get a rough estimate of how efficiently your system is performing (e.g. amount of idle time, ratio of system to user time, possible interrupt flooding).

The distribution of CPU usage over the time of the entire log file is displayed graphically in the Process & Thread Activity section overlaid with the volume of events that have been generated. This same data is also available as the Overview view accessed via

Window

Show ViewOther . . . Overview.

404

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

The peaks of this display indicate areas of particularly intense CPU usage and are the areas of most interest.

To focus on the particular threads that are causing these spikes, switch the editor display pane to the CPU Usage editor pane. You can do this via the menu item System Profiler

DisplaySwitch PaneCPU

Usage or directly using the editor pull down.

The CPU Usage editor display charts the CPU usage of consuming elements (threads and interrupts) over time and provides a tabular display showing the sum of this usage categorized by CPU, priority, or partition.

Chapter 12

Analyzing Your System with Kernel Tracing

405

System Profiler use cases

By selecting multiple elements in the table, you can “stack” the CPU usage to see how threads and interrupts are interacting. For example, selecting the first few nonidle CPU consumers in this example provides the following display:

By selecting a region of the display, you can zoom in to the area of interest to further drill down into selected areas to better examine the profile of the CPU execution. As the display zooms in, the editor panel’s time bar is updated to show the new range of time being examined.

406

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

This example has shown the CPU usage for process threads, but this technique applies equally well to individual interrupt handlers, which show up as CPU consumers in the same manner as threads.

The CPU Usage editor pane lets you isolate and assign CPU consumption behavior to specific threads very quickly and easily.

With this information, you can generally use a more specialized, and application centric, tool such as the Application Profiler to look more closely at execution behavior and to drill down directly to the application source code.

Mapping and isolating client CPU load from server CPU load

There are many cases where high CPU load is traced back to server activity. However, in most cases what is required to reduce this CPU load isn’t to make the servers more efficient, but to look more closely

Requirements

at the client activity that is causing the servers to run.

Chapter 12

Analyzing Your System with Kernel Tracing

407

System Profiler use cases

Make sure you’ve read and understood “Locating sources of high

CPU usage” before examining this use case.

In addition to the Neutrino RUNNING thread state, the log must contain the communication events

SEND/RECEIVE/REPLY|ERROR. These communication events are used to establish the relationship between clients and servers.

Procedure

QNX Neutrino systems rely heavily on client/server communications most often performed via message passing. In these systems, clients send requests to servers asking them to do work on their behalf such as shown:

Here, A’s real CPU usage would be considered to be 2 units of time,

B’s as 10, and C’s as 2 units of time. Since B and C are both acting as servers, they really execute only when there are clients generating requests for action. Most standard CPU Usage metrics don’t take this type of “on behalf of” work into consideration. However, if the goal of a kernel log file investigation is to locate the source or sources of

CPU load, then this type of metric is invaluable in assigning “blame” for high CPU usage.

The System Profiler provides the Client/Server CPU Statistics view to help extract this type of “on behalf of” metric. You can activate this view via the Window

Show ViewOther. . . Client/Server

CPU Statistics.

Once activated, the Client/Server CPU Statistics are gathered on demand, by default, targeting the full range of the target log file:

408

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

The default display of this view shows the simplified view that displays the RUNNING time (slightly different from the CPU Usage in that it doesn’t remove the time spent interrupted by interrupt handlers) that CPU consumers are consuming directly, indirectly, and summed together as a total:

In this case, it’s clear that while the

qconn- Thread 1

isn’t consuming much CPU on its own, it’s imposing a significant amount of time on the system indirectly. If you compare this data to what the

CPU Usage editor pane displays, you’ll see the difference in what’s reported:

Chapter 12

Analyzing Your System with Kernel Tracing

409

System Profiler use cases

In the CPU Usage table,

procnto- Thread 8

ranks ahead of

qconn- Thread 1

in its usage. However,

procnto

is a pure server process, so we know that it consumes no CPU resources without being solicited to do so. We suspect that perhaps

qconn- Thread 1

is driving

procnto- Thread 1

.

We can confirm this suspicion by looking at which servers

qconn-

Thread 1

is imposing CPU usage on. You can configure the

Client/Server CPU Usage view to display all of the CPU consumers that are being imposed on (and by whom) by selecting Show all times from the view’s dropdown menu:

The Client/Server CPU Usage view table changes to show all of the imposed-on servers that clients are communicating with. The servers are listed in the columns and the clients in the Owner column. Note

410

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases that this may result in a table with many columns (imposed on servers):

Here we can see that in fact nearly all of the time that

procnto-

Thread 8

is spending consuming CPU is due to requests coming from

qconn- Thread 1

, with only a minimal amount being imposed on it by another

qconn

thread,

qconn- Thread 6

.

This is to be expected, since in order to query the system, the

qconn

process must communicate with the kernel to extract the system state and all the process and thread information.

Examining Interrupt Latency

There are several different types of interrupt latency that you can measure in a system:

Chapter 12

Analyzing Your System with Kernel Tracing

411

System Profiler use cases

the time from the HW signal generation to the start of software processing

the time it takes before a non-OS control function can be invoked in response to the interrupt

the time it takes for a user thread to be activated in response to this type of external event

The System Profiler, as a type of software logic analyzer, helps you look at the timing of activities once the interrupt has been acknowledged by the operating system. In order to accurately measure the time between the signal generation and the acknowledgment of it, you need additional hardware tools.

Requirements

To measure interrupt service time (the time taken for the operating system to acknowledge the interrupt, handle it, and return to normal processing), you must log the Neutrino Interrupt Entry/Exit events.

If you’re interested in the time from the operating system’s acknowledgment to a service handling routine, then you also need to capture the Interrupt Handler Entry/Exit events in the log file.

To properly gauge the latency in triggering a response in user code, you should also log the Neutrino thread READY and RUNNING states, in addition to the communication PULSE events, since these are often used to trigger a user application’s behavior in response to an interrupt.

Procedure

Interrupt activity is best viewed in the System Profiler editor using the

Timeline editor pane. Open the target log file in the System Profiler editor. Switch to the Timeline editor pane via the menu item System

Profiler

DisplaySwitch PaneTimeline.

You should see a display that resembles the following. The details will of course be different, but the layout similar:

412

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

This display shows the various event owners/sources (interrupts, interrupt handlers, processes and threads) as a tree with their associated events arranged horizontally as a timeline.

If you’ve logged Interrupt Handler Entry/Exit events, then you should be able to expand the interrupt entries to show the various handlers

(more than one handler can be attached to service an interrupt source), such as the following:

Here you can see that the

io-net

process has attached to

Interrupt 0x8c

and that

procnto

has attached to

Interrupt

0x800000000

, which on this system is the timer interrupt firing once every millisecond or so.

You can determine how many interrupt events are occurring in this log file by using the General Statistics view. This view is part of the default System Profiler perspective, and you can also access it via

Window

Show ViewOther. . . General Statistics.

Chapter 12

Analyzing Your System with Kernel Tracing

413

System Profiler use cases

If you use the refresh button, this view extracts the event statistics for the entire log file (default), or for just the selected area if specified.

Doing that results in the following display:

This table provides a breakdown for all of the event sources, showing the number of raw events and also the maximum, minimum, average, and total duration of the various Neutrino thread states in this log file.

If you’re interested in only the events associated with the timer interrupt (

Interrupt 0x80000000

), you can select that event owner in the Timeline editor pane:

414

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

Next, uncheck the Show statistics for all elements check box at the bottom of the General Statistics view:

The General Statistics view tables will show the content limited to just the selected event owners.

Using this technique, you can get an estimate of the rough order of magnitude of how many events you’re looking at in a log file, and in the case of interrupts, you can see some of the statistics about what the maximum, minimum, average, and total times spent were.

This display also lets you drill down further into the results, by allowing navigation in the Timeline editor pane directly to the maximum and minimum times, where you can look at the exact timing sequences. To do this, select one of the entries in the States table, and then right-click or use the toolbar to jump to the appropriate selection.

To look at the timing sequence of an interrupt, you usually have to zoom in on the timeline a significant amount to achieve an adequate level of visual detail, since interrupt processing is in general fast compared to the length of the log files. If you zoom into an area where a networking interrupt is being processed, the Timeline editor pane will change to look something like:

Chapter 12

Analyzing Your System with Kernel Tracing

415

System Profiler use cases

At this level of granularity, it also helps to see the trace event log concurrently with the Timeline editor pane. This is part of the standard System Profiler perspective, and you can access it using

Window

Show ViewOther. . . Trace Event Log. The Trace

Event Log and the Timeline editor pane are synchronized; when you change your cursor in the editor, the selection in the Trace Event Log view also changes and vice versa.

The selection synchronization is shown here. In the Trace Event Log view, we’ve selected the

Interrupt 0x8c

Entry event through to the

Interrupt 0x8c

Exit event. This represents the start to end of the processing of the interrupt event. In the timeline display, this selection is made and the timing measurement of 11.304

microseconds is displayed:

416

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

So the total interrupt handling time from start to end of the operating system interrupt service routine, including the event handler was

11.304 microseconds. If you want to just look at the handling time for interrupt handler attached by the

io-net

process, you can see that this time is only 8 microseconds. These times represent the earliest and latest points in time that can be measured before entering/exiting control of the software.

You can also see in this example that the

io-net

interrupt handler is returning a pulse that’s triggering something in the user’s application

(event 13515) and that an

io-net

thread is then scheduled to service that request. You can also measure this latency to determine how long it takes to go from operating system awareness of the interrupt to eventual application processing, using the same selection technique:

There are many different choices in terms of what time ranges are of interest to measure. Here we’ve decided to measure from the time that the operating system is aware of the interrupt (event 13511) through to the point at which the user process has started to respond to the signal generated by the

io-net

interrupt handler. Since the interrupt handler communicates using a pulse (event 13515), then the earliest that the user code can respond is when the MsgReceive() kernel call exits (event 13519) with the received pulse. In this case, we can see that the end-to-end latency from OS awareness to the start of user processing (nonprivileged) is 46.304 microseconds:

Chapter 12

Analyzing Your System with Kernel Tracing

417

System Profiler use cases

Alternate measurements that could be of interest and that you can easily examine include:

The time that it takes for the user process to be scheduled rather than the time for it to start processing. This would be signified by a transition of one of the receiving process’s (

io-net

) threads to a

READY or RUNNING state (event 13516 for example). This time may be significantly different from the actual start of processing time in busy systems with execution taking place with mixed priorities.

The time between the end of specific interrupt handler processing, and the awareness of the user process (either the scheduling or the start of processing) of the interrupt’s occurrence. This timing can be quite relevant when there are multiple interrupt-handling routines sharing the interrupt that may skew the time before the interrupt handler starts its processing of the interrupt.

Locating Events of Interest

Trace event log files contain a wealth of information, but unfortunately that information is often buried deep in among thousands, if not millions, of other events. The System Profiler tooling helps provide tools to reduce and remove some of this “noise”

Requirements

to help you focus on the areas of a log that are important to you.

There are no specific requirements for this use case, but some of the topics may not apply, depending on the types of events that have been captured.

418

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

Procedure

We’ll walk through some of the tools available to help you to reduce and filter the data contained in a trace event file. Where this information is most useful is during investigations involving the

Timeline editor pane. The timeline displays information with a very fine granularity and is often the display that users turn to in order to

“single step” through the execution flow of an activity of interest. To open the Timeline editor pane, select System

Profiler

DisplaySwitch PaneTimeline.

Timeline editor pane filters

The first level of data reduction is to use the Filters view to remove information that isn’t significant for the tracing of the problem you’re interested in. The Filters view is synchronized with the active System

Profiler editor; you can display it via the menu Window

Show

View

Other. . . Filters or by right-clicking Filters. . . in the

Timeline editor pane.

This view provides you with the following types of filtering:

The Owners tab shows a list of event owners/sources, letting you select or unselect event owners to be displayed. Unselecting an event owner in the list removes that owner from the Timeline editor pane.

Chapter 12

Analyzing Your System with Kernel Tracing

419

System Profiler use cases

The Events tab is similar to the Owners tab, but it provides filtering capabilities for individual trace events rather than for the owners of those events.

420

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

The Saved Filters tab provides a listing of preconfigured filters that are available. These filters are often based on more sophisticated criteria for determining if events or event owners are to be displayed. The CPU Usage filter is an example of such a filter. It removes from the display any event owner that hasn’t consumed any CPU resources within the current display area. By using this filter in conjunction with zooming and searching capabilities, you can quickly reduce the overall data set.

Trace event log filter synchronization

By default, the Trace Event Log view presents a display that uses the same filters as the currently active editor. However, there are times when it’s useful to be able to temporarily “unfilter” the Trace Event

Chapter 12

Analyzing Your System with Kernel Tracing

421

System Profiler use cases

Log view display to see the raw content of the log file. You can accomplish this by toggling the editor’s Synchronize button on the

Trace Event Log view display:

Timeline “find”

There are times when you’re looking at an event stream and want to quickly navigate through it. One mechanism for doing this is to move to the next or previous event, using the toolbar commands (Next,

Previous, Next Event In Selection, Previous Event In Selection).

Another, more flexible, alternative is to use the Find functionality of the Timeline editor pane. Selecting Edit

Find/Replace opens a dialog similar to the one found in many text editors:

The dialog supports searching a restricted set of event owners (based on the selection made in the Timeline editor pane) as well as searching forwards and backwards through the log file. This is convenient when you know specifically what type of event you’re looking for in a sequence of events (e.g. the next RUNNING state for a thread).

The Find dialog moves the selection marker in the Timeline editor pane to the appropriate event.

Trace Search

If you need to generate a collection of events matching a particular condition, or you need to construct a more complicated expression

(perhaps including event data) in order to find the events you’re looking for, you need the power of trace event conditions and the

Trace Search tool.

Opening this up presents a dialog similar to the following:

The search tool is invoked via the menu item Search

Search.

422

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

There are many different search mechanisms in Eclipse, but the Trace

Search is the one that we’re interested in as a “super find” for the event files.

Searching is based on trace conditions. Trace conditions describe a selection criterion for matching an event and can be based on anything that an event provides (ownership, data payload, and so on).

To add a condition that will locate all of the MsgSend() calls that may have been made for write system calls:

1

Add a new condition via the Add button in the search dialog.

This brings up a new condition dialog that you can fill in with the MsgSendv() kernel call and the write() function entry to match. When matching string values (such as function names), the matching is done based on a regular-expression match.

Chapter 12

Analyzing Your System with Kernel Tracing

423

System Profiler use cases

2

Once you’ve defined the condition, it shows up in the Defined

Conditions table shown in the Trace Search panel. You can combine individual conditions to form Boolean expressions if required.

424

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler use cases

3

Specifying the newly created condition in the Search

Expression drop-down and selecting Search automatically opens up the Search Results view. If the Timeline editor pane is open, double-clicking on a search result (assuming that the result isn’t filtered) moves the timeline selection directly to that event: distribution over the period of the log file:

Search results are also marked in the timeline to help show the event

Chapter 12

Analyzing Your System with Kernel Tracing

425

Associated views

Exporting filtered log files with Save As

Often the kernel event files that are captured are large and contain a significant amount of nonessential data for the problem at hand. Of course, this is generally only determined after the fact, once you’ve performed some basic analysis.

You can use the File

Save As menu command to create a new log file that’s based on the current log file in the System Profiler editor.

You can restrict the new log file to just the selected area (if you’ve made a selection), and you can also use the current filter settings

(event and event owner) to reduce the amount of additional data that’s stored in the log file.

The new log file contains the same attribute information as the original log file (including the system version, system boot time, number of CPUs, and so on). Any event owners, such as interrupts, processes, and threads, which are referenced by events in the new log file, are synthetically created with timestamps matching the start time(s) of the new log file.

Associated views

The QNX System Profiler perspective includes the following views:

System Profiler editor

Bookmarks view

426

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler editor

Client/Server CPU Statistics view

Condition Statistics view

CPU Migration pane

Event Owner Statistics view

General Statistics view

Raw Event Data pane

Overview view

Partition Summary pane

Thread State Snapshot pane

Timeline State Colors pane

Trace Event Log view

Why Running? pane

System Profiler editor

In order to start examining an event file, the easiest way is to name it with a

.kev

(kernel event) extension. Files with this extension are automatically bound to the System Profiler editor.

The System Profiler editor is the center of all of the analysis activity.

It provides different visualization options for the event data in the log files:

Chapter 12

Analyzing Your System with Kernel Tracing

427

System Profiler editor

The System Profiler editor panes include the following:

Summary pane (the default)

Displays a summary of the activity in the system, accounting for how much time is spent processing interrupts, running system- or kernel-level code, running user code, or being idle.

The IDE generates an overview of the CPU and trace event activity over the period of the log file.

This overview contains the same information displayed in the Overview view.

The process activity (amount of time spent

RUNNING or READY, number of kernel calls) displayed in the Summary pane contains the same information as can be extracted by drilling down

428

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler editor for a particular time range of the event log using the General Statistics and Event Owner Statistics views.

CPU Activity pane

Displays the CPU activity associated with a particular thread of process. For a thread, CPU activity is defined as the amount of runtime for that thread. For a process, CPU activity is the amount of runtime for all the process’s threads combined.

CPU Usage pane

Displays the percent of CPU usage associated with all event owners. CPU usage is the amount of runtime that event owners get. CPU usage can also be displayed as a time instead of a percentage.

Timeline pane Displays events associated with their particular owners (i.e. processes, threads, and interrupts) along with the state of those particular owners

(where it makes sense to do so).

The Summary pane is the default. To choose one of the other types, right-click in the editor, then select Display

Switch Pane, or click this icon:

You can choose a specific display type by from the dropdown menu associated with this menu item or icon.

For the CPU Activity pane, you can display the data using your choice of graph by right-clicking the graph and choosing Graph

Type. Select one of the graph types from the list:

Line Chart

Bar Chart

Histogram

Chapter 12

Analyzing Your System with Kernel Tracing

429

System Profiler editor

Area Chart

3D versions of the charts are also available.

Each of these visualizations is available as a “pane” in a stack of

“panes.” Additionally, the visualization panes can be split — you can look at the different sections of the same log file and do comparative analysis.

All panes of the same stack share the same display information. A new pane inherits the display information of the previous pane, but becomes independent after it’s created.

To split the display, right-click in the editor, then select

Display

Split Display, or click this icon:

You can lock two panes to each other. From the Split Display submenu, choose the graph you want to display in the new pane, or click this icon:

You can have a maximum of four panes displayed at once.

A number of different features are available from within the editor:

Filters

Event owner selection

If you click on event owners, they’re selected in the editor. These selected event owners can then be used by other components of the IDE (such as Find).

If an owner has children (e.g. a parent process with threads), you’ll see a plus sign beside the parent’s name. To see a parent’s children, click the plus sign.

You can use the Filters view to filter out event owners and specific events. This lets you significantly cut down on the unwanted event “noise” in the

430

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler editor

Find display. You can then save a new version of the log file (using Save As) to produce a smaller, more succinct log file for further examination.

For example, to view only processes that are sending pulses, choose Window

Show

view

OtherQNX System ProfilerFilters to open the Filters view. Select the Events tab, and then replace

type filter text

with

MsgSend

. Click

Deselect All, and then click the applicable MsgSend events that your search found. The selected events are added to your display dynamically.

Pressing Ctrl-F (or selecting Edit

Find/Replace) opens a dialog that lets you quickly move from event to event. This is particularly useful when following the flow of activity for a particular event owner or when looking for particular events. Note the Class and Code fields in the dialog are filled in with the values from the currently selected event in the

Timeline pane.

Bookmarks You can place bookmarks in the timeline editor just as you would to annotate text files. To add a bookmark, click the Bookmark icon in the toolbar

( ), or right-click in the editor and choose

Bookmark from the menu.

These bookmarks show up in the Bookmarks view and can represent a range of time or a single particular event instance.

Cursor tracking

The information from the System Profiler editor is also made available to other components in the IDE such as the Trace Event Log and the General

Statistics views. These views can synchronize with the cursor, event owner selections, and time ranges, and can adjust their content accordingly.

Chapter 12

Analyzing Your System with Kernel Tracing

431

System Profiler editor

IPC representation

The flow of interprocess communication (e.g.

messages, pulses) is represented by a vertical arrow between the two elements.

You can toggle IPC tracing on/off by clicking this button in the toolbar:

By default, this displays the IPC trace arrows for all event owners. You can choose to display only the arrows for the selected owners by choosing Selection from the button’s dropdown menu.

Display Event Labels

The Display Event Labels button in the toolbar (

) lets you display labels in the timeline; open the button’s dropdown menu and select the type of labels you want to display:

Priority Labels — display the thread’s priority

State Labels — display the thread’s state as a label

State Icons — display the thread’s state as an icon above the thread

IPC Labels — add text boxes to the IPC lines to indicate which thread or process you’re communicating with

Event Labels — display labels for kernel events, including I/O and memory events.

If you haven’t expanded a process in the display, the labels are displayed.

labels for all its threads are displayed. By default, no

432

Chapter 12

Analyzing Your System with Kernel Tracing

System Profiler editor

Types of selection

Within the editor, you can select either of the following:

an owner (e.g. a process or thread)

a point in time

Owners

To select a single owner, simply click the owner’s name. To unselect an owner, press and hold the Ctrl key, then click each selected owner’s name.

To select multiple owners, press and hold the

Ctrl key, then click each owner’s name.

Time

To select a point in time, click an event on the timeline.

To select a range, click the start point on the timeline, then drag and release at the end point.

Chapter 12

Analyzing Your System with Kernel Tracing

433

System Profiler editor

Zooming

Or, select the start point, then hold down the

Shift key and select the end point.

When zooming in, the display centers the selection. If a time-range selection is smaller than the current display, the display adjusts to the range selection (or by a factor of two).

When zooming out, the display centers the selection and adjust by a factor of two.

When using a preset zoom factor (100% to 0.01%), the display centers the current selection and adjust to the new factor.

There are various ways to zoom:

right-click menu (Zoom LevelCustom)

toolbar icons

hotkeys (

+ to zoom in;

to zoom out)

Scrolling

You can use these keys to scroll through time:

To move:

The selection to the left by one event

The selection to the right by one event

The display to the left

The display to the right

The selection for the current owner to the left by one event one event

The selection for the current owner to the right by

You can use these keys to scroll through the owners:

Use this key:

Ctrl-

Ctrl-

Ctrl-Shift-

Ctrl-Shift-

434

Chapter 12

Analyzing Your System with Kernel Tracing

Bookmarks view

To move the display:

Up by one owner

Down by one owner

Up by one page (horizontal scrollbar thumb size)

Down by one page (horizontal scrollbar thumb size)

To the top of the owner list

To the bottom of the owner list

Use this key:

Page Up

Page Down

Home

End

Hovering

When you pause your mouse pointer over an owner or an event, you’ll see relevant information (e.g. PID, timestamps, etc.).

Bookmarks view

Just as you can bookmark lines in a text file, in the System Profiler editor, you can bookmark particular locations and event ranges displayed, and then see your bookmarked events in the Bookmarks view.

Client/Server CPU Statistics view

The Client/Server CPU Statistics view (Window

Show

View

Other. . . QNX System ProfilerClient/Server CPU

Statistics) tracks the amount of client/server time spent in the

RUNNING state. In a message-passing system, it may be that a particular thread is consuming a large amount of CPU time, but that

CPU time is being consumed based on requests from one or more clients. In these cases, in order to achieve a higher performance, the client requests on the server must be reduced (assuming that the server is identified as a bottleneck).

This panel provides a tabular display of threads that spend time in a

RUNNING state (slightly different from pure CPU usage) and breaks

Chapter 12

Analyzing Your System with Kernel Tracing

435

Condition Statistics view down the display such that for each thread there is a summary of how much time it spent directly in the RUNNING state and how much

RUNNING time it “imposed” on other threads in the system and the total of those two times.

The System Profiler’s Client/Server CPU Statistics view.

You can expand the table, via the View menu, to show how much time the client imposed on various server threads. The imposed time is cumulative: if client A sends to server B, then until B replies to A, any time that B consumes is seen as “imposed on” time. If during that time B sends to server C, then server C is also billed time as “imposed on” by A. The rationale here is that B would not have engaged with server C were it not for the initial message from A.

By sorting by imposed time, it is possible to identify which clients are predominantly driving the system and which servers may be bottleneck points.

Condition Statistics view

This view provides a tabular statistical representation of particular selected range.

When you first open the Condition Statistics view, it contains no data: events. The statistics can be gathered for the entire log file or for a

436

Chapter 12

Analyzing Your System with Kernel Tracing

Condition Statistics view

You must configure conditions and the table to view condition statistics.

Configuring conditions

To configure conditions for the Condition Statistics view:

1

Click the Configure Conditions. . . button, or choose

Configure Conditions. . . from the view’s drop-down menu

( ).

The IDE displays the Modify Conditions dialog.

Chapter 12

Analyzing Your System with Kernel Tracing

437

Condition Statistics view

2

Click the Add button to bring up the Trace Condition Wizard.

The IDE displays the Trace Condition Wizard dialog:

438

Chapter 12

Analyzing Your System with Kernel Tracing

Condition Statistics view

3

4

5

6

Give your condition a unique name and select the appropriate class and code. For example, select Process and Thread from the Class dropdown menu, then select Mutex under the Code dropdown menu.

Click Finish.

Click OK in the Modify Conditions dialog.

Click the Configure Table Condition Contents ( ) button, or choose Configure Table... from the view’s dropdown menu.

The IDE displays the Condition Selection dialog:

Chapter 12

Analyzing Your System with Kernel Tracing

439

Condition Statistics view

7

8

Add a check mark beside the conditions that you want displayed in the table.

Press OK to confirm your selections.

with data.

You’ll need to click the Refresh button ( ) to populate this view

440

Chapter 12

Analyzing Your System with Kernel Tracing

CPU Migration pane

CPU Migration pane

The CPU Migration pane provides a display that draws attention to some of the potential performance problems associated with multiple-CPU systems. This is principally concerned with CPU migration activities.

The System Profiler’s CPU Migration pane.

There are two migration details that are currently charted over the period of the log file:

The first chart provides a display showing the number of CPUscheduling migrations over time. The count is incremented each time a thread switches CPUs. The peaks in this chart indicate areas where there’s a high level of contention for particular CPUs. This type of cross-CPU migration can reduce performance because the instruction code cache is flushed, invalidated and then reloaded on the new CPU.

The second chart provides a display showing the count of cross-CPU communication, where the sending client thread and

Chapter 12

Analyzing Your System with Kernel Tracing

441

Event Owner Statistics view the receiving server thread are running on different CPUs. This type of cross-CPU communication on the initial message-sends is a potential performance problem since the data that is associated with the message-pass can’t be maintained in the processor data cache, and the caches must be invalidated, as the data transfer is moved to the new CPU.

This pane contains valid data only when the log file contains events from a system where there are multiple CPUs.

Event Owner Statistics view

This view provides a tabular statistical representation of particular events. The statistics can be gathered for the entire log file or for a selected range.

You’ll need to click the Refresh button ( ) to populate this view with data.

442

Chapter 12

Analyzing Your System with Kernel Tracing

General Statistics view

General Statistics view

This view provides a tabular statistical representation of particular events. The statistics can be gathered for the entire log file or for a selected range.

You’ll need to click the Refresh button ( ) to populate this view with data.

Raw Event Data pane

The Raw Event Data view (Window

Show

View

Other. . . QNX System ProfilerRaw Event Data) lets you examine the data payload of a particular selected event. It shows a table of event data keys and their values. For example if an event is selected in the Trace Log view, rather than attempting to look at all of the data in the single line entry, you can open the Raw Event Data view to display the data details more effectively.

Chapter 12

Analyzing Your System with Kernel Tracing

443

Overview view

The System Profiler’s Raw Event Data view.

Overview view

The Overview view (Window

Show ViewOther. . . QNX

System Profiler

Overview) shows two charts spanning the entire log file range.

The System Profiler’s Overview view.

444

Chapter 12

Analyzing Your System with Kernel Tracing

Partition Summary pane

These charts display the CPU usage (per CPU) over time and the volume of events over time. The Overview reflects the current state of the active editor and active editor pane. You can select an area of interest in either one of the charts; then, using the right-click menu, zoom in to display only that range of events to quickly isolate areas of interest due to abnormal system activity.

Partition Summary pane

The Partition Summary pane provides a summary of the entire log file, focused on QNX’s adaptive partitioning technology. For each distinct configuration of partitions detected in the log file, the distribution of CPU usage used by those partitions is displayed, along with a tabular display showing the distribution of CPU usage per event owner per partition.

You can use this information in conjunction with the CPU Usage editor pane to drill down into areas of interest. This pane contains valid data only when the log file contains partition information, and the process and thread states are logged in wide mode (so the partition thread scheduling information is collected).

Chapter 12

Analyzing Your System with Kernel Tracing

445

Thread State Snapshot pane

The System Profiler’s Partition Summary pane.

You can also get snapshots of the usage of the adaptive partitioning on your system through the System Information perspective’s Partition

Summary view. For more information, see the “Getting System

Information” chapter.

Thread State Snapshot pane

In addition to asking why a particular process’s thread may be running, developers are often faced with the task of understanding what the rest of the system is doing at a particular point in time. This question can easily be answered using the Thread State Snapshot view

(Window

Show ViewOther. . . QNX System

Profiler

Thread State Snapshot).

Like the Why Running? view, this view is keyed off of the current cursor position in the System Profiler editor Timeline pane. For a given time/position, it determines the state of all of the threads in the system and presents that list to you in such a fashion that you can then determine if this “system state” is what you’d anticipated.

446

Chapter 12

Analyzing Your System with Kernel Tracing

Timeline State Colors pane

The System Profiler’s Thread State Snapshot view.

Note that you must click the refresh icon in the Thread State View’s toolbar to update the contents of the Thread State View when you select a point in the Timeline.

Timeline State Colors pane

You can use the Timeline State Colors view (Window

Show

View

Other. . . QNX System ProfilerTimeline State Colors) if you’re unfamiliar with the System Profiler timeline editor pane state colorings, or if you’d like to change the color settings to something more appropriate for your task.

The view displays a table with all of the color and height markers that are used when drawing the timeline display. These settings can be bulk imported and exported using the view’s dropdown menu based on particular task requirements. The default settings generally categorize states with similar activities together (synchronization, waiting, scheduling, etc.).

Chapter 12

Analyzing Your System with Kernel Tracing

447

Trace Event Log view

The System Profiler’s Timeline State Colors view.

Trace Event Log view

This view can display additional details for the events surrounding the cursor in the editor. The additional detail includes the event number, time, class, and type, as well as decoding the data associated with a particular event.

448

Chapter 12

Analyzing Your System with Kernel Tracing

Why Running? pane

Why Running? pane

The Why Running? view (Window

Show ViewOther. . . QNX

System Profiler

Why Running?) works in conjunction with the

System Profiler timeline editor pane to provide developers with a single click answer to the question “Why is this thread running?” where “this thread” is the actively executing thread at the current cursor position.

By repeating this action (or generating the entire running backtrace) developers can get a clearer view of the sequence of activities leading up to their original execution position. Not to be confused with an execution backtrace, this “running backtrace” highlights the cause/effect relationship leading up to the initial execution position.

The System Profiler’s Why Running? view.

Chapter 12

Analyzing Your System with Kernel Tracing

449

Chapter 13

Common Wizards Reference

In this chapter. . .

Introduction

453

Creating a C/C++ project

456

Creating a target

472

Converting projects

474

Importing projects

487

Chapter 13

Common Wizards Reference

451

Introduction

This chapter describes the IDE’s wizards.

Introduction

Wizards guide you through a sequence of tasks, such as creating a new project or converting an existing non-QNX project to a QNX

C/C++ application or library project.

Wizards aren’t directly connected to any perspective. You can access all the project creation wizards from the main menu by selecting

File

NewOther. . . .

In the New Project dialog, the wizards are categorized according to the nature of the project. If you expand C, you’ll see all projects that have a C nature; expand QNX, and you’ll see all the projects with a

QNX nature:

Chapter 13

Common Wizards Reference

453

Introduction

QNX.

Notice the overlap: the QNX C Project wizard appears in both C and

454

Chapter 13

Common Wizards Reference

Introduction

In the C/C++ Development perspective, you can also access the QNX

C/C++ Projects wizards via the New C/C++ Project button:

Besides the nature-specific wizards, the IDE also has “simple” wizards that deal with the very basic elements of projects: Project,

Folder, and File. These elements have no natures associated with them. You can access these wizards by selecting

File

NewOther. . . Simple.

Although a project may seem to be nothing other than a directory in your workspace, the IDE attaches special meaning to a project — it won’t automatically recognize as a project any directory you happen to create in your

workspace

.

Once you’ve created a project in the IDE, you can bring new folders and files into your project folder, even if they were created outside the

IDE (e.g. using Windows Explorer).

To have the IDE recognize folders and files:

Refresh.

In the Navigator view, right-click the navigator pane and select

Chapter 13

Common Wizards Reference

455

Creating a C/C++ project

Creating a C/C++ project

You use the New Project wizard to create a C or C++ project, which can be one of these varieties:

QNX C Project

QNX C++ Project

A C or C++ project for multiple target platforms. It supports the

QNX-specific project structure using

common.mk

files to perform a QNX recursive

make

. A QNX Project can automatically build either one executable or one library object

(in different formats). You can switch between application or library nature by using the project properties.

Standard Make C Project

Standard Make C++ Project

A basic C or C++ project that uses a standard

Makefile

and

GNU

make

to build the source files. You don’t get the added functionality of the QNX build organization and the

common.mk

file, but these standard projects adapt well to your existing code that you wish to bring into the IDE. (For more about

Makefile

s and the

make

utility, see the Conventions for

Makefiles and Directories chapter in the Neutrino

Programmer’s Guide.)

Managed Make C Project

Managed Make C++ project

A managed make project generates the

Makefile

for you automatically. In addition, the

module.dep

and

module.mk

files are created for every project subdirectory. These files are required for your managed make projects to build successfully.

As a rule, the IDE provides UI elements to control most of the build properties of QNX projects, but not of Standard Make projects (unless you consider a

Makefile

a “UI element”).

456

Chapter 13

Common Wizards Reference

Creating a C/C++ project

How to create a C/C++ project

To create a C/C++ project :

1

From the menu, select File

NewProject. . . .

2

In the left pane, select the project’s nature according to this table:

If you want to build a:

Standard Make C Project

Managed Make C Project

QNX C Project

Select:

C

C

C or QNX

Standard Make C++ Project

C++

Managed Make C++ Project

C++

QNX C++ Project C++ or QNX

3

4

5

In the right pane, select the type of project that you want (e.g.

QNX C Project).

Click Next.

Give your project a name.

7

Even though the wizard allows it, don’t use any of the following characters in your project name:

| !

$ ( " ) &

: ; \ ’ * ? [ ] # ˜ = % < > { } because they’ll cause problems later.

6

If you don’t want to use the default location for the project, specify a different one.

Select the type (application or one of library types):

Chapter 13

Common Wizards Reference

457

Creating a C/C++ project

8

9

If you’re building a library, see below.

Click Next. The wizard displays the appropriate tabs.

Select each tab and fill in the required information. The fields for each tab are described in the “Tabs in the New C/C++

Project wizard” section, below.

10

Click Finish. The IDE creates your new project in your workspace.

If you’re building a library project

You’ll need to choose the type of library you wish to build:

458

Chapter 13

Common Wizards Reference

Creating a C/C++ project

Static library (

libxx.a

)

Combine object files (i.e.

*.o

) into an archive (

*.a

) that is directly linked into an executable.

Shared library (

libxx.so

)

Combine object files together and join them so they’re relocatable and can be shared by many processes. Shared libraries are named using the format

libxx.so.

version, where

version is a number with a default of 1. The

libxx.so

file usually is a symbolic link to the latest version.

Static library for shared objects (

libxxS.a

)

Same as a static library, but using position-independent code

(PIC). Use this if you want a library that is linked into a shared object. The System Builder uses these types of libraries to create new shared libraries that contain only the symbols that are absolutely required by a specific set of programs.

Chapter 13

Common Wizards Reference

459

Creating a C/C++ project

Shared library without export (

xx.dll

)

A shared library without versioning. Generally, you manually open the library with the dlopen() function and look up specific functions with the dlsym() function.

If you’re building a Standard Make C/C++ project

Since this type of project doesn’t use the QNX recursive multivariant

Makefile

structure, you’ll have to set up your own

Makefile

.

Here’s how to create a simple “Hello World” non-QNX project:

1

Open the New Project wizard.

2

3

Select Standard Make C (or C++) Project, then click Next.

Name your project, then click Finish. The IDE has now created a project structure.

Even though the wizard allows it, don’t use any of the following characters in your project name (they’ll cause problems later):

| !

$ ( " ) &

: ; \ ’ * ? [ ] # ˜ = % < > { }

4

Now you’ll create a makefile for your project. In the Navigator view, highlight your project, then click the Create a File button on the toolbar:

5

Name your file “

Makefile

” and click Finish. The editor should now open, ready for you to create your

Makefile

.

Here’s a sample

Makefile

you can use:

CC:=qcc clean: hello: hello.c

all: hello rm -f hello.o hello

460

Chapter 13

Common Wizards Reference

Creating a C/C++ project

Use Tab characters to indent commands inside of

make

rules, not spaces.

6

7

When you’re finished editing, save your file (right-click, then select Save, or click the Save button in the tool bar).

Finally, you’ll create your “hello world” C (or C++) source file.

Again, open a new file, which might look something like this when you’re done:

#include <stdlib.h>

#include <stdio.h> int main(int argc, char *argv[]) { printf("Hello, world!\n"); return EXIT_SUCCESS;

}

Tabs in the New C/C++ Project wizard

Depending on the type of project you choose, the New Project wizard displays different tabs:

QNX C or C++ Project

Tabs:

Options

Build Variants

Make Builder

Error Parsers

Projects

Standard or Managed Make C or C++ project

Tabs:

Projects

Make Builder

Environment

Error Parsers

Chapter 13

Common Wizards Reference

461

Creating a C/C++ project

Binary Parser

Discovery Options

C/C++ Indexer

Build Variants tab

The Build Variants tab lets you choose the platforms to compile executables for:

By default, none of the platforms are enabled. You might want to change your default preferences for all new QNX projects. To do this, open Window

PreferencesQNXNew ProjectBuild

Variants.

Select the specific architecture(s) and build variant(s) you want to build your project for.

You can click the Select All button to enable all of the listed variants, or the Deselect All button to disable all of the listed variants.

462

Chapter 13

Common Wizards Reference

Creating a C/C++ project

You can click the Add button to add a new variant under the currently selected target architecture, or the Delete button to remove the currently selected variant.

You must choose one build variant for the Indexer to use:

1

Select the build variant you want the Indexer to use.

2

Click the Set Indexer Variant button.

The variant’s name changes to include “> This variant’s symbols and include paths will be used for source indexing.”

Projects tab

In the Referenced Projects list, you can set project dependencies for the new project. In the list of other projects in the Workbench, you can select one or more projects you want the new project to depend on. Initially, no projects will be selected.

Chapter 13

Common Wizards Reference

463

Creating a C/C++ project

For example, if you associate myProject with mySubProject, the IDE builds mySubProject first, followed by your project. If you change

mySubProject, the IDE doesn’t automatically rebuild myProject.

Make Builder tab

The Make Builder tab lets you configure how the IDE handles

make

errors, what command to use to build your project, and when to do a build:

464

Chapter 13

Common Wizards Reference

Creating a C/C++ project

Build Setting If you want the IDE to stop building when it encounters a

make

or compile error, check Stop on

first build error..

Build Command

If you want the IDE to use the default

make

command, check Use Default. If you want to use a different utility, uncheck Use Default and enter your own command in the Build Command field

(e.g.

C:/

myCustomMakeProgram

).

Chapter 13

Common Wizards Reference

465

Creating a C/C++ project

Workbench Build Behavior

You can specify how you want the IDE to build your project. For example, you can:

check Build on resource save (Auto Build) to enable automatic building

change the name of the auto build target (the default is

all

)

change the name of the incremental build target

(the default is

all

)

change the name of the clean target (the default is

clean

)

Error Parsers

The Error Parsers tab lets you specify which build output parsers (e.g.

Intel C/C++ Compiler Error Parser, CDT GNU Assembler Error

Parser, etc.) apply to this project and in which order. To change the order, simply select an item, then use the Up or Down buttons to position the item where you want in the list.

466

Chapter 13

Common Wizards Reference

Creating a C/C++ project

Options tab

The Options tab lets you specify several attributes for the project you’re building:

Chapter 13

Common Wizards Reference

467

Creating a C/C++ project

General options By default, some project properties (e.g. active targets) are local — they’re stored in the

.metadata

folder in your own workspace. If you want other developers to share all of your project’s properties, then set Share all project properties on. The IDE then stores the properties in a

.cdtproject

file, which you can save in your version control system so that others may share the project file.

Build Options If you want to profile your application and take full advantage of the QNX Application Profiler, then check Build with Profiling (see the Profiling an

Application chapter in this guide).

468

Chapter 13

Common Wizards Reference

Creating a C/C++ project

If you want use the QNX Code Coverage tool, then check Build with Code Coverage (see the Using

Code Coverage chapter in this guide).

If you want the IDE to do more dependency checking than it normally would, then set the

Enhanced dependency checking option on. Note that this means slower builds, so you may want to turn this off in order to improve build times.

Binary Parser tab

If you’re building a Standard Make C/C++ project, then this tab lets you define which binary parser (e.g. ELF Parser) to use to deal with the project’s binary objects.

chapter.

For more information about indexers, see the “Choosing an indexer”

Chapter 13

Common Wizards Reference

469

Creating a C/C++ project

Discovery Options tab

If you’re building a Standard Make C/C++ project, then this tab lets you control how include paths and C/C++ macro definitions for this particular project are automatically discovered. Certain features of the

IDE (e.g. syntax highlighting, code assistance, etc.) rely on this information, as do source-code parsers.

in the project properties.

At a later time, you can supply this data using the Search Paths item

470

Chapter 13

Common Wizards Reference

Creating a C/C++ project

C/C++ Indexer tab

If you’re building a Standard Make C/C++ project, then this tab lets you control the C/C++ source code indexer. Certain features of the

IDE rely on this information.

Environment tab

If you’re building a Standard Make C/C++ project, then this tab lets you control environment variables used by the build.

Chapter 13

Common Wizards Reference

471

Creating a target

Creating a target

You must create a Target System Project for every target you want to use with the IDE.

To create a new target:

1

From the main menu, select File

NewProject. . . .

2

3

4

appears:

Expand QNX category.

Select QNX Target System Project.

Click Next. The New QNX Target System Project wizard

472

Chapter 13

Common Wizards Reference

Creating a target

5

6

Complete the fields described below:

Target Name Type a descriptive name for your QNX Target

System Project.

Hostname or IP

Port

Enter the hostname or IP address for the target system that’s running

qconn

.

Enter the port number for

qconn

. Leave this as the default (8000), if you’re running

qconn

with the default settings.

Click Finish. Your new QNX Target System Project appears in the Navigator view. When you create a launch configuration, the target is listed under the Main tab in the Target Options

Target Options pane to open the New Target System Project wizard.

pane. Note that you can use the Add New Target button in the

Chapter 13

Common Wizards Reference

473

Converting projects

You can also reach the New Target System Project wizard from within the Target Navigator view (right-click, then select Add New Target).

Converting projects

At various times, you may need to convert non-QNX projects to QNX projects (i.e. give them a QNX nature). For example, suppose another developer committed a project to CVS without the

.project

and

.cdtproject

files. The IDE won’t recognize that project as a QNX project when you check it out from CVS, so you’d have to convert it.

Or, you may wish to turn a Standard Make C/C++ project into a QNX

C/C++ project in order to take advantage of the QNX recursive

Makefile

hierarchy (a project with a QNX nature causes the IDE to use the QNX

make

tools and structure when building that project).

The IDE lets you convert many projects at once, provided you’re converting all those projects into projects of the same type.

If you wish to convert a QNX project back into a Standard Make

C/C++ project, you can use the Convert C/C++ Projects wizard. From the main menu, select File

NewOther. . . . Expand C, then select

Convert to a C or C++ Project.

Converting to a QNX project

To convert a non-QNX project into a QNX project:

1

From the menu, select File

NewOther. . . .

2

Expand QNX.

3

4

Click Next. The Convert C/C++ Projects wizard appears.

Select Convert to a QNX Project.

474

Chapter 13

Common Wizards Reference

Converting projects

5

6

7

8

Select the project(s) you want to convert in the Candidates for

conversion field.

Specify the language (C or C++).

Specify the type of project (application or library).

Click Finish. Your converted project appears in the C/C++

Projects view and the Navigator view.

You now have a project with a QNX nature, but you’ll need to make further adjustments (e.g. specify a target platform) via the Properties dialog if you want it to be a working QNX project.

Completing the conversion

The conversion wizard gave your Standard Make project a QNX nature; you now need to use the Properties dialog to fully convert your project to a working QNX project.

Chapter 13

Common Wizards Reference

475

Converting projects

To open the Properties dialog for a project:

1

In the C/C++ Projects or Navigator view, right-click your project.

2

Select Properties from the context menu. The Properties dialog appears:

3

4

In the left pane, select QNX C/C++ Project.

Specify the properties you want using the available tabs:

Options

See the section “Tabs in the New C/C++

Project wizard,” above.

Build Variants

See the section “Tabs in the New C/C++

General

Project wizard,” above.

In the Installation directory field, you can specify the destination directory (e.g.

bin

) for the output binary you’re building. (For more information, see the Conventions for

476

Chapter 13

Common Wizards Reference

Converting projects

5

Compiler

Linker

Makefiles and Directories chapter in the

Neutrino Programmer’s Guide.)

In the Target base name field, you can specify your binary’s base name, i.e. the name without any prefixes or suffixes. By default, the IDE uses your project name as the executable’s base name. For example, if your project is called “Test_1,” then a debug version of your executable would be called

“Test_1_g” by default.

In the Use file name, enter the name of the file containing the usage message for your executable. (For more on usage messages, see the entry for

usemsg

in the Utilities

Reference.

See the section “Compiler tab,” below.

See the section “Linker tab,” below.

Make Builder

See the section “Tabs in the New C/C++

Project wizard,” above.

Error Parsers

See the section “Tabs in the New C/C++

Project wizard,” above.

When you’ve finished specifying the options you want, click

Apply, then OK. The conversion process is complete.

Compiler tab

The Compiler tab changes depending on which of these categories you select:

General options

Extra source paths

Extra include paths

Chapter 13

Common Wizards Reference

477

Converting projects

Compiler type If you’ve selected General options, the first item you specify is the type of compiler. Currently, the choices are:

GCC 2.95.3

GCC 3.3.5

Intel (

icc

), if you’ve installed the Intel ICC for

QNX Neutrino product

478

Chapter 13

Common Wizards Reference

Converting projects

Output options Here you can specify the warning level (0 to 9), i.e.

the threshold level of warning messages that the compiler outputs. You can also choose to have the preprocessor output intermediate code to a file; the

IDE names the output file your_source_file.i (C) or your_source_file.ii (C++), using the name of your source file as the base name.

Code generation For the Optimization level, you can specify four levels: from 0 (no optimization) to 3 (most optimization). In the Stack size field, you can specify the stack size, in bytes or kilobytes.

Definitions field Here you can specify the list of compiler

define

s to pass to the compiler on the command line in the form

-D

name

[=

value

]

, but you don’t have to bother with the

-D

part; the IDE adds it automatically.

Other options field

Here you can specify any other command-line options that aren’t already covered in the Compiler tab. For more information on the compiler’s command-line options, see

qcc

in the Utilities

Reference.

Extra source paths

If you want to specify source locations other than your project’s root directory, select this category.

Then click the appropriate button to specify the location:

Project. . . — You can add source from another project in your current workspace. Note that the

IDE uses relocatable notation, so even if other team members have different workspace locations, they can all work successfully without having to make any additional project adjustments.

Chapter 13

Common Wizards Reference

479

Converting projects

QNX target. . . — You can add source from anywhere in or below the

${

QNX_TARGET} directory on your host.

Disk. . . — You can choose to add source from anywhere in your host’s filesystem.

Extra include paths

You can specify a list of directories where the compiler should look for

include

files. The options here are the same as for Extra source

paths, except that here you can change the order of directories in the list, which can be important if you happen to have more than one header file with the same name.

Linker tab

The Linker tab changes depending on which of these categories you select:

General options

Extra library paths

Extra libraries

Extra object files

Post-build actions

480

Chapter 13

Common Wizards Reference

Converting projects

Export symbol options

This field lets you define the level of final stripping of your binary, ranging from exporting all symbols to removing just the debugger symbols to removing them all.

Generate map file

If you set this option on, the IDE prints a link map to the build console.

Build goal name Specify the output filename for an application or library project. Note that the name you enter in this field forces the library’s shared-object name to match.

Chapter 13

Common Wizards Reference

481

Converting projects

By default, a generated application has the same name as the project it’s built from. A library has prefix of “

lib

” and a suffix of “

.a

” or “

.so

” after the project name. In addition, debug variants of applications and libraries have a suffix of “

_g

”.

Link against CPP library (valid for C++ projects only)

Select the particular C++ library you want to use.

QNX Momentics currently ships with these C++ libraries:

Default — The standard QNX C++ library, with support for all standard C++ features

(exceptions, STL, etc.).

Dinkum with exceptions and Dinkum

without exceptions — The Dinkum C++ library, with support for exceptions or without.

Dinkum Abridged with exceptions and

Dinkum Abridged without exceptions — The

Dinkum Abridged C++ library, with support for exceptions or without.

Dinkum Embedded with exceptions and

Dinkum Embedded without exceptions

The Dinkum Embedded C++ library, with support for exceptions or without.

GNU with exceptions — The GNU G++

Standard Library, with support for exceptions.

Compiling C++ code without support for exceptions usually results in a faster executable.

Library shared object name

You can use this field to override the shared-object name used in C/C++ library projects. Note that this doesn’t affect the actual filename.

482

Chapter 13

Common Wizards Reference

Converting projects

If you specify a filename in the Build goal name field, don’t use the

Library shared object name field.

Library version This dropdown list lets you select a version number for both the library’s shared-object name and filename. If this is a library that doesn’t have a version number (e.g. “

platform.so

”), then select “No.”

Note that you can still set the library version even if Build goal name is specified.

Other options field

Here you can specify any other command-line options that aren’t already covered in the Linker tab. For more information on the linker’s options, see the entry for

ld

in the Utilities Reference.

Extra library paths

Select this category if you want to specify locations where the linker should look for import libraries

(

.so

or

.a

files). Then click the appropriate button to specify the location. (These buttons work in the same way as those in the Compiler tab when you select Extra source paths.)

Extra libraries Here you can add a list of libraries (

.so

or

.a

files) to search for unsatisfied references. For each item in this list, you can define:

the stripped name, the base name without the

lib

prefix (which

ld

adds automatically), and without the suffix (

.so

or

.a

).

the library type (static or dynamic)

debug or release mode. A “No” or “Yes” in this field indicates whether or not the builder matches the debug or release version of the

Chapter 13

Common Wizards Reference

483

Converting projects library with the final binary’s type. For example, if you select “Yes” and you want to link against a debug version of the library, the

IDE appends “

_g

” to the library’s base name. If you select “No,” then the builder passes (to

ld

) this name exactly as you entered it. So, if you want to use a release version of your binary and link against a debug version of the library, specify

MyLibraryName_g

as the name.

Adding a new element to the extra library list automatically adds the directory where this library resides to the Extra library paths list

(see above), if it’s not already there. But if you remove an item from the list, its parent directory is not automatically removed.

You can add a library in two ways:

Add button — lets you create an empty element and define it manually

Add from project — lets you browse your workspace for the library. Note that when you add a library from your workspace, the IDE uses a relocatable notation so other members with different workspace locations can all work successfully without having to make any project adjustments.

Extra object files This lets you link a project against any object file or library, regardless of the filename.

484

Chapter 13

Common Wizards Reference

Converting projects

The file-selection dialog may seem slow when adding new files. This is because the system can’t make assumptions about naming conventions and instead must use a binary parser to determine if a file is an object file or a library.

Note also that the Extra object files option is available for an individual platform only. If a project has more than one active platform, you can’t use this feature. In that case, you can still specify extra object files using the Advanced mode for each platform separately.

Post-build actions

When you select this category and click the Add button, you’ll see a dialog that lets you select one of four predefined post-build actions for your project:

Copy result to other location

Move result to other location

Rename result

Run other shell command

In the What field, you specify the item (e.g.

application) you want to copy or move; in the

Where field, you specify the destination. You can use the To Workspace or To Filesystem buttons to locate the place.

If you select Rename result, a New Name field appears for you to enter the name. If you select

Other command, enter the shell command in the field.

Note that you can set up more than one post-build action; they’re processed sequentially.

Chapter 13

Common Wizards Reference

485

Converting projects

Advanced/regular modes

The Properties dialog can appear in two different modes: regular

(default) and advanced.

To activate the advanced mode, press the Advanced button at the bottom of the dialog.

To return to regular mode, press the Regular button.

In advanced mode, you can override various options that were set at the project level for the particular build variant you’ve selected:

platform (the one specified or all supported platforms)

build mode (e.g. debug, release, user-defined)

compiler options

linker options

For example, you can change the optimization level for a particular C file, specify which set of import libraries to use for a specific architecture, and so on.

486

Chapter 13

Common Wizards Reference

Importing projects

During the final build, the IDE merges the options you’ve set for the project’s general configuration with the advanced options, giving priority to the advanced settings.

Importing projects

Use the Import wizard to bring resources into your workspace from a filesystem, ZIP archive, or CVS repository.

To open the Import wizard:

Chapter 13

Common Wizards Reference

487

Importing projects

Choose File

Import. . . , or right-click in the Navigator or

C/C++ Projects view, and then choose Import. . . .

The Import wizard.

The Import wizard can import resources from several different sources:

Existing Container Project into a Workspace

Existing Project into a Workspace

External Features

External Plug-ins and Fragments

488

Chapter 13

Common Wizards Reference

Importing projects

File System

GCC Coverage Data from a Project

QNX Board Support Package

QNX

mkifs

Buildfile

QNX Source Package

Team Project Set

Archive file

Importing an existing container project into a workspace

To import a container project and its associated C/C++ projects from another workspace:

1

In the Import wizard, choose Existing Container Project into

Workspace and click the Next button.

The IDE displays the Import Container Project From File

System panel.

Chapter 13

Common Wizards Reference

489

Importing projects

Importing a container project.

2

Enter the full path to an existing container project directory in the Project contents field, or click the Browse. . . button to select a container project directory using the file selector.

Click Next to continue. The IDE displays the Select

components to install panel.

490

Chapter 13

Common Wizards Reference

Importing projects

Selecting container components to import.

3

By default, every project referenced by the container project is also imported. To exclude certain projects, expand the project tree and deselect projects you don’t want to import.

Click Finish to import the container project and its subprojects.

Importing an existing project into a workspace

To copy an existing project from another workspace:

1

In the Import wizard, choose Existing Project into Workspace

The IDE displays the Import Projects panel.

and click the Next button.

Chapter 13

Common Wizards Reference

491

Importing projects

Importing an existing project.

2

3

4

5

Enter the full path of an existing project directory in the Select

root directory field, or the path to an archive in the Select

archive file field, or click the appropriate Browse. . . button to select a project directory or archive using the file selector.

Check the projects you want to import.

If you wish, click Copy projects into workspace to leave the original project unchanged.

Click the Finish button to import the selected project into your workspace.

492

Chapter 13

Common Wizards Reference

Importing projects

Importing external features

Eclipse developers use this for developing IDE plugins and features.

Importing external plugins and fragments

Eclipse developers use this for developing IDE plugins and features.

Importing a file system

To copy files and folders from your filesystem into an existing project in your workspace:

1

In the Import wizard, choose File System and click the Next button.

The IDE displays the File system panel.

Chapter 13

Common Wizards Reference

493

Importing projects

Importing code from the filesystem.

2

3

Enter the full path to the code in the From directory field, or click the Browse. . . button to select a source directory.

Use the Filter Types. . . , Select All, and Deselect All buttons to

Click a directory on the left panel to see a list of files in the right panel.

control which files are imported.

494

Chapter 13

Common Wizards Reference

Importing projects

4

The Select Types dialog lets you filter imported files by selecting one or more extensions.

click the Browse. . . button to select one.

Enter the name of a project or folder in the Into folder field, or

Chapter 13

Common Wizards Reference

495

Importing projects

This project or folder must already exist before you bring up the

Import wizard.

Browsing for a project or folder.

5

6

To overwrite existing files, check the Overwrite existing

resources without warning box.

To import only the selected folders, check Create selected

folders only.

To import the selected folder and all sub folders, check Create

complete folder structure.

496

Chapter 13

Common Wizards Reference

Importing projects

7

Click Finish to import the selected resources.

Importing resources.

Importing GCC coverage data from a project

The GCC Coverage Data from Project option in the Import wizard lets you import code coverage data from applications that have been run outside of the IDE.

For example, in a self-hosted build environment, if you run a code-coverage-enabled program from the command-line, it writes code-coverage data into a

programname.da file in the same directory as the program’s code.

To import code-coverage data:

1

In the Import wizard, choose GCC Coverage Data from

Project, and then click the Next button.

The IDE displays the GCC Coverage Import panel.

Chapter 13

Common Wizards Reference

497

Importing projects

Importing GCC coverage data.

2

3

4

Enter a code-coverage session name in the Session name field.

Enter a project name in the Project field, or click the Browse. . . button to select a project.

Click Next to continue.

The IDE displays the next panel.

498

Chapter 13

Common Wizards Reference

Importing projects

Referenced projects and comments.

5

To include code-coverage data from referenced projects, select them in the Referenced projects to include coverage data

from list.

6

To include any comments with the new code-coverage session

(such as details about the data you’re importing), enter them in the Comments for this coverage session field.

7

Click Finish to import the code coverage data as a new session in the Code Coverage Sessions view.

Importing a QNX Board Support Package

To copy a Board Support Package (BSP) into your workspace:

1

In the Import wizard, choose QNX Board Support Package and click the Next button.

Chapter 13

Common Wizards Reference

499

Importing projects

The IDE displays the Import QNX BSP panel.

Importing a BSP.

2

Select an installed BSP from the Known Packages list.

You can also enter the full path to a BSP archive (

.zip

file) in the Filename field, or click the Select Package. . . button to browse to a BSP archive.

Click Next to continue.

The IDE displays the Select Source Projects panel.

500

Chapter 13

Common Wizards Reference

Importing projects

Selecting source projects from a BSP archive.

3

All of the projects in the BSP archive are imported by default.

Uncheck any projects you don’t need to import. Click Next to continue.

The IDE displays the Select Working Set panel.

Chapter 13

Common Wizards Reference

501

Importing projects

Selecting a working set from a BSP archive.

4

To change the working-set name for the imported projects, enter a new working-set name in the Working Set Name field, or select one from the drop-down list.

To change the project name’s prefix, enter a new prefix in the

Project Name Prefix field. This is prepended to the name of each project imported from the BSP archive.

502

Chapter 13

Common Wizards Reference

Importing projects

5

To change the destination directory for the projects, enter a new path in the Directory for Projects field, or click the Browse. . . button to select one. The default is your IDE workspace.

Click Finish to import the BSP projects.

The IDE imports the selected projects from the BSP archive and displays the Build Projects dialog.

Click Yes to build all of the BSP projects that were just imported. Click No to return to the IDE.

Importing a QNX mkifs

Buildfile

The IDE can import the

.build

files used by

mkifs

into an existing

System Builder project.

To import a

mkifs .build

file:

1

In the Import wizard, choose QNX mkifs Buildfile and click the Next button.

The IDE displays the Import mkifs Buildfile panel.

Importing a

mkifs .build

file.

Chapter 13

Common Wizards Reference

503

Importing projects

2

3

4

Click the Browse. . . button beside Select project to import to select a destination for this import.

Enter the full path to a

mkifs .build

file in the Select the file

to import field, or click the Browse. . . button to select one.

Select one or more projects, and then click OK.

The IDE imports the selected

.build

file’s System Builder configuration.

Importing a QNX source package

To copy a QNX source package into your workspace:

1

In the Import wizard, choose QNX Source Package and click the Next button.

The IDE displays the Import QNX Source Package panel.

Importing a QNX Source Package.

504

Chapter 13

Common Wizards Reference

Importing projects

2

3

4

5

Select an installed source package from the Known Packages list.

You can also enter the full path to a source package (

.zip

file) in the Filename field, or click the Select Package. . . button to browse to a source package.

Click Next to continue.

The IDE displays the Select Source Projects panel.

All of the projects in the source package are imported by default. Uncheck any projects you don’t need to import. Click

Next to continue.

The IDE displays the Select Working Set panel.

To change the working-set name for the imported projects, enter a new working-set name in the Working Set Name field, or select one from the drop-down list.

To change the project name prefix, enter a new prefix in the

Project Name Prefix field. This is prepended to the name of each project imported from the source package.

To change the destination directory for the projects, enter a new path in the Directory for Projects field, or click the Browse. . . button to select one. The default is your IDE workspace.

Click Finish to import the projects.

The IDE imports the selected projects from the source package and displays the Build Projects dialog.

Click Yes to build all of the projects that were just imported.

Click No to return to the IDE.

Importing a team project set

Team project sets are a convenient way of distributing a collection of projects stored in a CVS server among members of your development team. Create them with the Export wizard.

To import a team project set and the projects it references:

Chapter 13

Common Wizards Reference

505

Importing projects

1

In the Import wizard, choose Team Project Set and click the

Next button.

The IDE displays the Import a Team Project Set panel.

Importing a Team Project Set.

2

To create a working set for the imported projects, check the

Create a working set containing the imported projects box, and enter a name for the working set in the Working Set Name field.

Click Finish to import the projects from the CVS repository.

Importing an archive file

To copy files and folders from a ZIP archive into an existing project in your workspace:

1

In the Import wizard, choose Archive File and click the Next button.

The IDE displays the Archive File panel.

506

Chapter 13

Common Wizards Reference

Importing projects

Importing code from a ZIP archive.

2

3

4

Enter the full path to the ZIP archive in the From zip file field, or click the Browse. . . button to select a ZIP archive.

Use the Filter Types. . . , Select All, and Deselect All buttons to control which files are imported.

Click a directory on the left panel to see a list of files in the right panel.

The Select Types dialog lets you filter imported files by selecting one or more extensions.

click the Browse. . . button to select one.

Enter the name of a project or folder in the Into folder field, or

Chapter 13

Common Wizards Reference

507

Importing projects

This project or folder must already exist before you open the Import wizard.

5

6

7

To overwrite existing files, check the Overwrite existing

resources without warning box.

To import only the selected folders, check Create selected

folders only.

To import the selected folder and all subfolders, check Create

complete folder structure.

Click Finish to import the selected resources.

508

Chapter 13

Common Wizards Reference

Chapter 14

Launch Configurations Reference

In this chapter. . .

What is a launch configuration?

511

Types of launch configurations

511

Running and debugging the first time

513

Running and debugging subsequent times

517

Setting execution options

518

Chapter 14

Launch Configurations Reference

509

What is a launch configuration?

You must set up a Launch Configuration before you can run or debug a program.

What is a launch configuration?

To run or debug programs with the IDE, you must set up a launch

configuration to define which programs to launch, the command-line

options to use, and what values to use for environment variables. The configurations also define which special tools to run with your program (e.g. the Code Coverage tool).

The IDE saves your launch configurations so you can quickly reproduce the particular execution conditions of a setup you’ve done before, no matter how complicated.

Each launch configuration specifies a single program running on a single target. If you want to run your program on a different target, you can copy and modify an existing launch configuration. And you can use the same configuration for both running and debugging your program, provided that your options are the same.

Types of launch configurations

The IDE supports these types of launch configurations:

Chapter 14

Launch Configurations Reference

511

Types of launch configurations

C/C++ QNX QConn (IP)

If you’re connecting to your target machine by IP, select this configuration (even if your host machine is also your target). You’ll have full debugger control and can use the Application Profiler,

Memory Trace, and Code Coverage tools. Your target must be running

qconn

.

C/C++ QNX PDebug (Serial)

If you can access your target only via a serial connection, select this configuration. Rather than use

qconn

, the IDE uses the serial capabilities of

gdb

and

pdebug

directly. This option is available only when you select Debug.

C/C++ Local If you’re developing on a self-hosted system, you may create a C/C++ Local launch configuration.

You don’t need to use

qconn

; the IDE launches your program through

gdb

.

C/C++ Postmortem debugger

If your program produced a dump file (via the

dumper

utility) when it faulted, you can examine the state of your program by loading it into the postmortem debugger. This option is available only when you select Debug. When you debug, you’re prompted to select a dump file.

PhAB Application

If you wish to run a PhAB application, follow the steps for creating a C/C++ QNX QConn (IP) launch configuration.

The main difference between the C/C++ QNX QConn (IP) launch configurations and the other types is that the C/C++ QNX QConn (IP) type supports the runtime analysis tools (QNX System Profiler and

QNX Memory Trace).

512

Chapter 14

Launch Configurations Reference

Running and debugging the first time

Running and debugging the first time

You can use the same launch configuration to run or debug a program.

Your choices in the Launch Configurations dialog may cause subtle changes in the dialog but greatly affect such things as:

options in the dialog

how the IDE connects to the target

what tools are available for the IDE to use

The Run and Debug menu items appear in the C/C++ Development perspective by default, but they may not appear in all perspectives.

You’ll need the Run

Run. . . menu item in order to set up a launch configuration. To bring the menu item into your current perspective:

1

From the main menu, select Window

Customize

Perspective.

2

Select the Commands tab.

3

Check the Launch box in the Available command groups list.

Chapter 14

Launch Configurations Reference

513

Running and debugging the first time

4

Click OK.

Debugging a program the first time

To create a launch configuration in order to debug a program for the first time:

1

2

3

In the C/C++ Projects or Navigator view, select your project.

From the main menu, select Run

Debug. . . (or, click the

Debug icon and select Debug. . . from the dropdown menu).

Select a launch configuration type:

514

Chapter 14

Launch Configurations Reference

Running and debugging the first time

4

5

6

7

If you’re connecting to your target via IP, select C/C++ QNX

QConn (IP). If not, see the “Types of launch configurations” section in this chapter before deciding.

Click New. The dialog displays the appropriate tabs.

Give this configuration a name.

Fill in the details in the various tabs. See the “Setting execution options” section in this chapter for details about each tab.

Click Debug. You can now launch and debug your program.

You can also use the Debug As menu item to conveniently select a particular launch configuration:

Running a program the first time

When you configure a program to run, you should also configure it to debug as well.

There are fewer options for running programs than for debugging.

Some configurations aren’t available.

To run a program the first time:

Chapter 14

Launch Configurations Reference

515

Running and debugging the first time

Repeat the procedure for debugging a program (see

“Debugging a program the first time”), with the following changes:

Instead of selecting RunDebug from the main menu, select Run

Run. . . (or, click the Run icon and select

Run. . . from the dropdown menu).

Instead of clicking Debug when you’re done, click Run.

Instead of running under the control of a debugger, your program simply runs.

You can also use the Run As menu item to conveniently select a particular launch configuration:

The IDE also lets you run a program without creating a launch configuration, but the program’s output doesn’t appear in the Console view.

To run a program without using the launcher:

1

After building the program, drag the executable from the

C/C++ Projects view to a target listed in the Target File System

Navigator view. (To learn more about the view, see the

“Moving files between the host and target” in the Building OS and Flash Images chapter.)

516

Chapter 14

Launch Configurations Reference

Running and debugging subsequent times

2

In the Target File System Navigator view, right-click your file and select Run. When the dialog appears, click OK. Your program runs.

Running and debugging subsequent times

Once you’ve created a launch configuration, running or debugging a program is as easy as selecting that configuration. You can do this in several ways:

fast way: see “Launching a selected program”

faster way: see “Launching from a list of favorites”

fastest way: see “Launching the last-launched program”

Launching a selected program

To debug or run a program that you’ve created a launch configuration for:

1

From the main menu, select Run

Debug. . . or RunRun. . . .

2

In the left pane, select the launch configuration you created when you first ran or debugged your program.

3

Click Debug or Run.

Launching from a list of favorites

If you have a program that you launch frequently, you can add it to the Debug or Run dropdown menu so you can launch it quickly.

To use this method, you must have selected Display in favorites

1

when you first created your launch configuration. If you didn’t, edit the Display in favorites menu option under the Common tab. See

“Setting execution options” in this chapter.

To debug or run a program using your favorites list:

Do one of the following:

Chapter 14

Launch Configurations Reference

517

Setting execution options

Run: From the main menu, select RunRun History.

Run: Click the dropdown menu ( ) part of the run menu button set ( ).

Debug: From the main menu, select RunDebug History.

Debug: Click the dropdown menu ( ) part of the debug menu button set ( ).

You’ll see a list of all the launch configurations you specified in the Display in favorites menu:

2

Select your launch configuration.

Launching the last-launched program

To relaunch the last program you ran or debugged:

Press F11 or click the dropdown button ( ) beside the Debug or Run icon, then select your launch configuration.

Setting execution options

The Launch Configurations dialog has several tabs:

Main

Arguments

Environment

518

Chapter 14

Launch Configurations Reference

Setting execution options

Download

Debugger

Source

Common

Tools

All of these tabs appear when you select the C/C++ QNX QConn

(IP) type of launch configuration; only some tabs appear when you select the other types.

Main tab

This tab lets you specify the project and the executable that you want to run or debug. The IDE might fill in some of the fields for you:

Chapter 14

Launch Configurations Reference

519

Setting execution options

Different fields appear in the Main tab, depending on the type of configuration you’re creating. Here are descriptions of all the fields:

Project Enter the name of the project that contains the executable you want to launch. You may also locate a project by clicking Browse. . . . You can create or edit launch configurations only for open projects.

C/C++ Application

Enter the relative path of the executable’s project directory

(e.g.

x86/o/Test1_x86

). For QNX projects, an executable with a suffix of

_g

indicates it was compiled for debugging. You may also locate an available executable by clicking Search Project. . . .

520

Chapter 14

Launch Configurations Reference

Setting execution options

Target Options

If you don’t want the IDE to create a “pseudo terminal” on the target that sends terminal output to the

Console view on a line-by-line basis, then check the

Don’t use terminal emulation on target option. To use terminal emulation, your target must be running the

devc-pty

manager.

If you want to filter out platforms that don’t match your selected executable, then set the Filter targets based

on C/C++ Application selection on. For example, if you’ve chosen a program compiled for PowerPC, you’ll see only PowerPC targets and offline targets.

Select a target from the available list. If you haven’t created a target, click the Add New Target button. For more information about creating a target, see the

Common Wizards Reference chapter.

General Options

If you’re creating a C/C++ QNX PDebug (Serial) launch configuration, then you’ll see the Stop in main option, which is set on by default. This means that after you start the debugger, it stops in main() and waits for your input.

For serial debugging, make sure that the pseudo-terminal communications manager (

devc-pty

) is running on your target.

Serial Port Options

Here you can specify the serial port (e.g.

COM1

for

Windows hosts;

/dev/ser1

for Neutrino) and the baud rate, which you select from the dropdown list.

Arguments tab

This tab lets you specify the arguments your program uses and the directory where it runs.

Chapter 14

Launch Configurations Reference

521

Setting execution options

C/C++ Program Arguments

Enter the arguments that you want to pass on the command line.

For example, if you want to send the equivalent of

myProgram

-v -L 7

, type

-v -L 7

in this field. You can put

-v

and

-L 7

on separate lines because the IDE automatically strings the entire contents together.

Working directory on target

The option Use default working directory is set on by default.

This means the executable runs in the

/tmp

directory on your target. If you turn off this option, you can click Browse. . . to locate a different directory.

522

Chapter 14

Launch Configurations Reference

Setting execution options

Environment tab

The Environment tab lets you set the environment variables and values to use when the program launches. For example, if you want to set the environment variable named PHOTON to the value

/dev/photon_2

when you run your program, use this tab. Click

New to add an environment variable.

Download tab

The Download tab lets you tell the IDE whether to transfer an executable from the host machine to the target, or to select one that already resides on the target.

Chapter 14

Launch Configurations Reference

523

Setting execution options

Executable If you select Download executable to target, the

IDE sends a fresh copy of the executable every time you run or debug.

The Download directory on target field shows the default directory of

/tmp

on your target. If you select the Use executable on target option, you’ll need to specify a directory here. You can also use the Browse. . . button to locate a directory.

524

Chapter 14

Launch Configurations Reference

Setting execution options

Extra libraries

The Strip debug information before

downloading option is set on by default. Turn it off if you don’t want the IDE to strip the executable you’re downloading to your target.

The Use unique name option is set on by default.

This means the IDE makes your executable’s filename unique (e.g. by appending a number) during each download session.

The Extra libraries pane lets you select the shared libraries your program needs. If you click the Auto button, the IDE tries to automatically find the libraries needed. If you click From project, the

IDE looks in your workspace for libraries.

You also have the option of not downloading any shared libraries to your target.

By default, the IDE removes the files it has downloaded after each session. If you don’t want the IDE to “clean up” after itself, then turn off the Remove downloaded components after session option.

Debugger tab

The Debugger tab lets you configure how your debugger works. The content in the Debugger Options pane changes, depending on the type of debugger you select:

Chapter 14

Launch Configurations Reference

525

Setting execution options

The settings in the Debugger tab affect your executable only when you debug it, not when you run it.

Generic debugger settings

Debugger The debugger dropdown list includes the available debuggers for the selected launch-configuration type.

The list also varies depending on whether you’re debugging a remote or a local target.

526

Chapter 14

Launch Configurations Reference

Setting execution options

Stop on startup at

This option is set on by default and the default location is main()(). If you turn it off, the program runs until you interrupt it manually, or until it hits a breakpoint.

Advanced button

Click the Advanced button to display the Advanced

Options dialog:

Enable these options if you want the system to track

every variable and register as you step through your

program. Disable the option if you want to manually select individual variables to work with in the Variables view in the debugger (see the Debugging Your

Programs chapter). Disabling the Registers option works the same way for the Registers view.

If you choose to track all the variables or registers, your program’s performance may suffer.

Debugger Options

GDB command file

This field lets you specify a file for running

gdb

using the

-command

option (see the Utilities Reference).

Chapter 14

Launch Configurations Reference

527

Setting execution options

Load shared library symbols automatically

This option (on by default) lets you watch line-by-line stepping of library functions in the C/C++ editor. You may wish to turn this option off if your target doesn’t have much memory; the library symbols take up RAM on the target.

You can use the pane to select specific libraries or use the Auto button to have the IDE attempt to select your libraries.

Stop on shared library events

Choose this option if you want the debugger to break automatically when a shared library or DLL is loaded or unloaded.

Source tab

The Source tab lets you specify where the debugger should look for source files. By default, the debugger uses the source from your project in your workspace, but you can specify source from other locations (e.g. from a central repository).

528

Chapter 14

Launch Configurations Reference

Setting execution options

2

To specify a new source location:

1

On the Source tab, click Add. . . . The Add Source Location dialog appears. You may choose to add the source either from your workspace or elsewhere:

1a

If you wish to add source from your workspace, select

Existing Project Into Workspace, click Next, select your project, and then click Finish.

1b

If you wish to add source from outside your workspace, select File System Directory, and then click Next.

Type the path to your source in the Select location directory field or use the Browse button to locate your source.

If you want to specify a mapping between directories, choose the Associate with option and enter the directory in the

Chapter 14

Launch Configurations Reference

529

Setting execution options available field. For example, if your program was built in the

C:/source1

directory and the source is available in the

C:/source2

directory, enter

C:/source2

in the first field and associate it with

C:/source1

using the second field.

If you want the IDE to recurse down the directories you pointed it at to find the source, then choose the Search subfolders option.

Click Finish. The IDE adds the new source location.

3

Common tab

The Common tab lets you define where the launch configuration is stored, how you access it, and what perspective you change to when you launch.

530

Chapter 14

Launch Configurations Reference

Setting execution options

Type of launch configuration

When you create a launch configuration, the IDE saves it as a

.launch

file. If you select Local, the IDE stores the configuration in one of its own plugin directories. If you select

Shared file, you can save it in a location you specify (such as in your project). Saving as a shared file lets you commit the

.launch

file to CVS, which allows others to run the program using the same configuration.

Display in favorites

You can have your launch configuration displayed when you click the Run or Debug dropdown menus in the toolbar. To do

Chapter 14

Launch Configurations Reference

531

Setting execution options so, check the Run or Debug options under the Display in

favorites menu heading.

Launch in background

This is enabled by default, letting the IDE launch applications in the background. This lets you continue to use the IDE while waiting for a large application to be transferred to the target and start.

Tools tab

The Tools tab lets you add runtime analysis tools to the launch. To do this, click the Add/Delete Tool button at the bottom of the tab: tools are available):

You can add the following tools (some launch options affect which

532

Chapter 14

Launch Configurations Reference

Setting execution options

Application Profiler

Lets you count how many times functions are called, who called which functions, and so on. For more information about this tool, see the Profiling Your Application chapter.

Memory Analysis

Lets you track memory errors. For more information about this tool, see the Finding Memory Errors chapter.

Chapter 14

Launch Configurations Reference

533

Setting execution options

Code Coverage

Lets you measure what parts of your program have run, and what parts still need to be tested. For more information about this tool, see the Code Coverage chapter.

launch.

If you want the IDE to open the appropriate perspective for the tool during the launch, then check Switch to this tool’s perspective on

534

Chapter 14

Launch Configurations Reference

Appendix A

Tutorials

In this appendix. . .

Before you start. . .

537

Tutorial 1: Creating a Standard Make C/C++ project

537

Tutorial 2: Creating a QNX C/C++ project

540

Tutorial 3: Importing an existing project into the IDE

541

Tutorial 4: Importing a QNX BSP into the IDE

543

Appendix: A

Tutorials

535

Before you start. . .

Here are several tutorials to help you get going with the IDE.

Before you start. . .

Before you begin the tutorials, we recommend that you first familiarize yourself with the IDE’s components and interface by reading the IDE Concepts chapter.

You might also want to look at the core Eclipse basic tutorial on using the workbench in the Workbench User Guide (Help

Help

Contents

Workbench User Guide, then Getting startedBasic

tutorial).

Tutorial 1: Creating a Standard Make C/C++ project

In this tutorial, you’ll create a simple, Standard Make C/C++ project

(i.e. a project that doesn’t involve the QNX recursive

Makefile

structure).

You use the New Project wizard whenever you create a new project in the IDE. Follow these steps to create a simple “hello world” project:

Appendix: A

Tutorials

537

Tutorial 1: Creating a Standard Make C/C++ project

1

2

To open the New Project wizard, select File

NewProject. . . from the main menu of the workbench.

Expand C (or C++) folder, and select Standard Make C (or

C++) Project, then click Next:

3

4

5

6

538

Appendix: A

Tutorials

Name your project (e.g. “

MyFirstProject

”), then click

Finish. The IDE has now created a project structure.

Now you’ll create a

Makefile

for your project. In the

Navigator view (or the C/C++ Projects view — it doesn’t

Click the Create a File button on the toolbar: matter which), highlight your project.

Name your file “

Makefile

” and click Finish. The editor should now open, ready for you to create your

Makefile

.

Tutorial 1: Creating a Standard Make C/C++ project

Here’s a sample

Makefile

you can use:

CC:=qcc all: hello hello: hello.c

clean: rm -f hello.o hello

Use

Tab characters to indent commands inside of

Makefile

rules,

not spaces.

7

8

When you’re finished editing, save your file (right-click, then select Save, or click the Save button in the tool bar).

Finally, you’ll create your “hello world” C (or C++) source file.

Again, open a new file called

hello.c

, which might look something like this when you’re done:

#include <stdlib.h>

#include <stdio.h> int main(int argc, char *argv[]) { printf("Hello, world!\n"); return EXIT_SUCCESS;

}

Congratulations! You’ve just created your first Standard Make C/C++ project in the IDE.

For instructions on building your program, see the section “Building projects” in the Developing C/C++ Programs chapter.

Appendix: A

Tutorials

539

Tutorial 2: Creating a QNX C/C++ project

In order to run your program, you must first set up a Neutrino target

system. For details, see:

the Preparing Your Target chapter

the section “Running projects” in the Developing C/C++ Programs chapter.

Tutorial 2: Creating a QNX C/C++ project

Unlike Standard Make C/C++ projects, a QNX C/C++ project relies on the QNX recursive

Makefile

system to support multiple CPU targets. (For more on the QNX recursive

Makefile

system, see the

Conventions for Makefiles and Directories chapter in the Neutrino

Programmer’s Guide.)

Follow these steps to create a simple QNX C (or C++) “hello world” project:

1

In the C/C++ Development perspective, click the New QNX C

Project (or New QNX C++ Project) button in the toolbar:

The New Project wizard appears.

Name your project, then select the type (e.g. Application).

2

3

Click Next.

4

In the Build Variants tab, check the build variant that matches your target type, such as X86 (Little Endian), PPC (Big

5

Endian), etc. and the appropriate build version (release or debug).

Click Finish. The IDE creates your QNX project and displays the source file in the editor.

Congratulations! You’ve just created your first QNX project.

540

Appendix: A

Tutorials

Tutorial 3: Importing an existing project into the IDE

For instructions on building your program, see the section “Building projects” in the Developing C/C++ Programs chapter.

In order to run your program, you must first set up a Neutrino target

system. For details, see:

the Preparing Your Target chapter

the section “Running projects” in the Developing C/C++ Programs chapter.

Tutorial 3: Importing an existing project into the IDE

In this tutorial, you’ll use the IDE’s Import wizard, which lets you import existing projects, files, and even files from ZIP archives into your workspace.

You can use various methods to import source into the IDE. For details, see the Managing Source Code chapter.

Follow these steps to bring one of your existing C or C++ projects into the IDE:

1

Select File

Import. . . to bring up the Import wizard.

Appendix: A

Tutorials

541

Tutorial 3: Importing an existing project into the IDE

2

3

4

In the Import wizard, choose Other

Existing Project into

Workspace and click the Next button.

The IDE displays the Import Project From Filesystem panel.

Enter the full path to an existing project directory in the Project

contents field, or click the Browse. . . button to select a project directory using the file selector.

Click the Finish button to import the selected project into your workspace.

into the IDE.

Congratulations! You’ve just imported one of your existing projects

542

Appendix: A

Tutorials

Tutorial 4: Importing a QNX BSP into the IDE

Tutorial 4: Importing a QNX BSP into the IDE

QNX BSPs and other source packages are distributed as

.zip

archives. The IDE lets you import both kinds of packages into the

IDE:

When you import: The IDE creates a:

QNX BSP source package System Builder project

QNX C/C++ source package C or C++ application or library project

For more information on System Builder projects, see the Building

OS and Flash Images chapter.

Step 1: Use File

Import. . .

You import a QNX source archive using the standard Eclipse import dialog:

Appendix: A

Tutorials

543

Tutorial 4: Importing a QNX BSP into the IDE

As you can see, you can choose to import either a QNX BSP or a

“source package.” Although a BSP is, in fact, a package that contains source code, the two types are structured differently and generate different types of projects. If you try to import a BSP archive as a

QNX Source Package, the IDE won’t create a System Builder project.

Step 2: Select the package

then presents you with a list of the packages found in

$QNX_TARGET/usr/src/archives

on your host:

After you choose the type of package you’re importing, the wizard

544

Appendix: A

Tutorials

Tutorial 4: Importing a QNX BSP into the IDE

Notice that as you highlight a package in the list, a description for that package is displayed.

To add more packages to the list:

1

2

Click the Select Package. . . button.

Select the

.zip

source archive you want to add.

Step 3: Select the source projects

the IDE term). For the package you selected, the wizard then gives you a list of each source project contained in the archive:

Each source package contains several components (or projects, to use

Appendix: A

Tutorials

545

Tutorial 4: Importing a QNX BSP into the IDE

You can decide to import only certain parts of the source package; simply uncheck the entries you don’t want (they’re all selected by default). Again, as you highlight a component, you’ll see its description in the bottom pane.

Step 4: Select a working set

The last page of the import wizard lets you name your source projects. You can specify:

Working Set Name — to group all related imported projects together as a set.

546

Appendix: A

Tutorials

Tutorial 4: Importing a QNX BSP into the IDE

Project Name Prefix — for BSPs, this becomes the name of the

System Builder project; for other source projects, this prefix lets you import the same source several times without any conflicts.

remember to give each project a different name.

If you plan to import a source BSP and a binary BSP into the IDE,

Appendix: A

Tutorials

547

Tutorial 4: Importing a QNX BSP into the IDE

Step 5: Build

When you finish with the wizard, it creates all the projects and brings in the source from the archive. It then asks if you want to build all the projects you’ve just imported.

If you answer Yes, the IDE begins the build process, which may take several minutes (depending on how much source you’ve imported).

If you decide not to build now, you can always do a Rebuild All from the main toolbar’s Project menu at a later time.

If you didn’t import all the components from a BSP package, you can bring in the rest of them by selecting the System Builder project and opening the import wizard (right-click the project, then select

Import. . . ). The IDE detects your selection and then extends the existing BSP (rather than making a new one).

QNX BSP perspective

When you import a QNX Board Support Package, the IDE opens the

QNX BSP perspective. This perspective combines the minimum elements from both the C/C++ Development perspective and the

QNX System Builder perspective:

548

Appendix: A

Tutorials

Tutorial 4: Importing a QNX BSP into the IDE

Congratulations! You’ve just imported a QNX BSP into the IDE.

Appendix: A

Tutorials

549

Appendix B

Where Files Are Stored

Appendix: B

Where Files Are Stored

551

This appendix shows you where to find key files used by the IDE.

Here are some of the more important files used by the IDE:

Type of file

Workspace folder

.metadata

folder (for personal settings)

Error log

Default location

$HOME/ide4-workspace

$HOME/ide4-workspace/.metadata

$HOME/ide4-workspace/.metadata/.log

On Windows,

C:/QNX630

is used instead of the HOME environment variable or the

C:/Documents and Settings/

userid

directory (so the spaces in the path name don’t confuse any of the tools).

You can specify where you want your

workspace

folder to reside.

the Workbench User Guide. (To access the guide, open Help

Help

Contents, then select Workbench User Guide from the list.)

For details, see the section “Running Eclipse” in the Tasks chapter of

Appendix: B

Where Files Are Stored

553

Appendix C

Utilities Used by the IDE

Appendix: C

Utilities Used by the IDE

555

This appendix lists the utilities used by the IDE.

Here are the utilities used by the IDE:

addr2line

— Convert addresses into line number/file name pairs

flashcmp

— Compress files for a Flash filesystem

gcc

— Compile and link a program

gdb

— Debugger

icc

— Intel C and C++ compiler (x86 only, purchased separately)

ld

— Linker

make

— Maintain, update, and regenerate groups of programs

mkefs

— Build an embedded filesystem

mkifs

— Build an OS image filesystem

mkimage

— Build a socket image from individual files

mkrec

— Convert a binary image into ROM format

objcopy

— Copy the contents of one object file to another

Appendix: C

Utilities Used by the IDE

557

pdebug

— Process-level debugger

qcc

— Compile command

qconn

— Provide service support to remote IDE components

strip

— Remove unnecessary information from executable files

usemsg

— Change the usage message for a command

For more information, see the Utilities Reference.

558

Appendix: C

Utilities Used by the IDE

In this appendix. . .

What’s new in IDE 4.0.1?

561

What was new in IDE 4.0?

563

What was new in the IDE in 6.3.0 SP3?

582

What was new in the IDE in 6.3.0 SP2?

582

What was new in the IDE in 6.3.0 SP1?

615

Appendix D

What’s New

Appendix: D

What’s New

559

What’s new in IDE 4.0.1?

This chapter identifies the changes made to the QNX Momentics IDE.

What’s new in IDE 4.0.1?

IDE 4.0.1 includes the following new features:

Support for Windows Vista

IDE supports self-hosted Solaris and Neutrino OSs

Eclipse updates

General improvements

Improvements to upgrading your software

Download Center updates

Documentation updates

Support for Windows Vista

Full support for the Windows Vista OS

QNX IDE workbench version 4.0.1 includes support for the

Windows Vista operating system. For a complete list of supported host and targets, see the QNX IDE Momentics

Release Notes.

Appendix: D

What’s New

561

What’s new in IDE 4.0.1?

Windows Vista patch available for download to support the QNX win32 SDK

The QNX Download Center includes a patch to provide you with Windows Vista support for the QNX win32 SDK. This patch includes an updated version of the core file

cygwin1.dll

,

uname.exe

, and

bash.exe

.

IDE supports self-hosted Neutrino and Solaris

The IDE Workbench now supports self-hosted Neutrino and Solaris configurations.

Eclipse updates

In IDE 4.0.1, you can upgrade to use Eclipse platform version 3.2.2, and the Eclipse CDT to version 3.1.2. For detailed information about the changes made to the Eclipse Platform and CDT, see the

Eclipse.org website.

General improvements

IDE 4.0.1 includes various overall improvements to the application.

For a detailed list of these improvements, see the release notes.

Improvements to upgrading your software

In addition to updating your IDE features and

qconn

, you can now use the Software Updates manager to quickly update the IDE software.

If you have an existing installation of IDE 4.0 on your machine, you can use the IDE Software Updates manager to update the IDE to version 4.0.1 (see the topic “Upgrading using the IDE Software

Update manager” in the installation notes for Windows and Linux hosts; for Solaris and Neutrino, you will need to follow the typical installation instructions for a new installation.

562

Appendix: D

What’s New

What was new in IDE 4.0?

Download Center updates

For this release of the IDE, the Download center has an update to

qconn

and to the

malloc

library. For instructions about using the

Software Update Manager, see the installation notes for Windows or

Linux, or see the QNX Momentics IDE Online Help.

Documentation updates

The documentation includes various improvements and enhancements. For a list of some of these improvements, see the items under the heading, “List of fixes” in the release notes. In addition, a printed version of the QNX Momentics IDE User’s Guide is also available.

What was new in IDE 4.0?

IDE 4.0 included the following new features:

Application Profiler perspective

System Profiler perspective

Memory Analysis perspective

System Information perspective

System Builder perspective

Managed Make for QNX projects

C/C++ development

Momentics workbench

Debugging

Application Profiler perspective

Full profiling support for shared libraries and DLLs (requires the

libc

patch)

Call information is included by instrumented shared libraries

Appendix: D

What’s New

563

What was new in IDE 4.0?

and DLLs. Callout-type calls from noninstrumented to instrumented code are now shown.

Background symbol loading

Symbol loading is now performed in a background thread, resulting in enhanced user experiences, because you no longer have to wait for the profiler to initialize itself loading symbols during the launch startup process.

System Profiler perspective

Configuration settings

You can now save and load (as well as import and export)

System Profile configuration settings. System Profiler sessions are now controlled through the standard Launch Configuration mechanism.

564

Appendix: D

What’s New

What was new in IDE 4.0?

Adaptive Partition Summary view

Shows adaptive-partition usage and summary information, including:

reporting the bankruptcy/critical information in the summary

displaying the critical areas in the timeline

CPU usage The CPU Usage pane displays a thread’s partition and priority and is now a tabbed view that presents the display of CPU usage sliced by CPU, partition, and priority. You can easily sort and export this information. In addition, the functionality of the

Process Activity editor pane and the CPU Usage editor pane have been merged together.

Timeline navigation and usability improvements

The System Profiler Timeline display provides insight into the execution of the system, broken down by individual process, thread, and interrupt activity.

Appendix: D

What’s New

565

What was new in IDE 4.0?

Improving the ability to navigate through the system events lets you quickly zoom into problem areas or follow the flow of activity, matching what you see visually in the timeline with what you expect to occur in your systems.

Specific improvements include:

Direct event and event owner position highlighting. Simply double-click on an event in the event log display, and the timeline immediately jumps to that event.

Event navigation by selected event owners. Navigate along an execution timeline for a particular thread, forward and backward, quickly and easily with a click of a button.

The Jump To Event dialog lets you collaborate more easily with your colleagues by providing direct event navigation by event index, event cycle, or natural time.

The Timeline State Legend lets you quickly see and adjust the color-coding of the various system states in the timeline.

Enhanced data searching, filtering and reduction capabilities

The instrumented kernel log files can easily generate tens, if not hundreds, of megabytes of information in a short period of time.

This amount of information provides a good context for examining problems, but is often more data than is required to highlight a problem to another developer.

This version of the System Profiler lets you save and create new log files that contain only a relevant subset of the data required for other developers to understand problems. New log files can be created focusing on only a particular range of time, and filtering out unnecessary events or event owners, such as server processes.

A new event data extraction and interpretation framework has been introduced with this release that allows event data conversions, particularly of User Events, to be more powerfully applied. Users can now describe their own events using C-style data structures. Accompanying this new framework is a new

Event Data Properties view that more clearly displays, in a

566

Appendix: D

What’s New

What was new in IDE 4.0?

tabular manner, the key/value data associated with individual events.

New data analysis tools

This release of the System Profiler provides you with some additional analysis tools to help you understand the execution status of their system and to give you more insight into why certain sequences of events are occurring.

Why Running view — One of the most difficult tasks in a highly modularized software system is tracing the flow of execution as it flows from one component to another. The

Why Running view works in conjunction with the System

Profiler editor’s Timeline pane to provide them with a single-click answer to the question “Why is this thread running?” for whatever thread is actively executing at the current cursor position.

By repeating this action (or generating the entire running backtrace), you receive a clearer view about the sequence of activities leading up to their original execution position. Not to be confused with an execution backtrace, this “running backtrace” highlights the cause and effect relationship leading up to the initial execution position.

Thread State Snapshot view — In addition to asking why a particular process’s thread may be running, developers are often faced with the task of understanding what the rest of the system is doing at a particular point in time. This question can easily be answered using the new Thread State

Snapshot view. Like the Why Running view, this view is based on the current cursor position in the System Profiler editor’s Timeline window. For a given time and position, it determines the state of all threads in the system, and it presents the information so that you can better determine if this system state is what you had originally anticipated.

Client/Server CPU Usage Statistics — An additional statistics panel has been added into the System Profiler to compliment the graphical Usage and Active System Profiler

Appendix: D

What’s New

567

What was new in IDE 4.0?

editor panes. This statistics table generates a map of both direct and imposed CPU usage (based on the thread

RUNNING state).

In a message-passing system, such as Neutrino, where servers are often working on behalf of clients, determining the true execution cost can be challenging. This new view helps with that endeavor. For each executing thread, this view contains the direct CPU time the thread executed, and if that thread communicated to another server, the amount of time that the server executed on its behalf is accumulated as imposed CPU usage to the client. You can then easily export this data can then be easily exported for use with other analysis and charting tools.

General usability improvements

There have been a large number of general usability and performance improvements made to the System Profiling tools.

Some of the more interesting improvements include:

Cut and paste support in tables (Trace Event Log, Why

Running, Search, Statistics views) allowing you to more easily exchange small snippets of information with other developers by simply cutting and pasting the information from the System Profiler tools.

There have been some significant changes to the Trace Event

Search user interfaces to align with the new QNX

Momentics workbench search frameworks. Search results can now be overlaid, one on top of the other, without having to generate compound search conditions. The results display in a more tabular format and can be grouped into clusters in addition, you can use the system clipboard to export the results.

Memory Analysis perspective

This perspective includes a completely new Memory Analysis

Tooling that’s reliable, fast, and robust, and with greatly improved performance and stability.

568

Appendix: D

What’s New

What was new in IDE 4.0?

Its features include:

multiple views, most of them including both alphanumeric and graphical representations

2D and 3D bar and differentiator charts that graphically present the memory events and traces, allowing you to use multiple ways to sort and filter out the collected information, allowing a generation of user statistics and allocation statistics over a time base

displays of Bands, Bins, and Usage of the memory that let you replay the collected data

a Trace Details view that lets you replay the selected bins, bands, or usage, synchronized with the allocations

the ability to import data generated by the debug

malloc

library

Appendix: D

What’s New

569

What was new in IDE 4.0?

maintaining thread/process, shared library ownership and ordering/timing information of generated events if present

detecting memory leaks — snapshot in time, detecting specific string and memory functions errors

support for Standard Make C Project memory events and C++ memory events, including backtrace information and traceability of events back to the source code if present

You can now:

change the Memory Analysis settings for a running process

import debug

malloc

events from logged trace events to a file on the target system

perform memory analysis on a running program by launching with debug

malloc

or attaching to a running process

reconnect to existing Memory Analysis sessions

System Information perspective

Adaptive partitioning scheduler view

A new APS view lets you view information about adaptive partitions on a running target system.

570

Appendix: D

What’s New

What was new in IDE 4.0?

CPU affinity and process priority/scheduling controls

Threads and processes now have context menus that let you set the CPU affinity and change the process priority and scheduling algorithm. You can also change a thread’s name on targets running QNX Neutrino 6.3.2 or later.

Thread name support

Thread names are now shown in System Information views, if available.

Highlighting data changes

Changing data is now highlighted in System Information views, and a delta is displayed for CPU/data usage.

Appendix: D

What’s New

571

What was new in IDE 4.0?

System Builder perspective

TFTP Server improvements

The TFTP Server view includes several improvements:

Network selection capability

Improved user file search

Search options and preferences available quickly from within the view

Managed Make for QNX projects

You can now create and use QNX Managed Make projects to handle building code dynamically for any and all QNX targets.

572

Appendix: D

What’s New

What was new in IDE 4.0?

These are similar to QNX Projects except they provide a richer environment for setting compiler and linker options. They also let you use custom build steps and set environment variables and build macros for

make

. Managed Make projects can be created in the New

Project Wizard under C or C++. Select QNX Neutrino Executable,

Shared Library, or Static Library Project Type, and then select which

Configurations to build for. There are configurations for each processor type, compiler version, and debug/release build options.

C/C++ development

C/C++ general improvements

C/C++ user interface

Indexers

Debugger

C/C++ general improvements

DOM-based language backend

The C/C++ perspective is now served by a much more powerful language model in the form of a document object model (DOM) that helps make everything from the C/C++ outliner, to searching, to refactoring, to class browsing faster and more accessible to plugin developers.

Kernighan & Ritchie (K&R) C language support

In addition to the new DOM serving the backend source code model, the native parser is also much more tolerant of K&R C language dialects.

Faster searches

You will also notice significant improvements to the performance and speed of the C/C++ parser and the efficiency of the indexer. As a result, searches (both general and specific, such as searches for references and declarations) are faster and more accurate than in previous releases.

Appendix: D

What’s New

573

What was new in IDE 4.0?

C/C++ user interface

Build environment control

You can now fully configure the environment variables set when starting external build commands, through the Standard Make and Managed Build C/C++ project properties, or directly when creating new projects from the New C/C++ Project wizard.

PathEntry variables

The PathEntry project properties are important for the correct operation of the parser. The new

Window

PreferencesC/C++PathEntry Variables configuration lets developers configure a common set of variables that allow the sharing of projects more easily between different developer configurations. PathEntry variables provide you with a capability to open files and to load objects that are in one’s CLASSPATH.

574

Appendix: D

What’s New

What was new in IDE 4.0?

Binary parser options

The binary parsers are more generic with the capability to redefine what external commands they use for data interpretations. Configure the settings in the project properties, or at New Project creation time.

Appendix: D

What’s New

575

What was new in IDE 4.0?

New discovery capabilities

Further work has been done to facilitate the discovery of compiler and project settings, including the ability to read from a build output file.

576

Appendix: D

What’s New

What was new in IDE 4.0?

Indexer selection

The C/C++ source indexers are now plugable components, each providing different feature support, letting you select from:

No indexing No support for searches or cross referencing.

C/C++ parser-based indexing

DOM model based, requires proper project configuration (defines and includes). Full searching, cross referencing and refactoring are supported.

Appendix: D

What’s New

577

What was new in IDE 4.0?

Drag-and-drop support

The C/C++ Project and the C/C++ Outline views have improved support for dragging and dropping of code elements and binaries.

Make Target filters

You can reduce the clutter in the Make Targets view by enabling the Hide Empty Folders filter.

Jump to definition

Complementing the already existing Open Declaration, also known as

F3

, is the powerful Open Definition (

Ctrl-F3

) that takes you directly to the definition of the class or type you’re looking for.

578

Appendix: D

What’s New

What was new in IDE 4.0?

New editing commands

Do more with less effort; additional C/C++ Editor key bindings are available for more flexible annotation and marker navigation.

C/C++ indexers

The C/C++ indexers have been substantially improved for greater performance and scalability.

The IDE lets you select the indexers to use to gather symbol information used by code search features. You can choose to use indexers in the project properties for each project under the C/C++

Indexer heading. It is also available in the Preferences dialog, which sets the default indexer for new projects and can also be used to apply that indexer selection to all projects in the workspace. There are three choices for indexing: no indexer, fast indexer, and full indexer. No indexer implies that no indexing takes place, and as a result, the search features will not function. The full indexer does a full parse of the workspace and provides the most accurate information, and it is similar to what was provided in version 6.3.0 SP2. The fast indexer uses heuristics to optimize the parse and is the recommended selection for large projects.

We recommend that you use the fast indexer option. The fast indexer takes a fraction (approximately 10-25%) of the time to index a large project than in IDE version 6.3.0 SP2. It also successfully indexes extremely large projects.

For example, the fast indexer can index the Firefox browser source in approximately 14 minutes. There are approximately 5600 indexable files (source and header files) with over 300,000 symbols.

Debugger

A new Modules view

All of the binary components, or modules, are now displayed in the debugger’s Modules view. This includes DLLs, shared objects and application binaries themselves. Additionally, each module

Appendix: D

What’s New

579

What was new in IDE 4.0?

can be expanded, letting you put breakpoints directly on binary components without opening the

C/C++ Project view.

Memory view The debugger now uses the standard platform

Memory view, allowing for a number of format translations and multiple memory location inspection.

Register groups The Registers view now supports the concept of register groups, so you can define the collection of registers relevant to your particular debugging environment.

580

Appendix: D

What’s New

What was new in IDE 4.0?

QNX Momentics workbench

Significant performance enhancements

For detailed information about the performance enhancements throughout the workbench for Eclipse, see the “What’s New” topic in the online help for the Workbench Users Guide.

Debugging

Console EOF In the Console view, you can signal end-of-file to a program waiting for input; for Windows, press

Ctrl-Z

, and for Linux, Neutrino, and Solaris, press

Ctrl-D .

Console encoding

You can configure the console to display output using a character encoding different from the default encoding. To set the console encoding for an application, use the Console Encoding settings on the Common tab of a launch configuration.

Capturing program output

You can now configure a program’s output in a file in addition to writing it to the console. The behavior is controlled by settings found on the

Common tab of launch configurations.

Appendix: D

What’s New

581

What was new in the IDE in 6.3.0 SP3?

Multiple console views

If you need to view multiple consoles at the same time, you can open additional Console views using the New Console View command located on the

Open Console drop-down menu in the Console view.

What was new in the IDE in 6.3.0 SP3?

Service Pack 3 includes all of the bug fixes and updates found in the previous service packs. The development environment is the same as the one introduced with Service Pack 2.

What was new in the IDE in 6.3.0 SP2?

The following sections describe some of the more interesting or significant changes made to the IDE in QNX Momentics 6.3.0 SP2:

General IDE

C/C++ user interface

C/C++ debug and launch

C/C++ project configuration and build

C/C++ editing and source navigation

QNX Momentics tools

General IDE

The QNX Momentics 6.3.0 SP2 IDE sports many useful new features:

New look and feel

Responsive UI

Editor management enhancements

Themes

582

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Background workspace auto-refresh

Regular expressions in Find/Replace dialog

New text editor functions

New editor functions

Opening external files

New look and feel

The look and feel of the workbench has evolved. Here are some of the things you might notice:

Title bars and tabs for views and editors look different.

Title bars and tabs for views and editors let you maximize and restore.

Views include a button for collapsing (minimizing).

Perspective switching/opening toolbar support has changed:

You can dock it on the top right (default), top left, or left.

Perspective buttons include text for quickly identifying the current perspective.

The Fast View bar can be on the bottom (default), left, or right.

The size of the Fast View bar is reduced when there are no fast views.

Title bars and tabs were merged to conserve space.

Drag-and-drop has been improved.

Detached views are supported (Windows and Linux GTK only, due to platform limitations).

Editor management has changed.

The view-specific toolbars are now next to the view’s tab, to save space when possible.

Appendix: D

What’s New

583

What was new in the IDE in 6.3.0 SP2?

Different tab folder styles and uses of color have been employed to help indicate active and selected views and editors more clearly.

Other minor items such as status bar style, border widths, shading, etc.

Responsive UI

A number of changes have occurred in the UI to support a higher level of responsiveness. This includes support for running jobs in the background instead of tying up the UI and making you wait.

The IDE now features a:

Progress view

status line entry showing what’s running in the background

dialog for showing operations that can be run in the background

The new Progress view, showing the progress of a CVS checkout and a

Workspace build background operation.

Many user operations can now be run in the background. When you see the progress dialog with the Run In Background button, you can click it to immediately return to your work.

584

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

This dialog also shows you the details of other currently running operations in the workspace and informs you when one operation is blocked and waiting for another to complete.

Editor management enhancements

A number of changes and enhancements have gone into the editor management in the QNX Momentics IDE.

The IDE now provides:

support for single and multiple editor tabs; single is especially useful for those who tend to have many files open or who like using the keyboard to navigate editors

support for editor pinning. When limiting the number of editors that can be opened at once, some editors that should not be closed can be pinned. An indicator is displayed when an editor is pinned.

chevrons to handle the overflow of editors with an extra indication of how many more editors are open than there are tabs on the screen.

Appendix: D

What’s New

585

What was new in the IDE in 6.3.0 SP2?

new menu options, keyboard shortcuts, and key bindings for editor management:

Close Others — close all editors but the current.

Close All — menu option available.

Ctrl+E — drop-down list of editors supports type-ahead.

Themes

The QNX Momentics IDE contains basic support for themes to allow for the customization of colors and fonts used in the workbench.

Background workspace auto-refresh

Changes made in the local filesystem can now be automatically refreshed in the workspace. This automatic refresh saves you from having to do a manual File

Refresh every time you modify files default, but can deactivated from the Workbench preference page.

with an external editor or tool. This feature is currently disabled by

586

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Regular expressions in Find/Replace dialog

The Find/Replace dialog for text editors supports searching and replacing using regular expressions. Press

F1 to get an overview of the regular expression syntax, and press Ctrl-Space to get Content

Assist for inserting regular expression constructs.

When the cursor is placed in a dialog field that can provide Content

Assist, a small light bulb appears at the upper-left corner of the field.

New text editor functions

You can customize the displayed width of tabs and the text selection

Workbench

EditorsText Editor page: foreground and background colors in the text editor. See the

Appendix: D

What’s New

587

What was new in the IDE in 6.3.0 SP2?

New editor functions

All text editors based on the QNX Momentics IDE editor framework support new editing functions, including moving lines up or down

(

Alt-Up Arrow and

Alt-Down Arrow

), copying lines (

Ctrl-Alt-Up Arrow and

Ctrl-Alt-Down Arrow

), inserting new a line above or below the current line ( Ctrl-Shift-Enter and Shift-Enter ), and converting to lowercase or uppercase (

Ctrl-Shift-Y and

Ctrl-Shift-X

).

Double-clicking on the line number in the status line is the same as

Navigate

Go to Line. . . (

Ctrl-L ).

Opening external files

The File menu now includes an Open External File. . . option that into a project.

lets you open any file in the workbench without having to import it

588

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

C/C++ user interface

The new CDT in the QNX Momentics 6.3.0 SP2 IDE features:

Outline filters and groups

New wizard for creating C++ classes

New wizards for working with C/C++

Code folding

Makefile editor

Outline filters and groups

The Outline view now offers you the ability to filter out certain elements such as

defines

and namespaces as well as the ability to group all

include

statements together.

New C++ Class wizard

Creating new C++ classes continues to get easier with a number of enhancements to the C++ class-creation wizard.

Appendix: D

What’s New

589

What was new in the IDE in 6.3.0 SP2?

New C/C++ wizards

A new toolbar has been created that facilitates the creation of a number of standard C/C++ objects:

source and header files

source folders

C and C++ projects

590

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Code folding

The C/C++ editor supports code folding for functions, methods, classes, structures and macros.

Makefile editor

The Makefile editor has a new Preferences dialog and supports code folding.

Appendix: D

What’s New

591

What was new in the IDE in 6.3.0 SP2?

C/C++ debug and launch

Debugging support and application launching in the CDT has been improved, as described in the following sections:

Thread-specific breakpoints

592

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Breakpoint filtering

Workspace variable support

Mixed source/assembly

Global variables

Debug console

Automatic refresh options

Detailed Launch configurations

Thread-specific breakpoints

The C/C++ Debugger now supports thread-specific breakpoints. After placing a breakpoint, look at its Properties to see which threads or processes it’s active for.

Breakpoint filtering

The Breakpoints view now lets you filter out all of the irrelevant breakpoints based on the specific process that you’re debugging.

Appendix: D

What’s New

593

What was new in the IDE in 6.3.0 SP2?

Workspace variable support

C/C++ launch configurations now include support for workspace variables in the Environment, Argument, and Working Directory tabs.

Mixed source/assembly

You no longer have to toggle the C/C++ editor to show the assembly of a program. Instead, use the Disassembly view to see both assembly code and source mixed:

594

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Global variables

You can add global variables to the Variables view instead of having to add them as separate expressions.

Debug console

The Debug Console has moved to being a proper console selection of its own in the generic Console view.

Automatic refresh options

of shared library and register information in the C/C++ debugger.

You can now configure the default behavior for the automatic retrieval

Appendix: D

What’s New

595

What was new in the IDE in 6.3.0 SP2?

You can specify whether to refresh register values automatically or manually from the Launch configuration dialog with the Advanced button of the Debug tab.

596

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Detailed Launch configurations

You can now maintain separate Run and Debug launch configurations for debugging core files, attaching to a running process, attaching to your target with

pdebug

(serial debugging), and attaching to your target with

qconn

(TCP/IP debugging).

Appendix: D

What’s New

597

What was new in the IDE in 6.3.0 SP2?

C/C++ project configuration and build

Project configuration and building has been improved:

Automatic project settings discovery

Include paths and symbols

Source folders

C/C++ file types

C/C++ working set

Automatic project settings discovery

Automatically generate project defines and include path settings from the C/C++ Standard Make project’s Discovery Options project settings.

This is for projects being built with one of the platform-specific

nto*-gcc

drivers and a custom

Makefile

.

598

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Include paths & symbols

Use the C/C++ Include Paths and Symbols to set up the project settings appropriately for searching, indexing, and other source navigation functionality.

Source folders

Use the C/C++ Project Paths project properties to determine those files and directories that should be specifically considered as performance by limiting the directories and files of large projects.

containing source, output, or library content. You can improve

Appendix: D

What’s New

599

What was new in the IDE in 6.3.0 SP2?

C/C++ file types

Define the types of specific files, especially C++ headers without extensions, using the C/C++ File Types global preference or project property.

600

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

C/C++ working set

You can now create working sets containing only C/C++ projects and resources by creating a C/C++ Working Set definition.

Appendix: D

What’s New

601

What was new in the IDE in 6.3.0 SP2?

C/C++ editing and source navigation

Editing and navigating your C/C++ source files is now easier with:

C/C++ content assist

Rename refactoring

Open type

C/C++ Browsing perspective

Makefile editor

Search enhancements

Hyperlink navigation

Index error markers

C/C++ content assist

Editing code is easier with a more fully featured content assist feature.

Completions are provided in the C/C++ editor for:

classes and structure members

local and global variables

functions

preprocessor defines

preprocessor commands

602

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Configure completion options in the global C/C++ Editor

Preferences.

Appendix: D

What’s New

603

What was new in the IDE in 6.3.0 SP2?

Rename refactoring

Use the Outline view or the C/C++ editor’s Refactor

Rename context menu to refactor class and type names, methods, functions, and member names.

604

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Open type

Use Navigate

Open type (

Ctrl-Shift-T ) to open the declaration of

C/C++ classes, structures, unions, typedefs, enumerations, and namespaces.

C/C++ Browsing perspective

structure members of a particular project.

Use the C/C++ Browsing perspective to navigate the class and

Appendix: D

What’s New

605

What was new in the IDE in 6.3.0 SP2?

Makefile editor

The Makefile editor now provides syntax highlighting, code completion, and content outlining capabilities.

606

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

Search enhancements

The C/C++ Search dialog provides context-sensitive searches from the Outline view as well as resource selection-restricted searches in the C/C++ Search dialog.

Hyperlink navigation

The C/C++ Editor supports hyperlink navigation, if enabled, by selecting Window

PreferencesC/C++C/C++ Editor

Preferences. Then you can use Ctrl-Click to move to the declaration of an item directly in the C/C++ editor.

Index error markers

Enable C/C++ indexing and indexer error reporting in the C/C++

Indexer properties. This helps identify projects that are missing path-configuration information.

Configure the indexer from the C/C++ Indexer project settings:

Appendix: D

What’s New

607

What was new in the IDE in 6.3.0 SP2?

QNX Momentics tools

These exclusive QNX Momentics tools have also been updated and improved:

Memory Analysis

System Profiler

Code Coverage

System Information

System Builder

Memory Analysis

The following new features have been added to the Memory Analysis perspective:

streamlined user interface

support for memory leak detection in real time and when a program exits

608

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

deeper, configurable, backtrace information, configured separately for allocation tracing and error detection

timestamp tracking of allocations and errors

thread tracking of allocations and errors

an optional command-line interface

the ability to dump trace information to a file

external runtime control (start, stop for tracing and leak detection)

The Memory Information and Malloc Information views are now part of the System Information perspective.

Appendix: D

What’s New

609

What was new in the IDE in 6.3.0 SP2?

System Profiler

The new features added to the System Profiler in 6.3.0 SP2 are:

new interrupt handler element, with its own timeline, CPU usage, and calling process

CPU usage and process activity for threads takes into account the time spent in interrupts

several new graph types including 3D perspectives:

Code Coverage

Improved reporting output and export capabilities.

610

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

System Information

The System Information perspective has been rewritten with a new update control mechanism, and simplified Process Information and

Signal Information views.

The new Process Information view:

Appendix: D

What’s New

611

What was new in the IDE in 6.3.0 SP2?

The new Signal Information view:

612

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP2?

The Memory Information and Malloc Information views (formerly found in the Memory Analysis perspective) are now part of the

System Information perspective.

Appendix: D

What’s New

613

What was new in the IDE in 6.3.0 SP2?

System Builder

The following new features have been added to the System Builder perspective:

You can create projects with multiple IFS images. You can combine an IFS with one or more EFS images while building the project.

There are more ways to add a filesystem image to the existing project.

You can build each IFS or EFS component separately.

614

Appendix: D

What’s New

What was new in the IDE in 6.3.0 SP1?

You can combine images as a separate step. You can define images to combine at that point, and you can dynamically change the combination parameters for each component.

The System Builder displays the filesystem layout for each IFS or

EFS image.

The System Optimization component is more flexible.

What was new in the IDE in 6.3.0 SP1?

Here are some of the more interesting or significant changes made to the QNX Momentics IDE in QNX Momentics 6.3.0:

System Profiler

improved scalability and performance

improved graphic timeline display for events

additional filters: state activity, IPC activity, and CPU usage

Appendix: D

What’s New

615

What was new in the IDE in 6.3.0 SP1?

Improved documentation, including more extensive code importing procedures, etc.

The System Builder perspective now supports projects with more than one buildfile, and the perspective’s icons have been improved.

The Application Profiler, System Builder, System Information, and

System Profiler perspectives have been improved.

The stability and usability of the self-hosted IDE have been improved.

New Support for Intel’s C compiler (

icc

).

The Code Coverage perspective now works with

gcc

3.3.1 or later.

616

Appendix: D

What’s New

Appendix E

Migrating from Earlier Releases

In this appendix. . .

Introduction

619

From 6.3.0 SP1, SP2, or SP3 to IDE 4.0

620

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3

620

From 6.2.1 to 6.3.0

627

From 6.2.0 to 6.3.0

631

Appendix: E

Migrating from Earlier Releases

617

Introduction

You can easily migrate your old workspace and projects to this release.

Introduction

Upgrading from a previous version of the IDE involves two basic steps:

Step 1 — converting your development workspace to be compliant with the latest version of the IDE framework. The IDE performs this process automatically at startup when it detects an older workspace version.

You can redirect the IDE to point at different workspaces by launching it with this command:

qde -data

path

_

to

_

workspace

Step 2 — converting your individual projects. Depending on which

6.3), you’ll have to take different steps to convert your projects.

version of the IDE framework you’re migrating from (6.2.0, 6.2.1, or

Appendix: E

Migrating from Earlier Releases

619

From 6.3.0 SP1, SP2, or SP3 to IDE 4.0

From 6.3.0 SP1, SP2, or SP3 to IDE 4.0

You can upgrade to IDE 4.0 from 6.3.0 SP1, SP2, or SP3 — whether or not you’ve also installed the QNX Neutrino Core OS 6.3.2. The information for migrating from 6.3.0 to SP2 or SP3 still applies; see below.

Note the following:

The default workspace for IDE 4.0 is

ide4-workspace

, whereas in SP2 and earlier, the default was

workspace

, so now there’s less chance of accidentally migrating your old workspace.

When you import existing projects, you now have the option of making a copy of it in your workspace. This is preferable because it leaves the original untouched as a backup. See “Importing projects” in the Common Wizards Reference chapter.

From 6.3.0 to 6.3.0 Service Pack 2 or Service

Pack 3

In addition to the many fixes and enhancements to the QNX plugins,

Service Pack 2 (which is also incorporated in Service Pack 3) introduces a completely new version of the IDE, based on Eclipse 3 and CDT 2.

For a list of new workbench features, see “What’s New in 3.0” in the

Workbench User Guide (Help

Help ContentsWorkbench User

Guide

What’s new).

For a list of new CDT features, see “What’s new in the CDT?” in the

C/C++ Development User Guide (Help

Help ContentsC/C++

Development User Guide

What’s new).

projects, this section includes some issues you might run into.

In addition to information about migrating your workspace and your

620

Appendix: E

Migrating from Earlier Releases

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3

Migrating your workspace

Your workspace is automatically upgraded the first time you launch the new IDE. This process is entirely automated and cannot be prevented. If you need to revert to an older version of the IDE, be sure to read the “Reverting to an older IDE” section.

You will receive an error message during this process with the following text:

“Could not restore Workbench layout. Reason: Problems occurred restoring workbench.”

This message is caused by internal changes to many of the perspectives commonly used for C/C++ development. You can safely ignore this error.

To prevent this error from coming up every time you load the IDE

(and to prevent a similar error when you exit the IDE):

1

2

3

Switch to the IDE workbench, if necessary.

Choose Window

Reset Perspective from the menu.

Switch to each of your open perspectives, and repeat step 2.

This error reappears later if you open a perspective that’s currently closed, but that had been used at some point in the older IDE. Use this same process to get rid of the error message.

Resetting the existing perspectives also gives you full access to all of the new features available in views that were open in those perspectives.

Migrating your projects

Like your existing workspace, your projects are automatically upgraded to take advantage of the new IDE.

To complete the migration of your projects to the new IDE:

Appendix: E

Migrating from Earlier Releases

621

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3

1

2

3

Right-click your project in the C/C++ Projects view or the

Navigation view.

Select Properties from the pop-up menu.

If your project is a Standard Make C/C++ project, select C/C++

Make Project in the list on the left to display the Make

Builder settings:

622

Appendix: E

Migrating from Earlier Releases

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3

4

If your project is a QNX C/C++ project, select QNX C/C++

Project in the list on the left, then the Make Builder tab to display the Make Builder settings:

5

Check the Clean box in the Workbench Build Behavior group, and enter

clean

in the text field.

6

Click Apply to save your settings, or OK to save your settings and close the dialog.

7

Repeat this process for each of your projects.

Migration issues

This section describes the following issues:

Intel ICC error parser

Appendix: E

Migrating from Earlier Releases

623

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3

File search error

Reverting to an older IDE

Missing features in context menus

System Builder Console doesn’t come to front

Old launch configurations don’t switch perspective automatically

Intel ICC error parser

If you have the Intel C/C++ Compiler installed, you need to update the Error Parser tab in the Properties dialog for each of your projects using ICC.

1

Right-click your project in the C/C++ Projects view or the

Navigator view.

2

3

Choose Properties from the context menu. The project

Properties dialog is displayed.

Choose the QNX C/C++ Project entry in the list on the left, then the Error Parsers tab.

In the list of error parsers, you’ll notice a selected blank entry, and an unselected entry for the ICC error parser: parser.

The selected blank entry is for the 6.3.0 ICC error parser, and the new ICC error parser is the 6.3.0 Service Pack 2 error

624

Appendix: E

Migrating from Earlier Releases

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3

4

5

Uncheck the blank entry.

Check the Intel C/C++ Compiler Error Parser entry.

6

Click Apply to save your changes, or OK to save your changes and close the dialog.

File search error

If you’re using a 6.3.0 workspace instead of a new 6.3.0 Service Pack

2 workspace, you may receive errors when performing a file search

(Search

File. . . ):

You can ignore this error; it doesn’t affect the search results.

To get rid of this error when doing file searches, create a new workspace and import your previous projects into the new workspace.

Reverting to an older IDE

When you load an existing project created with an older version of the

IDE, the IDE updates the project to take advantage of new features.

Appendix: E

Migrating from Earlier Releases

625

From 6.3.0 to 6.3.0 Service Pack 2 or Service Pack 3

This can cause problems if you try to load the project into an older version of the IDE.

If you plan to revert to an older version of the IDE, you need to make a backup copy of your workspace before using the new version of the

IDE.

Your workspace is located in

C:/QNX630/workspace

under

Windows, or

˜/workspace

under QNX, Linux, and Solaris.

Don’t use

cp

to back up your workspace under Windows; use

xcopy

or an archiving/backup utility.

Importing into an older IDE

You can also import an existing project to an older version of the IDE:

1

Make a backup copy of your workspace.

2

Remove the

.cdtproject

project’s directory.

and

.project

files from your

3

Import your project into the older version of the IDE.

Missing features in context menus

If you’re missing new features in context menus, such as the ones available in the C/C++ Projects perspective, or if you’re missing standard views, such as the Problems view in the C/C++ Development perspective, you need to reset your perspective.

To reset your perspective, follow the instructions in the “Migrating your workspace” section.

System Builder Console doesn’t come to front

By default, the QNX System Builder perspective’s Console view doesn’t automatically switch to the front when building. In the new

IDE, changed views change the style of the view title.

If you prefer the old behavior and want the Console view to automatically come to the front during a build:

626

Appendix: E

Migrating from Earlier Releases

From 6.2.1 to 6.3.0

1

2

3

Choose Window

Preferences to open the Preferences dialog.

Expand the C/C++ entry in the list, then choose Build Console to display the console preferences.

Check Bring console to top when building (if present), then click the OK button to save your changes and close the

Preferences dialog.

Old launch configurations don’t switch perspectives automatically

Because of the internal data structure changes, launch configurations created with an older version of the IDE won’t automatically switch to the Debug perspective when used as a debug configuration.

To fix this problem:

1

Choose Run

Debug. . . to open the Debug configuration dialog.

2

Change any of the settings for this launch configuration, then click Apply to save the change.

3

Change the setting back to the way you had it before, then click

OK to revert your change and close the dialog.

From 6.2.1 to 6.3.0

Migrating your workspace

This conversion is a one-way process. Although your data files remain intact, you won’t be able to use this workspace with earlier versions of the IDE.

1

splash page (“Please wait — Completing the install”), followed by the Different Workspace Version dialog:

Start the IDE pointing at your 6.2.1 workspace. You’ll see a

Appendix: E

Migrating from Earlier Releases

627

From 6.2.1 to 6.3.0

2

3

Click OK to convert your workspace.

If a System Builder project exists in your workspace, the

Migrate Project dialog is displayed:

4

Click Yes to update your System Builder project, or No to leave it in the 6.2.1 format. You won’t be able to use the project with the 6.3 IDE unless you update it.

Next the Workbench Layout dialog tells you that the layout of some of the views and editors can’t be restored:

This is to be expected, because we upgraded the minor version of installed components, so there may be some UI adjustments.

Click OK.

Now you’re ready to migrate your existing projects to 6.3.0.

628

Appendix: E

Migrating from Earlier Releases

From 6.2.1 to 6.3.0

Migrating your projects

If the 6.3.0 IDE detects any 6.2.1 Standard Make C/C++ projects at startup, you’ll be prompted to convert these projects to the new format:

You must run this conversion process over each 6.2.1 project so it can take full advantage of the new features of the C/C++ Development

Tools.

QNX C/C++ projects are automatically converted to the new project format.

Running the conversion wizard

At startup, the conversion wizard automatically checks for projects to convert. Note that you can convert older projects that were never in the workspace (e.g. projects you’ve brought in via a revision control system).

You can access the Make Project Migration wizard at any time:

Open Window

Customize Perspective. . . Update Make

Projects (Commands tab).

The IDE then adds an icon (Update Old Make Project) to the whenever you select projects that are candidates for conversion.

toolbar so you can launch the conversion wizard. The icon is activated

Appendix: E

Migrating from Earlier Releases

629

From 6.2.1 to 6.3.0

The conversion wizard looks like this:

630

Appendix: E

Migrating from Earlier Releases

From 6.2.0 to 6.3.0

From 6.2.0 to 6.3.0

1

Start the IDE pointing at your 6.2.0 workspace. You’ll see a splash page (“Please wait — Completing the install”), followed by the Different Workspace Version dialog:

2

3

Click OK to convert your workspace.

Next, the Cannot Preserve Layout dialog tells you that the saved interface layout can’t be preserved:

This is to be expected, because we upgraded the major, incompatible versions of installed components and of the workspace itself. Click OK.

Now you’re ready to migrate your existing projects to 6.3.0.

Migrating your projects

The format of 6.2.0 C/C++ projects (including QNX projects) is incompatible with the 6.3.0 format — you must follow these steps to convert your old projects:

Appendix: E

Migrating from Earlier Releases

631

From 6.2.0 to 6.3.0

1

The initial projects appear in the workspace as non-C/C++ projects. First you must convert each project based on the type of project it was originally stored as:

Standard C/C++ projects (which are based on an external build configuration such as a

Makefile

).

QNX C/C++ projects (which are based specifically on the

QNX multiplatform

Makefile

macros).

Use the appropriate conversion wizard:

For this type of project: Open this wizard:

Standard C/C++

File

NewOther. . . CConvert to a C/C++

Make Project

QNX C/C++

File

NewOther. . . QNXMigrate QNX 6.2.0

Projects

2

Go through this conversion process for each 6.2.0 project so it can take full advantage of the new features of the C/C++

Development Tools. You must also do this for any projects that are stored outside your workspace (e.g. in a revision control system).

Many project options have changed from QNX Momentics 6.2.0 to

QNX Momentics 6.3.0. Although the conversion process attempts to maintain configuration options, you should verify your individual project files to make sure any new settings have been initialized to the values you want.

632

Appendix: E

Migrating from Earlier Releases

Glossary

Glossary

633

console

Name for a general view that displays output from a running program.

Some perspectives have their own consoles (e.g. C-Build Console,

Builder Console).

drop cursors

When you move a “floating” view over the workspace, the normal pointer changes into a different image to indicate where you can dock the view.

Eclipse

Name of a tools project and platform developed by an open consortium of vendors (Eclipse.org), including QNX Software

Systems.

The QNX Developer Tools Suite consists of a set of special plugins integrated into the standard Eclipse framework.

editors

Visual components within the workbench that let you edit or browse a resource such as a file.

navigator

One of the main views in the workbench, the Navigator shows you a hierarchical view of your available resources.

outline

A view that shows a hierarchy of items, as the functions and header files used in a C-language source file.

perspectives

workspace.

Visual “containers” that define which views and editors appear in the

Glossary

635

plugins

In the context of the Eclipse Project, plugins are individual tools that seamlessly integrate into the Eclipse framework. QNX Software

Systems and other vendors provide such plugins as part of their IDE offerings.

profiler

A QNX perspective that lets you gather sample “snapshots” of a running process in order to examine areas where its performance can be improved. This perspective includes a Profiler view to see the processes selected for profiling.

project

A collection of related resources (i.e. folders and files) for managing your work.

resources

In the context of the workbench, resources are the various projects, folders, and files that you work with.

In the context of the QNX System Information Perspective, resources are the memory, CPU, and other system components available for a running process to use.

script

A special section within a QNX buildfile containing the command lines to be executed by the OS image being generated.

stream target

636

Glossary

Eclipse term for the head branch in a CVS repository.

Has two meanings:

As a software term, refers to the file that the

make

command examines and updates during a build process. Sometimes called a “make target.”

As a hardware term, refers to the Neutrino-based PC or embedded system that’s connected to the host PC during cross-development.

tasks

A view showing the resources or the specific lines within a file that you’ve marked for later attention.

UI

User interface.

views

Alternate ways of presenting the information in your workbench. For example, in the QNX System Information perspective, you have several views available: Memory Information, Malloc Information, etc.

workbench

The Eclipse UI consisting of perspectives, views, and editors for working with your resources.

Glossary

637

Index

!

.bsh

file (QNX System

Builder) 161

.cdtproject

file 18, 43, 82, 92,

468, 474

.efs

file (QNX System

Builder) 169

.ifs

file (QNX System

Builder) 168

.kev

files (System Profiler) 386

.launch

file 531

.metadata

folder 468, 553

.project

18, 43, 82, 92, 171, 474

.sysbldr_meta

file 171

.zip

archives 104

A

adaptive partitions creating at boot time 165 interactively 381 information about 373, 445 module, adding to OS image 195 parameters, setting 165, 379 programs, running in 165

Add New Target 206

addr2line

557 advanced mode (Properties dialog) 486 using to override regular options 486

All Processes pane (System

Summary view) 348 analysis tools specifying for launch 532

Application Processes pane (System

Summary view) 348

Application Profiler 221–241 specifying for launch 533

Application Profiler editor 236 colors used in 236

aps

module, adding to OS image 195

aps

utility 165

APS view 373

Arguments (Process Information view) 355

Index

639

Index

Arguments tab (launch configurations dialog)

519, 521 assumptions in this guide xxv autobuild enabling 47

B

back-trace depth 279 binaries seeing usage messages for 159

Binary Inspector view 156, 159

Binary Parser tab (New Project wizard) 469 block coverage 245 defined 246 bookmarks for Help documents 12

Bookmarks view 435 boot order 163 boot scripts 161, 165 branch coverage 245 currently not provided in the

IDE 246 defined 246 breakpoints 136–141

BSPs removing 141 buildfiles ship with 160 filename conventions in 167 importing source into the

IDE 104

BSPs perspective 110 buffer overflow errors (MAT) 291

640

Index build all projects 49 automatic feature 47 configurations 97

CPULIST

53 enabling the autobuild feature 47 executables with code coverage enabled 248 options 53 order of projects 51 saving resources before 50 selected projects 50 terminology 47 variants 45

Build Command field (New Project wizard) 465

Build Setting field (New Project wizard) 465

Build Variants tab (New Project wizard) 462 buildfile defined 160 importing a 174

C

C project

C/C++ indexer 46

Standard Make, as distinct from a QNX multivariant project 17

C++ library 482

C/C++ Development perspective 39–76

C/C++ editor 39, 59–69 adding comments to code in 66 color 66 debugging from 129 font 66 line numbers 66 preferences 66

C/C++ indexer choosing 46 disabling 46

C/C++ Indexer tab (New Projects wizard) 471

C/C++ Local launch configuration 512

C/C++ Postmortem debugger launch configuration 512

C/C++ Projects view 39, 40 adding standard includes and defines 77 compared with Navigator view 41

C/C++ QNX PDebug (Serial) launch configuration 512

C/C++ QNX QConn (IP) launch configuration 512 call counts

See also call pairs

call pairs 240

Calls Made pane (Malloc

Information view) 361 case don’t use to distinguish a project clean channels or file 16 shown in the System Blocking

Graph view 363 defined 47

Index selected projects 50

code coverage

248, 252 code coverage 245–259 block coverage 245 branch coverage 245 combining sessions 255 defined 245 enabling 248 for non-QNX projects 248 icons 255

IDE tool is a visual font end to

gcov

245 launch, specifying for 534 line-by-line information 256 markers 259 measures quality of tests 245 scan interval 251 should be set for only one build variant at a time 248 summary report 259 viewing reports in a browser 257, 261

Code Coverage Report view 256,

257, 260

Code Coverage Sessions view 254 coexistence of OS versions 20

PhAB 21

Photon 21 colors for signals 363 in the C/C++ editor 66 timeline editor 447

Combine images (QNX System

Builder) 177 combined image 166, 169 comments

Index

641

Index adding to code in C/C++ editor 66

Common tab (launch configurations dialog) 519, 530 communications

IP 27 serial 27 compiler optimization levels 479 selecting type of 478 specifying command-line options 479 specifying defines to be passed to 479 warning levels 479

Compiler tab (Properties dialog) 477

Condition Statistics view 387

Connection Information view 341,

344, 366

Console view 47 in the Debugging perspective 150 containers build configurations creating 100 editing 101 build configurations for 100 building 103 creating 98 defined 97 editing configurations for 101 seeing tree view of 101

Content Assist 60 conventions for filenames in QNX

BSPs 167

642

Index for filenames in the QNX

System Builder 168 typographical xxvi

Core Requests pane (Malloc

Information view) 361

CPU

201

CPUDIR

201

CPULIST

53

Create image (QNX System

Builder) 176

Ctrl-F3

(jump to function implementation) 76

CVS default source-management system in the IDE 81

CVS Repositories view 84

CVS Repository Exploring perspective 82

D

DDK importing source into the

IDE 105

Debug perspective views in 132

Debug view 124 selections in drive other views 124

Debug/Release mode for adding extra libraries (Linker tab in Properties dialog)

484 debugger 119–152

options in launch configuration 527 specifying source locations for 529

Debugger tab (launch configurations dialog) 519, 525 debugging agent 30 assembly-language functions 131 building an executable for 120 controls for 126 session controlling a 130 several programs simultaneously 119 via C/C++ editor 129 via hotkeys 128 without the Debug view 128

devc-pty

521

Dietician (QNX System

Builder) 202

Dinkum C++ library 482

E

Eclipse disassembly mode (Debugger) 131

Discovery Options tab (New Project wizard) 470

Distribution pane (Malloc

Information view) 361

Download tab (launch configurations dialog) 519, 523 drag-and-drop 84, 110

Index consortium 3 documentation on using CVS in the IDE 82

Platform 3 editors alternate inside the IDE 15, 68 not integrated with the

IDE 15 outside the IDE 15, 68

C/C++ 59, 77

Content Assist feature 60 defined 14 enhanced source navigation 77 jumping to function implementation ( Ctrl-F3 )

76 jumping to function prototype

( F3 ) 76 opening headers (

Ctrl-Shift-o

)

76

QNX System Builder 157

System Profiler 386

Element Statistics view 387

Environment tab (launch configurations dialog)

519, 523

Environment tab (New Projects wizard) 471 environment variables

CPU

201

CPUDIR

201

CPULIST

53

HOME

553

LD_PRELOAD 305, 306

MAKEFLAGS

23

MALLOC_CTHREAD 306

Index

643

Index

MALLOC_TRACE 305

PATH

123

PHOTON

218

PLATFORM

201

PROFDIR

231

PROJECT

201

QCONN_PROFILER 231

QNX_CONFIGURATION

20, 21, 23

QNX_HOST 23

QNX_TARGET 23, 200, 201,

480

QNX_TARGET_CPU 202 setting in launch configurations dialog 523

SOCK

31

TMPDIR

23

VARIANT

202

WORKSPACE

200, 202

Environment Variables pane (Process

Information view) 354 error log file 553

Error Parsers tab (New Project wizard) 466 errors markers used to indicate 70 executables building for debugging 120 sending fresh copy of whenever you run or debug 524 stripping debug information before downloading 525 unique name of for each download session 525

Export wizard 111 expressions

644

Index evaluating/examining in the debugger 142

Expressions view 142 extra libraries adding to launch configuration 525

F

F3 (jump to function prototype) 76

Fast indexer 46

FDs side channels shown for 367 file name conventions in QNX BSPs 167 in the QNX System

Builder 168

File System Navigator view 205 files associations with editors 69 bringing into a project folder 455 created outside the IDE 455 creating from scratch 69 exporting 110 filtering 42 host-specific 23

IDE removes from target after downloading 525 importing 84 locations in workspace 553 moving between host and target machines 205 opening 41 opening headers 76

target-specific 23

Filesystem pane (QNX System

Builder) 157 filtering 400 flash filesystem appending to an OS image 179

flashcmp

557 font in the C/C++ editor 66

Full indexer 46 functions finishing names of in the editor 60 jumping to source for 76

G

H

gcc gcov gdb

23, 245, 246, 248, 251, 252,

478, 557

245

120, 151, 512, 527, 557

GDB using directly from the

IDE 152

General Resources display (System

Resources view) 369

General Statistics view 387

gmon.out

file 224 importing a 232

gprof

223 header files, opening 76

Index heap usage 358 hello world 44 help creating bookmarks in 12 hover for function synopsis 66

HTML server within the IDE 9 navigating 11 tips and tricks 12

History pane (Malloc Information view) 362

HOME

553 hosts host-specific files, location of 23 hovering (in System Profiler editor) 435

I

icc

478, 557, 624 icons in Code Coverage Sessions view 255

IDE convenience of 3 help system 9 migrating to the current version 619 starting for the first time 5 starting via icon or menu item 4 starting via the

qde

command 7

ide4-workspace

folder

See

workspace

Index

645

Index

Identification Details pane (Process

Information view) 354 image adding files to 187 booting 163 combined 166 combines 169 downloading a 180 final format of 179 flash filesystem 166, 169

OS 166, 168 properties of 190 types of in QNX System

Builder 166

Images

directory 171

Images pane (QNX System

Builder) 157

Import wizard 84 importing

PhAB projects 216 include paths adding standard includes and defines 77 specifying 480

Indexer

See C/C++ indexer

instrumented kernel 387

Intel C/C++ compiler 478, 624

IOFlags column (Connection

Information view) 366

IP communications 28

IPL 163, 164 adding to an image 178

646

Index

K

kernel instrumented 387 performance 387 keyboard shortcuts 19

L

launch configurations 56, 511–534 creating for debugging 514 creating for running 515 dialog 518 tabs in 518 for a debuggable executable 121 launch in background 532 list of favorites 517, 532 not automatically deleted when you delete associated projects 59 old, removing 235 types of 511 launcher 19 running a program without 516 launching

ld

executable 57

557

LD_PRELOAD 305, 306 libraries buttons for adding (Linker tab in

Properties dialog) 484 how to build 458 optimizing in QNX System

Builder 202 shared 459

shared without export 460 specifying locations of for the linker 483 static 459 static for shared objects 459 line numbers how to show them in the C/C++ editor 66 link map generating a 481 linked resources 84 linker command-line options 483

Linker tab (Properties dialog) 480 log files (System Profiler) 386

M

Main tab (launch configurations dialog) 519

make

557 targets adding 53 removing 54

Make Builder tab (New Project wizard) 464

Make Project Migration wizard 629

Makefile

recursive hierarchy 44

MAKEFLAGS

23

MALLOC_CTHREAD 306

MALLOC_TRACE 305

Malloc Information view 341, 344,

358, 359

Managed Make project

Index

C/C++ indexer 46 markers for errors 70 memory changing a process’s 146 error types 282 errors 265–358 illegal deallocation of 282 leaks 274 management 266 resource leaks 282 snapshots 280

Memory Analysis 273

Buffer overflow 291 disabling 306 enabling 283 enabling error detection 287 environment variables 302 error messages 300 error types 282 illegal deallocation of memory 286 interpreting errors 282 memeory errors 278, 280 memory leaks 297 memory tracing 279

NULL pointer dereference 288 resource leaks 282 runtime errors 282 trace events 283

Memory Analysis perspective 273

Memory Analysis tool launching a program to use 276 specifying for launch 533

Memory Information view 341,

344, 355, 358

Index

647

Index

Memory Resources display (System

Resources view) 371 migrating involves two steps 619 to the current version of the

mkefs mkifs

IDE 619–632

156, 557

156, 557

mkimage mkrec

557

557

mksbp

156 multivariant project as distinct from a Standard Make

C project 17

N

natures 17

Navigator view 39 compared with C/C++ Projects view 41

New Project wizard 44, 456 tabs in 461

New QNX Target System Project wizard 472

O

objcopy

557

Options tab (New Project wizard) 467

OS image components of 163

OS versions coexistence of 20

PhAB 21

Photon 21 specifying for build 22

Outline view 43

Overrides

directory 171 must be first in the list of search paths 201

P

padding (QNX System

Builder) 170

PATH

123 pathname delimiter in QNX

pdebug

Momentics documentation xxvii

30, 123, 512, 557 perspectives

C/C++ Development 39–76 default views 13 defined 13 specifying which to switch to during launch 534

PhAB 211 applications, launching 512 editing code in 214 how to close 214 projects, importing 216 reopening 214

Phindows 35

PHOTON

218

PLATFORM

201 platforms all are enabled by default 462

648

Index

how to specify which to build for 462 position-independent code

(PIC) 459 post-build actions (Linker tab in

Properties dialog) 485 preferences 20

C/C++ editor 66

Problems view 47, 70

Process Information view 341, 344,

348

Processes pane (System Summary view) 348

procnto

163, 165, 194 naming convention 165 variants 165

procnto-instr

387

PROFDIR

231 profiling a running process 228 building a program for 224 instrumented 223 non-QNX projects 226 per-function 237 per-line 235 per-thread 238 postmortem 223, 231 running and profiling a process 226 running as

root

228 sessions how to control 233 statistical 222 types of 222 programs creating 40

Index debugging for the first time 514 relaunching a 518 running 40, 56 running for the first time 516 running/debugging once you’ve created a launch configuration 517

PROJECT

201

Project Name Prefix (BSP import wizard) 107

project.bld

file (QNX System

Builder) 161, 171 projects

.cdtproject

file 18, 43, 82,

92, 468, 474

.project

file 18, 43, 82, 92,

171, 474 building 175 closing 41 container 97 converting to QNX type 474 creating 44 creating in the QNX System

Builder 173 defined 15 deleting 59 does not also delete launch configuration 59 different types of 456 exporting 110 flash filesystem 175 how to create 457 importing 84 migrating from 6.2.0 to

6.3.0

631

Index

649

Index migrating from 6.2.1 to

6.3.0

629 names don’t use case to distinguish 16 no spaces 16 nesting steps to support 85 non-QNX how to create 460 opening 41 properties of setting 486

QNX System Builder 171 configuring 186, 198 target system 472

Projects tab (New Project wizard) 463 properties image (QNX System

Builder) 193 item (QNX System

Builder) 197

Properties dialog advanced mode 486 used when converting a project 476

Properties view in QNX System Builder 186

Q

qcc

223, 248, 557 specifying command-line options 479

650

Index

qconfig qconn

20, 21, 23

557 buffers, number of 391, 393 code coverage 246, 247

IP communications 28, 473 launch configuration 512 memory analysis 304 over Qnet 31 priority 397 processes, profiling 226 system, profiling 390, 391 target agent 18, 27 updating 31

QCONN_PROFILER 231

qde

command 7

Qnet, running

qconn

over 31

QNX recursive

Makefile

hierarchy 44

QNX_CONFIGURATION 20,

21, 23

QNX_HOST 23

QNX_TARGET 23, 200, 201, 480

QNX_TARGET_CPU 202

QNX Application Profiler perspective configuring the IDE to automatically change to

227

QNX BSP Perspective 110

QNX C or QNX C++ Project relies on QNX recursive

Makefile

hierarchy 44

QNX C/C++ project as distinct from a Standard Make

C/C++ project 17

C/C++ indexer 46

QNX GDB Console view enabling 151

QNX Memory Analysis perspective 265 switching to automatically 282

QNX Momentics version of on host must be the same or newer than version on target 28

QNX Neutrino memory management in 266 robust architecture of 266

QNX System Builder editor 157

Filesystem pane 157

Images pane 157 toolbar 158

QNX System Builder perspective 155

QNX System Builder project creating a 173

QNX Target System Project creating a 56

QNX tools overview 4

QWinCfg

21

R

Reductions

directory 171, 205 must be second in the list of search paths 201

Registers view 143 regular mode (Properties dialog) 486

Index resource leaks 282 resources defined 19 linked 84

ROM monitor 155, 180, 185

root

all programs launched from the

IDE run as 355

Run

Run. . . menu item 513

S

scan interval (code coverage) 251

sched_aps

165 scrolling (in System Profiler editor) 434 search paths (QNX System

Builder) 199

Seek Offset column (Connection

Information view) 367 selection types of in the System Profiler editor 433

sendnto

155, 183 serial communications 30 serial terminal 180 choosing a device 181 communicating with your target 181 communication parameters 181 supported control sequences 180 transferring files 182

Index

651

Index

Server Processes pane (System

Summary view) 348

Set QNX Build Environment wizard 77 shared libraries deleting reduced versions of 205

Shared Libraries view

(Debugger) 147 shortcuts, keyboard 19 side channels 367

Signal Information view 341, 344,

363 signals color-coding for 363 sending to a running process 345 sending to a suspended program 149

Signals view (Debugger) 147

SOCK

31 source code exporting to a

.zip

file 110 to the filesystem 110 importing into the IDE 84 importing QNX source code 104 specifying locations of 479

Source tab (launch configurations dialog) 519, 528

startup

spaces don’t use when naming a project or file 16 stack errors 358 naming convention 164

652

Index variants 164 startup code 163, 164

strip

557 stripped name (Linker tab in

Properties dialog) 483 symbols loading 147 stripping from a binary 481

System Blocking Graph view 341,

363

System Builder Console view 175

System Builder Projects view 161

System Information perspective 333

CPU processing load and 346 key terms used in 335 updating views in 345 views in 341

System Memory pane (System

Summary view) 348

System Resources view 341, 367 selecting which display to see 367

System Specifications pane (System

Summary view) 348

System Summary view 341, 346

All Processes pane 348

Application Processes pane 348

System Processes pane 348

System Uptime display (System

Resources view) 367

T

target (machine) 27

CPULIST

53 target agent

See

qconn

Target File System Navigator view

Add New Target option 206

Target Navigator view 341 customizing 343 sending a signal using 345 using to control Information views 344 target system project creating a 472 target-specific files, location of 23 targets (

make

) 53 adding 53 removing 54 terminal emulation 521

TFTP server 180, 183

TFTP Server view 155

Thread Details pane configuring 350

Thread Details pane (Process

Information view) 350

Thread Information view 341 timeline editor colors for 447

Timeline State Colors pane 447 tips and tricks (item in Help menu) 12

TMPDIR

23 toolbar

QNX System Builder 158

Tools tab (launch configurations dialog) 519, 532

Index

Total Heap pane (Malloc Information view) 361

Trace Event Log view 387

Trace Search 400 tracing events 283 typographical conventions xxvi

U

update interval (QNX Application

Profiler) 227, 229

Update Old Make Project icon 629 usage message displayed for each item in QNX

System Builder 156 for binaries in QNX System

Builder 159

usemsg

557 utilities used by the QNX System

Builder 176

V

variables preventing the debugger from reading 135

Variables view 135

VARIANT

202 views

Application Profiler 234

APS (Adaptive Partition

Scheduling) 373

Index

653

Index

Binary Inspector 156, 159

Bookmarks 435

C/C++ editor 39

C/C++ Projects 39, 40

Code Coverage Report 256,

257, 260

Code Coverage Sessions 254

Condition Statistics 387

Console 47

Debug 124 defined 14

Element Statistics 387

General Statistics 387

Navigator 39

Outline 43

Problems 47

System Builder Console 175

System Builder Projects 161

Target File System

Navigator 205

TFTP Server 155

Trace Event Log 387

W

watchpoints 136–141 removing 141 wizards 453–477 are categorized according to natures 453 conversion 629 creating “nature-free” files, folders, or projects 455 creating a new project 456 how to access 453

654

Index

Make Project Migration 629

New Project 44, 461

New QNX Target System

Project 472

Set QNX Build

Environment 77 simple 455 workbench 8 menus 9

Workbench Build Behavior field

(New Project wizard) 466

Workbench User Guide

39 references to CVS in 82 working directory on target machine 522 working set 100

Working Set Name (BSP import wizard) 107

WORKSPACE

200, 202 workspace

.metadata

folder 468, 553 defined 5, 16 migrating from 6.2.0 to

6.3.0

631 migrating from 6.2.1 to

6.3.0

627 refreshing 15 specifying where the IDE should look for a 16

X

XIP 194

Z

zooming (in System Profiler editor) 434

Index

Index

655
