a

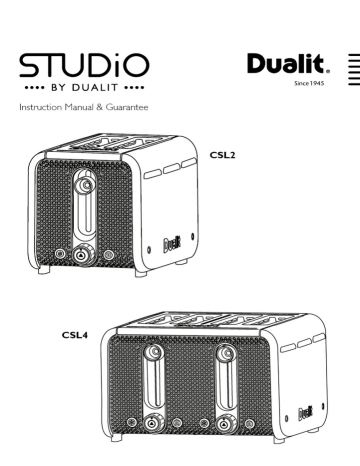

Instruction Manual & Guarantee
CSL2
Dualit.
Since 1945
у IMPORTANT SAFETY PRECAUTIONS A.
READ ALL
INSTRUCTIONS
BEFORE USING THE TOASTER KEEP
THESE INSTRUCTIONS FOR FUTURE
REFERENCE
IMPORTANT
SAFEGUARDS
THIS IS AN ATTENDED
APPLIANCE.
* Do not leave unattended during use,
unplug after each use (risk of fire if an
unattended appliance is left operating
or plugged in).
| his appliance must not be used by children
younger than 8 years old and persons with very
extensive and complex disabilities. Children
aged 8-14 years and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge shall not use this
appliance, unless they are supervised and have
been given instruction concerning the use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance
shall not be made by children unless they are
older than 8 and supervised. Keep the appliance
and its cord out of reach of children less than 8
years old.
This appliance is intended for indoor
household use only. If the appliance is used
improperly or for professional or semi-
professional purposes or if it is not used
according to these instructions the Guarantee
becomes invalid and Dualit refuses any liability
for damage caused.
Electrical safety
* Before plugging in, check that the voltage on
the rating label is the same as the mains supply.
* \Ve recommend that the toaster is plugged
into a socket that has no other appliance
connected to it. Failure to do this may cause an
overload, trip a circuit breaker or blow a fuse.
Preferably the socket outlet should be protected
by a Residual Current device (RCD).
Unplug from outlet when not in use. Allow to
cool before cleaning and before putting on or
taking off parts.
* Should any of the lights remain
illuminated after using the appliance,
immediately unplug the toaster and call
service centre.
| he toaster is not intended to be operated by
means of an external timer or separate remote-
control system.
lo protect against electric shock, do not
immerse any part of this product in water or
other liquid.
Norte: Any plug cut from power supply cord
should be disposed of immediately. Inserting
any cut off plug into a | 3A socket-outlet is
hazardous.
Do not operate any appliance with a damaged
lead or plug, or after the appliance malfunctions,
or has been damaged in any manner.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
* Never use the plug without the fuse cover
fitted. Ensure replacement fuse is the same
current value as onginal.
° Replacement fuses should be ASTA approved
to BS 1362.
* VW ARNING: This appliance must be earthed.
General safety
* Bread may burn. Therefore toasters must
not be used near or below curtains and other
combustible matenals.
* When in use a fire may occur if the toaster is
covered or touching flammable material.
* Do not place on or near a hot gas or electric
burner, or in a heated oven.
* Do not attempt to dislodge bread when the
toaster is plugged in.
* Crumb tray must be in place during toasting,
* Crumb tray should be regularly cleaned. A
build up of crumbs can burn or cause a fire.
* [Do not allow cable to touch hot surfaces, or
to hang over edge of a table or counter top.
A Keep the appliance and its cord out of reach
of children.
* Do not use appliance for any purpose
other than the intended use.
* [Do not store or use toaster in an appliance
garage or under cupboards.
* Do not put a pan on top of the toaster or
warming rack.
* Do not use if dropped, cracked or damaged.
* Accessible surfaces of the toaster may get hot
during use. Therefore use handles or knobs.
* Do not use scouring pad or abrasive cleaner
on the toaster body.
* [he use of accessory attachments not
recommended by Dualit may result in fire,
electric shock or injury to persons.
SAVE THESE
INSTRUCTIONS
In the interest of improving products, Dualit Ltd.
reserves the right to change the product specification
without prior notice.
All illustrations are for representation only, your
model may vary from illustrations shown.
INSTRUCTIONS ON ENVIRONMENT
PROTECTION
Do not dispose this product in the usual
household garbage at the end of its life cycle.
Please hand it over to a collection
point for the recycling of electrical
and electronic appliances. The symbol
on the product, the instruction of
mmm use or the packaging will inform
you about the methods of disposal.
The matenals are recyclable as mentioned on its
marking. By recycling, matenal recycling or other
forms of re-utilization of old appliances you are
making an important contnbution to protect our
environment. Please enquire at the community
administration for the authorised disposal location.
IMPORTANT: BEFORE
FIRST USE
* Read this instruction manual before you start
using the toaster. it gives you important safety
information and will ensure you get the most
out of your Dualrt toaster.
* Keep this manual and your proof of purchase
in a safe place.
* Before you use your toaster for the first
time, wash all parts according to the cleaning
instructions.
* Position the toaster according to the safety
precautions.
* Make sure the toasting lever is in the raised
position when you put the plug into the wall
socket.
* The toasting lever will only engage when the
toaster is plugged in with the power on.
* The cancel button will illuminate to show that
the toaster is heating.
* When you tum the toaster on for the first
time, a “new” smell/or smoke may be given
off, this will dissipate after a few uses.
YOUR STUDIO TOASTER CONTENTS
The perfect slice of toast is an essential part of breakfast and the Studio Toaster
Is designed to deliver every time. With wide slots for the chunkiest of bread,
defrost option and reheat, you will be serving superior toast, to change the way Safety precautions 04
you breakfast Know your Toaster 06
Setting up 08
Toasting tips 09
Toasting bread 10
p > Reheating Toast ||
DON'T FORGET TO |
REGISTER YOUR TOASTER Toasting frozen bread |2
4 slot toasting 13
Www W.DUALIT.COM/REGISTER |
Stop toasting 14
OR BY POST Cleaning & care |5
— Troubleshooting | 6
I a
me ч —
=N Guarantee | /
Register
my appliance
à A
Unpack the box with care, keeping all the packaging materials until you are satisfied everything
is present and in working order. Once satisfied remove any tags from the toaster body and
recycle the packaging appropriately. Do not remove tags from the cord where appropriate.
Design Registration No. 002723841-0001, 00272384 1-0002, 00272384 |-0004. You may wish to keep the box to store your toaster.
Patent Application Mo. 1407 187.7 All illustrations are for representation only; your model may vary from illustrations shown.
02 03
KNOW YOUR TOASTER
TOASTING LEVER
oes
>
0000000
BROWNING
CONTROL
DEFROST BUTTON
NU
O «
CANCEL BUTTON
REHEAT BUTTON
06
e——— CRUMB TRAY
CABLE TIDY
SETTING UP
Read and follow these instructions before using your toaster.
Ty
т |
DO NOT STORE OR USE
YOUR TOASTER IN AN
APPLIANCE GARAGE OR
UNDER CUPBOARDS. A
fire may occur if incorrectly
positioned.
Е
20cm
#4
F
+
20cm 20cm
\ >
Ensure the toaster
is positioned at least
20cm CLEAR FROM
ANY OVERHANGING
CUPBOARDS OR WALLS.
DO NOT STORE OR USE
YOUR TOASTER CLOSE
TO CURTAINS OR
FLAMMABLE MATERIAL.
A fire may occur if
Incorrectly positioned.
(5) (5 ) THE CRUMB TRAY |
== —
CRUMB TRAY MUST
BE IN PLACE DURING
TOASTING.
08
Place the toaster on an
open level surface. Ensure
the toaster Is positioned
at least 20cm/100cm
CLEAR FROM ANY
OVERHANGING
CUPBOARDS, WALLS
OR CEILING.
UNPLUG WHEN NOT IN
UNPLUG
(С N
Register.
my appliance
WWW.DUALIT.COM/REGISTER
# M A
DON’T FORGET TO REGISTER YOUR TOASTER AT
USE. WWW.DUALIT.COM/REGISTER OR BY POST
TOASTING TIPS
Here are a few tips to help get the best out of your toaster.
Different breads will toast at different rates, wholemeal bread takes longer than white bread,
fresh bread will take longer than day old bread. Remember to adjust your browning control
to allow for your particular type of bread.
The thickest slice of bread that will fit in your toaster is 28mm thick. Forcing bread which 15
too thick or too long into the slots will be difficult to eject once toasted.
When hand cutting a fresh loaf, cut the slices as evenly as possible. Uneven slices will toast
unevenly.
Keep elements free from breadcrumbs and broken pieces of bread. If left these may burn
out the elements. With the toaster unplugged use a soft brush to clean inside your toaster,
do not use a knife!
To reheat recently made toast, pull the toasting lever down and press ‘Reheat.’ Note, there
Is no need to adjust the browning control.
Cancel toasting manually at any time by pressing the cancel button on the browning control
knob.
09
TOASTING BREAD
THIS IS AN ATTENDED APPLIANCE. Do not leave
unattended during use, unplug after each use (risk of fire
if an unattended appliance is left operating).
REHEATING TOAST
If your toast has cooled before you have managed to eat, it can be
warmed again using the REHEAT function.
fr A > fr AM fr bs,
PLUG IN INSERT BREAD ENGAGE TOASTING
o т
ON :
Na |
НЕ
N o; >,
The toaster will only engage To toast, set the desired Place the bread into the Place the toast in the slots. Push the toasting lever Immediately press the
when the power is switched browning level by means slots and press the toasting down until it engages. reheat button. The button
on. Plug the toaster into the of the browning control (| lever down until it engages. will illuminate red.
wall power socket and tum is the lightest and 9 is the The browning control will
t socket. darkest setting). be illuminated red for th
POWER On at SOCK arkest setting) = THminated fed or he NOTE: bread may bum If your toast is already well done.
duration of the toasting.
Г e
HIGH LIFT
VVhen toasted the toast will To immediately stop toasting,
pop up automatically. If the press the cancel button.
slices are difficult to remove After cancelling if any
safely, lift the toasting lever up light remains illuminated
manually for extra high lift. after use immediately
UNPLUG the toaster &
call service centre.
TOASTING FROZEN BREAD
When ‘defrost’ is activated, the toaster automatically adjusts the settings
to defrost and then toast frozen bread.
To cancel toasting see page 10.
| en a
4 SLOT TOASTING
To cancel toasting see page 10.
To toast frozen bread, place Press the toasting lever Immediately press the If you want to toast 2 pieces of bread only LOAD AND
the bread into the slots. down until it engages. defrost button. The button ENGAGE one side of the toaster.
will be illuminated red.
Note: Defrost and reheat functions cannot be used at the same time. The toaster will perform
the function that is selected first. If the incorrect function is selected, cancel toasting and
start again.
i N
Se" BONET WWW.DUALIT.COM/REGISTER
TO REGISTER sur PT
YOUR PRODUCT OR BY POST | my appliance
\ =S y
DO NOT LOAD AND ENGAGE BOTH SIDES OF THE TOASTER, TO TOAST 2 PIECES
OF BREAD.
STOP TOASTING
The toasting cycle will automatically stop and the toast will pop up,
but if required, you can cancel at any time.
(1) STOPBUTTON |
i mo р уч
i i
Press the cancel button
located on the end of the
browning control.
The toaster will immediately
stop and the items being
toasted will pop up.
The light will go out.
After cancelling if
any light remains
illuminated after use
immediately unplug the
toaster & call service
centre.
>
THIS IS AN ATTENDED
APPLIANCE. Do not
leave unattended during
use, unplug after each
use (risk of fire if an
unattended appliance
is left operating).
Switch toaster off, remove
the plug from the wall socket
and let the toaster cool down
before you start cleaning it.
fr >
LIGHTLY TAP
VVhen the toaster has
cooled completely, tap the
sides of the toaster lightly to
dislodge any crumbs caught
in the toasting chamber.
Wipe the outside of the
toaster with a soft moist
cloth and dry it with
another cloth. Do not use
a scouring pad or abrasive
cleaner.
Р
CRUMB TRAY
ааа ее
| femme, |
Dual
Crumbs will accumulate
in the crumb tray and
could catch fire if the
tray is not emptied
frequently. Pull out the
crumb tray and wipe
clean using a damp cloth.
Use a soft brush to clean
inside your toaster.
Do not insert any metallic
or sharp utensils in to the
toaster.
(6) CORD TIDY
Store the cleaned toaster
unplugged with the cord
wrapped round the cord
tidy on the base of the
toaster.
TROUBLESHOOTING (E 2
POSSIBLE CAUSE(S)
MY TOASTER IS NOT WORKING:
|. The toaster may not be properly
connected to the power supply.
SOLUTION(S)
|. Check the plug is in the socket and the switch
in turned on. If the toaster is still not working,
check the plug fuse.
2. If your lever Is not staying down.
| GET UNEVEN TOASTING:
2. Check if the light is glowing red.
If yes, unplug the toaster and call service centre
If no, your plug fuse may have blown.
|. Different bread types and sizes have
been used at the same time.
|. Ensure size and type of bread being toasted
are the same.
2. End elements take a little longer to
warm up than centre elements.
2.1 Ensure all active slots have bread inserted
when toasting.
2.2 Once toaster is at optimum operating
temperature this will no longer occur.
MY TOAST DOESN'T POP UP WHEN THE TOASTER HAS FINISHED:
|. There may be a fault with the toaster.
|. IF the power light remains illuminated,
immediately unplug the toaster and call service
centre.
2. Your bread may be too thick
SMOKE COMING OUT OF THE SLOTS
2.1 Slices thicker than 28mm will get stuck.
2.2 Hand cut slice must be cut evenly.
|. If this 15 the first time using your toaster,
this is normal, your elements are being
conditioned.
|. This will dissipate after a few uses.
2. The crumb tray might be full. A build up
of crumbs can burn or cause a fire.
2. Empty the crumb tray.
3. Some crumbs or pieces of bread may
be stuck in the toaster.
3. Unplug, remove the crumb tray then tum
the toaster upside down over a sink or bin and
gently shake the crumbs out.
GUARANTEE
This appliance is of excellent quality and construction. However, if any defects in materials or
workmanship do appear during the relevant guarantee period, we will, at our discretion, either
repair or replace the defective parts, free of charge, subject to the terms and conditions of our
Guarantee shown below.
This Guarantee covers both parts and labour.
Carnage is not included.
Your Guarantee period is as follows:
* | year
This Guarantee provides benefits which
are addrtional to, and do not affect, your
statutory rights. This Guarantee does not
cover the cost of returning the product to
the dealer from whom it was purchased or
to ourselves. This Guarantee applies only to
products sold and located in mainland Great
Britain. It does not cover liability in respect of
or replacement of plugs, cables or fuses and
also does not cover defects due to:
* Failure to use or maintain product in
accordance wrth Dualrt's instructions.
* The product being connected to an
unsuitable electricity supply.
* Accidental damage to or abuse or misuse
of the product.
* product modification, except by Dualit or
approved agent.
* Dismantling of or interference with the
product.
* Theft or attempted theft of the product.
Before returning any product under this
Guarantee, please check that:
* You have followed the product instructions
correctly.
* Your mains electricity supply is functional.
* The defect is not due to a blown fuse.
If you wish to claim under this guarantee you
should:
* Send the product, postage or camiage paid,
to the dealer from whom rt was purchased
orto Dualit direct.
* Ensure that the product is clean and
packed carefully (preferably in its original
carton).
* Enclose details of your name, address and
telephone number and when and where
the product was purchased, together with
proof of purchase (e.g. a till receipt).
« Give exact details of the nature of the
defect.
This Guarantee does not cover any other
claims whatsoever, including, without
limitation, any liability for incidental, indirect
or consequential damage, nor does it cover
any claims for conversion or modification
or for the costs of repair carried out by any
third party without the prior consent of
Dualit. If replacement parts are fitted to the
product this will not extend the period of
the Guarantee.
For further advice contact the Dualit
customer helpline on +44 (0)1293 652 500
(09:00 to 17:00 Monday to Friday).
Alternatively, email Dualit at [email protected]
or visit www.dualit.com
Do not throw away the appliance with the
normal household waste at the end of its life,
but hand it in to an official collection point
for recycling. By doing this you help preserve
the environment.
STUDIO
eo. BY DUALIT «eve
HAVE YOU CONSIDERED
REGISTER YOUR PRODUCT
1. Fast and efficient customer service and access to manuals
and product information should you require assistance with
your purchase.
2. Complimentary membership to Club Dualit where you
will have access to a library of mouth-watering recipes and regular
articles from leading chefs, food critics and industry experts.
3. Be the first to hear about exciting new Dualit products.
E “\
se WWW.DUALIT.COM/REGISTER es |
egister
UR PROPUET OR BY POST = my appliance
` — ” WWW. DUALIT.COM/STUDIO-KETTLE
DON'T FORGET TO
REGISTER YOUR TOASTER
WWW.DUALIT.COM/REGISTER
ORBY POST
=
Register
my appliance
Dualit.
ez
Dualit Limited County Oak Way Crawley West Sussex RHII 7ST
t: +44(0)1293 652 500 f: +44(0)1293 652 555 e: [email protected] www.dualit.com
000006
ОВ-А
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
