HP Compaq Business Desktop
d220/d230 Microtower Models
© 2003 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.

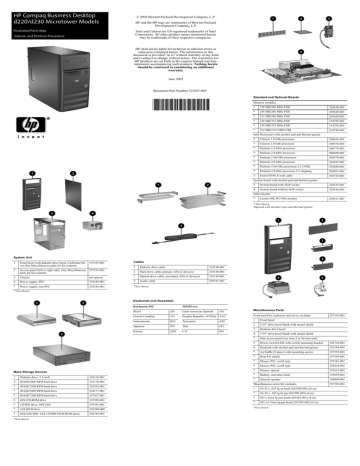

Illustrated Parts Map
Intel and Celeron are US registered trademarks of Intel
Corporation. All other product names mentioned herein
may be trademarks of their respective companies.
Celeron and Pentium Processors
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
June 2003
Document Part Number 322825-002
Standard and Optional Boards
Memory modules
1
128 MB/266 MHz FSB
285648-001
*
256 MB/266 MHz FSB
285649-001
*
512 MB/266 MHz FSB
285650-001
*
128 MB/333 MHz FSB
314795-001
*
256 MB/333 MHz FSB
314793-001
*
512 MB/2333 MHz FSB
314796-001
Intel Processors with alcohol pad and thermal grease
2
Celeron 1.8 GHz processor
288692-001
*
Celeron 2.0 GHz processor
309578-001
*
Pentium 1.8 GHz processor
306779-001
*
Pentium 2.4 GHz processor
288689-001
*
Pentium 2.66 GHz processor
305579-001
*
Pentium 2.8 GHz processor
333487-001
*
Pentium 2.66 GHz processor, C1 (VID)
333486-001
*
Pentium 2.8 GHz processor, C1 stepping
305051-001
3
Front I/O PCA with cable
342725-001
System board with alcohol pad and thermal grease
*
System board with AGP socket
335187-001
4
System board without AGP socket
355186-001
Other boards
*
Lucent 56K PCI Win modem
239411-001
* Not shown
#Spared with alcohol wipe and thermal grease
System Unit
Cables
1
Front bezel with diskette drive bezel, Carbonite/Silver (See Miscellaneous parts for kit contents
337555-001
2
Access panel (left or right side) (See Miscellaneous
parts for kit contents
337555-001
3
Chassis
4
Power supply, PFC
*
Power supply, non-PFC
335182-001
*Not shown
1
Diskette drive cable
335190-001
2
Hard drive cable, primary ATA (2 devices)
335188-001
not spared
*
Optical drive cable, secondary ATA (2 devices)
335189-001
335183-001
3
Audio cable
335191-001
* Not shown
Keyboards (not illustrated)
Keyboard, PS2
1
Diskette drive, 3.5-inch
336218-001
2
40-GB\5400 RPM hard drive
335176-001
*
40-GB\7200 RPM hard drive
335392-001
*
80-GB\5400 RPM hard drive
334177-001
*
80-GB\7200 RPM hard drive
337027-001
3
48X CD-ROM drive
335389-001
*
CD RW drive, 48X/24X
335391-001
*
16X DVD drive
335390-000
*
48X/24X/48X+16X CD-RW/DVD-ROM drive
336783-001
*Not shown
-161
Miscellaneous Parts
Brazil
-201
Latin American Spanish
French Canadian
-121
Peoples Republic of China -AA1
Front bezel kit, carbonite and silver, includes:
1
Front bezel
2
5.25” drive bezel blank with metail shield
International
-B31
Taiwanese
-AB1
Japanese
-291
Thai
-281
Korean
Mass Storage Devices
335192-xxx
-AD1
U.S.
-001
3
Diskette drive bezel
4
3.55” drive bezel blank with metail shield
*
Side access panel (see item 2 in System unit)
337555-001
5
Power switch/LED with switch mounting bracket
342724-001
6
Heatsink with alcohol pad and thermal grease
335184-001
*
Air baffle (2 piece) with mounting screws
337553-001
*
Rear I/O shield
337554-001
*
Mouse, PS2, scroll type
335181-001
*
Mouse, PS2, scroll type
323614-001
*
Mouse, optical
323617-001
*
Battery, real-time clock
153099-001
*
Internal speaker
180809-001
Miscellaneous screw kit, includes:
*
#6-32 x .025 lg an head (262508-001) (6 ea)
*
#6-32 x .187 lg hi top (262508-003) (6 ea)
*
M3 x 5mm lg pan head (263585-001) (8 ea)
*
M3 x 6.5mm lg pan head (263585-002) (8 ea)
*Not shown
337552-001
Clearing CMOS*
The computer's configuration (CMOS) may occasionally be corrupted. If it is, it is necessary to clear the CMOS
memory using by performing the following procedure:
Ä
1.
2.
3.
4.
5.
6.
CAUTION: The power cord must be disconnected from the power source before changing the jumper
setting. (NOTE: All LEDs on the board should be OFF). Failure to do so may damage the system board
Turn off the computer and any external devices, then disconnect the power cord from the power outlet.
Remove the access panel.
Locate the switch CMOS and press the button, holding it down for 5 seconds.
Replace the access panel.
Connect the power cord to the power outlet.
Turn on the computer, allow it to start.
NOTE: Clearing CMOS clears all passwords.
Diagnostic LEDs
System Board Connectors and Jumpers (position of some untitled components may vary in location)
BAT1
Real-time-clock battery
J25
Secondary IDE connector
CMOS
CMOS Reset button
J27
Power/LED switch
DIMM1
Memory socket 1
J28
Primary IDE connector
DIMM2
Memory socket 2
J29
ATX Main power
J11
Aux in audio
J31
Diskette drive connector
J12
CD in audio
J35
Chassis fan
J13
Wake on LAN
JP1#
Processor safe mode
J17
System fan
JP2#
Boot Block
J20
Front side USB
U13
Processor socket
J21
CPU fan
#See table below
AGP socket not shown in this drawing
LED
Color
LED Activity
State/Message
Power
Green
On
(S0) Computer on
Power
Green
1 blink every 2 seconds
(S1) Normal Suspend Mode
Power
Green
1 blink every 2 seconds
(S3) Suspend to RAM
Power
Clear
Off
(S4) Suspend to Disk (if applicable)
Power
Clear
Off
(S5) Computer off
Power
Red/Green
Red when flashing ROM;
Green 1 blink every second
when user can restart
Boot block recovery w/Embedded Video
Power
Red
1 blink every second for 2
seconds
CPU thermal shutdown
Power
Red
1 blink every second for 5
seconds, then 2 second pause.
5 beeps.
No memory installed
Power
Red
1 blink every second for 6 seconds, then 2 second pause.
6 beeps.
Graphics card error
Power
Red
1 blink every second for 7
seconds, then 2 second pause.
7 beeps.
System board failure
Hard Drive
Green
Blinking
Hard drive activity
Computer Setup (F10) Utility Features (not all features may be available)
JP1
System
Information
System S/N
Product Name
System Chipset Type
BIOS Version
BIOS Release Date
Processor Type
Processor Speed
CPU ID
L1 Cache Size
L2 Cache Size
Memory Bank 0
Memory Bank 1
Total Memory
Standard
CMOS Setup
Set Time and Date
Set Floppy
IDE Devices Auto Detect
Advanced
CMOS Setup
Boot Device Priority
POST Delay Time (in seconds)
System Keyboard
APIC ACPI SCI IRQ
Hyper-Threading Technology
Internal Graphics Mode Select
Power
Management
Setup
ACPI Standby State
Restore on AC/Power Loss
Resume on Ring
Resume on LAN
Resume on PME
Peripheral
Setup
OnBoard LAN
OnBoard LAN Chip Boot ROM
Init. Graphics Adapter Priority
USB Controller
USB 1.1 Device Legacy Support
OnBoard Serial Port
OnBoard Parallel Support
Hardware
Monitor
CPU & System Temperature
CPU & Chassis FAN Speed
CPU & System Power Voltage
Password
Option
Change Supervisor Password
Password Status
Password Check
JP2
Status
Jumper
Setting
Notes
Status
Jumper
Setting
Normal
1-2
Default
Lock
1-2
Safe
2-3
Unlock
2-3
Recovery
Open
Notes
Default
System Hardware Interrupts
IRQ
System Function
IRQ
System Function
0
Timer Interrupt
8
Real-Time Clock
1
Keyboard
9
Unused
2
Interrupt Controller Cascade
10
Unused, available for PCI
3
Serial Port (COM B)
11
Unused, available for PCI
4
Serial Port (COM A)
12
Mouse
5
Unused, available for PCI
13
Coprocessor
6
Diskette Drive
14
Primary ATA (IDE) Controller
7
Parallel Port (LPT 1)
15
Secondary ATA (IDE) Controller
Load Default
Settings
Save Settings
and Exit
Exit Without
Saving
Note: See Computer Setup (F10) Utility Guide on the Documentation Library CD.
