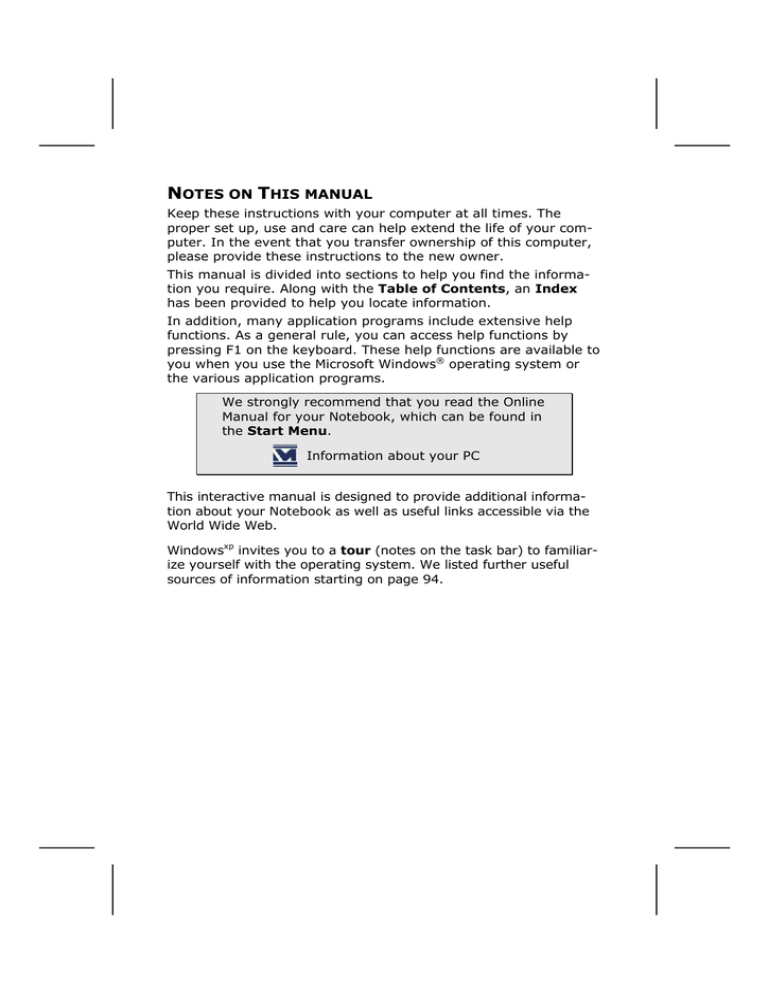

NOTES ON THIS MANUAL
Keep these instructions with your computer at all times. The
proper set up, use and care can help extend the life of your computer. In the event that you transfer ownership of this computer,
please provide these instructions to the new owner.
This manual is divided into sections to help you find the information you require. Along with the Table of Contents, an Index
has been provided to help you locate information.
In addition, many application programs include extensive help
functions. As a general rule, you can access help functions by
pressing F1 on the keyboard. These help functions are available to
you when you use the Microsoft Windows® operating system or
the various application programs.
We strongly recommend that you read the Online
Manual for your Notebook, which can be found in
the Start Menu.
Information about your PC
This interactive manual is designed to provide additional information about your Notebook as well as useful links accessible via the
World Wide Web.
Windowsxp invites you to a tour (notes on the task bar) to familiarize yourself with the operating system. We listed further useful
sources of information starting on page 94.
AUDIENCE
These instructions are intended for both the novice and advanced
user. Regardless of the possible professional utilization, this Notebook is designed for day-to-day household use. The functions
and applications for use with this Notebook have been designed
with the entire family in mind.
DOCUMENT YOUR NOTEBOOK
It is important to document the details of your Notebook purchase
in the event you need warranty service. The serial number can be
found on the back of the Notebook:
Serial Number
......................................
Date of Purchase
......................................
Place of Purchase
......................................
QUALITY
We have selected the components in this computer for their high
level of functionality, ease of use, safety and reliability.
Through balanced hardware and software design we are able to provide you with an innovative personal computer useful for applications
relating to both work and leisure.
We are pleased to welcome you as our newest customer. Thank
you for choosing our company.
SERVICE
We are pleased to provide individualized customer service
throughout the life of your Notebook. Please feel free to contact a
customer service representative with any questions relating to
this Notebook.
All rights reserved. Microsoft®, MS-DOS®, and Windows are registered trademarks of Microsoft
Corporation in the U.S. and other countries. Pentium® is a registered trademark of Intel Corporation. The names of actual companies and products mentioned herein may be the trademarks
of their respective owners.
This product incorporates copyright protection technology that is protected by method claims
of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection technology must be authorised by
Macrovision Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Information in this document is subject to change without notice.
ii
Table of Contents:
SAFETY AND MAINTENANCE ........................................ 1
Safety Instructions ................................................... 3
Data Security........................................................ 4
Set-Up Location .................................................... 5
Ambient Temperature ............................................ 5
Power Adapter ...................................................... 6
Power supply .................................................... 6
Cabling ............................................................ 6
Modem ................................................................ 7
Information about the regualtory compliance of
wireless Lan.......................................................... 7
Touch Pad ............................................................ 7
Battery Operation .................................................. 8
VIEWS & FIRST SETUP ................................................ 9
Views of the Notebook ............................................
Included with Your Notebook.................................
Open Notebook ...................................................
Front View..........................................................
Left Side ............................................................
Right Side ..........................................................
Rear Side ...........................................................
Indicators...........................................................
Quick launch buttons ...........................................
Allocation of the special keys.............................
Special Function of the hotkey P1 ......................
Special Function of the Multimedia Keys..............
Getting Started ......................................................
How to start: ......................................................
Short description of the Windows® Desktop .........
Working in Comfort..............................................
11
11
12
13
13
13
14
15
17
18
19
19
21
21
24
26
MAIN COMPONENTS .................................................. 27
Power Supply......................................................... 29
On/Off button ..................................................... 29
Power Adapter .................................................... 30
iii
Battery Operation ................................................
Inserting the Battery........................................
Removing the battery.......................................
Charging the Battery........................................
Discharging the battery ....................................
Battery Performance ........................................
Power Management .............................................
Standby Mode .................................................
Suspend (hibernate) mode................................
Display .................................................................
Opening and Closing the Display............................
Screen Resolution................................................
Display Properties................................................
Connecting an External Monitor .............................
Connecting a TV ..................................................
Data entry.............................................................
The Keyboard .....................................................
Notebook-specific key combinations ...................
LED Keyboard light ..........................................
The multifunction touchpad...................................
Using the Multimedia Functions .........................
The Hard drive .......................................................
Important Directories ...........................................
The Optical Drive....................................................
Loading a Disc ....................................................
Emergency Ejection of a blocked Disc .................
Playing Back and Retrieving Data from Discs ...........
Regional Playback Information for DVD...................
Subjects Concerning the CD/DVD-Rewriter..............
Recordable/Rewriteable Discs ............................
The Sound Card .....................................................
External Audio Ports ............................................
Modem .................................................................
What is a Modem? ...............................................
Modem port ........................................................
iv
31
31
32
33
33
33
35
35
35
36
36
37
38
40
43
44
44
44
45
46
47
49
50
51
51
53
53
54
55
55
56
57
61
61
62
The Network ..........................................................
What is a network? ..............................................
Fast Ethernet-Network .....................................
Wireless LAN...................................................
The Multimedia Card Reader ....................................
Inserting Memory Cards .......................................
Removing Memory Cards ..................................
The PCI Express Connection.....................................
Installing PCI Express Card ...................................
Removing PCI Express Card ..................................
The PCMCIA Card Slot.............................................
Installing a PCMCIA card...................................
Removing a PCMCIA card..................................
TV card with remote control .....................................
TV card ..............................................................
Remote control ...................................................
Inserting batteries ...........................................
Button Layout .................................................
Changing the transmission/reception
channels ........................................................
Operation..............................................................
Inserting the TV card ...........................................
Removing a PC card.............................................
Connections........................................................
Watch TV ...........................................................
Universal Serial Bus (USB) Port ................................
IEEE 1394 (FireWire) ..............................................
Application Options for IEEE1394 ...........................
Technical Specifications ........................................
Bluetooth ..............................................................
Infrared Interface...................................................
Instructions for Using the IR port .......................
Securing the Notebook ............................................
Fingerprint Sensor ...............................................
Step 1: Prepare Windows Accounts ....................
Step 2: Install the Encryption Program ...............
Step 3: Registering Fingerprints.........................
File Encryption ................................................
File Decryption ................................................
63
63
64
66
68
69
69
70
70
71
72
72
73
74
74
75
75
76
79
80
80
80
81
82
83
84
84
84
85
87
88
89
89
90
90
91
92
92
v
Startup Password ................................................
Safety lock .........................................................
Software ...............................................................
Getting to Know Windows XP ................................
Windows® XP Manual .......................................
Windows® XP Tour ...........................................
Microsoft® Interactive Training ..........................
Windows® XP Help and Support .........................
Microsoft® Interactive Training ..........................
Installation of Software ........................................
Software Uninstallation.....................................
Windows Activation..........................................
The BIOS Set-up-Program ....................................
Running the BIOS Set-up..................................
Navigating the BIOS Utility ...............................
93
93
94
94
94
94
94
94
95
96
98
98
99
99
99
FIRST AID ............................................................... 101
FAQ – Frequently Asked Questions...........................103
Data and System Security ......................................105
Data Security.....................................................105
Maintenance Programs ........................................105
Password Reset Disk .......................................105
Windows® Update...............................................106
Windows Update Information for Data
Security ........................................................107
System Recovery ..................................................108
Correction .........................................................108
System Restore powered by Symantec ..................109
Limits of the Recovery.....................................110
Performing the Restore....................................110
Troubleshooting ....................................................111
Localize the Cause ..............................................111
Check Cables and Connections .........................111
The Power On Self Test (POST).........................111
Errors And Possible Causes ..............................112
Additional Support ..............................................113
Driver Support ...................................................113
vi
Maintenance .........................................................114
Care of the TFT Display .......................................114
Transporting the Notebook...................................115
Recycling and Disposal ........................................116
Batteries and Proper Treatment ........................116
Upgrades and Repairs .........................................117
Upgrades and Repairs .........................................118
Notes for Service Engineers .............................118
APPENDIX ............................................................... 119
Standards ............................................................121
Electromagnetic Compatibility ..............................121
ISO 13406-2 Class II ..........................................121
FCC Compliance Statement ..................................123
Warranty .............................................................124
Liability limitations..........................................125
Copying this manual .......................................125
Index ..................................................................126
vii
Device
At the end of its life, the appliance must not be disposed of in
household rubbish. Enquire about the options for environmentallyfriendly disposal
Batteries
Do not dispose of used batteries in the household rubbish! They
must be deposited at a collection point for used batteries.
viii
Safety
Chapter 1
Subject
Page
Handling
Safety and Maintenance
Data Security................................................. 4
Environmental Conditions ................................ 5
Power Adapter ............................................... 6
Modem ......................................................... 6
Information about the regulatory compliance
of wireless LAN Touch Pad ............................... 7
Components
Set-up Location.............................................. 5
Touchpad ..................................................... 7
Appendix
Aid
Battery Operation .......................................... 8
2
SAFETY AND MAINTENANCE
Safety
SAFETY INSTRUCTIONS
Please follow the instructions in this section for the safe operation
of your notebook:
* Do not allow small children to play unattended with electrical
Handling
equipment. Children are incapable of judging potential risks
properly.
* Do not open the case of the notebook, the battery or the
power adaptor. When the case is open there is a danger of
severe electric shock.
* CD-ROM-/CDRW-/DVD-drives are Laser Class 1 devices.
Components
These lasers must remain in their sealed casing. DO NOT
remove the drive covers, as exposure to the lasers may be
harmful.
* Do not insert objects through the slots and openings of the
notebook. This may lead to electric shock, electrical shortcircuit or fire that will damage your notebook.
* Slots and openings in the notebook serve to ventilate it. Do
not cover up these openings, because the notebook could
overheat otherwise.
* The notebook is not intended to be operated in a heavy inAid
dustry company. Operation under extreme environmental
conditions can result in damage to your notebook.
* Do not operate the notebook during a thunderstorm, in
order to avoid damage through lightning strike.
* Do not cover the slots and openings of the notebook. Never
Appendix
place objects on top of the notebook that would exert any
pressure on the display. There is a danger that even slight
pressure may break the TFT display.
SAFETY INSTRUCTIONS
3
* There is a risk of injury if the TFT display breaks. Use pro-
tective gloves to pack up the broken pieces and contact customer service to arrange for proper disposal. It is important
to thoroughly wash your hands after handling a broken TFT
display. There is a chance that chemicals may have been released.
* To avoid damage to the TFT Display, never open it a full
120º. Do not forcibly open it.
* In order to avoid damage to the display, do not touch it with
your fingers or sharp objects.
* Never lift the notebook by the TFT Display; doing so could
break the hinges.
Switch off your PC immediately or do not switch it on at all
and contact customer service …
♦
♦
… if the power cord or the connectors attached to it are burnt
or damaged. Replace the defective power cord with an original power cord. Under no circumstances may a defective
power cord be repaired.
... if the housing of the PC is damaged or fluids have
leaked into it.
Have the PC checked by customer service first, because the
PC may not be safely operated otherwise and there may be a
life-threatening risk of electrocution!
DATA SECURITY
The supplier does not assume liability for data
loss or damage to data storage units, and no
claims can be accepted for damages resulting
from the loss of data or consequential losses.
4
SAFETY AND MAINTENANCE
Safety
SET-UP LOCATION
* Keep your notebook and all connected peripherals away from
Handling
moisture, dust, heat and direct sunlight. Failure to do so
can lead to Notebook malfunction or damage.
* It is highly recommended you do not use the notebook outdoors.
* Operate the notebook and all peripherals on a stable, balanced and vibration-free surface.
* Do not leave the base of your notebook on your lap or any
part of your body for a long period of time. The notebook can
become very warm while it is turned on or charging and can
cause discomfort or injury from heat exposure.
AMBIENT TEMPERATURE
* The notebook is most reliably operated at an ambient tem-
Appendix
Aid
Components
perature between +41° and +104° F and at a relative humidity between 20% and 70% (without condensation).
* When powered off, the notebook can be stored at temperatures between 32° and 140° F.
* Wait until the notebook has reached ambient (room) temperature before turning it on or connecting it to the power
adapter. Drastic variations in temperature and humidity can
create condensation within the PC and may cause it to shortcircuit.
* For transporting the notebook keep the original packing.
SAFETY INSTRUCTIONS
5
POWER ADAPTER
Pay attention to the following information, in order to connect
your notebook correctly:
POWER SUPPLY
* Do not open the power adapter housing. When the housing is
*
*
*
*
*
*
*
open there is a danger of severe electric shock. It contains
no user-serviceable parts.
The electric outlet must be in the vicinity of the notebook and
within reach of the power adapter cables.
To disconnect your notebook from the power source, or set
the notebook to battery operation, remove the power cord
from the notebook’s power socket.
Only use the notebook with a power adaptor operating at
AC 115V~/60 Hz. In European countries use the notebook
at AC 220-240V~/50 Hz.
For details on power consumption, please refer to the rating
plate on the rear of your notebook. If you are unsure of the
type of power supply available at the point of use, ask your
local power company.
Use only the supplied power cord and power adapter.
If using an extension cord, make certain that it meets your
local safety requirements. If in doubt, consult an electrician.
To provide additional protection against electric shock, power
surges, lightning strikes, or other electrical damage to your
notebook, we recommend the use of a surge protector.
Firstly remove the plug, and then the connector of the
notebook, from the power source, if you want to detach
the network adapter from the mains power supply. A reverse
sequence could damage the network adapter or the notebook.
Always hold the connector firmly when removing it. Never
pull on the power cord.
CABLING
* Arrange cables so no one can walk on or trip over them.
* Do not place objects on any of the cables.
6
SAFETY AND MAINTENANCE
Safety
MODEM
* If your system has a modem, please make sure you connect
Handling
it to an analogue telephone line only. Connecting to a digital
PBX, a digital line designed for broadband services or ISDN, a
shared service line or a payphone will damage the modem or
the devices to which it is connected.
This notebook, if equipped with a modem, has been tested according and complies with the European regulatory guidelines for
radio equipment and telecommunication installations (R&TTE
1999/5/EG).
The modem meets the requirements of TBR21 (01/1998) and
EG201120/V1.1.1/01/98 regarding connection with an analog
telephone network.
Components
INFORMATION ABOUT THE REGUALTORY
COMPLIANCE OF WIRELESS LAN
The following low power radio equipment, which has separately
been tested and approved according R&TTE guideline
(1999/5/EC), is bundled with this PC:
-Wireless Lan
These radio devices are marked individually with the CE mark.
TOUCH PAD
* Light pressure with the tip of your finger is all that is required
Appendix
Aid
to operate the touch pad. Because the touch pad is electrostatic sensitive, objects cannot be used in place of your fingers. Using a pen or other object can damage the touch pad
or cause the notebook to malfunction.
SAFETY INSTRUCTIONS
7
BATTERY OPERATION
To extend the life and power of your battery and guarantee secure operation, the instructions below should be followed:
* Never expose the battery to direct sunlight or heat for long
periods.
* Do not dispose of the battery by fire.
* Disregarding these instructions will lead to damage and under
some circumstances may even cause the battery to explode.
* Do not open the battery housing; it contains no userserviceable parts.
* Keep the battery away from electrically conductive materials,
chemical substances and cleaning agents.
* Only use the originally supplied power adapter to charge the
battery.
* Ensure (through the display or the signalling sound of the
notebook) that the battery is completely discharged before
recharging it.
* Replace the battery only with the same type or an equivalent
type recommended by the manufacturer.
* Charge the battery only until the battery charging light goes
out. Also, refer to the instructions under “Charging the
Battery” on page 33 for instructions on checking the battery
level.
* Only change the battery when the unit is switched off.
* Batteries are classified as special waste and should al-
ways be disposed of properly. Contact Customer Service for
more details.
8
SAFETY AND MAINTENANCE
Safety
Chapter 2
Subject
Page
Handling
Views & first setup
Scope of delivery................................................ 11
Front View......................................................... 13
Left Side ........................................................... 13
Right Side ......................................................... 13
Rear Side .......................................................... 14
Components
Open Notebook .................................................. 12
Power and Status Indicators ................................ 15
Quick Launch Buttons ......................................... 17
Appendix
Aid
Getting started .................................................. 18
10
VIEWS & FIRST SETUP
Safety
VIEWS OF THE NOTEBOOK
INCLUDED WITH YOUR NOTEBOOK
•
Notebook
•
Battery
•
Power pack with connection
•
Modem cable
•
S-video to composite adapter
•
DVI to VGA adapter
•
TV-Tuner Card
•
Rod antenna for DVB-T reception
•
Remote control
•
Headset with microphone
•
Optical USB Scroll Mouse
•
Application-/Support-Disc
•
Microsoft Windows® XP Recovery Disc + manual
•
Documentation
•
Quick reference
•
Warranty card
Handling
Please check that the contents are complete and notify us within
14 days of purchase if any of the following components are missing:
Appendix
Aid
Components
(FSP065-AAC)
VIEWS OF THE NOTEBOOK
11
OPEN NOTEBOOK
1
2
3
4
11
10
5
6
7
9
8
1 - LED keyboard light ............................................. (Ö p. 45)
2 - TFT display ......................................................... (Ö p. 36)
3 - Power ON/OFF
............................................... (Ö p. 29)
4 - Device indicators ................................................ (Ö p. 15)
5 - Keyboard ........................................................... (Ö p. 44)
6 - Fingerprint sensor .............................................. (Ö p. 89)
7 - Multifunction touchpad ....................................... (Ö p. 46)
8 - Touchpad buttons .............................................. (Ö p. 46)
9 - Palm rest
10 - Quick launch buttons ......................................... (Ö p. 17)
11 - Stereo speaker
12
VIEWS & FIRST SETUP
14
15
12 - Line Out / Headphone
13 - Microphone
16
.................................... (Ö p. 56)
.................................................... (Ö p. 56)
......................................... (Ö p. 68)
14 - Card reader 4 in 1
Handling
12 13
Safety
FRONT VIEW
............................................. (Ö p. 68)
15 - CF card reader
16 - Display catch ..................................................... (Ö p. 36)
17 - IR Port
17
18
20
21
22
.................................................... (Ö p. 87)
18 - FireWire IEEE 1394
19 - USB port
19
Components
LEFT SIDE
....................... (Ö p. 84)
..................................................... (Ö p. 83)
20 - PCI Express port
........................................... (Ö p. 70)
21 - PC card slot PCMCIA type II
............................. (Ö p. 72)
22 - PC card eject button ........................................... (Ö p. 73)
Aid
RIGHT SIDE
23
23 - Optical Drive
24
25
26
27
.................................................... (Ö p. 51)
25 - Disc eject button
Appendix
24 - Activity LED optical drive .................................... (Ö p. 51)
............................................... (Ö p. 51)
26 - Emergency ejection ........................................... (Ö p. 53)
27 - Kensington® lock
...............................................(Ö p. 93)
VIEWS OF THE NOTEBOOK
13
REAR SIDE
28 29 13 30 31 32 33
34
35 19
39
28 - Digital Audio Out (S/P-DIF, coaxial)
......... (Ö p. 56)
29 - Audio Out* /
Digital Audio Out (S/P-DIF, optical)
............... (Ö p. 56)
13 - Microphone / external Center/Subwoofer* .............. (Ö p. 56)
30 - Line In / external speaker rear*
.................... (Ö p. 56)
................................ (Ö p. 56)
31 - Surround sound
32 - Modem port (RJ-11)
...................................... (Ö p. 61)
33 - LAN port (RJ-45)
........................................... (Ö p. 63)
34 - External monitor port
................................... (Ö p. 40)
35 - TV out port (S-Video)
..................................... (Ö p. 43)
19 - USB Port
36 - Power socket
..................................................... (Ö p. 83)
.............................................. (Ö p. 30)
* Ports with dual function. Configuration is set with the included software
(Ö p. 56).
14
VIEWS & FIRST SETUP
Safety
INDICATORS
Components
Handling
LED's indicate the power and operating system states of the
Notebook. The meaning of each LED is:
ACCESS INDICATOR
Aid
n
This LED lights or flashes when the Notebook is
accessing the hard disk.
o
ACCESS INDICATOR CARD READER
This LED lights or flashes when the Notebook is
accessing the card reader.
STANDBY INDICATOR
Appendix
p
This LED lights when the Notebook is in stand-by mode.
VIEWS OF THE NOTEBOOK
15
q
BATTERY INDICATOR
Below you will see the different meanings of this LED in
various situations:
r
On
Battery is charging.
Blinking
Battery is low.
Off
Battery is not charging.
CAPITAL LOCK
This LED lights when CAPS-Lock has been activated. This
sets the keyboard to capital letters.
s
NUM LOCK
This LED lights when NUM-Lock has been activated
( + ).
16
VIEWS & FIRST SETUP
Button that can be adjusted by the user to enable
the preferred program to start quickly.
o
Button that can be adjusted by the user to enable
the preferred program to start quickly.
p
The Bluetooth key enables or disables the Bluetooth function.
q
This key enables or disables the wireless LAN
function.
VIEWS OF THE NOTEBOOK
Appendix
n
Aid
Components
Handling
Safety
QUICK LAUNCH BUTTONS
17
ALLOCATION OF THE SPECIAL KEYS
You can allocate programs to the special buttons by means of the
‘Launch Manager’.
You start the program like this:
1. Click on
Accessories
System programs
2. You can determine which program will be started by the
respective button by means of the ‘Insert’ or ‘Delete’
control buttons.
3. Click on ‘OK’ to accept the setting, after you have selected
the relevant program.
18
VIEWS & FIRST SETUP
Safety
SPECIAL FUNCTION OF THE HOTKEY P1
SPECIAL FUNCTION OF THE MULTIMEDIA KEYS
SWITCH POWER CINEMA ON AND OFF
You will switch the Notebook on an off with the help of the On/Off
(3). The Windows operating system will be started or
Switch
shut down again at the same time.
Handling
This Notebook is supplied with an additional multimedia function
that will enable you to play photo slideshows, video DVDs, audio
CDs or MP3 files by pressing a key, without having to start the
Windows® operating system. Read how you can use this ‘Linux
Power Cinema’ program in the following section.∗
Appendix
Aid
1. You will start the Linux Power Cinema application with the
(3) at the same time
hotkey P1 and the On/Off Switch
when the Notebook is switched off. The user interface,
which you will be able to operate with the aid of the remote of the multimedia keys, will appear after a short
time.
Components
Please proceed as follows to operate the Linux Power Cinema application:
∗
The TV tuner and the card reader cards will not be supported here.
VIEWS OF THE NOTEBOOK
19
2. Now, you will be able to insert a DVD or a CD and start the
desired playback with the corresponding Menu Point.
3. It is possible to leave the application in three ways:
a. Press the On/Off Switch
(3)
of the Notebook briefly.
or
b. Press the Power button on the remote control.
or
c. Select the ‘Switch Off’ Menu point.
20
VIEWS & FIRST SETUP
Safety
GETTING STARTED
This Notebook comes with software fully pre-installed. You do
not have to install any of the CDs supplied. However, with many
programs (e.g., telephone CDs or encyclopaedias) it is necessary
to insert the corresponding CD to access the data that is stored on
it. The software will prompt you to do this when necessary.
HOW TO START:
Handling
Before you get started using your notebook, first take a few moments to read the important section on Safety.
Step 1
Components
Before starting the
Notebook please insert the battery.
Appendix
Aid
Connect the supplied power adapter
to the notebook at
the notebook power
socket (36). Connect
the power adapter
via a power cable to
a free AC power
outlet. The adapter
provides the notebook with power
and also charges the
battery.
GETTING STARTED
21
Open the display by pushing the latch-trip (16) to the right
with your thumb and then open the display up to the required position with your thumbs and forefingers.
Switch the Notebook on by operating the On/Off switch
(3). The Notebook will start and then run through various
phases.
Â
Make sure there is no bootable CD (e.g., the Recovery CD) in the CD-ROM drive. Such disks will prevent the operating system from loading off the hard
drive.
The operating system is loaded from the hard disk. During the
initial set-up, the loading process takes slightly longer than normal
to register the operating system and the individual components
completely. Your operating system is finished loading when a welcome screen is shown on your display.
22
VIEWS & FIRST SETUP
The greeting procedure will guide you through a series of dialogue
boxes. The information in each dialogue box will explain the steps
that need to be taken.
.
Enter Personal Details
In one of the initial start-up dialog boxes a request will appear on
the screen for you to enter your personal details. Please enter the
requested information in the white input fields. You can select the
fields by clicking on them with the mouse. When you press Enter,
or click on the Continue button you progress to the next window.
Handling
Should you have any questions just click on
Safety
Step 2
The greeting procedure also displays the license agreement. Please
read this carefully. It contains important legal information on the
use of your software. In order to see the full text, use the mouse
and the scroll bar on the right side of the screen to move downwards until you have reached the end of the document. You accept the agreement by clicking on the “I accept the agreement”
option field. Only by doing so will you be entitled to use the product under lawful terms and conditions and be entitled to open the
sealed Windows® manual.
Components
License Agreement
Appendix
After the login procedure the Windows® desktop appears on your
screen. This can be adjusted so that the screen of your computer
looks different.
Aid
Step 3
GETTING STARTED
23
SHORT DESCRIPTION OF THE WINDOWS® DESKTOP
After the login procedure the Windows® XP desktop appears on
your screen. (Your desktop might not look exactly like the one
shown here.)
t
u
v
Information about your PC
n op
q
r
s
1. Start Button
Clicking the Start button brings up a menu where you can access help, software programs, files, and settings. For more information, click Windows® XP Tour on the Start menu.
2. Program Bar
The most commonly used software programs are listed here.
24
VIEWS & FIRST SETUP
All of the software programs installed on your notebook are
ordinarily listed here. Click All Programs to reveal an extensive menu.
Safety
3. All Programs
4. Turn Off Computer
Click this button to shut down Windows® XP and the notebook.
Handling
5. Task Bar
Here you receive information and status reports about Windows® XP and which programs are running.
6. Desktop Icons
7. Logged in User
This tells you which user is logged in to your notebook.
8. Control Panel
You can use the icons in Control Panel to change the appearance and functionality of Windows® XP. These icons represent
options for configuring your notebook.
Components
Desktop icons link to their respective programs. To start a
program, double-click its desktop icon.
9. Windows® XP Help
Appendix
Aid
Here you can find information on using your notebook, networking, backup, and many other tasks.
GETTING STARTED
25
WORKING IN COMFORT
Sitting in one position for long periods can be uncomfortable. To
minimize the potential for physical discomfort or injury, it’s important that you maintain proper posture.
26
•
Back – While sitting at your work surface, make sure your
back is supported by the chair’s backrest in erect position
or angled slightly backwards.
•
Arms – Your arms should be relaxed and loose, elbows
close to your sides, with forearms and hands approximately parallel to the floor.
•
Wrists – Your wrists should be as straight as possible
while using the keyboard, mouse or trackball. They should
not be bent sideways, or more than 10 degrees up or
down.
•
Legs – Your thighs should be horizontal or angled slightly
downward. Your lower legs should be near a right angle to
your thighs. Your feet should rest flat on the floor. If necessary, use a footrest, but double check that you have
your seat height adjusted correctly before getting a footrest.
•
Head – Your head should be upright or tilted slightly forward. Avoid working with your head or trunk twisted.
•
Overall – Change your position frequently and take regular breaks to avoid fatigue.
VIEWS & FIRST SETUP
Safety
Chapter 3
Subject
Page
Handling
Main Components
Power Supply ................................................. 30
Data Entry ..................................................... 44
The Hard Drive .............................................. 47
The Optical Drive ........................................... 51
The Sound Card ............................................ 54
Modem
Components
Display ......................................................... 36
........................................................ 57
The Network ................................................. 63
The PCI Express Connection ............................. 70
The PC Card Slot (PCMCIA) ............................. 72
Aid
The Card Readers ........................................... 68
The TV Tuner Card .......................................... 74
The Universal Serial Bus (USB) Port ................. 83
Bluetooth ...................................................... 85
The IR Port .................................................... 87
Securing the Notebook .................................... 89
Software ...................................................... 94
Appendix
IEEE 1394 (FireWire) ....................................... 84
28
MAIN COMPONENTS
Safety
POWER SUPPLY
ON/OFF BUTTON
(3)
is used to power up/down the Notebook.
gives information on the operating
The power supply indicator
status. The notebook will always be switched off, if the main
switch is pressed for more than 4 seconds.
WARNING! Do not switch off your notebook while
the hard disk or the optical drive is running and
the corresponding media activity LEDs are lit.
Otherwise data may be lost. To protect the hard
disk you should always wait for 20 seconds after
powering down the notebook before powering it up
again.
POWER SUPPLY
Appendix
Â
Aid
Components
Handling
The On/Off button
29
POWER ADAPTER
Your Notebook is supplied with a universal AC power adapter,
which automatically adjusts to the available power source. The
following levels are supported: AC 100-240V~/ 50-60 Hz.
Please follow the power supply safety instructions found on
page 6.
The power adapter is connected via a power cord to an AC outlet.
The DC power lead from the power adapter is connected to the rear
side of the Notebook (36).
The adapter provides the notebook with power and also charges
the battery. The power supply indicators of the notebook
provide details on the operating state. The battery is also being
charged when you are working on your notebook with the power
adapter. The power adapter is still live if the notebook is not connected with it. You should therefore unplug the power adapter
from the outlet if it is not connected to the notebook.
Â
30
WARNING! Use only the power adapter and power
cord supplied with your notebook.
MAIN COMPONENTS
INFORMATION: Please charge and discharge the
new battery completely two to three times in succession, so that it will achieve its full performance!
Batteries store electrical energy in their cells and then deliver it
when needed.
The useful life and performance of your battery depend on careful
handling.
The battery should be completely discharged before a charging
process and completely charged again, in order to optimize its
useful life and its performance.
Handling
Â
Safety
BATTERY OPERATION
You must also pay attention to the Safety Notes from page 8.
Components
INSERTING THE BATTERY
Appendix
Aid
Slide the battery, as shown into the battery compartment.
POWER SUPPLY
31
REMOVING THE BATTERY
Push the Safety Lock (1) to the ‘Unlock’ position, in order to remove the battery pack.
32
Â
WARNING! Do not remove the battery while the
notebook is running on battery power. You increase
the possibility of losing data.
Â
WARNING! Pay attention that the contacts to the
battery and the notebook are not dirty or damaged
when storing the battery and using the notebook.
This could lead to malfunctions.
MAIN COMPONENTS
The battery is charged via the power adapter. If the power
adapter is connected, it charges the battery automatically,
whether the notebook is turned on or not. When the notebook is
switched off, full charging takes a few hours. If the notebook is
switched on, the charging process takes a significantly longer time.
Â
on page 16.
Handling
You will find the meaning of the battery LED
Safety
CHARGING THE BATTERY
NOTE: The charging process will be interrupted if
the temperature or the voltage of the battery is too
high.
Operate the notebook by means of the battery until it switches off
independently because of the low battery charge.
Â
NOTE: Think about saving your open files in good
time, to avoid a possible loss of data.
Do not switch the notebook off, even if a warning appears on the
display. Deactivate all energy options in the system control,
above all alarms and power functions.
Components
DISCHARGING THE BATTERY
Appendix
The particular operating duration will vary according to the setting
of the energy saving functions. You can adjust these to your requirements under Energy Options in System Control. Apart
from this, your Notebook will require a higher power demand
when carrying out certain tasks, such as playing back a DVD.
Aid
BATTERY PERFORMANCE
POWER SUPPLY
33
CHECKING THE BATTERY LEVEL
In order to check the current level of the battery, move the cursor
over the power symbol in the taskbar.
When in battery mode, a battery symbol is displayed:
Further information on power settings can be obtained by double
clicking on the symbol.
34
Â
NOTE: If you ignore the warning signal when the
battery level is low, your notebook goes into suspend mode.
Â
WARNING! Never remove the battery while the
notebook is switched on or if the notebook has not
yet gone into suspend mode, as this may lead to
loss of data.
MAIN COMPONENTS
Safety
POWER MANAGEMENT
Your Notebook offers automatic and modifiable power saving
functions that you can use to maximize battery life and reduce
overall operating costs. The power saving modes are known as
standby mode and suspend (hibernate) mode.
When in standby mode, the contents of the RAM of your Notebook
are preserved while practically all other components of your Notebook are shut down, reducing your power consumption to a minimum.
lights. By pressing briefly the On/Off
The standby indicator
button you can power up the device again.
Handling
STANDBY MODE
Aid
Appendix
The hibernate mode is an alternative to a complete shutdown of
the notebook. In this mode all data from RAM (system and
graphic data) are copied to the hard disk as a file. As soon as the
data has been safely saved, the notebook powers down. When the
notebook is switched on again, this file is written back to RAM by
the BIOS. In a few moments the notebook is in the exact state as
when it was last used. If while working on a document the notebook is closed (assuming the correct ACPI setting), the notebook
saves the data in RAM for you automatically. You will restart at
precisely the line in which you were working prior to the interruption. The computer uses no power while it is in suspend (hibernate) mode, but it takes a little longer for the computer to go into
and come out of hibernation compared to standby.
Components
SUSPEND (HIBERNATE) MODE
POWER SUPPLY
35
DISPLAY
Unlike a normal monitor, the TFT display does not produce either
radiation or flicker.
OPENING AND CLOSING THE DISPLAY
A display catch
is not in use.
(16)
keeps the display closed when the Notebook
To open, use your thumbs to press the bar, then lift the display
with your thumbs and index finger and position it as desired.
WARNING! The display should not be
opened fully to 120°. Do not try to forcibly open it.
The opening and closing of the display can be assigned various
functions via the Power management feature.
36
MAIN COMPONENTS
Using a higher resolution can lead to distortion of the display, especially with text. Using a lower resolution may cause the display
to use only a portion of the screen area.
Appendix
Aid
Components
You will adjust the presentation to the mode supported with the
Windows ‘Display Characteristics’ Help Program.
Safety
The integral screen has a native resolution of 1280 x 800 pixels.
If you change to a presentation with different characteristics in
the Windows ‘Display Characteristics’ Help Program, the display will not appear on the whole area of the screen, among other
effects.
Handling
SCREEN RESOLUTION
DISPLAY
37
DISPLAY PROPERTIES
This program offers you the possibility of adjusting the presentation on your screen. It includes, for example, the background image, the screen saver, the Active Desktop (Web) and additional
settings of your screen and your
display card. The program can be
started in the following way:
-
Right click of the mouse on the
Windows Desktop and left click
of the mouse of Properties.
or
-
Through Start Ö System
Control Ö Display by means
of a double-click with the left
mouse button.
You will have, for example, the possibility of changing the DPI
setting, in order to optimize your screen display.
To do this, go to the Settings (n) Tab in Display Properties
and click on Advanced (o) there.
n
p
q
o
Select the values corresponding to your requirements under Display (q) in the General (n)Tab.
38
MAIN COMPONENTS
Safety
A change to the setting in Display Properties, through Appearance (n) Tab, will be sufficient if you only wish to change the
font size.
Components
Handling
n
o
Appendix
Aid
Choose between Normal, Large and Very Large typefaces
under Font Size (o).
DISPLAY
39
CONNECTING AN EXTERNAL MONITOR
The Notebook has a DVI port
monitor.
(34)
for connecting an external
1. Shut down your notebook.
2. Connect the video signal cable of the external monitor to
the DVI port of the Notebook (34). Please use the appropriate adapter supplied, in order to be able to attach an
analog monitor.
3. Connect the external monitor to the electrical socket, power it
up and start your notebook.
4. Start your notebook.
There are two options for setting up an external monitor:
40
MAIN COMPONENTS
Safety
1. Clone your Desktop
Press <Fn> + <F3> to activate the external monitor.
The notebook display will be switched off. Adjust the display settings following the external monitor specification.
Press <Fn> + <F3> once more and both displays are
switched on.
Aid
Components
NOTE! The external monitor should support the
same screen resolution as your Notebook
(1280x800), because it is possible to carry out the
Cloning Mode otherwise. You will have to adjust the
resolution of the Notebook to the external monitor
under Display Settings, in order to be able to
carry out the Fn + F3 command, if your external
device does not support the respective resolution.
Appendix
Â
Handling
Press <Fn> + <F3> again to deactivate the external
monitor. The notebook display will be switched on.
DISPLAY
41
2. Extend your Desktop
This option does not support the key combination <Fn>
+ <F3>.
Right click anywhere on your desktop and select “Properties” to start the "Display Properties" program.
•
Select the "Settings" tab and left click on the second
display n.
•
Check the option “extend my Windows desktop
onto this monitor” o and press “ok”.
•
To deactivate the extension uncheck the option “extend my Windows desktop onto this monitor”.
n
o
You can change the resolution and colour depth for either display
in this screen.
42
MAIN COMPONENTS
The Notebook has a port (35) for connecting a TV. To connect and
configure the Notebook for a TV:
Safety
CONNECTING A TV
This option is supported by the Fn + F3 shortcut.
Components
2. Connect the signal cable of the TV device to the S-video connection (35) of the Notebook. Use the adapter supplied and
connect it to the composite (Cinch) input of your TV device, if
TV device does not have an S-video input.
Handling
1. Shut down your notebook.
3. Connect the TV device to the network and switch it on.
You will be able to switch between the displays with the Fn + F3
shortcut. Proceed as in the case of an external monitor here.
If the option Extend Windows Desktop to this Monitor in the program display properties is activated,
then it must be deactivated first in order to change
the display to the TV set.
Appendix
Â
Aid
4. Switch on your notebook and boot it properly.
DISPLAY
43
DATA ENTRY
THE KEYBOARD
By dual assignment of certain keys you have the same range of
functions available to you as with a normal Windows keyboard.
Some functions are input using the Fn key, which is normal on
notebook computers.
NOTEBOOK-SPECIFIC KEY COMBINATIONS
Combination
Description
A list of the combinations is displayed.
+
+
+
+
Power saving functions. This key combination is set to
power down by default. To adjust this key to your own
needs go to display properties in power saving.
Toggles the display screen between internal monitor, external monitor and simultaneous display.
Switch between the LCD display and the TV device in the
case that a TV device is attached. Display of both at the
same time is not supported.
Switches the backlight off to save power. Pressing any key
switches the backlight on again.
Switches the loudspeakers on / off.
+
+
Activates / deactivates the numeric keypad assignments
(the corresponding LED will light up).
Enables or disables the scroll function.
+
44
MAIN COMPONENTS
Safety
Executes function HOME.
+
Executes function END.
+
Reduces screen brightness.
+
Enhances screen brightness.
+
Increases the volume.
LED KEYBOARD LIGHT
The keyboard illumination installed assists data entry in less well
lit environments.
The brightness of the display will be sufficient in most cases. The
keyboard illumination can be activated if you have reduced it, in
order to extend the life of the battery or if secret date are on the
display, for example.
Activate the LED keyboard illumination by initially pushing the
bar next to Illumination to the left.
Appendix
Aid
Press the Fn+F6 shortcut, in order to switch the keyboard illumination on or off.
Components
Decreases the volume.
+
Handling
+
DATA ENTRY
45
THE MULTIFUNCTION TOUCHPAD
Your Notebook is supplied with a multifunction touchpad that supports additional Multi-media Functions.
The mouse pointer (cursor) follows the direction pre-determined
on the touchpad by the movement of your finger in the normal
mode.
Â
Attention! Do not use a ball-point pen or other object on the touch pad, as this could damage or
cause a malfunction of your touch pad.
Below the touch pad are the left (n)and right (o)mouse buttons
which can be used as on a normal mouse.
You can also perform a direct click or double click using the touch
pad by tapping the surface briefly once or twice .
In the Windows Control Panel you will find a number of useful
settings that will make using the touch pad easier.
You can connect the scrolling mouse supplied as an option to the
USB port, if the operation of the touchpad is difficult for you.
46
MAIN COMPONENTS
Safety
USING THE MULTIMEDIA FUNCTIONS
The multifunction touchpad is in normal mode at every system
start.
The corresponding functions will be called up or commands will be
carried out at a single click on the symbols.
Components
An overview of the functions and commands follows.
Handling
The Multimedia Functions must be activated through the cross in
the upper right corner ( , t), in order to be able to use those
provided. The selected fields will be illuminated as soon as you
have activated the Multimedia Functions.
Description
Stop*
You will stop the replay of the Media
Player, if you click on this Command.
Internet
Explorer
You will call up Internet Explorer with
this Field. The touchpad will switch
back to the normal mode after this
Field has been operated.
Medion
Aid
Function /
Command
You will start the Windows Media
Player, to replay multimedia files with
this Field. You will be able to minimize
or maximize the Window with this
Field, if the Media Player has already
been opened.
DATA ENTRY
Appendix
Re.
47
Search
E-Mail
Mode
Volume
control*
Nächster
Titel*
Play/Pause*
Vorheriger
Titel*
You will open the Search function under Windows with this Field. The
touchpad will switch back to the normal mode after this Field has been
operated.
You will call up your Outlook email
program with this Field. The touchpad
will switch back to the normal mode
after this Field has been operated.
You will switch between the Normal
and the Multimedia Modes of the
touchpad through this Field.
You will set the volume if you move
your finger up and down on this Field.
An upward movement increases the
volume; a downward movement reduces it.
Click on this Field to reach the next
title in Media Player. The replay of the
titles will be terminated if you have
already reached the end of a playlist.
Start the replaying of the files in Media Player with one click in this field.
Another click will stop the replay and
set it to Pause. The replay will be continued by means of an additional click.
Click on this Field to reach the previous title in Media Player. If you have
already reached the beginning of a
Playlist the replay of the title will stop.
* These Commands can only be carried out in conjunction with
the Windows® Media Player.
48
MAIN COMPONENTS
Safety
THE HARD DRIVE
The Windows® operating system cannot use the full capacity of
the hard drive, which means that there will be a difference between the capacity that the BIOS displays and what the operating
system displays.
The hard drive contains the operating system of the computer, other
application programs and backup files. These programs and files are
pre-installed on your Notebook, so you may note that some of the
space on your hard drive is already taken.
Whenever the computer is accessing the hard disk, the correilluminates (see page 15.)
sponding LED
Never switch off the computer while the busy indicator is lit since this may result in loss of data.
If you are looking for a file on the hard drive and you know the
name, go to Search on the Start menu to find the file. Following is
some general information on where you might find some common
files.
Aid
Â
Components
You have acquired an OEM version of the Microsoft Windows®
operation system, which will support all the performance features
of the Notebook completely, with your Notebook.
We have already configured the hard drive of your Notebook so
that you will usually be able to work with it optimally, without
having to install any software yourself.
Handling
The hard drive is the main storage medium combining large storage capacity and rapid data access.
Usually your hard drive is divided into several partitions, as shown
below. The partitions of your hard drive may vary from what is
shown here.
Local Disk
C:
Windows XP
Appendix
Software programs
Your documents
BOOT
D:
Drivers for internal PC components
Installation files for software that came with
your PC
Recover
E:
Restore software
THE HARD DRIVE
49
IMPORTANT DIRECTORIES
The most important directories preinstalled on your Notebook are
shown below.
Â
WARNING! Do not delete or modify these directories or their contents since data could be lost or the
functionality of the system could be at risk.
Â
Also pay attention to this: You will no longer be
able to carry out the recreation of the supply status
by means of the Support, if you have converted the
Recovery Partition into a NTFS file system.
C:\ This is the main hard disk drive partition for your Notebook.
It is where your program files, settings, and documents are
stored, as well as files necessary for running Windows XP.
C:\Program Files Includes files belonging to software programs.
C:\Windows The main directory for Windows XP.
C:\Documents and Settings Includes the settings and documents for all users.
D:\
Includes files for restoring hardware components and software programs.
D:\Driver Drivers for internal Notebook components.
D:\Tools Includes installation files for software that came with
your Notebook.
E:\
Includes files for restoring the entire Notebook to working
order.
E:\Recover
store.
50
Includes the files needed to perform a system re-
MAIN COMPONENTS
Safety
THE OPTICAL DRIVE
LOADING A DISC
Unlike optical drives of desktop PCs optical drives of notebooks
retain disks with the help of a locking mechanism.
Â
TIP: Do not place protective foils or other stickers
on your CD’s. To avoid damage to your drive, do
not use deformed of damaged CD’s.
Components
WARNING! Do not use scratched or dirty disks,
discs with pieces broken off or disks of poor quality.
Because of the high speeds in the drive the disks
might break and damage your data as well as your
drive. Examine the disks before you enter them. If
damage or dirt is visible, you should not use them.
Damage caused by faulty media is excluded from
warranty and their repair must be charged.
Appendix
Aid
Â
Handling
When inserting the disk you should take care to push the disk
right onto the locking mechanism so that it can lock in
position.
THE OPTICAL DRIVE
51
1. Press the eject button
(25)
at the optical drive to open the tray.
2. Pull the tray out completely with care.
3. Remove the disk from its case, without touching the unprinted
side if possible.
4. Place the disc on the tray so that it lays flat with the label facing upward and gently push the tray in to close it. The disk
will now lie flat on the tray and will engage onto the disk
holder audibly.
5. Test that the disk is able to turn freely and then push the tray
back into the optical drive carefully.
52
MAIN COMPONENTS
6. Press the Eject button
if you want to remove a disk.
WARNING! While the notebook is accessing the
optical drive the media activity indicator is lit. Do
not try to remove the CD from the drive while this
LED is lit.
Handling
Â
(25)
Safety
The ‘F’ drive letter will have been allocated to your optical drive in
the delivery status. You will have easy access to your files on your
disks with Windows Explorer (workstation). Start Explorer through
the Start Menu or by pressing the Windows Button á and the ‘E’
Button at the same time. The pre-installed media reproduction will
be used automatically during access to DVD videos (or audio and
video files on normal data CDs).
If the tray fails to open automatically, then the tray can be
opened manually provided there is an opening for emergency
ejection (26).
1. Shut down Windows and switch off your notebook.
2. Insert a long thin object (like a straightened paper clip) into
the emergency ejection opening (26) until you feel resistance.
Components
EMERGENCY EJECTION OF A BLOCKED DISC
3. Press lightly and the tray will open.
4. Remove the disc and restart the notebook.
Aid
PLAYING BACK AND RETRIEVING DATA FROM DISCS
Your notebook is able to playback and to retrieve Audio CDs, DVD
Movies and Data discs.
After loading the disc your operating system will open a selection
window with different options for playback. Normally there are various programs at your disposal.
THE OPTICAL DRIVE
Appendix
If your operating system doesn’t open the selection window you
still have the possibility of the access via the explorer or “My
Computer”.
53
REGIONAL PLAYBACK INFORMATION FOR DVD
The playback of DVD movies includes the decoding of MPEG2 videos, digital AC3 audio data and the deciphering of CSS protected
contents.
CSS (sometimes called copy guard) is the name of a data protection program incorporated by the movie industry as an action
against illegal copies.
Among the numerous regulations for CSS licensees the most important ones are the country specific playback restrictions.
In order to facilitate the geographically restricted release of movies, DVD titles are released for certain regions.
Copyright laws require the restriction of each DVD movie to a certain region (usually the region, in which it is sold).
DVD movie versions can be published in several regions but the
CSS regulations require that each CSS decipherable system may
only be used in one region.
Â
54
The decoding software included with your PC may
be changed for regional DVD decoding up to five
times, after which the drive will only play DVD
movies for the region setting last entered. Changing
the region code after that will require factory resetting which is not covered by warranty. If resetting
is desired, shipping and resetting costs will be billed
to the user.
MAIN COMPONENTS
This Section only relates to devices that have been supplied with
a CD-RW, a combination drive or a DVD-RW drive.
Safety
SUBJECTS CONCERNING THE CD/DVD-REWRITER
First of all, you receive information on the so-called blank discs.
Normal Discs are pressed from a digital, glass master and then
sealed. In the case of blank disc, the information is burnt onto the
disc with the laser of the Rewriter. Therefore these discs are more
sensitive than normal CDs.
radiation by direct sunlight (UVA/UVB)
-
scratches and damage to the disk surface
-
extreme temperatures
Appendix
Aid
-
Components
Please avoid the following when using recordable/rewriteable discs
- especially blanks - that have never before been used:
Handling
RECORDABLE/REWRITEABLE DISCS
THE OPTICAL DRIVE
55
THE SOUND CARD
Your Notebook has an integrated stereo sound card (on-board)
with 16-bit and 3D spatial sound effects (3D). The sound card is
compatible with the industry standard Sound Blaster and Microsoft Sound System Version 2.0. This guarantees optimal support for all popular programs and games.
If you wish to alter the base volume, click on the loudspeaker
symbol in the task bar. A double click opens the sound mixer.
By using the keys Fn + Ç and Fn + È you have the possibility to
regulate the volume.
You will also have the possibility of changing the volume of the
Windows® Media Player through the Volume control, if you have
activated the Multifunction mode of the touchpad. (Ö p. 47)
56
MAIN COMPONENTS
Handling
Your Notebook has a loudspeaker, so you can always playback
sounds without additional equipment. The connection of a Hi-Fi
system increases the sound quality significantly. The use of the
external connections gives you a good opportunity to connect your
notebook to external devices.
Safety
EXTERNAL AUDIO PORTS
Information:
Headphones
(12)
Microphone In
For sound reproduction via headphones.
For recording via an external microphone.
For sound reproduction with an external
surround decoder or via a coaxial cable
(available separately at a specialist shop).
Digital Audio Out
(S/P-DIF koaxial)
(28)
THE SOUND CARD
57
Appendix
Aid
(13)
Components
Connect the headset supplied
to connections 12 and 13.
For sound reproduction with an external
surround decoder via an optical cable (available separately at a specialist shop).
For sound reproduction via external stereo
equipment such as loudspeakers (active) or
headphones.
For recording via an external microphone.
For sound reproduction via an external surround system for external center / subwoofer.
Line In
For reception through an external source of sound.
(29)
For sound reproduction with a surround system for speakers back.
Digital
Audio Out
(S/P-DIF optical)
(25)
Microphone In
(13)
Surround
(28)
58
For sound reproduction via an external
surround system (Surround) for external
speakers in 8CH speaker mode.
MAIN COMPONENTS
Safety
Aid
Components
The help program for the audio configuration is now invoked. A
large number of settings can be carried out with this.
It is also used to set the loudspeaker configuration you are going
to use for the surround sound.
Click on ‘Audio-I/O’, in order to set the system according to your
requirements.
Handling
By using the external connections you have the possibility to connect
your notebook with a 7.1 surround system.
The bundled software allows you to make the necessary settings:
1. Click the following symbol in the taskbar:
Five configurations modes are available to you:
- headphones
Appendix
- 2CH* speakers for stereo loudspeaker output
- 4CH speakers for 4 loudspeaker output
- 6CH speakers for 5.1.-loudspeaker output
- 8CH speakers for 7.1.-loudspeaker output
THE SOUND CARD
59
*
60
Your notebook is factory set to 2-channel mode.
MAIN COMPONENTS
Safety
MODEM
The modem is fitted with an RJ-11 interface, into which a standard telephone lead can be plugged.
Since the power output of modems is restricted due to the regulations of some telecommunication providers, the possible maximum
download speed can be restricted. The actual speed may be dependent on the online conditions and other factors.
Data sent from the user to the server are transmitted with 31.2
Kbit/s. Prerequisite for this high speed reception is an analogue telephone line compatible with the V.90 standard and a corresponding
compatible Internet provider or company-owned host computer.
The modem is fitted with an RJ-11 interface, into which a standard telephone lead can be plugged. If your modem is a combo
card please make sure that it is used only with the appropriate port.
WARNING! Use only with an analogue telephone
line. The modem cannot withstand the voltage levels of digital telephone systems such PBX or lines
such as ISDN or Broadband services. (see safety instructions on page 7).
Appendix
Â
Components
The built-in modem is able to receive data according to the ITU
standard for V.90 transmissions with up 56 Kbit/s.
Aid
The term “modem” is an abbreviation of Modulator/ DEModulator. A
modem changes the bit stream of the PC into analogue signals which
then can also be transmitted via the telephone line (modulation).
The modem on the other side reverses the conversion (demodulation). Simplified, a modem converts outgoing data into tone and
tone incoming via the telephone line back into data.
Handling
WHAT IS A MODEM?
MODEM
61
MODEM PORT
Insert one end of the RJ11-connection (telephone plug connector)
into the modem/network interface (28) and the other into an analogue telephone socket that is easily accessible.
Â
62
NOTE: Do not place the notebook in Suspend (or
Sleep) mode if you are connected to your Internet
provider, since this will cause the modem connection to be lost.
MAIN COMPONENTS
Safety
THE NETWORK
A network means connecting your Notebook to one or several
other computers. Users can transfer data between computers and
share resources such as printers, modems and hard disk drives.
Here are some practical examples:
You can exchange E-mail and manage appointments in an office.
•
Users can share a printer in a network and save their data on
a central server.
•
Users can share one modem among computers for Internet
access.
•
Two or more computers can be connected to play network
games or share data.
Appendix
Aid
Components
•
Handling
WHAT IS A NETWORK?
THE NETWORK
63
FAST ETHERNET-NETWORK
Your PC has a Fast Ethernet Network connection. You can use this
to connect to a network.
Connect one end to the RJ45 connection (Western plug) at the
network interface of your Notebook (33) and the other to
another PC or a hub/switch.
The Windows XP Help and Support Centre offers extensive information about networking your PC. You can access this information
by clicking on Start, then Help.
64
MAIN COMPONENTS
Safety
TROUBLESHOOTING WITHIN THE NETWORK
Why does an error message appear when I click on the
network environment?
The computer name must be unique on the network and may not be the same as the task group.
Handling
It appears that the network boards are unable to communicate. What might be the problem?
Maybe one of the used network boards works with a
different speed (e. g. 10 instead 100 Mbit) and
your network computer is unable to recognize this.
If necessary, set the network driver to the compatible speed.
Components
If two PCs should be linked you require a crosslink cable, otherwise use a patch cable.
In addition, check the protocols and the configuration.
The data transmission is incorrect or very slow. What
might be the problem?
Appendix
Aid
Maybe you have the wrong cable (UTP / CAT3 or
lower) or the problem is the proximity of a power
cord or another source of interference.
THE NETWORK
65
WIRELESS LAN
Wireless LAN is an optional feature. This function allows you to
create a wireless network link with an access point or directly with
another wireless-enabled PC. Please read the necessary prerequisites before activating this feature.
you can enable or disable the wireUsing the Quick Start Key
less LAN function. A corresponding announcement will appear on
the screen.
 ATTENTION: Make sure the Wireless LAN option is
switched OFF in any environment where it might interfere with critical and sensitive devices, e.g., on
aircraft, in hospitals and other medical centres, etc.
66
MAIN COMPONENTS
An access point is a wireless transmitter that communicates with
your notebook and controls access to the network connection
(e.g., a home network or a broadband connection such as DSL).
Safety
CONDITIONS
Wireless access points are often found in offices, airports, universities or Internet cafés. They offer access to networks or to the
Internet. Access authorizations are normally needed. A fee may
be required to use a public access point.
A link to another computer with wireless LAN functionality can
also be created without an access point. This will allow you to
share files, but you will need an access point and a router to
share an Internet connection.
The wireless network link works according to standard IEEE
802.11g which is also compatible with the IEEE 802.11b standard. The standard 802.11a is not supported.
If encrypted transmission us used, this must operate according to
the same principle on all devices. Encryption is a method of
protecting the network from unauthorized access.
Components
Handling
To set up a wireless network to share Internet access, files, and
printers at home, you will need an access point, a router, and a
broadband (DSL or cable) modem. Some access points can also
serve as a router and/or a broadband modem. Check with your
retailer or Internet Service Provider to find the best solution for
your needs.
Appendix
Aid
The transmission speed (max. 11 Mbps) can vary according to the
distance and loading of the partner.
THE NETWORK
67
THE MULTIMEDIA CARD READER
Memory cards are media that are being used for a variety of purposes, especially in digital photography. They are increasingly
replacing the floppy disk. The form and capacity of a memory card
can vary according to the manufacturer.
Your notebook supports the following formats:
•
XD Card
•
•
•
MMC (MultiMediaCard)
SD (Secure Digital)
Memory Stick / Memory Stick Pro
•
CF Card (Compact Flash)
•
IBM® Microdrive
When inserting memory cards, ensure that the contacts are facing
the right way. See table below. Incorrect insertion of a card can
cause damage to the card reader and/or the card.
Slot
Card type
Contacts
Multimedia card
reader (14)
XD Card
SD (Secure Digital)
MMC (MultiMediaCard)
Memory Stick
Memory Stick Pro
pointing
pointing
pointing
pointing
pointing
CF card reader
(15)
CF (Compact Flash)
IBM® Microdrive
pointing forwards
pointing forwards
68
MAIN COMPONENTS
downwards
downwards
downwards
downwards
downwards
Memory cards can only be installed in one direction. Refer to the instructions on the previous page.
Â
Remove the dummy card from the PCMCIA Slot before installation. Replace the card to protect contacts against dirt if the Slot is not used.
Handling
Â
Safety
INSERTING MEMORY CARDS
Components
Push the memory card into the slot until it clicks into place.
Aid
REMOVING MEMORY CARDS
To remove the SD/MMC-cards or memory sticks press the card
further into the slot. Then pull out and remove the card.
Appendix
To remove CF/Microdrive-cards pull them from the bay and store
it securely.
THE MULTIMEDIA CARD READER
69
THE PCI EXPRESS CONNECTION
Your notebook supports the PCI Express standard.
Both PCI Express/34 and PCI Express/54 cards (the naming refers
to the sizes of the cards) are available on the market. Your notebook supports both card formats.
INSTALLING PCI EXPRESS CARD
70
Â
Note: Please always read the instructions that
come with your PCI Express card before installation.
Â
Remove the dummy card from the PCMCIA Slot before installation. Replace the card to protect contacts against dirt if the Slot is not used.
MAIN COMPONENTS
Please take note of the following before removing the PCI Express
card:
•
Terminate the program which you used with the card.
•
Left-click on the icon Safely Remove Hardware
taskbar, select the card and click on Stop.
Safety
REMOVING PCI EXPRESS CARD
Aid
Components
Handling
in the
Appendix
In order to remove the card, first push it into the contact to
unlock it. Pull the card from the bay and store it securely.
THE PCI EXPRESS CONNECTION
71
THE PCMCIA CARD SLOT
INSTALLING A PCMCIA CARD
Follow the PC card installation instructions that are given for use
under Windows® and have the necessary driver software ready.
Â
Remove the dummy card from the PCMCIA Slot before installation. Replace the card to protect contacts against dirt if the Slot is not used.
Once you have started Windows®, slip the card carefully into the
slot provided.
When the card is fully inserted two audible signals will be
heard, provided it has been correctly recognized and successfully
configured.
If only one signal is heard, this signifies a problem with the
card recognition. In this case, follow the instructions that
accompany your new PC card.
72
MAIN COMPONENTS
Safety
REMOVING A PCMCIA CARD
To remove your PCMCIA card:
Aid
Components
Handling
1. Press the eject button next to the slot.
2. Take the PC-card out.
Attention! The Eject Button should be pressed in
during transportation, because the danger will arise
that the button will break off otherwise.
Appendix
Â
THE PCMCIA CARD SLOT
73
TV CARD WITH REMOTE CONTROL
TV CARD
Your TV card possesses the following connections:
s
r
q
n
74
o
p
Ref.
Name
Function
n
Antenna connection
For radio reception
o
Antenna connection
For TV reception
p
DC In
To power source
q
Video IN S-Video
r
Video IN Composite
s
Audio input (Aux)
For recording and if
necessary processing video
data (e.g. camcorder, ...)
For feeding external
analogue audio sources
MAIN COMPONENTS
This wireless remote control set controls the Power Cinema program on your notebook. In order for this to work, the following
requirements must be met:
Safety
REMOTE CONTROL
- The notebook must be booted up.
- Windows® XP must be fully loaded.
Handling
- The driver software must be installed*.
- Power Cinema installed*.
* All these conditions are met in the delivered state.
INSERTING BATTERIES
Appendix
Aid
Components
1. Turn the remote unit round.
2. Remove the cover of the battery
compartment by pushing it in the direction indicated.
3. Remove the used batteries if necessary and dispose of them properly.
4. Place in two new type AAA (round
cell) batteries.
5. Replace the cover of the battery
compartment by pushing it in the direction indicated.
TV CARD WITH REMOTE CONTROL
75
BUTTON LAYOUT
On / Off
View and record
television programs.
View video recordings.
Playback music
CDs, video disks
and DVDs.
Start video text
application.
Open music archive.
Listen to and record radio programs.
EPG function (Electronic Program Guide)
Open photo archive.
Application-related information function.
Menu
Central selection button =
OK
Back
76
Start Selection Menu of the application running.
You will select the function required with this
Navigation Field. The selection indicator will
move in the corresponding direction. The
pointer will move forward if you move your
finger clockwise; the pointer will move
backwards if you move your finger counterclockwise. You can also navigate in the corresponding direction with the arrow keys.
Press the Selection button in the centre of
the Field to confirm your selection.
Reverts to the point selected previously.
MAIN COMPONENTS
Safety
Information: The functions described here are
standard functions.
These Buttons can differ according to the operating
mode (TV, video, photo, etc.).
+
Components
ume; press
to lower the volume.
Handling
Press
to increase the vol-
The D-Button lights up if a Button on the remote is
operated. It serves to select certain functions.
+
to select the next channel (TV, radio). You
select the previous channel with
Aid
Press
.
Mute Switch (Switches the sound output off).
Selects the TV channel used last.
Special function Button (e.g.: Selection of the audio
track)
Appendix
Â
Special function Button (e.g.: Subtitle selection)
Special function Button (e.g.: Camera selection)
Special function Button (e.g.: Chapter selection)
TV CARD WITH REMOTE CONTROL
77
Ends the playback/
recording
Pauses the playback at the selected point.
Starts playback.
Previous title/images
Snapshot from
the current
channel
Next title/images
Rewind
Start recording
Fast forward
Direct selection of the TV channels
by means of numbers. Number entry in the case of some functions
(video text, etc.).
78
MAIN COMPONENTS
If several computers with remote controls are set up in close
proximity of each other (approx. 10 metres), this can lead to
disturbance. This can be remedied by choosing different channels.
Only reset the remote control in case of disturbances.
Proceed as follows:
Safety
CHANGING THE TRANSMISSION/RECEPTION CHANNELS
2. Choose the menu item Settings and in the following
screen Set Remote Control Channel.
Appendix
Aid
Components
3. Detailed instructions on how to set the channel for the remote control will appear on screen. Follow the onscreen instructions.
Handling
1. Start the program Power Cinema in the program folder
Home Cinema.
TV CARD WITH REMOTE CONTROL
79
OPERATION
The TV card fits into the PCMCIA bay of your notebook.
INSERTING THE TV CARD
Â
Remove the dummy card from the PCMCIA Slot before installation. Replace the card to protect contacts against dirt if the Slot is not used.
1. After Windows® has started carefully insert the card into the
appropriate bay. When the card is fully inserted, two short
signal tones will be played to confirm successful installation.
2. Now connect one end of the supplied USB cable to the TV
card and the other end to a free USB port of your notebook.
This serves as an additional power source and must always
be connected when the TV card is used.
3. To setup the TV card start the application for TV reception. An
installation assistant will guide you through the program.
REMOVING A PC CARD
Remove the TV card in the following manner:
3. Disconnect all cables.
4. Remove the TV card and store it in a safe place.
Â
80
Remove the TV card by simply pulling it.
MAIN COMPONENTS
An additional 75 Ohm coaxial antenna cable is required to enable
TV / radio reception.
Safety
CONNECTIONS
Â
Attention: It is important that you pull out the antenna cable, when the device is not in use, especially during thunderstorms. In this way you protect
your device from a potential power surge caused by
lightning.
Appendix
Aid
You will also be able to view your channels through DVB-T*, if you
connect the optionally additionally supplied rod antenna to the
antenna connection for the TV reception to do this. We recommend the connection of an external antenna that you can purchase in the specialist shop, if the signal received is too weak.
Components
2. Connect the other end of the coaxial antenna cable to an aerial
antenna or to cable TV.
Handling
1. Connect the coaxial antenna cable with the antenna connector
(o) for TV reception and wit the antenna connector (n) for radio
reception.
*
Provided that DVB-T or digital services are offered at the respective location.
OPERATION
81
WATCH TV
If you want to watch TV with your notebook you need special
software. This is already installed and can be found in All Programs, Home Cinema.
The following table gives a summary of this program group:
[email protected]
For showing presentations
Power Cinema
For playing TV, videos, photos,
films and music
Power Director
For processing videos
Power DVD
For playing DVDs
Power Producer
For putting together your own
DVDs from films and photos
You will find additional help by pressing the F1 key.
The execution of an autoscan will be necessary to watch TV. You
will start the scanning procedure by selecting Settings Ö Autoscan.
You can control the program with the remote control.
Caution: Audio and video recordings can occupy a lot of memory
(up to 2.4 GB per hour). We recommend that you save your audio
and video recording files to rewriteable media or save them on
the directory D:.
82
MAIN COMPONENTS
Safety
UNIVERSAL SERIAL BUS (USB) PORT
Aid
Components
Handling
The Universal Serial Bus (USB 1.1 and USB 2.0) (19) is a standard
for the connection of input devices, scanners and additional peripherals. These devices can be connected at the USB port by
means of a single cable.
Some USB devices require that you reinstall software drivers
when you connect the device to a different USB port than the one
originally used. This can be avoided by always using the device
with the same USB port. Devices connected directly to the USB
bus should not draw more than 500 mA. Should the devices need
more power than this, it will be necessary to provide a powered
hub. The data transfer speed is 1.5 Mbit or 12 Mbit, depending on
the device connected. USB 2.0 can achieve up to 480 Mbit.
UNIVERSAL SERIAL BUS (USB) PORT
83
Appendix
USB ports provide an easy way to connect many peripheral devices to your PC (12). You can use any USB device with any USB
port. 4 USB 2.0 connection sockets (USB 1.1 compatible).
IEEE 1394 (FIREWIRE)
The IEEE 1394 (also known as iLink® or FireWire®) port (18) provide an easy and high-performance way of connecting high-speed
storage, imaging, and many new types of audio/video devices
easily.
APPLICATION OPTIONS FOR IEEE1394
•
Connection of digital devices of the entertainment industry,
such as set-top speakers, digital video and camcorder,
‘Digital Versatile Disk’ (DVD), television etc.
•
Multimedia applications and video processing.
•
Input and output devices such as printers, scanners, etc.
TECHNICAL SPECIFICATIONS
84
•
Depending on the application, the maximum data transfer
is about 100, 200 or 400 Mbit/s, corresponding to a data
throughput of up to 50 MB per second.
•
The device can be plugged in or unplugged during operation (hot plugging).
•
The standardised cord (‘Shielded Twisted Pair’ -STP) includes 6 strands. Two lines are live (8V up to 40V, 1.5 A
max.) and can be used as an external power supply. The
four signal lines transfer data or control information. Some
devices do not require a power supply via the cord so that
four pole plugs are used.
MAIN COMPONENTS
Safety
BLUETOOTH
There are several uses for Bluetooth wireless technology, including, but not limited to:
•
Creating a wireless connection to the Internet with a mobile
phone or a modem server.
•
Transferring files between computers or between a computer and another device.
•
Printing to a Bluetooth wireless printer.
•
Using a Bluetooth wireless keyboard and mouse.
•
Joining a personal area network (PAN).
•
Synchronizing a personal digital assistant (PDA) to a computer or another device using Bluetooth wireless technology.
Components
Bluetooth wireless technology operates over a short distance. Bluetooth devices use radio transmission, which enables computers,
mobile phones, printers, keyboards, mice, and other devices to
communicate with each other without cables.
Handling
Bluetooth wireless technology is designed to replace cables between devices, such as printers, keyboards, and mice.
Since Bluetooth is using the same frequency range as WLAN, simultaneous use might cause interference.
Aid
The data transfer speed for Bluetooth wireless technology can be
up to 700 kilobits (Kbps) per second. The data transfer speed can
vary depending on the device or environmental factors. A Bluetooth device can transmit through walls, pockets, and briefcases.
Appendix
If this should happen you can disable one service temporary.
BLUETOOTH
85
Using the hotkey
you can enable or disable the Bluetooth function and a corresponding message appears on your screen.
Â
86
ATTENTION: Make sure the Bluetooth option is
switched OFF in any environment where it might interfere with critical and sensitive devices, e.g., on
aircraft, in hospitals and other medical centres, etc.
MAIN COMPONENTS
Safety
INFRARED INTERFACE
You can use SIR/FIR applications in order to exchange files with
other devices which are IR-aware.
Appendix
Aid
Components
At present, the interface can be used to link up with other computers, peripherals and a number of PDA's (Personal Digital Assistants). The Notebook identifies the infrared port as a serial port.
Handling
The infrared port (17) is located on the front side of the Notebook.
The IR port corresponds to the "IrDA Serial Infrared Data
Link Version 1.1" standard. It is used for wireless point-to-point
communication.
INFRARED INTERFACE
87
INSTRUCTIONS FOR USING THE IR PORT
When using IR be sure to follow these instructions:
•
The angle between the two IR ports should not be greater than ±15°.
•
Distance between devices should not be more than 1 meter.
•
Do not move either of the devices during IR data transfer.
•
In environments with a lot of noise or vibration, data transfer
may be defective.
•
Keep a safe distance from direct sunlight, lightning, incandescent
and fluorescent light and other infrared devices such as remote
controllers.
Align the devices in such a manner that both IR interfaces are
level and are facing each other.
88
MAIN COMPONENTS
Safety
SECURING THE NOTEBOOK
Your new Notebook will make software and hardware solutions to
unauthorized access available to you.
A fingerprint sensor that will only allow access to your Notebook
to those who have registered with a fingerprint is located on the
left of your multifunction touchpad.
Appendix
Aid
Components
Your fingerprint sensor is pre-installed as far as possible. Registering individual users is still required. The setting up of the user
and the registration of the fingerprint are necessary for this.
Handling
FINGERPRINT SENSOR
SECURING THE NOTEBOOK
89
STEP 1: PREPARE WINDOWS ACCOUNTS
Arrange passwords for each user of the computer through the
User Accounts program in System Control, if this has not yet
taken place.
The Windows password with which you register will be used to
encrypt your data. It will be possible for someone to have access
to your data or your Notebook if no password has been stored. It
is important that each user has his or her own password for this
reason.
You will find the program to administrate the User Accounts in
System Control. Click on User Accounts there.
STEP 2: INSTALL THE ENCRYPTION PROGRAM
The system will be prepared for using the fingerprint sensor during the installation of the program.
1. Start the installation by means of the OmniPass link on the
Desktop or through D:\Tools\Omnipass\setup.exe.
2. Follow the instructions on the screen after you have
started the installation.
3. Your computer will be restarted automatically to finish the
setup. The Registration screen will already display an option to record your fingerprint below on the right. However, you will not be able to use it, because you must register your fingerprints first. Therefore enter your password
manually as usual after the restart.
90
MAIN COMPONENTS
Handling
The Assistant for recording your fingerprints will appear after the
manual registration.
Safety
STEP 3: REGISTERING FINGERPRINTS
3. Please click on the fingerprint, in order to select the device, and confirm your selection with Next.
4. Now select the finger that you want to register and click on
Further.
5. Now stroke across the sensor three times from top to
bottom with the top phalanx (fingerprint). You will have to
stroke the phalanx across the sensor a fourth time to
check that the print has been recognized correctly (a green
fingerprint will be displayed). Then confirm with Next.
6. It is recommended to register at least two fingers. To do
this, click on Yes and repeat the previous steps (4 and 5).
Aid
2. Enter the password stored in Windows for the user registered and then click on Next.
Components
1. Click on Enroll.
8. The registration for one user will now be concluded if you
click on Done.
9. You will now have the possibility of setting up additional
users by means of the OmniPass – Register new user?
Window. Please click on Yes. Click on No to close the Configuration program.
SECURING THE NOTEBOOK
91
Appendix
7. You will be able to set additional options (sound signal
and task performance settings) after the registration of
the fingerprints. Then click on Next.
You will now be able to enter your password or simply stroke
across the fingerprint sensor with the corresponding finger when
registering at your computer, as desired.
FILE ENCRYPTION
You will in addition have the possibility of setting up an additional
access block for all files and directories on your Notebook, for additional protection against external access to your Notebook. During this, the files are converted into a format that cannot be read
by unauthorized users (encryption). It will only be possible to unblock or decrypt the files with your main password or with a given
security device after the encryption.
The encrypted files will have the ‘opf’ ending.
The encrypted directories will take over the name of the original directory, but will end with ‘opx’.
ATTENTION: The sensor and finger should be clean of any foreign material when used.
1. Click on the file or the directory for which you would like to
prevent unauthorized access with the right mouse button, to encrypt a file or a directory.
2. Click on OmniPass – Encrypt File(s) in the Context
menu. OmniPass will then request you to authenticate
yourself.
3. Click on OK when the encryption has been concluded.
FILE DECRYPTION
1. Click on the file or the directory for which you would like to
recreate normal access with the right mouse button, to
decrypt a file or a directory.
2. Click on OmniPass – Decrypt File(s) or on Open in the
Context menu.
3. Both actions will lead to the circumstance that OmniPass
will invite you to authenticate yourself. The file will remain
decrypted until you encrypt them again, after the decryption. A renewed encryption will not take place automatically.
92
MAIN COMPONENTS
You can protect your Notebook against unauthorized use with a
switching on password. Then, an invitation to enter the password
will appear on the screen when the Notebook is switched on.
Safety
STARTUP PASSWORD
Attention: Keep your password in a safe place. You will
not have any possibility of deleting your password if you
forget it. Contact your Customer Service in that case.
You can also use the security options of WindowsXP, in order to
protect your data against unauthorized access. You will find further information in the chapter „Data and System Security“ starting on page 105.
SAFETY LOCK
You can prevent theft by using a so called Kensington lock,
which can be bought at your local retailer.
Appendix
Aid
The cable wraps around an object and the „T“ shaped end inserts
into the Kensington lock port and a key or combination dial is
used to secure the lock in place. Please keep your key at a safety
place.
Components
Â
Handling
The password will be set up in BIOS.
SECURING THE NOTEBOOK
93
SOFTWARE
There are many kinds of help and information for using your PC.
This section tells you where to get help with the Microsoft® Windows® XP operating system, software programs, and the PC.
GETTING TO KNOW WINDOWS XP
WINDOWS® XP MANUAL
This printed manual provides general information about the operating system. We recommend that all beginning users or users of
previous versions of Windows® read this information. It can be
found with the CDs in the accessory box that came with your PC.
WINDOWS® XP TOUR
Windows® XP includes a tour that you can take to familiarize yourself
with the operating system. This tour can usually be found by clicking
on the Start menu. You can also find the tour by selecting All Programs, then Accessories.
MICROSOFT® INTERACTIVE TRAINING
Training is the most powerful way to acquire skills that help you
perform a specific task efficiently. On the Start menu, choose All
Programs, choose Accessories, and then choose Microsoft®
Interactive Training.
WINDOWS® XP HELP AND SUPPORT
An answer to almost every question can be found in this program.
This help function fully covers the Windows operating system.
It is helpful for both beginners and professionals. You can print or
bookmark the information,
which is categorized into topics. You start like this:
2. Click on
3. Now select
94
MAIN COMPONENTS
To obtain an overview over the functions and the operations of
WindowsXP we recommend the program „WindowsXP Step by
Step Interactive“.
The objective of the program is to ease both the initial contact
with and the transition to WindowsXP for beginners and experienced users.
The program is categorized into many small topics, so that the
user can gain access to the information according to his requirements. Multimedia effects including video clips and speech output
convey the contents of the various topics clearly and efficiently.
Interactive tasks allow you to apply the conveyed topics in a
simulation environment of the program to facilitate a successful
learning experience.
Handling
Safety
MICROSOFT® INTERACTIVE TRAINING
• operating Windows XP
• new functions in Windows XP
• the process of log-on log-off and user administration for creating a security structure
• configuration of the Internet access
Components
Windows XP Step by Step Interactive covers …
• operating the email program
Use this program to better understand your PC and to operate it
optimally. It also is an additional source of information for recognizing and eradicating potential problems. You start the program
like this:
Aid
• ... and much more!
4. Click on
5. Select now
SOFTWARE
Appendix
6. You will find the program in „Accessories“, „Microsoft
Interaktives Training“.
95
INSTALLATION OF SOFTWARE
Note: If your operating system is configured that the
installation procedure accepts only signed drivers
(default) and software this information screen will
appear:
Although the software lacks the digital signature it
may work properly. Click on “Tell me why this testing
is important” to get detailed information.
Confirm by clicking on “Continue Anyway”.
The software included in delivery is already pre-installed in the
factory.
It happens that during installation procedure important files can be changed or even cancelled. To
avoid eventual problems in using older files after
installation, make sure to safeguard your hard
disk.
96
MAIN COMPONENTS
Â
Note: If the automatic start does not work, it is
likely that the so-called Autorun function has been
deactivated. Read the respective chapter in Windows Help on how to activate this function.
An example for the manual installation without the autorun function:
Click on
and select the item
.
Components
1.
Safety
Run the Program Compatibility Assistant under Programs,
Accessories, if you are not sure about the compatibility of the
Program to be installed.
Handling
Please follow the instruction of the software vendor. We will describe a typical installation. Once you insert a CD, the installation
menu is started automatically.
Aid
2. Now enter the letter of the CD-ROM drive followed by a colon and the program name setup:
3. Click on “OK“.
Appendix
4. Follow the instruction given by the program.
SOFTWARE
97
SOFTWARE UNINSTALLATION
In order to remove installed software from your PC, follow the
next steps:
1. Click on
2. Click on
3. Then select the following program:
Select the respective program, start the deinstallation and follow
the instructions on the screen.
If the system becomes unstable due to a certain software or
driver, you are able to recover the stability of the system with
various methods (see starting on page 108). Then you do not
need to uninstall the driver.
WINDOWS ACTIVATION
Microsoft is committed to the protection of intellectual property
rights and the reduction of software piracy. Therefore Windows XP
contains software-based product activation technology. Your copy
of Windows XP has already been activated for your PC.
Product activation is needed if some components of your PC have
been replaced or you use a non-authorized BIOS. If necessary
you can activate Windows XP as often as requested.
You will probably need to activate Windows XP by telephone even
if Internet Activation is available. This is due to the pre-activated
SLP version which runs with a special Product-ID. However, activation needs your unique Product ID which can be found on the
Certificate of Authenticity sticker on your PC housing. When
you call, please inform your agent that you are running an OEM(SLP) version of the software.
98
MAIN COMPONENTS
In BIOS setup (Basic Configuration) there are a number of configurable parameter settings available for your notebook. For example, you can change the operating mode of the interfaces, security
features or power management.
RUNNING THE BIOS SET-UP
You can only run the BIOS configuration program at system startup. If the notebook has already started, power it down and then
up again. Press the F2 function key in order to start the BIOSSET-UP.
NAVIGATING THE BIOS UTILITY
Â
Appendix
The Menu of the BIOS Program contains several Main Points. Each
Menu Point will trigger a function or call up its own screen page
with new setting options. Select the required option in the Start
Page with the Arrow Keys. A Menu Point will stand out automatically if you move to it. Select the required Menu Point with the
Enter key. Help in English will be available to you with the F1 key.
You will also be able to select individual fields on screen pages
with option fields with the help of the Arrow keys. You will see one
or more values next to each field. The first (or only) value will be
emphasized if you move across a field. An emphasized field can
be changed by pressing +/- or F5/F6. Some fields will require a
value to be entered instead of a selection from predetermined
values. Other fields are prescribed automatically by the system
and cannot be changed. Press the ESC key to return to the previous level.
Note: If you are unsure if your parameter settings
are correct, you should load the "Set-upDefaults".
SOFTWARE
Components
Handling
WARNING! The notebook is factory pre-set to
guarantee optimum operation. Only modify the parameters if necessary and if you are familiar with
the configuration options.
Aid
Â
Safety
THE BIOS SET-UP-PROGRAM
99
100
MAIN COMPONENTS
Safety
Chapter 4
Subject
Page
Handling
First Aid
FAQ.............................................................. 103
Maintenance .................................................. 114
Aid
Troubleshooting ............................................. 111
Appendix
System Recovery ........................................... 108
Components
Data and System Security ............................... 105
102
FIRST AID
Safety
FAQ – FREQUENTLY ASKED QUESTIONS
Do I still have to install the enclosed CDs/DVDs?
What is the Windows activation?
Your operating instructions include a chapter about this
subject.
Handling
No. Basically all programs are already preinstalled.
The disks are only intended as backup copies.
When do I have to activate Windows?
Components
Your software has been preactivated in the factory. An
activation will only be required, if ...
... several components are replaced by others.
... your installed a new motherboard.
... a different BIOS version has been installed.
... you install the software to another computer.
How do I perform a data backup?
Aid
You can also use the Security program to do this. It is
important that you follow all the operating hints of the
program. You will find the program under:
Start Ö All Programs Ö Accessories
Ö System Program Ö Security
Make a backup and a retrospective backup of selected
data on external media (CD-R), in order to become
familiar with the technology.
A backup is unusable if you are not in a position to recreate the data, the medium (CD-R) is defective or is no
longer available.
FAQ – FREQUENTLY ASKED QUESTIONS
103
Appendix
You can also use Nero BackItUp as an alternative.
When is the recovery of the factory setting recommended?
This method should be chosen as the last resort.
Read chapter “System recovery” concerning the
possible alternatives.
Why is the boot partition missing when booting from
the support/ application CD?
The first partition is formatted with the file system
NTFS. Compared to FAT32 this file system offers
more security and a more efficient access. However,
NTFS partitions can only be read from operating systems supporting this. This is not the case in the
aforementioned CD.
104
FIRST AID
Safety
DATA AND SYSTEM SECURITY
The programs described below are part of your Windows operating
system. You will find additional information on these programs in the
Windows Help file.
Both programs are found in Accessories/System Tools within
the Start menu. You should make a backup disk with all your
passwords and the operating system’s original configuration.
MAINTENANCE PROGRAMS
You can avoid some hardware and software errors with disk maintenance programs such as Disk Defragmenter and Disk
Cleanup. The program System Information can also be helpful
since it gives you detailed information about your system configuration. You will find these programs in Accessories/System
Tools.
Components
Back up data regularly on external media such as a CD-R or CDRW. Windows offers both a Backup program and a Files and
Settings Transfer Wizard.
Handling
DATA SECURITY
To protect individual user accounts from complications resulting
from lost passwords, users should create a password reset disk
and keep it in a safe place. If the user should forget his/her password, the password can be reset with the password reset disk so
that the user has access again to his/her local user account.
Aid
PASSWORD RESET DISK
Appendix
Windows Help describes how to create a password reset disk.
DATA AND SYSTEM SECURITY
105
WINDOWS® UPDATE
Windows Update is the online updating of Windows. Use Windows Update to download elements such as security updates, important updates, the newest help files, drivers and Internet products from the Internet.
The website is regularly augmented by new content, so that you
can download the newest updates and error corrections at any
time, to protect the Notebook and guarantee its functioning.
Windows Update will search through the Notebook and provide a
list of individual updates especially for the configuration of your
Notebook.
Each update that Microsoft regards as important for the operation
of the operating system, programs or hardware components will
be classified as an “important update” and automatically selected
for installation for you.
Important updates will be provided to remove known problems
and to protect the Notebook against known security risks.
Carry out four simple steps, to download the updates needed and
to keep your computer on the current status of technology:
106
1.
Open Windows Update in the Help and Support Center.
2.
Click on Search for update.
3.
Click on Add to select the desired update and to add
it to the updates to be installed, while you are
searching through the available updates in each
category. You can also read a complete description
of each individual element by clicking on the Read
further Link.
4.
Click on Check and install updates, when you
have selected all the desired updates, and then click
on Install now.
FIRST AID
•
Version number of the operating system
•
Version number of Internet Explorer
•
Version numbers of additional software programs
•
Plug & Play identification key of the hardware devices
Windows Update will stand up for the protection of your private
data and will not record your name, address, email address or
other forms of personal data. The information collected will only be
used during the time that you are visiting the website. It will also
not be stored.
Aid
Components
The update can only be executed via the Internet. Ensure that you are on-line with your notebook when
downloading the updates.
Appendix
Â
Safety
Windows Update needs certain information about the respective
Notebook, so that a suitable list with updates can be provided for
you. This information will include the following:
Handling
WINDOWS UPDATE INFORMATION FOR DATA SECURITY
DATA AND SYSTEM SECURITY
107
SYSTEM RECOVERY
Windowsxp provides a useful function enabling the storage of the
so-called Recovery points.
The system remembers the current configuration as a snapshot
and returns to this, if necessary. The advantage is that an unsuccessful installation can be cancelled.
Recovery points are created automatically by the system, but
they can also be set manually.
You can determine and configure yourself the maximum memory
taken up by this. You find this program in the program file under
accessories, system programs.
We recommend setting a recovery point before installing a new
software or driver. If the system does not run stable any longer
this enables you usually to return to a workable configuration
without deleting newly created documents. In the next paragraph
read your options for a repair of an incorrect installation.
CORRECTION
Windowsxp includes various functions ensuring that the PC as well
as the installed applications and devices work correctly.
These functions assist you in solving the problems which might
occur by adding, deleting or replacing files required for the functionality of the operating system, the applications and devices.
The recovery function or functions you use depend on the type of
occurring problem or error. For detailed information refer to the
Windows help.
108
FIRST AID
Backup
Recreation of device drivers
Deactivation of the device
System recreation
Last configuration known to function
Protected Mode and system recreation
Recreation console
Windows installation disk
Handling
•
•
•
•
•
•
•
•
Safety
Enter the search word “Overview over the repair” in order to
evaluate which of the following functions is the safest way to
correct your problem:
1. Recovery of start-up files
Use this option to restore the start-up files. This option is
most useful when a virus has corrupted certain files
necessary for your computer to boot. It is executed very
quickly.
2. Recovery of system and driver files
This option will copy the original system and driver files to
your hard disk. This feature shouldn’t affect your personal
files and settings. However, we recommend that you first
back up your personal data just to be safe.
SYSTEM RECOVERY
109
Appendix
If your system is not functioning properly and Windows XP System Restore did not solve the problem, then you should use the
Application Support Disc to restore your system. This recovery
mode provides several options.
Aid
Components
SYSTEM RESTORE POWERED BY SYMANTEC
3. Restoring the factory settings
This recovery will reset your system to its condition at
delivery. ALL DATA ON YOUR LOCAL DISC (C:) DRIVE WILL
BE ERASED. If possible, back up your personal data to
external media before performing this restore.
LIMITS OF THE RECOVERY
•
Changes made to the original configuration (RAS, Desktop or
Internet settings) and installed Software will be ignored by
this Recovery and will not be reloaded.
•
Driver Updates or hardware installed by you will be ignored by
this Recovery.
•
Beware! All data on drive C will be erased. If necessary,
backup all required data on drive D.
This recovery will reset your system to its condition at delivery.
Printer installations or other additional software must be reinstalled.
PERFORMING THE RESTORE
1. Please read the whole ‘System Recovery’ Section and the
references given beforehand whatever happens.
2. Insert the Application & Support disc and start the notebook.
3. Select the option “Boot from CD-ROM”.
4. Use the arrow keys to read through the license agreement,
and then press the Esc key to proceed.
5. Click YES to agree to the license agreement Stimmen Sie den
Lizenzbedingungen and follow the instructions on the screen..
6. Select one of the options given, in order to start the system
recreation.
The notebook will restart after each option selected.
110
FIRST AID
Safety
TROUBLESHOOTING
Errors can have simple causes, but sometimes they are caused by
faulty equipment. We would like to give you some tips to help
solve common problems. Should these instructions not lead to
success, please feel free to contact us.
CHECK CABLES AND CONNECTIONS
Handling
LOCALIZE THE CAUSE
¾
In battery mode, connect the Notebook to the power adapter
and ensure that the battery is charged up.
¾
If you are operating the Notebook with the power adapter,
check the electrical socket, power cord and all switches in the
circuit of the electrical socket.
¾
Switch off the Notebook and check all cable connections.
Check the connections to peripherals. Do not exchange cables, even though they may look similar. The polarity in the
cables may be different. When it is confirmed that the Notebook has power and all connections are correct, turn the
Notebook on again.
Aid
THE POWER ON SELF TEST (POST)
Components
Visibly check all cables and connections. Should all lights be off,
check whether all equipment is supplied with power.
Appendix
The Power On Self Test (POST) is executed during each boot
process to test the memory, motherboard, display, keyboard and
other components. If the Notebook does not pass the POST but
beeps several times, or if the screen remains blank, call your
Notebook support technician.
TROUBLESHOOTING
111
ERRORS AND POSSIBLE CAUSES
The display is blank:
-
This error can have different causes:
1. The operational display (On /Off switch) does not shine and
the Notebook is in the swap file status.
Solution:
Operate the On /Off switch.
2. The Standby display is flashing. The Notebook is in the Standby Mode.
Solution:
Operate the On /Off switch.
3. The background lighting has been deactivated with the FN+F4
shortcut.
Solution:
Operate any key to switch on the background lighting again.
The Notebook switches off during operation.
-
The rechargeable battery could be empty. Connect the Notebook
by means of the mains adapter and charge the rechargeable battery.
The Notebook cannot be switched on.
-
Operate the Notebook by means of the rechargeable battery and
check that it has been correctly inserted and charged.
Wrong Date and Time:
-
Double-click the clock on the taskbar and correct the date and
time.
No data can be accessed from the optical Drive.
-
Check whether the CD is inserted correctly.
-
Is the CD-ROM displayed in Windows Explorer? If so, test another
CD.
Some elements are displayed too small or incompletely on the
screen.
-
Adjust your screen setting under Display Properties. (Ö p. 38)
The WLAN connection does not function.
-
Using the Schnellstarttaste
you can enable or disable the
wireless LAN function. A corresponding announcement will
appear on the screen.
112
FIRST AID
How is your computer configured?
-
What additional peripherals do you use?
-
What messages, if any, appear on your screen?
-
What software were you using when the error occurred?
-
What steps have you already undertaken to solve the problem?
-
Have you upgraded or removed drivers or hardware?
-
Can you manually repeat the problem?
-
If you have been given a customer number previously, please
have this available.
DRIVER SUPPORT
Safety
Appendix
This notebook has been extensively tested in our laboratories with
a large number of compatible devices. It fulfils all required standards and complies with the standard “Designed for Windows”,
which certifies utmost compatibility. However, the software drivers for individual components are updated from time to time. This
is a regular process provided by the manufacturer to mend possible compatibility problems that may occur with components (e.g.,
programs or hardware) that were not tested at the time of your
notebook’s manufacture.
Handling
-
Components
If the suggestions in the above section have not solved your problem, please contact customer care and we will attempt to help you
solve the problem. Before you call, however, please have the following information available:
Aid
ADDITIONAL SUPPORT
TROUBLESHOOTING
113
MAINTENANCE
Â
Warning! There are no user-serviceable or usercleanable parts inside the notebook housing. Never
open the notebook housing.
Following these measures can extend the lifetime of your notebook:
* Before cleaning, always remove the power adapter plug and
all connecting cables.
* Only use a damp, lint-free cloth to clean the notebook.
* Do not use any solvents, corrosive or gaseous cleaning
agents.
* Do not use CD-ROM cleaning disks or similar products that
clean the lens of the laser to clean your optical drive.
* Dust or grease on the touchpad will impair its sensitivity. Remove dust or grease on the surface of the Touchpad with a
strip of sticky tape.
CARE OF THE TFT DISPLAY
* Always close the notebook when not in use. Avoid touching or
scratching the surface of the screen as it is easily damaged.
* Make sure that no water drops are allowed to remain on the
screen. Water can cause permanent discoloration.
* Clean the screen with a dry, soft, lint-free cloth.
* Do not expose the screen to bright sunlight or ultraviolet
radiation.
* The notebook and its packaging are recyclable.
114
FIRST AID
Please use the following guidelines when transporting the notebook:
Safety
TRANSPORTING THE NOTEBOOK
* Switch off the notebook. This will prevent damage to the hard
* Wait until the PC has reached ambient (room) temperature
before connecting it to the power supply. Drastic variations in
temperature and humidity can create condensation within the
PC and may cause it to short-circuit.
Handling
disk. When the notebook is turned off, the hard disk heads
are moved into a safe area.
* Close the notebook and ensure that the cover locks shut.
the notebook from dirt, moisture, jolts and scratches.
* Should you need to ship your notebook, always use the original packaging and make certain the shipper knows the contents contain fragile electronic equipment.
* Fully charge your battery and any spare batteries immediately
Components
* Always use the notebook carrying case. This helps to protect
before a long journey.
* Enquire about the electricity and communication provision at
* Acquire the necessary adapter for electricity or communication
(modem, LAN, etc.), if necessary, before starting your journey.
Aid
the location before a journey.
* Put the battery into the packaging separately when despatching the notebook.
storage media (floppy disks, external drives) through the xray device (the device into which you put your bags), when
you are passing through the baggage check at airports. Avoid
the magnetic detector (the construction, through which you
walk) or the magnetic rod (the manual device of the security
personnel), because they could destroy your data, among
other consequences.
MAINTENANCE
115
Appendix
* It is recommended to send the notebook and all magnetic
RECYCLING AND DISPOSAL
This notebook and its packaging was produced mostly from materials which can be disposed of in an environmentally friendly manner and be professionally recycled.
After its use the computer will be taken back and recycled or use
will be made of its useful material, if it is returned in a condition
corresponding to its intended use.
Parts not usable will be properly disposed of.
Â
ATTENTION! There is a lithium battery on the
motherboard. No type of battery belongs in the
household waste. All are taken back free of charge
by the manufacturer, dealer or their representatives
for a proper method of utilisation or disposal.
Should you have any questions concerning the disposal please
contact your dealer or our service.
BATTERIES AND PROPER TREATMENT
Batteries may contain combustible materials. By misuse, this may
cause battery leakage, heat, explosion or ignition, bringing
about injury or damage to the device. Please observe strictly the
following matters:
Â
ATTENTION: There is a lithium battery on the
motherboard. Lithium batteries are hazardous waste
and need to be disposed of properly. If necessary, we will
take back your used CMOS lithium battery.
•
KEEP CHILDREN AWAY from batteries.
If by any chance, the batteries are swallowed, consult a doctor
immediately.
•
DO NOT CHARGE batteries (except rechargeable batteries).
•
DO NOT FORCIBLY DISCHARGE batteries.
•
DO NOT SHORT-CIRCUIT batteries.
•
DO NOT HEAT or DISPOSE OFF IN FIRE.
•
DO NOT DISASSEMBLE or DEFORM batteries.
Your hands and fingers may be injured, or the liquid of the battery may
get into your eyes or adhere to your skin. If this happens, rinse with a
large quantity of water immediately and consult a doctor.
116
FIRST AID
•
Do NOT MIX used and new or different types of batteries together.
Your equipment may not operate properly.
In addition, the battery exhausted first may be excessively drained
(over-discharged).
•
REMOVE PROMPTLY the used batteries from the device.
•
REPLACE ALL BATTERIES with new batteries of the same type at
the same time.
•
INSULATE THE TERMINAL parts with tape or the like at the
storage or disposal of the batteries.
•
DO NOT throw rundown batteries in the domestic refuses! Respect the environment and throw them in the specific containers
for separate collection. If necessary, turn to your reseller or to
our service assistance. Thank you!
Safety
DO NOT reverse the positive (+) and negative (-) terminals to
avoid short-circuit.
Handling
•
Components
DO NOT expose batteries to strong impact by dropping or throwing the batteries.
Appendix
Aid
•
MAINTENANCE
117
UPGRADES AND REPAIRS
• Only a qualified Service Engineer should perform upgrades and
repairs to your Notebook.
• If you do not have the necessary qualifications, go to an appropriate Service Engineer. Please contact the Service Centre if you are experiencing technical problems with your Notebook.
NOTES FOR SERVICE ENGINEERS
• Before opening the housing, disconnect the Notebook from all power
sources and remove any connecting cables. If the Notebook has not
been disconnected from the power outlet before being opened, there
is a danger of severe electric shock. There is also a risk of damage
to the components.
• Internal components of the Notebook may be damaged by electrostatic discharge (ESD). Perform system upgrades and changes in
an ESD-protected work area. If no such work area is available, wear
an antistatic wrist strap or touch a highly conductive metal object.
Your service center can repair damage sustained by inappropriate handling for a fee.
• Use only original spare parts.
NOTES ON LASER RADIATION :
Laser devices of Laser Class 1 to Laser Class 3b may be used in the
Notebook. Where the Notebook housing remains closed, the device
meets the requirements of Laser Class 1. By opening the Notebook
housing you will gain access to laser devices of up to Laser Class 3b.
• The CD-ROM/CD-RW/DVD/DVD-RW drive contains no userserviceable parts. Only the manufacturer should perform repairs to
the CD-ROM/CD-RW/DVD/DVD-RW drives.
When removing and/or opening laser devices, the following guidelines must be observed:
• DO NOT look into the laser beam, even while wearing optical protection.
• DO NOT allow yourself to be exposed to the laser beam. Avoid exposure of the eyes or skin to direct or stray radiation.
118
FIRST AID
Safety
Chapter 5
Subject
Page
Handling
Appendix
Standards ..................................................... 121
Aid
Appendix
Index ........................................................... 126
Components
Warranty....................................................... 124
120
APPENDIX
Safety
STANDARDS
Active matrix LCDs (TFT) with a resolution of 1024 x 768 pixel (XGA),
which are in turn composed of three sub-pixels each (red, green,
blue), contain about 2.4 million addressable transistors. Because of
this very high number of transistors and their extremely complex
production process occasionally defective or incorrectly addressed
pixels or sub-pixels may occur.
There have been several attempts in the past to define the acceptable number of defective pixels. But this can be difficult and varies
widely between different manufacturers.
We, therefore, adhere to the clear and strict requirements of ISO
13406-2, class II, for the warranty handling of all TFT display products. These requirements are summarized below.
Within ISO-standard 13406-2 the general requirements regarding
pixel defects are defined. Pixel defects are classified into three failure
types and four failure classes. Each individual pixel is made up of
three sub-pixels in the primary colours (red, green, blue).
STANDARDS
121
Components
ISO 13406-2 CLASS II
Aid
• Keep the notebook at least one meter (approximately three
feet) away from high frequency and magnetic interference
sources (e.g., televisions, loudspeaker cabinets, mobile telephones, etc.) in order to avoid malfunctions and/or loss of data.
Appendix
• When connecting additional components, please observe the
Guidelines on Electromagnetic Compatibility (EMC).
Please note that only shielded cables shorter than
3 meters (9.84 ft) should be used for the LPT, COM, USB, IEEE
1394, audio, video and network interfaces with this notebook.
Handling
ELECTROMAGNETIC COMPATIBILITY
Pixelstructure
Rows
Blue
Green
Red
Types of Pixel Failures:
Type 1:
A constantly lit pixel (a bright, white spot), even though it is
not addressed
A white pixel is caused when all three sub-pixel are lit.
Type 2:
A pixel that does not light up (dark, black spot), although it is
addressed
Type 3:
Abnormal or defective red, green or blue sub-pixels.
(E.g. constantly lit with half the brightness, one colour is not
shining, blinking or flickering, but not belonging to Type 1 or
2 Pixel Failures)
In addition: A cluster of type 3 (= 2 or more defective sub-pixels in an
array of 5 x 5 pixel). A cluster is an array of 5 x 5 pixel (15 x
5 sub-pixel).
ISO 13406-2, Class II
Resolution
Type 1
Type 2
Type 3
Cluster
Type 1,
Type 2
Cluster
Type 3
1024 x 768
2
2
4
0
2
1280 x 854
3
3
6
0
3
1280 x 1024
3
3
7
0
3
1400 x 1050
3
3
8
0
3
Example:
A 17” - SXGA-display consists of 1280 horizontal and 1024 vertical picture dots (pixel), which amounts to a total of 1,31 million pixels. Based
on one million pixels this translates into a factor of about 1.31.
Class II type failure consequently allows for three defects each of type 1
and type 2 and 7 defects of type 3 and 3 cluster of type 3.
These cases are normally not covered by warranty.
If the number of failures exceeds the figures of any category mentioned
above then this may be covered by the warranty.
122
APPENDIX
Safety
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Handling
FCC COMPLIANCE STATEMENT
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
Appendix
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment. Shielded interface cables, if any, must be used
in order to comply with the emission limits.
Aid
Components
• Reorient or relocate the receiving antenna.
STANDARDS
123
WARRANTY
The receipt serves as proof of first purchase and should be kept in
a safe place. Your legal rights are not limited by these warranty conditions. It is required should you need to make use of the guarantee.
We guarantee that this equipment is in perfect working order.
Upon production of the receipt, the remaining period of guarantee
shall pass on from the original parts to the respective replacement
parts. If you hand in this equipment to make use of the guarantee, you must remove all programs, data and removable storage
media. Products which are sent without accessories will be replaced without accessories. The warranty obligation does not apply in the case of the problem being caused by an accident, a catastrophe, vandalism, misuse, incorrect use, ignoring the safety
and maintenance regulations, changes by software, viruses or
another piece of equipment or accessories or by other modifications not approved by ourselves. This limited guarantee declaration replaces all other guarantees of express or implied nature.
This includes the guarantee of saleability or the suitability for a
certain purpose but is not limited to this. In some countries the
exclusion of implied guarantees is not permissible upon principle.
In this case the validity of all express and implied guarantees is
limited to the guarantee period. Once this period has expired, all
guarantees become invalid. In some countries limiting the period
of validity for implied guarantees is not permitted, so that the
above limitation does not come into force. If you have any questions with regard to these guarantee conditions, please contact us.
124
APPENDIX
The contents of this manual are subject to unannounced changes
caused by technical progress. Manufacturer and sales shall not be
responsible for any damages which have been caused as a result
of omissions or errors in the information provided in this manual.
Safety
LIABILITY LIMITATIONS
1.
2.
3.
Claims made against you by third parties based on loss or damage.
Loss or damage to your blanks, recordings or data.
Economic follow-on damage (including lost profit or savings) or associated damage even in the case that we have been informed of the possibilities of this type of damage.
In some countries the exclusion or limitation of accompanying or followon damage is not legally accepted so that the above limitations do not
come into force.
Handling
Under no circumstances shall we be liable for any of the following:
Appendix
Aid
This document contains legally protected information. All rights
reserved. Copying in mechanical, electronic and any other form
without the written approval of the manufacturer is prohibited.
Components
COPYING THIS MANUAL
WARRANTY
125
INDEX
A
All programs ........................25
Ambient Temperature ............ 5
Appendix........................... 119
Audience ...............................ii
Autorun ..............................97
B
Batteries and Proper
Treatment ...................... 116
Battery operation .................31
Checking the battery level ..34
Inserting ..........................31
Removing.........................32
Battery Performance ..........33
Charging ..........................33
Discharging the Battery......33
Battery Performance .............33
BIOS Setup-Program ............99
BIOS Utility
Navigating........................99
Running ...........................99
Bluetooth ............................85
C
Cabling ................................ 6
Care of Displays ................. 114
CD/DVD-Rewriter .................55
CD-blanks ...........................55
CD-ROM..............................51
Changing the
transmission/reception
channels ..........................79
Charging the Battery.............33
Checking the battery level .....34
Clone desktop ......................41
Connectors
Bluetooth .........................85
External monitor ...............40
Infrared Interface..............87
126
Modem ............................ 61
Power socket.................... 14
S-Video TV out port........... 14
TV .................................. 43
USB ................................ 83
USB-Port ......................... 14
Control panel....................... 25
Correction......................... 108
D
Data and system security .... 105
Data security..................4, 105
Digital ................................ 58
Directories .......................... 50
Disc-Drive........................... 51
Discharging the battery......... 33
Display
Opening and closing .......... 36
Screen resolution .............. 37
Display Properties ................ 38
Driver Support................... 113
Drivers ............................... 50
DVD-Drive .......................... 51
E
Electromagnetic
Compatibility .................. 121
EMC ................................. 121
Emergency Ejection of a
blocked Disc..................... 53
Enter personal details ........... 23
Extend desktop.................... 42
External monitor .................. 40
Clone desktop .................. 41
Extend desktop................. 42
F
FAQ ................................. 103
Fast Ethernet-Network .......... 64
FCC Compliance Statement . 123
APPENDIX
Kensington-lock ...................93
Keyboard ............................44
Network
Fast Ethernet-Network ....... 64
Troubleshooting ................ 65
What is a network? ........... 63
Wireless LAN .................... 66
H
Hard drive ...........................49
Partitions .........................49
Help ...................................94
Hotkey
Special function ................19
I
L
Laser radiation ................... 118
License agreement ...............23
Line In ................................58
INDEX
127
Safety
N
Getting started.....................21
Switching on the notebook..22
Handling
K
G
Components
Icons ..................................25
IEEE 1394 (FireWire) ............84
Indicator
Access indicator card
reader ..........................15
Access .............................15
Battery indicator ...............16
Capital Lock......................16
Num Lock.........................16
Standby indicator ..............15
Information about the
regualtory compliance of
wireless Lan ...................... 7
Infrared Interface .................87
ISO 13406-2 Class II .......... 121
Main components
Bluetooth......................... 85
Hard drive ....................... 49
IEEE 1394........................ 84
Infrared interface.............. 87
Modem ............................ 61
Multimedia card reader ...... 68
Network .......................... 63
Optical drive..................... 51
PCI Express connection...... 70
PCMCIA card slot .............. 72
Software.......................... 94
Sound card ...................... 56
Universal Serial Bus (USB) . 83
Main operation .................... 30
Maintenance...................... 114
Care of the TFT Display.... 114
Transporting the notebook 115
Maintenance programs........ 105
Memory cards
Inserting ......................... 69
Removing ........................ 69
Memory Stick ...................... 68
Microphone In ..................... 58
MMC .................................. 68
Modem ............................... 61
Connecting....................... 62
Multifunction touchpad.......... 46
Multimedia card reader ......... 68
Multimedia Functions ............ 47
Multimedia keys
Special function ................ 19
MultiMediaCard .................... 68
Aid
M
Appendix
Finding files .........................49
Fingerprint Sensor ................89
First Aid ............................ 101
Frequently asked questions.. 103
O
S
On/Off button ......................29
Safety instructions .................3
Data security......................4
Upgrades and repairs ...... 118
Ambient Temperature ..........5
Battery Operation ...............8
Cabling..............................6
Modem ..............................7
Power supply......................6
Set-Up location...................5
Touch Pad..........................7
Screen resolution ................. 37
SD ..................................... 68
Search ............................... 49
Secure Digital...................... 68
Securing the Notebook.......... 89
Fingerprint Sensor ............ 89
Startup Password.............. 93
Serial number........................ ii
Service................................. ii
Service engineers .............. 118
Set-Up Location .....................5
Software............................. 94
Deinstallation ................... 98
Installation ...................... 96
Windows Activation ........... 98
Sound card ......................... 56
External audio ports .......... 57
Special keys ........................ 18
Standards ......................... 121
Electromagnetic
Compatibility ............... 121
FCC Compliance
Statement .................. 123
Standby mode ..................... 35
Start button ........................ 24
Support ............................ 113
Surround ............................ 58
Suspend to Disk................... 35
System Recovery
Correction...................... 108
P
Partitions ............................49
Password reset disk ............ 105
PCI Express card
Installing..........................70
Removing.........................71
PCI Express connection .........70
PCMCIA Card Slot .................72
PCMCIA cards
Installing..........................72
Removing.........................73
Performing the Restore ....... 110
POST ................................ 111
Power .................................35
Turning off your computer ..25
Power management ..............35
Power On Self Test ............. 111
Power supply ........................ 6
Battery operation ..............31
Main operation ..................30
On/Off button ...................29
Suspend mode ..................35
Program bar ........................24
Programs
Location ...........................50
Q
Quality..................................ii
Quick launch buttons ............17
R
Recovery........................... 108
Recycling and Disposal ........ 116
Reinigungsmittel ................ 114
Remote control ....................75
Repairs ............................. 118
Restoring
Limits ............................ 110
Running the Bios Setup .........99
128
T
Table of contents .................viii
APPENDIX
Universal Serial Bus ..............83
Upgrades and repairs .......... 118
USB....................................83
Using a safety lock ...............93
W
V
Warranty .......................... 124
Windows XP
Control Panel.................... 25
help ................................ 94
Help................................ 25
Help and Support .............. 94
Interactive training ........... 94
Interactive Training ........... 95
Manual ............................ 94
Tour................................ 94
Windows® Desktop ............... 24
Windows® Update .............. 106
Wireless LAN ....................... 66
Working in Comfort .............. 26
Safety
Handling
Appendix
Views
Activity LED optical drive ....13
Card reader 4 in 1 .............13
CF card reader ..................13
Device indicators ...............12
Digital Audio OUt...............14
Disc ejet button ................13
Display catch ....................13
DVI .................................14
Emergency ejection ...........13
Fingerprint sensor .............12
IEEE 1394 ........................13
IR port.............................13
Components
U
Aid
Kensington lock ................ 13
Keyboard ......................... 12
LAN port .......................... 14
LED keyboard light ............ 12
Line Out .......................... 13
Microphone ...................... 13
Modem port ..................... 14
Multifunction touchpad....... 12
Optical drive..................... 13
PC card eject button .......... 13
PC card slot PCMCIA .......... 13
PCI Express port ............... 13
Power ON/OFF .................. 12
Power socket.................... 14
Quick launch buttons ......... 12
S-Video TV out port........... 14
TFT Display ...................... 12
USB-Port ....................13, 14
Task bar .............................25
Touch Pad ............................ 7
Trademarks ...........................ii
Transport .......................... 115
Troubleshooting ................. 111
Errors and possible
causes ........................ 112
Turn off computer ................25
TV card ...............................74
Connections......................81
Operation.........................80
Watching TV .....................82
TV card with remote control ...74
INDEX
129
