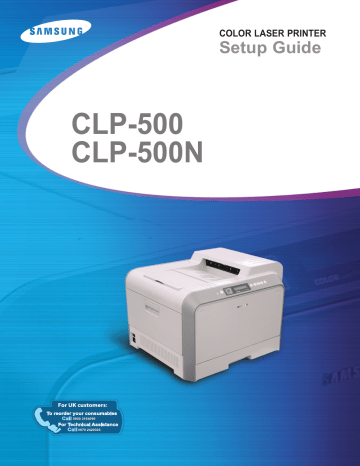

Setup Guide COLOR LASER PRINTER

Setup Guide COLOR LASER PRINTER

COLOR LASER PRINTER

Setup Guide

C

ONTENTS

Step 1.

Unpacking ............................................. 3

Step 2.

Understanding Your Printer ................... 5

Step 3.

Installing the Imaging Unit, Transfer Belt and Toner Cartridges ............................. 7

Step 4.

Loading Paper ..................................... 16

Step 5.

Connecting a Printer Cable .................. 19

Using a Parallel Cable .................................19

Using a USB Cable .....................................20

For Networking Printing ..............................21

Step 6.

Turning the Printer On ........................ 22

Step 7.

Printing a Demo Page .......................... 23

Step 8.

Changing the Display Language .......... 23

Step 9.

Installing the Printer Software ............ 24

Installing Printer Software in Windows ..........24

Reinstalling Printer software ........................26

Removing Printer software ..........................26

Changing the Display Language ...................26

Step 10.

Viewing the User’s Guide ................... 27

In Windows ..............................................27

In Macintosh .............................................27

In Linux ...................................................28

2 S

ETUP

G

UIDE

Step 1.

Unpacking

1

Remove the printer and all of the accessories from the packing carton. Make sure that the printer has been packed with the following items:

Toner Cartridges Power Cord Transfer Belt

Imaging Unit CD-ROM Setup Guide

SyncThru CD-ROM

(CLP-500N only)

SyncThru Quick Guide

(CLP-500N only)

N

OTES

:

• If any items are missing or damaged, notify your dealer immediately.

• Components may differ from one country to another.

• The CD-ROM contains the printer driver, the User’s Guide, and the Adobe Acrobat Reader program.

• The power cord may be different depending on your country.

C

AUTION

: This printer weighs 35kg including developer cartridge and cassette. Use safe lifting and handling techniques. If you need to move the printer it must be moved by two people. Use the

lifting handles located as shown in the diagram (see page 5). Back

injury could be caused if a single person attempts to lift the printer.

S

ETUP

G

UIDE

3

2

Carefully remove all of the packing tapes from the printer.

3

Pull the paper tray out of the printer and remove the packing tapes from the tray.

4

Select a location for the printer:

•Leave enough room to open the printer trays, covers, and allow for proper ventilation.

•Provide the proper environment:

– A firm, level surface

– Away from direct airflow of air conditioners, heaters, or

ventilators

– Free of temperature, sunlight, or humidity extremes or

fluctuations

– Clean, dry, and free of dust

4 S

ETUP

G

UIDE

C

AUTION

: You must place your printer in the level surface. If you do not, the print quality problems can occur.

Step 2.

Understanding Your Printer

These are the main components of your printer:

Top Cover

(Open to install the imaging unit, and transfer belt.)

Paper Output Tray

Output Support

Top Cover

Release Button

Control Panel

(refer to Chapter

5 in the User’s

Guide which is on the CD-

ROM.)

Front Cover

(Open to replace the waste toner container.)

Handle

(Lifting handles are located at the lower edge of both sides of the printer.)

Left Cover

(To install the toner cartridges press the top cover release button and open fully.)

Tray 1

(250-sheet paper feeder)

Optional Tray 2

(500-sheet paper feeder)

S

ETUP

G

UIDE

5

Right Cover

(Open to remove paper jams.)

Muti-purpose Tray

(Open to load special print materials.)

Handle

(Use it to lift the printer.)

Optional Tray 2 Jam Cover

(Open to remove jams in the optional tray 2.)

Control Board

Cover

(Open to install optional accessories.)

Power Switch

Power Receptacle

Wireless Network

Antenna*

Network Port**

USB Port

Parallel Port***

* This wireless network port is not supplied with the printer. It is an option that must be purchased and installed separately.

** The network port is fitted as standard on the CLP-500N. CLP-500 users can purchase and install separately an optional Network Card. For details, see the User's Guide of the printer in the CD-ROM.

*** The parallel port may not be available depending on your country.

6 S

ETUP

G

UIDE

Step 3.

Installing the Imaging Unit, Transfer

Belt and Toner Cartridges

1

Using the handle, completely open the left cover until it is at right angles to the main frame.

C

AUTION

: If the left cover is not completely open, the top cover release button does not press.

2

Press the top cover release button to unlatch the top cover and open it all the way.

Top cover release button

S

ETUP

G

UIDE

7

8 S

ETUP

G

UIDE

3

Take the imaging unit out of the package using the handle.

4

Remove the paper covering the imaging unit by removing the tape under the handle of the imaging unit.

C

AUTIONS

:

• Do not use sharp objects, such as a knife or scissors, to open the imaging unit package and tape on the protective paper liner. You could damage the surface of the imaging unit.

• To prevent damage, do not expose the imaging unit to light for more than a few minutes. Cover it with black paper, if necessary.

• Do not touch the surface of the green roller on the imaging unit or print quality problems can occur.

5

Locate the imaging unit slots inside the printer, one on each side.

6

Hold the handle on the imaging unit with the green roller facing you. Align the imaging unit with the slots in your printer so that the colors on both sides of the imaging unit slide into the corresponding colors of the slots.

C

AUTION

: Insert the imaging unit carefully so as not to scratch and damage the surface of the green roller.

7

Slide the imaging unit down into the printer until it cannot be pushed in any further and fold the handle down.

C

AUTION

: To prevent damage, do not expose the imaging unit to light for more than a few minutes. Close the top and left cover should the setup need to be halted for any reason.

S

ETUP

G

UIDE

9

10 S

ETUP

G

UIDE

8

Take the transfer belt out of the package.

9

Remove the paper covering the transfer belt by removing the tape.

C

AUTION

: Don’t use sharp objects, such as a knife or scissors, to open the transfer belt package. You could damage the surface of the transfer belt.

10

Pinch the transfer belt tention levers on both sides of the transfer belt. Then, pull them out, as shown below.

11

Locate the transfer belt slots inside the printer, one on each side.

12

Hold the handle on the transfer belt and align it with the slots in your printer.

N

OTE

: Keep the transfer belt level, do not turn the transfer belt over otherwise looses toner may be spilled.

13

Slide the transfer belt down into the printer. Press it firmly to make sure that it latches into place.

S

ETUP

G

UIDE

11

14

Firmly push the lock levers on each side towards the top cover, as shown below, to lock the transfer belt into place.

C

AUTION

: If you open the left cover for a few minutes, the imaging unit can be exposed to light. This causes damage to the imaging unit.

15

After making sure that the left cover is open, close the top cover. Make sure that it is securely latched.

12 S

ETUP

G

UIDE

C

AUTION

: Do not try to close the left cover with the top cover open. This may cause damage to the printer.

16

Take the toner cartridges out of their packages.

C

AUTION

: Do not use sharp objects, such as a knife or scissors, to open the toner cartridges packages. You could damage the surface of the toner cartridges.

17

Holding both sides of the cartridges, gently roll them from side to side to distribute the toner.

18

Place the toner cartridges on a flat surface as shown and remove the paper covering the toner cartridge by removing the tape.

N

OTE

: If toner gets on your clothing, wipe it off with a dry cloth and wash it in cold water. Hot water sets toner into fabric.

S

ETUP

G

UIDE

13

14 S

ETUP

G

UIDE

19

On the right hand side of the toner cartridge slot is a label that identifies which color cartridge to fit into each slot.

K

Y

M

C

Black

Yellow

Magenta

Cyan

20

Holding each toner cartridge, insert them into their corresponding positions shown in order of Cyan, Magenta,

Yellow and then Black. Using both hands, grip the cartridge to insert into the slot. Then hold the handle to slide the cartridge in.

Grip here.

K

Y

M

C

•When the toner cartridges are correctly installed the yellow and black cartridges are not fully inserted. These will be pushed into place when you close the left cover.

21

Close the left cover. Make sure that it is securely latched.

If you have installed the toner cartridges wrongly, the left cover will not close properly. Check again to make sure the cartridge colors correspond to those marked on the right hand side. Never use force to close the cover.

N

OTE

: When printing text at 5% coverage, you can expect a toner cartridge life of about 7,000 pages for black and 5,000 pages for color. However, the toner cartridge that is shipped with the printer prints 2,000 pages for black and white, 1,500 pages for color.

S

ETUP

G

UIDE

15

Step 4.

Loading Paper

The tray (Tray 1) can hold a maximum of 250 sheets of plain paper. You can use A4 and letter-sized paper.

To load paper:

1

Pull the tray out of the printer.

2

Push down on the metal plate until it locks into position.

3

Flex the paper sheets back and forth to separate the pages and then fan them while holding one edge. Tap the edges of the stack on a flat surface to even it up.

16 S

ETUP

G

UIDE

4

Load paper

with the print side facing up

.

Make sure that all four corners are flat in the tray and under the corner brackets as shown below.

5

Do not exceed the maximum stack height. Overfilling the tray may cause a paper jam.

S

ETUP

G

UIDE

17

18 S

ETUP

G

UIDE

6

Pinch the paper guide as shown and move it toward the paper until it lightly touches the side of the stack. Do not press the guide too tightly against the edge of the paper; the guide may bend the paper.

N

OTE

: If you want to change the paper size in the tray, refer to the User’s Guide of your printer supplied in the CD-ROM.

7

Slide the tray back into the printer.

N

OTES

:

• Do not push the width guide far enough to cause the material to warp.

• If you do not adjust the width guide, it may cause paper jam.

Step 5.

Connecting a Printer Cable

You need to connect your printer to the computer with either a parallel interface cable or a Universal Serial Bus (USB) cable.

If you are a Macintosh user, you can use only a USB cable.

N

OTE

: The CLP-500N does not support printing from a Macintosh using a network connection.

Using a Parallel Cable

N

OTES

:

• The parallel port may not be available depending on your country.

• To connect the printer to the parallel port of the computer requires a certified parallel cable. You need to buy a IEEE1284 compliant cable that is within 3m in length.

1

Make sure that both the printer and the computer are turned off.

2

Plug the parallel printer cable into the connector on the back of the printer.

Push the metal clips down to fit inside the notches on the cable plug.

To the parallel port on your computer

3

Connect the other end of the cable to the parallel interface port on your computer, and tighten the screws.

See the User’s Guide of your computer, if you need help.

S

ETUP

G

UIDE

19

20 S

ETUP

G

UIDE

Using a USB Cable

N

OTE

: Connecting the printer to the USB port of the computer requires a certified USB cable. You will need to buy a USB 2.0 compliant cable that is within 3m in length.

1

Make sure that both the printer and the computer are turned off.

2

Plug the USB printer cable into the connector on the back of the printer.

To the USB port on your computer

3

Connect the other end of the cable to the USB port on your computer.

See the User’s Guide of your computer, if you need help.

N

OTE

: To print using the USB interface, you must run Windows

98/Me/2000/XP, or Macintosh with OS 8.6 and the G3 processor or higher.

For Networking Printing

You can attach your CLP-500 or CLP-500N printer to a network using an Ethernet cable (UTP cable with RJ.45 connector).

CLP-500N has a built-in network interface card. If you are a

CLP-500 user, you need to install an optional network interface card.

If you want to use the printer in both a wired and a wireless network environments, you need to install an optional wired/ wireless network interface card. For details about installing the card, see the User’s Guide of your printer in the CD-ROM.

Using an Ethernet cable

1

Make sure that both the printer and the computer are turned off.

2

Plug one end of the Ethernet cable into the Ethernet network port on the Printer.

To the network

LAN connection

3

Plug the other end of the cable into a network LAN connection.

For details about installing the network card, see the User’s

Guide of your printer in the CD-ROM.

S

ETUP

G

UIDE

21

Using a network antenna

1

If you install the wired/wireless network card, you can use your printer in wireless environment.

For details about installing the wired/wireless network card, see the User’s Guide of your printer in the CD-ROM.

N

OTE

: After connecting the printer you need to configure the network parameters on the control panel. See the User’s Guide of your printer. You can use the software supplied with the card.

Refer to the software User’s Guide.

Step 6.

Turning the Printer On

1

Plug the power cord into the power receptacle on the back of the printer.

2

Plug the other end into a properly grounded AC outlet and turn on the power.

1

2

22 S

ETUP

G

UIDE

C

AUTIONS

:

• Some parts inside of the printer may be hot when power is on or after printing. Be careful not to burn yourself when working inside the printer.

• Do not disassemble the printer when it is powered on. Doing so may give you an electric shock.

Step 7.

Printing a Demo Page

Print a demo page to make sure that the printer is operating correctly.

1

In ready mode, press and hold the

Upper Level

button

( ) on the control panel for 2 seconds to print a demo page.

A demo page showing the printer’s features and capabilities prints out.

Step 8.

Changing the Display Language

To change the language that is displayed on the control panel, take the following steps:

1

In ready mode press the

Menu

button ( ) on the control panel until you see ‘Setup’ on the bottom line of the display.

2

Press the

Enter

button ( ) to access the menu.

3

Press the scroll button ( or ) until you see ‘LCD

Language’ on the bottom line.

4

Press the

Enter

button ( ) to confirm the menu item.

5

Press the scroll button ( or ) to display the language you want to use.

6

Press the

Enter

button ( ) to save the selection.

7

Press the

On Line/Continue

button ( ) to return to ready mode.

S

ETUP

G

UIDE

23

Step 9.

Installing the Printer Software

The supplied CD-ROM contains Windows printing software,

Macintosh printing software, Linux printing software, on-line

User’s Guide and Acrobat Reader to view the User’s Guide.

If you are printing from Windows:

You can install the following printer software using the CD-ROM.

Printer Driver

for windows. Use this driver to take full

advantage of your printer’s features. See page 25.

USB driver

only for Windows 98/Me/2000/XP. For details

about installing the USB driver, see page 25.

If you are printing from Macintosh:

For information about installing the print software and printing from a Macintosh, refer to Appendix A in the User’s Guide. To

view the User’s Guide, see page 27.

If you are printing in Linux:

For information about installing the Linux driver, refer to

Appendix B in the User’s Guide. To view the User’s Guide, see

page 28.

Installing Printer Software in Windows

Verify the following before you install the printer software:

Item

Operating system

RAM

Free disk space

Internet Explorer

Requirements

Windows 95/98/Me/NT 4.0/2000/XP

95/98/Me

NT 4.0/2000

32 MB

64 MB

XP 128 MB

95/98/Me/NT 4.0/

2000/XP

200 MB

5.0 or higher

24 S

ETUP

G

UIDE

N

OTE

: For Windows NT 4.0/2000/XP, the system administrator should install the software.

All applications should be closed on your PC before beginning installation.

1

Place the CD-ROM in the CD-ROM drive. Installation will start automatically.

If the CD-ROM drive does not automatically run:

Select

Run

from the

Start

menu, and type

x:\cdsetup.exe

in the Open box (where

x

is the drive letter for the CD-ROM drive), then click

OK

.

N

OTE

: If the

New Hardware Found

window appears during the installation procedure, click in the upper right corner of the box, or click

Cancel

.

2

When the language selection window appears, select the appropriate language.

If you can’t find the desired language from the screen, scroll through the screen using the scroll button on the bottom right of the screen.

3

Click

Install the Samsung Software on your PC.

4

The installation window opens. Click

Next

.

5

Follow the instructions on the window to complete the installation.

N

OTE

: If you connect the printer with the USB cable at first and then you want to use the parallel interface, remove the USB cable and connect the parallel cable. Then reinstall the printer driver.

S

ETUP

G

UIDE

25

Reinstalling Printer software

Reinstallation is required if your installation fails.

1

From the

Start

menu, select

Programs

.

2

Select

Samsung CLP-500 Series

, and then

Samsung

CLP-500 Series Driver Maintenance

.

3

The Samsung CLP-500 Series Driver Maintenance window appears. Click

Repair

and then click

Next

.

4

When reinstallation is done, click

Finish

.

Removing Printer software

1

From the

Start

menu, select

Programs

.

2

Select

Samsung CLP-500 Series

, and then

Samsung

CLP-500 Series Driver Maintenance

.

3

The Samsung CLP-500 Series Driver Maintenance window appears. Check

Remove

and then click

Next

.

4

When you are asked to confirm your selection, click

OK

.

The Samsung CLP-500 Series printer driver and all of its components are removed from your computer.

5

When removing is completed, click

Finish

.

26 S

ETUP

G

UIDE

Changing the Display Language

After installation of the software, you can change the display language.

1

From the

Start

menu, select

Programs

.

2

Select

Samsung CLP-500 Series

, and

Language

Selection

.

3

Select the desired language from the language selection window, and click

OK

.

Step 10.

Viewing the User’s Guide

The Samsung CLP-500 Series User’s Guide, which is in the software CD-ROM, is in Adobe Acrobat PDF format. The manual will give you flexibility and convenience when you have to access information.

You can view the manuals on-screen in different formats

(viewing a single page, continuous single page or continuous facing page, zooming in up to 1600% or out up to 12.5%, scrolling two-up page or article flow). You can also print the manual, if necessary.

In Windows

1

Place the CD-ROM in the CD-ROM drive.

2

When the language selection window appears, select the appropriate language.

3

Click

View User’s Guide

.

The Adobe Acrobat program opens and you can view the

User’s Guide.

N

OTE

: To open the User’s Guide, you should install the Adobe

Acrobat Reader program on your computer. If you do not have the program, click

Install the Bonus Software on your PC

to install the program.

In Macintosh

1

Place the CD-ROM in the CD-ROM drive.

2

Double-click

SAMSUNG_CLP

on your Macintosh desktop.

3

Double-click

User’s Guide

folder.

4

Double-click

User’s Guide.pdf(language)

. The Adobe

Acrobat programme opens and you can view the User’s

Guide.

S

ETUP

G

UIDE

27

28 S

ETUP

G

UIDE

In Linux

1

When the Administrator Login window appears, type in

root

” in the login field and enter the system password.

2

Insert the printer software CD-ROM.

3

Click the icon at the bottom of the screen. When the terminal screen appears, type in:

[[email protected] /root]#

cd /mnt/cdrom

(the CD-ROM directory)

[[email protected] cdrom]#

gv manual/EnGuide.pdf

N

OTE

: If your ghostscript version is old, you may not be able to see the pdf file. Then, install Acrobat Reader on your system or try to read the User’s Guide on a Windows system.

1. Click the icon at the bottom of the screen. When the terminal screen appears, type in:

[[email protected]ocal /root]

# cd /mnt/cdrom

(the CD-ROM directory)

[[email protected] cdrom]

# manual/acrobat4/INSTALL

2. After reading the license agreement, type

accept

.

3. When you are asked of the installation directory, just type the enter key.

4. You need to make a symbolic link to execute Acrobat Reader without full path:

[[email protected] cdrom]

# ln -s/ usr/local/acrobat4/bin/ acroread /usr/bin/acroread

5. Now, you can read the pdf files with Acrobat Reader.

[[email protected] cdrom]#

acroread /mnt/cdrom/manual/

EnGuide.pdf

Home

Visit us at:

www.samsungprinter.com

Rev.

2 .0

0

COLOR LASER PRINTER

User’s Guide

This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to use of this manual.

© 2003 Samsung Electronics Co., Ltd. All rights reserved.

• CLP-500, CLP-500N and Samsung logo are trademarks of Samsung Electronics

Co., Ltd.

• Centronics is a trademark of Centronics Data Computer Corporation.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• Apple, AppleTalk, TrueType, Laser Writer and Macintosh are trademarks of Apple

Computer, Inc.

• Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0 and Windows XP are registered trademarks of Microsoft Corporation.

• All other brand or product names are trademarks of their respective companies or organizations.

1

C

ONTENTS

Chapter 1 :

Introduction

Special Features ........................................................ 1.2

Printer Components .................................................. 1.4

Front View ........................................................... 1.4

Right View ........................................................... 1.5

Rear View ............................................................ 1.6

Chapter 2 :

Using the Control Panel

Understanding the Control Panel .............................. 2.2

Display ............................................................... 2.2

Buttons ............................................................... 2.3

Using Control Panel Menus ........................................ 2.5

Accessing Control Panel Menus ............................... 2.5

Overview of Control Panel Menus ............................ 2.6

Information Menu ................................................. 2.6

Layout Menu ........................................................ 2.7

Printer Menu ........................................................ 2.8

Color Menu .......................................................... 2.9

Setup Menu ......................................................... 2.9

Network Menu .................................................... 2.12

Chapter 3 :

Using Print Materials

Choosing Paper and Other Materials ......................... 3.2

Sizes and Capacities ............................................. 3.2

Guidelines for Paper and Special Materials ............... 3.3

Loading Paper ........................................................... 3.4

Using Tray 1 ........................................................ 3.4

Changing the Paper Size in the Tray ........................ 3.7

Using the Optional Tray 2 ...................................... 3.8

Using the Multi-purpose Tray ................................. 3.9

Using the Manual Feed ........................................ 3.12

2

Printing on Special Print Materials .......................... 3.14

Printing on Envelopes .......................................... 3.14

Printing on Labels ............................................... 3.16

Printing on Transparencies ................................... 3.17

Printing on Preprinted Paper ................................ 3.20

Printing on Card Stock or Custom-sized Materials ... 3.21

Chapter 4 :

Printing Tasks

Printer Driver Features ............................................. 4.2

Printing a Document ................................................. 4.3

Canceling a Print Job ............................................. 4.4

Printer Settings ......................................................... 4.5

Layout tab ........................................................... 4.6

Paper tab ............................................................ 4.7

Graphics tab ........................................................ 4.9

Extras tab ......................................................... 4.12

About tab .......................................................... 4.13

Using a Favorite Setting ...................................... 4.13

Using Help ......................................................... 4.14

Chapter 5 :

Advanced Printing

Printing on Both Sides of the Paper ........................... 5.2

Scaling Your Document ............................................. 5.4

Fitting Your Document to a Selected Paper Size ........ 5.5

Printing Multiple Pages on One Sheet of the Paper ... 5.6

Printing Posters ........................................................ 5.7

Printing Booklets ...................................................... 5.9

Using Watermarks .................................................. 5.10

Using an Existing Watermark ............................... 5.10

Creating a Watermark ......................................... 5.11

Editing a Watermark ........................................... 5.12

Deleting a Watermark ......................................... 5.12

Using Overlays ........................................................ 5.13

What is an Overlay? ............................................ 5.13

Creating a New Page Overlay ............................... 5.13

Using a Page Overlay .......................................... 5.15

Deleting a Page Overlay ...................................... 5.16

3

Chapter 6 :

Maintaining Your Printer

Printing a Configuration Page ................................... 6.2

Replacing the Supplies .............................................. 6.3

Managing the Toner Cartridges ................................. 6.4

Toner Cartridge Storage ........................................ 6.4

Toner Cartridge Life Expectancy ............................. 6.4

Checking the Remaining Toner ............................... 6.4

Redistributing the Toner ........................................ 6.5

Replacing the Toner Cartridges ................................. 6.8

Replacing the Waste Toner Container ..................... 6.11

Replacing the Imaging Unit ..................................... 6.14

Replacing the Transfer Belt ..................................... 6.22

Cleaning the Printer ................................................ 6.29

Cleaning the Outside of the Printer ....................... 6.29

Cleaning the LSU Inside the Printer ....................... 6.30

Cleaning the Inside of the Printer .......................... 6.31

Replacement Part .................................................... 6.38

Chapter 7 :

Solving Problems

Troubleshooting Checklist ......................................... 7.2

Solving General Printing Problems ............................ 7.3

Clearing Paper Jams ................................................. 7.7

In the Paper Feed Area ......................................... 7.8

In the Multi-purpose Tray .................................... 7.10

Inside the Printer ............................................... 7.10

In the Paper Exit Area ......................................... 7.11

In the Duplex Area ............................................. 7.14

In the Optional Tray2 .......................................... 7.18

Tips for Avoiding Paper Jams ................................ 7.21

Solving Print Quality Problems ................................ 7.22

Understanding Display Messages ............................ 7.26

Common Windows Problems ................................... 7.30

Common Macintosh Problems ................................. 7.31

Problems in the Chooser ...................................... 7.31

Printing Errors .................................................... 7.31

Common Linux Problems ......................................... 7.32

4

Appendix A :

Using Your Printer with a Macintosh

Installing Software for Macintosh ............................. A.2

System Requirements ........................................... A.2

Installing Software ............................................... A.3

Choosing Your Printer ........................................... A.5

Printing a Document ................................................. A.6

Using Advanced Printing Features ............................. A.8

Mac OS 8.6 ~ 9.x ................................................. A.8

Mac OS 10.x ...................................................... A.11

Appendix B :

Using Your Printer in Linux

Installing the Printer Driver ...................................... B.2

System Requirements ........................................... B.2

Installing the Printer Driver .................................... B.2

Changing the Printer Connection Method ................. B.6

Uninstalling the Printer Driver ................................ B.7

Using the Configuration Tool ..................................... B.8

Changing LLPR Properties ....................................... B.10

Appendix C :

Using Your Printer on a Network

About Sharing the Printer on a Network ................... C.2

Setting Up a Locally Shared Printer ........................... C.3

In Windows 95/98/Me ........................................... C.3

In Windows NT 4.0/2000/XP .................................. C.4

Setting Up a Network-Connected Printer .................. C.6

Configuring Network Parameters on the

Control Panel ....................................................... C.6

Appendix D :

Installing Printer Options

Installing Printer Memory ......................................... D.2

Removing the Memory .......................................... D.6

Installing a Network Interface Card .......................... D.7

Installing an Optional Tray ...................................... D.12

5

Appendix E :

Specifications

Printer Specifications ................................................ E.2

Paper Specifications .................................................. E.3

Overview ............................................................. E.3

Supported Sizes of Paper ....................................... E.4

Guidelines for Using Paper ..................................... E.5

Paper Specifications .............................................. E.6

Paper Output Capacity .......................................... E.6

Paper Input Capacity ............................................ E.6

Printer and Paper Storage Environment ................... E.7

Envelopes ............................................................ E.8

Labels ............................................................... E.10

Transparencies ................................................... E.10

6

Environmental and Safety Consideration

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is certified as a

Class I laser product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a

Class I level during normal operation, user maintenance, or prescribed service condition.

W

ARNING

Never operate or service the printer with the protective cover removed from Laser/

Scanner assembly. The reflected beam, although invisible, can damage your eyes.

When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

7

Ozone Safety

OZONE

During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator.

However, it is advisable that the machine be operated in a well ventilated area.

If you need additional information about ozone, please contact your nearest Samsung dealer.

Power Saver

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

The energy star emblem does not represent EPA endorsement of any product or service.

Recycling

Please recycle or dispose of packaging materials for this product in an environmentally responsible manner.

Radio Frequency Emissions

FCC regulations

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

C

AUTION

: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

8

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur:

“Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United

States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

“While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times.

This device can not be colocated with another transmitter and transmitting antenna.”

9

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symbolises Samsung

Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:

January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications

Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics

Co., Ltd. in the first instance.

The product has been tested against TBR21 and/or TBR 38. To assist in the use and application of terminal equipment which complies with this standard, the European

Telecommunication Standards Institute (ETSI) has issued an advisory document (EG

201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.

European Radio Approval Information

(for products fitted with EU-approved radio devices)

This Product is a printer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band, may be present

(embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

10

Wireless devices that may be in your system are only qualified for use in the

European Union or associated areas if a CE mark with a Notified Body

Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

European States qualified under wireless approvals:

EU

Austria, Belgium, Denmark, Finland, France (with frequency

restrictions), Germany, Greece, Ireland, Italy, Luxembourg,

The Netherlands, Portugal, Spain, Sweden and the United

Accept EU

Iceland, Liechtenstein, Norway and Switzerland

European States with restrictions on use:

EU

In France, the frequency range is restricted to 2446.5-2483.5 MHz

for devices above 10 mW transmitting power such as wireless

Accept EU

No limitations at this time.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval

Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements.

Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include

11

extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. 802.11B (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

Every country has different restrictions on the use of wireless devices.

Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

12

13

14

MEMO

1

I

NTRODUCTION

Congratulations on the purchase of your printer!

This chapter includes:

• Special Features

• Printer Components

Special Features

Your new printer is equipped with special features that improve the print quality. You can:

Print in color with excellent quality and speed

• You can print in a full range of colors using cyan, magenta, yellow, and black.

• You can print at

1200 dpi

(Class). See page 4.9.

• In black & white mode your printer prints A4-sized paper at 20 ppm and letter-sized paper at 21 ppm (pages per minute). For color printing, A4/letter-sized paper prints at

5 ppm.

• In duplex printing, your printer prints A4/Letter sized paper at 9.6 IPM (images per minute) for black & white and 5 IPM for color.

Handle paper flexibly

Multi-purpose Tray

supports letterhead, envelopes, labels, transparencies, custom-sized materials, postcards, and heavy paper. A 100-sheet

Multi-purpose Tray

supports plain paper.

• The

Standard 250-sheet input tray

(Tray1) and

optional

500-sheet input tray

(Tray2) supports A4/letter-sized paper.

8

9

Create professional documents

• Print

Watermarks

. You can customize your documents

with a word, such as “Confidential.” See page 5.10.

• Print

Booklets

. This feature enables you to easily print the pages to create books. Once printed, all you have to do is

to fold and staple the pages. See page 5.9.

• Print

Posters

. The text and pictures of each page of your document are magnified and printed across sheet of paper

and taped together to form a poster. See page 5.7.

1.

2 I

NTRODUCTION

Save time and money

• You can print on both sides of the paper to save paper

(

double-sided printing

). See page 5.2.

• You can print multiple pages on one single sheet of paper to save paper.

• You can use preprinted forms and letterhead on plain

paper. See “Using Overlays” on page 5.13.

• This printer automatically

conserves electricity

by substantially reducing power consumption when not printing.

• This printer meets

Energy Star

guidelines for energy efficiency.

1

Expand the printer capacity

• This printer has 64 MB of memory which can be expanded to

192 MB

.

• You can install an optional 500-sheet tray in your printer.

This tray reduces how often you have to add paper to the printer.

• A

Network interface

enables network printing. You can add the optional network interface card to CLP-500.

CLP-500N comes with a built-in network interface, 10/100

Base TX. You can also use an optional wireless network interface.

Print in various environments

• You can print in

Windows 95/98/Me/NT 4.0/2000/XP

.

• Your printer is compatible with a

Macintosh

and

Linux

.

• Your printer comes with both the

USB

and

Parallel

interface. The Parallel interface is available depending on your country.

You can also use a

Network interface

. CLP-500N comes with a built-in network interface, 10/100 Base TX. You can also use an optional wireless network interface, but, you need to add the optional network interface card to

CLP-500.

I

NTRODUCTION

1.

3

Printer Components

Front View

Top Cover

(Open to install the imaging unit and transfer belt.)

Paper Output Tray

Output Support

Top Cover

Release Button

Control Panel

(see page 2.2.)

Front Cover

(Open to replace the waste toner container.)

Handle

(Use it to lift the printer.)

Left Cover

(To install the toner cartridges press the top cover release button and open fully.)

Tray 1

(250-sheet paper feeder)

Optional Tray 2

(500-sheet paper feeder)

1.

4 I

NTRODUCTION

N

OTE

: If you continuously print many pages, the surface of the output tray may become hot. Ensure that you, and especially children, do not touch the surface.

Right View

Handle

(Use it to lift the printer.)

Optional Tray 2 Jam Cover

(Open to remove jams from Tray 2.)

Right Cover

(Open to remove paper jams.)

Muti-purpose Tray

(Open to load special print materials.)

1

I

NTRODUCTION

1.

5

Rear View

Control Board

Cover

(Open to install optional accessories.)

Power Switch

Wireless Network

Antenna

*

Network Port

**

USB Port

Parallel Port

***

Power Receptacle

* This wireless network port is not supplied with the printer. It is an option that must be purchased and installed separately.

** The network port is fitted as standard on the CLP-500N. CLP-500 users can purchase and install

separately an optional Network Card. For details, see page D.7.

*** The parallel port may not be available depending on your country.

1.

6 I

NTRODUCTION

2

U

SING THE

C

ONTROL

P

ANEL

This chapter describes how to use the printer’s control panel.

This chapter includes:

• Understanding the Control Panel

• Using Control Panel Menus

Understanding the Control Panel

The control panel on the top right side of your printer has a display and seven buttons.

Buttons

Status Map Display: displays the printer status and job in progress.

Display

Message

Ready

Offline

Processing...

Sleeping...

Description

• The printer is on-line and ready to print.

• If you press

On Line/Continue

, the printer switches to off-line.

• The printer is off-line and cannot print.

• If you press

On Line/Continue

, the printer switches to on-line.

• The printer is printing.

• If you want to cancel printing, press

Cancel

.

• The printer is in Power Save mode, using less power. When a print job is received from the computer or if any button is pressed, the printer switches to on-line.

• To deactivate the Power Save mode or change the power-saving time, see

page 2.9.

See “Understanding Display Messages” on page 7.26 for a

complete listing of all the printer messages.

2.

2 U

SING THE

C

ONTROL

P

ANEL

Buttons

Button

(status

map)

Description

When an error occurs, a lamp turns on at the corresponding location on the Status map. An error message appears on the display so that you can locate the error. For details on the meaning of the

error messages, see page 7.26.

• Press to switch between on-line and off-line.

• In menu mode, press to return to ready mode.

The color of the

On Line/Continue

button indicates the status of the printer.

Green

On

The printer is on-line and can receive data from the computer.

Blinking

• When the backlight blinks slowly, the printer is receiving data from the computer.

• When the backlight blinks quickly, the printer is receiving and printing data.

Orange

Off

On

Blinking

The printer stops printing due to a major error. Check the display message. See

page 7.26 for details on the

meaning of the error message.

A minor error has occurred and the printer is waiting for the error to be cleared. Check the display message. When the problem is cleared, the printer resumes printing. If you want to ignore this warning, press this button.

• The printer is off-line and cannot print.

• The printer is in Power Save mode.

When data is received, it switches to on-line.

• Press to enter menu mode.

• In menu mode, press to scroll through the menus.

2

U

SING THE

C

ONTROL

P

ANEL

2.

3

Button Description

In menu mode, press to select the displayed submenu item or confirm the changed setting. The selected item is marked with an *.

In menu mode, press to scroll through submenu items or setting options. Pressing

moves you to the next option and pressing

sends you back to the previous option.

• Press to cancel the current print job.

• In menu mode, press to return to ready mode.

In menu mode, press to go back to the upper menu level.

2.

4 U

SING THE

C

ONTROL

P

ANEL

Using Control Panel Menus

A number of menus are available to make it easy for you to

change the printer settings. The diagram on page 2.6 shows the

menus and all of the items available in each menu. The items in each menu and the options you can select are described in more

detail in the tables beginning on page 2.6.

Accessing Control Panel Menus

You can configure your printer from the printer’s control panel.

You can also use the control panel menus while the printer is in use.

1

In ready mode press the

Menu

button ( ) until you see the menu you want on the bottom line of the display.

2

Press the

Enter

button ( ) to access the menu.

3

Press the scroll button ( or ) until the menu item you want displays on the bottom line.

4

Press the

Enter

button ( ) to confirm the selected item.

5

If the menu item has submenus, repeat steps 3 and 4.

6

Press the scroll button ( or ) until the setting option you want displays on the bottom line or enter the required value.

7

Press the

Enter

button ( ) to save your input or selection.

An asterisk (

*

) appears next to the selection on the display, indicating that it is now the default.

8

To exit the menu, press the

Upper Level

button ( ) repeatedly, or the

Cancel

button( ).

After 60 seconds of inactivity (no key has been pressed), the printer automatically returns to ready mode.

2

N

OTE

: Print settings made from the printer driver override the settings on the control panel.

U

SING THE

C

ONTROL

P

ANEL

2.

5

Information

(See page 2.6.)

Configuration

Menu Map

Demo Page

Overview of Control Panel Menus

The control panel menus are used to configure the printer. The control panel provides access to the following menus:

Layout

(See page 2.7.)

Duplex

Duplex Margin

Printer

(See page 2.8.)

Default Set

Current Job

Setup

(See page 2.9.)

LCD Language

Power Save

Auto Continue

Jam Recovery

Altitude Adj.

Maintenance

NETWORK*

(See page 2.12.)

Config Network

Config TCP

IP Get Method

IP Address

Subnet Mask

Gateway

Config 802.11b

Netware

Config Netware

IPX Frame Type

Reset Network

Default Set

Print Net CFG

Color

(See page 2.9.)

Calibration

Custom Color

* This menu only appears when a

Network Card is fitted (CLP-500N or

CLP-500 with optional Network card).

Information Menu

This menu contains information pages that you can print to give details about the printer and its configuration.

Item

Configuration

Menu Map

Explanation

The configuration page shows the printer’s current configuration. See

page 6.2.

The menu map shows the layout and current settings of the control panel menu items.

2.

6 U

SING THE

C

ONTROL

P

ANEL

Item

Demo Page

Explanation

The demo page allows you to check to see if your printer is printing properly.

Layout Menu

Use the

Layout

menu to define all settings relating to output.

(*: the default setting)

Item Explanation

Options: Off*, Long Edge, Short Edge

To print on both sides of paper, choose the edge as follows.

Long Edge

: Flips on the long edge. Prints pages to read like a book.

Short Edge

: Flips on the short edge.

Prints pages to read by flipping over like a note pad.

2

Duplex

2

3

5

Long Edge in the

Portrait orientation

2

5

3

Long Edge in the

Landscape orientation

2

3

5

Short Edge in the

Portrait orientation

2

3

5

Short Edge in the

Landscape orientation

Select

Off

to print on one side of the paper.

U

SING THE

C

ONTROL

P

ANEL

2.

7

Item

Duplex Margin

Explanation

In this menu, you can set the margins for double-sided printing. You can increase or decrease the value in 0.1mm increments.

Top Margin

: Set the top margin, from

0.0mm to 9.9mm.

Left Margin

: Set the left margin, from

0.0mm to 9.9mm.

Short Binding

: Set the bottom margin of the back of the page for short binding, from 0.0mm to 10mm.

Binding position: In the portrait orientation, appears in the upper line of the page. In the landscape orientation, appears on the right side of the page.

Long Binding

: Set the right margin of the back of the page for long binding, from

0.0mm to 22mm.

Binding position: In the portrait orientation, appears on the left side of the page. In the landscape orientation, appears in the upper line of the page.

Printer Menu

This menu allows you to reset the printer settings or cancel the current job.

Item Explanation

Default Set

This menu item allows you to restore the printer’s factory default settings.

Current Job

You can cancel the current print job and remove it from the printer buffer.

2.

8 U

SING THE

C

ONTROL

P

ANEL

Color Menu

This menu allows you to adjust the color setting.

Item Explanation

Options: Off, Auto*, Run Now

Calibration

Custom Color

This menu item allows you to calibrate the printer for the best possible color printer quality.

Off

: The printer is calibrated by the default setting.

Auto

: It automatically calibrates the printer to produce the best possible print quality for color documents.

Run Now

: It manually calibrates the printer.

This item allows you to adjust a specific color contrast individually.

CMYK:

It allows you to adjust the contrast of the toner in each toner cartridge.

Default

: It optimizes the colors automatically.

Manual Adjust

: It allows you to manually adjust the selected color contrast for each cartridge.

Note

: You should use the

Default

setting for a best color quality.

2

Setup Menu

Use the

Setup

menu to configure a variety of printer features.

(*: the default setting)

Item Explanation

LCD Language

Options: English*, German, French, Italian,

Spanish, Russian

The LCD Language setting determines the language of the text that appears on the control panel display and information printing.

U

SING THE

C

ONTROL

P

ANEL

2.

9

Item

Power Save

Auto Continue

Jam Recovery

Altitude Adj.

Explanation

Options: 5 Minutes, 10 Minutes, 15 Minutes, 30

Minutes*, 45 Minutes, 60 Minutes, 120 Minutes

When the printer does not receive data for an extended period of time, power consumption is automatically lowered. Set how long the printer waits before going to power save.

Options: Off, On*

This item determines whether or not the printer continues printing when it detects paper mismatched to your paper setting.

Off

: If a paper mismatch occurs, the message remains on the display and the printer remains off-line until you insert the correct paper.

On

: If the paper is mismatched, an error message displays. The printer goes off-line for 30 seconds then automatically clears the message and continues printing.

Options: Off*, On

This item determines how the printer behaves when a paper jam occurs.

Off

: The printer does not reprint pages.

Printing performance might be increased with this setting.

On

: The printer automatically reprints pages after you clear the paper jam.

Options: Low*, High

You can optimize the print quality according to your altitude.

2.

10 U

SING THE

C

ONTROL

P

ANEL

Item

Maintenance

Explanation

This item allows you to maintain the toner cartridge and other consumables.

Check Toner

: allows you to check how much toner is left in the each cartridge.

See page 6.4.

Check Others

Imaging Unit

: allows you to check the total number of images printed.

Transfer Belt

: allows you to check the total number of images printed.

Fuser

,

Transfer Roll.

,

MP Pickroll

,

Tray1

Pick roll

,

Tray2

Pick roll

:

These items are only for the service technians.

Alarm Shortage

: This item determines how the printer behaves when the consumables are low.

Off

: The printer does not display the warning message.

On

: The printer displays the warning message.

2

U

SING THE

C

ONTROL

P

ANEL

2.

11

Network Menu

This menu lets you configure the network interface card installed in your printer according to how the network is set up.

You can upgrade the firmware of the network interface card, and print the configuration.

N

OTE

: This menu only appears when a Network Card is fitted

(CLP-500N or CLP-500 with optional Network card).

(*: the default setting)

Item Explanation

Config Network

Options: Yes, No*

Sets whether or not you want to configure the network.

If you select

Yes

, you can configure the

TCP/IP and Netware menus.

If you select

Yes

, the following options are available:

Config TCP

,

Netware

and

Config Netware

.

Config TCP

IP Get Method

Options: Yes, No*

Select whether you want to set the IP address or not.

If you select

Yes

, you can configure IP address item.

If you select

Yes

, the following options are available:

IP Get Method

,

IP

Address

,

Subnet Mask

and

Gateway

.

Options: Static*, BOOTP, DHCP

You can set this item only when you set the

Config TCP

to

Yes

.

Static

: You can enter IP address, subnetmask, and gateway manually.

BOOTP

: The BOOTP server allots the

IP address to you automatically.

DHCP

: The DHCP server allots the IP address to you automatically.

2.

12 U

SING THE

C

ONTROL

P

ANEL

Item

IP Address

Subnet Mask

Gateway

Config 802.11b

Explanation

You can select this item only when you set

IP Get Method

to

Static

. This item lets you enter the IP address manually.

Press the scroll button to set the value of the 1st byte between 1 and 255, and then press the

Enter

button.

Set the value for the 2nd to the 4th byte the same way.

You can set this item only when you set

IP Get Method

to

Static

. This item lets you enter the subnet mask manually.

Press the scroll button to set the value of the 1st byte between 1 and 255, and then press the

Enter

button.

Set the value for the 2nd to the 4th byte the same way.

You can set this item only when you set

IP Get Method

to

Static

. This item lets you enter the gateway manually. Press the scroll button to set the value of the

1st byte between 1 and 255, and then press the

Enter

button.

Set the value for the 2nd to the 4th byte the same way.

Values: Yes, No*

Configure the Wireless Network environments.

If you select

Yes

, the following options are available :

SSID

,

Operation Mode

,

Channel

,

Authentication

,

Encryption

,

Using Key

,

KeyType

and

Key

.

See “Configuring the Wireless Network” on page C.12

Note:

This menu only appears when a

Wireless Network interface Card is fitted.

2

U

SING THE

C

ONTROL

P

ANEL

2.

13

Item

Netware

Config Netware

IPX Frame Type

Reset Network

Default Set

Print Net CFG

Explanation

Options: On*, Off

You can select whether or not you want to use the Netware protocol.

If you select

On

, you can access the

Config Netware

menu item.

In the

Config Netware

menu, you can specify the frame type parameter used on your network.

Options: Yes, No*

You can set this item only when you set

Netware

to

On

. This item lets you select whether or not you set the frame type parameter. Select

Yes

to select the frame type.

If you select

Yes

, the

IPX Frame Type

option appears on the display.

Values: Auto*, EN_8022, EN_8023, EN_II,

EN_SNAP

You can select this item only when you set

Config Netware

to

Yes

. This item lets you select IPX Frame Type.

Auto

:You can set the frame type automatically.

EN_8022

: Select this value to use the

IEEE 802.2 frame type.

EN_8023

:Select this value to use the

IEEE 802.3 frame type.

EN_II

:Select this value to use the

ETHERNET II frame type.

EN_SNAP

:Select this value to use the

SNAP frame type.

This item reboots the network interface card.

This item performs a simple reset and restores the factory default for the network configuration.

This item prints a page showing the network parameters you set.

2.

14 U

SING THE

C

ONTROL

P

ANEL

3

U

SING

P

RINT

M

ATERIALS

This chapter will help you understand the types of paper you can use with your printer and how to properly load paper in the different paper trays for the best print quality.

This chapter includes:

• Choosing Paper and Other Materials

• Loading Paper

• Printing on Special Print Materials

Choosing Paper and Other Materials

You can print on a variety of print materials, such as plain paper,

envelopes, labels, transparencies and so on. See “Printing on

Special Print Materials” on page 3.14. To get the best possible

print quality, use only high-quality copier-grade paper.

When you choose print materials, consider the following:

Desired outcome

: The paper you choose should be appropriate for the project.

Size

: You can use any size paper that fits easily within the paper adjusters of the paper tray.

Weight

: Your printer supports paper weighs as follows:

-16~24lbs (60~90g/m

2

) bond for Tray 1 or

optional Tray 2

-16~43lbs (60~163g/m

2

) bond for the

Multi-purpose Tray

-20~24lbs (75~90g/m

2

) bond for duplex printing

Brightness

: Some papers are whiter than others and produce sharper, more vibrant images.

Surface smoothness

: The smoothness of the paper affects how crisp the printing looks on the paper.

C

AUTION

: Using a material that does not conform to the

specifications listed on page E.6 can cause problems that may

require service. This service is not covered by the warranty or service agreements.

Sizes and Capacities

Size

Tray 1

Input Source/Capacity

*

Tray 2

(option)

Multipurpose Tray

Manual

Feed

250 500 100 1

Plain Paper

Envelopes

Labels

**

Transparencies**

10

10

30

1

1

1

Card stock**

— — 10 1

*

Depending on paper thickness, the maximum capacity may be reduced.

** If you are experiencing excessive jamming, feed one sheet at a time through the

Multi-purpose Tray.

3.

2 U

SING

P

RINT

M

ATERIALS

Guidelines for Paper and Special Materials

When selecting or loading paper, envelopes, or other special materials, keep these guidelines in mind:

• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.

• Use cut-sheet paper only. You cannot use multi-part paper.

• Use only high-quality, copier grade paper for the best print quality.

• Do not use paper with irregularities, such as tabs or staples.

• Do not attempt to load any tray while printing and never overfill the tray. This could cause a paper jam.

• Avoid paper with embossed lettering, perforations, or a texture that is too smooth or too rough.

• Colored paper should be of the same high quality as white photocopy paper. The pigments must withstand the printer’s fusing temperature of 180°C (356°F) for 0.1 seconds without deteriorating. Do not use paper with a colored coating that was added after the paper was produced.

• Preprinted forms must be printed with nonflammable, heatresistant ink that does not melt, vaporize, or release hazardous emissions when subject to the printer’s fusing temperature.

• Store paper in its ream wrapper until you are ready to use it.

Place cartons on pallets or shelves, not on the floor.

• Do not place heavy objects on top of the paper, whether it is packaged or unpackaged.

• Keep paper away from moisture, direct sunlight or other conditions that can cause it to wrinkle or curl.

3

N

OTE

: Do not use carbonless paper and tracing paper. They are unstable at the fusing temperature and can give of fumes, or cause damage to the printer.

U

SING

P

RINT

M

ATERIALS

3.

3

Loading Paper

Proper paper loading helps prevent paper jams and ensure trouble-free printing. Do not remove the paper tray while a job

is printing. Doing so may cause a paper jam. See “Sizes and

Capacities” on page 3.2 for acceptable paper capacities for each

tray.

Using Tray 1

The tray, Tray 1, can hold a maximum of 250 sheets of plain A4 and letter-sized paper.

You can purchase an optional tray, Tray 2, and attach it below

Tray 1, to load an additional 500 sheets of paper.

1

Pull the tray out of the printer.

2

Push down on the metal plate until it locks into position.

3.

4 U

SING

P

RINT

M

ATERIALS

3

Flex the paper sheets back and forth to separate the pages, and then fan them while holding one edge. Tap the edge of the stack on a flat surface to even it up.

3

4

Load paper

with the print side facing up

.

Make sure that all four corners are flat in the tray and under the corner brackets as shown below.

U

SING

P

RINT

M

ATERIALS

3.

5

5

Do not exceed the maximum stack height. Overfilling the tray may cause a paper jam.

6

While pinching the paper guide as shown, move it toward the paper until it lightly touches the side of the stack. Do not press the guide too tightly against the edge of the paper; the guide may bend the paper.

N

OTE

: If you want to change the paper size in the tray, refer to

page 3.7.

7

Slide the tray back into the printer.

8

When you print a document, select the paper type, size and source in your software application. For details, see

page 4.7.

3.

6 U

SING

P

RINT

M

ATERIALS

Changing the Paper Size in the Tray

The tray is preset to Letter or A4 size, depending on your country. To change the size to A4 or Letter, you must adjust the paper length guide properly.

1

Lift the paper length guide and place it in the correct position for the paper size you are loading.

3

Paper length guide

To remove the paper length guide, turn it slightly to your right to release the locks on the bottom of the guide, then pull it up.

To place the paper length guide in the paper position you want, insert the locks on the bottom of the guide into the desired paper slot and push it all the way in.

U

SING

P

RINT

M

ATERIALS

3.

7

2

Load paper with the

print side facing up

. For more

information see steps 4 and 5 on page 3.5~3.6.

3

While pinching the paper guide as shown, move it toward the paper until it lightly touches the side of the stack. Do not push the guide to tightly against the edge of the paper as it may cause the paper to bend.

Using the Optional Tray 2

The optional tray, Tray 2, can hold a maximum of 500 sheets of plain paper.

To load paper in Tray 2, follow the instructions for loading paper

on page 3.4.

3.

8 U

SING

P

RINT

M

ATERIALS

Using the Multi-purpose Tray

The Multi-purpose Tray is located on the right side of your printer. It can be closed when you are not using it, making the printer more compact.

3

Multi-purpose Tray

The Multi-purpose Tray can hold several sizes and types of material, such as transparencies, cards and envelopes. You may also want to use the Multi-purpose Tray for single page print jobs on letterhead, colored paper for use as separator sheets, or other special materials that you do not normally keep in the paper tray. You can load approximately 100 sheets of plain paper, 10 envelopes, 30 transparencies, 10 sheets of card stock or 10 labels at a time.

• Load only one size of print material at a time in the

Multi-purpose Tray.

• To prevent paper jams, do not add paper when there is still paper in the Multi-purpose Tray. This also applies to other types of print materials.

• Print materials should be loaded face down with the top edge going into the Multi-purpose Tray first and be placed in the center of the tray.

To load print material in the Multi-purpose Tray:

1

Lower the Multi-purpose Tray and unfold the paper support extension as shown.

U

SING

P

RINT

M

ATERIALS

3.

9

2

If you are using paper, flex or fan the edge of the paper stack to separate the pages before loading.

For transparencies, hold them by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems.

3

Load the print material

with the print side facing down

and against the right edge of the tray.

4

Pinch the paper width guide and slide it to the right to touch lightly against the edge of the material without bending it.

3.

10 U

SING

P

RINT

M

ATERIALS

If you want to print on previously printed paper from the

Multi-purpose Tray, the printed side should be facing up with the uncurled edge towards the printer. If you experience problems with the paper feeding, turn the paper around.

N

OTE

: Make sure that you have not loaded too much print material.

The print material buckles if you load a stack that is too deep or if you push it in too far.

3

5

When you print a document, set the paper source to

MP

Tray

and select the correct paper type in the software

application. For details, see page 4.7.

N

OTE

: After printing fold away the paper support extension and close the Multi-purpose Tray.

U

SING

P

RINT

M

ATERIALS

3.

11

Using the Manual Feed

If you select

Manual

in the

Source

option when changing print settings, you can manually load a sheet of print material in

Multi-purpose Tray. Manually loading paper can be helpful when you want to check the print quality after each page is printed.

This loading procedure is almost the same as the procedure for loading in the Multi-purpose Tray, except you load paper sheet-by-sheet in the Tray, send print data to print the first page, and press the

On Line/Continue

button ( ) on the control panel to print each following page.

1

Load a sheet of print material

with the print side down

and against the right edge of the Multi-purpose Tray.

2

Pinch the paper width guide and slide it to the right to touch lightly against the edge of the paper without bending it.

3.

12 U

SING

P

RINT

M

ATERIALS

3

When you print a document, you must select

Manual

for

Source

in the software application, and then select the

correct paper size and type. For details, see page 4.7.

3

4

Print the document.

The display shows a message prompting you to load paper.

5

Press the

On Line/Continue

button ( ).

The printer picks up the print material and prints. After one page is printed, the message appears again.

6

Insert the next sheet into the Multi-purpose Tray and press the

On Line/Continue

button ( ).

Repeat this step for every page to be printed.

U

SING

P

RINT

M

ATERIALS

3.

13

Printing on Special Print Materials

Printing on Envelopes

• Load envelopes into the Multi-purpose Tray only.

• Only use envelopes recommended for laser printers. Before loading envelopes in the Multi-purpose Tray, make sure that they are undamaged and are not stuck together.

• Do not feed stamped envelopes.

• Never use envelopes with clasps, snaps, windows, coated linings, or self-stick adhesives.

To print on envelopes:

1

Open the Multi-purpose Tray and unfold the paper support.

2

Flex or fan the edge of the envelope stack to separate them before loading.

3

Load the envelopes into the Multi-purpose Tray

with the flap side up

. The end of the envelope with the stamp area enters the printer first.

3.

14 U

SING

P

RINT

M

ATERIALS

4

Pinch the paper width guide and slide it to the right to touch lightly against the edge of the stack without bending it.

3

5

When you print, configure the paper source to

MP Tray

, the paper type to

Envelope

and the paper size in the software

application. For details, see page 4.7.

U

SING

P

RINT

M

ATERIALS

3.

15

Printing on Labels

• Only use labels recommended for laser printers.

• Verify that the labels’ adhesive material can tolerate a fusing temperature of 180°C (356°F) for 0.1 seconds.

• Make sure that there is no exposed adhesive material between the labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to the printer components.

• Never print on the same sheet of labels more than once or print on a partial sheet of labels.

• Do not use labels that are separating from the backing sheet or are wrinkled or damaged in any way.

• To prevent labels from sticking together, do not let the printed label sheets stack up as they are printed out.

To print on labels:

1

Open the Multi-purpose Tray and unfold the paper support.

2

Load labels only in the Multi-purpose Tray

with the print side down

and the top, short edge in first. Adjust the guide to fit the width of the labels.

3.

16 U

SING

P

RINT

M

ATERIALS

3

When you print, configure the paper source to

MP Tray

, the paper type to

Labels

and the size in the software

application. For details, see page 4.7.

3

Printing on Transparencies

• When you print a color document do not use transparencies with an attached backing sheet. This may cause print quality problems.

• Only use transparencies recommended for use in laser printers.

• Ensure that transparencies do not have torn edges and are not wrinkled or curled.

• Hold the transparencies by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems.

• Be careful not to leave fingerprints on or scratch the print side.

• You should use the following paper type:

A4: 003R96002, Letter: 3R3108

N

OTE

: Before printing on transparencies, make sure that the output support is laid down.

U

SING

P

RINT

M

ATERIALS

3.

17

To print on transparencies:

1

Open Multi-purpose Tray and unfold the paper support.

2

Only load transparencies into the Multi-purpose Tray. They must be loaded

with the print side downwards

and

the top with the white leading edge entering the printer first

. Adjust the guide to fit the width of the transparencies.

3.

18 U

SING

P

RINT

M

ATERIALS

3

When you print, configure the paper source to

MP Tray

, the paper type to

Transparency

, and the paper size in the

software application. For details, see page 4.7.

3

N

OTES

:

• To prevent transparencies from sticking together, do not let the printed sheets stack up as they are printed out.

• Place transparencies on a flat surface after removing them from the printer.

U

SING

P

RINT

M

ATERIALS

3.

19

Printing on Preprinted Paper

• Preprinted paper is paper that has some type of printing placed on it before it is sent through the printer (paper that has a preprinted logo at the top of the page, for example).

• Letterhead must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer’s fusing temperature of 180°C

(356°F) for 0.1 seconds.

• Ink on letterhead must be non-flammable and should not adversely affect any printer rollers.

• Forms and letterhead should be sealed in moisture-proof wrapping to prevent changes during storage.

• Before you load preprinted paper, such as forms and letterhead, verify that the ink on the paper is dry. During the fusing process, wet ink can come off of preprinted paper, reducing the print quality.

To print on preprinted paper:

1

Open the Multi-purpose Tray and unfold the paper support.

2

Load letterhead only in the Multi-purpose Tray

with the print side down and the top

,

short edge

,

in first

.

Adjust the guide to fit the width of the paper stack.

3.

20 U

SING

P

RINT

M

ATERIALS

3

When you print, configure the paper source to

MP Tray

, the paper type to

Preprinted

, and the paper size in the

software application. For details, see page 4.7.

3

Printing on Card Stock or Custom-sized

Materials

• Postcards, 3.5in. by 5.5in. (index) cards and other customsized materials can be printed with your printer. The minimum size is 90mm by 140mm (3.5in. by 5.5in.) and the maximum size is 216mm by 356mm (8.5in. by 14in.).

• Always insert the short edge into the Multi-purpose Tray first.

If you want to print in landscape mode, make this selection using your software. Inserting paper long edge first may cause a paper jam.

• Do not load more than 10 cards into the Multi-purpose Tray at a time.

• Do not print on material smaller than 90mm (3.5in.) wide or

140mm (5.5in.) long.

• Set margins at least 4.3mm away from the edges of the material in the software application.

U

SING

P

RINT

M

ATERIALS

3.

21

To print on card stock:

1

Open the Multi-purpose Tray and unfold the paper support.

2

Load print material only in the Multi-purpose Tray

with the print side down

and the

short edge first

. Slide the guide until it lightly touches the stack without bending it.

3.

22 U

SING

P

RINT

M

ATERIALS

3

When you print, configure the paper source to

MP Tray

, the paper type and size in the software application. For details,

see page 4.7.

3

If the size of your print material is not listed in the

Size

box in the

Paper

tab, click the

Custom

button and set the size

manually. See page 4.7.

U

SING

P

RINT

M

ATERIALS

3.

23

MEMO

3.

24 U

SING

P

RINT

M

ATERIALS

4

P

RINTING

T

ASKS

This chapter explains the printing options and common printing tasks.

This chapter includes:

• Printer Driver Features

• Printing a Document

• Printer Settings

Printer Driver Features

Feature

Color mode

Print quality option

Poster printing

Double-sided printing

Your printer drivers will support the following standard features:

• Paper source selection

• Paper size, orientation and media type

• number of copies

Table below lists a general overview of features supported by your printer drivers.

Win9x/Me Win2000/XP

SPL

NT4.0

Macintosh

Y Y

Y

Y

Y

Y

Y N

N Y

Y

Y

Y

Y

Y

Y Y Y

N

N Booklet printing

Multiple pages per sheet

(N-up)

Y Y Y Y

Fit to page printing

Scale printing

Different source for first page

Y

Y

Y

Y

Y

Y

Y

Y

Y

N

Y

N

Watermark

Overlay

TrueType fonts option

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

N

N

N

OTES

:

• Some of feature are not supported on Mac OS 10.x such as Paper

Source, Paper Type, Grayscale and Black&White.

• The Watermark feature is not supported on Mac OS 9.1 or higher.

4.

2 P

RINTING

T

ASKS

Printing a Document

The following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program you are using. Refer to the User’s Guide of your software application for the exact printing procedure.

N

OTE

: For detailed information about printing from a Macintosh

computer or a Linux system, see Appendix A and Appendix B.

4

1

Open the document you want to print.

2

Select

Print

from the

File

menu. The Print window opens.

It may look slightly different depending on your application.

You can select the basic print settings within the Print window. These settings include the number of copies and the print range.

Make sure that your printer is selected.

œ

Windows 98

3

To take advantage of the printer features provided by your printer, click

Properties

in the application’s print window.

For details, see “Printer Settings” on page 4.5

If you see a

Setup

,

Printer

or

Options

button in your Print window, click it instead. Then click

Properties

on the next screen.

4

Click

OK

to close the Properties window.

5

To start the print job, click

OK

in the Print window.

P

RINTING

T

ASKS

4.

3

4.

4 P

RINTING

T

ASKS

Canceling a Print Job

A print job can be stopped from a program, from a print queue, or from the

Cancel

button ( ) on the printer.

To stop a print job from the control panel:

• If the print job is already printing, press the

Cancel

button

( ). The printer finishes printing the pages that are already moving through the printer and deletes the remainder of the print job.

• Pressing the

Cancel

button ( ) cancels only the current job in the printer. If more than one print job is in the printer memory, you must press the

Cancel

button once for each job after the job starts printing.

To stop a print job from the Printers folder:

If the print job is waiting in a print queue or print spooler, such as the Printer group in Windows, delete the job as follows:

1

From the Windows

Start

menu, select

Settings

.

2

Select

Printers

to open the Printers window, and double-click the

Samsung CLP-500 Series

icon.

3

From the

Document

menu, select

Cancel Printing

(Windows 9x/Me) or

Cancel

(Windows NT 4.0/2000/XP).

œ

Windows 98

Printer Settings

You can use the Samsung CLP-500 Series Properties window, which allows you to access all of the information you need when using your printer. When the printer properties are displayed, you can review and change whatever settings are needed for your print job.

Your printer’s Properties window consists of 5 tabs:

Layout

,

Paper

,

Graphics

,

Extras

and

About

.

If you access the printer properties through the

Printers

folder, you can view more Windows-based tabs; refer to your Windows

User’s Guide.

The printer’s Properties window may differ, depending on your operating system. This User’s Guide shows the Properties window on Windows 98.

4

Notes

:

• Most Windows applications will override the settings you specify in the printer driver. Change all of the print settings available in the software application first, and change any remaining settings using the printer driver.

• The settings you change remain in effect only while you are using the current program. To make your changes permanent, make them in the

Printers

folder. Follow this procedure:

1. Click the Windows

Start

menu.

2. For Windows 95/98/Me/NT 4.0/2000, select

Settings

and then

Printers

.

For Windows XP, select

Printers and Faxes

.

3. Select the

Samsung CLP-500 Series

printer.

4. Click the right mouse button on the printer icon and:

• In Windows 95/98/Me, select

Properties

.

• In Windows 2000/XP, select

Printing Preferences

.

• In Windows NT 4.0, select

Document Default

.

5. Change the settings on each tab, and click

OK

.

P

RINTING

T

ASKS

4.

5

Layout tab

The

Layout

tab provides options for you to adjust how the document appears on the printed page. The

Layout Options

includes

Multiple Pages per Side

,

Booklet Printing

, and

Poster

. You can also use

Duplex(Double-sided Duplex)

in

this tab. See page 4.3 for more information on accessing your

software application.

1

2

The preview image shows the sample page with the settings you specified.

3

Property

1

Orientation

Description

Orientation

allows you to select the direction in which information is printed on a page.

Portrait

prints across the width of the page, letter style.

Landscape

prints across the length of the page, spreadsheet style.

If you want to turn the page upside down, select

Rotate 180 Degrees

.

4.

6 P

RINTING

T

ASKS

2

Layout

Options

3

Duplex(Double

-Sided Duplex)

œ

Landscape

œ portrait

Layout Options

allows you to select advanced printing options. For details ,

see Chapter 5, "Advanced Printing."

Duplex(Double-Sided Duplex)

allows you to automatically print twosided documents. If you use the printer driver’s default setting, select

Printer

Setting

. For details, see page 5.3.

Paper tab

You can use the following options for the basic paper handling.

See page 4.3 for more information about accessing your

software application.

Click the

Paper

tab to display the Paper properties.

1

2

3

4

5

6

4

Property

1

Copies

2

Size

Description

Copies

allows you to choose the number of copies to be printed. You can enter up to 999.

Size

allows you to choose the size of the paper loaded in the tray.

If the required size is not listed in the

Size

box, click

Custom

. When the

Custom

Paper Size

window appears, set the paper size and click

OK

. The setting appears on the list so that you can select it.

Enter the custom name you want to use.

Enter the paper size.

P

RINTING

T

ASKS

4.

7

4.

8 P

RINTING

T

ASKS

3

Property

Source

Description

Make sure that

Source

is set to the corresponding paper tray.

Use the

Manual

source when printing to special material. You have to load one sheet at a time into the Multi-purpose Tray. See

page 3.9.

If the paper source is set to

Auto Select

, the printer automatically picks up print material in the following order: Multi-purpose

Tray, Tray1, Optional Tray2.

4

6

Type

Scaling

Make sure that

Type

is set to

Plain Paper

.

If you load a different type of print material, select the corresponding paper type. For more information on print material, refer to

Chapter 3, "Using Print Materials."

If you use cotton paper 16lb to 24lb

(60~90g/m

2

), such as Gilbert 25% and

Gilbert 100%, set the paper type to

Cotton

for the best printing.

To use recycled paper, select

Recycled

Paper

.

5

Different

Source for

First Page

This property allows you to print the first page using a different paper type from the rest of the document. You can select the paper source for the first page.

For example, load thick stock for the first page into the Multi-purpose Tray, and plain paper into Tray1. Then, select

Tray1

in the

Source

option and

MP Tray

in the

Different Source for First Page

option.

Scaling

allows you to automatically or manually scale your printer job on a page.

You can choose from

None

,

Scale Printing

,

Fit to Page

. For details, see page 5.4 and

page 5.5.

Graphics tab

Use the following graphic options to adjust the print quality for

your specific printing needs. See page 4.3 for more information

about accessing your software application.

Click the

Graphics

tab to display the Graphics properties.

1

2

4

3

1

Property

Resolution

2

Color Mode

Description

You can select the printing resolution by choosing from

1200 dpi (Best)

,

600 dpi (Normal)

. The higher the setting, the sharper the printed characters and graphics. The higher settings may increase the time it takes to print a document.

You can set the color options. Setting to

Color

typically produces the best possible print quality for color documents. If you want to print a color document in grayscale, select

Grayscale

.

P

RINTING

T

ASKS

4.

9

Property

2

Color Mode

(Continued)

Description

If you click

Adjust Color

, you can change the appearance of the document’s images.

The preview image shows the sample page with the settings you specified.

Color Basics

: You can adjust the appearance of the images by changing the settings in the

Levels

option.

Tone Tuning

: You can adjust the tonal range of images by changing the

Tone Curve

option.

Color Info

: This tab contains information about the driver’s color conversion system.

3

Advanced

Options

You can make advanced settings by clicking the

Advanced Options

button.

4.

10 P

RINTING

T

ASKS

TrueType Options

This option is only avaliable when you use Windows 9x. This option determines what the driver tells the printer about how to image the text in your document. Select the appropriate setting according to the status of your document.

Download as Bit Image:

When this option is selected, the driver will download the font data as bitmap images. Documents with complicated fonts, such as Korean or Chinese, or various types of fonts will print faster in this setting.

Property

3

Advanced

Options

(Continued)

Description

Print as Graphics:

When this option is selected, the driver will download any fonts as graphics. When printing documents with high graphic content and relatively few TrueType fonts, printing performance (speed) may be enhanced in this setting.

Darken Text

: When this option is selected all text in your document prints darker than normal.

Print All Text Black:

When this option is selected all text in your document prints solid in black, regardless of the color it appears on the screen. When it is not selected colored text prints in shades of gray.

4

P

RINTING

T

ASKS

4.

11

Extras tab

See page 4.3 for more information about accessing your

software application. Click the

Extras

tab to access the following features:

1

2

3

4.

12 P

RINTING

T

ASKS

Option

1

Watermark

2

3

Overlay

Output

Options

Description

You can create a background image of text to print on each page of your document. See

“Using Watermarks” on page 5.10.

Overlays are often used to take the place of preprinted forms and letterhead paper. See

“Using Overlays” on page 5.13.

Print Order:

You can set the sequence for the pages to print. Select the print order from the drop-down list.

Normal

: Your printer prints all pages from the first page to the last page.

Reverse All Pages

: Your printer prints all pages from the last page to the first page.

Print Odd Pages

: Your printer prints only the odd pages of the document.

Print Even Pages

: Your printer prints only the even pages of the document.

Reverse Duplex:

In duplex printing, your printer reverses the order of the printed pages.

Option

3

Output

Options

(Continued)

Description

Reprint When Jammed:

When this option is checked, the printer keeps the image for a printed page until the printer signals that the page has successfully exited the printer. When a paper jam occurs, the printer reprints the last page after you clear the jam.

About tab

Use the

About

tab to display the copyright notice and the version number of the driver. If you have an Internet browser, you can connect to the Internet by clicking the website icon. See

page 4.3 for more information about accessing your software

application.

4

Using a Favorite Setting

The

Favorites

option, which is visible on each tab, allows you to save the current properties settings for future use.

To save a Favorites item:

1

Change the settings as needed on each tab.

2

Enter a name for the item in the

Favorites

input box.

P

RINTING

T

ASKS

4.

13

4.

14 P

RINTING

T

ASKS

3

Click

Save

.

When you save

Favorites

, all current driver settings are saved.

To use a saved setting, select the item from the

Favorites

drop down list.

The printer is now set to print according to the Favorites setting you selected.

To delete a Favorites item, select it from the list and click

Delete

.

You can also restore the printer driver’s default settings by selecting

<Printer Default>

from the list.

Using Help

Your printer has a help screen that can be activated using the

Help

button in the printer’s Properties window. The help screen gives you detailed information about the printer features provided by the printer driver.

You can also click in the upper right hand corner, and then click on any setting.

5

A

DVANCED

P

RINTING

This chapter explains the printing options and advanced printing tasks.

This chapter includes:

• Printing on Both Sides of the Paper

• Scaling Your Document

• Fitting Your Document to a Selected Paper Size

• Printing Multiple Pages on One Sheet of the Paper

• Printing Posters

• Printing Booklets

• Using Watermarks

• Using Overlays

Printing on Both Sides of the Paper

You can print on both sides of the paper automatically. Before printing, decide how you want your documents oriented.

The options are:

Long Edge

, which is the conventional layout used in book binding, or portrait.

Short Edge

, which is the type often used with calendars, or landscape.

2

2

2

3

5

2

3

5

5

3

œ

Long Edge

5

3

œ

Short Edge

N

OTES

:

• Do not print on both sides of labels, transparencies, envelopes, or thick paper. Paper jamming and damage to the printer may result.

• To use double-sided printing, you can use only the following paper sizes: A4, Letter, Legal and Folio that weigh 20~24lbs

(75~90g/m

2

).

There are two ways to enable or disable double-sided printing:

Using the Control Panel Menu

Select

Duplex

in the

Layout

menu. Set the

Duplex Margin

item in the same menu, if necessary. See page 2.7 for more

details.

For further details about using the control panel menu, see

page 2.5.

5.

2 A

DVANCED

P

RINTING

From the software application

1

When you change the print settings from your software

application, access the printer’s Properties. See page 4.3.

2

From the

Layout

tab, select the paper orientation.

3

From the

Duplex(Double-Sided Duplex)

section, select either Printer Setting, None, Short Edge, or Long Edge.

5

4

Click the

Paper

tab and select the paper source, size and type.

5

Click

OK

and print the document.

N

OTE

:

• The settings in the software application override those on the control panel.

• When you select the

Reverse Duplex

option in the

Extra

tab, your printer reverses the order of the printed pages.

A

DVANCED

P

RINTING

5.

3

Scaling Your Document

You can scale your print job on a page.

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

From the

Paper

tab, select

Scale Printing

from the

Type

drop-down list.

3

Enter the scaling rate in the

Percentage

input box.

You can also click the

œ or

button.

4

Select the paper source, size and type in

Paper Options

.

5

Click

OK

and print the document.

5.

4 A

DVANCED

P

RINTING

A

Fitting Your Document to a Selected

Paper Size

This printer feature allows you to scale your print job to any paper size regardless of the digital document size. This can be useful when you want to check the fine details on a small document.

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

From the

Paper

tab, select

Fit to Page

from the

Type

drop-down list.

3

Select the correct size from the

Target Paper

drop-down list.

5

4

Select the paper source, size and type in

Paper Options

.

5

Click

OK

and print the document.

A

DVANCED

P

RINTING

5.

5

1 2

3 4

Printing Multiple Pages on One

Sheet of the Paper

You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages are smaller and arranged in the order you specify on the sheet. You can print up to 16 pages on one sheet.

1

To change the print settings from your software application,

access the printer Properties. See page 4.3.

2

From the

Layout

tab, choose

Multiple Pages per Side

from the

Type

drop-down list.

3

Select the number of pages you want to print per sheet

(1, 2, 4, 9 or 16) from the

Pages per Side

drop-down list.

4

Select the page order from the

Page Order

drop-down list, if necessary.

1 2 1 3 2 1 3 1

3 4

Right, Then

Down

2 4

Down, Then

Right

4 3

Left, Then

Down

4 2

Down, Then

Left

5.

6 A

DVANCED

P

RINTING

The

Page Order

drop down list is enabled only if the number of pages per side is 4, 9 or 16.

Check

Print Page Border

to print a border around each page on the sheet.

Print Page Border

is enabled only if the number of pages per side is 2, 4, 9, or 16.

5

Click the

Paper

tab and select the paper source, size and type.

6

Click

OK

and print the document.

Printing Posters

This feature allows you to print a single-page document onto 4,

9 or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-sized document.

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

From the

Layout

tab, select

Poster

from the

Type

dropdown list.

5

A

DVANCED

P

RINTING

5.

7

3

Configure the poster option:

You can select the page layout from 2x2, 3x3 or 4x4. If you select 2x2, the image is automatically stretched to cover 4 physical pages.

Specify an overlap in millimeters or inches to make it easier to pasting the sheets together.

0.1 inches

0.1 inches

4

Click the

Paper

tab and select the paper source, size and type.

5

Click

OK

and print the document. You can complete the poster by pasting the sheets together.

5.

8 A

DVANCED

P

RINTING

Printing Booklets

The Booklet printing feature allows you to print your document on both sides of the paper and arranges the pages so that the paper can be folded in half after printing to produce a booklet.

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

From the

Layout

tab, choose

Booklet Printing

from the

Type

drop-down list.

5

N

OTE

: The booklet printing option is available when A4, Letter,

Legal or Folio size is selected in the

Size

option on the

Paper

tab.

3

Click the

Paper

tab, and select the paper source, size and type.

4

Click

OK

and print the document.

5

After printing, fold and staple the pages.

8

9

A

DVANCED

P

RINTING

5.

9

Using Watermarks

The Watermark option allows you to print text over an existing document. For example, you may want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all of the pages of a document.

There are several predefined watermarks that come with your printer, and they can be modified or you can add new ones to the list.

Using an Existing Watermark

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

Click the

Extras

tab, and select a watermark from the

Watermark

drop-down list. You will see the selected watermark in the preview image.

Preview image

3

Click

OK

and start printing.

N

OTE

: The preview image shows how the page will look when it is printed.

5.

10 A

DVANCED

P

RINTING

Creating a Watermark

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

Click the

Extras

tab, and click the

Edit Watermarks

button in the

Watermark

section. The Watermarks window appears.

5

3

Enter a text message in the

Watermark Message

box. You can enter up to 40 characters and it displays in the preview window.

When the

First Page Only

box is checked, the watermark prints on the first page only.

4

Select the watermark options.

You can select the font name, style, color, grayscale level and size from the

Font Attributes

section and set the angle of the watermark from the

Message Angle

section.

5

Click

Add

to add a new watermark to the list.

6

When you finish editing, click

Ok

and start printing.

To stop printing the watermark, select

<No Watermark>

from the

Watermark

drop-down list.

A

DVANCED

P

RINTING

5.

11

Editing a Watermark

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

Click the

Extras

tab, and click the

Edit Watermarks

button in the

Watermark

section. The Watermarks window appears.

3

Select the watermark you want to edit from the

Current

Watermarks

list to change the watermark message and

the options. Refer to page 5.11.

4

Click

Update

to save the changes.

5

Click

Ok

.

Deleting a Watermark

1

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

2

From the

Extras

tab, click the

Edit Watermarks

button in the

Watermark

section. The Watermarks window appears.

3

Select the watermark you want to delete from the

Current

Watermarks

list and click

Delete

.

4

Click

Ok

.

5.

12 A

DVANCED

P

RINTING

Dear ABC

Regards

WORLD BEST

WORLD BEST

Using Overlays

What is an Overlay?

An overlay is text and/or images stored on the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company’s letterhead, you need only tell the printer to print the letterhead overlay on your document.

Creating a New Page Overlay

To use a page overlay, you must create a new page overlay containing your logo or image.

1

Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file for later use.

2

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

3

Click the

Extras

tab, and click the

Edit Overlays

button in the

Overlay

section.

5

A

DVANCED

P

RINTING

5.

13

4

In the Overlays window, click

Create Overlay

.

5

In the Create Overlay window, type a name of up to eight characters in the

File name

box. Select the destination path, if necessary. (The default is C:\Formover).

6

Click

Save

. The name appears on the

Overlay List

box.

7

Click

OK

or

Yes

to finish creating.

The file is not printed out. Instead it is stored on your computer hard disk drive.

N

OTE

: The overlay document size must be the same as the documents you print with the overlay. Do not create an overlay with a watermark.

5.

14 A

DVANCED

P

RINTING

Using a Page Overlay

After an overlay has been created, it is ready to be printed with your document. To print an overlay with a document:

1

Create or open the document you want to print.

2

When you change the print settings from your software

application, access the printer Properties. See page 4.3.

3

Click the

Extras

tab.

4

Select an overlay from the

Overlay

drop-down list box.

5

If the overlay file you want does not appear on the

Overlay

list, click the

Edit Overlays

button and

Load Overlay

, and select the overlay file.

5

If you have stored the overlay file you want to use in an external source, you can also load the file when you access this Load Overlay window.

After you select the file, click

Open

. The file appears in the

Overlay List

box and is available for printing. Select the overlay from the

Overlay List

box.

A

DVANCED

P

RINTING

5.

15

6

If necessary, click

Confirm Page Overlay When Printing

.

If this box is checked, a message window appears each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document.

If this box is empty and an overlay has been selected, the overlay automatically prints with your document.

7

Click

OK

or

Yes

until the printing starts.

The selected overlay downloads with your print job and prints on your document.

N

OTE

: The resolution of the overlay document must be the same as that of the document you are printing with the overlay.

Deleting a Page Overlay

You can delete page overlays that you no longer use.

1

In the printer Properties window, click the

Extras

tab.

2

Click

Edit Overlays

button in the

Overlay

section.

3

Select the overlay you want to delete from the

Overlay

List

box.

4

Click

Delete Overlay

.

5

Click

OK

until you exit the Print window.

5.

16 A

DVANCED

P

RINTING

6

M

AINTAINING

Y

OUR

P

RINTER

This chapter provides information for maintaining your printer and suggestions for high-quality and economical printing.

This chapter includes:

• Printing a Configuration Page

• Replacing the Supplies

• Managing the Toner Cartridges

• Replacing the Toner Cartridges

• Replacing the Waste Toner Container

• Replacing the Imaging Unit

• Replacing the Transfer Belt

• Cleaning the Printer

• Replacement Part

Printing a Configuration Page

You can print a configuration page from the printer’s control panel. Use the configuration page to view the current settings, to help troubleshoot problems, or to verify the installation of optional accessories, such as memory or an optional tray.

To print the configuration page:

1

In ready mode press the

Menu

button ( ) on the control panel until you see ‘Information’ on the bottom line of the display.

2

Press the

Enter

button ( ) to access the menu.

3

Press the

Enter

button ( ) when ‘Configuration’ displays on the bottom line.

The configuration page prints out.

6.

2 M

AINTAINING

Y

OUR

P

RINTER

Replacing the Supplies

From time to time, you need to replace the following items to maintain top performance and to avoid print quality problems.

Refer to the table below:

Item(s) Printer message

Pages

Printed

See page

Black toner cartridge

Color toner cartridges

Waste toner container

Imaging Unit

Replace Black

Toner

Replace [Color]

Toner

Waste Toner Tank

Full/Not Install

Replace

Imaging Unit

7,000 pages

5,000 pages

3,000 images

50,000 images

**

**

*

*

6.8.

6.8.

6.11.

6.14.

Transfer Belt

Replace

Transfer Belt

50,000 images

**

6.22.

*

Average A4-/letter-sized pages counts based on 5% coverage of individual colors on each page. Usage conditions and print patterns may cause results to vary.

**Image counts are based on one color on each page. If you print documents in full colors (Cyan, Magenta, Yellow, Black) then 1 page is equivalent to 4 images and these three items are reduced to 25% of the indicated value.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

3

Managing the Toner Cartridges

Toner Cartridge Storage

To get the maximum results from the toner cartridge, keep the following guidelines in mind:

• Do not remove the toner cartridges from their packages until you are ready to use them.

• Do not refill the toner cartridges.

The printer warranty does not cover damage caused by using a refilled cartridge.

• Store the toner cartridges in the same environment as the printer.

• To prevent damage to the toner cartridges, do not expose them to light for more than a few minutes.

Toner Cartridge Life Expectancy

The life of the toner cartridge depends on the amount of toner that your print jobs require. When printing text at 5% coverage, a new toner cartridge lasts an average of 7,000 pages for black and 5,000 pages for each color. The initial toner cartridge supplied with the printer lasts an average of 2,000 pages for black and 1,500 pages for each color.

At any time, you can verify the life expectancy by checking the toner level. See the below.

Checking the Remaining Toner

You can check the level of toner left in each cartridge.

1

In ready mode press the

Menu

button ( ) on the control panel until you see ‘Setup’ on the bottom line of the display.

2

Press the

Enter

button ( ) to access the menu.

3

Press the scroll button ( or ) until ‘Maintenance’ displays on the bottom line.

4

Press the

Enter

button ( ).

5

When ‘Check Toner’ displays on the bottom line, press the

Enter

button ( ).

6.

4 M

AINTAINING

Y

OUR

P

RINTER

6

Press the scroll button ( or ) until the color of the toner cartridge you want to check displays on the bottom line.

7

Press the

Enter

button ( ).

The display shows the percentage of the remaining toner.

Redistributing the Toner

When a toner cartridge is nearly empty, faded or light areas may appear. Equally it is possible that colored images may have incorrect colors due to incorrect mixing of the toner colors when one of the colored toner cartridge is nearly empty. 'Ready

[Color] Low Toner' appears on the display. The printer can continue to print using the current toner cartridge until the control panel displays a message telling you to replace the cartridge.

You may be able to temporarily improve the print quality by redistributing the toner. The control panel display tells you which color cartridge is low in toner.

1

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

5

2

Pull the handle lightly first, and then holding the used toner cartridge, remove it.

C

AUTION

: If you open the left cover for a few minutes, the imaging unit can be exposed to light. This causes damage to the imaging unit.

3

Holding both sides of the toner cartridge, gently roll it from side to side to redistribute the toner.

N

OTE

: If toner gets on your clothing, wipe it off with a dry cloth and wash it in cold water. Hot water sets toner into fabric.

6.

6 M

AINTAINING

Y

OUR

P

RINTER

4

Slide the toner cartridge back into the printer.

5

Close the left cover. Make sure that the cover is securely latched.

6

If you are installed the toner cartridges wrong, the left cover will not close properly. Check again to make sure the colors correspond. Never use force to close the cover.

M

AINTAINING

Y

OUR

P

RINTER

6.

7

Replacing the Toner Cartridges

The printer uses four colors and has a different toner cartridge for each one: cyan (C), magenta (M), yellow (Y), and black (K).

Replace a toner cartridge when the printer control panel displays

‘Replace [Color] Toner’. The control panel display tells you which color needs to be replaced.

1

Turn the printer off, then wait a few minutes for the printer to cool.

2

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

3

Pull the handle lightly first, and then holding the used toner cartridge, remove it.

C

AUTION

: If you open the left cover for a few minutes, the imaging unit can be exposed to light. This causes damage to the imaging unit. Close the top and left cover should the setup need to be halted for any reason.

6.

8 M

AINTAINING

Y

OUR

P

RINTER

4

Take a new toner cartridge out of the package.

C

AUTION

: Don’t use sharp objects, such as a knife or scissors, to open the toner cartridge package. You could damage the surface of the toner cartridge.

5

Holding both sides of the toner cartridge, gently roll it from side to side to distribute the toner.

6

Place the toner cartridge on a flat surface as shown and remove the paper covering the toner cartridge by removing the tape.

6

N

OTE

: If toner gets on your clothing, wipe it off with a dry cloth and wash it in cold water. Hot water sets toner into fabric.

M

AINTAINING

Y

OUR

P

RINTER

6.

9

7

Make sure that the color of the toner cartridge matches the color slot and then slide the new toner cartridge into the printer. Using both hands, grip the cartridge to insert into the slot. Then hold the handle to slide the cartridge in.

•When the toner cartridges are correctly installed the yellow and black cartridges are not fully inserted. These will be pushed into place when you close the left cover.

8

Close the left cover.

Make sure that the cover is securely latched, and then turn the printer on.

If you have installed the toner cartridges wrongly, the left cover will not close properly. Check again to make sure the cartridge colors correspond to those marked on the right hand side. Never use force to close the cover.

6.

10 M

AINTAINING

Y

OUR

P

RINTER

Replacing the Waste Toner

Container

Replace the waste toner container when the control panel displays ‘Waste Toner Tank Full/Not Install’.

1

Unlatch the front cover, by quickly pressing and releasing it using the depressions at the top.

2

Push the lock lever up and pull the waste toner container out.

6

N

OTE

: Make sure that you lay the waste toner container on a flat surface so that the toner does not spill.

M

AINTAINING

Y

OUR

P

RINTER

6.

11

3

Remove the container’s caps which are attached as shown below and use them to close the waste toner container.

4

Take a new waste toner container out of the package.

5

Insert the lower of the new container into place and then push it to make sure that it is seated in place.

6

Make sure that the lock lever latches the container.

6.

12 M

AINTAINING

Y

OUR

P

RINTER

7

Close the front cover. Make sure that the cover is securely latched.

8

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

6

9

Close the left cover firmly.

M

AINTAINING

Y

OUR

P

RINTER

6.

13

Replacing the Imaging Unit

The life of the imaging unit is approximately 50,000 images.

Replace the imaging unit when the printer control panel displays

‘Replace Imaging Unit’.

1

Turn the printer off, then wait a few minutes for the printer to cool.

2

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

C

AUTION

: If the left cover is not completely open, the top cover release button does not press.

6.

14 M

AINTAINING

Y

OUR

P

RINTER

3

Press the top cover release button to unlatch the top cover and open it all the way.

4

Pull the lock levers on each side towards you, as shown below, to release the transfer belt.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

15

5

Using the handle, lift the transfer belt out of the printer by lightly pulling it towards the left of the printer. Set it on a clean flat surface.

6

Lift the handle of the used imaging unit and use it to pull the imaging unit out of the printer.

6.

16 M

AINTAINING

Y

OUR

P

RINTER

7

Take a new imaging unit out of the package using the handle.

8

Remove the paper covering the imaging unit by removing the tape under the handle of the imaging unit.

C

AUTIONS

:

• Don’t use sharp objects, such as a knife or scissors, to open the imaging unit package and tape on the protective paper liner. You could damage the surface of the imaging unit.

• To prevent damage, do not expose the imaging unit to light for more than a few minutes. Cover it with black paper, if necessary.

• Close the top and left cover should the setup need to be halted for any reason.

• Do not touch the surface of the green roller on the imaging unit or print quality problems can occur.

6

9

Locate the imaging unit slots inside the printer, one on each side.

M

AINTAINING

Y

OUR

P

RINTER

6.

17

10

Hold the handle of the new imaging unit with the green roller facing you. Align the imaging unit with the slots in your printer so that the colors on both sides of the imaging unit slide into the corresponding colors of the slots.

C

AUTION

: Insert the imaging unit carefully so as not to scratch and damage the surface of the green roller.

11

Slide the imaging unit down into the printer until it cannot be pushed in any further and fold the handle down.

6.

18 M

AINTAINING

Y

OUR

P

RINTER

12

To replace the transfer belt, hold its handle and then align it with the slots inside your printer, on each side.

N

OTE

: Do not turn the transfer belt over. If you do this, the toner may spill.

6

13

Slide the transfer belt down into the printer and press it firmly into place.

M

AINTAINING

Y

OUR

P

RINTER

6.

19

14

Firmly push the lock levers on each side towards the top cover, as shown below, to lock the transfer belt into place.

15

After making sure that the left cover is open, close the top cover. Make sure that it is securely latched.

C

AUTION

: Do not try to close the left cover with the top cover open. This may cause damage to the printer.

6.

20 M

AINTAINING

Y

OUR

P

RINTER

16

Close the left cover firmly.

17

Turn the printer on.

18

In ready mode press the

Menu

button ( ) on the control panel until you see ’Setup’ on the bottom line of the display.

19

Press the

Enter

button ( ) to access the menu.

20

Press the scroll button ( or ) until ‘Maintenance’ displays on the bottom line and press the

Enter

button

( ).

21

Press the scroll button ( or ) to until ‘Check Others’ displays on the bottom line and press the

Enter

button

( ).

22

Press the scroll button ( or ) to until ‘Imaging Unit’ displays on the bottom line and press the

Enter

button

( ).

23

Press the scroll button ( or ) to display ‘Reset’ and press the

Enter

button ( ).

24

‘Reset Now’ appears on the bottom line of the display and the printer returns to the ready mode.

6

N

OTE

: After replacing the imaging unit, you must reset the image counter for the imaging unit. If you do not this, ‘Replace Imaging

Unit’ continuously appears on the display.

M

AINTAINING

Y

OUR

P

RINTER

6.

21

Replacing the Transfer Belt

The life of the transfer belt is approximately 50,000 images.

Replace the transfer belt when the control panel displays

‘Replace Transfer Belt’.

To replace the transfer belt:

1

Turn the printer off, then wait a few minutes for the printer to cool.

2

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

C

AUTION

: If the left cover is not completely open, the top cover release button does not press.

6.

22 M

AINTAINING

Y

OUR

P

RINTER

3

Press the top cover release button to unlatch the top cover and open it all the way.

4

Pull the lock levers on each side towards you, as shown below, to release the transfer belt.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

23

5

Using the handle, lift the used transfer belt out of the printer by lightly pulling it towards the left of the printer.

N

OTE

: Keep the transfer belt level, do not turn the transfer belt over otherwise looses toner may be spilled.

6

Take a new transfer belt out of the package.

7

Remove the paper covering the transfer belt by removing the tape.

C

AUTION

: Don’t use sharp objects, such as a knife or scissors, to open the transfer belt package. You could damage the surface of the transfer belt.

6.

24 M

AINTAINING

Y

OUR

P

RINTER

8

Pinch the transfer belt tention levers on both sides of the transfer belt. Then, pull them out, as shown below.

9

Locate the transfer belt slots inside the printer, one on each side.

6

C

AUTION

: To prevent damage, do not expose the imaging unit to light for more than a few minutes. Close the top and left cover should the setup need to be halted for any reason.

M

AINTAINING

Y

OUR

P

RINTER

6.

25

10

Hold the handle on the new transfer belt and then align it with the slots inside your printer, on each side.

N

OTE

: Keep the transfer belt level, do not turn the transfer belt over otherwise looses toner may be spilled.

11

Slide the new transfer belt down into the printer and press it firmly into place.

6.

26 M

AINTAINING

Y

OUR

P

RINTER

12

Firmly push the lock levers on each side towards the top cover, as shown below, to lock the transfer belt into place.

13

After making sure that the left cover is open, close the top cover. Make sure that it is securely latched.

6

C

AUTION

: Do not try to close the left cover with the top cover open. This may cause damage to the printer.

M

AINTAINING

Y

OUR

P

RINTER

6.

27

14

Close the left cover firmly.

15

Turn the printer on.

16

In ready mode press the

Menu

button ( ) on the control panel until you see ’Setup’ on the bottom line of the display.

17

Press the

Enter

button ( ) to access the menu.

18

Press the scroll button ( or ) until ‘Maintenance’ displays on the bottom line and press the

Enter

button

( ).

19

Press the scroll button ( or ) to until ‘Check Others’ displays on the bottom line and press the

Enter

button

( ).

20

Press the scroll button ( or ) to display ‘Transfer Belt’ on the bottom line and press the

Enter

button ( ).

21

Press the scroll button ( or ) to display ‘Reset’ and press the

Enter

button ( ).

22

‘Reset Now’ appears on the bottom line of the display and the printer returns to the ready mode.

N

OTE

: After replacing the transfer belt, you must reset the image counter for the transfer belt. If you do not this, ‘Replace Transfer

Belt’ continuously appears on the display.

6.

28 M

AINTAINING

Y

OUR

P

RINTER

Cleaning the Printer

During the printing process, particles of paper, toner and dust can accumulate inside the printer. Over time, this build-up can cause print-quality problems such as toner specks or smearing.

Your printer has a cleaning mode that can correct and prevent these types of problems.

Cleaning the Outside of the Printer

Clean the cabinet of the printer with a soft, lint-free cloth. You can dampen the cloth slightly with water, but be careful not to be let any water drip onto the printer or inside of it.

N

OTE

: While cleaning the inside of the printer, be careful not to touch the transfer roller. Oil from your fingers can cause print quality problems.

C

AUTION

: Cleaning the cabinet of the printer with cleaners containing large amounts of alcohol, solvent or other strong substances can discolor or crack the cabinet.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

29

Cleaning the LSU Inside the Printer

N

OTE

: Clean the LSU when you remove the particles of paper, toner and dust inside the printer.

Open and close the left cover to clean the LSU inside of the printer automatically.

1

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

2

Close the left cover firmly.

6.

30 M

AINTAINING

Y

OUR

P

RINTER

Cleaning the Inside of the Printer

N

OTE

: While cleaning the inside of the printer, be careful not to touch the transfer roller. Oil from your fingers can cause print quality problems.

1

Turn the printer off and unplug the power cord, then wait a few minutes for the printer to cool.

2

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

C

AUTION

: If the left cover is not completely open, the top cover release button does not press.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

31

3

Pull the handle lightly first, and then holding the toner cartridges, remove them from the printer. Set them on a clean flat surface.

4

Press the top cover release button to unlatch the top cover and open it all the way.

C

AUTION

: If you open the left cover for a few minutes, the imaging unit can be exposed to light. This causes damage to the imaging unit. Close the top and left cover should the setup need to be halted for any reason.

6.

32 M

AINTAINING

Y

OUR

P

RINTER

5

Pull the lock levers on each side towards you, as shown below, to release the transfer belt.

6

Using the handle, lift the transfer belt out of the printer by lightly pulling it towards the left of the printer. Set it on a clean flat surface.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

33

7

Lift the handle of the imaging unit and use it to pull the imaging unit out of the printer. Set it on a clean flat surface.

C

AUTIONS

:

• To prevent damage, do not expose the imaging unit to light for more than a few minutes. Cover it with black paper, if necessary.

• Close the top and left cover should the setup need to be halted for any reason.

• Do not touch the surface of the green roller on the imaging unit or print quality problems can occur.

8

Look inside the printer. Remove any dust, paper particles, and spilled toner with a damp, soft lint-free cloth or small vacuum cleaner.

6.

34 M

AINTAINING

Y

OUR

P

RINTER

9

Insert the imaging unit back into the printer. Make sure you hear it click, and then fold the handle down. For details, see

steps 9 to 10 on page 6.17.

C

AUTION

: Replace the imaging unit carefully so as not to scratch and damage the surface of the green roller on the imaging unit.

10

Insert the transfer belt back into the printer. Press it firmly to make sure it fits into place. For details, see steps 9 and

10 on page 6.25.

6

N

OTE

: Keep the transfer belt level, do not turn the transfer belt over otherwise looses toner may be spilled.

M

AINTAINING

Y

OUR

P

RINTER

6.

35

11

Firmly push the lock levers on each side towards the top cover, as shown below, to lock the transfer belt into place.

12

After making sure that the left cover is open, close the top cover. Make sure that it is securely latched.

C

AUTION

: Do not try to close the left cover with the top cover open. This may cause damage to the printer.

6.

36 M

AINTAINING

Y

OUR

P

RINTER

13

Look inside the printer on the right and then locate the color of the toner cartridges that matches the color of the slot.

K

Y

M

C

Black

Yellow

Magenta

Cyan

14

Holding each toner cartridge, insert them into their corresponding positions in order of Cyan, Magenta, Yellow and then Black. Using both hands, grip the cartridge to insert into the slot. Then hold the handle to slide the cartridge in.

Grip here.

K

Y

M

C

•When the toner cartridges are correctly installed the yellow and black cartridges are not fully inserted. These will be pushed into place when you close the left cover.

6

M

AINTAINING

Y

OUR

P

RINTER

6.

37

15

Close the left cover. Make sure that it is securely latched.

If you have installed the toner cartridges wrongly, the left cover will not close properly. Check again to make sure the cartridge colors correspond to those marked on the right hand side. Never use force to close the cover.

16

Plug the power cord in and turn the printer on.

Replacement Part

From time to time, you will need to replace the roller and fuser unit to maintain top performance and avoid print quality problems and paper feed problems resulting from worn parts.

The following items should be replaced after you have printed a specified number of pages. See the table below.

Item(s)

Pick-up roller

Transfer roller

Fuser unit

Yield (Average)

150,000 pages

50,000 pages

100,000 (mono) pages

50,000 (color) pages

To purchase the replacement parts, contact your Samsung dealer or the retailer where you bought your printer. We strongly recommend that items be installed by a trained service professional.

6.

38 M

AINTAINING

Y

OUR

P

RINTER

7

S

OLVING

P

ROBLEMS

This chapter provides helpful information for what to do if you encounter an error while using your printer.

This chapter includes:

• Troubleshooting Checklist

• Solving General Printing Problems

• Clearing Paper Jams

• Solving Print Quality Problems

• Understanding Display Messages

• Common Windows Problems

• Common Macintosh Problems

• Common Linux Problems

Troubleshooting Checklist

If the printer is not working properly, consult the following checklist. If the printer does not pass a step, follow the corresponding troubleshooting suggestions.

Check

Make sure that the

On Line/Continue

button on the control panel is green and “Ready” is shown on the display.

Solution

• If the button backlight is off, check the power cord connection. Check the power switch. Check the power source by plugging it into another outlet.

• If the button backlight is orange, check the display

message and go to “Understanding Display Messages” on page 7.26.

Print a demo page to verify that the printer is feeding paper correctly. See the

Setup Guide.

• If a demo page does not print, check the paper supply in the paper tray.

• If the paper jams in the printer, go to “Clearing Paper

Jams” on page 7.7.

• If an error message appears on the display, go to

“Understanding Display Messages” on page 7.26.

Check the demo page to see if it is printed correctly.

If there is a print quality problem, go to “Solving Print

Quality Problems” on page 7.22.

Print a short document from a software application to verify that the computer and printer are connected and are communicating correctly.

• If the page does not print, check the cable connection between the printer and the computer.

• Check the print queue or print spooler to see if the printer has been paused.

• Check the software application to ensure that you are using the proper printer driver and communication port.

If the page is interrupted during printing, go to “Solving

General Printing Problems” on page 7.3.

If completing the checklist does not resolve the printer problem, check the following troubleshooting sections.

• See “Solving General Printing Problems” on page 7.3.

• See “Understanding Display Messages” on page 7.26.

• See “Common Windows Problems” on page 7.30.

• See “Common Macintosh Problems” on page 7.31

• See “Common Linux Problems” on page 7.32.

7.

2 S

OLVING

P

ROBLEMS

Solving General Printing Problems

For problems with the operation of your printer, refer to the table for suggested solutions.

Problem

The printer does not print.

Possible Cause

The printer is not receiving power.

The printer is not selected as the default printer.

Check the printer for the following:

• The printer cover is not closed.

• Paper is jammed.

• No paper is loaded.

• The toner cartridge is not installed.

The printer may be in manual feed mode and out of paper.

Solution

Check the power cord connections. Check the power switch and the power source.

Select

Samsung CLP-500 Series

as your default printer.

Solve the problems.

Check the display message, add paper to the Multi-purpose Tray and press the

On Line/Continue

button on the printer’s control panel.

Disconnect the printer cable and reconnect it.

The connection cable between the computer and the printer is not connected properly.

The connection cable between the computer and the printer is defective.

The port setting is incorrect.

The printer may be configured incorrectly.

The printer driver may be incorrectly installed.

The printer is malfunctioning.

If possible, attach the cable to another computer that is working properly and print a document. You can also try using a different printer cable.

Check the Windows printer setting to make sure that the print job is sent to the correct port, for example, LPT1. If the computer has more than one port, make sure that the printer is attached to the correct one.

Check the printer properties to ensure that all of the print settings are correct.

Reinstall the printer driver; refer to the

Setup Guide. Try printing a demo page.

Check the display message on the control panel to determine if the printer is indicating a system error.

7

S

OLVING

P

ROBLEMS

7.

3

Problem

Printer selects print materials from the wrong paper source.

Paper does not feed into the

Printer.

Print job is extremely slow.

Possible Cause

The paper source selection in the printer properties may be incorrect.

Paper has been loaded incorrectly.

There is too much paper in the paper tray.

The paper is too thick.

The job may be very complex.

If using Windows 9x/

Me, the Spooling

Setting may be set incorrectly.

Solution

For many software applications, the paper source selection is found under the

Paper

tab within the printer properties. Select the

correct paper source. See page 4.7.

Remove paper from the tray and reload it correctly.

Check that the paper size adjusters are set correctly.

Remove excess paper from the tray.

Use only paper that meets the specifications required by the printer.

Reduce the complexity of the page or try adjusting the print quality settings.

Adjust the print quality settings, such as reducing the resolution. If you set the resolution to

1200 dpi (Best)

change it to

600 dpi (Normal)

.

Change the port setting to the USB or network port to improve the print speed.

Your printer prints A4-size paper at 20 ppm for black, Letter-size paper at 21 ppm or

A4/Letter-sized at 5 ppm for color.

From the

Start

menu, choose

Settings

and

Printers

. Right-click the

Samsung

CLP-500 Series

printer icon, choose

Properties

, click the

Details

tab, and then choose the

Spool Settings

button. Select the desired spool setting.

Change the page orientation in your

application. See page 4.6.

Half the page is blank.

The page orientation setting may be incorrect.

The paper size and the paper size settings do not match.

Ensure that the paper size in the printer driver settings matches the paper in the tray.

7.

4 S

OLVING

P

ROBLEMS

Problem

The paper keeps jamming.

The printer prints, but the text is wrong, garbled, or incomplete.

Possible Cause

There is too much paper in the paper tray.

An incorrect type of paper is being used.

There may be debris inside the printer.

The printer cable is loose or defective.

The wrong printer driver was selected.

Pages print, but are blank.

The software application is malfunctioning.

The operating system is malfunctioning.

The toner cartridge is defective or out of toner.

The illustrations print incorrectly in Adobe

Illustrator.

The file may have blank pages.

Some parts, such as the controller or the board, may be defective.

The setting in the software application is wrong.

Solution

Remove excess paper from the tray.

If printing on special materials, use the

Multi-purpose Tray.

Check that the paper size adjusters are set correctly.

Use only paper that meets the specifications required by the printer.

If printing on special materials, use the

Multi-purpose Tray.

Open the top cover and remove the debris.

Disconnect the printer cable and reconnect.

Try a print job that you have already printed successfully. If possible, attach the cable and printer to another computer and try a print job that you know works. Finally, try a new printer cable.

Check the application’s printer selection menu to ensure that your printer is selected.

Try printing a job from another application.

Exit Windows and reboot the computer.

Turn the printer off and then back on again.

Redistribute the toner. If necessary, see

page 6.5.

If necessary, replace the toner cartridge.

Check the file to ensure that it does not contain blank pages.

Contact a service representative.

Select

Download as Bit Image

in the

Advanced Options

window of the graphic properties. Print the document.

7

S

OLVING

P

ROBLEMS

7.

5

Problem

The printing quality of photo is not clear.

Possible Cause

The resolution is set to

600 dpi (Normal)

.

The resolution of photo is very low.

Solution

Change the resolution to

1200 dpi (Best)

and then try to print again.

If you adjust the photo size in the software application, the resolution will be reduced.

Reduce the photo size and then improve the resolution.

7.

6 S

OLVING

P

ROBLEMS

Clearing Paper Jams

N

OTE

: When removing paper that is jammed in the printer if possible always pull the paper in the direction that it normally moves so as not to damage internal components. Allways pull firmly and evenly, do not jerk the paper. If the paper tears ensure that all fragments of paper are removed, otherwise a jam will occur again.

The display on the control panel tells you where a paper jam occurs. Refer to the table below to locate the paper jam and to clear it:

Message

Jam0 In Tray1

Jam0 In Tray2

Jam

Inside Printer

Jam

In Exit Area

Jam

In Duplex Path

Jam0 In MP Tray

Location of Jam

In the paper feed area

In the optional tray 2

Inside printer

In the paper exit area

In the duplex area

In the multi-purpose tray

Go to...

page 7.8

page 7.18

page 7.10

page 7.11

page 7.14

page 7.10

7

To resume printing after clearing paper jams, you must open and close the right cover.

S

OLVING

P

ROBLEMS

7.

7

In the Paper Feed Area

If paper is jammed in the paper feed area, ‘Jam0 In Tray1’ appears on the display.

1

Using the handle, open the right cover.

2

Carefully remove the misfed paper in the direction as shown. Go to step 6.

If there is any resistance, and the paper does not move immediately when you pull, stop pulling and go to step 3.

7.

8 S

OLVING

P

ROBLEMS

3

Pull the tray open. After you pull it all the way out, lift up the front part of the tray slightly to release the tray from the printer.

4

Remove the jammed paper by gently pulling it straight out.

5

To replace the tray, lower the rear edge, align it to the slot and slide it into the printer.

7

6

Close the right cover. The printer resumes printing.

S

OLVING

P

ROBLEMS

7.

9

In the Multi-purpose Tray

‘Jam0 In MP Tray’ appears on the display when you print using the Multi-purpose Tray and the printer detects either there is no paper or the paper is improperly loaded.

If the paper is not feeding properly, pull the paper out of the printer.

To resume printing, open and close the right cover.

Inside the Printer

If paper is jammed inside the printer, ‘Jam Inside Printer’ appears on the display.

1

Using the handle, open the right cover.

7.

10 S

OLVING

P

ROBLEMS

2

Remove the jammed paper, in the direction shown. To avoid the paper tearing, pull it out gently and slowly.

N

OTE

: If the paper tears, make sure that all of the paper fragments are removed from the printer.

3

Close the right cover. The printer resumes printing.

In the Paper Exit Area

If paper is jammed in the paper exit area, ‘Jam In Exit Area’ appears on the display.

1

If a long portion of the paper is visible, pull it straight out.

Go to step 7.

7

If you cannot find the jammed paper or there is any resistance removing the paper, go to step 2.

S

OLVING

P

ROBLEMS

7.

11

2

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

C

AUTION

: If the left cover is not completely open, the top cover release button does not press.

3

Press the top cover release button to unlatch the top cover and open it all the way.

7.

12 S

OLVING

P

ROBLEMS

4

Carefully take the jammed paper out of the printer.

The fuser is hot!

C

AUTION

: Do not touch the fuser. It is hot and could cause burns! The fuser’s operating temperature is 180°C (356° F). Take care when removing paper from the printer.

5

After making sure that the left cover is open, close the top cover. Make sure that it is securely latched.

7

C

AUTION

: Do not try to close the left cover with the top cover open. This may cause damage to the printer.

S

OLVING

P

ROBLEMS

7.

13

6

Close the left cover firmly.

7

Open and close the right cover to resume printing.

In the Duplex Area

If paper is jammed in the duplex area, ‘Jam In Duplex Path’ appears on the display.

1

Using the handle, open the right cover.

7.

14 S

OLVING

P

ROBLEMS

2

Locate the jammed paper, and then pull it out gently and slowly to avoid the paper tearing. Go to step 8.

OR

N

OTE

: If the paper tears, make sure that all of the paper fragments are removed from the printer.

If you cannot find the jammed paper or there is any resistance removing the paper, go to step 3.

3

Using the handle, completely open the left cover until it is at right angles to the main frame and the toner cartridges are ejected.

7

C

AUTION

: If the left cover is not completely open, the top cover release button does not press.

S

OLVING

P

ROBLEMS

7.

15

4

Press the top cover release button to unlatch the top cover and open it all the way.

5

Locate the jammed paper, and then carefully take it out of the printer.

The fuser is hot!

C

AUTION

: Do not touch the fuser. It is hot and could cause burns! The fuser’s operating temperature is 180°C (356°F). Take care when removing paper from the printer.

7.

16 S

OLVING

P

ROBLEMS

6

After making sure that the left cover is open, close the top cover. Make sure that it is securely latched.

C

AUTION

: Do not try to close the left cover with the top cover open. This may cause damage to the printer.

7

Close the left cover firmly.

7

8

Close the right cover. The printer resumes printing.

S

OLVING

P

ROBLEMS

7.

17

In the Optional Tray2

If paper is jammed in the optional tray2, ‘Jam0 In Tray2’ appears on the display.

1

Using the handle, open the right cover.

2

Remove the jammed paper in the direction shown. To avoid the paper tearing, pull it out gently and slowly. Go to step

10.

7.

18 S

OLVING

P

ROBLEMS

If you cannot find the jammed paper in the printer, go to step 3.

3

Open the outer jam cover in Tray 2.

4

Open the inner cover of Tray 2.

5

Pull the jammed paper out in the direction shown. To avoid the paper tearing, pull it out gently and slowly.

7

S

OLVING

P

ROBLEMS

7.

19

6

Close the two jam covers and go to step 10.

If there is any resistance, and paper does not move immediately when you pull, stop pulling and continue to step 7.

7

Pull the optional tray2, out of the printer.

8

If you see the jammed paper, remove the paper from the printer by gently pulling it straight out.

7.

20 S

OLVING

P

ROBLEMS

9

Slide the tray back into the printer and close the two jam covers.

10

Open and close the right cover. The printer resumes printing.

Tips for Avoiding Paper Jams

By selecting the correct paper types, most paper jams can be avoided. If a paper jam occurs, follow the steps outlined in

“Clearing Paper Jams” on page 7.7.

• Follow the procedures on page 3.4. Ensure that the adjustable

guides are positioned correctly.

• Do not overload the paper tray. Ensure that the paper is below the paper limit mark on the inside wall of the tray.

• Do not remove the paper from the tray while printing.

• Flex, fan and straighten the paper before loading.

• Do not use creased, damp or highly curled paper.

• Do not mix paper types in the tray.

• Use only recommended print materials. See “Paper

Specifications” on page E.3.

• Ensure that the print side is facing down when loading paper in the tray and in the Multi-purpose Tray.

7

S

OLVING

P

ROBLEMS

7.

21

Solving Print Quality Problems

Dirt inside of the printer or improper paper loading may reduce the print quality. See the table below to troubleshoot the problem.

Problem

Light or faded print

Aa Bb Cc

Aa Bb Cc

Aa Bb Cc

Aa Bb Cc

Aa Bb Cc

Solution

If a vertical white streak or faded area appears on the page:

• The toner supply is low. You may be able to temporarily

extend the toner cartridge life. See “Redistributing the Toner” on page 6.5. If this does not improve the print quality, install a

new toner cartridge of faded color.

• The paper may not meet paper specifications (for example,

the paper is too moist or too rough). See “Paper

Specifications” on page E.3.

• A combination of faded or smeared defects may indicate that

the toner cartridge needs cleaning. See page 6.31.

• The surface of the LSU may be dirty. Clean the LSU. See

page 6.30.

• The paper may not meet specifications (for example, the

paper is too moist or too rough). See “Paper Specifications” on page E.3.

• The transfer roller or the paper path may be dirty. See

“Cleaning the Inside of the Printer” on page 6.31.

Toner specs

Aa Bb Cc

Aa Bb Cc

Aa Bb Cc

Aa Bb Cc

Aa Bb Cc

Dropouts

AaBbCc

AaBbCc

AaBbCc

AaBbCc

AaBbCc

If generally rounded, faded areas occur randomly on the page:

• A single sheet of paper may be defective. Try reprinting the job.

• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper. See

“Paper Specifications” on page E.3.

• The paper lot is bad. The manufacturing process can cause some areas to reject toner. Try a different kind or brand of paper.

• The toner cartridge may be defective. See “Vertical repetitive defects” on the next page.

• If these steps do not correct the problems, contact a service representative.

7.

22 S

OLVING

P

ROBLEMS

Problem

Vertical lines

AaBbCc

AaBbCc

AaBbCc

AaBbCc

AaBbCc

Color or Black background

AaBbCc

AaBbCc

AaBbCc

AaBbCc

AaBbCc

Toner smear

Solution

If black vertical streaks appear on the page:

• The imaging unit inside the printer has probably been scratched. Install a new imaging unit.

If white vertical lines appear on the page:

• The Laser Scanner window has probably been contaminated, clean the Laser Scanner window. Holding the end of the

cleaner, slide it in and out several times. See “Cleaning the

LSU Inside the Printer” on page 6.30.

If the amount of background shading becomes unacceptable, the procedures below may fix the problem.

• Change to lighter weight pages. See “Paper Specifications” on page E.3.

• Check the printer’s environment; very dry (low humidity) or high humidity (higher than 80% RH) conditions can increase the amount of background shading.

• Remove the old imaging unit and install a new one. See

“Replacing the Imaging Unit” on page 6.14.

• Clean the inside of the printer. See “Cleaning the Inside of the

Printer” on page 6.31

• Check the paper type and quality. See “Paper Specifications” on page E.3.

• Remove the transfer belt and install a new one. See “Replacing the Transfer Belt” on page 6.22.

Vertical repetitive defects

AaBbCc

AaBbCc

AaBbCc

AaBbCc

AaBbCc

If marks repeatedly appear on the printed side of the page at even intervals:

• Clean the inside of the printer. See “Cleaning the Inside of the

Printer” on page 6.31. After cleaning the inside of the printer,

if you still have the same problems, install a new toner

cartridge of defected color. See “Replacing the Toner

Cartridges” on page 6.8.

• Parts of the printer may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a service representative.

7

S

OLVING

P

ROBLEMS

7.

23

Problem Solution

Background scatter

Background scatter results from bits of toner distributed on the printed page.

A

• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.

• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.

• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or the printer properties.

Misformed characters

• If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try a different paper.

See “Paper Specifications” on page E.3.

• If characters are improperly formed and producing a wavy effect, the scanner unit may need service. Verify that it also occurs on a demo page. Refer to the Setup Guide. For service, contact a service representative.

Page skew

AaBbCc

AaBbCc

AaBbCc

AaBbCc

AaBbCc

Curl or wave

• Check the paper type and quality. See “Paper Specifications” on page E.3.

• Ensure that the paper or other material is loaded correctly and the guides are not too tight or too loose against the paper stack.

• Check the paper type and quality. Both high temperature and

humidity can cause paper curl. See “Paper Specifications” on page E.3.

• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

Wrinkles or creases

Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper Specifications” on page E.3.

• Turn the stack of paper over in the paper tray. Also try rotating the paper 180° in the tray.

7.

24 S

OLVING

P

ROBLEMS

Problem

Back of printouts are dirty

Solution

• The transfer roller may be dirty. See “Cleaning the Inside of the Printer” on page 6.31.

• Check for leaking toner. Clean the inside of the printer.

Color or Black pages

• The imaging unit may not be installed properly. Remove the imaging unit and reinsert.

• The imaging unit may be defective and need replacing. Install a new imaging unit.

• The printer may require repair. Contact a service representative.

A

Loose toner

Clean the inside of the printer.

• Check the paper type and quality. See “Paper Specifications” on page E.3.

• Install a new toner cartridge. See “Replacing the Toner

Cartridges” on page 6.8.

• If the problem persists, the printer may require repair. Contact a service representative.

Character Voids

A

Character voids are white areas within the parts of characters that should be solid black:

• If you are using transparencies, try another type of transparency. Due to the composition of the transparency, some character voids are normal.

• You may be printing on the wrong surface on the paper.

Remove the paper and turn it around.

• The paper may not meet paper specifications. See page E.3.

Horizontal stripes

If horizontally aligned color or black streaks or smears appear:

AaBbCc

AaBbCc

AaBbCc

AaBbCc

AaBbCc

• The imaging unit may be installed improperly. Remove the imaging unit and reinsert.

• The imaging unit may be defective. Install a new imaging unit.

See “Replacing the Imaging Unit” on page 6.14.

• If the problem persists, the printer may require repair. Contact a service representative.

7

S

OLVING

P

ROBLEMS

7.

25

Message

ADC Not

Confirm Error

Cover Open

CTD Calibration

Error

Dev. Motor

Error

Engine Fuser

Low Heat Error

Engine Fuser

Over Heat Error

Engine LSU

Error

Install

[Color] Toner

Install

Imaging Unit

Install

Transfer Belt

Understanding Display Messages

Messages appear on the display on the control panel to indicate the printer’s status or errors. Refer to the tables below to understand the message’s meaning and correct the problem if necessary. Messages and their meanings are listed in alphabetical order.

N

OTE

: When you call for service, it is very helpful to tell the service representative the display message.

Status

A problem has occurred in the ADC in the printer.

Do this...

Contact a service representative.

The top cover is open.

The CTD sensor is polluted by dust or toner.

A problem has occurred in the development motor of the printer.

Close the top cover firmly.

Contact a service representative.

Unplug the power cord and plug it in again. If the problem persists, please call for service.

The temperature in the fuser is abnormally low.

Unplug the power cord and plug it in again. If the problem persists, please call for service.

The temperature in the fuser is abnormally high.

Unplug the power cord and plug it in again. If the problem persists, please call for service.

A problem has occurred in the LSU (Laser

Scanning Unit) in the printer.

Unplug the power cord and plug it in again. If the problem persists, please call for service.

The indicated color toner cartridge is not installed in the printer.

Install the corresponding color toner cartridge.

Install the imaging unit.

The imaging unit is not installed in the printer.

The transfer belt is not installed in the printer.

Install the transfer belt.

7.

26 S

OLVING

P

ROBLEMS

Message

Invalid

Imaging Unit

Invalid

Transfer Belt

Invalid NewToner

[Color]

Invalid Toner

[Color]

Jam0 In Tray1

OR

Jam0 In Tray2

Jam

In Duplex Path

Jam

In Exit Area

Jam

Inside Printer

Lever Unlocking

Error

Status

An invalid imaging unit is installed.

An invalid transfer belt is installed.

An invalid new toner cartridge is installed.

An invalid toner cartridge is installed.

A paper jam has occurred from the indicated tray.

Do this...

Only install a Samsung-approved imaging unit, designed for your printer. If you have installed an approved imaging unit and this error still occurs contact an authorized service agent.

Only install a Samsung-approved transfer belt, designed for your printer. If you have installed an approved transfer belt and this error still occurs contact an authorized service agent.

Only install a Samsung-approved toner cartridge, designed for your printer. If you have installed an approved toner cartridge and this error still occurs contact an authorized service agent.

Only install a Samsung-approved toner cartridge, designed for your printer. If you have installed an approved toner cartridge and this error still occurs contact an authorized service agent.

Remove the jammed paper from the corresponding tray, referring to

page 7.8.

A paper jam has occurred while printing on both sides of the paper.

A paper jam has occurred in the paper exit area.

A paper jam has occurred inside the printer.

After installing the transfer belt, the lock levers is not locked.

Remove the jammed paper from

the printer, referring to page 7.14.

Remove the jammed paper from

the printer, referring to page 7.11.

Open the right cover and remove the jammed paper from the

printer, referring to page 7.10.

Push the lock levers on each side away from you, referring to

page 6.27.

7

S

OLVING

P

ROBLEMS

7.

27

Message

Load

[Size] In Tray1

OR

Load

[Size] In Tray2

Load Manual

Press Cont Key

Main Motor

Error

Memory Overflow

Page Too Complex

Ready [Color]

Low Toner

Ready

IP Conflict

Replace [Color]

Toner

Replace

Imaging Unit

Replace Imaging

Unit Soon

Status

The paper size specified in the printer properties does not match the paper you are loading.

Do this...

Load the correct paper in the tray.

The Multi-purpose Tray is empty in the manual feed mode.

Load a sheet of print material and press the

On Line/Continue

button. You need to press the button for each page to be printed.

A problem has occurred in the main motor of the printer.

Unplug the power cord and plug it in again. If the problem persists, please call for service.

The printer does not have enough memory to print the current job.

An error has occurred in the firmware program of the printer.

The job automatically clears and the printer returns to Standby

Mode.

• Expand the memory in your

printer. See “Installing Printer

Memory” on page D.2.

Too much complicated data was sent to the printer.

Simplify the page layout and remove unnecessary graphics from your document.

To expand the memory in your

printer, see “Installing Printer

Memory” on page D.2.

The corresponding toner cartridge in your printer is nearly empty.

Redistribute the toner in corresponding toner cartridge,

referring to page 6.5.

An IP address conflicts with only other devices on the network.

Contact your network administrator and choose an address within your subnet which will not conflict with any other devices.

The corresponding toner cartridge in your printer is empty.

Replace the corresponding toner cartridge with a new one. See

page 6.8.

The lifetime of the imaging unit is ended.

The lifetime of the imaging unit is nearly ended.

Replace the imaging unit with a

new one. See page 6.14.

When “Replace Imaging Unit” appears on the display, replace the imaging unit.

7.

28 S

OLVING

P

ROBLEMS

Message

Replace MP

Pick-roller

Replace

Transfer Belt

Replace Transfer

Belt Soon

Replace

Transfer Roller

Replace Transfer

Roller Soon

Replace Tray1

Pick-roller

Replace Tray2

Pick-roller

Transfer Belt

Error

Tray2 Error

Tray2 Jam

Cover Open

Waste Motor

Error

Waste Toner Tank

Full/Not Install

Status

The lifetime of the MP pickup roller is ended.

The lifetime of the transfer belt is ended.

Do this...

Contact a service representative.

The lifetime of the transfer belt is nearly ended.

The lifetime of the

Transfer Roller is ended.

Replace the transfer belt with a

new one. See page 6.22.

When “Replace Transfer Belt” appears on the display, replace the transfer blet.

Contact a service representative.

The lifetime of the

Transfer Roller is nearly ended.

When “Replace Transfer Roller” appears on the display, contact a service representative.

The lifetime of the Tray1 pickup roller is ended.

Contact a service representative.

The lifetime of the Tray2 pickup roller is ended.

Contact a service representative.

The transfer belt is either not working or not correctly installed in the printer.

Replace the transfer belt.

OR

Make sure the installed transfer belt is properly seated.

Optional Tray2 is not properly installed or connected to the printer.

After turn the printer off and then back on, reinstall the optional tray2. If the message persists, contact a service representative.

Tray2 jam cover is open.

Close Tray2 cover firmly.

7

A problem has occurred in waste toner motor.

The waste toner container is full.

Contact a service representative.

Replace the waste toner container

with a new one. See page 6.11.

S

OLVING

P

ROBLEMS

7.

29

Common Windows Problems

Problem

“File in Use” message appears during installation.

“Error Writing to LPTx” message appears.

Possible Cause and Solution

Exit all software applications. Remove all software from the

StartUp Group, then restart Windows. Reinstall the printer driver.

• Ensure that the cables are connected correctly and the printer is on.

• If bi-directional communication is not turned on in the driver, it will also cause this message.

Close all other applications, reboot Windows and try printing again.

“General Protection Fault”,

“Exception OE”, “Spool32”, or “Illegal Operation” messages appear.

“Fail To Print”, “A printer timeout error occurred.” message appear.

This message may appear during printing. Just keep waiting until it finishes printing. If the message appears in standby mode or after printing is completed, check the connection and/or whether an error occurred.

N

OTE

: Refer to the Microsoft Windows 9x/Me/NT 4.0/2000/XP

User’s Guide that came with your PC for further information on

Windows error messages.

7.

30 S

OLVING

P

ROBLEMS

Common Macintosh Problems

Problems in the Chooser

Problem

The printer driver icon does not appear in

Chooser.

Possible Cause and Solution

Software is not installed correctly.

• Install the printer driver. See page A.3.

• Make sure that you are using a high-quality cable.

The printer name does not appear in the

Chooser.

• Make sure that the cables are connected correctly and the printer is turned on.

• Check if “Ready” appears on the display of the control panel.

If not, press the

On Line/Continue

button to switch your printer to on-line.

• Make sure that the correct printer driver has been selected in

Chooser.

Printing Errors

Problem

You cannot use the computer while the printer is printing.

Possible Cause and Solution

Background Printing has not been selected.

• Select Background in the printer’s properties. See page A.10.

(Mac OS 10.x is not supported.)

7

S

OLVING

P

ROBLEMS

7.

31

Common Linux Problems

Problem

I can’t change settings in the configuration tool.

Possible Cause and Solution

You need to have administrator privileges to be able to change global settings.

I am using the KDE desktop but the configuration tool and LLPR won’t start.

You may not have the GTK libraries installed. These usually come with most Linux distributions, but you may have to install them manually. Refer to your distribution’s installation manual for more details about installing additional packages.

I just installed this package but can’t find entries in the KDE/Gnome menus.

I get a “Some options are not selected” error message while editing the printer settings.

Some versions of the KDE or GNOME desktop environments may require that you restart your session for the changes to take effect.

Some printers have conflicting settings, meaning that some settings for two options can’t be selected at the same time.

When you change a setting and the Printer Package detects such a conflict, the conflicting option is changed to a “No

Choice” value. You have to choose an option that does not conflict before being able to submit the changes.

I can’t make a printer the system default.

In some conditions, it may not be possible to change the default queue. This happens with some variants of LPRng, especially on recent RedHat systems that use the “printconf” database of queues.

When using printconf, the

/etc./printcap

file is automatically refreshed from the database of printers managed by the system (usually through the “printtool” command), and the queues in

/etc./printcap.local

are appended to the resulting file. The default queue in LPRng is defined as the first queue in

/etc./printcap

, therefore it is not possible for the Linux Printer Package to change the default when some queues have otherwise been defined using printtool.

The N-up setting does not work correctly for some of my documents.

LPD systems identify the default queue as the one named “lp”.

Thus, if there is already a queue by this name, and if it doesn’t have any alias, then you won’t be able to change the default. To work around this, you can either delete the queue or rename it by manually editing the

/etc./printcap

file.

The N-up feature is achieved through post-processing of the

PostScript data that is being sent to the printing system.

However, such post-processing can only be adequately achieved if the PostScript data conforms to the Adobe

Document Structing Conventions. Problems may arise when using N-up and other features relying on post-processing if the document being printed isn’t compliant.

7.

32 S

OLVING

P

ROBLEMS

Problem

I am using BSD lpr

(Slackware, Debian, older distributions) and some options chosen in LLPR don’t seem to take effect.

I am trying to print a document in Landscape mode, but it prints rotated and cropped.

Most Unix applications that offer a Landscape orientation option in their printing options will generate correct PostScript code that should be printed as is. In that case, you need to make sure that you leave the LLPR option to its default

Portrait setting, to avoid unwanted rotations of the page that would result in a cropped output.

Some pages come out all white (nothing is printed), and I am using CUPS.

Possible Cause and Solution

Legacy BSD lpr systems have a hard limitation on the length of the option string that can be passed to the printing system.

As such, if you selected a number of different options, you may exceed the length of the options and some of your choices won’t be passed to the programs responsible for implementing them. Try to select less options that deviate from the defaults, to save on memory usage.

I can’t print to a SMB

(Windows) printer.

If the data being sent is in Encapsulated PostScript (EPS) format, some earlier versions of CUPS (1.1.10 and before) have a bug preventing them from being processed correctly.

When going through LLPR to print, the Printer Package will work around this issue by converting the data to regular

PostScript. However, if your application bypasses LLPR and feeds EPS data to CUPS, the document may not print correctly.

To be able to configure and use SMB-shared printers (such as printers shared on a Windows printer), you need to have a correct installation of the SAMBA package that enables that feature. The “smbclient” command should be available and usable on your system.

My application seems to be frozen while LLPR is running.

Most Unix applications will expect a command like the regular

“lpr” command to be non-interactive and thus return immediately. Since LLPR is waiting for user input before passing the job on to the print spooler, very often the application will wait for the process to return, and thus will appear to be frozen (its windows won’t refresh). This is normal and the application should resume functioning correctly after the user exits LLPR.

How do I specify the IP address of my SMB server?

It can be specified in the “Add Printer” dialogue of the configuration tool, if you don’t use the CUPS printing system.

Unfortunately, CUPS currently doesn’t allow you to specify the

IP address of SMB printers, so you will have to be able to browse the resource with Samba in order to be able to print.

Some documents come out as white pages when printing.

Some versions of CUPS, especially those shipped with

Mandrake Linux before the 8.1 release, have some known bugs when processing the PostScript output from some applications. Try upgrading to the latest version of CUPS (at least 1.1.14). Some RPM packages for the most popular distributions are provided as a convenience with this Linux

Printing Package.

7

S

OLVING

P

ROBLEMS

7.

33

Problem Possible Cause and Solution

I have CUPS and some options (such as N-up) seem to be always enabled even though I don’t choose them in LLPR.

There may be some local options defined in your

~/

.lpoptions

file, which are manipulated by the lpoptions command. These options are always used if not overridden by

LLPR settings. To get rid of all options for a printer, run the following command, replacing “printer” with the name of the queue: lpoptions -x printer

I configured a printer to print to a file, but I get

“Permission denied” errors.

Most printing systems will not run as the super-user but as a special user (usually “lp”). Therefore, make sure that the file you have chosen to print to is accessible to the user owning the spooler daemon.

On my PCL (or GDI) printer, I sometimes get error messages printing instead of my document.

Some color images come out all black.

Unfortunately, some Unix applications may generate noncompliant PostScript output that may not be supported by

Ghostscript, or even the printer itself in PostScript mode. You can try to capture the output to a file and view the results with Ghostscript (gv or ghostview will allow you to do so interactively) and see if you get error messages. However, since the application is at fault probably, contact your software vendor to inform them of the issue.

This is a known bug of Ghostscript (until GNU Ghostscript version 7.05) when the base color space of the document is indexed color space and it is converted through CIE color space. Because Postscript uses CIE color space for Color

Matching System, you should upgrade Ghostscript on your system at least GNU Ghostscript version 7.06 or later. You can find the recent Ghostscript at www.ghostscript.com.

7.

34 S

OLVING

P

ROBLEMS

A

U

SING

Y

OUR

P

RINTER WITH

A

M

ACINTOSH

This chapter includes:

• Installing Software for Macintosh

• Printing a Document

• Using Advanced Printing Features

Installing Software for Macintosh

Your printer supports Macintosh systems with a built-in USB interface. When you print a file from a Macintosh computer, you can use the SPLC driver to support your printer’s major printing features.

System Requirements

To use your printer and its software with a Macintosh, your system should have:

Macintosh Hardware Requirement:

• One of the following Macintosh models:

-Power Macintosh series

-Power Macintosh G3, G4

-iMac series

-PowerBook series

-iBook series

• USB interface

Macintosh System Requirement:

System 8.6 or later

N

OTE

:

• Mac OS 10.0 version is not supported.

• The CLP-500 with optional network card and CLP-500N do not support printing over a network connection from any Macintosh

Operating System. Your printer must be connected directly to your Macintosh using a USB cable.

• The CLP-500 does not support Postscript printing. Ensure that the application you are using does not expect to be able to use

Postscript.

A.

2 U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

Installing Software

Mac OS 8.6 ~ 9.x

1

Turn the printer and computer off and plug the USB cable into your printer’s USB connector. For more details, refer to the Setup Guide.

N

OTE

: If you are using a USB hub, connect the printer’s cable to the first tier of the hub, or the printer may malfunction. If the printer doesn’t work with the hub, connect it directly to the USB port.

2

Turn on your computer and printer.

3

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

4

Double-click

SAMSUNG_CLP

on your Macintosh desktop.

5

Double-click the

Classic OS

folder.

6

Double-click the

West

folder.

7

Double-click the

Samsung CLBP installer

icon next to each language to select the correct one.

8

Click

Continue

, and then click

Continue

.

A

U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

A.

3

9

The Samsung CLBP installer window opens. Select the installation type. The window provides the following two options for software installation:

Easy Install

(recommended method): This option installs the SPLC driver.

Custom Install

: This option allows you to choose which components will be installed, the SPLC driver or Adobe

Acrobat Reader program for opening the User’s Guide.

10

Click

Install

.

If other programs are operating, the alert message appears. Click

Continue

to install the software, or click

Cancel

and close other programs, and install the software.

11

After installation is complete, click

Restart

.

Mac OS 10.x

Mac OS 10.0 version is not supported.

1

Turn the printer and computer off and plug the USB cable into your printer’s USB connector. For more details, refer to the Setup Guide.

N

OTE

: If you are using a USB hub, connect the printer’s cable to the first tier of the hub, or the printer may malfunction. If the printer doesn’t work with the hub, connect it directly to the USB port.

2

Turn on your computer and printer.

3

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

4

Double-click

SAMSUNG_CLP

on your Macintosh desktop.

A.

4 U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

5

Double-click the

OS X

folder.

6

For Mac OS 10 .1, double-click the

Installer for 10 X 10.1

icon.

For Mac OS 10.2.x, double-click the

Installer for 10 X 10.2

icon.

7

Click

Continue

, and then click

Continue

.

8

When the Easy Install window appears, click

Install

.

If you already installed the Samsung SPLC printer driver, click

Update

.

9

Click

Continue Installation

.

10

After installation is completed, click

Restart

.

Choosing Your Printer

Mac OS 8.6 ~ 9.x

1

From the

Apple

menu, select

Chooser

.

2

From the left pane of the Chooser window, click

Samsung

SPLC

. Then your printer name will appear in the right pane of the Chooser window.

3

Click

Samsung SPLC

and

CLP-500

, and close the Chooser window.

4

The message window indicating that you have changed your current printer appears. Click

OK

.

5

An CLP-500 icon will be created on your desktop.

A

Mac OS 10.x

1

Click

Printer Center

.

2

Select

CLP-500

and then

Make Default

.

• If you can not find the CLP-500 printer, click

Add

to add the printer. Then make sure that your computer and printer are connected to the USB cable and your printer is turned on.

U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

A.

5

Printing a Document

When you print with a Macintosh, you need to check the printer software setting in each application you use. Follow these steps to print from a Macintosh:

1

Open a Macintosh application and select a file you want to print.

2

Open the

File

menu, and click

Page Setup

(

Document

Setup

in some applications).

3

Choose your paper size, orientation, scaling and other options, and then click

OK

.

œ

Mac OS 9.2

Choose

Watermark

to add a watermark to each page in your document to emphasize its purpose or indicate how it should be handled. For details on the watermark options,

see “Using Watermarks” on page 5.10.

A.

6 U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

For Mac OS 10.x, select

CLP-500

in the

Format for

option.

œ

Mac OS 10.2

For advanced printing features, select the option you want. For details, see

page A.8.

N

OTES

:

• The Watermark feature is not supported on Mac OS 9.1 or higher.

• Duplex printing is not supported.

• Only 600 DPI printing is supported.

4

Open the

File

menu and click

Print

. You will see the

SAMSUNG SPLC Printer window.

5

Choose the number of copies and indicate which pages you want to print.

A

Saves the current settings for later use.

œ

Mac OS 9.2

R estores the default settings.

U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

A.

7

For advanced printing features, select the option you want. For details, see

page A.11.

œ

Mac OS 10.2

Converts the document to PDF.

6

Click

Print

when you finish setting the options.

Using Advanced Printing Features

Mac OS 8.6 ~ 9.x

The SAMSUNG SPLC Printer window contains five categories of advanced properties. Listed below is the name of each property.

- Paper Type

- Layout

- Color

- Background Printing

- Paper Source

Figures next display each property in the SAMSUNG SPLC Printer window.

A.

8 U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

Paper Type

Select the paper type.

Layout

Color

Select the number of pages you want to print on one sheet of paper. The pages appears decreased in size and arranged on the sheet.

To print the border of each page, check this box.

Select the color mode.

A

U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

A.

9

Background Printing

Turns background printing on or off.

Select a priority for your print job in the queue of jobs waiting to print, click one of the following:

Urgent

: to print before any Normal priority job.

Normal

: to print in the order the job is received.

Print at

: to print at the specific time you enter in the day and time in the fields to the right.

Put document on hold

: to hold the print job in the print queue until you are ready to release it.

Paper Source

Select the corresponding paper source.

If

Auto Select

is set, the printer automatically selects the print material from the paper feeder, according to the following order: Multi-Purpose Tray, Tray

1, and the optional Tray 2.

If you installed the optional

Tray 2, check this box to activate

Tray 2

.

A.

10 U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

Mac OS 10.x

The SAMSUNG SPLC Printer window contains three categories of advanced properties. Listed below is the name of each property.

- Layout

- Output Option

- Summary

N

OTE

: Some of feature are not supported on Mac OS 10.x such as

Paper Source, Paper Type, Grayscale and Black&White.

Layout

Select the number of pages you want to print on one sheet of paper. The pages appears decreased in size and arranged on the sheet.

To print the border of each page, select the option you want from the drop-down list.

Output Option

A

To save the document as PDF, select this box.

U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

A.

11

Summary

A.

12 U

SING

Y

OUR

P

RINTER WITH A

M

ACINTOSH

B

U

SING

Y

OUR

P

RINTER IN

L

INUX

You can use your printer in a Linux environment.

This chapter includes:

• Installing the Printer Driver

• Using the Configuration Tool

• Changing LLPR Properties

Installing the Printer Driver

System Requirements

Supported OS

• Redhat 6.2/7.0/7.1 and above

• Linux Mandrake 7.1/8.0 and above

• SuSE 6.4/7.0/7.1 and above

• Debian 2.2 and above

• Caldera OpenLinux 2.3/2.4 and above

• Turbo Linux 6.0 and above

• Slackware 7.0/7.1 and above

Recommended Requirements

• Pentium II or Power PC G3

• RAM 64 MB or higher

• HDD 20 MB or higher

Softwares

• Glibc 2.1 or higher

• GTK+ 1.2 or higher

• GhostScript

Installing the Printer Driver

1

Make sure that you connect the printer to your computer.

Turn both the computer and the printer on.

2

When the Administrator Login window appears, type in

root

” in the Login field and enter the system password.

N

OTE

: You must log in as a super user (root) to install the printer software. If you are not the super user, ask your system administrator.

B.

2 U

SING

Y

OUR

P

RINTER IN

L

INUX

3

Insert the printer software CD-ROM. The CD-ROM automatically runs.

N

OTE

: If the CD-ROM does not automatically run, click the icon at the bottom of the window. When the Terminal screen appears, type in:

[[email protected] /root]#

cd /mnt/cdrom

(the CD-ROM directory)

[[email protected] cdrom]#

./setup.sh

4

Select the installation type, either

Recommended

or

Expert

, and then click

Continue

.

Recommended

is fully automated and no interaction is required.

Expert

installation allows you to select the install path or printing system.

5

If you selected

Recommended

, go to Step 6.

For

Expert

, select an option and then click

Begin Install

.

B

U

SING

Y

OUR

P

RINTER IN

L

INUX

B.

3

6

The printer driver installation begins. When the installation is completed, click

Start

.

7

The Linux Printer Configuration window opens. Click the

Add Printer

icon on the tool bar at the top of the window.

N

OTE

: Depending on the printing system in use, the

Administrator Login window may appear. Type in “

root

” in the

Login field and enter the system password.

8

You see the printers currently added to your system. Select the printer you want to use. The function tabs available for the selected printer appear at the top of the Add a Printer window.

B.

4 U

SING

Y

OUR

P

RINTER IN

L

INUX

9

Click the

Connection

tab and ensure that the printer port is set properly. If not, change the device setting.

10

You can use the

Settings

tab and the

Queue

tab to view the printer’s current settings. If necessary, you can change the settings.

N

OTE

: The options may differ depending on the printer in use. The

Description and the Location field in the Queue screen may not appear depending on the printing system in use.

11

To exit, click

OK

.

12

When the window prompts that the new printer is successfully configured, click

OK

.

13

The Linux Printer Configuration window reappears. You can view the information about your printer from the

Info

tab. If necessary, you can change the printer’s configuration. For

details about changing the printer’s configuration, see “Using the Configuration Tool” on page B.8.

B

U

SING

Y

OUR

P

RINTER IN

L

INUX

B.

5

Changing the Printer Connection Method

If you change the printer connection method from USB to parallel or vice versa while in use, you must re-configure your

Linux printer by adding the printer to your system. Take the following steps:

1

Make sure that you connect the printer to your computer.

Turn both the computer and the printer on.

2

When the Administrator Login window appears, type in

root

” in the Login field and enter the system password.

N

OTE

: You must log in as a super user (root) to install a new printer to the printing system. If you are not the super user, ask your system administrator.

3

From the Startup Menu icon at the bottom of the desktop, select

Linux Printer

and then

Configuration Tool

.

You can also access the Linux Printer Configuration window by typing “

linux-config

” in the Terminal screen.

4

When the Linux Printer Configuration window appears, click the

Add Printer

icon on the tool bar at the top of the window.

5

Click the

Connection

tab at the top of the Add a Printer window.

Ensure that the printer port is set properly. If not, change the device setting.

6

Click

OK

.

B.

6 U

SING

Y

OUR

P

RINTER IN

L

INUX

Uninstalling the Printer Driver

1

From the Startup Menu icon at the bottom of the desktop, select

Other

and then

Configuration Tool

.

You can also access the Linux Printer Configuration window by typing “

linux-config

” in the Terminal screen.

2

In the Linux Printer Configuration window, select the

Uninstall

command from the

File

menu.

3

The Administrator Login window appears. Type in “

root

” in the Login field and enter the system password. Click

Proceed

.

N

OTE

: You must log in as a super user (root) to uninstall the printer software. If you are not the super user, ask your system administrator.

4

A message window appears asking you to confirm the uninstallation. Click

Yes

.

5

Select

Complete uninstall

and then click

Uninstall

.

B

U

SING

Y

OUR

P

RINTER IN

L

INUX

B.

7

6

Click

OK

to begin uninstallation.

7

When the uninstallation is completed, click

Finished

.

Using the Configuration Tool

The configuration tool accesses administrative tasks, including adding and removing a new printer, and changing their global settings. Regular users can also run it to easily inspect job queues, examine the printer properties and change their local preferences.

To access the Configuration Tool:

1

From the Startup Menu icon at the bottom of the screen, select

Linux Printer

and then

Configuration Tool

. The

Linux Printer Configuration window appears.

You can also open this window from the Terminal screen by typing in “

linux-config

.”

2

The Linux Printer Configuration window shows a list of installed printers in the left pane. The right pane shows a number of tabs that display information regarding the currently selected printer.

Select your printer, if not currently selected.

B.

8 U

SING

Y

OUR

P

RINTER IN

L

INUX

3

The

Info

tab shows general information about the printer.

If you are an Internet user, you can click

Go to the Web page for this printer

to access the web page.

Click the

Jobs

tab to inspect and manage the job queue for the selected printer. You can suspend, resume or delete a specific job(s) in the queue. If you drag a specific job(s), you can drop it into the print queue of another printer.

The

Properties

tab allows you to change the default printer settings.

N

OTE

: Regular users are able to override the system-wide default settings defined by the administrator. When a regular user clicks

Apply

, these custom settings are saved in the user’s profile and may be later used with LLPR. If the administrator is running the configuration tool, then the settings are saved as the new global defaults.

B

U

SING

Y

OUR

P

RINTER IN

L

INUX

B.

9

Changing LLPR Properties

You can fine tune the printer’s properties by opening the LLPR

Properties window.

To open the LLPR Properties window:

1

From the application you are using, select the

Print

command.

2

When the Linux LPR window opens, click

Properties

.

Click

Properties.

You can also open the LLPR window:

• Click the Startup Menu icon at the bottom of the screen and select

Linux Printer

and then

Linux LPR

.

• If the Linux Printer Configuration window is currently open, select

Test Print

from the

Print

menu.

B.

10 U

SING

Y

OUR

P

RINTER IN

L

INUX

3

The LLPR Properties window opens.

The following six tabs are at the top of the window:

General

- allows you to change the paper size, the paper type, the paper source, the orientation of the documents; enables the duplex feature, adds start and end banners, and changes the number of pages per sheet.

Margins

- allows you to specify the page margins. The graphics on the right shows the current settings. These margins do not apply when printing regular PostScript data.


- allows you to set image options that are used when printing image files, i.e. when a non-PostScript document is passed to LLPR on the command line. Color settings will also take effect for postscript documents.

Text

- allows you to select the density of the text and turn the syntax coloring on or off.

HP-GL/2

- allows you to set default options to print documents in the HP-GL/2 format, which is used by some plotters.

Advanced

- allows you to override the default settings for the printer.

If you click the

Save

button at the bottom of the window, the options are kept between LLPR sessions.

Use the

Help

button to view details about the options in the window.

4

To apply the options, click

OK

in the

LLPR Properties

window. You are returned to the

Linux LPR

window. To start printing, click

OK

.

U

SING

Y

OUR

P

RINTER IN

L

INUX

B.

11

B

MEMO

B.

12 U

SING

Y

OUR

P

RINTER IN

L

INUX

C

U

SING

Y

OUR

P

RINTER ON

A

N

ETWORK

If you work in a networked environment, the printer can be shared by other users on the network.

This chapter includes:

• About Sharing the Printer on a Network

• Setting Up a Locally Shared Printer

• Setting Up a Network-Connected Printer

N

OTE

: If you are a CLP-500 user, you need to install an optional network interface card. For more information, see

Appendix D, "Installing Printer Options".

About Sharing the Printer on a

Network

If you work in a networked environment, you can connect your printer to the network.

Locally-Shared Printer

You can connect the printer directly to a selected computer, which is called the “host computer” on the network. The printer can then be shared by other users on the network through a

Windows 9x/Me/XP/NT 4.0/2000 network printer connection.

Wired Network-connected Printer

A CLP-500N printer has the built-in network interface. See

page D.7 for information about installing the card.

To use a CLP-500 printer as a network printer, you need to install an optional network interface card in your printer.

Wireless Network-connected Printer

To use your printer in a wireless network environment, you need to install an optional wired/wireless network interface card in

your printer. See page D.7.

Printing Across a Network

Whether the printer is locally connected or network-connected, you need to install the CLP-500 series printer software on each computer that prints documents using the printer.

C.

2 U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

Setting Up a Locally Shared Printer

In Windows 95/98/Me

Setting Up the Host Computer

1

Start Windows.

2

From the

Start

menu, select

Control Panel

from

Settings

and double-click on the

Network

icon.

3

Check the

File and Print Sharing

box, and click

OK

. Close the window.

4

From the

Start

menu, select

Printers

from

Settings

and double-click your printer name.

5

Select

Properties

in the

Printer

menu.

6

Click the

Sharing

tab and check the

Shared As

box. Fill in the

Shared Name

field and click

OK

.

Setting Up the Client Computer

1

Right-click the Windows

Start

button and select

Explorer

.

2

Open your network folder in the left column.

3

Right-click the shared name and select

Capture Printer

Port

.

4

Select the port you want, check the

Reconnect at log on box

, and click

OK

.

5

From the

Start

menu, select

Settings

and then

Printers

.

6

Double-click your printer icon.

7

From the

Printer

menu, select

Properties

.

8

From the

Details

tab, select the printer port and click

OK

.

C

U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

C.

3

In Windows NT 4.0/2000/XP

Setting Up the Host Computer

1

Start Windows.

2

For Windows NT 4.0/2000, select

Settings

, and

Printers

from the Start menu.

For Windows XP, select

Printers and Faxes

from the Start menu.

3

Double-click your printer icon.

4

From the

Printer

menu, select

Sharing

.

5

For Windows NT 4.0, check the

Shared

box.

For Windows 2000, check the

Shared As

box.

For Windows XP, check the

Share this printer

box.

6

For Windows NT 4.0, fill in the

Shared Name

field and click

OK

.

For Windows 2000/XP, fill in the

Shared Name

field and click

OK

.

C.

4 U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

Setting Up the Client Computer

1

Right-click the Windows

Start

button and select

Explorer

.

2

Open your network folder in the left column.

3

Click the shared name.

4

For Windows NT 4.0/2000, select

Settings

and

Printers

from the

Start

menu.

For Windows XP, select

Printers and Faxes

from the

Start

menu.

5

Double-click your printer icon.

6

From the

Printer

menu, select

Properties

.

7

From the

Ports

tab, click

Add Port

.

8

Select

Local port

and click

New Port

.

9

Fill in the

Enter a port name

field, enter the shared name.

10

Click

OK

and click

Close

.

11

For Windows NT 4.0, click

OK

.

For Windows 2000/XP, click

Apply

and click

OK

.

U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

C.

5

C

Setting Up a Network-Connected

Printer

You have to set up the network protocols on the printer to use it as your network printer. Setting protocols can be accomplished by using the supplied network program. Please refer to

SyncThru User’s Guide.

You can configure the basic network parameters through the printer’s control panel. Use the printer control panel to do the following:

• Enable or disable network protocols (IPX/SPX)

• Configure TCP/IP

• Configure IPX frame types

Configuring Network Parameters on the

Control Panel

Supported Operating Systems

N

OTE

: The operating systems supported by the network card may be different the operating systems supported by the printer.

The following table shows the network enviroment supported by the printer.

Item

Network Interface

Network Operating

System

Network Protocols

Requirements

10/100 Base-TX (standard for CLP-500N) or 802.11b Wireless LAN

• Novell NetWare 4.x, 5.x, 6.x

• Windows 95/98/Me/NT 4.0/2000/XP

• Linux

• Netware IPX/SPX

• TCP/IP, DLC/LLC on Windows

DHCP, BOOTP Dynamic Addressing

Server

• IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange

• TCP/IP: Transmission Control Protocol/Internet Protocol

• DLC/LLC: Data Link Control/Logical Link Control

• DHCP: Dynamic Host Configuration Protocol

• BOOTP: Bootstrap Protocol

C.

6 U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

Printing a Network Configuration Page

The Network Configuration page shows how the network interface card on your printer is configured. The default settings which are suitable for most applications are enabled.

1

In ready mode press the

Menu

button ( ) until you see

‘Network’ on the bottom line of the display.

2

Press the

Enter

button ( ) to access the menu.

3

Press the scroll button ( or ) until ‘Print Net CFG’ displays on the bottom line.

4

Press the

Enter

button ( ).

The Network Configuration page prints out.

Setting Network Protocols

When you first install the printer, all supported network protocols are enabled when you turn the printer on. If a network protocol is enabled, the printer may actively transmit on the network even when the protocol is not in use. This may increase network traffic slightly. To eliminate unnecessary traffic, you can disable unused protocols.

1

In ready mode press the

Menu

button ( ) until you see

‘Network’ on the bottom line of the display.

2

Press the

Enter

button ( ) to access the menu.

3

Press the scroll button ( or ) until ‘Config Network’ displays on the bottom line. Press the

Enter

button ( ).

4

Press the scroll button ( or ) to display ‘Yes’ and press the

Enter

button ( ). Then press the

Upper Level

button

( ).

5

Press the scroll button ( or ) until you see the desired protocol on the bottom line.

You can choose ‘Netware’.

6

Press the

Enter

button ( ).

7

Press the scroll button ( or ) to change the setting to

‘On’ (enable) or ‘Off’ (disable).

8

Press the

Enter

button ( ) to save the selection.

C

9

Press the

On Line/Continue

button ( ) to return to ready mode.

U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

C.

7

Configuring TCP/IP

Your printer can be set up on a variety of TCP/IP networks. There are several ways in which your printer can be assigned a TCP/IP address, depending on your network.

• Static Addressing: TCP/IP address is assigned manually by the system administrator.

• Dynamic Addressing BOOTP/DHCP(default): TCP/IP address is assigned automatically by the server.

Static Addressing

To enter the TCP/IP address from your printer’s control panel, take the following steps:

1

In ready mode press the

Menu

button ( ) until you see

‘Network’ on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

2

Press the

Enter

button ( ) when ‘Config Network’ displays on the bottom line.

3

Press the scroll button ( or ) to display ‘Yes’ and press the

Enter

button ( ).

4

Press the

Upper Level

button ( ), then use the scroll button ( ).

5

Press the

Enter

button ( ) when ‘Config TCP’ displays.

6

Press the scroll button ( or ) to display ‘Yes’ and press the

Enter

button ( ).

7

Press the

Upper Level

button ( ), then use the scroll button ( ).

8

Press the

Enter

button ( ) when ‘IP Get Method’ displays.

9

Press the scroll button ( or ) to display ‘Static’ and press the

Enter

button ( ).

10

Press the

Upper Level

button ( ), then use the scroll button ( ).

11

Press the

Enter

button ( ) to access the IP Address menu.

C.

8 U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

An IP address consists of 4 bytes.

Enter a number between 0 and 255 for each byte.

12

Press the scroll button ( or ) to enter a number between 0 and 255 and press the

Enter

button ( ).

13

Repeat Step 12 to complete the address from the 1st byte to the 4th byte.

14

To select other parameters, such as the Subnet Mask or

Gateway, press the scroll button ( or ). Press the

Enter

button ( ).

15

Repeat steps 12 through 13 to configure the other TCP/IP parameters.

16

Press the

On Line/Continue

button ( ) to return to ready mode.

Dynamic Addressing (BOOTP/DHCP)

To assign the TCP/IP address automatically by the server, take the following steps:

1

In ready mode press the

Menu

button ( ) until you see

‘Network’ on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

2

Press the

Enter

button ( ) when ‘Config Network’ displays on the bottom line.

3

Press the scroll button ( or ) to display ‘Yes’ and press the

Enter

button ( ).

4

Press the

Upper Level

button ( ), then use the scroll button ( ).

5

Press the

Enter

button ( ) when ‘Config TCP’ displays.

6

Press the scroll button ( or ) to display ‘Yes’ and press the

Enter

button ( ).

U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

C.

9

C

7

Press the

Upper Level

button ( ), then use the scroll button ( ).

8

Press the

Enter

button ( ) when ‘IP Get Method’ displays.

9

Press the scroll button ( or ) to display ‘DHCP’ and press the

Enter

button ( ).

10

To assign the address from the BOOTP server, press the

Enter

button ( ) when “BOOTP” displays.

11

Press the

On Line/Continue

button ( ) to return to ready mode.

Configuring IPX Frame Types

On IPX/SPX protocol networks (for example, Novell NetWare), the format of the network communication frames must be specified for the printer. In most cases, you can keep the default setting ‘Auto’. However, you can manually set the frame type format, if required.

Auto

(default): Automatically senses and limits the frame type to the first one detected.

EN_8023

: Limits the frame type to IPX over IEEE 802.3 frames. All others will be discarded.

EN_II

: Limits the frame type to IPX over Ethernet Frames.

All others will be discarded.

EN_8022

: Limits the frame type to IPX over IEEE 802.2 with

IEEE 802.3 frames. All others will be discarded.

EN_SNAP

: Limits the frame type to IPX over SNAP with IEEE

802.3 frames. All others will be discarded.

Note that the IPX/SPX protocol must be enabled in the

Netware

menu before you can configure frame types. See “Setting

Network Protocols” on page C.7.

C.

10 U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

Take the following steps to change the frame type format:

1

In ready mode press the

Menu

button ( ) until you see

‘Network’ on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

2

Press the

Enter

button ( ) when ‘Config Network’ displays on the bottom line.

3

Press the scroll button ( or ) to display ‘Yes’ on the bottom line. Press the

Enter

button ( ).

4

Press the

Upper Level

button ( ).

5

Press the scroll button ( or ) until ‘Netware’ displays on the bottom line. Press the

Enter

button ( ).

6

Press the

Enter

button ( ) when ‘On’ displays.

7

Press the

Upper Level

button ( ), then use the scroll button ( ).

8

Press the

Enter

button ( ) when ‘Config Netware’ displays.

9

Press the scroll button ( or ) to display ‘Yes’ on the bottom line. Press the

Enter

button ( ).

10

Press the

Upper Level

button ( ), then use the scroll button ( ).

11

Press the

Enter

button ( ) when ‘IPX Frame Type’ displays.

12

Press the scroll button ( or ) until you see the desired frame type and press the

Enter

button ( ).

13

Press the

On Line/Continue

button ( ) to return to ready mode.

C

U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

C.

11

Restoring the Network Configuration

You can return the network configuration to its default settings.

1

In ready mode press the

Menu

button ( ) until you see

‘Network’ on the bottom line of the display.

2

Press the

Enter

button ( ) to access the menu.

3

Press scroll button ( or ) until ‘Default Set’ displays on the bottom line.

4

Press the

Enter

button ( ) to confirm the selection.

Configuring the Wireless Network

See the instructions supplied with the optional Wireless Network interface card.

Configure the Wireless Network environments.

You can easily configure the Wireless Network environments using the SetIP program in Windows. See Wireless Network

User's Guide.

To Configure the Wireless Settings using the Menu system.

Refer to page 2.5 and open the 'Network' menu.

Select 'Yes' in the 'Config Network' option and then select 'Config

802.11b'.

After selecting 'Yes' in 'Config 802.11b', configure the following items:

SSID

: When you select 'Search List', the wireless network card on your printer searches for wireless networks in the area and shows the results on the list. Select one on the list.

You cannot change ‘Operation Mode’ and ‘Channel’. If you select ‘Custom’ on the list, you can configure the wireless settings according to your needs and enter a name of up to

32 letters for your ‘Custom’ setting. ‘SSID’ is case sensitive, so you need to change it carefully. Using the Scroll buttons, find the alphabet you want and press the

Enter

button ( ) .

When the cursor moves to the next input field, enter the next letters the same as you entered the first letter. After you entered the last letter of the name, press the

Enter

button

( ) once again to save the ID. The way to enter the key number for the encryption key is the same as to enter letters.

C.

12 U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

Operation Mode

: ‘Ad-hoc’ mode allows the wireless devices to communicate directly with each other. This is the default operating mode for the print server.

If your network uses an Access Point, you must reconfigure the operation mode to ‘InfraStructure’. ‘InfraStructure’ mode allows both wireless and cabled computers to send files to the printer through an Access Point.

If you select ‘Auto’, the print server selects the operation mode automatically according to the network cable’s connection each time it boots up. If the network cable is detected, the print server enters ‘Ad-hoc’ mode; if not, enters

‘InfraStructure’ mode.

Channel

: This option is available in the ‘Ad-hoc’ mode only.

In most cases, you will not need to change this setting. The print server will scan all available channels for the specified network and will adapt its channel to the one detected.

Default setting is 10.

Authentication

: ‘Open System’ or ‘Shared Key’. The

Samsung print server is not configured for network authentication (Open System). If required by your network, the proper authentication method must be configured on the print server.

Encryption

: No data Encryption, 64 bits, or 128 bits. Default setting is No data Encryption. If your network uses WEP encryption keys, you must configure the encryption keys. You can configure up to four keys. The active key must match the value and active key position (for example, Key 1) configured on other wireless devices.

Using Key

: Select the key to use in your network.

Key Type

: Select the key type of your network.

Key 1

,

Key 2

,

Key 3

,

Key 4

: Enter the key number for

“Encryption”. The number you can enter are as follows:

64-bit WEP

128-bit WEP

Hexadecimal

10 digits

26digits

Alphanumeric

5 characters

13 characters

C

U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

C.

13

M

EMO

C.

14 U

SING

Y

OUR

P

RINTER ON A

N

ETWORK

D

I

NSTALLING

P

RINTER

O

PTIONS

Your printer is a full-featured laser printer that has been optimized to meet most of your printing needs. Recognizing that each user may have different requirements, however,

Samsung makes several options available to enhance your printer’s capabilities.

This chapter includes:

• Installing Printer Memory

• Installing a Network Interface Card

• Installing an Optional Tray

Installing Printer Memory

Your printer has a dual in-line memory module (DIMM) slot. Use this DIMM slot to install more memory for the printer.

N

OTE

: Your printer has 64 MB of memory which can be expanded to 192 MB. You can purchase a 100 Pin-SDRAM Module, 3.3volt of

64 or 128MB. Samsung part no ML-00MC (64 MB) or part no

ML-00MD (128MB), contact your Samsung dealer.

C

AUTION

: Static electricity can damage DIMMs. When handling a

DIMM, either wear an antistatic wrist strap, or frequently touch the surface of the DIMM antistatic package and then touch bare metal on the printer.

1

Turn the printer off and unplug all cables from the printer.

2

To remove the control board cover, press down on the tabs at the top and take it off.

D.

2 I

NSTALLING

P

RINTER

O

PTIONS

3

Remove the two screws holding the metal plate in place, and then remove the metal cover, as shown below.

4

Open the lever on each side of the DIMM slot all the way.

5

Remove the memory DIMM from the antistatic package.

Locate the alignment notches on the bottom edge of the

DIMM.

Notches

Connection points

N

OTE

: Avoid touching the connection points along the edge of the memory.

D

I

NSTALLING

P

RINTER

O

PTIONS

D.

3

6

Holding the DIMM by the edges, align the notches on the

DIMM with the notches at the top of the DIMM slot.

7

Insert the ends of the memory DIMM into the slots on the levers.

8

Push it firmly to make sure you fully insert the memory

DIMM into the slot. The levers on each side are automatically latched.

N

OTE

: If you have difficulty inserting the memory DIMM or closing the levers, make sure the notches on the bottom of the

DIMM are aligned with the notches in the DIMM slot.

D.

4 I

NSTALLING

P

RINTER

O

PTIONS

9

Replace the metal cover, as shown below, and tighten the two screws you removed in step 3.

10

Replace the control board cover.

11

Reconnect the power cord and printer cable, and turn the printer on.

I

NSTALLING

P

RINTER

O

PTIONS

D.

5

D

Removing the Memory

1

Follow steps 1 through 3 on page D.2 to access the control

board.

2

Push the levers at both ends of the DIMM slot away from the DIMM.

3

Place the DIMM in its original packaging or wrap it with sheet of metal as thin as paper such as aluminium foil and store it in a box.

4

Follow from step 9 on page D.5.

D.

6 I

NSTALLING

P

RINTER

O

PTIONS

Installing a Network Interface Card

N

OTE

: When you purchase the wired/wireless network interface card, the antenna connected to the card is not separated from the card depending on your country.

To use your printer on a network, you must be equipped in your printer.

CLP-500N has a built-in network interface card. If you are a

CLP-500 user, you need to install an optional network interface card.

If you want to use the printer in both a wired and a wireless network environments, you need to install an optional wired/ wireless network interface card.

Check if there is missing parts in your package of the optional interface card.

Order number: ML-00NC Order number: ML-00LC

Network inter face Card,

SyncThru CD-ROM and

SyncThru Quick Guide

Wireless Network interface

Card, SyncThru CD-ROM,

SyncThru Quick Guide and

Wireless Quick Guide

1

Turn the printer power off and unplug all cables from the printer.

I

NSTALLING

P

RINTER

O

PTIONS

D.

7

D

2

To remove the control board cover, press down on the tabs at the top and take it off.

3

Remove the two screws holding the metal plate in place, and then remove the metal cover, as shown below.

D.

8 I

NSTALLING

P

RINTER

O

PTIONS

4

Push the hole lid using a tool with sharp end.

If you replace the network interface card with a new one, remove the two screws and the old card.

5

Align the connector on the network interface card with the connector on the control board. Make sure that the jacks on the card go through the holes. Push the card firmly into the connector until it is completely inserted into place.

I

NSTALLING

P

RINTER

O

PTIONS

D.

9

D

6

Tighten the two screws.

7

Replace the metal cover, as shown below, and tighten the two screws you removed in step 3.

8

Replace the control board cover.

D.

10 I

NSTALLING

P

RINTER

O

PTIONS

9

Plug one end of the Ethernet cable into the Ethernet network port on the Printer and the other end of the cable into a network LAN connection.

To the network

LAN connection

10

Connect the network cable, reconnect the power cord and then turn the printer on.

N

OTE

: For information about configuring and using the printer in a network environment, refer to the User’s Guide provided with the network interface card. You can also configure the network

parameters using the control panel; see page C.6.

I

NSTALLING

P

RINTER

O

PTIONS

D.

11

D

Installing an Optional Tray

You can increase the paper handling capacity of your printer by installing an optional Tray2. This tray holds 500 sheets of paper.

1

Turn the printer off and unplug all cables from the printer.

2

Remove the packing tape and the packing material inside of the tray.

3

Find the location of the connector and the optional tray positioners.

D.

12 I

NSTALLING

P

RINTER

O

PTIONS

4

Place the printer over the tray, aligning the feet on the printer with the positioners in the optional tray.

Lifting handles are located at the lower edge of both sides of the printer.

C

AUTION

: This printer weighs 35kg including developer cartridge and cassette. Use safe lifting and handling techniques. If you need to move the printer it must be moved by two people. Use the lifting handles located as shown in the diagram. Back injury could be caused if a single person attempts to lift the printer.

5

Load paper in the optional tray. For information about

loading paper in this tray, see “Using the Optional Tray 2” on page 3.8.

6

Reconnect the power cord and cables and then turn the printer on.

When you print a document on the paper loaded in Tray 2, you must configure the properties of the printer driver.

To access the properties of the printer driver:

1

Click the Windows

Start

menu.

2

For Windows 95/98/Me/NT 4.0/2000, select

Settings

and then

Printers

.

For Windows XP, select

Printers and Faxes

.

3

Select the

Samsung CLP-500 Series

printer.

D

I

NSTALLING

P

RINTER

O

PTIONS

D.

13

4

Click the right mouse button on the printer icon and:

In Windows 95/98/Me, select

Properties

.

In Windows NT 4.0/2000/XP, select

Properties

.

5

Click the

Printer

tab, and select

Tray 2

from the

Optional

Tray

drop-down list.

6

Click

OK

and print the document.

D.

14 I

NSTALLING

P

RINTER

O

PTIONS

E

S

PECIFICATIONS

This chapter includes:

• Printer Specifications

• Paper Specifications

Printer Specifications

Item

Print Speed

Resolution

Warm-up Time

First Printing on Time

Power Rating

Specifications and Description

Black:20 PPM (A4), 21 PPM (Letter);Color: 5 PPM (A4/Letter)

Duplex: 9.6 IPM (Black); 5 IPM (Color)

True 600x600 dpi (1200x1200 dpi class)

15 seconds (Black); 24 seconds (4-Color)

Less than 120 seconds

AC 110 ~ 127V (USA, Canada) / 220 ~ 240V (Others),

50 / 60Hz

Power consumption

Acoustic Noise

Toner Supply

Toner cartridge Life

450 W average during operation /

Less than 30 W in sleep mode

Printing: 48dB

Four toner cartridges (Black, Yellow, Magenta, Cyan)

7,000 Sheets (for starter, 2,000 sheets)@ IDC 5% coverage

(Black Toner)

5,000 Sheets (for starter, 1,500 sheets) @ IDC 5% coverage

(Color (C/M/Y))

Monthly: 35,000 pages maximum (Black)

35kg (including consumables)

Paper: 4.36Kg, Plastic: 1.48Kg

Duty Cycle

Weight

Package Weight

External Dimensions

(W x D x H)

510 (W) x 470 (D) x 405 (H) mm

Operating Environment

Temperature: 15 ~ 32.5°C / 50 ~ 90°F

Humidity: 20 ~ 80% RH

SPL-Color Emulation

Random Access Memory

(RAM)

Standard 64 MB

Expandable to 192 MB: 100 pin, SDRAM, 3.3V; 64, 128 MB available

Use only the Samsung-approved DIMM.

64 MB : ML-00MC; 128 MB: ML-00MD

Fonts

Interface Switching

Interface

Windows font

Automatic (Parallel, USB, Network)

• IEEE 1284 Bidirectional Parallel

- Modes supported: Compatible, Nibble, Byte, ECP

• USB Interface Standard

- USB 1.1/2.0 compliant (12/480 Mbps 1 port)

• Network Interface

- 10/100 Base TX (CLP-500: option, CLP-500N: standard)

- 802.11b Wireless LAN (optional interface)

E.

2 S

PECIFICATIONS

Paper Specifications

Overview

Your printer accepts a variety of print materials, such as cutsheet paper (including up to 100% recycled fiber content paper), envelopes, labels, transparencies and custom-size paper. Properties, such as weight, composition, grain and moisture content, are important factors affecting the printer’s performance and the output quality. Paper that does not meet the guidelines outlined in this User’s Guide can cause the following problems:

• Poor print quality

• Increased paper jams

• Premature wear on the printer.

E

N

OTES

:

• Some paper may meet all of the guidelines in this guide and still not produce satisfactory results. This may be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Samsung has no control.

• Before purchasing large quantities of paper, ensure that the paper meets the requirements specified in this User’s Guide.

C

AUTION

: Using paper that does not meet these specifications may cause problems, requiring repairs. These repairs are not covered by the Samsung warranty or service agreements.

S

PECIFICATIONS

E.

3

E.

4 S

PECIFICATIONS

Supported Sizes of Paper

Tray1

/

Tray2

Dimensions

Letter

216 X 279mm

(8.5 X 11in.)

*

A4

210 X 297mm

(8.3 X 11.7in.)

Weight

Capacity

**

• 60 to 90g/m

2

bond

(16 to 24lb) for single-sided printing

• 75 to 90 g/m

2

bond

(20 to 24lb) for duplex printing

• 250 sheets of

75g/m 2 bond paper for

Tray 1

• 500 sheets of

75g/m

2

bond paper for

Tray 2

Multi-

Purpose Tray

Minimum Size

(custom)

Dimensions

90 X 140mm

(3.5 X 5.5in.)

*

Maximum Size

(custom)

216 X 356mm

(8.5 X 14in.)

Transparency

Labels ***

Envelopes

Weight

60 to 163g/m

2 bond

(16 to 43lb)

Same minimum and maximum paper sizes as listed above.

Thickness:

0.10 X 0.14 mm (0.0039 X

0.0055in.)

Thickness:

0.10 X 0.14 mm (0.0039 X

0.0055in.) up to 90g/m

2

(16 to 24lb)

Capacity

100 sheets of

75g/m

2 paper

bond

30 typical

10 typical up to 10

**

*The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-sized Materials” on page 3.21.

**Capacity may vary depending on media weight and thickness, and environmental conditions.

***Smoothness: 100 to 250 (Sheffield)

N

OTE

: You may experience jams when using print materials with a length of less than 140mm (5.5in.). For optimum performance, ensure that you are storing and handling the paper correctly.

Please refer to “Printer and Paper Storage Environment” on page E.7.

Guidelines for Using Paper

For the best result, use conventional 75g/m

2

(20lb) paper.

Ensure that the paper is of good quality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curled or bent edges.

If you are unsure of what type of paper you are loading, such as bond or recycled paper, check the label on the package.

The following problems may cause print quality deviations, jamming or even damage to the printer.

Symptom

Poor print quality or toner adhesion, problems with feeding

Problem with

Paper

Too moist, too rough, too smooth or embossed; faulty paper lot

Solution

Try another kind of paper, between 100 ~

250 Sheffield, 4 ~ 5% moisture content.

Dropout, jamming, curl

Stored improperly

Store paper flat in its moisture-proof wrapping.

Increased gray background shading/printer wear

Too heavy

Excessive curl problems with feeding

Too moist, wrong grain direction or short-grain construction

Jamming, damage to printer

Cutouts or perforations

Problems with feeding

Ragged edges

Use lighter paper, open the rear output tray.

Use long-grain paper.

Do not use paper with cutouts or perforations.

Use good quality paper.

E

N

OTES

:

• Do not use letterhead paper printed with low-temperature inks, such as those used in some types of thermography.

• Do not use raised or embossed letterhead.

• The printer uses heat and pressure to fuse toner to the paper.

Ensure that any colored paper or preprinted forms use inks that are compatible with this fusing temperature (180°C or 356°F for

0.1 second).

S

PECIFICATIONS

E.

5

E.

6 S

PECIFICATIONS

Paper Specifications

Category

Acid Content

Caliper

Curl in Ream

Cut Edge Conditions

Fusing Compatibility

Grain

Moisture Content

Smoothness

5.5 ~ 8.0pH

Specifications

0.094 ~ 0.18mm (3.0 ~ 7.0mils)

Flat within 5mm (0.02in.)

Cut with sharp blades with no visible fray.

Must not scorch, melt, offset, or release hazardous emissions when heated to

180°C (356°F) for 0.1 second.

Long Grain

4% ~ 6% by weight

100 ~ 250 Sheffield

Paper Output Capacity

Output Tray

Face-down

Capacity

250 sheets of 75g/m 2 bond paper

Paper Input Capacity

Input Tray

Cassette

MP tray

Optional tray

Capacity

250 sheets of 75g/m 2 bond paper

100 sheets of 75g/m

2

bond paper

500 sheets of 75g/m

2

bond paper

Printer and Paper Storage Environment

Paper storage environmental conditions directly affect the feed operation.

Ideally, the printer and paper storage environment should be at or near room temperature, and not too dry or humid. Remember that paper is hygroscopic; it absorbs and loses moisture rapidly.

Heat works with humidity to damage paper. Heat causes the moisture in paper to evaporate, while cold causes it to condense on the sheets. Heating systems and air conditioners remove most of the humidity from a room. As paper is opened and used, it loses moisture, causing streaks and smudging. Humid weather or water coolers can cause the humidity to increase in a room. As paper is opened and used it absorbs any excess moisture, causing light print and dropouts. Also, as paper loses and gains moisture it can become distorted. This can cause paper jams.

Care should be taken not to purchase more paper than can be used in a short time (about 3 months). Paper stored for long periods may experience heat and moisture extremes, which can cause damage. Planning is important to prevent damage to large supplies of paper.

Unopened paper in sealed reams can remain stable for several months before use. Opened packages of paper have more potential for environment damage, especially if they are not wrapped with a moisture-proof barrier.

The paper storage environment should be properly maintained to ensure optimum printer performance. The required condition is 20° to 24°C (68° to 75°F), with a relative humidity of 45% to

55%. The following guidelines should be considered when evaluating the paper’s storage environment:

• Paper should be stored at or near room temperature.

• The air should not be too dry or too humid.

• The best way to store an opened ream of paper is to rewrap it tightly in its moisture-proof wrapping. If the printer environment is subject to extremes, unwrap only the amount of paper to be used during the day’s operation to prevent unwanted moisture changes.

E

S

PECIFICATIONS

E.

7

E.

8 S

PECIFICATIONS

Envelopes

Envelope construction is critical. Envelope fold lines can vary considerably, not only between manufacturers, but also within a box from the same manufacturer. Successful printing on envelopes depends upon the quality of the envelopes. When selecting envelopes, consider the following components:

• Weight: The weight of the envelope paper should not exceed

90g/m 2 (24lb) or jamming may occur.

• Construction: Prior to printing, envelopes should lie flat with less than 6mm (0.25in.) curl, and should not contain air.

• Condition: Envelopes should not be wrinkled, nicked, or otherwise damaged.

• Temperature: You should use envelopes that are compatible with the heat and pressure of the printer.

• Size: You should only use envelopes within the following size ranges.

Multi-purpose

Tray

Minimum

90 X 140mm

(3.5 X 5.5in.)

Maximum

216 X 356mm

(8.5 X 14in.)

N

OTES

:

• Use only the Multi-purpose Tray to print envelopes.

• You may experience some paper jams when using any media with a length less than 140mm (5.5in.). This may be caused by paper that has been affected by environmental conditions. For optimum performance, make sure you are storing and handling

the paper correctly. Please refer to “Printer and Paper Storage

Environment” on page E.7.

Envelopes with Double Side Seams

Double side-seams construction has vertical seams at both ends of the envelope rather than diagonal seams. This style may be more likely to wrinkle. Be sure the seam extends all the way to the corner of the envelope as illustrated below.

E

Correct

Incorrect

Envelopes with Adhesive Strips or Flaps

Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the heat and pressure in the printer. The extra flaps and strips might cause wrinkling, creasing, or even jams and may even damage the fuser.

Envelope Margins

The following gives typical address margins for a commercial

#10 or DL envelope.

Type of Address

Return address

Minimum

15mm (0.6in.)

Delivery address 51mm (2in.)

Maximum

51mm (2in.)

90mm (3.5in.)

N

OTES

:

• For best print quality, position margins no closer than 15mm

(0.6in.) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams meet.

S

PECIFICATIONS

E.

9

E.

10 S

PECIFICATIONS

Envelope Storage

Proper storage of envelopes helps contribute to print quality.

Envelopes should be stored flat. If air is trapped in an envelope, creating an air bubble, then the envelope may wrinkle during

printing. See “Printing on Envelopes” on page 3.14.

Labels

C

AUTIONS

:

• To avoid damaging the printer, use only labels recommended for laser printers.

• To prevent serious jams, always use the Multi-purpose Tray to print labels and always use the rear output tray.

• Never print on the same sheet of labels more than once and never print on a partial sheet of labels.

When selecting labels, consider the quality of each component:

• Adhesives: The adhesive material should be stable at 180°C

(356°F), the printer’s fusing temperature.

• Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets with spaces between the labels, causing serious jams.

• Curl: Prior to printing, labels must lie flat with no more than

13mm (5in.) of curl in any direction.

• Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.

See “Printing on Labels” on page 3.16.

Transparencies

Transparencies used in the printer must be able to withstand

180°C (356°F), the printer’s fusing temperature.

C

AUTION

: To avoid damaging the printer, use only transparencies recommended for use in laser printers.

See “Printing on Transparencies” on page 3.17.

I

NDEX

C

cancel, print jobs

4.4

card stock, print

3.21

clean inside the printer

6.31

LSU

6.30

outside of the printer

6.29

color mode

4.9

,

4.10

components

1.4

configuration page, print

6.2

connect

Ethernet

D.11

control panel

2.2

buttons

2.3

display

2.2

menus

2.5

custom-sized materials, print

3.21

D

double-sided printing

5.2

E

envelopes, print

3.14

error messages

7.26

Ethernet cable, print

D.11

F

Favorite setting, use

4.13

features printer

1.2

G

graphic properties, set

4.9

H

help, use

4.14

I

imaging unit, replace

6.14

Install

Memory

D.2

Network Interface Card

D.7

optional Tray2

D.12

printer driver for Macintosh

A.3

install printer options

D.1

SPL driver for Linux

B.2

interface card, install

D.7

L

labels, print

3.16

Linux common problems

7.32

configuration tool

B.8

driver, install

B.2

LLPR properties

B.10

load, paper in the Multi-Purpose Tray

3.9

in the optional Tray2

3.8

in the Tray1

3.4

using the manual feed

3.12

M

Macintosh common problems

7.31

desktop printer, create

A.5

document, print

A.6

drive, install

A.3

system requirements

A.2

manual feed mode, use

3.12

memory DIMM, install

D.2

memory DIMM, remove

D.6

Multi-Purpose Tray, use

3.9

i

N

network interface card, install

D.7

network printing card, install

D.7

locally shared printer, set

C.3

network-connected printer, set

C.6

parameters, configure

C.6

n-up printing

5.6

O

option, install memory DIMM

D.2

network interface card

D.7

paper tray 2

D.12

optional tray, install

D.12

orientation, select

4.6

overlay, use

5.13

P

paper choose

3.2

guideline

3.3

load

3.4

sizes and capacities

3.2

specifications

E.3

paper jam in the duplex area

7.14

in the Multi-Purpose Tray

7.10

in the optional Tray 2

7.18

in the paper exit area

7.11

in the paper feed area

7.8

inside the printer

7.10

tips for avoiding

7.21

paper properties, set

4.7

paper size, change in the tray

3.7

paper size, set

4.7

paper size,set

4.7

paper source, set

4.8

paper type, set

4.8

poster printing

5.7

preprinted paper, print

3.20

print order, set

4.12

print quality problems

7.22

print quality problems, solve

7.22

print resolution, set

4.9

printer software install in Linux

B.2

in Macintosh

A.3

uninstall printing in Linux

B.7

booklets

5.9

configuration page

6.2

double-sided

5.2

fitting to a selected paper

5.5

from Macintosh

A.6

from Windows

4.3

multiple pages on one sheet

5.6

posters

5.7

reduced/enlarged document

5.4

using overlays

5.13

watermarks

5.10

printing problems

7.3

problem, solving checklist

7.2

error messages

7.26

general

7.3

Linux

7.32

Macintosh

7.31

paper jams

7.7

print quality

7.22

Windows

7.30

Q

quality problems, solve

7.22

R

replace imaging unit

6.14

toner cartridge

6.8

transfer belt

6.22

waste toner container

6.11

S

software

Macintosh

A.2

specification paper

E.3

printer

E.2

system requirements for Linux

B.2

for Macintosh

A.2

ii

T

toner cartridge maintain

6.4

redistribute

6.5

,

6.8

replace

6.8

toner remain, check

6.4

transfer belt, replace

6.22

transparencies, print

3.17

Tray1, use

3.4

U

uninstall

Linux

B.7

W

waste toner container, replace

6.11

watermarks, use

5.10

iii

Home

Visit us at:

www.samsungprinter.com

Rev.3.00

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
