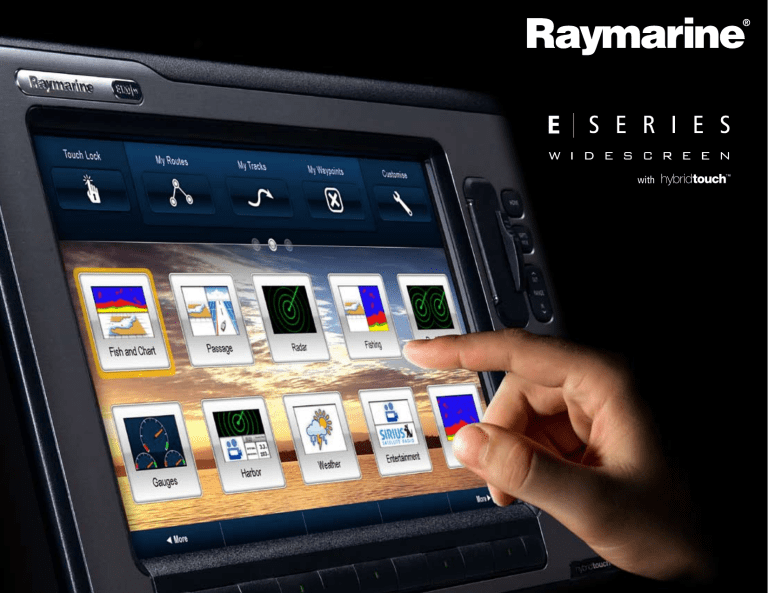

E-Series Widescreen delivers elegant simplicity, bold new styling
and unprecedented choice. Choose touch screen or keypad operation with
E-Series Widescreen’s innovative HybridTouch™ technology. A brand new user
interface and intuitive home screen makes navigation simple, fast and easy.
Build your E-Series Widescreen Network
E-Series Widescreen displays are easily expanded with SeaTalkhs digital network sensors for radar, fishfinder and satellite
weather. Build a system with a single widescreen display or create a multi-station E-Series Widescreen network. E-Series
Widescreen displays also feature a SeaTalkng data bus port for connecting to SeaTalkng compatible instruments, autopilots,
and NMEA2000 compatible devices. The NMEA2000 interface enables any E-Series Widescreen to display virtual instrument
data from electronic engine instruments and trim tab systems. NMEA0183 inputs and outputs are available for AIS and third
party devices. A first generation SeaTalk port is also available for networking with an external GPS sensor, LifeTag,
and SeaTalk compatible instruments and autopilots.
E-Series Widescreen
Display
Video
Video
Video
Video
SeaTalk
SeaTalkhs
Master E-Series Widescreen Display
Video Input for a marine camera
LifeTag Wireless M.O.B. System
Video Input for a marine camera
SeaTalkhs Netw
SeaTalkhs
SeaTalkhs
TM
Video Input for onboard entertainment
HD Digital and Super HD Digital radar
HD Digital Sounder Modules
SeaTalkng Backbone
ng
ST70 Plus Instruments
ST70 Plus Autopilot
NMEA 2000
The Next Generation Data Bus
E-Series Widescreen
Display
SeaTalkng
SeaTalkng
SeaTalkng
SeaTalkng
NMEA 2000 Engine Monitoring
NMEA 0183
Video
NMEA 0183
SeaTalkhs
E-Series Widescreen Display
DSC VHF Radio
AIS250/AIS500 Automatic Identification System
work Switch *
HD video output to flat screen televisions
SeaTalkhs
SIRIUS Satellite Weather & Radio Receiver
RayTech Home Planning Software
* SeaTalkhs switch only required when utilizing more than two digital sensors
E
E90W 9” Multifunction Display
E140W 14.1” Multifunction Display
E120W 12.1” Multifunction Display
HybridTouch™
Navionics Platinum+ WITH Turboview
Engineered for the marine environment, the HybridTouch™ touch screen user interface offers the convenience of touch
screen and the confidence of full keypad control in rough seas.
Experience total immersion in the multidimensional world of Navionics Platinum+™ charts with TurboView. Dive to depths
and fly through your favorite destinations while enjoying a seamless 3D navigation experience using Platinum+ charts.
Brand new interface
Bird mode
A completely new user interface designed around an easy-to-use home screen simplifies application selection and gives
you the power to customize your navigation experience with a few simple touches.
HD Digital Bird Mode automatically optimizes the radar display to track sea bird targets at distance, giving anglers the long
range intelligence they need to find schools of fish.
Preloaded Ready-to-navigate navionics charts
simplified voyage planning
E-Series Widescreen displays are preloaded with ready-to-navigate charts for basic navigation. Step up to Navionics
Platinum+ for enhanced chart detail and data layers.
Create waypoints and routes with a few simple touches. E-Series Widescreen’s on-screen keyboard makes naming and
organizing your data simple.
Designed for the marine environment. The convenience of touch screen and the confidence of keypad control in rough seas.
Intuitive touch screen
operation simplifies
common tasks
Touch Lock™ enables
total button-based
operation in extreme
conditions
Keypad provides full
operational control in
rough seas
High Definition Display Technology
High resolution sunlight viewable widescreens deliver vibrant color and maximum visibility.
• E120W and E140W feature WXGA screen
resolutions (1280 x 800) and the E90W features
WVGA resolution (800 x 480)
• Optically bonded LCD display technology
dramatically improves contrast and improves
readability
• Ruggedized glass touch screen technology
• Smooth, easy glide surface offers durable scratch
resistance
• Superior sensitivity and accuracy minimizes false
inputs from rain, spray or contaminants
Intuitive softkey
menus provide easy
access to essential
navigation functions
Unicontrol™ lets you
quickly rotate and
select menus and
features
Brand New User Interface
A completely new user interface designed around the easy-to-use Home Screen simplifies application selection and gives
captains the power to customize their navigation experience with a few simple touches.
Intuitive home screen
greets the captain
with an easy-tounderstand menu of
applications
Direct access to stored
waypoints, routes
and tracks
Bold, easy-to-read
icons make learning
and exploring easy
Easily personalize the
home screen with a
few simple touches
Preloaded Navionics Charts
E-Series Widescreen displays are preloaded with ready-to-navigate Navionics charts of the coastal U.S. Preloaded charts include:
aids to navigation, depth contours, spot soundings, depth shading and isolated hazards.
Navionics Platinum+ with TurboView™ Technology
Experience total immersion in the multidimensional world of Navionics Platinum+™ charts with TurboView technology.
Dive to depths and fly through your favorite destinations while enjoying a fast and seamless 3D navigation experience using
Platinum+ charts.
• Seamless, fluid pan and zoom of 3D charts
• Selectable color shaded contours
• Depth and elevation shadowing
• Full Seamless & Intelligent Clarity Technology™
• High resolution top-down photo overlay
• Complete Geo-referenced Coast Pilot Book
• 3-D bathymetric views and Navionics exclusive
high-definition fishing detail
• Points of Interest including enhanced port services,
hazards, wrecks and more!
• Panoramic port photos
High Resolution Aerial Overlay
Panoramic Port Photographs
Enjoy stunning high resolution aerial overlay in both 2D and 3D navigation modes. Navionics Platinum+ charts feature built in
imagery with resolutIons as high as 1/4 meter per pixel. E-Series Widescreen also features aerial image overlay transparency
allowing you to blend in just the right amount of detail.
Cruising captains and navigators will appreciate Navionics’ Platinum+ panoramic port photos. Presented in stunning 1024 x 768
high resolution, they offer you a bird’s eye view of marinas, docks, harbors, inlets and other prominent marine features.
Bathymetric Fishing Charts
Integrated Cruising Guide, Tides and Currents
Navionics’ exclusive high resolution bathymetric charts give anglers the advantage with super detailed depth contours, spot
soundings and an extensive database of underwater wrecks and obstructions. E-Series Widescreen can also display charts sideby-side, enabling simultaneous viewing of both navigation and fishing charts in 2D or 3D mode. With E-Series Widescreen, the
choices are all yours.
Navionics Platinum+ charts contain volumes of valuable navigation data from the NOAA Coast Pilot books. Information like channel and wharf descriptions, anchorages and bridge clearances are all instantly available and geo-referenced to your boat’s current
position. Tide and current data is also available with the touch of a button. View real-time tides and current while out on the
water, or view predictions for any date when planning a future trip.
Target Fish with Radar
The Angler’s Advantage
Experienced anglers look to the horizon for seabirds above schools of fish. Now Raymarine HD Digital radar technology does
the same with all new “Bird Mode” radar tracking. Bird Mode automatically optimizes the radar scanner to track small sea
bird targets at distance, giving anglers the long range intelligence they need to find fish.
E-Series Widescreen delivers unmatched HD Digital sounder technology with up to 3 Kilowatts of output power. Network with an
HD Digital sounder module and access fishfinder at the helm or in the tower.
Check our website for radar antenna updates to support Bird Mode
• Choose 600 Watt DSM30, the 1000 Watt DSM300 or the 3000 Watt DSM400 HD Digital Sounder module
• Fully automatic, hands free operation thanks to Raymarine’s patented HD Digital technology
• Digital receiver technology provides a dramatically clearer picture of bottom structure and fish targets
TM
SIRIUS Marine Weather and Satellite Radio
AIS Integration
Track storms, receive weather alerts, view animated weather radar, and enjoy over 100 channels of commercial free music using
SIRIUS Marine Weather and Satellite Radio Service. Plan your next fishing trip using highly detailed sea surface temperature data
or plan your next cruise with up-to-the-minute NOWRAD radar overlaid directly on your chartplotter. Requires optional SeaTalkhs
compatible SR100 receiver and subscription.
AIS (Automatic Identification System) enables the wireless exchange of navigation status between vessels and shore-side
traffic monitoring centers. Using the optional AIS250 receiver or the AIS500 transceiver, E-Series Widescreen graphically
overlays AIS targets in both chartplotter and radar modes.
WEATHER
Optional AIS500 Transceiver
© SIRIUS XM Radio Inc. SIRIUS, XM and all related marks and logos are trademarks of SIRIUS XM Radio Inc. and its subsidiaries.
Video at your Command
Autopilot Control
Engine Instruments
Enjoy up to four video input sources like Satellite TV, marine cameras or DVD
entertainment. HD video output enables remote connections to LCD monitors and TV.
Using the SeaTalkng data bus, E-Series Widescreen can activate and control Raymarine
SmartPilot X-Series autopilots directly from the chartplotter interface.
Monitor onboard vital systems with NMEA 2000 engine integration. E-Series monitors engines, sensors, generators, trim tabs and more.
ng
The Next Generation Data Bus
*
* Shown with optional trunnion mount
E-Series Widescreen Ordering Information
E-Series Widescreen Specifications
E-Series WIDESCREEN MULTIFUNCTION DISPLAYS
gps/SIRIUS/AIS receivers
Screen Resolution
E90W 800x480 WVGA
Description
Part number
Description
Part number
E120W 1280x800 WXGA
E90W 9” Multifunction Display with U.S. Coastal Charts
E62220-US
Raystar 125 GPS Sensor
E32042
E140W 1280x800 WXGA
E90W 9” Multifunction with ROW charts (S. America, Australia,
NZ, Asia)
E62220-RW
SR100 SIRIUS Weather Service Receiver
E03008
Video
1 + 3 in / 1 VGA out
AIS250 Receiver Module
E03015
Network Sensors
E90W 9” Multifunction with ROW charts (Europe)
E62220-EU
E120W 12.1” Multifunction Display with U.S. Coastal Charts
E62223-US
AIS500 Class B Transceiver
E62235
Digital Radar, Digital
Sounder Module, SIRIUS
Marine Weather
E120W 12.1” Multifunction with ROW charts (S. America,
Australia, NZ, Asia)
E62223-RW
Smart Heading Compass Sensor
E12102
NMEA2000
1
hs
SeaTalk
1
E120W 12.1” Multifunction with ROW charts (Europe)
E62223-EU
Marine Cameras
SeaTalkng
1
E140W 14.1” Multifunction Display with U.S. Coastal Charts
E62226-US
Description
Part number
SeaTalk (1st Generation)
1
E140W 14.1” Multifunction with ROW charts (S. America,
Australia, NZ, Asia)
E62226-RW
CAM50 Dome Camera (NTSC)
E03016
NMEA0183 Inputs
3
CAM50 Reverse Image Dome Camera (NTSC)
E03018
NMEA0183 Outputs
2
E140W 14.1” Multifunction with ROW charts (Europe)
E62226-EU
CAM100 Day/Night Marine Camera (NTSC)
E03007
AIS Support
Yes
CAM100 Day/Night Reverse Image Marine Camera (NTSC)
E03021
Waypoints
3000
Routes
50
Voltage Requirements
10.7 to 32 Volts DC
(12/24v nominal)
Power Consumption
Typical power consumption with full backlight on
E90W 19 Watts
HD digital radomes
Digital radar cable sold seperately.
Description
optional accessories
Part number
RD418HD 4kW HD Digital Radome
E92142
RD424HD 4kW HD Digital Radome
E92143
HD Digital and Super HD Digital Radars
Each includes pedestal, array, VCM100 voltage convertor module
and 15 meter cable
Description
Part number
E90W Trunnion Mounting Kit
A62132
E120W Trunnion Mounting Kit
A62133
E140W Trunnion Mounting Kit
A62134
Video/Alarm Audio Cable
A62158
E140W 32 Watts
Detailed Specifications and product information available at www.raymarine.com
2 year limited warranty
Part number
RA1048HD - 4kW 48” HD Digital Open Array
T52071
RA1072HD - 4kW 72” HD Digital Open Array
T52074
RA3048HD - 12kW 48” HD Digital Open Array
T92168
RA3072HD - 12kW 72” HD Digital Open Array
T92169
RA1048SHD - 4kW 48” SUPER HD Digital Open Array
T52085
RA1072SHD - 4kW 72” SUPER HD Digital Open Array
T52087
RA3048SHD - 12kW 48” SUPER HD Digital Open Array
T52086
RA3072SHD - 12kW 72” SUPER HD Digital Open Array
T52088
10M Digital Radar Cable
A55077D
15M Digital Radar Cable
A55078D
25M Digital Radar Cable
A55079D
Lifestyle photography courtesy of Boston Whaler and Tiara Yachts
E-Series Widescreen Dimensions
C
B
Description
D
A
HD Digital Sounder Modules
Description
Part number
DSM30 Digital Sounder Module
E63074
DSM300 600W/1kW Digital Sounder Module
E63069G
DSM400 3000 Watt Digital Sounder Module
E63072
Transducers
Choose transom, in-hull or thru-hull transducers. Go to raymarine.com to see
the full selection of digital sounder module transducer options
A
B
C
D
16.67 in (423.4mm)
10.9 in (276.8mm)
4.4 in (112mm)
5.5 in (139.7mm)
E120W
14.98in (380.4mm)
9.66 in (245.4mm)
4.4 in (112mm)
5.5 in (139.7mm)
E90W
12.46 in (316.4mm)
7.74 in (196.5mm)
4.4 in (112mm)
5.5 in (139.7mm)
E140W
E120W 22 Watts
E
LIT82305
Raymarine Inc
21 Manchester Street
Merrimack, NH 03054
USA
Tel: 603.881.5200
Fax: 603.864.4756
www.raymarine.com
Raymarine plc.
Marine House, 5 Harbourgate,
Southampton Road, Portsmouth,
Hampshire PO6 4BQ, UK.
Tel: +44(0)23 9269 3611
Fax: +44(0)23 9269 4642
www.raymarine.co.uk
www.raymarine.com
• Extensive product information and video tutorials
• Expert technical advice and FAQs
• Connect with authorized Raymarine dealers
• Stay connected with the latest Raymarine news on
our Insider Blog
Product specifications subject to change without notice
09/09
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
