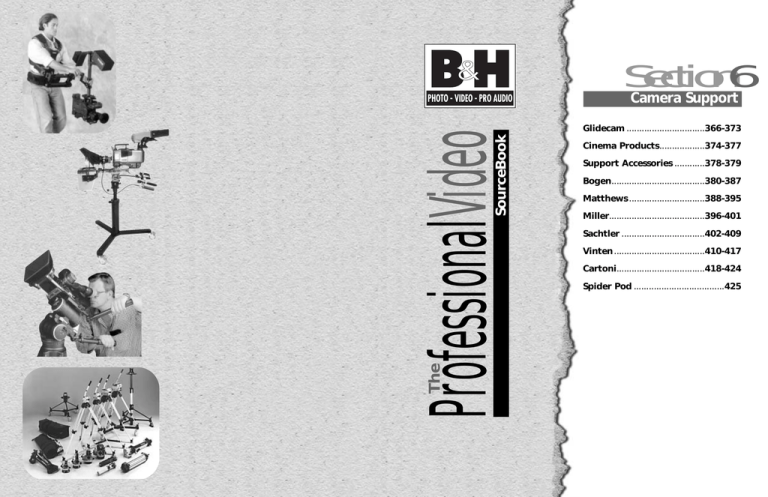

Professional Video Section 6

Professional Video Section 6

PHOTO - VIDEO - PRO AUDIO

Section

6

Camera Support

Glidecam ...............................366-373

Cinema Products..................374-377

Support Accessories ............378-379

Bogen.....................................380-387

Matthews ..............................388-395

Miller......................................396-401

Sachtler .................................402-409

Vinten ....................................410-417

Cartoni...................................418-424

Spider Pod ....................................425

G L I D E C A M

1000 PRO

Camera Stabilization System (up to 6 lbs)

Imagine a world in balance. Imagine smoothness, freedom and grace. With the 1000

PRO your camcorder seems to float, always balanced, isolated from your hand’s undesirable motions. Now you are free to move with your camera – panning, tilting, booming or running – without any camera instability or shake. The 1000 PRO is a lightweight, hand-held camcorder stabilizing system that allows you to shoot incredibly smooth and graceful shots, even while running up and down stairs or traveling over rugged terrain. And when it comes to normal shooting, like walking or moving the camera slowly around someone, the results are equally magical. Shot after shot, move after move, the 1000 PRO delivers beautifully smooth and professional results. No more need for a tripod or a Dolly — now all you need is your imagination!

Only 16˝ tall, supports any camcorder weighing up to

6 pounds.

Easy to set up and balance, the 1000 Pro allows unrestricted booming and unrestricted 360° panning.

The camera platform moves back and forth and side to side, allowing quick adjustment of the camera’s horizontal balance. Camera’s vertical balance is adjusted by varying the amount of counterweight disks on the base platform.

Offset handle grip is attached to a free-floating precision Gimbal, allowing hand movement up and down and side to side, thereby isolating unwanted hand interference from the camera. The up and down movement alleviates the bouncing pogo-type action associated with other systems whose handles cannot move up and down.

409+ Industries offers a wide variety of camera stabilization systems for use with motion picture, video cameras and camcorders. These hand-held and body-mounted camera Stabilizers create super smooth shots, allowing you to walk, run, go up and down stairs, shoot from moving vehicles, and travel over uneven terrain without any camera instability or shake. Ideal camera accessories, they easily replace or can be used in conjunction with Dollies and Tracks, Booms, Camera Cranes, Tripods or Monopods. Both professionals and amateurs alike can enjoy the fluidity and grace that stabilizers provide.

3000 PRO

Camera Stabilization System (up to 6 lbs)

Employing a unique exoskeletal forearm support brace, the 3000 PRO is the first camera stabilization system designed to distribute the weight of the system over the entire forearm of the operator. The forearm brace not only provides you with cushioned comfort while shooting, but also eliminates “torque” which would otherwise cause stress on your wrist. With the forearm support brace, shooting smooth and professional looking images is a natural — as the 3000 PRO becomes an extension of your body.

Balance and stabilize any camcorder or camera weighing from

4 to 10 pounds.

The counterweights on the Base Platform can be quickly attached or adjusted while the system is resting in an upright position on its base.

The 3000 offers 360° panning and more than 270 ° tilting.

Overnight Shipping Available

G L I D E C A M

3000 PRO

Additional 3000 PRO Features

You can shoot upside-down, sideways, low near the ground, overhead and angled, as in a Dutch shot.

The system's free floating, precision gimbal includes integrally shielded bearings, two of which are housed in the unique

Offset Handlegrip. These precision bearings create the super-smooth and pivotable connection between your arm and the unit's Central Support Post.

Made of aluminum with foam padding, nylon cloth and velcro strapping, the

Forearm Support Brace has a connector that allows it to quickly slip in and out of the offset handle for quick connection or disconnection from the System.

The connector can be attached to the handle at varying angles to suit your preference of shooting.

The Camera Mounting Platform (x-y motion table) measures 5.25˝ by 8˝ and has both 1/4˝ and 3/8˝ mounting holes.

The 3000 is 20” tall without the supplied

5˝ extension post attached. Using the post allows less counterweights to be used when setting the vertical balance, thereby making the whole system lighter.

The Forearm Brace can be removed from your arm very quickly in case of an emergency. (The system can be used without the Brace, but only with lighter cameras.)

For remote viewing, an optional LCD monitor can be attached to a variety of mounting holes on the base platform.

BODY POD

Support for 1000 and 3000 PRO

The Body Pod is a lightweight rigid support system which lets you shoot in cushioned comfort for indefinite periods of time with either the 1000 or 3000

Pro. By taking the weight of the Stabilizer off your hands and arms and placing it onto your waist and shoulders, the Body Pod virtually eliminates stress and fatigue, allowing you the freedom to shoot events that require uninterrupted shooting.

The Body Pod is designed to allow you to quickly slide the handle of either the 1000 PRO or 3000 PRO on and off its rigid support, permitting quick back and forth switching between hand-held stabilization shooting and body mounted shooting.

Use the system while on the move, such as when walking up and down stairs around your subject matter. You can also become a sort of mobile tripod, maintaining your position while shooting, yet being able to quickly and easily change shooting location, based upon the shooting requirements.

■ The Body Pod is especially suited for commercial, industrial and corporate videography, such as weddings, real estate videos, sporting events, etc. The system allows you to leave your tripod behind, rendering you free to move about and shoot from places you would normally be unable to shoot quickly from.

Since the support of the Body Pod is rigid and, for the most part, inflexible, it will not absorb and smooth out camera movements as well as a Stabilizer which is being held in just your hands. However, shooting with your Stabilizer attached to the rigid support of the

Body Pod still yields results that are far better than unstabilized, hand-held shooting or shoulder-supported shooting. Once you get the feel of using the Body Pod, you won’t shoot anything else without it.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

G L I D E C A M

V-8

Professional Camera (up to 10 lbs) Stabilization System

With the the V-8, offers the most affordable and versatile line of professional camera stabilizers in the world. With its unique and exclusive

Orbital Hinge technology and compact Dyna-Elastic Arm, the V-8 revolutionizes camera stabilization by bringing and advancing the technology of body motioned camera stabilization to cameras weighing up to 10 pounds. Simply combine a Canon XL-1 or Sony DSR-200A with a V-8, and you have one of the best video acquisition tools available.

Walk, run, go up and down stairs, shoot from moving vehicles and travel over uneven terrain without camera instability or shake.

The V-8 allows you to shoot the type of super smooth tracking shots that take people’s breath away. Produce the type of ultra-smooth handling shots that until now were only achieved with very heavy inertially stable cameras, and instantly add high production value to every scene.

Whether shooting commercials, industrials, weddings, documentaries, news, music videos or feature length motion pictures, the V-8 brings the fluidity and grace of professional, body mounted, camera stabilizers to your productions.

FEATURES

Support Vest

The support vest is lightweight and comfortable and can be easily adjusted to fit a wide range of operators. High endurance closed cell, FVA foam padding and integral T6 aluminum alloy creates a vest which can hold and evenly distribute the weight of the V-8 system across your shoulders, back and hips. For safety, quick-release high impact buckles allow the vest to be removed quickly. When it comes to the art of stabilizing cameras that are very lightweight, it quickly becomes apparent that the main virtue of a body-mounted system is that it allows you to shoot for long periods of time with very little fatigue.

Dyna-Elastic Support Arm

The adjustable Exoskeletal Dyna-Elastic Support Arm is designed to counteract the weight of the combined camera and Camera Mounting Assembly (the Sled) by employing a high carbon alloy spring. The Support Arm can be boomed up and down, as well as pivoted in and out and side to side.

It is the combined booming and pivoting action of the

Support Arm which isolates the motions of the operator from the camera in a way that creates ultra-smooth shots.

The spring force is field adjustable to allow for varying camera weights.

Orbit Hinge

Innovative Orbit Hinge was designed to increase the isolation between your hip and the Dyna Elastic Arm. The Orbit Hinge accomplishes this isolation with the ability to rotate 360°. This rotation allows the back end of the Rigid

Arm to continuously move in an unobstructed orbital path around the Vest

Mounting Plate.

Camera Mounting Assembly

The rugged and adjustable Camera Mounting Assembly (the Sled) is designed with a lower telescoping central support post (the Extension Post) that allows adjustment of the system’s vertical balance. The central support post can be adjusted from 18˝ to 23˝. The camera mounting platform (or the x-y motion table) moves back and forth and side to side to allow adjustment of the system's horizontal balance. The camera plate has both 1/4˝ and 3/8˝mounting slots

(holes) to accommodate a variety of camera bases. For remote viewing, an LCD monitor can be easily attached to a front 1/4˝ mounting hole on the base platform. Fine weight disks (included) can be used on the base platform as counterbalance to allow adjustment of the system’s vertical balance. A variety of mounting holes are supplied on the base platform, letting you customize it to fit your needs. A free-floating precision (Three-Axis Gimbal), incorporating integrally shielded bearings, creates the super smooth and pivotal connections between the front end of the Dyna-Elastic Arm and the Camera Mounting Assembly. The

Three-Axis Gimbal provides the operator with finger-tip control over fluid tilting, panning and rolling.

We Ship Worldwide

G L I D E C A M

DUAL-G

Dual-Handle Counterbalanced Stabilization System

The Dual-G is a dual-gimbaled, dual-handled counterbalanced camera stabilization system designed to distribute the weight of the system between two operators. The Dual-G allows walking, running, going up and down stairs and travel over rugged terrain without any camera instability or shake. It easily replaces conventional dollies and tracks and frees the camera in a way previously only accomplished with systems costing ten times as much. Using a unique, dual-gimbaled support assembly, the Dual-G stabilizes cameras and camcorders weighing from 8 to 22 pounds. The assembly has two handles, dividing the weight of the system between two operators — each person ends up carrying only half the weight. It is the role of the second operator which allows cameras in this weight range to be stabilized without the use of a spring loaded, exoskeletal support arm. With the Dual-G, you will free your mind as well as the camera.

FEATURES

Dual Gimbaled Support Assembly

Both of the Dual-G's free-floating precision gimbals incorporate integrally shielded bearings. These precision bearings create the supersmooth and pivotable connections between the operator's arm and the unit's Central Support Post. The distance between the two foampadded handles can be adjusted to accommodate a variety of shooting styles and situations – the narrowest setting to be between thirteen inches and the widest over five feet.

Central Support Post

The upper portion of the central support post includes guide scale markings. This allows for accurate and repeatable gimbal positioning.

By adjusting the height of the gimbal assembly on the central support post, you can control the system's center of gravity or vertical balance. The Dual-G also comes with a 6˝ extension post. The extension post allows less counterweight(s) to be used when setting the vertical balance, thereby making the whole system lighter.

The Camera Mounting Platform

The camera mounting platform, (or the x-y motion table), moves back and forth and side to side, allowing quick control of the system's horizontal balance. The camera mounting plate measures

5.25 x 8˝ and has both 1/4˝ and 3/8˝ mounting slots to accommodate a variety of cameras.

The Base Platform

The base platform can be configured to use counterbalance weight disks (included) in the event of choosing not to use a monitor and/or battery on the base as counterbalance. The base comes with an adjustable monitor bracket, as well as threaded mounting holes for an Anton Bauer Gold battery plate. Adjustable "Kick-Stands" are located on both sides of the base to give the system more stability when resting on the ground.

Specifications:

Supports and stabilizes any camcorder from 8 to 22 pounds.

■ The system is made of precision aluminum and is 26˝ tall, or 32˝ tall when the 6˝ extension post is attached.

The system weighs 8 pounds without counterweights. For remote viewing, an LCD monitor can be easily attached to a variety of mounting holes on the base platform, or a CRT TV monitor can be attached to the monitor bracket.

The system allows 360° panning and 360° tilting.

The system can also be used with three operators. One person controls the camera at the center, while the other two each hold the handles. This technique is especially useful for trick shots, like flying the camera over a car, etc.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

G L I D E C A M

V-16 / V-20

Camera Stabilization Systems (up to 26 lbs)

The V-16 and V-20 allow you to walk, run, go up and down stairs, shoot from moving vehicles and travel over uneven terrain without any camera instability or shake. Designed primarily for professional video and 16mm motion picture cameras, the V-16 supports and stabilizes cameras weighing from 10 to 20 pounds, the V-20 from 15 to 26 pounds.

Both are perfect for shooting the type of ultra-smooth tracking shots that take your audience and client's breath away — instantly adding high production value to every scene. With either of the ˝V” series Stabilizers, you will be able to offer the type of professional shooting techniques that were previously available only to clients with full budgets. Whether you are shooting commercials, corporate video, documentaries, music videos, news, or full length motion pictures, the “V” series will take you where few others have traveled.

System Components

The Support Vest

The lightweight and comfortable Support Vest can be adjusted to fit a wide range of operators.

High endurance, closed cell, EVA foam padding and integral T6 aluminum alloy create a vest which can hold and evenly distribute the weight of the V-16 and V-20 system across the operator's shoulders, back and hips. For safety, quick-release high impact buckles allow the vest to be removed quickly.

New! Gold Series Vest & Arm

The latest addition to the line, the Gold Vest features a no-tools adjust break-away safety system, using a quick pressure release dual-buckle design with positive locking buckles and fast ratcheting adjuster buckles. It also features integral black anodized T-6 aluminum and

EVA foam padding, a reversible and vertically adjustable arm mounting plate, and an industry-standard Titanium arm connector (optional “V-Series” arm connector is also available) for connection to the high end dual-articulating Gold Arm. A highly-machined anodized aluminum arm, the Gold Arm incorporates six titanium springs allowing it to support film and video cameras weighing up to 38 lbs.

The Dyna-Elastic Arm

The Exoskeletal, Dyna-Elastic Support Arm is designed to counteract the weight of the combined camera and Camera Mounting Assembly by employing high carbon alloy springs. The arm may be boomed up and down, as well as pivoted in and out and side to side. It is the combined booming and pivoting action of the arm which creates the shock absorption necessary for ultra-smooth camera movement and mobility. The spring force is fieldadjustable to allow for varying camera weights. For safety, a dual-spring design is employed to reduce spring failure damage.

24 Hour Fax: 800-947-9003

212-444-5001

G L I D E C A M

V-16 / V-20

The Three-Axis Gimbal

A free floating, precision Gimbal, incorporating integrally shielded bearings, creates the supersmooth and pivotal connections between the front end of the Dyna-Elastic Arm and the Camera Mounting

Assembly. The three-axis Gimbal provides the operator with finger-tip control over fluid tilting, panning and rolling. A locking mechanism allows the Gimbal to be placed at varying positions on the central support post. Moving the Gimbal effectively adjusts the system’s center of gravity. The upper portion of the

Sled’s central support post includes guide markings. These markings allow for accurate gimbal positioning.

The Base Platform (Sled)

The rugged and adjustable Camera Mounting Assembly (the Sled) is designed with a lower telescoping center post which allows for vertical balance adjustment, as well as varying lens heights. The center post can be adjusted from 22˝ to 32˝. The Camera Mounting Platform (or x-y motion table) moves back and forth and side to side to allow adjustment of the system's horizontal balance. The Camera Plate has both 1/4˝ and

3/8˝ mounting slots (holes) to accommodate a variety of camera bases. For remote viewing, an LCD monitor can easily be attached to a variety of mounting holes on the Base Platform. Or, attach either an LCD or a CRT monitor to the adjustable monitor bracket. Remote viewing eye-wear, like those by Virtual

Vision , enable you to view exactly what the shooting camera sees. The Base Platform can be configured to use counterbalance weight disks (included) in the event that you choose not to use a monitor and/or a battery on the base as counterbalance. The back of the Base Platform has threaded mounting holes for an Anton Bauer Gold Mount battery plate. A variety of other mounting holes are supplied on the Base to allow easy customizing of the Base to suit your needs. Adjustable"Kick-Stands" on both sides of the Base give the system more stability when resting on the ground. Camera, monitor, cables, battery and battery plate are not included.

409+ Support System & Accessories

Campal (For palmcorders up to 3 lbs)..........................54.95

1000 PRO (for compact cameras up to 6 lbs) ............189.95

3000 PRO

(For compact and full-size cameras up to 10 lbs) ........449.95

Body Pod (for use with the 1000 or 3000 PRO) ......119.95

V-8 (For cameras up to10 pounds) ..........................2549.00

Dual-G (For cameras weighing 8 to 22 lbs) ............1189.95

V-16 (For cameras weighing 10 to 20 lbs) ................3499.00

V-20 (For cameras weighing 15 to 26 lbs ................4099.00

Gold Series Vest ......................................................2099.00

Gold Series Arm (For cameras up to 38 pounds) ....5995.00

V-Series Adapter Block (has a Titanium connector allowing use of a V-Series arm with the Gold Series Vest) ........595.00

To purchase a V-16 or V-20 systems with the Gold Vest call for component pricing

Optional Accessories for the V-16 and V-20 (Next Page)

L4-PRO 4˝ LCD Monitor ........................................449.95

Battery Pack for the L4-PRO ..................................109.95

Eclipse 5.5˝ CRT Monitor......................................2199.95

Vehicle Mount ..........................................................249.95

Sled Offset Adapter ....................................................99.95

Vista Post ..................................................................199.95

Low Mode Mount ....................................................449.95

Low Mode Kit: (Includes Low Mode Mount,

Sled Offset Adapter and Vista Post) ............................539.95

Complete Accessory Kit

(Includes Vehicle Mount, Low Mode Kit ..................749.95

Camcrane 100 Boom Arm........................................419.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

G L I D E C A M

V-16/ V-20 ACCESSORIES

The optional accessories for the V-16 and V-20 are designed to allow you to capture the type of dynamic and creative shots that are only achieved in extreme compositional shot requirements, or with unusual camera placements, such as those where the camera is low near the ground, up high above your head, or attached to a moving platform or vehicle. With these accessories, getting those ever-so-dynamic shots that you have been dreaming of is now within your reach.

Low Mode Camera Mount:

Can be expanded and contracted both vertically and horizontally, allowing a wide range of cameras to mount inside.

Sled Offset

Adapter

Allows the curved

Gimbal handle to attach lower on the end of the dyna-elastic arm. This allows the Sled to be lower than normal when shooting in the

Low Mode configuration, as well as allowing the

Gimbal tube to be attached upside down, both of which are needed for reasons of clearance.

The Sled Offset

Adapter can also be used to lower the Sled height when you are not shooting in the Low

Mode configuration.

The Vista Post

At 33 inches tall, the Vista Post allows the central support post to be expanded to a maximum of approximately five feet in length. This expanded post length allows for very low or high camera placement.

L4 PRO

4˝ Active Matrix LCD Monitor

A compact, lightweight, high quality picture LCD monitor, the L4-PRO is ideal when used as a remote viewing monitor on the base platform of either the V-16 or V-20.

Weighing only 16 ounces and easily powered by an external 12v DC 500mA battery or power supply, the L4-PRO can also be used directly on your camera as an oversized viewfinder, or can be attached virtually anywhere.

Available in either NTSC or PAL versions. Electrical cables, adapters and stand mounting bracket not included.

Display:

4˝ TFT active matrix display; fast response with no streaking, wide viewing angle

Input:

Two switchable composite inputs (BNC)

Pixels:

234 (V) x 480 (H)

Top Panel Controls:

Brightness, Color Intensity, Tint, Red

Drive, Blue Drive

External Supply Voltage:

12v DC 500mA.

Size:

5.51 x 3.62 x 1.8˝ (WxHxD)

Weight:

1 lb.

Mounting Hole:

One 1/4˝-20 threaded mounting hole centrally located on the base.

ECLIPSE

Professional Daylight 5.5˝ Viewable Monitor

The Eclipse works perfectly with the V-16 or V-20.

Weighing 4.9 pounds and easily powered by an external

12v DC battery or power supply, the Eclipse can also be used as an oversized daylight readable viewfinder or set monitor, and it can be attached virtually anywhere.

Available in NTSC or PAL versions. Electrical cables, adapters, mounting bracket and sled adapters not included.

Vehicle Mount

Allows the mounting of the Dyna-Elastic arm to various vehicles or platforms.

Display:

5.5˝ high performance CRT, daylight viewable, high intensity, P43 (phosphor 43) green screen monitor, typical CRT life

20,000 is hours

Input:

One composite (BNC)

Front Panel Controls:

Power On/Off, Brightness, Contrast.

External Supply Voltage:

12v DC at 700 mA to 1.5 A max.

Power Input Connectors:

4-pin XLR Male.

Mounting Holes:

Four #10/32 threaded mounting inserts are located on the base for the attachment of a variety of mounting adapter plates. Eclipse comes with adapter plate for connecting to the base platform of the V-16 and V-20.

Size:

6 x 6 x 9˝ (WxHxD)

Weight: 4.9 lbs.

We Exhibit At NAB, Infocomm, and Siggraph

G L I D E C A M

CAMCRANE 100

Tripod Mounted Boom Arm

Camera cranes have been an industry standard for over 80 years. People have used cranes to move cameras to new heights, both literally and figuratively, and now you can too. The Camcrane 100 is a tripod mounted, boom arm, camera crane system designed to allow smooth up and down and all around movement of your camera. When balanced and used correctly, the Camcrane 100 allows incredible precision and fluidity. The most affordable and versatile crane of its type on the market today, its ease of setup and variable boom lengths gives you the shots that until now you have only dreamed of.

Aluminum construction - anodized black

Four boom length combinations of 3.3’,

4.10’. 6.6’ and 8.1’

■ Three fulcrum (balance) settings

Holds cameras up to 25 lbs. at 6.6´ length, and 20 lbs. at the 8.1´ length

Can vertically boom from floor to 10´ at the 8´ length (variable)

Crane mounts on a 3/8˝ standard bolt found on your medium duty tripod

Head unit has both 1/4˝ and 3/8˝ mounting holes for either a camera or tripod head

Head unit sets up in both high or low mode

■ Cranes can be operated from either head or weight unit

Only 3.3’ long, it easily fits into a car trunk. Weighs 16 lbs.

Fine tuning counterbalance weights included

Rotates 360°

Tripod, camera, tripod head, and standard barbell weights not included

CAMPAL

Now you can shoot smoother than handheld by using the Campal with its unique and adjustable handle system. The Campal allows you to shoot in Shoulder mode, Handle Grip mode, Monopod mode and Low mode. Its foam padded handle prevents it from damaging delicate surfaces. A protective rain cover is hidden in the handle.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

C I N E M A P R O D U C T S

STEADICAM SK2

Professional Steadicam for Cameras 9-19 Lbs

Incorporating the same patented design principles as its larger cousins, the

Steadicam SK2 is designed for use by professional videographers with cameras weighing from 9-19 lbs. Far more compact and less complex than its Oscar and Emmy winning predecessors, the complete SK2 system – sled, stabilizer arm and vest – weighs a mere 21 pounds and fits neatly into the trunk of a car. A patented design makes balancing easier than ever, and a single battery operates both camera and Steadicam. In fact, the SK2 is the only Steadicam simple enough to be operated without workshop training. A comprehensive instructional video will have you up and running in a matter of hours. But make no mistake. The lightweight SK2 performs like a true heavyweight.

The SK2 lets you shoot on the move effortlessly, without cranes, booms or dollies. The sled-mounted monitor offers a crystal-dear picture, relieving your eyes from being glued to your camera’s eyepiece. And with the vest spreading the

SK2's weight comfortably over your torso, you can climb stairs, shoot on the run, or even from a moving vehicle. With one smooth tracking shot, you can capture what used to require five or six setups. An optional low-mode bracket can further enhance your creativity, while eliminating other costly setups. All the shots you might once have considered too expensive, too elaborate or just too impossible are yours with the SK2.

Articulated Arm - This is the spring arm that supports the weight of the camera on all Steadicams (except the JR). Its official name is the

"Double Hinged Exoskeletal Articulated Spring Support Arm”.

Center of Gravity - The point at which an object's weight is in balance in all directions, and from which an object can be manipulated with the least additional rotation. The SK2 gains stability by bringing the center of gravity outside of the camera and placing it within easy manipulation of the operator.

Don Juan - An operating position where the operator walks forward but the camera points backward. Excellent for viewing the faces of actors in motion.

Gimbal - This bearing system allows the Steadicam to rotate freely in all three dimensions, or more precisely, to use its inertia to resist rotation whenever rotational force travels through the Articulated Arm.

Hard Mount - When the socket for the Articulated Arm is bolted, glued, nailed, welded or otherwise securely fastened to some sort of moving platform, ie. the back of a minivan, a Dolly, a wheelchair, a pickup truck, a motorcycle, etc.

Low Mode - Operating with the camera below the Gimbal, instead of the more common, above. This is achieved by either:

1) Mounting the camera from above by using a specialty bracket, the handle or the screw-holes into which the handle attaches, or,

Steadicam Glossary

2) Mounting the camera to the bottom of a Low Mode Cage which is mounted by its top to the Steadicam. This lowers the lens height to about knee height, which is excellent for those dog-eye, snake eye, and little kid's-eye views.

Missionary - an operating position where the camera lens points more or less forward. As opposed to Don Juan.

Moment of Inertia - The resistance of an object to rotation around its center of mass, due to inertia. The larger an object's Moment of

Inertia, the more force is needed to initiate rotation at a given speed.

Moment of inertia can be increased by increasing the distance between the center of mass and the masses within an object.

Sled - This is the electronics portion of the Steadicam, on the opposite end of the Post from the camera. The Sled contains the battery and the monitor. Named "Sled" because earlier Steadicam models had a toboggan, or luge-like shape. The SK2 uses a more modular system for greater flexibility, rather than the all-in-one design that gave the Sled its name.

Vest - This is the part of the Steadicam that distributes the weight of the system to your body. The Articulated Arm fits into a socket just above the waist, which can be switched from the right side (for righthanded operation), to the left (for left-handed operation).

We are on the web at: www.bhphotovideo.com

C I N E M A P R O D U C T S

STEADICAM SK2

Oscar and Emmy Award-Winning

The Oscar (and Emmy)-winning Steadicam has revolutionized film and video production techniques worldwide. No other single piece of equipment, since the invention of the handheld camera, has ever added so much to the vocabulary of camera movement. With innumerable features, documentaries, television programs and commercials to its credit, Steadicam has become as essential a production tool as the tripod or dolly.

Designed to provide total mobility, portability and versatility while recording extremely steady and smooth images, Steadicam permits an infinite variety of both moving and static shots — walking, running, or at a standstill.

The Iso-Elastic arm is a single articulated design and can be adjusted while supporting the camera.

This unique design allows you to place the shot in any position where it will remain. This is especially useful for “lockoff ” shots.

STAGE

Rack and pinion lead screw drives offer quick, precise balancing. With simple connections for power and video, it takes only moments to mount your camera to the SK2.

GIMBAL

Cinema Products’ patented Gimbal affords the SK2 operator the same precision that every professional

Steadicam operator has counted on for years.

BATTERY

The SK2 is compatible with NP-1 style, PAG and Anton Bauer bricks.

VEST

Ergonomic and lightweight, the custom vest keeps you cool and comfortable throughout your shoot while providing excellent support to reduce fatigue.

MONITOR

The P43 phosphorous monitor is sharp and clear whether you are shooting in low light conditions or bright sunlight.

The patented system allows the camera to move with you as if it were an extension of your body, automatically adjusting and correcting for body motions as you guide and control the camera position with a gentle hand movement. Released from the constraints of dollies, tracks, and heavy camera platforms, you and the camera are free to go anywhere without restrictions - recording shots previously considered impossible. Capture action scenes with a new sense of fluidity and realism in sweeping continuous takes. In the studio or on location, Steadicam's enormous versatility allows cameraman and director greater creative latitude while effectively reducing production costs.

The ‘Fugitive’ is an excellent example of modern, non- intrusive

Steadicam technique. No scene stands out as a Steadicam shot; the Steadicam shots blend smoothly with all of the tripod and dolly shots. Whether running through lobbies, sneaking through drainage tunnels, or charging through ballrooms, the characters are usually lead by the camera -- and that leading camera is the

Steadicam. With the Steadicam, the actor can move freely in line with the camera (so that the camera sees their faces) without stepping on or over tracks. And the characters in that movie were almost always on the move.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

C I N E M A P R O D U C T S

STEADICAM SK2

With the Steadicam SK2, you only need to add a battery (and a camera) as all other required system parts are included. The SK2 includes the Turtle Base “C”

Stand as well as the “Lo-Mode” kit. The Turtle Base “C” Stand, required for balance, is in two sections and fits neatly in the supplied soft carrying case.

Utilizing a proven Low Mass Gimbal, the

SK2 helps capture the fluid movement that only a Steadicam can provide.

■ P43 Green Screen monitor allows good contrast from dark to light conditions

Precision camera stage provides a solid base for the camera and facilitates smooth adjustment – side to side and fore and aft.

Carbon fiber post and interface to the stage form a solid bond to assure no jitter in the picture as you capture those unique scenes.

Includes a self-instructing videotape with manual. (While you can learn with these tools, Cinema Products offers regional

Steadicam workshops on a regular basis).

Steadicam SK2 System Includes:

Camera mounting chassis (sled)

P43 Monitor (3.5-inches)

9-19 lb. capacity Iso-Elastic Arm

Custom Lightweight Vest

Battery mount (Anton Bauer, PAG or

NP-1 battery

Lo-Mode kit

Power and video Cable

"T" handle Allen Wrench

Turtle base 'C' stand

Soft carrying case

Getting started tape and manual

SK2 shown with the optional Steadicam

Vehicle Mount. The mount includes a high hat and is adaptable to truckbeds, roll bars and sidecars.

MINI-STEADICAM

Professional Steadicam for Cameras 6-15 Lbs

Designed for todays ultra-lightweight ENG cameras weighing from 6 to 15 lbs.

like the Sony DSR-200/DSR-300, the Mini-Steadicam produces the same fluid motion and dynamic action as any top-of-the-line Steadicam. The Mini-

Steadicam has an articulated Iso-Electric Arm that smoothly booms up and down, allowing you to quickly frame and follow the action. The comfortable vest enables all day shooting without fatigue or strain.

■ Metal and composite material construction allow for a light yet strong system.

■ Quick release plate allows quick and easy camera mounting and removal.

4-inch" active matrix color monitor with

OCLI anti-glare coating

Articulated adjustable Iso-Elastic Arm smoothly booms up and down to quickly frame and follow the action

Precision-machined camera mounting plate allows quick and precise system balancing

Patented 3-axis gimbal pans and tilts the system requiring only fingertip control.

Mini-Steadicam System Includes:

Camera mounting chassis (sled)

Center fixed post

5-15 lb. Iso-Elastic Arm

Lightweight Vest

4” active-matrix color LCD monitor with anti-glare coating

Battery mount (A/B, PAG or NP-1 )

Power and video cable

"T" handle Allen Wrench

Turtle base 'C' stand

Soft carrying case

Getting started tape and manual

®

®

C I N E M A P R O D U C T S

DV STEADICAM

Support for DV Camcorders

The newest member of the Steadicam family, the DV Steadicam was designed specifically for digital video camcorders like the Canon GL-1 and Sony DCR-VX1000. Incorporating the same patented technology that has helped reshape the film and video world for over 20 years, the DV Steadicam turns any digital video camcorder from 2.5 to 6 lbs into the most versatile production tool you’ve ever owned.

■ Carbon fiber/polycarbonite composite construction

Patented high-strength, quick release gimbal and handle

2.5 to 6 lb. camera capacity

■ Adjustable stage and dovetail plate

■ Includes 4-inch active matrix

LCD color monitor with antiglare coating

Supplied with 12v CP battery pack and CP charger, VHS training tape

Weighs only 2.5 lbs.

DV Steadicam and Accessories:

DV Steadicam ................................................................1199.95

Arm and Vest ........................................................................889.95

DVS Stand ..............................................................................62.95

Soft Carrying Case ................................................................139.95

Hard Carrying Case ..............................................................399.95

Advanced Video Tape (balancing and advanced shooting techniques from Steadicam expert. Jim Farrell) ........................37.95

STEADICAM JR

The ‘Personal’ Steadicam

Incorporating the same isolation techniques as the Steadicam SK2, the JR

(pronounced J.R. not “Junior”) works with small digital camcorders to yield images as smooth and jitter-free as those of the professional Steadicam rigs.

The JR relies on the same techniques for isolation, spreading camera mass and manipulating the center of gravity as the professional Steadicams. Now the invention that won Academy and Emmy awards for technical achievement is available for your camcorder.

Three-Axis Gimbal reduces rotary jarring.

The gimbal, located at the top of the handle, is the most sophisticated engineering in the JR, intercepting unwanted rotation before it reaches the camera.

■ Spreads the weight of the camera, increasing the resistance of the rig to unwanted Tilt and Roll and pulling the center of gravity into your hands (actually, fingertips).

Instead of using an articulated arm to support the weight of the rig, the JR uses the more sophisticated, but less predictable human arm.

With the larger rigs, taking a shot that does not involve the Steadicam in flight

(like on a tripod) requires removing the camera from the Steadicam. With the JR, however, you do not need to remove the

Steadicam to get those shots.

Folding up the bottom arm and folding out a "Whale's Tail" (a small, "Y"-shaped piece of metal) converts it into a shoulder mount. If both arms are folded flat, the

JR attaches to a tripod with standard screws. In all positions, the LCD monitor is still useable.

Includes a specially treated 3.5˝ LCD monitor that minimize reflections, freeing your eyes from the camcorder viewfinder.

■ Folds and stores in a layer 2˝ high beneath your camcorder. Weighs 2 lbs.

Includes an excellent training video describing setup, practice, and operation.

Steadicam JR ............................429.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S U P P O R T S Y S T E M S

SECRETS OF THE MASTERS

Award Winning Workshops

Are you interested in how today's successful film and video camera operators work? Now, for the first time ever on video, "Award Winning

Workshops" presents an intensive workshop series that reveals the secrets of the masters.

What's The Secret?

Emmy Award- wining Camera Masters reveal the tips and tricks of their trade in a video workshop series designed for advanced camera operators, directors and producers who want to explore the creative potential of advanced camera techniques and various rigs.

Volume 1

Advanced Hand-Held Camera Techniques

• Camera Set-up

• Rehearsing the Shot

• Safety • Shot Design

• Breaking the Rules • Tips & Tricks ......................39.95

Volume 2

Advanced Studio Camera Techniques

• Camera & Pedestal Set-up

• Safety

• Rehearsing the Shot

• Shot Design • Tips & Tricks ..............................49.95

V

ARI

Z

OOM

VZ-LSP

Professional Shoulder Brace

One of the biggest drawbacks of

DV camcorders is their lack of a proper shoulder mount. With the

VariZoom VZ-LSP this problem is now a thing of the past. Designed by Peter Lisand, the VZ-LSP is the ultimate shoulder brace providing no less than ten adjustable fittings for an endless variety of shooting configurations. Precision crafted from machined aluminum, the VZ-LSP is tough, lightweight and built to last.

Separating this brace from its competitors is the fully ab support

(included), giving you three points of contact with the brace

(hand, shoulder and body) for maximum camera support and control. The camera mounting platform can be positioned exactly as desired, raising the viewfinder right to the shooter’s eye. Combined with a VariZoom Lens Controller clamped to the grip handle, you not only have the most powerful acquisition tool, but also the most comfortable one. Ideal for camcorders like the XL-1,

GL-1, VX-1000, TRV-900 and PD-100 ..................339.95

Volume 3

Advanced Camera Dolly Techniques

• Camera & Pedestal Set-up

• Safety

• Rehearsing the Shot

• Modification • Tips & Tricks ..........................69.95

Volume 4

Advanced Jimmy-Jib Arm Techniques

• Building & Balancing

• Shot Design

• Film vs. Video

• Tips & Tricks • Pros & Cons .........................69.95

Volume 5

Advanced Steadicam Techniques

• Building & Balancing

• Shot Design

• Film vs. Video

• Tips &Tricks • Pros & Cons ............................79.95

VIDEOSMITH

Mighty Wondercam

Need to steady your shot? Or need a place to mount accessories like mikes, lights, radios? The Mighty

Wondercam is the unique shoulder pod system for small camcorders that has been used the Discovery Channel, PBS, CBS News, schools, and wedding and event videographers around the world. Also available with battery power (Wondercam Turbo).

MightyWondercam Classic: Rugged, comfortable, lightweight aluminum shoulder pod for all types of small camcorders. Fully adjustable cushioned handgrip with non-tip stainless steel foot. 1/4-20 threads on mounting block and nose. Two 8-32 threads on rear of the shoulder rest to mount accessories like batteries, lights and mics and radios.....189.95

MightyWondercam Turbo: Same as the Classic, but also includes the Enpeetoo battery box for 12v NP-1 style batteries and Wattsup 12v-to-7.2V DC converter. ..................439.95

We are on the web at: www.bhphotovideo.com

S U P P O R T S Y S T E M S

P

ETER

L

I

S

AND

C

ORP

Adjust-A-Grip Series

The Adjust-A-Grip converts the cameraman’s pistol grip into a flexible and versatile accessory that allows for hours of shooting comfort in the field.

Available in three models with different degrees of adjustment, each a is made of precision metal parts and two of them offer a collapsible foot rest to enabling your camera to safely stand on a level surface between shots. The Adjust-

A-Grip fits most Sony, Panasonic, JVC, Ikegami, NEC, Hitachi and

Ampex cameras.

Basic Adjust-A-Grip

Allows forward and reverse movement of the camera’s pistol grip on an extender bar allowing the operator to adjust the pistol grip until his arm, elbow and wrist are in a comfortable position to control the cameras. It moves from left to right to compensate for different lens configurations and comes complete with pull down and twist resting foot. ................................429.00

Standard Adjust-A-Grip

Same as the Basic, the Standard Adjust-A-Grip adds a 24-position, clockwise or counter-clockwise rotation of the extender bar holding the pistol grip for added versatility and comfort. Includes extra long collapsible rear mounted camera feet. ..................................599.00

Universal Adjust-A-Grip

Includes all the features of the Standard Adjust-A-Grip plus offers

45° horizontal left or right rotation of the pistol grip itself, thus creating a totally flexible camera accessory. ..........................649.00

Adjust-A-Pod Adapter

Get extra support in hand-held situations with the Adjust-A-Pod

Adapter. The Adjust-A-Pod extends 24-1/2 - to- 69-1/2 inches and attaches to the Adjust-A-Grip. ......................................399.00

Adjust-A-Grip Matte Box Attachments

MBA Standard: Basic Matte Box Adapter allows you to use your

Adjust-A-Grip with either a matte box or a pistol grip.

MBA Universal: This deluxe Matte Box Adapter allows simultaneous use of all functions of the pistol grip and matte box.

PRO-STEP

Videographers Ladders

If you still struggle with a heavy, unstable and unsightly carpenter-style ladder, the

Pro-Step ladders are for you.

Made of feather-weight aluminum and seamless tubular construction, they provides sturdy support (up to325 lbs) yet are still easy to carry. Reinforced treads and locking platform provide extra stability even on the top step. And anti-slip footings and full length support bar, insure balance and safety. The Pro-Step has a front mounted, velcro fastened signboard for a company logo and congratulatory messages.

3-Step Aluminum (5 lbs) # PRL3SA..............................149.00

3-Step Black (5 lbs) # PRL3SB ....................................169.00

4-Step Aluminum (6 lbs) #PRL4SA..............................159.00

4-Step Black (6 lbs) # PRL4SB ....................................179.00

5-Step Aluminum (8 lbs) # PRL5SA ............................179.00

5-Step Black (8 lbs) # PRL5SB ....................................199.00

6-Step Aluminum (9 lbs) # PRL6SA..............................203.95

6-Step Black (9 lbs)# PRL6SB........................................224.00

Pro-Pouch (has five pouches) slips onto any Pro Step ladder to hold lenses, batteries, tapes, etc. ..........................49.95

TIFFEN S

TEADI

S

TICK

Professional Shoulder Brace

Perfect for professional TV fieldwork and videographers.

Never worry about arm fatigue or shaky shots again walk with a Steady Stick.

■ Supports cameras up to 30 lbs.

■ Removes camera weight from shoulder

■ Easily holds 400mm lens and gets steady shot at 1/4 second!

Lightweight, versatile, portable

■ Pan low or hold camera over crowd

■ Guide and control your camera in any position or direction

■ Easily disconnects to attach to tripods

■ Can be used with Sony, Ikegami, DVC Pro, Panasonic and industrial cameras

Made from heavy duty aluminum and flexible high strength engineering plastic......................................................299.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

B O G E N

TRIPODS

Now you can afford to support your camera in style. Designed with the needs of TV cameramen, industrial and educational film makers in mind, Bogen Cine Video Camera Support Systems incorporate many exceptional features found only in equipment costing much more. They are truly professional performers that do not sacrifice innovative engineering or dependability for low cost. Now you can be confident knowing that every movement of your camera will be smooth, steady and shake-free.

3001

Easy to use and easier to handle, the incredibly small and light

3001 weighs only 3 1 ⁄

2 lbs. and folds down to 21˝.

Designed for camcorders weighing up to 8 3 ⁄

4 lbs.

Sets up quickly and easily.

Features sturdy legs made of tubular hard finish aluminum that offer 3 click-stop spread angles.

Each has sure-grip, quick-acting, non-fouling lever locks.

Add a portable Video Dolly or a lightweight tripod spreader for rock-solid support and smooth pans and tilts.

3001 ......................................................65.50

3011

Provides exceptional stability, yet weighs only 5 1 ⁄

4 lbs.

Professional quality through and through, it is steady, versatile, easy to use and easy to carry.

■ Sturdy tubular aluminum legs have sure-grips and quick acting lever locks.

Maximum elevation of 67˝ and minimum of 24˝.

3011 ..........................79.95

3021S

The 3021S is the compact or short version of the 3021. It features the same three different click-stopped leg spread angles, and it has a maximum shooting height of 44 1 ⁄

2

˝, a minimum height of only 7 1 ⁄

2

˝.

Folded, it is just 17 1 ⁄

2

˝ long . Its weight is only 4 3 ⁄

4 lbs. Any head that fits the

3021 will fit on the

3021S.

3021S ..................................................................................95.50

3021

The first thing you will like about this tripod is its versatility. No matter where you want to place your camera – indoors or out, rough terrain or smooth floor – it will accommodate you.

Flip-lock levers for precise height adjustment, plus three different click-stop spread angles makes levelling simple

– no matter how rough the going gets.

Ideal in confined areas where other tripods normally have to maintain an arms-or-legs length distance.

■ Maximum shooting height of 71˝.

Adjustable spread of the legs, combined with telescoping convertible center post, lets you get as low as 10 1 ⁄

4

˝.

3021 ....................................................................................98.95

We are on the web at: www.bhphotovideo.com

3033

Bogen’s lightest tripod with center braces and geared column, the 3033 gives you great support for steady, vibration-free pans and tilts. Ideal for location shooting where you need a compact but sturdy tripod.

3-section legs provide a maximum working height of 66 1 ⁄

2

˝, yet it telescopes into a really manageable package for carrying.

■ Leg adjustment is fast and easy – even when wearing gloves, thanks to the exclusive rocker arm lock.

Spirit level on the shoulder shows you when you are on the level.

Convertible cushioned spike-tip legs and rigid center bracing holds everything firm.

3033 ..................................154.95

3046

A surprisingly affordable tripod. Ideal for industrial and studio applications.

Aluminum double-strut, center based two-section tripod.

Legs are furnished with convertible cushion/spike tips.

■ Extends to 68

1

2

˝ with optional mini fluid heads. Folds down to a compact 32˝.

Weighs only 8 1 ⁄

4 lbs.

3046 ........................149.95

B O G E N

TRIPODS

3036

A versatile tripod, it has a maximum height of 80 3 ⁄

4

˝, yet it can go as low as

16 1 ⁄

2

˝.

■ Center post is geared, and it features an automatic safety-lock with pushbutton release.

Maintains stability at all heights for vibration-free shots.

Stability is enhanced by independent variable-spread leg braces that allow you to obtain different angles on each leg.

The legs are continuously adjustable in relation to each other – a real plus where you need a level head. (Built-in spirit level tells you when you are there.)

Convertible cushion/spike tip legs give you sure footing indoors or out.

3036 ..........................................................................................173.95

3051

Ideal for uneven terrain, close quarters or lowto-the-ground. Built-in spirit level.

■ Legs can be adjusted individually or released simultaneously. All it takes is firm pressure on one of two separate sets of triggers.

These triggers let you move from as low as 16

1

2

˝ — to 63

1

4

˝, almost as fast as you can lift your camera.

Has independent, continuously variable leg braces that let you set each leg with convertible cushion/spike tips.

3051 ......199.95

3061

■ Heavy-duty video tripod, ideal for field work.

Built-in claw ball — camera head can be levelled quickly under almost any conditions.

Built-in chain Spreader allows you to position legs at any angle.

Extends to 63˝, yet can be set as low as 5˝.

Closed length is only

37 1 ⁄

2

˝.

Weighs just 16 lbs.

3061 ........................214.95

3141

2-Stage Professional Tripod

■ Three-section easy to handle tripod has two stages, operating from a low of 15

3

4

˝, up to 6´.

Fitted with 100mm Bowl, spiked feet and a Spreader.

Made of lightweight high tensile aluminum and high strength plastic composite material, for a weight savings of up to 30% compared to ordinary aluminum video tripods, without the loss of rigidity or stability.

3141........................................299.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

B O G E N

TRIPODS

3068

Remarkably stable, due to its rigid center brace construction and steel extension legs, which lower the center of gravity.

Centerpost permits 9 1 ⁄

4

˝ of extension for precise positioning.

■ Legs are furnished with convertible cushion/spiked tips for secure locking into a

Dolly or Spreader.

■ Unique variable-angle center brace system allows minimum elevation as low as

17

3

4

˝. (Extends to 67˝.)

■ Weighs only 12 1 ⁄

2 lbs.

3068 ............................................182.95

3181

Equipped with spiked feet for sure, secure locking.

Designed with tandem upper legs, single lower legs and a classic 75mm diameter clawball leveller.

Variable leg angles within a 180° arc

Quick-flip lever leg locks

Stainless-steel fittings with high quality casting

■ Built-in leg straps for convenient transportation

Weighs under 9 lbs., supports cameras up to 22 lbs.

3181 ..........................................................................174.95

No one tripod can meet every need, but Bogen’s broad selection of tripods lets you select the combination of tripod and head that best fits your working patterns. Whether in your studio or in the field, Bogen offers the versatility and stability you need. All Bogen tripods use hard finish, high strength aluminum alloys. The clamping system for leg length adjustment lets the tripod resist fouling and scoring, assuring security even under rough field conditions. The legs are keyed internally to keep the locks aligned and accessible. Versatile, stable and ease of use — whether it is features or performance you are looking for, you will find both with Bogen Tripods.

3190

3191

3190/3191

Bogen’s top-of-the-line professional video tripods. The 3190 has spiked feet for secure locking into dollies or spreaders, while the 3191 has tandem legs with retractable springloaded spike tips. Both provide rock-solid support.

100mm diameter claw-ball leveller

Variable leg angles within a 180° arc

Built-in leg straps for convenient transport

They fold down to 38

1

2

˝ and extend to 59˝ without the head.

They weigh only 11 lbs. and can support cameras up to 22 lbs. using the 3066 Fluid Head. Even heavier loads can be supported with other heads.

3190 ....................................314.95

■ Stainless steel fittings with high quality castings

Quick-flip lever leg locks

3191 ....................................314.95

■ Mini Pro Video tripod designed for low angles n Height ranges from as low as 5˝, up to 29 1 ⁄

4

˝

■ Spiked feet for sure, secure locking into either dollies or spreaders

■ Tandem legs with quick-flip lever leg locks

■ 100mm diameter claw-ball leveller

3185

■ Vary-leg angles within a 180° arc

■ Stainless steel fittings with high quality castings

■ Weighs under 10 lbs. Can support cameras up to

22 lbs.

■ Built-in leg straps

3185............................................................244.95

7-Day Customer Satisfaction Guarantee

B O G E N

TRIPODS

TRIPODS PRICE WITH

3126

WITH

3130

WITH

3160

3001 Chrome 65.60

117.95

(3170)

123.95

(3169)

117.95

(3165)

3205 Black 78.45

130.95

(3173)

136.95

(3175)

130.95

(3167)

WITH

3063

161.95

3205G Green 119.95

179.95

(3175G)

3011 Chrome 79.95

132.95

(3124)

137.95

(3179)

132.95

(3163) 176.50 (3116)

3211 Black 123.95 145.95

(3122)

150.95

(3180)

145.95

(3215)

189.95

(3121)

3021 Chrome 98.95

152.95

(3125)

157.95

(3176)

152.95

(3160)

196.95

(3120)

3221 Black 111.95 164.95

(3123)

169.95

(3178)

164.95

(3225)

209.95

(3226)

3221G Green 154.95

3221Wilderness 129.95

182.95

209.95

187.95

(3178G)

(3178W)

182.95

226.95

3033 Chrome 154.95 209.95

(3132)

212.95

(3134)

209.95

(3133)

251.95

(3131)

3233 Black 167.95 200.95

(3237)

225.95

(3238)

3036 Chrome 173.95

226.50

231.95

3236 Black 186.95

3046 Chrome 149.95

239.95

204.95

244.95

209.95

226.50

239.95

204.95

264.95

(3239)

270.95

(3135)

283.95

(3136)

247.95

(3140)

3246 Black

3051 Chrome

3251 Black

3061 Chrome

3068 Chrome

162.95

199.95

212.95

214.95

182.95

219.95

252.50

264.95

222.95

259.95

269.95

219.95

254.95

264.95

WITH

3066

459.95

259.95

(3142)

297.95

(3150)

309.95

(3151)

469.95

239.95

(3062)

279.95

(3118)

490.95

(3065)

3141 Chrome 299.95

3141B Black 319.95

3283 Chrome 299.95

3283B Black 319.95

3181 Chrome 189.95

3182 Black 199.95

3185 Chrome 249.95

3186 Black 259.95

3190 Chrome 314.95

3193 Black

3192 Black

* With Dolly

339.95

3191 Chrome 314.95

339.95

424.95*

WITH

316

WITH

501

199.95

249.95

213.95

226.95

279.95

2144.95

269.95

282.95

288.95

299.95

264.95

277.95

314.95

327.95

297.95

WITH

510

WITH

510-10

624.945* 449.95*

(3141-510) (3141-510-10)

1099.95 1099.95

(3141-510)

1119.95

(3141-510-10)

1119.95

(3283-510)

449.95 449.95

(3283-510)

469.95

469.95

489.95

(3183)

499.95

(3184)

549.95

(3187)

579.95

(3188)

(3196) (3190-3274)

624.95 874.95

(3197) (3193-3274)

646.95 939.95

(3194) (3191-3274)

622.95 919.95

(3195) (3192-3274)

649.95 939.95

434.95

304.95

313.95

(3190-3147) (3190-3147-10)

1109.95

1109.95

(3193-3147) (3193-3147-10)

1128.95

1128.95

(3191-3147) (3191-3147-10)

1109.95

1109.95

(3192-3147) (3192-3147-10)

1129.95

1129.95

( ) are Bogen Combo numbers

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

B O G E N

FLUID HEADS

3160

XL Fluid Head

If it is a lightweight fluid head (1 1 ⁄

2 lbs.) you are looking for, with ultra-smooth operation and the ability to handle up to 10 pound cameras, you need look no further! The 3160 XL Fluid Head has a quick-release plate which lets you attach and detach the camera quickly and easily. Setting up or changing cameras was never simpler. The adjustable handle can be conveniently located on either the right or the left of the head.

3160..................................................................52.95

3126

Micro Fluid Head

The smooth movement of the 3126

Micro fluid head (only

2 1 ⁄

4 lbs. including an adjustable handle) will amaze you. It is perfect for just about any of the new lightweight cameras. It pans a full

360° smoothly and can be tilted up or down 90°. Has pan and tilt locks, a continuously adjustable positioning slot for best camera balance and is designed so that the handle can be on either the left or right side.

3126 ........................................................................................52.95

3130

Or Micro Fluid Head

This smooth action head is ideal for cameras up to 8

3

4 lbs.

Includes an adjustable handle that can be positioned on either left or right, and it features a quick-release plate that allows you to change cameras or detach the camera with the flip of a lever. Pans 360°. Can be tilted up or down 90° and has Pan and Tilt locks.

3130G Same as above in Green color.

3130 ........................................................................................58.95

3063

Mini Fluid Head

Now you can make sure your lightweight cine or video camera

(up to 11 lbs.) follows the action with nary a shudder when you mount it on the versatile 3063 Mini

Fluid Head.

Measuring just

5 x 5 x 5˝ (excluding handle), this lightweight (3 1 ⁄

4 lbs.) fluid head pans and tilts smoothly and has a camera platform that features a quick-release mounting plate with locating pin. For convenience, comfort, and to accommodate the widest possible range of cameras, the 3063 comes with a versatile handle which is positionable on either side and can be separated into two individual segments, each 9˝ in length. The 3063 can be tilted 45° and has separate pan and tilt locks. Vertical drag is continuously adjustable.

3063........................................................................................96.95

3066

Video Fluid Head

This professional quality fluid tripod head with telescoping handles is designed for cine and video cameras weighing up to 22 lbs. The large, removable camera platform has a mounting stud that travels in a

3 1 ⁄

2

˝ slot and facilitates balancing at the camera’s center of gravity. In addition, there is a series of closelyspaced locking detentes on the platform, any of which can be used. The 3066 Fluid Head smoothly pans 360° and the panning drag can be adjusted by means of a simple adjustment screw. Vertical drag is adjusted by a large, oversized knob. The tilting range is 60° up - to 90° down, with the camera under perfect control at all times. And there is a detente which can be set down to limit the downward movement to 45°. Separate locks, independent of the drag system, provide a positive hold in any position. 3066307.95

®

®

316 HD Video Head

The high capacity 316 HD

Fluid Head is designed for use with video and film cameras weighing up to

35 lbs. It incorporates all of the features preferred by cameramen, including a drag system that ensures smooth

360° Pan and +75° to -75° Tilt controls, along with smooth stops and starts. A return to center variable balance spring adjustment allows for fingertip control at all times. It also has a large camera platform with leveling bubble and a quickrelease plate with both 3/8˝ and 1/4-20˝ camera screws that travel in a 2˝ slot to facilitate balancing at the camera's center of gravity. The

316 HD weighs only 10 lbs. including adjustable handles and is designed for use with tripods having 100mm bowls, including the

3141, 3141B, 3185, 3186, 3190, 3191, 3192 and 3193.

316 ..........................................................................................539.95

510 Video Head

The 510 Fluid Head is designed for use with the new generation of CCD, ENG and film cameras weighing up to 19 lbs.

It incorporates all of the features preferred by cameramen, including an advanced three-step drag system that ensures smooth 360° Pan and +75° to -75° Tilt controls, along with smooth stops and starts. A return to center variable balance spring adjustment allows for fingertip control at all times. It also features a large camera platform with levelling bubble and a quick-release plate with both 3/8˝ and1/4-20˝ camera screws that travel in a 2˝ slot to facilitate balancing at the camera's center of gravity. The 510 Fluid

Head weighs only 8 lbs. including adjustable handles and is designed for use with tripods having 100mm bowls, including the 3141,

3141B, 3185, 3186, 3190, 3191, 3192 and 3193.

510 ..........................................................................................719.95

510-10 — Same as above, but holds up to 10 lbs ..................719.95

B O G E N

FLUID HEADS

501 Pro Video Head

Supporting payloads up to 13.2 lbs., the 501 offers the best price and performance for a head of this size. Light but positive fluid movement provides exceptionally smooth control through 360°

Pan and +90 to -60° Tilt. It also has Teflon friction adjustment to increase drag, and separate Pan and Tilt locks.

Sliding quick-release plate for balancing the camera has 1/4˝ and 3/8˝ screws, plus VHS location pin.

Built-in spirit level.

Pan bar can be located left or right, optional second pan bar can also be used.

Adjustable Pan and Tilt friction control, separate Pan and Tilt locks.

501 ........................................................................................114.95

ROLL-POD

Go Where No Tripod Has Gone Before!

■ Easy setup and breakdown

■ Designed to fit through most doorways

■ Completely adjustable to fit many tripods

■ Quick-release locks for fast and easy storage

■ C.N.C. machined alloy construction

■ Transforms many tripods into a mobile cart

Trying to move your tripod and Dolly around? Or, do you need to carry more equipment? Mobilize your tripod with the ROLL-POD. This clever tripod caddy provides videographers with the quickest way to move their tripod and camera equipment over the most demanding terrain.

Complete with custom aluminum alloy frame, 16˝ wheels and pneumatic tires, plus a rugged handle for maneuvering. Raise the handle and you are ready to roll. Lower the handle, and you are on all three tripod legs. Camera bags, monitors, battery packs and other accessories can be conveniently attached to the tripod and/or the ROLL-POD with the Bogen super clamp system.

Accommodates the entire range of Bogen tripods

Roll Pod ........................................................................179.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

B O G E N

MONOPODS

The Bogen series of Monopods are ideal for sports and action videography, especially when using long zoom lenses. There are five models in the series, and all, except the 3245 Automatic Monopod, are available in black or chrome. There are also two swivel tilt heads and two support accessories to choose from. All Monopods include a convenient carrying strap.

3016 3-Section Monopod

Extends from 23˝ to 59˝ and weighs 1 lb.

3216 Black Anodized 3016 ..............35.90

3017 3016 w/3025 “3-D” Head........48.50

3217 3216 w/3025 “3-D” Head........55.95

3241 3016 w/3232 Swivel Tilt Head....39.95

3242 3216 w/3232 Swivel Tilt Head....46.95

3018 Professional Monopod

Three sections extends from 27˝to 65˝ and weighs only 1 lb. and 13 oz.

3018 Professional Monopod ...............37.50

3230 3018 w/Detachable Legs............63.95

3231 3218 w/Detachable Legs............70.95

3218 Black Anodized 3018.................44.95

3019 3018 w/3025 “3-D” Head .........54.95

3219 3218 w/3025 “3-D” Head .........61.90

3243 3018 w/3232 Swivel Tilt Head ..49.95

3244 3218 w/3232 Swivel Tilt Head ..56.95

3249

Compact Monopod

3249B Compact Monopod . ..............37.95

Black anodized, 4-section. Only 20˝ long when retraced. Extends to a full 60˝.

3245

Automatic Monopod

It features a grip action release that allows the top section to be adjusted 19˝ up or down automatically. Just squeeze and release the grip action handle with one hand and the Monopod sets itself exactly the way you position it. Perfect for quick-action shots.

Three sections extends from 24 1 ⁄

2

˝ to 65˝,

weighs only 1 lb 3 oz ........................63.95

Accessories for Monopods

3229 QR Swivel Tilt Head /3232 Swivel Tilt Head...................................................24.95

Designed specifically for Monopods. The swivel tilt head with quick-release features a oneaxis movement which allows the positioning of the camera for a vertical format with the

Monopod in the upright stance. Has a reversible 1/4-20˝ and 3/8˝ camera screw.

3247 Monopod Belt Pouch .......................................................................................12.95

Adds stability and allows use of Monopod at less than full length for easy transport.

3248 Monopod Shoulder Brace ................................................................................16.50

Fits against shoulder to give extra support and greater stability to the Monopod.

Dollies

3056/3156

Auto Dolly and Auto Folding Dolly

The ideal companions for the 3031, 3036, 3046 and

3051 tripod legs. The 3056 weighs 6 lbs., incorporates

Shepherd Casters and is easily assembled. Spread from center to tripod leg socket is 18

1

2

˝. The folding 3156 features 3˝ wheels, weighs 9

3

4 lbs., and the spread from center to tripod leg socket is 20˝. Folds to a compact

29˝. On either Dolly, mounting and dismounting the tripod is accomplished by cam operated kick-locks.

Many dollies brake against the caster wheel itself, which can cause wear and slippage. But when you depress the centrally located foot pedal of the 3056 or

3156, you release all three wheels. When you lift the pedal, cam action raises the wheels free of the ground, and the weight of the Dolly and tripod rests on separate feet.

To support a camera for very low angle shooting, a European thread stud is provided on the central casting where you can mount your Bogen fluid head.

3056 Auto Dolly...........................................................................................................91.95

3156 Folding Auto Dolly............................................................................................129.95

3254 Black Folding Auto Dolly

(Same as 3156 but in black)

.................................................139.95

Corporate Accounts Are Welcome

3127 Portable Dolly

This handy Dolly weighs only 5 lbs.

7oz., has a 20˝ radius, folds to a compact 22 1 ⁄

2

˝ and is suitable for most

Bogen tripods. It features a sure lock/ no-rock system that lifts the 2˝ casters off the ground, letting the Dolly rest on separate feet. Heavy-duty quick fastening rubber straps hold tripod securely to the Dolly. ..................83.95

3137 Variable Leg Spread Dolly

Similar to the 3127, except that this Dolly incorporates variable leg spread for added versatility. This special feature allows you to adjust the radius from a maximum of 20˝ to as little as 12 1 ⁄

2

˝.

When not in use, the 3137 packs down to an ultra-compact size for easy storage. .......................................................................94.95

3067/3198 Deluxe Video Dollies

The 3067 Video Dolly is designed for use with the 3191/3192 and 3061 tripods.

Individually braked 5˝ wheels with cable guards and a unique leg-locking system make it extremely stable. Easy to assemble and disassemble for convenient transport.

The tripod legs are captured in a 38˝ diameter circle, and the doorway clearance needed for the fully assembled Dolly is only 39

1

2

˝.

The 3198 Deluxe Video Dolly is the same except it is designed for the 3181/3182,

3185/3186 and 3190/3193 Series.

3067 Deluxe Video Dolly.........................................................199.95

3198 Deluxe Video Dolly for Tripods with Spiked Feet ...........199.95

Video Monitor Holder

Designed for use with the Super Clamp 2915, in conjunction with the Double-Ball Joint 2916. Ideal for attaching a small video monitor to a tripod. Measures 7 x 11 1 ⁄

2

˝. Straps hold monitor securely in place.

3152 Video Monitor Holder .....43.50 2915 Super Clamp ..22.95

2916 Double Ball Joint..............................................................29.95

B O G E N

ACCESSORIES

3279/3280/3281 Tripod Bags

Dark Blue, Heavy-Duty

Cordura Nylon Tripod

Bags

3279 25˝ fits Series

3001 Tripods ..........29.95

3280 35˝ fits Series

3011 Tripods ..........36.95

3281 45˝ fits Series

3036, 3046 and

3051 Tripods ......46.95

Available in Blue or

Black. Please specify.

3285/3286 Hard Cases

Protect your tripod with rugged hard cases from Bogen. Made of heavy-duty high density polyethylene with exceptional impact resistance, they feature aluminum tongue and groove closures, recessed nickel-plated latches and piano hinges for long life. Available in two sizes, the small case (3285) measures 6 x 6 x 44˝ to fit the 3033, 3036,

3046 and 3051 tripod with all heads; the large case (3286) measures

9 1 ⁄

2 x 9 1 ⁄

2 x 44˝ to fit the 3191, 3068, and 3061 legs with 3066 heads.

3285 ..................................................................................139.95

3286 ..................................................................................154.95

Pro Quick-Release Adapter With Slide Plate

Has a 5 1 ⁄

2 x 2˝ plate with 1⁄4–20˝ and

3

8

˝ threads, and sliding slot to vary the center of gravity.

3273 Pro Quick-Release Adapter with side plate .....................33.50

3272 Plate only for 3273 ....16.50

3285

3286

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

M A T T H E W S

FLUID HEADS

Libec by Matthews Fluid Heads

The professional videographer has no choice but to depend on his equipment, in the studio and on location. Libec by

Matthews Fluid Heads have been designed to perform in all conditions and circumstances, allowing the videographer to concentrate on the shot, instead of the equipment. Smooth pans and tilts, with no backlash or bumps, are a given with the use of Libec by Matthews Fluid Heads. Rapid, secure camera counterbalance is achieved through torque control and plate positioning. Most Libec by Matthews Fluid Heads feature claw-ball bases for easy system leveling and will operate in temperatures as low as -22°F (-30°C).

H-80 FLUID HEAD

Only Libec could engineer a premium fluid head that allows the smoothest pan and tilt available anywhere. "Infinite" control of pan and tilt drag is obtained by a continuous Drag Control System that eliminates click stops at predetermined points. Optimum camera balance with tilt angles of

+90° or -90° is obtained with the continuous Counterbalance Control System. The counterbalancing mechanism is so unique that a patent is pending. The DoveTail Plate is included with the H80 head and will allow the entire unit to snap onto the head without the need to line up the dovetail.

The plate will slide approximately 4˝ (100mm) to obtain the proper camera balance. State of the art technology permits performance in temperatures down to -22°F (-30°C).

The H80 is equipped with a 100mm claw-ball to simplify camera leveling, one pan handle (PH-7) and a claw-ball locking knob. Weighs 8.5 lbs., camera load capacity is 13 to 37 lbs.

H-70 FLUID HEAD

The H70’s patented counterbalance mechanism supports various operating configurations, from stand-alone cameras to cameras with docked recorders, and even studio configurations with large viewfinders. Perfect balance can be obtained with settings from 0 to 3, depending on camera weight —from 13 to 33 lbs. (6-15kg) – and tilt angle.

The patented 4-Step Drag Control System permits four individual levels of drag tension to be set on either Pan or Tilt to accomplish the smoothest camera moves imaginable. Tilt angle is

+90º to -75º.

To further enhance the H70, a sliding balance plate is provided, featuring a patented locking mechanism and allowing a total of approximately 4˝ (100mm) of travel for camera balance.

The H70 is equipped with a 100mm claw-ball, one pan handle (PH-7) and claw-ball locking knob. It weighs 9 lbs. (4kg).

H-60 FLUID HEAD

The H60 Fluid Head has 2-step drag control for both Pan and Tilt, and a sliding quick-mount plate with 4˝ (100mm) travel for camera balance. Tilt angle is +85º to -65º.

Includes 100mm claw-ball, one pan handle (PH-7) and claw-ball locking knob. Weighs 9 lbs., camera load capacity is 18-29 lbs.

Most Orders Shipped Within 24 Hours

H-30

Load Capacity

Head Weight

Pan to Tilt Range

Slide Plate Range

Counterbalance

Pan Fluid Drag

Tilt Fluid Drag

Operating Temperature

Claw-Ball Diameter

Price

H-80

13-37 lbs.

6-17kg

8.5 lbs.

3.8kg

±90º

4˝ - 100mm

Continuous

Continuous

Continuous

-22º - 110ºF

100mm

2865.00

M A T T H E W S

FLUID HEADS

H-50 FLUID HEAD

The H50 Fluid Head has 2-step drag control for both Pan and Tilt, and a sliding quick mount plate with 3˝ (80mm) travel for camera balance. Tilt angle is ±90º. Includes 75mm claw-ball, one pan handle

(PH-7) and claw-ball locking knob. Camera load capacity is 18-22 lbs.

Weighs 6.5 lbs.

H-30 FLUID HEAD

The H30 Fluid Head has a standard flat tripod mount with 3/8˝ thread and quick-release plate. Tilt angle is +90º to -80º. Camera load capacity is 11-18 lbs. Weighs 4 lbs.

H-50

FLUID HEAD SPECIFICATIONS

H-70

13-33 lbs.

6-16kg

H-60

18-29 lbs.

8-13kg

H-50

18-22 lbs.

8-11kg

9 lbs.

4kg

9 lbs.

4kg

6.5 lbs.

3kg

+90º -75º

4˝ - 100mm

4-step

4-step

+85º -65º

4 ˝- 100mm

2-step

2-step

±90º

3˝ - 80mm

Fixed

2-step

4-step

-22º - 110ºF

100mm

2189.00

2-step

-22º - 110ºF

100mm

1464.95

2-step

-22º - 110ºF

75mm

1079.95

H-40

9-18 lbs.

4-8kg

6.0 lbs.

2.7kg

±90º

3˝ - 80mm

Fixed

Fixed

Fixed

-22º - 110ºF

75mm

799.99

Libec by Matthews

For thirty years, Matthews Studio Equipment, Inc.

(MSE) has supplied the Television and Motion Picture production industries with a wide range of equipment. These products have enabled the professional to realize creative success through precise camera control in both location and studio environments.

Sophisticated design and precision manufacturing have ensured high quality products at reasonable prices. The introduction of Libec by Matthews gives the industry a new source for bold, innovative camera support systems.

From the TH-M20 for the smallest camcorders – featuring a true fluid head with claw-ball adjusting capabilities – to the advanced ST-80PD Studio Pedestal,

Libec by Matthews offers the videographer a full range of choices. Libec by Matthews Camera Support systems combine incredible versatility, along with a wide range of combinations to tailor each system to the user’s requirements. All components are constructed of the finest materials and manufactured to the Matthews standard of high quality and durability. Libec by Matthews systems carry a full three year warranty.

H-30

11-18 lbs.

5-8kg

4 lbs.

1.8kg

+90º -80º

2˝ - 50mm

Fixed

Fixed

Fixed

-22 - 110ºF

Flat Plate

599.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

M A T T H E W S

TRIPODS

Libec by Matthews Tripods

A professional camera support system must include a stable tripod to support the fluid head and camera. The Libec by

Matthews series of tripods includes both lightweight aluminum alloy and carbon fiber models. Rotational stability is achieved through adjustable mid or ground spreaders. Easy height adjustment is accomplished by positive locking leg knobs for fast accurate setups.

T95

• 2-Stage Aluminum

• Maximum Height:

58.4˝ (1485mm)

• Minimum Height:

16.5˝ (420mm)

• Weight 6.6 lbs. (2.5kg)

T75

• 1-Stage Aluminum

• Maximum Height:

56.2˝ (1430mm)

• Minimum Height:

26.3˝ (670mm)

• Weight 6.4 lbs. (2.9kg)

T95C

• 2-Stage Carbon Fiber

• Maximum Height:

58.4˝ (1485mm)

• Minimum Height:

16.5˝ (420mm)

• Weight 5.5 lbs. (2.5kg)

TRIPODS

Material

Min Height

Max Height

No. Stages

Load Capacity

Weight

Bowl

Spreader

Price

T-95

Aluminum

16.5˝

420mm

58.4˝

1485mm

2

37 lbs.

17kg

6.4 lbs.

2.9kg

100mm

Mid or

Ground

839.95

Equipment Leasing Available

T55

• 1-Stage Aluminum

• Maximum Height:

57.2˝ (1455mm)

• Minimum Height:

31.4˝ (800mm)

• Weight 5.2 lbs. (2.9kg)

TRIPOD SPECIFICATIONS

T-95C

Carbon

16.5˝

420mm

58.4˝

1485mm

2

37 lbs.

17kg

5.5 lbs.

2.5kg

100mm

Mid or

Ground

1244.95

T-75

Aluminum

26.3˝

670mm

56.2˝

1430mm

1

33 lbs.

15kg

6.4 lbs.

2.9kg

100mm

Mid or

Ground

649.95

T-55

Aluminum

31.4˝

800mm

57.2˝

1455mm

1

22 lbs.

10kg

5.2 lbs.

2.4kg

75mm

Mid or

Ground

378.95

T-30

Aluminum

18˝

458mm

51˝

1295mm

1

18 lbs.

8kg

5.6 lbs.

2.6kg

Flat Plate

Fixed

Brace

416.95

M A T T H E W S

PEDESTALS

P-8 Studio Pedestal

The P-8 is a pneumatic system, ideal for the budgets of small television or production studios. The smooth effortless performance of the P-8 provides low angle camera action, while its compact size and ease of maneuverability insure complete control.

Pneumatic counterbalance will accept any head made.

Easily rolls through doorways with a minimum clearance of 28˝.

■ Steering wheel diameter is 19˝. Controls the

5.75˝ diameter dual truck wheels.

Completely sealed pressure system 1 to 1 ratio (PSI to load) with pressure relief valve at 250 PSI. Standard compressed air is used;

12 pressure differential trim wafers provided.

Weighs 302 lbs. and has a maximum load capacity of 175 lbs.

P-8 Studio Pedestal ....................11,650.00

P-6 Studio Pedestal

The P-6 represents state of the art design in an affordable studio pedestal. The P-6 is completely counterbalanced and requires only fingertip control for elevation adjustments or lateral crabbing. The 20˝ diameter steering wheel controls three sets of 5.75˝ diameter dual wheel trucks with adjustable cable guards. The P-6 has a doorway tracking width of 28.5˝. Counterbalanced loads of up to 160 lbs. (head and camera system) are supported by quiet constant force spring cassettes. Minimum camera load is 15 lbs.

P-6 Studio Pedestal Load capacity of 160 lbs. weighs 167 lbs. ................................................7750.00

P-100 Pedestal

The P100 is a small size pedestal that offers great flexibility without taking up too much space. Featuring an advanced air pressure system, the P100 smoothly handles loads up to 66 lbs., easily accommodating professional cameras used in a studio. Ideal for CATV, small studios, event and wedding video, as well as all kinds of industrial and institutional applications.

■ Air pump attached to the main body frame allows air to be pumped into a column anywhere and anytime – even while a camera is mounted on the pedestal. This allows you to check and adjust the air pressure while using the pedestal, and to avoid the over-filling of air.

■ Air pressure can be gradually adjusted by discharging air through a bleed valve. A relief valve automatically lets air out when air pressure inside the column exceeds the uniform value.

A track lock mechanism locks the wheels of the pedestal, so that it only moves in a desired position.

■ Large double wheel 5˝ casters allow the

P100 to move smoothly and quickly.

Wheels and caster axles are easily fixed by the double stopper system.

Cable guards prevent the casters from rolling over and becoming tangled in camera cables when the tripod is moved around in a studio.

■ Large steering wheel affords greater ease in handling when shifting columns up and down, or when moving the pedestal.

■ The column and Dolly can be quickly disassembled for convenient transport.

Column weighs 18 lbs., the Dolly 16 lbs.

Maximum height is 61˝, minimum is 31˝.

Attach the optional LA-100 Low Angle

Adapter to shoot at low angles. (Height from the ground to mount is only 10˝.)

P-100 .........................................3469.95

LA-100 Low Angle Adapter...........233.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

M A T T H E W S

H-80 SYSTEMS

The top of the line from Libec by Matthews, these systems offer a choice of carbon fiber or aluminum tripods, mid or ground Spreaders and the H-80 Fluid Head. Infinite control of Pan and Tilt, consistent

Drag and Counterbalance levels, and ultra smooth camera movements make this the choice of cameramen around the world.

ST-80 (2A): T-95 2-Stage Aluminum Tripod, SP-1 Ground Spreader..............................4175.00

ST-80M (2A): T-95 2-Stage Aluminum Tripod, MS-2 Mid Spreader with Foot Pads ......4350.00

ST-80 (2C): T-95C 2-Stage Carbon Fiber Tripod, SP-1 Ground Spreader.......................4669.00

ST80M (2C): T-95C 2-Stage Carbon Fiber Tripod, MS-2 Mid Spreader w/Foot Pads ....4699.00

ST-80PD: P100 Pedestal, PH-3S Pan Handles (2 pc.)......................................................6899.00

All H80 systems include the H80 Fluid Head with single pan handle, a CR-1 carrying strap,

100mm claw-ball and sliding quick plate, and have a maximum load capacity of 37 lbs.

H-70 SYSTEMS

The H-70 Fluid Head utilizes a four-step Counterbalance System to support operating configurations, including stand-alone, cameras with docked recorders, and studio configurations with viewfinders.

ST-70: T-75 Single-Stage Aluminum Tripod, SP-1 Ground Spreader ..............................3259.00

ST-70M: T-75 Single-Stage Aluminum Tripod, MS-2 Mid Spreader with Foot Pads.......3299.00

ST-70 (2A): T-95 2-Stage Aluminum Tripod, SP-1 Ground Spreader .............................3399.00

ST70M (2A): T-95 2-Stage Aluminum Tripod, MS-2 Mid Spreader w/Foot Pads ..........3499.00

ST-70PD: P100 Pedestal, PH-3S Pan Handles (2 pc.)......................................................5995.00

All H70 systems include the H70 Fluid Head with single pan handle and CR-1 carrying strap, a 100mm claw-ball, sliding quick plate, and have a maximum load capacity of 33 lbs.

H-60 SYSTEMS

Two-step Pan and Tilt Drag System offers smooth operation and rugged performance at an economical price.

ST-60: T-75 Single-Stage Aluminum Tripod, SP-1 Ground Spreader ...............................2479.00

ST-60M: T-75 Single-Stage Aluminum Tripod, MS-2 Mid Spreader with Foot Pads .......2499.00

H60 systems include the H60 Fluid Head with single pan handle, a CR-1 carrying strap,

100mm claw-ball, sliding quick plate, and have a maximum load capacity of 29 lbs.

H-50 SYSTEMS

ST-50: T-55 Single-Stage Aluminum Tripod, SP-1 Ground Spreader ...............................1785.00

ST-50M: T-55 Single-Stage Aluminum Tripod, MS-2 Mid Spreader with Foot Pads .......1595.00

H50 systems include the H50 Fluid Head with single pan handle, a CR-1 carrying strap,

75mm claw-ball, sliding quick plate, and have a maximum load capacity of 22 lbs.

H-30 SYSTEMS

ST-30: Single-Stage Aluminum Tripod with T-30 Brace...................................................1039.00

ST-30D: Single-Stage Aluminum Tripod with T-30 Brace, DL-3 Dolly and second PH-3 Pan Handle ...........................................................................1450.00

H30 systems include the H30 Fluid Head with single pan handle, a CR-1 carrying strap, flatbase, quick shoe plate, and have a maximum load capacity of 18 lbs

ST-50

ST-60M

We Exhibit At NAB, Infocomm, and Siggraph

SYSTEM

LS-35

TH-M20

TH-M40

ST-30

ST-50

T-50M

ST-60

ST-60M

ST-70

ST-70M

ST-70 (2A)

ST-70M (2A)

ST-70 PD

ST-80 (2A)

ST-80M (2A)

ST-80 (2C)

ST-80M (2C)

ST-80 PD

M A T T H E W S

Digital Camera Systems

Specifically designed for the latest digital camcorders, these lightweight, compact tripods include oversized rubber feet for greater stability. They come complete with carrying case and shoulder strap.

LS-35

DV tripod system designed for the new lighter, digital broadcast quality video cameras

Includes: H35

Fluid Head,

T-57 Tripod,

SP-1 Ground

Spreader,

75mm Claw-

Ball, Single Pan Handle, Quick release plate, carrying case

Call

ST50BR(2A)

Lightweight system with two phase

Tilt and Pan Drag Adjustment modes, fixed counterbalance.

Includes:

H50 Fluid

Head, T-60

Tripod,

Mid Level

Spreader,

75mm

Claw-Ball

1699.00

TH-M40

Ideal for educational and industrial use. Heavy-duty tripod and flat plate head.

Handles a 33 lbs. load. When coupled with the DL3 Dolly, the TH-M40 is a handy studio camera system.

959.00

TH-M20

Perfect as a small camera platform, the unique TH-

M20 features a true fluid head and a 50mm adjustable claw-ball.

189.95

H-70

H-70

H-70

H-70

H-80

H-80

H-80

H-80

H-80

FLUID

HEAD

H-35

H-20

HM-40

H-30

H-50

H-50

H-60

H-60

H-70

TRIPOD

T-75

T-95

T-95

P-100

T-95

T-95

T-95C

T-95C

P-100

T-57

TM-20

TM-40

T-30

T-55

T-55

T-75

T-75

T-75

SYSTEM SPECIFICATIONS

SPREADER CAMERA SYSTEM MAXIMUM MINIMUM

LOAD WEIGHT HEIGHT HEIGHT

Ground 18 lbs.

11 lbs.

61˝ 31˝

Mid

Ground

Mid

Pedestal

Ground

Mid

Ground

Mid

Pedestal

Mid

Fixed Brace

Fixed Brace

Ground

Mid

Ground

Mid

Ground

13-33 lbs.

13-33 lbs.

13-33 lbs.

56 lbs.

13-37 lbs.

13-37 lbs.

13-37 lbs.

13-37 lbs.

66 lbs.

11 lbs.

33 lbs.

11-18 lbs.

13-22 lbs.

13-22 lbs.

18-29 lbs.

18-29 lbs.

13-33 lbs.

16.5 lbs.

17 lbs.

17 lbs.

55 lbs.

15.8 lbs.

15.8 lbs.

14.7 lbs.

14.7 lbs.

54.2 lbs.

7 lbs.

17.6 lbs.

9.9 lbs.

11.9 lbs.

11.9 lbs.

15.4 lbs.

15.4 lbs.

16.5 lbs.

64.5˝

64.7˝

64.5˝

67.3˝

64.7˝

64.5˝

64.7˝

64.5˝

67.3˝

59˝

55.3˝

55.3˝

61.8˝

61.8˝

62.4˝

62.2˝

64.5˝

37.7˝

22.7˝

29.5˝

37.5˝

22.0˝

29.5˝

22.0˝

29.5˝

37.5˝

27.5˝

27.1˝

21.2˝

31.1˝

37.0˝

32.2˝

37.4˝

32.5˝

+90 / -75

+90 / -75

+90 / -75

+90 / -75

+90 / -75

+90 / -75

+90 / -75

+90 / -75

+90 / -75

TILT

ANGLE

+80 / -90

+80/ -90

+90 / -90

+90 / -80

+90 / -90

+90 / -90

+85 / -65

+85 / -65

+90 / -75

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

M A T T H E W S

PH-9 Zoom Handle

Now you can have off camera control of both record and zoom functions (with two-phase zoom speed control) in a single ergonomically designed pan handle. The adjustable PH-9 adapts to most

Canon and Fujinon ENG type 8-pin connector lenses and will conform to many Fujinon broadcast lenses with the addition of a 12-pin conversion adapter.

Two record switches are available (top and bottom side of pan handle) for use, depending on pan handle position. Record/Return function can be alternated with Rec/Ret exchange switch.

Easy manipulation of zoom and record On/Off function enables smoother and smarter shooting.

Two speed zoom (fast or slow). Length or angle of pan handle is easily adjustable.

Equipped with 8-pin connector as standard for controlling both Canon and Fujinon lenses (just set the Canon/Fujinon lens exchange switch).

A 12-pin connector for controlling certain

Fujinon broadcast lenses is available as an option.

PH-9.....................................................629.95

Mini Jib ll

A portable, versatile offset Jib

Arm that is compatible with all dollies.

May also be mounted onto its own heavy-duty tripod. The Mini Jib II is capable of rotating 360° with a minimum diameter of 2´ and a maximum diameter of

7.5´. The mounting configuration of the Mini Jib II is compatible with Elemack and may be adapted for use with Mitchell. Additional arm length may be achieved with the use of one or more extension arms. The camera mounting elbow on the end of the arm may be attached at various heights, upright or inverted, to provide a multitude of positions. To counterbalance, threaded 1˝ diameter barbell mounts are installed, allowing the use of standard barbell weights (not included) on each side of the column.

Capacity 265 lbs., weighs 77 lbs. Mini Jib ......................3649.00

Briefcase Dolly

The Briefcase Dolly is easy to set up, and totally self contained with casters, track wheels, locking push bar and pull handle, all in a durable case which opens into the Dolly platform. Use with casters to shoot or haul equipment on regular surfaces, or use with track wheels to run on regular track, focus track, or even PVC or metal pipe. It will run on straight or curve track and will easily support up to 500 lbs. Weighs

59 lbs., measures 6 x 19.5 x 29˝.

Briefcase Dolly ...................................................................2569.00

Wheel Assembly for Briefcase Dolly (4 are needed) ea. ...........59.95

Tripod Dollies

Made from durable corrosion resistant aluminum alloy, these tripod dollies feature a patented folding system which is operated with the turn of a lever.

DL-1 Dolly for the TH-M20 Weight: 3 lbs. (1.4kg) ............199.95

DL-3 Fixed spread, folded length is 33.5˝ weighs 9 lbs. ........334.95

DL-55 Variable spread, folded length is 14.5˝ weighs 9 lbs. ..374.95

Doorway Dollies

Doorway Dolly with Turret

The Doorway Dolly has a wheel base of 28 1 ⁄

4

˝ without extended axle. Overall length reaches

51˝, with a platform size of

27.5 x 41.5˝. The 2 sideboards add 10˝ each. Ground clearance is 9˝, or 3˝ when inverted.

Weight capacity is 800 lbs. Tire pressure is 22-25 lbs. Steering is accomplished with the use of a pull handle similar to a wagon, or it may be used in a secured upright position. There is an angled fitting to allow the push bar to tilt down 34° for more clearance between the Dolly and the operator. Constructed with a wooden platform attached to a steel tubing frame. The platform is fitted with a recessed camera tie-down and is carpeted for a non-slip, low maintenance surface. For extra low angles, the Dolly can be inverted. The rear wheels extend outward to provide greater operating stability. All of the receivers have a Posi-V-Lock design when the pin is inserted, for a tight unitized fit. Can be equipped with Matthews Hot Buttons for use on straight or curved track.

Doorway Dolly (Weighs 117 lbs.) .........................................1785.00

Doorway Dolly with Turret and Chair (Weighs 197 lbs.)....4995.00

Hot Buttons (For Straight or Curved Track)............................654.95

Straight Track Wheels...........................................................1159.95

®

®

M A T T H E W S

MS-2 Mid Level Spreader

The MS-2 is designed to stabilize the tripod legs in the most awkward positions. Two locking positions are provided to secure the leg spread. The Mid Level Spreader can be detached from any one or all the legs for even greater flexibility.

MS-2 Mid Level Spreader for T75/T95 (1 lb) ......................359.95

MS-1 Mid Level Spreader for T55 (1 lb) ..............................254.95

SP-1 Ground Spreader

The SP-1 is a mid-ground spreader made of ABS plastic with molded rubber tie-downs. Each section of the spreader extends 5˝ and has a graduated scale for even adjustment. Tripod folds with the spreader attached. Weighs 1.5 lbs ..........................................................297.95

Soft Cases

Light (3 lbs), cushioned, water repellent polyester construction for tripod protection. These soft cases include both a hand carry strap and a shoulder strap.

SC-3 Interior Dimensions:

6 x 6 x 37.5˝ ................118.95

SC-5 Interior Dimensions:

6 x 6 x 39.5˝ ..................159.95

SC-7 Interior Dimensions:

6.7 x 7.5 x 41.5˝ ............263.95

SC-9 Interior Dimensions

6.7 x 7.5 x 33.7˝ ..........233.95

ITE by Matthews

ITE, established in the 1970s, is one of the most recognized manufacturers of camera support equipment in the industry.

Matthews Studio Equipment, acquired ITE in 1989. Matthews continues to manufacture the well-established studio pedestals, heavy-duty tripods and cam heads. ITE by Matthews products are known for their reliable technology, ease of operation, low maintenance, dependable performance and competitive pricing.

H6 Cam Head

The H6 is a highly sophisticated unit with a 130 lb. load capacity. The viscosity drag system provides fluid control for unsurpassed smoothness in both Pan and Tilt modes. Breakaway inertia is impossible with the H6. Equipped with wedge adapter, wedge plate, dual telescopic control handles and Mitchell Base. Cam sizes are available in .50˝ increments (2.0 to 9.0˝).

Weighs 33.5 lbs. H6 ..................................................................................................3375.00

H8 Microwave Pan and Tilt Head

Constructed of only the finest materials and designed to meet the most severe conditions, the

H-8 Pan and Tilt Head has been the leader in its field for over fifteen years. The H8 has positive locking devices in both Pan and Tilt modes, and degree markers in both azimuth and elevation.

Includes Mitchell base, standard microwave "L Bracket" mounting, and spirit level. Tilt range is

± 45º, pan rotation 360º. Weighs 19 lbs. and has a load capacity of 250 lbs.

H8 ........................................................................................................................Call

MT1 Tripod

With the highest degree of structural integrity and dependability, the MT-1 is used at most of the world’s major sporting events. Constructed of high strength aluminum alloy castings and stainless steel, it is finished to withstand the most severe weather. Designed for use with the H6 and H8 heads. Features combination leg spike, bolt down pads and spherical ball feet. Weighs 28 lbs. and has a load capacity of 265 lbs. MT1

......

1989.00

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

M I L L E R

CAMERA SUPPORT

The greatest reassurance for ENG and EFP professionals is knowing that their camera support equipment is designed by a company aware of the specific needs of field and location production. Tripods must be light, stable on all terrains, weather resistant, compact, and easy to set up. Pan and Tilt heads must operate smoothly and consistently, and they must seamlessly handle different payloads. They should also be light, compact, anti-corrosive and simple to operate. The silky, smooth action of each Miller Fluid Head is the product of the finest quality cast and machined parts, functioning together in a fluid environment. They are engineering masterpieces, built to operate under the most extreme conditions. They are engineered to exceptionally fine tolerances, and their mechanisms are protected effectively against ambient moisture and dust. So, too, with Miller’s comprehensive tripod range. As new materials and new design techniques are implemented, the tripods become lighter, yet achieve greater torsional rigidity and continue to offer innovative features that set new standards for camera support systems.

Miller Fluid Heads

The smoothest Pan and Tilt action in the field, from the company who invented Fluid Drag

Multi-Step Pan & Tilt

Fluid Drag System

The benchmark by which others are judged,

Miller’s multi-step Fluid Drag system ensures smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings – something continuous drag systems cannot duplicate. By being independent of payload weight, the multi-step system ensures smooth “starts” and dead “stops” for precise framing without any backlash. The system is fully sealed within sub-assemblies for a leakproof, low maintenance life.

Preset and Adjustable

Counterbalancing

Miller has designed specialized counterbalancing systems to neutralize the effect of payloads and their centers of gravity. The preset counterbalance system built into the DS-5, 10 and 20, combined with a sliding camera platform (DS-

10 and 20), optimize tilt control in the intended capacity range of these heads. The adjustable counterbalance of the DS-25 and Arrow 50 accommodate a broad range of cameras, lenses and other accessories for ENG & EFP applications.

Quick Release

Camera Platforms

Every Miller fluid head is fitted with a precision, quick release camera platform that incorporates a sliding balance plate for fine tune payload balancing.

The self-engaging action of Miller camera plates ensures rapid camera attachment in the field, while the built-in safety lock guarantees camera safety during setup and pull-down.

DS-5 DS-10 DS-20 DS-25 Arrow 50

Catalog #

Payload:

Weight:

Tilt:

Pan:

180

2.5kg

2.1kg

+90° - 70°

360°

182

5kg

2.1kg

+90° - 70°

360°

184

10kg

2.1kg

+90° - 70°

360°

147

10-15kg

3kg

+90° - 75°

360°

170

7-25kg

3.1kg

+90° - 75°

360°

Tilt/Pan Drag:

Tilt/Pan Locks:

Continuously Variable

Counterbalance:

Single Position

Base:

Handle:

75mm Ball Base

Camera Mounting: Quick-Release System

Continuously Variable Continuously Variable

Single Position

Independent Positive Disk Brake

Single Position

4 Position Pre-set

2 Position Variable

7 Position Pre-set + 0

4 Position Variable

75mm Ball Base 75mm Ball Base 100mm Ball Base 100mm Ball Base

Left and right hand positions vertically and horizontally adjustable

Quick release system plus sliding balance adjustable

Operating Range:

-40°C to + 65°C

Used Equipment Bought, Sold and Traded

FEATURES

DS-5/DS-10 Systems for

DV, DVCAM and DVCPRO Camcorders

The DS- and DS-10 are complete, ready-to-go professional support systems for DV, DVCAM and DVCPRO lightweight camcorders. Each is comprised of an alloy diecast fluid head with 75mm ball levelling, lightweight alloy ENG tripod, above ground detachable spreader, rubber feet and pan handle.

The DS-5 and DS-10 offer the same control features, fluid drag design and accessories as Miller's larger broadcast products. The result is lightweight support that delivers superior performance, with features like fully Variable Fluid Drag control, independent Pan/Tilt locks, counterbalancing to provide finger tip control through the entire tilt range and quick release camera platforms (the DS-10 has a sliding plate for

'fine tune' balancing). Both heads offer a wide tilt angle range.

DS-20 Fluid Head

Brings ‘big head’ performance and professional features like

Dynamic Fluid Drag control and an integrated Static

Counterbalancing System for professional and corporate video production.

Ideal for today’s lightweight CCD cameras and camcorders, the DS-20 is built from high-strength die-cast alloy and offers a sliding balance plate, Independent Pan and Tilt locks, precision spirit level and integral 75mm ball levelling.

DS-25 Fluid Head

Designed o match the weight, balance and price performance of the DSR-300 and lightweight DVCPRO camcorders, the

DS-25 offers extended counterbalance and drag selection, as well as a low center of gravity for more positive Pan and Tilt feedback. A true 100mm ball fluid head, the DS-25 features a multi-step fluid drag system and an integrated counterbalance system to provide ultra-smooth, repeatable Pan-and-Tilt fluid control and finger-tip camera balance for ENG camcorders,

CCD, or small studio cameras up to 33 lbs.

Arrow 50 Pan/Tilt Fluid Head

Today’s ENG/EFP cameras are lighter, more versatile and offer a wider range of ergonomically accessible controls than ever before. The design functionality of the Arrow 50 reflects this evolution. The result is a totally new approach to head design which complements the position, color and shape of camera operational controls. Pan and Tilt controls are at the rear for easy access. All rear-mount controls, including the bubble level, are illuminated for easy operation under low light conditions.

Using the latest CAD/CAM technology, precision milling and advanced wear-resistant material, the Arrow 50 offers the smoothest 7-position selectable drag system possible. It satisfies every need – from those who call for an ‘ultra-light’ touch to those who demand the heaviest in drag resistance.

M I L L E R

MILLER FLUID HEADS

SPECIFICATIONS

• The DS-5 provides professional Pan/Tilt movement with rock-solid support for DV camcorders up to 5 lbs.

like the DCR-VX1000. The DS-10 boasts a payload capacity of 10 lbs. to support the Canon XL-1, Sony

DSR-200A or Panasonic AJ-D215 camcorders.

• Their lightweight ENG tripod includes hard-anodized alloy tubing and a detachable above ground for rigid, distortion-free tripod action and to ensure optimum stability on all terrains, even when capturing long telephoto shots. Tripod operating range is 24˝ to 59˝

• Tilt/Pan drag is continuously variable; tilt angle of

+90°/-70° assures full movement capability

• Both heads feature a 75mm bowl mount with detachable rubber feet and independent Pan/Tilt locks.

• The DS-5 has a standard quick release plate, the

DS-10 incorporates a sliding quick release plate for balancing the camera.

• Continuously Adjustable Fluid Drag Control

• Sliding/Quick Release Camera Platform

• Counterbalance system compensates for nose-heavy or tail-heavy camera configurations; permits fingertip control of the camera throughout the tilt range.

• Includes independent Pan and Tilt locks, bubble level, dual pan handle carriers and integrated 75mm ball leveling.

• Weighs only 4 lbs., can handle cameras up to 22 lbs.

• Weighs only 7.5 lbs to create systems less than 13 lbs

• Multi-Step Fluid Drag System ensures the precise setting for all shooting environments.

• Fingertip Counterbalance Control throughout its tilt range; integrated with a quick release/sliding camera platform for precise balancing and positive, internal

Pan/Tilt locks.

• Fully sealed housings, stainless steel locks, screws, anticorrosive/non wearing hardware.

• Low profile reduces the center of gravity for optimized balancing of heavy loads, ensures maximum stability.

• Pan, tilt counterbalance and and pan handle adjustments are clearly marked and are designed for easy access, positive feel and secure locking action.

• 4-position counterbalance provides finger tip control through the entire tilt range for cameras 7 to 25kg.

• Weighs only 3kg. yet its durable, lightweight aluminum diecast construction and anti-corrosive hardware provide years of service.

• Ergonomically designed, rear grouping of drag, counterbalance controls and spirit level.

• Push-button, self cancelling LED illumination of bubble level, Pan/Tilt indicators and settings.

• 7-selectable Pan and Tilt drag settings (plus zero) deliver the lightest and heaviest drag of any fluid head.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

M I L L E R

SERIES II TRIPODS

Lightweight Alloy and Carbon Fiber Tripods for Any Application on Any Terrain

Ultra-Light Carbon Fiber

Stronger, more durable and 25% lighter than metal-based systems,

Miller’s Ultra-Light carbon fiber tubing optimizes strength and torsional rigidity. Ultra-Light is manufactured by a ‘pull-trusion’ method, which draws three offset layers of fine woven carbon fiber through a high temperature resin bath. The result is optimum strength across all axis and the ultimate in shock, scratch and corrosion resistance.

Pro-Lok: Torque Limited Leg Clamps

No more over tightening, no more adjusting. Pro-Lok is a single-turn torque limited leg clamp that is the fastest and safest means of clamping tripod legs into position. Selfadjusting Pro-Lok eliminates over tightening and keeps leg pressure constant under all extremes.

Tripod Bowl and Ball & Socket Hip Joint

Reinforced ball and socket hip joints and strengthened tripod Bowl combine in an axial design to produce tripods that boast the highest level of torsional rigidity – with no backlash – at all heights and across any terrain.

Positive Grip Rubber Feet

Positive grip rubber feet are designed for use on all Series II tripods with above ground Spreaders. The increased pad diameter, suction rubber molding and low center of gravity at the tripod attachment all ensure optimum stability on a wide range of surfaces. All

Series II ENG tripods are available with above-ground Spreaders, which provide maximum stability when mounting tripods on uneven surfaces.

Quality Construction

All Miller tripods are constructed using the most advanced alloys and polymers.

Specially milled, cold drawn alloy and crosslaminated carbon fiber tubing, thermoplastic moldings and stainless steel fixings combine to create lightweight, corrosion-resistant tripods which are highly stable under load.

Lightweight Series II Tripods

Weighing only 4.4 lbs. in carbon fiber (5.5

lbs. in alloy) and boasting a 30 lbs. payload,

Miller’s lightest ENG tripod is ideal for lightweight CCD cameras and camcorders.

Collapsing down to 32˝, they are extremely compact and operate with a ground spreader or above-ground spreader.

Singl e

-Stage Series II Tripods

With a dual lower leg system, the Miller

Single-Stage provides a rock solid camera base at all operating heights for cameras up to 50 lbs. A new, reinforced ball and socket hip joint and sturdy alloy or carbon fiber tubing eliminate play and backlash to allow for the smoothest shots possible.

2-Stage Series II Tripods

Miller's 2-Stage tripods offer the ultimate in torsional rigidity for all field operations.

Weighing only 5.3 lbs. in ultra-light CF, the

2-Stage axial design ensures equal stability to regular tripods. With a 15 to 62” operating range, any job can be tackled with a single tripod.

TYPE

CATALOG NUMBER:

BOWL:

WEIGHT:

PAYLOAD CAPACITY:

MAX. HEIGHT:

MIN. HEIGHT:

606

Lightweight Series II Tripods

CARBON FIBER ALLOY

616 601 611

75mm 100mm 75mm 100mm

3-3/4 lb 3-3/4 lb 4-1/2 lb 4-1/2 lb

30 lbs

57”

24”

30 lbs

57”

24”

30 lbs

57”

24”

30 lbs

57”

24”

Single-Stage

CARBON FIBER ALLOY

626 621

100mm 100mm

4-3/4 lb 6 lb

50 lbs

59”

26”

50 lbs

59”

26”

653

2-Stage Series II Tripods

CARBON FIBER ALLOY

645 649 641

75mm

5 lbs

50 lbs

62”

15”

100mm 75mm

5 lb

50 lbs

62”

15”

6-1/2 lb

50 lbs

62”

15”

100mm

6-1/2 lb

50 lbs

62”

15”

Overnight Shipping Available

M I L L E R

LIGHTWEIGHT PEDESTAL

Lightweight and economical, the Miller Pedestal features a geared spring counterbalanced column to provide nearly effortless lifting of camera systems up to 100 lbs.

Flat top plate for adapting to most Pan and Tilt heads

Individually locking wheels roll smoothly, lock securely

Weighs only 45 lbs. for complete portability

Ideal for corporate, industrial and educational studio installation

700 Pedestal with Flat Top Adapter Plate ..........................................................975.00

703 Pedestal with DS-25 Fluid Head and Dual Telescopic Pan Handles ..........3699.00

704 Pedestal with Arrow 50 Fluid Head and Dual Telescopic Pan Handles ....4379.00

PRO-JIB

The Miller Pro-Jib is a versatile camera mount, designed to add the dimension of tracking and elevation to the normal range of movements afforded by your fluid head. By adding elevation and tracking to the traditional Pan and Tilt movements of fluid heads, the Pro-Jib dramatically extends the creativity of film and professional video production. It is no doubt the most creative tool you can add to your arsenal.

The most versatile and cost-effective camera jib available, the Pro-Jib is lightweight, compact and portable. Weighing only 25 lbs. and folding into a soft reinforced shoulder bag (optional), the Pro-Jib is ideal for travelling to a location shoot or for use in the studio. It is precision engineered to deliver smooth action, while meeting the toughest physical demands of

ENG/EFP and studio production. Handling camera payloads up to 50 lbs., the Pro-Jib attaches quickly and easily to most conventional heads and tripods, giving it flexibility for use as a cost-effective studio crane where onshot elevation is required, or on location where setup speed, weight and size are critical.

The Pro-Jib is fitted with Pan and Tilt drag controls and a positive lock for the Jib arm vehicle movement. The tilt lock is easily distinguished from the tilt drag by the large cone shape thrust locker located under the tilt lock knob. Rotating the drag adjusters increases or reduces the amount of drag.

Extends your camera height range to 2 meters (6’), allowing a single operator to achieve impressive crane perspectives.

Uses standard barbell weights (not included), plus a unique sliding tailshaft for precise counterbalance.

Tracking and elevation has never been easier or smoother.

Combined with Miller’s Maxi tripod, Pro-Jib is the lightest, most versatile camera Jib arm available.

The Miller Undermount lets you track from ground level up to nearly six feet with absolute stability. Unlike other reverse mounts,

Undermount fits directly below the existing Bowl to ensure that the camera’s center of gravity remains at its most stable point.

Only 25 lbs., Pro-Jib is half the weight of comparable Jibs. It also folds down to an incredibly compact 48˝ for easy transportation.

711 Miller Pro-Jib ......................................................................................................................................................................2779.00

720 Miller Pro-Jib Field System with carry bag, Maxi Tripod, Spreader, Foot Pads and DS-25 Fluid Head ................................6279.00

722 Miller Pro-Jib Studio System with carry bag, Maxi Tripod, Spreader, Dolly and Arrow-50 Fluid Head ................................8275.00

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

M I L L E R

System w/On

Ground

Spreader

System w/Above

Ground

Spreader

System Name Tripod Type

System

Weight lbs.

Supplied

Soft

Case#

Price

O p t i o n a l

A c c e s s o r i e s

Price w/Highjack

Manual LIft

Column

Hard

Case#

Dolly or

Wheel Set#

840

848

852

861

864

890

894

N/A

N/A

830

826

828

832

Systems with DS-5 and DS-10* Fluid Head

DS-5 with Lightweight DS Aluminum Tripod 440

DS-10 with Lightweight DS Aluminum Tripod 440

DS-10 with 2-Stage DS Aluminum Tripod 420

10 1 ⁄

4 lbs.

10 1 ⁄

4 lbs.

12

3

4 lbs.

842

850

854

Systems with DS-20* Fluid Head

DS-20 with Lightweight DS Aluminum Tripod 440

DS-20 with 2-Stage DS Aluminum Tripod 420

DS-20 with 2-Stage DS ‘CF’ Tripod 422

862

866

892

896

Systems with DS-25 Fluid Head

DS-25 with Lightweight Aluminum Tripod 611

DS-25 with Lightweight ‘CF’ Tripod 616

DS-25 with 2-Stage Aluminum Tripod 641

DS-25 with 2-Stage ‘CF’ Tripod 645

10

12 3

11 1

⁄ 1

4 lbs.

4 lbs.

4 lbs.

13 lbs.

12 1 ⁄

4 lbs.

15 1 ⁄

2 lbs.

14 lbs.

902

906

910

914

812

816

801

806

904

908

912

916

Systems with DS-30 Fluid Head

DS-30 with Single-Stage Aluminum Tripod 621

DS-30 with single-Stage ‘CF’ Tripod 626

DS-30 with 2-Stage Aluminum Tripod 641

DS-30 with 2-Stage ‘CF’ Tripod 645

813

817

802

807

Systems with Miller Arrow 50** Fluid Head

Arrow 50 with Single-Stage Aluminum Tripod 621

Arrow 50 with Single-Stage ‘CF’ Tripod 626

Arrow 50 with 2-Stage Aluminum Tripod 641

Arrow 50 with 2-Stage ‘CF’ Tripod 645

15

14 1

16 lbs.

14

14

13

⁄ 1

1

2

4 lbs.

4 lbs.

lbs.

15 lbs.

13 1

1 ⁄

1

2

4 lbs.

lbs.

2 lbs.

874

874

876

876

874

874

876

876

874

874

876

874

874

876

870

870

872

872

1299.95

1399.95

1699.95

1699.95

1799.95

1749.95

2099.95

2499.95

2150.00

2974.95

3399.95

3299.95

3799.95

3375.00

3799.00

3499.00

3975.00

3699.00

4159.00

3899.00

4375.00

4599.00

4899.00

4599.00

5099.00

4995.00

5299.00

245

245

309

309

245

245

309

309

300 391 or 390

300 391 or 390

309 391 or 390

300 391 or 390

300 391 or 390

309 391 or 390

300 391 or 390

300 391 or 390

309 391 or 390

309 391 or 390

390

390

390

390

390

390

390

390

Please Note:

* Systems DS-10 and 20 are supplied with dual camera screw platform (1/4˝ and 3/8˝) for use with most camera manufacturers' tripod adapter plate. For Canon XL-1 type mounting (locating pin and 1/4˝ screw), add suffix "P" to order code at no additional cost.

** Systems with Arrow 50 are supplied with Miller camera platform. For "Euro" style mounting plate, add suffix "E" to order code at no additional cost.

We Ship Worldwide

Miller Highjack

The Miller Highjack is an accessory column lift for its ENG/EFP range of tripods and camera support systems. The column lift can be added to any existing Miller 75mm or

100mm ball-base tripod without modification and attaches by merely removing the existing threaded stud from the bottom of the head. Now getting shots over a crowd, over a shoulder or even on the tabletop becomes routine with this versatile tool.

M I L L E R

HIGHJACK

At normal operating heights, small height changes are made easily. It is also much simpler and faster to set up with a column, rather than to adjust three legs individually.

Adds approximately 13˝ of vertical travel while maintaining the ball level capacity of the system.

Practical and easy to shoot straight down when working close to tables and shooting documents. The legs can be set low, so that the leg joint goes under the top of the table, while the column gets the camera to operating height.

Remarkably stable, even at full extension.

664 Highjack for 75mm Ball Level Fluid Heads. ..............399.95

665 Highjack for 100mm Ball Level Fluid Heads. ............399.95

238 Millmount with 75mm Ball Capacity 30 lbs.. ........649.95

229 Millmount with 100mm Ball Capacity 30 lbs. ......649.95

Miller System Accessories

Tripod Dollies

391 Lightweight Dolly II for 601, 611, 621, 641,

649, and all CF tripods – supports up to 50 lbs. ........545.95

390 Medium Duty Dolly II for 601, 611, 621, 641,

649,all CF tripods – supports up to 100 lbs. ..............759.95

365 Medium Duty Dolly for Maxi tripods and

Pro Jib Applications – supports up to 100 lbs. ............759.95

Octagonal, High Density

Polyethylene Tripak Cases

300 7˝ dia. Tripak Case for Systems DS-5/10/20/25/30 ....293.50

309 9˝ dia. Tripak Case for all 2-Stage systems ..................293.50

245 9˝ dia. Tripak Case for all other systems ..............293.50

(Complete range of reinforced soft cases also available

Arrow 2-Stage soft case shown below)

#872 Case

Spreader

Millmount

Dolly

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S A C H T L E R

CAMERA SUPPORT SYSTEMS

Tripods and Fluid Heads

Sachtler, the leader in professional camera support equipment, is guided by a simple philosophy: The cameraman can only transform his ideas into fascinating footage when engineering supports him in the proper manner. To that end,

Sachtler support equipment is designed and manufactured to give the cameraman complete flexibility, allowing maximum creativity without any restrictions. When it comes to sure handling, ease of operation and durability, Sachtler sets the standard.

Frictionless Fluid Damping

A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler’s patented damping system takes everything in stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof. The damping action of our heads is identical across both horizontal and vertical planes. Sachtler’s patented damping system is not influenced by pressure or temperature, from - 40°F to + 140°F, and works without friction. This is because the damping modules perform no other tasks, such as counterbalancing the camera.

Touch and Go Automatic Locking System

With Sachtler’s supporting equipment, one does not need to spend a lot of time fiddling around. The Touch and Go system invented by Sachtler is the best proof of this. The camera is automatically locked after being placed onto the fluid head, and all settings stay unchanged. The safety lock protects against accidental release.

Dynamic Counterbalance System

The sliding camera mount and the balance plate respectively, in combination with the Sachtler Touch & Go automatic locking system, make a fast balancing system for the camera.

Most importantly, once adjusted, the settings cannot be lost.

The torque, while tilting the camera, is adjusted simply and quickly by dial in counterbalance. The Sachtler torsion spring elements form the most compact counterbalancing system.

They are adjusted individually for the different classes of cameras. Independent from the damping system, they work silently and without the need for maintenance.

Precision Manufacturing

Parts and structural components for all Sachtler’s fluid heads have to pass quality control before being used. That means passing fatigue tests simulating five years of continuous use.

DV Systems — Digital Support for Every Budget

Today’s compact digital cameras require light, fast and highly versatile camera support systems. Starting from the DV2, all the way up to the DV12, Sachtler has a solution tailored for just about every conceivable digital camera package available today. All feature

Sachtler’s patented Counterbalance system and Touch and Go wedge plates. And all, except the DV2, feature sliding camera platform to ease in the balancing of your camera.

24 Hour Fax: 800-947-9003

212-444-5001

FEATURES:

DV4 System

■ Sliding balance plate

■ Touch and Go quick-release with automatic camera lock and safety lever/drop protection

■ One-step of dynamic counterbalance

■ Frictionless leak proof fluid damping with one levels of drag

■ Vibrationless vertical /horizontal brakes

■ Built-in bubble for horizontal leveling

■ With a load capacity of 9.9 lbs. it is ideal for camcorders like the Sony DSR-200A

S A C H T L E R

DV FLUID HEADS

SPECIFICATIONS:

DV4 System (0410) consists of:

Fluid Head (DV-4), Long Tripod (DA 75),

Floor Spreader (SP 75)

Balance Plate: 60mm / 2.4˝ Sliding Range

Grades of Drag: Horizontally and Vertically 0 and 1

Tilt Angle: ±60°

Panning Range: 360°

Weight: 10.1 lbs. (Complete System)

Height Range: 30.7 to 60.2˝ (for System)

Temperature Range: -40°F to 140°F

Maximum Load: 9.9 lbs.

Camera Fitting: Touch and Go Camera Plate

Tripod Fitting: 75mm Ball

Pan Bars: One

DV4XD System

Same as the DV4, plus —

■ Five-step of dynamic counterbalance

■ Five-step of vertical and horizontal drag

DV8 System

Same as DV4XD, plus —

■ Greater load capacity (up to 22 lbs)

DV12

Same as DV8, plus —

■ Fits 100mm tripods

DV4XD System (0610) consists of:

Fluid Head (DV-4XD), Long Tripod (DA 75),

Floor Spreader (SP 75)

Same as DV-4, except:

Counterbalance: 3-8 Nm

Grades of Drag: Horizontally and Vertically

5 each and 0

Weight: 10.1 lbs. (Complete System)

Tilt Angle: +90/-75°

Max. Load: 15 lb.

DV8 System (0810) consists of:

Fluid Head (DV-8), Long Tripod (DA 75),

Floor Spreader (SP 75), Case (Cover 75)

Same as DV-4XD except:

Counterbalance: 5-10 Nm

Weight: 2.5kg/5.5 lbs. (Head only)

Max. Load: 22 lbs./10kg

Camera Fitting: Touch and Go Camera Plate DV-8 with 1/4˝ and 3/8˝ screws

DV12 (1200) Head Only:

Balance Plate: 70mm / 2

.

.8˝ sliding range

Weight: 6 lbs./2.8kg (Head only)

Max. Load: 22 lbs./10kg

Camera Fitting: Touch and Go Camera Plate 16 with 1/4˝ and 3/8˝ screws

Tripod Fitting: 100mm Ball

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S A C H T L E R

FLUID HEADS

FEATURES:

Video 18 Plus

■ Sachtler Touch and Go System

■ Integrated sliding balance plate

Frictionless leak-proof fluid damping with

7 levels of drag

Dial-in counterbalance system with 5-steps

Self-illuminating leveling bubble for horizontal leveling

Compatible with the wide range of

Series 100 tripods

Video 18 Sensor

Same as the Video 18 Plus, except –

■ Sensor uses an LED display for precise positioning and counterbalance for any camera system

Video 20 Plus

Sachtler Touch and Go System

■ Integrated sliding balance plate

■ Frictionless leak-proof fluid damping with

7 levels of drag

Dial in counterbalance system with 7 steps

■ Self-illuminating leveling bubble for horizontal leveling

Compatible with the wide range of

Series 100 tripods

SPECIFICATIONS:

Counterbalance: Approx. 6-30Nm

9 to 44 lbs./4 to 20kg

Balance Plate: 70mm / 22.8˝ Sliding Range

Grades of Drag: Horizontally and Vertically

Tilt Angle: ±90°

7 each (0 to 7)

Weight: 6.8 lbs./3.1kg

Temp. Range: - 40°C to 60°C/- 40°F to 140°F

Max. Load: 44lbs./20kg

Camera Tilting: Touch and Go Camera Plate 14 with 1/4˝ and 3/8˝ screws

Tripod Fitting: 100mm Ball

Pan Bars: One, length 13.8˝ to 20.5˝

Same as the Video 18 Plus, except –

Weight: 7 lbs./3.2kg

Counterbalance: approx. 12-48Nm

15 to 59 lbs./7 to 27kg

Balance Plate: 110mm / 4.4˝ Sliding Range

Grades of Drag: Horizontally and Vertically

7 each (0 to 7)

Tilt Angle: ±90° Weight: 7.7lbs. 3.5 kg

Max. Load: 59 lbs./27kg

Temp. Range: - 40°C to 60°C / - 40°F to 140°F

Camera Tilting: Touch and Go Camera Plate 14 with 1/4˝ and 3/8˝ screws

Tripod Fitting: 100mm Ball

Pan Bars: Two, length 13.8˝ to 20.5˝

Video 20 Sensor

Same as the Video 20 Plus, except –

■ Sensor uses a LED display for precise positioning and counterbalance for any camera system

Video 60 Plus

Sachtler Touch and Go System

First module head to go from 150mm Ball to

Mitchell to Flatbase

■ Frictionless leak proof fluid damping with

9 levels of drag-most in the industry

■ Dial in counterbalance system with 18-steps

■ Self-illuminating leveling bubble for horizontal leveling

■ Compatible with a wide range of 150mm tripods

We are on the web at: www.bhphotovideo.com

Same as the Video 20 Plus, except –

Weight: 7.9 lbs./3.6kg

Counterbalance: 18-Steps up to 137 Nm

Balance Plate: 115mm / 4.5˝ Sliding Range

Grades of Drag: Horizontally and Vertically

9 each (0 to 9)

Tilt Angle: ±60° Panning Range: 360°

Weight: 18.5 lbs./8.4kg

Max. Load: 132 lbs./60kg

Camera Tilting: Touch and Go Camera Plate 35 with (2) 3/8˝ screws

Tripod Fitting: 100mm Ball

Pan Bars: Two, length 13.8˝ to 20.5˝

S A C H T L E R

ENG (100

MM

BOWL) TRIPOD LEGS

DA Aluminum Tripds (Single Stage)

The DA Series, constructed of dural aluminum, are fitted with the Sachtler rotary clamping. The standard ENG aluminum tripod has a tube diameter of 16mm (0.63˝) and is available in three different sizes (Short, Medium, Long).

For extra stability, an HD (heavy-duty) version with a 22mm (0.87˝) tube diameter is offered as well.

Sachtler #

Weight

Capacity

Height Min/Max

Folded

Head Fitting

DA100K

5122

3.3 lbs.

88 lbs.

27.0˝ - 106˝

8.5˝

100mm

DA100M

5151

4.7 lbs.

77 lbs.

7.9˝ - 28.3˝

19.9˝

100mm

DA100L

5182

6.1 lbs.

77 lbs.

25.4˝ - 55.5˝

32.5˝

100mm

DA100HD

5480

9.1 lbs.

176 lbs.

25.2˝ - 53.2˝

32.5˝

100mm

Carbon Fiber Tripods (Single Stage)

The first manufacturer to use carbon fiber for tripod design, Sachtler’s carbon fiber is especially twist-safe since it is drawn out of one piece. Lighter and more stable than aluminum, carbon fiber does not bend or corrode and is less influenced by temperature. The standard ENG carbon fiber tripod has a tube diameter of 16mm and is available in

Medium or Long. A heavy-duty version is also available.

Sachtler #

Weight

Capacity

Height Min/Max

Folded

Head Fitting

CF100M

5351

4 lbs.

99 lbs.

7.9˝ - 28.3˝

19.9˝

100mm

CF100L

5382

5 lbs.

99 lbs.

25.4˝ - 55.5˝

32.5˝

100mm

CF100HD

5380

6.8 lbs.

200 lbs.

25.2˝ - 53.2˝

32.5˝

100mm

ENG Aluminum and Carbon Fiber Tripods (Two-Stage)

Sachtler two-stage tripods are available in both dural aluminum and carbon fiber. The two-stage tripods have an enlarged height range (lower bottom and higher top position), rendering them more universal. Locking of the legs is achieved in seconds by Sachtler’s quick clamping. Heavy-duty versions are available for extra stability. The heavy-duty aluminum tripod has a 20mm diameter tube vs. 16mm, and the heavy-duty carbon fiber model has a 24mm diameter tube vs. 22mm. All heavy-duty two-stage tripods have a folding tripod handle.

Sachtler #

Weight

Capacity

Height Min/Max

Folded

Head Fitting

ENG 2D

5186

6.4 lbs.

77

15.5˝- 59.0˝

27.2˝

100

ENG 2D HD

5490

10.8 lbs.

200

20.1˝ - 61.8˝

28.4˝

100

ENG 2 CF

5386

5.3 lbs.

88

15.5˝ - 59.0˝

27.2˝

100

ENG 2 CFHD

5390

9.5 lbs.

210

20.1˝ - 61.8˝

28.4˝

100

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S A C H T L E R

EFP (150

MM

BOWL) TRIPOD LEGS

Sachtler#

Weight

Max Support

Height Min/Max

Folded

Head Fitting

Sachtler #

Weight

Max Support

Height Min/Max

Folded

Head Fitting

DA150 Short

6132

6.6 lbs.

200 lbs.

7.1˝ - 12.6˝

12.6˝

150

DA 150 EFP

6186

10.9 lbs.

200 lbs.

20.9˝ - 62.2˝

29.1˝

150

DA 150 Medium

6157

8.0 lbs.

200 lbs.

8.3˝ - 31.5˝

22.4˝

150

CF 150 EFP

6386

9.6 lbs.

210 lbs.

20.9˝ - 62.2˝

29.1˝

150

DA 150 Medium Long

6181

10.0 lbs.

200 lbs.

15.2˝ - 52˝

32.5˝

150

CF 150 Medium Long

6381

7.5 lbs.

210 lbs.

25.2˝ - 52.0˝

32.5˝

150

Sachtler #

Weight

Max Support

Height Min/Max

Folded

Head Fitting

OB-2000

6481

21.3 lbs.

308 lbs.

26.1˝ - 49.5˝

33.3˝

Flatbase

OB-2000M

6482

21.3 lbs.

308v

26.1˝ - 49.5˝

33.3˝

Flatbase

CINE-2000

6281

18.5 lbs.

308 lbs.

26.6˝ - 52.4˝

33.3˝

150

Hot Pod 10/Hot Pod 14

100mm Quick Deployment Tripods

Especially developed for use in ENG, the Hot Pod tripod is the fastest in the world. There is no other tripod with which one can be ready to shoot so fast. The central locking system is activated on all three legs at the same time, while the pneumatic center column easily makes it possible to have the lens at a height of over seven feet. The elevation force of the center column is factory set and does not require any setup.

When moving to another location, it can be carried by its handle located at the center of gravity.

Hot Pod 10

Hot Pod 14

Sachtler Code No

5185/10

5185/14

Caddy

100mm Fluid Head

The Caddy rugged reliability for today’s

ENG needs. The Caddy offers the best fluid damping system in the world, with seven levels of drag, frictionless and leakproof by design. The Caddy can handle any weather, and has ideal ergonomics for the cameraman on the go.

Weight

10.8 lbs.

10.8 lbs.

Max Support

33 lbs.

44 lbs.

Height Min/Max

31˝ - 68˝

31˝ - 68˝

Folded

33.5˝

33.5˝

Head Fitting

100mm

100mm

Code #

Counterbalance

Specifications

CAD00

11 to 33 lbs

Grades of Drag

Pan and Tilt has 0 to 7 steps

Temperature Range

-40° F to +140*F

Head Weight

Tripod Mount

6.8 Lbs

100mm

DA 150 Long

5390

10.8 lbs.

200 lbs.

30.5˝ - 61˝

36.2˝

150

CF 150 Long

6392

7.7 lbs.

210 lbs.

30.5˝ - 61.00˝

36.2˝

150

CINE-2000 Medium

6257

15.4 lbs.

308 lbs.

13˝ - 36.2˝

23.6˝

150

We are on the web at: www.bhphotovideo.com

S A C H T L E R

1-90/2-75 Vario Pedestals • 1-90/2-75 Studio Pedestals

One and Two-Stage Steering Pedestals with

Vario Dolly or Studio Pedestal Dolly

■ The Vario and Studio series Pedestals are perfectly suited for all weights and sizes of modern broadcast cameras for OB and studio use.

■ The compact, modular construction of these pedestals achieves maximum stability at a relatively low weight. Precision engineering techniques are employed to guarantee the optimum setup for any studio or

OB work.

■ The modular design of the pedestals means that the steering wheel, column and dolly form three easily portable lightweight components which can be assembled in seconds without tools. Due to the increased weight, the Studio Pedestals provide just the right feel for maneuvering in the studio, while keeping all the advantages of an OB pedestal – narrow track ability, in particular.

■ The Pedestals are steered by a removable hand wheel on which holders are fitted for trim weights to compensate for temperature changes during a shooting session.

■ The Vario and Studio pedestals use a low pressure system with a safety pressure valve, preventing over pressure of air to the pedestals. A column lock and Sachtler Quickfix mount for fast changes of the fluid head are standard, as is the friction damping which prevents unwanted movement of the column during rapid tilting.

■ Whether on hard rubber wheels or optional pneumatic tires, the Vario Peds can shrink to

27˝ doorway clearance for narrow passages.

The Dolly base may be folded for easy transport. Crab and steer switching, individual wheel brakes and cable guards are standard on both pedestals.

■ The Vario 1-90 and Studio 1-90 are heavyduty with extra load capacity for heavy camera configurations up to 198 lbs. The Vario 2-75 and Studio 2-75 are "true" two-stage pedestals, offering an extended ‘on air’ stroke of 30˝, with a load capacity of 165 lbs. The height range of the Vario and Studio pedestals allows horizontal cameras to shoot persons who are sitting or standing.

Studio Pedestals Only

■ The Studio Pedestals have all the advantages of the Vario series and combine the feel of a traditional pedestals with a kick strip to maneuver the pedestal by foot.

■ The large, flat Dolly surface of the

Studio Pedestals eases camera setup by providing a platform for accessories and better visibility of the wheels and thus the steering direction.

CII Pedestal and Combi Pedestal

Portable Pedestals

■ The Sachtler C II and Combi Pedestals offer the performance of a studio pedestal with the portability to go on the road to outside events.

■ The compact modular construction of the C II and Combi pedestal allow set up without any tools and makes transporting them an easy one person task.

■ The column utilizes a low pressure pneumatic spring. To fill the column simply attach the manual compressor and fill with air --no pressure cylinder is needed.

■ The only difference between the C II and the Combi Pedestal is that the Combi is a steerable pedestal and the C II is a non-steering stand alone pedestal

Item

Vario Pedestal 1-90

Vario Pedestal 2-75

Studio Pedestal 1-90

Studio Pedestal 2-75

CII Pedestal

Combi Pedestal

Weight

118 Lbs

121 Lbs

176 Lbs

180 Lbs

32.2 Lbs

59 Lbs

Load Capacity

198 Lbs

165 Lbs

198 Lbs

165 Lbs

121 Lbs

121 Lbs

Height Range

26˝-56˝

26˝-56˝

26˝-56˝

26˝-56˝

27˝-60˝

34.3˝-68.1˝

On-Air Lift

16˝

30˝

16˝

30˝

16.5˝

16.5˝

Clearance

27˝-36˝

27˝-36˝

35˝

35˝

33˝

35.8˝

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S A C H T L E R

SYSTEMS

Part No.

0210

0200

4182

7001

Description

DV-2 Digital System

consists of:

DV-2 Head - 4.4 lb.capacity

DA 75L - Single Stage 75mm tripod

SP-75 - Lightweight Floor Spreader

0410

0400

4182

7001

0610

0600

4182

7001

DV-4 Digital System

consists of:

DV-4 Head -10 lb.capacity

DA 75L - Single Stage 75mm tripod

SP-75 - Lightweight Floor Spreader

DV-4XD Digital System

consists of:

DV-4XD Head - 15 lb.capacity

DA 75L - Single Stage 75mm tripod

SP-75 - Lightweight Floor Spreader

0810

0800

4182

7001

9212

0820

0800

4191

7051

DV-8 Digital System

consists of:

DV-8 Head - 22 lb.capacity

DA 75L - Single Stage 75mm tripod

SP-75 - Lightweight Floor Spreader

Cover 75 (Case)

DV-8 Pedestal System

consists of:

DV-8 Head - 22 lb. capacity

Pedestal C1

Dolly DV

1220

4191

7051

1210

5182

7002

9309

1212

5386

7002

9311

1213

5185/10

9309

1220G

5386

7007

7004

9104

DV-12 Systems

Includes DV-12 Head

DV-12 Pedestal System

consists of

Pedestal C I

Dolly DV

DV-12 Digital System

consists of:

DA 100L - Single Stage 100mm Tripod

SP-100 - Lightweight Floor Spreader

Cover 100 II

DV-12 ENG2CF Digital System

consists of:

ENG 2CF - Two-Stage CF 100mm Tripod

SP-100 - Lightweight Floor Spreader

Cover ENG II

DV-12 Hot Pod Digital System

consists of:

Hot Pod 10 - 100mm Tripod

Cover 100 II

DV-12 ENG2MCF Digital System

consists of:

ENG 2CF - Two stage CF 100mm Tripod

Off-Ground Spreader

Rubber Feet

Padded Bag ENG II

Part No.

Description

Caddy Systems

Includes Caddy Head

CAD 01 Caddy System

consists of:

5382

7002

9309

CF 100 L - Single Stage Carbon Fiber 100mm Tripod

SP-100 - Lightweight floor spreader

Cover 100 II

CAD 2A Caddy ENG 2 CF System

consists of:

5386

7002

9104

ENG 2CF - Two-Stage CF 100mm Tripod

SP-100 - Lightweight Floor Spreader

Padded Bag ENG II

CAD 03 Caddy Hot Pod System

consists of:

5185/14 Hot Pod 14 - 100 mm Tripod

CAD 04 Caddy ENG 2 MCF System

consists of:

5386 ENG 2CF - Two-Stage CF 100mm Tripod

7007

7004

9104

Off-Ground Spreader

Rubber Feet

Padded Bag ENG II

1840US Caddy Pedestal System

consists of:

CAD00

4191

7051

Caddy FB Head

Pedestal C I

Dolly DV

Video 18 Systems

Includes Video 18 Plus Head

1820US Video 18 Plus Hot Pod System

consists of:

5185/14 Hot Pod 14 - 100 mm Tripod

9309 Cover 100 II

1850

5186

7002

9311

1860

5386

7002

9104

Video 18 Plus ENG 2D System

consists of:

ENG DA 2 - Two Stage Aluminum100mm Tripod

SP-100 - Lightweight Floor Spreader

Cover ENG II

Video 18 Plus ENG 2CF System

consists of:

ENG 2CF - Two-Stage CF 100mm Tripod

SP-100 - Lightweight Floor Spreader

Padded Bag ENG II

1860PG Video 18 Plus ENG 2MCF System

consists of:

5386 ENG 2CF - Two-Stage CF 100mm Tripod

7007

7004

9104

Off-Ground Spreader

Rubber Feet

Padded Bag ENG II

1860S

1800S

5386

7007

7004

9104

Video 18 Sensor ENG 2MCF System

consists

Video 18 Sensor Head - 44 lb. capacity

ENG 2CF - Two-Stage CF 100mm Tripod

Off-Ground Spreader

Rubber Feet

Padded Bag ENG II

24 Hour Fax: 800-947-9003

212-444-5001

2032P

5386

7002

9104

Video 20 Systems

Includes Video 20 Plus Head

Video 20 Plus ENG 2 CF System

consists of:

ENG 2CF - Two-Stage CF 100mm Tripod

SP-100 - Lightweight Floor Spreader

Padded Bag ENG II

2032PG Video 20 Plus ENG2 MCF System

consists of:

5386

7007

7004

9104

ENG 2CF - Two-Stage CF 100mm Tripod

Off-Ground Spreader

Rubber Feet

Padded Bag ENG II

2033

5390

7003

Video 20 Plus ENG 2 CFHD System

consists

ENG CF 2HD - Two stage Carbon Fiber 100mm Tripod

SP-100/150 - Heavy duty floor spreader

2034PG Video 20 Plus ENG2 MCFHD System

consists

5390

7007

7004

9106

ENG CF 2HD - Two Stage Carbon Fiber 100mm Tripod

Off-Ground Spreader

Rubber Feet

Padded Bag EFP II

2032S

2000S

5386

7007

7004

9104

Video 20 Sensor ENG 2MCF System

consists

Video 20 Sensor Head - capacity 59 lbs

ENG 2CF - Two-Stage CF 100mm Tripod

Off-Ground Spreader

Rubber Feet

Padded Bag ENG II

S A C H T L E R

SYSTEMS/ACCESSORIES

Accessories

Camera Plates

1464

Camera Plate DV..........................................84.95

1064

Camera Plate 16 ...........................................93.50

1091

Sandwich Touch and Go.............................359.95

Spreaders and Dollies

7002K Mini Spreader .............................................409.95

7002

SP100 Spreader...........................................409.95

7003

SP100/150 Spreader ...................................496.95

7007

Off-Ground Spreader 100...........................547.95

7065

Dolly S .....................................................1219.95

7064

Dolly DV 12 Same as Dolly S, but without tracking locks and cable guards ..................749.95

7066

Hot Pod Dolly ..........................................1219.95

Cases

Part No.

6012

6000P

6386

7003

9315

Sachtler EFP/OB/Studio

Description

Video 60 Plus EFP 2 CF System

consists of:

Video 60 Plus Head - Capacity 132 Lbs

EFP -CF 2 Two Stage Carbon Fiber150 mm Tripod

SP-100/150 - Heavy Duty Floor Spreader

Cover EFP II

8095

8092

6481

7080

Video 90 OB System

consists

Video 90 Head - capacity 200 Lbs

OVB-2000 FB tripod

Dolly XL

9100

Padded Bag 75 ............................................264.95

9212

Cover 14 II/Pan ..........................................327.95

9309

Cover 100 II ...............................................399.95

9311

Cover ENG II.............................................399.00

9310

Cover 150 II ...............................................599.95

9312

Cover 150L.................................................413.95

9214

Cover 100M ...............................................269.95

9201

Cover Look 100K .......................................269.95

9308

Cover 150 M ..............................................344.95

9315

Cover EFP II ..............................................587.95

9316

Cover 150 SE .............................................389.95

9301

Cover 150 K ...............................................327.95

9105

Padded Bag 100 II ......................................489.95

9104

Padded Bag ENG II....................................452.95

9106

Padded Bag ENG/EFP................................526.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

V I N T E N

CAMERA SUPPORT SYSTEMS

Why Vinten?

The video picture is essentially dynamic, therefore camera movement needs to be perfectly smooth. The ability to start a Pan or Tilt and stop it without any camera shake is absolutely essential. To avoid backlash at the end of a camera move, a totally rigid platform for the head to sit on is critical. The ability to move from place to place, quickly and easily – absolutely vital.

All Vinten Pan and Tilt Heads feature a combination of a unique counterbalancing system which offers “perfect camera balance” and a fluid damping system which incorporates continuously variable adjustment for precise and stable camera movement. Vinten’s range of tripods, while robust enough to provide total stability, set up fast, and are lightweight for easy transport and quick action deployment.

As the world leader in the manufacture of studio, lightweight and OB camera support for over sixty years, Vinten allows cameramen to produce the most creative pictures possible. The winner of numerous awards for design and engineering, and the possessor of an unsurpassed reputation in the broadcast industry, is it any wonder that Vinten equipment can be seen in the studios of the world’s TV broadcast stations?

FEATURES

Pan and Tilt Head Balancing

If a camera is not counterbalanced, you need a considerable amount of physical effort to control the tilting action, and poor picture quality can result. The function of a Vision balance system is to provide an infinitely variable adjustment to compensate for the variety of portable camera and lens combinations available. Comprised of an innovative and patented spring mechanism, Vinten’s patented counterbalance system permits fast, simple camera balancing at any tilt angle within the head’s range and weight capacity.

Whichever Vision head you use, adjust it once to get perfect “hands off ” camera balance at any angle over the full 180° range of tilt. A ‘‘Perfect Balance System’’ for portable and studio cameras, it allows total control and provides precise camera movement.

Drag Systems

Without some form of drag control to provide the right amount of resistance or

"damping", it would be almost impossible to control any camera movement. It is a key feature of any Pan and Tilt head system. Vinten uses two types of drag systems:

TF (Thin Film): TF is an innovative 'non-contacting' new drag system which ensures consistent drag and constant performance over a temperature range of - 40º to + 60ºC. The drag characteristic has been developed to ensure the critical slow start-up of movements and to offer you total control with a seamless transition into

“Whip Pan” and instant recovery to the original drag setting at the finish of movement. The drag knobs are detented to give a dial-in "feel" and prevent any backdriving during operation.

LF (Lubricated Friction):

The LF is a progressive, striction free drag, where the torque is provided from a sliding contact between dissimilar surfaces. The variable drag is adjusted to provide a non-linear torque speed characteristic which allows "whip-pan" movements.

Torque Safe Clamps

The clamping efficiency of tripod legs is a key function to maintain reliability and safety. Utilizing torque-lock principles, Vinten engineers developed “Torque-safe” — a tripod clamping system which always maintains its factory set efficiency. Standard on all tripods, except the PRO-130, the clamp can never be stressed, as the torque limiter prevents over-tightening of the clamp. It is also self-adjusting with a detente system. When the knob is turned to its first detente, you are provided with a tactile feedback, confirming optimum clamping.

7-Day Customer Satisfaction Guarantee

V I N T E N

PRO-TOUCH

PRO-130 Tripod Systems

The Pro-130 tripod systems are perfect for today’s on the move ENG cameramen.

Lightweight, these systems have been specifically designed to provide a wider balance range to suit the latest DV, DVCPRO, DVCAM camcorder and camera/recorder combinations. All systems come complete with the PH-130 Pan and Tilt Head, choice of single or 2-Stage ENG Tripod, Floor Spreader and soft carrying case for easy transportation.

The PH-130 Pan and Tilt Head incorporates Vinten’s continuously variable LF drag system to provide smooth movement and easy transition into Whip Pan, together with a factory set-balancing mechanism.

Both the single-stage and 2-stage legs are toggle clamp tripods, made of strong, durable aluminum, and have excellent height range capabilities.

PH-130 Model

Recommended maximum payload capacities (approximate only)

130/1

2 lbs.

130/2

4 lbs.

130/5

11 lbs.

130/8

18 lbs.

130/9

20 lbs.

130/10

22 lbs.

PRO-130 HEAD NUMBER

5 8

CAMERA MODEL

CANON XL-1

HITACHI Z-ONE

IKEGAMI HC-390

JVC GY-X3/X2B, SONY UVW-100B

JVC KY-D29

PANASONIC AJ-D215/D400/700

PANASONIC EZ-1/SONY VX-1000

PANASONIC SUPERCAM

SONY DSR-200A

SONY DSR-300/DSR-500

1

2

9

10

PH-130 ALL MODELS

Weight:

5.06 lbs.

Tilt Range:

± 85°

Pan Range:

360°

Camera Fixing:

Sliding quick release plate with two 3/8˝ and one 1/4˝ screws

Leveling Bowl:

Pan Bar:

Pan and Tilt Head

75mm Bowl

One

ENG Aluminum Tripod

Load Capacity:

Weight:

Minimum Height w/Spreader:

Maximum Height w/Spreader:

Head Fixing:

1-Stage

44 lbs.

6.3 lbs.

23.5˝

57.5˝

75mm Bowl

2-Stage

44 lbs.

7 lbs.

12˝

62˝

75mm Bowl

PRO-TOUCH

LIGHTWEIGHT SYSTEMS

All systems come complete with Pro-130 Pan and Tilt Head with single pan bar, choice of single or 2-Stage ENG Tripod, Floor Spreader and Soft Case.

Single Stage....1569.95 — Two-Stage....1674.95

Pro 130/1

(Supports AG-EZ1, AG-EZ30, VX-1000)

Pro 130/2

(Supports Canon XL-1)

Pro 130/5

(Supports Sony DSR-200A)

Pro 130/8

(Supports JVC GY-X2B/GY-X3, Sony UVW-100B)

Pro 130/9

(Supports Panasonic AJ-D215/400, Sony DSR-300)

Pro 130/10

(Hitachi Z-2000, Panasonic Supercam DP-800H)

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

V I N T E N

VISION PAN AND TILT HEADS

Vision 5LF

The smallest and lightest Pan and Tilt head in the

Vision range, the 5LF still delivers outstanding performance with ample capacity for its size.

Designed for the latest camcorders with perfect balance and smooth lubricated fluid drag. Offers outstanding reliability and value as well.

• Simple external adjustment for perfect balance over the full 160° of tilt

• Infinitely variable drag with proven LF technology

• Flick-On/Flick-Off Pan and Tilt Brakes

• Standard 100mm Leveling Ball

• Weighs only 2.7kg

• Pad printed graphics

Vision 8

At just 5.9 lbs., the incredibly lightweight Vision 8 provides smooth shots, whip pan action and quick setup, while supporting up to 23 lbs. Add the single-stage Carbon Fiber tripod, and you have the lightest combination possible for that all important event — without sacrificing the reliability and robustness that you require.

Simple external adjustment for perfect balance over the full 180° of tilt

• Infinitely variable drag with proven LF technology

• Calibrated drag knobs

• Flick-On/Flick-Off Pan and Tilt Brakes

• Single rotation counterbalance

• Standard 100mm Leveling Ball

• Leveling Bubble • Weighs only 5.9 lbs.

Vision 11

Slightly heavier at 6.2 lbs., the Vision 11 offers additional capacity (up to 29 lbs.), plus it has illuminated controls to allow fast camera balancing and leveling, even in poor lighting. Combine with a 2-Stage

Carbon Fiber or Aluminum tripod, and you have a package with the biggest height adjustment, yet the smallest to carry. Ideal for all ENG assignments.

Simple external adjustment for perfect balance over the full 180° of tilt

• Infinitely variable drag with proven LF technology

• Back-Lit and calibrated drag knobs

• Flick-On/Flick-Off Pan and Tilt Brakes

• Digital counterbalance readout

• Illuminated Leveling Bubble

• Standard 100mm Leveling Ball

• Weighs only 6.2 lbs.

Vision 8 and 11 — Lightweight Heads for the Future

Superbly engineered and designed for use in professional broadcast, educational and corporate poductions, the Vision 8 and Vision 11 simultaneously provide the ultimate in lightweight support with exceptional robustness — even in the toughest shooting conditions.

Field proven LF Fluid Drag system ensures that the smoothest movement is always achieved, with built-in ‘on demand’ Whip

Pan capability. Drag is activated by the new style controls which are ergonomically positioned to provide the simplest operation and strongest protection, even in tough handling situations.

■ Continuously variable fluid damping enables the “feel” of a camera to be perfectly adjusted to any shooting situation. Pan drag and tilt drag work beautifully, and since the camera is perfectly balanced, it can be left at any angle - totally hands free

- without having to lock off the tilt brake.

■ Adjustable camera mounting plate with unique rubber grip strips hold the camera rock steady.

Interlock device prevents the camera mounting plate from sliding off the head when the plate lock is released.

Unique design features allow fast setup – a must if you are continuously on the move.

The leveling bowl has a double threaded screw shank which allows the bowl lock to be tightened and released quickly. Very handy when you are constantly adjusting the bowl to level the camera (especially on uneven terrain).

■ A single rotary knob on the back of the heads ensure variable adjustment for perfect camera balancing. Vinten's patented spring-assisted, counterbalance system allows perfect “hands-off ” continuously variable camera balance at any tilt angle from - 90° to + 90°. Any camera combination can be quickly and easily balanced.

Ideal for the latest portable digital camcorders and camera combinations.

Tough die-cast body ensures robustness, while quality design and construction provide a lifetime of precision.

To assist in dim lighting, the drag knob of both heads are backlit with amber illumination. The illumination level is adjusted accordingly (depending on the lighting conditions) by a light sensor built into the digital readout. For further convenience, the leveling bubble of the Vision 11 is also illuminated.

■ The Vision 11 has the advantage of a digital counterbalance readout, with repeatable balance setting for even faster setup. The display is activated by a simple press of a button and remains visible for 15 seconds.

®

®

V I N T E N

Vision 100

The ideal head for the latest digital cameras and camcorders, the Vision 100 uses Thin Film (TF) drag to provide the smoothest movement and total control. Drag knobs are backlit for easy viewing and detented to give a

‘dial-in-feel’. A digital readout of your balance level provides repeatable balance settings for easy and quick setup.

VISION PAN AND TILT HEADS

• Perfect balance over 180° of tilt

• Backlit drag knobs

• Digital balance readout

• TF Drag Mechanism

• Wide working Conditions —

- 40°C to + 60°C

• Illuminated Leveling Ball

Vision 250

The Vision 250 is designed to support the latest portable digital camera combinations used in studio and OB (outside broadcast) production. With its unique “twin spring” balancing mechanism, the Vision 250 can be fully adjusted to perfectly balance any camera or lens combination up to 73 lbs., quickly and easily.

• Consistently ‘High’ drag output

• Digital balance readout display

• Backlit Pan & Tilt drag knobs

• Perfect balance over 180° of tilt

• Illuminated Leveling Bubble

TF (Thin Film Drag)

Taking design and engineering to new levels, the Vision 100 and 250 incorporate TF (Thin Film) drag system for consistent drag and constant performance from - 40°C to + 60°C. The TF system gives you precise movement and excellent camera control during the critical slow start-up of your shot — providing seamless transition into Whip Pan and instant recovery to the original drag setting at the finish of the movement.

Calibrated with variable adjustment and a single turn rotation from fully

On to Off, the drag knobs are backlit for easy viewing and detented to give a ‘dial-in feel’, ensuring that settings are always maintained.

Perfect Balance

They incorporate Vinten’s patented ‘‘Perfect Balance

System’’, which is linked to a micro-controller providing a digital readout for camera center of gravity positions.

Camera balance positions can be easily set up with repeatable precision, and a simple e-Prom provides a memory which stores balance positions even when the battery is removed or replaced. The micro-controller has a built-in light sensor that responds to bright and low conditions, varying the lumination intensity on the digits.

Vision 5LF

Height:

Length:

Width:

Weight:

Load Capacity:

6 lbs.

15.4 lbs.

Pan Bar:

Drag Knobs:

Tilt Range:

85° to - 75°

Camera Fixing:

Removable Sliding Plate with 2 x 3/8˝ screws

Ball Base:

Counterbalance

100mm

Vision 8

5.9˝

5.5˝

4.9˝

5.9 lbs.

23 lbs.

Single Fixed Length

Calibrated

± 90°

100mm

Vision 11

5.9˝

Vision 100

7.05˝

Vision 250

7.24˝

5.5˝

4.9˝

6.2 lbs.

29 lbs.

5.84˝

6.78˝

7.04 lbs.

26.5 lbs. ±90° 33 lbs. ±60°

6.25˝

9.6˝

13.3 lbs.

73 lbs.

Single Telescopic Single Telescopic Single Telescopic

Backlit and Calibrated Backlit and Calibrated Backlit and Calibrated

± 90° ± 90°

2-Way Sliding with two 3⁄8˝ screws

± 90° from Horizontal

Removable Sliding Plate with two 3⁄8˝ screws

100mm

Digital Readout

100mm

Digital Readout

100mm/150mm

Digital Readout

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

V I N T E N

VISION TRIPODS

DESCRIPTION FEATURES

Vision Single and Two-Stage Aluminum ENG Tripods

Vision ENG tripods are precision-engineered with single or two-stage legs made of aluminum alloy. The 1-stage has an overall height range of 24.8˝ to 56.5˝, the 2-stage, a range of 15.5˝ to 62˝. 100mm bowl fixing is attached to an innovative hip joint that eliminates play and gives more rigidity to provide an exceptionally stable camera platform. Even more rigidity is attained on rough and smooth ground by using the lightweight floor-spreader or above-ground mid-level spreader (2-stage only).

3518-3 Single-Stage with Torque-Safe Leg Locks..........................899.95

3513-3 Two-Stage with Torque-Safe Leg Locks...........................1159.95

3393-3 Single-Stage with Toggle-Clamp Leg Locks ......................449.95

3392-3 Two-Stage with Toggle-Clamp Leg Locks .........................569.95

• New hip joints eliminate play and add rigidity

• Ultra fast height adjustment using fast one-turn knobs

• Strong anodized tubular alloy, thermoplastic moldings and die-cast construction

• Torque-safe or toggle-clamp leg locks

• Capacity up to 45 lbs

Vision Single and Two-Stage LT Carbon Fiber ENG Tripods

The ultimate in lightweight tripods, these innovative ENG tripods are manufactured in an axially and spirally wound construction which adds more strength and rigidity to the tripod. The single-stage has an overall height range of 24.8˝ to 56.5˝, the two-stage, a range of 15.5˝ to 62˝ and folds down to a really compact 28˝ for carrying.

3523-3 Two-Stage with Torque-Safe Leg Locks...........................1529.95

3439-3 Single-Stage with Toggle-Clamp Leg Locks.......................739.95

3360-3 Two-Stage with Toggle-Clamp Leg Locks .........................939.95

• Strong carbon fiber construction

• Ultra-fast height adjustment using fast one-turn knobs

• New hip joint eliminate play and add rigidity

• Accepts lightweight or aboveground mid-level Spreader

• Capacity up to 45 lbs

Vision Two-Stage Aluminum EFP Tripod

The Vision Two-Stage Aluminum EFP Tripod is designed to be used with 150mm bowl heads for demanding ENG and EFP work where long lens shots require exceptional rigidity. It weighs only 12.5 lbs. and has a load capacity of 100 lbs.

3516-3 Two-Stage with Torque-Safe Leg Locks.............................1449.95

• Torque-safe leg clamps provide fast and secure setups

• New hip joint eliminates play and adds rigidity

• Height range is 19.7˝ to 63˝

Vision 2-Stage LT Carbon Fiber EFP Tripods

These innovative EFP tripods are both two-stage designs which can be used with 100mm or 150mm bowl heads. The sturdy construction provides an excellent platform when camera movement is critical. They are ideal for sport and location productions. The carbon fiber construction provides the ultimate in tripod rigidity, offering a 20% increase in torsional strength over the aluminum tripod. Load capacity up to 45 lbs.

3380-3 Two-Stage LT Carbon Fiber EFP w/100mm Bowl..........2119.95

3383-3 Two-Stage LT Carbon Fiber EFP w/100mm Bowl..........2229.95

• Ultra fast and secure height adjustment with torque-safe clamps

• Strong carbon fiber construction

• New hip joint eliminates play and adds rigidity

• Two-stage compactness and extended height range

Corporate Accounts Are Welcome

Vision Pedestal #3320-3C (Studio Version)

Designed for lightweight cameras in studio or location use (up to 44 lbs., including Pan and

Tilt head) where fast height and positioning are required.

To counterbalance the camera load for easy height adjustment, the pedestal has a self-pumping system.

Column design offers a 2-stage extended height range with a 16˝

“On-Shot” movement.

Column and Dolly fold easily into two units for transportation.

The studio Dolly has 4˝ wheels with cable guards to enable tricycle steering.

■ Standard 100mm Leveling Bowl

V I N T E N

STUDIO/OB PEDESTALS

#3323-3C (

1-Stage

)

Osprey Plus

#3328-3C (

2-Stage

)

The single-stage Osprey offers a flexible pedestal for both studio and OB productions. With a total load capacity of 198 lbs., it is easily capable of supporting camera, large lens and teleprompter. “On-shot” height range is an extended

20˝ with full crab and steer movement controlled from a central steering ring.

■ With a capacity of 165 lbs., the Two-Stage Osprey is primarily designed for portable camera and lens combinations, as well as for today’s digital cameras. The 2-Stage design gives a combined height range from a minimum of 26˝ to a maximum of 58˝. The lower column is

“balance assisted” for simple elevation, while the upper one offers perfect “on shot” movement over a 16.5˝ height range.

Both feature crab/steer facility, low pressure counterbalance system and narrow doorway operation.

Pro-Ped Pedestal

#3381-3C (Studio Version)

#3381-3B (OB Version)

Lightweight at 60 lbs offers a capacity of 120 lbs.

Economical and lightweight versions for studio or location work.

Both offer a 2-stage column with an extended height range of 59˝.

The lower stage column is balance assisted to give simple elevation, while the upper stage offers perfect balance and on-shot movement.

Pneumatic counterbalance employs a self-pumping system, making it easy to use on location.

Column and Dolly fold easily into two units for transportation.

■ Dolly base is supplied with 5˝ wheels with track locks and cable guards (studio), or 6˝ wheels and track locks (OB).

Osprey Elite

#3374-3C (Studio Version)

#3374-3B (OB Version)

The most versatile of the

Osprey range, the Elite series is designed to support the latest range of digital, portable and full facility cameras (up to 165 lbs.) for studio or OB production.

■ 2-stage column offers a minimum 26˝ to a high of 56˝, with an “on-shot” stroke of 30˝. Full crab and steer facilities are controlled from a central steering ring.

The Elite offers an exceptional combination of light weight (101 lbs.) and structural integrity, providing maximum stability, yet allowing the column and dolly base to fold for easy transportation.

Optional accessories include a portable pump and a tracking skid for Osprey columns.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

V I N T E N

VISION SYSTEMS

Part No.

3395-3

3393-3

3313-3

3334-3

VISION 5 SYSTEMS

Description Price

2459.50

Vision 5LF Head

Single Stage ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

3395-3

3392-3

3313-3

3358-3

3395-3

3439-3

3363-3

3334-3

3395-3

3360-3

3363-3

3358-3

Vision 5LF Head

2-Stage ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

2599.95

2719.95

Vision 5LF Head

Single Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

2999.95

Vision 5LF Head

2-Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

Part No.

3441-3

3393-3

3313-3

3334-3

3441-3

3392-3

3313-3

3358-3

3441-3

3439-3

3363-3

3334-3

VISION 8 SYSTEMS

Description Price

3499.95

Vision 8LF Head

1-Stage ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

Vision 8LF Head

2-Stage ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

3555.95

3689.95

Vision 8LF Head

Single Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

3929.95

3441-3

3360-3

3363-3

3358-3

Vision 8LF Head

2-Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

Part No.

3442-3

3392-3

3313-3

3358-3

3442-3

3439-3

3363-3

3334-3

3442-3

3360-3

3363-3

3358-3

Description

Vision 11LF Head

2-Stage ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

Vision 11LF Head

1-Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

Vision 11LF Head

2-Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

Soft Case

VISION 11 SYSTEMS

Price Part No.

4138.95

3442-3

3513-3

3363-3

4359.95

4599.95

Description Price

Vision 11LF Head

2-Stage ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

4349.95

3442-3

3513-3

Vision 11LF Head

2-Stage ENG Tripod with 100mm Bowl

3378-900SP ENG Mid-Level Spreader

4592.95

4699.95

3442-3

3523-3

3363-3

Vision 11LF Head

2-Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

4938.95

3442-3

3523-3

Vision 11LF Head

2-Stage Carbon Fiber ENG Tripod with 100mm Bowl

3378-900SP ENG Mid-Level Spreader

Most Orders Shipped Within 24 Hours

Part No.

3431-3

3513-3

3363-3

VISION 100 SYSTEMS

Description Price

Vision 100 Head

2-Stage ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

5224.95

3431-3

3513-3

Vision 100 Head

2-Stage ENG Tripod with 100mm Bowl

3378-900SP ENG Mid-Level Spreader

5497.95

5605.95

3431-3

3523-3

3363-3

Vision 100 Head

2-Stage Carbon Fiber ENG Tripod with 100mm Bowl

Lightweight Floor Spreader

5818.95

VIN-100LTM ENG System

consists of:

3431-3

3523-3

Vision 100 Head

2-Stage Carbon Fiber ENG Tripod with 100mm Bowl

3378-900SP ENG Mid-Level Spreader

VIN-100XLT ENG System

consists of:

3431-3

3380-3

3363-3

Vision 100 Head

2-Stage Carbon Fiber EFP Tripod with 100mm Bowl

Lightweight Floor Spreader

6126.95

Part No.

VISION 250 SYSTEMS

Description Price

VIN-250E ENG System

consists of:

3525-3S

3516-3

3367-3

Vision 250 Head

2-Stage EFP Tripod with 150mm Bowl

Heavy Duty Floor Spreader

7149.95

VIN-250M ENG System

consists of:

3525-3S Vision 250 Head

3516-3 2-Stage EFP Tripod with 150mm Bowl

3378-901SP EFP Mid-Level Spreader

7452.95

VIN-250S ENG System

consists of:

3525-3S

3516-3

3319-3C

Vision 250 Head

2-Stage EFP Tripod with 150mm Bowl

Vision Dolly

7744.95

VIN-250ELT ENG System

consists of:

3525-3S

3383-3

3367-3

Vision 250 Head

2-Stage EFP Carbon Fiber Tripod with 150mm Bowl

Heavy Duty Floor Spreader

7929.95

V I N T E N

VISION SYSTEMS

Vision Accessories

Vision Spreaders

3313-3

3363-3

3367-3

Lightweight Calibrated Floor Spreader (Gray) ...368.95

Lightweight Calibrated Floor Spreader (Black) ..368.95

Heavy-Duty Flexible Calibrated Floor Spreader.427.95

3378-900SP ENG Mid-Level Spreader

(with 3 Anti-Skid Feet)......................................652.95

3378-901SP EFP Mid-Level Spreader

(with 3 Anti-Skid Feet)......................................719.95

Vision Carrying Straps

3425-3A

ENG Tripod Carrying Strap ..............................166.95

3425-3C

EFP Tripod Carrying Strap................................197.95

Vision Dollies

3319-3B

Folding/Castoring Dolly with 5˝ Wheels...........196.50

3319-3C

Folding/Castoring Dolly 4˝ Wheels and Cable Guards..............................................899.95

3219-26

3219-39

3219-71

3219-69

Vision Pan/Clamp Accessories

Pan Bar and Clamp for Vision 5LF ...................139.95

Telescoping Pan Bar and Clamp for Vision 5LF ...................................................251.50

Pan Bar and Clamp for Vision 8LF ...................147.50

Telescoping Pan Bar for Vision 11, 100, 250.....269.50

3334-3

3358-3

3339-3

3340-3

3341-3

Vision Transit Cases

Budget Softcase for 1-Stage

ENG Tripod Systems ......................................139.95

Budget Softcase for 2-Stage

ENG Tripod Systems ......................................229.95

Multi Pocket Padded Softcase for

1-Stage ENG Tripod Systems ..........................427.50

Multi Pocket Padded Softcase for

2-Stage ENG Tripod Systems ..........................399.95

Multi Pocket Padded Softcase for

2-Stage EFP Tripod Systems............................472.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

C A R T O N I

ACTION PRO SYSTEM

Featuring the lightweight ActionPro head with true fluid drag, the

ActionPro system offers professional features for digital cameras weighing up to 12 lbs. Positive-locking Pan and Tilt, orientable pan bar, spirit level and shoulder strap is supported by an aluminum standard tripod with 75mm base and rubber feet. The system comes complete with fluid head, quick-release sliding camera plate with both 3/8˝ and 1/4˝ camera screw and integrated mid-level spreader.

Employs patented, award winning fluid modules for both Pan and Tilt modes.

Counterbalance is achieved by the fluid module alone for cameras weighing from

3 lbs up to 12 lbs. A double spring module can be engaged and set to any of three tilt angle positions to compensate for offset payload.

With the optional DigiDutch you can add a third axis to the ActionPro Fluid head and create fantastic Dutch angles .

The DigiDutch interfaces with ActionPro camera plate (or any 3/8˝ screw plate on any other head) and features a side to side camera slide for perfect balance.

Other optional accessories include: second pan bar, padded tripod bag, lightweight Dolly and flat orientable tripod feet.

One year warranty on parts and labor and a lifetime warranty on fluid modules.

ActionPro System Includes: ActionPro Head, Extendible Pan Bar, 1-Stage Aluminum Tripod, Mid-Level Spreader ..................................674.95

DigiDutch Head AP10

............................................................................................................................................................................359.95

Six decades of engineering, combined with today’s state-of-the-art technology, has resulted in a family of fluid heads so technically advanced that they seem virtually attuned to the operator.

Operation is exquisitely smooth, counterbalance is a breeze in any configuration, controls are easy to access and easy to operate.

Handcrafted from the finest high tech metal alloys and composites, they also offer a host of smart features. Patented drag controls allow various progressive and repeatable intensity levels in both Pan and Tilt modes. Versatile graduated dial-in counterbalance provides quick, precise and repeatable setups. Fluid modules are hermetically sealed for long life, and the heads themselves are finished in rugged black scratch-proof exteriors.

ALFA I AND ALFA II

Designed for today’s generation of lightweight ENG Video cameras, they provide fast and easy dynamic counterbalancing of cameras up to 16 lbs. (Alfa I) and 22 lbs. (Alfa II).

Weight is counterbalanced with a double spring module. When using with ultralight digital cameras, the spring module can be disengaged with the flip of a lever.

Alfa Dual Drag (DD) combines patented

"labyrinth" module with an advanced lubricated friction drag mechanism for infinitely variable precise settings.

Quick-release sliding plate combines with three presettable counterbalance tilt angles, allowing the camera to be perfectly balanced and easily mounted.

In Tilt mode, the "labyrinth" module and the lubricated friction are constantly coupled to ensure various drag levels. Simply adjust the ergonomic tilt knob.

In Pan mode, the damping system can be activated separately or simultaneously.

OFF, the lubricated friction mechanism works separately for Whip Pans, providing excellent smoothness and linear movement. ON, the lubricated friction and fluid module work simultaneously for super professional drag.

A continuously variable control knob provides consistent drag levels with the

DD system, activated either separately or simultaneously.

Comes equipped with a 95 mm Bowltype base and a telescopic handle.

Alfa I System (A395):

Alfa II System (A401):

Alfa I Head, Extendible Pan Bar, .A/B Ultra-Light Tripod, Mid-Level Spreader. .............................1,429.95

Alfa II Head, Extendible Pan Bar, A/B Ultra-Light Tripod, Mid-Level Spreader..............................1,429.95

Alfa II AL2/ML System (A405):

Alfa II Head, Extendible Pan Bar, 2-Stage Aluminum Tripod, Mid-Level Spreader. ........................2,889.95

Equipment Leasing Available

C A R T O N I

BETA

Ideal for today's on-the-move compact ENG camcorders. The lightest weight head in its class, the BETA offers outstanding Pan and Tilt features.

Weight is counterbalanced by two groups of helicoidal springs operated by two action levers, allowing 3-stepped balance weight plus "free" position. Cameras of 11 lbs. are counterbalanced with the first group of springs, and are up to 18 lbs. with the second group. Counterbalance up to 26 lbs. by engaging both groups.

40mm sliding plate combines with the five presettable tilt angles for perfect balance and easy mounting.

Fluid damping is activated vertically and horizontally by two “labyrinth” modules providing 3 levels of progressive intensity, as well as "0" for freewheeling.

Beta features a 95mm Bowl-type base, a telescopic handle and a quick-release camera plate.

Beta Systems include Beta Head (payload up to 33 lbs.) and an extendible pan arm

Beta (B471):

Single-Stage A/B Ultra-Light Tripod with Non-Slip Locks, Softcase ..................................................................2549.95

Beta AL/ML (B472):

Single-Stage Aluminum Tripod with Mid-Level Spreader....................................................................................2999.95

Beta AL 1 (B474):

Beta AL 2 (B501):

Single-Stage Aluminum Tripod with Ground Spreader ......................................................................................3189.95

2-Stage Aluminum Tripod with Ground Spreader ..............................................................................................3479.95

Beta AL 2/ML (B508): 2-Stage Aluminum Tripod with Mid-Level Spreader, Softcase ............................................................................3189.95

Beta CF/ML (B505):

Single-Stage Carbon Fiber Tripod with Mid-Level Spreader................................................................................3549.95

Beta CF 1 (B502):

Beta CF 2 (B506):

Single-Stage Carbon Fiber Tripod with Ground Spreader ..................................................................................3735.95

2-Stage Carbon Fiber Tripod with Ground Spreader ..........................................................................................4149.95

Beta CF 2/ML (B507): 2-Stage Carbon Fiber Tripod with Mid-Level Spreader, Softcase ........................................................................3949.95

GAMMA

Employing the latest design technology and state-of-the art materials, the extremely rugged, lightweight and cost-effective Gamma head is specifically designed for ENG digital camcorders weighing from 11 to 35 pounds. Advanced features include infinitely adjustable tension settings, camera quick-release system and illuminated bubble level.

■ Patented fluid dampening system ensures consistent drag levels and smooth camera movements throughout the range, allowing perfect reproduction of 10 basic tension settings, plus

30 intermediate positions in both Pan and Tilt modes.

■ Infinitely variable counterbalance with easilyread numeric reference provides excellent performance at any tilt angle from + 90° to - 70°.

Comes with 100mm sliding platform with quick-release, or an integrated sliding camera base plate with safety lock for additional tilt performance at ± 90°.

Gamma Systems incl. Gamma Head (payload up to 35 lbs.) and an extendible pan arm

AL/ML (G101):

Single-Stage Aluminum Tripod with Mid-Level Spreader, Softcase ....................3399.95

AL 1 (G102):

Single-Stage Aluminum Tripod with Rubber Ground Spreader..........................3729.95

AL 2/ML (G103): 2-Stage Aluminum Tripod with Mid-Level Spreader, Softcase ............................3899.95

AL 2/ML (G104): 2-Stage Aluminum Tripod with Rubber Ground Spreader. ................................3949.95

CF/ML (G105):

Single-Stage Carbon Fiber Tripod with Mid-Level Spreader, Softcase ................4159.95

CF 1 (G106):

Single-Stage Carbon Fiber Tripod with Rubber Ground Spreader......................4199.95

CF 2/ML (G107): 2-Stage Carbon Fiber Tripod with Mid-Level Spreader, Softcase.........................4549.95

CF 2 (G108):

2-Stage Carbon Fiber Tripod with Rubber Ground Spreader ............................4599.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

C A R T O N I

DELTA

Ideal for supporting ENG dockable camcorders equipped with large battery packs, the DELTA can also be employed with cameras using EFP accessories. Manufactured with an extensive use of ultra-light magnesium alloy,

Delta combines excellent reliability with unbeatable cost efficiency and flexibility.

FEATURES

Fully variable counterbalancing system is designed to accommodate offset payload such as long lenses, small prompters and topmounted viewfinders, while a frictionless Fluid Drag mechanism allows perfect reproduction of 10 basic tension settings, plus 30 intermediate positions for both Pan and Tilt functions.

Cameras ranging in weight from 18 to 37 pounds are perfectly balanced by a patented system which assures excellent performance at any tilt position. Tilt angle can be increased up to ±90º by using the lightweight sliding base plate.

The system features an extremely compact mechanism, working through the compression of four elastic elements, activated by an ergonomic knob and connected to an eccentric aluminum shaft.

■ Taking Cartoni’s “labyrinth" system a step further, Delta’s fluid damping system incorporates, horizontally and vertically, a large size single-action module which assures consistent drag levels, combined with extremely smooth and precise camera movements.

Powered by a standard 9v battery, two digital displays indicate respectively the counterbalancing and tilt drag values,while an illuminated spirit level allows easy setup, even in low light conditions.

Comes with a 50mm range sliding plate, camera quick-release system and safety lock mechanism.

AL/ML (D601):

AL 1 (D602):

AL 2 (D603):

AL 2/ML (D612):

CF/ML (D604):

CF 1 (D605):

CF 2 (D606):

CF 2/ML (D611):

Delta Systems including Delta Head (payload up to 38 lbs.) and an extendible pan arm

Single-Stage Aluminum Tripod with Mid-Level Spreader, Softcase ....................................................................4249.95

Single-Stage Aluminum Tripod with Ground Spreader......................................................................................4599.95

2-Stage Aluminum Tripod with Ground Spreader. ............................................................................................4749.95

2-Stage Aluminum Tripod with Mid-Level Spreader, Softcase ..........................................................................4579.95

Single-Stage Carbon Fiber Tripod with Mid-Level Spreader...............................................................................4899.95

Single-Stage Carbon Fiber Tripod with Ground Spreader ..................................................................................5099.95

2-Stage Carbon Fiber Tripod with Ground Spreader..........................................................................................5449.95

2-Stage Carbon Fiber Tripod with Mid-Level Spreader, Softcase........................................................................5099.95

Load Capacity:

Head Weight:

ALFA

8kg

2kg

BETA

10kg

2.6kg

GAMMA

13kg

DELTA

17kg

3.3kg with 3.5kg with

Sliding Platform Sliding Platform

360° 360°

C20S

25kg

6.2kg

Pan Range:

Tilt Range:

Counterbalance:

360° 360°

±60° -50° / +60° -70° / +90° w/-60° +70° with

Sliding Platform Sliding Platform

1 Setting +0 3 Settings +0 Continuously

Adjustable

Continuously

Adjustable

±65°

7 Settings +0

Fluid Drags:

Continuously 3 Tilt / 3 Pan Continuously

Adjustable Adjustable

Temperature Range: -30°C +60°C

-30°C +60°C -30°C +60°C

Ball Base Diameter:

100mm 100mm 100mm

Continuously

Adjustable

-30°C +60°C

100mm

360°

7 Tilt + 7 Pan

-30°C +60°C

100mm or 150mm

C20S Dutch

25kg

5kg

±65°

7 Settings +0

7 Settings +0

C40S

45kg

10kg

360°

±65°

7 Settings +0

7 Tilt + 7 Pan

-30°C +60°C

120 x 80 x 7mm

Plate. Three

3/8˝ Taped Holes

-30°C +60°C

150mm and Flat

C40S Dutch

45kg

8kg

±65°

7 Settings +0

7 Settings +0

-30°C +60°C

120 x 80 x 7mm

Plate. Three

3/8˝ Taped Holes

We Exhibit At NAB, Infocomm, and Siggraph

C A R T O N I

C20S/C40S

The C20 S provides extremely stable support for standard EFP configurations and

16mm film cameras. By simply presetting the differential spring reactive elements, its unique counterbalancing system is ready to support a wide range of cameras, weighing from 11 to 55 pounds. Hand-crafted from the latest metal alloys, C40S is a heavy-duty fluid action head - specifically designed to support Studio/EFP configurations, or 35mm film cameras weighing from 22 to 100 pounds.

They Both Feature :

Patented fluid drag control system for Pan and Tilt allows damping levels from "0" for freewheeling to "7" for maximum drag.

The ability to select any combination of fluid drag and dynamic counterbalance allows quick adaptation to any situation, as well as the ability to return to the same setting repeatedly.

Includes quick-release camera plate with safety lock, an illuminated spirit level and two adjustable telescopic handles.

55mm(C20S) and 60mm (C40S) sliding platform, combined with a locking quickrelease plate, allows you to fine-tune the balancing of any camera/lens combination, while an eight-position easy grip selector provides for the most suitable dynamic counterbalancing.

Additional tilt angle can also be achieved by turning the corresponding knob to Off, provided the counterbalancing ring has been previously set to "0".

C20S Only

100mm ball base with a 150 mm ball base is available as an option.

C40S Only

Comes with 150mm ball base, but also includes a flat Mitchell base (accessible by simply removing the 150mm ball base).

Optional accessories include an eyepiece extension holder and a front box adapter.

C20S System includes C20S Head (payload up to 61 lbs.) and 2 extendible pan arms

HD/AL 1 (S421):

Single-Stage Heavy-Duty Aluminum Tripod with Ground Spreader ........................................................................5949.95

HD/AL 2: (S519)

2-Stage Heavy-Duty Aluminum Tripod with Ground Spreader................................................................................6179.95

HD/CF 1 (S423):

Single-Stage Heavy-Duty Carbon Fiber Tripod with Ground Spreader ....................................................................6699.95

HD/CF 2 (S424):

2-Stage Heavy-Duty Carbon Fiber Tripod with Ground Spreader............................................................................7099.95

C40S System includes C40S Head (payload up to 110 lbs.) and an extendible pan arm

AL1/FB (K478):

Single-Stage Aluminum Flatbase Tripod with Ground Spreader ..............................................................................8099.95

AL2/FB (K480):

2-Stage Aluminum Flatbase Tripod with Ground Spreader ......................................................................................8299.95

AL1/BB (K477):

Single-Stage Aluminum Ball Base Tripod with Ground Spreader..............................................................................8399.95

AL2/BB (K471):

2-Stage Aluminum Ball Base Tripod with Ground Spreader ....................................................................................8599.95

C20S/C40S Dutch Heads

Whether you are shooting video, 16mm or 35mm,

Cartoni offers the ideal tool to produce smooth and professional Dutch tilts. The C20S and C40S Dutch

Heads interface directly with the C20S or C40S, or similar quick-release type heads. Simply mount and shoot dead ahead — or glide through the oddest angles. Features fully adjustable drag, dial-in counterbalance, frictionless sliding base plate, telescoping handle, 4-point pan bar replacement and left to right sliding base plate capability.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

C A R T O N I

ENG SERIES

3-Tube ENG Tripod

This ultra-light single stage tripod combines superb torsional rigidity with the lowest possible weight. Rigidity is assured by two external 20mm diameter tubes reinforced by a central tube of 25mm, while a flip-clamping system with a safety lock ensures maximum clamping efficiency at any weight. Equipped with a 90mm bowl base, the 3-tube ENG tripod operates with an expendable mid-level Spreader and provides for a 44 pound payload. Easy to handle and quick to set up, it interfaces perfectly with ALFA and BETA fluids heads.

L502

L501

Standard ENG Tripods

Available in strong tubular alloy or light carbon fiber, in both single or two-stage versions, this tripod incorporates an ultrafast and secure flip-clamping system. In the single stage version, torsional rigidity on each leg is assured by four 16mm diameter tubes connected to the 100mm leveling base with an internal mounted aluminum shaft. This system eliminates backlash and provides for outstanding stability in any shooting environment. In the two-stage version, higher rigidity is obtained by a combination of 16mm and 20mm diameter tubes. Ideal for the ALFA , BETA and GAMMA heads, it also interfaces with the expendable mid-level or the flexible ground spreader.

Maxi Studio Tripod

The Maxi Studio tripod is provided with 25 mm diameter tubes and two rotary clamping mechanisms on each leg.

Entirely manufactured in die-cast alloy, this tripod features a 150mm standard Bowl or Mitchell

Flatbase and comes equipped with an extra strong ground Spreader.

The Maxi provides for a

440 lbs. payload.

T-625

Baby Legs

Low-level versions of the ENG,

EFP and Studio tripod are available for low shots.

L505

H605

®

®

K705

C A R T O N I

EFP SERIES

Heavy-Duty Studio Tripods

The HD Studio tripods is entirely manufactured in die-cast alloy and fitted with two rotary clamping mechanisms on each leg. The single stage version, equipped with 22mm diameter tubes, features unsurpassed torsional rigidity and structural integrity. It incorporates locking knobs which include over tightening protection, ensuring that maximum clamping efficiency is maintained over the lifetime of the tripod. In the two-stage version, also available in light carbon fiber, higher rigidity is obtained with a combination of 22mm and 25mm diameter tubes. Ideal for the C40 S, these tripods can be supplied with an interchangeable 150mm Bowl base or flat Mitchell base.

K706

K707

Standard EFP Tripods

Featuring 20mm diameter tubes, the single stage aluminum or carbon fiber EFP tripods are fitted with a flip-clamping system and provide for an exceptional steady platform, with virtually no torquing and twisting problems. The 2-Stage version, also available in extra strong tubular alloy or light carbon fiber construction, features a combination of 20/25mm diameter tubes, allowing heavier weights to be supported, as well as a greater operating height range. Equipped with a 100mm Bowl base, the standard

EFP tripod is ideal for the DELTA and C20S heads.

Code

A302

L501

L502

L505

L503

L504

H601

H602

H605

H603

H604

K706

K707

K705

K703

K704

T625

Type

Baby

1 Stage

2 Stages

1 Stage

2 Stage

Baby

1 Stage

2 Stage

1 Stage

3 Tube

1 Stage

2 Stages

Baby

1 Stage

2 Stages

1 Stage

2 Stages

Material

Aluminum

Aluminum

Aluminum

Aluminum

Carbon fiber

Carbon fiber

Aluminum

Aluminum

Aluminum

Carbon fiber

Carbon fiber

Aluminum

Aluminum

Aluminum

Aluminum

Carbon fiber

Aluminum

H601

Weight

2.5kg

3.3kg

4.0kg

7.3kg

7.0kg

5.7kg

10.0kg

6.0kg

10.0kg

2.8kg

2.6kg

3.1kg

1.8kg

2.5kg

2.9kg

4.0kg

4.5kg

Bowl Diameter

100mm

100mm

100mm

100mm

100mm

100mm

100mm

100mm

100mm

100mm

100mm

Flat /150mm

Flat /150mm

Flat /150mm

Flat /150mm

Flat /150mm

Flat /150mm

Max height Min. Height Folded Height

65˝

18˝

54˝

65˝

64˝

17˝

57˝

65˝

61˝

54˝

64˝

57˝

65˝

54˝

54˝

64˝

17˝

26˝

29˝

20˝

12˝

29˝

20˝

27˝

21˝

12˝

27˝

21˝

31˝

23˝

13˝

30˝

23˝

30˝

29˝

14˝

35˝

29˝

35˝

13˝

33˝

29˝

29˝

33˝

29˝

33˝

29˝

33˝

33˝

29˝

13˝

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

C A R T O N I

TRIPOD ACCESSORIES

Dollies

# C491 Lightweight Dolly

Suitable for all ENG tripods, this 6.5 lb. folding

Dolly features independent track locks and wheel brakes..........................................................469.95

# P734 Flexible Ground Spreader

Designed for ENG and EFP tripods, this rubber and nylon polymer Spreader provides outstanding flexibility on uneven field situations. ............359.95

# P735 HD Heavy-Duty Spreader

Suitable for the Maxi Studio tripod, this Heavy-

Duty ground Spreader has a comfortable foot-operated pedal that allows the tripod to be attached securely and firmly to the tripod feet. ..........359.95

B419

Cases

# D 733 Lightweight Case............................224.95

# B404 Alfa/Beta PVC Transport Case .........274.95

# B405 Alfa/Beta 2 Stage Soft Case...................134.95

# B406 Alfa/Beta 1 Stage Soft Case...................139.95

# B419 Standard Dolly

Suitable for all ENG tripods, this 11 lb. folding

Dolly is specifically designed for multi-location work. Features a six-position track lock on each wheel, cable guards, fast action foot-operated brakes and 100mm wheel diameter. .............674.95

# S440 Heavy-Duty Dolly

Designed for Studio operation, this rugged foldable

Dolly features double wheels with cable guards, six-position track lock and foot operated brakes............................................................929.95

Spreaders

# P730 Multi-Level Spreader

This innovative Multi-Level extendible Spreader offers a quick-release attachment and an innovative central lock system allowing for infinitely adjustable height. Extremely useful in situations with limited space. ...............................................359.95

# P731 Mid-Level Spreader

Suitable for fast-moving ENG and EFP applications, the lightweight, telescopic Mid-Level Spreader adds only 1.1 lbs. to your tripod. A quick-release attachment requires only a few seconds for installation, allowing very quick setup. ............................234.95

# P732 Mid-Level Spreader

Suitable for 2-Stage Tripods...........................234.95

# P733 Standard Ground Spreader

Specifically designed to enhance stability in Studio tripods, this Spreader weighs only 2.5 lbs. and attaches to tripod feet by way of a rubber loop ..................................................334.95

P731

# B433 Alfa/Beta 2 Stage PVC

Transport Case...........................................216.95

# G400 Gamma/Delta 1 Stg. Premium

Soft Case ...................................................164.95

# G401 Gamma/Delta 2 Stg. Premium

Soft Case ...................................................154.95

# S418 Gamma/Delta/C20S 2 Stage.

PVC Transport Case .................................319.95

# S428 Gamma/Delta C20S 2 Stage.

PVC Transport Case ................................329.95

# S430 C20S Head ATA Case .....................329.95

# K488 C40S Head ATA Case ....................354.95

# K519 C40S Dutch Head ATA Case .........319.95

# S325 C20S Dutch Head ATA Case..........279.95

Quick Release Plates

# A500 Alfa I/Alfa II.......................................99.95

# B511 Beta/Gamma/Delta..........................104.95

# K512 C20S/C40S .....................................124.95

# K499 C40S Sliding Wedge Plate Assembly w/

Wedge Plate for OB/Remote, Studio Configuration, incl. code #K498...........................................549.95

# S477 45° Wedge Plate ...............................184.95

# S938 3/8˝ Camera Mount Screw.................10.95

# S914 1/4˝ Camera Mount Screw.................10.95

Additional Accessories

# A847 Hi-Hat: Available in 100/150mm Bowl and Flat Mitchell Base (spec) .....................199.95

# A845 Bazooka Basket Available in 100/150mm

Bowl and Flat Mitchell Base (spec) ..............49.95

# A849 Bazooka Basket 150mm Bowl

Base Converter with Knob...........................49.95

# A856 Pedestal Converter to Mitchell Base .....129.95

# A463 Alfa Tie DownCup .................................19.95

# B434 Alfa/Beta Bazooka Basket .....................214.95

# B458 Alfa/Beta/Delta Rubber Tripod Feet ......69.95

# B464 Alfa/Beta Pan Bar Complete.................164.95

# B466 Beta Tie DownCup ................................79.95

# B475 Alfa/Beta Level Flatbase........................194.95

# B476 Alfa/Beta High Hat ..............................214.95

# G200 Gamma Pan Bar Complete ..................174.95

# D470 Delta/C20S Bazooka Basket ................214.95

# D471 Delta/C20S High Hat .........................214.95

# D514 Delta/C20S Tie DownCup....................89.95

# D515 Delta/C20S Pan Bar Complete............199.95

# K462 150mm Ball Base to Flatbase Adapter ......194.95

# K481 C40S Tie Down Cup .............................99.95

# K482 C40S Pan Bar Complete ......................279.95

# K483 C40S 150mm Ball ...............................299.95

# K484 C40S Eyepiece Level Kit ......................169.95

# K485 C40S Tool Box Holder ........................169.95

# K487 C40S High Hat Flatbase......................224.95

# K489 C40S Tie Down Nut for Flatbase ..........59.95

# K492 C40S High Hat Ball Base ....................224.95

# K513 C40S Handle - Microforce Adapter. ....169.95

# K520 C40S Dutch Head Pan Bar..................279.95

# S525 100mm to F/B Adapter ........................199.95

# S526 Eyepiece Level Kit.................................174.95

# S530 Delta/C20S Microforce Adapter ...........174.95

# S531 Dutch Head Pan Bar ............................209.95

# S532 100mm to 150mm Bowl Adapter.........199.95

Used Equipment Bought, Sold and Traded

S P I D E R P O D

SPIDER POD

Portable Tripod Riser and Standing Platform

Designed for professional videographers and news crews who need to raise their camera’s viewpoint, the unique Spider Pod elevates you and your tripod two feet — with speed and rock solid stability. With the Spider Pod you can now easily shoot above crowds and capture unobstructed, stable images. Large staging risers are often used as camera platforms. However, as you shift your footing, the camera and tripod may shake, producing an unstable video image. Add multiple shooters, or use the camera zoomed in with a long focal length, and the problem becomes significantly worse. The

Spider Pod eliminates all this by featuring a separate tripod riser and separate standing platform — providing rock solid support.

■ Unique design allows set up within 30 seconds

Supports all standard tripods with spreaders or feet

Optional shipping case available

Works with ENG or studio configured cameras

Tripod riser supports up to 200 pounds, the standing platform up to 300 pounds

Includes a padded carrying handle

Standing Platform

■ Height: 23˝

Area: 23

1

4 x 23

1

4

˝

Carpeted Area: 15 x 15˝

Weight Capacity: 300 lbs.

Weight: 41 lbs.

Size: (folded) 3

1

2 x 28 x 28˝

Tripod Riser

Height: 24˝

Spreader Channel Length:

24˝-3/4˝ (to center)

■ Spreader Channel Width: 3˝

EXPANSION WEB

The Expansion Web riser system is designed for those who need the portability of the Spider Pod, but require a larger standing area for cameras with studio controls. Based on a modular concept, the Expansion Web provides many advantages over a traditional riser. The 2 x 2´ square panels interlock in a variety of configurations to accommodate a myriad of shooting requirements.

■ Similar to the Spider Pod, the Expansion Web is separated from the tripod riser to eliminate any potential shake caused by operator movement. The modules form a platform large enough to accommodate a chair or stool for longer shooting times.

■ Portability makes the Expansion Web an ideal choice for remote broad-cast needs, corporate video departments and staging companies. It eliminates the need for a staging riser, sets up quickly and is easy to transport and store.

■ Constructed of high quality component materials, such as anodized aluminum and a carpeted slip-resistant surface. Each modular square is carefully designed to interlock with the others for a strong stable standing platform. The ability to interlock from all sides is the key to the Web’s versatility and portability.

• Height: 23˝

• Individual Square Area: 24 x 24˝

• Weight Capacity: 300 lbs.

• Weight: 21 lbs.

• Size Folded: 24.5 x 24.5 x 3.25˝

Spider Pod ....................................................................................................995.00

Expansion Web............................................................................................1299.00

Spider Pod with Expansion Web................................................................1879.00

Soft Case for Spider Pod ..............................................................................249.95

Hard Case for Spider Pod ............................................................................369.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
