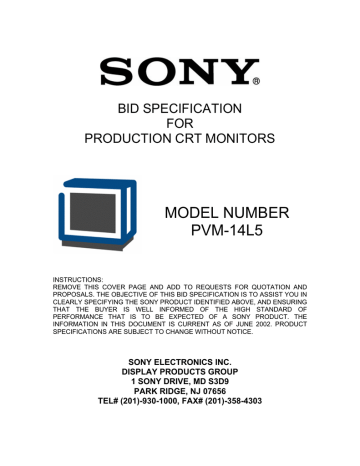

MODEL NUMBER PVM-14L5 BID SPECIFICATION

MODEL NUMBER PVM-14L5  BID SPECIFICATION
BID SPECIFICATION
FOR
PRODUCTION CRT MONITORS
MODEL NUMBER
PVM-14L5
INSTRUCTIONS:
REMOVE THIS COVER PAGE AND ADD TO REQUESTS FOR QUOTATION AND
PROPOSALS. THE OBJECTIVE OF THIS BID SPECIFICATION IS TO ASSIST YOU IN
CLEARLY SPECIFYING THE SONY PRODUCT IDENTIFIED ABOVE, AND ENSURING
THAT THE BUYER IS WELL INFORMED OF THE HIGH STANDARD OF
PERFORMANCE THAT IS TO BE EXPECTED OF A SONY PRODUCT. THE
INFORMATION IN THIS DOCUMENT IS CURRENT AS OF JUNE 2002. PRODUCT
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
SONY ELECTRONICS INC.
DISPLAY PRODUCTS GROUP
1 SONY DRIVE, MD S3D9
PARK RIDGE, NJ 07656
TEL# (201)-930-1000, FAX# (201)-358-4303
1.0 General Information
The purpose of this information is to provide the specification for a product whose
primary purpose is the reproduction of video and / or computer graphics
information for one or more viewers.
This reproduction of this information is to be accomplished via a direct-view CRT
monitor. This document provides the minimum specifications for this device.
The performance comparison of displays is not only technical in nature, but is
also subjective to the user, when viewed in the final display environment. It is
recommended that devices meeting the requirements of this specification be
compared in the user’s application and environment, if possible.
2.0 Description
This product shall be classified as a direct-view CRT color monitor, or production
display. This device shall be directly compatible with video sources, without the
use of external devices to provide this compatibility.
This device shall employ the use of an aperture grille CRT for optimum display of
high- resolution sources.
Encased in a durable metal casing, this device shall employ a shape that allows
for rack mounting in a 19” EIA standard rack, using an optional rackmount kit.
3.0 Source Compatibility / Suitability for Application
This device shall be directly compatible with the following sources:
NTSC Video (Composite and Y/C)
PAL Video (Composite and Y/C)
SECAM Video (Composite)
M-NTSC 4.43 (Composite)
Component Video (50 or 60 Hz)
RGB Video (50 or 60 Hz)
480P (60Hz)
575P (50Hz)
720P (60Hz)
1035I (60 Hz)
1080I (60 Hz)
With the addition of optional modules, serial digital video and audio sources shall
be available to this device.
4.0 User Interface / Controllability Information
Control of this device shall be accomplished through the use of front panel
controls that display on on-screen menus, available in a minimum of 5
languages. A status menu shall display current device settings.
The following device functions shall be available for control:
Power On / off
Input Select
Brightness / Contrast
Video Decoder Functions
Audio Volume
Blue Only
Overscan / Underscan
H/V Delay
Degauss
4:3 / 16:9 Aspect Ratio
Color Temperature
Recall of the last video decoder function used shall be accomplished by touching
any of the function buttons.
This device shall contain user preset memory, allowing the user to store setup
data for later retrieval.
In addition to the front panel controls, this device shall be able to be controlled by
an optional serial RS-485 remote controller. This remote controller shall be
available for an additional charge from the device manufacturer.
5.0 Performance Specifications
This device shall employ the use of an aperture grille CRT with a maximum dot
pitch of 0.25mm. The minimum native CRT resolution shall be 800 lines. The
CRT shall employ the use of SMPTE-C phosphors.
The minimum display bandwidth shall be 10MHz, down 3dB.
The device shall accommodate color temperatures of 5000 and 10000 degrees
Kelvin, and also allow for a user definable color temperature.
This device shall include a built-in audio amplifier and speaker for monitoring
audio sources.
This device shall include a three-color tally light that can be activated from a
production video switcher.
This device shall include an automatic chroma and phase setup capability.
This device shall minimize magnetic field emission through the use of Very low
Frequency (VLF) operation.
6.0 Dimensional Information
This device shall employ the use of a 14” diagonal (13” viewable) CRT.
This device shall have maximum cabinet dimensions of 13.5 inches high by
13.625 inches wide and 17 inches deep.
This device shall not weigh more than 37 pounds.
7.0 Connectivity Information
This device shall provide for connection of 4 source devices simultaneously,
without employing the use of an external switching device. These connections
shall include the following:
Composite Video on a BNC Connector with loop-through
Audio on an RCA (Phono) Connector with loop-through
Composite Video on a BNC Connector with loop-through
Audio on an RCA (Phono) Connector with loop-through
Y/C Video on a 4 Pin DIN Connector with loop-through
Audio on an RCA (Phono) Connector with loop-through
RGB / Component Video on BNC Connectors with loop-through
Audio on an RCA (Phono) Connector with loop-through
External Sync on a BNC Connector with loop-through
8.0 Power Requirements
This device shall accept power at 100- 240 VAC at either 50 or 60 Hz.
This device shall consume no more than 120 watts.
Power to this device shall be supplied via a detachable standard power cord that
is readily available for replacement from local suppliers.
9.0 Safety Compliance Information
This device shall be fully compliant with the following standards:
UL 1950
CSA 22.2 No.950
FCC Class A
IC Class A
DHHS/DNHW
10.0 Warranty Information
This device shall carry a 1-year manufacturer’s warranty. Authorized servicing
dealers of the devices’ manufacturer shall perform warranty service.
