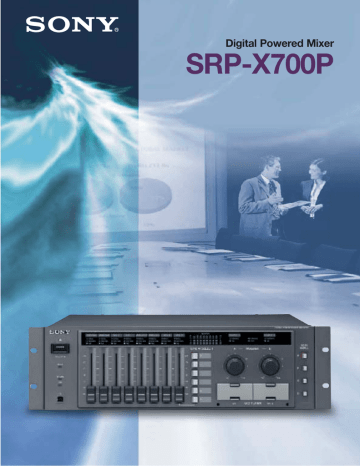

SRP-X700P Digital Powered Mixer

SRP-X700P Digital Powered Mixer
Digital Powered Mixer
SRP-X700P
The SRP-X700P Digital Powered Mixer has been
RGB SWITCHER
designed for modern presentation systems that are
required to process material from a wide range of
New Powered Mixer
VIDEO SWITCHER
sources including microphones, video, audio,
WIRELESS TUNER BASE UNIT
ALL IN ONE
DESIGN
DVD players, audio tape recorders as well as PC’s.
This unit integrates the functionality of seven
traditional presentation devices in a compact 3U
AUDIO MIXER
POWER AMPLIFIER
high, 19-inch rack-mountable chassis. By utilizing
digital processing and control technology, the
SRP-X700P offers an impressive set of features,
high quality processing and ease of operation.
Multi-media switcher and audio mixer
The SRP-X700P combines a six input RGB/video switcher with a 14-channel audio
mixer. The switcher matrix allows a variety of video and PC graphic sources to be
routed to the presentation system while the audio mixer processes audio, input from
wired and wireless microphones, as well as audio playback devices.
The SRP-X700P supports the following signal inputs:
• Picture inputs: 3-RGB or component, 3-Composite or S-video
- High quality component signals including 480p and 1080i, and RGB signals with a
150MHz frequency response (1280 x 1024 pixels, SXGA)
• Audio inputs: 6 mic or line, 5 stereo and 2 surround sound (5.1 format)
Improved system efficiency
The SRP-X700P is supplied with two PC application software programs: the SRP-X700P
Manager and the User Control Panel. The SRP-X700P Manager program is a ‘set and
forget’ application, which allows the unit to be fully configured during installation by
providing a complete set
of control GUIs. The User X700P Manager Example BLOCK Screen
Control Panel program is
for simple GUI control
during the presentation.
Additionally, the unit
offers 20 internal scene
memories, four of which
can be recalled from the
front panel buttons and
the User Control panel
GUI. These scene
memories allow instant
reset of all control
parameters to quickly
change operating modes.
6-mono and 2-stereo channel audio mixing with comprehensive
processing to maximize sound quality
The SRP-X700P can mix and process 6-mono (4 mic, 2 mic/line) and 2-stereo (a stereo
line and the 5.1/stereo line input of the switcher) input signals to 10 outputs (8 general
purpose outputs and a stereo record output). Its comprehensive audio processing, such
as EQ, dynamics, routing and delay, allows the quality of the audio signals to be
maximized and provides tools for correcting room acoustics.
• High quality audio A/D and D/A conversion (24-bit, 48 kHz sampling frequency)
Digital
Processing
FEEDBACK REDUCER
EQ
Traditional System
Advanced audio processing functions - ‘Feedback Reducer’ and
‘Automixer’.
Two special audio processing tools are included to allow ‘professional quality audio’
processing at the touch of a button. The ‘Feedback Reducer’ works by analyzing and
‘nulling out’ potential annoying feedback. The ‘Automix’ function allows the SRP-X700P
to analyze, in real-time, the incoming signals and make adjustments to maintain the
quality of the output.
Multiple operating modes and on-board stereo power amplifier
The SRP-X700P is equipped with a routing function which routes the input signals to its
10 outputs (8 line and 2 REC outputs). This routing function allows the SRP-X700P to
offer many different operating modes to support surround sound matrix switching or
‘Zoned’ speaker configurations. In addition, there is an on-board 150W stereo power
amplifier that can be switched between high and low impedance modes.
• Power rating 200 W + 200 W (4 Ω), 150 W + 150 W (8 Ω), Max 150 W (70V Line)
Integrated machine control interfacing
The SRP-X700P provides extensive machine control capabilities through its four
Control-S ports (for wired machine control to Sony CD players, MiniDisc players and
VTRs). Additionally, parallel and serial RS-232C control ports provide extensive control
for sophisticated presentations.
For remote control of the SRP-X700P:
• USB, RS-232C and parallel port for control from an external PC (or other control systems).
For remote control of peripheral equipment/devices from the SRP-X700P:
• RS-232C port for remote control of Sony projectors and Sony plasma display monitors.
• Control-S ports for remote control of Sony VTRs, DVD players, CD players, MiniDisc
recorders and projectors.*1
• Parallel output port for remote control of peripheral devices such as video screens
(up/down), window curtains (open/close), projector (up/down), lighting (on/off), etc.*2
*1 When controlling a projector with the Control-S port, the projector cannot be switched between
RGB and Component input mode.
*2 Requires an interface box between the SRP-X700P and external device.
Integrated wireless tuner unit slots
Up to two Sony WRU-806 wireless tuner units (optional) can be directly installed in the
SRP-X700P, making it
simple to integrate a high
quality Sony wireless
microphone system into the
presentation system.
User Control Panel
Lecture room
Training room/Presentation
System Example
Install
RGB
Component Video
Composite Video
Audio
RS-232C Remote
Control-S (IR) Remote
Parallel Remote
USB
RF
Touch Panel
& Controller
Mobile
PC
Desktop PC
Control Panel
IR
Transmitter
Mobile PC
Lights
DVD Player
or
or
M
Screen
VTR
M
POWER
MIC1/WL1
MIC2/WL2
SIGNAL
OVER GAIN
SIGNAL
OVER GAIN
MIC3
SIGNAL
OVER GAIN
MIC4
SIGNAL
OVER GAIN
MIC5/LINE1
SIGNAL
OVER GAIN
MIC6/LINE2
SIGNAL
OVER GAIN
LINE3
LINE4
SIGNAL
OVER GAIN
SIGNAL
OVER GAIN
VU 1
+3
0
-5
-10
-20
2
3
OUTPUT
4
5
6
LINE 4 SELECT
7
8 VU
+3
0
-5
-10
-20
MASTER A
OVER GAIN
A
Window
Curtain
MASTER B
PROTECTION
CLIP
MASTER
OVER GAIN
SCENE
RECALL
B
1
ON
OFF
LOCK
RS232C
A
B
2
C
3
USB
D
E
4
F
WL1
MIC TUNER
WL2
I/F BOX
Digital
Powered Mixer
SRP-X700P
Document Camera
Conference room
BoardRoom/Presentation
CD Player
MD Recorder
Wireless Tuner
WRU-806
Microphone
Wireless Microphone
Rear Panel
Projector
Antenna
AN-820A
Speakers
Specifications
ELECTRICAL CHARACTERISTICS
Composite Video/S-video
Color system
Frequency response
Level
Component Video
Color system
Frequency response
Level
Y
R-Y
B-Y
RGB
Frequency response
Resolution
Level
AUDIO INPUTS/OUTPUTS
NTSC/PAL/SECAM
50 Hz - 10 MHz
1 Vp-p (75 Ω)
NTSC/PAL/SECAM
50 Hz - 150 MHz
1 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
G
B
R
SYNC/HD, VD
Audio (analog)
Frequency response Line in - Line out
T.H.D.
Line in - Line out
S/N ratio
Line in - Line out
Crosstalk
Line in - Line out
Others
ANTENNA IN a-b
Microphone power supply
50 Hz - 150 MHz
1280 x 1024 pixels
60 Hz (SXGA)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
1-5 V (47 kΩ)
sync positive/negative
Input
MIC/WL 1, 2
MIC 3, 4
Connector
XLR-3-31type
XLR-3-31type
MIC 5, 6 (LINE 1, 2)
XLR-3-31type
Balanced
Mono
LINE 3
LINE 4 (A, B, C, F)
LINE 4 (D, E)
Output
LINE 1, 2
LINE 3, 4, 5, 6, 7, 8
REC 1, 2
Phono x 2
Phono x 2
Phono x 6
Connector
XLR-3-32type
Phono x 1
Phono x 1
Unbalanced
Unbalanced
Unbalanced
Circuit
Balanced
Unbalanced
Unbalanced
Stereo
Stereo
Stereo/ Surround
Channel
Mono
Mono
Mono
Input
LINE 4 (A, B, C)
LINE 4 (D, E, F)
Output
R/R-Y G/Y B/B-Y SYNC/HD VD
S VIDEO
VIDEO
REMOTE CONTROL TERMINAL
BNC x 2, DC 9 V OUT
DC 48 V, MIC1-6 Inputs
RS-232C ports
PROJECTOR CONTROL
(RS-232C)
120/220/230 V AC 50/60 Hz
150 W
+32°F to +104°F (0°C to +40°C)
-4°F to +140°F (-20°C to +60°C)
19 x 5 1/4 x 13 7/8 inches, 3U
(482 (W) x 132 (H) x 350 (D) mm)
Approx. 28 lb 11 oz (13 kg)
AC Power cord (1), Operating manual (1),
IR Transmitter (1), Foot (4),
Control software disk* (1)
* Requires Microsoft® Windows® 98SE/ME/
2000/XP
Optional Accessories
WRU-806A/806B UHF Synthesized
Tuner Unit
AN-820A UHF Antenna
Signal Type
Composite
S Video
Component/RGB
Signal Type
Component/RGB
S Video
Composite
Connector
D-sub 9-pin x 1, male,
inch standard
D-sub 9-pin x 1, male,
inch standard
Connector
Series B connector x 2
Connector
USB ports
USB (Front/Rear)
Parallel I/O ports
PARALLEL IN (12-pin)
PARALLEL OUT (10-pin)
Reference/Peak Level
-60 to -45 dBu/-37 to -22 dBu
-60 to -45 dBu/-37 to -22 dBu
-60 to -45 dBu/-37 to -22 dBu
-10 to +4 dBu/-+10 to +24 dBu
-10 to 0 dBu/+10 dBu to +20 dBu
-10 to 0 dBu/+10 dBu to +20 dBu
-10 to 0 dBu/+10 dBu to +20 dBu
Reference/Peak Level
+4 dBu/+24 dBu
-5 dBu/+15 dBu
-5 dBu/+15 dBu
Impedance
more than 2.2 kΩ
more than 2.2 kΩ
more than 2.2 kΩ
more than 10 kΩ
more than 10 kΩ
more than 10 kΩ
more than 10 kΩ
Load impedance
more than 600 Ω
more than 10 kΩ
more than 10 kΩ
SPEAKER OUTPUTS
Connector
Phono x 1
4-pin Mini Din
D-sub 15-pin
Connector
BNC x 5
4-pin Mini Din
BNC x 1
20 Hz - 20 kHz
Less than 0.01 % (1 kHz)
More than 94 dB (IHF A)
Less than -85 dB (1 kHz)
RS-232C
Weight
Supplied Accessories
Channel
Mono
Mono
VIDEO/RGB INPUTS/OUTPUTS
GENERAL
Power requirements
Power consumption
Operating temperature
Storage temperature
Dimensions
Circuit
Balanced
Balanced
Connector
Mini Jack x 4
PROJECTOR IN
PROJECTOR OUT
Mini Jack x 1
Mini Jack x 1
Connector
Impedance
Screw type binding
terminal x 4
CH2
70V LINE
Rated Power
4 Ω-16 Ω
150 W (8 Ω) 200 W (4 Ω)
4 Ω-16 Ω
32 Ω-10 kΩ
150 W (8 Ω) 200 W (4 Ω)
Max 150 W
Function
Input Selection, Power On/Standby
(Applicable projectors/PDP monitors: Sony VPL-FX50, VPL-PX21/31/32, PFM-42B1)*1
Full control of SRP-X700P audio and switch functions
Function
Full control of SRP-X700P audio and switch functions
Function
Type
AV Selection(LINE 4), Power On/Off, Scene Recall, Volume, Volume Up/Down,
Make-Contact
Muting, Remote control of connected products with Control-S
CMOS level, active low
Output status of Parallel Input Function
Open collector
(Except for status of controlled products with Control-S)
Function
Play, Stop, Pause, FF, REW, PREV, NEXT
(Applicable AV Products: Sony VHS/ 8mmVTR/BatamaxVTR/DV/CD/CDR/MD equipped with Control-S
terminal, DVD by using supplied IR Transmitter)
For the connection of projector remote commander
Input Selection, Power On/Standby (Applicable projectors: Sony’s VPL-PX15/10, PS10, CX11/10)*1*2
D-sub 25-pin x 1,
female, milli standard
Control-S ports
OUTPUT 1-4
Output
CH1
*1 Applicable models are as of April 20002 and may change in the future. When using an external system controller, any type of projector can be controlled.
*2 When controlling a projector with the Control-S port, the projector cannot be switched between RGB and Component input mode.
Dimensions
Block Diagram
30
+48V
TRIM
MIC 1,2
WL 1,2
A/D
LCF
FR
TUNER
SLOT
ANT a,b
350
A/D
FR
3BAND
PEQ
MUTING FADER
A/D
LINE 3
LCF
FR
3BAND
PEQ
D/A
LEVEL
METER
OUTPUT
METER
11BAND
PEQ
DELAY
4BAND
PEQ
DELAY
D/A
LINE
OUT 1,2
D/A
LINE
OUT3-8
D/A
REC OUT
+4/0/-5/-10
MUTING FADER
TRIM
TRIM
OVER
GAIN
COMP
SIGNAL
LINE
132
LCF
SP OUT
1,2
POWER
AMP
ATT
SELECTOR
TRIM
482
MODE
COMP
SIGNAL
+48V
4
MUTING
MUTING FADER
MIC 3,4
MIC 5/LINE 1
MIC 6/LINE 2
3BAND
PEQ
CLIP
PROTECTION
70V LINE
OVER
GAIN
SIGNAL
COMP
14IN 10OUT
MUTING FADER AUTOMATIC
SIGNAL
MIXER
0/-5/-10
MUTING FADER
2BAND
PEQ
A/D
MUTING FADER
SIGNAL
TRIM
0/-5/-10
LINE 4 A
4F
3
INPUT
SELECT
LINE 4 D,E
RL/RR/C/W
A/D
RS-232C for external
system controller
LINE 4
COMPOSITE
VIDEO IN
A
B
C
LINE 4
S VIDEO IN
A
B
C
D
LINE 4
COMPONENT E
/RGB IN
F
®
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/proaudio
PARALLEL
REMOTE
MUTING FADER
(Unit: mm)
MK7797V2OHB02AUG
REMOTE
USB
RS-232C
430
A-1090-B
RS-232C for
projector control
2BAND
PEQ
COMPOSITE
VIDEO OUT
LOCK
PROJECTOR
CTRL-S IN
MAIN CPU
S VIDEO
OUT
COMPONENT
/RGB OUT
+
PROJECTOR
CTRL-S OUT
CTRL-S OUT
1,2,3,4
USB(FRONT)
USB(BACK)
©2002 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric mass and measures are approximate.
Sony is a registered trademark of Sony.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks are property of their respective owners.
Printed in USA (11/02)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
