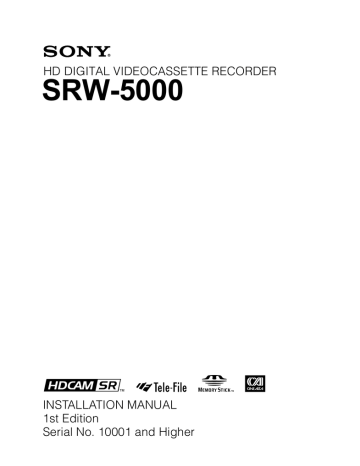

HD DIGITAL VIDEOCASSETTE RECORDER

SRW-5000

INSTALLATION MANUAL

1st Edition

Serial No. 10001 and Higher

!

WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.

!

WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung dazu besitzen.

!

AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

Attention-when the product is installed in Rack:

1. Prevention against overloading of branch circuit

When this product is installed in a rack and is supplied power from an outlet on the rack, please make sure that the rack does not overload the supply circuit.

2. Providing protective earth

When this product is installed in a rack and is supplied power from an outlet on the rack, please confirm that the outlet is provided with a suitable protective earth connection.

3. Internal air ambient temperature of the rack

When this product is installed in a rack, please make sure that the internal air ambient temperature of the rack is within the specified limit of this product.

4. Prevention against achieving hazardous condition due to uneven mechanical loading

When this product is installed in a rack, please make sure that the rack does not achieve hazardous condition due to uneven mechanical loading.

5. Install the equipment while taking the operating temperature of the equipment into consideration

For the operating temperature of the equipment, refer to the “1-3. Operating Conditions” in this manual.

6. When performing the installation, keep the following space away from walls in order to obtain proper exhaust and radiation of heat.

Right, Left: 4 cm (1.6 inches) or more

Rear: 10 cm (4 inches) or more

When using a Ethernet cable:

For safety,do not connect to the connector for peripheral device wiring that might have excessive voltage.

SRW-5000

For the customers in the Netherlands

Voor de klanten in Nederland

Hoe u de batterijen moet verwijderen, leest u in de

Onderhoudshandleiding.

Gooi de batterij niet weg maar lever deze in als klein chemisch afval (KCA).

Für Kunden in Deutschland

Entsorgungshinweis: Bitte werfen Sie nur entladene

Batterien in die Sammelboxen beim Handel oder den

Kommunen. Entladen sind Batterien in der Regel dann, wenn das Gerät abschaltet und signalisiert “Batterie leer” oder nach längerer Gebrauchsdauer der Batterien

“nicht mehr einwandfrei funktioniert”. Um sicherzugehen, kleben Sie die Batteriepole z.B. mit einem Klebestreifen ab oder geben Sie die Batterien einzeln in einen Plastikbeutel.

SRW-5000

1 (P)

SRW-5000

Table of Contents

Manual Structure

Purpose of this manual .............................................................................................. 2

Related manuals ......................................................................................................... 2

Trademark .................................................................................................................. 2

1. Installation

1-1.

Installation Procedure .................................................................................. 1-1

1-2.

Supplied Accessories .................................................................................. 1-1

1-3.

Operating Conditions .................................................................................. 1-1

1-4.

Power Supply .............................................................................................. 1-2

1-4-1.

Voltage and Power Requirements .............................................. 1-2

1-4-2.

Recommeded Power Cord .......................................................... 1-2

1-5.

Installation Space ........................................................................................ 1-3

1-6.

Rack Mounting ............................................................................................ 1-4

1-7.

Matching Connectors and Cables ................................................................ 1-9

1-8.

Signal Inputs and Outputs ......................................................................... 1-10

1-9.

Switch Settings on Connector Panel ......................................................... 1-14

1-10. Switch Settings on Circuit Boards ............................................................ 1-15

1-10-1. APR-62 Board .......................................................................... 1-15

1-10-2. CUE-13 Board .......................................................................... 1-16

1-11. System Setting ........................................................................................... 1-17

1-12. Opening/Closing the Lower Control Panel ............................................... 1-19

1-13. Reference System ...................................................................................... 1-20

1-14. Settings when Editor is Connected ........................................................... 1-21

1-14-1. Settings for Time Code ............................................................ 1-21

1-14-2. VTR Constant Values Settings of Editor ................................. 1-21

1-15. Removing/Reattaching Plug-in Board ...................................................... 1-22

1-16. Taking Out the Cassette in Tape Slacking ................................................ 1-23

Appendix A Setting Check Sheet

1

Manual Structure

Purpose of this manual

This manual is the installation manual of the HD Digital Videocassette Recorder

SRW-5000.

This manual is intended for use by trained system and service engineers, and provides the information that is required to install (environment, connection information, initial setting, etc.) and the setting check sheet.

Related manuals

Besides this “installation manual”, the following manuals are available for this unit.

If these manuals are required, please contact your local Sony Sales Office/Service

Center.

.....

Operation Manual (Supplied with this unit.)

This manual is necessary for application and operation (and installation) of this unit.

.....

Maintenance Manual (Available on request)

Volume 1 : Service Instruction

Volume 2 : Parts List, Block Diagrams, and Board Layouts

Volume 3 : Schematic Diagrams

These manuals describe the maintenace and service information (service overview, adjustments, board layouts, schematic diagrams, detailed parts list, etc.) for this unit.

.....

Protocol Manual of Remote (9-pin) Connector (Available on request)

This manual explains the protocol for controlling the VTR via the RS-422A (9-pin serial remote).

.....

Interface Manual of Parallel I/O (50-pin) Connector (Available on request)

This manual explains the protocol for controlling the VTR via the parallel (50pin).

.....

“Semiconductor Pin Assignments” CD-ROM (Available on request)

This “Semiconductor Pin Assignments” CD-ROM allows you to search for semiconductors used in this unit.

Semiconductors that cannot be searched for on this CD-ROM are listed in the maintenance manual (volume 2) for the corresponding unit. The maintenance manual (volume 2) contains a complete list of all semiconductors and their ID

Nos., and thus should be used together with the CD-ROM.

Part number: 9-968-546-XX

Trademark

Registered trademark used in this manual is as follows.

. Ethernet is a registered trademark of Xerox Corporation.

2

SRW-5000

Section 1

Installation

1-1. Installation Procedure

Installation procedure of this unit is shown on the following flowchart.

Refer to each section about detail of each flow.

The operation manual is also required to do

*-marked flow.

Start

1-2. Supplied Accessories

Operation manual

Japanese ......................................................................... 1

English ........................................................................... 1

Operation manual CD-ROM (PDF) .................................. 1

Installation manual

Japanese ......................................................................... 1

English ........................................................................... 1

Determination of installation place

1-3. Operating Conditions

1-4. Power Supply

1-5. Installation Space

Unpacking n

When the unit is transported, it is required to pack the unit into the specified new packing materials.

Do not reuse the packing materials.

Rack mounting 1-6. Rack Mounting

*Connection

*Initial setup

1-3. Operating Conditions

c

Good air circulation is essential to prevent internal heat build-up. Place the unit in location with sufficient air circulation.

Do not block the ventilation holes of the cabinet and the front and rear panels.

1-7. Matching Connectors and

Cables

1-8. Signal Inputs and Outputs

1-9. Switch Settings on Connector

Panel

1-10. Switch Settings on Circuit

Boards

1-11. System Setting

1-12. Opening/Closing the Lower

Control Panel

1-13. Reference System

1-14. Settings when Editor is

Connected

Operating temperature: 5 dC to 40 dC

Operating humidity: 25 % to 80 % (non-condensing)

Storage temperature:

_20 dC to 60 dC

Locations to avoid:

. Areas where the unit will be exposed to direct sunlight of any other strong lights.

. Areas near heat sources.

. Dusty areas or areas subject to vibration.

. Areas with strong magnetic field.

. Areas with much electrical noise.

. Areas with much static electricity.

. Areas that is impossible to find a specified room for installation. (Refer to “1-5. Installation Space”.)

. Areas windtight.

Tilt allowance: Within 30 d (Do not slant the front and rear of the unit more than 30 d.) c

Fix the unit securely to avoid drop when the unit is operated at not-horizontal place.

*Operation check

End n

If an error message appears on the time data display area, refer to the operation manual.

(For more details, refer to the maintenance manual volume 1.)

SRW-5000

1-1

1-4. Power Supply

1-4-1. Voltage and Power Requirements

This unit’s power line has a switching regulator.

c

Be sure to operate the unit within the range of following power voltage.

Power voltage: AC 100 to 240 V

±

10 %

Power frequency: 50 Hz or 60 Hz

Power consumption: Maximum 320 W

(With all of the presumed optional kits.) n

The power consumption becomes the maximum at record-starting.

Rush current: Power voltage 100 V IN: 17 A

Power voltage 240 V IN: 54 A n

AC power supply is required a capacity which is commensurate with rush current.

If the capacity of the AC power supply is not enough, the breaker of AC power of a supply side may operate or this unit may not operate normally.

For customers in the U.S.A. and Canada:

1 Power cord 125 V 10 A (2.4 m):

2 Plug holder (Brown):

! 1-557-377-11

3-613-640-01

1

2

AC inlet

For customers in the United Kingdom:

1 Power cord 250 V 10 A (2.4 m):

2 Plug holder (Brown):

1 2

! 1-782-165-11

3-613-640-01

AC inlet

For customers in European countries except the United

Kingdom:

1 Power cord 250 V 10 A (2.4 m):

2 Plug holder (Brown):

! 1-782-164-11

3-613-640-01

1 2

AC inlet

1-4-2. Recommeded Power Cord

This unit does not come with a power cord.

To get a power cord, please contact your local Sony Sales

Office/Service Center.

w

. Use the approved Power Cord (3-core mains lead)/

Appliance Connector/Plug with earthing-contacts that conforms to the safety regulations of each country if applicable.

. Use the Power Cord (3-core mains lead)/Appliance

Connector/Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord/

Appliance Connector/Plug, please contact your local Sony

Sales Office/Service Center.

w

. Never use an injured power cord.

For customers in the China:

1 Power cord 250 V 10 A (1.8 m):

2 Plug holder (Brown):

1

2

! 1-783-481-11

3-613-640-01

AC inlet

If the unit is used in the area except above, please contact your local Sony Sales Office/Service Center.

1-2

SRW-5000

1-5. Installation Space

When installing, the installation space must be secured in consideration of the ventilation and service operation.

. Do not block the ventilation slots at the left side and right side panels, and vents of the fans.

. Leave a space around the unit for ventilation.

. Leave more than 40 centimeters of space in the rear of the unit to secure the operation area.

When the unit is installed on the desk or the like, leave at least four centimeters of space in the left and right sides.

Leaving 40 centimeters or more of space above the unit is recommended for service operation.

(Mass of this unit : approx. 30 kg)

Moreover, an air flow that is effective in cooling the unit is essential. If the ventilation is not enough, the unit may be damaged because of an increase of the internal temperature.

n

This unit is air-cooled by the fans. The operation with the upper lid is removed affects the air cooling by the fans.

Complete the work in a short time as possible when operating the unit for inspection with the upper lid removed. If it takes a long time, blow to the unit by an electric fan to cool the unit.

538.5

482

465

45.5

533

153.5

39.5

577(Maximum traveling distance)

454

15.9

31.5

364

427

42.5

34

12.7

123.8

263.5

415.9

457.5

n Remove the feet when rack mounting.

Dimensions when Rack-Mounting

SRW-5000

(38.5)

Unit : mm

1-3

1-6. Rack Mounting

Explains how to mount this unit into a 19-inch standard rack.

Be sure to mount this unit (

*) into a rack accurately following the procedure and notes mentioned below.

w

. To prevent toppling over the rack, fix it on the horizontal and firm floor securely with bolts, etc.

. When installing the unit in an Outside Broadcasting van, be sure to fix the unit to the rack using the screws and ornamental washers supplied with the rack mount kit.

c

. Use the specified rack mount rail.

The use of other rail of low strength may drop the unit and cause the risk of injury.

. Mount the unit into a rack with a steady posture.

m

. When other equipment with built-in hard disk drive is already mounted in the same rack for mounting this unit, turn off the power of the equipment before mounting this unit.

. Connect long enough cables on the connector panel, considering that the unit is pulled out from the rack.

. Do not operate this unit without the upper lid and bottom plate except when servicing it.

. To reduce an increase in the internal temperature of this unit, keep the following space away from walls.

Right, Left: 4 cm (1.6 inches) or more

Rear: 10 cm (4 inches) or more

. Adjust the temperature inside the rack within the range of the unit’s operating temperature.

(Refer to Section 1-3.)

Specified Rack Mount Kit

RMM-110 (Optional accessory) or

RMM-111 (Optional accessory)

The color of rack angle of RMM-110 fits to the unit.

RMM-111 is the same consistency, strength and dimension as RMM-110, but the color of rack angle is different.

m

. When mounting this unit into Sony LMS (Library

Management System) VTR console, it is necessary to modify the VTR console.

. When mounting this unit into Flexicart, be sure to use the specified kit below.

VTR Mounting Kit: BKFC-53/2

Parts Packed in RMM-110/111

. Slide rails ......................................... 2

. Rack angles (handles) ..................... 2

. Rail brackets .................................... 4

. Plate nuts (large) ............................. 4

. Plate nuts (small) ............................. 4

. Screws (PSW4 x 16) ...................... 4

. Screws (B4 x 8) .............................. 8

. Hexagon socket head cap screws .... 8

. Flat washers ..................................... 8

. Screws (RK5 x 14) ......................... 2

. Ornamental washers ........................ 2

. L-shaped hexagon wrench .............. 1

1-4

SRW-5000

Rack Mounting Procedure

.

Removing the feet

1.

Set the unit its side panel down.

2.

Unscrew the four screws to remove the feet and spacers from the bottom plate of the unit.

3.

Set the unit in a horizontal position.

.

Attaching the inner rails

4.

Pull each inner rail from the two intermediate rails.

5.

Pull each inner rail out of the intermediate rails while pressing each stopper.

Intermediate rail

Feet

Spacers

PS4 x 20

Feet

Spacers

PS4 x 20 n

Keep these screws, spacers and the feet.

When operating the unit after demounting it from the rack, be sure to reattach the feet.

Tightening torque: 98 x 10 _2

N

.m {10 kgf.cm}

Inner rail

Outer rail

Stopper

Press

Pull out

6.

Remove the ten screws from both sides (left and right) of the unit as shown in the figure below.

7.

Attach the two inner rails to both sides (left and right) of unit with the removed screws in the step 6.

Tightening torque: 120 x 10 _2

N

.m {12.2 kgf.cm} m

. Be sure to use the (B4 x 6) screws when attaching the inner rail. The use other-sized screws may cause a malfunction.

. Pay attention not to fasten the screws to the screw holes other than actually used screw holes for fixing the inner rails on both sides of the unit.

If unnecessary screws are fastened, rack mounting will be unenabled.

B4 x 6

Inner rail

SRW-5000

Inner rail

B4 x 6

1-5

.

Attaching the rack angles (handles)

8.

Remove the four screws from both sides (left and right) of the unit.

B4 x 6

.

Loosely attaching the rail brackets

10. Slide the intermediate rail as shown in the figure, and then loosely attach the rail bracket to the outer rail with a plate nut (large) and the two screws.

Plate nut (large)

Rail bracket

Outer rail

Slide

Intermediate rail

B4 x 8

B4 x 6 n

Keep these screws (B4 x 6).

Be sure to use these screws when directly fixing the side panels without the rack angles.

The use of longer screws such as the screws (PSW 4 x

16) for fixing the rack angles will cause a malfunction of the unit.

9.

Attach the two rack angles to both sides (left and right) of the unit with the four screws (PSW4 x 16) supplied with the rack mount kit.

Tightening torque: 120 x 10 _2

N

.m {12.2 kgf.cm}

11. Slide the ball retainer in the direction of the arrow, and then loosely attach the rail bracket to the outer rail with a plate nut (large) and the two screws.

Plate nut (large) Rail bracket

Outer rail

B4 x 8

Slide

Intermediate rail

Ball retainer

PSW4 x

16

Rack angle

PSW4 x 16

Rack angle

PSW4 x 16

1-6

SRW-5000

.

Attaching the outer rails

12. Loosely attach the two outer rails to the middle of the

5U space in the rack for mounting this unit, with the eight hexagon socket head cap screws, eight flat washers, and four plate nuts (small).

13. Check that the two intermediate rails attached to the rack are parallel.

Hexagon socket head cap screw

2 pcs

Hexagon socket head cap screw

2 pcs

A

Rear side

Plate nut (small)

By 5U

2U

Rail

Flat washer

Hexagon socket head cap screw

L-shaped hexagon wrench

Rail bracket fixing screws

Intermediate rails

Rail bracket fixing screws

Front side

A'

Hexagon socket head cap screw

2 pcs

A = A' = 416 mm

Hexagon socket head cap screw

2 pcs

14. As shown in the following figure, adjust each frontside position of the outer rails on both sides (left and right) so that the distance from the surface of the rack to the tip of the rail becomes within the range of 50 to

55 millimeters.

15. To fix the four rail brackets, fully tighten the eight loosely fitted rail bracket fixing screws (B4 x 8) in steps 11 and 12.

Tightening torque: 120 x 10 _2

N

.m {12.2 kgf.cm}

Rack

Rail bracket

Outer rail

SRW-5000

Rack angle

50 to 55 mm

Rail bracket fixing screws

B4 x

8

16. To fix the two outer rails to the rack, fully tighten the eight loosely fitted hexagon socket head cap screws in step 12 using the L-shaped hexagon wrench.

1-7

.

Mounting in rack

c

Be sure to carry the unit by the two persons or more.

17. Set each ball retainer to the position as shown in the figure in the direction of the arrow.

Front side

Slide

Ball retainer

Intermediate rail

18. Pull equal length of each rail on both sides out.

19. Lift the unit holding the gripes on both sides, slowly insert the inner rails into the intermediate rails.

20. While pressing each stopper of inner rails on both sides, slowly push the unit into the rack.

c

Be careful not to catch your finger or hand in rack mount rail.

21. Slide the unit in and out from the rack about three times and check that the slide rails move smoothly.

If they are not smoothly, demount the unit and go back to “Attaching the outer rails” (step 12).

c

When demounting the unit, carry it by the two persons or more.

n

This unit does not have the feet at this operating.

Put down the unit on the floor or other, being careful not to damage the unit.

22. Push the unit in the depths of the rack. The unit is fixed to the rack by the lock mechanism.

Attempt to pull the rack angles and confirm that the unit cannot be pulled out of the rack.

23. Secure the unit to the rack with the four screws (RK5 x 14) and four ornamental washers.

Tightening torque: 120 x 10 _2

N

.m {12.2 kgf.cm}

Ornamental washer

RK5 x 14

Stopper

RK5 x 14

Ornamental washer

Stopper

Inner rail

Intermediate rail

1-8

SRW-5000

1-7. Matching Connectors and Cables

When external cables are connected to the connector of this unit, the hardware listed below (or equivalents) must be used.

Panel indication

TIME CODE IN

AUDIO OUTPUT

CUE OUT

MONITOR OUTPUT

TIME CODE OUT

REF. INPUT

HD REF. OUT

SD OUT

AUDIO INPUT (AES/EBU)

AUDIO OUTPUT (AES/EBU)

REMOTE 2 PARALLEL I/O (50P)

REMOTE 1-IN (9P)

REMOTE 1-I/O (9P)

RS232C

VIDEO CONTROL (9P)

HD SDI INPUT

HD SDI OUTPUT

FORMAT CONV. OUT (OPTION)

SD SDI OUT

PHONES

ETHERNET

USB

Matching connector (cable)

XLR 3P, MALE

XLR 3P, FEMALE

BNC 75 Z , MALE

Sony part No.

1-508-084-00

1-508-083-00

1-569-370-12

BNC 75 Z , MALE ( * 1) 1-569-370-12

D-SUB 50P, MALE and

JUNCTION SHELL 50P

1-565-516-11

1-563-379-11

9P remote control cable (RCC-G series) _ or or

D-SUB 9P, MALE and

JUNCTION SHEEL 9P

1-560-651-00

1-561-749-00

D-SUB 9P, FEMALE 1-563-815-21

D-SUB 9P, MALE and

JUNCTION SHELL 9P

BNC 75 Z , MALE ( * 2)

1-561-651-00

1-561-749-00

1-569-370-12

BNC 75

Z

, MALE (

*

3)

JM-60 stereo phone plug

Separately available

Separately available

1-569-370-12

_

*1: Coaxial cable length : max. 600 meters (Reference value based on this unit)

It is recommended to connect the BELDEN 8281 cable or equivalent to this connector.

*2: Coaxial cable length : max. 100 meters (Reference value based on this unit)

It is recommended to connect the BELDEN 1694A cable or equivalent to this connector.

*3: Coaxial cable length : max. 200 meters (Reference value based on this unit)

It is recommended to connect the BELDEN 8281 cable or equivalent to this connector.

Remarks

Upper control panel

SRW-5000

1-9

1-8. Signal Inputs and Outputs

Reduced drawing of rear panel

1 2

3

5

4

Input connectors

1

TIME CODE IN

2

REF. INPUT 1

REF. INPUT 2 (OPTION)

3

AUDIO INPUT (AES/EBU)

5

HD SDI INPUT A

5

HD SDI INPUT B (OPTION)

(Option HKSR-5003)

XLR 3-pin x

1

Time code 0.5 to 18 V p-p, 10 k

Z

, balanced

BNC x 4 (Loop through output x 2)

External reference video signal

HD : 0.6 V p-p, 75 Z , sync negative (HD analog tri-level sync)

SD : 0.3 V p-p, 75 Z , sync negative (Black burst or composite sync)

BNC x 6 (1 set : CH1/2, CH3/4, CH5/6, CH7/8, CH9/10, and CH11/12)

AES/EBU digital audio

Complies with SMPTE 299M, SMPTE 276 (AES-3id-1995)

BNC x 1 (outputs the input monitor x 1)

Serial digital interface (1.485 Gbit/s), complies with SMPTE 292M, SMPTE 372M

BNC x 1 (outputs the input monitor x 1)

Serial digital interface (1.485 Gbit/s), complies with SMPTE 292M, SMPTE 372M

Remote connectors

4

REMOTE 2 PARALLEL I/O (50P)

*

4

REMOTE1-IN (9P)

4

REMOTE1-I/O (9P)

4

RS232C

4

VIDEO CONTROL (9P)

4

ETHERNET

4

USB

*

: Refer to Optional “Interface manual” for details.

D-SUB 50P connector

D-SUB 9P connector (RS-422A interface), Remote control

D-SUB 9P connector (RS-422A interface), Remote control

D-SUB 9P connector (RS-232C interface) for ISR (Interactive Status Reporting)

D-SUB 9P connector for a HD digital video controller (HKDV-900) connection

RJ-45 modular jack

Complied with 10BASE-T/100BASE-TX

USB series B

Complied with USB standard Ver 1.1

1-10

SRW-5000

Output connectors

1

AUDIO OUTPUT

1

1

1

2

HD REF. OUT

2

SD OUT COMPOSITE (MONITOR)

2

3

5

CUE OUT

TIME CODE OUT

MONITOR OUTPUT

SD OUT SYNC

AUDIO OUTPUT (AES/EBU)

HD SDI OUTPUT A

5

HD SDI OUTPUT B (OPTION)

(Option HKSR-5003)

5

SD SDI OUTPUT

5

FORMAT CONV. OUT (OPTION)

(Option HKSR-5001)

PHONES

(Upper control panel)

XLR 3-pin x 4 (1 set : CH1, CH2, CH3, and CH4)

Analog audio

+ 4 dBm (Standard) (600 Z load), low impedance, balanced

XLR 3-pin x 1

Analog audio

+ 4 dBm (Standard) (600 Z load), low impedance, balanced

XLR 3-pin x 1

Time code 2.2 V p-p, low impedance, balanced

XLR 3-pin x

2 (1 set : L and R)

Analog audio

+ 4 dBm (Standard) (600 Z load), low impedance, balanced

BNC x 2

0.6 V p-p, 75 Z , sync negative (HD analog tri-level sync)

BNC x 1 (for character superimpose)

Analog composite video

VBS : 1.0 V p-p, 75 Z , sync negative

BNC x

1

SYNC (NTSC/PAL) : 0.286/0.3 V p-p, 75 Z , sync negative

BURST (NTSC/PAL) : 0.286/0.3 V p-p, 75

Z

, sync negative

BNC x 6 (1 set : CH1/2, CH3/4, CH5/6, CH7/8, CH9/10, and CH11/12)

AES/EBU digital audio

Complies with SMPTE 299M, SMPTE 276M (AES-3id-1995)

BNC x 3 (including 1 for character superimpose)

Serial digital interface (1.485 Gbit/s), complies with SMPTE 292M, SMPTE 372M

BNC x 3 (including 1 for character superimpose)

Serial digital interface (1.485 Gbit/s), complies with SMPTE 292M, SMPTE 372M

BNC x

3 (including 1 for character superimpose)

Serial digital interface (270 Mbit/s), complies with SMPTE 259M, ITU-R BT.656

BNC x 2 (for character superimpose)

Serial digital interface (1.485 Gbit/s), complies with SMPTE 292M

JM-60 stereo phone jack

Analog audio up to _ 12 dBu (8 Z load), unbalanced

Other

Memory stick

(Lower control panel)

Memory stick x 1

Applicable memory stick : 8 MB to 128 MB n

The memory card (PCMCIA type) can be used by removing the memory stick adaptor under the lower control panel.

For removing the memory stick adaptor, refer to the maintenance manual volume 1.

SRW-5000

1-11

REMOTE 2 PARALLEL I/O: 50-pin (female)

External view

17 1

33 18

50 34

Pin No.

I/O

* *

1 Setting change

* *

2

—— ——

IN

IN

IN

IN

IN

IN

OUT X

OUT

X

OUT O

OUT O

OUT O

OUT

O

OUT O

OUT X

OUT X

—— ——

O

O

O

O

O

O

IN O

OUT X

OUT

X

OUT X

OUT X

OUT X

OUT

X

OUT X

OUT X

OUT O

OUT O

OUT O

OUT O

OUT

X

OUT X

—— ——

IN

IN

O

O

16

17

18

19

20

21

22

23

24

25

26

7

8

9

5

6

1

2

3

4

10

11

12

13

14

15

27

28

29

30

31

32

33

34

35

Signal

FF

REC SW

PLAY SW

STOP SW

ENTRY SW

REF SYSTEM ALARM

CF LOCK

DRUM LOCK

CAP LOCK

CUE PRESET

TC PRESET

CASSETTE OUT/IN

TAPE HDCAM SR

SPARE

SPARE

+ 12V

GND

PREROLL

STBY ON

REW

ENTRY IN

STBY OFF

EJECT

REC

CH CONDITION RED

ASSEMBLE PRESET

EDIT OUT

EJECT OUT

ETHERNET

REEL HUB

CURRENT SETUP DATA CHANGE

ALL REC INHIBIT

GND

PLAY

STOP

1-12

Description

CLOSURE SW (FF)

PANEL REC SW OUT

PANEL PLAY SW OUT

PANEL STOP SW OUT

PANEL ENTRY SW OUT

Non-REFERENCE

COLOR FRAME LOCK STATUS

LOCK STATUS OF DRUM SERVO

LOCK STATUS OF CAPSTAN SERVO

EDIT PRESET STATUS of the CUE Channel

EDIT PRESET STATUS of the TC Channel

CASSETTE OUT/IN STATUS

TAPE STATUS

SPARE

SPARE

(Maximum output current 50 mA)

SIGNAL GND

CLOSURE SW (PREROLL)

CLOSURE SW (STANDBY ON)

CLOSURE SW (REW)

CLOSURE SW (ENTRY IN)

CLOSURE SW (STANDBY OFF)

CLOSURE SW (EJECT)

REC STATUS

CHANNEL CONDITION RED STATUS

ASSEMBLE PRESET STATUS

EDIT STATUS

EJECT STATUS

ETHERNET STATUS

REEL HUB STATUS

CURRENT SETUP DATA CHANGE STATUS

ALL REC INHIBIT STATUS

CLOSURE SW (PLAY)

CLOSURE SW (STOP)

(Continue)

SRW-5000

(Continued)

Pin No.

I/O

* *

1 Setting change

*

2 Signal

36

37

38

39

40

41

42

IN O

OUT X

OUT

O

OUT O

OUT X

OUT O

OUT

O

REC

REV LAMP

DA2 PRESET

DA1 PRESET

FWD LAMP

DA4 PRESET

DA3 PRESET

43

44

45

46

47

OUT X

OUT O

OUT O

OUT X

OUT X

STOP

VIDEO PRESET

INSERT PRESET

STBY ON

PLAY

48

49

OUT X

OUT

X

REMOTE

ALARM

50 OUT O PREROLL

* 1: Input ; 47 k Z pull up to + 5 V (close/open)

Output ; 10 k Z pull up to + 5 V (0 V or open)

* 2: The pins described as O mark are possible to change the setting.

Refer to the optional interface manual for changing the setting.

REMOTE 1-IN: 9-pin (female)

REMOTE 1-I/O: 9-pin (female)

External view

5 1

Pin No.

7

8

9

5

6

1

2

3

4

Signal

GND

RM TX( _ )

RM RX( + )

GND

PRIORITY

GND

RM TX(

+

)

RM RX( _ )

GND

9 6

Description

CLOSURE SW (REC)

REV LAMP STATUS

DA2 EDIT PRESET STATUS

DA1 EDIT PRESET STATUS

FWD LAMP STATUS

DA4 EDIT PRESET STATUS

DA3 EDIT PRESET STATUS

STOP STATUS

VIDEO EDIT PRESET STATUS

INSERT EDIT PRESET STATUS

STANDBY ON STATUS

PLAY STATUS

REMOTE STATUS

SYSTEM ALARM STATUS

PREROLL STATUS

RS232C: 9-pin (male)

External view

1 5

Pin No.

6

7

4

5

8

9

1

2

3

6 9

Signal

DCD ; Data Carrier Detect (Input)

RXD ; Received Data (Input)

TXD ; Transmitted Data (Output)

DTR ; Data Terminal Ready (Output)

SG ; Signal Ground

DSR ; Data Set Ready (Input)

RTS ; Request to Send (Output)

CTS ; Clear to Send (Input)

NC

SRW-5000

1-13

VIDEO CONTROL: 9-pin (female)

External view

5 1

Pin No.

7

8

9

5

6

1

2

3

4

Signal

GND

RM TX ( _ )

RM RX (

+

)

GND

——

GND

RM TX (

+

)

RM RX ( _ )

GND

9 6

ETHERNET: RJ-45 modular jack

Standard : Complied with IEEE 802.3u (100BASE-TX) and IEEE 802.3 (10BASE-T)

External view

USB: USB series B

Standard : USB standard Ver1.1

External view

2 1

3 4

Pin No.

3

4

1

2

I/O

I/O

I/O

Signal

Vcc (

+

5 V)

DATA ( _ )

DATA ( + )

GND

1-9. Switch Settings on Connector Panel

When the unit is installed, be sure to perform the following setup.

Refer to the operation manual “Section 2 Location and

Function of Parts” for setup.

. 75 Z termination switch of reference video input

Pin No.

1

2

3

4

5

6

7

8

I/O

O

I

O

I

8 1

Signal

TXD ( + )

TXD ( _ )

RXD ( + )

NC

NC

RXD (

_

)

NC

NC

1-14

SRW-5000

1-10. Switch Settings on Circuit Boards

1-10-1. APR-62 Board

If necessary, perform the following audio-related settings using the switches on the APR-62 board.

. Analog audio output level/output headroom

. Monitor output level/output headroom n

Refer to Section 1-15 for removing and reattaching the plug-in boards.

A B

S701

C D E F G

1

2

S400

3

S4200 S3200 S2200 S1200

S2300 S1300

4

< Top View >

APR-62 Board (Side A)

Analog audio and Monitor output level/output headroom settings

Channel Ref. No.

Switches state (

\

: Knob position)

Output level (600

Z

)/Output headroom

O N

O N

R

L

CH1

CH2

CH3

CH4

S1200

S2200

S3200

S4200

S1300

S2300

+ 4 dBm/ _ 20 dBm

(Factory setting)

O N

_ 3 dBm/ _ 18 dBm

O N

O N

+ 1 dBm/ _ 18 dBm

O N

O N

0 dBm/ _ 18 dBm

O N

0 dBm/ _ 12 dBm + 4 dBm/ _ 18 dBm + 4 dBm/ _ 16 dBm + 6 dBm/ _ 20 dBm

SRW-5000

1-15

1-10-2. CUE-13 Board

If necessary, perform the following audio-related settings using the switches on the

CUE-13 board.

. CUE output level

1 2

A

S101

B

C

S100

D

CUE-13 Board (Side A)

CUE output level settings

Ref. No.

S101

Switches state (

\

: Knob position)

O N O N

+ 4 dBm/600 Z

(Factory setting)

0 dBm/600 Z

< Top View >

O N O N

_ 3 dBm/600 Z _ 20 dBm/600 Z

1-16

SRW-5000

1-11. System Setting

n

The function assigned to each of function keys (

[F1] to

[F9]) discribed in this section is initial status.

1. Activating the system menu

(1) Turn on the power.

(2) Press the DIAG button while pressing the

[SFT]

(SHIFT) key.

(3) Press the

[F8] (MAINTE EXEC) key while pressing the

[SFT] (SHIFT) key.

(4) Press the

[F9] (OTHERS CHECK) key.

(5) Press the

[F9] (SYSTEM MENU) key to display the system menu.

1

[SFT]

+ DIAG

SFT

F1

F2

F3

F4

DIAG

ALT F5 F6 F7 F8 F9 F10

3, 4

[F9]

2

[SFT]

+

[F8]

2. Setting the system

Set the system referring to the table 1-11-1 below.

n

The selectable systems differ according to the VTR settings (operation mode) or option boards.

The unselectable system setting items are shaded.

(1) Press the

[F4] (SYSTEM SIGNAL) key several times for setting to the 4:2:2 or 4:4:4.

n

The 4:4:4 can be selected when the option HKSR-5003 is installed.

F1

F2

F3

F4

DIAG

SYSTEM

LINE

SYSTEM

SCAN

SYSTEM

FREQ

SYSTEM MENU

1080/59.94i 422 YPbPr

[F1]SYSTEM LINE 1080

[F2]SYSTEM SCAN MODE Interlace

[F3]SYSTEM FRAME 29.97Hz

[F4]SYSTEM SIGNAL MODE 422

[F6]FRAME CONVERT 1080/59.94i

SYSTEM

SIGNAL

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

ALT F5 F6 F7 F8 F9 F10

Table 1-11-1. Compatibility of REC and PB

System setting (Operation mode)

SYSTEM

SIGNAL

4:4:4 (RGB)

(HKSR-5003)

SYSTEM

LINE

4:2:2 (YPbPr) 1080

720

1080

SYSTEM

SCAN

PsF

Interlace

Progressive

PsF

Interlace

Tape format which can be played back.

SYSTEM

(FRAME)

FREQ

[Hz]

23.976

24

25

29.97

30

50

59.94

60

59.94, 60

23.976,

24, 25,

29.97, 30

50,

59.94, 60

Digital BETACAM

Interlace

(HKSR-5002)

1080 4:2:2

NTSC PAL PsF

* 1

*

1

* 2 * 3

* 2

* 2

* 2 * 3

1080 4:2:2 720 4:2:2

PsF Interlace Progressive

* 3

* 3

1080 4:4:4

(HKSR-5003)

PsF Interlace

*

3

* 3

* 1 : The HD SDI output signal is converted to PsF.

*

2 : If the signal is played back at a different system frequency from REC, the audio may be muted.

* 3 : The video output signal is converted to the system scanning method selected by the system of this unit.

SRW-5000

1-17

(2) Press the

[F1] (SYSTEM LINE) key several times for setting to the 1080 x 1920 or 720 x 1280.

F1

F2

F3

F4

DIAG

ALT

SYSTEM

LINE

SYSTEM

SCAN

SYSTEM MENU

1080/59.94i 422 YPbPr

[F1]SYSTEM LINE 1080

[F2]SYSTEM SCAN MODE Interlace

SYSTEM

FREQ

SYSTEM

SIGNAL

[F4]SYSTEM SIGNAL MODE 422

[F6]FRAME CONVERT 1080/59.94i

[F7]ACTIVE LINE 1080

[F8]CANCEL [F9]Exec of Reset VTR Sys

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

(3) Press the

F5 F6 F7 F8 F9 F10

[F2] (SYSTEM SCAN) key several times for setting to the Interlace, Progressive or PsF (Progressive Segmented Frame).

(5) Press the

[F6] (FRAME CONVERT) key several times to set the image format of the format converter output.

n

This item can be set when the option HKSR-5001 is installed.

F1

F2

F3

F4

DIAG

ALT

SYSTEM

LINE

SYSTEM MENU

SYSTEM

SCAN

SYSTEM

FREQ

[F3]SYSTEM FRAME 29.97Hz

[F4]SYSTEM SIGNAL MODE 422

[F

[F6]FRAME CONVERT 1080/59.94i

SYSTEM

SIGNAL

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

F5 F6 F7 F8 F9 F10

F1

F2

F3

F4

DIAG

ALT

SYSTEM

LINE

SYSTEM

SCAN

SYSTEM MENU

1080/59.94i 422 YPbPr

[F1]SYSTEM LINE 1080

[F2]SYSTEM SCAN MODE Interlace

SYSTEM

FREQ

SYSTEM

SIGNAL

[F6]FRAME CONVERT 1080/59.94i

[F7]ACTIVE LINE 1080

[F8]CANCEL [F9]Exec of Reset VTR Sys

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

(4) Press the

F5 F6 F7 F8 F9 F10

[F3] (SYSTEM FREQ) key several times to set the frame rate.

(6) Press the

[F7] (ACTIVE LINE) key several times for setting the active line to 1080 or 1035.

n

This becomes effective only when the VTR is set to

4:2:2 1080 x 1920 Interlace 29.97 or 30 frames.

F1

F2

F3

F4

DIAG

ALT

SYSTEM

LINE

SYSTEM

SCAN

SYSTEM

FREQ

SYSTEM MENU

1080/59.94i 422 YPbPr

[F1]SYSTEM LINE 1080

[F2]SYSTEM SCAN MODE Interlace

[F3]SYSTEM FRAME 29.97Hz

[F4]SYSTEM SIGNAL MODE 422

OFF

[F6]FRAME CONVERT 1080/59.94i

SYSTEM

SIGNAL

[F8]CANCEL [F9]Exec of Reset VTR Sys

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

F5 F6 F7 F8 F9 F10

F1

F2

F3

F4

DIAG

SYSTEM

LINE

SYSTEM MENU

SYSTEM

SCAN

[F1]SYSTEM LINE 1080

[F2]SYSTEM SCAN MODE Interlace

SYSTEM

FREQ 30Hz

[F6]FRAME CONVERT 1080/59.94i

SYSTEM

SIGNAL

[F8]CANCEL [F9]Exec of Reset VTR Sys

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

ALT F5 F6 F7 F8 F9 F10

1-18

SRW-5000

3. Store the settings

(1) Press the

[F9] (EXEC) key.

. The message “Are You Sure?” is displayed.

F1

SYSTEM

LINE

SYSTEM MENU

1080/59.94i 422 YPbPr

F2

SYSTEM

SCAN

F3

SYSTEM

FREQ

I f y o u p r e s s [ F 9 ] a g a i n t h e n E X E C U T E .

O r p r e s s [ F 8 ] t o C A N C E L .

[F7]ACTIVE LINE 1080

F4

DIAG

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

ALT F5 F6 F7 F8 F9 F10

(2) Press the

[F9] (EXEC) key again.

. The message “SYSTEM REBOOTING......” is displayed.

. On completing the store of the settings, the system is restarted automatically.

1-12. Opening/Closing the Lower Control

Panel

Open the Lower Control Panel

1.

After pressing the unlock button, open the lower control panel in the arrow direction.

n

The inclination of the lower control panel can be adjusted to five steps (about 18 d each time) between vertical and horizontal.

Unlock button

Unlock button

F1

F2

F3

F4

DIAG

SYSTEM

LINE

SYSTEM

SCAN

SYSTEM MENU

1080/59.94i 422 YPbPr

[F1]SYSTEM LINE 1080

[F2]SYSTEM SCAN MODE Interlace

[F3]SYSTEM FRAME 29.97Hz

SYSTEM

FREQ

[F5]SYSTEM REC FORMAT

SYSTEM

SIGNAL

[F7]ACTIVE LINE 1080

[F8]CANCEL [F9]Exec of Reset VTR Sys

(STOP & STANDBY OFF/EJECT)

FRAME

CNVERT

ACTIVE

LINE

CANCEL EXEC EXIT

ALT F5 F6 F7 F8 F9 F10

Lower control panel

Close the Lower Control Panel

While lifting the outer stay by the forefinger, close the lower control panel as shown in the figure.

(3) Check that the system is restarted, and turn OFF the

POWER switch and turn ON again.

Outer stay

SRW-5000

1-19

1-13. Reference System

For each reference signal of this unit, either of an external reference video signal from the REF. INPUT connector or input video signal from the HD SDI INPUT A connector is automatically selected according to the setting of setup menu ITEM-005, and the operation mode (PB/EDIT/REC) of this unit. (Refer to the table 1-13-1 below.) n

When the setup menu ITEM-005 is set to “enternal”, be sure to input the external reference video signal to the REF. INPUT connector.

The record might not be correctly done.

Alarm Display for Video Input Signal and Reference Signal

Blink of the STOP button

The button blinks when the reference signal is not locked to an input video signal.

(This function can be canceled in the setup menu ITEM-102.)

. When the setup menu ITEM-005 is set to “input”:

The STOP button blinks when the signal is not input to the HD SDI INPUT A connector.

. When the setup menu ITEM-005 is set to “external”:

The STOP button blinks in the following either cases.

When no reference signal is input to REF. INPUT connector.

When the reference video signal (REF. INPUT) is not synchronized with an input signal from the HD

SDI INPUT A connector.

. When the setup menu ITEM-005 is set to “auto”:

The STOP button blinks in the following either cases.

No signal is input to the HD SDI INPUT A connector when the REC/EDIT mode.

No reference signal is input to REF. INPUT connector when the PB mode.

ITEM-005 setting

Operation mode

Selected reference signal

Table 1-13-1. Reference System

external

PB/EDIT/REC

REF. INPUT

PB auto

EDIT REC

HD SDI INPUT A input

PB/EDIT/REC

1-20

SRW-5000

1-14. Settings when Editor is Connected

1-14-1. Settings for Time Code

To set the TIME CODE, use the TC menu in the function menu.

Set the TIME CODE as follows when the editor or the VTR with edit function is connected.

Button

F6

F7

F8

Item

REGENE SOURCE

TCG MODE

RUN MODE

Setting

int-L preset free

1-14-2. VTR Constant Values Settings of Editor

Set the VTR constant values according to the table 1-14-2 below when the editor which needs the setting of VTR constant values is connected.

Table 1-14-2. VTR Constant Values Settings of Editor

VTR CONSTANT 1 VTR CONSTANT 2

Frame rate

1 2 3

Data No.

4 5 6 7 8 1 2 3

Data No.

4 5 6 7 8

59.94, 29.97P

20 A0 00 96 07 07 03 8A 0D 08 00 00 80 3D FF 5A

50, 25P 21 A0 00 7D 07 07 03 8A 0D 07 00 00 80 3B FF 4B

24P, 23.98P

22 A0 00 78 07 07 03 8A 0D 07 00 00 80 3B FF 4B

(Standard value is expressed in hexadecimal.)

SRW-5000

1-21

1-15. Removing/Reattaching Plug-in

Board

m

. Turn off the power and unplug the power cord before removing/reattaching the board.

. When the plug-in board is replaced, refer to the maintenance manual, volume 1.

Removing

1.

Fully loosen the fixing screw.

2.

Slide the knobs on upper lid (front) assembly each in the inside. (Move the knobs to the outside to fix the upper lid (front) assembly.

3.

Remove the upper lid (front) assembly.

Knob

Upper lid (front) assembly

4.

Fully loosen the two fixing screws.

5.

Remove the upper lid (rear) assembly by moving in the direction indicated by the arrow.

Fixing screw

Fixing screw

Upper lid (rear) assembly

Portion

Square hole

Fixing screw

Knob

Removal

Installation

6.

Open the eject levers on both ends of the board in the direction of the arrows.

7.

Hold the eject levers and slowly pull the board out.

2

1 1

1

Pulling out

1

3

2

3

Insertion

1-22

SRW-5000

Reattaching

When reattaching the board, install in the reverse order of removal.

m

. After inserting the board, push in the two folded eject levers simultaneously to firmly connect the plug-in board to the connector on the motherboard.

. When reattaching the upper lid (rear) assembly, be sure to insert the protrusions in the square holes on the chassis, and then secure the lid.

. Tighten the fixing screws as following torque.

Tightening torque: 120 x 10 _2

N

.m {12.2 kgf.cm}

1-16. Taking Out the Cassette in Tape

Slacking

When slacking the tape in this unit, follow the steps below to take out the cassette tape.

m

. Turn off the power and unplug the power cord before removing/reattaching the board.

. Being careful not to damage the tape, take out the cassette tape with care.

1.

Fully loosen the fixing screw.

2.

Slide the knobs on upper lid (front) assembly each in the inside. (Move the knobs to the outside to fix the upper lid (front) assembly.

3.

Remove the upper lid (front) assembly.

Knob

Upper lid (front) assembly

Knob

Fixing screw

SRW-5000

Removal

Installation

1-23

4.

Release the lock of the board holder and open the AE-

31 board in the arrow direction.

5.

Check by eye that the unit is in the state to be able to wind manually the tape.

6.

Pull the ME wire for a few times with short steps to take up the tape inside the cassette.

m

. Be careful for the tape not to catch in parts such as a flange of a tape guide.

. Don’t take the ME wire off the wire holder.

. The ME wire links with the T real table.

The T real table rotates about 1/24 turns clockwise

(take-up direction) by pulling the ME wire about 6 mm.

7.

Rotate the M gear of the threading motor block in the arrow direction on the EJECT label by about a half turn to slack off the tape.

8.

Pull the ME wire for a few times with short steps in the arrow direction on the EJECT label to take up the tape inside the cassette.

9.

To wind up the tape into the cassette, repeat steps 7 and 8.

10. Check that the ME wire is slacken.

n

On completely winding up the tape into the cassette, the M gear will be tighten.

(Unthreading end state)

11. Open the lower control panel.

12. Turn the eject knob in the arrow direction on the label until the cassette is completely ejected.

Label

Eject knob

AE-31 board

Board holder

M gear EJECT label

ME wire

Wire holder

EJECT label

Gear box assembly

1-24

SRW-5000

Appendix A

Setting Check Sheet

It is recommended to copy these check sheets and write down the setup conditions (switch and so on) under the application.

If the setting is changed temporarily by changing operating condition, the setting can be reset easily.

For the setup menu, store the setting values to the Memory Stick (Memory Card) before check, maintenace and repair. (Refer to the operation manual.)

It is recommended to attach the sheets to the unit when check, maintenance and repair.

If the unit is used frequently by changing the combination of each system, making the sheets are convenient.

(Make use of the check sheets in prevention of setting error.)

Model name:

. Firmware

Serial No.: _____________________________

SYS1 ROM version: ____________________________

SYS2 ROM version: ____________________________

SY ROM version: ____________________________

CP ROM version: ____________________________

. RS-232C baud rate:

. Hours meter bps

Write down the value of hours meter when checking, servicing, and maintaining.

ITEM

H01: OPERATION HOURS

H02: DRUM RUNNING HOURS

H03: TAPE RUNNING HOURS

H04: THREADING COUNTER

H12: DRUM RUNNING HOURS (Resettable)

H13: TAPE RUNNING HOURS (Resettable)

H14: THREADING COUNTER (Resettable)

Date

/

/

/

/

/

/

/

Hours meter

SRW-5000

A-1

Setting Check Sheet

Connector panel

Switch

Reference video input 1 75 Z

Reference video input 2 75 Z

Upper control panel

Switch

REMOTE 1 (9P)

REMOTE 2 (50P)

Factory setting

ON

ON

Factory setting

LOCAL

LOCAL

Switches on the board

n

Never change the setting of Factory use switches.

Board

AE-31

Name

HEAD TUNE switch

Analog audio output level/ output headroom

Channel

CH1

CH2

CH1

Setting

[||]

ON

[||] ON

Switch No.

S100

S200

S1200

[||]

OFF

[||] OFF

Setting

[||]

Lighting (REMOTE)

[||]

Lighting (REMOTE)

Factory setting

Factory use

Factory use

O N

CH2 S2200

+ 4 dBm/ _ 20 dB

O N Output level/

Output headroom

+

4 dBm/

_

20 dB

_

3 dBm/

_

18 dB

+1 dBm/

_

18 dB

0 dBm/

_

18 dB

0 dBm/

_

12 dB

+4 dBm/

_

18 dB

+4 dBm/

_

16 dB

+6 dBm/

_

16 dB

S1200/S2200

S3200/S4200

S1300/S2300 all OFF only 1-bit to ON only 2-bit to ON only 3-bit to ON only 4-bit to ON only 5-bit to ON only 6-bit to ON only 8-bit to ON

CH3

CH4

S3200

S4200

+ 4 dBm/ _ 20 dB

O N

+ 4 dBm/ _ 20 dB

O N

Monitor output level/ output headroom

R S1300

+

4 dBm/

_

20 dB

O N

L S2300

+ 4 dBm/ _ 20 dB

O N

CUE-13 CUE audio output level — S101

+ 4 dBm/ _ 20 dB

O N

+ 4 dBm/600 Z

(Continued)

[||]

Lightless (LOCAL)

[||]

Lightless (LOCAL)

Setting

O N

( dBm/ dB)

O N

( dBm/ dB)

O N

( dBm/ dB)

O N

( dBm/ dB)

O N

( dBm/ dB)

O N

( dBm/ dB)

O N

( dBm/600 Z )

A-2

SRW-5000

Setting Check Sheet n

The following switches are Factory use.

Never change the setting.

Board

APR-62

Switch No.

S400

Factory setting

O N

S701

O N

CP-382 S1

O N

S2

O N

S300

O N

EQ-94 S2201

S2901

O N

O N

HIF-8 S900

HPR-8 S200

O N

O N

S600 O N

S2000

O N

(Continued)

Board

IRC-5

Switch No.

S400

S700

S800

SS-95 S100

S600

S802

VPR-79 S100

S700

S101

S500

S501

O N

O N

O N

O N

O N

O N

O N

Factory setting

O N

O N

O N

O N

SRW-5000

A-3

The material contained in this manual consists of information that is the property of Sony Corporation.

Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.

Le matériel contenu dans ce manuel consiste en informations qui sont la propriété de Sony Corporation.

Sony Corporation interdit formellement la copie de quelque partie que ce soit de ce manuel ou son emploi pour tout autre but que des opérations ou entretiens de l’équipement à moins d’une permission écrite de Sony

Corporation.

Das in dieser Anleitung enthaltene Material besteht aus

Informationen, die Eigentum der Sony Corporation sind.

Die Sony Corporation untersagt ausdrücklich die

Vervielfältigung jeglicher Teile dieser Anleitung oder den

Gebrauch derselben für irgendeinen anderen Zweck als die Bedienung oder Wartung der in dieser Anleitung beschriebenen Ausrüstung ohne ausdrückliche schriftliche Erlaubnis der Sony Corporation.

SRW-5000

SRW-5000 (SY) E

3-791-086-01 (1)

Sony Corporation

B&P Company

Printed in Japan

2003. 8 08

©2003

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
