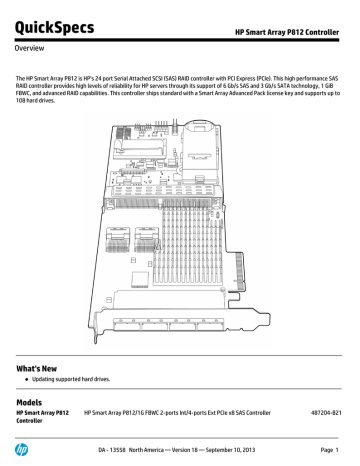

Overview

HP Smart Array P812 Controller

The HP Smart Array P812 is HP's 24 port Serial Attached SCSI (SAS) RAID controller with PCI Express (PCIe). This high performance SAS

RAID controller provides high levels of reliability for HP servers through its support of 6 Gb/s SAS and 3 Gb/s SATA technology, 1 GiB

FBWC, and advanced RAID capabilities. This controller ships standard with a Smart Array Advanced Pack license key and supports up to

108 hard drives.

What's New

Updating supported hard drives.

Models

HP Smart Array P812

Controller

HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller

DA - 13558 North America — Version 18 — September 10, 2013

487204-B21

Page 1

QuickSpecs

Standard Features

The Smart Array

Advantage

HP Smart Array P812 Controller

HP's innovative design and integration work of the Smart Array family of products creates customer value that is unmatched in the industry. Use of Smart Array products across multiple applications results in a much lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HP Smart Array family brings an unparalleled return on investment through:

Data Compatibility among all models of Smart Array controllers allows simple and easy upgrades any time needs for higher performance, capacity, and availability increase. Even successive generations of

Smart Array controllers understand the data format of other Smart Array Controllers.

Consistent Configuration and Management Tools. All Smart Array products utilize a standard set of management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing training requirements and technical expertise necessary to install and maintain the HP server storage.

Universal Drive form factors (2.5" and 3.5") are used across multiple HP servers, disk enclosures and storage systems. With compatibility across many enterprise platforms, you are free to deploy and redeploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives.

Pre-Failure Warranty means HP Insight Manager not only reports when a drive is going to fail but allows replacement of failing drives prior to actual failure. For complete details, consult the HP Support Center or refer to your HP Server documentation.

Key Features

Seamless upgrades to and from other HP Smart Array controllers.

Storage interface (SAS/SATA)

Two Mini SAS 4i connectors for attachment to internal drive backplanes

Four Mini SAS 4x connectors for attachment to JBODs and external tape drives

6 Gb/s SAS technology delivers up to 600 MB/s per physical link.

3 Gb/s SATA technology delivers up to 300 MB/s for directly attached SATA drives.

Mix-and-match SAS and SATA drives. Deploy drive technology as needed to fit the computing environment.

Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries.

Host interface (PCI Express)

PCI Express 2.0 8x host interface provides up to 4 GB/s in each direction

RAID controller features

1 GiB flash-backed write cache (not all of which is available for user data)

RAID 0, 1, 1+0, 5, 6, 50, and 60

Recovery ROM protects against ROM corruption.

Smart Array Advanced Pack license key included (see below)

Consistent management software among all Smart Array family products, including Array

Configuration Utility (ACU), Systems Insight Manager (SIM), Array Diagnostic Utility (ADU), Online

ROM Configuration Utility (ORCA), and SmartStart.

SAS 2.0 (6 Gb/s, 3 Gb/s, and 1.5 Gb/s). 6 Gb/s bandwidth supports larger numbers of SAS drives in the SAS subsystem and provides better support for future high-bandwidth SSDs.

SATA 2.6 (3 Gb/s and 1.5 Gb/s).

24 SAS/SATA physical links distributed across six Mini SAS connectors

Two Mini SAS 4i connectors (8 physical links): for attachment to internal drive backplanes

Four Mini SAS 4x connectors (16 physical links): for attachment to JBODs and external tape drives

DA - 13558 North America — Version 18 — September 10, 2013 Page 2

QuickSpecs

Standard Features

Storage Interface

(SAS/SATA)

PCI Express 2.0 (5 MT/s and 2.5 MT/s)

Eight lane mechanical connector

Electrically supports one, four, and eight lanes

Host Interface

(PCI Express)

RAID Processor and

Expander

Interface Speeds

HP Smart Array P812 Controller

P812 includes a PMC-Sierra SRC 8x6G SAS RAID-on-chip featuring:

Eight SAS/SATA physical links, each supporting 6, 3, and 1.5 Gb/s for SAS protocol and 3 and 1.5

Gb/s for SATA protocol

Eight PCI Express 2.0 lanes each supporting 5 Gb/s

DDR2-800 memory controller

High performance MIPS-based multi-processor subsystem

Hardware XOR and Reed-Solomon Engines for RAID 5 and RAID 6 acceleration

P812 also includes a PMC-Sierra SXP 36x3GSec 6 Gb/s SAS Expander to support six Mini SAS connectors in one controller card.

The P812 1GB array accelerator features a flash-backed cache. If the cache DRAM contains write data when power is lost, the write data is copied into flash memory chips on the cache module, drawing power from attached capacitors. When power is restored, if the flash memory chips contain write data, the data is copied back into the DRAM so it can be flushed to the drives.

Advantages over battery-backed cache architectures include:

No 72-hour deadline for retrieving the data before the batteries fully discharge

Capacitors charge faster than batteries; controller disables the write cache for only a few minutes waiting for capacitors to charge rather than a few hours waiting for batteries to charge

No need for periodic battery replacement

No special disposal process

P812 supports the latest interface speeds.

Interface

PCI Express

SAS/SATA

Maximum bandwidth

*

4 GB/s (in each direction)

4.8 GB/s (in each direction)

RAID cache 6.4 GiB/s

* Not counting protocol overhead.

Notes

PCI Express 2.0 (8 lanes at 5 MT/s)

SAS-2 (8 physical links at 6 Gb/s)

The RAID controller has eight 6 Gb/s SAS physical links. Bandwidth is dynamically shared by the 24 physical links used in the 6

Mini SAS connectors.

DDR2-800 SDRAM (64-bit data and 8-bit

ECC).

DA - 13558 North America — Version 18 — September 10, 2013 Page 3

QuickSpecs

HP Smart Array P812 Controller

Standard Features

Native Command Queuing

(NCQ)

Native Command Queuing (NCQ) is a technology designed to increase performance of SATA hard disk drives by allowing the individual hard disk to internally optimize the order in which received read and write commands are executed. This can reduce the amount of unnecessary going back-and-forth on the drive's heads, resulting in increased performance for workloads where multiple simultaneous read/write requests are outstanding, most often occurring in server or storage-type applications. Without NCQ the drive has to process and complete one command at a time. For NCQ to be enabled, it must be supported and turned on in the controller and in the hard drive itself.

NOTE: Please see the SATA Hard Drive QuickSpecs for specific SATA hard drive capacities that support NCQ: http://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.html

.

Dual Domain Support

Number of Drives

RAID Levels

Dual domain SAS creates redundant pathways for external drives from servers to storage devices. The redundant paths created by these configurations reduce or eliminate single points of failure within the storage network. This provides increased levels of high availability with redundant paths from the controller to the drives. Dual domain SAS implementations make it possible to tolerate host bus adapter

(HBA) or controller failure, external cable failure, expander failure, cable pulls, expander failure and failure in a spanned disk (JBOD) environments.

P812 supports up to 108 drives. Examples:

Eight internal drives plus four HP D2700 Disk Enclosures with 25 drives each (108 drives)

Eight internal drives plus eight HP D2600 Disk Enclosures with 12 drives each (104 drives)

Eight internal drives plus four HP MSA70 Disk Enclosures with 25 drives each (108 drives)

Eight internal drives plus eight HP MSA60 Disk Enclosures with 12 drives each (104 drives)

RAID 0 (striping) provides no extra data protection. Data is striped across all drives in the array to increase performance. RAID 0 requires a minimum of one drive.

RAID 1 (mirroring) protects against failure of one drive. Data is duplicated on a pair of drives. RAID 1 requires a minimum of two drives. Also see the Advanced Pack Mirror Splitting and Combining feature.

RAID 1+0 (mirroring and striping) protects against failure of one drive (and failure of particular multiple drives). RAID 1+0 is a nested RAID method that uses RAID 0 striping across RAID 1 arrays to provide performance and protection. RAID 1+0 requires a minimum of four drives. Also see the

Advanced Pack Mirror Splitting and Combining feature.

RAID 5 (distributed data guarding) protects against failure of one drive. Data protection is provided by parity data distributed across all the drives. When a physical drive fails, data that was on the failed drive can be calculated from the remaining parity data and user data on the other drives in the array. This recovered data is usually written to an online spare drive through a process called a rebuild. RAID 5 requires a minimum of three drives.

RAID 6 with ADG (Advanced Data Guarding): This is the highest level of fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.

RAID 50 (RAID 5+0) protects against failure of one drive (and failure of particular multiple drives).

RAID 50 is a nested RAID method that uses RAID 0 striping across RAID 5 arrays. RAID 50 tolerates one drive failure in each spanned array without loss of data. RAID 50 requires less rebuild time than single RAID 5 arrays RAID 50 requires a minimum of six drives.

RAID 60 (RAID 6+0) allows administrators to split the RAID 6 storage across multiple external boxes. RAID 60 requires a minimum of eight drives. RAID 60 is a nested RAID method that uses RAID

DA - 13558 North America — Version 18 — September 10, 2013 Page 4

QuickSpecs

Standard Features

HP Smart Array P812 Controller

0 block-level striping across multiple RAID 6 arrays with dual distributed parity. With the inclusion of dual parity, RAID 60 will tolerate the failure of two disks in each spanned array without loss of data.

Online Management

Features

Availability

Fault Prevention

Online Capacity Expansion (increase array size feature)

Advanced Capacity Expansion (shrink array and move array features)

Online RAID Level Migration (change the fault tolerance level of a configured logical drive)

Online Stripe Size Migration (change the stripe size of a configured logical drive)

Online Spares (provide automatic drive replace for a failed drive in RAID levels other than RAID 0)

User Selectable Expand and Rebuild Priority (select the priority of rebuilding data from a failed drive over current requests from the operating system)

User Selectable Stripe Size

User Selectable Read and Write Cache Sizes

Logical Drive Extension (increase logical drive size without disturbing data)

User Selectable Surface Scan idle interval (control the background process that scans drives for bad sectors, and verify the consistency of RAID 5 and RAID 6 parity data)

Physical Drive Write Cache control (enable drive write cache for applications like video editing that that can tolerate data loss, and/or systems that have redundant and uninterruptible power supplies)

Provides increased server uptime by providing advanced storage functionality:

Online RAID Level Migration (between any RAID level)

Online Capacity Expansion

Logical Drive Capacity Extension

Global Online Spare

Pre-Failure Warranty

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

S.M.A.R.T.: Self Monitoring Analysis and Reporting Technology first developed at HP detects possible hard disk failure before it occurs, allowing replacement of the component before failure occurs.

Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.

Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.

Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.

Environment Tracking for External Storage System: Monitors fan speed and cabinet temperature of

Modular Smart Array Enclosures.

DA - 13558 North America — Version 18 — September 10, 2013 Page 5

QuickSpecs

Standard Features

Fault Recovery

HP Smart Array P812 Controller

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

Recovery ROM: This feature provides unique redundancy that protects from a ROM image corruption. A new version of firmware can be flashed to the ROM while the controller maintains the last known working version of firmware. If the firmware becomes corrupt, the controller will revert back to the previous version of firmware and continue operating. This reduces the risk of flashing firmware to the controller.

On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically.

DRAM ECC corrects against single bit data and address corruption.

Ease of Use

Warranty

Consistency and Upgradeability make the Smart Array family unique in the industry:

GUI based configuration, management and diagnostic software tools

Common data format between generations of products

Data migration between servers and external Modular Smart Array enclosures

The warranty for this device is 3 years parts, labor and onsite.

Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP Support

Center or refer to your HP Server Documentation.

Warranty Upgrade Options

Response - Upgrade on-site response from next business day to same day 4 hours

Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days

Duration - Select duration of coverage for a period of 1, 3, or 5 years

Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level this product attaches too

DA - 13558 North America — Version 18 — September 10, 2013 Page 6

QuickSpecs

Compatibility

Servers

HP Smart Array P812 Controller

For up to date compatibility, please see the following URL for complete Smart Array P800/512MB

Controller compatibility and support information: http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

Operating Systems

Software Suite

Microsoft Windows Server

Microsoft Windows Server Hyper-V

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

VMware

Novell Netware

Open Server

UnixWare

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server and Smart Array RAID controller, please visit our Support Matrix at: http://www.hp.com/go/ossupport

NOTE: For more Linux OS support & certification information, please visit: http://h18004.www1.hp.com/products/servers/linux/

All Smart Array products share a common set of configuration, management and diagnostic tools. This software consistency of tools reduces the cost of training for each successive generation of product and takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of ownership by reducing training and technical expertise necessary to install and maintain HP server storage.

HP Systems Insight Manager (SIM)

Provides the basic management features of system discovery and identification, single-event view, inventory data collection, and reporting

Monitors over 1200 system wide parameters

Smart Array performance monitoring

Smart Array drive fault prediction

HP Array Configuration Utility (ACU)

Powerful Web based configuration utility for all Smart Array controllers

Provides a graphical view of HP drive array configurations

Allows for management of multiple arrays over a secure Internet connection from anywhere in the world

Easy to use Wizards for configuration

Command line interface (ACU-CLI) also available

Runs offline for all supported operating systems

Runs online on Windows and linux

For online configuration on NetWare, use CPQONLIN

CPQONLIN

Menu-based configuration utility specifically for servers using Novell NetWare

HP Option ROM Configuration for Arrays (ORCA)

ROM-based utility accessed by pressing F8 during system power up

View, create, and delete arrays and logical volumes and assign an online spare drive

Select the boot controller

For more advanced array configurations, use ACU

HP Array Diagnostic Utility (ADU)

DA - 13558 North America — Version 18 — September 10, 2013 Page 7

QuickSpecs

Compatibility

HP Smart Array P812 Controller

In depth diagnostic and reporting utility for all Smart Array controllers

Integrated with ACU

Runs offline for all supported operating systems

Runs online for Windows and Linux

HP Smart Array SAS/SATA Event Notification Service (CISSESRV)

Provides event notification to the Windows Server 2003 and Windows Server 2008 system event log and HP ProLiant integrated management log

HP Smart Array Advanced

Pack (license key included with P812)

RAID 6 (Advanced Data Guarding) protects against failure of any two drives. RAID 6 requires a minimum of four drives. ADG can tolerate multiple simultaneous drive failures without downtime or data loss and is ideal for applications requiring large logical volumes, because it can safely protect a single volume of up to 56 disk drives. RAID 6 also offers lower implementation costs and greater usable capacity per U than RAID 1.

RAID 60 (RAID 6+0) allows administrators to split the RAID 6 storage across multiple external boxes.

RAID 60 requires a minimum of eight drives. RAID 60 is a nested RAID method that uses RAID 0 block-level striping across multiple RAID 6 arrays with dual distributed parity. With the inclusion of dual parity, RAID 60 will tolerate the failure of two disks in each spanned array without loss of data.

Advanced Capacity Expansion automates higher capacity migration using capacity transformation to remove logical drives by shrinking and then expanding them online. Standard drive migration and expansion remain unchanged.

Mirror Splitting and Recombining. Mirror splitting is a task that splits an array with one or more RAID

1 or RAID 1+0 logical drives into two identical new arrays with RAID 0 logical drives. This is useful for administrators who want to replicate a configuration or need to build a backup before performing a risky operation. Using the ACU, administrators can also recombine a split mirrored array.

Drive Erase completely erases physical disks or logical volumes. This capability is useful when decommissioning, redeploying, or returning hard drives. Provides three patterns:

One pass erase: Write zeros

Two pass erase: Write random data, then zeros

Three pass erase: Write random data, random data, then zeros

Video On Demand Performance Optimization optimizes performance of video on demand and improves latency during video streaming. Provides controls for:

RAID 6/60 Alternate Inconsistency Repair Policy

RAID 5/6/50/60 Degraded Mode Performance Optimization

Physical Drive Request Elevator Sort

Monitor and Performance Analysis Delay

Maximum Drive Request Queue Depth

DA - 13558 North America — Version 18 — September 10, 2013 Page 8

QuickSpecs

Service and Support

Service and Support

HP Smart Array P812 Controller

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and

ROI

When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty

When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively

HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service.

In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments.

HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: www.hp.com/services/servers and www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

Customers purchasing from a commercial reseller can find HP Care Pack Services at http://www.hp.com/go/lookuptool

DA - 13558 North America — Version 18 — September 10, 2013 Page 9

QuickSpecs

HP Smart Array P812 Controller

Service and Support

Recommended HP Care Pack Services for optimal satisfaction with your HP product

Recommended Services Hardware Options Support

HP Care Packs provide support for all HP-branded hardware options qualified for inclusion in your server or storage solution. Any additional HP-qualified options installed within the server are covered at the same service level and for the same period as the server and no additional cost.

Help improve or maintain system uptime

Convenient onsite support

Committed response time http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7

Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

Help improve or maintain system uptime

Convenient onsite support

Committed response time http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

HP Installation and Startup of HP ProLiant Servers

Provides for the installation of your new HP ProLiant server and operating system to assist you in bringing your new HP ProLiant server and operating system into operation in a timely and professional manner.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

Delivery of the service at a mutually scheduled time convenient to your organization

Availability of an HP service specialist to answer basic questions during the onsite delivery of this service

Custom installation as detailed in "Delivery specifications" or in a Statement of Work (SOW)

Verification prior to installation that all service prerequisites are met http://h20195.www2.hp.com/V2/GetPDF.aspx/5982?7572ENN

DA - 13558 North America — Version 18 — September 10, 2013 Page 10

QuickSpecs

HP Smart Array P812 Controller

Service and Support

Optional HP Care Pack Services that will enhance your HP product experience

Optional Services 3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour

As an alternative to our recommended support level, for customers who need committed call-to-repair for server hardware.

Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN.pdf

3-Year HP Support Plus 24

As an alternative to our recommended support level, for customers who need access to responsive 24x7 hardware and software support plus software updates on HP and selected third party products:

For a higher return on your server and storage technology, our 3-year combined reactive support service delivers integrated onsite hardware/software support services available 24x7x365, including access to HP technical resources, 4-hour response onsite hardware support and software updates.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE

HP Proactive Select Service

Customer needs on demand access to consulting, technical proactive services and education courses

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy

Proactive Select Service Credits when you purchase your hardware and then use the credits over the next

12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN

eSupport

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal

The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

Access to self-solve tools (including search technical knowledge base)

Efficient logging and tracking of support cases

Collaboration with other business and IT professionals

Download of patches and drivers

Access to diagnostic tools

Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

DA - 13558 North America — Version 18 — September 10, 2013 Page 11

QuickSpecs

Service and Support

HP Smart Array P812 Controller

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X

7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.

Customer Technical

Training

HP Services Awards

Additional Services

Information

In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix,

Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.

To learn more on HP ProLiant servers, HP BladeSystem servers and HP storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/services/storage

DA - 13558 North America — Version 18 — September 10, 2013 Page 12

QuickSpecs

Related Options

HP Smart Array P812 Controller

NOTE: This is a list of supported options. Some may be discontinued.

Hard Drives

NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

HP SAS Hot Plug Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 1.2TB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive

HP 300GB 3G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 146GB 3G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 146GB 3G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 72GB 3G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP 1TB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP 750GB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP SAS Non-Hot Plug Drives

SAS Non-Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

454232-B21

516814-B21

416127-B21

384854-B21

605835-B21

507610-B21

693689-B21

625031-B21

507616-B21

507614-B21

461137-B21

461135-B21

693648-B21

619291-B21

581286-B21

581284-B21

507127-B21

627117-B21

492620-B21

512547-B21

504062-B21

507125-B21

418367-B21

512545-B21

418371-B21

516828-B21

516816-B21

590698-B21

537809-B21

DA - 13558 North America — Version 18 — September 10, 2013 Page 13

QuickSpecs

Related Options

HP Smart Array P812 Controller

HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty

Hard Drive

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

HP SATA Hot Plug Hard Drives

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

HP 250GB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive

HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 3G SATA 7.2k rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive

HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

HP SATA Non-Hot Plug Hard Drives

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

SATA Non-Hot Plug SFF (2.5-inch) Entry (ETY) Drives

537807-B21

537805-B21

516830-B21

516826-B21

454234-B21

516824-B21

417950-B21

417855-B21

571230-B21

625609-B21

507750-B21

625607-B21

530888-B21

694374-B21

628059-B21

507632-B21

454146-B21

458930-B21

458928-B21

458926-B21

460355-B21

458924-B21

571230-B21

458945-B21

571232-B21

DA - 13558 North America — Version 18 — September 10, 2013 Page 14

QuickSpecs

Related Options

HP Smart Array P812 Controller

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot plug Entry 1yr Warranty Hard Drive

HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1yr Warranty Hard

Drive

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

SATA Non-Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

HP Solid State Drive

HP SSD SATA Drives

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive

HP 80GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive

6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance LFF 3.5-in Enterprise Boot 3yr Wty Solid State Drive

HP 80GB 6G SATA Value Endurance LFF 3.5-in Enterprise Boot 3yr Wty Solid State Drive

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives

HP 800GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State

Drive

HP 480GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State

Drive

HP 240GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State

Drive

6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives

HP 800GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State

Drive

HP 480GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State

Drive

628033-B21

460357-B21

459357-B21

571232-B21

458947-B21

507753-B21

530891-B21

628063-B21

507774-B21

507772-B21

462595-B21

458941-B21

458939-B21

728726-B21

734366-B21

728732-B21

734368-B21

728743-B21

728739-B21

728735-B21

728745-B21

728741-B21

DA - 13558 North America — Version 18 — September 10, 2013 Page 15

QuickSpecs

Related Options

HP Smart Array P812 Controller

HP 240GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State

Drive

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty

Solid State Drive

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty

Solid State Drive

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty

Solid State Drive

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty

Solid State Drive

HP SSD SAS Drives

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty

Solid State Drive

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid

State Drive

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty

Solid State Drive

6G SAS MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 400GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 200GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State

Drive

3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 200GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive

HP 100GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive

3G SATA MLC Non-hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC SFF (2.5-inch) Non-hot plug Enterprise Mainstream 3yr Wty

Solid State Drive

HP 200GB 3G SATA MLC SFF (2.5-inch) Non-hot plug Enterprise Mainstream 3yr Wty

Solid State Drive

HP 120GB 3G SATA SFF (2.5-inch) Non-hot plug Midline 1yr Wty Solid State Drive

HP 100GB 3G SATA MLC SFF (2.5-inch) Non-hot plug Enterprise Mainstream 3yr Wty

Solid State Drive

HP 60GB 3G SATA SFF (2.5-inch) Non-hot plug Midline 1yr Wty Solid State Drive

3G SATA MLC Hot Plug LFF (3.-5inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

728737-B21

730065-B21

730063-B21

730061-B21

730059-B21

690823-B21

690821-B21

690819-B21

653109-B21

653105-B21

658478-B21

636597-B21

636595-B21

572073-B21

636593-B21

572071-B21

636605-B21

636601-B21

572077-B21

636599-B21

572075-B21

636611-B21

DA - 13558 North America — Version 18 — September 10, 2013 Page 16

QuickSpecs

Related Options

HP Smart Array P812 Controller

HP 200GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive

HP 100GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 60GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive

6G SAS SLC Hot Plug Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State

Drive

HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State

Drive

6G SAS MLC Hot Plug Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 400GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 200GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

NOTE: Go to the HP Hard Drive Compatibility table for complete drive compatibility information ( http://www.hp.com/products/harddiskdrives ). Using hard drives in unsupported configurations will result in voiding the warranty and could result in damage to the drive and/or loss of data.

NOTE: There is a known compatibility issue with some early 3.5" SATA HDD that will make them unable to be used with the SA-P800 controller. Customers should verify that they are not using hard drive part number 332649-002/003 (spare 353042-001),

332650-002/003 (spare 353043-001), or 356536-002/003 (spare 353044-001).

NOTE: The HP SAS and SATA universal hard drive can used across multiple HP

ProLiant/Integrity servers and disk enclosures.

636609-B21

570763-B21

636607-B21

570761-B21

632494-B21

632492-B21

632506-B21

632504-B21

632502-B21

DA - 13558 North America — Version 18 — September 10, 2013 Page 17

QuickSpecs

HP Smart Array P812 Controller

Related Options

Modular Storage Array MSA SAN Storage Arrays

HP MSA60 Array

NOTE: Supports 12 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s.

HP MSA70 Array

NOTE: Supports 25 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s.

NOTE: Please see the QuickSpecs for additional information and a list of compatible hard drives: http://h18000.www1.hp.com/products/quickspecs/12627_na/12627_na.html

(MSA60) http://h18000.www1.hp.com/products/quickspecs/12652_na/12652_na.html

(MSA70)

Disk Enclosures

HP D2600 Disk Enclosure

NOTE: Supports 12 LFF drives, and SAS 6 Gb/s and SATA 3 Gb/s.

HP D2700 Disk Enclosure

NOTE: Supports 25 SFF drives, and SAS 6 Gb/s and SATA 3 Gb/s.

NOTE: Please see the QuickSpecs for additional information and a list of compatible hard drives: http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html

(Worldwide)

418408-B21

418800-B21

AJ940A

AJ941A

Tape Storage SAS Tape Drives

HP StoreEver DAT 160 SAS Internal Tape Drive

HP StoreEver DAT 160 SAS External Tape Drive

HP DAT 320 SAS Internal Tape Drive

HP DAT 320 SAS External Tape Drive

HP StoreEver LTO-2 Ultrium 448 SAS Internal Tape Drive

HP StoreEver LTO-2 Ultrium 448 SAS External Drive

HP Ultrium 920 SAS Internal Tape Drive

HP StoreEver LTO-3 Ultrium 920 SAS External Tape Drive

HP StoreEver LTO-4 Ultrium 1760 SAS Internal WW Tape Drive

HP StoreEver LTO-4 Ultrium 1760 SAS External Tape Drive

HP LTO-4 Ultrium 1760 SAS (1) in 1U Rack-mount Kit

HP LTO-4 Ultrium 1760 SAS (1) in 1U Rack-mount Kit

HP StoreEver LTO-5 Ultrium 3000 SAS Internal Tape Drive

HP LTO-5 Ultrium 3000 SAS Tape Drive in 1U Rackmount

HP StoreEver LTO-5 Ultrium 3280 SAS Internal Tape Drive

HP LTO-5 Ultrium 3280 SAS Tape Drive in 3U Rackmount

HP StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

HP StoreEver LTO-5 Ultrium 3280 SAS External Tape Drive

HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader

HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library

HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library

HP MSL8096 2 LTO-4 Ultrium 1760 SAS Tape Library

HP MSL8096 2 LTO-5 Ultrium 3000 SAS Tape Library

SAS Rack-mount Tape Drive Enclosures

EH946A

EH957A

EJ014A

EH899A

EJ013A

EH958A

EH900A

BL536A

BL537A

BL538A

AK382A

BL539A

Q1587A

Q1588A

AJ830A

AJ828A

DW085A

DW086A

EH847A

EH848A

EH919A

EH920A

EH946A

DA - 13558 North America — Version 18 — September 10, 2013 Page 18

QuickSpecs

Related Options

HP Smart Array P812 Controller

HP 1U SAS Rack-mount Kit

NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS and

LTO-4 Ultrium 1760 SAS tape drives.

HP 3U SAS Rack-mount Kit

NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2

Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, LTO-4 Ultrium 1760 SAS and LTO-4 Ultrium

1840 SAS tape drives.

SAS Cables for Tape Drives, Tape Autoloaders and Tape Libraries

HP SAS Min-Min 1x-2M Cable Assembly Kit

NOTE: Use this cable to connect HP SAS external tape devices to HP SAS controllers with external Mini-SAS (SFF8088) connectors.

AE459A

AG576A

AE470A

Mini SAS to Mini SAS

Cables

NOTE: Cables for use connecting the P812 with D2600, D2700, MSA60, and MSA70.

HP External Mini SAS 2m Cable

HP External Mini SAS 4m Cable

HP External Mini SAS 6m Cable

407339-B21

432238-B21

432239-B21

DA - 13558 North America — Version 18 — September 10, 2013 Page 19

QuickSpecs

Technical Specifications

HP Smart Array P812 Controller

Dimensions

(excluding bracket)

PCI Card Size

PCI Label

PCI Link Rate

12.3 in x 4.4 in x 0.5 in (31.1 cm x 11.1 cm x 1.2 cm)

Full-height, full-length PCI Express

PCIe2 x8 (i.e., x8 mechanical, up to x8 electrical) x8 5 GT/s PCI Express (4 GB/s maximum bandwidth in each direction)

SAS/SATA Connectivity

2 Mini SAS 4i connectors

4 Mini SAS 4x connectors

SAS/SATA Link Rate

SAS protocol: 6 Gb/s, 3 Gb/s, or 1.5 Gb/s

SATA protocol: 3 Gb/s or 1.5 Gb/s

SAS/SATA Performance

Controller supports a maximum of 4.8 GB/s maximum bandwidth in each direction (allocated across all the connectors)

RAID Cache

1 GiB capacity (not all of which is available for user data)

64-bit data width with 8-bit error correcting code (ECC)

Flash-backed on power loss

Tether to capacitor pack

Removable

RAID Cache Bus Speed

Software upgradeable

Firmware

Maximum Drive Count

DDR2-800 (6.4 GiB/s maximum bandwidth)

Yes

108 drives

(e.g., 108 TB with 108 x 1 TB SATA 3.5" MDL HDD)

64-bit, supporting servers memory space greater than 4 GiB

System Memory

Addressing

RAID Support

RAID 6 (Advanced Data Guarding)

RAID 60

RAID 5 (Distributed Data Guarding)

RAID 50

RAID 1+0 (Striping & Mirroring)

RAID 1 (Mirroring)

RAID 0 (Striping)

Upgradeable Firmware

Flashable ROM with redundant firmware images

Environment-friendly

Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green . To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at: http://www.hp.com/go/green . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

DA - 13558 North America — Version 18 — September 10, 2013 Page 20

QuickSpecs

Technical Specifications

© Copyright 2013 Hewlett-Packard Development Company, L.P.

HP Smart Array P812 Controller

The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

DA - 13558 North America — Version 18 — September 10, 2013 Page 21

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
