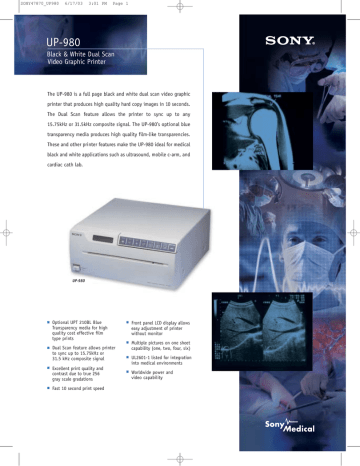

Black & White Dual Scan
Video Graphic Printer
The UP-980 is a full page black and white dual scan video graphic
printer that produces high quality hard copy images in 10 seconds.
The Dual Scan feature allows the printer to sync up to any
15.75kHz or 31.5kHz composite signal. The UP-980’s optional blue
transparency media produces high quality film-like transparencies.
These and other printer features make the UP-980 ideal for medical
black and white applications such as ultrasound, mobile c-arm, and
cardiac cath lab.
Optional UPT 210BL Blue
Transparency media for high
quality cost effective film
type prints
Dual Scan feature allows printer
to sync up to 15.75kHz or
31.5 kHz composite signal
Excellent print quality and
contrast due to true 256
gray scale gradations
Fast 10 second print speed
Front panel LCD display allows
easy adjustment of printer
without monitor
Multiple pictures on one sheet
capability (one, two, four, six)
UL2601-1 listed for integration
into medical environments
Worldwide power and
video capability
3:01 PM
Page 2
S p e c i f i c a t i o n s
Thermal Graphic Printing
Printing Method
256 gradations of gray scale
Remote 2 (Stereo mini) for optional remote control unit
RM-91 or foot switch FS-20
External Control
1280 elements
Thermal Head
210mm width (Roll)
Paper Size
Print Speed
10sec/150mm(NTSC), 12sec/150mm(PAL)
Video in (BNC) (15.75 or 31.5kHz)
BNC loop through
Safety Standards
UL1950 Listed, CSA C22.2 No.950 LTL2601-1, CSA C22.2 No. 601.1 GS, GM
Power Requirements
100V to 240V, 50/60Hz (Worldwide)
316mm x 132.5mm x 305mm (12.4” W x 5.2” H x 12.0” D)
UPP-210HD, UPP-210SE and UPT-210BL Media
Supplied Accessories
AC Power Cable
Operation Manual
BNC Cable
Cleaning Sheet
Optional Accessories:
RM-91 Remote Control Unit
FS-20 Foot Switch
UPP-210HD High Density Printing Paper
UPP-210SE High Quality Printing Paper
UPT-210BL Blue Transparency MediaFea
Sony Electronics Inc.
1 Sony Drive, Park Ridge, NJ 07656
©2003 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate. Sony and Print by Sony are trademarks of Sony.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician or other appropriately licensed medical professional.
Caution: See product labeling for indications, contraindications, warnings, cautions and directions for use.
