Type AVE Aluminum Electrolytic Capacitors for Filtering and Bypass

Type AVE Aluminum Electrolytic Capacitors for Filtering and Bypass
Type AVE –40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Type AVE capacitors are a great value for filter and bypass
applications not requiring wide temperature performance or high
ripple current. Their vertical cylindrical cases facilitate automatic
mounting and reflow soldering and offer a significant savings over
tantalum capacitors.
Highlights
• +85 °C, Up to 2000 Hour Load Life
• Low Impedance
• Voltage Range: 4 Vdc to 100 Vdc
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Leakage Current:
Dissipation Factor:
Low Temperature
Characteristics @ 120 Hz:
Ripple Curent Multipliers:
–40 °C to +85 °C
4, 6.3, 10, 16, 25, 35, 50, 63 & 100 Vdc
0.1 µF to 1500 µF
±20% @ 120 Hz and +20 °C
0.01 CV or 3 µA @ +20 °C, after two minutes (whichever is greater)
4V
6.3V
10 V
16 V
25 V
35 V
50 V
63 V
100 V
0.42
0.28
0.24
0.20
0.14
0.12
0.10
0.10
0.10
Rated Voltage (Vdc)
4
6.3
10
16
25
35
50
63
100
Impedance Z(-25ºC)/Z(+20ºC)
7
4
3
2
2
2
2
2
2
Z(-40ºC)/Z(+20ºC) 15
8
5
4
3
3
3
3
3
Ratio
Frequency
50 Hz
120 Hz
Vdc (V)
Complies with the EU Directive
2002/95/EC requirement restricting the use of Lead (Pb), Mercury
(Hg), Cadmium (Cd), Hexavalent
chromium (Cr(VI)), PolyBrominated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).
10 kHz up
Multiplier
≤ 16
0.80
1.00
1.15
1.25
25 - 35
0.80
1.00
1.25
1.40
50 - 63
0.80
1.00
1.35
1.50
100
0.70
1.00
1.35
1.50
Life Test: 2000 h @ 85 °C
∆ Capacitance ±20% (4 WV: ±30%)
DF: ≤ 200% of limit (4 WV: ±30%)
DCL: ≤ 100% of limit
Outline Drawing
1 kHz
Shelf Test: 1000 h @ 85 °C
∆ Capacitance ±20% (4 WV: ±30%)
DF: ≤ 200% of limit (4 WV: ±30%)
Case
Dimensions in millimeters (mm)
Code
∅D
L
A
B
C
W
P±0.2
A
3
5.3±0.2
3.3
3.3
1.5 .45 ~ 0.75
0.8
B
4
5.3±0.2
4.3
4.3
2.0 0.5 to 0.8
1.0
C
5
5.3±0.2
5.3
5.3
2.3 0.5 to 0.8
1.5
D
6.3
5.3±0.2
6.6
6.6
2.7 0.5 to 0.8
2.0
X
6.3
7.7±0.3
6.6
6.6
2.7 0.5 to 0.8
2.0
E
8
6.5±0.3
8.4
8.4
3.4 0.5 to 0.8
2.3
F
8
10±0.5
8.4
8.4
3.0 0.7 to 1.1
3.1
G
10
10±0.5
10.4
10.4
3.3 0.7 to 1.1
4.7
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVE –40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Part Numbering System
AVE
106
Type Capacitance
M
16
Capacitance
Voltage
B
12T
–F
Case Packaging
104 = 0.1 µF
Tolerance
04 = 4 Vdc
06 = 6.3 Vdc
105 = 1.0 µF
M = ±20%
10 = 10 Vdc 16 = 16 Vdc
106 = 10.0 µF
25 = 25 Vdc 35 = 35 Vdc
107 = 100.0 µF
50 = 50 Vdc 63 = 63 Vdc
108 = 1000.0 µF
2A = 100 Vdc
Code
Information
RoHS
Compliant
B = B 12 = Carrier Tape
Width (mm)
T = Tape & Reel
Ratings
Max.
Cap
Catalog
Max. DCL
Part Number
2 min.
(µF)
Max. DF
Max. E.S.R.
Ripple Current Case
@120Hz/20ºC @120Hz/20ºC @120Hz/85ºC Code
(µA)
(Ω)
(mA)
Size
Qty.
DxL
Per Reel
(mm)
(Each)
4 Vdc ( 5 Vdc Surge )
22
AVE226M04A12T-F
3
0.42
31.65
14
A
3x5.3
2000
33
AVE336M04B12T-F
3
0.42
21.10
31
B
4x5.3
2000
47
AVE476M04B12T-F
3
0.42
14.81
37
B
4x5.3
2000
68
AVE686M04C12T-F
3
0.42
10.24
63
C
5x5.3
1000
100
AVE107M04D16T-F
4
0.42
6.96
110
D
6.3x5.3
1000
23
B
4x5.3
2000
6.3 Vdc ( 8 Vdc Surge )
22
AVE226M06B12T-F
3
0.28
21.10
33
AVE336M06B12T-F
3
0.28
14.07
31
B
4x5.3
2000
47
AVE476M06C12T-F
3
0.28
9.88
52
C
5x5.3
1000
68
AVE686M06D16T-F
4.3
0.28
6.83
89
D
6.3x5.3
1000
100
AVE107M06D16T-F
6.3
0.28
4.64
120
D
6.3x5.3
1000
220
AVE227M06X16T-F
13.9
0.28
2.11
123
X
6.3x7.7
1000
220
AVE227M06E16T-F
13.9
0.28
2.11
155
E
8x6.5
1000
330
AVE337M06X16T-F
20.8
0.28
1.41
139
X
6.3x7.7
1000
330
AVE337M06E16T-F
20.8
0.28
1.41
155
E
8x6.5
1000
470
AVE477M06F24T-F
29.6
0.28
0.99
252
F
8x10
500
1000
AVE108M06G24T-F
63.0
0.28
0.46
458
G
10x10
500
1500
AVE158M06G24T-F
94.5
0.28
0.31
458
G
10x10
500
10
AVE106M10B12T-F
3
0.24
39.79
23
B
4x5.3
2000
22
AVE226M10C12T-F
3
0.24
18.09
39
C
5x5.3
1000
33
AVE336M10C12T-F
3.3
0.24
12.06
48
C
5x5.3
1000
47
AVE476M10D16T-F
4.7
0.24
8.47
67
D
6.3x5.3
1000
68
AVE686M10D16T-F
6.8
0.24
5.85
98
D
6.3x5.3
1000
100
AVE107M10X16T-F
10
0.24
3.98
108
X
6.3x7.7
1000
100
AVE107M10E16T-F
10
0.24
3.98
155
E
8x6.5
1000
220
AVE227M10X16T-F
22
0.24
1.81
130
X
6.3x7.7
1000
220
AVE227M10E16T-F
22
0.24
1.81
155
E
8x6.5
1000
330
AVE337M10F24T-F
33
0.24
1.21
252
F
8x10
500
10 Vdc ( 13 Vdc Surge )
470
AVE477M10G24T-F
47
0.24
0.85
458
G
10x10
500
1000
AVE108M10G24T-F
100
0.24
0.40
458
G
10x10
500
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVE –40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Ratings
Max.
Cap
Catalog
Max. DCL
Part Number
2 min.
(µF)
Max. E.S.R. Ripple Current Case
Size
Qty.
@120Hz/20ºC @120Hz/20ºC @120Hz/85ºC Code
Max. DF
DxL
Per Reel
(mm)
(Each)
A
3x5.3
2000
(µA)
(Ω)
(mA)
16 Vdc ( 20 Vdc Surge )
10
AVE106M16A12T-F
3.0
0.2
33.16
14
10
AVE106M16B12T-F
3.0
0.2
33.16
26
B
4x5.3
2000
22
AVE226M16C12T-F
3.5
0.2
15.07
44
C
5x5.3
1000
33
AVE336M16D16T-F
5.3
0.2
10.05
63
D
6.3x5.3
1000
47
AVE476M16D16T-F
7.5
0.2
7.05
75
D
6.3x5.3
1000
68
AVE686M16D16T-F
10.9
0.2
4.88
103
D
6.3x5.3
1000
100
AVE107M16X16T-F
16.0
0.2
3.32
108
X
6.3x7.7
1000
100
AVE107M16E16T-F
16.0
0.2
3.32
155
E
8x6.5
1000
220
AVE227M16X16T-F
35.2
0.2
1.51
124
X
6.3x7.7
1000
220
AVE227M16F24T-F
35.2
0.2
1.51
252
F
8x10
500
330
AVE337M16F24T-F
52.8
0.2
1.00
252
F
8x10
500
470
AVE477M16G24T-F
75.2
0.2
0.71
458
G
10x10
500
4x5.3
2000
25 Vdc ( 31 Vdc Surge )
4.7
AVE475M25B12T-F
3.0
0.14
49.38
19
B
10
AVE106M25C12T-F
3.0
0.14
23.21
32
C
5x5.3
1000
22
AVE226M25D16T-F
5.5
0.14
10.55
55
D
6.3x5.3
1000
33
AVE336M25D16T-F
8.3
0.14
7.03
67
D
6.3x5.3
1000
47
AVE476M25X16T-F
11.8
0.14
4.94
98
X
6.3x7.7
1000
47
AVE476M25E16T-F
11.8
0.14
4.94
155
E
8x6.5
1000
68
AVE686M25X16T-F
17.0
0.14
3.41
109
X
6.3x7.7
1000
68
AVE686M25E16T-F
17.0
0.14
3.41
155
E
8x6.5
1000
100
AVE107M25X16T-F
25.0
0.14
2.32
124
X
6.3x7.7
1000
100
AVE107M25E16T-F
25.0
0.14
2.32
155
E
8x6.5
1000
220
AVE227M25F24T-F
55.0
0.14
1.06
252
F
8x10
500
330
AVE337M25G24T-F
82.5
0.14
0.70
458
G
10x10
500
3.3
AVE335M35A12T-F
3.0
0.12
60.28
8
A
3x5.3
2000
4.7
AVE475M35B12T-F
3.0
0.12
42.33
20
B
4x5.3
2000
10
AVE106M35C12T-F
3.5
0.12
19.89
34
C
5x5.3
1000
22
AVE226M35D16T-F
7.7
0.12
9.04
59
D
6.3x5.3
1000
33
AVE336M35X16T-F
11.6
0.12
6.03
85
X
6.3x7.7
1000
35 Vdc ( 44 Vdc Surge )
33
AVE336M35E16T-F
11.6
0.12
6.03
155
E
8x6.5
1000
47
AVE476M35X16T-F
16.5
0.12
4.23
98
X
6.3x7.7
1000
47
AVE476M35E16T-F
16.5
0.12
4.23
155
E
8x6.5
1000
68
AVE686M35X16T-F
23.8
0.12
2.93
109
X
6.3x7.7
1000
68
AVE686M35E16T-F
23.8
0.12
2.93
155
E
8x6.5
1000
100
AVE107M35F24T-F
35.0
0.12
1.99
252
F
8x10
500
220
AVE227M35G24T-F
77.0
0.12
0.90
458
G
10x10
500
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVE –40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Max.
Cap
Catalog
Max. DCL
Part Number
2 min.
(µF)
Max. DF
Max. E.S.R. Ripple Current Case Size
Qty.
@120Hz/20ºC @120Hz/20ºC @120Hz/85ºC Code D x L Per Reel
(µA)
(Ω)
(mA)
(mm)
(Each)
50 Vdc ( 63 Vdc Surge )
.10
AVE104M50B12T-F*
3.0
0.1
1657.83
3
B
4x5.3
2000
.22
AVE224M50B12T-F*
3.0
0.1
753.56
5
B
4x5.3
2000
.33
AVE334M50B12T-F*
3.0
0.1
502.37
6
B
4x5.3
2000
.47
AVE474M50B12T-F*
3.0
0.1
352.73
7
B
4x5.3
2000
1
AVE105M50B12T-F
3.0
0.1
165.78
10
B
4x5.3
2000
2.2
AVE225M50B12T-F
3.0
0.1
75.36
15
B
4x5.3
2000
3.3
AVE335M50B12T-F
3.0
0.1
50.24
19
B
4x5.3
2000
4.7
AVE475M50C12T-F
3.0
0.1
35.27
26
C
5x5.3
1000
10
AVE106M50D16T-F
5.0
0.1
16.58
44
D
6.3x5.3
1000
22
AVE226M50X16T-F
11.0
0.1
7.54
65
X
6.3x7.7
1000
22
AVE226M50E16T-F
11.0
0.1
7.54
155
E
8x6.5
1000
33
AVE336M50X16T-F
16.5
0.1
5.02
82
X
6.3x7.7
1000
33
AVE336M50E16T-F
16.5
0.1
5.02
155
E
8x6.5
1000
47
AVE476M50X16T-F
23.5
0.1
3.53
98
X
6.3x7.7
1000
47
AVE476M50F24T-F
23.5
0.1
3.53
252
F
8x10
500
68
AVE686M50F24T-F
34.0
0.1
2.44
252
F
8x10
500
100
AVE107M50F24T-F
50.0
0.1
1.66
252
F
8x10
500
220
AVE227M50G24T-F
110.0
0.1
0.75
458
G
10x10
500
63 Vdc ( 75 Vdc Surge )
10
AVE106M63E16T-F
6.3
0.1
16.58
75
E
8x6.5
1000
22
AVE226M63F24T-F
13.9
0.1
7.54
139
F
8x10
500
33
AVE336M63F24T-F
20.8
0.1
5.02
139
F
8x10
500
47
AVE476M63G24T-F
29.6
0.1
3.53
226
G
10x10
500
68
AVE686M63G24T-F
42.8
0.1
2.44
226
G
10x10
500
100
AVE107M63G24T-F
63.0
0.1
1.66
226
G
10x10
500
10
AVE106M2AF24T-F
10
0.1
16.58
94
F
8x10
500
22
AVE226M2AG24T-F
22
0.1
7.54
189
G
10x10
500
33
AVE336M2AG24T-F
33
0.1
5.02
189
G
10x10
500
100 Vdc ( 125 Vdc Surge )
*denotes discontinued part
Recommended Land Patterns by case size for AVE series
B
C
A
B
Land Dimensions (mm)
Case
Code
Case
Size
C
B
A
A
B
C
D
X
E
F
G
3x5.3
4x5.3
5x5.3
6.3x5.3
6.3x7.7
8x6.5
8x10
10x10
1.6
1.6
1.6
1.6
1.6
1.6
2.5
2.5
2.2
2.6
3.0
3.5
3.5
4.0
3.5
4.0
0.8
1.0
1.4
1.9
1.9
2.1
3.0
4.0
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com

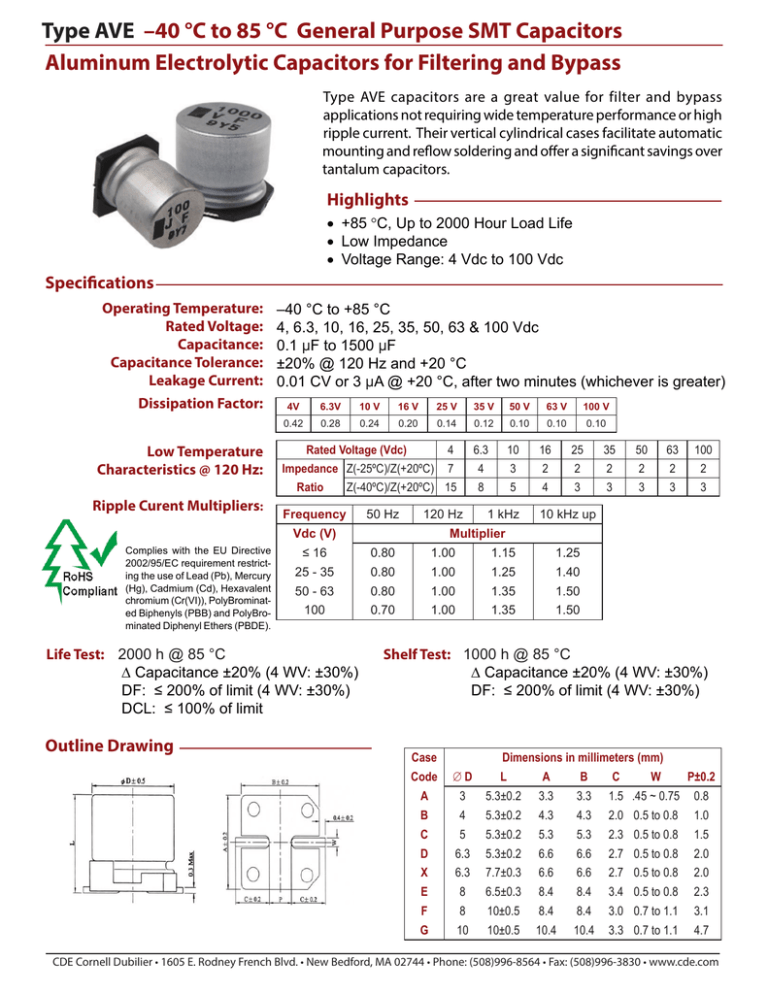

Type AVE –40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Recommended Soldering Methods
Recommended Reflow Soldering Profile:
For case diameters
3 thru 6.3 mm
For case diameters
8 and 10 mm
Case sizes 4 thur 6.3 mm dia. should be subjected to just one reflow soldering process.
The 8 and 10 mm dia. case sizes should be subjected to a maximum of two reflow soldering processes.
Soldering with a solder iron should be performed with a maximum soldering iron tip
temperature of 350±5°C for 3 to 4 seconds.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVE –40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer
is responsible for checking, confirming and verifying the extent to which the Information contained in this
datasheet or other publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation
or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based
on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has
of operating conditions that such Cornell Dubilier company regards as typical for such applications, but
are not intended to constitute any guarantee, warranty or representation regarding any such matter – and
Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning
the suitability for a specific customer application, use, storage, transportation, or operating environment.
The Information is intended for use only by customers who have the requisite experience and capability to
determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given
gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability
for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality
and safety standards regarding the design and manufacturing of its products, in light of the current state
of the art, isolated component failures may still occur. Accordingly, customer applications which require a
high degree of reliability or safety should employ suitable designs or other safeguards (such as installation
of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the
failure of an electrical component does not result in a risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must be observed, the customer should not assume that all
safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be
required.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
