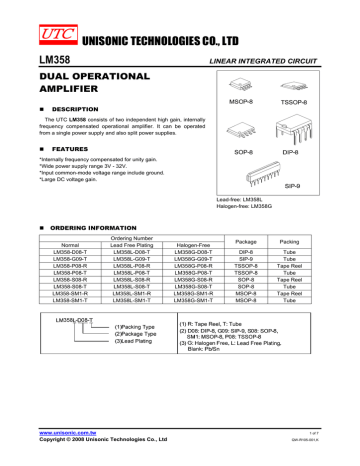

UNISONIC TECHNOLOGIES CO., LTD
LM358
LINEAR INTEGRATED CIRCUIT
DUAL OPERATIONAL
AMPLIFIER
„
DESCRIPTION
The UTC LM358 consists of two independent high gain, internally
frequency compensated operational amplifier. It can be operated
from a single power supply and also split power supplies.
„
FEATURES
*Internally frequency compensated for unity gain.
*Wide power supply range 3V - 32V.
*Input common-mode voltage range include ground.
*Large DC voltage gain.
Lead-free: LM358L
Halogen-free: LM358G
„
ORDERING INFORMATION
Normal
LM358-D08-T
LM358-G09-T
LM358-P08-R
LM358-P08-T
LM358-S08-R
LM358-S08-T
LM358-SM1-R
LM358-SM1-T
Ordering Number
Lead Free Plating
LM358L-D08-T
LM358L-G09-T
LM358L-P08-R
LM358L-P08-T
LM358L-S08-R
LM358L-S08-T
LM358L-SM1-R
LM358L-SM1-T
www.unisonic.com.tw
Copyright © 2008 Unisonic Technologies Co., Ltd
Halogen-Free
LM358G-D08-T
LM358G-G09-T
LM358G-P08-R
LM358G-P08-T
LM358G-S08-R
LM358G-S08-T
LM358G-SM1-R
LM358G-SM1-T
Package
Packing
DIP-8
SIP-9
TSSOP-8
TSSOP-8
SOP-8
SOP-8
MSOP-8
MSOP-8
Tube
Tube
Tape Reel
Tube
Tape Reel
Tube
Tape Reel
Tube
1 of 7
QW-R105-001,K
LM358
„
LINEAR INTEGRATED CIRCUIT
PIN DESCRIPTION
SOP-8/DIP-8/MSOP-8/TSSOP-8
SIP-9
1
VCC
2
3
4
5
OUT1 IN1(-) IN1(+) GND
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
6
7
8
IN2(+) IN2(-) OUT2
9
VCC
2 of 7
QW-R105-001,K
LM358
„
LINEAR INTEGRATED CIRCUIT
BLOCK DIAGRAM
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 7
QW-R105-001,K
LM358
„
LINEAR INTEGRATED CIRCUIT
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply Voltage
Differential Input Voltage
Input Voltage
Output Short to Ground
RATINGS
UNIT
±16 or 32
V
±32
V
-0.3 ~ +32
V
Continuous
SIP-9
600
DIP-8
500
PD
Power Dissipation
mW
SOP-8
280
TSSOP-8/MSOP-8
200
Junction Temperature
TJ
+125
°C
Operating Temperature
TOPR
-40 ~ +85
°C
Storage Temperature
TSTG
-65 ~ +150
°C
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
„
SYMBOL
VCC
VI(DIFF)
VI
ELECTRICAL CHARACTERISTICS (VCC=5.0V, VEE=GND, Ta=25℃, unless otherwise specified)
PARAMETER
SYMBOL
Input Offset Voltage
VI(OFF)
Input Common Mode Voltage
Differential Input Voltage
VI(CM)
VI(DIFF)
Output Voltage Swing
VOH
VOL
Large Signal Voltage Gain
GV
Power Supply Current
ICC
Input Offset Current
Input Bias Current
Short Circuit Current to Ground
VCC=30V, RL=2KΩ
VCC=30V, RL=10KΩ
VCC=5V, RL≧10KΩ
VCC=15V, RL≧2KΩ
VO(P)=1V ~ 11V
RL=∝, VCC=30V
RL=∝, Full Temperature Range
Output Current
ISINK
CMRR
PSRR
CS
VI(+)=1V, VI(-)=0V
VCC=15V, VO(P)=2V
VI(+)=0V, VI(-)=1V
VCC=15V, VO(P)=2V
VI(+)=0V, VI(-)=1V
VCC=15V, VO(P)=200mV
f=1KHZ ~ 20KHZ
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
MIN
TYP
MAX
UNIT
2.9
7.0
mV
VCC-1.5
VCC
V
V
V
V
mV
0
26
27
25
28
5
20
100
0.8
0.5
5
45
40
II(OFF)
II(BIAS)
ISC
ISOURCE
Common Mode Rejection Ratio
Power Supply Rejection Ratio
Channel Separation
TEST CONDITIONS
VCM=0V toVCC-1.5V
VO(P)=1.4V, RS=0Ω
VCC=30V
V/mV
2.0
1.2
50
250
60
mA
mA
nA
nA
mA
10
30
mA
10
15
mA
12
100
μA
65
65
80
100
120
dB
dB
dB
4 of 7
QW-R105-001,K
LM358
TYPICAL CHARACTERISTICS
Fig.2 Input Current vs Temperature
Fig.1 Input Voltage Range
100
15
80
Input Current (mA)
Input Voltage
Negative
Input
10
Positive
Input
Vcc=+30V
60
Vcc=+15V
40
5
Vcc=+5V
20
0
0
10
Power Supply Voltage
0
5
15
-50
-25
0
25
75
100
Fig. 4 Voltage Gain vs Supply Voltage
160
40
Vcc
RL=20k
Ic
120
RL=2k
(dB)
30
Voltage Gain æ
Input Current (mA)
50
Temperature(°C)
Fig.3 Input Current vs Supply Voltage
20
Ta= 0~+85°C
10
Ta= -20°C
0
10
80
40
0
0
20
30
0
40
7.5
15
Supply Voltage (V)
22.5
30
Supply Voltage (V)
Fig. 5 Open Loop Gain vs Frequency
Fig. 6 Common Mode Rejection Ratio vs Frequency
120
Vcc
100
Common Mode Rejection Ratio (dB)
(dB)
120
100M
0.1 F
80
Voltage Gain
„
LINEAR INTEGRATED CIRCUIT
Vin
Vcc/2
60
40
Vcc=30V
Vcc=15V
20
100
Vcc=+7.5V
Vee=-7.5V
80
+7.5V
60
100k
100
40
100
Vin
20
100k
-7.5V
0
0
10
0
10
1
10
2
10
3
10
4
105
10 6
10
7
Frequency (Hz)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
10
2
10
3
10
4
10 5
10 6
Frequency (Hz)
5 of 7
QW-R105-001,K
LM358
„
LINEAR INTEGRATED CIRCUIT
TYPICAL CHARACTERISTICS(Cont.)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
6 of 7
QW-R105-001,K
LM358
LINEAR INTEGRATED CIRCUIT
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
7 of 7
