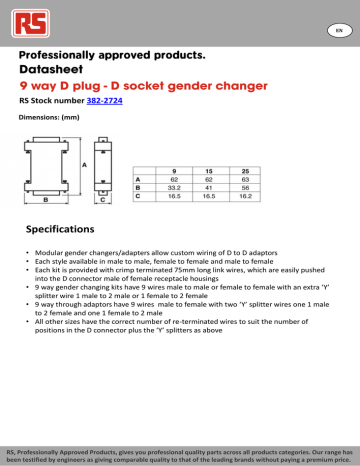

Specifications 382-2724

Specifications  382-2724
EN
RS Stock number 382-2724
Dimensions: (mm)
Specifications
• Modular gender changers/adapters allow custom wiring of D to D adaptors
• Each style available in male to male, female to female and male to female
• Each kit is provided with crimp terminated 75mm long link wires, which are easily pushed
into the D connector male of female receptacle housings
• 9 way gender changing kits have 9 wires male to male or female to female with an extra ‘Y’
splitter wire 1 male to 2 male or 1 female to 2 female
• 9 way through adaptors have 9 wires male to female with two ‘Y’ splitter wires one 1 male
to 2 female and one 1 female to 2 male
• All other sizes have the correct number of re-terminated wires to suit the number of
positions in the D connector plus the ‘Y’ splitters as above
RS, Professionally Approved Products, gives you professional quality parts across all products categories. Our range has
been testified by engineers as giving comparable quality to that of the leading brands without paying a premium price.
