RoHS Compliant

RoHS Compliant

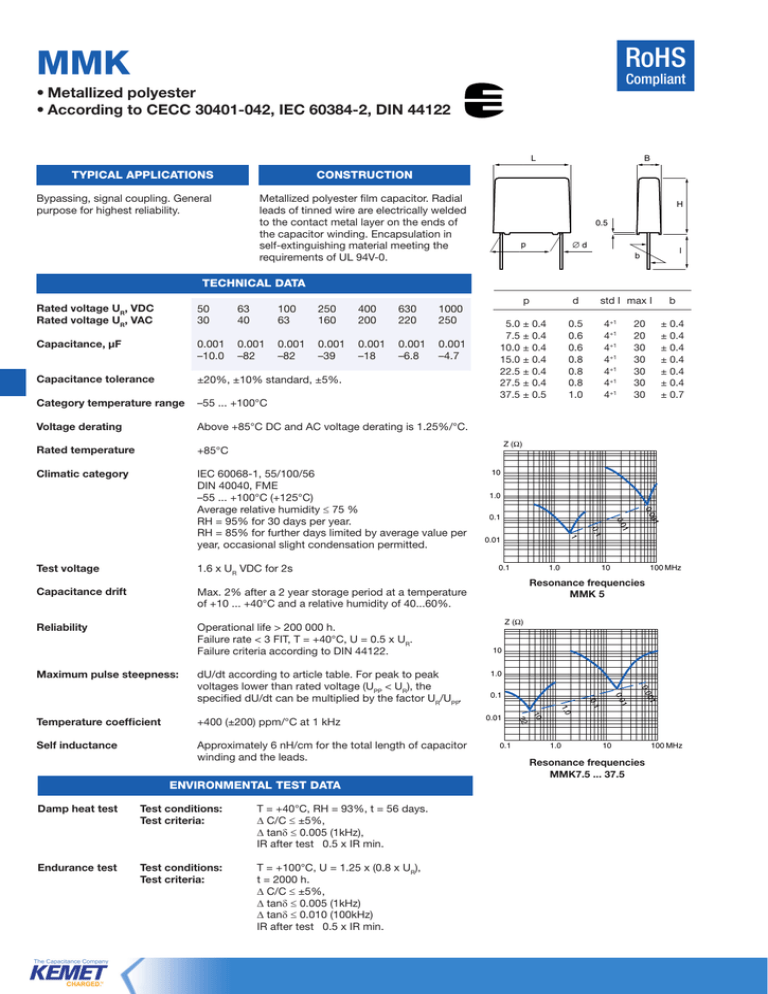

MMK

• Metallized polyester

• According to CECC 30401-042, IEC 60384-2, DIN 44122

RoHS

Compliant

L B

typical applications

Bypassing, signal coupling. General purpose for highest reliability.

construction

Metallized polyester film capacitor. Radial leads of tinned wire are electrically welded to the contact metal layer on the ends of the capacitor winding. Encapsulation in self-extinguishing material meeting the requirements of UL 94V-0.

p ∅ d

0.5

b

H l

technical data

Rated voltage U

R

Rated voltage U

R

, VDC

, VAC

Capacitance, µF

Capacitance tolerance

50

30

63

40

100

63

250

160

400

200

630

220

1000

250

0.001 0.001 0.001 0.001 0.001 0.001 0.001

–10.0 –82 –82 –39 –18 –6.8 –4.7

Voltage derating

Rated temperature

±20%, ±10% standard, ±5%.

Category temperature range

–55 ... +100°C

Above +85°C DC and AC voltage derating is 1.25%/°C.

+85°C

Climatic category

IEC 60068-1, 55/100/56

DIN 40040, FME

–55 ... +100°C (+125°C)

Average relative humidity

≤ 75 %

RH = 95% for 30 days per year.

RH = 85% for further days limited by average value per year, occasional slight condensation permitted.

10

1.0

0.1

0.01

p d std l max l b p d std I max I b

5.0 ± 0.4

7.5 ± 0.4

0.5

0.6

+1

4

4

20 ± 0.4

20 ± 0.4

10.0 ± 0.4 0.6 4 30 ± 0.4

15.0 ± 0.4 0.8 4 30 ± 0.4

22.5 ± 0.4

27.5 ± 0.4

0.8

0.8

4

4 +1

30

30

± 0.4

± 0.4

37.5 ± 0.5 1.0 4 30 ± 0.7

Z (

Ω)

1

0.1

0.01

0.001

Test voltage

Capacitance drift

1.6 x U

R

VDC for 2s

Max. 2% after a 2 year storage period at a temperature of +10 ... +40°C and a relative humidity of 40...60%.

0.1

1.0

10

Resonance frequencies

MMK 5

100 MHz

Z (

Ω)

Reliability

Maximum pulse steepness:

Operational life > 200 000 h.

Failure rate < 3 FIT, T = +40°C, U = 0.5 x U

Failure criteria according to DIN 44122.

R

.

10

1.0

Temperature coefficient

Self inductance

dU/dt according to article table. For peak to peak voltages lower than rated voltage (U pp

< U

R

), the specified dU/dt can be multiplied by the factor U

R

/U pp

.

+400 (±200) ppm/°C at 1 kHz

Approximately 6 nH/cm for the total length of capacitor winding and the leads.

0.1

0.01

0.1

22

10

1.0

0.1

0.01

0.001

1.0

10

Resonance frequencies

MMK7.5 ... 37.5

100 MHz

environMental test data

Damp heat test

Test conditions:

Endurance test

Test criteria:

Test conditions:

Test criteria:

T = +40°C, RH = 93%, t = 56 days.

∆ C/C ≤ ±5%,

∆ tanδ ≤ 0.005 (1kHz),

IR after test

0.5 x IR min.

T = +100°C, U = 1.25 x (0.8 x U

R

), t = 2000 h.

∆ C/C ≤ ±5%,

∆ tanδ ≤ 0.005 (1kHz)

∆ tanδ ≤ 0.010 (100kHz)

IR after test

0.5 x IR min.

Dissipation factor tan

δ

technical data

Maximum values at +23°C

C

≤ 0.1 µF 0.1 µF < C ≤ 1.0 µF C > 1.0 µF

ordering inforMation

See article table and pages 10 to 14 for options and article code construction.

MMK5 1 kHz 0.8%

10 kHz 1.2%

100 kHz 2.5%

MMK7.5 ... 37.5 1 kHz 0.8%

10 kHz 1.5%

100 kHz 3.0%

Insulation resistance

U

R

U

R

≤ 100V

> 100V

0.8%

1.2%

0.8%

1.5%

3.0%

0.8%

1.5%

1.0%

MarKing

• Capacitance

• Tolerance code

• Rated voltage

• Capacitor family code MMK

• Manufacturing date code

Minimum values between terminals.

Measured at +20°C, according to IEC 60384-2.

C

≤ 0.33 µF C > 0.33 µF

15000 M

Ω 5000 s

30000 M

Ω 10000 s

10

5

U rms

(V)

1.0

µF

0.22

µF

0.15

µF

0.1

MMK5

1.0

10

50/30

100 kHz

U rms

(V)

10

5

0.1

1 µ

F

µF

6.8

µF

68

µF

0.1

1.0

10 100 kHz

MMK7.5 ... 37.5 63/40

100

50

U rms

(V)

0.22

1

µF

µF

4.7

µF

0.01

0.047

µF

µF

0.1

1.0

10 100 kHz

MMK7.5 ... 37.5 400/200 rated ac voltage vs. freQuency

U rms

(V)

10

5

0.1

µF

0.47

0.047

0.01

µF

µF

µF

10

5

0.1

MMK5

1.0

10

63/40

100 kHz

50

U rms

(V)

10

5

0.033

1 µ

F

0.1

µF

µF

6.8

µF

33

µF

10 100 kHz 0.1

1.0

MMK7.5 ... 37.5 100/63

U rms

(V)

0.047

0.01

µF

µF

0.22

µF

0.1 µF

0.1

MMK5

1.0

10

100/63

100 kHz

U rms

(V)

100

50

0.47

µF

2.2

µF

12

µF

0.01

µF

0.047

µF

0.1

1.0

10 100 kHz

MMK7.5 ... 37.5 250/160

U rms

(V)

100

50

0.47

µF

2.2

µF

0.01

µF

0.047

0.22

µF

µF

0.1

1.0

10 100 kHz

MMK7.5 ... 37.5 630/220

U rms

(V)

100

50

0.001

0.01

0.1

µF

µF

0.33

µF

1.2

µF

µF

0.1

1.0

10 100 kHz

MMK7.5 ... 37.5 1000/250

Evox Rifa Leaded Film Capacitors

23

MMK

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

50 VDC/30 VAC

LEAD SpACINg 5 MM

0.0010 J01 2.5 6.5 7.2 12 MMK5 102K50J01L4 BULK

0.0012 J01 2.5 6.5 7.2 12 MMK5 122K50J01L4 BULK

0.0015 J01 2.5 6.5 7.2 12 MMK5 152K50J01L4 BULK

0.0018 J01 2.5 6.5 7.2 12 MMK5 182K50J01L4 BULK

0.0022 J01 2.5 6.5 7.2 12 MMK5 222K50J01L4 BULK

0.0027 J01 2.5 6.5 7.2 12 MMK5 272K50J01L4 BULK

0.0033 J01 2.5 6.5 7.2 12 MMK5 332K50J01L4 BULK

0.0039 J01 2.5 6.5 7.2 12 MMK5 392K50J01L4 BULK

0.0047 J01 2.5 6.5 7.2 12 MMK5 472K50J01L4 BULK

0.0056 J01 2.5 6.5 7.2 12 MMK5 562K50J01L4 BULK

0.0068 J01 2.5 6.5 7.2 12 MMK5 682K50J01L4 BULK

0.0082 J01 2.5 6.5 7.2 12 MMK5 822K50J01L4 BULK

0.010 J01 2.5 6.5 7.2 12 MMK5 103K50J01L4 BULK

0.012 J01 2.5 6.5 7.2 12 MMK5 123K50J01L4 BULK

0.015 J01 2.5 6.5 7.2 12 MMK5 153K50J01L4 BULK

0.018 J01 2.5 6.5 7.2 12 MMK5 183K50J01L4 BULK

0.022 J01 2.5 6.5 7.2 12 MMK5 223K50J01L4 BULK

0.027 J01 2.5 6.5 7.2 12 MMK5 273K50J01L4 BULK

0.033 J01 2.5 6.5 7.2 12 MMK5 333K50J01L4 BULK

0.039 J01 2.5 6.5 7.2 12 MMK5 393K50J01L4 BULK

0.047 J01 2.5 6.5 7.2 12 MMK5 473K50J01L4 BULK

0.056 J01 2.5 6.5 7.2 12 MMK5 563K50J01L4 BULK

0.068 J01 2.5 6.5 7.2 12 MMK5 683K50J01L4 BULK

0.082 J01 2.5 6.5 7.2 12 MMK5 823K50J01L4 BULK

0.10 J01 2.5 6.5 7.2 12 MMK5 104K50J01L4 BULK

0.12 J01 2.5 6.5 7.2 12 MMK5 124K50J01L4 BULK

0.15 J01 2.5 6.5 7.2 12 MMK5 154K50J01L4 BULK

0.18 J01 2.5 6.5 7.2 12 MMK5 184K50J01L4 BULK

0.22 J01 2.5 6.5 7.2 12 MMK5 224K50J01L4 BULK

0.27 J01 2.5 6.5 7.2 12 MMK5 274K50J01L4 BULK

0.33 J01 2.5 6.5 7.2 12 MMK5 334K50J01L4 BULK

0.39 J01 2.5 6.5 7.2 12 MMK5 394K50J01L4 BULK

2.2

2.7

3.3

3.9

4.7

5.6

6.0

0.47 J01 2.5 6.5 7.2 12 MMK5 474K50J01L4 BULK

0.56 J02 3.5 8.0 7.2 12 MMK5 564K50J02L4 BULK

0.68 J02 3.5 8.0 7.2 12 MMK5 684K50J02L4 BULK

0.82 J02 3.5 8.0 7.2 12 MMK5 824K50J02L4 BULK

1.0

1.2

1.5

1.8

J02 3.5 8.0 7.2 12 MMK5 105K50J02L4 BULK

J03 4.5 9.0 7.2 12 MMK5 125K50J03L4 BULK

J03 4.5 9.0 7.2 12 MMK5 155K50J03L4 BULK

J04 5.0 10.0 7.2 12 MMK5 185K50J04L4 BULK

J04 5.0 10.0 7.2 12 MMK5 225K50J04L4 BULK

J05 6.0 11.0 7.2 12 MMK5 275K50J05L4 BULK

J05 6.0 11.0 7.2 12 MMK5 335K50J05L4 BULK

J06 7.2 13.0 7.2 12 MMK5 395K50J06L4 BULK

J06 7.2 13.0 7.2 12 MMK5 475K50J06L4 BULK

J06 7.2 13.0 7.2 12 MMK5 565K50J06L4 BULK

J06 7.2 13.0 7.2 12 MMK5 605K50J06L4 BULK

LEAD SpACINg 7.5 MM

0.0010 K00 2.5 6.0 10.0 5 MMK7.5 102K50K00L4 BULK

0.0012 K00 2.5 6.0 10.0 5 MMK7.5 122K50K00L4 BULK

0.0015 K00 2.5 6.0 10.0 5 MMK7.5 152K50K00L4 BULK

0.0018 K00 2.5 6.0 10.0 5 MMK7.5 182K50K00L4 BULK

0.0022 K00 2.5 6.0 10.0 5 MMK7.5 222K50K00L4 BULK

0.0027 K00 2.5 6.0 10.0 5 MMK7.5 272K50K00L4 BULK

0.0033 K00 2.5 6.0 10.0 5 MMK7.5 332K50K00L4 BULK

0.0039 K00 2.5 6.0 10.0 5 MMK7.5 392K50K00L4 BULK

0.0047 K00 2.5 6.0 10.0 5 MMK7.5 472K50K00L4 BULK

0.0056 K00 2.5 6.0 10.0 5 MMK7.5 562K50K00L4 BULK

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

50 VDC/30 VAC

LEAD SpACINg 7.5 MM

0.0068 K00 2.5 6.0 10.0 5 MMK7.5 682K50K00L4 BULK

0.0082 K00 2.5 6.0 10.0 5 MMK7.5 822K50K00L4 BULK

0.010 K00 2.5 6.0 10.0 5 MMK7.5 103K50K00L4 BULK

0.012 K00 2.5 6.0 10.0 5 MMK7.5 123K50K00L4 BULK

0.015 K00 2.5 6.0 10.0 5 MMK7.5 153K50K00L4 BULK

0.018 K00 2.5 6.0 10.0 5 MMK7.5 183K50K00L4 BULK

0.022 K00 2.5 6.0 10.0 5 MMK7.5 223K50K00L4 BULK

0.027 K00 2.5 6.0 10.0 5 MMK7.5 273K50K00L4 BULK

0.033 K00 2.5 6.0 10.0 5 MMK7.5 333K50K00L4 BULK

0.039 K00 2.5 6.0 10.0 5 MMK7.5 393K50K00L4 BULK

0.047 K00 2.5 6.0 10.0 5 MMK7.5 473K50K00L4 BULK

0.056 K00 2.5 6.0 10.0 5 MMK7.5 563K50K00L4 BULK

0.068 K00 2.5 6.0 10.0 5 MMK7.5 683K50K00L4 BULK

0.082 K00 2.5 6.0 10.0 5 MMK7.5 823K50K00L4 BULK

0.10 K00 2.5 6.0 10.0 5 MMK7.5 104K50K00L4 BULK

0.12 K00 2.5 6.0 10.0 5 MMK7.5 124K50K00L4 BULK

0.15 K00 2.5 6.0 10.0 5 MMK7.5 154K50K00L4 BULK

0.18 K00 2.5 6.0 10.0 5 MMK7.5 184K50K00L4 BULK

0.22 K00 2.5 6.0 10.0 5 MMK7.5 224K50K00L4 BULK

0.27 K00 2.5 6.0 10.0 5 MMK7.5 274K50K00L4 BULK

0.33 K00 2.5 6.0 10.0 5 MMK7.5 334K50K00L4 BULK

0.39 K01 4.0 8.0 10.0 5 MMK7.5 394K50K01L4 BULK

0.47 K01 4.0 8.0 10.0 5 MMK7.5 474K50K01L4 BULK

0.56 K01 4.0 8.0 10.0 5 MMK7.5 564K50K01L4 BULK

0.68 K01 4.0 8.0 10.0 5 MMK7.5 684K50K01L4 BULK

0.82 K01 4.0 8.0 10.0 5 MMK7.5 824K50K01L4 BULK

1.0

1.2

K01 4.0 8.0 10.0 5 MMK7.5 105K50K01L4 BULK

K03 5.0 11.0 10.0 5 MMK7.5 125K50K03L4 BULK

1.5

1.8

2.2

2.7

3.3

K03 5.0 11.0 10.0 5 MMK7.5 155K50K03L4 BULK

K03 5.0 11.0 10.0 5 MMK7.5 185K50K03L4 BULK

K04 6.0 12.0 10.5 5 MMK7.5 225K50K04L4 BULK

K04 6.0 12.0 10.5 5 MMK7.5 275K50K04L4 BULK

K04 6.0 12.0 10.5 5 MMK7.5 335K50K04L4 BULK

1.0

1.2

1.5

1.8

2.2

2.7

LEAD SpACINg 10 MM

A01 4.0 9.0 13.0 4 MMK10 105K50A01L4 BULK

A01 4.0 9.0 13.0 4 MMK10 125K50A01L4 BULK

A02 4.5 10.5 13.0 4 MMK10 155K50A02L4 BULK

A03 5.0 11.0 13.0 4 MMK10 185K50A03L4 BULK

A03 5.0 11.0 13.0 4 MMK10 225K50A03L4 BULK

A04 6.0 12.0 13.0 4 MMK10 275K50A04L4 BULK

LEAD SpACINg 15 MM

2.0

2.2

2.7

3.3

3.9

4.7

5.6

6.8

B04 5.5 10.5 18.0 3 MMK15 205K50B04L4 BULK

B04 5.5 10.5 18.0 3 MMK15 225K50B04L4 BULK

B05 5.5 12.5 18.0 3 MMK15 275K50B05L4 BULK

B05 5.5 12.5 18.0 3 MMK15 335K50B05L4 BULK

B10 6.5 12.5 18.0 3 MMK15 395K50B10L4 BULK

B06 7.5 14.5 18.0 3 MMK15 475K50B06L4 BULK

B06 7.5 14.5 18.0 3 MMK15 565K50B06L4 BULK

B12 8.0 15.0 18.0 3 MMK15 685K50B12L4 BULK

8.2 B11 8.5 16.0 18.0 3 MMK15 825K50B11L4 BULK

10.0 B14 9.5 17.5 18.0 3 MMK15 106K50B14L4 BULK

MMK article table

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

63 VDC/40 VAC

LEAD SpACINg 5 MM

0.0010 J01 2.5 6.5 7.2 25 MMK5 102K63J01L4 BULK

0.0012 J01 2.5 6.5 7.2 25 MMK5 122K63J01L4 BULK

0.0015 J01 2.5 6.5 7.2 25 MMK5 152K63J01L4 BULK

0.0018 J01 2.5 6.5 7.2 25 MMK5 182K63J01L4 BULK

0.0022 J01 2.5 6.5 7.2 25 MMK5 222K63J01L4 BULK

0.0027 J01 2.5 6.5 7.2 25 MMK5 272K63J01L4 BULK

0.0033 J01 2.5 6.5 7.2 25 MMK5 332K63J01L4 BULK

0.0039 J01 2.5 6.5 7.2 25 MMK5 392K63J01L4 BULK

0.0047 J01 2.5 6.5 7.2 25 MMK5 472K63J01L4 BULK

0.0056 J01 2.5 6.5 7.2 25 MMK5 562K63J01L4 BULK

0.0068 J01 2.5 6.5 7.2 25 MMK5 682K63J01L4 BULK

0.0082 J01 2.5 6.5 7.2 25 MMK5 822K63J01L4 BULK

0.010 J01 2.5 6.5 7.2 25 MMK5 103K63J01L4 BULK

0.012 J01 2.5 6.5 7.2 25 MMK5 123K63J01L4 BULK

0.015 J01 2.5 6.5 7.2 25 MMK5 153K63J01L4 BULK

0.018 J01 2.5 6.5 7.2 25 MMK5 183K63J01L4 BULK

0.022 J01 2.5 6.5 7.2 25 MMK5 223K63J01L4 BULK

0.027 J01 2.5 6.5 7.2 25 MMK5 273K63J01L4 BULK

0.033 J01 2.5 6.5 7.2 25 MMK5 333K63J01L4 BULK

0.039 J01 2.5 6.5 7.2 25 MMK5 393K63J01L4 BULK

0.047 J01 2.5 6.5 7.2 25 MMK5 473K63J01L4 BULK

0.056 J01 2.5 6.5 7.2 25 MMK5 563K63J01L4 BULK

0.068 J01 2.5 6.5 7.2 25 MMK5 683K63J01L4 BULK

0.082 J01 2.5 6.5 7.2 25 MMK5 823K63J01L4 BULK

0.10 J01 2.5 6.5 7.2 25 MMK5 104K63J01L4 BULK

0.12 J01 2.5 6.5 7.2 25 MMK5 124K63J01L4 BULK

0.15 J01 2.5 6.5 7.2 25 MMK5 154K63J01L4 BULK

0.18 J01 2.5 6.5 7.2 25 MMK5 184K63J01L4 BULK

0.22 J01 2.5 6.5 7.2 25 MMK5 224K63J01L4 BULK

0.27 J02 3.5 8.0 7.2 25 MMK5 274K63J02L4 BULK

0.33 J02 3.5 8.0 7.2 25 MMK5 334K63J02L4 BULK

0.39 J02 3.5 8.0 7.2 25 MMK5 394K63J02L4 BULK

0.47 J02 3.5 8.0 7.2 25 MMK5 474K63J02L4 BULK

0.56 J03 4.5 9.0 7.2 25 MMK5 564K63J03L4 BULK

0.68 J03 4.5 9.0 7.2 25 MMK5 684K63J03L4 BULK

0.82 J04 5.0 10.0 7.2 25 MMK5 824K63J04L4 BULK

1.0

1.2

1.5

1.8

2.2

J04 5.0 10.0 7.2 25 MMK5 105K63J04L4 BULK

J05 6.0 11.0 7.2 25 MMK5 125K63J05L4 BULK

J05 6.0 11.0 7.2 25 MMK5 155K63J05L4 BULK

J06 7.2 13.0 7.2 25 MMK5 185K63J06L4 BULK

J06 7.2 13.0 7.2 25 MMK5 225K63J06L4 BULK

LEAD SpACINg 7.5 MM

0.0010 K00 2.5 6.0 10.0 10 MMK7.5 102K63K00L4 BULK

0.0012 K00 2.5 6.0 10.0 10 MMK7.5 122K63K00L4 BULK

0.0015 K00 2.5 6.0 10.0 10 MMK7.5 152K63K00L4 BULK

0.0018 K00 2.5 6.0 10.0 10 MMK7.5 182K63K00L4 BULK

0.0022 K00 2.5 6.0 10.0 10 MMK7.5 222K63K00L4 BULK

0.0027 K00 2.5 6.0 10.0 10 MMK7.5 272K63K00L4 BULK

0.0033 K00 2.5 6.0 10.0 10 MMK7.5 332K63K00L4 BULK

0.0039 K00 2.5 6.0 10.0 10 MMK7.5 392K63K00L4 BULK

0.0047 K00 2.5 6.0 10.0 10 MMK7.5 472K63K00L4 BULK

0.0056 K00 2.5 6.0 10.0 10 MMK7.5 562K63K00L4 BULK

0.0068 K00 2.5 6.0 10.0 10 MMK7.5 682K63K00L4 BULK

0.0082 K00 2.5 6.0 10.0 10 MMK7.5 822K63K00L4 BULK

0.010 K00 2.5 6.0 10.0 10 MMK7.5 103K63K00L4 BULK

0.012 K00 2.5 6.0 10.0 10 MMK7.5 123K63K00L4 BULK

0.015 K00 2.5 6.0 10.0 10 MMK7.5 153K63K00L4 BULK

0.018 K00 2.5 6.0 10.0 10 MMK7.5 183K63K00L4 BULK

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

63 VDC/40 VAC

LEAD SpACINg 7.5 MM

0.022 K00 2.5 6.0 10.0 10 MMK7.5 223K63K00L4 BULK

0.027 K00 2.5 6.0 10.0 10 MMK7.5 273K63K00L4 BULK

0.033 K00 2.5 6.0 10.0 10 MMK7.5 333K63K00L4 BULK

0.039 K00 2.5 6.0 10.0 10 MMK7.5 393K63K00L4 BULK

0.047 K00 2.5 6.0 10.0 10 MMK7.5 473K63K00L4 BULK

0.056 K00 2.5 6.0 10.0 10 MMK7.5 563K63K00L4 BULK

0.068 K00 2.5 6.0 10.0 10 MMK7.5 683K63K00L4 BULK

0.082 K00 2.5 6.0 10.0 10 MMK7.5 823K63K00L4 BULK

0.10 K00 2.5 6.0 10.0 10 MMK7.5 104K63K00L4 BULK

0.12 K00 2.5 6.0 10.0 10 MMK7.5 124K63K00L4 BULK

0.15 K00 2.5 6.0 10.0 10 MMK7.5 154K63K00L4 BULK

0.18 K00 2.5 6.0 10.0 10 MMK7.5 184K63K00L4 BULK

0.22 K01 4.0 8.0 10.0 10 MMK7.5 224K63K01L4 BULK

0.27 K01 4.0 8.0 10.0 10 MMK7.5 274K63K01L4 BULK

0.33 K01 4.0 8.0 10.0 10 MMK7.5 334K63K01L4 BULK

0.39 K01 4.0 8.0 10.0 10 MMK7.5 394K63K01L4 BULK

0.47 K01 4.0 8.0 10.0 10 MMK7.5 474K63K01L4 BULK

0.56 K03 5.0 11.0 10.0 10 MMK7.5 564K63K03L4 BULK

0.68 K03 5.0 11.0 10.0 10 MMK7.5 684K63K03L4 BULK

0.82 K03 5.0 11.0 10.0 10 MMK7.5 824K63K03L4 BULK

1.0

1.2

1.5

K03 5.0 11.0 10.0 10 MMK7.5 105K63K03L4 BULK

K04 6.0 12.0 10.5 10 MMK7.5 125K63K04L4 BULK

K04 6.0 12.0 10.5 10 MMK7.5 155K63K04L4 BULK

LEAD SpACINg 10 MM

0.0010 A01 4.0 9.0 13.0 8 MMK10 102K63A01L4 BULK

0.0012 A01 4.0 9.0 13.0 8 MMK10 122K63A01L4 BULK

0.0015 A01 4.0 9.0 13.0 8 MMK10 152K63A01L4 BULK

0.0018 A01 4.0 9.0 13.0 8 MMK10 182K63A01L4 BULK

0.0022 A01 4.0 9.0 13.0 8 MMK10 222K63A01L4 BULK

0.0027 A01 4.0 9.0 13.0 8 MMK10 272K63A01L4 BULK

0.0033 A01 4.0 9.0 13.0 8 MMK10 332K63A01L4 BULK

0.0039 A01 4.0 9.0 13.0 8 MMK10 392K63A01L4 BULK

0.0047 A01 4.0 9.0 13.0 8 MMK10 472K63A01L4 BULK

0.0056 A01 4.0 9.0 13.0 8 MMK10 562K63A01L4 BULK

0.0068 A01 4.0 9.0 13.0 8 MMK10 682K63A01L4 BULK

0.0078 A01 4.0 9.0 13.0 8 MMK10 782K63A01L4 BULK

0.0082 A01 4.0 9.0 13.0 8 MMK10 822K63A01L4 BULK

0.010 A01 4.0 9.0 13.0 8 MMK10 103K63A01L4 BULK

0.012 A01 4.0 9.0 13.0 8 MMK10 123K63A01L4 BULK

0.015 A01 4.0 9.0 13.0 8 MMK10 153K63A01L4 BULK

0.018 A01 4.0 9.0 13.0 8 MMK10 183K63A01L4 BULK

0.022 A01 4.0 9.0 13.0 8 MMK10 223K63A01L4 BULK

0.027 A01 4.0 9.0 13.0 8 MMK10 273K63A01L4 BULK

0.033 A01 4.0 9.0 13.0 8 MMK10 333K63A01L4 BULK

0.039 A01 4.0 9.0 13.0 8 MMK10 393K63A01L4 BULK

0.047 A01 4.0 9.0 13.0 8 MMK10 473K63A01L4 BULK

0.056 A01 4.0 9.0 13.0 8 MMK10 563K63A01L4 BULK

0.068 A01 4.0 9.0 13.0 8 MMK10 683K63A01L4 BULK

0.082 A01 4.0 9.0 13.0 8 MMK10 823K63A01L4 BULK

0.10 A01 4.0 9.0 13.0 8 MMK10 104K63A01L4 BULK

0.12 A01 4.0 9.0 13.0 8 MMK10 124K63A01L4 BULK

0.15 A01 4.0 9.0 13.0 8 MMK10 154K63A01L4 BULK

0.18 A01 4.0 9.0 13.0 8 MMK10 184K63A01L4 BULK

0.22 A01 4.0 9.0 13.0 8 MMK10 224K63A01L4 BULK

0.27 A01 4.0 9.0 13.0 8 MMK10 274K63A01L4 BULK

0.33 A01 4.0 9.0 13.0 8 MMK10 334K63A01L4 BULK

0.39 A01 4.0 9.0 13.0 8 MMK10 394K63A01L4 BULK

0.47 A01 4.0 9.0 13.0 8 MMK10 474K63A01L4 BULK

Evox Rifa Leaded Film Capacitors

25

MMK article table

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

63 VDC/40 VAC

LEAD SpACINg 10 MM

0.56 A01 4.0 9.0 13.0 8 MMK10 564K63A01L4 BULK

0.68 A01 4.0 9.0 13.0 8 MMK10 684K63A01L4 BULK

0.82 A01 4.0 9.0 13.0 8 MMK10 824K63A01L4 BULK

1.0 A02 4.5 10.5 13.0 8 MMK10 105K63A02L4 BULK

1.2

1.5

1.8

2.2

A02 4.5 10.5 13.0 8 MMK10 125K63A02L4 BULK

A03 5.0 11.0 13.0 8 MMK10 155K63A03L4 BULK

A04 6.0 12.0 13.0 8 MMK10 185K63A04L4 BULK

A04 6.0 12.0 13.0 8 MMK10 225K63A04L4 BULK

LEAD SpACINg 15 MM

2.7

3.3

3.9

4.7

5.6

6.8

0.68 B04 5.5 10.5 18.0 5 MMK15 684K63B04L4 BULK

0.82 B04 5.5 10.5 18.0 5 MMK15 824K63B04L4 BULK

1.0

1.2

B04 5.5 10.5 18.0 5 MMK15 105K63B04L4 BULK

B04 5.5 10.5 18.0 5 MMK15 125K63B04L4 BULK

1.5

1.8

2.0

2.2

B04 5.5 10.5 18.0 5 MMK15 155K63B04L4 BULK

B04 5.5 10.5 18.0 5 MMK15 185K63B04L4 BULK

B05 5.5 12.5 18.0 5 MMK15 205K63B05L4 BULK

B05 5.5 12.5 18.0 5 MMK15 225K63B05L4 BULK

B10 6.5 12.5 18.0 5 MMK15 275K63B10L4 BULK

B10 6.5 12.5 18.0 5 MMK15 335K63B10L4 BULK

B06 7.5 14.5 18.0 5 MMK15 395K63B06L4 BULK

B06 7.5 14.5 18.0 5 MMK15 475K63B06L4 BULK

B11 8.5 16.0 18.0 5 MMK15 565K63B11L4 BULK

B14 9.5 17.5 18.0 5 MMK15 685K63B14L4 BULK

LEAD SpACINg 22.5 MM

27

33

33

39

47

47

15

15

18

22

8.2

10

12

3.3 D13 6.5 14.5 26.0 3 MMK22.5 335K63D13L4 TRAY

3.9 D13 6.5 14.5 26.0 3 MMK22.5 395K63D13L4 TRAY

4.7 D13 6.5 14.5 26.0 3 MMK22.5 475K63D13L4 TRAY

5.6 D17 7.0 16.5 26.0 3 MMK22.5 565K63D17L4 TRAY

6.8 D17 7.0 16.5 26.0 3 MMK22.5 685K63D17L4 TRAY

8.2 D14 8.0 16.0 26.0 3 MMK22.5 825K63D14L4 TRAY

10

12

D15 9.0 18.5 26.0 3 MMK22.5 106K63D15L4 TRAY

D18 10.5 19.0 26.0 3 MMK22.5 126K63D18L4 TRAY

15

18

22

D16 11.0 21.5 26.0 3 MMK22.5 156K63D16L4 TRAY

D20 13.5 23.0 26.0 3 MMK22.5 186K63D20L4 TRAY

D19 15.5 24.5 26.0 3 MMK22.5 226K63D19L4 TRAY

LEAD SpACINg 27.5 MM

F11 10.5 20.5 31.5 2 MMK27.5 825K63F11L4 TRAY

F11 10.5 20.5 31.5 2 MMK27.5 106K63F11L4 TRAY

F11 10.5 20.5 31.5 2 MMK27.5 126K63F11L4 TRAY

F12 11.5 22.5 31.5 2 MMK27.5 156K63F12L4 TRAY

F17 21.0 12.5 31.5 2 MMK27.5 156K63F17L4 TRAY

F12 11.5 22.5 31.5 2 MMK27.5 186K63F12L4 TRAY

F13 14.5 24.5 31.5 2 MMK27.5 226K63F13L4 TRAY

F14 17.5 28.0 31.5 2 MMK27.5 276K63F14L4 TRAY

F14 17.5 28.0 31.5 2 MMK27.5 336K63F14L4 TRAY

F19 27.5 16.0 31.5 2 MMK27.5 336K63F19L4 TRAY

F15 19.0 29.0 31.5 2 MMK27.5 396K63F15L4 TRAY

F16 21.0 30.0 31.5 2 MMK27.5 476K63F16L4 TRAY

F18 31.0 19.0 31.5 2 MMK27.5 476K63F18L4 TRAY

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

27

33

39

47

56

68

82

63 VDC/40 VAC

LEAD SpACINg 37.5 MM

R05 13.0 24.0 41.0 1 MMK37.5 276K63R05L4 TRAY

R04 15.0 26.0 41.0 1 MMK37.5 336K63R04L4 TRAY

R04 15.0 26.0 41.0 1 MMK37.5 396K63R04L4 TRAY

R02 16.5 32.0 41.0 1 MMK37.5 476K63R02L4 TRAY

R03 19.0 36.0 41.0 1 MMK37.5 566K63R03L4 TRAY

R03 19.0 36.0 41.0 1 MMK37.5 686K63R03L4 TRAY

R06 21.0 38.0 41.0 1 MMK37.5 826K63R06L4 TRAY

100 VDC/63 VAC

LEAD SpACINg 5 MM

0.0010 J01 2.5 6.5 7.2 30 MMK5 102K100J01L4 BULK

0.0012 J01 2.5 6.5 7.2 30 MMK5 122K100J01L4 BULK

0.0015 J01 2.5 6.5 7.2 30 MMK5 152K100J01L4 BULK

0.0018 J01 2.5 6.5 7.2 30 MMK5 182K100J01L4 BULK

0.0022 J01 2.5 6.5 7.2 30 MMK5 222K100J01L4 BULK

0.0027 J01 2.5 6.5 7.2 30 MMK5 272K100J01L4 BULK

0.0033 J01 2.5 6.5 7.2 30 MMK5 332K100J01L4 BULK

0.0039 J01 2.5 6.5 7.2 30 MMK5 392K100J01L4 BULK

0.0047 J01 2.5 6.5 7.2 30 MMK5 472K100J01L4 BULK

0.0056 J01 2.5 6.5 7.2 30 MMK5 562K100J01L4 BULK

0.0068 J01 2.5 6.5 7.2 30 MMK5 682K100J01L4 BULK

0.0082 J01 2.5 6.5 7.2 30 MMK5 822K100J01L4 BULK

0.010 J01 2.5 6.5 7.2 30 MMK5 103K100J01L4 BULK

0.012 J01 2.5 6.5 7.2 30 MMK5 123K100J01L4 BULK

0.015 J01 2.5 6.5 7.2 30 MMK5 153K100J01L4 BULK

0.018 J01 2.5 6.5 7.2 30 MMK5 183K100J01L4 BULK

0.022 J01 2.5 6.5 7.2 30 MMK5 223K100J01L4 BULK

0.027 J01 2.5 6.5 7.2 30 MMK5 273K100J01L4 BULK

0.033 J01 2.5 6.5 7.2 30 MMK5 333K100J01L4 BULK

0.039 J01 2.5 6.5 7.2 30 MMK5 393K100J01L4 BULK

0.047 J01 2.5 6.5 7.2 30 MMK5 473K100J01L4 BULK

0.056 J01 2.5 6.5 7.2 30 MMK5 563K100J01L4 BULK

0.068 J01 2.5 6.5 7.2 30 MMK5 683K100J01L4 BULK

0.082 J01 2.5 6.5 7.2 30 MMK5 823K100J01L4 BULK

0.10 J01 2.5 6.5 7.2 30 MMK5 104K100J01L4 BULK

0.12 J02 3.5 8.0 7.2 30 MMK5 124K100J02L4 BULK

0.15 J02 3.5 8.0 7.2 30 MMK5 154K100J02L4 BULK

0.18 J02 3.5 8.0 7.2 30 MMK5 184K100J02L4 BULK

0.22 J02 3.5 8.0 7.2 30 MMK5 224K100J02L4 BULK

0.27 J03 4.5 9.0 7.2 30 MMK5 274K100J03L4 BULK

0.33 J03 4.5 9.0 7.2 30 MMK5 334K100J03L4 BULK

0.39 J04 5.0 10.0 7.2 30 MMK5 394K100J04L4 BULK

0.47 J04 5.0 10.0 7.2 30 MMK5 474K100J04L4 BULK

0.56 J05 6.0 11.0 7.2 30 MMK5 564K100J05L4 BULK

0.68 J05 6.0 11.0 7.2 30 MMK5 684K100J05L4 BULK

0.82 J06 7.2 13.0 7.2 30 MMK5 824K100J06L4 BULK

1.0 J06 7.2 13.0 7.2 30 MMK5 105K100J06L4 BULK

LEAD SpACINg 7.5 MM

0.0010 K00 2.5 6.0 10.0 20 MMK7.5 102K100K00L4 BULK

0.0012 K00 2.5 6.0 10.0 20 MMK7.5 122K100K00L4 BULK

0.0015 K00 2.5 6.0 10.0 20 MMK7.5 152K100K00L4 BULK

0.0018 K00 2.5 6.0 10.0 20 MMK7.5 182K100K00L4 BULK

0.0022 K00 2.5 6.0 10.0 20 MMK7.5 222K100K00L4 BULK

0.0027 K00 2.5 6.0 10.0 20 MMK7.5 272K100K00L4 BULK

0.0033 K00 2.5 6.0 10.0 20 MMK7.5 332K100K00L4 BULK

0.0039 K00 2.5 6.0 10.0 20 MMK7.5 392K100K00L4 BULK

0.0047 K00 2.5 6.0 10.0 20 MMK7.5 472K100K00L4 BULK

0.0056 K00 2.5 6.0 10.0 20 MMK7.5 562K100K00L4 BULK

MMK article table

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

100 VDC/63 VAC

LEAD SpACINg 7.5 MM

0.0068 K00 2.5 6.0 10.0 20 MMK7.5 682K100K00L4 BULK

0.0082 K00 2.5 6.0 10.0 20 MMK7.5 822K100K00L4 BULK

0.010 K00 2.5 6.0 10.0 20 MMK7.5 103K100K00L4 BULK

0.012 K00 2.5 6.0 10.0 20 MMK7.5 123K100K00L4 BULK

0.015 K00 2.5 6.0 10.0 20 MMK7.5 153K100K00L4 BULK

0.018 K00 2.5 6.0 10.0 20 MMK7.5 183K100K00L4 BULK

0.022 K00 2.5 6.0 10.0 20 MMK7.5 223K100K00L4 BULK

0.027 K00 2.5 6.0 10.0 20 MMK7.5 273K100K00L4 BULK

0.033 K00 2.5 6.0 10.0 20 MMK7.5 333K100K00L4 BULK

0.039 K00 2.5 6.0 10.0 20 MMK7.5 393K100K00L4 BULK

0.047 K00 2.5 6.0 10.0 20 MMK7.5 473K100K00L4 BULK

0.056 K00 2.5 6.0 10.0 20 MMK7.5 563K100K00L4 BULK

0.068 K00 2.5 6.0 10.0 20 MMK7.5 683K100K00L4 BULK

0.082 K00 2.5 6.0 10.0 20 MMK7.5 823K100K00L4 BULK

0.10 K00 2.5 6.0 10.0 20 MMK7.5 104K100K00L4 BULK

0.12 K01 4.0 8.0 10.0 20 MMK7.5 124K100K01L4 BULK

0.15 K01 4.0 8.0 10.0 20 MMK7.5 154K100K01L4 BULK

0.18 K01 4.0 8.0 10.0 20 MMK7.5 184K100K01L4 BULK

0.22 K01 4.0 8.0 10.0 20 MMK7.5 224K100K01L4 BULK

0.27 K01 4.0 8.0 10.0 20 MMK7.5 274K100K01L4 BULK

0.33 K03 5.0 11.0 10.0 20 MMK7.5 334K100K03L4 BULK

0.39 K03 5.0 11.0 10.0 20 MMK7.5 394K100K03L4 BULK

0.47 K03 5.0 11.0 10.0 20 MMK7.5 474K100K03L4 BULK

0.56 K03 5.0 11.0 10.0 20 MMK7.5 564K100K03L4 BULK

0.68 K03 5.0 11.0 10.0 20 MMK7.5 684K100K03L4 BULK

0.82 K04 6.0 12.0 10.5 20 MMK7.5 824K100K04L4 BULK

1.0 K04 6.0 12.0 10.5 20 MMK7.5 105K100K04L4 BULK

LEAD SpACINg 10 MM

0.0010 A01 4.0 9.0 13.0 12 MMK10 102K100A01L4 BULK

0.0012 A01 4.0 9.0 13.0 12 MMK10 122K100A01L4 BULK

0.0015 A01 4.0 9.0 13.0 12 MMK10 152K100A01L4 BULK

0.0018 A01 4.0 9.0 13.0 12 MMK10 182K100A01L4 BULK

0.0022 A01 4.0 9.0 13.0 12 MMK10 222K100A01L4 BULK

0.0027 A01 4.0 9.0 13.0 12 MMK10 272K100A01L4 BULK

0.0033 A01 4.0 9.0 13.0 12 MMK10 332K100A01L4 BULK

0.0039 A01 4.0 9.0 13.0 12 MMK10 392K100A01L4 BULK

0.0047 A01 4.0 9.0 13.0 12 MMK10 472K100A01L4 BULK

0.0056 A01 4.0 9.0 13.0 12 MMK10 562K100A01L4 BULK

0.0068 A01 4.0 9.0 13.0 12 MMK10 682K100A01L4 BULK

0.0078 A01 4.0 9.0 13.0 12 MMK10 782K100A01L4 BULK

0.0082 A01 4.0 9.0 13.0 12 MMK10 822K100A01L4 BULK

0.010 A01 4.0 9.0 13.0 12 MMK10 103K100A01L4 BULK

0.012 A01 4.0 9.0 13.0 12 MMK10 123K100A01L4 BULK

0.015 A01 4.0 9.0 13.0 12 MMK10 153K100A01L4 BULK

0.018 A01 4.0 9.0 13.0 12 MMK10 183K100A01L4 BULK

0.022 A01 4.0 9.0 13.0 12 MMK10 223K100A01L4 BULK

0.027 A01 4.0 9.0 13.0 12 MMK10 273K100A01L4 BULK

0.033 A01 4.0 9.0 13.0 12 MMK10 333K100A01L4 BULK

0.039 A01 4.0 9.0 13.0 12 MMK10 393K100A01L4 BULK

0.047 A01 4.0 9.0 13.0 12 MMK10 473K100A01L4 BULK

0.056 A01 4.0 9.0 13.0 12 MMK10 563K100A01L4 BULK

0.068 A01 4.0 9.0 13.0 12 MMK10 683K100A01L4 BULK

0.082 A01 4.0 9.0 13.0 12 MMK10 823K100A01L4 BULK

0.10 A01 4.0 9.0 13.0 12 MMK10 104K100A01L4 BULK

0.12 A01 4.0 9.0 13.0 12 MMK10 124K100A01L4 BULK

0.15 A01 4.0 9.0 13.0 12 MMK10 154K100A01L4 BULK

0.18 A01 4.0 9.0 13.0 12 MMK10 184K100A01L4 BULK

0.22 A01 4.0 9.0 13.0 12 MMK10 224K100A01L4 BULK

0.27 A01 4.0 9.0 13.0 12 MMK10 274K100A01L4 BULK

0.33 A01 4.0 9.0 13.0 12 MMK10 334K100A01L4 BULK

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

100 VDC/63 VAC

LEAD SpACINg 10 MM

0.39 A01 4.0 9.0 13.0 12 MMK10 394K100A01L4 BULK

0.47 A01 4.0 9.0 13.0 12 MMK10 474K100A01L4 BULK

0.56 A02 4.5 10.5 13.0 12 MMK10 564K100A02L4 BULK

0.68 A02 4.5 10.5 13.0 12 MMK10 684K100A02L4 BULK

0.82 A02 4.5 10.5 13.0 12 MMK10 824K100A02L4 BULK

1.0 A04 6.0 12.0 13.0 12 MMK10 105K100A04L4 BULK

LEAD SpACINg 15 MM

1.2

1.5

1.8

2.2

2.7

3.3

3.9

0.27 B04 5.5 10.5 18.0 8 MMK15 274K100B04L4 BULK

0.33 B04 5.5 10.5 18.0 8 MMK15 334K100B04L4 BULK

0.39 B04 5.5 10.5 18.0 8 MMK15 394K100B04L4 BULK

0.47 B04 5.5 10.5 18.0 8 MMK15 474K100B04L4 BULK

0.56 B04 5.5 10.5 18.0 8 MMK15 564K100B04L4 BULK

0.68 B04 5.5 10.5 18.0 8 MMK15 684K100B04L4 BULK

0.82 B04 5.5 10.5 18.0 8 MMK15 824K100B04L4 BULK

1.0 B04 5.5 10.5 18.0 8 MMK15 105K100B04L4 BULK

B05 5.5 12.5 18.0 8 MMK15 125K100B05L4 BULK

B10 6.5 12.5 18.0 8 MMK15 155K100B10L4 BULK

B06 7.5 14.5 18.0 8 MMK15 185K100B06L4 BULK

B06 7.5 14.5 18.0 8 MMK15 225K100B06L4 BULK

B12 8.0 15.0 18.0 8 MMK15 275K100B12L4 BULK

B11 8.5 16.0 18.0 8 MMK15 335K100B11L4 BULK

B14 9.5 17.5 18.0 8 MMK15 395K100B14L4 BULK

LEAD SpACINg 22.5 MM

15

18

22

22

27

27

33

3.9

4.7

5.6

6.8

8.2

10

10

12

1.2

1.5

1.8

2.0

2.2

2.7

3.3

3.9

D13 6.5 14.5 26.0 5 MMK22.5 125K100D13L4 TRAY

D13 6.5 14.5 26.0 5 MMK22.5 155K100D13L4 TRAY

D13 6.5 14.5 26.0 5 MMK22.5 185K100D13L4 TRAY

D13 6.5 14.5 26.0 5 MMK22.5 205K100D13L4 TRAY

D13 6.5 14.5 26.0 5 MMK22.5 225K100D13L4 TRAY

D13 6.5 14.5 26.0 5 MMK22.5 275K100D13L4 TRAY

D17 7.0 16.5 26.0 5 MMK22.5 335K100D17L4 TRAY

D14 8.0 16.0 26.0 5 MMK22.5 395K100D14L4 TRAY

4.7

5.6

6.8

8.2

D15 9.0 18.5 26.0 5 MMK22.5 475K100D15L4 TRAY

D15 9.0 18.5 26.0 5 MMK22.5 565K100D15L4 TRAY

D18 10.5 19.0 26.0 5 MMK22.5 685K100D18L4 TRAY

D16 11.0 21.5 26.0 5 MMK22.5 825K100D16L4 TRAY

10.0 D20 13.5 23.0 26.0 5 MMK22.5 106K100D20L4 TRAY

12.0 D19 15.5 24.5 26.0 5 MMK22.5 126K100D19L4 TRAY

15.0 D19 15.5 24.5 26.0 5 MMK22.5 156K100D19L4 TRAY

LEAD SpACINg 27.5 MM

F11 10.5 20.5 31.5 3 MMK27.5 395K100F11L4 TRAY

F11 10.5 20.5 31.5 3 MMK27.5 475K100F11L4 TRAY

F11 10.5 20.5 31.5 3 MMK27.5 565K100F11L4 TRAY

F11 10.5 20.5 31.5 3 MMK27.5 685K100F11L4 TRAY

F11 10.5 20.5 31.5 3 MMK27.5 825K100F11L4 TRAY

F12 11.5 22.5 31.5 3 MMK27.5 106K100F12L4 TRAY

F17 21.0 12.5 31.5 3 MMK27.5 106K100F17L4 TRAY

F12 11.5 22.5 31.5 3 MMK27.5 126K100F12L4 TRAY

F13 14.5 24.5 31.5 3 MMK27.5 156K100F13L4 TRAY

F14 17.5 28.0 31.5 3 MMK27.5 186K100F14L4 TRAY

F14 17.5 28.0 31.5 3 MMK27.5 226K100F14L4 TRAY

F19 27.5 16.0 31.5 3 MMK27.5 226K100F19L4 TRAY

F15 19.0 29.0 31.5 3 MMK27.5 276K100F15L4 TRAY

F18 31.0 19.0 31.5 3 MMK27.5 276K100F18L4 TRAY

F16 21.0 30.0 31.5 3 MMK27.5 336K100F16L4 TRAY

Evox Rifa Leaded Film Capacitors

27

MMK article table

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

100 VDC/63 VAC

LEAD SpACINg 37.5 MM

27

33

39

47

12

15

18

22

R05 13.0 24.0 41.0 2 MMK37.5 126K100R05L4 TRAY

R05 13.0 24.0 41.0 2 MMK37.5 156K100R05L4 TRAY

R05 13.0 24.0 41.0 2 MMK37.5 186K100R05L4 TRAY

R04 15.0 26.0 41.0 2 MMK37.5 226K100R04L4 TRAY

R04 15.0 26.0 41.0 2 MMK37.5 276K100R04L4 TRAY

R02 16.5 32.0 41.0 2 MMK37.5 336K100R02L4 TRAY

R03 19.0 36.0 41.0 2 MMK37.5 396K100R03L4 TRAY

R03 19.0 36.0 41.0 2 MMK37.5 476K100R03L4 TRAY

56

68

R06 21.0 38.0 41.0 2 MMK37.5 566K100R06L4 TRAY

R08 28.0 43.0 41.0 2 MMK37.5 686K100R08L4 TRAY

82 R08 28.0 43.0 41.0 2 MMK37.5 826K100R08L4 TRAY

100 R08 28.0 43.0 41.0 2 MMK37.5 107K100R08L4 TRAY

250 VDC/160 VAC

LEAD SpACINg 5 MM

0.0010 J01 2.5 6.5 7.2 40 MMK5 102K250J01L4 BULK

0.0012 J01 2.5 6.5 7.2 40 MMK5 122K250J01L4 BULK

0.0015 J01 2.5 6.5 7.2 40 MMK5 152K250J01L4 BULK

0.0018 J01 2.5 6.5 7.2 40 MMK5 182K250J01L4 BULK

0.0022 J01 2.5 6.5 7.2 40 MMK5 222K250J01L4 BULK

0.0027 J01 2.5 6.5 7.2 40 MMK5 272K250J01L4 BULK

0.0033 J01 2.5 6.5 7.2 40 MMK5 332K250J01L4 BULK

0.0039 J01 2.5 6.5 7.2 40 MMK5 392K250J01L4 BULK

0.0047 J01 2.5 6.5 7.2 40 MMK5 472K250J01L4 BULK

0.0056 J01 2.5 6.5 7.2 40 MMK5 562K250J01L4 BULK

0.0068 J01 2.5 6.5 7.2 40 MMK5 682K250J01L4 BULK

0.0082 J01 2.5 6.5 7.2 40 MMK5 822K250J01L4 BULK

0.010 J01 2.5 6.5 7.2 40 MMK5 103K250J01L4 BULK

0.012 J01 2.5 6.5 7.2 40 MMK5 123K250J01L4 BULK

0.015 J01 2.5 6.5 7.2 40 MMK5 153K250J01L4 BULK

0.018 J01 2.5 6.5 7.2 40 MMK5 183K250J01L4 BULK

0.022 J01 2.5 6.5 7.2 40 MMK5 223K250J01L4 BULK

0.027 J02 3.5 8.0 7.2 40 MMK5 273K250J02L4 BULK

0.033 J02 3.5 8.0 7.2 40 MMK5 333K250J02L4 BULK

0.039 J02 3.5 8.0 7.2 40 MMK5 393K250J02L4 BULK

0.047 J02 3.5 8.0 7.2 40 MMK5 473K250J02L4 BULK

0.056 J02 3.5 8.0 7.2 40 MMK5 563K250J02L4 BULK

0.068 J02 3.5 8.0 7.2 40 MMK5 683K250J02L4 BULK

0.082 J03 4.5 9.0 7.2 40 MMK5 823K250J03L4 BULK

0.10 J03 4.5 9.0 7.2 40 MMK5 104K250J03L4 BULK

0.12 J04 5.0 10.0 7.2 40 MMK5 124K250J04L4 BULK

0.15 J04 5.0 10.0 7.2 40 MMK5 154K250J04L4 BULK

0.18 J05 6.0 11.0 7.2 40 MMK5 184K250J05L4 BULK

0.22 J05 6.0 11.0 7.2 40 MMK5 224K250J05L4 BULK

LEAD SpACINg 7.5 MM

0.0010 K00 2.5 6.0 10.0 30 MMK7.5 102K250K00L4 BULK

0.0012 K00 2.5 6.0 10.0 30 MMK7.5 122K250K00L4 BULK

0.0015 K00 2.5 6.0 10.0 30 MMK7.5 152K250K00L4 BULK

0.0018 K00 2.5 6.0 10.0 30 MMK7.5 182K250K00L4 BULK

0.0022 K00 2.5 6.0 10.0 30 MMK7.5 222K250K00L4 BULK

0.0027 K00 2.5 6.0 10.0 30 MMK7.5 272K250K00L4 BULK

0.0033 K00 2.5 6.0 10.0 30 MMK7.5 332K250K00L4 BULK

0.0039 K00 2.5 6.0 10.0 30 MMK7.5 392K250K00L4 BULK

0.0047 K00 2.5 6.0 10.0 30 MMK7.5 472K250K00L4 BULK

0.0056 K00 2.5 6.0 10.0 30 MMK7.5 562K250K00L4 BULK

0.0068 K00 2.5 6.0 10.0 30 MMK7.5 682K250K00L4 BULK

0.0082 K00 2.5 6.0 10.0 30 MMK7.5 822K250K00L4 BULK

0.010 K00 2.5 6.0 10.0 30 MMK7.5 103K250K00L4 BULK

Updated since the latest printed catalogue

250 VDC/160 VAC

LEAD SpACINg 7.5 MM

0.012 K00 2.5 6.0 10.0 30 MMK7.5 123K250K00L4 BULK

0.015 K00 2.5 6.0 10.0 30 MMK7.5 153K250K00L4 BULK

0.018 K00 2.5 6.0 10.0 30 MMK7.5 183K250K00L4 BULK

0.022 K00 2.5 6.0 10.0 30 MMK7.5 223K250K00L4 BULK

0.027 K00 2.5 6.0 10.0 30 MMK7.5 273K250K00L4 BULK

0.033 K00 2.5 6.0 10.0 30 MMK7.5 333K250K00L4 BULK

0.039 K01 4.0 8.0 10.0 30 MMK7.5 393K250K01L4 BULK

0.047 K01 4.0 8.0 10.0 30 MMK7.5 473K250K01L4 BULK

0.056 K01 4.0 8.0 10.0 30 MMK7.5 563K250K01L4 BULK

0.068 K01 4.0 8.0 10.0 30 MMK7.5 683K250K01L4 BULK

0.082 K01 4.0 8.0 10.0 30 MMK7.5 823K250K01L4 BULK

0.10 K01 4.0 8.0 10.0 30 MMK7.5 104K250K01L4 BULK

0.12 K03 5.0 11.0 10.0 30 MMK7.5 124K250K03L4 BULK

0.15 K03 5.0 11.0 10.0 30 MMK7.5 154K250K03L4 BULK

0.18 K03 5.0 11.0 10.0 30 MMK7.5 184K250K03L4 BULK

0.22 K03 5.0 11.0 10.0 30 MMK7.5 224K250K03L4 BULK

0.27 K04 6.0 12.0 10.5 30 MMK7.5 274K250K04L4 BULK

0.33 K04 6.0 12.0 10.5 30 MMK7.5 334K250K04L4 BULK

LEAD SpACINg 10 MM

0.0010 A01 4.0 9.0 13.0 20 MMK10 102K250A01L4 BULK

0.0012 A01 4.0 9.0 13.0 20 MMK10 122K250A01L4 BULK

0.0015 A01 4.0 9.0 13.0 20 MMK10 152K250A01L4 BULK

0.0018 A01 4.0 9.0 13.0 20 MMK10 182K250A01L4 BULK

0.0022 A01 4.0 9.0 13.0 20 MMK10 222K250A01L4 BULK

0.0027 A01 4.0 9.0 13.0 20 MMK10 272K250A01L4 BULK

0.0033 A01 4.0 9.0 13.0 20 MMK10 332K250A01L4 BULK

0.0039 A01 4.0 9.0 13.0 20 MMK10 392K250A01L4 BULK

0.0047 A01 4.0 9.0 13.0 20 MMK10 472K250A01L4 BULK

0.0056 A01 4.0 9.0 13.0 20 MMK10 562K250A01L4 BULK

0.0068 A01 4.0 9.0 13.0 20 MMK10 682K250A01L4 BULK

0.0082 A01 4.0 9.0 13.0 20 MMK10 822K250A01L4 BULK

0.010 A01 4.0 9.0 13.0 20 MMK10 103K250A01L4 BULK

0.012 A01 4.0 9.0 13.0 20 MMK10 123K250A01L4 BULK

0.015 A01 4.0 9.0 13.0 20 MMK10 153K250A01L4 BULK

0.018 A01 4.0 9.0 13.0 20 MMK10 183K250A01L4 BULK

0.022 A01 4.0 9.0 13.0 20 MMK10 223K250A01L4 BULK

0.027 A01 4.0 9.0 13.0 20 MMK10 273K250A01L4 BULK

0.033 A01 4.0 9.0 13.0 20 MMK10 333K250A01L4 BULK

0.039 A01 4.0 9.0 13.0 20 MMK10 393K250A01L4 BULK

0.047 A01 4.0 9.0 13.0 20 MMK10 473K250A01L4 BULK

0.056 A01 4.0 9.0 13.0 20 MMK10 563K250A01L4 BULK

0.068 A01 4.0 9.0 13.0 20 MMK10 683K250A01L4 BULK

0.082 A01 4.0 9.0 13.0 20 MMK10 823K250A01L4 BULK

0.10 A01 4.0 9.0 13.0 20 MMK10 104K250A01L4 BULK

0.12 A01 4.0 9.0 13.0 20 MMK10 124K250A01L4 BULK

0.15 A01 4.0 9.0 13.0 20 MMK10 154K250A01L4 BULK

0.18 A01 4.0 9.0 13.0 20 MMK10 184K250A01L4 BULK

0.22 A02 4.5 10.5 13.0 20 MMK10 224K250A02L4 BULK

0.27 A03 5.0 11.0 13.0 20 MMK10 274K250A03L4 BULK

0.33 A04 6.0 12.0 13.0 20 MMK10 334K250A04L4 BULK

0.39 A04 6.0 12.0 13.0 20 MMK10 394K250A04L4 BULK

LEAD SpACINg 15 MM

0.082 B04 5.5 10.5 18.0 12 MMK15 823K250B04L4 BULK

0.10 B04 5.5 10.5 18.0 12 MMK15 104K250B04L4 BULK

0.12 B04 5.5 10.5 18.0 12 MMK15 124K250B04L4 BULK

0.15 B04 5.5 10.5 18.0 12 MMK15 154K250B04L4 BULK

0.18 B04 5.5 10.5 18.0 12 MMK15 184K250B04L4 BULK

0.22 B04 5.5 10.5 18.0 12 MMK15 224K250B04L4 BULK

0.27 B04 5.5 10.5 18.0 12 MMK15 274K250B04L4 BULK

MMK article table

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

250 VDC/160 VA

LEAD SpACINg 15 MM

3.9

4.7

5.6

6.8

8.2

8.2

10

10

1.5

1.8

2.0

2.2

2.5

2.7

3.3

3.3

0.33 B04 5.5 10.5 18.0 12 MMK15 334K250B04L4 BULK

0.39 B04 5.5 10.5 18.0 12 MMK15 394K250B04L4 BULK

0.47 B05 5.5 12.5 18.0 12 MMK15 474K250B05L4 BULK

0.56 B10 6.5 12.5 18.0 12 MMK15 564K250B10L4 BULK

0.68 B10 6.5 12.5 18.0 12 MMK15 684K250B10L4 BULK

0.82 B06 7.5 14.5 18.0 12 MMK15 824K250B06L4 BULK

1.0

1.2

B06 7.5 14.5 18.0 12 MMK15 105K250B06L4 BULK

B12 8.0 15.0 18.0 12 MMK15 125K250B12L4 BULK

1.5 B14 9.5 17.5 18.0 12 MMK15 155K250B14L4 BULK

1.8 B14 9.5 17.5 18.0 12 MMK15 185K250B14L4 BULK

LEAD SpACINg 22.5 MM

2.0

2.2

2.7

3.3

3.9

4.7

5.6

0.47 D13 6.5 14.5 26.0 8 MMK22.5 474K250D13L4 TRAY

0.56 D13 6.5 14.5 26.0 8 MMK22.5 564K250D13L4 TRAY

0.68 D13 6.5 14.5 26.0 8 MMK22.5 684K250D13L4 TRAY

0.82 D13 6.5 14.5 26.0 8 MMK22.5 824K250D13L4 TRAY

1.0

1.2

1.5

1.8

D13 6.5 14.5 26.0 8 MMK22.5 105K250D13L4 TRAY

D17 7.0 16.5 26.0 8 MMK22.5 125K250D17L4 TRAY

D14 8.0 16.0 26.0 8 MMK22.5 155K250D14L4 TRAY

D15 9.0 18.5 26.0 8 MMK22.5 185K250D15L4 TRAY

D15 9.0 18.5 26.0 8 MMK22.5 205K250D15L4 TRAY

D15 9.0 18.5 26.0 8 MMK22.5 225K250D15L4 TRAY

D18 10.5 19.0 26.0 8 MMK22.5 275K250D18L4 TRAY

D16 11.0 21.5 26.0 8 MMK22.5 335K250D16L4 TRAY

D20 13.5 23.0 26.0 8 MMK22.5 395K250D20L4 TRAY

D19 15.5 24.5 26.0 8 MMK22.5 475K250D19L4 TRAY

D19 15.5 24.5 26.0 8 MMK22.5 565K250D19L4 TRAY

LEAD SpACINg 27.5 MM

F11 10.5 20.5 31.5 5 MMK27.5 155K250F11L4 TRAY

F11 10.5 20.5 31.5 5 MMK27.5 185K250F11L4 TRAY

F11 10.5 20.5 31.5 5 MMK27.5 205K250F11L4 TRAY

F11 10.5 20.5 31.5 5 MMK27.5 225K250F11L4 TRAY

F11 10.5 20.5 31.5 5 MMK27.5 255K250F11L4 TRAY

F11 10.5 20.5 31.5 5 MMK27.5 275K250F11L4 TRAY

F11 10.5 20.5 31.5 5 MMK27.5 335K250F11L4 TRAY

F17 21.0 12.5 31.5 5 MMK27.5 335K250F17L4 TRAY

F12 11.5 22.5 31.5 5 MMK27.5 395K250F12L4 TRAY

F03 13.5 23.0 31.5 5 MMK27.5 475K250F03L4 TRAY

F13 14.5 24.5 31.5 5 MMK27.5 565K250F13L4 TRAY

F14 17.5 28.0 31.5 5 MMK27.5 685K250F14L4 TRAY

F14 17.5 28.0 31.5 5 MMK27.5 825K250F14L4 TRAY

F19 27.5 16.0 31.5 5 MMK27.5 825K250F19L4 TRAY

F16 21.0 30.0 31.5 5 MMK27.5 106K250F16L4 TRAY

F18 31.0 19.0 31.5 5 MMK27.5 106K250F18L4 TRAY

LEAD SpACINg 37.5 MM

22

27

33

39

10

12

15

18

4.7

5.6

6.8

8.2

R05 13.0 24.0 41.0 3 MMK37.5 475K250R05L4 TRAY

R05 13.0 24.0 41.0 3 MMK37.5 565K250R05L4 TRAY

R05 13.0 24.0 41.0 3 MMK37.5 685K250R05L4 TRAY

R04 15.0 26.0 41.0 3 MMK37.5 825K250R04L4 TRAY

R04 15.0 26.0 41.0 3 MMK37.5 106K250R04L4 TRAY

R02 16.5 32.0 41.0 3 MMK37.5 126K250R02L4 TRAY

R02 16.5 32.0 41.0 3 MMK37.5 156K250R02L4 TRAY

R03 19.0 36.0 41.0 3 MMK37.5 186K250R03L4 TRAY

R06 21.0 38.0 41.0 3 MMK37.5 226K250R06L4 TRAY

R08 28.0 43.0 41.0 3 MMK37.5 276K250R08L4 TRAY

R08 28.0 43.0 41.0 3 MMK37.5 336K250R08L4 TRAY

R08 28.0 43.0 41.0 3 MMK37.5 396K250R08L4 TRAY

Updated since the latest printed catalogue

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

400 VDC/200 VAC

LEAD SpACINg 5 MM

0.0010 J01 2.5 6.5 7.2 50 MMK5 102K400J01L4 BULK

0.0012 J01 2.5 6.5 7.2 50 MMK5 122K400J01L4 BULK

0.0015 J01 2.5 6.5 7.2 50 MMK5 152K400J01L4 BULK

0.0018 J01 2.5 6.5 7.2 50 MMK5 182K400J01L4 BULK

0.0022 J01 2.5 6.5 7.2 50 MMK5 222K400J01L4 BULK

0.0027 J01 2.5 6.5 7.2 50 MMK5 272K400J01L4 BULK

0.0033 J01 2.5 6.5 7.2 50 MMK5 332K400J01L4 BULK

0.0039 J01 2.5 6.5 7.2 50 MMK5 392K400J01L4 BULK

0.0047 J01 2.5 6.5 7.2 50 MMK5 472K400J01L4 BULK

0.0056 J01 2.5 6.5 7.2 50 MMK5 562K400J01L4 BULK

0.0068 J01 2.5 6.5 7.2 50 MMK5 682K400J01L4 BULK

0.0082 J01 2.5 6.5 7.2 50 MMK5 822K400J01L4 BULK

0.010 J01 2.5 6.5 7.2 50 MMK5 103K400J01L4 BULK

0.012 J01 2.5 6.5 7.2 50 MMK5 123K400J01L4 BULK

0.015 J01 2.5 6.5 7.2 50 MMK5 153K400J01L4 BULK

0.018 J02 3.5 8.0 7.2 50 MMK5 183K400J02L4 BULK

0.022 J02 3.5 8.0 7.2 50 MMK5 223K400J02L4 BULK

0.027 J03 4.5 9.0 7.2 50 MMK5 273K400J03L4 BULK

0.033 J03 4.5 9.0 7.2 50 MMK5 333K400J03L4 BULK

0.039 J03 4.5 9.0 7.2 50 MMK5 393K400J03L4 BULK

0.047 J03 4.5 9.0 7.2 50 MMK5 473K400J03L4 BULK

0.056 J05 6.0 11.0 7.2 50 MMK5 563K400J05L4 BULK

0.068 J05 6.0 11.0 7.2 50 MMK5 683K400J05L4 BULK

0.082 J06 7.2 13.0 7.2 50 MMK5 823K400J06L4 BULK

0.10 J06 7.2 13.0 7.2 50 MMK5 104K400J06L4 BULK

0.12 J06 7.2 13.0 7.2 50 MMK5 124K400J06L4 BULK

LEAD SpACINg 7.5 MM

0.0010 K00 2.5 6.0 10.0 40 MMK7.5 102K400K00L4 BULK

0.0012 K00 2.5 6.0 10.0 40 MMK7.5 122K400K00L4 BULK

0.0015 K00 2.5 6.0 10.0 40 MMK7.5 152K400K00L4 BULK

0.0018 K00 2.5 6.0 10.0 40 MMK7.5 182K400K00L4 BULK

0.0022 K00 2.5 6.0 10.0 40 MMK7.5 222K400K00L4 BULK

0.0027 K00 2.5 6.0 10.0 40 MMK7.5 272K400K00L4 BULK

0.0033 K00 2.5 6.0 10.0 40 MMK7.5 332K400K00L4 BULK

0.0039 K00 2.5 6.0 10.0 40 MMK7.5 392K400K00L4 BULK

0.0047 K00 2.5 6.0 10.0 40 MMK7.5 472K400K00L4 BULK

0.0056 K00 2.5 6.0 10.0 40 MMK7.5 562K400K00L4 BULK

0.0068 K00 2.5 6.0 10.0 40 MMK7.5 682K400K00L4 BULK

0.0082 K00 2.5 6.0 10.0 40 MMK7.5 822K400K00L4 BULK

0.010 K00 2.5 6.0 10.0 40 MMK7.5 103K400K00L4 BULK

0.012 K00 2.5 6.0 10.0 40 MMK7.5 123K400K00L4 BULK

0.015 K00 2.5 6.0 10.0 40 MMK7.5 153K400K00L4 BULK

0.018 K01 4.0 8.0 10.0 40 MMK7.5 183K400K01L4 BULK

0.022 K01 4.0 8.0 10.0 40 MMK7.5 223K400K01L4 BULK

0.027 K01 4.0 8.0 10.0 40 MMK7.5 273K400K01L4 BULK

0.033 K01 4.0 8.0 10.0 40 MMK7.5 333K400K01L4 BULK

0.039 K01 4.0 8.0 10.0 40 MMK7.5 393K400K01L4 BULK

0.047 K03 5.0 11.0 10.0 40 MMK7.5 473K400K03L4 BULK

0.056 K03 5.0 11.0 10.0 40 MMK7.5 563K400K03L4 BULK

0.068 K03 5.0 11.0 10.0 40 MMK7.5 683K400K03L4 BULK

0.082 K03 5.0 11.0 10.0 40 MMK7.5 823K400K03L4 BULK

0.10 K03 5.0 11.0 10.0 40 MMK7.5 104K400K03L4 BULK

0.12 K04 6.0 12.0 10.5 40 MMK7.5 124K400K04L4 BULK

0.15 K04 6.0 12.0 10.5 40 MMK7.5 154K400K04L4 BULK

LEAD SpACINg 10 MM

0.0010 A01 4.0 9.0 13.0 30 MMK10 102K400A01L4 BULK

0.0012 A01 4.0 9.0 13.0 30 MMK10 122K400A01L4 BULK

0.0015 A01 4.0 9.0 13.0 30 MMK10 152K400A01L4 BULK

Evox Rifa Leaded Film Capacitors

29

MMK

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code article table

400 VDC/200 VAC

LEAD SpACINg 10 MM

0.0018 A01 4.0 9.0 13.0 30 MMK10 182K400A01L4 BULK

0.0022 A01 4.0 9.0 13.0 30 MMK10 222K400A01L4 BULK

0.0027 A01 4.0 9.0 13.0 30 MMK10 272K400A01L4 BULK

0.0033 A01 4.0 9.0 13.0 30 MMK10 332K400A01L4 BULK

0.0039 A01 4.0 9.0 13.0 30 MMK10 392K400A01L4 BULK

0.0047 A01 4.0 9.0 13.0 30 MMK10 472K400A01L4 BULK

0.0056 A01 4.0 9.0 13.0 30 MMK10 562K400A01L4 BULK

0.0068 A01 4.0 9.0 13.0 30 MMK10 682K400A01L4 BULK

0.0078 A01 4.0 9.0 13.0 30 MMK10 782K400A01L4 BULK

0.0082 A01 4.0 9.0 13.0 30 MMK10 822K400A01L4 BULK

0.010 A01 4.0 9.0 13.0 30 MMK10 103K400A01L4 BULK

0.012 A01 4.0 9.0 13.0 30 MMK10 123K400A01L4 BULK

0.015 A01 4.0 9.0 13.0 30 MMK10 153K400A01L4 BULK

0.018 A01 4.0 9.0 13.0 30 MMK10 183K400A01L4 BULK

0.022 A01 4.0 9.0 13.0 30 MMK10 223K400A01L4 BULK

0.027 A01 4.0 9.0 13.0 30 MMK10 273K400A01L4 BULK

0.033 A01 4.0 9.0 13.0 30 MMK10 333K400A01L4 BULK

0.039 A01 4.0 9.0 13.0 30 MMK10 393K400A01L4 BULK

0.047 A01 4.0 9.0 13.0 30 MMK10 473K400A01L4 BULK

0.056 A01 4.0 9.0 13.0 30 MMK10 563K400A01L4 BULK

0.068 A01 4.0 9.0 13.0 30 MMK10 683K400A01L4 BULK

0.082 A02 4.5 10.5 13.0 30 MMK10 823K400A02L4 BULK

0.10 A03 5.0 11.0 13.0 30 MMK10 104K400A03L4 BULK

0.12 A03 5.0 11.0 13.0 30 MMK10 124K400A03L4 BULK

0.15 A04 6.0 12.0 13.0 30 MMK10 154K400A04L4 BULK

LEAD SpACINg 15 MM

0.047 B04 5.5 10.5 18.0 20 MMK15 473K400B04L4 BULK

0.056 B04 5.5 10.5 18.0 20 MMK15 563K400B04L4 BULK

0.068 B04 5.5 10.5 18.0 20 MMK15 683K400B04L4 BULK

0.082 B04 5.5 10.5 18.0 20 MMK15 823K400B04L4 BULK

0.10 B04 5.5 10.5 18.0 20 MMK15 104K400B04L4 BULK

0.12 B04 5.5 10.5 18.0 20 MMK15 124K400B04L4 BULK

0.15 B04 5.5 10.5 18.0 20 MMK15 154K400B04L4 BULK

0.18 B05 5.5 12.5 18.0 20 MMK15 184K400B05L4 BULK

0.22 B05 5.5 12.5 18.0 20 MMK15 224K400B05L4 BULK

0.27 B10 6.5 12.5 18.0 20 MMK15 274K400B10L4 BULK

0.33 B06 7.5 14.5 18.0 20 MMK15 334K400B06L4 BULK

0.39 B06 7.5 14.5 18.0 20 MMK15 394K400B06L4 BULK

0.47 B11 8.5 16.0 18.0 20 MMK15 474K400B11L4 BULK

0.56 B11 8.5 16.0 18.0 20 MMK15 564K400B11L4 BULK

0.68 B14 9.5 17.5 18.0 20 MMK15 684K400B14L4 BULK

LEAD SpACINg 22.5 MM

0.18 D13 6.5 14.5 26.0 10 MMK22.5 184K400D13L4 TRAY

0.22 D13 6.5 14.5 26.0 10 MMK22.5 224K400D13L4 TRAY

0.27 D13 6.5 14.5 26.0 10 MMK22.5 274K400D13L4 TRAY

0.33 D13 6.5 14.5 26.0 10 MMK22.5 334K400D13L4 TRAY

0.39 D13 6.5 14.5 26.0 10 MMK22.5 394K400D13L4 TRAY

0.47 D13 6.5 14.5 26.0 10 MMK22.5 474K400D13L4 TRAY

0.56 D17 7.0 16.5 26.0 10 MMK22.5 564K400D17L4 TRAY

0.68 D14 8.0 16.0 26.0 10 MMK22.5 684K400D14L4 TRAY

0.82 D15 9.0 18.5 26.0 10 MMK22.5 824K400D15L4 TRAY

1.0 D15 9.0 18.5 26.0 10 MMK22.5 105K400D15L4 TRAY

1.2 D18 10.5 19.0 26.0 10 MMK22.5 125K400D18L4 TRAY

1.5 D16 11.0 21.5 26.0 10 MMK22.5 155K400D16L4 TRAY

1.8 D20 13.5 23.0 26.0 10 MMK22.5 185K400D20L4 TRAY

2.2 D19 15.5 24.5 26.0 10 MMK22.5 225K400D19L4 TRAY

2.7 D19 15.5 24.5 26.0 10 MMK22.5 275K400D19L4 TRAY

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

400 VDC/200 VAC

LEAD SpACINg 27.5 MM

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10

12

15

18

2.7

3.3

3.9

3.9

4.7

5.6

5.6

0.68 F11 10.5 20.5 31.5 8 MMK27.5 684K400F11L4 TRAY

0.82 F11 10.5 20.5 31.5 8 MMK27.5 824K400F11L4 TRAY

1.0

1.2

F11 10.5 20.5 31.5 8 MMK27.5 105K400F11L4 TRAY

F11 10.5 20.5 31.5 8 MMK27.5 125K400F11L4 TRAY

1.5

1.8

1.8

2.2

F11 10.5 20.5 31.5 8 MMK27.5 155K400F11L4 TRAY

F11 10.5 20.5 31.5 8 MMK27.5 185K400F11L4 TRAY

F17 21.0 12.5 31.5 8 MMK27.5 185K400F17L4 TRAY

F12 11.5 22.5 31.5 8 MMK27.5 225K400F12L4 TRAY

F03 13.5 23.0 31.5 8 MMK27.5 275K400F03L4 TRAY

F14 17.5 28.0 31.5 8 MMK27.5 335K400F14L4 TRAY

F14 17.5 28.0 31.5 8 MMK27.5 395K400F14L4 TRAY

F19 27.5 16.0 31.5 8 MMK27.5 395K400F19L4 TRAY

F15 19.0 29.0 31.5 8 MMK27.5 475K400F15L4 TRAY

F16 21.0 30.0 31.5 8 MMK27.5 565K400F16L4 TRAY

F18 31.0 19.0 31.5 8 MMK27.5 565K400F18L4 TRAY

LEAD SpACINg 37.5 MM

R05 13.0 24.0 41.0 5 MMK37.5 185K400R05L4 TRAY

R05 13.0 24.0 41.0 5 MMK37.5 225K400R05L4 TRAY

R05 13.0 24.0 41.0 5 MMK37.5 275K400R05L4 TRAY

R05 13.0 24.0 41.0 5 MMK37.5 335K400R05L4 TRAY

R04 15.0 26.0 41.0 5 MMK37.5 395K400R04L4 TRAY

R04 15.0 26.0 41.0 5 MMK37.5 475K400R04L4 TRAY

R02 16.5 32.0 41.0 5 MMK37.5 565K400R02L4 TRAY

R03 19.0 36.0 41.0 5 MMK37.5 685K400R03L4 TRAY

R03 19.0 36.0 41.0 5 MMK37.5 825K400R03L4 TRAY

R06 21.0 38.0 41.0 5 MMK37.5 106K400R06L4 TRAY

R08 28.0 43.0 41.0 5 MMK37.5 126K400R08L4 TRAY

R08 28.0 43.0 41.0 5 MMK37.5 156K400R08L4 TRAY

R08 28.0 43.0 41.0 5 MMK37.5 186K400R08L4 TRAY

630 VDC/220 VAC

LEAD SpACINg 5 MM

0.0010 J01 2.5 6.5 7.2 80 MMK5 102K630J01L4 BULK

0.0012 J01 2.5 6.5 7.2 80 MMK5 122K630J01L4 BULK

0.0015 J01 2.5 6.5 7.2 80 MMK5 152K630J01L4 BULK

0.0018 J01 2.5 6.5 7.2 80 MMK5 182K630J01L4 BULK

0.0022 J01 2.5 6.5 7.2 80 MMK5 222K630J01L4 BULK

0.0027 J01 2.5 6.5 7.2 80 MMK5 272K630J01L4 BULK

0.0033 J01 2.5 6.5 7.2 80 MMK5 332K630J01L4 BULK

0.0039 J01 2.5 6.5 7.2 80 MMK5 392K630J01L4 BULK

0.0047 J02 3.5 8.0 7.2 80 MMK5 472K630J02L4 BULK

0.0056 J02 3.5 8.0 7.2 80 MMK5 562K630J02L4 BULK

0.0068 J02 3.5 8.0 7.2 80 MMK5 682K630J02L4 BULK

0.0082 J02 3.5 8.0 7.2 80 MMK5 822K630J02L4 BULK

0.010 J02 3.5 8.0 7.2 80 MMK5 103K630J02L4 BULK

0.012 J03 4.5 9.0 7.2 80 MMK5 123K630J03L4 BULK

0.015 J03 4.5 9.0 7.2 80 MMK5 153K630J03L4 BULK

0.018 J03 4.5 9.0 7.2 80 MMK5 183K630J03L4 BULK

0.022 J04 5.0 10.0 7.2 80 MMK5 223K630J04L4 BULK

0.027 J05 6.0 11.0 7.2 80 MMK5 273K630J05L4 BULK

0.033 J05 6.0 11.0 7.2 80 MMK5 333K630J05L4 BULK

0.039 J06 7.2 13.0 7.2 80 MMK5 393K630J06L4 BULK

0.047 J06 7.2 13.0 7.2 80 MMK5 473K630J06L4 BULK

MMK article table

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

630 VDC/220 VAC

LEAD SpACINg 7.5 MM

0.0010 K00 2.5 6.0 10.0 60 MMK7.5 102K630K00L4 BULK

0.0012 K00 2.5 6.0 10.0 60 MMK7.5 122K630K00L4 BULK

0.0015 K00 2.5 6.0 10.0 60 MMK7.5 152K630K00L4 BULK

0.0018 K00 2.5 6.0 10.0 60 MMK7.5 182K630K00L4 BULK

0.0022 K00 2.5 6.0 10.0 60 MMK7.5 222K630K00L4 BULK

0.0027 K00 2.5 6.0 10.0 60 MMK7.5 272K630K00L4 BULK

0.0033 K00 2.5 6.0 10.0 60 MMK7.5 332K630K00L4 BULK

0.0039 K00 2.5 6.0 10.0 60 MMK7.5 392K630K00L4 BULK

0.0047 K01 4.0 8.0 10.0 60 MMK7.5 472K630K01L4 BULK

0.0056 K01 4.0 8.0 10.0 60 MMK7.5 562K630K01L4 BULK

0.0068 K01 4.0 8.0 10.0 60 MMK7.5 682K630K01L4 BULK

0.0082 K01 4.0 8.0 10.0 60 MMK7.5 822K630K01L4 BULK

0.010 K01 4.0 8.0 10.0 60 MMK7.5 103K630K01L4 BULK

0.012 K01 4.0 8.0 10.0 60 MMK7.5 123K630K01L4 BULK

0.015 K03 5.0 11.0 10.0 60 MMK7.5 153K630K03L4 BULK

0.018 K03 5.0 11.0 10.0 60 MMK7.5 183K630K03L4 BULK

0.022 K03 5.0 11.0 10.0 60 MMK7.5 223K630K03L4 BULK

0.027 K03 5.0 11.0 10.0 60 MMK7.5 273K630K03L4 BULK

0.033 K04 6.0 12.0 10.5 60 MMK7.5 333K630K04L4 BULK

0.039 K04 6.0 12.0 10.5 60 MMK7.5 393K630K04L4 BULK

LEAD SpACINg 10 MM

0.0010 A01 4.0 9.0 13.0 40 MMK10 102K630A01L4 BULK

0.0012 A01 4.0 9.0 13.0 40 MMK10 122K630A01L4 BULK

0.0015 A01 4.0 9.0 13.0 40 MMK10 152K630A01L4 BULK

0.0018 A01 4.0 9.0 13.0 40 MMK10 182K630A01L4 BULK

0.0022 A01 4.0 9.0 13.0 40 MMK10 222K630A01L4 BULK

0.0027 A01 4.0 9.0 13.0 40 MMK10 272K630A01L4 BULK

0.0033 A01 4.0 9.0 13.0 40 MMK10 332K630A01L4 BULK

0.0039 A01 4.0 9.0 13.0 40 MMK10 392K630A01L4 BULK

0.0047 A01 4.0 9.0 13.0 40 MMK10 472K630A01L4 BULK

0.0056 A01 4.0 9.0 13.0 40 MMK10 562K630A01L4 BULK

0.0068 A01 4.0 9.0 13.0 40 MMK10 682K630A01L4 BULK

0.0078 A01 4.0 9.0 13.0 40 MMK10 782K630A01L4 BULK

0.0082 A01 4.0 9.0 13.0 40 MMK10 822K630A01L4 BULK

0.010 A01 4.0 9.0 13.0 40 MMK10 103K630A01L4 BULK

0.012 A01 4.0 9.0 13.0 40 MMK10 123K630A01L4 BULK

0.015 A01 4.0 9.0 13.0 40 MMK10 153K630A01L4 BULK

0.018 A01 4.0 9.0 13.0 40 MMK10 183K630A01L4 BULK

0.022 A01 4.0 9.0 13.0 40 MMK10 223K630A01L4 BULK

0.027 A02 4.5 10.5 13.0 40 MMK10 273K630A02L4 BULK

0.033 A02 4.5 10.5 13.0 40 MMK10 333K630A02L4 BULK

0.039 A03 5.0 11.0 13.0 40 MMK10 393K630A03L4 BULK

0.047 A04 6.0 12.0 13.0 40 MMK10 473K630A04L4 BULK

0.056 A04 6.0 12.0 13.0 40 MMK10 563K630A04L4 BULK

LEAD SpACINg 15 MM

0.027 B04 5.5 10.5 18.0 25 MMK15 273K630B04L4 BULK

0.033 B04 5.5 10.5 18.0 25 MMK15 333K630B04L4 BULK

0.039 B04 5.5 10.5 18.0 25 MMK15 393K630B04L4 BULK

0.047 B04 5.5 10.5 18.0 25 MMK15 473K630B04L4 BULK

0.056 B04 5.5 10.5 18.0 25 MMK15 563K630B04L4 BULK

0.068 B05 5.5 12.5 18.0 25 MMK15 683K630B05L4 BULK

0.082 B10 6.5 12.5 18.0 25 MMK15 823K630B10L4 BULK

0.10 B10 6.5 12.5 18.0 25 MMK15 104K630B10L4 BULK

0.12 B06 7.5 14.5 18.0 25 MMK15 124K630B06L4 BULK

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

630 VDC/220 VAC

LEAD SpACINg 15 MM

0.15 B06 7.5 14.5 18.0 25 MMK15 154K630B06L4 BULK

0.18 B12 8.0 15.0 18.0 25 MMK15 184K630B12L4 BULK

0.22 B14 9.5 17.5 18.0 25 MMK15 224K630B14L4 BULK

LEAD SpACINg 22.5 MM

0.082 D13 6.5 14.5 26.0 12 MMK22.5 823K630D13L4 TRAY

0.10 D13 6.5 14.5 26.0 12 MMK22.5 104K630D13L4 TRAY

0.12 D13 6.5 14.5 26.0 12 MMK22.5 124K630D13L4 TRAY

0.15 D13 6.5 14.5 26.0 12 MMK22.5 154K630D13L4 TRAY

0.18 D17 7.0 16.5 26.0 12 MMK22.5 184K630D17L4 TRAY

0.22 D17 7.0 16.5 26.0 12 MMK22.5 224K630D17L4 TRAY

0.27 D14 8.0 16.0 26.0 12 MMK22.5 274K630D14L4 TRAY

0.33 D15 9.0 18.5 26.0 12 MMK22.5 334K630D15L4 TRAY

0.39 D18 10.5 19.0 26.0 12 MMK22.5 394K630D18L4 TRAY

0.47 D16 11.0 21.5 26.0 12 MMK22.5 474K630D16L4 TRAY

0.56 D20 13.5 23.0 26.0 12 MMK22.5 564K630D20L4 TRAY

0.68 D20 13.5 23.0 26.0 12 MMK22.5 684K630D20L4 TRAY

0.82 D19 15.5 24.5 26.0 12 MMK22.5 824K630D19L4 TRAY

LEAD SpACINg 27.5 MM

1.2

1.5

1.5

1.8

2.2

2.2

0.33 F11 10.5 20.5 31.5 10 MMK27.5 334K630F11L4 TRAY

0.39 F11 10.5 20.5 31.5 10 MMK27.5 394K630F11L4 TRAY

0.47 F11 10.5 20.5 31.5 10 MMK27.5 474K630F11L4 TRAY

0.56 F11 10.5 20.5 31.5 10 MMK27.5 564K630F11L4 TRAY

0.56 F17 21.0 12.5 31.5 10 MMK27.5 564K630F17L4 TRAY

0.68 F12 11.5 22.5 31.5 10 MMK27.5 684K630F12L4 TRAY

0.82 F03 13.5 23.0 31.5 10 MMK27.5 824K630F03L4 TRAY

1.0 F13 14.5 24.5 31.5 10 MMK27.5 105K630F13L4 TRAY

F14 17.5 28.0 31.5 10 MMK27.5 125K630F14L4 TRAY

F14 17.5 28.0 31.5 10 MMK27.5 155K630F14L4 TRAY

F19 27.5 16.0 31.5 10 MMK27.5 155K630F19L4 TRAY

F15 19.0 29.0 31.5 10 MMK27.5 185K630F15L4 TRAY

F16 21.0 30.0 31.5 10 MMK27.5 225K630F16L4 TRAY

F18 31.0 19.0 31.5 10 MMK27.5 225K630F18L4 TRAY

LEAD SpACINg 37.5 MM

0.82 R05 13.0 24.0 41.0 8 MMK37.5 824K630R05L4 TRAY

1.0 R05 13.0 24.0 41.0 8 MMK37.5 105K630R05L4 TRAY

1.2

1.5

R05 13.0 24.0 41.0 8 MMK37.5 125K630R05L4 TRAY

R04 15.0 26.0 41.0 8 MMK37.5 155K630R04L4 TRAY

1.8

2.2

2.7

3.3

R04 15.0 26.0 41.0 8 MMK37.5 185K630R04L4 TRAY

R02 16.5 32.0 41.0 8 MMK37.5 225K630R02L4 TRAY

R03 19.0 36.0 41.0 8 MMK37.5 275K630R03L4 TRAY

R03 19.0 36.0 41.0 8 MMK37.5 335K630R03L4 TRAY

3.9

4.7

5.6

6.8

R06 21.0 38.0 41.0 8 MMK37.5 395K630R06L4 TRAY

R06 21.0 38.0 41.0 8 MMK37.5 475K630R06L4 TRAY

R08 28.0 43.0 41.0 8 MMK37.5 565K630R08L4 TRAY

R08 28.0 43.0 41.0 8 MMK37.5 685K630R08L4 TRAY

Evox Rifa Leaded Film Capacitors

31

MMK

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code article table

Capaci- Box Max dimen- Max tance code sions in mm dU/dt

µF B H L V/µs Article code

1000 VDC/250 VAC

LEAD SpACINg 5 MM

0.0010 J01 2.5 6.5 7.2 100 MMK5 102K1000J01L4 BULK

0.0012 J02 3.5 8.0 7.2 100 MMK5 122K1000J02L4 BULK

0.0015 J02 3.5 8.0 7.2 100 MMK5 152K1000J02L4 BULK

0.0018 J02 3.5 8.0 7.2 100 MMK5 182K1000J02L4 BULK

0.0022 J02 3.5 8.0 7.2 100 MMK5 222K1000J02L4 BULK

0.0027 J02 3.5 8.0 7.2 100 MMK5 272K1000J02L4 BULK

0.0033 J02 3.5 8.0 7.2 100 MMK5 332K1000J02L4 BULK

0.0039 J03 4.5 9.0 7.2 100 MMK5 392K1000J03L4 BULK

0.0047 J03 4.5 9.0 7.2 100 MMK5 472K1000J03L4 BULK

0.0056 J03 4.5 9.0 7.2 100 MMK5 562K1000J03L4 BULK

0.0068 J04 5.0 10.0 7.2 100 MMK5 682K1000J04L4 BULK

0.0082 J05 6.0 11.0 7.2 100 MMK5 822K1000J05L4 BULK

0.010 J05 6.0 11.0 7.2 100 MMK5 103K1000J05L4 BULK

0.012 J06 7.2 13.0 7.2 100 MMK5 123K1000J06L4 BULK

0.015 J06 7.2 13.0 7.2 100 MMK5 153K1000J06L4 BULK

LEAD SpACINg 7.5 MM

0.0010 K00 2.5 6.0 10.0 80 MMK7.5 102K1000K00L4 BULK

0.0012 K00 2.5 6.0 10.0 80 MMK7.5 122K1000K00L4 BULK

0.0015 K00 2.5 6.0 10.0 80 MMK7.5 152K1000K00L4 BULK

0.0015 K01 4.0 8.0 10.0 80 MMK7.5 152K1000K01L4 BULK

0.0018 K01 4.0 8.0 10.0 80 MMK7.5 182K1000K01L4 BULK

0.0022 K01 4.0 8.0 10.0 80 MMK7.5 222K1000K01L4 BULK

0.0027 K01 4.0 8.0 10.0 80 MMK7.5 272K1000K01L4 BULK

0.0033 K01 4.0 8.0 10.0 80 MMK7.5 332K1000K01L4 BULK

0.0039 K01 4.0 8.0 10.0 80 MMK7.5 392K1000K01L4 BULK

0.0047 K01 4.0 8.0 10.0 80 MMK7.5 472K1000K01L4 BULK

0.0056 K01 4.0 8.0 10.0 80 MMK7.5 562K1000K01L4 BULK

0.0068 K03 5.0 11.0 10.0 80 MMK7.5 682K1000K03L4 BULK

0.0082 K03 5.0 11.0 10.0 80 MMK7.5 822K1000K03L4 BULK

0.010 K03 5.0 11.0 10.0 80 MMK7.5 103K1000K03L4 BULK

0.012 K03 5.0 11.0 10.0 80 MMK7.5 123K1000K03L4 BULK

0.015 K04 6.0 12.0 10.5 80 MMK7.5 153K1000K04L4 BULK

0.018 K04 6.0 12.0 10.5 80 MMK7.5 183K1000K04L4 BULK

LEAD SpACINg 10 MM

0.0010 A01 4.0 9.0 13.0 60 MMK10 102K1000A01L4 BULK

0.0012 A01 4.0 9.0 13.0 60 MMK10 122K1000A01L4 BULK

0.0015 A01 4.0 9.0 13.0 60 MMK10 152K1000A01L4 BULK

0.0018 A01 4.0 9.0 13.0 60 MMK10 182K1000A01L4 BULK

0.0022 A01 4.0 9.0 13.0 60 MMK10 222K1000A01L4 BULK

0.0027 A01 4.0 9.0 13.0 60 MMK10 272K1000A01L4 BULK

0.0033 A01 4.0 9.0 13.0 60 MMK10 332K1000A01L4 BULK

0.0039 A01 4.0 9.0 13.0 60 MMK10 392K1000A01L4 BULK

0.0047 A01 4.0 9.0 13.0 60 MMK10 472K1000A01L4 BULK

0.0056 A01 4.0 9.0 13.0 60 MMK10 562K1000A01L4 BULK

0.0068 A01 4.0 9.0 13.0 60 MMK10 682K1000A01L4 BULK

0.0082 A01 4.0 9.0 13.0 60 MMK10 822K1000A01L4 BULK

0.010 A02 4.5 10.5 13.0 60 MMK10 103K1000A02L4 BULK

0.012 A02 4.5 10.5 13.0 60 MMK10 123K1000A02L4 BULK

0.015 A03 5.0 11.0 13.0 60 MMK10 153K1000A03L4 BULK

0.018 A04 6.0 12.0 13.0 60 MMK10 183K1000A04L4 BULK

0.022 A04 6.0 12.0 13.0 60 MMK10 223K1000A04L4 BULK

LEAD SpACINg 15 MM

0.0082 B04 5.5 10.5 18.0 30 MMK15 822K1000B04L4 BULK

0.010 B04 5.5 10.5 18.0 30 MMK15 103K1000B04L4 BULK

0.012 B04 5.5 10.5 18.0 30 MMK15 123K1000B04L4 BULK

0.015 B04 5.5 10.5 18.0 30 MMK15 153K1000B04L4 BULK

1000 VDC/250 VAC

LEAD SpACINg 15 MM

0.018 B04 5.5 10.5 18.0 30 MMK15 183K1000B04L4 BULK

0.022 B04 5.5 10.5 18.0 30 MMK15 223K1000B04L4 BULK

0.027 B05 5.5 12.5 18.0 30 MMK15 273K1000B05L4 BULK

0.033 B10 6.5 12.5 18.0 30 MMK15 333K1000B10L4 BULK

0.039 B10 6.5 12.5 18.0 30 MMK15 393K1000B10L4 BULK

0.047 B06 7.5 14.5 18.0 30 MMK15 473K1000B06L4 BULK

0.056 B06 7.5 14.5 18.0 30 MMK15 563K1000B06L4 BULK

0.068 B11 8.5 16.0 18.0 30 MMK15 683K1000B11L4 BULK

0.082 B14 9.5 17.5 18.0 30 MMK15 823K1000B14L4 BULK

0.10 B14 9.5 17.5 18.0 30 MMK15 104K1000B14L4 BULK

LEAD SpACINg 22.5 MM

0.033 D13 6.5 14.5 26.0 15 MMK22.5 333K1000D13L4 TRAY

0.039 D13 6.5 14.5 26.0 15 MMK22.5 393K1000D13L4 TRAY

0.047 D13 6.5 14.5 26.0 15 MMK22.5 473K1000D13L4 TRAY

0.056 D13 6.5 14.5 26.0 15 MMK22.5 563K1000D13L4 TRAY

0.068 D13 6.5 14.5 26.0 15 MMK22.5 683K1000D13L4 TRAY

0.082 D13 6.5 14.5 26.0 15 MMK22.5 823K1000D13L4 TRAY

0.10 D13 6.5 14.5 26.0 15 MMK22.5 104K1000D13L4 TRAY

0.12 D17 7.0 16.5 26.0 15 MMK22.5 124K1000D17L4 TRAY

0.15 D17 7.0 16.5 26.0 15 MMK22.5 154K1000D17L4 TRAY

0.18 D14 8.0 16.0 26.0 15 MMK22.5 184K1000D14L4 TRAY

0.22 D15 9.0 18.5 26.0 15 MMK22.5 224K1000D15L4 TRAY

0.27 D18 10.5 19.0 26.0 15 MMK22.5 274K1000D18L4 TRAY

0.33 D16 11.0 21.5 26.0 15 MMK22.5 334K1000D16L4 TRAY

0.39 D20 13.5 23.0 26.0 15 MMK22.5 394K1000D20L4 TRAY

0.47 D20 13.5 23.0 26.0 15 MMK22.5 474K1000D20L4 TRAY

0.56 D19 15.5 24.5 26.0 15 MMK22.5 564K1000D19L4 TRAY

LEAD SpACINg 27.5 MM

0.33 F11 10.5 20.5 31.5 12 MMK27.5 334K1000F11L4 TRAY

0.39 F11 10.5 20.5 31.5 12 MMK27.5 394K1000F11L4 TRAY

0.39 F17 21.0 12.5 31.5 12 MMK27.5 394K1000F17L4 TRAY

0.47 F12 11.5 22.5 31.5 12 MMK27.5 474K1000F12L4 TRAY

0.56 F03 13.5 23.0 31.5 12 MMK27.5 564K1000F03L4 TRAY

0.68 F13 14.5 24.5 31.5 12 MMK27.5 684K1000F13L4 TRAY

0.82 F14 17.5 28.0 31.5 12 MMK27.5 824K1000F14L4 TRAY

0.82 F19 27.5 16.0 31.5 12 MMK27.5 824K1000F19L4 TRAY

1.0

1.2

1.2

1.5

F14 17.5 28.0 31.5 12 MMK27.5 105K1000F14L4 TRAY

F15 19.0 29.0 31.5 12 MMK27.5 125K1000F15L4 TRAY

F18 31.0 19.0 31.5 12 MMK27.5 125K1000F18L4 TRAY

F16 21.0 30.0 31.5 12 MMK27.5 155K1000F16L4 TRAY

LEAD SpACINg 37.5 MM

0.68 R05 13.0 24.0 41.0 10 MMK37.5 684K1000R05L4 TRAY

0.82 R05 13.0 24.0 41.0 10 MMK37.5 824K1000R05L4 TRAY

1.0

1.2

R04 15.0 26.0 41.0 10 MMK37.5 105K1000R04L4 TRAY

R04 15.0 26.0 41.0 10 MMK37.5 125K1000R04L4 TRAY

1.5

1.8

2.2

2.7

R02 16.5 32.0 41.0 10 MMK37.5 155K1000R02L4 TRAY

R02 16.5 32.0 41.0 10 MMK37.5 185K1000R02L4 TRAY

R03 19.0 36.0 41.0 10 MMK37.5 225K1000R03L4 TRAY

R06 21.0 38.0 41.0 10 MMK37.5 275K1000R06L4 TRAY

3.3

3.9

4.7

R08 28.0 43.0 41.0 10 MMK37.5 335K1000R08L4 TRAY

R08 28.0 43.0 41.0 10 MMK37.5 395K1000R08L4 TRAY

R08 28.0 43.0 41.0 10 MMK37.5 475K1000R08L4 TRAY

KEMET Corporation

World Headquarters

2835 KEMET Way

Simpsonville, SC 29681

Mailing Address:

P.O. Box 5928

Greenville, SC 29606 www.kemet.com

Tel: 864-963-6300

Fax: 864-963-6521

Corporate Offi ces

Fort Lauderdale, FL

Tel: 954-766-2800

North America

Southeast

Lake Mary, FL

Tel: 407-855-8886

Northeast

Wilmington, MA

Tel: 978-658-1663

West Chester, PA

Tel: 610-692-4642

Central

Schaumburg, IL

Tel: 847-882-3590

Carmel, IN

Tel: 317-706-6742

West

Milpitas, CA

Tel: 408-433-9950

Mexico

Zapopan, Jalisco

Tel: 52-33-3123-2141

Europe

Southern Europe

Geneva, Switzerland

Tel: 41-22-715-0100

Paris, France

Tel: 33-1-4646-1009

Sasso Marconi, Italy

Tel: 39-051-939111

Milan, Italy

Tel: 39-02-57518176

Rome, Italy

Tel: 39-06-23231718

Madrid, Spain

Tel: 34-91-804-4303

Central Europe

Landsberg, Germany

Tel: 49-8191-3350800

Dortmund, Germany

Tel: 49-2307-3619672

Kwidzyn, Poland

Tel: 48-55-279-7025

Northern Europe

Bishop’s Stortford, United Kingdom

Tel: 44-1279-757201

Weymouth, United Kingdom

Tel: 44-1305-830747

Coatbridge, Scotland

Tel: 44-1236-434455

Färjestaden, Sweden

Tel: 46-485-563934

Espoo, Finland

Tel: 358-9-5406-5000

Asia

Northeast Asia

Hong Kong

Tel: 852-2305-1168

Shenzhen, China

Tel: 86-755-2518-1306

Beijing, China

Tel: 86-10-5829-1711

Shanghai, China

Tel: 86-21-6447-0707

Taipei, Taiwan

Tel: 886-2-27528585

Southeast Asia

Singapore

Tel: 65-6586-1900

Penang, Malaysia

Tel: 60-4-6430200

Bangalore, India

Tel: 91-806-53-76817

Note: KEMET reserves the right to modify minor details of internal and external construction at any time in the interest of product improvement. KEMET does not assume any responsibility for infringement that might result from the use of KEMET Capacitors in potential circuit designs. KEMET is a registered trademark of

KEMET Electronics Corporation.

© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1001_C0GHT • 8/9/2011

Other KEMET Resources

Tools

Resource

Confi gure A Part: CapEdge

SPICE & FIT Software

Search Our FAQs: KnowledgeEdge http://capacitoredge.kemet.com

http://www.kemet.com/spice http://www.kemet.com/keask

Location

Product Information

Resource

Products

Technical Resources (Including Soldering

Techniques)

RoHS Statement

Quality Documents http://www.kemet.com/products http://www.kemet.com/technicalpapers http://www.kemet.com/rohs http://www.kemet.com/qualitydocuments

Location

Product Request

Resource

Sample Request

Engineering Kit Request http://www.kemet.com/sample http://www.kemet.com/kits

Location

Contact

Resource

Website

Contact Us

Investor Relations

Call Us

Twitter www.kemet.com

http://www.kemet.com/contact http://www.kemet.com/ir

1-877-MyKEMET http://twitter.com/kemetcapacitors

Location

Disclaimer

All product specifi cations, statements, information and data (collectively, the “Information”) are subject to change without notice.

All Information given herein is believed to be accurate and reliable, but is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute – and we specifi cally disclaim – any warranty concerning suitability for a specifi c customer application or use. This Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Although we design and manufacture our products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur.

Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage.

Although all product-related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicated or that other measures may not be required.

© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1001_C0GHT • 8/9/2011

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Kemet

:

MMK10223K400A01L16.5TR18

MMK5102J50J01L16.5TR18

MMK5102K100J01L16.5TR18

MMK5103J100J01L16.5TR18

MMK5103J63J01L4 MMK5103K100J01L16.5TR18

MMK5104J63J01L16.5TA18

MMK5104K100J01L16.5TA18

MMK5104K100J01L16.5TR18

MMK5104K250J03L16.5TA18

MMK5104K250J03L16.5TR18

MMK5104K63J01L16.5TA18

MMK5104K63J01L16.5TR18

MMK5104M100J01L16.5TA18

MMK5105J63J04L16.5TR16

MMK5105J63J04L16.5TR18

MMK5105K100J06L16.5TR18

MMK5105K63J04L16.5TR18

MMK5123J50J01L16.5TR18

MMK5222J100J01L16.5TR18

MMK5222K400J01L16.5TA18

MMK5222K63J01L16.5TR18

MMK5223J250J01L16.5TR18

MMK5223J400J02L16.5TA18

MMK5223J400J02L16.5TR18

MMK5223K100J01L16.5TR18

MMK5223K400J02L16.5TA18

MMK5223K63J01L16.5TR18

MMK5224J50J01L16.5TA18

MMK5224J63J01L16.5TR18

MMK5224K100J02L16.5TR18

MMK5224K63J01L16.5TR18

MMK5225K50J04L16.5TR18

MMK5225K63J06L16.5TR18

MMK5225M50J04L16.5TR18

MMK5273J400J03L16.5TR16

MMK5274J100J03L16.5TR16

MMK5332J100J01L16.5TR16

MMK5332J63J01L16.5TA18

MMK5333J100J01L16.5TR16

MMK5333J400J03L16.5TR18

MMK5333J50J01L16.5TR18

MMK5333K400J03L16.5TA18

MMK5334J100J03L16.5TR16

MMK5334J63J02L16.5TR18

MMK5334K50J01L16.5TR18

MMK5334K63J02L16.5TR18

MMK5335K50J05L16.5TR18

MMK5473J100J01L16.5TR18

MMK5473J50J01L16.5TR18

MMK5473J63J01L4 MMK5473K100J01L16.5TR18

MMK5473K63J01L16.5TR16

MMK5473K63J01L16.5TR18

MMK5474J100J04L16.5TR16

MMK5474J63J02L16.5TR18

MMK5474K100J04L16.5TA18

MMK5474K100J04L16.5TR16

MMK5474K50J01L16.5TR18

MMK5474K63J02L16.5TA18

MMK5474K63J02L16.5TR18

MMK5475J50J06L16.5TR18

MMK5475K50J06L16.5TR18

MMK5562J400J01L16.5TR18

MMK5563J400J05L16.5TR18

MMK5564K63J03L16.5TR16

MMK5683K63J01L16.5TR18

MMK5684J63J03L16.5TR18

MMK5103K250J01L4BULK MMK5104J63J01L4BULK

MMK5104K100J01L4BULK MMK5104K250J03L4BULK MMK5104K63J01L4BULK MMK5105J63J04L4BULK

MMK5105K63J04L4BULK MMK5224K63J01L4BULK MMK5225K50J04L4BULK MMK5225K63J06L4BULK

MMK5334K63J02L4BULK MMK5473K100J01L4BULK MMK5474K100J04L4BULK MMK5474K63J02L4BULK

MMK5475K50J06L4BULK MMK5104J50J01TR18L16.5TR18

MMK5105K63J04TR18L16.5TR18

MMK5103K63J01L4BULK MMK10102J1000A01L4BULK MMK10102J100A01L4BULK MMK10102J250A01L4BULK

MMK10102J400A01L4BULK MMK10102J630A01L4BULK MMK10102J63A01L4BULK MMK10102K1000A01L4BULK

MMK10102K100A01L4BULK MMK10102K250A01L4BULK MMK10102K400A01L4BULK MMK10102K630A01L4BULK

MMK10102K63A01L4BULK MMK10102M1000A01L4BULK MMK10102M100A01L4BULK

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
