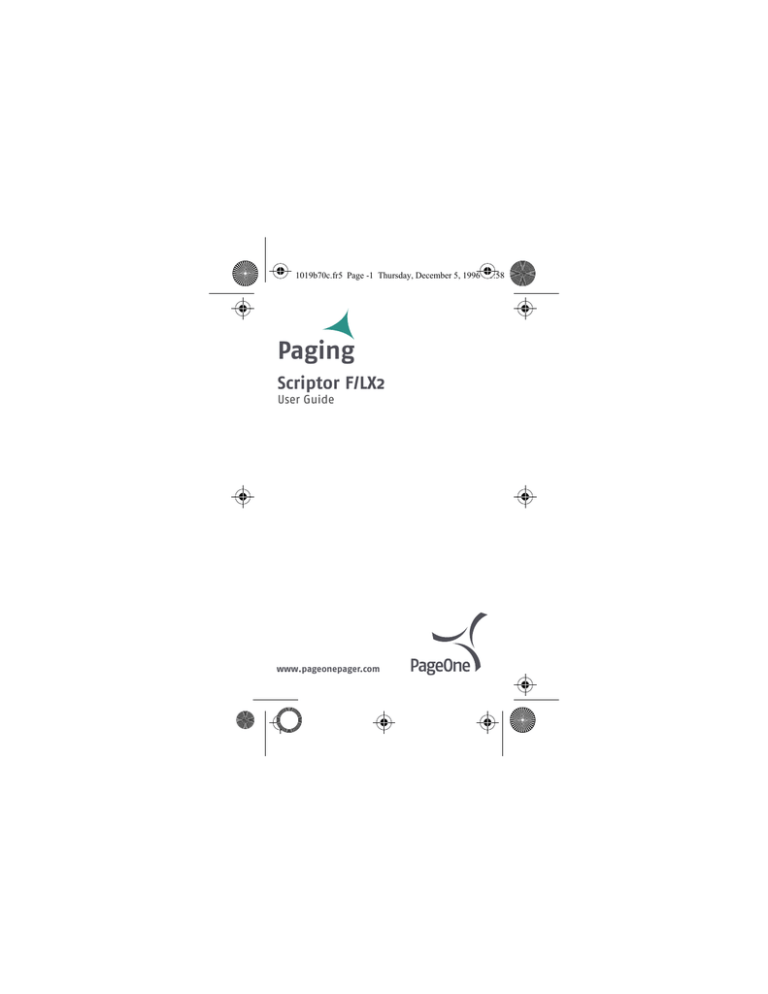

Paging
Scriptor F/LX2
User Guide
www.pageonepager.com
1019b70c.fr5 Page 0 Thursday, December 5, 1996 11:58
CONTENTS
Page
Scriptor LX2 Alphanumeric Pager ......................... 1
Getting The Most From Your Scriptor LX2 Pager.. 1
Display Symbols .................................................... 2
Controls ................................................................. 2
Scriptor LX2 Symbol Quick Reference List ........... 3
Message Status Symbols ...................................... 3
Function Menu Symbols ........................................ 3
Other Symbols....................................................... 4
Turning Your Pager On ......................................... 4
Turning Your Pager Off ......................................... 4
Receiving and Reading Your Messages ............... 4
Using the Function Menu....................................... 5
Backlighting ........................................................... 6
Locking and Unlocking Messages ......................... 6
Setting the Clock ................................................... 7
Setting the Alert Pattern ........................................ 7
Setting the Alert Mode (Silent or Audible) ............. 8
Setting the Alarm ................................................... 8
Deleting Messages From Memory......................... 9
Other Features .................................................... 10
Cleaning Your Scriptor LX2 Pager ...................... 10
Repair and Maintenance ..................................... 11
Battery Information .............................................. 11
Patent Information ............................................... 12
1019b70c.fr5 Page 1 Thursday, December 5, 1996 11:58
SCRIPTOR LX2™ ALPHANUMERIC PAGER
Congratulations on purchasing a Scriptor LX2 alphanumeric pager by Motorola, the world leader in paging. Your Scriptor LX2 pager incorporates many of
the most advanced electronic, communications, and
wireless technologies available. It’s reliable, convenient, and designed for easy operation.
These Operating Instructions explain how to use
your Scriptor LX2 pager and provide helpful suggestions for first-time as well as experienced users. Keep
this booklet handy for quick reference.
GETTING THE MOST FROM YOUR SCRIPTOR
LX2 PAGER
• Give your pager number to secretaries, business
associates, friends and family. This allows you to
keep in touch wherever you go!
• Include your pager number on your business cards
and on your telephone answering machine message. Let people know how to contact you when
you're on the go.
• Leave your pager number at your children’s school
and with the baby-sitter so you can always be
reached, right away, in an emergency.
1
1019b70c.fr5 Page 2 Thursday, December 5, 1996 11:58
DISPLAY SYMBOLS
SET ALARM
ÈÑÖÉóíïñ
Prompt
Set
Alert
Turn
Set
Off
Time Set
Alarm
Lock/
Audible/ Unlock
Silent Mode Msg
Delete
All
Delete
Msg
CONTROLS
A
Directional Control Function/Select Read/Reset
Arrows
Button
Button
2
1019b70c.fr5 Page 3 Thursday, December 5, 1996 11:58
SCRIPTOR LX2 SYMBOL QUICK REFERENCE
LIST
Display Annunciators
ë Power On
Ï Auto On/Off Mode Enabled
Î Combined Power On and Auto On/Off
Mode Enabled
Í Audible Alert Mode Enabled
MESSAGE STATUS SYMBOLS
í
î
Ÿ
Ó
ü
é
Lock Message
Cursor on Locked Message
Maildrop Indicator
Cursor on Message Indicator
Message In Memory Indicator
Memory Full Indicator (optional)
FUNCTION MENU SYMBOLS
É
Ç
ó
í
ì
ï
ñ
ò
È
Ö
Set Audible Alert (or)
Set Silent Alert
Turn Pager Off
Lock Message
Unlock Message
Delete Message
Delete All Messages
Escape to Main Screen
Set Alert
Set Alarm
3
1019b70c.fr5 Page 4 Thursday, December 5, 1996 11:58
OTHER SYMBOLS
Ñ
Set Time
<24> 24 Hour Time Indicator
AM
PM
Ã
À
Ì
ö
Ü
à
+
AM Time Indicator
PM Time Indicator
Disable Alarm
Enable Alarm
Low Battery Alert
Out Of Range Indicator
Message Continuation Indicator
Press Right Arrow Button Prompt
Increment Value
TURNING YOUR PAGER ON
Press Ë. Your pager alerts and shows the ON ë
indicator in the upper left corner of the display. At the
end of the alert the time and date is displayed
momentarily. The screen then once again displays
the ON ë indicator.
TURNING YOUR PAGER OFF
➊ Press Á to display the function menu.
The TURN OFF ó symbol flashes when this menu
item is displayed.
➋ Press Á to select the TURN OFF function. Press it
again to turn your pager off.
RECEIVING AND READING YOUR MESSAGES
When receiving a message, your pager alerts and
displays the incoming message ü symbol.
4
1019b70c.fr5 Page 5 Thursday, December 5, 1996 11:58
➊ Press any button to stop the alert.
➋ Press Ë to display your message.
The flashing arrow at the bottom right corner of the
screen Ü indicates the message you received continues beyond the first two lines of the display. Each
Ë press advances the message to the next two
lines.
Press and hold Ë to rapidly scroll through your
message.
Your pager automatically stores the message, along
with the time and date your message was received.
If more than one message exists, press ä or ã to
select the message you want to read. The reversed
arrow cursor Ó indicates the location of your message in memory. Press Ë to display your message.
A flashing ON ë symbol indicates a message has
been received, but has not yet been read. If programmed with reminder alerts, your pager beeps at
predetermined intervals to remind you of an unread
message.
USING THE FUNCTION MENU
Press Á to display the function menu.
The function menu gives you access to the many features of your pager through a series of symbols and
prompts. For example, when the function menu screen
is displayed, the TURN OFF ó symbol or the ESCAPE
ò symbol flashes (depending on the pager’s factory setting) indicating the present position of the cursor.
5
1019b70c.fr5 Page 6 Thursday, December 5, 1996 11:58
As you move the cursor left or right across the symbols, a
corresponding prompt appears. To activate your function
selection, press Á.
NOTE: To escape from any field without making any
changes, press Ë.
BACKLIGHTING
To view your display in low light conditions, turn on
your pager's backlight by pressing and holding Á for
1.5 seconds. If no further buttons are pressed, the
backlight automatically turns off when the display
goes blank. You can also turn off the backlight by
pressing and holding Á for 1.5 seconds.
LOCKING AND UNLOCKING MESSAGES
Up to 10 messages can be “locked” in memory, preventing them from being replaced when your pager’s
memory is full or from being deleted if the DELETE
ALL function ñ is chosen.
➊ Press Ë.
➋ Press ä or ã to select the message you want to
lock.
➌ Press Á to display the function menu.
➍ Press ã to move the cursor to the LOCK MSG í
symbol.
➎ Press Á to lock the message. The padlock í symbol
appears, indicating the message has been locked.
To unlock ì a locked í message, use the same procedure outlined above.
6
1019b70c.fr5 Page 7 Thursday, December 5, 1996 11:58
SETTING THE CLOCK
➊ While in the function menu, move the cursor left to
the SET TIME Ñ symbol by pressing ä.
➋ Press Á to display the SET TIME screen. The cursor flashes in the hour position. Pressing ä increments the flashing digits. This is defined by the +
symbol shown on the display above the button.
➌ Press ä to advance to the desired hour.
➍ Press ã to move the cursor to the minute field.
➎ Repeat the process for each field hour, minute,
AM/PM/24 hr., day/month/year.
➏ Press Á to initiate the change.
If you move your cursor past the last field in the row
(far right), it automatically wraps around and appears
at the first function symbol in that row (far left).
NOTE: To escape from any field without making any
changes, press Ë.
SETTING THE ALERT PATTERN
NOTE: The pager must be in the audible alert mode
to select an alert pattern. The select alert menu is not
displayed on the function menu if the pager is in the
silent mode.
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to the set alert È
symbol.
➌ Press Á to display the SET ALERT screen.
7
1019b70c.fr5 Page 8 Thursday, December 5, 1996 11:58
➍ Move to the desired alert and press Á to initiate the
alert change. The selected alert number flashes
while a 2 second sample of the selected alert plays
through the internal speaker.
NOTE: To escape from any field without making any
changes, press Ë.
SETTING THE ALERT MODE (SILENT/
AUDIBLE)
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to the AUDIBLE MODE
É or SILENT MODE Œ symbol.
The AUDIBLE MODE É symbol is displayed if the
pager is in the silent alert mode (prompting you to
enter that mode, if desired). The SILENT MODE Œ
symbol is displayed if the pager is in the audible alert
mode (prompting you to enter that mode, if desired).
➌ Press Á to select the desired alert.
If the selected mode is audible É, your pager emits a
short “chirp.” If the selected mode is silent Œ, and if
equipped with a vibrator, your pager vibrates.
SETTING THE ALARM
If your pager is equipped with the ALARM feature, and
you want to set the alarm:
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to the SET ALARM
Ö symbol.
➌ Press Á to display the set alarm screen.
8
1019b70c.fr5 Page 9 Thursday, December 5, 1996 11:58
When the screen is displayed, the cursor is at the
left-most position. This symbol defines the alarm status: either alarm enable À, or alarm disable Ã.
➍ Press ä to increment or toggle between alarm
enable À and alarm disable Ã.
➎ Press ã to move the cursor to the hour field.
➏ Repeat the process for each field (hour, minute).
➐ Press Á to make the change.
The alarm Ö indicator is displayed if an alarm has been
set. At the selected time, your pager either vibrates or
emits a unique 8-second alert, depending on the alert
mode.
NOTE: To escape from any field without making any
changes, press Ë.
DELETING MESSAGES FROM MEMORY
You can clear or delete an unlocked message from
memory while you are viewing it, or through the function menu.
➊ Press ä or ã to select the message you want
to delete from memory.
➋ Press Á to display the function menu.
➌ Press ã to move the cursor to the DELETE MSG
ï symbol.
➍ Press Á to receive confirmation of delete
request.
➎ Press Á to delete the message.
9
1019b70c.fr5 Page 10 Thursday, December 5, 1996 11:58
If your pager is equipped with the DELETE ALL feature, and you want to delete all unlocked messages
from memory, move the cursor within the function
menu screen to the DELETE ALL ñ symbol and
press Á twice.
OTHER FEATURES
Low Battery Alert: A low battery Ì symbol is displayed in place of the date at the onset of low battery
conditions. An audible low battery alert is also heard at
that time. Replace the battery as soon as possible after
the low battery alert is heard. It alerts only once when
the low battery symbol is displayed.
Duplicate Message: If the same message is
received more than once, DUPLICATE is displayed at
the beginning of your new message to indicate that
your message has already been received. Your new
message contains the latest time stamp.
Out of Range: With this option installed, whenever you
are too far away from your paging system's transmitter
to reliably receive messages, your pager displays an
OUT OF RANGE message and an out-of-range ö symbol.
CLEANING YOUR SCRIPTOR LX2 PAGER
To clean smudges and grime from the exterior of the
Scriptor LX2 housing, use a soft, nonabrasive cloth
moistened in a mild soap and water solution. Rinse the
surface using a second cloth moistened in clean water.
Do not use alcohol or other cleaning solutions.
10
1019b70c.fr5 Page 11 Thursday, December 5, 1996 11:58
REPAIR AND MAINTENANCE
Your Scriptor LX2 pager, properly handled, is capable of
many years of trouble-free service. However, if it ever
requires service, Motorola’s Service Organization,
staffed with specially trained technicians, offers conveniently located repair and maintenance facilities worldwide.
BATTERY INFORMATION
NOTE: The battery door is hinged and does not need
to be removed.
Your Scriptor LX2 pager is designed to operate with a
AAA-size alkaline battery (do not use carbon zinc
batteries). See the following diagram for battery door
location. To install or replace the battery, place the pager
face down in the palm of your hand. Then,
➊ Unlock the battery door by sliding the door latch
up with your thumb.
➋ Slide the battery door to your right (toward the
outer edge).
➌ Lift the battery door toward you to install or
replace the battery.
11
1019b70c.fr5 Page 12 Thursday, December 5, 1996 11:58
➊
➌
Ì
➋
Scriptor LX2 Rear View (Battery Replacement)
CAUTION: Inserting the battery backwards causes all
messages stored and/or locked in memory to be erased.
PATENT INFORMATION
This Motorola product is manufactured under one or
more Motorola U.S. Patents. A listing of these patents is
provided inside the battery compartment which can be
seen by removing the battery door. Other U.S. Patents
covering this product are pending.
12
1019b70c.fr5 Page 13 Thursday, December 5, 1996 11:58
NOTES
13
