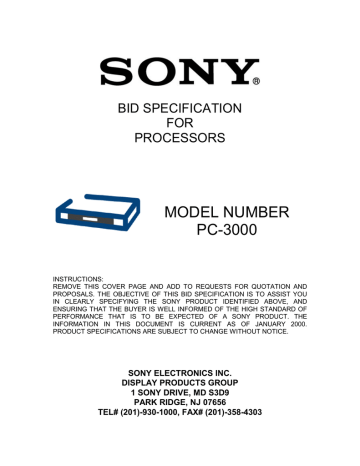

MODEL NUMBER PC-3000 BID SPECIFICATION

MODEL NUMBER PC-3000  BID SPECIFICATION
BID SPECIFICATION
FOR
PROCESSORS
MODEL NUMBER
PC-3000
INSTRUCTIONS:
REMOVE THIS COVER PAGE AND ADD TO REQUESTS FOR QUOTATION AND
PROPOSALS. THE OBJECTIVE OF THIS BID SPECIFICATION IS TO ASSIST YOU
IN CLEARLY SPECIFYING THE SONY PRODUCT IDENTIFIED ABOVE, AND
ENSURING THAT THE BUYER IS WELL INFORMED OF THE HIGH STANDARD OF
PERFORMANCE THAT IS TO BE EXPECTED OF A SONY PRODUCT. THE
INFORMATION IN THIS DOCUMENT IS CURRENT AS OF JANUARY 2000.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
SONY ELECTRONICS INC.
DISPLAY PRODUCTS GROUP
1 SONY DRIVE, MD S3D9
PARK RIDGE, NJ 07656
TEL# (201)-930-1000, FAX# (201)-358-4303
1.0 General Information
The purpose of this information is to provide the specification for a product
whose primary purpose is the switching of video and / or computer graphics
information for display.
This enhancement and conversion of this information is to be accomplished via a
device external to the display device, to allow for maximum expandability within
the display system. This document provides the minimum specifications for this
device.
The performance comparison of displays is not only technical in nature, but is
also subjective to the user, when viewed in the final display environment. It is
recommended that devices meeting the requirements of this specification be
compared in the user’s application and environment, if possible.
2.0 Description
This product shall be classified as a RGB and video signal switcher. This device
shall be directly compatible with both video and computer graphics sources,
without the use of external devices to provide this compatibility.
This device shall employ a module design that allows for custom configuration of
the switcher to meet the specific needs of the application.
This device shall be provided in a rackmountable configuration to allow for
rackmounting in standard 19” EIA rack enclosures.
3.0 Source Compatibility / Suitability for Application
This device shall be directly compatible with the following sources:
NTSC Video (Composite and Y/C)
PAL Video (Composite and Y/C)
Component Video (50 and 60 Hz)
RGB Video (50 and 60 Hz)
HDTV Video (1920 x 1035 Line)
VGA Computer Graphics (Mode 2 and 3)
VESA 800x600 Computer Graphics
VESA 1024 x 768 Computer Graphics
VESA 1280 x 1024 Computer Graphics
Mac 13” Computer Graphics
Mac 16” Computer Graphics
This device shall accept multi-scanning sources. This device shall have a
minimum RGB bandwidth of 300MHz to minimize signal derogation between the
source and the display or recording device.
4.0 User Interface / Controllability Information
Control of this device shall be accomplished through one of the following
methods:
Backlit, front panel controls
Infrared Remote Controller
Serial control jack for control by external control systems
Advanced serial control jack for control by external control systems
Contact closure jack for control by external control systems
All of these control methods shall be standard to the device, or available at an
additional charge if considered an optional accessory.
The front panel controls shall be located on the front panel, and shall employ the
use of a backlight on the input selection buttons. All other front panel controls
shall be located behind a drop-down front panel, however indicators should be
visible when door is in the closed position.
The infrared remote controller shall provide full control over the device. This
device shall provide the capability for image still, zoom and pan control from the
remote control.
The serial control jack shall employ the use of a standardized device control
protocol that is commonly accepted and understood by control systems
manufacturers. This control jack shall accept unidirectional serial commands that
provide full control over the device.
The advanced serial control jack shall employ the use of a standardized device
control protocol that is commonly accepted and understood by control systems
manufacturers. This control jack shall accept and transmit bi-directional serial
commands that provide full control over the device, and provide
acknowledgement to the control system of the received command.
The contact closure jack shall provide the capability of using relay or switch
closure to activate device functions.
The following device functions shall be available for control:
Power On / off
Input Selection
When the device is connected to a display device from the same manufacturer,
this device shall also provide pass-through control functionality of the display
device.
5.0 Performance Specifications
This device shall pass all input signals through in the original signal and sync
format without modification by the device. This allows individual system
components to modify the signal as necessary for the specific application.
This device shall offer 150MHz cable compensation at the output for long
distance cabling.
This device may be daisy-chained with up to 7 other identical devices for up to
57 source devices.
This device shall employ the use of an LCD indicator panel for function
adjustment.
6.0 Dimensional Information
This device shall have maximum cabinet dimensions of 5.3 inches high by 16.7
inches wide and 16.5 inches deep.
This device shall not weigh more than 21 pounds.
7.0 Connectivity Information
This device shall provide for connection of 8 source devices simultaneously,
without employing the use of an external switching device. All 8 sources shall be
optional, allowing the user to select the modules that apply to their application.
The available optional modules include the following:
RGB Computer / Component Video (Sync on Green, Composite, or Separate
Sync) on BNC Connectors
Audio L/R on RCA (Phono) Connectors
RGB Computer / Component Video (Sync on Green, Composite, or Separate
Sync) on a 9 pin (D9) Connector
Audio L/R on RCA (Phono) Connectors
RGB Computer / Component Video (Sync on Green, Composite, or Separate
Sync) on a VGA (HD15) Connector with loop-through
Audio L/R on RCA (Phono) Connectors
Serial Digital Video on a BNC Connector with loop-through
Composite Video on a BNC Connector or Y/C Video on a 4 Pin DIN Connector,
both with loop-through
Audio L/R on RCA (Phono) Connectors
These optional modules shall be user-installable, without access to the inside of
the device, and shall also be installable in display devices available from the
device manufacturer.
In addition to input connectors, this device shall allow employ the use of the
following outputs:
Composite Video on a BNC Connector
Y/C Video on a 4 Pin DIN Connector
Component Video / HDTV Video / RGB Computer (Sync on Green, Composite,
or Separate Sync) on BNC Connectors
Audio L/R on RCA (Phono) Connectors
8.0 Power Requirements
This device shall accept power at 120 VAC at either 50 or 60 Hz.
This device shall consume no more than 80 watts.
Power to this device shall be supplied via a detachable standard power cord that
is readily available for replacement from local suppliers.
9.0 Safety Compliance Information
This device shall be fully compliant with the following standards:
UL mark (UL-1950)/FCC 15-J class B
cUL mark (C22.2 No. 950)/IC class B
GS mark (EN 60 950/1992)
CE mark (EN 55 022/1994 class B
EN 50 082-1/1992, EN 61000-3-2/1995)
DEMKO/SEMKO/NEMKO/FIMKO safety approvals
10.0 Warranty Information
This device shall carry a 3-year manufacturer’s warranty. Authorized servicing
dealers of the devices’ manufacturer shall perform warranty service.
