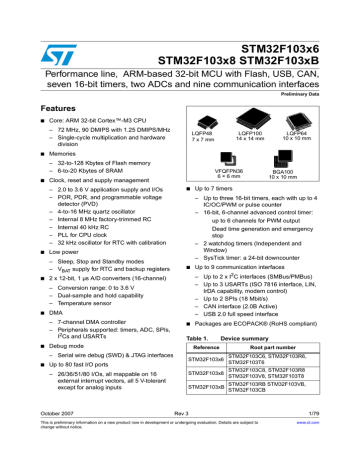

Performance line, ARM-based 32-bit MCU with Flash, USB, CAN,
seven 16-bit timers, two ADCs and nine communication interfaces
Preliminary Data
Features
■
Core: ARM 32-bit Cortex™-M3 CPU
– 72 MHz, 90 DMIPS with 1.25 DMIPS/MHz
– Single-cycle multiplication and hardware
division
■
■
Dead time generation and emergency
stop
– 2 watchdog timers (Independent and
Window)
– SysTick timer: a 24-bit downcounter
■
■
DMA
■
■
Packages are ECOPACK® (RoHS compliant)
Table 1.
Debug mode
– Serial wire debug (SWD) & JTAG interfaces
Up to 9 communication interfaces
– Up to 2 x I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN,
IrDA capability, modem control)
– Up to 2 SPIs (18 Mbit/s)
– CAN interface (2.0B Active)
– USB 2.0 full speed interface
2 x 12-bit, 1 µs A/D converters (16-channel)
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I2Cs and USARTs
Up to 7 timers
up to 6 channels for PWM output
– Conversion range: 0 to 3.6 V
– Dual-sample and hold capability
– Temperature sensor
■
Device summary
Reference
October 2007
Root part number
STM32F103x6
STM32F103C6, STM32F103R6,
STM32F103T6
STM32F103x8
STM32F103C8, STM32F103R8
STM32F103V8, STM32F103T8
STM32F103xB
STM32F103RB STM32F103VB,
STM32F103CB
Up to 80 fast I/O ports
– 26/36/51/80 I/Os, all mappable on 16
external interrupt vectors, all 5 V-tolerant
except for analog inputs
BGA100
10 x 10 mm
– Up to three 16-bit timers, each with up to 4
IC/OC/PWM or pulse counter
– 16-bit, 6-channel advanced control timer:
Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
■
VFQFPN36
6 × 6 mm
Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage
detector (PVD)
– 4-to-16 MHz quartz oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
■
LQFP64
10 x 10 mm
Memories
– 32-to-128 Kbytes of Flash memory
– 6-to-20 Kbytes of SRAM
■
LQFP100
14 x 14 mm
LQFP48
7 x 7 mm
Rev 3
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to
change without notice.
1/79
www.st.com
