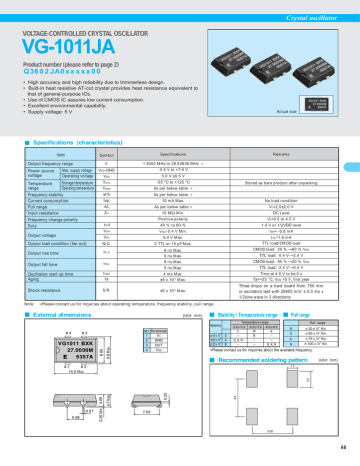

Crystal oscillator
VOLTAGE-CONTROLLED CRYSTAL OSCILLATOR
VG-1011JA
Product number (please refer to page 2)
Q36 0 2 JA0 x x x x x 0 0
• High accuracy and high reliability due to trimmerless design.
• Built-in heat resistive AT-cut crystal provides heat resistance equivalent to
that of general-purpose ICs.
• Use of CMOS IC assures low current consumption.
• Excellent environmental capability.
• Supply voltage: 5 V
Actual size
Specifications (characteristics)
Item
Symbol
Specifications
Output frequency range
Max. supply voltage
Power source
voltage
Operating voltage
f0
1.5000 MHz to 28.63636 MHz ∗
VDD-GND
-0.5 V to +7.0 V
Storage temperature
Temperature
range
Operating temperature
Frequency stability
Current consumption
Pull range
Input resistance
Frequency change polarity
Duty
VDD
5.0 V ±0.5 V
TSTG
-55 °C to +125 °C
TOPR
As per below table ∗
∆f/f0
As per below table ∗
Remarks
Stored as bare product after unpacking
lop
10 mA Max.
No load condition
∆fC
As per below table ∗
VC=2.5±2.0 V
ZIN
10 MΩ Min.
DC Level
Positive polarity
VC=0.5 to 4.5 V
tW/t
40 % to 60 %
1.4 V or 1/2VDD level
VOH
VDD -0.4 V Min.
IOH= -0.8 mA
Output voltage
VOL
0.4 V Max.
IOL=1.6 mA
Output load condition (fan out)
N/CL
2 TTL or 15 pF Max.
TTL load/CMOS load
Output rise time
tTLH
CMOS load: 20 %→80 % VDD
Output fall time
tTHL
8 ns Max.
5 ns Max.
8 ns Max.
5 ns Max.
TTL load: 2.4 V→0.4 V
Oscillation start up time
Aging
tOSC
fa
4 ms Max.
±5 x 10-6 Max.
Time at 4.5 V to be 0 s
Ta=+25 °C, VDD =5 V, first year
Shock resistance
S.R.
±5 x 10-6 Max.
Three drops on a hard board from 750 mm
or excitation test with 29400 m/s2 x 0.3 ms x
1/2sine wave in 3 directions
∗Please contact us for inquiries about operating temperature, frequency stability, pull range.
External dimensions
(Unit: mm)
Stability / Temperature range
Stability
NO. Pin terminal
VG1011 BXK
27.0000M
E 9357A
8.65
#3
9.8 Max.
#4
1
2
3
4
15 x 10-6
20 x 10-6
25 x 10-6
VC
GND
OUT
VDD
S
A
B
Temperature range
-20 °C to +70 °C -30 °C to +75 °C -40 °C to +85 °C
X
W
V
–
B
–
–
–
G, K, N
G, K, N
–
–
Pull range
Pull range
20 x 10-6 Min.
B
G
50 x 10-6 Min.
K
75 x 10-6 Min.
N
100 x 10-6 Min.
∗Please contact us for inquiries about the available frequency.
Recommended soldering pattern
(Unit: mm)
1.3
0.51
5.08
0.25 Min.
0.25
4.7 Max.
4.06
3.0
#2
#1
14.0 Max.
8.8
Note:
TTL load: 0.4 V→2.4 V
CMOS load: 80 %→20 % VDD
7.62
5.08
66
