QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview

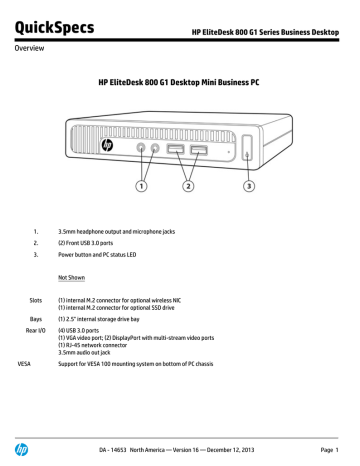

HP EliteDesk 800 G1 Desktop Mini Business PC
1.
3.5mm headphone output and microphone jacks
2.
(2) Front USB 3.0 ports
3.
Power button and PC status LED
Not Shown
Slots
(1) internal M.2 connector for optional wireless NIC
(1) internal M.2 connector for optional SSD drive
Bays
(1) 2.5" internal storage drive bay
Rear I/O
VESA
(4) USB 3.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
3.5mm audio out jack
Support for VESA 100 mounting system on bottom of PC chassis
DA - 14653 North America — Version 16 — December 12, 2013
Page 1
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
HP EliteDesk 800 G1 Ultra-slim Desktop Business PC
1.
Slim drive bay supporting an optical disk drive (located behind removable bezel)
2.
(2) USB 3.0 ports, (2) USB 2.0 ports
3.
3.5mm headphone output and microphone jacks
4.
Power button and PC status LED
Not Shown
Slots
(1) internal mSATA connector
(1) internal PCI Express mini-card connector
(1) MXM graphics connector
Bays
(1) 2.5" internal storage drive bay
Rear I/O
VESA
(2) USB 3.0 ports; (4) USB 2.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
3.5mm audio in/out jacks
PS/2 keyboard and mouse ports
Support for VESA 100 mounting system on top and bottom of PC chassis
DA - 14653 North America — Version 16 — December 12, 2013
Page 2
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
HP EliteDesk 800 G1 Small Form Factor Business PC
1.
Power button and PC status LED
2.
3.5" external drive bay; used for installing a Media Card Reader or 2nd data storage drive
3.
Slim drive bay supporting an optical disk drive (located behind removable bezel)
4.
(2) USB 3.0 ports, (2) USB 2.0 ports
5.
3.5mm headphone output and microphone jack
Not Shown
Slots
(2) PCI Express x16 graphics connectors; one wired as a x4
(2) PCI Express x1 accessory connectors
Bays
(1) 2.5" internal storage drive bay
(1) 3.5" internal storage drive bay
Rear I/O
(2) USB 3.0 ports; (4) USB 2.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
(1) RS-232 serial port
3.5mm audio in/out jacks
PS/2 keyboard and mouse ports
DA - 14653 North America — Version 16 — December 12, 2013
Page 3
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
HP EliteDesk 800 G1 Tower Business PC
1.
Power button and PC status LED
2.
Slim drive bay supporting an optical disk drive (located behind removable bezel)
3.
5.25" half height external drive bay (located behind removable bezel)
4.
3.5" external drive bay; used for installing a Media Card Reader
5.
(2) USB 3.0 ports, (2) USB 2.0 ports
6.
3.5mm headphone output and microphone jack
Not Shown
Slots
(2) PCI Express x16 graphics connectors; one wired as a x4
(2) PCI Express x1 accessory connectors
(1) PCI accessory connector (optional)
Bays
(1) 2.5" internal storage drive bay
(2) 3.5" internal storage drive bays
Rear I/O
(2) USB 3.0 ports; (4) USB 2.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
DA - 14653 North America — Version 16 — December 12, 2013
Page 4
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
(1) RS-232 serial port
3.5mm audio in/out jacks
PS/2 keyboard and mouse ports
DA - 14653 North America — Version 16 — December 12, 2013
Page 5
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
At A Glance
Choice of four chassis form factors: Desktop Mini, Ultra-slim Desktop, Small Form Factor and Tower
PC chassis and all internal components and modules are manufactured with low halogen content
HP developed and engineered UEFI BIOS supporting security, manageability and software image stability
Intel® Q87 chipset supporting Intel 4th generation Core processors, featuring integrated Intel HD Graphics and Intel® vProTM
Technology (available with select processors)
Intel® Ethernet Connection I217L GbE LOM integrated network connection
DDR3 Synchronous Dynamic Random Access Memory (SDRAM)
Multi-independent monitor support via VGA and dual digital DisplayPort video interfaces with multi-stream
DTS Studio Sound audio management software
Standard and high efficiency energy saving power supply options
SFF and TWR models can be configured with multiple data drives in a RAID array
Optional Intel Smart Response Technology disk cache modules
ENERGY STAR® qualified and certified EPEAT® Gold models
Guaranteed lengthy purchase lifecycles and image stability
DA - 14653 North America — Version 16 — December 12, 2013
Page 6
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
OPERATING SYSTEMS
Preinstalled
Windows 8.1 Pro (64-bit)*
Windows 8.1 (64-bit)*
Windows 7 Ultimate (32-bit)**
Windows 7 Ultimate (64-bit)**
Windows 7 Professional (32-bit)**
Windows 7 Professional (64-bit)**
Windows 7 Professional (32-bit) (available through downgrade rights from Windows 8.1 Pro)***
Windows 7 Professional (64-bit) (available through downgrade rights from Windows 8.1 Pro)***
Windows 7 Home Premium (32-bit)**
Windows 7 Home Premium (64-bit)**
FreeDOS 2.0
Novell SUSE Linux Enterprise Desktop 11
*Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See http://www.microsoft.com.
**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
***This system is preinstalled with Windows 7 Pro software and also comes with a license and media for Windows 8 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating
systems to avoid loss of your data.
CHIPSET
Intel® Q87 Express
DM
USDT
SFF/TWR
X
X
X
DM
USDT
SFF/TWR
PROCESSOR
Intel® 4th Generation Core™ i7 Processors
Intel® Core™ i7-4765T Processor
Up to 3.0 GHz Max. Turbo Frequency (2.0 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vProTM Technology and Intel® Stable Image Platform Program (SIPP)
DA - 14653 North America — Version 16 — December 12, 2013
X
Page 7
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
Intel® Core™ i7-4770 Processor
Up to 3.9 GHz Max. Turbo Frequency (3.4 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® Core™ i7-4770S Processor
Up to 3.9 GHz Max. Turbo Frequency (3.1 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® 4th Generation Core™ i5 Processors
Intel® Core™ i5-4570 Processor
Up to 3.6 GHz Max. Turbo Frequency (3.2 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® Core™ i5-4570S Processor
Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
Intel® Core™ i5-4570T Processor
Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency)
4 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vProTM Technology and Intel® Stable Image Platform Program (SIPP)
Intel® Core™ i5-4670 Processor
Up to 3.8 GHz Max. Turbo Frequency (3.4 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
DA - 14653 North America — Version 16 — December 12, 2013
X
X
X
Page 8
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
Intel® Core™ i5-4670S Processor
Up to 3.8 GHz Max. Turbo Frequency (3.1 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® 4th Generation Core™ i3 Processors
Intel® Core™ i3-4130 Processor
3.4 GHz base frequency
3 MB cache, 2 cores, 4 threads
Intel HD Graphics 4400
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4130T Processor
2.9 GHz base frequency
3 MB cache, 2 cores, 4 threads
Intel HD Graphics 4400
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4340 Processor
3.6 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
X
X
X
X
X
X
X
X
Intel® Core™ i3-4330 Processor
3.5 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4330T Processor
3.0 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
X
X
Intel® Pentium Processors
Intel® Pentium G3220 Processor
3.0 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1333 MT/s data rate
DA - 14653 North America — Version 16 — December 12, 2013
Page 9
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
Intel® Pentium G3220T Processor
2.6 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1333 MT/s data rate
X
Intel® Pentium G3420 Processor
Up to 3.2 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Pentium™ G3420T Processor
2.7 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
X
X
X
X
X
Intel® Pentium G3430 Processor
3.3 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
GRAPHICS
Intel HD Graphics on all models (integrated on processor)
DM
USDT
SFF/TWR
X
X
X
Optional Discrete Graphics Solutions
AMD Radeon HD 7650A (MXM)
X
NOTE: When this MXM graphics card is installed in the USDT all three monitor ports are active. The
discrete ATI graphics will operate the top DisplayPort while the Intel integrated graphics will
operate the bottom Multi-Stream DisplayPort and the VGA output.
AMD Radeon HD 8350 (1GB) PCIe x16
X
AMD Radeon HD 8490 (1GB) PCIe x 16
X
NVIDIA NVS 310 (512 MB) PCIe x16
X
NVIDIA NVS 315 (1GB) PCIe x 16
X
NVIDIA GeForce GT630 (2 GB) FH PCIe x16
Adapters and Cables
TWR only
DM
USDT
SFF/TWR
HP DMS-59 to Dual DisplayPort Cable
X
HP DMS-59 to Dual DVI Cable
X
DA - 14653 North America — Version 16 — December 12, 2013
Page 10
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
HP DMS-59 to Dual VGA Cable
X
HP DisplayPort to DisplayPort Cable
X
X
X
HP DisplayPort to DVI-D Adapter
X
X
X
HP DisplayPort to HDMI Adapter
X
X
X
HP DisplayPort to VGA Adapter
X
X
X
HP Serial Port Adapter
X
HP Parallel Port Adapter
X
STORAGE
DM
Hard Disk Drives (HDD)
USDT
SFF/TWR
X
320 GB 7200 rpm HDD
X
X
X
500 GB 7200 rpm HDD
X
X
X
500 GB 7200 rpm SED HDD
X
500 GB 10K rpm HDD
X
1 TB 7200 rpm HDD
X
1 TB 10K rpm HDD
X
2 TB 7200 rpm HDD
X
Solid State Hybrid Drives (SSHD)
DM
USDT
SFF/TWR
500 GB SSHD (8 GB cache)
X
X
X
1 TB SSHD (8 GB cache)
X
X
X
DM
USDT
SFF/TWR
X
X
X
X
X
X
X
X
X
X
X
X
X
Solid State Drives (SSD) & Self-encrypting Solid State Drives (SED)
120 GB Opal SED
128 GB SSD
128 GB Opal SED
X
160 GB SSD
180 GB Opal SED
X
256 GB SED
128 GB M.2 PCle SSD
X
256 GB Opal SED
X
X
X
DM
USDT
SFF/TWR
Slim DVD-ROM
X
X
Slim BDXL Blu-ray Writer
X
X
Slim SuperMulti DVD Writer
X
X
Optical Disc Drive
DA - 14653 North America — Version 16 — December 12, 2013
Page 11
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
Removable
HP Slim Removable SATA HDD Frame/Carrier
X
X
MEMORY
Form Factor
Type
Desktop Mini
DDR3 non-ECC
Up to 1600 MT/s
DDR3 non-ECC
Up to 1600 MT/s
DDR3 non-ECC
Up to 1600 MT/s
DDR3 non-ECC
Up to 1600 MT/s
Ultra Slim Desktop
Small Form Factor
Tower
Maximum
# of Slots
16 GB
2 SODIMM
16 GB
2 SODIMM
32 GB
4 DIMM
32 GB
4 DIMM
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available
due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
Memory modules support data transfer rates up to 1600 MT/s; actual data rate is determined by the system's configured
processor. See processor specifications for supported memory data rate.
PERFORMANCE
Intel® Smart Response Technology Disk Cache Modules
DM
USDT
32GB 2.5" Solid State Disk Cache
SFF/TWR
X
32GB mSATA Solid State Disk Cache
X
NETWORKING/COMMUNICATIONS
Ethernet (RJ-45)
DM
USDT
SFF/TWR
Intel I217LM Gigabit Network Connection (standard)
X
X
X
Intel Ethernet I210-T1 PCIe x1 Gb Network Interface Card (optional)
X
Wireless
Intel Centrino Advanced-N 6205 802.11 a/b/g/n PCI Express x1 Wireless Network Connection
(optional)
Intel Centrino Advanced-N 6205 802.11 a/b/g/n PCI Express Mini Card Wireless Network Connection
(optional)
Intel Wireless-N 7260 802.11 M.2 a/b/g/n NIC Card
Wireless Network Connection
Intel Wireless-N 7260 802.11 a/b/g/n Mini PCIe NIC Card (USDT Only)
Wireless Network Connection (optional)
Intel Wireless-N 7260 802.11 a/b/g/n PCle- Clink Card (SFF/TWR Only)
Wireless Network Connection (optional)
DA - 14653 North America — Version 16 — December 12, 2013
X
X
X
X
X
Page 12
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
NOTE: Either the integrated network connection or the Intel Centrino wireless NIC is required to support Intel vPro Technology
features.
AUDIO/MULTIMEDIA
DM
USDT
SFF/TWR
HD audio with Realtek ALC221 codec (all ports are stereo)
X
X
X
DTS Studio Sound audio management technology
X
X
X
Microphone* and headphone front ports (3.5mm)
X
X
X
Line out
only
X
X
Multi-streaming capable*
X
X
X
Internal speaker (standard)
X
X
X
Line-out and Line-In rear Ports* (3.5mm)
* The front microphone port is re-taskable as a Line-in, Microphone-in or Headphone-out port. Rear audio input ports are retaskable as a Line-in or Microphone-in port. External speakers must be powered externally. Multi-streaming can be enabled in the
Realtek control panel to allow independent audio streams to be sent to/from the front and rear jacks. This allows for different
audio applications to use separate audio ports on the system. For example, the front jacks could be used with a headset for a
communications application while the rear jacks are being used with external speakers and a multimedia application.
KEYBOARDS AND POINTING DEVICES
Keyboard
DM
HP PS/2 Keyboard
USDT
SFF/TWR
X
X
HP USB Keyboard
X
X
X
USB Smart Card (CCID) Keyboard
X
X
X
HP USB and PS/2 Washable Keyboard
X
X
X
HP Wireless Keyboard and Mouse Combo*
*Keyboard contains 25% post-consumer recycled plastic material
X
X
X
Mice
DM
USDT
SFF/TWR
X
X
HP PS/2 Mouse
HP USB Mouse
X
X
X
HP USB 1000dpi Laser Mouse
X
X
X
HP USB and PS/2 Washable Mouse
X
X
X
DA - 14653 North America — Version 16 — December 12, 2013
Page 13
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
HP BIOS
Key features of the HP BIOS include:
Deployment and manageability – HP BIOS provides several technologies that help integrate the HP EliteDesk 800 G1
Business PC into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12
languages.
Select models feature either Intel Standard Manageability or Intel Core vPro Processor Technology.
Stability - HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and
advanced change notification.
UEFI specification 2.1
Computrace agent – For tracking and tracing services, available in select countries, separate software and purchase of a
subscription is required.
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies so
component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in
any enterprise environment.
Acoustic performance – Industry leading acoustic emissions across the range of operating conditions.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS
updates from within DOS (DOSFlash), BIOS updates from within Windows (HPQFlash), HP Client Manager, and fail-safe
recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise;
it is available from within the BIOS software and from the support website.
HP BIOS uses PKI signing of the BIOS for trusted BIOS upgrades and recovery.
Additional HP BIOS Features
Power-On password – Helps prevent an unauthorized user from powering on the system.
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be
made to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) - Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. HP Elite models
use ACPI to provide power conservation features.
S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below 1W is S5
(when turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with WOL functionality.
DA - 14653 North America — Version 16 — December 12, 2013
Page 14
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
SECURITY
USDT/DM
SFF/TWR
Trusted Platform Module (TPM) 1.2
X
X
SATA port disablement (via BIOS)
X
X
Drive lock
X
X
RAID configurations
X
Intel Identify Protection Technology (IPT)1
X
Serial, parallel, USB enable/disable (via BIOS)
X
X
Optional USB Port Disable at factory (user configurable via BIOS)
X
X
Removable media write/boot control
X
X
Power-On password (via BIOS)
X
X
Setup password (via BIOS)
X
X
HP Chassis (1 bay) Security Kit
TWR only
Solenoid Hood Lock / Sensor
Support for chassis padlocks and cable lock devices
USDT
only
X
X
X
1Models configured with Intel Core processors have the ability to utilize advanced security protection for online transactions. IPT,
used in conjunction with participating web sites, provides double identity authentication by adding a hardware component in
addition to the usual user name and password. IPT is initialized through an HP Client Security module.
ENVIRONMENTAL & REGULATORY
ENERGY STAR® qualified models available
EPEAT® registered where applicable/supported. See www.epeat.net for registration status by country.
Low halogen (chassis, all internal components and modules)
TAA compliant
PORTS
I/O Ports – Standard
DM
USB 2.0
USB 3.0
Serial (RS-232)
PS/2
Video
N/A
2 (front); 4 (rear)
N/A
USDT
SFF/TWR
2 (front); 4 (rear)
2 (front); 2 (rear)
N/A
1 keyboard (purple)
1 mouse (green)
1 VGA
2 DisplayPort with multi-stream
2 (front); 4 (rear)
2 (front); 2 (rear)
1
1 keyboard (purple)
1 mouse (green)
1 VGA
2 DisplayPort with multi-stream
1 ea. VGA
2 ea. DisplayPort with multistream
NOTE: When configured with an Intel Celeron, Pentium or 4th generation Intel Core i3 CPU only two of the available video output ports
are active
DA - 14653 North America — Version 16 — December 12, 2013
Page 15
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
Audio
Network Interface
Front: headphone/mic
Rear: line in/out
3.5mm diameter
RJ-45
Front: headphone/mic
Rear: line in/out
3.5mm diameter
RJ-45
Front: headphone/mic
Rear: line in/out
3.5mm diameter
RJ-45
I/O Ports – Optional
2nd Serial (RS-232)
Parallel
DM
USDT
SFF/TWR
N/A
N/A
N/A
N/A
1
1
SLOTS
PCI Express Mini Card
MXM Graphics
mSATA
M.2
PCI Express x1 (v2.0)
DM
USDT
SFF
TWR
N/A
N/A
N/A
1 ea. M.2-2230
(for WLAN)
1 ea. M.2-2280
(for storage)
N/A
1
1
1
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
2 ea.
2.5" low profile
6.6" length
10W max. power
1 ea.
2.5" low profile
6.6" length
35W max. power
1 ea.
2.5" low profile
6.6" length
35W max. power
N/A
2 ea.
4.2" full height
6.6" length
10W max. power
PCI Express x16 (v2.0)
N/A
N/A
1 ea.
(wired as a x4)
4.2" full height
6.6" length
35W max. power
PCI Express x16 (v3.0)
N/A
N/A
1 ea.
4.2" full height
6.6" length
75W max. power
Optional PCI (v2.3)
N/A
N/A
1 ea.
4.2" full height
6.6" length
NOTE: The TWR can support a single graphics card up to 75W. When configured with dual graphics cards support is limited to 35W
for each.
DA - 14653 North America — Version 16 — December 12, 2013
Page 16
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
BAYS
3.5" Media Card Reader
5.25" Half Height ODD
Slim ODD
Secure Digital (SD) Reader
2.5" internal storage drive
3.5" internal storage drive
DM
USDT
SFF
TWR
N/A
N/A
N/A
N/A
1 ea.
N/A
N/A
N/A
1 ea.
1 ea.
1 ea.
N/A
1 ea.
N/A
1 ea.
N/A
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
N/A
1
2 ea.
SERVICE AND SUPPORT
On-site Warranty 1: Three-year (3-3-3) limited warranty delivers three years of on-site, next business day 2 service for parts and
labor and includes free telephone support 3 24 x 7. Three-year onsite and labor are not available in all countries. Service offers
terms up to 5 years by choosing a Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central:
www.hp.com/go/cpc
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be
offered in your region.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider,
and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may
vary by country.
NOTE 3: Technical telephone support applies only to HP-configured and third-party HP qualified hardware and software. Toll-free
calling and 24 x 7 support may not be available in some countries.
DA - 14653 North America — Version 16 — December 12, 2013
Page 17
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Operating Systems, Software and eDocumentation
OPERATING SYSTEMS
Preinstalled
Windows 8.1 Pro (64-bit)*
Windows 8 .1 (64-bit)*
Windows 7 Ultimate (32-bit)**
Windows 7 Ultimate (64-bit)**
Windows 7 Professional (32-bit)**
Windows 7 Professional (64-bit)**
Windows 7 Professional (32-bit) (available through downgrade rights from Windows 8.1
Pro)***
Windows 7 Professional (64-bit) (available through downgrade rights from Windows 8.1
Pro)***
Windows 7 Home Premium (32-bit)**
Windows 7 Home Premium (64-bit)**
FreeDOS 2.0
Novell SUSE Linux Enterprise Desktop 11
For all Preinstalled operating systems HP provides Microsoft WHQL certified (where applicable) drivers on www.hp.com at the
time of product announcement.
Web Support
Windows 7 Enterprise (32-bit or 64-bit)
Windows 8 (64-bit)
Windows 8 Pro (64-bit)*
Windows 8 Enterprise (64-bit)**
For all Supported operating systems HP performs testing of the OS, and makes available all HP value add software (OS
dependent). Certified drivers are made available on www.hp.com within 30 days of product announcement.
Certified
Novell SUSE Linux Enterprise Desktop 111
Red Hat Enterprise Linux 641
For all Certified operating systems HP will submit hardware to the operating system vendor for testing and certification. All
drivers would be obtained from the operating system vendor, not supplied by HP. Certification will be posted by the operating
system vendor.
Test & Document
Windows® Vista Enterprise (32-bit or 64-bit)
Windows® Vista Professional (32-bit or 64-bit)
For all Test & Document operating systems HP will perform functional testing of the operating system on the HP business PC
platform. Any issues found will be documented in an Engineering Advisory and/or Service Advisory and posted to www.hp.com.
HP will not develop or qualify any drivers or perform any integration testing.
*Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See http://www.microsoft.com.
**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
***This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8 Pro
software. You may only use one version of the Windows software at a time. Switching between versions will require you to
uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing
operating systems to avoid loss of your data.
1The following features are not supported by Novell SUSE Linux Enterprise Desktop:
Intel Gigabit CT Desktop NIC
DA - 14653 North America — Version 16 — December 12, 2013
Page 18
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Operating Systems, Software and eDocumentation
Broadcom NetXtreme Gigabit Ethernet Plus
HP Media Card Reader
HP Client Security
HP Blu-ray Writer playback of commercial movies
DisplayPort video interface
HP 2nd serial port adapter
Power Management features
Systems configured with Linux do not qualify for ENERGY STAR®
The following features are not supported by Red Hat Enterprise Linux 64:
TPM v1.2 embedded Security Chip
Intel Gigabit CT Desktop NIC
HP Wireless 802.11b/g/n NIC
HP Media Card Reader
HP Blu-ray Writer
HP 2nd serial port Adapter
HP USB Smart Card (CCID) Keyboard
Power Management features
Systems configured with Linux do not qualify for ENERGY STAR®
SOFTWARE
Included
Windows 7
Windows 8.1
Security
Computrace (status tracing) 1
Device Access Manager
Drive Encryption4
File Sanitizer (Activated via Wizard)
Disk Sanitizer (external version)2
Secure Erase
HP Client Security
Computrace (status tracing) 1
Device Access Manager
Drive Encryption4
File Sanitizer (Activated via Wizard)
Disk Sanitizer (external version)2
Microsoft Defender
Secure Erase
HP Client Security
MultiMedia
Cyberlink Power DVD, BD
Cyberlink Power2Go (Secure Burn)
Cyberlink Power DVD, BD
Cyberlink Power2Go (Secure Burn)
Communication
HP Wireless Hotspot
HP Value Add
HP ePrint Driver3
HP PageLift
HP Support Assistant
HP Recovery Disk Creator
HP ePrint Driver3
HP PageLift
HP Recovery Manager
HP Support Assistant
HP QuickStart
3rd Party
Adobe Flash Player
Bing Search for Internet Explorer 10
Box
PDF Complete, Corporate Edition
Skype
Bing Search
PDF Complete, Corporate Edition
Skype
DA - 14653 North America — Version 16 — December 12, 2013
Page 19
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Operating Systems, Software and eDocumentation
Microsoft
Products
Buy Office
Buy Office
1 Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription. Subscriptions
can be purchased for terms ranging from one to five years. Service is limited, check with Absolute for availability outside the U.S.
2 Available via download
3 Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,
supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter). Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and
availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary
4 Drive Encryption is planned to be available in October 2013. Requires Windows. Data is protected prior to Drive Encryption login.
Turning the PC off or into hibernate logs out of Drive Encryption and prevents data access.
DA - 14653 North America — Version 16 — December 12, 2013
Page 20
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Core vPro Processors
INTEL 4th GENERATION CORE vPRO PROCESSORS
All HP EliteDesk 800 G1 Business PC models featuring this technology include processors that are part of the Intel 2013 Stable
Image Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP EliteDesk 800
G1 Business PC, thus making these models the most stable, secure, and manageable platforms available to enterprises today.
Intel Advanced Management Technology (AMT) v9.0 – An advanced set of remote management features and functionality which
provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client
systems regardless of the system's health or power state. AMT 9.0 includes the following advanced management functions:
Power Management (on, off, reset)
Hardware Inventory (includes BIOS and firmware revisions
Hardware Alerting
Agent Presence
System Defense Filters
SOL/IDER
Cisco NAC/SDN Support
ME Wake-on-LAN
DASH 1.1 compliance
IPv6 Support
Fast Call for Help – a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or
alert triggered connection
Remote Scheduled Maintenance - pre-schedule when the PC connects to the IT or service provider console for
maintenance. Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider
when it's convenient.
Remote Alerts – automatically alert IT or service provider if issues arise
Access Monitor – Provides oversight into Intel® AMT actions to support security requirements
PC Alarm Clock
Microsoft NAP Support
Host Base set-up and configuration
Management Engine (ME) firmware roll back
Wireless AMT functionality on Desktop (WoDT)
Enhanced KVM resolution
DA - 14653 North America — Version 16 — December 12, 2013
Page 21
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
Intel HD Graphics
VGA Controller
Integrated
DisplayPort
Bus Type
Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and Multi-Stream
Technology for a maximum of 3 displays (including the integrated panel)
N/A
RAMDAC
N/A
Memory
Intel graphics do not have dedicated memory but utilizes some of the computer's system memory The
amount of memory used for graphics depending on the amount of system memory installed, BIOS
settings, operating system, and system load. 32 MB is pre-allocated for graphics use at system boot time.
Additional memory can be allocated at boot time by the BIOS for PAVP (Protected Audio Video Playback)
support for playback of protected video content.
Maximum Graphics
Memory
Maximum Color Depth
Graphics/Video API
Support
Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology
(DVMT), to provide an optimal balance between graphics and system memory use.
Microsoft Windows 7
Windows 8
Up to 1.7GB
Up to 1.8GB
Note: the actual amount of maximum graphics memory can be less than the amounts listed above
depending upon your computer's configuration.
32 bits/pixel
4th Generation Core processors:
The Processor Graphics contains a refresh of the seventh generation graphics core enabling
substantial gains in performance and lower power consumption. Up to 16 EU support.
Next Generation Intel Clear Video Technology HD Support is a collection of video playback and
enhancement features that improve the end user's viewing experience
Encode/transcode HD content
Playback of high definition content including Blu-ray Disc
Superior image quality with sharper, more colorful images
DirectX Video Acceleration (DXVA) support for accelerating video processing
Full AVC/VC1/MPEG2 HW Decode
Advanced Scheduler 2.0, 1.0
Windows 7, Windows 8, Linux OS Support
DirectX 11.1
OpenGL 4.0
Open CL 1.2
Supported Display Resolutions and Refresh Rates
NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
DA - 14653 North America — Version 16 — December 12, 2013
Page 22
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
Resolution
800x600
1024x768
1152x864
1280x600
1280x720
1280x800
1280x960
1280x1024
1360x768
1366x768
1400x1050
1440x900
1600x900
1600x1200*
1680x1050
1920x1080
1920x1200*
1920x1440*
2560x1440*
2560x1600*
* Only supported on displays connected to the external DisplayPort connector.
Refresh Rates
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
AMD Radeon HD 7650A Graphics Card
Form Factor
MXM 3.0
Graphics Controller
AMD Radeon HD 7650A
Core Clock
600MHz
Memory Clock
800MHz
Memory
2GB, DDR3, 128-bit wide
Bus Type
MXM
Max. Power
35W
Power Source Support
12V and 19V
3D API Support
DX11, SMS
HDCP Support
Yes
Display Max. Resolution
Supported Graphics APIs
Digital 2560 x 1600
Analog 2048 x 1536
DX11, OpenGL, full 1080p BD (H264) playback in hardware, Multi-Stream DisplayPort support
DA - 14653 North America — Version 16 — December 12, 2013
Page 23
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
Supported Display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
Refresh Rates
800x600
1024x768
1280x720
1280x1024
1360 x 768
1440x900
1600 x 900
1680x1050
1920x1080
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
NVIDIA NVS 310 Graphics Card
Introduction
Performance and Features
The NVIDIA® NVS™ 310 Graphics Card is a PCI Express low profile form factor graphics add-in card
targeted as an active low cost graphics solution for the corporate business and enterprise markets.
The NVIDIA® NVS 310 graphics card is an ideal solution for customers requiring a small form factor
graphics add-in card for either standard or small form factor PC designs.
The NVIDIA® NVS 310 Graphics Card offers 512 MB of ultrafast DDR3 memory and is capable of
supporting up to 2 displays.
DisplayPort connector supports multimode technology to support connection to DVI-D, VGA and
HDMI monitors with optional adapters in kits NR078AA, FH973AT, BP937AA, AS615AA.
Form Factor (H x L)
For a DisplayPort to DisplayPort connections use the optional DisplayPort Cable Kit VN567AA.
Low Profile: 2.713 × 6.15 in
Graphics Controller
NVIDIA® NVS 310
Memory Clock
875MHz
Memory Size
512 MB DDR3
Memory Bandwidth
14 GB/s
Max. Power
19.5W
Display Max. Resolution
Up to 2560 x 1600 (digital display) per display
Display Output
Up to 2 displays in the following configurations
DisplayPort output:
Drives two DisplayPort enabled digital display at resolutions up to 2560 × 1600 at 60 Hz with
reduced blanking, when connected natively using the 2 DisplayPort connectors on the NVS 310
graphics card
Supports 2 monitors up to resolution of 1920 × 1200 at 60 Hz with reduced blanking using
DisplayPort Multi-Stream topology technology
DA - 14653 North America — Version 16 — December 12, 2013
Page 24
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
DVI-D output:
Drives two digital display at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking
using DisplayPort to DVI-D single-link cable adaptors
Drives two digital display at resolutions up to 2560× 1600 at 60 Hz with reduced blanking
using DisplayPort to DVI-D dual-link cable adaptors
HDMI output:
NVS 310 is capable of driving two high definition (HD) panels up to resolutions of 1920 ×
1080P at 60 Hz using DisplayPort to HDMI cable adaptors
VGA display output:
Max. Power
Drives two analog display at resolutions up to 1920 × 1200 at 60 Hz using DisplayPort to VGA
cable adaptors
19.5 W
Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Maximum Refresh Rates (Hz) by Connection
DisplayPort to VGA
DisplayPort to DVI-D
DisplayPort to HDMI
DisplayPort
640 x 480
85
60
60
60
800 x 600
85
60
60
60
1024 x 768
85
60
60
60
1280 x 720
85
60
60
60
1280 x 1024
85
60
60
60
1440 x 900
75
60
60
60
1600 x 1200
60
60
60
60
1680 x 1050
60
60
60
60
1920 x 1080
60-R
60-R
60
60
1920 x 1200
60-R
60-R
60
1920 x 1440
60
2048 x 1536
60
2560 x 1600
60
Note: 60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.
DA - 14653 North America — Version 16 — December 12, 2013
Page 25
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
NVIDIA GeForce GT630 Graphics Card
Introduction
Performance and Features
The NVIDIA GeForce GT630 DP (2GB) PCIe x16 Card Graphics Card provides a full height, PCI Express
x16 graphics add-in card solution based on the NVIDIA Kepler Architecture GPU. The card is designed
to support three display connections through its DVII, and two DisplayPort connectors.
An ideal solution for desktop PC customers seeking enhanced 2D and advanced 3D graphics
performance, the NVIDIA GeForce GT630 DP (2GB) PCIe x16 Cards are an excellent choice for
business users who want run multiple displays from a single graphics board. Engage in Web
conferencing or video or photo editing, while improving your everyday business PC experience with
better graphics and excellent visual display quality.
The NVIDIA GeForce GT630 DP (2GB) PCIe x16 Cards deliver superior PCI Express (PCIe) Gen 3
features including:
Form Factor
Unprecedented flexibility for new applications and enhanced performance
Support for NVIDIA surround technology
Run multiple displays from a single graphics card
Full 16 lane PCIe Generation 3 bus support with peak bandwidth support
Wireless Display ready for future support
PCIe x16 Card
Graphics Controller
NVIDIA Kepler Architecture GPU
Core Clock
875 MHz
Memory Clock
891 MHz
Memory Size
2 GB DDR3 128 bit
Memory Bandwidth
28.5 GB/s
Display Max. Resolution
2560 x 1600 digital, 2048 x 1536 analog
Display Support
Integrated 400 MHz RAMDAC
Supported Display Resolutions and Refresh Rates
NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
2560x1600
Maximum Refresh Rates (Hz)
Analog Connection
85
85
85
85
85
75
85
75
85
85
85
75
N/A
Digital Connection
60
60
60
60
60
60
60
60
60-R
60-R
60
60
60
DA - 14653 North America — Version 16 — December 12, 2013
Page 26
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
NVIDIA NVS 315 1GB PCIe x 16 Graphics Card
Introduction
Performance and
Features
Get efficient dual-display graphics performance in a PCI Express low-profile graphics card with the NVIDIA
NVS 315 PCIe x16 1 GB Graphics Card, an ideal desktop graphics solution for professional business and
commercial applications.
The NVIDIA® NVS 315 Graphics Card offers 1 GB of ultrafast DDR3 memory and is capable of supporting up
to 2 displays.
DisplayPort connector supports multimode technology to support connection to DVI-D, VGA and HDMI
monitors with optional adapters in kits NR078AA, FH973AT, BP937AA, AS615AA.
Form Factor
For a DisplayPort to DisplayPort connections use the optional DisplayPort Cable Kit VN567AA.
Low Profile: 2.713 × 6.15 in
Graphics Controller
NVIDIA® NVS 315
Memory Clock
875MHz
Memory Size
512 MB DDR3
Memory Bandwidth
14 GB/s
Connectors
DMS-59 , with support for dual VGA, dual DVI or dual Display Port with the appropriate adapter cable
Display Max. Resolution
Up to 2048 x 1536 VGA; 1920 x 1200 DVI; 2560 x 1600 DisplayPort
Display Output
Up to 2 displays in the following configurations
Dual DVI :
Drives two DVI displays using optional HP DMS59 DVI Dual-head Connector Cable DL139A
Dual DisplayPort :
Drives two DisplayPort using optional HP DMS-59 to Dual DisplayPort kit XP688AA
Dual VGA :
Drives two analog using the included HP DMS-59 to Dual VGA Cable
Supported Display Resolutions and Refresh Rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
640x480
720x480
720x576
800x600
1024x768
1280x720
1280x768
1280x1024
1440x900
1600x1024
1600x1200
1680x1050
1920x1080
1920x1200
Maximum Refresh Rates (Hz) by Connection
Analog Connection
85
85
85
85
85
85
85
85
75
85
85
75
85
85
DA - 14653 North America — Version 16 — December 12, 2013
Digital Connection
60
60
60
60
60
60
60
60
60
60
60
60
60-R
60-R
Page 27
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
1920x1440
2048x1536
2560x1440
2560x1600
85
75
N/A
N/A
N/A
N/A
60*
60*
* Display Port Only
AMD Radeon HD 8350 1GB PCie x16 DH Graphics Card
Introduction
Get stable 2D and advanced 3D graphics performance from the AMD Radeon HD 8350 1 GB PCIe x16 DH
Graphics Card, a low profile, PCI Express x16 graphics add-in card based on the AMD Radeon HD 8350 GPU,
great for Web conferencing or video and photo editing.
Form Factor
PCie x16
Graphics Controller
AMD Radeon HD 8350
Core Clock
GPU engine operates at 523 MHz
Memory
1GB, DDR3, SDRAM
Memory Clock
875 MHz
HDCP Support
Yes
Display Max. Resolution
Digital 1920 x 1200
Analog 2048 x 1536
Supported Display Resolutions and Refresh Rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
640x480
720x480
720x576
800x600
1024x768
1280x720
1280x768
1280x1024
1440x900
1600x1024
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
2560x1440
2560x1600
Analog Connection
Digital Connection
85
85
85
85
85
85
85
85
75
85
85
75
85
85
85
75
N/A
N/A
60
60
60
60
60
60
60
60
75
60
60
75-R
60-R
60-R
N/A
N/A
N/A
N/A
DA - 14653 North America — Version 16 — December 12, 2013
Page 28
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Graphics
AMD Radeon HD 8490 1GB PCie x16 Graphics Card
Form Factor
Get impressive graphics and high resolution dual-display performance in a low profile, PCI Express x16
graphics add-in card based on the AMD Radeon HD 8490 Graphics Processor. Improve your everyday PC,
Web conferencing, and video or photo editing.
PCie x16
Graphics Controller
AMD Radeon HD 8490
Core Clock
GPU engine operates at 875 MHz
Memory
1GB, DDR3, SDRAM
Memory Clock
900 MHz
HDCP Support
Yes
Introduction
Display Max. Resolution
Digital 2560 x 1600
Analog 2048 x 1536
Supported Display Resolutions and Refresh Rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
300 x 200
320 x 240
400 x 300
640x480
720x480
720x576
800x600
1024x768
1280x720
1280x768
1280x1024
1440x900
1600 x 900
1600x1024
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
2560x1440
2560x1600
Analog Connection
Digital Connection
85
85
85
85
85
85
85
85
85
85
85
75
85
85
85
75
85
85
85
75
N/A
N/A
60
60
60
60
60
60
60
60
60
60
60
75
60
60
60
75-R
60-R
60-R
N/A
N/A
60
60
DA - 14653 North America — Version 16 — December 12, 2013
Page 29
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
Introduction:
HP Serial Advanced Technology Attachment (SATA) Hard Drives maximize the performance of HP Business PCs by providing the
technologies to meet your increasing storage demands with high-capacity drives offering superior reliability and performance.
SATA provides faster data transfer speeds, better system cooling airflow, more bandwidth, more headroom for speed increases in
future generations and better data integrity. A next-generation technology, the SATA interface connects hard drives to the PC platform
enabling easy aggregation of multiple hard drives into a single PC. This offers you the additional benefits of dedicated bandwidth, the
ability to more easily identify device failures and scalability. The HP EliteDesk 800 G1 Series Business PC supports the latest SATA
6.0Gb/s specification.
HP Drive Lock
HP Serial ATA Hard Drives offer enhanced security via a new Drive Lock. When enabled, this ATA security feature set prevents software
access to user data on the drive until one or two user-defined passwords are provided.
SMART IV Technology
Self-Monitoring Analysis and Reporting Technology (SMART) hard drive technology allows hard drives to monitor their own health and
to raise flags if imminent failures are predicted. If the drive determines that a failure is imminent, the SMART hard drive technology
enables the intelligent manageability or management software to generate a fault alert. While the current versions of SMART hard
drives do a good job monitoring the data on the hard drive media, the ever increasing emphasis on reliability and quality has promoted
HP to implement SMART IV technology which constantly checks that the data flow from host interface to media and media to host
interface is not compromised. This is accomplished by inserting a 2 byte parity code into every 512 byte block in the data path of the
hard drive's Cache RAM. This unique parity checking performed by HP's SMART IV technology hard drives, allows for more complete
error detection coverage encompassing the entire data path between the host and the hard drive.
Smart IV is also known as IOEDC: I/O Error Detection Code.
Native Command Queuing
NCQ or Native Command Queuing is a SATA protocol extension that allows the hard drive to have several write or read commands
outstanding at the same time. In contrast, normal non-queued operation requires each command to be completed before the next
command is issued by the host system. Queuing allows the drive to complete the commands in the order that allows for best overall
throughput. It also involves an advanced method of transferring data to or from the host, called First Party Direct Memory Access
(FPDMA), which allows the hard drive and the host controller to manage the data transfers for multiple outstanding commands, without
involving the host processor. NCQ can contribute to better performance but the results are dependent on many factors, including the
access patterns of the various applications and operating system functions that are initiating drive accesses. Enabling NCQ features in
the hard drive requires AHCI support from the host system BIOS, controller, and driver. AHCI support is typically implemented in RAID
configurations.
Note: GB = 1 billion bytes. Actual available capacity is less.
DA - 14653 North America — Version 16 — December 12, 2013
Page 30
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
Redundant Array of Independent Drives (RAID)
Flexible implementation:
DriveLock is supported while in RAID mode. Users can manage the DriveLock password from within F10 Setup. Locked drives will
be displayed as such in the RAID option ROM interface.
Hard drive information can be viewed within F10 Setup while in RAID mode. Previously, the hard drives will not appear in Drive
Configuration when switching to RAID mode.
DPS Self-Test can be executed on physical hard drives while in RAID mode.
The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password.
NOTE:
RAID 1 is the only RAID configuration offered via factory configurations. The pre-configured systems:
Are only available on the SFF and TWR form factors. The USDT and DM form factors do not support RAID as they do not allow for
multiple common storage drives.
Are complete RAID systems and have both drives installed. If the TWR is configured with three hard disk drives, the third drive is
would be un-partitioned and not part of the RAID array
Have the necessary Option ROM configuration.
Are pre-loaded and pre-installed with all required Intel software.
Include a preinstalled operating system that is mirrored mode out of the box.
HP 1TB 10K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive
Capacity
1 TB
Rotational Speed
10,000 rpm
Interface
Serial ATA (6.0 Gb/s)
Synchronous Transfer Rate
(Maximum)
Buffer Size
Up to 600 MB/s
Cache
Adaptive
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
Average:
Full-Stroke:
0.6 in/1.53 mm
Height (nominal)
Width (nominal)
Operating Temperature
64 MB
1.2 ms
3.6 ms
9.0 ms
Media diameter: 2.5 in/63.6 mm
Physical size: 2.75 in/69.9 mm
41° to 131° F (5° to 55° C)
DA - 14653 North America — Version 16 — December 12, 2013
Page 31
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
HP 500 GB 10K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive
Capacity
500 GB
Rotational Speed
10,000 rpm
Interface
Serial ATA (6.0 Gb/s)
Synchronous Transfer Rate
(Maximum)
Buffer Size
Up to 600 MB/s
Cache
Adaptive
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
Average:
1.2 ms
3.6 ms
Full-Stroke:
0.6 in/1.53 mm
9.0 ms
Height (nominal)
Width (nominal)
Operating Temperature
64 MB
Media diameter: 2.5 in/63.6 mm
Physical size: 2.75 in/69.9 mm
41° to 131° F (5° to 55° C)
HP 320-GB 7.2K SATA 6.0Gb/s 2.5" Hard Disk Drive
Capacity
320,072,933,376 bytes
Rotational Speed
7,200 rpm
Interface
Serial ATA 2.0 (6.0 Gb/s)
Buffer Size
16 MB
Logical Blocks
488,397,168
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
Average:
Full-Stroke:
0.374 in/9.5 mm
Height (nominal)
Width (nominal)
Operating Temperature
2.0 ms
11 ms
22 ms
Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm
41° to 131° F (5° to 55° C)
DA - 14653 North America — Version 16 — December 12, 2013
Page 32
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
HP 500-GB 7200 RPM SATA 2.5" Self-Encrypting (SED) Hard Disk Drive
Capacity
500,107,862,016 bytes
Rotational Speed
7,200 rpm
Drive Type
Self-Encrypting Drive (SED) with SATA interface
Interface
SATA Interface conforming to Serial ATA International Organization: Serial ATA Revision 2.6
Segmented Buffer with write
cache
32768 KB - A portion of buffer capacity used for firmware
Number of Sectors
976,773,168
Seek Time (typical reads,
includes controller overhead,
including settling)
Media Diameter
Single Track:
Average:
Full-Stroke:
2.5 in/63.5 mm
Height
0.267 in/6.8 mm, ±0.2mm
Width
2.75 in/69.85 mm, ±0.25mm
Length
3.945 in/100.2 mm, ±0.25mm
Weight
3.35 oz/95 g (max)
Operating Temperature
41° to 131° F (5° to 55° C)
1.0 ms
13 ms
25 ms
HP 500-GB 7.2K SATA 6.0Gb/s 2.5" Hard Disk Drive
Capacity
500,107,862,016 bytes
Rotational Speed
7,200 rpm
Interface
Serial ATA 2.0 (6.0 Gb/s)
Buffer Size
16 MB
Logical Blocks
976,773,168
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
Average:
Full-Stroke:
0.374 in/9.5 mm
Height (nominal)
Width (nominal)
Operating Temperature
2.0 ms
11 ms
25 ms
Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm
41° to 131° F (5° to 55° C)
DA - 14653 North America — Version 16 — December 12, 2013
Page 33
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
HP 1-TB SATA 6G 2.5" 8GB Solid State Hybrid Drive (SSHD)
Formatted Capacity
1 TB
Spindle Speed
5,400 rpm +/- 0.2%
Drive Type
Solid State Hybrid Drive (SSHD) technology with NAND Flash
Interface
Serial ATA (SATA)
Cache Buffer
64 MB
NAND Flash
Commercial Multilevel Cell
(cMLC)
8 GB
Number of Sectors
976,773,168
Height
Single Track:
2.0 ms
Average:
12 ms
0.374 +/-.008 in (9.5 +/- 0.2 mm)
Width
2.750 +/- 0.010 in (69.85 +/- 0.25 mm)
Length
3.951 +0.008 / -0.010 in (100.35 +0.20 / -0.25 mm)
Weight
0.254 lb/115 g (max)
Operating Temperature
32° to 140° F (0° to 60° C)
Seek Time (typical reads)
HP 500 GB SATA 6G 2.5" 8GB Solid State Hybrid Drive (SSHD)
Formatted Capacity
500 GB
Spindle Speed
5,400 rpm +/- 0.2%
Drive Type
Solid State Hybrid Drive (SSHD) technology with NAND Flash
Interface
Serial ATA (SATA)
Cache Buffer
64 MB
NAND Flash
Commercial Multilevel Cell
(cMLC)
8 GB
Number of Sectors
976,773,168
Height
Single Track:
2.0 ms
Average:
12 ms
0.268 +/-.008 in (6.8 +/- 0.2 mm)
Width
2.750 +/- 0.010 in (69.85 +/- 0.25 mm)
Length
3.951 +0.008 / -0.010 in (100.35 +0.20 / -0.25 mm)
Weight
0.209 lb/95 g (max)
Operating Temperature
32° to 140° F (0° to 60° C)
Seek Time (typical reads)
DA - 14653 North America — Version 16 — December 12, 2013
Page 34
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
500,107,862,016 bytes
Rotational Speed
7,200 rpm
Interface
Serial ATA 3.0 (6.0 Gb/s)
Buffer Size
16 MB
Logical Blocks
976,773,168
Single Track: 2.0 ms
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
Average: 11 ms
Full-Stroke: 21 ms
1 in/2.54 cm
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F (5° to 55° C)
HP 120-GB Solid State Drive
Unformatted Capacity
120 GB
Architecture
Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller
Interface
Serial ATA 2.0 (3.0 Gb/s)
Dimensions (W x H x D)
2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm
Weight
0.18 lb/80 g
Bandwidth Performance
Latency
Power
Useful Drive Life
Sustained Sequential Read:
Up to 250 MB/s
Sustained Sequential Write:
Up to 70 MB/s
Random Read:
Up to 35K IOPs
Random Write:
Up to 6.6K IOPs
Read:
65-ms
Write:
85-ms
DC power requirement:
5 VDC 5%-100 mV ripple p-p
Total power consumption:
0.15W (active); 0.075W (idle)
35TB written, up to 20GB/day for 5 years
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity:
5% to 95%
Environmental
Maximum
Wet
Bulb
(all conditions, non-condensing)
84° F (29° C)
Temperature (operating):
Shock:
1,500 G/0.5-ms
* For solid state disk drives, GB means 1 billion bytes. 128GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity will vary by content
** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units.
DA - 14653 North America — Version 16 — December 12, 2013
Page 35
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
HP 128 GB Solid State Drive
Unformatted Capacity
128 GB*
Architecture
Multi Level Cell (MLC) NAND
Interface
SATA 6 GB/sec
Dimensions (W x H x D)
2.75 x 0.276 x 3.96 in (6.985 x 0.7 x 10.05 cm)
Weight
0.16 lb (73 g)
Bandwidth Performance
Latency
Power
Useful Drive Life
Sustained Sequential Read:
Sustained Sequential Write:
Random Read:
Random Write:
Read:
Write:
DC power requirement:
Total power consumption:
1.2 million device hours**
Up to 450 MB/s
Up to 260 MB/s
up to 46K IOPs
up to 56K IOPs
55ms (TYP)
55ms (TYP)
Min 4.5 V; Max 5.5 V
160 mW (Active) ; <85 mW; (Idle)
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity:
5% to 95%
Environmental
Maximum
Wet
Bulb
(all conditions, non-condensing)
84° F (29° C)
Temperature (operating):
Shock:
1,500 G/1.0 msec
UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438, AS/NZS
Regulations
CISPR 22:2002 Class B, Korea KCC, CE Mark
HP 128 GB Solid State Drive, documentation, 3.5-inch bay adapter bracket,
Option kit contents
3.5-inch bay adapter bracket screws, SATA cable
* For solid state disk drives, GB means 1 billion bytes. 128GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity will vary by content
** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units.
DA - 14653 North America — Version 16 — December 12, 2013
Page 36
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
HP 160 GB Solid State Drive
Unformatted Capacity
160 GB*
Architecture
Multi Level Cell (MLC) NAND
Interface
SATA 3 GB/sec
Dimensions (W x H x D)
2.74 x 0.37 x 4 in (6.98 x 0.95 x 10.2 cm)
Weight
0.18 lb (80 g)
Bandwidth Performance
Latency
Power
Useful Drive Life
Sustained Sequential Read:
Up to 250 MB/s
Sustained Sequential Write:
Up to 70 MB/s
Random Read (4KB):
up to 35K IOPs
Random Write (4KB):
up to 6.6K IOPs
Read:
65 ms
Write:
85 ms
DC power requirement:
5 VDC 5%-100 mV ripple p-p
Total power consumption:
0.15 Watt (Active); 0.075 Watt (Idle)
35TB written, up to 20GB/day for 5 years **
Operating Temperature:
32° to 158° F (0° to 70° C)
Environmental
Relative Humidity:
5% to 95%
(all conditions, non-condensing)
Shock:
1,500 G/1.0 msec
UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438, AS/NZS CISPR 22:2002 Class B, Korea
Regulations
KCC, CE Mark
* For solid state disk drives, GB means 1 billion bytes. 128GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity will vary by content
** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units.
HP 256 GB SATA 2.5" Self-Encrypting (SED) Solid State Drive
Unformatted Capacity
256,186,209,271 bytes
Architecture
Self-Encrypting (SED) Solid State Drive with 25nm MLC NAND Flash and SATA interface
Interface
Serial ATA 2.0 (3.0 Gb/s)
NAND Flash
25nm MLC NAND Flash
Height
.275 in/7mm
Width
2.75 in/69.85 mm
Length
3.95 in/100.5 mm
Weight
0.161 lb (73 g)
Bandwidth Performance
Latency
Power
Sustained Sequential 128k Read:
Sustained Sequential 128k Write:
Random 4k Read:
Random 4k Write:
Read:
Write:
SATA power consumption:
Up to 450 MB/s
Up to 260 MB/s
up to 46K IOPs
up to 56K IOPs
55 µs
55 µs
160 mW (active average); <85 mW (idle average)
DA - 14653 North America — Version 16 — December 12, 2013
Page 37
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
Useful Drive Life
72TB written, up to 40GB/day for 5 years
Environmental
(all conditions, non-condensing)
Operating Temperature:
Relative Humidity:
Shock:
32° to 158° F (0° to 70° C)
5% to 95%
1,500 G/1.0-ms
HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
500,107,862,016 bytes
Rotational Speed
7,200 rpm
Interface
Serial ATA 3.0 (6.0 Gb/s)
Buffer Size
16 MB
Logical Blocks
976,773,168
Single Track: 2.0 ms
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
Average: 11 ms
Full-Stroke: 21 ms
1 in/2.54 cm
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F (5° to 55° C)
HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
1,000,204,886,016 bytes
Rotational Speed
7,200 rpm
Interface
Serial ATA 3.0 (6.0 Gb/s)
Buffer Size
32 MB
Logical Blocks
1,953,525,168
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
Average:
Full-Stroke:
1 in/2.54 cm
Height (nominal)
Width (nominal)
Operating Temperature
2.0 ms
11 ms
21 ms
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F (5° to 55° C)
DA - 14653 North America — Version 16 — December 12, 2013
Page 38
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Hard Disk and Solid State Storage
HP 2-TB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive
Capacity
2 TB
Rotational Speed
7,200 rpm
Interface
SATA 6Gb/s NCQ
Buffer Size
64 MB
Cache, Multisegmented (MB)
1,953,525,168
Height
Read
Write
1.028 in/26.11 mm
Width
4.0 in/101.6 mm
Depth
5.787 in/146.99 mm
Weight
1.38 lb/626 g
Operating Temperature
32° to 140° F (0° to 60° C)
Seek Time (average)
<8.5 ms
<9.5 ms
DA - 14653 North America — Version 16 — December 12, 2013
Page 39
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Removable Storage
HP Slim SuperMulti DVD Writer Drive
Height
12.7mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc recording capacity
Up to 8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D)
5.04 x 0.5 x 5.0 in (128 x 12.7 x 127 mm) without bezel
Weight (max)
0.42 lb (190 g)
Write speeds
Read speeds
Access time
(typical reads, including
settling)
Power
DVD-RAM
Up to 5X
DVD-R DL
Up to 6X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 6X
DVD-R
Up to 8X
DVD-RW
Up to 6X
CD-R
Up to 24X
CD-RW
Up to 24X
DVD-RAM
Up to 5X
DVD-RW, DVD+RW
Up to 8X
DVD-R DL, DVD+R DL
Up to 8X
DVD+R, DVD-R
Up to 8X
DVD-ROM DL, DVD-ROM
Up to 8X
CD-ROM, CD-R
Up to 24X
CD-RW
Up to 24X
Random
DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)
Full Stroke
DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)
Stop Time
6 seconds (typical)
Source
Slimline SATA DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC (< 1000 mA typical, 1600 mA maximum)
DA - 14653 North America — Version 16 — December 12, 2013
Page 40
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Removable Storage
Environmental conditions
(operating - non-condensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb
Temperature
84° F (29° C)
HP Slim Blu-ray BDXL Drive
Height
12.7mm Slim tray-load
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc capacity
Up to 128 GB QL, 100 GB TL, 50 GB DL or 25 GB standard SL
Dimensions
W x H x D (max)
Weight (max)
5.04 x 0.5 x 5.0 in (128 x 12.7 x 127 mm) without bezel
Write speeds
Read speeds
Up to 0.37 lb (170 g) without bezel
Triple-layer
Quadruple-layer
BD-R
BD-RE
Up to 4x
Up to 2x
Single-layer
Up to 4x
Not supported
Double-layer
BD-R
BD-RE
DVD-R
DVD-RW
DVD+R
DVD+RW
DVD-RAM
CD-R
CD-RW
Up to 6x
Up to 2x
Up to 8x
Up to 6x
Up to 8x
Up to 8x
Up to 5x
Up to 24x
Up to 24x
Up to 6x
Up to 2x
Up to 6x
Not supported
Up to 6x
Not supported
N/A
N/A
N/A
Triple-layer
Quadruple-layer
BD-R
BD-RE
Up to 4x
Up to 4x
Single-layer
Up to 4x
Not supported
Double-layer
BD-ROM
BD-R
BD-RE
DVD-ROM
DVD-R
DVD-RW
DVD+R
DVD+RW
Up to 6X
Up to 6x
Up to 6x
Up to 8x
Up to 8x
Up to 8x
Up to 8x
Up to 8x
Up to 6X
Up to 6x
Up to 6x
Up to 8x
Up to 8x
Not supported
Up to 8X
Not supported
DA - 14653 North America — Version 16 — December 12, 2013
Page 41
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Removable Storage
Access times
(typical reads, including
setting)
Power
Environmental
(all conditions
non-condensing)
BDMV (AACS Compliant
Disc)
DVD-RAM
DVD-Video (CSS Compliant
Disc)
CD-R/RW/ROM
CD-DA (DAE)
Random
Full Stroke
Up to 6x/2x (Read/Play)
Up to 5x
Up to 8x/4x (Read/Play)
Up to 24x
Up to 20x/10x (Read/Play)
BD-ROM: 205 ms (typical), DVD-ROM: 185 ms (typical),
CD-ROM: 165 ms (typical)
BD-ROM: 350 ms (typical), DVD-ROM: 345 ms (typical),
CD-ROM: 340 ms (typical)
Source
Slimline SATA DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC -1200 mA typical, 2000 mA maximum
Temperature (operating)
41° to 122° F (5° to 50° C)
Relative Humidity
(operating)
Maximum Wet Bulb
Temperature (operating)
10% to 80%
84° F (29° C)
HP Slim DVD-ROM Drive
Height
12.7mm
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Dimensions (W x H x D)
5.04 x 0.5 x 5.0 in (128 x 12.7 x 127 mm) without bezel
Weight (max)
Up to 0.37 lb (170 g) without bezel
Read speeds
Access time
(typical reads, including
settling)
Power
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 8X
DVD-ROM
Up to 8X
CD-ROM, CD-R
Up to 24X
CD-RW
Up to 24X
Random
DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)
Full Stroke
DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)
Source
Slimline SATA DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC - <1000 mA typical, < 1600 mA maximum
DA - 14653 North America — Version 16 — December 12, 2013
Page 42
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Removable Storage
Environmental (all conditions
non-condensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb
Temperature (operating)
84° F (29° C)
DA - 14653 North America — Version 16 — December 12, 2013
Page 43
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Memory
System Memory Support
The HP EliteDesk 800 G1 Business PC supports the 4th generation Intel® Core™ processor family. Based on a new PC micro-architecture,
the processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous
generations, the 4th generation Intel® Core™ processor includes an Integrated Memory Controller (IMC). The IMC supports DDR3/DDR3L
protocols with two independent, 64-bit wide channels each accessing one or two DIMMs.
Two channels of non-ECC DDR3/DDR3L unbuffered dual in-line memory modules (UDIMM) or DDR3/DDR3L unbuffered small
outline dual in-line memory modules (SO-DIMM) with a maximum of two DIMMs per channel
Single-channel and dual-channel memory organization modes
Data burst length of eight for all memory organization modes
Memory data transfer rates of up to 1600 MT/s; actual supported data transfer rate determined by the configured processor.
64-bit wide channels
DDR3/DDR3L system memory I/O voltage of 1.5V
Theoretical maximum memory bandwidth of:
21.3 GB/s in dual-channel mode assuming 1333 MT/s
25.6 GB/s in dual-channel mode assuming 1600 MT/s
Platform Memory Support
The Small Form Factor (SFF) and Tower (TWR) platforms support up to four (4) industry-standard DDR3-SDRAM DIMMs.
The Ultra-slim Desktop (USDT) and Desktop Mini (DM) support up to two (2) industry-standard DDR3-SDRAM SO-DIMMs
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules. Regardless
of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to
system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
DA - 14653 North America — Version 16 — December 12, 2013
Page 44
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Networking and Communications
Intel® I217LM GbE Network Connection (integrated)
Connector
RJ-45
System Interface
Integrated on PCA
Controller
Intel I217LM GbE platform LAN connect networking controller
Memory
24 KB FIFO packet buffer memory
Data rates supported
10/100/1000 Mbps
IEEE Compliance
Bus architecture
Data transfer mode
Power requirement
Boot ROM support
Network transfer mode
802.1P
802.1Q
802.2
802.3
802.3ab
802.3az
802.3u
PCI Express and SMBus
PCIe-based interface for active state operation (S0 state) and SMBus for host and management
traffic (Sx low power state)
Requires 3.3V and 0.9V or just 3.3V with integrated regulators
Power consumption 0.733 Watts
Yes
Management
Full-duplex
Half-duplex (not supported for the 1000BASE-T transceiver)
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Operating Temperature: 0° to 85° C
Operating Humidity: 60% RH
WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable diagnostic
Alerting
ASF 2.0 support; AMT 9.0 support
Network transfer rate
Environmental
DA - 14653 North America — Version 16 — December 12, 2013
Page 45
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Networking and Communications
Intel® Ethernet I210-T1 Gigabit Network Adapter
Connector
RJ-45
System Interface
PCI Express x1
Controller
Intel® I210 Gigabit Ethernet Controller
Memory
Integrated Dual 48K configurable transmit receive FIFO Buffers
Data rates supported
10/100/1000 Mbps
IEEE Compliance
Bus architecture
802.1P
802.1Q
802.2
802.3
802.3AB
802.3u
802.3x flow control
PCI-E 2.1
Data path width
X1, 250 MB/s, Bi-directional interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV-c, TUVus Mark Canada and United States, TUV-GS Mark for European Union
Power requirement
Aux 3.3 V, 3.0 Watts in 1000 base-T and 1.0 Watts in 100 Base-T
Boot ROM support
Yes
Network Transfer Rate
Environmental
Management
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Operating Temperature: 32° to 131°F (0° to 55° C)
Operating Humidity: 85% at 131° F (55° C)
WOL, PXE, DMI, WFM 2.0
Intel Centrino Advance-N 6205 Wireless Network Interface Connection
Wireless LAN Standards
Frequency Band
IEEE 802.11a/b/g/n
IEEE 802.11 e, 802.11i, 802.11d, 802.11d, 802.11h
Wi-Fi certified (802.11 a/b/g/n WMM, WPA, WPA2 and WPS)
Tested with wireless access points from several major manufacturers
OS compatible with Microsoft Windows, Win7 and XP
Cisco Compatible Extensions Program compliant (802.11a/b/g only) with Microsoft Windows XP and
Windows 7
2.4 GHz and 5 GHz
Antenna Structure
2 transmit; 2 receive (2x2)
Interoperability
DA - 14653 North America — Version 16 — December 12, 2013
Page 46
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Networking and Communications
Data Rates
Modulation
Security
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of
Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n
specification
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of
128bits), TKIP, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP, MSCHAP, PEAP-MSCHAPv2,
LEAP, EAP-FAST, EAP-SIM, EAP-AKA PAP, CHAP, TLS, GTC
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products
through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture Models
Roaming
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Intel® My Wifi Technology (iPAN)
Provide seamless roaming between like access points (same frequency band)
Output Power (for CCK)
15 dBm
Output Power (for OFDM;
power varies by data rate)
15 dBm
Power Consumption
Antenna Connections
Transmit: 2.3 Watts (average, with one spatial streams)
Receive: 1.9 Watts (average with two receive chains)
Idle mode: 30mW – 40mW (average)
Radio off: 20 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
3 U.FL type connectors, 50 ohm nominal impedance
Range
802.11 a - Typical (@6 Mbps)
Power Management
802.11 b - Typical (@1 Mbps)
802.11 g - Typical (@1 Mbps)
Form Factors
600 feet - Outdoor Open Area
150 feet - Indoor, Office environment
1200 feet - Outdoor Open Area
300 feet - Indoor, Office environment
1200 feet - Outdoor Open Area
300 feet - Indoor, Office environment
MiniPCI-Express
PCIe
Weight
USDT:
CMIT & SFF:
0.013 lb (4.0 g)
Dimensions
1.1 x 1.2 in (26.8 x 30.0 mm)
Operating Voltage
3.3V +/- 9%, 1.5V +/- 5%
Temperature
Operating:
Non-operating:
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating:
Non-operating:
10% to 90% (non-condensing)
5% to 90% (non-condensing)
DA - 14653 North America — Version 16 — December 12, 2013
Page 47
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Networking and Communications
Microsoft Windows XP
Configuration Utility
Microsoft Windows XP Wireless Network
Connection Manager
Intel PROSet for Microsoft Windows XP (required
for Cisco Compatible Extensions support)
Microsoft Windows Win 7
Intel IHV extensions for Win7
available to support Cisco
Compatible Extensions
DA - 14653 North America — Version 16 — December 12, 2013
Page 48
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Audio
High Definition Audio
Type
Integrated
HD Stereo Codec
Realtek 2-channel ALC221 codec
Audio I/O Ports
Sampling
Front microphone-In (150-K ohm Input Impedance)
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is configurable by audio
driver)
Rear Line-Out* (190 ohms Output Impedance, expects at least a 10-K ohm load)
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a 32 ohm load)
Front Microphone/Headphone jack is re-task able to provide Microphone input, line-in or Headphone
output to support connecting two headphones to the front of the system. When configured as a
second front headphone output, both front headphone outputs are always driven with the same
signal.
All ports are 3.5mm
1.5W amplifier for the internal speaker only. External speakers must be powered externally. Rear
Line-in audio port is re-taskable as either Line-in or Microphone-In.
Multi-streaming can be enabled in the Realtek control panel to allow independent audio streams to
be sent to/from the front and rear jacks.
8 kHz - 192 kHz
Wavetable Syntheses
Yes – Uses OS soft wavetable
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left & Right channels)
Internal Speaker
Yes
External Speaker Jack
Yes
Full Duplex
Yes
Internal Speaker Amplifier
Multi-streaming Capable
DA - 14653 North America — Version 16 — December 12, 2013
Page 49
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
HP USB Keyboard
Physical characteristics
Electrical
Mechanical
Environmental
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions
(L x W x H)
18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)
Weight
2 lb (0.9 kg)
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft® PC 99 - 2001
Functionally compliant
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, KC
DA - 14653 North America — Version 16 — December 12, 2013
Page 50
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
Kit contents
Keyboard
Installation Guide
Warranty Card
Safety and Comfort Guide
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions
(L x W x H)
18.22 x 6.47 x 1.1 in (46.28 x 16.43 x 2.79 cm)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
PS/2 6-pin mini din connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC 99 - 2001
Functionally compliant
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001
Mechanically compliant
Acoustics
50-dBA maximum sound pressure level
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating temperature
-22° to 149° F (-30° to 65° C)
Operating humidity
15% to 80% (non-condensing at ambient)
Non-operating humidity
15% to 90% (non-condensing at ambient)
Operating shock
N/A
Non-operating shock
65 inch 2.9 ms, six surface; 30g 266 inch/second; 50g 266
inch/second six surface
Operating vibration
2-g peak acceleration
HP PS/2 Keyboard
Physical Characteristics
Electrical
Mechanical
Environmental
DA - 14653 North America — Version 16 — December 12, 2013
Page 51
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
Non-operating vibration
Starting at 5 Hz, vary the frequency of vibration from 5 to 500 Hz
and back to 5 Hz at a Logarithmic sweep rate of 1 octave per
minute.
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
29.93 in (76 cm) on concrete, 16-drop sequence
Approvals
CUL, ICES-003 Class B, FCC, CE Mark,TUV GS, VCCI, BSMI, C-Tick, KC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
HP USB Smart Card (CCID) Keyboard
Key Benefits:
Physical Characteristics
Electrical
Mechanical
Protects against unauthorized access with smart card technology
Delivers even greater security when combined with a HP ProtectTools smart card and the HP
ProtectTools Security Software
Combination of username and password or pin with a smart card or security token
Secures online transactions using digital signatures and certificates
Conforms to industry standards for ease of setup and use
Delivers long product life and quiet operation with high-impact materials and lubricated keys
Spill drain feature
Keys
104, 105, 106, 107, 109 layout
(depending upon country
Form factor
USB basic smart card keyboard
Colors
Carbonite/Silver
Dimensions
18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)
(H x W x D)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
100-mA maximum (with four LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC 99 - 2001
Functionally compliant
Languages
30+ available
Keycaps
Standard design
Switch actuation
55 g nominal peak force with tactile feedback
Switch life
20 million keystrokes
(using Hasco modified tester)
Switch type
Contamination-resistant membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
DA - 14653 North America — Version 16 — December 12, 2013
Page 52
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
Environmental
Non-operating temperature
Operating humidity
Non-operating humidity
Operating shock
Non-operating shock
Operating vibration
Non-operating vibration
Drop
(out of box)
Drop
(in box)
-22° to 140° F (-30° to 60° C)
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
42 in (107 cm) on concrete, 16-drop sequence
Support
Interface
Approvals
All ISO 7816 smart cards
Reads from and writes to all ISO7816-1, 2, 3, 4 memory and
microprocessor smart cards (T=0, T=1)
Chipset
SCM STCIII
Standard APIs supported
PC/SC, EMV2000, CT-API
Power
USB Port
Short circuit detection (protects smart card and reader)
Power supply compliant with ISO7816 and EMV (5V, 60 mA)
Supports 3-V and 5-V cards
Power consumption
100-mA maximum draw
Communication
From card
9600 bps to 330,000 bps
From computer
12 Mbps (USB transfer speed)
Landing mechanism
Contact device
Friction contact
Card insertions rating
Up to 100,000 insertion cycles
Interface modes
CCID protocol
Reader performance interface
USB connection
Electro-magnetic standards
Europe
2004/108/EC
USA
USAFCC part 15
CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, EMV2000, USB-IF
Ergonomic Compliance
ISO 9241-4, TUVGS
Kit Contents
Keyboard, I/O Security and Documentation CD, warranty card
SmartCard Function
HP USB PS/2 Washable Keyboard
Physical Characteristics
Keys
104 (US) layout or 105 (EU) layout – depending upon country
Dimensions
(L x W x H)
17.67x 6.62 x 1.38 in (449 x 168 x 35 mm)
Weight
1.7 lb (0.77 kg) minimum
Operating voltage
+ 5VDC ±5%
DA - 14653 North America — Version 16 — December 12, 2013
Page 53
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
Electrical
Mechanical
Environmental
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft® PC 99 - 2001
Functionally compliant
Keycaps
Stepped -profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
7 ft (2.2 m)
Microsoft PC 99 - 2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 95% (non-condensing at ambient)
Non-operating humidity
0% to 95% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
Operating system support
Windows® 7, Windows Vista, Windows XP Professional
Approvals
UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1, IP66/NEMA4X
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
HP Wireless Keyboard and Mouse
Keyboard
Dimensions (H x L x W)
1.09 x 18.1 x 6.47 in (27.87 x 460.3 x 164.3 mm)
Weight – Without Two AA
Alkaline Batteries
1.94 lb (880 g)
DA - 14653 North America — Version 16 — December 12, 2013
Page 54
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
Mouse
Receiver
System Requirements
Dimensions (H x L x W)
1.46 x 4.53 x 2.47 in (37 x 115 x 62.9 mm)
Weight – Without Two AA
Alkaline Batteries
0.15 lb (67 g)
Dimensions (H x L x W)
0.33 x 1.79 x 0.72 in (8.4 x 45.5 x 18.4 mm)
Weight
0.21 oz (5.9 g)
Cable Length – Minimum
6 ft (1.8 m)
Range
32.8 ft (10 m)
Windows 7 Home Basic*, Windows 7 Home Premium*, Windows 7 Professional Edition 32*,
Windows 7 Professional Edition 64*, Windows 7 Ultimate Edition 32*, Windows 7 Ultimate Edition
64* Windows Vista or Windows XP
Available USB port for the receiver
CD-ROM Drive
*This system may require upgraded and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
Approvals
Environmental
Product Safety
UL; CSA /TUV (Europe only); CE Mark; CB Report
Ergonomics
ANSI; ISO (Europe only); GS Mark (Germany only)
EMC
FCC; CE; ACA (-tick); BSMI; KC ; VCCI
CE Mark
EN 55022:2010; EN 55024; EN 301489-1; EN 61000
Design Guidelines for PCs
PC 99 - connector overmold colors; PC 2001 - full functionality
Telecom
All local telecom requirements and approvals for intended
markets
USA
FCC Title 47 CFR, Par 15, Subpart C; other local requirements
Country Support
US, Belgium, Switzerland, Spain, Denmark, Netherlands, France,
Germany, Italy, Portugal, Sweden, Norway, Finland, UK, Poland,
Czech Republic, Turkey, Greece, Austria, Bulgaria, Cyprus,
Estonia, Hungary, Ireland, Latvia, Lithuania, Luxemburg, Malta,
Romania, Slovakia, Slovenia, Vietnam, HK, Australia, NZ,
Malaysia, Singapore, Indonesia, Philippines, Thailand, Canada,
China, Japan, Korea, Taiwan, India, Venezuela, Ecuador, Russia,
Ukraine, Israel, Croatia, United Arab Emirates, Peru, Brazil, Chile,
Argentina, Mexico, South Africa, and up to 193 countries
worldwide.
Keyboard contains 25% post-consumer recycled plastic material
HP PS/2 Mouse
Dimensions (H x L x W)
1.46 x 2.48 x 4.53 in (3.70 x 6.29 x 11.50 cm)
DA - 14653 North America — Version 16 — December 12, 2013
Page 55
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
Weight
Environmental
Electrical
Mechanical
Scroll wheel
3.53 oz (100g; +10g/- 5 g)
Operating temperature
-32° to 104°F (0° to 40° C)
Non-operating temperature
-4° to 140°F (-20° to 60° C)
Operating humidity
10% to 90%
(non condensing at ambient)
Non-operating humidity
10% to 90%
(non condensing at ambient)
Operating shock
40 g, 6 surfaces
Non-operating shock
80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating vibration
4 g peak acceleration
Drop
(out of box)
80 cm height onto asphalt tile over concrete or equivalent, 5-drop
in 5 direction except the cable face
Operating voltage
5 VDC ± 10%
Power consumption
100mA
System consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC99 - 2001
Functionally compliant
Resolution
800 DPI
Tracking speed
10 in/s (25.4 cm/s) maximum
Acceleration
±15%
Switch actuation
65±20 gf
Switch life
3,000,000 operations (using Hasco modified tester)
Switch type
Low force micro-switches
Tracking mechanism life
80 km
Cable length
6 ft (1.8 m)
Microsoft PC99 - 2001
Mechanically compliant
Width
6 mm
Diameter
22.5 ± 0.2 mm
Maximum rotation force
50 gf-cm
Switch type
Light force micro-switch
DA - 14653 North America — Version 16 — December 12, 2013
Page 56
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
Regulatory Approvals
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
UL/cUL, FCC, CE Mark, TUV/GS, VCCI, KCC, BSMI, C-Tick
HP USB Mouse
Dimensions
(H x L x W)
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
Weight
0.22 lb (0.10 kg)
Cable length
70.9 in (180 cm)
System requirements
Available USB port
HP USB 1000dpi Laser Mouse
Dimensions
(H x L x W)
1.47 x 4.53 x 2.47 in (37.3 x 114.97 x 62.86 mm)
Weight
3.360 oz (102g)
Cable length
70.9 in (180 cm)
System requirements
Available USB port
Environmental
Mechanical
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
10% to 90%
(non-condensing at ambient)
Resolution
1000dpi
Tracking Speed
45 cm/sec
Cable Length
70.9 in (180 cm)
DA - 14653 North America — Version 16 — December 12, 2013
Page 57
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications - Input/Output Devices
HP USB PS/2 Washable Mouse
Dimensions (H x L x W)
1.56 x 2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm)
Weight
4.44 oz (126 g)
Environmental
Electrical
Mechanical
Scroll wheel
Regulatory approvals
Operating temperature
Non-operating
temperature
Operating humidity
Non-operating humidity
Operating shock
Non-operating shock
–32° to 104°F (0° to 40° C)
–4° to 140°F (–20° to 60° C)
Operating vibration
Non-operating vibration
Drop (out of box)
2 g peak acceleration
4 g peak acceleration
80 cm height onto asphalt tile over concrete or equivalent, 5-drop in 5
direction except the cable face
5 VDC ± 10%
100mA
PS/2 mini-din connector or USB
CE level 2 8 kV air discharge
Conforms to FCC rules for a Class B computing device
Functionally compliant
1000 ± 20% DPI
14 in/s ( 35.56 cm/s) maximum
2g
70 g nominal peak force
3,000,000 operations (using Hasco modified tester)
Low force micro-switches
8.8 ft total 70 cm+ 2m extension
Mechanically compliant
6 mm
1 in (25.4 mm)
48 rats/sec
Light force micro-switch
3 million operations
Minimum 200,000 revolutions
FCC, CE Mark, ICES-003-B, IP66/NEMA4X
Operating voltage
Power consumption
System consumption
ESD
EMI-RFI
Microsoft® PC99 – 2001
Resolution
Tracking speed
Acceleration
Switch actuation
Switch life
Switch type
Cable length
Microsoft PC99 – 2001
Width
Diameter
Maximum rotation speed
Switch type
Switch life
Mechanical life
Compliant
10% to 90% (non-condensing at ambient)
10% to 90% non-condensing
40 g, 6 surfaces
80 g, 6 surfaces
DA - 14653 North America — Version 16 — December 12, 2013
Page 58
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Power
Unit Environment and Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's recirculated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure,
and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 50° to 95° F (10° to 35° C)*
Non-operating: –22° to 140° F(–30° to 60° C)
Relative Humidity
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum Altitude
Operating: 10,000 ft (3048 m)
(unpressurized)
Non-operating: 30,000 ft (9144 m)
*Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained sunlight.
Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Power Supply
DM
Standard Efficiency
65W active PFC
87% efficient
USDT
Integrated
graphics:
Discrete
graphics:
High Efficiency*
80 PLUS Gold
N/A
N/A
SFF
135W active 240W active PFC
PFC 87%
efficient
180W active
PFC 87%
efficient
240W active PFC
TWR
320W active PFC
320W active PFC
87/90/87% efficient at
87/90/87% efficient at
20/50/100% load (115V) 20/50/100% load (115V)
High Efficiency*
80 PLUS Platinum
89/91/90% efficient at
89/92/90% efficient at
20/50/100% load (230V) 20/50/100% load (230V)
240W active PFC
320W active PFC
N/A
90/92/89% efficient at
90/92/89% efficient at
20/50/100% load (115V) 20/50/100% load (115V)
Operating Voltage Range 90 - 264 VAC
Rated Voltage Range
100 - 240 VAC
Rated Line Frequency
50/60 Hz
90 - 264 VAC
100 - 240 VAC
50/60 Hz
90/93/91% efficient at
20/50/100% load (230V)
90 - 264 VAC
100 - 240 VAC
50/60 Hz
DA - 14653 North America — Version 16 — December 12, 2013
90/94/91% efficient at
20/50/100% load (230V)
90 - 264 VAC
100 - 240 VAC
50/60 Hz
Page 59
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Power
Operating Line Frequency
Rated Input Current
Rated Input Current with
Energy Efficient* Power
Supply
Current Leakage
(NFPA 99)
Power Supply Fan
47 - 63 Hz
N/A
47 - 63 Hz
N/A
135W: 2.4A
180W: 2.9A
47 - 63 Hz
4A
4A
47 - 63 Hz
5.5A
5.5A
< 250 µA
< 250 µA
< 275 µA
<450=>275uA
N/A
N/A
92mm variable speed
Power cord length
External Power Adapter
N/A
N/A
92=>70mm variable
speed
6.0 ft. (1.83 m)
6.0 ft. (1.83 m)
Dimensions
6.7 x 2.6 x 1.5 in
N/A
N/A
Total Cord Length
12 ft 8 in
12 ft 8 in
N/A
N/A
*High efficiency power supply is a requirement for ENERGY STAR® qualification in conjunction with a select range of processors and
modules
DA - 14653 North America — Version 16 — December 12, 2013
Page 60
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Weights & Dimensions
Weights & Dimensions
(configured with 1 HDD & 1 ODD)
DM
Chassis (W x H x D)
System Volume
System Weight*
Max Supported Weight
(desktop orientation)
Tower Stand
(H x W x D)
Packaging
(H x W x D)
Shipping Weight
Palletization Profile
6.9 x 1.3 x 7.0 in
175 x 34 x 177 mm
62.79 cu in
1.05 L
2.9 lb
1.3 kg
N/A
Pending
Pending
Pending
Pending
USDT
9.9 x 2.6 x 10 in
251 x 66 x 254 mm
257.5 cu in
4.2 L
6.8 lb
3.1 kg
77.0 lb
35.0 kg
1.1 x 4.9 x 6.7 in
27 x 125 x 170 mm
8.6 x 15.7 x 19.7 in
218 x 398 x 500 mm
14.4 lb
6.5 kg
6-units per layer
10-layer max.
60-units per pallet
SFF
13.3 x 3.95 x 14.9 in
338 x 100 x 379 mm
782.7 cu in
12.8 L
16.7 lb
7.6 kg
77.0 lb
35.0 kg
1.1 x 7.0 x 7.9 in
29 x 178 x 200 mm
9.0 x 19.7 x 23.4 in
229 x 500 x 594 mm
17.9 lb
8.1 kg
4-units per layer
10-layer max.
40-units per pallet
DA - 14653 North America — Version 16 — December 12, 2013
TWR
6.7 x 15.7 x 17.4 in
170 x 399 x 442 mm
1828 cu in
30 L
20.5 lb
9.3 kg
N/A
N/A
11.6 x 19.7 x 23.2 in
295 x 500 x 590 mm
28.8 lb
13.1 kg
4-units per layer
8-layer max.
32-units per pallet
Page 61
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Miscellaneous Features
Management Features
Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode. Controls
system power consumption, making it possible to place individual cards and peripherals in a low-power or powered-off state
without affecting other elements of the system.
Intel Wired for Management support; industry wide initiative to make Intel architecture based PCs, servers and mobile
computers more inherently manageable out-of-the-box and over the network
Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button
Serviceability Features
Dual colored power LED on front of computer to indicate either normal or fault condition
Diagnostic LED Explanation Table:
Number of 1-second red LED blinks followed by a 2-second pause, then repeats:
2 - processor thermal protection activated
3 - processor not installed
4 - power supply failure
5 -- memory error
6 - video error
7 - PCA failure (ROM detected failure prior to video)
8 - invalid ROM, bootblock recovery mode
9 - system not fetching code
10 - system hang while loading an option ROM
HP PC Hardware Diagnostics UEFI:
This utility enables hardware level testing outside the operating system on many components. The diagnostics can be
invoked by pressing F2 at POST, and is available as a download from HP Support
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy replacement
Flash Recovery with Video Configuration Record Software
5 Aux Power LED on System PCA
Processor ZIF Socket for easy Upgrade
Over-Temp Warning on Screen (Requires IM Agents)
Clear Password Jumper
DIMM Connectors for easy Upgrade
Clear CMOS Button
NIC LEDs (integrated) (Green & Amber)
Dual Color Power and HD LED - To Indicate Normal Operations and Fault Conditions
Color coordinated cables and connectors
Tool-less Hood Removal
Front power switch
System memory can be upgraded without removing the system board or any internal components
Tool-less Hard Drive, CD & Diskette Removal
Green Pull Tabs, and Quick Release Latches for easy Identification
DA - 14653 North America — Version 16 — December 12, 2013
Page 62
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Miscellaneous Features
Additional Features
Description
Towerable Orientation
Product can be oriented as either a desktop or a tower
Implementation of the industry standard ATA Security feature set. When enabled, it
prevents software access to user data on the drive until one or two user-defined
passwords are provided.
DPS Access through F10 Setup during Boot
A diagnostic hard drive self test. It scans critical physical components and every sector of
the hard drive for physical faults and then reports any faults to the user
Running independently of the operating system, it can be accessed through a Windowsbased diagnostics utility or through the computer's setup procedure. It produces an
evaluation on whether the hard drive is the source of the problem and needs to be
replaced
The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain types
of failures
Drive Lock
Drive Protection System
SMART Technology (Self-Monitoring,
Analysis and Reporting Technology)
Allows hard drives to monitor their own health and to raise flags if imminent failures were
predicted
SMART I - Drive Failure Prediction
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry count
SMART II - Off-Line Data Collection
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against
unplanned user downtime and potential data loss from hard drive failure
SMART III - Off-Line Read Scanning with
Defect Reallocation
IOEDC: I/O Error Detection Circuitry
Detects errors in Read/Write buffers on HDD cache RAM
SMART IV - End-to-End CRC for hard drives Interface in F10 setup provides confirmation of SMART IV support.
DA - 14653 North America — Version 16 — December 12, 2013
Page 63
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Environmental Data
Environmental Data
Eco-Label
Certifications
& Declarations
System Configuration
Model
DM
USDT
SFF
TOWER
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
IT ECO declaration
US ENERGY STAR®
EPEAT Gold where HP registers commercial desktop products. See http://www.epeat.net for
registration status in your country.
*NOTE: This product conforms to the examination standards (2003 version) under JEITA's 'PC Green Label
System.
The configuration used for the Energy Consumption and Declared Noise Emissions data is based on a
typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft
Windows® operating system.
Energy Consumption
(typically configured)
115 VAC
230VAC
100VAC
Normal Operation
Pending
Pending
Pending
Sleep (ENERGY STAR®
low power mode)
Off
Pending
Pending
Pending
Pending
Pending
Pending
Normal Operation
15.16 W
15.72 W
15.08 W
Sleep (ENERGY STAR®
low power mode)
Off
0.98 W
1.01 W
0.97 W
0.80 W
0.83 W
0.80 W
Normal Operation
22.90 W
22.78 W
23.08 W
Sleep (ENERGY STAR®
low power mode)
Off
1.64 W
1.73 W
1.64 W
0.70 W
0.77 W
0.70 W
Normal Operation
25.74 W
28.27 W
26.01 W
Sleep (ENERGY STAR®
1.66 W
1.76 W
1.65 W
low power mode)
Off
0.68 W
0.78 W
0.67 W
Note: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked
with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR®
specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data
listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating
system.
Model
Heat Dissipation*
115 VAC
230VAC
DA - 14653 North America — Version 16 — December 12, 2013
100VAC
Page 64
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Environmental Data
DM
USDT
SFF
TOWER
Normal Operation
Pending
Pending
Pending
Sleep
Off
Pending
Pending
Pending
Pending
Pending
Pending
Normal Operation
52 BTU/hr
54 BTU/hr
64 BTU/hr
Sleep
Off
3 BTU/hr
3 BTU/hr
3 BTU/hr
3 BTU/hr
3 BTU/hr
3 BTU/hr
Normal Operation
78 BTU/hr
78 BTU/hr
79 BTU/hr
Sleep
Off
6 BTU/hr
2 BTU/hr
6 BTU/hr
3 BTU/hr
6 BTU/hr
2 BTU/hr
Normal Operation
88 BTU/hr
97 BTU/hr
89 BTU/hr
Sleep
Off
6 BTU/hr
2 BTU/hr
6 BTU/hr
3 BTU/hr
6 BTU/hr
2 BTU/hr
>*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Model
(Typically configured)
DM
Idle
Pending
Pending
Fixed Disk (random writes)
Pending
Pending
Idle
3.6
27
Fixed Disk (random writes)
3.6
27
Idle
3.6
26
Fixed Disk (random writes)
3.6
26
Idle
3.6
25
Fixed Disk (random writes)
3.6
26
USDT
SFF
Tower
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 1ppm by weight
Cadmium greater than 20ppm by weight
Battery Size
CR2032 (coin cell)
DA - 14653 North America — Version 16 — December 12, 2013
Page 65
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Environmental Data
Battery Type
Model
Lithium
Additional Information
DM
Pending
USDT
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
This product contains 12.2 % post-consumer recycled plastic (by wt.)
This product is 95.4 % recycle-able when properly disposed of at end of life.
Packaging Materials
SFF
External:
PAPER/Corrugated 1526.2 g
LASTIC/Polyethylene low density 177 g
The PAPER/Corrugated material contains at least 49.42% recycled content.
The PLASTIC/Polyethylene low density material contains at least 60.42% recycled content.
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
This product contains 14.8 % post-consumer recycled plastic (by wt.)
This product is 94.1 % recycle-able when properly disposed of at end of life.
Packaging Materials
Tower
External:
PAPER/Corrugated 2300 g
Internal:
PLASTIC/Polyethylene low density 56 g
PLASTIC/EPE-Expanded Polyethylene 110 g
PLASTIC/Polypropylene 15 g
The PAPER/Corrugated material contains at least 38.38% recycled content.
The PLASTIC/Polyethylene low density material contains at least 60.42% recycled content.
The PLASTIC/EPE-Expanded Polyethylene material contains at least 60.42% recycled content.
The PLASTIC/Polyethylene material contains at least 60.42% recycled content
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
DA - 14653 North America — Version 16 — December 12, 2013
Page 66
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Environmental Data
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
This product contains 15 % post-consumer recycled plastic (by wt.)
This product is 95.5 % recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated 2280 g
Internal:
PLASTIC/Polyethylene low density 40 g
PLASTIC/EPE-Expanded Polyethylene 144 g
PLASTIC/Polypropylene 15 g
The PAPER/Corrugated packaging material contains at least 53.5 % recycled content.
The PLASTIC/Polyethylene low density packaging material contains at least 60.42 % recycled
content
The PLASTIC/EPE-Expanded Polyethylene packaging material contains at least 60.42 %
recycled content.
The PLASTIC/Polypropylene packaging material contains at least 60.42 % recycled content.
Common to all Form Factors
RoHS Compliance
Material Usage
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,
including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to
exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide
basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal
limits) for all HP electronic products subject to the RoHS Directive, except where it is widely
recognized that there is no technically feasible alternative (as indicated by an exemption under the
EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer to
the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be frequently handled
or carried by the user.
Ozone Depleting Substances
DA - 14653 North America — Version 16 — December 12, 2013
Page 67
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Technical Specifications – Environmental Data
Packaging Usage
End-of-life Management and
Recycling
Hewlett-Packard Corporate
Environmental Information
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in
packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic
areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your
nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/
PC_GBU_Product_Design_ISO_14K_Certificate.pdf
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
DA - 14653 North America — Version 16 — December 12, 2013
Page 68
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
After-Market Options (availability may vary by region)
Communication Devices
DM
USDT
SFF/TWR
Part Number
X
X
E0X95AA
E0X93AA
SFF/TWR
Part Number
X
X
X
X
X
X
X
X
X
X
X
X
E1C63AA
E1C64AA
A7U59AA
E1C65AA
NL571AA
VN567AA
NR078AA
FH973AA
BP937AA
AS615AA
DL139A
XP688AA
SFF/TWR
Part Number
HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
X
X
QK554AA
QK555AA
HP 1-TB 10K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive
HP 128-GB SATA 3.0Gb/s Solid State Drive
HP 160-GB SATA 3.0Gb/s Solid State Drive
HP 500-GB SATA 3.0Gb/s Solid State Hybrid Drive
HP 128-GB SED Opal 2 Solid State Drive
HP Slim Removable SATA Hard Drive Enclosure (frame & carrier)
HP Slim Removable SATA Hard Drive Enclosure (carrier only)
HP Chassis (1bay) Security Kit
*Not available in all regions.
X
X
X
X
C2T91AA
QV063AA
QV064AA*
E1C62AA
G1K24AA
C1N41AA
E3F39AA
AR639AA
Intel Ethernet I210 - T1 Gbe NIC
Intel 6205 802.11 a/b/g/n PCIe x1 NIC
Graphics Solutions
DM
AMD Radeon HD 8350 Graphics (PCIe x16)
AMD Radeon HD 8490 Graphics Card
Nvidia NVS 310 Graphics (PCIe x16)
Nvidia NVS 315 Graphics (PCIe x16)
HP USB Graphic Adapter
HP DisplayPort Cable Kit
HP DisplayPort To Dual Link DVI-D Adapter
HP DisplayPort To DVI-D Adapter
HP DisplayPort to HDMI Adapter
HP DisplayPort to VGA Adapter
HP DMS-59 to Dual DVI Cable
HP DMS-59 to Dual DisplayPort Adapter
Data Storage Drives and Accessories
USDT
X
X
X
X
X
X
X
X
X
X
X
DM
USDT
X
X
X
X
X
X
X
X
X
DA - 14653 North America — Version 16 — December 12, 2013
X
X
TWR only
Page 69
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
After-Market Options (availability may vary by region)
Input Devices
DM
USDT
SFF/TWR
Part Number
HP USB Keyboard
HP USB Gray Keyboard
HP USB Smart Card (CCID) Keyboard
HP USB Keyboard and Mouse Kit
HP USB Washable Keyboard
HP USB and PS/2 Washable Mouse
HP USB and PS/2 Washable Keyboard and Mouse Kit
HP PS/2 Mouse
HP USB Mouse
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
QY776AA
B6B64AA
BV813AA
B1T09AA
VF097AA
BM866AA
BU207AA
QY775AA
QY777AA
HP USB 1000dpi Laser Mouse
HP Wireless Keyboard and Mouse Combination*
*Keyboard contains 25% post-consumer recycled plastic material
X
X
X
X
X
X
QY778AA
QY449AA
DM
USDT
SFF/TWR
Part Number
X
X
B4U36AA
B4U37AA
B4U39AA
B4U40AA
System Memory
HP 4GB DDR3-1600 (PC3-12800) DIMM
HP 8GB DDR3-1600 (PC3-12800) DIMM
HP 4GB DDR3-1600 (PC3-12800) SODIMM
HP 8GB DDR3-1600 (PC3-12800) SODIMM
X
X
X
X
DM
USDT
SFF/TWR
Part Number
HP Slim DVD-ROM Drive
HP Slim SuperMulti DVD Writer Drive
HP USB HD 720P v2 Business Webcam
X
X
X
X
X
X
X
VP033AA
QS209AA
D8Z08AA
HP Business Headset
X
X
X
QK550AA
HP USB Business Speakers
X
X
X
D9J19AA
Removable Media Storage
DM
USDT
SFF/TWR
Part Number
X
TBD
SFF/TWR
Part Number
X
TWR only
SFF only
X
VN571AA
E0X97AA
E0X96AA
VN570AA
H4D73AA
G1K22AA
Multimedia Devices
HP 14-n-1 Media Card Reader
Security Devices
DM
HP USDT Rear Port Controller Cover
HP Solenoid Lock and Hood Sensor (USDT/SFF)
HP Solenoid Lock and Hood Sensor (TWR)
HP SFF Wall Mount/Security Sleeve
HP UltraSlim Cable Lock
HP DM Security Sleeve
USDT
X
X
X
X
X
DA - 14653 North America — Version 16 — December 12, 2013
Page 70
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
After-Market Options (availability may vary by region)
Stands and Accessories
DM
HP Integrated Work Center Stand (DM)
HP Integrated Work Center Stand (SFF)
HP Integrated Work Center Stand (USDT)
HP USDT Tower Stand
HP SFF Tower Stand
HP DM Chassis Tower Stand
HP DM Rack Mount Shelf
HP 600/800 Tower Bezel Kit
HP 800/600 SFF Bezel Kit
HP 800 USDT Kit
HP Serial Port Adapter (RS-232 compatible)
HP Parallel Port Kit
HP PCI Expansion Kit
Belkin USB to Serial Adapter
USDT
SFF/TWR
X
SFF only
X
X
SFF only
X
X
TWR only
SFF only
X
X
X
TWR only
X
X
LANDesk Software (E-Delivery)
Part Number
Pending
QP897AA
LH526AA
VN568AA
VN569AA
G1K23AA
G1K21AA
E1C66AA
E3F27AA
E3F28AA
PA716A
KD061AA
E1V16AA
EM449AA
Part Number
LANDesk Management Suite License - 1-499 Nodes E-Delivery
LANDesk Management Suite License - 500-999 Nodes E-Delivery
LANDesk Management Suite License - 1000-1999 Nodes E-Delivery
LANDesk Management Suite License - 2000-4999 Nodes E-Delivery
LANDesk Management Suite License - 5000-9999 Nodes E-Delivery
LANDesk Security Suite License E-Delivery
LANDesk Management Suite 1 Year Maintenance - 1-499 Nodes E-Delivery
LANDesk Management Suite 1 Year Maintenance - 500-999 Nodes E-Delivery
QY369AAE
QY370AAE
QY371AAE
QY372AAE
QY373AAE
QY379AAE
HZ825AAE
HZ826AAE
LANDesk Management Suite 1 Year Maintenance - 1000-1999 Nodes E-Delivery
HZ827AAE
LANDesk Management Suite 1 Year Maintenance - 2000-4999 Nodes E-Delivery
HZ828AAE
LANDesk Management Suite 1 Year Maintenance - 5000-9999 Nodes E-Delivery
HZ829AAE
LANDesk Security Suite 1 Year Subscription
HZ830AAE
LANDesk Patch Management 1 Year Subscription - 1-499 Nodes E-Delivery
HZ831AAE
LANDesk Patch Management 1 Year Subscription - 500-999 Nodes E-Delivery
HZ832AAE
LANDesk Patch Management 1 Year Subscription - 1000-1999 Nodes E-Delivery
HZ833AAE
LANDesk Patch Management 1 Year Subscription - 2000-4999 Nodes E-Delivery
HZ834AAE
LANDesk Patch Management 1 Year Subscription - 5000-9999 Nodes E-Delivery
HZ835AAE
DA - 14653 North America — Version 16 — December 12, 2013
Page 71
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
After-Market Options (availability may vary by region)
© Copyright 2013 Hewlett-Packard Development Company, L.P. All rights reserved.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein. Microsoft, Windows and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the U.S.
and/or other countries. Intel and Core are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries.
Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein
may be trademarks of their respective companies.
DA - 14653 North America — Version 16 — December 12, 2013
Page 72
Download PDF

advertising
