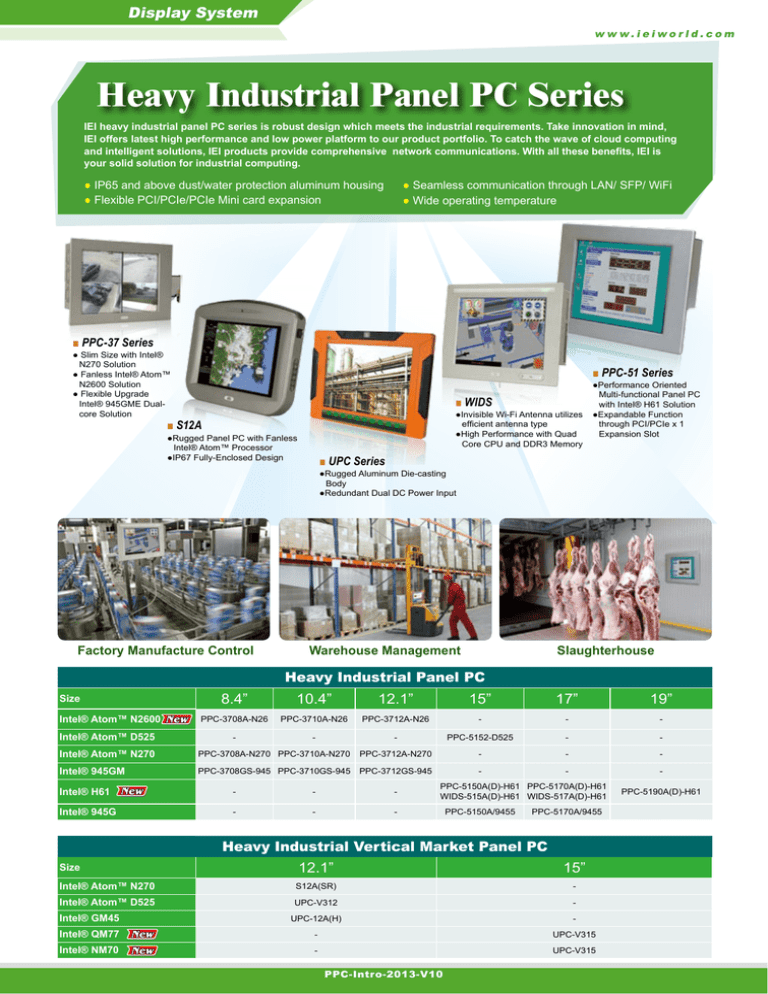

Heavy Industrial Panel PC Series Display System

Heavy Industrial Panel PC Series Display System

Display System w w w . i e i w o r l d . c o m

Heavy Industrial Panel PC Series

IEI heavy industrial panel PC series is robust design which meets the industrial requirements. Take innovation in mind,

IEI offers latest high performance and low power platform to our product portfolio. To catch the wave of cloud computing and intelligent solutions, IEI products provide comprehensive network communications. With all these benefits, IEI is your solid solution for industrial computing.

IP65 and above dust/water protection aluminum housing

Flexible PCI/PCIe/PCIe Mini card expansion

Seamless communication through LAN/ SFP/ WiFi

Wide operating temperature

PPC-37 Series

● Slim Size with Intel®

N270 Solution

● Fanless Intel® Atom™

N2600 Solution

● Flexible Upgrade

Intel® 945GME Dualcore Solution

S12A

●Rugged Panel PC with Fanless

Intel® Atom™ Processor

●IP67 Fully-Enclosed Design

UPC Series

●Rugged Aluminum Die-casting

Body

●Redundant Dual DC Power Input

WIDS

●Invisible Wi-Fi Antenna utilizes efficient antenna type

●High Performance with Quad

Core CPU and DDR3 Memory

PPC-51 Series

●Performance Oriented

Multi-functional Panel PC with Intel® H61 Solution

●Expandable Function through PCI/PCIe x 1

Expansion Slot

Factory Manufacture Control

Size

Intel® Atom™ N2600

Intel® Atom™ D525

Intel® Atom™ N270

Intel® 945GM

Intel® H61

Intel® 945G

Warehouse Management Slaughterhouse

8.4”

Heavy Industrial Panel PC

10.4”

PPC-3708A-N26 PPC-3710A-N26

12.1”

PPC-3712A-N26

15”

-

17”

-

-

PPC-3708A-N270 PPC-3710A-N270 PPC-3712A-N270

PPC-3708GS-945 PPC-3710GS-945 PPC-3712GS-945

-

-

-

-

-

-

PPC-5152-D525

-

-

-

-

PPC-5150A(D)-H61

WIDS-515A(D)-H61

PPC-5150A/9455

-

PPC-5170A(D)-H61

WIDS-517A(D)-H61

PPC-5170A/9455

19”

-

-

-

-

PPC-5190A(D)-H61

Size

Intel® Atom™ N270

Intel® Atom™ D525

Intel® GM45

Intel® QM77

Intel® NM70

Heavy Industrial Vertical Market Panel PC

12.1”

S12A(SR)

UPC-V312

UPC-12A(H)

-

-

15”

-

-

-

UPC-V315

UPC-V315

PPC-Intro-2013-V10

Display System w w w . i e i w o r l d . c o m

Latest High Performance Platform

Powerful Intel® QM77 Mobile Solution

The latest Intel ® QM77 mobile chipset is the most powerful solution than ever!

Comparing to the previous through the platforms, its performance is higher through the following new technologies:

● Intel® Intelligent Power Technology

● Better graphics engine

● iAMT 8.0 support

● Intel® vPro™ remote management

CPU Performance Passmark Comparison

UPC-V315

2228

UPC-V315

UPC-V312

UPC-12A

UPC-12A

Intel® Core™ i3-3217U @ 1.80 GHz

Intel® Atom™ D525 @ 1.80 GHz

Intel® Core™ 2 Duo T9400 @ 2.53 GHz

Intel® Core™ 2 Duo P8400 @ 2.26 GHz

762

1813

1540

Better Performance and Cost-effective High C/P Value H61 Solution

Desktop solution is no longer inferior to mobile solution! The Intel® H61 chipset with desktop CPU provides higher performance than mobile chipset and much cost-effective options.

Mobile 2nd Core™ i3 V.S. Desktop Pentium® & 2nd Core™ i3 Mobile Celeron® V.S. Desktop Celeron®

Desktop

2nd Core i3-2100T

Desktop Pentium G620T

Desktop Celeron G530T

Mobile Celeron B810

Mobile 2nd Core i3-2330E

CPU Performance (CPUMark 99)

CPU Performance (CPUMark 99)

CPU Type

CPU

Performance

(CPUMark 99)

Intel 2nd Core i3-2330E

(Mobile 35W CPU)

Intel Pentium G620T

(Desktop 35W CPU)

Intel 2nd Core i3-2100T

(Desktop 35W CPU)

337

337 380

CPU Type

CPU Performance

(CPUMark 99)

Intel Celeron B810

(Mobile 35W CPU)

245

Intel Celeron G530T

(Desktop 35W CPU)

306

Strongest Intel® Atom™ Solution

The 3rd generation of Intel® Atom™ solution, N2600, is a new compact solution, outperforms to N270. Its total TDP is lower than D525, which improves significantly a lot in thermal solution.

Process

Processor Frequency

CPU TDP

Chipset/PCH TDP

Navy Pier

N270

45nm

N270: 1.6GHz

N270: 2.5W

945GSE: 5.5W

ICH7M: 1.9W

Pine Trail

D525

45nm

D525: 1.8GHz

D525: 13W

ICH8M 2W

Cedar Trail

N2600

32nm

N2600: 1.6GHz

N2600: 3.5W

Intel® NM10 1.5W

PPC-Intro-2013-V10

Display System w w w . i e i w o r l d . c o m

Robust Product Design

IP Protection Improvement

The PPC series is equipped with robust front panel for water protection and tightly front assembly against the component from any direction.

IP Code Table

The IP Code (International Protection Rating) consists of the letters IP followed by two digits.

IP66 Dust and

Water Resistant

Solids

First Numerical

No Protection

Objects Greater than 50mm

0

1

0

1

Liquids

Second Numerical

No Protection

Vertically Dripping Water

Objects Greater than 12mm

Objects Greater than 2.5mm

Objects Greater than 1.0mm

Dust-Protected

Dust-Tight

IP 66 Compliant!

4

5

2

3

6 6

7

8

4

5

2

3

75o-90o Sprayed water

30o-90o Sprayed water

Water sprayed-low pressure

Water jets-low pressure

Water jets-high pressure

Temporary immersion

Indefinite Immersion

PPC Series

Wide Temperature Range

(-20°c~60°c)

The PPC-5150A-H61/ PPC-5170A-H61 and UPC-V315 supports wide operating temperature, surviving from any kinds of harsh environment.

-20°c

60°c

High Efficiency Transmission

SFP Fiber LAN

The small form-factor pluggable transceiver (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communication applications.

● Immunity to electromagnetic interference

● High electrical resistance

● No sparks

● Long transmission distance – up to 2 km (multi-mode)/ 120 km(single-mode)

Transmission distance

Type Core diameter Wavelength (nm) Cost Max Distance (km)

Single-Mode

Multi-Mode

8 to 10

50 or 62.5

1310 or 1550

850 or 1300

More expensive

Medium

120

2

RJ-45 N/A N/A Cheaper 0.1

Multiple choices

We provide two transmission LAN types for choice, either 2 × Fiber LAN or 2 × RJ-45.

Fiber LAN

RJ-45

USB 3.0 – Faster Data Transmission

USB 3.0 has higher transmission speed and wider data bandwidth. Support faster transferring for the user.

USB Version

Data Transfer Rate)

Media (Data Size)

Song / Pic (4 MB)

HD-Movie (25GB)

USB 1.0

12Mbps

5.3 sec

9.3 hr

USB 2.0

480Mbps

Transfer Time

0.1 sec

13.9 min

USB 3.0

5Gbps

0.01 sec

70 sec

PPC-Intro-2013-V10

Transmission distance up to 120 km

USB 2.0

USB 3.0

Display System w w w . i e i w o r l d . c o m

High Brightness Panel With LED Backlight

LED backlight v.s. Traditional CCFL

■ Higher brightness in color display

Higher

Brightness

■ Lower power consumption

■ Longer lifecycle

Sunlight

Readable!

LED in large size product

The PPC-51XXA-H61 series supports LED backlight, improving display capability in high quality.

Display

LCD size

Max Resolution

Brightness

Contrast Ratio

LCD color

Pixel Pitch (mm)

Viewing

Angle(V-H)

PPC-5150A-9455

15”

1024 (W) X 768 (H)

350

700 : 1

16.2M

0.297 X 0.297

125°/140°

PPC-5150A-H61

15”

1024 (W) X 768 (H)

400

700 : 1

16.2M

0.297 X 0.297

140°/160°

PPC-5170A-9455

17”

1280 (W) X 1024 (H)

300

800 : 1

16.7M

0.264 X 0.264

160°/160°

PPC-5170A-H61

17”

1280 (W) X 1024 (H)

350

800 : 1

16.7M

0.264 X 0.264

170°/160°

PPC-5170A-9455

19”

1280 (W) X 1024 (H)

300

700 : 1

16.7M

0.294 X 0.294

160°/170°

PPC-5170A-H61

19”

1280 (W) X 1024 (H)

350

1000 : 1

16.7M

0.294 X 0.294

160°/170°

Flexible Expansion Options

A. PCI and PCIe x1 Signal Expansion Slot (For PPC-51xxA Series)

PCIe x1 and PCI Signal on Board

Capture Card

PCI Signal

Data Acquisition

&Control Card

PCIe x1 Signal

Communication Card

Motion Control Card

CAN bus/Profi-Bus

B. Two PCI/ One PCI + One PCIe x1 Signal Modular Expansion Slot (For PPC-5152-D525)

1. One PCI and One PCIe x1 slot

PCIe Mini slot on the other side

PCI

PCIe x1

2. Two PCI slots

PCI

PCI

PCIe Mini slot on the other side

C. PCIe Mini Card (PPC-51xxA-H61/ PPC-37xxA-N26 Series)

PCIe Mini interface provides either SATA signals such as mSATA storage or WI-FI module for full-size or half-size devices.

IEEE 802.11b/g/n 2T2R wirless module

SATA signal

Digital switch

USB/ PCIe signal

OR

mSATA storage

Wi-Fi module

300 Mbps

2T2R

1T1R

150 Mbps

4x

6x

54 Mbps

1x

Flexible expansion

This series provide 2T2R for transferring wider range and faster speed rate, which depands on how many antennas are for MIMO.

PPC-Intro-2013-V10

T: Transmitter

R: Receiver

Display System w w w . i e i w o r l d . c o m

IEI Quick Mounting Technology

■ DIN Mount PPC

Din-Mount design is for the compact size LCD products. It allows the LCD product to be used in various environments.

■ Wall Mount PPC

IEI quick wall mount kit allows an IEI LCD to be removed from and mounted on the wall easily. It makes the LCD product a quick installation and easy maintenance solution.

DIN Mount Kit:

DK-84MS

Wall Mount Kit:

WK-190MS-R10

■ Panel Mount PPC

IEI panel mount allows customers to mount IEI LCD products on the panel kit with IP 65 waterproof protection.

■ Rack Mount PPC

Rack-mountable equipment is mounted simply by bolting its front panel to the rack, or with a square-holed rack by clipping or some other variation on the theme.

Fit 19-inch rack cabinet

(482.6 mm wide)

Panel Mount Bracket:

PK-170M

■ VESA Mount PPC

The new IEI LCD family features an easy, quick, and solid mounting kit attached to the VESA mount adapter which is attached to the computer. IEI LCD products are ready to attach to any VESA compliant mounting solution that has a 100 mm x 100 mm attachment.

RACK Mount Kit:

RK-170MS-R10

ARM-11-RS ARM-31-RS

Optional Item List

LCD Size

Panel Mount Kit

6.5"

PK-65M

Wall Mount Kit

Rack Mount Kit

Din Mount Kit

Stand

Arm

WK-065MS-R10

RK-065MS-R10

DK-84MS

8.4"

PK-84M

RK-084MS-R10

ARM-11-RS

10.4"

PK-104M

RK-104MS-R10

STAND-100-RS

12.1" 15"

PK-170M

WK-190MS-R10

RK-121MS-R10 RK-150MS-R10

N/A

ARM-11-RS/ARM-31-RS

PPC-Intro-2013-V10

17"

RK-170MS-R10

STAND-210-R11

ARM-31-ARM-31-RS

19"

PK-190M

RK-190MS-R10

Display System w w w . i e i w o r l d . c o m

PPC Series

8.4”~10.4” PPC Selection Guide

LCD Size 8.4” 10.4"

Display

Touch

Model

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm)

(HxV)

Viewing Angle

(V/H)

Backlight MTBF

(hrs)

Touch Screen

Touch Controller

CPU

Chipset

Motherboard

RAM

Ethernet

PPC-3708A-N26 PPC-3708A-N270 PPC-3708GS-945 PPC-3710A-N26 PPC-3710A-N270 PPC-3710GS-945

8.4 "

800(W) x 600(H)

450

600:1

262K

0.213(H) x 0.213(V)

140°/ 160°

8.4 "

800(W) x 600(H)

450

600:1

262K

0.213(H) x 0.213(V)

140°/ 160°

8.4 "

800(W) x 600(H)

450

600:1

262K

0.213(H) x 0.213(V)

140°/ 160°

10.4 "

800(W) x 600(H)

400

700:1

262K

0.264(H) x 0.264(V)

140°/ 160°

10.4 "

800(W) x 600(H)

400

700:1

262K

0.264(H) x 0.264(V)

140°/ 160°

10.4 "

800(W) x 600(H)

400

700:1

262K

0.264(H) x 0.264(V)

140°/ 160°

50000 (LED backlight) 50000 (LED backlight) 50000 (LED backlight) 50000 (LED backlight) 50000 (LED backlight) 50000 (LED backlight)

Resistive Type 4-Wire with RS-232 interface

EETI

MBMER4040CPBG

Intel® Atom™ N2600 dual-core processor

1.6GHz

Resistive Type 4-Wire with RS-232 interface

EETI

MBMER4040CPBG

Intel® Atom™ N270

1.6GHz CPU

Resistive Type 4-Wire with RS-232 interface

EETI

MBMER4040CPBG

Socket M Intel®

Core™2 Duo, Core

Duo, Core Solo with 667MHz FSB Intel®

Celeron® M 533MHz

FSB

Resistive Type 5-Wire with RS-232 interface

EETI

MBMER4050CMBG

Intel® Atom™ N2600 dual-core processor

1.6GHz

Resistive Type 5-Wire with RS-232 interface

EETI

MBMER4050CMBG

Intel® Atom™ process

N270 1.6GHz CPU

Resistive Type 5-Wire with RS-232 interface

EETI

MBMER4050CMBG

Socket M Intel®

Core™2 Duo, Core

Duo, Core Solo with 667MHz FSB Intel®

Celeron® M 533MHz

FSB

Intel® NM10

Intel® 945GSE +

ICH7M

Intel® 945GM + ICH7M

Intel® NM10

Intel® 945GSE +

ICH7M

Intel® 945GM + ICH7M

One 204-pin SO-DIMM socket, supporting

DDRIII 800MHz modules for up to 2GB

One 204-pin SO-DIMM socket, supporting

DDR2 533MHz modules for up to 2GB

One 204-pin SO-DIMM socket, supporting

DDR2 400/533/667MHz modules for up to 2GB

One 204-pin SO-DIMM socket, supporting

DDRIII 800MHz modules for up to 2GB

One 204-pin SO-DIMM socket, supporting

DDR2 533MHz modules for up to 2GB

One 204-pin SO-DIMM socket, supporting

DDR2 400/533/667MHz modules for up to 2GB

Realtek RTL8111E

PCIe GbE controller supporting ASF 2.0

Realtek RTL8111E

PCIe GbE controller supporting ASF 2.0

IRealtek RTL8111E

PCIe GbE controller supporting ASF 2.0

Realtek RTL8111E

PCIe GbE controller supporting ASF 2.0

Realtek RTL8111E

PCIe GbE controller supporting ASF 2.0

IRealtek RTL8111E

PCIe GbE controller supporting ASF 2.0

Audio Codec

I/O Ports and Switches

Drive Bay

HDD Driver Bay

Expansion Slot

SSD

Realtek ALC662 HD audio codec

Realtek ALC655 AC’97 audio codec

Realtek ALC655 AC’97 audio codec

Realtek ALC662 HD audio codec

Realtek ALC655 AC’97 audio codec

Realtek ALC655 AC’97 audio codec

2 x RS-232

1 x RS-422/485

2 x RS-232

1 x RS-232

(Alternative to RS-

422/485)

2 x RS-232

1 x RS-232

(Alternative to RS-

422/485)

2 x RS-232

1 x RS-422/485

2 x RS-232

1 x RS-232

(Alternative to RS-

422/485)

2 x RS-232

1 x RS-232

(Alternative to RS-

422/485)

2 x RJ-45 for LAN Port 2 x RJ-45 for LAN Port 2 x RJ-45 for LAN Port 2 x RJ-45 for LAN Port 2 x RJ-45 for LAN Port 2 x RJ-45 for LAN Port

2 x USB 3.0

2 x USB 2.0

1 x HDMI

2 x USB 2.0 2 x USB 2.0

1 x VGA Port 1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

1 x Line-in, 1 x Line-out,

1 x Mic-in

2 x USB 3.0

2 x USB 2.0

1 x HDMI

2 x USB 2.0

1 x VGA Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

1 x Line-in, 1 x Line-out,

1 x Mic-in

1 x VGA Port

1 x PS/2 mouse and keyboard interface

1 x PS/2 mouse and keyboard interface

1 x VGA Port

1 x Line-in, Line-out,

Mic-in

1 x 12VDC input Power

Jack

1 x Power Switch

1 x 12VDC input Power

Jack

1 x 12VDC input Power

Jack

1 x Power Switch 1 x Power Switch

1 x Line-in, Line-out,

Mic-in

1 x 12VDC input Power

Jack

1 x Power Switch

1 x PS/2 mouse and keyboard interface

1 x PS/2 mouse and keyboard interface

1 x 12VDC input Power

Jack

1 x 12VDC input Power

Jack

1 x Power Switch 1 x Power Switch

1 x mSATA

1 x PCIe mini card

CF Type II

1 x PCIe Mini card

1 x 2.5” SATA HDD bay with anti-shock

CF Type II

1 x PCIe Mini card

1 x mSATA

1 x PCIe mini card

CF Type II

1 x PCIe Mini card

1 x 2.5” SATA HDD bay with anti-shock

CF Type II

1 x PCIe Mini card

System Cooling

Environment

Operating

Temperature

Storage

Temperature

Fanless

-10°C~50°C

-20°C~60°C

Fanless

-10°C~50°C

-20°C~60°C

Active with Fan

-10°C~50°C

-20°C~60°C

Fanless

-10°C ~ 50°C

-20°C~60°C

Fanless

-10°C~50°C

-20°C~60°C

Active with Fan

-10°C~50°C

-20°C~60°C

PPC-Intro-2013-V10

Display System

PPC Series

12.1” PPC Selection Guide

w w w . i e i w o r l d . c o m

Display

LCD Size

Model

LCD Size

Max Resolution

Brightness

(cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

PPC-3712A-N26

12.1 "

1024(W) x 768(H)

500

700:1

262K

0.3075(H) x 0.3075(V)

160°/ 160°

50000 (LED backlight)

12.1"

PPC-3712A-N270

12.1 "

1024(W) x 768(H)

500

700:1

262K

0.3075(H) x 0.3075(V)

160°/ 160°

50000 (LED backlight)

PPC-3712GXS-945

12.1 "

1024(W) x 768(H)

500

700:1

262K

0.3075(H) x 0.3075(V)

160°/ 160°

50000 (LED backlight)

Touch

Motherboard

I/O Ports and Switches

Drive Bay

Expansion Slot

System Cooling

Touch Screen

Touch Controller

CPU

Chipset

RAM

Ethernet

Audio Codec

HDD Driver Bay

SSD

CD-ROM Driver Bay

Operating Temperature

Resistive Type 5-Wire with RS-232 interface Resistive Type 5-Wire with RS-232 interface Resistive Type 5-Wire with RS-232 interface

EETI MBMER4050CMBG

Intel® Atom™ N2600 dual-core processor 1.6GHz Intel® Atom™ processor N270 1.6GHz CPU

Intel® NM10

One 204-pin SO-DIMM socket, supporting 800

MHz DDR3 module up to 2GB

Realtek RTL8111E PCIe GbE controller supporting

ASF 2.0

EETI MBMER4050CMBG

Intel® 945GSE + ICH7M

One 204-pin SO-DIMM socket, supporting 533

MHz DDR2 module for up to 2GB

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

EETI MBMER4050CMBG

Socket M Intel® Core™2 Duo, Core Duo,

Core Solo with 667MHz FSB

Intel® Celeron® M 533MHz FSB

Intel® 945GM + ICH7M

One 204-pin SO-DIMM socket, supporting

400/533/667 MHz DDR2 module for up to

2GB

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 HD audio codec

2 x RS-232

1 x RS-422/485

2 x RJ-45 for LAN Port

2 x USB 3.0

2 x USB 2.0

1 x HDMI

Realtek ALC655 AC’97 audio codec

2 x RS-232

1 x RS-232 (Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

1 x PS/2 mouse and keyboard interface

Realtek ALC655 AC’97 audio codec

2 x RS-232

1 x RS-232

(Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

1 x PS/2 mouse and keyboard interface 1 x VGA Port

1 x Line-in, Line-out, Mic-in

1 x 12VDC input Power Jack

1 x Power Switch

1 x 12VDC input Power Jack

1 x Power Switch

1 x 12VDC input Power Jack

1 x Power Switch

1 x 2.5” SATA HDD Bay

1 x 2.5” SATA HDD bay with anti-shock

CF Type II

1 x 2.5” SATA HDD bay with anti-shock

CF Type II 1 x mSATA

Slim Type CD-ROM Bay

1 x PCIe mini card

Fanless

-10°C ~ 50°C

SATA Slim Type CD-ROM Bay

1 x PCIe Mini card

Fanless

-10°C~50°C

SATA Slim Type CD-ROM Bay

1 x PCIe Mini card

Acitve with Fan

-10°C~50°C

Environment

Storage Temperature

-20°C~60°C

-20°C~60°C -20°C~60°C

PPC-Intro-2013-V10

Display System

PPC Series

15” PPC Selection Guide

w w w . i e i w o r l d . c o m

Display

LCD Size

Model

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

PPC-5150A-H61

15 "

1024(W) x 768(H)

400

700:1

16.2M

0.297(H) x 0.297(V)

15”

PPC-5150A/9455

15 "

1024(W) x 768(H)

350

700:1

16.2M

0.297(H) x 0.297(V)

PPC-5152-D525

15 "

1024(W) x 768(H)

400

500 : 1

16.2M

0.1095(H) x 0.1095(V)

Touch

Motherboard

I/O Ports and Switches

Drive Bay

Expansion Slot

System Cooling

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

CPU

125°/ 140° 125°/ 140° 160° / 140°

50000 50000 50000

Resistive Type 5-Wire with RS-232 interface Resistive Type 5-Wire with RS-232 interface Resistive Type 5-Wire with RS-232 interface

DMC 9000 DMC 9000 DMC 9000

2nd/3rd Generation Intel® Core™ Core™ i7/ i5/ i3, Pentium® and Celeron® processor

LGA 775 Socket with Intel® Core™2 Duo,

Celeron® D with 533/800/1066 MHz

Intel® Atom™ D525 1.8GHz dual core processor

Chipset

RAM

Ethernet

Audio Codec

HDD Driver Bay

SSD

CD-ROM Driver Bay

Operating Temperature

Intel® H61

Two 204-pin DDR3 SO-DIMM slots (Max.

16GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 audio codec

4 x RS-232 COM Port

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

4 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

1 x Audio (Line-out, MIC-in)

2 x SFP Fiber LAN

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe Slot

1 x 2.5” SATA HDD bay with anti-shook

CF Type II, mSATA

Slim Type CD-ROM Bay

Either 1 x PCI slot or 1 x PCIe slot,

1 x PCIe Mini card

Active with Fan

-20°C ~ 60°C

Intel® 945G + ICH7R

Two 240-pin DIMM sockets, supporting DDR2

400/533/667MHz modules (Max. 4GB)

Realtek RTL8111CP GbE controller

Realtek ALC888 audio codec

4 x RS-232

1 x RS-232/422/485

2 x RJ-45 for LAN Port

4 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

2 x PS/2 mouse and keyboard interface

1 x Power Switch

AT / ATX Switch

1 x LPT

1 x 2.5” SATA HDD bay with anti-shock

CF Type II

SATA Slim Type CD-ROM Bay

Either 1 x PCI or PCIe x1 expansion slot

1 x PCIe Mini card

Active with Fan

-10°C~50°C

Intel® ICH8M

One 204-pin DDR3 SO-DIMM slot

(Max. 4GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC888 audio codec

2 x RS-232

(DB-9 connector)

1 x RS-232 or RS-422/485

(DB-9 connector)

2 x RS-422/485

(RJ-45 connector)

2 x USB 2.0 connector

VGA port (DB-15 connector)

2 x Audio jacks

(Line-out, MIC)

AT/ATX switch

2 x USB 3.0 connector

2 x Combo (SFP / RJ-45)

Gigabit LAN

4-channel video / audio capture (optional)

2.5” SATA HDD bay

CF Type II socket

N/A

Two PCI slots or one PCI slot plus one PCIe x1 slot

1 x PCIe Mini card

Fanless

-20°C ~ 50°C

Environment

Storage Temperature

-30°C ~ 70°C

-20°C~60°C -20°C ~ 70°C

PPC-Intro-2013-V10

Display System w w w . i e i w o r l d . c o m

PPC Series

17” ~ 19” PPC Selection Guide

Display

Touch

LCD Size

Model

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

PPC-5170A-H61

17 "

1280(W) x 1024(H)

350

800 : 1

16.7M

0.264(H) x 0.264(V)

160°/ 160°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

17"

PPC-5170A/9455

17 "

1280(W) x 1024(H)

300

800 : 1

16.7M

0.264(H) x 0.264(V)

160°/ 160°

50000

19”

PPC-5190A-H61

19 "

1280(W) x 1024(H)

350

1000 : 1

16.7M

0.294(H) x 0.294(V)

160°/ 170°

50000

Resistive Type 5-Wire with RS-232 interface Resistive Type 5-Wire with RS-232 interface

DMC 9000 DMC 9000

CPU

2nd/3rd Generation Intel® Core™ Core™ i7/ i5/ i3, Pentium® and Celeron® processor

LGA 775 Socket with Intel® Core™2 Duo,

Celeron® D with 533/800/1066 MHz

2nd/3rd Generation Intel® Core™ Core™ i7/ i5/ i3, Pentium® and Celeron® processor

Motherboard

I/O Ports and Switches

Drive Bay

Expansion Slot

System Cooling

Environment

Chipset

RAM

Ethernet

Audio Codec

HDD Driver Bay

SSD

CD-ROM Driver Bay

Operating

Temperature

Storage Temperature

Intel® H61

Intel® 945G + ICH7R

Intel® H61

Two 204-pin DDR3 SO-DIMM slots (Max.

16GB)

Two 240-pin DIMM sockets, supporting DDR2

400/533/667MHz modules (Max. 4GB)

Two 204-pin DDR3 SO-DIMM slots (Max.

16GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 audio codec

1 x RS-232/422/485

2 x RJ-45 for LAN Port

4 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

1 x Audio (Line-out, MIC-in)

2 x SFP Fiber LAN

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe Slot

1 x 2.5” SATA HDD bay with anti-shook

CF Type II, mSATA

Slim Type CD-ROM Bay

Either 1 x PCI slot or

1 x PCIe slot

1 x PCIe Mini card

Active with Fan

-20°C ~ 60°C

-30°C ~ 70°C

Realtek RTL8111CP GbE controller

Realtek ALC888 audio codec

4 x RS-232

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

4 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

2 x PS/2 mouse and keyboard interface

1 x Power Switch

AT / ATX Switch

1 x LPT

1 x 2.5” SATA HDD bay with anti-shock

CF Type II

SATA Slim Type CD-ROM Bay

Either 1 x PCI or PCIe x1 expansion slot

1 x PCIe Mini card

Active with Fan

-10°C~50°C

-20°C~60°C

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 audio codec

4 x RS-232

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

6 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

1 x Audio (Line-out, MIC-in)

2 x SFP Fiber LAN

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe Slot

1 x 2.5” SATA HDD bay with anti-shook

CF Type II, mSATA

Slim Type CD-ROM Bay

Either 1 x PCI slot or 1 x PCIe slot

1 x PCIe Mini card

Active with Fan

-10°C ~ 50°C

-20°C ~ 60°C

PPC-Intro-2013-V11

Display System

8.4” Industrial Panel PC

PPC-3708A-N26

PPC-3708A-N270

PPC-3708GS-945 w w w . i e i w o r l d . c o m

Intel® Atom™ N2600 Dual-Core Processor

Fanless

Intel® Atom™ N270 Processor

Fanless

Intel® Core™2 Duo Processor with Intel® 945GME Platform

Features

1. 8.4" 450 nits high brightness TFT LCD with LED backlight

2. Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

3. Robust aluminum front bezel and metal casing

4. IP 66 compliant front panel

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity suggested)

IP66

High

Brightess

-10ºC~50ºC

Specifications

Display

Model

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

PPC-3708A-N26 PPC-3708A-N270

8.4 “

800(W) x 600(H)

450

600:1

262K

0.213(H) x 0.213(V)

140°/160°

50000 (LED Backlight)

Resistive Type 4-Wire with RS-232 interface

EETI MBMER4040CPBG

NANO-945GSE-N270

PPC-3708GS-945

Touch

Motherboard

Touch Screen

Touch Controller

SBC

CPU

Chipset

RAM

Ethernet

NANO-CV-N26001

Intel® Atom™ N2600 dual-core processor

1.6GHz

Intel® NM10

One 204-pin SO-DIMM socket, supporting

DDR3 800MHz modules for up to 2GB

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 HD audio codec

Intel® Atom™ process N270 1.6GHz CPU

Intel® 945GSE + ICH7M

One 204-pin SO-DIMM socket, supporting

DDR2 533MHz modules for up to 2GB

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC655 AC’97 audio codec

NANO-9452

Socket M Intel® Core™2 Duo, Core Duo, Core

Solo with 667MHz FSB Intel® Celeron® M

533MHz FSB

Intel® 945GME + ICH7M

One 204-pin SO-DIMM socket, supporting

DDR2 400/533/667MHz modules for up to 2GB

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC655 AC’97 audio codec

Audio Codec

I/O Ports and Switches

2 x RS-232

1 x RS-422/485

2 x RJ-45 for LAN Port

2 x USB 3.0

2 x USB 2.0

1 x HDMI

1 x VGA Port

1 x Line-in, Line-out, Mic-in

1 x 12VDC input Power Jack

1 x Power Switch

2 x RS-232

1 x RS-232 (Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out, 1 x Mic-in

1 x PS/2 mouse and keyboard interface

1 x 12VDC input Power Jack

1 x Power Switch

2 x RS-232

1 x RS-232 (Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out, 1 x Mic-in

1 x PS/2 mouse and keyboard interface

1 x 12VDC input Power Jack

1 x Power Switch

Drive Bay

Expansion Slot

HDD Driver Bay

SSD

Connectivity Wireless

Front Panel Contruction

Physical

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Cut Out Dimensions (WxH)

(mm)

System Cooling

Net /Gross Weight

Operating Temperature

Environment

Storage Temperature

IP Rating

Vibration

Shock

Power

Supply

Power Adapter

1 x mSATA

1 x PCIe Mini card

244 x 175 x 86.5

233 x 167

2.2Kg/ 4.4Kg

Fanless

-10°C ~ 50°C

1 x 2.5” SATA HDD Bay

CF Type II

1 x PCIe Mini card

IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Optional

Aluminum Die-casting

Heavy-duty Steel (SECC)

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

Silver (Pantone 8001C)

244 x 178 x 80.2

233 x 167

2.2 Kg / 4.4 Kg

Fanless

-10°C~50°C

-20°C~60°C

1 x PCIe Mini card

244 x 178 x 80.2

233 x 167

2.2 Kg / 4.4 Kg

Active with Fan

-10°C~50°C

IP66 compliant front panel

5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak

10G acceleration part to part (11ms)

P/N: 63040-010060-050-RS

60W Power Adapter

Input: 90VAC~264VAC, 50/60Hz

Output: 12VDC

P/N: 63040-010060-050-RS

60W Power Adapter

Input: 90VAC~264VAC, 50/60Hz

Output: 12VDC

P/N: 63000-FSP084DMBA1308-RS

84W Power Adapter

Input: 90VAC~264VAC, 50/60Hz

Output: 12VDC

PPC-3708A-2013-V10

Display System

Versatile Mounting Methods

w w w . i e i w o r l d . c o m

Wall Mount

Stand Panel Mount Rack Mount

Ordering Information

Part No.

Intel® Atom™ N2600

Intel® Atom

N270

PPC-3708A-N26/R/2G-R10*

PPC-3708A-N270/R/1G-R21

Description

8.4” 450 cd/m² SVGA Panel PC with Intel® Atom™ N2600 1.6GHz processor, 2GB DDR3 RAM, touch screen, 9~28VDC input, RoHS

8.4” 450 cd/m² SVGA Panel PC with Intel® Atom™ N270 1.6GHz/ 512KB L2 cache processor, 1GB DDR2 RAM, touch screen, 12VDC iput. R21, RoHS

PPC-3708GS-945-C4/R/1G-R30 8.4" 450 cd/m² SVGA TFT Panel PC with NANO-9452, C-M 1.86GHz, Silver color, T/S, 1GB DDR2 RAM, R30, RoHS

Intel® 945GME

PPC-3708GS-945-T5/R/1G-R30

8.4" 450 cd/m² SVGA TFT Panel PC with NANO-9452, Intel® Core™ Duo 1.66GHz T5500, Silver color, T/S, 1GB DDR2

RAM, R30, RoHS

* PPC supports 9-28V DC input with 4-pin DC jack. Standard product inculdes 12V DC adapter. For terminal block solution, please contact sales team.

Packing List

Item Part No.

Description

Screw Kit

Power Cord

Power Adapter

PS/2 Cable

Panel Mounting Kit

Wall Mounting Kit

19600-000205-RS

63040-010060-040-RS

63040-010060-050-RS

63000-FSP084DMBA1308-RS

32006-000300-100-RS

19Z00-000026-RS

41014-057602-00-RS

41020-016102-00-RS

IEI One Key Recovery CD IEI-7B000-000478-RS

Touch Screen Driver CD / Touch Pen

User Manual & Driver CD

EUROPEAN Standard ,1830MM, PLUG(16A 250V), CONNECTOR (10A 250V)

60W, 90VAC~264VAC for PPC-3708A-N270 & PPC-3708A-N26

84W, 90VAC~264VAC for PPC-3708GS-945

1 x MINI DIN 6PIN MALE; 2 x MINI DIN 6PIN FEMALE

ULTRA SET PLATE

WALL MOUNT BRACKET

IQ Mounting Options

Item

Rack Mount Kit

ARM

STAND

Part No.

RK-084MS-R10

ARM-11-RS

STAND-100-RS

Options

Item

RS-422/485 Cable

HDD IDE Cable

Wi-Fi Module

Part No.

32200-075202-RS

32221-000200-100-RS

PPC-WL-KIT02-R10

Description

(A) D-SUB 9PIN MALE

(B) DU PONT 2*7P P=2.0 FEMALE

100MM, IDE 44-pin

Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-37xxA-N26 series

PPC-3708A-2013-V11

Display System

PPC-3708A / PPC-3708GS

Fully Integrated I/O

PPC-3708A-N26

Fully Integrated I/O

2 x RS-232

1 x RS232/422/485

2 x LAN

1 x PS/2

1 x Line-in,1 x Line-out,1 x Mic-in

1 x RS-232 1 x RS-422/ 485

1 x Line-out

1 x Line-in

1 x Mic

w w w . i e i w o r l d . c o m

12V DC Input

1 x VGA

2 x USB 2.0

1 x CF Slot

12V DC Input

Power Switch

PPC-3708A / PPC-3708GS

Dimensions

(Unit: mm)

VGA HDMI 2 x USB 2.0

2 x LAN 2 x USB 3.0

Power Switch

PPC-3708A-N26

Dimensions

(Unit: mm)

PPC-3708A-2013-V10

Display System

10.4" Industrial Panel PC

PPC-3710A-N26

PPC-3710A-N270

PPC-3710GS-945 w w w . i e i w o r l d . c o m

Intel® Atom™ N2600 Dual-Core Processor

Fanless

Intel® Atom™ N270 Processor

Fanless

Intel® Core™2 Duo Processor with Intel® 945GM Platform

Features

1. 10.4" 400 nits high brightness TFT LCD with LED backlight

2. Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

3. Robust aluminum front bezel and metal casing compliant front panel

4. IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)

Specifications

IP66

-10ºC~50ºC

Display

Touch

Motherboard

Model

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

SBC

CPU

Chipset

RAM

Ethernet

Audio Codec

I/O Ports and Switches

Drive Bay

Expansion Slot

HDD Driver Bay

SSD

Physical

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD)

(mm)

Cut Out Dimensions

(WxH) (mm)

Net /Gross Weight

System Cooling

Environment

Operating Temperature

Storage Temperature

IP Rating

Vibration

Shock

Power Supply Power Adapter

PPC-3710A-N26 PPC-3710A-N270

10.4 “

800(W) x 600(H)

400

PPC-3710GS-945

700:1

262K

0.264(H) x 0.264(V)

140 ° /160 °

50000 (LED Backlight)

Resistive Type 5-Wire with RS-232 interface

EETI MBMER4050CMBG

NANO-945GSE-N270 NANO-CV-N26001

Intel® Atom™ N2600 dual-core processor

1.6GHz

Intel® Atom™ N270 1.6GHz CPU

Intel® NM10

One 204-pin SO-DIMM socket, supporting

DDR3 800MHz modules for up to 2GB

Intel® 945GSE + ICH7M

One 204-pin SO-DIMM socket, supporting

DDR2 533MHz modules for up to 2GB

Intel® 945GME + ICH7M

One 204-pin SO-DIMM socket, supporting

DDR2 400/533/667MHz modules for up to 2GB

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 HD audio codec

2 x RS-232

1 x RS-422/485

2 x RJ-45 for LAN Port

2 x USB 3.0

2 x USB 2.0

1 x HDMI

1 x VGA Port

1 x Line-in, Line-out, Mic-in

1 x 12VDC input Power Jack

1 x Power Switch

Realtek ALC655 AC’97 audio codec

2 x RS-232

1 x RS-232 (Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out, 1 x Mic-in

1 x PS/2 mouse and keyboard interface

1 x 12VDC input Power Jack

1 x Power Switch

Realtek ALC655 AC’97 audio codec

2 x RS-232

1 x RS-232 (Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out, 1 x Mic-in

1 x PS/2 mouse and keyboard interface

1 x 12VDC input Power Jack

1 x Power Switch

1 x 2.5” SATA HDD Bay

NANO-9452

Socket M Intel® Core™2 Duo, Core Duo, Core

Solo with 667MHz FSB

Intel® Celeron® M 533MHz FSB

1 x mSATA

1 x PCIe Mini card

CF Type II

1 x PCIe Mini card

Aluminum Die-casting

Heavy-duty Steel (SECC)

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

Silver (Pantone 8001C)

1 x PCIe Mini card

311 x 242 x 77.8

291 x 221

311.5 x 242 x 77.8

291 x 221

311.5 x 242 x 77.8

291 x 221

3.4Kg / 5.8Kg

3.4 Kg / 5.8 Kg 3.4 Kg / 5.8 Kg

Fanless Fanless

-10

° C~50 ° C

-20

°

C~60

°

C

Active with Fan

P/N: 63040-010060-050-RS

60W Power Adapter

IP66 compliant front panel

5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak

Input: 90VAC~264VAC, 50/60Hz

Output: 12VDC

10G acceleration part to part (11ms)

P/N: 63040-010060-050-RS

60W Power Adapter

Input: 90VAC~264VAC, 50/60Hz

Output: 12VDC

P/N: 63000-FSP084DMBA1308-RS

84W Power Adapter

Input: 90VAC~264VAC,50/60Hz

Output: 12VDC

PPC-3710A-2013-V10

Display System

802.11b/g/n Wireless LAN Module

The PPC 37 series is equipped with a high speed wireless module that enables larger data transmission in real time. The Wireless LAN facilitates applications that require data transmission over large distances, such as in a large warehouse.

w w w . i e i w o r l d . c o m

Long distance communication

Fanless System

The PPC-3710A is designed with a low power consumtion platform featuring an Intel®

ATOM™ N270 and N2600 platform. The fanless system generates less heat while maintaining above-average performance. A fanless design eliminates the possibility of fan failure and extends the operation life of the device.

Ordering Information

Part No.

Intel® Atom™ N2600

Intel® Atom N270

PPC-3710A-N26/R/2G-R10*

PPC-3710A-N270/R/1G-R21

PPC-3710GS-945-C4/R/1G-R30

Description

10.4" 400 cd/m² SVGA Panel PC with Intel® Atom™ N2600 1.6GHz processor, 2GB DDR3 RAM, and touch screen,

9~28VDC input, RoHS

10.4" 400 cd/m² SVGA TFT Fanless Panel PC, Intel® Atom™ N270 1.6GHz/ 512KB, 1GB DDR2, Res T/S, Sliver Color,

R30, RoHS

10.4" 400 cd/m² SVGA TFT Panel PC with NANO-9452, C-M 1.86GHz, Silver color, T/S, 1GB DDR2 RAM, R30, RoHS

Intel® 945GME

PPC-3710GS-945-T5/R/1G-R30

10.4" 400 cd/m² SVGA TFT Panel PC with NANO-9452, Intel® Core™ Duo 1.66GHz T5500, Silver color, T/S,1GB DDR2

RAM, R30, RoHS

* PPC supports 9-28V DC input with 4-pin DC jack. Standard product inculdes 12V DC adapter. For terminal block solution, please contact sales team.

Packing List

Item

Screw Kit

Power Cord

Description

Power Adapter

PS/2 Cable

Panel Mounting Kit

Wall Mounting Kit

Part No.

19600-000205-RS

32702-000200-100-RS

63040-010060-050-RS

63000-FSP084DMBA1308-RS

32006-000300-100-RS

19Z00-000026-RS

41014-057602-00-RS

41020-016102-00-RS

IEI-7B000-000478-RS

EUROPEAN Standard ,1830MM, PLUG(16A 250V), CONNECTOR(10A 250V)

60W, 90VAC~264VAC for PPC-3710A-N270, PPC-3710-N26

84W, 90VAC~264VAC for PPC-3710GS-945

1 x MINI DIN 6PIN MALE; 2 x MINI DIN 6PIN FEMALE

ULTRA SET PLATE

WALL MOUNT BRACKET

IEI One Key Recovery CD

Touch Screen Driver CD / Touch Pen

User Manual & Driver CD

IQ Mounting Options

Item

Rack Mount Kit

ARM

STAND

Options

Item

RS-422/485 Cable

Wi-Fi Module

Part No.

32200-075202-RS

PPC-WL-KIT02-R10

Part No.

RK-104MS-R10

ARM-11-RS

STAND-100-RS

Description

(A) D-SUB 9PIN MALE

(B) DU PONT 2*7P P=2.0 FEMALE

Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-37xxA-N26 series

PPC-3710A-2013-V11

Display System

PPC-3710A / PPC-3710GS

Fully Integrated I/O

2 x RS-232

1 x RS-232/422/485

2 x USB 2.0

2 x LAN

1 x PS/2

1 x Line-in,1 x Line-out

1 x Mic-in

w w w . i e i w o r l d . c o m

PPC-3708A-N26

Fully Integrated I/O

1 x RS-232 1 x RS-422/ 485

1 x Line-out

1 x Line-in

1 x Mic

12V DC Input

1 x VGA 1 x CF Slot

12V DC Input Power Switch

VGA HDMI 2 x USB 2.0

2 x LAN 2 x USB 3.0

Power Switch

PPC-3710A / PPC-3710GS

Dimensions

(Unit: mm)

PPC-3710A-N26

Dimensions

(Unit: mm)

PPC-3710A-2013-V10

Display System w w w . i e i w o r l d . c o m

12.1" Industrial Panel PC

PPC-3712A-N26

Intel® Atom™ N2600 Dual-Core Processor

Fanless

PPC-3712A-N270

Intel® Atom™ N270 Processor

Fanless

PPC-3712GXS-945

Intel® Core™2 Duo Processor with Intel® 945GM Platform

Features

1. 12.1" 500 nits high brightness TFT LCD with LED backlight

2. Dual Gigabit Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

3. Optional 802.11 b/g/n wireless kit

4. One slim type CD-ROM drive bay

5. Robust aluminum front bezel and metal casing

6. IP 65 compliant front panel

Specifications

IP65

-20ºC~50ºC

Model

Display

Touch

Motherboard

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

SBC

RAM

Ethernet

Audio codec

I/O Ports and Switches

Drive Bay

Expansion Slot

Physical

CPU

Chipset

HDD Drive Bay

SSD

CD-ROM Drive Bay

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Cut Out Dimensions (WxH) (mm)

PPC-3712A-N26

NANO-CV-N26001

Intel® Atom™ N2600 dual-core processor

1.6GHz

Intel® NM10

One 200-pin SO-DIMM socket, supporting

DDR3 800MHz modules for up to 2GB

PPC-3712A-N270

12.1”

1024(W) x 768(H)

PPC-3712GXS-945

500

700:1

262K

0.3075(H) x 0.3075(V)

160°/160°

50000 (LED Backlight)

Resistive Type 5-Wire with RS-232 interface

EETI MBMER4050CMBG

NANO-945GSE-N270

Intel® Atom™ N270 1.6GHz CPU

NANO-9452

Socket M Intel® Core™2 Duo, Core Duo, Core

Solo with 667MHz FSB

Intel® Celeron® M 533MHz FSB

Intel® 945GME + ICH7M Intel® 945GSE + ICH7M

One 200-pin SO-DIMM socket, supporting DDR2

533MHz modules for up to 2GB

One 200-pin SO-DIMM socket, supporting DDR2

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

400/533/667MHz modules for up to 2GB

Realtek ALC662 HD audio codec

2 x RS-232

1 x RS-422/485

2 x RJ-45 for LAN Port

2 x USB 3.0

2 x USB 2.0

1 x HDMI

1 x VGA Port

1 x Line-in, Line-out, Mic-in

1 x 12VDC input Power Jack

1 x Power Switch

Realtek ALC655 AC’97 audio codec

2 x RS-232

1 x RS-232 ( Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out, 1 x Mic-in

1 x PS/2 mouse and keyboard interface

1 x 12VDC input Power Jack

1 x Power Switch

Realtek ALC655 AC’97 audio codec

2 x RS-232

1 x RS-232 (Alternative to RS-422/485)

2 x RJ-45 for LAN Port

2 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out, 1 x Mic-in

1 x PS/2 mouse and keyboard interface

1 x 12VDC input Power Jack

1 x Power Switch

1 x mSATA

Slim Type CD-ROM Bay

1 x PCIe Mini card

340 x 260 x 74.8

1 x 2.5” SATA HDD Bay

CF Type II

SATA Slim Type CD-ROM Bay

1 x PCIe Mini card

Aluminum Die-casting

Heavy-duty Steel (SECC)

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

Silver (Pantone 8001C)

340 x 277 x 73.4

SATA Slim Type CD-ROM Bay

1 x PCIe Mini card

340 x 277 x 73.4

313 x 233 313 x 233 313 x 233

System Cooling

Environment

Power Supply

Net/Gross Weight

Operating Temperature

Storage Temperature

Vibration

Shock

Power Adapter

6 Kg / 8 Kg

Fanless

6 Kg / 8 Kg

Fanless

-10°C~50°C

6 Kg / 8 Kg

Active with Fan

P/N:63040-010060-050-RS

60W Power Adapter

Input: 90VAC~264VAC, 50/60Hz

Output: 12VDC

-20°C~60°C

5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak

10G acceleration part to part (11ms)

P/N: 63040-010060-050-RS

60W Power Adapter

Input: 90VAC~264VAC, 50/60Hz

Output: 12VDC

P/N: 63000-FSP084DMBA1308-RS

84W Power Adapter

Input: 90VAC~264VAC,50/60Hz

Output: 12VDC

PPC-3712A-2013-V10

Display System w w w . i e i w o r l d . c o m

Ordering Information

Part No.

Intel® Atom™ N2600

PPC-3712A-N26/R/2G-R10*

Description

12.1" 500 cd/m² XGA Panel PC with Intel® Atom™ N2600 1.6GHz processor,2GB DDR3 RAM, and touch screen, 9~28VDC input, RoHS

12.1" 500 cd/m² XGA fanless panel PC,Intel® Atom™ N270 1.6GHz/ 512KB, 1GB DDR2, Res T/S, Sliver Color, R21, RoHS

Intel® Atom™ N270

PPC-3712A-N270/R/1G-R21

PPC-3712GXS-945-C4/R/1G-R30 12.1" 500 cd/m² XGA TFT panel PC with NANO-9452, C-M 1.86GHz,Silver color, T/S, 1GB DDR2 RAM, R30, RoHS

Intel® 945GME

PPC-3712GXS-945-T5/R/1G-R30

12.1" 500 cd/m² XGA TFT panel PC with NANO-9452, Intel® Core Duo 1.66GHz T5500, Silver color, T/S,1GB DDR2 RAM,

R30, RoHS

* PPC supports 9-28V DC input with 4-pin DC jack. Standard product inculdes 12V DC adapter. For terminal block solution, please contact sales team.

Packing List

Item

Screw Kit

SATA CD-ROM Cable

Power Cord

Power Adapter

PS/2 Cable

Panel Mounting Kit

Wall Mounting Kit

IEI One Key Recovery CD

Touch Screen Driver CD / Touch Pen

User Manual & Driver CD

Part No.

19600-000207-RS

32801-006300-100-RS

32702-000200-100-RS

63040-010060-050-RS

63000-FSP084DMBA1308-RS

32006-000300-100-RS

19Z00-000024-RS

41014-057602-00-RS

41020-016102-00-RS

IEI-7B000-000478-RS

Description

SATA 7+6P FEMALE 180°;SATA 7P FEMALE 90°+LOCK;DU PONT 2*4P P=2.54

FEMALE

EUROPEAN Standard ,1830MM, PLUG(16A 250V), CONNECTOR(10A 250V)

60W, 90VAC~264VAC for PPC-3712A

84W, 90VAC~264VAC for PPC-3712G

1 x MINI DIN 6PIN MALE; 2 x MINI DIN 6PIN FEMALE

ULTRA SET PLATE

WALL MOUNT BRACKET

IQ Mounting Options

Item

Rack Mount Kit

ARM

STAND

Options

Item

RS-422/485 Cable

IDE CD-ROM Installating Kit

HDD IDE Cable

Wi-Fi Module

Part No.

RK-121MS-R10

ARM-11-RS

STAND-100-RS

Part No.

32200-075202-RS

19Z00-000112-RS

32200-000037-RS

PPC-WL-KIT02-R10

CD-ROM Installating Kit

19Z00-000112-RS

Panel Mount

Description

(A) D-SUB 9PIN MALE

(B) DU PONT 2*7P P=2.0 FEMALE

50-pin CD ROM connector to 44-pin IDE connector transfer board

250MM, IDE 44-pin

Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-37xxA-N26 series

PPC-3712A-2013-V11

Display System

PPC-3712A-N26

Dimensions

(Unit: mm)

66.50

19.90

19.90

66.50

340

74.80

w w w . i e i w o r l d . c o m

1 x RS-232 1 x RS-422/485

1 x Line-out

1 x Line-in

1 x Mic 12V DC Input

VGA HDMI

2 x USB 2.0

2 x LAN 2 x USB 3.0

100 120

M4

Power Switch

PPC-3712A/PPC-3712GXS-945

Dimensions

(Unit: mm)

COM2 COM3 VGA Audio PS/2 12V DC Input

COM1

2 x LAN

2 x USB

Power Switch

PPC-3712A-2013-V10

Display System w w w . i e i w o r l d . c o m

PPC-5152-D525

15" Flat-bezel Industrial Panel PC

Features:

Combo Gigabit LAN

(SFP Fiber/RJ-45)

● Robust aluminum with IP 64 compliant front bezel design

● 5-wire resistive touch

● Intel® Atom™ D525 1.8GHz dual-core with fan-less design

● 15’’ 400 nits LED backlight panel with 1024 x 768 resolution

● Two USB 3.0, two USB 2.0 and five COM ports available

● Flexible expansion interface (two PCI slots or one PCI slot + one PCIe slot)

● Optional 4-channel video/audio capture card and Wi-Fi (802.11 b/g/n) available

● Built-in 1.3-megapixel webcam with autofocus, auto enhancement and auto white balance

● Dual combo (10/100/1000BASE-T(X) or 1000 baseSFP slot) gigabit LAN ports

Wireless

802.11 b/g/n

Camera

Fanless

IP64

Touchscreen

USB 3.0

SFP Fiber

PCI/PCIe

Expansion

Flexible Expansion Interface

Compared to the PPC-5150, the PS2 power supply unit has been removed in order to maximize. the expansion ability for customers who need rich I/O feasibility for their using scenarios. By out a PS2, this system is able to provide three more extended connections for customers.

1. One PCI and One PCIe x1 + One PCIe Mini card slot.

PCIe Mini slot on the other side

PCI

PCIe x1

2. Two PCI slots + One PCIe Mini card slot

PCIe Mini slot on the other side

PCI

PCI

PCIe Mini card slot

This expansion slot can be connected to any standard

PCIe Mini card. We also build a specific 4-channel audio/video capture card for the back side PCIe Mini card slot.

1 x 4-channel audio/video capture (optional)

1. 2. 3. 4.

The two types of backplanes support standard PCI/PCIe cards with maximum dimensions (WxHxD): 200mm x

100mm x 20 mm

System default power is 90W, the max. total power of the backplane to support expansion cards is 35W, so the power consumption of selected expansion cards can't exceed

35W, otherwise, the system may be unstable. The length of

IO on PCI/PCIe cards should not longer than 73.8mm

1. 2.

3. 4.

PPC-5152-2013-V10

Voltage

+5V

+12V

-12V

Current

5A

2.4A

0.1A

+3.3V

8A

Max. power supported by the backplane: < 35W

Display System w w w . i e i w o r l d . c o m

Rich I/O Interface with User-Friendly Design

A.

1.3M Webcam and 3W Speakers

High resolution video camera

● SXGA resolution image sensor

● Frame rate: [email protected] 7.5fps, max. [email protected] 24~30fps

● Auto white balance

● Auto exposure

● Auto compensation

● Focus range from 25 cm to infinity

● Flip control option

Built-in stereo speakers

● High speed USB 2.0 interface

● Storage format of image: AVI

● Storage format of photograph: BMP, JPEG

● Video resolution: 1280 x 1024, 800 x 600, 640 x 480, 352 x 288, 320 x 240, 176 x 144, 160 x 120.

B.

Super Speed USB 3.0

The SuperSpeed USB 3.0 technology supports data transfer rates up to 10 times faster than USB 2.0 with the optimized power efficiency.

C.

Expansion

area

Combo LAN

1 1 2

USB 3.0

2 x USB 3.0

2

D.

Selectable AT/ATX mode switch

AT power mode allows multiple panel PCs automatically start when the central power unit is connected. Applications:

● ATM

● Factory automation platfrom

● Self-service Kiosk

ATX power mode allows the panel PCs to be turned on/off remotely via network. Applications:

● Security surveillance

● Advertising terminal

E.

Reset button

The reset button forces the system to be reset when the system hangs up.

F.

User-

accessible CF

The PPC has a CF slot on the I/O side that makes it easy to install and replace the CF card.

G.

Reserved internal USB

The PPC has an internal USB port reserved for an encryption card for software developers to provide intelligent software protection. The purpose of using software protection is to prevent intellectual properties from being illicitly used.

H.

Front-accessible

waterproof USB

The PPC provides a convenient front-accessible

USB port protected with a waterproof cover for easy data update.

PPC-5152-2013-V10

Display System w w w . i e i w o r l d . c o m

I.

Dual Combo (SFP/RJ-45) Gigabit LAN

The PPC-5152 provides dual combo (SFP / RJ-45) gigabit LAN. For each pair of combo LAN, only one LAN port works at a time, and the SFP Fiber port works prior to the RJ-45 port. When a LAN port is working, the corresponding LED indicator lights up.

Flat-Bezel Touch Screen with IP 64 Protection

-Consumer outlook

-Industrial protection

-Flat design is easy to clean

Indicators

Power Switch

1. Press and hold 3 sec to power on

2. Press and hold 6 sec to power off

Power AT Mode Wi-Fi CPU Temperature Alert

ATX Mode HDD LAN-1 LAN-2 SFP-1 SFP-2

CPU Temperature Alert LED

The LED turns red to alert users that the CPU temperature is too high. Users at this time can lower the environment temperature or close some running programs to cool down the CPU.

Auto Dimming

Auto dimming provides more comfortable viewing, less power consumption and extends lamp life.

IR Remote Controller

Easy-to-use remote control for adjusting screen brightness and volume.

System

On/Off

Volume

Up/Down

LCD On/Off

Auto Dimming

On/Off

Brightness

Up/Down

Applications

PPC-5152-2013-V10

Display System

Rich I/O Interface

Line-out

Mic

2 x RS-232

2 x RS-422/485

Combo LAN

RS-232/422/485

VGA

DC input

(terminal block)

1

2

1 2 w w w . i e i w o r l d . c o m

Specifications

Model Name

Display

Motherboard

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

SBC

CPU

Chipset

RAM

Ethernet

Audio Codec

I/O ports and switches

Drive Bay

Physical

Expansion Slot

System Cooling

Environment

Power

Power switch

2 x USB 3.0

2 x USB 2.0

DC input (DC jack)

4-channel audio / video capture (optional)

HDD Drive Bay

SSD

CD-ROM Drive Bay

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Cut Out Dimensions

(WxH) (mm)

Net / Gross Weight

Operating Temperature

Storage Temperature

Vibration

Shock

IP level

Safety & EMC

Power Adapter

Power Requirement

Consumption

PPC-5152-D525-R10

15 “

1024(W) x 768(H)

400

500:1

16.2M

0.1095(H) x 0.1095(V)

160° / 140°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

PPCMB-5152A-D525

Intel® Atom™ D525 1.8GHz dual core processor

Intel® ICH8M

One 204-pin DDR3 SO-DIMM slot (Max.4GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC888 audio codec

2 x RS-232 (DB-9 connector)

1 x RS-232 or RS-422/485 (DB-9 connector)

2 x RS-422/485 (RJ-45 connector)

2 x USB 2.0 connector

VGA port (DB-15 connector)

2 x Audio jacks (line-out, Mic)

2 x USB 3.0 connector

AT/ATX switch

2 x Combo (SFP / RJ-45) Gigabit LAN

4-channel video / audio capture (optional)

2.5” SATA HDD bay

CF Type II socket

N/A

Aluminum

Heavy duty steel (SECC)

Panel, Wall, Rack, Stand and Arm (VESA 100 mm x 100 mm)

Silver, Paint Tone PMS 8401C

422 x 331 x 80

390 x 290

6.5 kg/ 8.8 kg

Two PCI slots or one PCI slot plus one PCIe x1 slot

Burglar-proof internal USB 2.0 port

Fanless

-20°C ~ 50°C

-20°C ~ 70°C

MIL-STD-810F 514.5C-2 (with CF card or SSD)

Half-sine wave shock 3G; 11ms; 3 shocks per axis

Front Panel IP 64

CE / FCC

90W power adapter

Input: 100VAC~240VAC, 50/60Hz

Output: 19V DC

9~36V DC Jack

9~36V Terminal Block

50W without add-on card

PPC-5152-2013-V10

Display System w w w . i e i w o r l d . c o m

Ordering Information

Part No.

Converter card

(HPE-2S1)

Converter card

(HPE-2S2)

PPC-5152-D525/R/1G/2P-R11

PPC-5152-D525/R/1G/1P1E-R11

Description

15” 400 cd/m² XGA Fanless Panel PC with two PCI expansion slots, Intel® Atom™ D525 1.8GHz CPU, 1GB DDR3 RAM, 2M camera, microphone, touch screen, R11

15” 400 cd/m² XGA Fanless Panel PC with one PCI and one PCIe x1 expansion slot, Intel® Atom™ D525 1.8GHz CPU, 1GB

DDR3 RAM, 2M camera, microphone, touch screen, R11

Options

Item

Panel Mounting Kit

Wall Mounting Kit

ARM

Stand

Wi-Fi Module Kit

Capture Card Kit

Gigabit Ethernet SFP Module

P/N

PK-170M

WK-190MS-R10

ARM-11-RS/ARM-31-RS

STAND-A19-RS/STAND-A21-R10/STAND-210-R11

PPC-WL-KIT01-R10

PPC-CP-KIT01-R10

SFP1G-SX/-I

SFP1G-MLX/-I

SFP1G-LX10/-I

SFP1G-XD70/-I

Fiber Cord

FPC-LCLC-MM3M

FPC-LCLC-SS3M

OS: Win CE 6.0 (128MB CF Card) PPCCF-5152-D525-CE060-128M-R10

OS: Win XPE (2GB CF Card) PPCCF-5152-D525-XPE-2G-R10

OS: Win XPE (4GB CF Card)

OS: Linux (2GB CF Card)

OS: Win 7 Embedded (4GB CF

Card)

PPCCF-5152-D525-XPE-4G-R10

PPCCF-5152-D525-LNX-2G-R10

PPCCF-5152-D525-WES7E-4G-R10

Description

Wi-Fi module with RF cable and antennas, 2T2R, 802.11 b/g/n.

4-channel video/audio capture card with input panel and cable, PCIe Mini interface, NTSC/PAL

1Gbps SFP optical transceiver, multi-mode / 550m, 850nm (0 ~ 70°C) /industrial grade (-20 ~ 85°C)

1Gbps SFP optical transceiver, multi-mode / 2Km, 1310nm (0 ~ 70°C) /industrial grade (-40 ~ 85°C)

1Gbps SFP optical transceiver, single-mode / 10Km, 1310nm (0 ~ 70°C) /industrial grade (-40 ~ 85°C)

1Gbps SFP optical transceiver, single-mode / 50Km, 1550nm (0°C ~ 70°C) / industrial grade (-40°C ~ 85°C)

Optical connector LC/LC, multi-mode, diameter 62.5/125 μm, length 3m.

Optical connector LC/LC, single-mode, diameter 9/125 μm, length 3m.

(*it doesn't include video/audio capture card's driver)

Packing List

Item

Utility CD

One Key Recovery CD

VESA Mounting Screw

Chassis Screw

Capture Card Screw

VESA Fastener

HDD Screw

Pluggable DC-in Terminal Block

RJ-45 to DB9 COM port Cable

Touch pen

IR Romote Controller

Power Adapter

Power Cord

Power Transfer Cord

P/N

7B000-000732-RS

44033-040062-RS

44013-030041-RS

44003-030062-RS

19Z00-000024-RS

44043-030051-RS

33101-000897-RS

32005-000700-100-RS

43125-0002C0-00-RS

7Z000-SLPCB005-RS

63040-010090-020-RS

32702-000401-100-RS

32702-000300-100-RS

1

2

1

6

4

1

4

4

4

Q'ty

1

1

1

1

1

Description

Drivers and user manual

M4*6 for securing stand bracket

M3*4 chassis screw for backup

M3*5 capture card screw for backup

FSP090-D2BA1;90~264VAC input;90W;19VDC output

1500 mm, European Standard

Dimensions

(Unit: mm)

PPC-5152-2013-V10

Display System

15" Industrial Panel PC

PPC-5150A-H61

PPC-5150A/9455 w w w . i e i w o r l d . c o m

Intel® Core™ i7/ i5/ i3, Pentium® and Celeron®

Processor

Intel® Core™ 2 Duo Processor with Intel® 945G Platform

● High brightness TFT-LCD panel with LED backlight

● Multiple storage options: 2.5" SATA HDD, CF slot, and mSATA

● Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

● Optional PCI / PCIe x 1 expansion slot

● Optional slim type CD-ROM drive bay

● Robust aluminum front bezel and metal casing

● IP 66 compliant front panel

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

(Over 4GB storage capacity)

Wireless

802.11 b/g/n

IP66 SFP Fiber

Intel

®

H61

Specifications

Model

Display

Touch

Motherboard

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

SBC

CPU

Chipset

RAM

Ethernet

Audio Codec

I/O Ports and Switches

Drive Bay

Expansion Slot

Physical

Environment

Power Supply

HDD Driver Bay

SSD

CD-ROM Driver Bay

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Cut Out Dimensions (WxH) (mm)

Net/Gross Weight

Operating Temperature

Storage Temperature

System Cooling

Vibration

Shock

IP Rating

AC Input

DC Input

PPC-5150A-H61 PPC-5150A/9455

15 "

1024(W) x 768(H)

400 350

700 : 1

16.2M

0.297(H) x 0.297(V)

140°/160° 125°/ 140°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

POS-H61

Resistive Type 5-Wire with RS-232 interface

DMC 9000

POS-9455

2nd/3rd Generation Intel® Core™ Core™ i7/ i5/ i3, Pentium® and Celeron® processor LGA 775 Socket with Intel® Core™2 Duo, Celeron® D with 533/800/1066 MHz

Intel® H61

Two 204-pin DDR3 SO-DIMM slots (Max. 16G)

Intel® 945G + ICH7R

Two 240-pin DIMM socket, supporting DDR2 400/533/667MHz modules (Max.

4G)

4 x RS-232 COM Port

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

4 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 audio codec

1 x Audio (Line-out, MIC-in)

2 x SFP Fiber LAN

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe Slot

4 x RS-232

1 x RS-232/422/485

2 x RJ-45 for LAN Port

4 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

1 x 2.5” SATA/IDE HDD bay with anti-shock

CF Type II, mSATA

Realtek RTL8111CP GbE controller

Realtek ALC888 audio codec

2 x PS/2 mouse and keyboard interface

1 x LPT

1 x Power Switch

1 x AT / ATX Switch

1 x CMOS reset button

CF Type II

SATA Slim Type CD-ROM Bay

Either 1 x PCI slot or 1 x PCIe slot,

1 x PCIe Mini card

Aluminum

Heavy-duty Steel

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

410 x 309 x 110.5

387 x 286

-20°C ~ 60°C

Silver (Pantone 8001C)

7 Kg / 11 Kg

Either 1 x PCI or PCIe x1 expansion slot

(PCI riser card built-in, optional PCIe x1 riser card)

1 x PCIe Mini card

Aluminum die-casting

Heavy-duty steel (SECC)

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

410 x 309 x 110.5

387 x 286

-10°C~50°C

-30°C ~ 70°C -20°C~60°C

DC Input ATX power supply

- P/N: ACE-4520C-RS

- 200W power supply

- Input: 24 VDC(18~36 VDC)

- Output(max.): [email protected], [email protected], [email protected], [email protected]

Active with Fan

5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak

10G acceleration part to part (11ms)

Front IP65 Compliant Front IP66 Compliant

AC Input ATX power supply

- P/N: 63000-ACEA622A166-RS

- 220W power supply

- Input: 90VAC~264VAC, 50/60Hz

- Output(max.): [email protected], [email protected], [email protected], [email protected]

P/N: 63000-ACEA618APPC-RS

-180W Power Supply

- Input: 90VAC~264VAC,50/60Hz

- Output(max.): [email protected], [email protected],[email protected], [email protected]

P/N: ACE-4520C-RS,200W power supply

- Input: 24 VDC(18~36 VDC)

- Output(max.): [email protected], [email protected], [email protected], [email protected]

PPC-5150-2013-V10

Display System w w w . i e i w o r l d . c o m

Ordering Information

Part No.

Intel® H61

Platform

Description

PPC-5150A-H61-P/R-R10

PPC-5150AD-H61-P/R-R10

PPC-5150A-H61-i3/R-R10

PPC-5150AD-H61-i3/R-R10

15” 400 cd/m² XGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3

RAM*2, Silver color, PSU ACE-A622A, touch screen, RoHS

15” 400 cd/m² XGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-4520C , touch screen, RoHS

15” 400 cd/m² XGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3

RAM*2, Silver color, PSU ACE-A622A, touch screen, RoHS

15” 400 cd/m² XGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3

RAM*2, Silver color, PSU ACE-4520C, touch screen, RoHS

PPC-5150A-H61-i5/R-R10

PPC-5150AD-H61-i5/R-R10

15” 400 cd/m² XGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3

RAM*2, Silver color, PSU ACE-A622A, touch screen, RoHS

15” 400 cd/m² XGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-4520C , touch screen, RoHS

PPC-5150A-R11/9455-E2160/A618A/T-R/1GB

15” 350 cd/m² XGA Panel PC with POS-9455 R11 version,Pentium® Dual-Core E2160 1.8GHz CPU, 1GB DDR2 RAM,

Silver color,PSU ACE-A618AP, touch screen, RoHS

PPC-5150A-R11/9455-E2160/4520C/T-R/1GB

15” 350 cd/m² XGA Panel PC with POS-9455 R11 version, Pentium® Dual-Core E2160 1.8GHz CPU, 1GB DDR2

RAM,Silver color, PSU ACE-4520C, touch screen, RoHS

PCIR-01H-R10 1-Slot PCI riser card

Riser Card

PCIER-101H-R10 1-Slot PCIe x 1 riser card

Packing List

Item

SATA CD-ROM Cable

Power Cord

Panel Mount Kit

Wall Mount Kit

IEI One Key Recovery CD

Touch Pen

User’s Manual CD-ROM

IQ Mounting Options

Item

Rack Mount Kit

Part No.

RK-150MS-R10

ARM

STAND

ARM-31-RS

STAND-210-R11

Part No.

32803-000300-100-RS

32000-000002-RS

19Z00-000024-RS

41020-016102-00-RS

IEI-7B000-000478-RS

Options

Part Number

19Z00-000112-RS

41019-0393C0-00-RS

32200-000037-RS

PPC-WL-KIT02-R10

73400-AD7760H01-RS

Description

SLIMLINE SATA 7+6 P TO SATA 7P /4P POWER ,L=200/150mm.

EUROPEAN Standard ,1830MM, PLUG(16A 250V), CONNECTOR(10A 250V)

Description

IDE CD-ROM Installation Kit (W/O IDE cable)

IDE HDD Bracket

25cm HDD IDE Cable

Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-5150A-H61, PPC-5170A-H61

Slim type SATA DVD-ROM

PPC-5150-2013-V10

Display System

PPC-5150A Dimensions

(Unit: mm) w w w . i e i w o r l d . c o m

PPC-5150A-H61 Dimensions

(Unit: mm)

1 x PS/2 for keyboard

1 x PS/2 for mouse

Power switch

AT/ATX switch or 1 x PCIe x1 slot

(Optional riser card)

1 x LPT

1 x RS-232/422/485

AC Inlet

4 x USB 2.0

2 x LAN

4 x RS-232

1 x CF slot

1 x VGA

1 x Line-in, 1 x Line-out

1 x Mic-in

AC inlet

AT/ATX Switch

2 x USB 2.0

Power Switch CMOS

Either 1 x PCI slot or 1 x PCIe x1 Slot

(optional riser card)

1 x RS-

232/422/485

1 x Line-out

1 x Mic-in

1 x VGA

4 x RS-232

2 x USB 2.0 2 x SFP 2 x USB3.0

2 x LAN

PPC-5150-2013-V11

Display System

17" Industrial Panel PC

PPC-5170A-H61

PPC-5170A/9455 w w w . i e i w o r l d . c o m

Intel® Core™ i7/ i5/ i3, Pentium® and Celeron®

Processor

Intel® Core™2 Duo Processor with Intel® 945G Platform

● High brightness TFT-LCD panel with LED backlight

● Multiple storage options: 2.5" SATA HDD, CF slot, and mSATA

● Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

● Optional PCI / PCIe x1 expansion slot

● Optional slim type CD-ROM drive bay

● Robust aluminum front bezel and metal casing

● IP 66 compliant front panel for PPC-5170A-H61

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

(Over 4GB storage capacity)

Specifications

Model

Display

Touch

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

SBC

Motherboard

I/O Ports and Switches

CPU

Chipset

RAM

Ethernet

Audio Codec

Drive Bay

Expansion Slot

HDD Driver Bay

SSD

CD-ROM Driver Bay

Physical

Environment

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Cut Out Dimensions (WxH) (mm)

Net /Gross Weight

IP Rating

Operating Temperature

Storage Temperature

System Cooling

Vibration

Shock

AC Input

Power Supply

DC Input

Wireless

802.11 b/g/n

IP66

SFP Fiber

Intel

®

H61

PPC-5170A-H61 PPC-5170A/9455

17”

1280(W) x 1024(H)

350 300

800 : 1

16.7M

0.264(H) x 0.264(V)

170°/ 160° 160°/ 160°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

POS-H61

2nd/3rd Generation Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® processor

4 x RS-232 COM Port

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

4 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

Intel® H61

Two 204-pin DDR3 SO-DIMM slots (Max. 16GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 audio codec

1 x Audio (Line-out, MIC-in)

2 x SFP Fiber LAN

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe Slot

Resistive Type 5-Wire with RS-232 interface

DMC 9000

POS-9455

LGA 775 Socket with Intel® Core™2 Duo, Celeron® D with 533/800/1066

MHz

Intel® 945G + ICH7R

Two 240-pin DIMM sockets, supporting DDR2 400/533/667MHz modules

(Max. 4GB)

Realtek RTL8111CP GbE controller

Realtek ALC888 audio codec

4 x RS-232

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

4 x USB 2.0

1 x VGA Port

1 x Line-in, 1 x Line-out,

1 x Mic-in

2 x PS/2 mouse and keyboard interface

1 x Power Switch

1 x AT / ATX Switch

1 x LPT

1 x CMOS reset button

CF Type II, mSATA

Either 1 x PCI slot or 1 x PCIe slot

1 x 2.5” SATA HDD bay with anti-shock

CF Type II

SATA Slim Type CD-ROM Bay

Either 1 x PCI or PCIe x1 expansion slot

(PCI riser card built-in, optional PCIe x1 riser card)

1 x PCIe Mini card

Aluminum

1 x PCIe Mini card

Aluminum Die-casting

Heavy-duty Steel

452 x 356 x 115

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

Silver (Pantone 8001C)

Heavy-duty steel (SECC)

452 x 356 x 115

426 x 331 425 x 331

8 Kg / 12 Kg

Front IP66 Compliant

-20°C ~ 60°C

-30°C ~ 70°C

Front IP 65 Compliant

-10°C~50°C

-20°C~60°C

Active with Fan

5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak

AC Input ATX power supply

- P/N: 63000-ACEA622A166-RS

- 220W power supply

- Input: 90VAC~264VAC, 50/60Hz

- Output(max.): [email protected], [email protected], [email protected], [email protected]

10G acceleration part to part (11ms)

P/N: 63000-ACE-A622A PPC-RS

-220W Power Supply

- Input: 90VAC~264VAC,50/60Hz

- Output (max.): [email protected], [email protected],[email protected], [email protected]

DC Input ATX power supply

- P/N: ACE-4520C-RS

- 200W power supply

- Input: 24 VDC(18~36 VDC)

- Output(max.): [email protected], [email protected], [email protected], [email protected]

P/N: ACE-4520C-RS

-200W power supply

-Input: 24 VDC(18~36 VDC)

-Output(max.): [email protected], [email protected], [email protected], [email protected]

PPC-5170-2013-V11

Display System w w w . i e i w o r l d . c o m

Ordering Information

Part No.

Description

Intel® H61

Platform

Intel® 945G

Platform

PPC-5170A-H61-P/R-R10

PPC-5170AD-H61-P/R-R10

PPC-5170A-H61-i3/R-R10

PPC-5170AD-H61-i3/R-R10

17” 350 cd/m² SXGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS

17” 350 cd/m² SXGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-4520C, touch screen, RoHS

17” 350 cd/m² SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS

17” 350 cd/m² SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-4520C, touch screen, RoHS

PPC-5170A-H61-i5/R-R10

17” 350 cd/m² SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS

PPC-5170AD-H61-i5/R-R10

17” 350 cd/m² SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3

RAM*2,Silver color, PSU ACE-4520C, touch screen, RoHS

PPC-5170A-R11/9455-E2160/A622A/T-R/1GB

17” 300 cd/m² SXGA panel PC with POS-9455 R11 version,Pentium® Dual-Core E2160 1.8GHz CPU, 1GB DDR2

RAM, Silver color,PSU ACE-A622A, touch screen, RoHS

PPC-5170A-R11/9455-E2160/4520C/T-R/1GB

17” 300 cd/m² SXGA panel PC with POS-9455 R11 version,Pentium® Dual-Core E2160 1.8GHz CPU, 1GB DDR2

RAM, Silver color, PSU ACE-4520C, touch screen, ,RoHS

PCIR-01H-R10 1-Slot PCI riser card

Riser Card

PCIER-101H-R10 1-Slot PCIe x1 riser card

Packing List

Item

SATA CD-ROM Cable

Power Cord

Panel Mount Kit

Wall Mount Kit

IEI One Key Recovery CD

Touch Pen

User’s Manual CD-ROM

Part No.

32803-000300-100-RS

32000-000002-RS

19Z00-000024-RS

41020-016102-00-RS

IEI-7B000-000478-RS

Description

SLIMLINE SATA 7+6 P TO SATA 7P /4P POWER , L=200/150mm.

EUROPEAN Standard ,1830MM, PLUG(16A 250V), CONNECTOR (10A 250V)

IQ Mounting Options

Item Part No.

RK-170MS-R10 Rack Mount Kit

ARM

STAND

ARM-31-RS

STAND-210-R11

Options

Part Number

19Z00-000112-RS

41019-0393C0-00-RS

32200-000037-RS

PPC-WL-KIT02-R10

73400-AD7760H01-RS

Description

IDE CD-ROM Installation Kit (W/O IDE cable)

IDE HDD Bracket

25cm HDD IDE Cable

Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-5150A-H61, PPC-5170A-H61

Slim type SATA DVD-ROM

PPC-5170-2013-V10

Display System

PPC-5170A Dimensions

(Unit: mm) w w w . i e i w o r l d . c o m

PPC-5170A-H61 Dimensions

(Unit: mm)

Power switch

1 x PS/2 for keyboard

1 x PS/2 for mouse

AT/ATX switch

Either 1 x PCI slot or 1 x PCIe x1 slot

(Optional riser card)

1 x LPT

1 x RS-232/422/485

AC Inlet

4 x USB 2.0

2 x LAN

4 x RS-232

1 x CF slot

1 x VGA

1 x Line-in, 1 x Line-out

1 x Mic-in

AC Inlet

AT/ATX Switch

2 x USB 2.0

Power Switch CMOS Either 1 x PCI slot or 1x PCIe by 1 Slot

(optional riser card)

1 x RS-

232/422/485

1 x Line-out

1 x Mic-in

1 x VGA

2 x USB 2.0 2 x SFP 2 x USB 3.0

2 x LAN

4 x RS-232

PPC-5170-2013-V11

Specifications

Model

Display

Touch

Motherboard

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

SBC

CPU

Chipset

RAM

Ethernet

Audio Codec

I/O Ports and Switches

Drive Bay

HDD Driver Bay

SSD

CD-ROM Driver Bay

Expansion Slot

Physical

Environment

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Cut Out Dimensions (WxH) (mm)

Net / Gross Weight

Operating Temperature

Storage Temperature

System Cooling

Vibration

Shock

IP Rating

AC Input

Power Supply

DC Input

Display System

19" Industrial Panel PC

PPC-5190A-H61 w w w . i e i w o r l d . c o m

Intel® Core™ i7/ i5/ i3, Pentium® and Celeron®

Processor

Features

● High brightness TFT-LCD panel with LED backlight

● Multiple storage options: 2.5" SATA HDD, CF slot, and mSATA

● Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

● Optional PCI / PCIe x1 expansion slot

● Optional slim type CD-ROM drive bay

● Robust aluminum front bezel and metal casing

● IP 66 compliant front panel for PPC-5190A-H61

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

(Over 4GB storage capacity)

Wireless

802.11 b/g/n

IP66 SFP Fiber

Intel

®

H61

PPC-5190A-H61

19"

1280(W) x 1024(H)

350

1000 : 1

16.7M

0.294(H) x 0.294(V)

160°/ 170°

50,000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

POS-H61

2nd/3rd Generation Intel® Core™ Core™ i7/ i5/ i3, Pentium® and Celeron® processor

Intel® H61

Two 204-pin DDR3 SO-DIMM slots (Max. 16GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 audio codec

4 x RS-232 COM Port

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

6 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

1 x Audio (Line-out, MIC-in)

2 x SFP Fiber LAN

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe Slot

1 x 2.5” SATA HDD bay with anti-shook

CF Type II, mSATA

Slim Type CD-ROM Bay

Either 1 x PCI slot or 1 x PCIe slot

1 x PCIe Mini card

Aluminum

Heavy-duty Steel

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

Silver (Pantone 8001C)

482 x 399 x 115

450 x 363

12.6 Kg / 18.2 Kg

-10°C ~ 50°C

-20°C ~ 60°C

Active with Fan

5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak

10G acceleration part to part (11ms)

Front IP66 Compliant

AC Input ATX power supply

- P/N: 63000-ACEA622A166-RS

- 220W power supply

- Input: 90VAC~264VAC, 50/60Hz

- Output(max.): [email protected], [email protected], [email protected], [email protected]

DC Input ATX power supply

- P/N: ACE-4520C-RS

- 200W power supply

- Input: 24 VDC(18~36 VDC)

- Output(max.): [email protected], [email protected], [email protected], [email protected]

PPC-5190A-2013-V11

Display System w w w . i e i w o r l d . c o m

Ordering Information

Part No.

PPC-5190A-H61-P/R-R10

Intel® H61

Platform

Riser Card

PPC-5190AD-H61-P/R-R10

PPC-5190A-H61-i3/R-R10

PPC-5190AD-H61-i3/R-R10

PPC-5190A-H61-i5/R-R10

PPC-5190AD-H61-i5/R-R10

PCIR-01H-R10

PCIER-101H-R10

PCIER-101H-R10

Description

19” 350 cd/m² SXGA Panel PC with POS-H61, Pentium Dual CoreG6xxT (Above 2.2GHz), TDP

35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS

19” 350 cd/m² SXGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP

35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS

19” 350 cd/m² SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP

35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS

19” 350 cd/m² SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP

35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS

19” 350 cd/m² SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP

35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS

19” 350 cd/m² SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP

35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS

1-Slot PCI riser card

1-Slot PCIe x 1 riser card

PCIR-01H-R10

PCIe x4 slot with PCIe x1 signal riser card One-slot PCI riser card

Packing List

Item

User’s Manual CD-ROM

SATA CD-ROM Cable

Power Cord

Panel Mount Kit

Wall Mount Kit

IEI One Key Recovery CD

Touch Pen

Part No.

32803-000300-100-RS

32000-000002-RS

19Z00-000024-RS

41020-016102-00-RS

IEI-7B000-000478-RS

Description

SLIMLINE SATA 7+6 P TO SATA 7P /4P POWER ,L=200/150mm.

EUROPEAN Standard ,1830MM, PLUG(16A 250V), CONNECTOR(10A

250V)

IQ Mounting Options

Item

Rack Mount Kit

ARM

STAND

Part No.

RK-190MS-R10

ARM-31-RS

STAND-210-R11

Options

Part Number

19Z00-000112-RS

41019-0393C0-00-RS

32200-000037-RS

PPC-WL-KIT03-R10

73400-AD7760H01-RS

Description

IDE CD-ROM Installation Kit (W/O IDE cable)

IDE HDD Bracket

25cm HDD IDE Cable

Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-5190A-H61

Slim type SATA DVD-ROM

PPC-5190A-2013-V11

Display System

PPC-5190A-H61

Fully Integrated I/O w w w . i e i w o r l d . c o m

AC inlet

AT/ATX Switch

2 x USB 2.0

Power Switch CMOS

Either 1 x PCI slot or 1x PCIe x1 Slot

(optional riser card)

1 x RS-

232/422/485

1 x Line-out

1 x Mic-in

1 x VGA

2 x USB 2.0 2 x SFP 2 x USB 3.0

2 x LAN

4 x RS-232

PPC-5190A-H61

Dimensions

(Unit: mm)

PPC-5190A-2013-V11

Display System

WIDS Series

Selection Guide

w w w . i e i w o r l d . c o m

Display

Touch

Motherboard

Expansion Slot

System Cooling

Environment

LCD Size

Model

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

CPU

Chipset

RAM

Ethernet

Audio Codec

I/O Ports and Switches

Drive Bay

HDD Driver Bay

SSD

CD-ROM Driver Bay

Operating Temperature

Storage Temperature

15”

WIDS-515A-H61

15 “

1024(W) x 768(H)

400

700:1

16.2M

0.297(H) x 0.297(V)

17”

WIDS-517A-H61

17 “

1280(W) x 1024(H)

350

800 : 1

16.7M

0.264(H) x 0.264(V)

140°/ 160°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

2nd/3rd Generation Intel® Core™ i7/ i5/ i3, Pentium® and

Celeron® processor

Intel® H61

2 x 204-pin DDR3 SO-DIMM slot (max. 16GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 HD audio codec

4 x RS-232

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

2 x SFP Fiber LAN

4 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

1 x Audio (Line-out, MIC-in)

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe expansion slot

1 x 2.5” SATA HDD bay with anti-shook

170°/ 160°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

2nd/3rd Generation Intel® Core™ i7/ i5/ i3, Pentium® and

Celeron® processor

Intel® H61

2 x 204-pin DDR3 SO-DIMM slot (max. 16GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 audio codec

4 x RS-232

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

4 x USB 2.0, 2 x USB 3.0 on rear

1 x VGA Port

1 x Audio (Line-out, MIC-in)

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/PCIe expansion slot

1 x 2.5” SATA HDD bay with anti-shook

CF Type II, mSATA

Slim Type CD-ROM Bay

CF Type II, mSATA

Slim Type CD-ROM Bay

Either 1 x PCI slot or 1 x PCIe slot

1 x PCIe Mini card

Active with Fan

-20°C ~ 60°C

-30°C ~ 70°C

WIDS-PPC-2013-V10

Either 1 x PCI slot or 1 x PCIe slot

1 x PCIe Mini card

Active with Fan

-20°C ~ 60°C

-30°C ~ 70°C

Display System w w w . i e i w o r l d . c o m

WIDS Industrial Panel PC

WIDS-515A-H61

WIDS-517A-H61

15” IP65 Heavy Industrial Panel PC with Wi-Fi

17” IP65 Heavy Industrial Panel PC with Wi-Fi

● Intel® H61 Express Chipset with 2nd/3rd Generation Intel® Core™, Pentium® and Celeron® processor

● Built-in PCIe Mini 802.11b/g/n wireless module for panel mount installation

● High brightness TFT-LCD panel with LED backlight

● Multiple storage options: 2.5" SATA HDD, CF slot, and mSATA

● Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

● Optional PCI / PCIe x1 expansion slot

● Optional slim type CD-ROM drive bay

● IP 65 compliant front panel

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)

Specifications

Wireless

802.11 b/g/n

IP65

SFP Fiber

Intel

®

H61

Model

Display

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm)

Viewing Angle (V-H)

Backlight MTBF (hrs)

Touch

Touch Screen

Touch Controller

SBC Model

Motherboard

CPU

Chipset

RAM

Ethernet

Audio Codec

I/O Ports and Switches

Driver Bay

Wireless

HDD Driver Bay

SSD

CD-ROM Driver Bay

Extension Slot

Physical

Power

Supply

WIDS-515A

15"

WIDS-517A

17"

1024(W) x 768(H)

400

700:1

16.2M

0.297 x 0.297

140°/160°

50,000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

POS-H61

1280(W) x 1024(H)

350

800:1

16.7M

0.264 x 0.264

170°/160°

2nd/3rd Generation Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® processor

Intel® H61

2 x 204-pin DDR3 SO-DIMM slot (max. 16GB)

Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Realtek ALC662 HD audio codec

4 x RS232 COM Port

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

2 x SFP Fiber LAN

4 x USB 2.0 & 2 x USB 3.0 on rear

2 x USB 2.0 on front

1 x VGA Port

1 x Audio (Line-out, MIC-in)

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/ PCIe expansion slot

1 x 2.5" SATA HDD bay with anti-shook

4 x RS232 COM Port

1 x RS-232/422/485 Port

2 x RJ-45 for LAN Port

2 x SFP Fiber LAN

4 x USB 2.0 & 2 x USB 3.0 on rear

2 x USB 2.0 on front

1 x VGA Port

1 x Audio (Line-out, MIC-in)

1 x Power Switch

1 x AT / ATX Switch

1 x PCI/ PCIe expansion slot

CF Type II, mSATA (optional)

Slim Type CD-ROM Bay

IEEE 802.11b/g/n 2T2R mode WLAN via internal PCIe Mini card interface

Either 1 x PCI slot or 1 x PCIe slot

1 x PCIe Mini card

Aluminum

Heavy-duty Steel

Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm Silver (Pantone 8001C)

410 x 329 x 123

7 Kg / 11 Kg

452 x 376 x 123

8 Kg / 12 Kg

Front Panel Contruction

Construction Chasis

Mounting Front Panel Color

Dimension (WxHxD) (mm)

Net Gross Weight

Operating Temperature (°C)

(Ambient with air flow)

Environment StorageTemperature (°C)

Humidity

Vibration

Shoock

ATX AC-Input

DC Input

-20°C ~ 60°C -20°C ~ 60°C

-30°C ~ 70°C

10% to 95% (non-condensing)

-30°C ~ 70°C

10% to 95% (non-condensing)

5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peak

10G acceleration part to part (11ms) 10G acceleration part to part (11ms)

AC Input ATX power supply

- P/N: 63000-ACEA622A166-RS

- 220W power supply

- Input: 90VAC~264VAC, 50/60Hz

- Output(max.): [email protected], [email protected], [email protected], [email protected]

DC Input ATX power supply

- P/N: ACE-4520C-RS

- 200W power supply

- Input: 24 VDC(18~36 VDC)

- Output(max.): [email protected], [email protected], [email protected], [email protected]

AC Input ATX power supply

- P/N: 63000-ACEA622A166-RS

- 220W power supply

- Input: 90VAC~264VAC, 50/60Hz

- Output(max.): [email protected], [email protected], [email protected], [email protected]

DC Input ATX power supply

- P/N: ACE-4520C-RS

- 200W power supply

- Input: 24 VDC(18~36 VDC)

- Output(max.): [email protected], [email protected], [email protected], [email protected]

WIDS-PPC-2013-V10

Display System w w w . i e i w o r l d . c o m

IO Interface

AC inlet

AT/ATX Switch

2 x USB 2.0

Power Switch CMOS

Either 1 x PCI slot or 1x PCIe x1 Slot

(optional riser card)

1 x RS-232/422/ 485

1 x Line-out

1 x Mic-in

1 x VGA

2 x USB 2.0 2 x SFP 2 x USB 3.0

2 x LAN

4 x RS-232

Ordering Information

Part No.

15"

17"

WIDS-515A-H61-P/R-R10

WIDS-515AD-H61-P/R-R10

WIDS-515A-H61-i3/R-R10

WIDS-515AD-H61-i3/R-R10

WIDS-515A-H61-i5/R-R10

WIDS-515AD-H61-i5/R-R10

WIDS-517A-H61-P/R-R10

WIDS-517AD-H61-P/R-R10

WIDS-517A-H61-i3/R-R10

WIDS-517AD-H61-i3/R-R10

WIDS-517A-H61-i5/R-R10

WIDS-517AD-H61-i5/R-R10

Riser

Card

PCIR-01H-R10

PCIER-101H-R10

Description

15” 400 cd/m2 XGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-A622A, touch screen, RoHS

15” 400 cd/m2 XGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-4520C , touch screen, RoHS

15” 400 cd/m2 XGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-A622A, touch screen, RoHS

15” 400 cd/m2 XGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-4520C , touch screen, RoHS

15” 400 cd/m2 XGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-A622A, touch screen, RoHS

15” 400 cd/m2 XGA Panel PC with POS-H61, CCore i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-4520C , touch screen, RoHS

17” 350 cd/m2 SXGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-A622A, touch screen, RoHS

17” 350 cd/m2 SXGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-4520C, touch screen, RoHS

17” 350 cd/m2 SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-A622A, touch screen, RoHS

17” 350 cd/m2 SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-4520C, touch screen, RoHS

17” 350 cd/m2 SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-A622A, touch screen, RoHS

17” 350 cd/m2 SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11 b/g/n wireless module, Silver color, PSU ACE-4520C, touch screen, RoHS

1-Slot PCI riser card

1-Slot PCIe x1 riser card

Packing List

Item

SATA CD-ROM Cable

Power Cord

Panel Mount Kit

Wall Mount Kit

Touch Pen

User’s Manual CD-ROM

IEI One Key Recovery CD

Part No.

32803-000300-100-RS

32702-000200-100-RS

19Z00-000024-RS

41020-016102-00-RS

41014-057602-00-RS

43125-0002C0-00-RS

IEI-7B000-000543-RS

IEI-7B000-000478-RS

IQ Mounting Options

Item

Panel Mount Kit

Wall Mount Kit

Rack Mount Kits

Stand

ARM

Options

Part Number

73400-AD7760H01-RS

Description

Slim type SATA DVD-ROM

WIDS-515A

WIDSRK-150MS-R10

Description

SATA 7+6 P TO SATA 7P /4P POWER

EUROPEAN Standard ,1830MM

WALL MOUNT BRACKET

ULTRA SET PLATE

For WIDS-51xA-G41

PK-170M

WK-190MS-R10

STAND-210-R11

ARM-31-RS

WIDS-517A

WIDSRK-170MS-R10

WIDS-PPC-2013-V10

Display System

WIDS-515A-H61 Dimensions

(Unit: mm) w w w . i e i w o r l d . c o m

WIDS-517A-H61 Dimensions

(Unit: mm)

WIDS-PPC-2013-V11

Display System w w w . i e i w o r l d . c o m

Industrial Vertical Market PPC

Selection Guide

Model

Display

LCD Size

Max Resolution

Brightness

(cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch

(mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

S12A(SR)-N270

12.1”

1024 x 768

400 (1300)

500 : 1 (600 : 1)

262K

0.240 (H) x 0.240 (V)

120°/100° (160°/140°)

50000 (100000)

UPC-V312-D525

12.1”

1024 x 768

600

700 : 1

16.2M

0.240 (H) x 0.240 (V)

150° / 130°

50000

UPC-V315-NM70

15 “

1024(W) x 768(H)

400

700:1

16.2M

0.297(H) x 0.297(V)

125°/ 140°

50000

UPC-V315-QM77

15 “

1024(W) x 768(H)

400

700:1

16.2M

0.297(H) x 0.297(V)

125°/ 140°

50000

UPC-12A(H)/GM45

12.1”

1024 x 768

1300

600 : 1

262K

0.240 (H) x 0.240 (V)

160°/160° (160°/160°)

100000

Touch

Motherboard

I/O Ports and Switches

Drive Bay

Expansion Slot

Touch Screen

Touch Controller

CPU

Chipset

RAM

Ethernet

Audio Codec

HDD Driver Bay

SSD

CD-ROM Driver Bay

System Cooling

Battery

Environment

Capacity

UPS Run-time

Operating

Temperature

Storage Temperature

IP Rating

Resistive Type 5-Wire with

RS-232 interface

PENMOUNT 6000

Intel® Atom™ N270 1.6GHz

CPU

Resistive Type 5-Wire with

RS-232 interface

DMC 9000

Intel® Atom™ D525 1.8GHz dual core processor

Resistive Type 5-Wire with

RS-232 interface

DMC 9000

Intel® Celeron® Processor

847

Resistive Type 5-Wire with RS-232 interface

DMC 9000

Intel® Core™ i3-3217UE

Processor

Intel® Core™ i5-3517UE

Processor

Resistive Type 5-Wire with

RS-232 interface

DMC 9000

Intel® Celeron M 575 2.0Ghz

CPU/

Intel® Core 2 Duo P8400 2.26

GHz

CPU / Intel® Core 2 Duo T9400

2.53GHz CPU

Intel® 945GSE + ICH7M

Supports one 400/533MHz two USB

GbE LAN

DDR2

SO-DIMM (2GB Max.)

Realtek RTL8111CP PCIe

GbE controller

Realtek ALC892 audio codec Realtek ALC888 audio codec

1 x 5-pin M12 connector for power adapter

1 x 8-pin M12 connector for

1 x 5-pin M12 connector for

CAN-bus and Audio line out

1 x 8-pin M12 connector for

UART RS-232/422/485

1 x 8-pin M12 connector for

UART RS-232

1 x 8-pin M12 connector for

1 x 2.5” SATA HDD Bay with anti-shock

CF Type II

Intel® ICH8M

On-board 1GB DDR3 SO-

DIMM

(System Max. 1GB )

Realtek RTL8111CP PCIe

GbE controller

RS-422/485 (4-pin box header)

RS-232 (DB-9 connector)

CAN-bus (3-pin terminal block)

GbE LAN (RJ-45 connector)

4 x USB connector

Audio jack (Line out, Mic)

VGA port (DB-15 connector

DC-IN 1 (terminal block) /

DC-IN 2 (DC Jack)

Reset button

AT/ATX switch

N/A

CF Type II socket

Mobile Intel® NM70

Express Chipset

Built in one 2 GB DDR3 memory

(System Max. 8GB; on board Max. 4GB: socket Max. 4GB)

Intel® WG82579LM GbE

PHY

Realtek ALC892 HD audio codec

3 x RS-232 (RJ-45)

1 x RS-422/485 (RJ-45)

1 x CAN-bus

1 x VGA

1 x HDMI port

2 x GbE LAN

2 x USB 2.0

1 x Reset button

1 x Audio jack

(Line out ,MIC)

1 x DC Jack (9~36V DC)

1 x Terminal block (9~36V

DC)

1 x AT / ATX mode switch

Mobile Intel® QM77

Express Chipset

Built in one 2 GB DDR3 memory

(System Max. 8GB; on board Max. 4GB: socket Max. 4GB)

Intel® WG82579LM GbE

PHY

Realtek ALC892 HD audio codec

3 x RS-232 (RJ-45)

1 x RS-422/485 (RJ-45)

1 x CAN-bus

1 x VGA

1 x HDMI port

2 x GbE LAN

2 x USB 2.0

2 x USB 3.0

1 x Reset button

1 x Audio jack

(Line out ,MIC)

1 x DC Jack (9~36V DC)

1 x Terminal block

(9~36V DC)

1 x AT / ATX mode switch

1 x 2.5” SATA SSD bay mSATA

1 x 2.5” SATA SSD bay mSATA

Intel® GM45+ICH9M

Supports two 667/800 MHz

DDR2

SO-DIMMs (4GB Max.)

Realtek RTL8111CP PCIe GbE controller

Realtek ALC888 audio codec

3 x RS-232 COM Port

1 x RS-232/422/485 COM Port

2 x RJ-45 for Gigabit LAN

6 x USB 2.0 (2 waterproof USB on front panel)

1 x VGA Port

1 x Power Switch

1 x Audio Jack (Lin-out, Mic-in)

1 x Reset Button

1 x 9~28VDC Power Jack

1 x 9~28VDC Power Input

Terminal Block

1 x Networking UPS

Management Port by RJ-45

Ethernet

1 x UPS Remote Power Switch

(2pin terminal block)

1 x 2.5” SATA HDD Bay with anti-shock

CF Type II

-

Built-in 802.11b/g/n Wireless

LAN Module

(internal PCIe Mini interface)

PCIe Mini slot for Wi-Fi -

1 x PCIe Mini Card

-

Fanless

-

-

-

Fanless

-

-

-

Fanless

-

-

Fanless

-

-

-

Built-in 802.11b/g/n Wireless

LAN Module

(internal PCIe Mini interface)

Either 1 x PCI or PCIe x1 expansion slot

Active with Fan

14.8V, 3800 mAH

30~40 mins

-10°C ~50°C

-20°C~60°C

IP 67

-20°C~60°C

-40°C~85°C

Full IP 65

-20°C ~60°C

-30°C ~70°C

Full IP 65

-20°C ~60°C

-30°C ~70°C

Full IP 65

-10°C ~50°C

-20°C~60°C

Front IP 65

Vertical PPC-2013-V12

Display System w w w . i e i w o r l d . c o m

S12A

12.1" Full IP 67 Panel PC

Full IP 67

Up to 1 meter of submersion

Features:

● 12.1” 1300 nits super high brightness LED available

● IP 67 (NEMA 6) fully-enclosed aluminum die cast enclosure and IP 67 waterproof lockable I/O

● Fanless system integrated with Intel® Atom™ N270 1.6G processor for ultra low voltage

● Supports one 2.0 GB (max.) 400/533 MHz DDR2 SO-DIMM

● Built-in internal Wi-Fi antenna supports 802.11b/g/n high standard

● CAN-bus interface for automotive applications

● Ambient light sensor detects ambient light for automated screen adjustments to optimize viewing

(Advanced Deep Dimming to Black for sunlight readable model)

● Standard VESA 75/100 compliance

COMPUTEX

Wireless

802.11 b/g/n

OK

IP67

Fanless

High

Brightess

CAN-Bus

僅 Logo與年份

Rugged Panel PC with Fanless Intel® Atom™ Processor

The fanless intelligent display computer, S12A, uses a 45 nm Intel®

Atom™ processor with up to 1.6 GHz frequency and can be used in harsh and safety-critical applications in transport, avionics, engineering or industrial automation.

Better graphics performance is excellent for kiosk, self-service terminal, and digital signage applications.

Evaluating 3D mark performance with different generation CPU and chipset combination,

Intel® Atom™ processor is the best solution for low power consumption and better graphics performance choice.

2.25

Passmark Performance

2.28

250

200

150

100

50

400

350

300

1

1

1

1.17

0.46

1.49

0.6

0.34

1.18

0.94

1.50

0.57

0.56

1.77

1

1.09

CPU

Memory

3D

0

Intel 945GSE

Atom N270

1.60GHz /533MHz

512K/L2 Cache

Intel 852GM

Celeron M

1.5GHz /400MHz

512K/L2 Cache

Intel 852GM

Celeron M

1.00GHz /400MHz

0K/L2 Cache

Intel 910GMLE

Celeron M

1.5GHz /400MHz

512K/L2 Cache

Intel 910GMLE

Celeron M

1.00GHz /400MHz

0K/L2 Cache

Intel 945GME

Celeron M 423

1.06GHz /533MHz

1M/L2 Cache

CPU/Chipset

Memory Performance 40% better than Intel 915GMEL/1GZ & 852GM/1GZ

Graphic Performance 40% better than Intel 910GMLE/1GZ, 65% better than 852GM/1GZ

Sunlight Readable

■ Super High Brightness

S12ASR (Sunlight Readable Model) has greatly improved luminance through edge lighting to achieve super high brightness

(up to 1000 cd/m²).

Sunlight

Sunlight

Readable

Low

Reflection

■ Low Reflection through AR

(Anti-Reflection) Technology

Outdoor applications in daylight or other bright environments require technology that can suppress surface reflection. S12ASR sunlight readable model offers special AR (anti-reflection) surface treatment to prevent reflection, which ensures excellent visibility in daylight conditions.

Reduced Reflection of Light

Super High Brightness: 1000 nits

High Contrast: 700:1

Wide Viewing Angle: 60/60 (R/L) 45/75 (U/D)

S12A-2013-V11

Display System

IP 67 Fully-Enclosed Design

The S12A is front sealed and tested in the certified house chamber under UL’s

Witnessed Test Data Program (TDP). IEI follows IP 67 standard testing procedures.

This full IP 67 touch monitor provides full IP 67 protection including connectors, cables and screen.

[ IP 67 ] Dust-Tight

First Digit

Level

The first digit indicates the level of protection that the enclosure provides against access to hazardous parts

Effective Against

6 No ingress of dust; complete protection against contact

w w w . i e i w o r l d . c o m

Sealing enclosure with all sides of IP 67 !

External Waterproof

Rubber

Waterproof

OSD Keypad

Sealed Back

Cover

IP 67

Connectors

Internal Waterproof

Rubber

[ IP 67 ] Temporary immersion under water 1m

Second Digit

Protection of the equipment inside the enclosure against harmful ingress of water

Level Effective Against

7

Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1mof submersion)

■ IP6X Test

• Test for protection against dust

■ IPX7 Test

• Test for protection against water

Protected against the effects of temporary immersion between 15 cm and 1m.

Duration of test is 30 minutes

Up to 1m of submersion

• Air Flow Test

Air pressure measurement is used as the IP 67 test method, the air flow tester is capable of detecting leaks in product and evaluates the pass/fail status of the watertight system.

Uninterrupted Wireless Connection

The S12A series features high speed Wi-Fi IEEE 802.n protocol which builds on previous 802 standards by adding multiple-input multiple-output (MIMO) and 40 MHz operation to the physical (PHY) layer. MIMO uses multiple transmitter and receiver antennas to improve system performance.

27 times faster data transfer rate compared to 802.11b

Protocol

802.11

a b g n

Freq.

(GHz)

5 GHz

2.4 GHz

2.4 GHz

5 GHz and/ or 2.4 GHz

Thru.

(Mbit/s)

23

4.3

19

74

Data

(Mbit/s)

54 Mbit/s

11 Mbit/s

54 Mbit/s

300 Mbit/s

(2 streams)

Range indoor Range outdoor

(m) (m)

~35

~38

~38

~120

~140

~140

~70 ~250

802.11 b/g/n ready with invisible antenna

Benefits

* Half the size of Mini-PCI

* Higher bandwidth interface

* Rigid mechanical spec.

Video Server

Mini PCI

Analog Camera 1

802.11b/g Wi-Fi, which gives you up to broadband-speed browsing and connectivity, compared to traditional wired LAN.

The benefits here:

• Simple configuration

• Without hinders worker movement

• Without lessens man-hour productivity

• Without additional purchase of proprietary cables for specific devices

• Without the barrier to space

Factory Monitoring

802.11a

30 mm

Analog Camera 2

Camera 1

Router

Router

Local Display

VoIP/Gaming/NAS Access to email, instant

Internet

S12A-2013-V10

Streaming music

Streaming video

Router

Control Center

Camera 1

Childcare Surveillance

VMobile

Display System

Ambient Light Sensor

The S12A built-in ambient light sensor automatically detects the amount of light in the viewing environment and auto-adjusts the brightness of the screen.

w w w . i e i w o r l d . c o m

Benefits:

- Provides comfortable viewing and prevents eye strain

- Power saving

- Extended lamp life

Day Mode:

Adjust to maximum 1000 nits

Sunlight Readable automatically

Panel brightness autoadjustment depends on the ambient light amount to save the system power

Night Mode:

Adjust to acceptable brightness automatically in an insufficient light ambient

CAN-bus Automotive Applications

The S12A is equipped with automotive applied CAN-bus interface. The

Control Area Network (CAN) is a serial bus system, originally developed by

Bosch for use in automobiles, and now is increasingly being used for control in industrial and automotive applications

C

ontroller

A

rea

N

etwork

• 1Mb/s data rate

• High reliability bus

• CAN is an open standard with many variants

• Capable of providing real-time communication.

CAN- bus automotive applications

■ CAN in cars and truck engine

• Networking controllers for engine timing, transmission, chassis and brakes.

• Networking components of chassis electronics and electronics which make the vehicle more comfortable. Examples of such multiplex applications are lighting control, airconditioning, central locking and seat and mirror adjustment.

Lighting Air Conditioning

Engine

Cluster

Via M12 Connector

Other Application Fields:

Brake Locks Windows

Reliable Die-Cast Aluminum Chassis

These ruggedized LCD products are designed for high reliability, shock and vibration tolerance, survival of high temperature, and corrosive environments. External materials like dust/water can be very destructive to any type of equipment over time.

■ Fanless and Completely Sealed

Strong Housing

Sealed housing strictly prevents water invasion while the rugged die-cast aluminum enclosure eliminates the need for a fan as a heat dissipation device.

■ Rigorous Shock/Vibration Test

Compliant with MIL-STD-810F shock and vibration protection, as well as offering IP 67 water and dust proof front panel protection.

Fanless and

Strong!

Operating Temperature: -10°C~50°C With on-board

Intel® Atom™ Processor N270 1.6GHz

S12A-2013-V10

Display System

Fully Integrated I/O

w w w . i e i w o r l d . c o m

Invisible Antenna Inside

Ambient Light Sensor

System Power On/Off

Specifications

Model

Display

Touch

Motherboard

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm)

Viewing Angle (H-V)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

CPU

Chipset

RAM

Ethernet

Audio Codec

1

2

3

4

5

6

VESA100/100

M12 Waterproof

Connectors

Panel Mounting

Holes

3

4

1

2

5

6

GbE LAN

RS-232

RS-232/422/485

CAN-bus and Audio line out

Two USB

Power Adapter

I/O Ports and Switches

Drive Bay

Expansion Slot

Physical

Environment

Power Requirement

Front Panel Protection

Power Consumption

Certificate

HDD Driver Bay

SSD

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Net/Gross Weight

Operating Temperature (°C)

Storage Temperature (°C)

Vibration

Shock

Optional Power Supply

OSD Adjustment:

- LCD On/Off

- Brightness Up

- Brightness Down

- Speaker Volume Up

- Speaker Volume Down

- Ambient Light Sensor On/Off

S12A-N270 S12ASR-N270

12.1"

1024 x 768

500

700:1

16.2M

0.3075 (H) x 0.3075 (V)

1300

600:1

16.7M

0.240 (H) x 0.240 (V)

160º/160º

50000

160º/140º

100000

Resistive Type 5-Wire with RS-232 interface

PENMOUNT 6000

Intel® Atom™ N270 1.6GHz CPU

Intel® 945GSE + ICH7M Intel® 945GSE + ICH7M

One 400/533MHz DDR2 SO-DIMM (Max. 2GB )

Realtek RTL8111CP PCIe GbE controller

Realtek ALC892 audio codec

1 x 5-pin M12 connector for Power Adapter

1 x 8-pin M12 connector for two USB

1 x 5-pin M12 connector for CAN-bus and Audio line out

1 x 8-pin M12 connector for UART RS-232/422/485

1 x 8-pin M12 connector for UART RS-232

1 x 8-pin M12 connector for GbE LAN

1 x 2.5" SATA HDD Bay

CF Type II

1 x Wireless LAN Module (802.11 b/g/n)

(internal PCIe Mini card interface)

-10°C ~50°C

-20°C ~70°C

Aluminum

Heavy-duty steel

Panel, Rack, Stand and Arm VESA 100mm x 100mm

Silver (Pantone 8403C)

345.3 x 300.4 x 77

4.2 Kg / 5.3 Kg

-10°C ~50°C

-20°C ~70°C

5~17Hz, 0.1" double amplitude displacement

17~640Hz, 1.5G acceleration peak to peak

10G acceleration part to part (11ms)

P/N: 63000-CLG60121C-RS - 60W Power Adapter

- Input: 90VAC~264VAC, 50/60Hz - Output: 12VDC

- M12 waterproof connector 5P

9~28VDC

IP 67 Compliant

33W 51W

Meets CE, FCC, DNV

S12A-2013-V11

Sunlight

Readable

Display System

S12A

Dimensions

(Unit: mm) w w w . i e i w o r l d . c o m

Ordering Information

Part No.

S12A/R/1/32-X-R30

S12A/R/1/4-L-R30

S12A/R/1/32-L-R30

S12A/R/1/1-C6-R30

S12A/R/1/4-X-R30

S12ASR/R/1/1-C6-R40

S12ASR/R/1/4-X-R40

S12ASR/R/1/32-X-R40

S12ASR/R/1/4-L-R40

S12ASR/R/1/32-L-R40

Description

12.1” 500 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

320GB SATA HDD with Windows XP Embedded operaintg system, R30

12.1” 500 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

4GB compact flash with LINUX operaintg system,R30

12.1” 500 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

320GB SATA HDD with LINUX operaintg system,R30

12.1” 500 cd/m² IP67 panel PC with Intel® Atom™ N270, CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

1GB compact flash with Windows CE 6.0 operaintg system, R30

12.1” 500 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

4GB compact flash with Windows XP Embedded operaintg system, R30

12.1” 1300 cd/m² IP67 panel PC with Intel® Atom™ N270, CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

1GB compact flash with Windows CE 6.0 operaintg system, R40

12.1” 1300 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

4GB compact flash with Windows XP Embedded operaintg system, R40

12.1” 1300 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

320GB SATA HDD with Windows XP Embedded operaintgsystem, R40

12.1” 1300 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

4GB compact flash with LINUX operaintg system, R40

12.1” 1300 cd/m² IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module,touch screen,1GB DDR2 553 MHz, M12 connectors and

320GB SATA HDD with LINUX operaintg system,R40

Packing List

Item Part No.

Panel mount screws pack 44013-030041-RS

Power cable

Utilities CD

Touch pen

One Key Recovery CD

32000-127500-RS

7B000-000087-RS

XTR104-0002-RS

Description

2000mm;16AWG;

(A) terminal block connector;

(B) M12 Waterproof connector

Optional cables and adapter

Item

USB cable

Part No.

CB-M12USB02-R10

RJ-45 LAN cable

DB-9 COM port cable

CB-M12RJ45-R10

CB-M12COM-R20

DB-9 CAN-bus and AUDIO line-out cable

AUDIO line-out cable

Water-proof power adapter

CB-M12ACAN-R20

CB-M12AUDIO-R10

63000-CLG6012IC-RS

Options

Item

Rack mounting kit

ARM

Stand

(B)

Part No.

SAILORRK-12

ARM-11-RS / ARM-31-RS

STAND-A12-RS / STAND-100-RS

32000-127500-RS

(A)

USB cable

(CB-M12USB02-R10)

RJ-45 LAN cable

(CB-M12RJ45-R10)

DB-9 COM port cable

(CB-M12COM-R10)

DB-9 CAN-bus and

AUDIO line-out cable

(CB-M12ACAN-R10)

AUDIO line-out cable

(CB-M12AUDIO-R10)

Water-proof Power Adapter

(63000-CLG6012IC-RS)

S12A-2013-V11

Display System

UPC-V315-

QM77

NM70

● Intel® Ivy Bridge mobile chipset (QM77/ NM70)

● 15’’ 400 nits 1024 x 768 LCD with LED backlight

● Full IP 65 compliant die-casting aluminum chassis

● PCIe Mini card expasion

● Dual-DC input, 9V ~ 36V and 10.5V ~ 36V, switch automatically

● ACC power support

● Dual-band 2.4/5GHz Wi-Fi 802.11a/b/g/n 3T3R MIMO design

● Reserved space for 3.75G / HSUPA USB dongle

● Optional GPS receiver

● Optional EM or Mifare RFID reader

● Optional Bluetooth module

● Built-in 2-megapixel webcam with AF, AE and AWB capabilities

● CAN-bus interface with isolation

● F1 ~ F10 function keys with customization options

w w w . i e i w o r l d . c o m

15” Full IP65 Aluminum Panel PC

Wireless

802.11a/b/g/n

Speakers Microphone

Camera

Touchscreen Fanless

IP65

-20ºC~60ºC

Redundant

Dual DC

Various Connections Options

The UPC-V315 provides different kinds of communication interfaces, such as LAN/ WLAN/3G/GPS/

Bluetooth/RFID, which maximize flexibility of system integration and ensure seamless workflow.

GPS Antenna

3G USB dongle

Wi-Fi Antenna (Reserver 3R3T)

Bluetooth Antenna

RFID Antenna

F1-F10 Function Keys

Connection Feasibility

Dual-Band 2.4/5GHZ Wi-Fi

Dual-band 2.4G/5G 802.11 a/b/g/n 3T3R MIMO design with up to 450 Mbps speed

Bluetooth V2.1+EDR (optional)

Connect peripheral devices with Bluetooth, such as earphone, scanner, etc.

UPC-V315-2013-V10

3.75G HSUPA (optional)

Comparing to wireless network, 3.75G HSUPA has higher mobility with long-range mobile communication and no hotspot limitation. It is also able to connect to the Internet in real time.

GPS (optional)

Travel navigation, real-time locating and path tracking

Display System w w w . i e i w o r l d . c o m

Robust Mechanical Design

The UPC-V315 is fully IP65 protected with aluminum chassis and water proof rubber gaskets. It also supports wide operating temperature from -20

°C

to 60

°C

.

-20

°C

60

°C

PCIe Mini Card Expansion

A. 3T3R Wi-Fi Module

UPC-V315 supports IEEE 802.11a/b/g/n 3T3R WiFi module, enhancing the transmission speed and coverage.

450 Mbps

T: Transmitter

The number T is absolutely relative with speed, 1T up to 150Mbps, 2T up to 300Mbps, 3T up to 450Mbps.

R: Receive

The number R is relative with receiving dead angle and distance.

The higher R is, the wider the receiving range.

3T3R

2T2R

1T1R

300 Mbps

150 Mbps

54 Mbps

1x

4x

C. 4-Channel Capture Card

6x

8x

B. Solid State Disk mSATA

mSATA is compact, rugged, and much faster than traditional HDD, which is suitable for harsh environment.

The UPC-V315-QM77 supports 4-channel video capture solution via PCIe Mini card, which can easily integrate IP camera for surveillance and real-time video streaming.

QM77 Only

+

IVCME-C604

Forklift Management Slaughter House Factory

CAN-bus Interface with Isolation

The Control Area Network (CAN) is a serial bus system. The UPC-V312 on-board CAN controllers provide bus arbitration and error detection with automatic transmission repeat function. This drastically reduces the chance of data loss, ensures system reliability, and is suitable for network intelligent I/O devices such as sensors or actuators of machines or plants.

1. Isolated protection voltage 2500V/min DC protection

2. Typical transient immunity 50 kV/ms ESD protection

Flower Market Management

Motor

Motormeter

CAN-bus

UPC-V315-2013-V10

Display System

Specifications

Model

Display

Touch

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch

(mm) (HxV)

Viewing Angle

(V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

CPU

Chipset

Motherboard

RAM

Ethernet

Audio Codec

I/O Ports and Switches

System

Connectivity

Drive Bay

Expansion Slot

System Cooling

Audio

Camera

Wireless

Bluetooth

3G

GPS

HDD Driver Bay

SSD

CD-ROM Driver

Bay

Physical

Environment

Power

Construction Material

Mounting

Front Panel Color

Dimensions

(WxHxD) (mm)

Net Weight

Operating

Temperature

Storage

Temperature

Operating Humidity

Shock

Vibration

IP Rating

Adapter

Requirement

w w w . i e i w o r l d . c o m

UPC-V315-NM70

15 “

1024(W) x 768(H)

400

700:1

16.2M

0.297(H) x 0.297(V)

125°/ 140°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

Intel® Celeron® Processor 847

Mobile Intel® NM70 Express Chipset

Buitl-in one 2 GB DDR3 memory

(System max. 8GB; on board max. 4GB; socket max. 4GB)

Intel® WG82579LM GbE PHY

Realtek ALC892 HD audio codec

3 x RS-232 (RJ-45)

1 x RS-422/485 (RJ-45)

1 x CAN-bus

1 x VGA

1 x HDMI port

2 x GbE LAN

2 x USB 2.0

1 x Reset button

1 x Audio jack (Line out,MIC)

1 x DC Jack (9~36V DC)

1 x Terminal block (9~36V DC)

1 x AT / ATX mode switch

AMP 3W + 3W (Internal Speaker)

2-megapixel

IEEE 802.11a/b/g/n 3T3R module (WIFI-RT5393-DB-R10)

Bluetooth V2.0+EDR with USB interface (optional)

Reserved USB connector (Optional)

N/A

1 x 2.5” SATA SSD bay mSATA

N/A

N/A

Fanless

Aluminium alloy

VESA 100mm x100mm or 75mm x 75mm with M8 screws

Orange (Pantone 15C)

427.19 x 330.63 x 77.06

7.97 kg

-20°C ~60°C

-30°C ~70°C

5% ~90%, non-condensing

Half-sine wave shock 3G; 11ms; 3 shocks per axis

MIL-STD-810F 514.5C-1 (with SSD)

Full IP 65

90 W; 63040-010090-020-RS

Power1: 9V~36V(+/-0.3V)

Power2: 10.5V~36V(+/-0.3V)

UPC-V315-2013-V10

UPC-V315-QM77

15 “

1024(W) x 768(H)

400

700:1

16.2M

0.297(H) x 0.297(V)

125°/ 140°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

Intel® Core™ i7-3517UE Processor

Intel® Core™ i3-3217UE Processor

Mobile Intel® QM77 Express Chipset

Buitl-in one 2 GB DDR3 memory

(System max. 8GB; on board max. 4GB; socket max. 4GB)

Intel® WG82579LM GbE PHY

Realtek ALC892 HD audio codec

3 x RS-232 (RJ-45)

1 x RS-422/485 (RJ-45)

1 x CAN-bus

1 x VGA

1 x HDMI port

2 x GbE LAN

2 x USB 2.0

2 x USB 3.0

1 x Reset button

1 x Audio jack (Line out, MIC)

1 x DC Jack (9~36V DC)

1 x Terminal block (9~36V DC)

1 x AT / ATX mode switch

AMP 3W + 3W (Internal Speaker)

2-megapixel

IEEE 802.11a/b/g/n 3T3R module (WIFI-RT5393-DB-R10)

Bluetooth V2.0+EDR with USB interface (optional)

Reserved USB connector (Optional)

FV-W9U (Optional, internal USB header)

1 x 2.5” SATA SSD bay mSATA

N/A

1 x PCIe Mini Card

Fanless

Aluminium alloy

VESA 100mm x100mm or 75mm x 75mm with M8 screws

Orange (Pantone 15C)

427.19 x 330.63 x 77.06

7.97 kg

-20°C ~60°C

-30°C ~70°C

5% ~90%, non-condensing

Half-sine wave shock 3G; 11ms; 3 shocks per axis

MIL-STD-810F 514.5C-1 (with SSD)

Full IP 65

90 W; 63040-010090-020-RS

Power1: 9V~36V(+/-0.3V)

Power2: 10.5V~36V(+/-0.3V)

Display System w w w . i e i w o r l d . c o m

IO and Human Machine Interface

Line Out

MIC

GbE LAN

USB 3.0 (UPC-V315-QM77 Only )

USB 2.0

AT/ATX

DC Jack

CLR CMOS

ACC

Fn

Backlight On/Off

Audio -

Audio +

Brightness -

Brightness +

RFID enable / disable

Audio mute

Camera enable / disable

Right side USB enable / disable

Power on / off

Terminal Block

HDMI

VGA

CAN-bus

RS-422 / RS-485

RS-232

Ordering Information

P/N

UPC-V315-QM77-i7/R/2G-R10

UPC-V315-QM77-i3/R/2G-R10

UPC-V315-NM70-C/R/2G-R10

Description

15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i7-3517UE

Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10

15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i3-3217UE

Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10

15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® NM70 Express Chipset and Intel® Celeron® Processor 847,

802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10

Packing List

Item

Utility CD

One Key Recovery CD

IR Remote Controller

RJ-45 to DB-9 COM Port Cable

M8 Screw

M4 Screw

Mounting Bracket

Screw Driver

Power Adapter

Power Cord (European Standard)

Power Transfer Cord

M8 to M4 Screw

P/N

7Z000-SLPCB005-RS

32005-000200-200-RS

44325-080081-RS

44005-040082-RS

41003-0433C2-00-RS

45019-001004-00

63040-010065-010-RS

32702-000401-100-RS

32702-000300-100-RS

44300-040061-RS

Dimensions

(Unit: mm)

1

1

8

2

1

1

8

8

1

4

Q’ty

1

1

Options

Item

ARM

Wall Mounting Kit

Stand

GPS Module Kit

Bluetooth Module Kit

EM RFID Kit

Mifare RFID Kit

OS: Win XPE (CD-ROM)

OS: Linux (CD-ROM)

OS: Win 7 Embedded (DVD-ROM)

P/N

ARM-31-RS

AFLWK-19B

STAND-C19-R10/STAND-100/STAND-210

UPC-GPS-KIT01-R10

UPC-BT-KIT01-R10

UPC-EM-RFID-KIT01-R10

UPC-MF-RFID-KIT01-R10

UPC-V315-XPE-R10

UPC-V315-LNX-R10

UPC-V315-W7E-R10

UPC-V315-2013-V10

Display System w w w . i e i w o r l d . c o m

UPC-V312-D525

12.1'' Aluminum Rugged Panel PC

● Fully IP 65 compliant with fanless Intel® Atom™ D525 1.8GHz dual-core processor

● 12.1’’ 600 nits 1024 x 768 LCD with LED backlight

● TWIN-DC input, 9V ~ 36V and 10.5V ~ 36V, switch automatically

● Dual-band 2.4/5GHz Wi-Fi 802.11 a/b/g/n 3T3R MIMO design

● Reserved space for 3.75G / HSUPA USB module

● Optional GPS receiver

● Optional EM or Mifare RFID reader

● Optional Bluetooth module

● Built-in 2-mgeapixel webcam with AF, AE and AWB capabilities

● CAN-bus interface with isolation

● Robust die-casting aluminum chassis

Wireless

802.11a/b/g/n

Speakers Microphone

Camera

Touchscreen Fanless

Full IP65

-20ºC~60ºC

Redundant

Dual DC

Specifications

Model Name

LCD Size

Max Resolution

Display

Touch

Motherboard

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm) (HxV)

Viewing Angle (V/H)

Backlight MTBF (hrs)

Touch Screen

Touch Controller

SBC

CPU

Chipset

RAM

Ethernet

Audio Codec

I/O Ports and Switches

Driver Bay

Physical

SSD

Front Panel Contruction

Chassis Construction

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Cut Out Dimensions (WxH) (mm)

Net / Gross Weight

Expansion Slot

System Cooling

Environment

Operating Temperature

Storage Temperature

Vibration

Shock

IP Level

Safety & EMC

Adapter

Power

Requirement

Consumption

UPC-V312-D525-R11

12.1”

1024(W) x 768(H)

600

700:1

16.2M

0.24(H) x 0.24(V)

150° / 130°

50000

Resistive Type 5-Wire with RS-232 interface

DMC 9000

UPCMB-V312-D525-R10

Intel® Atom™ D525 1.8GHz dual-core processor

Intel® ICH8M

On-board 2GB DDR3 SO-DIMM (System Max. 2GB )

Realtek RTL8111CP PCIe GbE controller

Realtek ALC888 audio codec

RS-422/485 (4-pin box header)

RS-232 (DB-9 connector)

CAN-bus (3-pin terminal block)

GbE LAN (RJ-45 connector)

4 x USB connector

Audio jack (Line-out, Mic)

VGA port (DB-15 connector

DC-IN 1 (terminal block) / DC-IN 2 (DC jack)

Reset button

AT/ATX switch

CF Type II /mSATA

Aluminum Die-Casting

Extruded Aluminum Alloy

VESA 100mm x 100mm and 75mm x 75mm with M8 screws

Orange (Pantone 151C)

338.5 x 276.25 x 62.86

338.5 x 276.25

4.5 kg/ 6.8 kg

PCIe Mini slot for Wi-Fi

PCIe Mini slot

Fanless

-20°C~60°C

-40°C~85°C

MIL-STD-810F 514.5C-2 (with CF card or SSD)

Half-sine wave shock 3G; 11ms; 3 shocks per axis

Full IP 65

CE / FCC

65W power adapter

Input: 90VAC~264VAC, 50/60Hz; Output: 19V DC

Power 1: 9 (+/-0.3)~36V

Power 2: 10.5 (+/-0.3)~36V

52W

UPC-V312-2013-V10

Display System w w w . i e i w o r l d . c o m

Ordering Information

Part No.

UPC-V312-D525/R-EM/2G-R11

UPC-V312-D525/R-MF/2G-R11

UPC-V312-D525/R/2G-R11

Description

12.1” 600cd/m² XGA fanless full IP 65 panel PC with Intel® Atom™ D525 dual core 1.8GHz,802.11a/b/g/n wireless module, resistive touch screen,

2-megapixel camera, microphone, 2GB DDR3 RAM, EM card reader, R11

12.1” 600cd/m² XGA fanless full IP 65 panel PC with Intel® Atom™ D525 dual core 1.8GHz,802.11a/b/g/n wireless module, resistive touch screen,

2-megapixel camera, microphone, 2GB DDR3 RAM, Mifare card reader, R11

12.1” 600cd/m² XGA fanless full IP 65 panel PC with Intel® Atom™ D525 dual core 1.8GHz,802.11a/b/g/n wireless module, resistive touch screen,

2-megapixel camera, microphone, 2GB DDR3 RAM, R11

Options

Item

ARM

Wall Mounting Kit

Stand

GPS Module Kit

Bluetooth Module Kit

OS: Win CE 6.0 (128MB CF Card)

OS: Win XPE (2GB CF Card)

OS: Win XPE (4GB CF Card)

OS: Linux (2GB CF Card)

P/N

ARM-11-RS/ARM-31-RS

AFLWK-19B/ AFLWK-12

STAND-A19-RS/STAND-A21-R10/STAND-210-R11

UPC-GPS-KIT01-R10

UPC-BT-KIT01-R10

UPCCF-V312-D525-CE060-128M-R10

UPCCF-V312-D525-XPE-2G-R10

UPCCF-V312-D525-XPE-4G-R10

UPCCF-V312-D525-LNX-2G-R10

OS: Win 7 Embedded (4GB CF Card) UPCCF-V312-D525-WES7E-4G-R10

Packing List

Item

Utility CD

One Key Recovery CD

IR Remote Controller

RJ-45 to DB-9 COM Port Cable

M8 Screw

M4 Screw

Mounting Bracket

Screw Driver

Power Adapter

Power Cord (European Standard)

RS-422 Cable

Power Transfer Cord

M8 to M4 Screw

I/O Interface

Power2 (DC jack)

Fuse

Power1 (Terminal block)

VGA

LAN

P/N

7B000-000741-RS

7Z000-SLPCB005-RS

32005-000200-200-RS

44325-080081-RS

44005-040082-RS

41003-0382C2-00-RS

45019-001004-00

63040-010065-010-RS

32702-000401-100-RS

32205-002400-100-RS

32702-000300-100-RS

44300-040061-RS

1

8

1

1

2

1

1

Q'ty

1

1

1

1

8

8

MIC, Line-out

USB

COM2 (RS-485)

COM1 (RS-232)

CAN-bus

UPC-V312 Dimensions (Unit: mm)

UPC-V312-2013-V10

Display System

UPC-12A

12.1" Aluminum UPS Panel PC with Smart Battery Backup

● 12.1” all-in-one PPC with touch technology

● 1000 nits sunlight readable panel available

● Powerful all-in-one panel PC

- Intel® GM45 chipset and 45nm mobile Core™2 Duo processor support

● Battery backup power protects your productivity from the constant threat of power outages and data loss

● Ambient light sensor detects ambient light for automated screen adjustments to optimize viewing. (0%~100% brightness control for sunlight readable version)

● 802.11 b/g/n Wi-Fi support

● PCI expansion slot for adding more capacity (optional PCI express expansion interface)

● Standard VESA 75/100 mounting

● Robust die-cast aluminum chassis

● IP 65 compliant aluminum compliant front panel

w w w . i e i w o r l d . c o m

Rugged Aluminum

Die-casting Body

!

Wireless

802.11 b/g/n

Sunlight

Readable

Specifications

Model

Display

Touch

Motherboard

LCD Size

Max Resolution

Brightness (cd/m²)

Contrast Ratio

LCD Color

Pixel Pitch (mm)

Viewing Angle (H-V)

Backlight MTBF

Touch Screen

Touch Controller

CPU

Chipset

RAM

Ethernet

Audio Codec

Touchscreen

PCI/PCIe

Expansion

I/O

Expansion

LED Indicator

Membrane Keypad

Drive Bay

SSD

HDD

Capacity

Battery

UPS run-time

Physical

Construction Material

Mounting

Front Panel Color

Dimensions (WxHxD) (mm)

Operating Temperature (ºC)

Storage Temperature (ºC)

Net/Gross Weight Environment

Touch Screen

Power Requirement

IP Level

Safety & EMC

Power Consumption

Smart

Battery

12.1" Regular Brightness

UPC-12A/GM45

12.1"

1024 x 768

12.1" Sunlight Readable

UPC-12AH/GM45

12.1"

1024 x 768

450

700:1

262k

0.240(H) x 0.240(V)

150º / 150º

50000hrs

1300

600:1

262k

0.240(H) x 0.240(V)

160º / 140º

100000hrs

Resistive Type 5-Wire with RS-232 interface

DMC 9000

Intel® Core™2 Duo P8400 2.26GHz

Intel® Celeron® M 575 2.0GHz

Intel® Core™2 Duo T9400 2.53GHz

Intel® GM45 Chipset + ICH9M

Intel® Core™2 Duo P8400 2.26GHz

Intel® Celeron® M 575 2.0GHz

Intel® Core™2 Duo T9400 2.53GHz

Intel® GM45 Chipset + ICH9M

Two DDR2 SO-DIMM up to 4GB

Realtek RTL8111CP PCIe GbE controller

Realtek ALC888 audio codec

3 x RS-232 COM

1 x RS-232/422/485 COM

2 x RJ-45 Gigabit LAN

6 x USB 2.0 (2 waterproof USB on the front panel)

1 x VGA

1 x Power Switch

2 x Audio Jack (Line-out, Mic-in)

1 x Reset Button

1 x Clear CMOS Button

1 x 9~28VDC Power Jack

1 x Power Mode Switch (Battery or DC input)

1 x 9~28VDC Power Input Terminal Block

1 x Networking UPS Management Port by RJ-45 Ethernet

1 x Remote COM port by RJ-45 connector

1 x AT Mode UPS Switch (2 pin terminal block)

1 x PCI, 1 x PCIe x1 (Optional), 1 x PCIe Mini (Wireless LAN Module)

Power LED / HDD Status / Charging / Discharging / Light Sensor

LCD On/Off; Brightness Up/Down; Volume Up/Down; Auto Dimming On/Off; Battery Low Beeper (under 10% batter capacity beeper on/off)

CF Type II

1 x 2.5" SATA HDD bay

14.8V, 3800 mAH

40 mins

50 mins

40 mins

40 mins

30 mins

40 mins

Aluminum Die-casting

VESA 100 mm x100 mm

Orange (Pantone 151C)

335 x 280 x 119

-10°C~55°C

-20°C~70°C

5.8 Kg / 6.9 Kg

IP 65 Compliant front panel

CE, FCC

Resistive Type 5-Wire (Touch controller IC is on board)

9~28VDC

63W

60W

65W

73W

70W

74W

UPC-12A-2013-V11

Display System w w w . i e i w o r l d . c o m

Ordering Information

Part No.

UPC-12A/GM45-CM5/R/1G-R21

450 nits UPC-12A/GM45-P84/R/2G-R21

UPC-12A/GM45-T94/R/2G-R21

UPC-12AH/GM45-CM5/R/1G-R20

1300 nits UPC-12AH/GM45-P84R/2G-R20

UPC-12AH/GM45-T94R/2G-R20

Description

12.1" 450cd/m² XGA panel PC with Intel® Celeron® M 575 2GHz CPU , 100W UPS with 14.8V, 3800mAH, 1GB DDR2 RAM and touch screen, 802.11 b/g/n wireless

12.1" 450cd/m² XGA panel PC with Intel® Core™2 Duo P8400 2.26GHz CPU, 100W UPS with 14.8V,

3800mAH, 2GB DDR2 RAM and touch screen, 802.11 b/g/n wireless

12.1" 450cd/m² XGA panel PC with Intel® Core™2 Duo T9400 2.53GHz CPU, 100W UPS with 14.8V,

3800mAH, 2GB DDR2 RAM and touch screen, 802.11 b/g/n wireless

12.1" 1300 cd/m² XGA panel PC with Intel® Celeron® M 575 2GHz CPU , 100W UPS with 14.8V,

3800mAH, 1GB DDR2 RAM and touch screen, 802.11 b/g/n wireless

12.1" 1300 cd/m² XGA panel PC with Intel® Core™2 Duo P8400 2.26GHz CPU, 100W UPS with 14.8V, 3800mAH,2GB DDR2

RAM and touch screen, 802.11 b/g/n wireless

12.1" 1300 cd/m² XGA panel PC with Intel® Core™2 Duo T7500 2.2GHz CPU, 100W UPS with 14.8V, 3800mAH, 2GB DDR2

RAM and touch screen, 802.11 b/g/n wireless

Packing List

Item

Screws Pack

Part No.

44003-050501-RS

RJ-45 to DB-9 COM port cable 32000-089201-RS

Power Adpater 63040-010096-010-RS

Power Cord

Utilities CD

Touch Pen

Wi-Fi 802.11 b/g/n PCIe Mini card

32000-000002-RS

7B000-000087-RS

XTR104-0002-RS

7F900-Q802XKN-RS

Smart battery pack BAT-LI-4S2P3800A

One Key Recovery CD

1

1

1

Q'ty Specifications

4 M5; 5mm

1

1 90~264V AC; 12V DC; 96W

1750mm; European Standard

I/O Interface

1

2

3

4

5

6

7

12

8 9

10 11

13

15

14

1

Lithium ion Battery 4S2P,

3800mAh, FOR UPC Series

6

7

4

5

1

2

3

9~28VDC Input

Power Switch

DC 12V Power Jack

3 x RS-232 COM, 1 x RS-232/422/485 COM

User-accessible CF

4 x USB 2.0

1 x PCI Expansion Slot

(Optional PCIe x1 expansion)

10

11

12

8

9

13

14

15

2 x RJ-45 Gigabit LAN

Remote RS-232, Remote LAN

Clear CMOS

Reset

Line-out

Mic-in

AT Mode UPS Switch

VGA Output

Note: Connect DC input continuously. Battery will be drained after 14 hours.

Options

Model

Panel mounting kit

Wall mounting kit

Rack mounting kit

ARM

Stand

OS: Win CE 6.0

OS: Win XPE

Battery Pack

PCIe x 1 Riser Card

UPC-12A-910

UPCCF-12-910-CE060-R20

UPCCF-12-910-XPE-R20

UPC-12A-GM45

UPCPK-12

AFLWK-19B

UPCRK-12

ARM-11-RS / ARM-31-RS

STAND-A19-RS / STAND-A21-R10 / STAND-210-R11

N/A

UPCCF-12-GM45-XPE-R20

BAT-LI-4S2P3800A (14.8V, 3800mAH)

034D335-00-100-RS

UPC-12AH-GM45

N/A

UPCCF-12-GM45-XPE-R20

UPC-12A

Dimensions

(Unit: mm)

UPC-12A-2013-V11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
