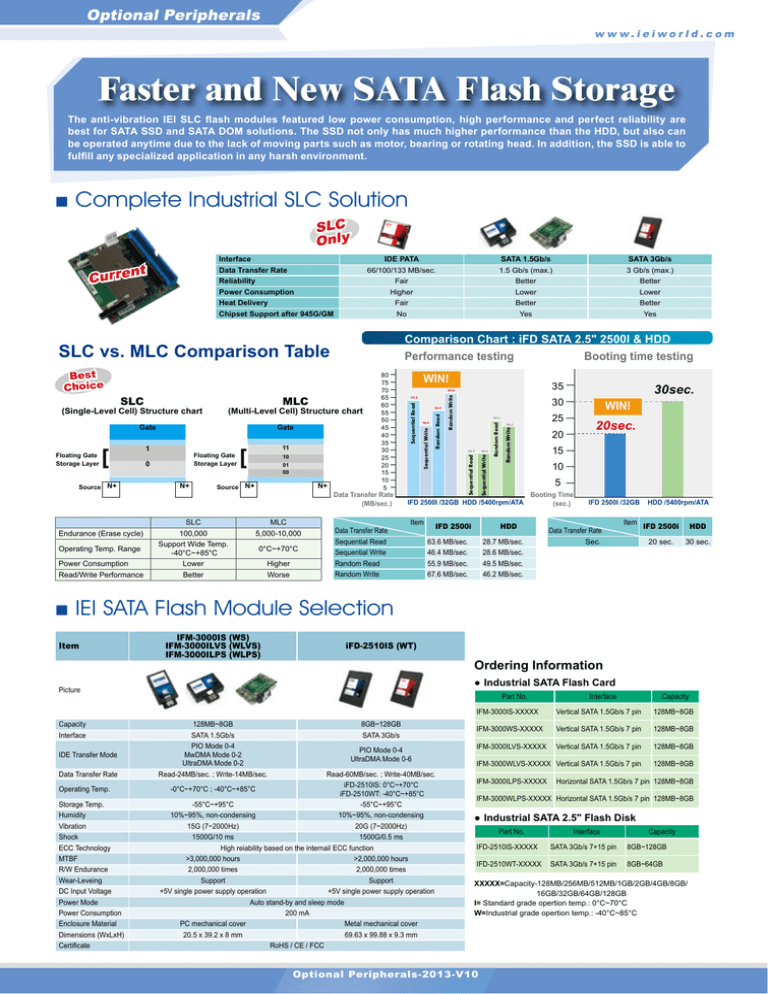

Faster and New SATA Flash Storage

The anti-vibration IEI SLC flash modules featured low power consumption, high performance and perfect reliability are best for SATA SSD and SATA DOM solutions. The SSD not only has much higher performance than the HDD, but also can be operated anytime due to the lack of moving parts such as motor, bearing or rotating head. In addition, the SSD is able to fulfill any specialized application in any harsh environment.

Capacity

Interface

IDE Transfer Mode

Data Transfer Rate

Operating Temp.

Storage Temp.

Humidity

Vibration

Shock

ECC Technology

MTBF

R/W Endurance

Wear-Leveing

DC Input Voltage

Power Mode

Power Consumption

Enclosure Material

Dimensions (WxLxH)

Certificate

Complete Industrial SLC Solution

Current

SLC

Only

Interface

Data Transfer Rate

Reliability

Power Consumption

Heat Delivery

Chipset Support after 945G/GM

IDE PATA

66/100/133 MB/sec.

Fair

Higher

Fair

No

SATA 1.5Gb/s

1.5 Gb/s (max.)

Better

Lower

Better

Yes

SATA 3Gb/s

3 Gb/s (max.)

Better

Lower

Better

Yes

SLC vs. MLC Comparison Table

Best

Choice

(Single-Level Cell) Structure chart

Floating Gate

Storage Layer

Source

[

N+

SLC

Gate

1

0

N+

[

MLC

(Multi-Level Cell) Structure chart

Floating Gate

Storage Layer

Source

N+

Gate

11

10

01

00

N+

20

15

10

5

40

35

30

25

60

55

50

45

80

75

70

65

Data Transfer Rate

(MB/sec.)

Endurance (Erase cycle)

Operating Temp. Range

Power Consumption

Read/Write Performance

SLC

100,000

Support Wide Temp.

-40°C~+85°C

Lower

Better

MLC

5,000-10,000

0°C~+70°C

Higher

Worse

Data Transfer Rate

Sequential Read

Sequential Write

Random Read

Random Write

Comparison Chart : iFD SATA 2.5" 2500I & HDD

Performance testing Booting time testing

63.6

WIN!

46.4

55.9

67.6

28.7

28.6

49.5

46.2

IFD 2500I /32GB HDD /5400rpm/ATA

35

30

25

20

15

10

5

Booting Time

(sec.)

WIN!

20sec.

IFD 2500I /32GB

30sec.

HDD /5400rpm/ATA

Item

IFD 2500i

63.6 MB/sec.

46.4 MB/sec.

55.9 MB/sec.

67.6 MB/sec.

HDD

28.7 MB/sec.

28.6 MB/sec.

49.5 MB/sec.

46.2 MB/sec.

Data Transfer Rate

Sec.

Item

IFD 2500i HDD

20 sec.

30 sec.

IEI SATA Flash Module Selection

Item

IFM-3000IS (WS)

IFM-3000ILVS (WLVS)

IFM-3000ILPS (WLPS) iFD-2510IS (WT)


128MB~8GB

SATA 1.5Gb/s

PIO Mode 0-4

MwDMA Mode 0-2

UltraDMA Mode 0-2

Read-24MB/sec. ; Write-14MB/sec.

8GB~128GB

SATA 3Gb/s

PIO Mode 0-4

UltraDMA Mode 0-6

-0°C~+70°C ; -40°C~+85°C

Read-60MB/sec. ; Write-40MB/sec.

iFD-2510IS: 0°C~+70°C

iFD-2510WT: -40°C~+85°C

-55°C~+95°C -55°C~+95°C

10%~95%, non-condensing

15G (7~2000Hz)

10%~95%, non-condensing

20G (7~2000Hz)

1500G/10 ms 1500G/0.5 ms

High reiability based on the internail ECC function

>3,000,000 hours

2,000,000 times

Support

+5V single power supply operation

PC mechanical cover

20.5 x 39.2 x 8 mm

Auto stand-by and sleep mode

200 mA

Metal mechanical cover

69.63 x 99.88 x 9.3 mm

RoHS / CE / FCC

>2,000,000 hours

2,000,000 times

Support

+5V single power supply operation

Ordering Information

● Industrial SATA Flash Card

Part No.

IFM-3000IS-XXXXX

Interface Capacity

Vertical SATA 1.5Gb/s 7 pin 128MB~8GB

IFM-3000WS-XXXXX Vertical SATA 1.5Gb/s 7 pin 128MB~8GB

IFM-3000ILVS-XXXXX Vertical SATA 1.5Gb/s 7 pin 128MB~8GB

IFM-3000WLVS-XXXXX Vertical SATA 1.5Gb/s 7 pin 128MB~8GB

IFM-3000ILPS-XXXXX Horizontal SATA 1.5Gb/s 7 pin 128MB~8GB

IFM-3000WLPS-XXXXX Horizontal SATA 1.5Gb/s 7 pin 128MB~8GB

● Industrial SATA 2.5" Flash Disk

Part No.

Interface Capacity

IFD-2510IS-XXXXX SATA 3Gb/s 7+15 pin 8GB~128GB

IFD-2510WT-XXXXX SATA 3Gb/s 7+15 pin 8GB~64GB

XXXXX=Capacity-128MB/256MB/512MB/1GB/2GB/4GB/8GB/

16GB/32GB/64GB/128GB

I= Standard grade opertion temp.: 0°C~70°C

W=Industrial grade opertion temp.: -40°C~85°C

Optional Peripherals-2013-V10

Optional Peripherals w w w . i e i w o r l d . c o m

Intelligent DC UPS Module

12V/9~36V DC Input, 12V DC Output Uninterruptible Power

Supply Module with Diagnostics

• VESA 75 or VESA 100 mounting

• 9-36V input through terminal or power jack, or 12V through power jack only

• Battery status and charge monitoring utility. Remote network management capabilities

Features

• 60W (5A @ 12V) or 100W (8.3A @ 12V) output

• 28Wh or 56Wh, for more than 140 minutes operation time (depending on panel PC power requirements)

• Rugged metal enclosure for standard VESA 75/100 mounting

• Web-based, remote network management, no software installation required

• Local PC-based monitoring software for input detection and battery status monitoring

• Auto shut down when battery low

• Remote DC output on/off switch for external switch installation

• Provides stable power to the PC during line sags and spikes and absorbs power surges and transients, protecting expensive equipment

Model Name

Input Power

Dimensions (mm)

Battery Capacity

Output Power

VESA Support (mm)

AUPS-A10 / AUPS-A20

AUPS-A10 (12V)

AUPS-A20 (9~36V)

150 x 95 x 34

28 Wh (Watt/Hour)

60W ([email protected])

75 x 75

Intelligent UPS Module

High Energy Density / Lightweight / Compact DC to DC UPS & Power Module

Protect your panel PC from electrical damage and greatly reduce the risk of losing data.

The UPS module serves as temporary power during a short break in power and allows a safe system shutdown for longer periods of power loss.

A. Dual Power Input Connector

AUPS-B10 / AUPS-B20

AUPS-B10 (12V)

AUPS-B20 (9~36V)

170 x 150 x 34

56 Wh (Watt/Hour)

100W ([email protected])

75 x 75 / 100 x 100

AUPS-C20

9~36V x

233x197x 59

200 Wh (Watt/Hour)

100W ([email protected])

75 x 75 / 100 x 100

D. Networking UPS Management Port by RJ-45 Ethernet

1.DC 9V~36V input by terminal block

(Only AUPS-A20 / AUPS-B20)

B. Battery Status

USB Console Port

2. (1) Only 12V input by DC jack

(AUPS-A10 / AUPS-B10)

(2) Wide 9V~36V input by DC jack

(AUPS-A20 / AUPS-B20)

C. DC Power Button

DC Remote Power Button

Color

Function

Dark

Light

Blinking

LED 1

Green

Power Input

DC Power Out

DC Power In

LED Signal Table

LED 2

Yellow

Charging Status

Discharging

Charging

LED 3

Orange

Battery Status

Battery Full

Battery Low

Optional Peripherals-2013-V10

4-2

Optional Peripherals

AUPS Network Administration Tool

● Network Remote

Management Anywhere

● Network Remote

Management Software

w w w . i e i w o r l d . c o m

AUPS IP address

Battery Capacity Status

Power On/OFF

Email Status Report

UPS Status Monitoring

● Intelligent Software Utility

The remote management software utility and application program allow users to easily get the status of the AUPS and to control the AUPS power functions from anywhere with internet connection.

Remote control DC output ON/OFF via web interface.

Click ALARM to get each AUPS

status via internet

Network Remote Management Software

• STATUS

• Send E-mail

• Board configuration

AUPS Local USB Utility Tool

Battery Monitoring Utility

Monitor the Most Critical Battery Functions on the Local Machine

The battery monitoring utility provides AUPS status monitoring and configuration ability. Uninterruptible Power Systems is a significant product that serves as emergency power when you suffer from electric event.

Battery Monitoring Utility

Networking Remote Management

• Battery detection

• Battery capacity status

• Battery charge

• DC input indicator

• Battery indicator

• Temperature warning

• Low battery alarm

• Connection port status

DC Input only

Normal

Icon

Charging

50%

Capacity

50%

Charging

100%

Capacity

100%

BATTERY STATUS

• BAT.A shows Battery status real time monitoring

Battery type

Battery usage remaining time

Battery capacity bar

Real-time information update

AUPS STATUS

• STATUS shows DC / Battery power input detection

DC Input

Detection

Battery

Status

Detection

LAN CONFIGURATION

• LAN shows system IP Address information

ABOUT

• About shows AUPS Utility information

SETTING

• SETTING shows Connection Detection port

Auto-Scan Connection port

System shutdown condition according to battery capacity setting

Meanwhile, IEI also provides AUPS API

SDK and command list for customer programming under DOS or Linux system.

AUPS API Content

Inti()

AUPS Close()

WriteCommand()

ReadCommand()

Error Code Definition()

AUPS API SDK

AUPS API SDK/Content

Optional Peripherals-2013-V10

Optional Peripherals w w w . i e i w o r l d . c o m

AUPS Module Specifications

Input Data

Output Data

Protection

Monitoring

Physical

LED Indicator

Environment

Model Name

VESA Type

Input voltage Uinated/range

Input current rated

Standby power consumption

Operation with charging current

Operation with charging power consumption

Charging time with system ON/OFF

Output voltage for normal operation

AUPS-A10 AUPS-A20 AUPS-B10 AUPS-B20

VESA 75

DC +12V

VESA 75

DC +9V~+36V

VESA 75 and 100

DC +12V

VESA 75 and 100

DC +9V~+36V

1. Adapter is 12V-6A (Load is 60W)

2. Battery is 6V-12A (Load is 60W)

1. Adapter is 12V-9A (Load is 100W)

2. Battery is 12V-9A (Load is 100W)

0.3A (0.2A if Network Management disabled)

AUPS-C20

VESA 75 and 100

DC +9V ~ +36V

500mA

6W

8hrs / 2hrs (Battery empty)

DC +12V +/-5%

10W

Output voltage for battery operation(approx). 6~8.4V DC6 V (exhaustive discharge protection)

Output current 0A~5A

Efficiency (nominal operation) / power loss at Vin=12V, Iout=80% of full loading

Short-circuit protection

89% 93%

Exhaustive discharge protection

EMC / Safety certification

Ethernet interface

12~16.8V DC12 V (exhaustive discharge protection)

95%

0A~8.3A

Yes

1. Battery low is 10% of battery capacity

2. Shuntdown 5% of battery capacity (Default)

3. The end of battery discharge voltage is 6V

CE, FCC

94%

0A~7.6A

90%

USB interface

Dimensions (LxWxH)

Weight

Green

Yellow

PC-capable, specification 2.0 with full speed, i.e. 2 Mbit/s. Standard 4-core shielded cable, USB Series "mini B" connector to DC-

UPS

152mm x 96mm x 28mm

1.2 kg

Web-based, specification 10/100Mbps with RJ-45 connection, Cat. 5 cable

174mm x 147mm x 35mm

1.8 kg

233mm x 197mm x 59mm

3.8 kg

DC power input

Battery charging

Orange

Operating Tem.

Storage Tem.

Bettery discharging

0°C~40°C

-20°C~50°C

Note1: Connecting DC input constantly is recommended. Battery will be drained after 14 hours.

Note2: System power consumption + AUPS charging power consumption = Total watts of power source

Battery Module Specifications

Battery

Model Name

Battery Model Name

Battery type

Battery capacity

Maximum charge voltage

The end of discharging voltage

Recommended charging current (max.)

System continuous discharging current (max.)

The end of charge condition

Discharge protection

Charge protection

Ambient temperature

Storage temperature

Self-discharge rate

Dimensions (LxWxH)

Weight

Cycle life

Backup

Safety class

AUPS-A10

BAT-LI-2S2P3800

AUPS-A20

Li-Ion 2S2P 7.4V

7.4V 3800 mAH

8.4V

5.6V

2A

7.6A

250mA / 1Min

AUPS-B10

BAT-LI-4S2P3800

Li-Ion 4S2P 14.8V

14.8V, 3800 mAH

16.8V

11.2V

2A

AUPS-B20

Under voltage protection / Over current protection

Over voltage protection / Over current protection

0°C~40°C

-20°C~60°C

7.6A

200mA / 1Min

139mm x 47mm x 26mm

236g

60W / 10Min

340uA~440uA

165mm x 76mm x 26mm

450g

300 charge / discharge cycles

100W / 10Min

CE, FCC

Note: Replacing battery module every 2 years is recommended.

Selection Table for UPS Modules and Main Buffering Time

AFOLUX PPC AUPS-A10 AUPS-A20

Under 50W solution

AUPS-B10

AFL-057-LX (15W~20W)

AFL-07A-N270 (20W~25W)

AFL-08AH-N270 (25W~30W)

145min

100min

70min

145min

100min

70min

290min

200min

140min

AFL-10A-N270 (25~30W)

AFL-10A-9103 (40W~45W)

AFL-10A-LX (25W~30W)

AFL-12A-LX (25W~30W)

70min

50min

70min

70min

70min

50min

70min

70min

140min

100min

140min

140min

AFL-12B-CX2 (38W~42W)

AFL-12A-N270 (25W~30W)

AFL-12B-9103 (45W~48W)

50min

70min

50min

70min

45min 45min

50W ~ 100W solution

-

100min

140min

90min

AFL-15B-915-CM370 (58W~63W)

AFL-15C-9652-T7500 (65W~70W)

AFL-17B-915-CM370 (75W~80W)

AFL-17C-9652-T7500 (85W~90W)

AFL-19B-915-CM370 (75W~80W)

-

-

-

-

-

-

-

-

35min

30min

25min

20min

25min

AFL-19C-9652-T7500 (85W~90W) 20min

Note: The backup time could be varied on different models or operating temperature.

AUPS-B20

290min

200min

140min

140min

100min

140min

140min

100min

140min

90min

35min

30min

25min

20min

25min

20min

Optional Peripherals-2013-V10

BAT-LI-2S2P3800

AUPS-C20

BAT-LI-4S2P3800(x4)

Li-Ion 4S2P 14.8V

14.8V, 3800 mAH(x4)

16.8V

11.2V

2A

7.6A

200mA / 1Min

165mm x 76mm x 26mm

450g

100W / 10Min

CE, FCC

BAT-LI-4S2P3800

4-4

Optional Peripherals

AUPS Mechanical Drawing (Unit: mm)

177.7

151.7

75

AUPS-A10/20

37.5

75

37.5

199.5

173.5

100

75

DC Power Cable (DC plug to DC plug) with lock

32000-115300-RS

w w w . i e i w o r l d . c o m

Remote Switch Cable

32000-124600-RS

USB Connection Cable

32000-115500-RS

AUPS-B10/20

100

75

Connector for AFOLUX

Panel PC:

AFL-LX PPC series

AFL-LXPOS PPC series

AFL-CX2 PPC series

AFL-9103 PPC series

AFL-N270 PPC series

DC Power Cable (DC plug to DC plug) without lock

32000-120400-RS

DC Power Cable (DC plug to mini DIN)

32002-002201-100-RS

37.5

50

AUPS-C20

Connector for AFOLUX

Panel PC:

AFL-915 PPC series

AFL-965 PPC series

Ordering Information

Part No.

Description

AUPS-A10-R11

AUPS-A20-R11

AUPS-B10-R11

VESA 75, DC 12V input, 12V output 60W UPS module with

3800mAH, 2S2P Li-ion battery

VESA 75, DC 9~36V input, 12V output 60W UPS module with 3800mAH, 2S2P Li-ion battery

VESA 100, DC 12V input, 12V output 100W UPS module with 3800mAH, 2S4P Li-ion battery

AUPS-B20-R11

AUPS-C20-R10

VESA 100, DC 9~36V input, 12V output 100W UPS module with 3800mAH, 2S4P Li-ion battery

VESA 100, DC 9~36V input, 12V output 100W UPS module with 3800mAH,W/O battery

BAT-LI-2S2P3800

(AUPS-A10/20)

Smart battery; TE9IC032K1002; Lithium ion battery (S2P);

7.4V; 3800mAh; RoHS

BAT-LI-4S2P3800

(AUPS-B10/B20/C20)

Smart battery; TE9IC042K1002; Lithium ion battery (4S2P);

14.8V; 3800mAh; RoHS

Packing List

Item

DC power cable, 300mm, male 4-pin mini-DIN to DC plug 5.0 x 2.1

(AUPS-B10/B20/C20 only)

Part

Number

Q’ty

32002-002201-100-RS

1

DC power cable,

150mm, DC plug

5.5 x 2.1 to DC plug

5.0 x 2.5 without lock

32000-120400-RS

1

DC power cable,

150mm, DC plug 5.5 x

2.1 to DC plug

5.0 x 2.5 with lock

32000-115300-RS

1

USB cable, 200mm,

USB type A male to mini USB

32000-115500-RS

1

Remote switch cable,

1200mm

32000-124600-RS

1

Screw kit

44013-030041-RS

1

Utility CD (including utility software and user's guide)

7B000-000087-RS

1

Optional Peripherals-2013-V10

Optional Peripherals

IDD-930160-KIT

w w w . i e i w o r l d . c o m

60 W DC/DC Converter Module for

AFOLUX Panel PC and Monitor

Specifications

● Input voltage: 9-30 VDC

● Input current: Max. 8.2 A at 9 VDC

● Output: 12 [email protected] A

● Max. total output: 60W

● Performance characteristics:

Noise and ripple: <120 mV

Line regulation: <2.5%

Load regulation: <2.5%

● Transient toggle rate: 250 Hz (50% duty ratio)

● Transient current step:

From 0% to 50% and 50% to 100% of max current

● Efficiency: typ. 95% (Vin=12 V, 80% of full load)

● Dimensions: 42 mm x 103 mm x 31 mm

● Mounting kit: 12 mm x 80 mm

● Cable length: 180 cm

● Operating temperature: -10°C~55°C

● Load down protection

Typical Applications

AFOLUX Panel PC 7"~15"

AFOLUX Monitor Series

IDD-930160-KIT

Mounting

Pout

100%

85%

70%

Connects to car cigarette lighter

55ºC 70ºC 85ºC

Temp. ºC

Dimensions (Millimeters)

Packing Information

1 x IDD-930160-KIT-R10

1 x Mounting kit

1 x Screw kit

1 x Anti-slip strip

1 x Utility CD

Ordering Information

Part No.

Description

IDD-930160-KIT-R10 60 W DC/DC 9-30 VDC input vehicle power adapter

Optional Peripherals-2013-V10

4-6

Optional Peripherals w w w . i e i w o r l d . c o m

IEI Quick Mounting Technology

100mm

75mm

1

. Stand Mounting

VESA 75/100 Universal Stand

Compliant with VESA Mounting Standards

IEI panel solutions have four mounting holes compliant with the VESA

(Video Electronics Standards Association) mounting standard

(75mm x 75mm/100mm x 100mm) on the rear panel for stand mounting and other mounting methods.

1.

Stand Mounting

5.

In-Wall Mounting

2.

V-STAND

3.

ARM

4.

Wall Mounting

6.

Panel Mounting

7.

Rack Mounting

8.

Din Mounting

STAND-A21-R10

Portrait/Landscape Height Adjustment (13 cm)

Cable

Management

Right/Left Pan (360°) Forward/Backward Tilt (+25°/-5°)

Ordering Information

Part No.

Description

STAND-A21-R10 15”~21” VESA 75x75 mm/100x100 mm PPC/Monitor Stand, support from 6 KG to ~12 KG, Black, RoHS

STAND-100

160mm

250mm

Ordering Information

Part No.

Description

STAND-100-RS

• Material: Heavy-duty steel

• Adjustable display angle

• 3kg to 8kg loading capacity

• Color: White (Pantone 413C)

250mm

STAND-210

Ordering Information

Part No.

Description

STAND-210-R11

• Support VESA 75/100 standard

• Weight capacity from 7kg~10kg

Optional Peripherals-2013-V10

Optional Peripherals

VESA 75/100 Easy Stand

STAND-B08 w w w . i e i w o r l d . c o m

Tilt Forward/Backward

STAND-A/Bxx

STAND-C12-R10 STAND-C19-R10

Tilt Forward/Backward

Ordering Information

Part Number

STAND-B08

STAND-C12-R10

STAND-A12-RS

STAND-A19-RS

STAND-C19-R10

Description

5.6”~8.4" VESA 75x75mm PPC/monitor stand, support up to 5 kg, Silver color, RoHS

5.7" ~ 12.1" VESA 100x100mm, 75x75mm PPC/Monitor Stand, support up to 7.5kg, Black color, RoHS

10”~12.1" VESA 100x100mm PPC/monitor stand, support up to 5 kg, Silver color, RoHS

12.1”~19" VESA 100x100mm PPC/monitor stand, support up to 7.5 kg, Silver color, RoHS

15" ~ 19" VESA 100x100mm, 75x75mm PPC/monitor stand, support up to 15 kg, Black color, RoHS

STAND-C19W STAND-300SW-RS

STAND-A19-RS STAND-A12-RS

Part No.

STAND-C19W-R10

STAND-300SW-RS

Description

15"~19" VESA 75/100 PPC/Monitor Stand, support up to 15kg, White color, RoHS

15"~19" VESA 75/100 PPC/Monitor Stand, support form 7 to 9kg, White color, RoHS

Optional Peripherals-2013-V10

4-8

Optional Peripherals w w w . i e i w o r l d . c o m

2

. V-STAND

VESA Multi-Mounting Stand

IEI patented multi-mounting V-Stand allows wall, ceiling, desk, rear and side mounting to meet diverse applications. Its 0° to 90° adjustable hinge design provides optimal viewing in various environments, such as kitchen, room or shelf.

VESA

75 x 75mm

75 x 75mm / 100 x 100mm

Model

VSTAND-A07-R11

VSTAND-A10-R11

VSTAND-A12-R11

3.

0° to 90° adjustable hinge design

1.

Height adjustable and

VESA 75/100 compliant mounting holes

2.

Heat dissipation holes help to cool down the system

VSTAND-A07

(For 5.6”~7” AFL series)

VSTAND-A10

(For 8.4”~10.4” AFL series)

Features:

• 0º to 90º adjustable hinge design allows comfortable viewing

• Standard VESA 75/100 compliance

• Heat dissipation holes

• Compact size, easy to use for mounting anywhere

VSTAND-A12

(For 12.1” AFL series)

Wall Mounting Ceiling Mounting

A.

One fits all solution

The V-Stand is a compact and tilt adjustable mounting stand providing mobility and ergonomic comfort to fit common wall mounting and ceiling mounting situations.

Entry-Master Systems Back Office POS System Car PC Medical Control Panel

B.

0

º

to 90

º

excellent adjustability

You can change the angle of the stand from 0° to 90° to reach almost any point with ergonomic features for comfortable viewing.

C.

Space saving and easy installation

POS System

No Hinge

Limitation!

Self-ordering System

1: Tighten the screws in the rear of the AFOLUX PPC

VESA mounting holes

2: Select the position to

mount stand kit

Compact size provides mobility

3: Plug in the system to operate

VSTAND-A07 VSTAND-A10 VSTAND-A12

Ordering Information

Part No.

Description

VSTAND-A07 -R11 LCD monitor / PPC stand V type, for AFL series, VESA 75, 0°~90° degree adjustable hinge, support up to 2.5 kg, RoHS

VSTAND-A10 -R11

VSTAND-A12 -R11

LCD monitor / PPC stand V type, for AFL series, VESA 75/100, 0°~90° degree adjustable hinge, support up to 3 kg, RoHS

LCD monitor / PPC stand V type, for AFL series, VESA 75/100, 0°~90° degree adjustable hinge, support up to 3.5 kg, RoHS

Optional Peripherals-2013-V10

Optional Peripherals

3

. ARM

VESA 75/100 Desk ARM

VESA

75x75mm/100x100mm

Model

ARM-11-RS

ARM-31-RS

Ordering Information

Part No.

ARM-11-RS

Description

LCD Monitor / PPC ARM, VESA 75/100, 3kg~6kg, RoHS

ARM-31-RS LCD Monitor / PPC ARM, VESA 75/100, 7kg~14kg, RoHS

w w w . i e i w o r l d . c o m

ARM-11-RS

90

54

41

187

58

ARM-31-RS

115

54

41

280

95

4

. Wall Mounting

VESA 75/100 Wall Mounting

VESA Model

75x75mm

100x100mm

AFLWK-12

AFLWK-19B

Secure the panel by fastening the retention screw of the bracket.

AFLWK-12

Ordering Information

Part No.

Description

AFLWK-12 5.6”~12" VESA 75x75mm PPC/Monitor Wall Mount Kit with Retention Screw, Silver color, RoHS

AFLWK-19B 15”~19" VESA 100x100mm PPC/Monitor Wall Mount Kit with Retention Screw, Silver color, RoHS

5

. In-Wall Mounting

AFLWK-19B

Changeable

Faceplate/Sticker

Self-drilling screws

1. Diameter: M4

2. Length: >15mm

Optional Peripherals-2013-V10

AFL-4 Series

4-10

Optional Peripherals

6

. Panel Mounting

Type A

Type B

w w w . i e i w o r l d . c o m

7

. Rack Mounting

Rack / Cabinet bracket

Screen

Clamp

Rack / Cabinet bracket

8

. Din Mounting

Ordering Information

Part No.

AFLRK-xx

Description

For AFOLUX PPC/Monitor Series

Ordering Information

Part No.

DK-84MS

Description

For 6.5"~8.4" Industrial Aluminum Panel PCs/

Industrial Monitors

Optional Peripherals-2013-V10

Optional Peripherals w w w . i e i w o r l d . c o m

IEI AFOLUX PPC Mounting Solution Table

AFOLUX Panel PC

Model AFL-057A-LX

AFL-057A-

Zxxx

AFL-07A-LX AFL-07A-N270 AFL-07A-N26 AFL-08AH-LX

AFL-

08AH-N270

AFL-

F08A-N270

AFL-

08A-N26

AFL-

08B-N270

Panel Mount Kit

Wall Mount Kit

Rack Mount Kit

ARM

Stand

VSTAND

Model

Panel Mount Kit

AFLPK-12

AFLWK-12

AFLRK-057 AFLRK-07

STAND-C12-R10 /

STAND-100-RS

AFL-

W10A-N270

ARM-11-RS / ARM-31-RS

STAND-100-RS

AFL-10A-LX

VSTAND-A07-R11

AFL-

10A-N270

AFL-

10A-N26

AFLPK-12

AFL-12A-LX AFL-12A-N270 AFL-12A-N26

AFLRK-08

VSTAND-A10-R11

AFL-

15A(E)-N270

AFL-15i(E)-HM55

AFLPK-15 AFLPK-15B

AFL-

W15A-N270

AFLWK-12 Wall Mount Kit AFLWK-19B

Rack Mount Kit AFLRK-W10

AFLWK-19B

N/A AFLRK-10 AFLRK-12 AFLRK-15-R11 AFLRK-W15

ARM

Stand

ARM-11-RS / ARM-31-RS

STAND-A12-RS / STAND-100-RS

ARM-11-RS / ARM-31-RS

STAND-A12-RS / STAND-100-RS

ARM-11-RS / ARM-31-RS

STAND-A19-RS /

STAND-A21-R10 /

STAND-210-R11

N/A VSTAND

Model

AFL-W15A-

GM45

AFL-

17D-N270

Panel Mount Kit AFLPK-15B AFLPK-17D

Wall Mount Kit

Rack Mount Kit AFLRK-W15

AFLRK-

17D-R11

ARM

Stand

VSTAND N/A

VSTAND-A10-R11

N/A

AFL-17i-HM55

AFLPK-17B

N/A

AFLWK-19B

AFLPK-17D

AFLRK-

17D-R11

ARM-11-RS / ARM-31-RS

VSTAND-A12

STAND-A19-RS / STAND-A21-R10 / STAND-210-R11

N/A N/A

N/A

N/A

-R11

AFL-17D-GM45 AFL-19i-HM55

AFLPK-19B

AFL-

W19A-N270

AFLPK-W19B

N/A

N/A

N/A N/A

AFOLUX GEN 2 Panel PC

Model AFL2-W07A-N26

Panel Mounting Kit

Wall Mounting Kit

AFL2PK-08A

AFLWK-12

Rack Mounting Kit

ARM

Stand

V-Stand

Model

AFL2-08A-N26

AFL2RK-W07A

N/A

AFL2RK-08A

N/A

STAND-B08/STAND-C12-R10

VSTAND-A07-R11

AFL2-15A-H61 AFL2-W15B-H61

AFL2-W10A-N28

AFL2PK-10A

AFL2-10A-N28

AFLWK-12

AFL2RK-W10A

N/A

AFL2RK-10A

N/A

STAND-C12-R10/STAND-A21-R10

VSTAND-A10-R11

AFL2-W15A-N27 AFL2-17A-H61

Panel Mounting Kit

Wall Mounting Kit

N/A AFL2PK-W15B AFL2PK-W15A-R10

AFLWK-19B

Rack Mounting Kit

ARM

Stand

V-Stand

N/A AFL2RK-W15B

ARM-11-RS/ARM-31-RS

STAND-A21-R10/STAND-C19-R10/STAND-210-R11

N/A

N/A

ARM-11-RS/ARM-31-RS

STAND-A19-RS/

STAND-A21-R10/

STAND-C19-R10/

STAND-210-R11

N/A

Optional Peripherals-2013-V10

AFL2PK-17A AFL2PK-W19A

AFL2RK-17A N/A

ARM-31-RS

STAND-A19-RS/STAND-A21-R10/

STAND-C19-R10/STAND-210-R11

N/A

AFL2-12A-D525 AFL2-12A-HM65

AFLPK-15

AFLWK-19B

AFL2RK-12

ARM-11-RS

STAND-A12-RS/STAND-A19-RS/

STAND-A21-R10/STAND-C12-R10

VSTAND-A12 -R11

AFL2-W19A-H61 AFL2-W21A-H61

AFL2PK-W21A

N/A

STAND-A21-R10

4-12
