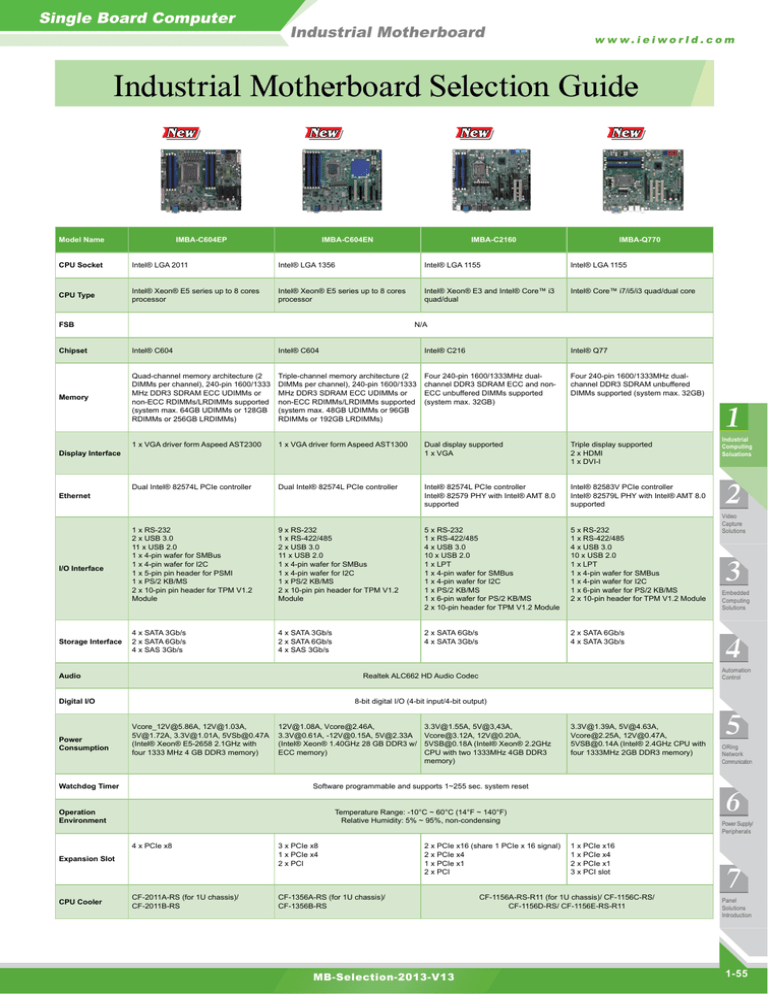

Industrial Motherboard Selection Guide

Model Name

CPU Socket

CPU Type

IMBA-C604EP

Intel® LGA 2011

IMBA-C604EN

Intel® LGA 1356

IMBA-C2160

Intel® LGA 1155

IMBA-Q770

Intel® LGA 1155

Intel® Xeon® E5 series up to 8 cores processor

Intel® Xeon® E5 series up to 8 cores processor

Intel® Xeon® E3 and Intel® Core™ i3 quad/dual

Intel® Core™ i7/i5/i3 quad/dual core

FSB

Chipset

Intel® C604 Intel® C604

N/A

Intel® C216 Intel® Q77

Memory

Ethernet

I/O Interface

Quad-channel memory architecture (2

DIMMs per channel), 240-pin 1600/1333

MHz DDR3 SDRAM ECC UDIMMs or non-ECC RDIMMs/LRDIMMs supported

(system max. 64GB UDIMMs or 128GB

RDIMMs or 256GB LRDIMMs)

Triple-channel memory architecture (2

DIMMs per channel), 240-pin 1600/1333

MHz DDR3 SDRAM ECC UDIMMs or non-ECC RDIMMs/LRDIMMs supported

(system max. 48GB UDIMMs or 96GB

RDIMMs or 192GB LRDIMMs)

Four 240-pin 1600/1333MHz dualchannel DDR3 SDRAM ECC and non-

ECC unbuffered DIMMs supported

(system max. 32GB)

Four 240-pin 1600/1333MHz dualchannel DDR3 SDRAM unbuffered

DIMMs supported (system max. 32GB)

Display Interface

1 x VGA driver form Aspeed AST2300

Dual Intel® 82574L PCIe controller

1 x RS-232

2 x USB 3.0

11 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x 5-pin pin header for PSMI

1 x PS/2 KB/MS

2 x 10-pin pin header for TPM V1.2

Module

1 x VGA driver form Aspeed AST1300

Dual Intel® 82574L PCIe controller

9 x RS-232

1 x RS-422/485

2 x USB 3.0

11 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB/MS

2 x 10-pin pin header for TPM V1.2

Module

Dual display supported

1 x VGA

Triple display supported

2 x HDMI

1 x DVI-I

1

Industrial

Computing

Soluations

Intel® 82574L PCIe controller

Intel® 82579 PHY with Intel® AMT 8.0 supported

Intel® 82583V PCIe controller

Intel® 82579L PHY with Intel® AMT 8.0 supported

2

Video

Capture

Solutions

5 x RS-232

1 x RS-422/485

4 x USB 3.0

10 x USB 2.0

1 x LPT

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB/MS

1 x 6-pin wafer for PS/2 KB/MS

2 x 10-pin header for TPM V1.2 Module

5 x RS-232

1 x RS-422/485

4 x USB 3.0

10 x USB 2.0

1 x LPT

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x 6-pin wafer for PS/2 KB/MS

2 x 10-pin header for TPM V1.2 Module

3

Embedded

Computing

Solutions

Storage Interface

4 x SATA 3Gb/s

2 x SATA 6Gb/s

4 x SAS 3Gb/s

Audio

Digital I/O

Power

Consumption

4 x SATA 3Gb/s

2 x SATA 6Gb/s

4 x SAS 3Gb/s

2 x SATA 6Gb/s

4 x SATA 3Gb/s

Realtek ALC662 HD Audio Codec

8-bit digital I/O (4-bit input/4-bit output)

[email protected], [email protected],

[email protected], [email protected], [email protected]

(Intel® Xeon® E5-2658 2.1GHz with four 1333 MHz 4 GB DDR3 memory)

[email protected], [email protected],

[email protected], [email protected], [email protected]

(Intel® Xeon® 1.40GHz 28 GB DDR3 w/

ECC memory)

[email protected], [email protected],43A,

[email protected], [email protected],

[email protected] (Intel® Xeon® 2.2GHz

CPU with two 1333MHz 4GB DDR3 memory)

Watchdog Timer

Operation

Environment

Expansion Slot

CPU Cooler

4 x PCIe x8

CF-2011A-RS (for 1U chassis)/

CF-2011B-RS

3 x PCIe x8

1 x PCIe x4

2 x PCI

Software programmable and supports 1~255 sec. system reset

Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95%, non-condensing

CF-1356A-RS (for 1U chassis)/

CF-1356B-RS

2 x PCIe x16 (share 1 PCIe x 16 signal)

2 x PCIe x4

1 x PCIe x1

2 x PCI

2 x SATA 6Gb/s

4 x SATA 3Gb/s

[email protected], [email protected],

[email protected], [email protected],

[email protected] (Intel® 2.4GHz CPU with four 1333MHz 2GB DDR3 memory)

1 x PCIe x16

1 x PCIe x4

2 x PCIe x1

3 x PCI slot

CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/

CF-1156D-RS/ CF-1156E-RS-R11

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

MB-Selection-2013-V13

1-55

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

Industrial Motherboard Selection Guide

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Model Name

CPU Socket

CPU Type

IMBA-H610

Intel® LGA 1155

IMBA-C2060

Intel® LGA 1155

IMBA-Q670-R21

Intel® LGA 1155

IMBA-G410-R20

Intel® LGA 775

Intel® Core™ i7/i5/i3

Quad/Dual, Pentium®

Dual, Celeron® Dual/

Single

Intel® Xeon® E3

Quad/Dual, Core™ i3

Dual, Celeron® Dual

Intel® Core™ i7/i5/i3

Quad/Dual, Pentium®

Dual, Celeron® Dual/

Single

Intel® Core™2 Quad/

Duo, Pentium® D/

Celeron®

IMBA-Q454

Intel® LGA 775

Intel® Core™2 Quad/

Duo, Pentium® D/4/

Celeron® D

IMBA-XQ354-R11

Intel® LGA 775

Intel® Core™2 Quad/

Duo, Pentium® D/4/

Celeron® D

IMBA-9454-R40

Intel® LGA 775

Intel® Core™2

Duo, Pentium®D/4/

Celeron® D

FSB

Chipset

Memory

Display Interface

Ethernet

I/O Interface

Storage Interface

Audio

Digital I/O

Intel® H61

Two 240-pin

1333/1066MHz dual-channel DDR3

SDRAM DIMM

(system max. 16GB)

Dual display supported

1 x VGA

1 x DVI-D

N/A

Intel® C206

Four 240-pin

1333/1066MHz dual-channel DDR3

SDRAM ECC

Registered and non-

ECC unbuffered

DIMM

(system max. 32GB)

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Dual Realtek

RTL8111E PCIe GbE controller

Intel® 82574L PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 supported

Intel® Q67

Four 240-pin

1333/1066MHz dual-channel DDR3

SDRAM unbuffered

DIMM (system max.

32GB)

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 supported (LAN2)

800/1066/1333MHz

Intel® G41+ICH7

Two 240-pin

800/1066MHz dualchannel DDR3

SDRAM DIMM

(system max. 8GB)

1 x VGA

Dual Realtek

RTL8111E PCIe GbE controller

800/1066/1333MHz

Intel® Q45 +

ICH10DO

Four 240-pin

667/800MHz dualchannel DDR2

SDRAM DIMM

(system max. 16GB)

1 x VGA

LAN1: Intel® 82574L

(MAC + PHY)

LAN2: Intel®

82567LM (PHY)

800/1066/1333MHz 800/1066/1333MHz

Intel® Q35 + ICH9DO Intel® 945G + ICH7

Four 240-pin

667/800MHz dualchannel DDR2

SDRAM DIMM

(system max. 8GB)

1 x VGA

LAN1: Intel® 82573L

(MAC + PHY)

LAN2: Intel®

82566DM (PHY)

Four 240-pin

533/667/800MHz dual-channel DDR2

SDRAM DIMM

(system max. 4GB)

1 x VGA

Dual Realtek

RTL8111E PCIe GbE controller

5 x RS-232

1 x RS-422/485

10 x USB 2.0

1 x LPT

1 x 4-pin wafer for

SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB/MS

2 x 10-pin header for

TPM V1.2 Module

5 x RS-232

1 x RS-422/485

2 x USB 3.0

10 x USB 2.0

1 x LPT

1 x 4-pin wafer for

SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB & MS

2 x 10-pin header for

TPM V1.2 module

5 x RS-232

1 x RS-422/485

2 x USB 3.0

10 x USB 2.0

1 x LPT

1 x 4-pin wafer for

SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB & MS

2 x 10-pin header for

TPM V1.2 module

5 x RS-232

1 x RS-422/485

8 x USB 2.0

1 x LPT

1 x Infrared interface

1 x PS/2 KB & MS

1 x 6-pin wafer for

PS/2 KB & MS

2 x 10-pin header for

TPM V1.2 module

4 x SATA 3Gb/s

Realtek ALC662 HD

Audio Codec

2 x SATA 6Gb/s

4 x SATA 3Gb/s

Realtek ALC888 HD

Audio codec

2 x SATA 6Gb/s

4 x SATA 3Gb/s

Realtek ALC662 HD

Audio codec

4 x SATA 3Gb/s

1 x IDE

1 x CF Type II

6 x RS-232

12 x USB 2.0

1 x LPT

1 x Infrared Interface

1 x PS/2 KB & MS

1 x 6-pin wafer for

PS/2 KB & MS

6 x RS-232

12 x USB 2.0

1 x LPT

1 x PS/2 KB & MS

1 x 6-pin wafer for KB

& MS

2 x 10-pin header for

TPM V1.2 module

5 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x LPT

1 x Infrared Interface

1 x PS/2 KB & MS

1 x 6-pin wafer for KB

& MS

2 x 10-pin header for

TPM V1.2 module

6 x SATA 3Gb/s RAID

1 x FDD

6 x SATA 3Gb/s RAID

1 x FDD

4 x SATA 3Gb/s

1 x CF Type II

1 x IDE

1 x FDD

Realtek ALC888 HD Audio codec

8-bit digital I/O (4-bit input/4-bit output)

Realtek ALC655 with

AC'97 codec

Power

Consumption

Watchdog Timer

Operation

Environment

Expansion Slot

CPU Cooler

[email protected],

[email protected],

[email protected],

[email protected],

[email protected] (Intel®

Core™ i7-2600K

3.40GHz CPU with

1333MHz DDR3 2GB x 2 Memory)

[email protected],

[email protected]

[email protected],

[email protected],

[email protected] (Intel®

Xeon® E3-1275

3.40GHz CPU with four 1333MHz 2GB

DDR3 memory)

[email protected],

[email protected] ,

[email protected],

[email protected],

[email protected]

(Intel® Core™ i5-

2400 3.10GHz CPU with 1333MHz DDR3

4GB x 4 memory)

[email protected],

[email protected],

[email protected],

[email protected]

(Intel® Q9550

2.83GHz with DDR3

1333MHz 2GB memory)

[email protected],

[email protected],

[email protected]

(Intel®Core™2 Duo

E8500 3.16GHz with four 800MHz 2GB

DDR2 memory)

Software programmable and supports 1~255 sec. system reset

[email protected],

[email protected],

[email protected]

(Intel® Core™2 Duo

E6850 CPU with four

800MHz 2GB DDR2 memory)

Temperature Range: 0°C ~ 60°C (32°F~140°F)

Relative Humidity: 5% ~ 95%, non-condensing

[email protected],

[email protected], [email protected]

6.24A, [email protected] 1.05A

(Intel® Core®2 Duo

E7400 2.8GHz CPU at 1066MHz FSB with two 800MHz 2GB

DDR2 memory)

Temperature Range:

-10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity:

5% ~ 95%, non-condensing

1 x PCIe x16

2 x PCIe x1

4 x PCI

Temperature Range:

-10°C ~ 60°C

(14°F~140°F)

Relative Humidity:

5% ~ 95%, noncondensing

2 x PCIe x16 (share 1

PCIe x 16 signal)

2 x PCIe x4

3 x PCI

1 x PCIe x16

1 x PCIe x4

1 x PCIe x1

4 x PCI

CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/

CF-1156D-RS/ CF-1156E-RS-R11

1 x PCIe x16

1 x PCIe x4 slot (with x1 signal)

5 x PCI

1 x PCIe x16

1 x PCIe x4

4 x PCI

1 x PCIe x16

3 x PCIe x4

3 x PCI

CF-775A-RS/ CF-775B-RS (for 1U chassise)

CF-520-RS-R11

1 x PCIe x16

1 x PCIe x4

5 x PCI

1-56

MB-Selection-2013-V11

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

Industrial Motherboard Selection Guide

Model Name

CPU Socket

CPU Type

IMB-C2160

Intel® LGA 1155

IMB-Q770

Intel® LGA 1155

IMB-H610

Intel® LGA 1155

IMB-H612

Intel® LGA 1155

Intel® Xeon® E3 and Intel® Core™ i3

Quad/Dual core

Intel® Core™ i7/i5/i3 Quad/Dual core Intel® Core™ i7/i5/i3 Quad/Dual,

Pentium® Dual, Celeron® Dual/Single

Intel® Core™ i7/i5/i3 Quad/Dual,

Pentium® Dual, Celeron® Dual/Single

FSB

Chipset

Intel® C216 Intel® Q77

N/A

Intel® H61 Intel® H61

Memory

CPU Cooler

Four 240-pin 1600/1333MHz dualchannel DDR3 SDRAM ECC and non-

ECC unbuffered DIMMs supported

(system max. 32GB)

Four 240-pin 1600/1333MHz dualchannel DDR3 SDRAM unbuffered

DIMMs supported (system max. 32GB)

Two 240-pin 1333/1066MHz Dual-channel DDR3 SDRAM Unbuffered DIMM supported (system max. 16GB)

Display Interface

Sigle display supported

1 x VGA

Triple display supported

2 x HDMI

1 x DVI-I

Dual display supported

1 x VGA (up to 2048 x 1536 @75Hz)

1 x DVI-D (up to 1920 x 1200 @60Hz)

Dual display supported

VGA1: up to 2048 x 1536 @75Hz

VGA2: up to 1920 x 1200 @60Hz

CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/

CF-1156D-RS/ CF-1156E-RS-R11

1

Industrial

Computing

Soluations

Ethernet

I/O Interface

Audio

Digital I/O

Power

Consumption

Watchdog Timer

Operation

Environment

Intel® 82574L PCIe controller

Intel® 82579 PHY with Intel® AMT 8.0 supported

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 8.0 supported

Dual Realtek RTL8111E PCIe GbE controller

2

Video

Capture

Solutions

9 x RS-232

1 x RS-422/485

4 x USB 3.0

10 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB/MS

1 x 6-pin wafer for PS/2 KB/MS

2 x 10-pin header for TPM V1.2 Module

9 x RS-232

1 x RS-422/485

4 x USB 3.0

6 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

2 x 10-pin header for TPM V1.2 Module

5 x RS-232 (for IMB-H610A/ IMB-H612A)

9 x RS-232 (for IMB-H610B/ IMB-H612B)

1 x RS-422/485

10 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB/MS

2 x 10-pin header for TPM V1.2 Module

3

Embedded

Computing

Solutions

4 x SATA 3Gb/s 4 x SATA 3Gb/s 2 x SATA 6Gb/s

4 x SATA 3Gb/s

Realtek ALC662 HD Audio codec

4

Automation

Control

24-bit digital I/O (12-bit input/12-bit output) 8-bit digital I/O (4-bit input/4-bit output)

[email protected], [email protected], [email protected],

[email protected], [email protected] (3.10GHz

Intel® Xeon® CPU with two 1333MHz

4GB DDR3 memory)

[email protected], [email protected], [email protected],

[email protected], [email protected]

(Intel® Core™ i3 3200 3.2GHZ CPU with four 1333MHz 1GB DDR3 memory)

[email protected], [email protected] ,

[email protected], [email protected], [email protected]

(Intel® 2.60GHz CPU with four

1333MHz 4GB DDR3 memory)

[email protected], [email protected], [email protected],

[email protected], [email protected]

(Intel® 2.60GHz CPU with four

1333MHz 4GB DDR3 memory)

5

ORing

Network

Communication

Software programmable and supports 1~255 sec. system reset

Temperature Range: -10°C ~ 60°C (14°F~140°F)

Relative Humidity: 5% ~ 95%, non-condensing

6

Power Supply/

Peripherals

Expansion Slot

2 x PCIe x16 (share 1 PCIe x 16 signal)

2 x PCIe x4

1 x PCIe x16

1 x PCIe x4

1 x PCIe x1

1 x PCI

2 x PCIe x1

2 x PCI

1 x PCIe x16

3 x PCIe x1

7

Panel

Solutions

Introduction

MB-Selection-2013-V12

1-57

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

Industrial Motherboard Selection Guide

Model Name

CPU Socket

IMB-C2060

Intel® LGA 1155

CPU Type

IMB-Q670-R21

Intel® LGA 1155 Intel® LGA 775

IMB-G41A IMB-Q354-R12

Intel® LGA 775

Intel® Xeon® E3 Quad/Dual, Core i3

Dual, Celeron® Dual

Intel® Core™ i7/i5/i3 Quad/Dual,

Pentium® Dual, Celeron® Dual/Single

Intel® Core™2 Quad/Duo, Pentium® D

Dual Core/Celeron

Intel® Core™2 Quad/Duo, Pentium® 4/

Celeron® D

FSB

Chipset

N/A

Intel® C206 Intel® Q67

800/1066/1333MHz

Intel® G41 + ICH7

800/1066/1333MHz

Intel® Q35 + ICH9-DO

Memory

1

Industrial

Computing

Soluations

Display

Interface

Four 240-pin 1333/1066MHz dualchannel DDR3 SDRAM ECC Registered and non-ECC Unbuffered DIMM (system max. 32GB)

Four 240-pin 1333/1066MHz dualchannel DDR3 SDRAM Unbuffered DIMM

(system max. 32GB)

Two 240-pin 800/1066MHz dual-channel

DDR3 SDRAM DIMM (system max. 4GB)

Four 240-pin 533/667/800MHz dualchannel DDR2 SDRAM DIMM (system max. 8GB)

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

1 x VGA 1 x VGA

2

Video

Capture

Solutions

Ethernet

Intel® 82574L PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 supported

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 supported (LAN2)

Dual Realtek RTL8111CP PCIe GbE controller

3

Embedded

Computing

Solutions

I/O Interface

4

Automation

Control

Storage

Interface

Audio

Digital I/O

5

ORing

Network

Communication

Power

Consumption

9 x RS-232

1 x RS-422/485

2 x USB 3.0

10 x USB 2.0

1 x Infrared interface

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x PS/2 KB &MS

2 x 10-pin header for TPM V1.2 module

2 x SATA 6Gb/s

4 x SATA 3Gb/s

Realtek ALC888 HD Audio codec Realtek ALC892 HD Audio codec

24-bit Digital I/O (12-bit input/12-bit output)

[email protected], [email protected] , [email protected], [email protected], [email protected]

(Intel® Core™ i3-2100 2.60GHz CPU with four 1333MHz 4GB DDR3 memory)

9 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x LPT

1 x Infrared interface

1 x PS/2 KB & MS

4 x SATA 3Gb/s

1 x IDE

Intel® 82573L (MAC + PHY)

4 x RS-232

12 x USB 2.0

1 x LPT

1 x Infrared interface

1 x PS/2 KB & MS

2 x 10-pin header for TPM V1.2 module

6 x SATA 3Gb/s RAID

1 x FDD

Realtek ALC888 HD Audio codec

8-bit digital I/O (4-bit input/4-bit output)

[email protected], [email protected],

[email protected], [email protected] (Intel®

Core™2 Duo E8500 3.16GHz CPU with two 1066MHz 2GB DDR3 memory)

[email protected], [email protected], [email protected],

[email protected] (Intel® Core™2 Duo E6850

3.0GHz CPU with four 800MHz 2GB

DDR2 memory)

6

Power Supply/

Peripherals

Watchdog Timer

Operation

Environment

Software programmable and supports 1~255 sec. system reset

Temperature Range: -10°C ~ 60°C (14°F~140°F)

Relative Humidity: 5% ~ 95%, non-condensing

7

Panel

Solutions

Introduction

Expansion Slot

2 x PCIe x16 (share 1 PCIe x 16 signal)

1 x PCIe x4

2 x PCI slot

1 x PCIe x16

1 x PCIe x4

1 x PCIe x1

2 x PCI slot

CPU Cooler

CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/

CF-1156D-RS/ CF-1156E-RS-R11

1 x PCIe x16

1 x PCIe x1

2 x PCI

Temperature Range: 0°C ~ 60°C (32°F~140°F)

Relative Humidity: 5% ~ 95%, non-condensing

1 x PCIe x16

1 x PCIe x4

2 x PCI

CF-775A-RS/ CF-775B-RS (for 1U chassise)

CF-520-RS-R11

1-58

MB-Selection-2013-V11

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-C604EP

Quad-Channel Memory w/

4 x SATA 3Gb/s

8 DIMMs DDR3 1600/1333 2 x SATA 6Gb/s

ATX Server Board Supports 32nm LGA2011 Intel® Xeon® E5 Series up to

8 Cores CPU with Intel® C604, DDR3, VGA, Dual Intel® PCIe GbE, PCIe

Gen 3.0, SAS 3Gb/s, SATA 6Gb/s, SATA 3Gb/s, USB 2.0 and Audio

Server management platform with universal processor

4 x SAS 3Gb/s

Over Network

Switch Hub

Intel®

C604

6 x USB 2.0

USB 2.0

Management

Console

Front

Panel PMBus

LAN1

DIO

Front Audio 4 x PCIe x8

Specifications

CPU

LGA2011 socket supports Intel® Xeon® E5-16xx, E5-26xx, E5-46xx series

(up to 8 cores) processor

System Chipset

Intel® C604

Memory

Quad-channel memory architecture (2 DIMMs per channel), 240-pin 1600/1333 MHz

DDR3 SDRAM ECC UDIMMs or non-ECC RDIMMs/LRDIMMs supported (system max.

64GB UDIMMs or 128GB RDIMMs or 256GB LRDIMMs)

BIOS

UEFI BIOS

Ethernet

Dual Intel® 82574L PCIe controller

Server Management

1 x RJ-45 for Intelligent Platform Management Interface (IPMI) v.2.0

IPMI 2.0 with virtual media over LAN and iKVM-over-LAN support

Graphics Engine

ASPEED AST2300

PCIe VGA/2D controller, [email protected] 32bpp

Display Output

1 x VGA (driver form AST2300)

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD audio codec (Line-out, Mic)

I/O Interface

2 x USB 3.0 (2 on rear)

1 x RS-232 (on rear I/O)

11 x USB 2.0 (4 on rear, 6 by pin header, 1 by type A)

4 x SATA 3Gb/s (RAID 0/1/10/5 support)

1 x PS/2 KB/MS 2 x SATA 6Gb/s (RAID 0/1/10/5 support)

4 x SAS 3Gb/s (RAID 0/1/10 support)

Front Panel

1 x Front panel connector (power LED, HDD LED, LAN LED, speaker, power button, reset button)

Front Audio

2 x 5-pin header

TPM

2 x 10-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

PMBus

1 x 5-pin box header

Expansions

4 x PCIe x8 slots

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit Digital I/O (4-bit input / 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

5 x 4-pin system fan connector

Power Supply

ATX/AT power supply

Power Consumption

[email protected], [email protected], [email protected], [email protected], [email protected]

(Intel® Xeon® E5-2658 2.1GHz with four 1333 MHz 4 GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244 mm x 305 mm

Weight

GW: 1200g/NW: 700g

IEI Servers with IPMI 2.0

Sever management features are supported by

IPMI & iKVM protocols

RS-232 GbE Combo RJ-45: GbE / IPMI

KB/MS VGA 2 x USB 3.0

Audio

2 x USB 2.0

2 x USB 2.0

1

Industrial

Computing

Soluations x8

8 DIMMs

USB

USB 3.0

SATA 6Gb/s

SAS

SAS 3Gb/s PCIe GbE

2

Video

Capture

Solutions

Features

1. High performance LGA2011 Xeon® E5 series CPU (up to 8 cores) supported

2. Support Quad-Channel memory technology, two DDR3 1600/1333MHz DIMM slots per channel up to 64GB UDIMMs, 128GB RDIMMs or 256GB LRDIMMs

3. Sever management features are supported by IPMI & iKVM protocols

4. Integrated PCI Express Gen 3 for improved bandwidth and connectivity support up to 40 lanes at

8GT/s

5. Intel® Matrix RAID supports 0/1/10/5 for SATA and 0/1/10 for SAS hard drive interfaces

6. VGA display output driver form on-board IC via AST1300 for all Xeon® E5 series CPU

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

3

Embedded

Computing

Solutions

4

Automation

Control

Packing List

1 x IMBA-C604EP single server board computer

1 x I/O shielding (P/N: 45014-0039C0-00-RS)

4 x SATA cable (P/N: 32000-062800-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

5

ORing

Network

Communication

Ordering Information

Part No.

IMBA-C604EP-R10

CB-USB02-RS

Description

ATX server board supports 32nm LGA2011 Intel® Xeon® E5 series up to 8 cores CPU with Intel® C604, DDR3, VGA, dual

Intel® PCIe GbE, PCIe Gen 3.0, SAS 3Gb/s, SATA 6Gb/s,

SATA 3Gb/s, USB 2.0, HD Audio and RoHS

Dual-port USB cable with bracket

32102-000100-200-RS SATA power cable

CF-2011A-RS

High performance LGA2011 cooler kit, 1U chassis compatible,

130W

CF-2011B-RS

TPM-IN01-R11

High performance LGA2011 cooler kit, 2U chassis compatible,

130W

20-pin Infineon TPM module, SW management tool, firmware

V3.17

IMBA-C604EP-2013-V11

IPMI

2.0

Native

Gen.

3 iKVM

RAID

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-59

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-C604EN

ATX Server Board Supports 32nm LGA1356 Intel® Xeon® E5 Series up to 8 Cores CPU with Intel® C604, DDR3, VGA, PCIe Gen 3.0, SAS 3Gb/s,

SATA 6Gb/s, COMs and Audio

Triple-Channel Memory w/

6 DIMMs DDR3 1600/1333

Front Panel SMBus Chassis Intrusion

USB 2.0 I2C 2 x SATA 3Gb/s

2 x SATA 6Gb/s

Benefits of the entry-level server board

IMBA-C604EN with universal processor

1. Storage application fulfill 4 to 8 driver bay needed

2. Rich serial ports fulfill multiple communication devices

3. Multiple expansion slots by PCIe and PCI interfaces for high speed add-on card infrastructure

6 x USB 2.0

4 x SAS 3Gb/s

4 x RS-232

4 to 8 Drive Bays Add-on card Infrastructure

PCIe Gen 3

SATA 6Gb/s

SAS

4 x RS-232

SATA 3Gb/s

TPM

RS-422/485

DIO

LAN1

2 x USB 2.0

RS-232 Dual GbE

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Front Audio PCI

PCIe x8

PCI

PCIe x8

PCIe x4

PCIe x8

Specifications

CPU

LGA1356 socket supports Intel® Xeon® E5-14xx, E5-24xx series processor with up to eight cores

System Chipset

Intel® C604

Memory

Triple-channel memory architecture (2 DIMMs per channel), 240-pin 1600/1333 MHz

DDR3 SDRAM ECC UDIMMs or non-ECC RDIMMs/LRDIMMs supported (system max.

48GB UDIMMs or 96GB RDIMMs or 192GB LRDIMMs)

BIOS

UEFI BIOS

Ethernet

Dual Intel® 82574L PCIe controller

Graphics Engine

ASPEED AST1300

PCIe VGA/2D controller, [email protected] 32bpp

Display Output

Driver form AST1300

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD audio codec (Line-out, Mic)

I/O Interface

9 x RS-232 2 x SATA 3Gb/s (RAID 0/1/10/5 support)

2 x SATA 6Gb/s (RAID 0/1/10/5 support)

4 x SAS 3Gb/s (RAID 0/1/10 support)

11 x USB 2.0 (4 on rear, 6 by pin header, 1 by type A)

1 x RS-422/485

1 x PS/2 KB/MS

2 x USB 3.0 (on rear I/O)

Front Panel

1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)

Front Audio

2 x 5-pin header

TPM

2 x 10-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Expansions

3 x PCIe x8 slot

1 x PCIe x4 slot

2 x PCI slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit Digital I/O (8-bit GPIO is for programming I/O)

Fan Connector

1 x 4-pin CPU fan connector

2 x 4-pin system connector

1 x 3-pin system fan connector

Power Supply

ATX/AT power supply

Power Consumption

1[email protected], [email protected], [email protected], [email protected], [email protected]

(Intel® Xeon® 1.40GHz 28 GB DDR3 w/ECC memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244 mm x 305 mm

Weight

GW: 1200g/NW: 700g

KB/MS VGA

x6

6 DIMMs

2 x USB 3.0

Audio

2 x USB 2.0

USB

USB 3.0

Native

Gen.

3

SAS

SATA 6Gb/s SAS 3Gb/s

Features

1. Supports high-performance LGA1356 Intel® Xeon® E5 CPU with up to eight cores

2. Support Triple-Channel memory technology, two DDR3 1600/1333MHz DIMM slots per channel up to 48GB UDIMMs, 96GB RDIMMs or 192GB LRDIMMs

3. Integrated PCI Express Gen 3 for improved bandwidth and connectivity support up to 24 lanes at

8GT/s

4. Intel® Matrix RAID supports 0/1/10/5 for SATA and 0/1/10 for SAS hard drive interfaces

5. VGA display output driver form on-board IC via AST1300 for all Xeon® E5-2400 series CPU

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMBA-C604EN single server board computer

1 x I/O shielding (P/N: 45014-0039C0-00-RS)

4 x SATA cable (P/N: 32000-062800-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

RAID

10 COM

Ordering Information

Part No.

Description

IMBA-C604EN-R10

ATX server board supports 32nm LGA1356 Intel® Xeon® E5 series up to 8 cores CPU with Intel® C604, DDR3, VGA, dual

Intel® PCIe GbE, PCIe Gen 3.0, SAS 3Gb/s, SATA 6Gb/s,

SATA 3Gb/s, USB 2.0, COM, HD Audio and RoHS

CB-USB02-RS Dual-port USB cable with bracket

32205-001203-100-RS Quad port RS-232 cable without bracket, 400/400/400/400 mm

32102-000100-200-RS SATA power cable

CF-1356A-RS

High performance LGA1355/LGA1356 cooler kit, 1U chassis compatible, 95W

TPM-IN01-R11

20-pin Infineon TPM module, software management tool, firmware V3.17

1-60

IMBA-C604EN-2013-V12

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

ISRA-C604

Industrial server barebone supports universal processor ATX board with 32nm LGA1356/ LGA2011 Intel® Xeon® E5 series

Features

Eight/Six 3.5"/2.5" hot-swap SAS/SATA drives in 1U/2U compact chassis

Intel® Matrix RAID supports 0/1/10/5 for SATA and 0/1/10 for SAS hard drive interface

Support 4 pieces of 40mm hot-swap middle fans for 1U barebone

Support 3 pieces of 80mm hot-swap middle fans for 2U barebone

Sever management features supports by IPMI & iKVM protocol

One full-height PCIe Gen.3 x8 slot for 1U barebone

Three full-height or seven low-profile PCIe Gen.3 x8 slots for 2 U barebone

IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Native

Gen.

3

PCIe GbE SATA 3Gb/s RAID

Specifications

Model Name ISRA-C604EP1/2, ISRA-C604EN1/2

Form Factor 1U/2U rackmount chassis

Chassis

Drive Bay

4/8 Bays

Dimensions

(DxWxH)

569 x 430 x 43.5 (mm), 22.4" x 16.9" x 1.7" (for 1U barebone)

660 x 430 x 88 mm, 26" x 16.9" x 3.5" (for 2U barebone)

IEI Model

System

Board

CPU

Chipset

Memory

Ethernet

Audio

Display

USB

ATX 12"x10" IMBA-C604EP/EN

LGA1356/ LGA2011 socket supports Xeon® E5 series up to 8 cores processor

Intel® C604

Six 240-pin 1600/1333MHz Dual-Channel DDR3 SDRAM UDIMMs w/ ECC or non-ECC/ RDIMMs/ LRDIMMs supported (system max.

48GB w/ UDIMMs/ 96GB w/ RDIMMs, 192GB w/ LRDIMMs)

Eight 240-pin 1600/1333MHz Dual-Channel DDR3 SDRAM UDIMMs w/ ECC or non-ECC/ RDIMMs/ LRDIMMs supported (system max.

64GB w/ UDIMMs, 128GB w/ RDIMMs, 256GB w/ LRDIMMs)

Dual Intel® 82574L PCIe controller

Realtek ALC662 HD Audio Codec

I/O Port

Storage

Power Supply

COM

KB/MS

RJ-45

Server Management

Expansion

Cooling System

Front Panel LED

1 x VGA (drive form AST2300)

2 x USB 3.0, 11 x USB 2.0

1 x RS-232 DB-9 (by IMBA-C604EP)

10 x COM ports (by IMBA-C604EN)

1 x PS/2 KB & MS

Dual LAN (LAN1 with IPMI 2.0 function)

4/8 x Hot-swap 3.5"/2.5" SAS (RAID 0,1,10) /SATA (RAID 0,1,5,10)

2 x Internal 2.5" SAS/SATA

500W, 1U Single, FS9029-7H1G, P24/P8

510W, 2U Single, P2G-6510P, P24/P8

1 x RJ-45 for Intelligent Platform Management Interface v.2.0 (IPMI)

IPMI 2.0 with virtual media over LAN and iKVM-over-LAN support

One full-height PCIe Gen.3 x8 slot for 1U barebone

3 x Full-height or 7 x low-profile PCIe Gen.3 x8 slots

3 x 40mm hot-swap PWM fans for 1U barebone

3 x 80mm hot-swap PWM fans for 2U barebone

1 x Power status, 1 x HDD activity, 2 x LAN activity

1 x Fan failure & overheat

IPMI

2.0

●ISRA-C604EP1/EN1

HDD LED, Power LED, LAN LED, Power Button

2 x USB 2.0

ODD (Option)

Support four hot-swap SAS/SATA HDDs

Single 500W Power Supply

RS-232

2 x USB 3.0

Dual GbE

PS2 KB/MS

VGA

●ISRA-C604EP2/EN2

2 x USB 2.0

4 x USB 2.0

Audio

1 x expansion slots by raise card

HDD LED, Power LED,

LAN LED, Power Button ODD (Option)

Support eight hot-swap SAS/SATA HDDs

Single 510W Power Supply

RS-232

2 x USB 3.0

Dual GbE

PS2 KB/MS

VGA

Dimensions

(Unit: mm)

4 x USB 2.0

Audio

7 x low profile expansion slots

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

Environment

Humidity

Operating: 10% ~85%, non-condensing

Non operating: 5% ~95%, non-condensing

Packing List

1 x ISRA-C604 industrial server barebone 1 x Utility CD

1 x Screw set 1 x QIG

1U Barebone 2U Barebone

Ordering Information

Part No.

ISRA-

C604EP1-R10

Description

Industrial server barebone supports universal processor ATX board with 32nm LGA2011

Intel® Xeon® E5 series up to 8 cores CPU, DDR3 up to 256GB, foru 3.5"/2.5" hot-swap

SAS/SATA drive bays, dedicated IPMI 2.0 & iKVM ports, 1U chassis and RoHS

Part No.

ISRA-

C604EN1-R10

Description

Industrial server barebone supports universal processor ATX board with 32nm LGA1356

Intel® Xeon® E5 series up to 8 cores CPU, DDR3 up to 192GB, foru 3.5"/2.5" hot-swap

SAS/SATA drive bays, 1U chassis and RoHS

ISRA-

C604EP2-R10

Industrial server barebone supports universal processorA TX board with 32nm LGA2011

Intel® Xeon® E5 series up to 8 cores CPU, DDR3 up to 256GB, ehigt 3.5"/2.5" hot-swap

SAS/SATA drive bays, dedicated IPMI 2.0 & iKVM ports, 2U chassis and RHoS

ISRA-

C604EN2-R10

Industrial server barebone supports universal processor ATX board with 32nm LGA1356

Intel® Xeon® E5 series up to 8 cores CPU, DDR3 up to 192GB, foru 3.5"/2.5" hot-swap

SAS/SATA drive bays, 1U chassis and RoHS

CF-1356A-RS

CF-2011B-RS

High performance LGA1355/LGA1356 cooler kit, 1U chassis compatible, 95W

High performance LGA2011 Cooler kit, 2U Chassis compatible, 130W

19800-000051-RS RS-232 cable, 230mm

CF-2011A-RS High performance LGA2011 Cooler kit, 1U Chassis compatible, 130W

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-61

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-C2160

ATX Motherboard Supports 22nm LGA1155 Intel® Xeon® E3/ Intel® Core™ i3

CPU with Intel® C216, DDR3, VGA, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s,

HD Audio and RoHS

Dual-Channel DDR3

1600/1333 MHz

SATA 3Gb/s

SATA 6Gb/s

Intel®

C216

Front panel

SMBus

TPM

I2C

6 x USB 2.0

RS-422/485

Rich PCI Express expansion slots for automation & surveillance application field

Three PCIe 3.0, two PCIe 2.0 and two PCI slots fulfill multiple add-on card purpose such as high-end Ethernet card, RAID card or high performance graphics card.

PCIe 3.0

4 x RS-232

Automation

LAN1

LPT

DIO

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

PCIe x4 PCIe x1 2 x PCI PCIe x4

PCIe x16 PCIe x16 Front Audio

Specifications

CPU

LGA1155 socket supports Xeon® E3 and Intel® Core™ i3 quad/dual core processor

System Chipset

Intel® C216

Memory

Four 240-pin 1600/1333MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMMs supported (system max. 32GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82579 PHY with Intel® AMT 8.0 supported

Intel® 82574L PCIe controller

Graphics Engine

Intel® HD Graphics 2000 / 3000

Supports DX10.1 and OpenGL 3.0

Full MPEG-2, VC1 and AVC Decode

Display Output

VGA integrated in the Intel® C216 (up to 2048 x 1536 @75Hz)

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD audio codec (Line-in, Line-out, Mic)

I/O interface

5 x RS-232

4 x USB 3.0 (rear I/O)

4 x SATA 3Gb/s

1 x LPT

1 x 6-pin wafer for PS/2 KB/MS

Front Audio

2 x 5-pin header

1 x RS-422/485

10 x USB 2.0 (4 on rear, 6 by pin header)

2 x SATA 6Gb/s (RAID 0/1/5/10 support)

1 x PS/2 KB/MS

Front Panel

1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)

TPM

2 x 10-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Expansions

2 x PCI slot

2 x PCIe x4 slot

1 x PCIe x1 slot

2 x PCIe x16 (share 1 PCIe x 16 signal)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit Digital I/O (8-bit GPIO is for programming I/O)

Fan Connector

1 x 4-pin CPU fan connector

2 x 3-pin system fan connector

Power Supply

ATX power supply

Power Consumption

[email protected], [email protected],43A, [email protected], [email protected], [email protected]

(Intel® Xeon® 2.2GHz CPU with two 1333MHz 4GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244 mm x 305 mm

Weight

GW:1200g/NW: 700g

PCIe 2.0

PCI Express backward compatibility

KB/MS RS-232 USB 2.0 Dual GbE

2 x USB 2.0

VGA 4 x USB 3.0 Audio

Surveillance

Native

Gen.

3

Intel

®

AMT 8.0

USB

USB 3.0

SATA 6Gb/s PCIe GbE

Features

1. LGA1155 Xeon® E3 and Intel® Core™ i3 processor supported

2. Dual-channel DDR3 1600/1333MHz supports up to 32GB

3. Intel® PCIe GbE with Intel® AMT 8.0 supported

4. Supports PCI-Express generation 3.0 at 8GT/s I/O bandwidth

5. USB 3.0 and SATA 6Gb/s supported

6. High speed interface usage for two PCIe x8/two PCIe x4 add-on cards

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMBA-C2160 single board computer

4 x SATA Cable (P/N: 32801-000703-200-RS)

1 x I/O shielding (P/N: 45014-0034C0-00-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

Description

IMBA-C2160-R10

ATX motherboard supports 22nm LGA1155 Intel® Xeon® E3/

Intel® Core™ i3 CPU with Intel® C216, DDR3, VGA, Dual Intel®

PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32006-000300-100-RS Male PS/2 KB/MS Y-cable w/o bracket, 12cm(KB)+14cm(MS)

32205-003800-100-RS RS-422/485 cable, 200mm

19800-000051-RS RS-232 cable, 230mm

32102-000100-200-RS SATA power cable

19800-000075-RS

CF-1156A-RS-R11

CF-1156E-RS-R11

19800-000049-RS

PS/2 KB/MS Y-cable with bracket, 6-pin header, 220mm

High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W

High performance LGA1155/LGA1156 cooler kit, 95W

TPM-IN01-R11

LPT cable

20-pin Infineon TPM module, SW management tool, firmware

V3.17

1-62

IMBA-C2160-2013-V11

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-Q770

Dual-Channel DDR3

1600/1333 MHz

I2C SMBus

ATX Motherboard Supports 22nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel®

Q77, DDR3, Three Independent Displays via Dual HDMI/DVI-I, Dual Intel® PCIe

GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

SATA 3Gb/s

SATA 6Gb/s

Intel®

Q77

Front panel

8 x USB 2.0

TPM

KB/MS

RS-422/485

Evolutionary I/O features for display and USB capabilities

1. Three independent displays improve multimedia application with different contents.

2. More compatibility support for USB devices with the innovation native

USB 3.0 interface.

Configuration of three independent displays

4 x RS-232

LPT

LAN1

DIO

Front Audio

PCIe x16

3 x PCI 2 x PCIe x1

PCIe x4

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3 quad/dual core processor

System Chipset

Intel® Q77

Memory

Four 240-pin 1600/1333MHz dual-channel DDR3 SDRAM unbuffered DIMMs supported

(system max. 32GB)

BIOS

UEFI BIOS

Ethernet

LAN1: Intel® 82583V PCIe controller

LAN2: Intel® 82579L PHY with Intel® AMT 8.0 supported

Graphics Engine

Intel® HD Graphics Gen 7 supports DX11 and OpenCL 1.1

Full MPEG-2, VC1, AVC Decode

Display Output

Dual HDMI integrated in the Intel® Q77 (up to 1920 x 1200 @60Hz)

DVI-I integrated in the Intel® Q77 (up to 1920 x 1200 @60Hz)

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD audio codec (Line-in, Line-out, Mic)

I/O interface

5 x RS-232

1 x LPT

1 x RS-422/485

1 x 6-pin wafer for PS/2 KB/MS

4 x USB 3.0 (rear I/O) 10 x USB 2.0 (2 on rear, 8 by pin header)

2 x SATA 6Gb/s (RAID 0/1/5/10 support)

4 x SATA 3Gb/s (RAID 0/1/5/10 support)

Front Audio

2 x 5-pin header

Front Panel

1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)

TPM

2 x 10-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Expansions

1 x PCIe x16 slot

2 x PCIe x1 slot

1 x PCIe x4 slot

3 x PCI slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit Digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

2 x 3-pin system fan connector

Power Supply

ATX power supply

Power Consumption

[email protected], [email protected], [email protected], [email protected], [email protected]

(Intel® 2.4GHz CPU with four 1333MHz 2GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244 mm x 305 mm

Weight

GW:1200g/NW: 700g

Native USB 3.0 Interface

RS-232 USB 2.0 Dual GbE

3 Displays Combination Table

#1 HDMI HDMI VGA

#2 HDMI HDMI DVI-D

Much Compatibility

Dual HDMI DVI-I 4 x USB 3.0 Audio

Native

Gen.

3

Intel

®

AMT 8.0

USB

USB 3.0

SATA 6Gb/s PCIe GbE

Features

1. LGA1155 Intel® Core™ i7/i5/i3 processor supported

2. Dual-channel DDR3 1600/1333MHz supports up to 32GB

3. Intel® PCIe GbE with Intel® AMT 8.0 supported

4. Supports 3 displays with 2 displays in combination of HDMI, DVI and VGA

5. Supports PCI-Express generation 3.0 at 8GT/s I/O bandwidth

6. USB 3.0 and SATA 6Gb/s supported

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMBA-Q770 single board computer

1 x DVI-I to VGA adapter (P/N: 33Z00-000031-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x I/O shielding

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMBA-Q770-R10

19800-003100-200-RS

32205-003800-100-RS

32205-001203-100-RS

32102-000100-200-RS

19800-000075-RS

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

19800-000049-RS

TPM-IN01-R11

Description

ATX motherboard supports 22nm LGA1155 Intel® Core™ i7/i5/ i3 CPU with Intel® Q77, DDR3, three independent displays via

Dual HDMI/ DVI-I, dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s,

HD Audio and RoHS

Dual-port USB cable with bracket

RS-422/485 cable, 200mm

Quad-port RS-232 cable without bracket, 400/400/400/400mm

SATA power cable

PS/2 KB/MS Y-cable with bracket, 220mm

High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High performance LGA1155/LGA1156 cooler kit, 95W

LPT cable

20-pin Infineon TPM module, SW management tool, firmware

V3.17

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-63

IMBA-Q770-2013-V10

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-H610

Dual-channel DDR3

1333/1066 MHz

I2C

ATX Motherboard Supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s,

HD Audio and RoHS

4 x SATA 3Gb/s

The IMBA-H610 platform with Intel® desktop 35W CPU is the best choice due to its high cost performance.

Front Panel

Cost Performance Index Chart for 35W Processors

SMBus

Performance (GHz)

Intel®

H61

TPM

RS-422/485

6 x USB 2.0

Better

Good

3 x RS-232

Desktop CPU

Mobile CPU

0

Cost (USD)

Low

High

2 x PCIe x1

LPT

RS-232 VGA Dual GbE

LAN1

DIO

PCIe x16 4 x PCI Front Audio

1

Specifications

CPU

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

TPM 1.2 Support

LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor

System Chipset

Intel® H61

Memory

Two 240-pin 1333/1066MHz dual-channel unbuffered DDR3 SDRAM DIMMs supported

(system max. 16GB)

BIOS

UEFI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controller (LAN1 with ASF 2.0 support)

Graphics Engine

Intel® HD Graphics 2000/3000 (based on CPU type)

Supports DX10.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA (up to 2048 x 1536 @75Hz)

1 x DVI-D (up to 1920 x 1200 @60Hz)

Super I/O

Fintek F81866

PCIe-PCI Bridge

ITE IT8892E

Audio

Realtek ALC662 HD audio codec (Line-in, Line-out, Mic)

I/O Interface

5 x RS-232

1 x LPT

1 x PS/2 KB/MS

1 x RS-422/485

4 x SATA 3Gb/s without RAID & AHCI

10 x USB 2.0 (4 on rear IO, 6 by pin header)

Front Audio

1 x 10-pin header

Front Panel

1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)

TPM

1 x 20-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Expansions

1 x PCIe x16 slot 2 x PCIe x1 slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit programmable I/O

Fan Connector

1 x 4-pin CPU fan connector

4 x PCI slot

2 x 3-pin system fan connector

Power Supply

AT/ATX power supply supported

Power Consumption

[email protected], [email protected], [email protected], [email protected], [email protected]

(Intel® Core™ i7-2600K 3.40GHz CPU with two 1333MHz 2GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244 mm x 305 mm

Weight

GW: 1200g/NW: 700g

1-64

KB/MS

SATA 3Gb/s PCIe GbE

Features

1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported

2. Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM

3. Intel® HD Graphics technology integrates high-performance graphics and media processing

4. TPM V1.2 hardware security provided by the TPM module

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMBA-H610 single board computer

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x I/O shielding (P/N: 45014-0008C0-00-RS)

1 x One Key Recovery CD

IMBA-H610-2013-V10

DVI-D 4 x USB 2.0 Audio

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMBA-H610-R10

Description

ATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/

Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual Realtek PCIe

GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32205-003800-100-RS RS-422/485 cable, 200mm

19800-000051-RS RS-232 cable, 230mm

32102-000100-200-RS SATA power cable

19800-000049-RS LPT cable

TPM-IN01-R11

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

CPU-DT-C-G440

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

20-pin Infineon TPM module, software management tool, firmware V3.17

Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible,

73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-C2060

Dual-channel DDR3

1333/1066 MHz

ATX motherboard supports 32nm LGA1155 Intel® Xeon® E3/Core i3/

Celeron® CPU per Intel® C206, DDR3, VGA/DVI/HDMI, Dual Intel® PCIe

GbE, USB 3.0, SATA 6Gb/s, Audio and RoHS

4 x SATA 3Gb/s

2 x SATA 6Gb/s

Front panel

The IMBA-C2060 features PCIe x8 bifurcation supporting two I/

O interface cards, two graphics cards or one graphics card plus one I/O interface card.

Intel®

C206

SMBus

I2C

8 x USB 2.0

TPM

RS-422/485

PCle x4

PCle x16/x8

PCI

4 x RS-232

PCle x4

PCle x8

PCI

LPT

DIO

Capability of two graphics cards

PCIe x4 PCI PCIe x8

PCIe x16/x8 PCIe x4 2 x PCI

Specifications

TPM 1.2 Support

CPU

LGA1155 socket supports Intel® Xeon® E3 quad/dual, core™ i3 dual, Celeron® dual core processor

System Chipset

Intel® C206

Memory

Four 240-pin 1333/1066MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMM supported (system max. 32GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82574L PCIe controller, Intel® 82579 PHY with Intel® AMT 7.0 supported

Graphics Engine

Support for DX10.1 and OpenGL3.0, Full MPEG2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Super I/O

Fintek F81866

Audio

Realtek ALC888 HD Audio codec (Line-in, Line-out, Mic)

I/O Interface

5 x RS-232

1 x RS-422/485

1 x LPT

1 x PS/2 KB/MS

Front Audio

2 x 5-pin header

TPM

4 x SATA 3Gb/s with RAID 0/1/5/10 support

2 x SATA 6Gb/s with RAID 0/1/5/10 support

10 x USB 2.0 (2 by rear IO, 8 by pin header)

2 x USB 3.0 by NEC D720200F1

2 x 10-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Expansion

2 x PCIe x16 (share 1 PCIe x 16 signal)

2 x PCIe x4 slots 3 x PCI slots

Slot

Configuration 1

Configuration 2

Configuration 3

PCIe and PCI Slot Combination Table

PCIe x16

1

PCIe x8

N/A

PCIe x4

2

N/A

N/A

2

1

2

2

PCI

3

3

3

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector 2 x 3-pin system fan connector

Power Supply

ATX power supply

Power Consumption

[email protected], [email protected] [email protected], [email protected], [email protected]

(Intel® Xeon® E3-1275 3.40GHz CPU with four 1333MHz 2GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244mm x 305mm

Weight

GW:1200g, NW: 700g

RS-232 VGA

KB/MS HDMI DVI-D 2 x USB 2.0

Audio

2 x USB 3.0

RAID

Dual GbE

USB

USB 3.0

SATA 6Gb/s PCIe GbE

Features

1. LGA1155 Intel® Xeon® E3 and Intel® Core™ i3 processor supported

2. Dual-channel 1333 MHz DDR3 supports up to 32 GB memory

3. Intel® PCIe GbE with Intel® AMT 7.0 support

4. Providng high-speed graphics interface by two PCIe x8/PCIe x4 add-on cards

5. USB 3.0 and SATA 6Gb/s supported

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMBA-C2060 single board computer

1 x I/O shielding (P/N: 45014-0028C0-01-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMBA-C2060-R10

19800-003100-200-RS

32102-000100-200-RS

32205-003800-100-RS

CF-1156A-RS-R11

CF-1156E-RS-R11

19800-000049-RS

19800-000051-RS

TPM-IN01-R11

Description

ATX motherboard supports 32nm LGA1155 Intel® Xeon® E3/

Core™ i3/Celeron® CPU per Intel® C206, DDR3, VGA/DVI/

HDMI, dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio and

RoHS

Dual ports USB cable with bracket

SATA power cable

RS-422/485 cable, 200mm

High performance LGA1155/LGA1156 cooling kit, 1U chassis compatible, 73W

High performance LGA1155/LGA1156 cooling kit, 95W

LPT cable

RS-232 cable, 230mm

20-pin Infineon TPM module, software management tool, firmware V3.17

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-65

IMBA-C2060-2013-V11

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-Q670-R21

Dual-channel DDR3

1333/1066 MHz

4 x SATA 3Gb/s

2 x SATA 6Gb/s

Intel

Q67

Front Panel

SMBus

I2C

8 x USB 2.0

TPM

RS-232

RS-422/485

ATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/

Pentium®/Celeron® CPU with Intel® Q67, DDR3, VGA/DVI-D/HDMI,

Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

Evolution of Media Usages in Transcoding

Video To Go

Make video available on-the-go for video capable devices and smartphones

PVR/DVR

HD TV program real-time recording and archiving

Burn To Disc

Store or share home video content with family and friends by burning it onto DVD

Video Source

H.264

AVC

MPEG-2 VC-1

Transcoding

Editing

Modify video by clipping, scaling, applying filters, adding captions etc.

Save the video in the

HDD or send back to the camcorder.

Decoding Preprocessing Encoding

Output Formats

H.264

MPEG-2

AVC

LAN1

3 x RS-232

LPT

DIO

PCIe x16

4 x PCI

Front

Audio

PCIe x1

PCIe x4

RS-232 VGA Dual GbE

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

TPM 1.2 support

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor

System Chipset

Intel® Q67

Memory

Four 240-pin 1333/1066MHz dual-channel unbuffered DDR3 SDRAM DIMM supported

(system max. 32GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 support (LAN2)

Graphics Engine

Support for DX10.1 and OpenGL3.0

Full MPEG2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic)

I/O Interface

5 x RS-232

1 x LPT

1 x PS/2 KB/MS

2 x USB 3.0 by NEC D720200F1

Front Audio

1 x 10-pin header

TPM

1 x RS-422/485

4 x SATA 3Gb/s with RAID 0/1/5/10 support

2 x SATA 6Gb/s with RAID 0/1/5/10 support

10 x USB 2.0 (2 by Rear IO, 8 by pin header)

1 x 20-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Expansion

1 x PCIe x16 slot

1 x PCIe x4 slot

1 x PCIe x1 slot

4 x PCI slots

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU Fan Connector

2 x 3-pin system Fan Connectors

Power Supply

ATX/AT power supply

Power Consumption

[email protected], [email protected] , [email protected], [email protected], [email protected]

(Intel® Core™ i5-2400 3.10GHz CPU with four 4 GB 1333MHz DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244mm x 305mm

Weight

GW:1200g, NW: 700g

1-66

KB/MS HDMI

IMBA-Q670-2013-V10

DVI-D 2 x USB 3.0

2 x USB 2.0

Audio

RAID

USB

USB 3.0

SATA 6Gb/s PCIe GbE

Features

1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported

2. Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM

3. Intel® PCIe GbE with Intel® AMT 7.0 support

4. USB 3.0 and SATA 6Gb/s supported

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMBA-Q670 single board computer

1 x I/O shielding (P/N: 45014-0028C0-01-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMBA-Q670-R21

Description

ATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/

Celeron® CPU with Intel® Q67, DDR3, VGA/DVI-D/HDMI, dual Intel®

PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

19800-003100-100-RS Dual-port USB cable with bracket

32102-000100-200-RS SATA power cable

32205-003800-100-RS RS-422/485 cable, 200mm

19800-000049-RS

19800-000051-RS

TPM-IN01-R11

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

CPU-DT-C-G440

CF-1156A-RS-R11

LPT cable

RS-232 cable, 230mm

20-pin Infineon TPM module, software management tool, firmware V3.17

Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible,

73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

Single Board Computer

IMBA-G410-R20

ATX motherboard supports Intel® LGA775 Core™2 Duo/Quad processor with

1333 MHz FSB, including VGA, Dual PCIe GbE, USB 2.0, COM, CF, SATA 3Gb/s and audio, RoHs

Dual-channel DDR3 800/1066MHz

Intel®

G41

Intel®

ICH7

TPM 4 x SATA 3Gb/s

Industrial Motherboard

IDE

CF Type II

RS-232/422/485

4 x RS-232

4 x USB 2.0

Core CPU

DDR3 Memory

Intel®

Q45

Intel®

ICH10DO

w w w . i e i w o r l d . c o m

IMBA-Q454

ATX motherboard supports 45nm Intel® LGA775 Core™2 Duo/Quad with a

1333/1066/800MHz FSB, dual Intel® GbE, six SATA 3Gb/s with RAID, six COM ports, USB and Audio

FDD Dual-channel 667/800MHz 6 x SATA 3Gb/s

8 x USB

PCIe x4 Slot with

PCIe x1 signal

5 x PCI Slot

COM2~6

LAN 1

TPM 1.2 Support

PCIe x16

Infrared

DIO

LPT Dual GbE

KB/MS LPT Dual GbE

PCIe x16 SPDIF

PCIe x4

4 x PCI

Features

KB/MS

RS-232

VGA Audio

4 x USB 2.0

1. Supporte Intel® Core™2 Quad/Core™2 Duo/Pentium®4/Celeron® processor

2. Dual-channel 1066MHz DDR3 supports up to 8GB

3. Intel® GMA X4500 delivers an excellent blend of graphics performance

4. TPM V1.2 hardware security function supported by TPM module

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA775 45nm Intel® Core™2 Quad, Core™2

Duo, Pentium® D, Celeron® processors at FSB

800/1066/1333MHz

System Chipset

Intel® G41+ICH7

Memory

Two 240-pin 4GB (max.) 800/1066MHz dualchannel DDR3 SDRAM DIMM supported (system max. 8GB)

BIOS: AMI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controllers LAN

1 with ASF 2.0 support

Display Interface

Intel® GMA X4500

Supports DirectX 10/OpenGL 1.5

VGA display supports analog CRT up to 2048x1536

@75MHz

Super I/O: Fintek F81865

I/O Interface

5 x RS-232

1 x LPT

2 x PS/2 KB/MS

8 x USB 2.0

1 x IDE

4 x SATA 3Gb/s

1 x CF Type II slot

1 x RS-232/422/485 with auto flow control

Audio: Realtek ALC888 HD Audio codec

TPM: 2 x10-pin header

Infrared Interface: 1 x 5-pin header

Expansion

1 x PCIe x16 slot (supports PCIe x1/x16 addon card and SDVO card)

1 x PCIe x4 slot (with x1 signal)

5 x PCI slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Fan Connector

1 x 4-pin CPU fan connector

3 x 3-pin system fan connector

Power Supply: ATX power supply

Power Consumption

[email protected], [email protected], [email protected],

[email protected] (Intel® Q9550 2.83GHz with

2GB 1333MHz DDR3 memory)

Temperature Operation: -10°C ~ 60°C

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions: 244mm x 305mm

Weight: GW:1200g/NW: 650g

Packing List

1 x IMBA-G410 single board computer

2 x Dual RS-232 cable (P/N: 19800-003600-100-RS)

1 x I/O shielding (P/N: 45014-0017C0-00-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMBA-G410--R20

32200-000052-RS

Description

ATX motherboard supports Intel® LGA775 Core™2 Duo/Quad processor with 1333 MHz FSB, VGA, PCIe x16, PCIe x4 (x1 signal), PCI, dual PCIe GbE, USB 2.0, COM, CF, SATA 3Gb/s and audio, RoHs

IDE cable

32102-000100-200-RS SATA power cable

19800-000100-200-RS Quad ports USB cable with bracket

19800-003100-200-RS Dual ports USB cable with bracket

19800-000058-RS

CF-775A-RS

CF-520-RS-R11

CF-775B-RS

SDVO-100DVI-R10

SDVO-100VGA-R10

TPM-IN01-R11

RS-232/422/485 cable

CPU cooler for 130W

CPU cooler for 115W

1U CPU cooler for 90W

PCIe x16 DVI Output SDVO card supports dual display (IEI CPU board only)

PCIe x16 VGA Output SDVO card supports dual display (IEI CPU board only)

20-pin Infineon TPM module, software management tool, firmware V3.17

Audio

COM1 VGA 4 x USB 2.0

Features

1. Designed for Intel® Core™2 Quad/Duo processor Q9000/E8000/E7000 series in the LGA775 with a 1333/1066/800 MHz FSB

2. Intel® GbE LAN with Intel® AMT 5.0 supported

3. Intel® Q45 chipset integrating high-performance graphics with DX10 and OpenGL 2.1. External graphics card with PCIe 2.0 and 1x16 PEG support

4. PCIe x16 expansion slot and VGA output for dual display support

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA 775 45nm Intel® Core™2 Duo/Quad, Celeron®

CPU with a 1333/1066/800 MHz FSB

System Chipset

Intel® Q45 + Intel® ICH10DO

BIOS

AMI BIOS

System Memory

Four 240-pin 800/667 MHz dual-channel DDR2

SDRAM DIMM support up to 16 GB

Ethernet Chipset

LAN 1: Intel® 82567LM (Intel® AMT 5.0 supported)

LAN 2: Intel® 82574L

IO Interface

6 x RS-232

1 x LPT

1 x VGA

2 x RJ-45

12 x USB 2.0 2 x PS/2 for KB & MS

1 x Audio jack for Line-in/Line-out/Mic-in

Expansion

One PCIe x16 One PCIe x4 Four PCI

Graphics Integrated

Intel® GMA 4500 support for Microsoft DirectX* 10,

Shader Model 4.0 and OpenGL* 2.0

Display Output

Analog CRT and PEG x 16

Super IO

ITE IT8718F

Digital I/O

8-bit (4-bit input/4-bit output)

Storage

1 x FDD

6 x SATA 3Gb/s (with RAID 0, 1, 5, 10 function)

Audio

Realtek ALC888

TPM iTPM1.2

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

ATX supported

Fan connector

1 x 4-pin CPU fan

1 x 4-pin chipset fan

1 x 3-pin system fan

Power Consumption

[email protected], [email protected], [email protected],

[email protected] (Intel® Core 2 Duo E8500

3.16 GHz with four 800 MHz 2 GB DDR2)

Temperature

Operation: 0°C ~ 60°C (32°F~140°F)

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions: 305 mm x 244 mm

Weight: GW: 1200 g/NW: 600 g

Packing List

1 x IMBA-Q454 single board computer 1 x One Key Recovery CD

2 x Dual RS-232 cable (P/N: 19800-000051-RS) 1 x Mini jumper pack

1 x I/O shielding (P/N: 45002-450903-00-RS)

6 x SATA cable (P/N: 32801-000703-200-RS)

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMBA-Q454-R10

Description

ATX motherboard supports 45nm Core™2 Duo/Quad with a

1333/1066/800 MHz FSB, Intel® Q45 & ICH10DO platform, dual Intel®

GbE, six SATA 3Gb/s with RAID, six COM ports, USB and audio

CF-775A-RS

CF-520-RS-R11

19800-003100-200-RS

19800-000100-200-RS

CPU cooler

Dual USB cable

Four USB cable

SDVO-100VGA-R10

SDVO-100DVI-R10

PCIe x16 VGA output SDVO card support dual display (IEI CPU board only)

PCIe x16 DVI output SDVO card support dual display (IEI CPU board only)

32229-000100-100-RS FDD cable

32102-000100-100/200-RS SATA power cable

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

IMBA-G410-2013-V10

1-67

Single Board Computer

IMBA-XQ354-R11

LGA 775 45nm Intel® Core™2 Quad, Core™2 Duo, Celeron® CPU with a

1333/1066/800MHz FSB

4 x DIMM (dual-channel DDR2)

FDD ATX

ICH9DO

DIO

6 x SATA

3Gb/s

8 x USB 2.0

Industrial Motherboard w w w . i e i w o r l d . c o m

IMBA-9454-R40

ATX form factor with Intel® Core™2 Duo, Pentium® D/Pentium® 4/Celeron® D

CPU FSB 533/800/1066 MHz, VGA, dual-channel DDR2, FDD, LPT, four SATA

3Gb/s, eight USB 2.0 and six COM

ATX

Dual-channel DDR2

400/533/667MHz IDE FDD

4 x SATA 3Gb/s

ICH7

LPC TPM

COM2~6

CF Type II

COM 3~6

4 x USB 2.0

LPC TPM

3 x PCI

6 x PCI

COM 2

PCIe x16

PS/2 for KB/MS

LPT

DIO

Dual PCIe GbE Audio

Intel® 945G

TPM 1.2 Support

LPT

Intel® Q35 3 x PCIe x4

PCIe x16

Dual GbE Audio

TPM 1.2 Support

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

KB/MS COM 1 VGA 4 x USB 2.0

Features

1. ATX form factor supports Intel® Q35/ICH9DO

2. Supports Intel® Core™2 Quad/Duo 45nm processor with a 1333/1066/800 MHz FSB

3. PLX PCIe switch for three PCIe x4 add-on cards

4. Six SATA 3Gb/s with Intel® Matrix Storage Technology supported

5. Intel® PCIe GbE with Intel® AMT 3.0 supported

6. TPM1.2 IT security solution supported

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA 775 45nm Intel® Core™2 Quad,

Core™2 Duo, Celeron® CPU with a

1333/1066/800 MHz FSB

FSB

1333/1066/800 MHz

System Chipset

Intel® Q35

Intel® ICH9DO

BIOS

AMI BIOS

Memory

4 x 240-pin 800/667 MHz dual-channel

DDR2 SDRAM DIMM support up to 8 GB

Graphics

Integrated Graphics Device from Q35

Display Output

Analog display (VGA)

Ethernet

Intel® 82566DM (PHY) + ICH9-DO (MAC) for Intel® AMT support

Intel® 82573L (MAC+PHY) PCIe GbE

Super IO

ITE IT8718F

Audio

Reltek ALC888 HD Audio codec

Digital I/O

8-bit digital I/O 4-bit input/4-bit output

Packing List

1 x IMBA-XQ354 single board computer

1 x I/O shielding (P/N: 45014-0025C0-00-RS)

2 x Dual RS-232 cable (P/N: 19800-003600-100-RS)

1 x RS-232 cable (P/N: 19800-000114-RS)

6 x SATA cable (P/N: 32102-000100-200-RS)

IO Interface

1 x KB/MS

1 x FDD

6 x SATA 3Gb/s

1 x LPT

12 x USB 2.0

6 x RS-232 COM Port

(2 by super IO, 4 by Fintek F81216DG)

Expansions

1 x PCIe x16

3 x PCIe x4 (by PLX PEX8518)

3 x PCI

Watchdog Timer

Software programmable supports 1~255 sec. system reset

TPM

2 x 10-pin LPC header

Power Supply

ATX supported

Fan Connector

1 x 4-pin CPU fan

Power Consumption

2 x 3-pin system fan

[email protected], [email protected], [email protected], 77A

(Intel® Core™2 Duo E6850 CPU with 800

MHz 8GB DDR2 DIMM)

Temperature

Operation: 0°C ~ 60°C (32°F~140°F)

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions: 305 mm x 244 mm

Weight: GW: 1200 g/NW: 600 g

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMBA-XQ354-R11

Description

ATX motherboard with Intel® LGA775, Core™2 Quad CPU, Celeron® with a 1333/1066/800 MHz FSB, PCIe x16, PCIe x4, PCIe GbE, SATA 3Gb/s and audio

19800-003100-200-RS Dual USB cable

19800-000100-200-RS Four USB cable

32200-000063-RS

CF-775A-RS

CF-520-RS-R11

RS-232/422/485 cable

CPU cooler

TPM-IN01-R11

SDVO-100VGA-R10

SDVO-100DVI-R10

20-pin Infineon TPM module, software management tool, firmware V3.17

PCIe x16 VGA output SDVO card supports dual display (IEI CPU board only)

PCIe x16 DVI output SDVO card supports dual display (IEI CPU board only)

COM 1 VGA 4 x USB 2.0

Features

1. Intel® Core™2 Duo, Pentium® D, Pentium® 4, Celeron® D processor in a LGA 775 package

2. Integrated Intel® GMA950 graphics engine that offers adequate display quality via VGA interface

3. Dual-channel 400/533/667 MHz DDR2 SDRAM socket supports up to 4 GB

4. TPM V1.2 hardware security function supported

5. Four SATA 3Gb/s, eight USB 2.0, audio and ATX power only

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA 775 Intel® Core™2 Duo, Pentium® 4/

Celeron® D processor, FSB 533/800/1066 MHz

System Chipset

Intel® 945G + ICH7

BIOS

AMI BIOS

System Memory

4 x 240-pin dual-channel 400/533/667 MHz

DDR2 (system max. 4 GB)

Ethernet

Dual PCIe Realtek RTL8111E GbE controller

I/O Interfance

8 x USB 2.0

1 x LPT

4 x SATA 3Gb/s

1 x FDD

2 x PS/2 for KB/MS 1 x IDE

1 x RS-232/422/485 5 x RS-232

1 x CF Type II

1 x 20-pin LPC for TPM

Expansions

One PCIe x16

(Support PCIe x1/x16 PCIe add-on cards)

6 x PCI

Infrared Interface

1 x Infrared interface by pin header

Packing List

Super I/O

ITE IT8712F

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Audio

Realtek ALC655 with AC'97 codec

Display

VGA integrated in Intel® 945G

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

ATX support

Power Consumption

[email protected], [email protected], [email protected],

[email protected] (Intel® Core™2 Duo E7400 2.8

GHz/1066 MHz CPU with two 800 MHz 2GB DDR2)

Temperature

Operating: 0°C ~ 60°C (32° F~140° F)

Humidity

Operating: 5% ~ 95%, non-condensing

Dimensions

305 (L) mm x 244 (W) mm

Weight

GW: 1200 g/NW: 650 g

1 x IMBA-9454 single board computer

1 x IDE cable (P/N: 32200-000052-RS)

2 x Dual RS-232 cable (P/N: 19800-003600-100-RS)

1 x SATA power cable (P/N: 32102-000100-200-RS)

1 x I/O shielding (P/N: 45014-0017C0-00-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x Mini jumper pack

1 x Utility CD

1 x One Key Recovery CD 1 x QIG

Ordering Information

Part No.

IMBA-9454G-R40

Description

ATX motherboard with Intel® LGA 775 Core™2 Duo,

Pentium® D/Pentium® 4/Celeron® D processor FSB

533/800/1066MHz, PCIe GbE, SATA 3Gb/s and Audio

FDD cable 32229-000100-100-RS

19800-003100-200-RS

19800-000100-200-RS

32200-000063-RS

Dual USB cable

Four USB cable

RS-232/422/485 cable

CF-775A-RS/CF-520-RS-R11 CPU cooler

TPM-IN01-R11

20-pin Infineon TPM module, software management tool, firmware V3.17

SDVO-100VGA-R10

SDVO-100DVI-R10

PCIe x16 VGA output SDVO card supports dual display

(IEI CPU board only)

PCIe x16 DVI output SDVO card supports dual display

(IEI CPU board only)

1-68

IMBA-XQ354-2013-V10

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMB-C2160

8 x RS-232

microATX Motherboard Supports 22nm LGA1155 Intel® Xeon® E3/Intel® Core™ i3

CPU with Intel® C216, DDR3, VGA, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Ten

Serial Ports, HD Audio and RoHS

SATA 3Gb/s Front Panel

Intel®

C216

SATA 6Gb/s

6 x USB 2.0

Ten COM ports in server board

The premium server IMB-C2160 implement rich COM ports and compatible cost-effective

Intel Core i3-2120 and Celeron G540 processors. It can fulfill application server and communication server that rich COM ports needed.

Intel® Core™ i3/

Celeron®/Xeon® CPU

Ten COM

RS-422/485

Dual-Channel DDR3

1600/1333 MHz

IR

SMBus

TPM

Servers

PCIe x8

KB/MS RS-232 USB 2.0

Dual GbE

DIO

LAN1

PCIe x16

PCIe x4

PCIe x4

Front Audio

Specifications

CPU

LGA1155 socket supports Intel® Xeon® E3 and Intel® Core™ i3 quad/dual core processors

System Chipset

Intel® C216

Memory

Four 240-pin 1600/1333MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMMs supported (system max. 32GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82579 PHY with Intel® AMT 8.0 supported

Intel® 82574L PCIe controller

Graphics Engine

Supports DX10.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode

Display Output

VGA integrated in the Intel® C216 (up to 2048 x 1536 @75Hz)

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD audio codec (Line-in, Line-out, Mic)

I/O interface

9 x RS-232 1 x RS-422/485

10 x USB 2.0 (4 on rear, 6 by pin header)

2 x SATA 6Gb/s (RAID 0/1/5/10 support)

4 x USB 3.0 (rear I/O)

4 x SATA 3Gb/s

1 x PS/2 KB/MS

Front Audio

2 x 5-pin header

Front Panel

1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)

TPM

2 x 10-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Infrared Interface

1 x 5-pin infrared by pin header

Expansions

2 x PCIe x16 (share 1 PCIe x 16 signal)

2 x PCIe x4 slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

24-bit Digital I/O (24-bit GPIO is for programming I/O)

Fan Connector

1 x 4-pin CPU fan connector

2 x 3-pin system fan connector

Power Supply

ATX power supply

Power Consumption

[email protected], [email protected], [email protected], [email protected], [email protected]

(3.10GHz Intel® Xeon® CPU with two 1333MHz 4GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244 mm x 244 mm

Weight

GW: 1200g/NW: 700g

2 x USB 2.0 VGA 4 x USB 3.0

Audio

Native

Gen.

3

Intel

®

AMT 8.0

USB

USB 3.0

SATA 6Gb/s PCIe GbE

Features

1. LGA1155 Intel® Xeon® E3 and Intel® Core™ i3 processors supported

2. Dual-channel DDR3 1600/1333MHz supports up to 32GB

3. Intel® PCIe GbE with Intel® AMT 8.0 supported

5. Support PCI-Express generation 3.0 at 8GT/s I/O bandwidth

5. USB 3.0 and SATA 6Gb/s supported

6. Supports much scalable serial ports

7. High-speed interface usage for two PCIe x8/two PCIe x4 add-on cards

8. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

10 COM

Packing List

1 x IMB-C2160 single board computer

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x I/O shielding (P/N: 45014-0034C0-00-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMB-C2160-R10

Description microATX motherboard supports 22nm LGA1155 Intel® Xeon®

E3/Intel® Core™ i3 CPU with Intel® C216, DDR3, VGA, dual

Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, ten serial ports, HD

Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32006-000300-100-RS Male PS/2 KB/MS Y-cable w/o bracket, 12cm(KB)+14cm(MS)

32205-003800-100-RS RS-422/485 cable, 200mm

32205-001203-100-RS Quad-port RS-232 cable without bracket, 400/400/400/400mm

32102-000100-200-RS SATA power cable

19800-000075-RS

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

PS/2 KB/MS Y-cable with bracket, 6-pin header, 220mm

High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

CF-1156E-RS-R11

TPM-IN01-R11

High performance LGA1155/LGA1156 cooler kit, 95W

20-pin Infineon TPM module, SW management tool, firmware

V3.17

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-69

IMB-C2160-2013-V11

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMB-Q770

microATX Motherboard Supports 22nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel®

Q77, DDR3, Three Independent Displays via Dual HDMI/DVI-I, Dual Intel® PCIe GbE,

USB 3.0, SATA 6Gb/s, Ten Serial Ports, HD Audio and RoHS

Front Panel

TPM RS-422/485

SMBus

SATA 6Gb/s

SATA 3Gb/s

4 x USB 2.0

4 x RS-232

LGA1155 CPU cross compatibility

This LGA1155 socket compatible with 3nd (IVB) and 2nd (SNB) CPU. It can get one year expanded product lifespan and the new technologies when you use backward 2nd CPU on Intel ® 7 series platform.

Dual-Channel DDR3

1600/1333 MHz

Intel®

Q77

Cross Compatibility

DIO

IVB CPU

SNB CPU

New Generation Backward compatible

LGA1155

KB/MS

RS-232 2 x USB 2.0

Dual GbE

4 x RS-232

LAN1

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

PCIe x16 PCIe x1 PCIe x4

Front Audio PCI

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3 quad/dual core processor

System Chipset

Intel® Q77

Memory

Four 240-pin 1600/1333MHz dual-channel DDR3 SDRAM unbuffered DIMMs supported

(system max. 32GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 8.0 supported

Graphics Engine

Intel® HD Graphics Gen 7 supports DX11 and OpenCL 1.1

Full MPEG2, VC1, AVC Decode

Display Output

Dual HDMI integrated in the Intel® Q77 (up to 1920 x 1200 @60Hz)

DVI-I integrated in the Intel® Q77 (up to 1920 x 1200 @60Hz)

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD audio codec (Line-in, Line-out, Mic)

I/O interface

9 x RS-232

4 x USB 3.0 (rear I/O)

1 x RS-422/485

6 x USB 2.0 (2 on rear, 2 by pin header)

2 x SATA 6Gb/s (RAID 0/1/5/10 support)

4 x SATA 3Gb/s (RAID 0/1/5/10 support)

1 x 6-pin wafer for PS/2 KB/MS

Front Audio

2 x 5-pin header

Front Panel

1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)

TPM

2 x 10-pin header

SMBus

1 x 4-pin wafer

I2C

1 x 4-pin wafer

Infrared Interface

1 x 5-pin infrared by pin header

Expansions

1 x PCIe x16 slot 1 x PCIe x4 slot

1 x PCI slot 1 x PCIe x1 slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

24-bit Digital I/O (12-bit input, 12-bit output)

Fan Connector

1 x 4-pin CPU fan connector

2 x 3-pin system fan connector

Power Supply

ATX power supply

Power Consumption

[email protected], [email protected], [email protected], [email protected], [email protected]

(Intel® Core™ i3 3200 3.2GHZ CPU with four 1333MHz 1GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

244 mm x 244 mm

Weight

GW: 1200g/NW: 700g

2 x HDMI

Intel

®

AMT 8.0

DVI-I 4 x USB 3.0

Audio

USB

USB 3.0

Native

Gen.

3

SATA 6Gb/s PCIe GbE

Features

1. LGA1155 Intel® Core™ i7/i5/i3 processor supported

2. Dual-channel DDR3 1600/1333MHz supports up to 32GB

3. Intel® PCIe GbE with Intel® AMT 8.0 supported

4. Supports 3 displays with 2 displays in combination of HDMI, DVI and VGA

5. Supports PCI-Express generation 3.0 at 8GT/s I/O bandwidth

6. USB 3.0 and SATA 6Gb/s supported

7. Supports much scalable serial ports

8. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMB-Q770 single board computer

1 x DVI-I to VGA adapter (P/N: 33Z00-000031-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x I/O shielding

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMB-Q770-R10

Description microATX motherboard supports 22nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel® Q77, DDR3, three independent displays via dual HDMI/DVI-I, dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/ s, ten serial ports, HD Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32205-003800-100-RS RS-422/485 cable, 200mm

32205-001203-100-RS Quad-port RS-232 cable without bracket, 400/400/400/400mm

32102-000100-200-RS SATA power cable

19800-000075-RS

CF-1156A-RS-R11

CF-1156C-RS

PS/2 KB/MS Y-cable with bracket, 220mm

High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

CF-1156D-RS

CF-1156E-RS-R11

TPM-IN01-R11

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High performance LGA1155/LGA1156 cooler kit, 95W

20-pin Infineon TPM module, SW management tool, firmware

V3.17

1-70

IMB-Q770-2013-V10

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMB-H610A/IMB-H610B

microATX Motherboard Supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/

Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, Dual Realtek PCIe GbE,

USB 2.0, Six COMs, SATA 3Gb/s, HD Audio and RoHS

Dual-channel DDR3

1333/1066 MHz

Front Panel TPM

SATA 3Gb/s

I2C

SMBus

Intel®

H61

6 x USB 2.0

RS-422/485

IMB-H612A/IMB-H612B

microATX Motherboard Supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU with

Intel® H61, DDR3, Dual VGA, Dual PCIe GbE, USB 2.0, PCI, Six COMs, SATA 3Gb/s,

Audio and RoHS

Dual-channel DDR3

1333/1066 MHz

Front Panel

TPM

SATA 3Gb/s

I2C

SMBus

6 x USB 2.0

Intel®

H61

1 x RS-232

DIO

Only for IMB-H612B

Extra 4 x RS-232

Only for IMB-H610B

Extra 4 x RS-232

DIO

3 x RS-232

2 x RS-232

LAN1

RS-422/485

Front Audio TPM 1.2 Support

LAN1

Front Audio

TPM 1.2 Support

PCIe x16 3 x PCIe x1

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3 quad/ dual, Pentium® dual and Celeron® dual/single core processors

System Chipset

Intel® H61

Memory

Two 240-pin 1333/1066 MHz dual-channel unbuffered

DDR3 SDRAM DIMMs supported (system max. 16GB)

BIOS: UEFI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controller (LAN1 with ASF 2.0 support)

Graphics Engine

Intel® HD Graphics 2000/3000 (based on CPU type)

Supports DX10.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode

I/O Interface

1 x RS-422/485 1 x PS/2 KB/MS

4 x SATA 3Gb/s without RAID & AHCI

10 x USB 2.0 (4 by rear IO, 6 by pin header)

5 x RS-232 (for IMB-H610A-R10)

9 x RS-232 (for IMB-H610B-R10)

Super I/O: Fintek F81866

Display Output

Dual display supported

1 x VGA (up to 2048 x 1536 @75Hz)

1 x DVI-D (up to 1920 x 1200 @60Hz)

Packing List

1 x IMB-H610 single board computer

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x I/O shielding (P/N: 45014-0008C0-00-RS)

1 x One Key Recovery CD

Ordering Information

Audio

Realtek ALC662 HD audio codec (Line-in,

Line-out, Mic)

Front Audio: 1 x 10-pin header

Front Panel

1 x Front panel connector (power LED, HDD

LED, speaker, power button, reset button)

TPM: 1 x 20-pin header

SMBus:1 x 4-pin wafer

I2C: 1 x 4-pin wafer

Expansions

1 x PCIe x16 slot 3 x PCIe x1 slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O: 8-bit programmable I/O

Fan Connector

1 x 4-pin CPU fan connector

2 x 3-pin system fan connector

Power Supply: ATX/AT power supply

Power Consumption

[email protected], [email protected] , [email protected],

[email protected], [email protected] (Intel® 2.60GHz

CPU with two 1333MHz 4GB DDR3 memory)

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 244 mm x 244 mm

Weight: GW: 1200g/NW: 680g

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Part No.

IMB-H610A-R10

Description microATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/

Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE,

USB 2.0, 6 COM, SATA 3Gb/s, HD Audio and RoHS

IMB-H610B-R10 microATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/

Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE,

USB 2.0, 10 COM, SATA 3Gb/s, HD Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32205-003800-100-RS RS-422/485 cable, 200mm

32102-000100-200-RS SATA power cable

32205-001203-100-RS Quad-port RS-232 cable without bracket, 400/400/400/400mm

19800-003600-100-RS Dual-port RS-232 cable

19800-000114-RS

TPM-IN01-R11

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

Single-port RS-232 cable

20-pin Infineon TPM module, software management tool, firmware V3.17

Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache,

45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W,

AMT, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

CPU-DT-C-G440

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache,

35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

Features

2 x PCIe x1 2 x PCI

1. LGA1155 Intel® Core™ i7/i5/i3 processor supported

2. Dual-channel 1333MHz DDR3/DDR3L (1.35V) supports up to 16GB

3. Intel® HD Graphics technology integrates high-performance graphics and media processing

4. Supports independent display output via dual VGA

5. Supports legacy PCI 32-bit 33/66MHz

6. Supports lower power 1.35V DDR3 memory

7. TPM V1.2 hardware security function supported by TPM module

8. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3 quad/ dual, Pentium® dual and Celeron® dual/single core processors

System Chipset: Intel® H61

Memory

Two 240-pin 1333/1066MHz dual-channel DDR3/

DDR3L (1.35V) SDRAM unbuffered DIMMs supported

(system max. 16GB)

BIOS: UEFI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controller (LAN1 with ASF 2.0 supported)

Graphics Engine

VGA1: Intel® HD Graphics 2000/3000 (based on

CPU type)

Supports DX10.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode

VGA2: Chrontel CH7317B

Display Output

Dual display supported

VGA1: up to 2048 x 1536 @75Hz

VGA2: up to 1920 x 1200 @60Hz

I/O Interface

1 x PS/2 KB/MS 1 x RS-422/485

4 x SATA 3Gb/s without RAID & AHCI

10 x USB 2.0 (4 by rear IO, 6 by pin header)

5 x RS-232 (for IMB-H612A-R10)

9 x RS-232 (for IMB-H612B-R10)

Packing List

Super I/O: Fintek F81866

PCIe to PCI Bridge IC: ITE IT8893E

Audio

Realtek ALC662 HD audio codec

(Line-in, Line-out, Mic)

Front Audio: 2 x 5-pin header

TPM: 2 x 10-pin header

SMBus: 1 x 4-pin wafer

1

I2C: 1 x 4-pin wafer

Expansions

2 x PCIe x1 slot

Watchdog Timer

2 x PCI slot

Software programmable supports 1~255 sec. system reset

Video

Capture

Solutions

Digital I/O: 8-bit programmable I/O

Fan Connector

1 x 4-pin CPU fan connector

2 x 3-pin system fan connector

Power Supply: AT/ATX power supply supported

Power Consumption

[email protected], [email protected], [email protected],

Industrial

Computing

Soluations

2

3

[email protected] (3.10GHz Intel® Core™ i5-2400

CPU with two 1333MHz 4GB DDR3 memory)

Embedded

Computing

Solutions

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 244 mm x 244 mm

Weight: GW: 1200g/NW: 680g

4

Automation

Control

1 x IMB-H612 single board computer

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x I/O shielding (P/N: 45014-0041C0-00-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

5

ORing

Network

Communication

Part No.

IMB-H612A-R10

Description microATX motherboard supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel® H61, DDR3, VGA, dual PCIe GbE, PCI,

6 COM, USB 2.0, SATA 3Gb/s, Audio and RoHS

IMB-H612B-R10 microATX motherboard supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel® H61, DDR3, VGA, dual PCIe GbE, PCI, 10 COM, LPT, USB 2.0,

SATA 3Gb/s, Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32205-003800-100-RS RS-422/485 cable, 200mm

32102-000100-200-RS SATA power cable

CF-1156A-RS-R11

CF-1156C-RS

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible,

73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

CF-1156D-RS

CF-1156E-RS-R11

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

32205-001203-100-RS Quad-port RS-232 cable without bracket, 400/400/400/400mm

19800-003600-100-RS Dual-port RS-232 cable

19800-000114-RS Single-port RS-232 cable

TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

IMB-H610-2013-V10

1-71

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMB-C2060

Dual-channel DDR3

1333/1066 MHz

microATX motherboard supports 32nm LGA1155 Intel® Xeon® E3/Core i3/

Celeron® CPU per Intel® C206, DDR3, VGA/DVI/HDMI, dual Intel® PCIe GbE,

USB 3.0, COM, SATA 6Gb/s, Audio and RoHS

Front panel

TPM

4 x SATA 3Gb/s

2 x SATA 6Gs/s 6 x USB 2.0

The two PCIe x8 interfaces of the IMB-C2060 can support two I/O interface cards, two graphic cards or one graphic card plus one

I/O interface card.

8 x RS-232

Intel®

C206

RS-422/485

PCle x16/x8

PCle x8

Infrared

PCI

PCIe x4

PCle x

PCI

8

PCle x

16/x8

PCle x

4

Capability of two

SATA RAID cards

24-bit DIO

RS-232 VGA Dual GbE

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

Front Audio

CPU

LGA1155 socket supports Intel® Xeon® E3 quad/dual, Core™ i3 dual, Celeron® dual core processor

System Chipset

Intel® C206

Memory

Four 240-pin 1333/1066MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMM supported (system max. 32GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82574L PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 supported

Graphics Engine

Support for DX10.1 and OpenGL3.0

Full MPEG2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Super I/O

Fintek F81866

Audio

Realtek ALC888 HD Audio codec (Line-in, Line-out, Mic)

I/O Interface

9 x RS-232

1 x RS-422/485

1 x PS/2 KB/MS

4 x SATA 3Gb/s with RAID 0/1/5/10 support

2 x SATA 6Gb/s with RAID 0/1/5/10 support

2 x USB 3.0 by NEC D720200F1

10 x USB 2.0 (2 by Rear IO, 8 by pin header)

Front Audio

2 x 5-pin header

TPM

2 x 10-pin header

SMBus

1 x 4-pin wafer

Expansions

2 x PCIe x16 (share 1 PCIe x 16 signal)

1 x PCIe x4 slot 1 x PCI slot

Slot

Configuration 1

Configuration 2

Configuration 3

PCIe and PCI Slot Combination Table

PCIe x16 PCIe x8 PCIe x4

1 N/A 1

N/A

N/A

2

1

1

1

PCI

1

1

1

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

24-bit digital I/O (12-bit input, 12-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin NB fan connector

2 x 3-pin system fan connector

Power Supply

ATX Power Supply

Power Consumption

[email protected], [email protected] , [email protected], [email protected], [email protected]

(Intel® Core™ i3-2100 2.60GHz CPU with four 1333MHz 4GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~95%, non-condensing

Dimensions

244mm x 244mm

Weight

GW: 1200g/NW: 680g

KB/MS

RAID

HDMI

USB

USB 3.0

SATA 6Gb/s PCIe GbE 10 COM

Features

1. LGA1155 Intel® Xeon® E3 and Intel® Core™ i3 processor supported

2. Dual-channel 1333MHz DDR3 supports up to 32GB

3. Intel® PCIe GbE with Intel® AMT 7.0 support

4. Providng high-speed graphics interface by two PCIe x8/two PCIe x4 addon cards

5. USB 3.0 and SATA 6Gb/s supported

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

DVI-D 2 x USB 3.0

2 x USB 2.0

Audio

1 x IMB-C2060 sngle board computer

2 x Quad-port RS-232 cable (P/N: 32205-001203-100-RS)

1 x I/O shielding (P/N: 45014-0028C0-01-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

32102-000100-200-RS SATA power cable

TPM 1.2 Support

Part No.

IMB-C2060-R10

Description microATX motherboard supports 32nm LGA1155 Intel® Xeon®

E3/Core™ i3/Celeron® CPU per Intel® C206, DDR3, VGA/DVI/

HDMI, dual Intel® PCIe GbE, USB 3.0, COM, SATA 6Gb/s, Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32205-003800-100-RS RS-422/485 cable, 200mm

CF-1156A-RS-R11

CF-1156E-RS-R11

High performance LGA1155/LGA1156 cooling kit, 1U chassis compatible, 73W

High performance LGA1155/LGA1156 cooling kit, 95W

TPM-IN01-R11

20-pin Infineon TPM module, software management tool, firmware V3.17

1-72

IMB-C2060-2013-V11

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

IMB-Q670-R21

microATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/

Pentium®/Celeron® CPU with Intel® Q67, DDR3, VGA/DVI-D/HDMI, dual Intel® PCIe GbE, USB 3.0, COM, SATA 6Gb/s, HD Audio and RoHS

Dual-channel DDR3

1333/1066 MHz Front panel

TPM RS-422/485

SMBus SATA 6Gb/s

SATA 3Gb/s

8 x USB 2.0

SATA 6Gb/s

Double Data

Rate Speed !!

8 x RS-232

VGA

The SATA 3Gb/s connector parallel to the PCB edge gives enough space for the full-size graphics card installation and cabling.

Dual GbE

24-bit DIO

PCIe x4

RS-232

Front Audio

LAN1

PCIe x1 Infrared

PCIe x16 PCI

Specifications

TPM 1.2 Support

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3 quad/dual, Pentium® dual, Celeron® dual/single core processor

System Chipset

Intel® Q67

Memory

Four 240-pin 1333/1066 MHz dual-channel unbuffered DDR3 SDRAM DIMMs supported

(system max. 32GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 support (LAN2)

Graphics Engine

Support for DX10.1 and OpenGL3.0

Full MPEG2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Super I/O

Fintek F81866

Audio

Realtek ALC892 HD Audio codec (Line-in, Line-out, Mic)

I/O Interface

9 x RS-232

1 x RS-422/485

1 x PS/2 KB/MS

4 x SATA 3Gb/s with RAID 0/1/5/10 support

2 x SATA 6Gb/s with RAID 0/1/5/10 support

2 x USB 3.0 by NEC D720200F1

10 x USB 2.0 (2 by rear IO, 8 by pin header)

Front Audio

1 x 10-pin header

TPM

1 x 20-pin header

SMBus

1 x 4-pin wafer

Expansions

1 x PCIe x16 slot

1 x PCIe x4 slot

Watchdog Timer

1 x PCIe x1 slot

1 x PCI slot

Software programmable supports 1~255 sec. system reset

Digital I/O

24-bit digital I/O (12-bit input, 12-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin NB fan connector

2 x 3-pin system fan connectors

Power Supply

ATX/AT power supply

Power Consumption

[email protected], [email protected], [email protected], [email protected], [email protected]

(Intel® 2.60GHz CPU with four 1333 MHz 4GB DDR3 DIMMs)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~95%, non-condensing

Dimensions

244mm x 244mm

Weight

GW: 1200g/NW: 680g

KB/MS HDMI DVI-D 2 x USB 2.0

Audio

2 x USB 3.0

RAID

USB

USB 3.0

SATA 6Gb/s PCIe GbE

Features

1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported

2. Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM

3. Intel® PCIe GbE with Intel® AMT 7.0 support

4. USB 3.0 and SATA 6Gb/s supported

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x IMB-Q670 single board computer

2 x Quad-port RS-232 cable (P/N: 32205-001203-100-RS)

1 x I/O shielding (P/N: 45014-0028C0-01-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

10 COM

Ordering Information

Part No.

IMB-Q670-R21

Description microATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/

Pentium®/Celeron® CPU with Intel® Q67, DDR3, VGA/DVI-D/

HDMI, dual Intel® PCIe GbE, USB 3.0, COM, SATA 6Gb/s, HD

Audio and RoHS

19800-003100-100-RS Dual-port USB cable with bracket

32102-000100-200-RS SATA power cable

32205-003800-100-RS RS-422/485 cable, 200mm

TPM-IN01-R11

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

CPU-DT-C-G440

CF-1156A-RS-R11

CF-1156C-RS

20-pin Infineon TPM module, software management tool, firmware V3.17

Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz,

6M cache, 45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz,

3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz,

3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz,

3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz,

1M cache, 35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

CF-1156D-RS

CF-1156E-RS-R11

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

IMB-Q670-2013-V10

1-73

Single Board Computer

IMB-G41A

Industrial Motherboard

microATX motherboard supports 45nm LGA775 Intel® Core™2 Quad CPU with a 1333/1066/800MHz FSB, PCIe x16, PCIe x1, two PCI, 10 COM, dual PCIe GbE,

SATA 3Gb/s, audio and RoHS

w w w . i e i w o r l d . c o m

IMB-Q354-R12

microATX motherboard supports 45nm LGA775 Intel® Core™2 Duo CPU with a

800/1066/1333 MHz FSB, Intel® Q35 & ICH9DO platform, Intel® PCIe GbE, SATA

3Gb/s with RAID functions

FDD 6 x SATA 3Gb/s Front panel

Dual-channel DDR3

800/1066MHz

USB4/5

USB6/7

USB8/9

USB10/11

ICH9DO

Intel®

G41

COM7~COM10 with

5V/12V jumper selection CPU fan

Intel® Q35

PCIe x16

2 x PCI

PCIe x1

Intel®

ICH7

DIO

COM3~COM6 4 x USB 2.0

RS-232/422/485

LPT Dual GbE

4 x SATA 3Gb/s

IDE

PCIe x16

12V input

TPM

2 x PCI

COM3

TPM 1.2 Support

COM2

PCIe x4

COM4

SPDIF

CD In Audio

KB/MS LPT

LAN 1

Audio

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

Features

KB/MS COM1 VGA 4 x USB 2.0 Audio

1. Support for the next-generation 45nm Intel® Core™2 processor family with faster system performance

2. Intel® GMA X4500 delivers an excellent blend of graphics performance

3. Integrated VGA and PCIe x16 SDVO add-on card for dual display

4. Diverse I/O interfaces, including 10 COM ports, four SATA 3Gb/s ports

5. Support dual-channel DDR3 SDRAM DIMM up to 8GB (max.)

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA775 45nm Intel® Core™2 Quad, Core™2

Duo, Pentium® D, Celeron® processor with a

800/1066/1333MHz FSB

System Chipset: Intel® G41+ICH7

Memory

Two 240-pin 4GB (max.) 800/1066MHz dual-channel

DDR3 SDRAM DIMM supported (System max. 8GB)

BIOS: AMI BIOS

Ethernet: Dual Realtek RTL8111CP PCIe GbE controller

Display Interface

Intel® GMA X4500

Supports DirectX 10/OpenGL 1.5

One VGA supports analog CRT up to [email protected]

Super I/O: ITE IT8783F

Audio: Realtek ALC888 HD Audio codec

I/O Interface

1 x IDE

1 x LPT

2 x PS/2 for KB/MS

8 x USB 2.0

4 x SATA 3Gb/s

1 x RS-232/422/485

9 x RS-232 (COM7~COM10 with 5V/12V jumper selection)

Infrared Interface: 1 x Infrared connector by 5-pin header

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output

Expansions

1 x PCIe x16 slot

1 x PCIe x1 slot

2 x PCI slot

Watchdog Timer

Software programmable supports

1~255 sec. system reset

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin northbridge fan connector

1 x 3-pin system fan connector

Power Supply

ATX power

Power Consumption

[email protected], [email protected], [email protected],

[email protected] 3.16GHz

(Intel® Core™2 Duo E8500 and 4GB

1066MHz DDR3)

Operating Temperature: -10°C ~ 60°C

Humidity

Operating: 5% ~ 95%, non-condensing

Dimensions: 244mm x 244mm

Weight: GW: 1200g/NW: 700g

Packing List

1 x IMB-G41A single board computer

2 x Quad-port RS-232 cable (P/N: 32205-001203-100-RS)

1 x I/O shielding (P/N: 45014-0017C0-00-RS) 1 x Mini jumper pack

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Utility CD

1 x QIG

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Ordering Information

Part No.

Description

IMB-G41A-R10 microATX motherboard supports 45nm LGA775 Intel® Core™2

Quad CPU with a 1333/1066/800MHz FSB, PCIe x16, PCIe x1, two PCI, ten COM, dual PCIe GbE, SATA 3Gb/s and audio, RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32102-000100-200-RS SATA power cable

32200-000063-RS RS-232/422/485 cable

32200-000052-RS

CF-775A-RS

CF-520-RS-R11

CF-775B-RS

SDVO-100VGA-R10

SDVO-100DVI-R10

ATA66 IDE flat cable

CPU cooler for 130W

CPU cooler for 115W

1U CPU cooler for 90W

PCIe x16 VGA Output SDVO card supports dual display

(IEI CPU board only)

PCIe x16 DVI Output SDVO card supports dual display

(IEI CPU board only)

COM1 VGA USB0/1 USB2/3

Features

1. microATX and RoHS compliant

2. Supports LGA775 Intel® Core™2 Quad, Core™2 Duo, 45 nm processor with a 1333/1066/800

MHz FSB

3. Intel® Q35 & ICH9DO platform

4. Six SATA 3Gb/s with Intel® Matrix Storage Technology supported

5. TPM1.2 IT security solution supported

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA775 45nm Intel® Core™2 Quad, Core™2 Duo,

Celeron® CPU with a 1333/1066/800 MHz FSB

System Chipset

Intel® Q35 + ICH9DO

BIOS: AMI BIOS

System Memory

4 x 240-pin 2 GB (max.) 800/667 MHz dual-channel

DDR2 SDRAM DIMM (system max. 8 GB)

Ethernet

Intel® 82573L (MAC + PHY)

IO Interface

4 x RS-232

1 x LPT

12 x USB 2.0

1 x FDD

2 x PS/2 for KB/MS (external)

6 x SATA 3Gb/s with RAID 0, 1, 5, 10 support

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output

Infrared Interface: One Infrared Interface by pin header

Audio: Realtek ALC883 HD Audio codec

Graphics: VGA intergated in Intel® Q35

Super IO: ITE IT8712F

Packing List

1 x IMB-Q354 single board computer

3 x SATA power cable (P/N: 32102-000100-200-RS)

1 x Dual RS-232 cable (P/N: 19800-000051-RS)

1 x I/O shielding (P/N: 45014-0017C0-00-RS)

1 x USB cable (P/N: 19800-003100-200-RS)

6 x SATA cable (P/N: 32801-000703-200-RS)

Expansions:

1 x PCIe x16

1 x PCIe x4

2 x PCI

TPM1.2

1 x 20-pin header on-board for TPM

(Trusted Platform Module)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply: ATX

Power Consumption

[email protected], [email protected], [email protected],

[email protected] (2DMark 2001)

Intel® Core™2 Duo E6850 3.0GHz, 8GB

DDR2 800MHz, 3DMark 2001

Temperature

Operating: 0°C ~ 60°C (32°F~140°F)

Humidity

Operating: 5% ~ 95%, non-condensing

Dimensions: 244 mm x 244 mm

Weight: GW: 1100 g

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

IMB-Q354-R12

CF-520-RS-R11

TPM-IN01-R11

SDVO-100VGA-R10

SDVO-100DVI-R10

Description microATX motherboard supports 45 nm LGA775 Intel® Core™2

Duo CPU with a 800/1066/1333 MHz FSB, Intel® Q35 & ICH9DO platform, Intel® PCIe GbE, six SATA 3Gb/s with RAID functions

High performance CPU cooler, (115mm x 115mm x 67mm, 115W)

20-pin Infineon TPM module, software management tool, firmware

V3.17

PCIe x16 VGA output SDVO card supports dual display

(IEI CPU board only)

PCIe x16 DVI output SDVO card supports dual display

(IEI CPU board only)

1-74

IMB-G41A-2013-V10

Single Board Computer

Dimensions

(Unit: mm)

IMBA-C604EN

Industrial Motherboard

IMBA-C604EP w w w . i e i w o r l d . c o m

IMBA-C2160

IMBA-H610

IMBA-Q770

IMBA-C2060

MB-Dimension-2013-V10

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

1-75

Single Board Computer

Dimensions

(Unit: mm)

IMBA-Q670-R20

Industrial Motherboard

IMBA-G410 w w w . i e i w o r l d . c o m

5

ORing

Network

Communication

6

Power Supply/

Peripherals

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

IMBA-Q454

IMBA-9454-R40

7

Panel

Solutions

Introduction

1-76

IMBA-XQ354-R11

MB-Dimension-2013-V10

Single Board Computer

Dimensions

(Unit: mm)

IMB-C2160

Industrial Motherboard

IMB-Q770 w w w . i e i w o r l d . c o m

IMB-H610 IMB-H612

MB-Dimension-2013-V10

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

1-77

Single Board Computer

Dimensions

(Unit: mm)

IMB-C2060

Industrial Motherboard

IMB-Q670-R20 w w w . i e i w o r l d . c o m

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

IMB-G41A

1-78

IMB-Q354

MB-Dimension-2013-V10

Single Board Computer

Industrial Motherboard

Mini-ITX Selection Guide w w w . i e i w o r l d . c o m

Model Name

CPU Socket

CPU Type

KINO-AQ870

Intel® LGA 1150

KINO-DQM871

On Board

KINO-QM770

Socket G2 Socket H2

KINO-AQ670

Socket H2

KINO-DH610

4th Generation Intel® Core™ i7/ i5/i3 Quad/Dual

4th Generation Intel® Mobile

Core i7/i5/i3 Quad/Dual

3rd generation Intel® 22nm mobile processor

2nd Generation Intel® Core™ i7/ i5/i3/Pentium®/Celeron®

2nd Generation Intel® Core™ i3/

Pentium®/Celeron®

Chipset

Memory

Display Interface

Intel® Q87

2 x 240-pin, Max. 16GB,

1600/1333MHz dual-channel

DDR3 SDRAM UDIMM

Triple display supported

1 x VGA

1 x DVI-D

1 x iEi DisplayPort

Intel® QM87

2 x 204-pin, Max. 16GB,

1333/1600 MHz dual-channel

DDR3 SO-DIMMs

Intel® QM77

2 x 204-pin, Max. 16GB,

1066/1333/1600 MHz dualchannel DDR3 SO-DIMMs

Intel® Q67

Triple display supported

2 x HDMI

1 x VGA

1 x 18/24-bit dual-channel LVDS

1 x iEi DisplayPort

Triple display supported

2 x HDMI

1 x DVI-I

1 x18/24-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x DVI-D

Intel® H61

2 x 204-pin, Max.16GB,

1066/1333 MHz dual-channel

DDR3 SO-DIMMs

2 x 204-pin, Max.16GB,

1066/1333 MHz dual-channel

DDR3 SO-DIMMs

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Ethernet

LAN1: Intel® I211 PCIe controller

LAN2: Intel® I217LM PHY with

Intel® AMT 9.0 supported

LAN1: Intel® I211 PCIe controller

LAN2: Intel® I217LM PHY with

Intel® AMT 9.0 supported

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel®

AMT 8.0 supported

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel®

AMT7.0 support

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

1

Industrial

Computing

Soluations

I/O Interface

Drive Interface

5 x RS-232

1 x RS-422/485

4 x USB 3.0

6 x USB 2.0

1 x 4-pin wafer for SMBus

1 x PS/2 KB/MS

2 x 10-pin pin header for TPM

V1.2 Module

5 x RS-232

1 x RS-422/485

4 x USB 3.0

10 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 6-pin wafer PS/2 KB/MS

2 x 10-pin pin header for TPM

V1.2 Module

2 x RS-232

1 x RS-422/485

4 x USB 2.0

4 x USB 3.0

1 x 4-pin wafer for SMBus

1 x KB/MS by 6-pin header

1 x 20-pin LPC for TPM

4 x SATA 6Gb/s

1 x mSATA

4 x SATA 6Gb/s

1 x mSATA

2 x SATA 6Gb/s

2 x SATA 3Gb/s

2 x RS-232

2 x USB 3.0

8 x USB 2.0

1 x PS2 KB/MS

1 x 20-pin LPC for TPM

2 x SATA 3Gb/s

2 x SATA 6Gb/s

1 x RS-232

1 x RS-422/485

10 x USB 2.0

1 x KB/MS by 6-pin header

1 x 20-pin LPC for TPM

4 x SATA 3Gb/s

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

Audio

Digital I/O

Realtek ALC662 HD Audio codec Realtek ALC892 HD codec Realtek ALC662 HD Audio codec

Power

Consumption

8-bit Programmable I/O (8-bit GPIO is for programming I/O) 8-bit digital I/O

[email protected], [email protected],

[email protected], [email protected],

[email protected]

(Intel® 2.60GHz CPU with two

1600MHz 2GB DDR3 memory)

[email protected] (2.0GHz Intel®

Core™ i7 Processor with two

1333 MHz 4GB DDR3 memory)

[email protected] (2.3GHz Intel®

Core™ i7-3610QE with two

1333 MHz 4GB DDR3 memory running 3DMark06 burn in)

[email protected], [email protected],

[email protected],

[email protected], [email protected]

(2.5GHz Intel® Core™ i5-2400S with two 1333MHz 2GB DDR3)

[email protected] (2.2GHz Intel®

G620T with 2GB*2 DDR3

1066MHz running 3DMark06 burn in)

[email protected] (2.8GHz Intel®

Core™ i7-2600S with two

1066MHz 2GB DDR3 running

3DMark06 burn in)

Watchdog Timer

Operation

Environment

Software programmable and supports 1~255 sec. system reset

Expansion Slots

1 x PCIe x4

1 x Mini PCIe (co-lay mSATA)

1 x PCIex16

2 x Mini PCIe card slot

(one colay mSATA)

Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95%, non-condensing

1 x PCIe Mini card slot

(compatible with mSATA device)

1 x PCIe x16

1 x PCIe x16

CPU Cooler

CF-1150SA-RS/ CF-1150SB-RS/

CF-1150SC-RS/ CF-1150SD-RS

CF-479B-RS/ CF-989B-RS CF-989A-RS-R12 CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

1x PCI Slot

1x PCIe x1 slot

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Mini-ITX Selection-2013-V10

1-79

Single Board Computer

Industrial Motherboard

Mini-ITX Selection Guide w w w . i e i w o r l d . c o m

Model Name

CPU Socket

CPU Type

Socket H2

KINO-AH611

Socket H2

KINO-AH612 KINO-CV-D25501/N26001

On Board

KINO-CVR-D25502/N26002

On Board

KINO-QM670

Socket G2

2nd Generation Intel® Core™ i7/ i5/i3/Pentium®/Celeron®

2nd Generation Intel® Core™ i7/ i5/i3/Pentium®/Celeron®

Intel® Atom™ Processor D2550

1.86GHz

Intel® Atom™ Processor N2600

1.6GHz

Intel® Atom™ Processor D2550

1.86GHz

Intel® Atom™ Processor N2600

1.6GHz

Socket G2 for Intel® mobile

Core™ i7/i5/i3

6

Power Supply/

Peripherals

Operation

Environment

Intel® H61 Intel® H61 NM10 ICH10R Intel® QM67

Chipset

Memory

2 x 204-pin, Max.16GB,

1066/1333 MHz dual-channel

DDR3 SO-DIMMs

2 x 204-pin, Max.16GB,

1066/1333 MHz dual-channel

DDR3 SO-DIMMs

1 x 204-pin, Max.4GB, 1066

MHz DDR3/DDR3L (1.35V) SO-

DIMM (D2550)

1 x 204-pin, Max.2GB, 800 MHz

DDR3/DDR3L (1.35V) SO-DIMM

(N2600)

2 x 204-pin, Max.4GB, 1066

MHz DDR3 SO-DIMM (D2550)

2 x 204-pin, Max.2GB, 800 MHz

DDR3 SO-DIMM (N2600)

2 x 204-pin 1333/1066 MHz 4GB

DDR3 SO-DIMM (system max.

8GB)

1

Industrial

Computing

Soluations

Display Interface

Dual display supported

2 x VGA

2 x HDMI

Dual display supported

1 x VGA

1 x DVI-D

Dual display supported

1 x VGA

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2 (D2550)

1 x 24-bit dual-channel LVDS

1 x HDMI

Dual display supported

1 x VGA

1 x HDMI

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel LVDS

2

Video

Capture

Solutions

Ethernet

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Dual PCIe GbE by Intel® 82574L Intel® 82579 GbE LAN controller with Intel® AMT 7.0 support

Intel® 82583V GbE LAN

3

Embedded

Computing

Solutions

I/O Interface

Drive Interface

2 x RS-232

8 x USB 2.0

1 x 20-pin LPC for TPM

1 x KB/MS by pin header

3 x SATA 3Gb/s

5 x RS-232

1 x RS-422/485

8 x USB 2.0

2 x 10-pin header for TPM

1 x PS2 KB/MS

4 x SATA 3Gb/s

5 x RS-232

1 x RS-422/485

6 x USB 2.0

2 x USB 3.0

1 x 20-pin LPC for TPM

1 x KB/MS by 6-pin header

2 x SATA 3Gb/s or

1 x SATA 3Gb/s +

1 x mSATA

1 x microSD solt (bootable)

2 x RS-232

6 x USB 2.0

2 x USB 3.0

1 x 20-pin LPC for TPM

6 x SATA 3Gb/s or

5 x SATA 3Gb/s +

1 x mSATA

1 x microSD solt (bootable)

2 x RS-232

1 x RS-422/485

6 x USB 2.0

2 x USB 3.0

1 x 6-pin header for KB/MS

1 x 20-pin LPC for TPM

2 x SATA 3Gb/s

2 x SATA 6Gb/s

4

Automation

Control

Audio

Digital I/O

Realtek ALC662 HD Audio codec

8-bit digital I/O

Realtek ALC888 HD Audio codec

8-bit digital I/O (4 input/4 output)

5

ORing

Network

Communication

Power

Consumption

Watchdog Timer

[email protected], [email protected],

[email protected],

[email protected], [email protected]

(3.4GHz Intel® Core™ i7-2600K with two 1333MHz 2GB DDR3)

[email protected], [email protected],

[email protected],

[email protected], [email protected]

(3.4GHz Intel® Core™ i7-2600 with two 1333MHz 2GB DDR3)

[email protected] (1.86GHz Intel®

D2550 CPU with DDR3

1333MHz 4GB DIMM)

[email protected] (1.6GHz Intel®

N2600 CPU with 1333MHz 2GB

DDR3 DIMM)

[email protected], [email protected],

[email protected],

[email protected], [email protected]

(1.86GHz Intel® D2550 with two

1066MHz 2GB DDR3)

[email protected]

(2.2GHz Intel® Core i7 with two 1333MHz 4GB DDR3

DIMM)

Software programmable and supports 1~255 sec. system reset

Temperature Range: -10°C ~ 60°C

Relative Humidity: 5% ~ 95%, non-condensing

-20°C ~ 60°C with free air, -20°C

~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C

~ 75°C with force air for N2600 processor

Relative Humidity: 5% ~ 95%, non-condensing

-20°C ~ 60°C with free air, -20°C

~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C

~ 75°C with force air for N2600 processor

Relative Humidity: 5% ~ 95%, non-condensing

Temperature Range:

-10°C ~ 60°C

Relative Humidity:

5% ~ 95%, non-condensing

7

Panel

Solutions

Introduction

Expansion Slots

CPU Cooler

1 x PCIe x16 slot

1 x Half-size PCIe Mini card slot

1 x PCIe x4 slot

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

1 x PCIe Mini Card Slot

1 x PCI

Heatsink

1 x PCIe Mini Card Slot

1 x PCIe x4 slot (x1 signal)

Heatsink

1 x PCI x16

1 x PCIe Mini card slot

CF-989A-RS-R12

1-80

Mini-ITX Selection-2013-V10

Single Board Computer

Industrial Motherboard

Mini-ITX Selection Guide w w w . i e i w o r l d . c o m

Model Name

CPU Socket

CPU Type

Socket G1

KINO-HM551 KINO-G410

LGA775

Socket G1 for Intel® mobile

Core™ i7/i5/i3 and Celeron®

Intel® Core™2 Duo/Quad/

Extreme

KINO-PVN-D5251/D4251

On board

KINO-PV-D5252/D4252

On board

KINO-PV-D5253/D4253

On board

Intel® Atom™ Processor D525

1.8GHz

Intel® Atom™ Processor D425

1.8GHz

Intel® Atom™ Processor D525

1.8GHz

Intel® Atom™ Processor D425

1.8GHz

Intel® Atom™ Processor D525

1.8GHz

Intel® Atom™ Processor D425

1.8GHz

FSB

Chipset

NA

Intel® HM55

800/1066/1333MHz

Intel® G41 + ICH7

NA

ICH8M

NA

ICH8M

NA

ICH8M

Memory

2 x 204-pin 800/1066 MHz 4GB

DDR3 SO-DIMM (system max.

8GB)

2 x 240-pin 800/1066 MHz 4GB dual-channel DDR3 DIMMs

(system max. 8GB)

2 x 204-pin 800 MHz 2GB DDR3

SO-DIMM (system max. 4GB)

2 x 204-pin 800 MHz 2GB DDR3

SO-DIMM (system max. 4GB)

2 x 204-pin 800 MHz 2GB DDR3

SO-DIMM (system max. 4GB)

1

Industrial

Computing

Soluations

Display Interface

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

1 x 18/24-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x 24-bit LVDS by VGA-

LVDS-R10

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-D

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit dual-channel LVDS

1 x VGA

Ethernet

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Three PCIe GbE by Realtek

RT8111E support ASF 2.0

2

Video

Capture

Solutions

I/O Interface

4 x RS-232

2 x RS-232/422/485

8 x USB 2.0

1 x 6-pin header for KB/MS

1 x 20-pin LPC for TPM

5 x RS-232

1 x RS-232/422/485

8 x USB 2.0

2 x PS/2 KB/MS

1 x LPT

3 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x LPT

1 x KB/MS by pin header

5 x RS-232

1 x RS-232/422/485

8 x USB 2.0

2 x 10-pin header for TPM

1 x LPT

1 x KB/MS by pin header

5 x RS-232

1 x RS-232/422/485

8 x USB 2.0

2 x 10-pin header for TPM

1 x LPT

1 x KB/MS by pin header

3

Embedded

Computing

Solutions

Drive Interface

4 x SATA 3Gb/s 4 x SATA 3Gb/s 2 x SATA 3Gb/s

1 x CF Type II

2 x SATA 3Gb/s

1 x CF Type II

2 x SATA 3Gb/s

Audio

Realtek ALC888 HD Audio codec

4

Automation

Control

Digital I/O

8-bit digital I/O (4 input/4 output)

Power

Consumption

[email protected]

(2.66GHz Intel® Core i7 620M

CPU with two 1333MHz 4GB

DDR3 DIMM)

[email protected], [email protected],

[email protected]

(2.8GHz Intel® Core™2 Duo

E7400 with two 1066MHz 1GB

DDR3 DIMM)

[email protected] (Intel® Atom™

D525 1.8GHz with two 1333MHz

2GB DDR3 DIMM)

[email protected] (Intel® Atom™ D425

1.8GHz with two 1333MHz 2GB

DDR3 DIMM)

[email protected] (Intel® Atom™

D525 1.8GHz with two 1GB

DDR3)

[email protected], [email protected] (Intel®

Atom™ D525 1.8GHz wiht two

1333MHz 1GB DDR3 DIMM)

5

ORing

Network

Communication

Watchdog Timer

Software programmable and supports 1~255 sec. system reset

6

Power Supply/

Peripherals

Operation

Environment

Temperature Range: -10°C ~ 60°C

Relative Humidity: 5% ~ 95%, non-condensing

Expansion Slots

1 x PCI x16

1 x PCIe Mini card slot

CPU Cooler

CF-989A-RS-R12

1 x PCIe x16

CF-775A-RS

CF-520-RS-R11

1 x PCI Slot

1 x PCIe x1 slot

1 x PCIe Mini card slot

Cooler

1 x PCI Slot

1 x PCIe x1 slot

1 x PCIe Mini card slot

Heatsink

1 x PCI Slot

1 x PCIe x1 slot

2 x PCIe Mini card slot

Heatsink

7

Panel

Solutions

Introduction

Mini-ITX Selection-2013-V10

1-81

Single Board Computer

Industrial Motherboard

Mini-ITX Selection Guide w w w . i e i w o r l d . c o m

Model Name

CPU Socket

KINO-945GSE3

On Board

KINO-QM57A

Socket G1

eKINO-945GSE-R11

On board

KINO-945GSE-R11

On board

KINO-945GSE2

On board

CPU Type

Intel® Atom™ Processor N270

1.6GHz

Socket G1 for Intel® mobile

Core™ i7/i5/i3 and Celeron

Intel® Atom™ Processor N270

1.6GHz

Intel® Atom™ Processor N270

1.6GHz

Intel® Atom™ Processor N270

1.6GHz

533MHz NA 533MHz 533MHz 533MHz

FSB

Intel® 945GSE + ICH7M Intel® QM57 Intel® 945GSE + ICH7M Intel® 945GSE + ICH7M Intel® 945GSE + ICH7M

Chipset

Memory

1 x 200-pin 400/533 MHz 2GB

DDR2 SO-DIMM (system max.

2GB)

2 x 204-pin 800/1066 MHz 4GB

DDR3 SO-DIMM (system max.

8GB)

1 x 200-pin 400/533 MHz 2GB

DDR2 SO-DIMM (system max.

2GB)

1 x 200-pin 400/533 MHz 2GB

DDR2 SO-DIMM (system max.

2GB)

1 x 200-pin 400/533 MHz 2GB

DDR2 SO-DIMM (system max.

2GB)

1

Industrial

Computing

Soluations

Display Interface

Dual display supported

1 x VGA

1 x DVI

1 x 18-bit dual-channel LVDS

Dual display supported

1 xVGA

2 x HDMI

1 x 18/24-bit dual-channel

LVDS

Dual display supported

1 x VGA

1 x DVI

1 x 18-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x DVI

1 x 18-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x 18-bit dual-channel LVDS

1 x 18/24-bit dual-channel

LVDS

1 x HDTV

2

Video

Capture

Solutions

Ethernet

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Intel® ® 82577 GbE LAN controller with Intel® AMT 6.0 support

Intel® 82574L GbE LAN

Dual PCIe GbE Realtek RTL

8111CP chipset

Dual PCIe GbE Realtek RTL

8111CP chipset

PCIe GbE Realtek RTL8111CP controller

3

Embedded

Computing

Solutions

I/O Interface

9 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x Infrared Interface

1 x 6-pin header for KB/MS

2 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x 6-pin header for KB/MS

3 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x KB/MS by pin header

3 x RS-232

1 x RS-232/422/485

8 x USB 2.0

2 x PS/2 KB/MS

4 x RS-232

2 x RS-232/422/485

6 x USB 2.0

1 x LPT

1 x Infrared interface

1 x 6-pin header for KB/MS

2 x SATA

1 x IDE

1 x CF Type II

6 x SATA 3Gb/s 2 x SATA

1 x IDE

1 x CF Type II

2 x SATA

1 x IDE

1 x CF Type II

2 x SATA

4

Automation

Control

Drive Interface

Audio

Realtek ALC888 HD Audio codec Realtek ALC655 with AC'97 codec Realtek ALC655 with AC'97 codec

5

ORing

Network

Communication

Digital I/O

Power

Consumption

8-bit digital I/O (4 input/4 output)

[email protected], [email protected] (Intel®

Atom™ N270 1.6GHz with 2GB

DDR2)

[email protected]

(2.66GHz Intel® Core i7 620M

CPU with two 1333MHz 2GB

DDR3 DIMM)

[email protected] (Intel® Atom™ N270 with 1GB DDR2)

[email protected], [email protected] (Intel®

Atom™N270 with 1GB DDR2)

[email protected] (Intel® Atom™

N270 1.6GHz with 2GB DDR2)

6

Power Supply/

Peripherals

Watchdog Timer

Operation

Environment

7

Panel

Solutions

Introduction

Expansion Slots

CPU Cooler

1 x PCI

1 x PCIe Mini card

Heatsink CF-989A-RS-R12

Software programmable and supports 1~255 sec. system reset

Temperature Range: -10°C ~ 60°C

Relative Humidity: 5% ~ 95%, non-condensing

1 x PCIx16

1 x PCIe Mini card slot

Temperature Range:

0°C ~ 60°C

Relative Humidity:

5% ~ 95%, non-condensing

1 x PCI

1 x PCIe Mini card

Heatsink

Temperature Range:

-20°C ~ 70°C

Relative Humidity:

5% ~ 95%, non-condensing

1 x PCI

1 x PCIe Mini card

Heatsink

Temperature Range:

0°C ~ 60°C

Relative Humidity:

5% ~ 95%, non-condensing

1 x PCI

1 x PCIe Mini card

Heatsink

1-82

Mini-ITX Selection-2013-V10

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-AQ870

Dual-Channel DDR3

1600/1333 MHz Front panel

Mini-ITX SBC with LGA1150 socket supports 4th Gen Intel® Core™ i7/i5/i3

Processor, DVI-D /VGA / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s,

HD Audio and RoHS

Flexible Display Function through

IEI Display port connector

DIO

3 x RS-232

4 x USB 2.0

mSATA/mini PCIe

RS-422/485

TPM

+

4 IDP Module

Selection

DP-HDMI-R10

DP-VGSA-R10

DP-DVI-R10

DP-LVDS-R10

PCIe x4

VGA Dual GbE

Intel ®

Q87

IDP

KB/MS

USB 3.0

LAN1

Specifications

SATA 6Gb/s

SMBus

CPU

LGA1150 socket supports 4th Gen Intel® Core™ i7/i5/i3 processor

PCH

Intel® Q87

Memory

Two 240-pin 1066/1333/1600 MHz dual-channel DDR3 SDRAM Unbuffered DIMM supported (system max. 16GB)

BIOS

UEFI BIOS

Ethernet

Intel® I211 PCIe controller

Intel® I217LM with Intel® AMT supported

Graphic Engine

Support for DX11.1 and OpenGL3.2

Full MPEG2, VC1, AVC Decode"

Display Output

DVI-D Integrated in the CPU

VGA Integrated in the Intel® Q87

DisplayPort integrated in the CPU (pin header for changing to HDMI, LVDS, VGA)

Super I/O

Fintek F81866

EC

ITE 8519

Audio

Realtek ALC662 HD Audio codec

I/O Interface

5 x RS-232

1 x RS-422/485

1 x 6-pin wafer for PS/2 KB/MS

4 x SATA 6Gb/s with raid support

4 x USB 3.0 (2 x Rear I/O, 2 x pin header)

6 x USB 2.0 (2 x Rear I/O, 4 x pin header)

1 x 6-pin connector for PS2 KB/MS (Rear I/O)

Front Panel

1 x Front Panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)

LAN LED

2 x 2 PIN for LAN1 LED, LAN2 LED

SM bus

1 x 4-pin wafer

TPM

2 x 10-pin pinheder

Expansion

1 x PCIex4 1 x Mini PCIe card slot (colay mSATA)

Watchdog Timer

Software programmable support 1~255 sec. system reset

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 4-pin System fan connector

Power Supply

ATX Power Supply

Power Consumption

[email protected], [email protected], [email protected], [email protected], [email protected]

(Intel® 2.60GHz CPU with two 1600MHz 2GB DDR3 memory)

Operating Temperature

-20°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Diemension

170mm x 170mm

Weight

GW: 900g/NW: 450g

KINI-AQ870-2013-V11

KB/MS RS-232 DVI-D 2 x USB 3.0

2 x USB 2.0

Audio

Jumper-less

1

Industrial

Computing

Soluations

USB

USB 3.0

SATA 6Gb/s Dual GbE mSATA

Features

1. LGA1150 socket supports 4th Gen Intel® Core™ i7/i5/i3 processor

2. DDR3 1066/1333/1600 MHz dual channel SDRAM

3. 3D micro-architecture enhancements supports for DX11.1, OCL 1.2 and OGL3.2

4. Rich media acceleration for hardware decode and encode acceleration

5. Intel® GbE Lan with Intel® AMT 9.0 supported

6. High speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA supported

7. IEI Jumper-less function

Packing List

1 x KINO-AQ870 Motherboard

1 x I/O shielding (P/N: 45014-0008C0-00-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x Mini Jumper Pack (P=2.0)

1 x Utility CD

1 x QIG

IDP

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Ordering Information

Part No.

KINO-AQ870-R10

32000-070301-RS

32200-000049-RS

32200-074800-RS

CF-1150SA-RS

CF-1150SB-RS

CF-1150SC-RS

CF-1150SD-RS

DP-LVDS-R10

DP-HDMI-R10

DP-DVI-R10

DP-VGA-R10

TPM-IN01-R11

Description

Mini-ITX SBC with LGA1150 socket supports 4th Gen Intel® Core™ i7/i5/i3 processor, DVI-D/VGA/ DP, Dual Intel® PCIe GbE, USB 3.0,

SATA 6Gb/s, HD Audio and RoHS

Dual USB cable

RS232 cable, 200mm

RS-422/485 cable, 200mm

Special cooler kit for LGA1150, High-performance compatible, 95W

Special cooler kit for LGA1150, High-performance compatible, 65W

Special cooler kit for LGA1150, 1U chassis compatible, 65W

Special cooler kit for LGA1150, 1U chassis compatible, 35W

DisplayPort to 24 bit dual channel LVDS converter board

(For iEi IDP connector)

DisplayPort to HDMI converter board (For iEi IDP connector)

DisplayPort to DVI-D converter board (For iEi IDP connector)

DisplayPort to VGA converter board (For iEi IDP connector)

20-Pin Infineon TPM module, software management tool, firmware

V3.17

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-83

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-DQM871

Dual-Channel DDR3

1600/1333 MHz SATA 6Gb/s

Mini-ITX SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/i3 and Celeron® on-board processors, HDMI / VGA / LVDS / DP,

Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

Front panel

TPM

Dual mini-PCIe slot support

Dual mini-PCIe module

+

Intel ®

Q87

RS-422/485

IDP

LVDS

5 x RS-232

PCIe x16

WiFi module USB3 module

One mini-PCIe module with one mSATA

+

mini PCIe

SMBus

6 x USB 2.0

RS-232

WiFi module

Dual GbE mSATA module

LAN1

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

USB 3.0

mSATA / mini PCIe

Specifications

CPU

4th generation Intel® mobile Core™ i7/i5/i3 and Celeron® on-board processors

PCH

Intel® QM87

Memory

Two 204-pin 1066/1333/1600 MHz DDR3 dual-channel SO-DIMMs (Support up to 16GB)

BIOS

UEFI BIOS

Ethernet

Intel® I211 PCIe controller

Intel® I217 with Intel® AMT supported

Graphic Engine

Support for DX11.1 and OpenGL3.2

Full MPEG2, VC1, AVC Decode

Display Output

VGA integrated in Intel® QM87

18/24-bit dual-channel LVDS support

Dual HDMI output supported

DP port pin header

Super I/O

Fintek F81866

EC

ITE 8519

Audio

Realtek ALC662 HD codec

I/O Interface

5 x RS-232

1 x RS-422/485

4 x SATA 6GB/s with raid support

1 x 6-pin pin header for KB/MS

4 x USB 3.0 (2 x Rear I/O, 2 x pin header)

10 x USB 2.0 (2 x Rear I/O, 8 x pin header)

2 x SATA power connector (4P, P=2.54)

Front Panel

1 x Front Panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)

LAN LED

2 x 2 PIN for LAN1 LED, LAN2 LED

SM bus

1 x 4-pin wafer

TPM

2 x 10-pin pinheder

Expansion

2 x Mini PCIe card slot (one colay mSATA)

1 x PCIe x16

Watchdog Timer

Software programmable support 1~255 sec. system reset

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector"

Power Supply

12V DC input

1 x external DIN 4pin DC jack

1 x internal 2x2pin power connector

Support AT/ATX mode

Power Consumption

[email protected] (2.0GHz Intel® Core™ i7 Processor with two 1333 MHz 4GB DDR3 memory)

Operating Temperature: -20°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Diemension: 170mm x 170mm

Weight: GW: 900g/NW: 450g

Dual HDMI VGA 2 x USB 3.0

2 x USB 2.0

Audio

Jumper-less

USB

USB 3.0

SATA 6Gb/s Dual GbE mSATA

Features

1. 4th generation Intel® mobile Core™ i7/i5/i3 and Celeron® on-board processors

2. DDR3 1066/1333/1600MHz dual channel SDRAM

3. HDMI 1.4a compliant, three independent displays supported

4. 3D micro-architecture enhancements supports for DX11.1, OCL 1.2 and OGL3.2

5. Rich media acceleration for hardware decode and encode acceleration

5. Intel® GbE Lan with Intel® AMT 9.0 supported

7. High speed I/O interface for PCIe Gen 3.0 add on card, USB 3.0 and SATA 6Gb/s supported

8. Supports dual mini-PCIe expansion for mini-PCIe device and mSATA

9. IEI Jumper-less function

Packing List

1 x KINO-DQM871 Motherboard

2 x SATA with power output cable (P/N: 32801-000100-100-RS)

2 x RS-232 cable with bracket (P/N: 19800-000300-100-RS)

1 x I/O shielding 1 x Utility CD

1 x Mini Jumper Pack 1 x QIG

Ordering Information

Description Part No.

KINO-DQM871-i7-R10

KINO-DQM871-i5-R10

KINO-DQM871-i5E-R10

KINO-DQM871-i3-R10

KINO-DQM871-i3E-R10

KINO-DQM871-C-R10

KINO-DQM871-CE-R10

19800-003100-200-RS

32000-023800RS

Mini-ITX SBC supports Intel® 22nm 4th generation mobile

Core™ i7/i5/i3 and Celeron® on-board processors, HDMI / VGA

/ LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD

Audio and RoHS

TPM-IN01-R11

19800-004300-100-RS

DP-LVDS-R10

DP-HDMI-R10

DP-DVI-R10

DP-VGA-R10

Dual USB cable

KB/MS Y cable

20-Pin Infineon TPM module, software management tool, firmware V3.17

RS-232/422/485 cable with bracket

DisplayPort to 24 bit dual channel LVDS converter board

(For iEi IDP connector)

DisplayPort to HDMI converter board (For iEi IDP connector)

DisplayPort to DVI-D converter board (For iEi IDP connector)

DisplayPort to VGA converter board (For iEi IDP connector)

1-84

KINO-DQM871-2013-V11

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-QM770

2 x DDR3 SO-DIMM SMBus

Mini-ITX SBC with Socket G2 for Intel® 22nm Mobile CPU, DVI-I/Dual HDMI/

LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s and Audio

TPM

SATA II

SATA III

KB/MS

Socket

988B

TPM 1.2 Support

4 x USB 2.0

PCIe Mini card

RS-232

IR

DIO

3 independent displays support under Win7 OS

COM GbE LAN GbE PHY supports Intel® AMT8.0

USB

USB 3.0

SATA 6Gb/s PCIe GbE

Specifications

CPU

Socket G2 for Intel® 3rd generation 22nm mobile processor

PCH

Intel® QM77

Memory

Two 204-pin 1066/1333/1600 MHz dual-channel DDR3 SO-DIMMs supported

(system max. 16GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 8.0 supported

Graphics Engine

Supports DX11 and OpenGL 3.1

Full MPEG2, VC1, AVC Decode

Display Output

DVI-I (VGA+DVI) integrated in the Intel® QM77 (up to 1920 x 1200 @60Hz)

18/24-bit dual-channel LVDS support (up to 1920 x 1200 @60Hz)

Dual HDMI output supported (up to 1920 x 1200 @60Hz)

Super I/O

Fintek F81866

Embedded Controller iWDD EC

Audio

Realtek ALC892 HD codec

I/O Interface

2 x RS-232

4 x USB 2.0

1 x RS-422/485

4 x USB 3.0

1 x 6-pin header for KB/MS 2 x SATA power connector (5V/12V)

2 x SATA 3Gb/s and 2 x SATA 6Gb/s with RAID 0/1/5/10 support

SMBus

1 x 4-pin wafer

TPM

2 x 10-pin header

Expansions

1 x PCIe Mini card slot

1 x PCIe x16

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Programmable I/O

8-bit digital I/O

Infrared Interface

1 x 5-pin header

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply

Single voltage 12V DC input 1 x External 4-pin DIN DC jack

1 x internal 2x2-pin power connector Supports AT/ATX mode

Power Consumption

[email protected] (2.3GHz Intel® Core™ i7-3610QE with two 1333 MHz 4GB DDR3 memory running 3DMark06 burn in)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

170 mm x 170 mm

Weight

GW: 900g/NW: 450g

12V DC-in HDMI

Features

DVI-I (DVI+VGA) 4 x USB 3.0

Audio

1. Mini-ITX SBC with Socket G2 for Intel® 22nm mobile Ivy Bridge processor

2. Dual-channel 1066/1333/1600MHz DDR3 SDRAM supports up to 16GB

3. HDMI 1.3 compliant, three independent displays supported

4. 3D micro-architecture enhancement supports DX11, OCL 1.1 and OGL 3.1

5. Rich media acceleration for hardware decoding and encoding acceleration

6. Intel® GbE LAN with Intel® AMT 8.0 supported

7. High speed I/O interface for PCIe Gen 3.0 add-on card, USB3.0 and SATA 6Gb/s supported

8. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x KINO-QM770 single board computer

2 x SATA with power output cable (P/N: 32801-000100-100-RS)

1 x RS-232 cable with bracket (P/N: 19800-000300-100-RS)

1 x I/O shielding (P/N: 45014-0037C0-00-RS)

1 x One Key Recovery CD 1 x Mini jumper pack

1 x Utility CD 1 x QIG (Quick Installation Guide)

Ordering Information

Part No.

KINO-QM770-R10

Description

Mini-ITX SBC with Socket G2 for Intel® 22nm mobile CPU,

DVI-I/dual HDMI/LVDS, dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and Audio

19800-003100-200-RS Dual USB cable

32000-023800-RS KB/MS Y cable

SACF-KIT01-R10

CF-989A-RS-R12

TPM-IN01-R11

SATA to CF converter board

CPU cooler for mobile socket-G (PGA988) up to 55W processor, copper, 60 x 60 x 27.6mm, RoHS

20-pin Infineon TPM module, software management tool, firmware V3.17

32205-003800-100-RS RS-422/485 cable with bracket

33Z00-000031-RS DVI-I to VGA adapter connector

KINO-QM770-2013-V10

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-85

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-DH610

TPM 5V SATA power

Mini-ITX SBC Supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron®

CPU, DDR3, VGA/DVI-D/HDMI, Dual PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS

Wide range 9 ~ 28VDC input on board

IEI offers two ways for DC input without extra power module

2 x DDR3

SO-DIMM

RS-232/422/485

DIO

A

A. 4-pin (2x2) DC power connector

COM

6 x USB 2.0

VGA

B

Dual GbE

B. 4-pin DIN adaptor input

1U chassis compatible

Intel®

H61

KB/MS

DC input HDMI DVI-D 4 x USB 2.0

Audio

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

TPM 1.2 Support

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s PCIe GbE

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® dual-core processor

(TDP 65W max.)

System Chipset

Intel® H61

Memory

Two 204-pin 1066/1333 MHz dual-channel DDR3 SO-DIMMs supported

(system max. 16 GB)

BIOS

UEFI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

Graphics Engine

Supports DX10.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode

Display Output

1 x VGA (up to 2048 x 1536 @75Hz)

1 x DVI-D (up to 1920 x 1200 @60Hz)

Dual display supported

1 x HDMI (up to 1920 x 1200 @60Hz)

Super I/O

Fintek F81866

Embedded Controller iWDD

Audio

Realtek ALC662 HD audio codec

I/O Interface

1 x RS-232

10 x USB 2.0

4 x SATA 3Gb/s

1 x RS-232/422/485

1 x TPM pin-header

2 x SATA power (5V) connector

1 x 6-pin header for PS/2 KB/MS

Expansions

1 x PCI 1 x PCIe x1

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply

Maximum input voltage range: 9V ~ 28V

Recommended operating input voltage range: 12V ~ 24V

1 x External DC jack (4-pin DIN)

1 x Internal 4-pin (2x2) power connector

Power Consumption

[email protected] (2.2GHz Intel® G620T with two 1066 MHz 2 GB DDR3 memory running

3DMark06 burn in)

[email protected] (2.8GHz Intel® Core™ i7-2600S with two 1066 MHz 2 GB DDR3 memory running 3DMark06 burn in)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

170 mm x 170 mm

Weight

GW: 1100g/NW: 700g

1-86

Features

1. LGA1155 socket for Intel® 2nd generation Core™ i3/Pentium®/Celeron® processor supported

2. Up to 16 GB 1333/1066 MHz dual-channel DDR3 SDRAM

3. Supports dual display by DVI/VGA/HDMI

4. SATA 3Gb/s, PCI and PCIe x1 expansion slots supported

5. Wide range 9 ~ 28V DC input support with either adaptor or 4-pin (2x2) ATX power connector

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x KINO-DH610 single board computer

2 x SATA with 5V power cable (P/N: 32801-000201-100-RS)

1 x I/O shielding (P/N: 45014-0032C0-00-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

KINO-DH610-R10

19800-003100-200-RS

19800-004300-100-RS

TPM-IN01-R11

SACF-KIT01-R10

32000-023800-RS

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

CPU-DT-C-G440

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

63040-010060-050-RS

Description

Mini-ITX SBC supports LGA1155 Intel® Core™ i5/i3/Pentium®/

Celeron® CPU, DDR3, VGA/DVI-D/HDMI, dual PCIe GbE,

USB 2.0, SATA 3Gb/s, HD Audio and RoHS

Dual-port USB cable w/bracket

RS-232/422/485 cable w/bracket

20-pin Infineon TPM module, software management tool, firmware V3.17

SATA to CF converter board

KB/MS Y cable

Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz,

6M cache, 45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz,

3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz,

3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz,

3M cache, 35W, compatible with CF-1156C-RS CPU cooler

Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz,

1M cache, 35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

12V 60W power adaptor with 4-pin DIN lock, 90 ~ 264VAC input,

ErP

KINO-DH610-2013-V10

Single Board Computer

KINO-AH611

Mini-ITX SBC Supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron®

CPU, DDR3, Dual HDMI/Dual VGA, Dual PCIe GbE, SATA 3Gb/s, HD Audio and

RoHS

Half-size PCIe Mini Card slot 2 x DDR3 SO-DIMM

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-AH612

Mini-ITX SBC Supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron®

CPU with H61, DDR3, VGA/DVI-D, Six COMs, Dual PCIe GbE, SATA 3Gb/s, HD

Audio and RoHS

2 x DDR3 SO-DIMM

2 x RS-232

2 x USB 2.0

TPM

DIO

3 x SATA 3Gb/s

VGA Dual GbE

TPM

DIO

3 x RS-232

RS-422/485

HDMI

2 x USB 2.0

4 x USB 2.0

Audio

4 x USB

Front Audio

VGA Dual GbE LAN

KB/MS COM DVI-D 4 x USB Audio

Features

TPM 1.2 Support

1. LGA1155 for the next generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported

2. Up to 16 GB 1333/1066 MHz dual-channel DDR3 SDRAM

3. Supports dual independent display by dual VGA and dual HDMI

4. Two COM ports and three SATA 3Gb/s connectors supported

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3/

Pentium®/Celeron® processor

System Chipset: Intel® H61

Memory

Two 204-pin 1066/1333 MHz dual-channel DDR3

SDRAM SO-DIMMs supported(system max. 16GB)

BIOS: UEFI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controller with

ASF 2.0 support

Graphics Engine

Supports DX10.1 and OpenGL 3.0

Full MPEG-2, VC1, AVC Decode

Display Output

Dual display supported

2 x VGA (up to 2048 x 1536 @75Hz)

2 x HDMI (up to 1920 x 1200 @60Hz)

Super I/O: Fintek F81866

I/O Interface

2 x RS-232

1 x TPM pin-header

8 x USB 2.0

3 x SATA 3Gb/s

1 x 6-pin header for PS/2 KB/MS

Packing List

1 x KINO-AH611 single board computer

1 x Dual RS-232 cable (P/N: 19800-000112-RS)

3 x SATA cable (P/N: 32801-000703-200-RS)

1 x I/O shielding (P/N: 45014-0035C0-00-RS)

1 x One Key Recovery CD

Ordering Information

Embedded Controller: iWDD

Audio: Realtek ALC662 HD audio codec

Expansions

1 x PCIe x16 slot

1 x Half-size PCIe Mini card slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O: Programmable 8-bit GPIO

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply: ATX Power Supply

Power Consumption

[email protected], [email protected], [email protected],

[email protected], [email protected]

(3.4GHz Intel® Core™ i7-2600K with two

1333 MHz 2 GB DDR3 SO-DIMMs)

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 170 mm x 170 mm

Weight: GW: 1100g/NW: 700g

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Part No.

KINO-AH611-R10

Description

Mini-ITX SBC supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron®

CPU, DDR3, dual HDMI/dual VGA, dual PCIe GbE, SATA 3Gb/s, HD Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32102-000100-200-RS SATA power cable

TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17

SACF-KIT01-R10

32000-023800-RS

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

CPU-DT-C-G440

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

SATA to CF converter board

KB/MS Y cable

Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache,

45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache,

35W, AMT, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache,

35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible,

73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

Features 1333 DDR3

TPM 1.2 Support

1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported

2. Dual-channel 1333/1066MHz DDR3 supports up to 16GB

3. Supports dual independent display by VGA and DVI-D

4. Supports six COM ports, four SATA 3Gb/s ports and one PCIe x4 slot for IO expansion card

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3/

Pentium®/Celeron® processor

System Chipset: Intel® H61

Memory

Two 204-pin 1066/1333MHz dual-channel DDR3

SDRAM unbuffered SO-DIMMs supported (system max. 16GB)

BIOS: UEFI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controller with

ASF 2.0 support

Graphics Engine:

Supports DX10.1 and OpenGL 3.0

Full MPEG-2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA (up to 2048 x 1536 @75Hz)

1 x DVI-D (up to 1920 x 1200 @60Hz)

Super I/O: Fintek F81866

Embedded Controller: iWDD

Audio: Realtek ALC662 HD audio codec

Packing List

1 x KINO-AH612 single board computer

1 x Dual RS-232 cable (P/N: 19800-000112-RS)

1 x I/O shielding (P/N: 45014-0008C0-00-RS)

2 x SATA Cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

I/O Interface

5 x RS-232

8 x USB 2.0

4 x SATA 3Gb/s

1 x RS-422/485

1 x TPM pin header

1 x PS/2 KB/MS

Expansions: 1 x PCIe x4 slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

GPIO: Programmable 8-bit GPIO

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin PCH fan connector

Power Supply: ATX power supply

Power Consumption

[email protected], [email protected], [email protected],

[email protected], [email protected] (3.4GHz Intel®

Core™ i7-2600 with two 1333MHz 2GB

DDR3 memory)

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 170 mm x 170 mm

Weight: GW: 1100g/NW: 700g

1 x Utility CD

1 x Mini jumper pack

1 x QIG

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Ordering Information

Part No.

KINO-AH612-R10

Description

Mini-ITX SBC supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron®

CPU with H61, DDR3, VGA/DVI-D, 6COM, dual PCIe GbE, SATA 3Gb/s,

HD Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32102-000100-200-RS SATA power cable

TPM-IN01-R11

SACF-KIT01-R10

20-pin Infineon TPM module, software management tool, firmware V3.17

SATA to CF converter board

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

CPU-DT-C-G440

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

Intel® Core™ i5-2500T processor, LGA-1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA-1155, dual core 2.7GHz, 3M cache,

35W, AMT, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

Intel® Celeron® G440 processor, LGA-1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible,

73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

KINO-AH611-2013-V10

1-87

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-CV-D25501/N26001

Mini-ITX SBC with Intel® D2550/N2600 Processor, DDR3, VGA/HDMI/Daul

LVDS, Dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio, RoHS

DIO KB/MS SATA 3Gb/s 3 x RS-232

KINO-CVR-D25502/N26002

Mini-ITX SBC with Intel® D2550/N2600 Processor, DDR3, VGA/HDMI, Dual

GbE, USB 3.0, SATA 3Gb/s, Audio, RoHS

6 x SATA 3Gb/s DDR3 SO-DIMM TPM

20mm

microSD

RS-422/485

20mm height heatsink with bracket preinstalled for D2550/N2600 products

IEI P/N: 34000-000438-RS

4 x USB 2.0

VGA Dual GbE

4 x USB 2.0

microSD

Six SATA 3Gb/s ports support RAID 0/1/5/10

NM10

LVDS1

LVDS2

DC-in 2 x COM HDMI

2 x USB 3.0

Audio

2 x USB 2.0

PCIe mini card slot compatible with mSATA device

Compatible with EBC-3680 for

6 SATA with RAID applications

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Features

CPU

1.86GHz Intel® Atom™ D2550 dual-core processor

1.6GHz Intel® Atom™ N2600 dual-core processor

1.86GHz Intel® Atom™ N2800 dual-core processor

(optional)

Chipset: Intel® NM10

BIOS: UEFI BIOS

Memory

1 x 1066MHz DDR3/DDR3L (1.35V) SO-DIMM up to

4GB (D2550 and N2800)

1 x 800MHz DDR3/DDR3L (1.35V) SO-DIMM up to

2GB (N2600)

Graphics

Intel® GMA 3650 with 640 MHz graphics core speed for D2550 and N2800

Intel® GMA 3600 with 400 MHz graphics core speed for N2600

Display Output

Supports dual LVDS, VGA and HDMI for dual independent display

1 x VGA (up to 2048 x 1536 @75Hz)

1 x HDMI (up to 1920 x 1200 @60Hz)

LVDS1 integrated in the D2550/N2600

Single-channel 24-bit LVDS by D2550, resolution support up to 1440x900

Single-channel 18-bit LVDS by N2600 and N2800, resolution support up to 1366x768

LVDS2 supports 24-bit dual-channel by CH7511 DP to LVDS converter

I/O Interfaces

5 x RS-232

6 x USB 2.0

1 x RS-422/485

2 x USB 3.0

1 x 6-pin KB/MS 1 x microSD solt (bootable)

2 x SATA 3Gb/s with 5V/12V power connecto

Super IO: Fintek F81866

Packing List

TPM 1.2 Support

1. Mini-ITX form factor with Intel® D2550/N2600 dual-core processor supports DDR3/DDR3L

(1.35V) memory

2. Wide range 9V ~ 28V DC input

3. Flexible VGA, dual LVDS and HDMI with dual-display support

4. Complete I/O: six USB 2.0, two USB 3.0, two SATA 3Gb/s, six COM and audio mSATA SSD capable

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

Ethernet

Dual GbE Realtek RTL8111E controller with

ASF 2.0 support

Digital I/O:

8-bit digital I/O (4-bit input, 4-bit output)

Expansions

1 x PCIe Mini card slot (compatible with mSATA SSD storage)

1 x PCI slot

Audio: Realtek ALC662 HD audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Power Supply

Maximum input voltage range: 9V ~ 28V

Recommended operating input voltage range:

12V ~ 24V

1 x External 4-pin DIN DC jack

1 x Internal 4-pin (2x2) power connector

Fan Connector

1 x 3-pin CPU fan connector

1 x 3-pin system fan connector

SMBus: 1 x 4-pin connector

Power Consumption

[email protected] (1.86GHz Intel® D2550 CPU with

DDR3 1333MHz 4GB DIMM)

[email protected] (1.6GHz Intel® N2600 CPU with

DDR3 1333MHz 2GB DIMM)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 and N2800 processor

Operating Humidity

5% ~ 95%, non-condensing

Weight: GW: 600g/NW: 250g

1 x KINO-CV-D25501/N26001 single board computer

2 x SATA with 5V output cable Kit (P/N: 32801-000100-100-RS)

1 x Dual-port USB cable (P/N: 19800-003100-200-RS)

1 x I/O shielding (P/N: 45014-0038C0-00-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

KINO-CV-D25501-R10

KINO-CV-N26001-R10

KINO-CV-N28001-R10

32205-003800-100-RS

Description

Mini-ITX SBC with Intel® Atom™ D2550 1.86GHz,

DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0,

9V ~ 28V, SATA 3Gb/s, Audio, RoHS

Mini-ITX SBC with Intel® Atom™ N2600 1.6GHz,

DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0,

9V ~ 28V, SATA 3Gb/s, Audio, RoHS

Mini-ITX SBC with Intel® Atom™ N2800 1.86GHz,

DDR3, VGA/HDMI/Dual LVDS, Dual GbE, USB 3.0,

9 ~ 28V, SATA 3Gb/s, Audio, RoHS (by project support, MOQ 100pcs / lot)

RS-422/485 cable

32000-023800-RS KB/MS Y cable

19FFD124010HB2A7-000001-RS CPU fan

34000-000510-RS 30mm higher heatsink

1-88

DIO

KB/MS 1 x PCIe mini card slot with mSATA support

PCIe x4 slot (x1 signal)

VGA Dual Intel® GbE

RAID

2 x RS-232 HDMI 2 x USB 3.0

Audio

2 x USB 2.0

Features

1. Mini-ITX form factor with Intel® D2550/N2600 dual core proccessor supporting DDR3 memory

2. Six SATA 3Gb/s with with RAID 0/1/5/10 support for storage market applications

3. Flexible VGA and HDMI with dual-display support

4. PCIe Mini card slot is compatible with mSATA SSD storage

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

1.86GHz Intel® Atom™ D2550 dual-core processor

1.6GHz Intel® Atom™ N2600 dual-core processor

1.86GHz Intel® Atom™ N2800 dual-core processor

(optional)

Chipset: Intel® ICH10R

BIOS: UEFI BIOS

Memory

1 x 1066MHz DDR3 SO-DIMM up to 4GB for

D2550 and N2800

1 x 800MHz DDR3 SO-DIMM up to 2GB for N2600

Graphics

640MHz graphics core speed for D2550 and N2800

400MHz graphics core speed for N2600

Display Output

Dual display supported

1 x VGA (up to 2048 x 1536 @75Hz)

1 x HDMI (up to 1920 x 1200 @60Hz)

Ethernet: Dual GbE Intel® 82574L controller

I/O Interfaces

2 x RS-232

2 x USB 3.0

1 x microSD slot

6 x USB 2.0

1 x TPM pin header

6 x SATA 3Gb/s with RAID 0/1/5/10 support

Super IO: Fintek F81866

Digital I/O: 8-bit digital I/O programmable

Expansions

1 x PCIe Mini card (compatible with mSATA

SSD storage)

1 x PCIe x4 slot (x1 signal)

Audio: Realtek ALC662 HD audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Power Supply

ATX power supply, AT/ATX power mode

Fan Connector

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

Power Consumption

[email protected], [email protected], [email protected],

[email protected], [email protected]

(1.86GHz Intel® D2550 with two 1066MHz 2GB

DDR3 memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 and N2800 processor

Operating Humidity

5% ~ 95%, non-condensing

Weight: GW: 600g/NW: 250g

Packing List

1 x KINO-CVR-D25502/N26002 single board computer

1 x I/O shielding (P/N: 45014-0038C0-01-RS) 1 x Utility CD

6 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x QIG

Ordering Information

Part No.

Description

KINO-CVR-N28002-R10

TPM-IN01-R11

32102-000100-200-RS

19800-003100-200-RS

19FFD124010HB2A7-

000001-RS

34000-000510-RS

HDMI, dual GbE, USB 3.0, SATA 3Gb/s, Audio, RoHS

Mini-ITX SBC with Intel® Atom™ N2800 1.86GHz, DDR3,

VGA/HDMI, dual GbE, USB 3.0, SATA 3Gb/s, Audio, RoHS (by project support, MOQ 100pcs / lot)

20-pin Infineon TPM module, software management tool, firmware V3.17

SATA power cable

Dual-port USB cable with bracket

CPU fan

30mm higher heatsink

KINO-CVR-D25502/N26002-2013-V12

Single Board Computer

Industrial Motherboard

KINO-AQ670-2013-V10 w w w . i e i w o r l d . c o m

KINO-AQ670

Mini-ITX SBC Supports LGA1155 Intel® Core™ i7/i5/i3/Pentium® and Celeron®

CPU, DDR3, VGA/DVI-D, two COMs, Intel® GbE, SATA 6Gb/s, USB 3.0, HD

Audio and RoHS

2 x DDR3 SO-DIMM

SMBus

support

7.0

LGA1155

Q67

KB/MS

GbE PHY supports Intel® AMT 7.0

VGA GbE LAN

DIO

TPM

PCIe x16

4 x USB 2.0

2 x SATA 6Gb/s

2 x SATA 3Gb/s

COM 2 x USB 3.0

DVI-D

Audio

2 x USB 2.0

KINO-QM670

Mini-ITX SBC with Socket G2 for Intel® mobile Core™ i7/i5/i3 CPU, VGA/Dual

HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s and Audio

2 x DDR3 SO-DIMM SATA 6Gb/s TPM SATA 3Gb/s

SMBus

4 x USB 2.0

Socket G2 support

Socket G2

Intel®

QM67

PCle x16

DIO

COM2

Infrared

COM VGA

GbE

LAN

GbE PHY support

Intel® AMT 7.0

USB

iEZMan USB 3.0

SATA 6Gb/s

Features

TPM 1.2 Support

1. LGA1155 with Intel® 2nd generation Core™ i7/i5/i3/Pentium® and Celeron® processors supported

2. Dual-channel DDR3 1333/1066MHz supports up to 16GB

3. Supports dual independent display by VGA and DVI-D

4. High speed USB 3.0 and SATA 6Gb/s supported

5. Intel® GbE LAN with Intel® AMT 7.0 support

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3/

Pentium® and Celeron® processors

System Chipset

Intel® Q67

Memory

Two 204-pin 1066/1333MHz dual-channel DDR3

SDRAM SO-DIMMs supported (system max. 16GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 support

Graphics Engine

Supports DX10.1 and OpenGL3.0

Full MPEG-2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA (up to 2048 x 1536 @75Hz)

1 x DVI-D (up to 1920 x 1200 @60Hz)

I/O Interface

2 x RS-232

6 x USB 2.0

2 x SATA 3Gb/s

1 x TPM pin header

2 x USB 3.0

1 x PS/2 KB/MS

2 x SATA 6Gb/s with RAID 0/1/5/10 support

Packing List

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD audio codec

Expansions

1 x PCIe x16 slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

GPIO

Programmable 8-bit GPIO

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector (Co-layout with 4-pin)

Power Supply

AT/ATX power supply

Power Consumption

[email protected], [email protected], [email protected],

[email protected], [email protected] (2.5GHz Intel®

Core™ i5-2400S with two 1333MHz 2GB

DDR3 memory)

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 170 mm x 170 mm

Weight: GW: 1100g/NW: 700g

1 x KINO-AQ670 single board computer

1 x I/O shielding (P/N: 45014-0008C0-00-RS)

4 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

KINO-AQ670-R10

Description

Mini-ITX SBC supports LGA1155 Intel® Core™ i7/i5/i3 CPU, DDR3, VGA/

DVI-D, 2 COM, Intel® GbE, SATA 6Gb/s, USB 3.0, HD Audio and RoHS

19800-003100-200-RS Dual-port USB cable with bracket

32102-000100-200-RS SATA power cable

SACF-KIT01-R10

TPM-IN01-R11

SATA to CF converter board

20-pin Infineon TPM module, software management tool, firmware V3.17

CPU-DT-i5-2500T

CPU-DT-i5-2390T

CPU-DT-i3-2120T

CPU-DT-P-G630T

CPU-DT-C-G440

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-RS-R11

Intel® Core™ i5-2500T processor, LGA-1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i5-2390T processor, LGA-1155, dual core 2.7GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

Intel® Core™ i3-2120T processor, LGA-1155, dual core 2.5GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache,

35W, compatible with CF-1156C-RS CPU cooler

Intel® Celeron® G440 processor, LGA-1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler

High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible,

73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

High-performance LGA1155/LGA1156 cooler kit, 95W

KB/MS PCIe Mini card

12V DC-in HDMI 2 x USB 3.0

2 x USB 2.0

Audio

USB

USB 3.0

SATA 6Gb/s PCIe GbE

TPM 1.2 Support

Features

1. Mini-ITX SBC with Socket G2 for Intel® Core™ i7/i5/i3 processor

2. Dual-channel 1333/1066HMz DDR3 SDRAM (system max. 8GB)

3. HDMI 1.3 compliant

4. 3D micro-architecture enhancements supports DX*10.1 and OGL*3.0

5. Rich media acceleration for hardware decoding and encoding acceleration

6. Intel® GbE LAN with Intel® AMT 7.0 supported

7. High speed I/O interface for PCIe Gen2 add-on card, USB 3.0 and SATA 6Gb/s

Specifications

CPU

Socket G2 for Intel® Core™ i7/i5/i3 processor

PCH: Intel® QM67

Memory

Two 204-pin 1333/1066 DDR3 dual-channel SO-

DIMMs supported (system max. 8GB)

BIOS

UEFI BIOS

Ethernet

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 7.0 supported

Graphics Engine

Support for DX10.1 and OpenGL3.0

Full MPEG2, VC1, AVC Decode

Display Output

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel LVDS support

Super I/O: Fintek F81865

Embedded Controller: ITE IT8518

I/O Interface

2 x RS-232

6 x USB 2.0

1 x RS-422/485

2 x USB 3.0

2 x SATA 3Gb/s

2 x SATA 6Gb/s with RAID 0/1/5/10 support

2 x SATA power connector 1 x 6-pin KB/MS

Packing List

Audio: Realtek ALC888 HD Audio codec

SM bus: 1 x 4-pin wafer

TPM: 2 x 10-pin heder

Expansion

1 x PCIe Mini card slot

1 x PCIe x16

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Infrared Interface

1 x 5-pin header

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply

Single voltage 12V DC input

1 x External DIN 4-pin DC jack

1 x Internal 4-pin (2x2) power connector

Support AT/ATX mode

Power Consumption

[email protected] (2.1GHz Intel® Core™ i7-2710QE

CPU with two 1333MHz 2GB DDR3 DIMM)

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW: 900g/NW: 450g

1 x KINO-QM670 single board computer

2 x SATA with power output cable (P/N: 32801-000100-100-RS)

1 x RS-232 cable (P/N: 19800-000300-100-RS)

1 x I/O shielding (P/N: 45014-0029C0-00-RS)

1 x Mini jumper pack

1 x Utility CD

1 x One Key Recovery CD 1 x QIG

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

Ordering Information

Part No.

SACF-KIT01-R10

CF-989A-RS-R12

TPM-IN01-R11

Description

KINO-QM670-R10

Mini-ITX SBC with Socket G2 for Intel® mobile Core i7/i5/i3 CPU,

VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and audio

19800-003100-200-RS Dual USB cable

32000-023800-RS KB/MS Y cable

32205-003800-100-RS RS-422/485 cable

SATA to CF converter board

CPU cooler

20-pin Infineon TPM module, software management tool, firmware V3.17

7

Panel

Solutions

Introduction

1-89

Single Board Computer

Industrial Motherboard

KINO-QM670-2013-V10 w w w . i e i w o r l d . c o m

KINO-QM57A

Mini-ITX SBC with Socket G1 for Intel® mobile Core™ i7/i5/i3/Celeron® CPU,

VGA/Dual HDMI/LVDS, PCIe GbE, USB 2.0, PCIe Mini, SATA 3Gb/s, Audio and

RoHS

2 x DDR3 DIMM 6 x SATA 3Gb/s with 3 DC power

Socket G1 support

4 x USB 2.0

KINO-HM551

Mini-ITX SBC with Socket G1 for Intel® mobile Core™ i7/i5/i3 and Celeron® CPU,

VGA/DVI/LVDS/HDMI, Dual PCIe GbE, USB 2.0, Dual PCIe Mini, SATA 3Gb/s and

Audio, RoHS

2 x DDR3 SO-DIMM SMBus 4 x SATA 3Gb/s with 2 DC power

4 x USB

RS-232/422/485

Intel® QM57

Socket G

Intel® 32nm

Arrandale CPU

PCIe x16

COM2/COM3

COM

DIO

VGA Dual GbE

RS-232/422/485

12V DC

COM

Half-size PCIe

Mini card slot

DIO

Full-size PCIe

Mini card slot HDMI

VGA Dual GbE LAN

DVI 4 x USB Audio

LAN 1

PCIe Mini card slot 12V DC-in HDMI 4 x USB 2.0

Audio

TPM

TPM 1.2 Support

1

Industrial

Computing

Soluations iEZMan 12V only

Features

1. Mini-ITX SBC with Socket G for Intel® 32nm/45nm mobile Core™ i7/i5/i3 and Celeron® processor

2. 800/1066HMz dual-channel DDR3 SO-DIMM supported (System max. 8GB)

3. Analog CRT/18-bit or 24-bit dual-channel LVDS/Dual HDMI outputs supported

4. Intel® GbE LAN with Intel® AMT 6.0 support, iEZman UI is boundled for remote control under

Windows® environment

5. UEFI software interface between OS and platform firmware

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

CPU

Socket G1 for Intel® mobile Core™ i7/i5/i3 and

Celeron® processor (Socket 988)

PCH: Intel® QM57

Memory

Two 204-pin 800/1066MHz dual-channel DDR3

SDRAM SO-DIMM supported (system max. 8GB)

BIOS: UEFI BIOS

Ethernet

1 x Intel® 82577 GbE LAN controller with Intel®

AMT 6.0 supported by iEZman software UI

1 x Intel® 82574L GbE LAN

Graphics Engine

Gen 5.75 with 12 Execution Units DirectX* 10,

OpenGL* 2.1

Display Output

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel LVDS support

Note:

The Intel® quad-core processor is a discrete processor which does not integrate a graphics engine. If a quad-core processor is used on the motherboard, an additional graphic card must be installed in order to support display output.

Otherwise, the display will show “No display output” when connected to the on-board display port.

Super I/O: Fintek F81865

Audio: Realtek ALC888 HD Audio codec

I/O Interface

3 x RS-232 8 x USB 2.0

1 x RS-232/422/485 with auto flow control

1 x 6-pin header for KB/MS

6 x SATA 3Gb/s with RAID 0/1/5/10, support three SATA power connectors

Expansion

1 x PCIe x16 1 x PCIe Mini Card

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply

Single voltage 12V DC input

1 x External 4-pin DIN DC jack

1 x Internal 4-pin (2x2) power connector

Support AT/ATX mode

Power Consumption

[email protected] (2.66GHz Intel® Core™ i7 620M

CPU with two 2GB 1333MHz DDR3 DIMMs)

Temperature

Operation: 0°C ~ 60°C (32°F~140°F)

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW:1000g/NW:350g

Packing List

1 x KINO-QM57A single board computer

3 x SATA with power output cable (P/N: 32801-000100-100-RS)

1 x Dual RS-232 cable w/bracket (P/N: 19800-000112-RS)

1 x I/O shielding (P/N: 45014-0029C0-00-RS)

1 x Mini jumper pack

1 x QIG

1 x One Key Recovery CD 1 x Utility CD

Ordering Information

Part No.

KINO-QM57A-R10

19800-003100-200-RS

SAIDE-KIT01-R10

Description

Mini-ITX SBC with Socket G1 for Intel® mobile Core™ i7/i5/i3/

Celeron® CPU, VGA/Dual HDMI/LVDS, PCIe GbE, USB 2.0,

PCIe Mini, SATA 3Gb/s and audio, RoHS

Dual USB cable

SATA to IDE/CF converter board

WMPCIE-V01-R30

WMUSB-V01-R20

PCIe Mini card wireless LAN module

USB Mini card wireless LAN module

63000-FSP096AHB-RS 96W/12V power adaptor 90VAC~260VAC, DIN 4 pin

19800-004300-100-RS RS-232/422/485 cable with bracket

CF-989A-RS-R12

CF-989B-RS-R11

CPU cooler for mobile socket-G (PGA988) up to 55W processor,

Copper, 60mm x 60mm x 27.6mm , RoHS

CPU cooler for mobile socket-G (PGA988) 50W processor,

Aluminum, 60x60x27.6mm, RoHS

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s PCIe GbE 12V only

Features

1. Mini-ITX SBC with Socket G1 for Intel® mobile Core™ i7/i5/i3 and Celeron® processor

2. DDR3 800/1066HMz dual-channel SDRAM supported up to 8GB

3. 18/24-bit dual-channel LVDS/Analog CRT/DVI/HDMI output supported

4. PCIe x16 slot and dual PCIe Mini card for high speed device expansion

5. TPM V1.2 hardware security function supported by TPM module

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Socket G1 for Intel® mobile Core™ i7/i5/i3 and

Celeron® processor (Socket 988)

PCH: Intel® HM55

Memory

Two 204-pin 4GB (max.) 800/1066MHz dualchannel DDR3 SDRAM SO-DIMM supported

(System max. 8GB)

BIOS: UEFI BIOS

Ethernet

Dual GbE LAN controller by Realtek RTL8111E

LAN1 with ASF 2.0 support

Graphics Engine

Gen 5.75 with 12 Execution Units DirectX* 10,

OpenGL* 2.1

Display Interface

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel LVDS support

Note:

The Intel® quad-core processor is a discrete processor which does not integrate a graphics engine. If a quadcore processor is used on the motherboard, an additional graphic card must be installed in order to support display output. Otherwise, the display will show “No display output” when connected to the on-board display port.

Super I/O: Fintek F81865

Audio: Realtek ALC888 HD Audio codec

TPM: 2 x 10-pin header

Packing List

Expansions

1 x PCIe Mini card slot

1 x Half-size PCIe Mini card slot

1 x PCIe x16 slot

I/O Interface

4 x RS-232 8 x USB 2.0

2 x RS-232/422/485 with auto flow control

4 x SATA 3Gb/s with two DC power connector

1 x 6-pin header for KB/MS

SMBus: 1 x 4-pin wafer connector

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply

Single voltage 12V DC input

1 x External 4-pin DIN DC jack

1 x Internal 4-pin (2x2) power connector

AT/ATX power mode selected by jumper

Power Consumption

[email protected] (2.66GHz Intel® Core i7 620M CPU with two 1333MHz 4GB DDR3 DIMM)

Operating Temperature: -10°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW: 900g/NW: 450g

1 x KINO-HM551 single board computer

1 x Dual RS-232 cable with bracket (P/N: 19800-000112-RS)

2 x SATA with power cable (P/N: 32801-000100-100-RS)

1 x I/O shielding (P/N: 45014-0032C0-00-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

KINO-HM551-R10

Description

Mini-ITX SBC with Socket G1 for Intel® mobile Core i7/i5/i3 and

Celeron® CPU, VGA/DVI/LVDS/HDMI, Dual PCIe GbE, USB 2.0,

Dual PCIe Mini, SATA 3Gb/s and Audio, RoHS

19800-003100-200-RS Dual USB cable with bracket

SAIDE-KIT01-R10 SATA to IDE/CF converter board

19800-004300-100-RS RS-232/422/485 cable with bracket

32000-023800-RS

CF-989A-RS-R12

TPM-IN01-R11

KB/MS Y cable

CPU cooler for mobile socket-G (PGA988) up to 55W processor,

Copper, 60mm x 60mm x 27.6mm, RoHS

20-pin Infineon TPM module, software management tool, firmware V3.17

1-90

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-G410

Dual-channel 800/1066MHz DDR3

Mini-ITX SBC supports LGA775 Intel® Core™2 Quad CPU with a 1333MHz FSB,

DDR3, VGA, dual PCIe GbE, six COM, four SATA 3Gb/s, audio and RoHS

Intel® G41

VGA-LVDS-R10

VGA to 24-bit dual-channel LVDS converter

Supported resolution:

800x600, 1024x768, 1280x1024, 1366x768,

1920x1080

VGA-LVDS-R10

pin header

COM4~6

4 x SATA

3Gb/s

Intel® ICH7

4 x USB 2.0

DIO

COM3 Dual GbE

LAN 1

LPT

Features

1. LGA775 Intel® Core™2 Extreme/Quad/Duo and Celeron® processor with up to 1333MHz FSB

2. Intel® GMA X4500 delivers an excellent blend of graphics performance

3. Dual-channel 800/1066MHz DDR3 supports up to 8GB

4. LVDS supported by VGA-LVDS-R10 convertor board

5. Complete I/O interfaces for six COM, eight USB, LPT and four SATA 3Gb/s

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

LGA775 45nm Intel® Core™2 Quad,

Core™2 Duo, Pentium® D, Celeron® at FSB 800/1066/1333MHz processors

System Chipset

Intel® G41 + ICH7

Memory

Two 240-pin 800/1066MHz dual-channel

DDR3 SDRAM DIMM supported (System max. 8GB)

BIOS

UEFI BIOS

Ethernet

Dual Realtek RTL8111E PCIe GbE controller, LAN 1 with ASF 2.0 support

Graphics Engine

Intel® GMA X4500

Display Interface

VGA integrated in Intel® G41

24-bit LVDS by VGA-LVDS-R10

Super I/O

Fintek F81865

Audio

Realtek ALC888 HD Audio codec

Expansion

1 x PCIe x16 slot

KB/MS

FSB

1333

Packing List

CERTIFIED

Hi-Speed

USB

USB 2.0

TPM (Optional)

On-board Infineon SLB9635TT1.2

I/O Interface

5 x RS-232 8 x USB 2.0

4 x SATA 3Gb/s 1 x LPT

2 x PS/2 KB/MS

1 x RS-232/422/485 with auto flow control

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply

ATX power supply

Power Consumption

[email protected], [email protected], [email protected]

(2.8GHz Intel® Core™2 Duo E7400 with two

1066MHz 1GB DDR3)

Operating Temperature: -10°C ~ 60°C

Operating Humidity: 5% ~95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW:1100g/NW: 700g

1 x KINO-G410 single board computer

1 x I/O shielding (P/N: 45014-0014C0-00-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

Ordering Information

Part No.

KINO-G410-R10

KINO-G410T-R10

19800-003100-200-RS

32102-000100-200-RS

CF-775A-RS

CF-520-RS-R11

CF-775B-RS

32200-015100-RS

32205-000300-100-RS

19800-000112-RS

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Description

Mini-ITX SBC supports LGA775 Intel® Core™2 Quad CPU with a 1333MHz FSB, DDR3, VGA, Dual PCIe GbE, 6 COM, 4 SATA

3Gb/s and Audio, RoHS

Mini-ITX SBC supports LGA775 Intel® Core™2 Quad CPU with a 1333MHz FSB, DDR3, VGA, Dual PCIe GbE, 6 COM, 4 SATA

3Gb/s and Audio, TPM, RoHS

Dual-port USB cable with bracket

SATA power cable

CPU cooler for 130W

CPU cooler for 115W

1U CPU cooler for 90W

LPT cable

RS-232/422/485 cable

Dual RS-232 with bracket cable

VGA-LVDS-R10

COM1/2 VGA 4 x USB 2.0

SATA 3Gb/s PCIe GbE

VGA to 24-bit dual-channel LVDS convertor module

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

VGA-LVDS-R10

VGA to 24-bit dual-channel LVDS converter board

5

ORing

Network

Communication

Dimensions

(Unit: mm)

6

Power Supply/

Peripherals

LVDS supported by scaling chip Novatek 68667UFG

Supported resolution:

800x600, 1024x768, 1280x1024, 1366x768, 1920x1080

Compatible with IEI Mini-ITX SBC KINO-G410 only

Ordering Information

Part No.

Description

VGA-LVDS-R10

32600-004900-RS

VGA to 24-bit dual-channel LVDS converter module

30-pin LVDS connecting cable for evaluation only

Packing List

1 x VGA to LVDS converter module 1 x Mini jumper pack 1 x QIG

7

Panel

Solutions

Introduction

1-91

KINO-G410-2013-V10

Single Board Computer

KINO-PVN-D4251/D5251

Mini-ITX SBC with Intel® Atom™ D425/D525, VGA/DVI-DL/HDMI by Nvidia

GT218-ION, Dual GbE, Audio, USB 2.0 and SATA 3Gb/s, RoHS

RS-232/422/485

LPT

DIO

KB/MS

2 x RS-232 SMBus CF Card

PCIe x1

4 x USB

COM

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-PV-D4253/D5253

Mini-ITX SBC supports Intel® Atom™ D525/D425, DDR3, VGA, three GbE, six COM, USB 2.0 and SATA 3Gb/s, RoHS

2 x SATA 3Gb/s PCIe Mini card slot

Infrared

SMBus

Three GbE

6 COM support

RS-232/422/485

TPM

VGA Dual GbE

2 x USB

LAN 1

12V DC input

HDMI

DL-DVI-I

(VGA+DVI)

4 x USB Audio

PCIe Mini card slot

DIO

KB/MS

LPT

COM1 COM2~5 Three GbE Audio

PCIe Mini card slot

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

CPU

Intel® Atom™ D525 dual-core processor

(1.8GHz/1MB L2 cache)

Intel® Atom™ D425 single-core processor

(1.8GHz/512KB L2 cache)

Chipset: ICH8M

BIOS: UEFI BIOS

Memory

Two 204-pin 800MHz DDR3 SDRAM SO-DIMMs supported (system max. 4GB) for D525/D425

Graphic

On-board NVIDIA GT218-ION graphics chip with

512MB DDR3 memory

Display Interface

Dual display supported

1 x VGA

1 x HDMI

1 x DVI-I

Ethernet

Dual PCIe GbE by Realtek RTL8111E, LAN1 with ASF 2.0 support

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

I/O Interfaces

1 x LPT 8 x USB 2.0

1 x KB/MS 2 x SATA 3Gb/s

3 x RS-232 1 x CF Type II

1 x RS-232/422/485 with auto flow control

Packing List

CERTIFIED

Hi-Speed

USB

USB 2.0

12V only

Features

1. Mini-ITX form factor with Intel® Atom™ D525/D425 processor

2. 12V single voltage input designed for AT/ATX power

3. Two 800MHz DDR3 SO-DIMM slots support up to 4GB memory

4. Excellent graphics engine supports VGA, dual-link DVI-I, HDMI by Nvidia GT218-ION for dual independent display

5. Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, one LPT, four COM and audio

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

SMBus

1 x 4-pin wafer connector

Expansion

1 x PCI slot 1 x PCIe x1 slot

1 x PCIe Mini card slot

Audio

Realtek ALC888 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

12V, AT/ATX power mode

1 x External 4-pin DIN DC jack

1 x Internal 4-pin (2x2) power connector

Super IO: Fintek F81865

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with two 1333MHz 2GB DDR3 DIMM)

[email protected] (Intel® Atom™ D425 1.8GHz with two 1333MHz 2GB DDR3 DIMM)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW: 900g/NW: 360g

1 x KINO-PVN-D4251/D5251 single board computer

1 x SATA with 5V/12V output cable kit (P/N: 32801-000100-100-RS)

1 x SATA with 5V output cable kit (P/N: 32801-000201-100-RS) 1 x One Key Recovery CD

1 x RS-232 cable with bracket (P/N: 19800-000300-100-RS) 1 x Mini jumper pack

1 x I/O shielding (P/N: 45014-0032C0-00-RS)

1 x DVI to VGA Adaptor (P/N: 33Z00-000031-RS)

1 x QIG

1 x Utility CD

Ordering Information

Part No.

KINO-PVN-D5251-R10

KINO-PVN-D4251-R10

32000-0023800-RS

32100-192900-RS

32200-015100-RS

19800-004300-100-RS

19800-003100-200-RS

PCIER-K101L-R10

19FFD124010HB2A7-

000001-RS

34000-000510-RS

Description

Mini-ITX SBC with Intel® Atom™ D525 1.8GHz/1MB L2 cache,

DDR3, VGA/DVI-I DL/HDMI by Nvidia GT218, dual GbE, audio,

USB 2.0 and SATA 3Gb/s, RoHS

Mini-ITX SBC with Intel® Atom™ D425 1.8GHz/512KB L2 cache, DDR3, VGA/DVI-I DL/HDMI by Nvidia GT218, dual GbE, audio, USB 2.0 and SATA 3Gb/s, RoHS

PS2 KB/MS cable

One 4-pin (2x2) to one 4-pin (1x4) DC power cable with terminal block

LPT cable

RS-232/422/485 cable with bracket

Dual-port USB cable

PCIe x1 riser card

CPU fan

30mm higher heatsink

1-92

KINO-PVN-D4251/D5251-2013-V11

VGA 6 x USB

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s PCIe GbE

Features

1. Mini-ITX form factor with Intel® Atom™ D525/D425 processor

2. Two 800MHz DDR3 SO-DIMM slots support up to 4GB

3. Compliant with 1U chassis

4. Three GbE LAN with ASF 2.0 support

5. Complete I/O with eight USB, two SATA 3Gb/s, one LPT, six COM and audio

Specifications

TPM 1.2 Support

CPU

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Intel® Atom™ D425 single-core processor

1.8GHz/512KB L2 cache

Chipset: ICH8M

BIOS: UEFI BIOS

Memory: 2 x 800MHz DDR3 SO-DIMM up to 4GB

Graphic: GMA 3150

Display Interface

Analog CRT up to 2048x1536, CRT hotplug supported

Ethernet

Three PCIe GbE by Realtek RTL8111E with ASF

2.0 support

I/O Interfaces

1 x LPT

2 x SATA 3Gb/s

1 x KB/MS pin header

8 x USB 2.0

4 x RS-232 (RJ-45) 1 x RS-232 (DB-9)

1 x RS-232/422/485 (pin header)

SMBus: 1 x 4-pin wafer connector

TPM: 2 x 10-pin header

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output

Expansion

1 x PCI Slot

1 x PCIe x1 slot

2 x PCIe Mini card slot

Audio: Realtek ALC888 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

AT/ATX power supply support

Super IO

Fintek F81865

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Consumption

[email protected], [email protected]A (Intel® Atom™ D525

1.8GHz wiht two 1333MHz 1GB DDR3 DIMM)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW: 900g/NW: 360g

Packing List

1 x KINO-PV-D4253/D5253 single board computer

1 x SATA cable (P/N: 32801-000703-200-RS) 1 x Mini jumper pack

1 x I/O shielding (P/N: 45014-0036C0-00-RS)

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

KINO-PV-D5253-R10

KINO-PV-D4253-R10

32000-0023800-RS

32102-000100-200-RS

32200-015100-RS

32005-000200-100-RS

19800-003100-200-RS

PCIER-K101L-R10

19800-004300-100-RS

TPM-IN01-R11

Description

Mini-ITX SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA,

6 COM, 3 GbE, dual PCIe Mini, SATA 3Gb/s, and audio

Mini-ITX SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA,

6 COM, 3 GbE, dual PCIe Mini, SATA 3Gb/s, and audio

PS2 KB/MS cable

SATA power cable

LPT cable

RJ-45 to RS-232 cable

Dual USB port with bracket

PCIe x1 riser card

RS-232/422/485 cable

20-pin Infineon TPM module, software management tool, firmware V3.17

19FFD124010HB2A7-

000001-RS

34000-000510-RS

CPU fan

30mm higher heatsink

Single Board Computer

Industrial Motherboard

KINO-PV-D4252/D5252

Mini-ITX SBC with Intel® Atom™ D425/D525, DDR3, VGA/18+48-bit LVDS,

Dual GbE, Audio, USB 2.0 and SATA 3Gb/s, RoHS

RS-232/422/485

Dual LVDS

Support

2 x RS-232

LPT

PCIe x1

DIO 4 x USB

18-bit LVDS

24-bit LVDS

LVDS2

Supported Resolution

800x600/1024x768/1280x1024/

1366x768/1920x1080

COM3/4 COM1 Dual GbE

SMBus

LAN 1

KINO-945GSE2

Mini-ITX SBC with 1.6GHz Intel® Atom™ N270, DC 12V input, VGA/

36-bit + 48-bit LVDS/HDTV, Dual PCIe GbE, USB 2.0, SATA and Audio

48-bit

LVDS

36-bit

LVDS

w w w . i e i w o r l d . c o m

SATA with

DC output

COM5~6

LPT

KB/MS

VDS

PCIe Mini card slot 12V DC input VGA 4 x USB Audio

COM2~4 PCIe Mini card slot

12V only

Features

1. Mini-ITX SBC with Intel® Atom™ D525/D425 proccessor

2. Support 800MHz DDR3 SO-DIMM socket (system max. 4GB)

3. Support 24-bit dual-channel LVDS with up to 1920x1080 resolution

4. Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, six COM and audio

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Intel® Atom™ D425 single-core processor

1.8GHz/512KB L2 cache

Chipset: ICH8M

BIOS: UEFI BIOS

Memory

Two 204-pin 800MHz DDR3 SDRAM SO-

DIMMs supported (System max. 4GB) for

D525/D425

Graphic

GMA 3150

Graphic core speed 400MHz for D525/D425

Display Interface

Analog CRT up to 2048x1536 for D525/D425

Support CRT hotplug

18-bit single-channel LVDS, resolution support up to WXGA 1366x768 or XGA

1024x768

24-bit dual-channel LVDS by Novatek

68667UFG, resolution support up to

1920x1080

Ethernet

Dual GbE by Realtek RTL8111E, LAN1 with

ASF 2.0 support

SMBus: 1 x 4-pin wafer connector

Super IO: Fintek F81865

Audio: Realtek ALC888 HD Audio codec

Packing List

Expansion

1 x PCI slot

1 x PCIe x1 slot

1 x PCIe Mini card slot

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output

I/O Interfaces

5 x RS-232

2 x SATA 3Gb/s

1 x LPT

8 x USB 2.0

1 x CF Type II 1 x 6-pin header for KB/MS

1 x RS-232/422/485 (COM2) with Auto Flow control

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

12V, AT/ATX power mode

1 x External 4-pin DIN DC jack

1 x Internal 4-pin (2x2) power connector

TPM (Optional)

On-board Infineon SLB9635TT1.2

Fan Connector

1 x 3-pin system fan 1 x 4-pin CPU fan

Power Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with two

1GB DDR3)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Weight: GW: 800g/NW: 340g

1 x KINO-PV-D4252/D5252 single board computer

1 x RS-232 cable with bracket (P/N: 19800-000300-100-RS)

1 x SATA with power cable (P/N: 32801-000100-100-RS) 1 x Mini jumper pack

1 x I/O shielding (P/N: 45014-0024C0-01-RS)

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

KINO-PV-D5252-L2-R10

KINO-PV-D5252T-L2-R10

KINO-PV-D4252-R10

KINO-PV-D4252T-R10

Description

Mini-ITX SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/18+48 bit LVDS, dual GbE, audio, USB 2.0 and SATA 3Gb/s, RoHS

Mini-ITX SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/18+48 bit LVDS, dual GbE, audio, USB 2.0 and SATA 3Gb/s, TPM, RoHS

Mini-ITX SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/18-bit

LVDS, dual GbE, audio, USB 2.0 and SATA 3Gb/s, RoHS

Mini-ITX SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/18-bit

LVDS, dual GbE, audio, USB 2.0 and SATA 3Gb/s, TPM, RoHS

32000-0023800-RS

32100-192900-RS

PS2 KB/MS cable

One 4-pin (2x2) to one 4-pin (1x4) DC power cable with terminal block

32200-015100-RS

19800-004300-100-RS

LPT cable

RS-232/422/485 cable with bracket

19800-003100-200-RS Dual-port USB cable

19FFD124010HB2A7-000001-RS CPU fan

PCIER-K101L-R10

34000-000510-RS

PCIe x1 riser card

30mm higher heatsink

KINO-PV-D4252/D5252-2013-V11

DC-in VGA COM 4 x USB GbE

LAN

Speaker out

Features

1. 1.6GHz Intel® Atom™ N270 processor with fanless support

2. One 400/533MHz DDR2 SO-DIMM socket supports up to 2GB memory

3. One PCIe Mini card and one PCI slot for expansion

4. 36-bit and 48-bit LVDS support dual display outputs

5. Single voltage 12V DC input

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

12V only

Specifications

CPU

I1.6GHz Intel® Atom™ N270 processor with a

533MHz FSB

System Chipset

Intel® 945GSE+ICH7M

BIOS

AMI BIOS

Memory

One 200-pin 400/533MHz DDR2 SDRAM SO-

DIMM supported (system max. 2GB)

Ethernet

1 x Realtek PCIe RT81111CP GbE controller

I/O Interface

6 x USB 2.0

1 x RS-232 DB-9

2 x SATA with DC power

3 x RS-232

2 x RS-232/422/485 1 x LPT

1 x 6-pin box header (2.0mm pitch) for KB/MS

Graphic

Intel® Graphics Media Accelerator 950

Display Output

VGA integrated in Intel® 945GSE

Support HDTV resolution up to 1080i by component interface

18-bit dual-channel LVDS by Intel® 945GSE

24-bit dual-channel LVDS by Chrontel CH7308B

Expansion

1 x PCI

1 x PCIe Mini card

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Infrared Interface

1 x Infrared interface by pin header

Super IO

Fintek 81865

Audio

Realtek ALC655 AC'97 codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

DC Connector

Two 4-pin 5V power connectors

(mainly for 2.5" HDD used)

Power Supply

Single voltage 12V DC input

1 x External 4-pin DIN DC jack

1 x Internal 4-pin (2x2) power connector

Power Consumption

[email protected]

(Intel® Atom™ N270 1.6GHz with 2GB DDR2)

Operating Temperature

0°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

170mm x 170mm

Weight

GW: 1000g/NW: 350 g

Packing List

1 x KINO-945GSE2 single board computer

2 x SATA 5V power output cable (P/N: 32801-000100-100-RS)

1 x Dual RS-232 cable (P/N: 19800-000112-RS)

1 x I/O shielding (P/N: 45014-0031C0-00-RS)

1 x KB/MS Y cable (P/N: 32000-023800-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

KINO-945GSE2-N270-R10

19800-003100-200-RS

32100-192900-RS

32200-015100-RS

Description

Mini-ITX SBC with Intel® Atom™ N270 1.6G, 12V DC input,

VGA/18+24-bit LVDS/HDTV, PCIe GbE, USB 2.0, SATA and Audio

Dual USB cable

One 4-pin (2x2) to one 4-pin (1x4) DC power cable with terminal block

LPT cable

63000-FSP0601AD101C746-RS 60W/12V power adaptor 90VAC~260VA, 4-pin DIN

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-93

Single Board Computer

Industrial Motherboard w w w . i e i w o r l d . c o m eKINO-945GSE-R11

Mini-ITX SBC support AUPS sub-system, Intel®

Atom™ N270 1.6GHz, Wide range 9-28VDC input,

VGA/DVI/HDTV

COM1/2 VGA Dual GbE

9~28V DC input

PCIe Mini card

LVDS

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

IDE 2 x SATA

Specifications

CPU

Intel® Atom™ processor N270 1.6GHz with

533MHz FSB 512K L2 Cache

System Chipset

Intel® 945GSE + Intel® ICH7M

BIOS

AMI BIOS

Memory

One 200-pin 400/533MHz DDR2 SDRAM SO-

DIMM supported (system max. 2GB)

Ethernet

Dual Realtek PCIe 8111CP GbE controller

I/O Interface

6 x USB 2.0

1 x IDE

3 x RS-232

2 x SATA with 5V DC output

1 x RS-232/422/485 1 x 6-pin header for KB/MS

Graphic

Intel® Graphics media accelerator 950

(Intel® GMA 950)

Display Output

VGA integrated in Intel® 945GSE

Support HDTV resolution up to 1080i by component interface

18-bits dual-channel LVDS by Intel® 945GSE

DVI-D support by silicon image Sil1362

Expansion

1 x PCI, 1 x PCIe Mini card

DC connector

Two 4-pin 5V power connectors

(mainly for 2.5" HDD used)

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Infrared Interface

1 x 5-pin header

SSD

1 x CF Type II

Super IO

ITE IT8718F

Audio

Realtek ALC655 AC'97 Codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

Maximum input voltage range: 9V~28V

Recommend operating input voltage range:

12V~24V

1 x External 4-pin DIN DC jack

1 x Internal 4-pin (2x2) power connector

Power Consumption

[email protected]

(Intel® Atom™ N270 with 1GB DDR2)

Temperature

Operation: 0°C ~ 40°C with AUPS subsystem

Operation: 0°C ~ 60°C without AUPS subsystem

Storage: -20°C ~ 70°C

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW: 1100g/NW: 400 g

AUPS Battery Kit

4

Automation

Control

• BATKIT-2S2P3800-R10 • BATKIT-4S2P3800-R10

DC-In DVI 4 x USB 2.0 Audio

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

Features

1. Intel® Atom™ N270 1.6GHz with ultra low voltage fanless support

2. Wide range 9-28V DC input

3. Equipped with AUPS sub-system acts as a simple UPS system

4. Dual-display supported by VGA + DVI-D, LVDS + VGA, LVDS + DVI-D

5. Support six USB 2.0, two SATA, four COM

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x eKINO-945GSE single board computer

2 x SATA 5V power output cable (P/N: 32801-000100-100-RS)

1 x I/O shielding (P/N: 45014-0023C0-00-RS)

1 x KB/MS Y cable (P/N: 32000-023800-RS)

1 x Mini jumper pack

1 x Utility CD

1 x One Key Recovery CD 1 x QIG

GbE

Ordering Information

Part No.

eKINO-945GSE-N270UPS-R11

19800-003100-200-RS

WMPCIE-V01-R30

BATKIT-2S2P3800-R10

BAT-LI-2S2P3800

BATKIT-4S2P3800-R10

BAT-LI-4S2P3800

Description

Mini-ITX SBC supports AUPS sub-system, Intel® Atom™

N270 1.6GHz, wide range 9-28VDC input, VGA/DVI/HDTV

Dual USB cable

PCIe Mini card wireless LAN module

2S2P 7.4V 3800mAH AUPS battery kit

2S2P 7.4V 3800mAH smart battery

4S2P 14.8V 3800mAH AUPS battery kit

4S2P 14.8V 3800mAH smart battery

63000-FSP0601AD101C746-RS 60W/12V power adaptor 90VAC~260VAC, 4-pin DIN

63000-FSP120AAB-RS 120W/19V power adapter, 90VAC~264VAC, 4-pin DIN

32200-000009-RS

32100-192900-RS

19800-000300-100-RS

32200-833600-RS

44-pin 2.5" IDE cable

One 4-pin (2 x 2) to one 4-pin (1 x 4) DC power cable with terminal block

RS-232 cable with bracket

RS-422/485 cable

Dimensions

(Unit: mm)

BATKIT-2S2P3800-R10

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

P/N: BAT-LI-2S2P3800

2S2P 7.4V 3800mAH

P/N: BAT-LI-4S2P3800

4S2P 14.8V 3800mAH

Battery Specifications

Battery Model

Battery type

Battery capacity

Maximum charge voltage

The end of discharging voltage

Battery charge time (Power off)

Battery charge time (Power on)

Operating temp.

Storage temp.

Cycle life

Backup

Safety class

BAT-LI-2S2P3800

Li-Ion 2S2P 7.4V

7.4V 3800mAH

8.4V

5.6V

2.5hrs

6.5hrs

0°C ~ 40°C

BAT-LI-4S2P3800

Li-Ion 4S2P 14.8V

14.8V, 3800mAH

16.8V

11.2V

5hrs

13hrs

0°C ~ 40°C

-20°C ~ 60°C -20°C ~ 60°C

300 charge/discharge cycles

60W/10Min 100W/10Min

CE

1-94

BATKIT-4S2P3800-R10 eKINO-945GSE-2013-V10

Single Board Computer

KINO-945GSE-R11

Mini-ITX SBC with Intel® Atom™ N270 1.6G, VGA/DVI/TV, Dual PCIe GbE,

USB 2.0, SATA and Audio

ATX SATA CF Type II

Industrial Motherboard w w w . i e i w o r l d . c o m

KINO-945GSE3

Mini-ITX SBC with Intel® Atom™ N270 1.6G, VGA/DVI/LVDS, Dual PCIe GbE,

USB 2.0, ten COM, SATA and Audio

2 x SATA

Intel® Atom™

CPU

DDR2 533

SO-DIMM

Intel®

945GSE

COM3/4

DIO

IR

COM7~10

Intel®

N270

Intel®

945GSE

Intel®

ICH7M

IDE

IDE

Intel®ICH7-M

PCI

LVDS

PCIe Mini

SPDIF

2 x USB

TV-out

COM3~6

DIO

KB/MS

18-bit dualchannel LVDS

Additional 8 COM ports supported by two quadport RS-232 cables

(P/N: 32200-025401-RS)

PCIe Mini

2 x USB 2.0

VGA Dual GbE

VGA

Dual GbE

KB/MS COM1/2 DVI 4 x USB 2.0 Audio

Features

1. Intel® Atom™ processor N270 1.6GHz with ultra low voltage fanless support

2. 400/533MHz DDR2 SO-DIMM memory support up to 2GB

3. Dual display support by VGA + DVI-D, LVDS + VGA, LVDS + DVI-D

4. Support PCIe Mini slot and PCI slot for expansion

5. Support six USB 2.0, two SATA, four COM

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ processor N270 1.6GHz with a

533MHz FSB

System Chipset

Intel® 945GSE + ICH7M

BIOS

AMI BIOS

Memory

One 200-pin 400/533 DDR2 SDRAM SO-DIMM supported (system max. 2GB)

Ethernet

Dual Realtek PCIe 8111CP GbE chipset

I/O Interface

6 x USB 2.0

1 x CF Type II

2 x SATA

3 x RS-232

1 x RS-232/422/485 1 x IDE

2 x PS/2 for KB/MS

Graphic

Intel® Graphics Media Accelerator 950

Display Output

VGA integrated in Intel® 945GSE

Support HDTV resolution up to 1080i by component interface

18-bit dual-channel LVDS by Intel® 945GSE

DVI-D supported by silcon image Sil1362

Expansion

1 x PCI, 1 x PCIe Mini card

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Infrared Interface by pin header

Super IO

ITE IT8718F

Audio

Realtek ALC655 AC'97 codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

AT/ATX power support

Power Consumption:

[email protected], [email protected]

(Intel® Atom™ N270 with 1GB DDR2)

Temperature

KINO-945GSE-N270-R11:

Operation:0°C ~ 60°C (32°F~140°F)

Storage: -20°C ~ 70°C

KINO-945GSE-N270W-R11:

Operation:-20°C ~ 70°C

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions

170mm x 170mm

Weight

GW: 1100g/NW: 370g

Packing List

1 x KINO-945GSE single board computer

1 x Dual RS-232 cable (P/N: 19800-000112-RS)

1 x I/O shielding (P/N: 45014-0008C0-00-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

KINO-945GSE-N270-R11

Description

Mini-ITX SBC with Intel® Atom™ N270 1.6G, VGA/DVI/TV,

Dual PCIe GbE, USB 2.0, SATA and Audio

19800-003100-200-RS

32102-000100-200-RS

32200-000009-RS

32200-833600-RS

Dual USB cable

SATA power cable

44-pin 2.5" IDE cable

RS-422/485 cable

1U Chassis

Compatible

KB/MS COM1/2 DVI-D 4 x USB 2.0

Audio

Intel

®

Atom™

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

PCIe GbE 10 COM

Features

1. Intel® Atom™ N270 processor 1.6GHz for fanless support

2. 400/533MHz DDR2 SO-DIMM memory support up to 2GB

3. Dual display support by VGA + DVI-D/LVDS + VGA/LVDS + DVI-D

4. Support PCIe Mini card/PCI slot for expansion

5. Complete I/O interfaces: six USB 2.0, two SATA and ten COM

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ N270 processor 1.6GHz with a

533MHz FSB

System Chipset

Intel® 945GSE+ICH7M

BIOS

AMI BIOS

Memory

One 200-pin 400/533MHz DDR2 SDRAM SO-

DIMM supported (system max. 2GB)

Ethernet

Dual Realtek PCIe RTL8111E GbE Chipsets,

LAN1 with ASF 2.0 support

I/O Interface

6 x USB 2.0

1 x CF Type II

2 x SATA

1 x 6-pin header for KB/MS

1 x RS-232/422/485

2 x PS/2 for KB/MS

1 x IDE

9 x RS-232

Graphic

GMA950

Display Output

VGA integrated in Intel® 945GSE

Support HDTV resolution up to 1080i by component interface

18-bits dual-channel LVDS by Intel® 945GSE

DVI-D support by Silcon Image SiI1362

Packing List

Expansion

1 x PCI

1 x PCIe Mini card

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Infrared Interface

1 x Infrared Interface by pin header

Super IO

Fintek F81865

Audio

Realtek ALC655 AC’97 codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

AT/ATX power supply support

Power Consumption

[email protected], [email protected] (Intel® Atom™ N270

1.6GHz with 2GB DDR2)

Temperature

Operation: -10°C ~ 60°C

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions

170mm x 170mm

Weight: GW: 1100g/NW: 370g

1 x KINO-945GSE3 single board computer

2 x Quad port RS-232 cable (P/N: 32200-025401-RS)

1 x I/O shielding (P/N: 45014-0008C0-00-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

Ordering Information

Part No.

Description

19800-003100-200-RS

32102-000100-200-RS

32200-0833600-RS

32200-000009-RS

32200-023800-RS

Dual USB cable

SATA power cable

RS-422/485 cable

44-pin 2.5" IDE cable

Keyboard/Mouse Y cable

7

Panel

Solutions

Introduction

KINO-945GSE-2013-V10

1-95

Single Board Computer

PCIER Riser Card

PCIe x1 Riser Card

PCIER-K101L-R10

Dimensions: 135mm x 31mm

Packing List

1 x PCIe x1 riser card 1 x QIG

Mini-ITX Dimensions

(Unit: mm)

KINO-DH610

Industrial Motherboard

KINO-AH611 w w w . i e i w o r l d . c o m

Compatible model list

KINO-PVN-D4251/D5251, KINO-PV-D4252/D5252

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

KINO-AH612

1-96

KINO-PV-D4253/D5253

PCI Riser Card-Intro-2013-V10

Single Board Computer

Mini-ITX Dimensions

(Unit: mm)

KINO-CV-D25501/N26001

Industrial Motherboard

KINO-CVR-D25502/N26002 w w w . i e i w o r l d . c o m

KINO-G410

KINO-QM57A

KINO-QM670

KINO-HM551

Mini-ITX-Dimension-2013-V10

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

1-97

Single Board Computer

Industrial Motherboard

Mini-ITX Dimensions

(Unit: mm)

KINO-PVN-D4251/D5251 KINO-PV-D4252/D5252 w w w . i e i w o r l d . c o m

5

ORing

Network

Communication

6

Power Supply/

Peripherals

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

KINO-945GSE2

KINO-945GSE-R11

7

Panel

Solutions

Introduction

1-98 eKINO-945GSE-R11

KINO-945GSE3

Mini-ITX-Dimension-2013-V10
