5.25" NOVA/EPIC NANO Selection Guide Single Board Computer Embedded Board

5.25" NOVA/EPIC NANO Selection Guide Single Board Computer Embedded Board

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

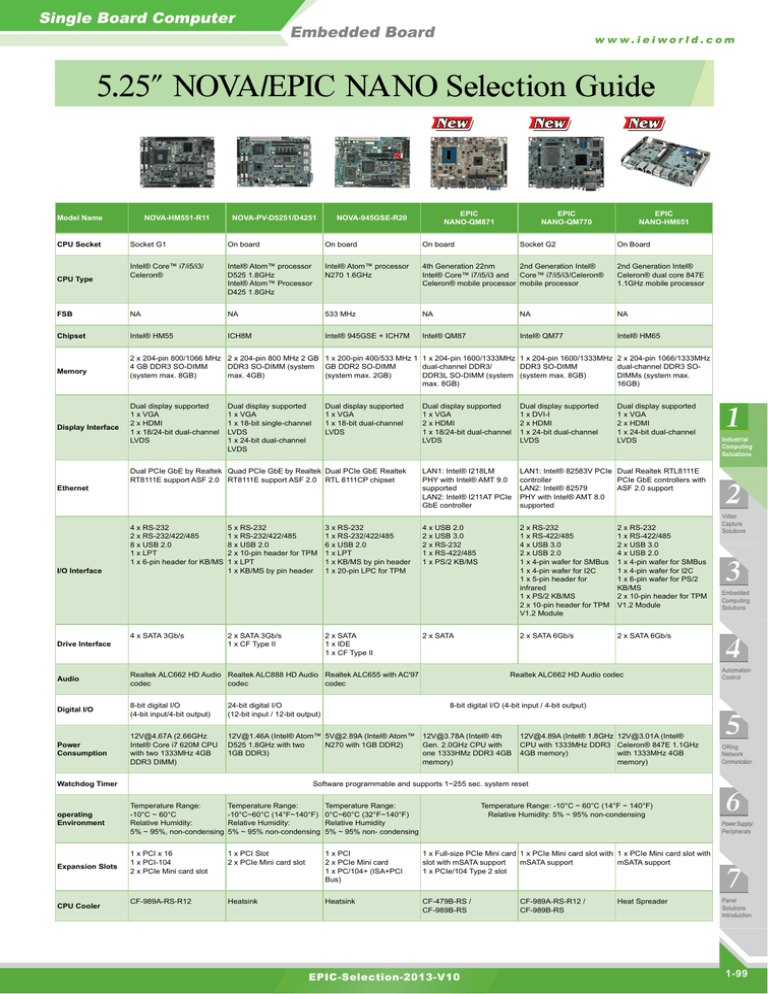

5.25" NOVA/EPIC NANO Selection Guide

Model Name

CPU Socket

CPU Type

FSB

Chipset

Memory

NOVA-HM551-R11

Socket G1

Intel® Core™ i7/i5/i3/

Celeron®

NOVA-PV-D5251/D4251 NOVA-945GSE-R20

EPIC

NANO-QM871

On board

EPIC

NANO-QM770

Socket G2

EPIC

NANO-HM651

On Board On board On board

Intel® Atom™ processor

D525 1.8GHz

Intel® Atom™ Processor

D425 1.8GHz

Intel® Atom™ processor

N270 1.6GHz

4th Generation 22nm

Intel® Core™ i7/i5/i3 and

Celeron® mobile processor

2nd Generation Intel®

Core™ i7/i5/i3/Celeron® mobile processor

2nd Generation Intel®

Celeron® dual core 847E

1.1GHz mobile processor

NA NA 533 MHz NA NA NA

Intel® HM55 ICH8M Intel® 945GSE + ICH7M Intel® QM87 Intel® QM77 Intel® HM65

2 x 204-pin 800/1066 MHz

4 GB DDR3 SO-DIMM

(system max. 8GB)

2 x 204-pin 800 MHz 2 GB

DDR3 SO-DIMM (system max. 4GB)

1 x 200-pin 400/533 MHz 1

GB DDR2 SO-DIMM

(system max. 2GB)

1 x 204-pin 1600/1333MHz dual-channel DDR3/

DDR3L SO-DIMM (system max. 8GB)

1 x 204-pin 1600/1333MHz

DDR3 SO-DIMM

(system max. 8GB)

2 x 204-pin 1066/1333MHz dual-channel DDR3 SO-

DIMMs (system max.

16GB)

Display Interface

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

1 x 24-bit dual-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit dual-channel

LVDS

Ethernet

I/O Interface

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel

LVDS

Dual display supported

1 x DVI-I

2 x HDMI

1 x 24-bit dual-channel

LVDS

Dual display supported

1 x VGA

2 x HDMI

1 x 24-bit dual-channel

LVDS

1

Industrial

Computing

Soluations

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

Quad PCIe GbE by Realtek

RT8111E support ASF 2.0

Dual PCIe GbE Realtek

RTL 8111CP chipset

LAN1: Intel® I218LM

PHY with Intel® AMT 9.0 supported

LAN2: Intel® I211AT PCIe

GbE controller

LAN1: Intel® 82583V PCIe controller

LAN2: Intel® 82579

PHY with Intel® AMT 8.0 supported

Dual Realtek RTL8111E

PCIe GbE controllers with

ASF 2.0 support

4 x RS-232

2 x RS-232/422/485

8 x USB 2.0

1 x LPT

1 x 6-pin header for KB/MS

5 x RS-232

1 x RS-232/422/485

8 x USB 2.0

2 x 10-pin header for TPM

1 x LPT

1 x KB/MS by pin header

3 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x LPT

1 x KB/MS by pin header

1 x 20-pin LPC for TPM

4 x USB 2.0

2 x USB 3.0

2 x RS-232

1 x RS-422/485

1 x PS/2 KB/MS

2 x RS-232

1 x RS-422/485

4 x USB 3.0

2 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x 5-pin header for infrared

1 x PS/2 KB/MS

2 x 10-pin header for TPM

V1.2 Module

2 x RS-232

1 x RS-422/485

2 x USB 3.0

4 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I2C

1 x 6-pin wafer for PS/2

KB/MS

2 x 10-pin header for TPM

V1.2 Module

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

2 x SATA 6Gb/s 2 x SATA 6Gb/s

Drive Interface

Audio

4 x SATA 3Gb/s 2 x SATA 3Gb/s

1 x CF Type II

2 x SATA

1 x IDE

1 x CF Type II

Realtek ALC662 HD Audio codec

Realtek ALC888 HD Audio codec

Realtek ALC655 with AC'97 codec

2 x SATA

Realtek ALC662 HD Audio codec

4

Automation

Control

Digital I/O

Power

Consumption

8-bit digital I/O

(4-bit input/4-bit output)

24-bit digital I/O

(12-bit input / 12-bit output)

8-bit digital I/O (4-bit input / 4-bit output)

[email protected] (2.66GHz

Intel® Core i7 620M CPU with two 1333MHz 4GB

DDR3 DIMM)

[email protected] (Intel® Atom™

D525 1.8GHz with two

1GB DDR3)

[email protected] (Intel® Atom™

N270 with 1GB DDR2)

[email protected] (Intel® 4th

Gen. 2.0GHz CPU with one 1333HMz DDR3 4GB memory)

[email protected] (Intel® 1.8GHz

CPU with 1333MHz DDR3

4GB memory)

[email protected] (Intel®

Celeron® 847E 1.1GHz with 1333MHz 4GB memory)

Watchdog Timer operating

Environment

Software programmable and supports 1~255 sec. system reset

Temperature Range:

-10°C ~ 60°C

Relative Humidity:

5% ~ 95%, non-condensing

Temperature Range:

-10°C~60°C (14°F~140°F)

Relative Humidity:

5% ~ 95% non-condensing

Temperature Range:

0°C~60°C (32°F~140°F)

Relative Humidity

5% ~ 95% non- condensing

Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

Expansion Slots

1 x PCI x 16

1 x PCI-104

2 x PCIe Mini card slot

CPU Cooler

CF-989A-RS-R12

1 x PCI Slot

2 x PCIe Mini card slot

Heatsink

1 x PCI

2 x PCIe Mini card

1 x PC/104+ (ISA+PCI

Bus)

Heatsink

1 x Full-size PCIe Mini card slot with mSATA support

1 x PCIe/104 Type 2 slot

1 x PCIe Mini card slot with mSATA support

1 x PCIe Mini card slot with mSATA support

CF-479B-RS /

CF-989B-RS

CF-989A-RS-R12 /

CF-989B-RS

Heat Spreader

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

EPIC-Selection-2013-V10

1-99

Single Board Computer

Embedded Board

EPIC NANO Selection Guide

w w w . i e i w o r l d . c o m

Model Name

CPU Socket

CPU Type epic

NANO-HM650

Intel® Socket G2

epic

NANO-CV-D25502/N26002

On Board

NANO-CV-D25501/N26001

On Board

epic epic

NANO-QM57A

Socket G1

epic

NANO-PV-D4251/N4551/D5251

On board

2nd Generation Intel®

Core™ i7/i5/i3/Celeron® mobile processor

Intel® Atom™ Processor D2550

1.86GHz

Intel® Atom™ Processor N2600

1.6GHz

Intel® Atom™ Processor D2550

1.86GHz

Intel® Atom™ Processor N2600

1.6GHz

Intel® Core™ i7/i5/i3/Celeron® Intel® Atom™ Processor D525

1.8GHz

Intel® Atom™ Processor D425

1.8GHz

Intel® Atom™ Processor N455

1.66GHz

Intel® HM65 Intel® NM10 NM10 Intel® QM57 Intel® ICH8M

Chipset

1

Industrial

Computing

Soluations

Memory

1 x 204-pin 1066/1333MHz

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 8GB)

1 x 204-pin 1066 MHz 4 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 4GB) for D2550

1 x 204-pin 800 MHz 2 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 2GB) for N2600

1 x 204-pin 1066 MHz 4 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 4GB) for D2550

1 x 204-pin 800 MHz 2 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 2GB) for N2600

1 x 204-pin 800/1066 MHz 4 GB

DDR3 SO-DIMM (system max.

4GB)

1 x 204-pin 800 MHz 4 GB

DDR3 SO-DIMM (system max.

4GB) for D525/D425

1 x 204-pin 800 MHz 2 GB

DDR3 SO-DIMM (system max.

2GB) for N455

Display Interface

Dual display supported

1 x VGA

1 x HDMI

1 x 24-bit dual-channel LVDS

2

Video

Capture

Solutions

Ethernet

Dual display supported

VGA1: Integrated in Intel® CPU

VGA2: Integrated in NXP

PTN3392

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2 (D2550)

Dual display supported

1 x VGA

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2 (D2550)

1 x 24bit Dual-channel LVDS

1 x HDMI

Dual display supported

1 x DVI-I

1 x DVI-D

Dual Realtek RTL8111E PCIe GbE controllers with ASF 2.0 support

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

Intel® 82577 GbE LAN controller with Intel® AMT 6.0 support

Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

3

Embedded

Computing

Solutions

I/O Interface

2 x RS-232

1 x RS-422/485

8 x USB 2.0

1 x 6-pin wafer for PS/2 KB/mS

3 x RS-232

1 x RS-422/485

6 x USB 2.0

1 x 6-pin header for KB/MS

5 x RS-232

1 x RS-422/485

6 x USB 2.0

2 x USB 3.0

2 x 10-pin header for TPM

1 x 6-pin header for KB/MS

2 x RS-232

8 x USB 2.0

1 x 6-pin header for KB/MS

4 x RS-232

1 x RS-232/422/485

8 x USB 2.0

2 x 10-pin header for TPM

1 x LPT

1 x KB/MS

Drive Interface

2 x SATA 6Gb/s 2 x SATA 3Gb/s or

1 x SATA 3Gb/s + 1 x mSATA

2 x SATA 3Gb/s or

1 x SATA 3Gb/s + 1 x mSATA

1 x microSD

2 x SATA 3Gb/s 2 x SATA 3Gb/s

1 x CF Type II

4

Automation

Control

Audio

Realtek ALC662 HD Audio Codec Realtek ALC888 HD Audio codec Realtek ALC888 HD Audio codec

Digital I/O

8-bit digital I/O (4-bit input / 4-bit output) N/A 8-bit digital I/O

(4-bit input/4-bit output)

5

ORing

Network

Communication

Power

Consumption

[email protected] (2.6GHz Intel®

Core™ i5-2540M with 1333MHz

4GB DDR3 DIMM)

[email protected] (Intel® dual core

D2550 CPU with 1333MHz 4GB

DDR3 memory)

[email protected] (Intel® dual core

N2600 CPU with 1333MHz 4GB

DDR3 memory)

[email protected] (1.86GHz Intel®

D2550 CPU with DDR3

1333MHz 2GB DIMM)

[email protected] (1.6GHz Intel®

N2600 CPU with DDR3

1333MHz 2GB DIMM)

[email protected] (2.66GHz Intel®

Core i7 620M CPU with DDR3

1333MHz 2GB DIMM)

2.21A @ 12V (Intel® Atom™

D525 with 2GB 1066MHz DDR3)

2.11A @ 12V (Intel® Atom™

D425 with 2GB 1066MHz DDR3)

2.00A @ 12V (Intel® Atom™

N455 with 2GB 1066MHz DDR3)

Software programmable and supports 1~255 sec. system reset

6

Power Supply/

Peripherals

Watchdog Timer

Operation

Environment

Temperature Range: -10°C ~

60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor

Relative Humidity: 5% ~ 95%, non-condensing

Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

7

Panel

Solutions

Introduction

Expansion Slots

1 x PCIe Mini card slot with mSATA support

1 x PCI-104 slot

CPU Cooler

CF-989A-RS-R12 /

CF-989B-RS

1 x PCIe Mini card slot with mSATA support

1 x half-size PCIe Mini card slot

1 x PCIe Mini card slot

1 x PC-104+ slot (PCI + ISA)

Heat Spreader Heatsink

1 x PCIe Mini card slot

CF-989A-RS-R12

1 x PCI-104 slot

1 x PCIe Mini card Slot

Heatsink

1-100

EPIC-Selection-2013-V10

Single Board Computer

Embedded Board

EPIC NANO Selection Guide

w w w . i e i w o r l d . c o m

Model Name

CPU Socket

CPU Type

FSB

Chipset

EPIC

NANO-PV-D4252/N4552/D5252

On board

EPIC

NANO-9452-R40

Socket M

NANO-945GSE-R20

On board

EPIC

On board

EPIC

NANO-945GSE2

EPIC

NANO-LX-R12

On board

Intel® Atom™ Processor D525 1.8GHz

Intel® Atom™ Processor D425 1.8GHz

Intel® Atom™ Processor N455 1.66GHz

Intel® Core™2 Duo,

Core™ Duo/Solo, Celeron® M

Intel® Atom™ Processor N270

1.6GHz

Intel® Atom™ Processor N270

1.6GHz

AMD Geode™ LX800

N/A

Intel® ICH8M

533/667 MHz

Intel® 945GME + ICH7M

533 MHz

Intel® 945GSE + ICH7M

533 MHz

Intel® 945GSE + ICH7M

N/A

AMD Geode™ LX800 + AMD

CS5536

Memory

Ethernet

1 x 204-pin 800 MHz 4 GB DDR3 SO-

DIMM (system max. 4GB) for D525/D425

1 x 204-pin 800 MHz 2 GB DDR3 SO-

DIMM (system max. 2GB) for N455

1 x 200-pin 400/533/667 MHz

2 GB DDR2 SO-DIMM (system max. 2GB)

One 200-pin 2GB (max.)

400/533MHz DDR2 SO-DIMM

One 200-pin 2GB (max.)

400/533MHz DDR2 SO-DIMM

One 200-pin 1GB (max.)

333/400MHz DDR SO-DIMM

Display Interface

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x 18/24-bit dual-channel

LVDS

1 x HDTV

Dual display supported

1 x VGA

1 x 18-bit dual-channel LVDS

1 x 24-bit dual-channel LVDS

1 x HDTV

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit TTL (LVDS to TTL)

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit TTL (LVDS to TTL)

Single PCIe GbE by Realtek RT8111E support ASF 2.0

Realtek RTL8100C

10/100Mbps Ethernet chipset

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

I/O Interface

4 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x LPT

1 x KB/MS

3 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x LPT

1 x Infrared interface

1 x PS/2 for KB/MS

3 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x LPT

1 x Infrared interface

1 x PS/2 for KB/MS

3 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x LPT

1 x Infrared interface

1 x PS/2 for KB/MS

6 x RS-232

1 x RS-422/485

4 x USB 2.0

1 x LPT

1 x PS/2 for KB/MS

1 x Infrared interface

3

Embedded

Computing

Solutions

Drive Interface

2 x SATA 3Gb/s

1 x CF Type II

2 x SATA 1.5Gb/s

1 x IDE

1 x CF Type II

2 x SATA 1.5Gb/s

1 x IDE

1 x CF Type II

2 x SATA 1.5Gb/s

1 x CF Type II

2 x SATA 1.5Gb/s RAID

1 x IDE

1 x CF Type II

Audio

Realtek ALC888 HD Audio codec AC-KIT-888HD

AC-KIT08R

Realtek ALC655 with AC’97 codec

Realtek ALC203 with AC’97 codec

4

Automation

Control

Digital I/O

8-bit digital I/O (4-bit input/4-bit output)

Power

Consumption

[email protected] (Intel® Atom™ D525 with 2

GB 1066 MHz DDR3)

[email protected] (Intel® Atom™ D425 with 2

GB 1066 MHz DDR3)

[email protected] (Intel® Atom™ N455 with 2

GB 1066 MHz DDR3)

[email protected] (Intel® Core™2

Duo T2500 2.0GHz, 2GB 800

MHz DDR2)

[email protected]

(Intel® Atom™ N270 1.6GHz,

2GB DDR2 533 MHz)

[email protected]

(Intel® Atom™ N270 1.6GHz,

1 GB DDR2 533 MHz)

[email protected] 0.92A

(AMD LX800, 256 MB 400

MHz DDR)

5

ORing

Network

Communication

Watchdog Timer

Operating

Environment

Temperature Range:

-10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity:

5% ~ 95% non-condensing

Expansion Slots

1 x PCI-104 slot

1 x PCIe Mini card slot

CPU Cooler

Heatsink

Software programmable and supports 1~255 sec. system reset

Temperature Range:

0°C ~ 60°C (32°F~140°F)

Relative Humidity:

5% ~ 95% non- condensing

Temperature Range:

0°C ~ 60°C (32°F~140°F)

-20°C ~ 70°C (W)

-40°C ~ 85°C (W2)

Relative Humidity:

5% ~ 95% non- condensing

Temperature Range:

0°C ~ 60°C (32°F~140°F)

-20°C ~ 70°C (W)

Relative Humidity:

5% ~ 95% non- condensing

Temperature Range:

0°C ~ 60°C (32°F~140°F)

Relative Humidity:

5% ~ 95% non- condensing

1 x PC/104-Plus 1 x PC/104-Plus 1 x PCI-104 slot

1 x PCIe Mini card slot

CF-479B-RS

1 x PCI-104 slot

1 x PCIe Mini card slot

Heatsink Heatsink Heatsink

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

EPIC-Selection-2013-V10

1-101

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

NOVA-HM551-R11

PCIe x16

Intel®

HM55

8 x USB 2.0

LAN 1

Dual

HDMI

Dual

GbE

5.25" SBC with Socket G1 Intel® 32nm/45nm Core™ i7/i5/i3 and

Celeron® processor, VGA/Dual HDMI/LVDS, Dual PCIe GbE,

USB 2.0, Dual PCIe Mini, PCIe x16, SATA 3Gb/s and Audio, RoHS

1. 8

1. 6

1. 4

1. 2

1 .0

0. 8

0. 6

0. 4

0. 2

0

Performance

1.56x

1.36x

CPU

1.56x

1.36x

Memory

1.63x

1.62x

3D i7-620M 2.66G

i5-520M 2.4G

T9400 2.53G

VGA

CPU cooler

P/N: CF-989A-RS-R12

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

COM6

COM5

LPT DIO

COM1~COM4

PCI-104 Dual PCIe Mini card slot

Specifications

CPU

Socket G1 for Intel® mobile Core™ i7/i5/i3 and Celeron® processor

(Socket 989A)

PCH

Intel® HM55

Memory

Two 204-pin 4GB (max.) 800/1066MHz dual-channel DDR3 SDRAM SO-

DIMM supported (system max. 8GB)

BIOS

UEFI BIOS

Graphics Engine

Gen 5.75 with 12 Execution Units DirectX* 10, OpenGL* 2.1

Super I/O

Fintek F81865

Display Interface

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel LVDS

LAN

Dual PCIe GbE controller by Realtek RTL8111E, LAN1 with ASF 2.0 support

I/O Interface

4 x RS-232 2 x RS-232/422/485 with auto flow control

4 x SATA 3Gb/s with DC power output

1 x 6-pin header for KB/MS

8 x USB 2.0

1 x LPT

Expansion

1 x PCIe x16 slot

1 x PCI-104

2 x PCIe Mini card slot (USB+PCIe signal)

SMBus

1 x 4-pin wafer connector

TPM (Optional)

On-board Infineon SLB9635TT1.2

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Fan Connector

1 x 4-pin for CPU fan connector

1 x 3-pin for chassis fan connector

Audio

On-board Realtek ALC662 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

DC 12V only, AT/ATX power selected by jumper

Power Consumption

[email protected] (2.66GHz Intel® Core™ i7 620M CPU with two 1333MHz 4GB

DDR3 DIMM)

Operating Temperature

-10°C ~ 60°C

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions

203mm x 146mm

Weight

GW: 800g/NW: 300g

KB/MS

Audio

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s PCIe GbE 12V only

Features

1. 5.25" SBC with Socket G supports Intel® 32nm/45nm Core™ i7/i5/i3 and

Celeron® processor

2. Dual-channel 800/1066 MHz DDR3 SDRAM supported (system max. 8 GB)

3. 18/24-bit dual-channel LVDS/analog CRT/dual HDMI output supported

4. Support PCIe x16, dual PCIe Mini card and PCI-104 device

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x NOVA-HM551 single board computer

1 x Quad port RS-232 adapter cable (P/N: 32100-147900-RS)

2 x SATA with 5V power cable (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS) 1 x One Key Recovery CD

1 x KB/MS Y cable (P/N: 32000-023800-RS)

1 x VGA cable (P/N: 32000-033800-RS)

1 x USB cable (P/N: 32200-044300-RS)

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

NOVA-HM551-R11

NOVA-HM551T-R11

19800-003100-200-RS

32205-000300-100-RS

CF-989A-RS-R12

CF-989B-RS

SAIDE-KIT01-R10

32200-015100-RS

Description

5.25" SBC with Socket G1 support Intel® 32nm/45nm Core™ i7/i5/i3 and Celeron® processor, VGA/Dual HDMI/LVDS, Dual

PCIe GbE, USB 2.0, dual PCIe Mini, PCIe x16, SATA 3Gb/s and

Audio, RoHS

5.25" SBC with Socket G1 support Intel® 32nm/45nm Core™ i7/i5/i3 and Celeron® processor, VGA/Dual HDMI/LVDS, Dual

PCIe GbE, USB 2.0, dual PCIe Mini, PCIe x16, SATA 3Gb/s and

Audio, TPM, RoHS

Dual USB cable with bracket

RS-232/422/485 cable

CPU cooler for mobile socket-G (PGA988) up to 55W processor,

Copper, 60mm x 60mm x 27.6mm, RoHS

CPU cooler for mobile socket-G (PGA988) 50W processor,

Aluminum, 60mm x 60mm x 27.6mm, RoHS

SATA to IDE/CF converter board

LPT cable

1-102

NOVA-HM551-2013-V10

Single Board Computer

Embedded Board

NOVA-PV-D4251/D5251

5.25” SBC, Intel® Atom™ D425/D525, DDR3, 18-bit+48-bit LVDS/VGA, Dual

PCIe Mini, Quad PCIe GbE, USB 2.0, SATA 3Gb/s, Audio, RoHS

DIO

4 x COM

LPT

SMBus

TPM

Dual LVDS

4 PCIe GbE

24-bit DIO

8 x USB

LAN 1

IDE

4 x GbE

PCIe Mini card

2 x SATA 3Gb/s

DDR3 800MHz

Dual PCIe

Mini card slot

12V input 18-bit single-channel LVDS

COM

VGA

Audio

24-bit dual-channel LVDS

Solder side

w w w . i e i w o r l d . c o m

NOVA-945GSE-R20

5.25” SBC, Intel® Atom™ N270 1.6GHz, LVDS/VGA/HDTV, Dual PCIe Mini,

Dual PCIe GbE, USB 2.0, SATA, RoHS

18-bit LVDS TPM DIO COM1~4

18/24-bit dual-channel

LVDS support

Power

Intel® Atom™

N270

ICH7M

Intel®

945GSE

LPT

Dual GbE

CRT TV-out

6 x USB

Audio

PC/104 Dual PCIe Mini Card

Solder side

Fanless

Features

CF Type II

TPM 1.2 Support

1. 5.25” SBC supports Intel® Atom™ D525/D425 processor

2. 800/1066 MHz DDR3 supports up to 4GB

3. VGA/18-bit single-channel/24-bit dual-channel LVDS for dual independent display support

4. Quad PCIe Ethernet, two SATA 3Gb/s, and six RS-232 serial port connectors

5. TPM V1.2 hardware security function supported by TPM module

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

1.8GHz Intel® Atom™ D525 dual-core processor with 1MB L2 cache

1.8GHz Intel® Atom™ D425 single-core processor with 512KB L2 cache

System Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

Two 204-pin 800MHz DDR3 SDRAM SO-

DIMMs supported (system max. 4GB) for

D525/D425

Ethernet

Four PCIe Realtek RTL8111E GbE controller,

LAN1 with ASF 2.0 support

Graphic

GMA 3150

Graphic core speed 400MHz for D525/D425

I/O Interface

4 x RS-232 for NOVA-PV-D5251/D4251-

G2L2-R10

5 x RS-232 for NOVA-PV-D5251-G4-R10

1 x RS-232/422/485 with auto flow control

8 x USB 2.0

1 x LPT

1 x CF Type II

Expansion

1 x PCI-104

2 x PCIe Mini card slot

1 x PCI

2 x SATA 3Gb/s

1 x IDE

1 x 6-pin header for KB/MS

Packing List

Digital I/O

24-bit digital I/O, 12-bit input/12-bit output

Super IO: Fintek F81865

Display Interface

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit dual-channel LVDS

Audio

Realtek ALC888 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

TPM: 2 x 10-pin header

SMBus: 1 x 4-pin wafer

SATA Power

2 x 2-pin wafer for SATA 5V power connector

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply: 12V only

Power Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with

DDR3 1GB*2)

Operating Temperature: -10°C ~ 60°C

Humidity

Operation: 5% ~ 95%, non-condensing

Dimensions: 203 mm x 146 mm

Weight: GW: 1000g/NW: 400g

1 x NOVA-PV-D4251/D5251 single board computer

1 x Quad RS-232 cable (P/N: 32100-147900-RS)

1 x SATA with Power cable kit (P/N: 32801-000201-100-RS)

1 x KB/MS Y cable (P/N: 32000-023800-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x VGA cable (P/N: 32000-033804-RS)

1 x Mini jumper pack

1 x USB cable (P/N: 32001-008600-100-RS)

1 x One Key Recovery CD

1 x Utility CD

1 x QIG

Ordering Information

Part No.

NOVA-PV-D5251-G4-R10

NOVA-PV-D4251-G2L2-R10

Description

5.25" SBC, Intel® Atom™ D525 dual-core 1.8GHz, DDR3, 18bit LVDS/VGA, dual PCIe Mini, quad PCIe GbE, USB 2.0, SATA

3Gb/s, audio, RoHS

5.25" SBC, Intel® Atom™ D425 single-core 1.8GHz, DDR3,

18+48-bit LVDS/VGA, dual PCIe Mini, dual PCIe GbE, USB 2.0,

SATA 3Gb/s, audio, RoHS

NOVA-PV-D5251-G2L2-R10

32200-000009-RS

32200-015100-RS

32205-000300-100-RS

5.25" SBC, Intel® Atom™ D525 dual-core 1.8GHz, DDR3,

18+48-bit LVDS/VGA, dual PCIe Mini, dual PCIe GbE, USB 2.0,

SATA 3Gb/s, audio, RoHS

44 pin 2.5" IDE cable

LPT cable

RS-232/422/485 cable

19FFD124010HB2A7-000001-RS CPU fan

34000-000510-RS 30mm higher heatsink

TPM-IN01-R11

20-pin Infineon TPM module, software management tool, firmware V3.17

NOVA-PV-D4251/D5251-2013-V11

TPM 1.2 Support

SO-DIMM

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA PCIe GbE

Features

1. 1.6GHz Intel® Atom™ N270 processor with fanless support

2. 400/533MHz DDR2 SO-DIMM memory support up to 2GB

3. Support dual PCIe Mini card/PCI slot for expansion

4. Dual LVDS support dual display output

5. CF socket for storage expansion

6. TPM support

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

CF Type II

5V only

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

Specifications

CPU

Intel® Atom™ N270 1.6GHz with a 533MHz

FSB

System Chipset: Intel® 945GSE+ICH7M

BIOS: AMI BIOS

Memory

One 200-pin 400/533MHz DDR2 SDRAM SO-

DIMM supported (system max. 2GB)

Ethernet

Dual Realtek PCIe RTL8111CP GbE LAN

Graphic

Intel® Graphics Media Accelerator 950

I/O Interface

3 x RS-232

6 x USB 2.0

1 x LPT

1 x RS-232/422/485

2 x SATA with 5V output

1 x IDE

1 x 6-pin header for KB/MS

Expansion

1 x PC/104+ (ISA+PCI bus)

2 x PCIe Mini card

1 x PCI

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Infrared Interface

1x 5-pin infrared interface by pin header

Super IO: ITE IT8718F

Display Output

Analog CRT support CRT hotplug

HDTV supported by component interface

Audio: AC’97 ALC655 codec

SSD: CF Type II

Watchdog Timer

Software programmable supports 1~255 sec. system reset

TPM: 1x 20-pin header

Power Supply

5V only, 12V for LCD/system fan, AT/ATX power

Power Consumption

[email protected] (Intel® Atom™ N270 with 512MB

DDR2)

Temperature Operation

0°C ~ 60°C (32°F~140°F)

Humidity Operation

5% ~ 95%, non-condensing

Dimensions: 203mm x 146mm

Weight: GW:1000g, NW:400g

Packing List

1 x NOVA-945GSE-R20 single board computer

1 x Audio cable (P/N: 32000-072100-RS)

1 x KB/MS Y cable (P/N: 32000-023800-RS)

1 x VGA cable (P/N: 32000-033804-RS)

1 x One Key Recovery CD

4 x RS-232 cable (P/N: 32205-002700-100-RS) 1 x Mini jumper pack

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x USB cable (P/N: 32001-008600-100-RS)

1 x Utility CD

1 x QIG

Ordering Information

Part No.

Description

32200-000009-RS

32102-000100-200-RS

32200-015100-RS

WMPCIE-V01-R30

WMUSB-V01-R20

32200-833600-RS

44-pin 2.5" IDE cable

SATA power cable

LPT cable

802.11b/g PCIe Mini card wireless LAN module

802.11b/g USB embedded module

RS-422/485 cable

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-103

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

IEI EPIC

NANO

EPIC - NANO is to define a new industry open standard for small form factor embedded computer boards, called Embedded

Platform for Industrial Computing or EPIC. The NANO single board computer series has multiple I/O expansion options. Its size is midway between the industry standard PC/104 module and EBX board. The boards in EPIC form factor support advanced processors plus complex I/O functions for applications involving data acquisition, video processing, telecommunications, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc. The initial specifications define PC/104 expansions; however, future updates will embrace PCI Express and/or other expansion features. The EPIC standard provides a platform on which to build the next generation feature-rich embedded system for industrial, medical, military, transportation, and commercial applications.

EPIC Key Features

Fixed Dimensions and mounting holes

Fixed I/O interface

Fixed PCI-104, PC/104 location

Fixed CPU location

Benefits from NANO Board

Easy upgrading from same EPIC form factor CPU boards

Complex I/O functions based on customers' requirements

Small form factor

Saves money and space with cables and shared chassis

1

Industrial

Computing

Soluations

Heat Spreader

Before

2

Video

Capture

Solutions

Heat from CPU board is circling in the system.

Multiple screw mounting holes provide flexibility for all thermal solutions.

After

3

Embedded

Computing

Solutions

Most of heat will be spread out by whole system surface.

FIXED 8 mounting holes

Multiple screw mounting holes provide flexibility for all thermal solutions.

4

Automation

Control

5

ORing

Network

Communication

Dual Display Solutions

Chipset Intel® QM87 Intel® QM77

Model Name

NANO-QM871 NANO-QM770

Dual Display

VGA/ HDMI/ LVDS

(3 displays support)

DVI-I/ HDMI/ LVDS

(3 displays support)

Chipset

Model Name

Dual Display

Intel® QM57

NANO-QM57A

DVI + DVI

DVI + VGA

Intel® HM65

NANO-HM651

VGA/ HDMI/ LVDS

Intel® HM65

NANO-HM650

VGA/ HDMI/ LVDS

Intel® D525/D425/N455

NANO-PV-D5251/D4251/N4551

VGA + LVDS

NANO-PV-D5252/D4252/N4552

VGA + LVDS

LVDS + LVDS

6

Power Supply/

Peripherals

Embedded System Mapping

ECN ECW

Intel® D2550/N2600

NANO-CV-D25501/N26001

VGA/ HDMI/ LVDS

Intel® 945GME

NANO-9452

VGA + LVDS

VGA + HDTV

LVDS + HDTV

Intel® D2550/N2600

NANO-CV-D25502/N26002

VGA/ LVDS

Intel® 945GSE

NANO-945GSE2

VGA/ LVDS/ TTL

NANO-945GSE

VGA/ LVDS/ HDTV

EBC

7

Panel

Solutions

Introduction

Embedded System

Model

ECN-360A

NANO-HM651

NANO-CV-D25502

ECN-581A

NANO-QM57A

NANO-PV-D5251

ECW-281B

WAFER-CV-D25501

WAFER-PV-D5252

ECW-281B-R21

WAFER-945GSE

EBC-2100

NANO-LX

EBC-2101

NANO-945GSE

EBC-2102

NANO-PV-D5251

1-104

EPIC-Intro-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

EPIC

12V DC input

NANO-QM871

PCIe Mini card slot

(compatible with mSATA)

Front panel

SMBus

5V SATA power

EPIC SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/ i3 and Celeron® on-board processors with VGA/Dual HDMI/LVDS,

Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s and Audio

IEI provide the latest PC/104 embedded specification by PCIe/104 type 2 for EPIC board

Customers can order compatible add-in cards from by IEI for expanding I/O interface like

PCI-104 slot, USB 3.0 port, PCIe Mini slot, mSATA or PCIe GbE.

Dual-channel DDR3

SO-DIMM 1333/1066 MHz

4th Gen.

CPU

QM87

LAN1

2 x SATA 6Gb/s

PS/2 KB/MS

RS-422/485

TPM

2 x RS-232

DIO

2 x USB 2.0

Audio I/F

Solder Side

PCIe/104

Stackable PCIeConnector

PCIe® Bus

Feature

USB 2.0

SMB

PCIe x1

PCIe x4

USB 3.0

SATA

LPC

2

1

2

2

Type 2

2

1

4

LVDS Inverter PCIe/104 type 2 2 x LAN LED

TPM 1.2 Support

Jumper-less

USB

USB 3.0

SATA 6Gb/s PCIe GbE mSATA

Specifications

CPU

4th generation Intel® mobile Core™ i7/i5/i3 and Celeron® on-board processors

PCH

Intel® QM87

BIOS

UEFI BIOS

Memory

One 204-pin 1600/1333MHz dual-channel DDR3/DDR3L SO-DIMM (system max. 8GB)

Graphics Engine

Gen 7.5 Intel® HD Graphics with DirectX 11.1, OpenGL 3.2, OpenCL 1.2 support

Display Output

1 x VGA ([email protected])

1 x 18/24-bit dual channel LVDS ([email protected])

Dual HDMI via v1.4a compliant ([email protected])

LAN

LAN1: Intel® I218LM PHY with Intel® AMT 9.0 supported

LAN2: Intel® I211AT PCIe GbE controller

Super I/O

Fintek F81866

Embedded Controller iWDD

I/O interface

2 x RS-232

1 x 6-pin wafer for PS/2 KB/MS

1 x RS-422/485

2 x USB 2.0 (by pin header)

2 x USB 2.0 (on rear I/O) 2 x USB 3.0 (on rear I/O)

2 x SATA 6G/s with 5V SATA power connector (RAID 0,1,5,10)

TPM: 1 x 20-pin (2x10) header

SMBus: 1 x 4-pin (1x4) wafer

Audio: Realtek ALC662 HD codec

Front Panel

1 x 6-pin (1x10) wafer for power LED & HDD LED

1 x 2-pin (1x2) wafer for power button

1 x 2-pin (1x2) wafer for power reset

LAN LED: 2 x 2-pin (1x2) header

Expansion

1 x Full-size PCIe Mini card slot with mSATA support

1 x PCIe/104 Type 2 slot

Watchdog Timer: Software programmable support 1~255 sec. system reset

Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

Power supply: 12V only, AT/ATX support

Power Consumption

[email protected] (Intel® 4th Gen. 2.0GHz CPU with one 1333HMz DDR3 4GB memory)

Operating Temperature: -10°C ~ 60°C

Storage Temperature: -20°C ~ 85°C

Operating Humidity: 5% ~95%, non-condensing

Dimensions: 115 mm x 165 mm

Weight: GW:850g / NW:350g

2 x HDMI 2 x USB 3.0

2 x USB 2.0

Dual GbE

VGA

Features

1. EPIC SBC supports 4th generation 22nm Intel® mobile processors

2. IEI jumper-less function

3. Triple independent display supports with dual HDMI+VGA/ dual HDMI+LVDS/ HDMI+LVDS+VGA

4. 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8GB

5. COM, USB 3.0, SATA 6Gb/s and audio support

6. Intel® GbE LAN with Intel® AMT 9.0 support

7. IEI one key recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Packing List

1 x NANO-QM871 single board computer

2 x SATA with power cable kit (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

2 x RS-232 cable (P/N: 32200-000049-RS)

1 x QIG (Quick Installation Guide)

1 x Utility CD

1 x One Key Recovery CD

5

ORing

Network

Communication

Ordering Information

Part No.

NANO-QM871-R10

32000-070301-RS

32100-043403-RS

32200-074800-RS

CF-479B-RS

CF-989B-RS

32000-023800-RS

TPM-IN01-R11

Description

EPIC SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/i3 and Celeron® on-board processors with VGA/Dual

HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104,

SATA 6Gb/s and Audio

Dual port USB cable

ATX power cable

RS-422/485 cable, 200mm

Cooler kit for 17W CPU (L:W:H - 50x50x26mm)

Cooler kit for 50W CPU (L:W:H - 60x60x27.6mm)

PS/2 KB/MS Y-cable with bracket, 135mm

20-pin Infineon TPM module, software management tool, firmware V3.17

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

NANO-QM871-2013-V10

1-105

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m epic

12V DC input

NANO-QM770

SATA 6Gb/s

EPIC SBC Supports Socket G2 for Intel® 22nm Mobile CPU,

DVI-I/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and Audio

Triple independent display supported under Win7 OS

PCIe Mini card slot

DDR3 SO-DIMM supports up to 8GB

KB/MS

DIO

Socket G2

PGA988B

QM77

2 x RS-232

2 x USB 2.0

RS-422/485

TPM

SMBus

Audio I/F

Solder side

GbE PHY support Intel® AMT 8.0

LVDS Inverter

TPM 1.2 Support

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

USB

USB 3.0

Specifications

SATA 6Gb/s PCIe GbE mSATA

CPU

Socket G2 for Intel® 3rd generation 22nm mobile processor

PCH

Intel® QM77

BIOS

UEFI BIOS

Memory

One 204-pin 1066/1333/1600 MHz DDR3 SO-DIMM supported (system max. 8GB)

Graphics

Intel® HD Graphics Gen 7 with 12 execution units

DirectX 11, OpenGL 3.1, OpenCL 1.1

Display Output

Analog CRT and DVI by DVI-I connector (up to 2048 x 1536 @75Hz)

18/24-bit dual channel LVDS (up to 1920 x 1200 @60Hz)

Dual HDMI supports resolution up to 1080p (up to 1920 x 1200 @60Hz)

LAN

Intel® 82583V PCIe controller

Intel® 82579 PHY with Intel® AMT 8.0 supported

Super I/O

Fintek F81866

I/O Interface

2 x SATA 6Gb/s with 5V SATA power connector

2 x USB 2.0

4 x USB 3.0

2 x RS-232

1 x RS-422/485

1 x 6-pin header for KB/MS

TPM

2 x 10-pin LPC pin header for TPM

Audio

Realtek ALC662 HD codec

Expansions

1 x PCIe Mini card slot (compatible with mSATA device)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Programmable I/O

8-bit digital I/O

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power supply

12V only, AT/ATX support

Power Consumption

[email protected] (Intel® 1.8GHz CPU with 1333MHz DDR3 4GB memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

115 mm x 165 mm

Weight

GW: 850g/NW: 350g

1-106

4 x USB 3.0

Features

GbE LAN HDMI DVI-I (DVI+VGA)

1. EPIC SBC with Socket G2 for Intel® 22nm mobile processor

2. Triple independent display supports with dual HDMI+DVI/dual HDMI+LVDS (HDMI V1.3a compliant)

3. 1066/1333/1600 MHz DDR3 SDRAM supports up to 8GB

4. Supports three COM, four USB 3.0, two SATA 6Gb/s and audio

5. Intel® GbE LAN with Intel® AMT 8.0 supported

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x NANO-QM770 single board computer

2 x SATA with power cable kit (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG (Quick Installation Guide)

Ordering Information

Part No.

NANO-QM770-R10

32001-008600-100-RS

32205-003800-100-RS

CF-989A-RS-R12

32000-023800-RS

TPM-IN01-R11

Description

EPIC SBC supports Socket G2 for Intel® 22nm mobile CPU,

DVI-I/dual HDMI/LVDS, dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and Audio

Dual port USB cable

RS-422/485 cable

CPU cooler for mobile socket-G (PGA988) up to 55W processor, copper, 60 x 60 x 27.6mm, RoHS

KB/MS cable

20-pin Infineon TPM module, software management tool, firmware V3.17

NANO-QM770-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m epic

12V DC input

NANO-HM651

Dual-channel DDR3

SO-DIMM 1333/1066 MHz

PCIe Mini card slot

(compatible with mSATA)

Front panel SATA 6Gb/s 5V SATA power

Inverter

EPIC SBC with on-board Intel® Celeron® Dual Core 847E 1.1GHz

CPU, Dual HDMI/VGA/ LVDS, Dual GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and Audio

IEI provides models with better performance than other low power platforms

IEI dessigns products with efficient performance and low power consumption by the superiority of easy assembly fanless mechanism and the on-board Intel® Celeron®

Scores

LVDS

2 x RS-232

DIO

RS-422/485

2 x USB 2.0

1757

434

284

179

3D Mark

3089

2536

1885

2127

CPU Performance

Models

NANO-HM651

KINO-CV-D25501

KINO-CV-N26001

PM-PV-D5251

LAN1

PS/2 KB/MS

Audio I/F

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s PCIe GbE

Heat Spreader

Specifications

CPU

1.1GHz Intel® Celeron® 847E dual-core processor

PCH

Intel® HM65

BIOS

UEFI BIOS

Memory

Two 204-pin 1333/1066MHz dual-channel DDR3 SO-DIMMs supported

(system max. 16GB)

Graphics

Intel® HD Graphics Gen 6 supports DX10.1 and OpenGL 3.0

Full MPEG-2, VC1, AVC Decode

Display Output

VGA integrated in the Intel® HM65 (up to 2048 x 1536 @75Hz)

Dual channel 24-bit LVDS integrated in the Intel® HM65 (up to 1920 x 1200 @60Hz)

Dual HDMI (up to 1920 x 1200 @60Hz)

Ethernet

Dual PCIe LAN controller by Realtek RTL8111E with ASF 2.0 support

Super I/O

Fintek F81866

I/O Interface

2 x RS-232

2 x USB 3.0 (on rear)

1 x 6-pin wafer for PS/2 KB/MS

1 x RS-422/485

4 x USB 2.0 (2 on rear, 2 by pin header)

2 x SATA 6Gb/s with SATA 5V power connector

Audio

Realtek ALC662 HD codec

Front Panel

1 x 10-pin (1x10) header

Expansions

1 x Full-size PCIe Mini card slot with mSATA support

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit digital I/O (4-bit input / 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector (smart fan support)

Power Supply

12V only, AT/ATX support,

Power Consumption

[email protected] (Intel® Celeron ® with 1333MHz 4GB memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

115 mm x 165 mm

Weight

GW: 850g/NW: 350g

VGA Dual GbE 2 x USB 2.0

2 x HDMI

2 x USB 3.0

Features

1. EPIC SBC with on-board mobile 32nm Intel® Celeron® dual-core 847E 1.1GHz processor

2. Dual HDMI/VGA with dual display support

3. Dual-channel 204-pin 1333/1066MHz DDR3 SO-DIMMs support up to 8GB

4. Thermal design for easy assembly by heat spreader

5. Supports three COM, four USB 3.0, two SATA 6Gb/s and audio

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

28.50

60 60 28.50

177

9-6#32 BR

21

14

7

Packing List

1 x NANO-HM651 single board computer

1 x SATA with power cable kit (P/N: 32801-000201-100-RS)

2 x Plastic shaft for securing half-size PCIe Mini card (P/N: 43124-0010C2-01-RS)

1 x Power cable (P/N: 32100-087100-RS) 1 x One Key Recovery CD

2 x RS-232 cable (P/N: 32200-000049-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Heat spreader

1 x Mini jumper pack

1 x Utility CD

1 x QIG (Quick Installation Guide)

Ordering Information

Part No.

NANO-HM651-847E-R10

32000-070301-RS

Description

EPIC SBC supports Intel® Celeron® dual core 847E 1.1GHz

CPU, dual HDMI/VGA/LVDS, dual GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and Audio

Dual-port USB cable

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

NANO-HM651-2013-V10

1-107

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m epic

NANO-CV-

9V~28V DC input

Half-size PCIe Mini card slot

Front Panel

D25502

N26002

EPIC SBC with Intel® Atom™ D2550 1.86GHz/ N2600

1.6GHz, DDR3, Dual VGA/LVDS, Dual GbE, USB 2.0,

Dual PCIe Mini, SATA 3Gb/s, mSATA and Audio

The innovation of thermal solution for EPIC

NANO-CV-D25502/N26002 is the first IEI EPIC board to be implemented heat spreader for easy fanless assembly solution.

Audio I/F

SATA 3Gb/s

5V SATA power

PS/2 KB/MS

RS-422/485

3 x RS-232

Most of the heat will be spread to whole system surface

USB 2.0

LAN1

DDR3 SO-DIMM

1066/800 MHz

Inverter

LVDS

PCIe Mini card slot

(compatible with mSATA)

3

Embedded

Computing

Solutions

4

Automation

Control

7

Panel

Solutions

Introduction

Fanless

Heat Spreader

SATA 3Gb/s PCIe GbE

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

5

ORing

Network

Communication

6

Power Supply/

Peripherals

Specifications

CPU

Intel® dual core Atom™ D2550 1.86GHz processor

Intel® dual core Atom™ N2600 1.6GHz processor

Intel® dual core Atom™ N2800 1.86GHz processor (optional)

Chipset

Intel® NM10

BIOS

UEFI BIOS

Memory

1 x 1066MHz DDR3 SO-DIMM supporting up to 4GB (for D2550 and N2800)

1 x 800MHz DDR3 SO-DIMM supporting up to 2GB (for N2600)

Graphics Engine

GMA 3650 at 640MHz graphics core speed (for N2550 and N2800)

GMA 3600 at 400MHz graphics core speed (for N2600)

Display Output

1st VGA integrated in the CPU (up to 1920 x 1200 @60Hz)

2nd VGA driver via the NXP PTN3392 (up to 1920 x 1200 @60Hz)

LVDS1 integrated in the CPU

Single-channel 24-bit LVDS by D2550, resolution support up to 1440x900 @60Hz

Single-channel 18-bit LVDS by N2600 and N2800, resolution support up to 1366x768 @60Hz

Ethernet

Dual PCIe LAN controller by Realtek RTL8111E with ASF 2.0 support

Super I/O

Fintek F81866

I/O interface

3 x RS-232

1 x 6-pin wafer for PS/2 KB/MS

1 x RS-422/485

6 x USB 2.0 (4 on rear, 2 by pin header)

2 x SATA 3Gb/s with SATA 5V power connector (SATA1 and mSATA shares SATA signal)

Audio

Realtek ALC662 HD codec (Line-in, Line-out, Mic)

Expansions

1 x full-size PCIe Mini card slot with mSATA support (SATA1 and mSATA shares SATA signal)

1 x half-size PCIe Mini card slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O

8-bit programmable I/O

Fan Connector (smart fan support)

1 x 3-pin CPU fan connector

1 x 3-pin system fan connector

Power supply

9 ~ 28V, AT/ATX support

Power Consumption

[email protected] (Intel® dual core D2550 CPU with 1333MHz 4GB DDR3 memory)

[email protected] (Intel® dual core N2600 CPU with 1333MHz 4GB DDR3 memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

115 mm x 165 mm

Weight

GW: 850g/NW: 350g

1st VGA

Features

2nd VGA Dual GbE 4 x USB 2.0

1. EPIC form fator with Intel® Atom™ dual core D2550 1.86GHz/N2600 1.6GHz proccessor supporting DDR3 memory

2. Dual display support by dual VGA and 18/24-bit single channel LVDS

3. 1066/800HMz DDR3 SO-DIMM supported up to 4GB

4. Thermal design for easy assembly by heat spreader

5. Wide power voltage range by 9V ~ 28V support

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

28.5

60 60 28.5

177

Ordering Information

Part No.

Description

9-6#32 BR

21

14

7

Packing List

1 x NANO-CV-D25502/N26002 single board computer

1 x SATA with 5V output cable kit (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x Heat spreader

1 x Utility CD

1 x QIG (Quick Installation Guide)

NANO-CV-N28002-R10

32000-070301-RS

32205-002700-100-RS

32205-003800-100-RS

32000-023800-RS

EPIC SBC with Intel® Atom™ N2800 1.86GHz, DDR3, dual VGA/LVDS, dual GbE, USB 2.0, dual PCIe Mini, SATA 3Gb/s, mSATA and Audio (by project support, MOQ 100pcs / lot)

Dual-port USB cable

RS-232 cable

RS-422/485 cable, 200mm

PS/2 KB/MS Y cable

1-108

NANO-CV-D25502/N26002-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m epic

9V ~ 28V

DC input

NANO-CV-

LVDS1

LVDS2 Inverter1

Inverter2 PCI-104 DIO

D25501

N26001

EPIC SBC with Intel® D2550/N2600, DDR3, VGA/

HDMI/Dual LVDS, Dual GbE, USB 3.0, mSATA,

SATA 3Gb/s, Audio and RoHS

NM10

Audio I/F

2 x SATA 3Gb/s

The built-in microSD card slot delivers the most reliable, outstanding performance and excellent endurance.

5V SATA power

KB/MS

RS-422/485

3 x RS-232

PCIe Mini card slot is compatible with mSATA

CPU heatsink pre-installed on the board

2 x USB 2.0

DDR3 SO-DIMM supports up to 4GB

Solder side

LAN1

microSD PC/104

Fanless

USB

USB 3.0

SATA 3Gb/s GbE mSATA

Specifications

CPU

Intel® dual core Atom™ D2550 1.86GHz processor

Intel® dual core Atom™ N2600 1.6GHz processor

Intel® dual core Atom™ N2800 1.86GHz processor (optional)

Chipset

Intel® NM10

BIOS

UEFI BIOS

Memory

1 x 1066MHz DDR3 SO-DIMM supporting up to 4GB (for D2550 and N2800)

1 x 800MHz DDR3 SO-DIMM supporting up to 2GB (for N2600)

Graphics

GMA 3650 at 640MHz graphics core speed (for N2550 and N2800)

GMA 3600 at 400MHz graphics core speed (for N2600)

Display Output

Dual display supported

1 x VGA (up to 1920 x 1200 @60Hz)

(Due to Intel GMA driver limitation, the monitor connected to the VGA connector may not have signal to it or become extended desktop after restarting from the graphics driver installation. To solve this problem, press the Ctrl+Alt+F1 hotkey to switch the primary screen to CRT mode.)

1 x HDMI (up to 1920 x 1200 @60Hz)

LVDS1 integrated in the D2550/N2600

Single-channel 24-bit LVDS by D2550, resolution support up to 1440x900 @60Hz

Single-channel 18-bit LVDS by N2600 and N2800, resolution support up to 1366x768 @60Hz

LVDS2 supports 24-bit dual-channel by CH7511 DP to LVDS converter, resolution support up to

1920x1200 for D2550, 1600x1200 for N2600/N2800

Ethernet

Dual GbE by Realtek RTL8111E controllers

I/O Interface

3 x RS-232

4 x USB 2.0

2 x USB 3.0

1 x RS-422/485

1 x microSD (Only for boot up to DOS)

1 x 6-pin wafer for PS/2 KB/MS

2 x SATA 3Gb/s with 5V power connector (SATA1 and mSATA shares SATA signal)

Audio

Realtek ALC662 HD audio codec

Expansions

1 x PCIe Mini card (compatible with mSATA SSD device) (SATA1 and mSATA shares SATA signal)

1 x PC/104 slot (ISA)

1 x PCI/104 slot (PCI)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Programmable GPIO

8-bit GPIO

Fan Connector (smart fan support)

1 x 3-pin CPU fan connector 1 x 3-pin system fan connector

Power supply

Maximum input voltage range: 9V ~ 28V

Recommended operating input voltage range: 12V ~ 24V

One internal 4-pin (2x2) power connector

Power Consumption

[email protected] (Intel® D2550 1.86GHz CPU with 1333MHz 2GB DDR3 memory)

[email protected] (Intel® N2600 1.6GHz CPU with 1333MHz 2GB DDR3 memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Operating Humidity: 5% ~ 95%, non-condensing

Weight: GW: 670g/NW: 350g

Features

VGA HDMI Dual GbE 2 x USB 2.0

2 x USB 3.0

1. EPIC form factor with Intel® D2550/N2600 dual-core proccessor supporting DDR3/DDR3L (1.35V) memory

2. Wide range 9V ~ 28V DC input design

3. Flexible VGA, dual LVDS and HDMI with dual-display support

4. Supports PC/104-Plus and PCIe Mini card slot compatible with mSATA SSD storage

5. Complete I/O with six USB, two SATA 3Gb/s, four COM and audio

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Packing List

1 x NANO-CV-D25501/N26001 single board computer

1 x PS/2 KB/MS Y cable (P/N: 32000-023800-RS)

1 x SATA with 5V output cable (P/N: 32801000201-100-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x USB cable (P/N: 32001-008600-100-RS)

1 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG (Quick Installation Guide)

5

ORing

Network

Communication

Ordering Information

Part No.

NANO-CV-D25501-R10

NANO-CV-N26001-R10

NANO-CV-N28001-R10

Description

EPIC SBC with Intel® Atom™ D2550 1.86GHz, DDR3, VGA/

HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s,

Audio, RoHS

EPIC SBC with Intel® Atom™ N2600 1.6GHz, DDR3, VGA/HDMI/ dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio,

RoHS

EPIC SBC with Intel® Atom™ N2800 1.86GHz, DDR3, VGA/

HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio and RoHS (by project support, MOQ 100pcs / lot)

32205-002700-100-RS

32205-003800-100-RS

RS-232 cable

RS-422/485 cable, 200mm

19FFD124010HB2A7-000001-RS CPU fan

34000-000510-RS 30mm higher heatsink

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

NANO-CV-D25501/N26001-2013-V13

1-109

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m epic

NANO-HM650

EPIC SBC Supports Socket G2 for 2nd Generation Intel® Core™ i7/i5/i3 and Celeron®

CPU, VGA/HDMI, Dual PCIe GbE, USB 2.0, PCI-104, SATA 6Gb/s and Audio

12V DC input TPM DIO PCI-104 5V SATA power

PCIe Mini card slot

DDR3 SO-DIMM supports up to 8GB

Socket G2

PGA988B

HM65

2 x SATA 6Gb/s

5V SATA power

2 x RS-232

Solder side

epic

NANO-QM57A

EPIC SBC with Intel® Core™ i7/i5/i3 and Celeron® mobile processor, Dual DVI,

PCIe GbE, USB 2.0, PCIe Mini, SATA 3Gb/s, Audio and RoHS

12V DC input

5V output for

SATA device AT/ATX select jumper SATA 3Gb/s

iATM 6.0

Dual DVI

2 x RS-232

System

Fan

Socket G1

PGA 988

KB/MS

DDR3 SO-DIMM supports up to 4GB

QM57

4 x USB 2.0

Audio I/F KB/MS LDVS

RS-422/485 Inverter

SMBus

VGA HDMI Dual GbE

4 x USB 2.0

CPU Fan

4 x USB 2.0

HD Audio

PCIe Mini card slot

Solder side

Intel® 82577LM PCIe GbE for Intel® AMT 6.0 support

PCIe GbE

Features

1. EPIC SBC with Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® processor

2. VGA/24-bit dual-channel LVDS/HDMI for dual display support

3. 1066/1333HMz DDR3 SDRAM supported (system max. 8GB)

4. Supports three COM, eight USB 2.0, two SATA 6Gb/s, PCI-104 and audio

5. TPM V1.2 hardware security function supported by TPM module

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Socket G2 for 2nd generation Intel® Core™ i7/ i5/i3 and Celeron® mobile processor

PCH: Intel® HM65

BIOS: UEFI BIOS

Memory

One 204-pin 1066/1333MHz DDR3 SO-DIMM supported (system max. 8GB)

Display Output

Dual display supported

1 x VGA (up to 2048 x 1536 @75Hz)

1 x HDMI (up to 1920 x 1200 @60Hz)

1 x 18/24-bit dual-channel LVDS (up to 1920 x

1200 @60Hz)

Ethernet

Dual PCIe LAN controller by Realtek RTL8111E with ASF 2.0 support

I/O Interface

8 x USB 2.0

2 x RS-232

1 x 6-pin header for KB/MS

1 x RS-422/485

2 x SATA 6Gb/s with 5V SATA power connector

Dimensions

(Unit: mm)

Super I/O: Fintek F81866

Audio: Realtek ALC662 HD audio codec

Expansions

1 x PCIe Mini card slot

1 x PCI-104 slot (PCI signal)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Programmable GPIO

8-bit digital I/O (4-bit input / 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply: 12V only, AT/ATX support

Power Consumption

[email protected] (2.6GHz Intel® Core i5-2540M with

1333MHz 4GB DDR3 memory)

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 115 mm x 165 mm

Weight: GW: 850g/NW: 350g

DVI-I DVI-D PCIe GbE 4 x USB

iEZMan

(DVI-D+VGA)

DVI to VGA adaptor

P/N: 33Z00-000031-RS

Features

1. EPIC SBC supports Socket G1 Intel® Core i7/i5/i3 and Celeronl® mobile processor

2. Dual independent display supported by DVI+DVI or DVI+VGA

3. One 800/1066MHz DDR3 SO-DIMM slot supports up to 4GB

4. Support dual SATA 3Gb/s with RAID 1, 0 function, two serial ports and eight USB 2.0 ports

5. One Intel® 82577LM GbE PHY with Intel® AMT 6.0 support. iEZman tool is bundled for remote control under Windows® environment

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Socket G1 for Intel® mobile Core™ i7/i5/i3 and

Celeron® processor (Socket 988)

PCH: Intel® QM57

BIOS: UEFI BIOS

Memory

One 204-pin 800/1066MHz DDR3 SDRAM SO-

DIMM up to 4GB

Graphic

Gen 5.75 with 12 Execution Units DirectX* 10,

OpenGL* 2.1

Support MPEG2, WMV9/VC-1, AVC and Hardware acceleration

Display Output

Dual display supported

1 x DVI-D

1 x DVI-I

Ethernet Chipset

One Intel® 82577LM PCIe GbE PHY with Intel®

AMT 6.0 support

Super I/O: Fintek F81801U

Dimensions

(Unit: mm)

Audio: Realtek ALC888 HD Audio codec

I/O Interface

8 x USB 2.0 2 x RS-232

2 x SATA 3Gb/s with RAID 0, 1 support

1 x 6-pin header for KB/MS

Expansion: 1 x PCIe Mini card slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector

Power Supply

12V only, AT/ATX support by jumper

Power Consumption

[email protected] (Intel® Core™ i7 620M 2.66G,

DDR3 2GB/1333Mhz)

Operating Temperature: -10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 115mm x 165mm

Weight: GW:850g/NW:350g

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Packing List

1 x NANO-HM650 single board computer

2 x SATA with power cable (P/N: 32801-000201-100-RS)

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x Mini jumper pack

1 x Utility CD

1 x One Key Recovery CD 1 x QIG (Quick Installation Guide)

Ordering Information

Part No.

NANO-HM650-R10

32001-008600-100-RS

32205-003800-100-RS

32000-023800-RS

CF-989A-RS-R12

Description

EPIC SBC supports Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® CPU, VGA/HDMI, USB 2.0, dual PCIe

GbE, PCI-104, SATA 6Gb/s and Audio

Dual-port USB cable

RS-422/485 cable, 200mm

KB/MS cable

CPU cooler for mobile socket-G up to 55W processor, copper,

60mm x 60mm x 27.6mm

1-110

Packing List

1 x NANO-QM57A single board computer

1 x SATA with 5V output cable (P/N: 32801-000201-100-RS)

1 x DVI-I to VGA adapter (P/N: 33Z00-000031-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

NANO-QM57A-R10

Description

EPIC SBC supports Socket G for Intel® Core™ i7/i5/i3 and

Celeron® mobile CPU, Dual DVI, PCIe GbE, USB 2.0, PCIe Mini,

SATA 3Gb/s and Audio, RoHS

32001-008600-100-RS Dual port USB cable

32000-023800-RS

CF-989A-RS-R12

KB/MS cable

CPU cooler for mobile socket-G (PGA988) up to 55W processor,

Copper, 60mm x 60mm x 27.6mm, RoHS

NANO-HM650-2013-V10

Single Board Computer

Embedded Board epic

NANO-PV-D4251/N4551/D5251

EPIC SBC with Intel® Atom™ D425/N455/D525, DDR3, VGA/LVDS,

Dual GbE, USB 2.0, CF Type II, Audio and SATA 3Gb/s, RoHS

Inverter PCI-104 LPT

18-bit LVDS

Dual LAN

Support

PCIe Mini card slot

DDR3 800MHz up to 2GB

w w w . i e i w o r l d . c o m epic

NANO-PV-D4252/N4552/D5252

EPIC SBC with Intel® Atom™ D425/N455/D525, DDR3, VGA/Dual LVDS,

PCIe GbE, CF Type II, SATA 3Gb/s

Inverter PCI-104 LPT PCIe Mini card slot

DDR3 800MHz up to 2GB

18-bit LVDS

Dual LVDS

Support

Intel® ICH8M

6 x USB

2 x RS-232

DIO

CF Type II

Solder side

KB/MS

Intel® ICH8M

6 x USB

2 x RS-232

DIO

CF Type II

GBE

Solder side

KB/MS

LAN 1

24-bit LVDS RS-232/422/485

TPM RS-232

RS-232/422/485

COM VGA GBE UBS

VGA COM USB

Fanless 12V only

Features

1. EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor

2. 800MHz DDR3 SDRAM supported (system max. 2 GB)

3. Support VGA and 18-bit single-channel LVDS with dual display

4. Support PCI-104 and PCIe Mini card slot

5. Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket

6. TPM V1.2 hardware security function support by TPM module

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

TPM 1.2 Support

Specifications

CPU

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Intel® Atom™ D425 single-core processor

1.8GHz/512KB L2 cache

Intel® Atom™ N455 single-core processor

1.66GHz/512KB L2 cache

Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 4GB for D525/D425)

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 2GB for N455)

Graphic

GMA 3150

Graphic core speed 400MHz for D525/D425

Graphic core speed 200MHz for N455

Display

Analog CRT with up to 2048x1536 resolution for

D525/D425, 1400x1050 for N455

Support CRT hotplug

18-bit single-channel LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768

Super IO: Fintek F81865

LAN

Dual PCIe GbE by Realtek RT8111E, LAN1 with ASF 2.0 support

Audio: Realtek ALC888 HD Audio codec

SMBus: 1 x 4-pin wafer connetor

TPM: 1 x 20-pin LPC pin header

I/O Interface

4 x RS-232

1 x LPT

2 x SATA 3Gb/s

8 x USB 2.0

2 x KB/MS 1 x CF Type II socket

1 x RS-232/422/485 (COM3) with auto flow control

Expansion

1 x PCI-104 slot 1 x PCIe Mini card slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Digital I/O

8-bit digital I/O, 4-bit input/4-bit ouput

Fan Connector

1 x 3-pin CPU fan, 1 x 3-pin system fan

Power Supply: 12V only, AT/ATX support

Power Consumption

2.21A @ 12V (Intel® Atom™ D525 with 2GB

1066MHz DDR3)

2.11A @ 12V (Intel® Atom™ D425 with 2GB

1066MHz DDR3)

2.00A @ 12V (Intel® Atom™ N455 with 2GB

1066MHz DDR3)

Operating Temperature: -10°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Weight: GW: 670g/NW: 350g

Packing List

1 x NANO-PV-D4251/N4551/D5251 single board computer

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x SATA with 5V output cable (P/N: 32801000201-100-RS)

1 x KB/MS Y cable (P/N: 32006-000300-100-RS) 1 x One Key Recovery CD

1 x USB cable (P/N: 32001-002700-200-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

NANO-PV-D5251-R10

NANO-PV-D4251-R10

NANO-PV-N4551-R10

Description

EPIC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/LVDS, Dual

GbE, USB 2.0, CF Type II, audio and SATA 3Gb/s, RoHS

EPIC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/LVDS, Dual

GbE, USB 2.0, CF Type II, audio and SATA 3Gb/s, RoHS

EPIC with Intel® Atom™ N455 1.66GHz, DDR3, VGA/LVDS,

Dual GbE, USB 2.0, CF Type II, audio and SATA 3Gb/s, RoHS

32200-015100-RS

32801-000703-200-RS

LPT cable

SATA cable

32205-000300-100-RS RS-232/422/485 cable

19FFD124010HB2A7-000001-RS CPU fan

34000-000510-RS

TPM-IN01-R11

30mm higher heatsink

20-pin Infineon TPM module, software management tool, firmware V3.17

Features

1. EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor and DDR3 solution

2. 12V only single voltage design for AT/ATX mode

3. Support dual LVDS

4. Support PCI-104 and PCIe Mini card slot

5. Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Fanless

Specifications

CPU

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Intel® Atom™ D425 single-core processor

1.8GHz/512KB L2 cache

Intel® Atom™ N455 single-core processor

1.66GHz/512KB L2 cache

Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 4GB for D525/D425)

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 2GB for N455)

Graphic

GMA 3150

Graphic core speed 400MHz for D525/D425

Graphic core speed 200MHz for N455

Display Out

Analog CRT with up to 2048x1536 resolution, support CRT hotplug

18-bit single-channel LVDS, resolution support up to 1366x768

18/24-bit single/dual-channel LVDS by Novatek

NT68667UFG resolution support up to 800x600,

1024x768, 1280x1024, 1366 x768, 1920x1080

Super IO: Fintek F81865

Audio: Realtek ALC888 HD codec

TPM (Optional)

On-board Infineon SLB9635TT1.2

Packing List

I/O Interface

4 x RS-232

1 x LPT

1 x CF Type II

8 x USB 2.0

2 x KB/MS

2 x SATA 3Gb/s

1 x RS-232/422/485 (COM3) with auto flow control

LAN

Realtek RTL8111E PCIe GbE controller with

ASF 2.0 support

Expansion

1 x PCI-104 slot

1 x PCIe Mini card slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit ouput

Fan Connector

1 x 3-pin CPU fan, 1 x 3-pin system fan

Power Supply: 12V only, AT/ATX support

Power Consumption

[email protected] (Intel® Atom™ D525 with 2 GB

1066 MHz DDR3)

[email protected] (Intel® Atom™ D425 with 2 GB

1066 MHz DDR3)

[email protected] (Intel® Atom™ N455 with 2 GB

1066 MHz DDR3)

Operating Temperature: -10°C ~ 60°C

Operating Humidity:

5% ~ 95%, non-condensing

Weight: GW: 650g/NW: 340g

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

1 x NANO-PV-D4252/N4552/D5252 single board computer

1 x SATA with 5V output cable (P/N: 32801000201-100-RS)

1 x KB/MS Y cable (P/N: 32006-000300-100-RS) 1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS) 1 x One Key Recovery CD

1 x USB cable (P/N: 32001-002700-200-RS)

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x Mini jumper pack

1 x Utility CD 1 x QIG

5

ORing

Network

Communication

Ordering Information

Part No.

NANO-PV-D5252-R10

NANO-PV-D5252T-R10

NANO-PV-D4252-R10

NANO-PV-D4252T-R10

Description

EPIC SBC with Intel® Atom™ D525 1.8GHz/1MB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s

EPIC SBC with Intel® Atom™ D525 1.8GHz/1MB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s, TPM

EPIC SBC with Intel® Atom™ D425 1.8GHz/512KB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s

EPIC SBC with Intel® Atom™ D425 1.8GHz/512KB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s, TPM

NANO-PV-N4552-R10

NANO-PV-N4552T-R10

32200-015100-RS

32801-000703-200-RS

EPIC SBC with Intel® Atom™ N455 1.66GHz/512KB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s

EPIC SBC with Intel® Atom™ N455 1.66GHz/512KB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s, TPM

LPT cable

SATA cable

32205-000300-100-RS RS-232/422/485 cable

19FFD124010HB2A7-000001-RS CPU fan

34000-000510-RS 30mm higher heatsink

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

NANO-PV-D4251/N4551/D5251-2013-V11

1-111

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m epic

EPIC SBC with Intel® Atom™ processor, VGA/Dual LVDS/Dual PCIe GbE,

CF Type II, SATA

HDTV 36-bit LVDS

NANO-945GSE-R20

48-bit LVDS

5V output PCI-104 IDE

2 x SATA

4 x USB

DIO

LPT

2 x RS-232

RS-232/422/485

Solder Side

IR

AC97/HD Audio kit

CF Type II DDR2 533 MHz up to 2GB

PCIe Mini card

5V output

36-bit

LVDS

24-bit

TTL

epic

NANO-945GSE2

EPIC SBC with Intel® Atom™ processor, VGA/LCD/Dual PCIe GbE, CF Type II,

SATA, PC/104-Pus

2 x SATA 4 x USB 2.0

PC/104-Pus RS-422/485

RS-232

DIO

RS-232

LPT

Audio

Solder Side

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

COM VGA

PCIe GbE USB KB/MS

Fanless

Features

1. Intel® Atom™ processor N270 1.6GHz CPU for ultra low voltage fanless support

2. Single 12V power input, 5V output for SATA device

3. Dual LVDS supports dual independent display

4. Support four COM, six USB, two SATA

5. Support PCIe Mini Card, PCI-104 for expansion

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

1.6 GHz Intel® Atom™ N270 processor with a 533 MHz FSB

System Chipset

Intel® 945GSE

Intel® 82801GBM/ICH7M

BIOS

AMI BIOS

System Memory

One 200-pin 533MHz DDR2 SDRAM SO-

DIMM supported (system max. 2GB)

Ethernet

Dual PCIe Realtek 8111E GbE chipset

I/O Interface

6 x USB 2.0

1 x IDE

2 x SATA

3 x RS-232

1 x RS-232/422/485 1 x PS/2 for KB/MS

1 x LPT

Infrared Interface

1 x CF Type II

1 x Infrared interface by pin header

Expansions

1 x PCI-104 (PCI Bus) 1 x PCIe Mini card

Super IO

ITE IT8718

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output by supper I/O

Packing List

Audio

5.1 channel audio kit with Realtek ALC655 AC'97 codec

7.1 channel HD Audio kit with Realtek ALC888 codec supports dual audio stream

Display Interface

Intel® Graphics Media Accelerator 950

VGA intergrated in Intel® 945GSE

Support HDTV resolution up to 1080i by component interface

Dual LVDS support:

18-bit dual-channel LVDS intergrated in Intel® 945GSE

18/24-bit dual-channel LVDS supported by Chrontel

CH7308B (NANO-945GSELVDS2)

Watchdog Timer software programmable 1-255 sec. by super I/O

Power Supply:

12V only, AT/ATX support

Power Consumption

[email protected] (Intel® Atom™ N270 with 2GB DDR2)

Temperature

Operation: 0°C ~ 60°C (NANO-945GSE-N270-R20)

Operation: -40°C ~ 85°C (NANO-945GSE-N270W2-R20)

Operation: -20°C ~ 70°C (NANO-945GSE-N270W-R20)

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 165 mm x 115 mm

Weight: GW: 700g NW 350g

1 x NANO-945GSE single board computer

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x KB/MS cable (P/N: 32006-000300-100-RS)

Ordering Information

Part No.

NANO-945GSE-N270-R20

NANO-945GSE-N270W2-R20

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD 1 x QIG

COM

Features

VGA

Fanless

PCIe GbE

CERTIFIED

Hi-Speed

USB

USB 2.0

USB 2.0 KB/MS

SATA

CF Type II

PCIe GbE

1. 1.6 GHz Intel® Atom™ N270 CPU with ultra low voltage fanless support

2. Single 12V power input, 5V output for SATA device

3. Dual display supported by VGA+LVDS, VGA+TTL

4. Support four COM, six USB, two SATA and CF Type II socket

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

1.6 GHz Intel® Atom™ N270 processor with a 533MHz FSB

System Chipset

Intel® 945GSE

Intel® 82801GBM/ICH7M

BIOS

AMI BIOS

System Memory

One 200-pin 533MHz DDR2 SDRAM

SO-DIMM supported (system max. 2GB)

Ethernet

Dual PCIe Realtek 8111CP GbE chipset

I/O Interface

6 x USB 2.0

2 x SATA

3 x RS-232

1 x RS-232/422/485

(RS-232, RS-422/485 shared with COM3)

1 x PS/2 for KB/MS

1 x LPT

1 x CF Type II

Infrared Interface

1 x Infrared interface by pin header

Packing List

DDR2 533MHz up to 2GB

Expansions

1 x PC/104-Plus

Super IO

ITE IT8718

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output by super I/O

Audio

Realtek ALC655 with AC'97 codec

Display Interface

Intel® Graphics media accelerator 950

VGA intergrated in Intel® 945GSE

18-bit dual-channel LVDS intergrated in Intel® 945GSE

24-bit TTL (LVDS to TTL)

Watchdog Timer

Software programmable 1-255 sec. by super I/O

Power Supply

12V only, AT/ATX support

Power Consumption

[email protected] 1.45A

(Intel® Atom™ Processor N270 with 1GB DDR2)

Temperature

Operation: 0°C ~ 60°C (NANO-945GSE2-N270-R10)

Operation: -20°C ~ 70°C (NANO-945GSE2-N270W-R10)

Operation Humidity: 5% ~ 95%, non-condensing

Dimensions: 165 mm x 115 mm

Weight: GW: 700g NW 350g

1 x NANO-945GSE2 single board computer 1 x Audio cable (P/N: 32000-072100-RS)

1 x KB/MS cable (P/N: 32006-000300-100-RS) 1 x One Key Recovery CD

1 x Power cable (P/N: 32100-087100-RS) 1 x Mini jumper pack

2 x RS-232 cable (P/N: 32205-002700-100-RS) 1 x Utility CD

2 x SATA cable (P/N: 32801-000703-200-RS) 1 x QIG

NANO-945GSE-N270W-R20

Description

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/18-bit dual-channel

LVDS, dual GbE, CF Type II, USB, SATA

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/18-bit dual-channel

LVDS, dual GbE, CF Type II, USB, SATA, -40~85°C

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/18-bit dual-channel

LVDS, dual GbE, CF Type II, USB, SATA , -20~70°C

Ordering Information

NANO-945GSELVDS2-

N270W2-R20

NANO-945GSELVDS2-

N270W-R20

32001-002700-200-RS

32200-015100-RS

32205-000300-100-RS

32100-043403-RS

32010-000700-100-RS

32200-000009-RS

32200-008800-RS

32102-000100-200-RS

32801-000201-100-RS

AC-KIT08R-R10

AC-KIT-888HD-R10

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/18+24-bit dualchannel LVDS, dual GbE, CF Type II, USB, SATA , -40~85°C

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/18+24-bit dualchannel LVDS, dual GbE, CF Type II, USB, SATA , -20~70 °C

Dual port USB cable

LPT cable

RS-232/422/485 cable

ATX power cable

HDTV out cable

44-pin 2.5" IDE cable

44-pin to 2.5"/3.5" IDE cable

SATA power cable

SATA 5V power output cable kit for NANO series

5.1 channel AC'97 audio kit with realtek ALC655 codec

7.1 channel HD Audio kit with realtek ALC888 codec support dual audio stream

Part No.

NANO-945GSE2-N270-R10

NANO-945GSE2-

N270W-R10

32001-008600-100-RS

32200-015100-RS

32200-833600-RS

32100-052100-RS

32102-000100-200-RS

32801-000201-100-RS

Description

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/LVDS/TTL, dual

GbE, CF Type II, USB, SATA and PC/104+

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/LVDS/TTL, dual

GbE, CF Type II, USB, SATA and PC/104+ , -20~70°C

Dual port USB cable

LPT cable

RS-422/485 cable

ATX power cable

SATA power cable

SATA 5V power output cable kit for NANO series

1-112

NANO-945GSE-2013-V10

Single Board Computer epic

NANO-9452-R40

EPIC SBC with Intel® Core™2 Duo/Core™ Duo/Solo processor, SATA,

Dual PCIe GbE, CF Type II, IDE, USB 2.0 & audio

LVDS Intel® 945GME PCI-104 ICH7M IDE

Embedded Board w w w . i e i w o r l d . c o m epic

NANO-LX-R12

EPIC SBC with AMD LX800 CPU, Audio, VGA/LVDS, SATA and RAID

0, 1, JBOD Function Support

PCI-104

12V power input

2 x SATA

SATA

4 x USB 2.0

Solder Side

IDE

LPT

COM 3

COM 2

Audio

RAM

PCIe Mini card slot

CF Type II

COM

Infrared interface

COM

TTL LCD

Digital I/O

LPT

Socket 479 Intel® Core�™2 Duo

Processor

Solder Side

LVDS

PC/104

Dual GbE USB

KB/MS

COM VGA

CERTIFIED

Hi-Speed

USB

Features

USB 2.0

SATA 3Gb/s PCIe GbE

1. Support Intel® Core™2 Duo, Core™ Duo/Solo processor with 667 MHz FSB

2. VGA integrated in Intel® 945GME supports 1080i HDTV-out, 18/24-bit dual-channel LVDS

3. DDR2 667/533/400 MHz SO-DIMM socket supports up to 2 GB

4. Dual PCIe Broadcom BCM5787M GbE chipset

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Socket M Intel® Core™2 Duo, Core™ Duo/Solo processor with a 667MHz FSB

Celeron® M processor with a 533MHz FSB

(Yonah Core)

System Chipset

Intel® 945GME + ICH7M

BIOS

AMI BIOS

System Memory

One 200-pin 667/533/400MHz DDR2 SDRAM

SO-DIMM supported (system max. 2GB)

Ethernet

Dual PCIe Realtek RTL8111E GbE chipset

I/O Interface

6 x USB 2.0

2 x SATA

1 x IDE

3 x RS-232

1 x RS-232/422/485

1 x PS/2 for KB/MS

1 x LPT

1 x CF Type II

Infrared Interface

1 x Infrared interface by pin header

Expansion

1 x PCI-104 (PCI bus)

Super I/O

ITE IT8712F

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output by super

I/O

Audio

5.1 channel audio kit with Realtek ALC655 AC'97 codec

7.1 channel HD Audio kit with Realtek ALC888 codec supports dual audio stream

Display Interface

VGA integrated in Intel® 945GME

Support HDTV resolution up to 1080i by component interface

18/24-bit dual-channel LVDS

Watchdog Timer

Software programmable 1-255 sec. by super I/O

Power Supply

12V only AT/ATX support

Power Consumption

[email protected] (Intel® Core™2 Duo T2500 2.0GHz,

2GB 800 MHz DDR2)

Temperature

Operating: 0°C ~ 60°C (32°F~140°F)

Humidity

Operating: 5% ~ 95%, non-condensing

Dimensions

165 mm x 115 mm

Packing List

1 x NANO-9452 single board computer

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x SATA power cable (P/N: 32102-000100-200-RS)

1 x KB/MS cable (P/N: 32006-000300-100-RS) 1 x One Key Recovery CD

1 x IDE cable (P/N: 32200-000009-RS)

1 x Power cable (P/N: 32100-087100-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

NANO-9452-R40

Description

EPIC SBC, Intel® Core™2 Duo, Core Duo/Solo FSB 667MHz with

VGA/LVDS/HDTV-out, dual PCIe GbE, SATA and audio

32001-002700-200-RS USB cable

19800-004300-100-RS RS-232/422/485 cable

AC-KIT08R-R10

AC-KIT-888HD-R10

5.1 channel AC’ 97 Audio Kit with Realtek ALC655 codec

7.1 channel HD Audio kit with realtek ALC888 codec support dual audio streams

CPU cooler (50 mm x 50 mm x 26 mm, 50W) CF-479B-RS

32200-015100-RS

32100-043403-RS

LPT cable

ATX power cable

32010-000700-100-RS HDTV out cable

KB/MS

COM

VGA

LAN 4 x USB 2.0

CF Type II RAM socket

Features

1. EPIC form factor AMD LX800 processor embedded board with RoHS compliant

2. DDR 400MHz SO-DIMM SDRAM up to 1GB

3. VGA, 24-bit TTL, and 18-bit single-channel LVDS

4. SATA RAID 0, 1, JBOD function support

5. Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Fanless

Specifications

CPU

On-board AMD Geode™ LX800 (500MHz) processor

System Chipset

AMD Geode LX800 + AMD CS5536

BIOS

AWARD

System Memory

One 200-pin 400/333MHz DDR SDRAM

SO-DIMM Supported (System max. 1GB)

Ethernet

10/100Mbps Realtek RTL8100C chipset

I/O Interface

4 x USB 2.0

2 x SATA with VIA VT6421A RAID 0, 1 function support

1 x CF Type II

1 x LPT

6 x RS-232

1 x RS-422/485

1 x PS/2 for KB/MS

1 x IDE

Expansion

1 x PC/104-Plus

Audio

Realtek ALC203 with AC’97 Codec

Packing List

1 x NANO-LX single board computer

1 x IDE flat cable 44p/44p (P/N: 32200-000009-RS)

1 x SATA power cable (P/N: 332102-000100-200-RS)

2 x RS-232 port cable (P/N: 32205-002700-100-RS)

1 x KB/MS Y cable (P/N: 32006-000300-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini iumper pack

1 x Utility CD

1 x QIG

Ordering Information

Infrared Interface

1 x Infrared interface by pin header

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output by super I/O

Super I/O

Winbond W83627EHG

Display Interface

VGA integrated in AMD LX800

24-bit single-channel TTL

18-bit single-channel LVDS

Watchdog Timer

Software programmable supports 1-255 sec. system reset

Power Supply

12V only, AT/ATX support

Power Consumption

[email protected] 0.92A

(AMD LX800 with 400MHz 256MB DDR RAM)

Operating Temperature : 0°C ~ 60°C (32°F~140°F)

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions

115 mm x 165 mm

Weight

GW: 950 g; NW: 350 g

Part No.

NANO-LX-800-R12

Description

EPIC SBC, AMD LX800 500MHz processor, VGA/LVDS/TTL,

LAN, SATA and Audio

LPT cable 32200-015100-RS

32100-052100-RS ATX power cable

32205-000300-100-RS RS-232 and RS-422/485 cable

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

NANO-9452-2013-V10

1-113

Single Board Computer

Embedded Board

EPIC NANO Dimensions

(Unit: mm)

NANO-PV-D4251/N4551/D5251 NANO-PV-D4252/N4552/D5252 w w w . i e i w o r l d . c o m

5

ORing

Network

Communication

6

Power Supply/

Peripherals

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

NANO-945GSE-R20

NANO-9452-R40

7

Panel

Solutions

Introduction

1-114

NANO-945GSE2

NANO-LX-R12

EPIC NANO-Dimension-2013-V10

Single Board Computer

Embedded Board

3.5" WAFER Selection Guide

w w w . i e i w o r l d . c o m

Model Name

CPU Socket

CPU Type

WAFER-NM701-1007U

On board

WAFER-CV-D25502/

N26002

On board

WAFER-CV-D25501/

N26001

On board

WAFER-OT-Z650/Z670

On board

WAFER-PV-D4251/N4551/

D5251

WAFER-PV-D4252/N4552/

D5252

On board On board

Intel® mobile Celeron® dual core processor 1007U

1.5GHz

Intel® Atom™ processor

D2550 1.86GHz

Intel® Atom™ processor

N2600 1.6GHz

Intel® Atom™ processor

D2550 1.86GHz

Intel® Atom™ processor

N2600 1.6GHz

Intel® Atom™ processor

Z650 1.2GHz

Intel® Atom™ processor

Z670 1.5GHz

Intel® Atom™ processor

D525 1.8GHz

Intel® Atom™ processor

D425 1.8GHz

Intel® Atom™ processor

N455 1.66GHz

Intel® Atom™ processor

D525 1.8GHz

Intel® Atom™ processor

D425 1.8GHz

Intel® Atom™ processor

N455 1.66GHz

Intel® NM70 Intel® NM10 NM10 SM35 ICH8M ICH8M

Chipset

Memory

One 204-pin 1333 DDR3

SO-DIMM supported

(system max. 8GB)

On-board DDR3 1066MHz

2GB SDRAM

1 x 204-pin 1066 MHz

4GB (max.) DDR3/DDR3L

(1.35V) SO-DIMM (D2550)

1 x 204-pin 800 MHz 2GB

(max.) DDR3/DDR3L

(1.35V) SO-DIMM (N2600)

On-board 1GB 800 MHz

DDR2 memory

On-board 2GB 800 MHz

DDR3 memory

1 x 204-pin 800 MHz 4GB

(max.) DDR3 SO-DIMM

(D525/ D425)

1 x 204-pin 800 MHz 2GB

(max.) DDR3 SO-DIMM

(N455)

Display Interface

Dual display supported

1 x VGA integrated in Intel®

NM70

1 x dual channel 24-bit dual

LVDS

Dual display supported

1 x VGA Integrated in Intel®

CPU

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2

(D2550)

Dual display supported

1 x VGA

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2

(D2550)

1 x 24-bit Dual-channel

LVDS

Dual display supported

1 x HDMI

1 x 18-bit single-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

1

Industrial

Computing

Soluations

Ethernet

Dual Realtek RTL8111E PCIe GbE controller with ASF 2.0 support USB interface 10/100 Mbps

LAN by AX88772A

Dual PCIe GbE by Realtek RT8111E support ASF 2.0

2

Video

Capture

Solutions

I/O Interface

3 x RS-232

1 x RS-422/485

6 x USB 2.0

1 x 6-pin wafer for PS/2 KB/

MS

5 x RS-232

1 x RS-422/485

4 x USB2.0

1 x 6-pin wafer for PS/2 KB/

MS

3 x RS-232

1 x RS-422/485

6 x USB 2.0

1 x KB/MS by pin header

4 x RS-232

7 x USB 2.0

Drive Interface

2 x SATA 3Gb/s

1 x mSATA

3 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x KB/MS by pin header

5 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x KB/MS by pin header

3

Embedded

Computing

Solutions

2 x SATA 3Gb/s or

1 x SATA 3Gb/s + 1 x mSATA

2 x SATA 3Gb/s

1 x mSATA

1 x SATA 3Gb/s

1 x SD

2 x SATA 3Gb/s

1 x CF Type II

2 x SATA 3Gb/s

1 x CF Type II

Audio

Digital I/O

Power

Consumption

Watchdog Timer

Realtek ALC662 HD Audio Codec

8-bit digital I/O (4-bit input / 4-bit output) N/A

Realtek ALC888 HD Audio codec

8-bit digital I/O (4-bit input/4-bit output)

4

Automation

Control

[email protected] (1.5GHz Intel® mobile Celeron® 1007U with 1333MHz 8GB DDR3)

[email protected] (1.86GHz

Intel® D2550 with on-board

1066MHz 1GB SDRAM)

[email protected] (1.6GHz

Intel N2600 with on-board

1066MHz 1GB SDRAM)

[email protected] (1.86GHz

Intel® D2550 with 1GB

DDR3 1066MHz)

[email protected] (1.6GHz Intel®

N2600 with 1GB DDR3

1066MHz)

[email protected] (1.2GHz Intel®

Z650 with 1GB DDR2

800MHz)

[email protected] (1.5GHz Intel®

Z670 with 1GB DDR2

800MHz)

[email protected] (Intel® Atom™

D525 with 1GB 1066MHz

DDR3)

[email protected] (Intel® Atom™

D425 with 1GB 1066MHz

DDR3)

[email protected] (Intel® Atom™

N455 with 1GB 1066MHz

DDR3)

[email protected]

(Intel® Atom™ D525 with 2

GB 1066 MHz DDR3)

5

ORing

Network

Communication

Software programmable and supports 1~255 sec. system reset

Operating

Environment

Temperature Range:

-10°C ~ 60°C

Relative Humidity:

5% ~ 95%, non-condensing

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor

Relative Humidity: 5% ~ 95%, non-condensing”

Temperature Range:

-10°C ~ 60°C

Relative Humidity:

5% ~ 95%, non-condensing

Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

6

Power Supply/

Peripherals

Expansion Slot

1 x Full/Half-size PCIe

Mini card slot with mSATA support

1 x Full/Half-size PCIe

Mini card slot with mSATA support

1 x PCI-104 slot supports

PCI singal

1 x PCIe Mini card slot

Recommended

CPU Cooler

Heat Spreader Specific Heatsink Heat Spreader

N/A

Heatsink

1 x PCIe Mini card slot 1 x PCIe Mini card slot

Heatsink Heat Spreader

7

Panel

Solutions

Introduction

WAFER-Selection-2013-V10

1-115

Single Board Computer

Embedded Board

3.5" WAFER Selection Guide

w w w . i e i w o r l d . c o m

Model Name

CPU Socket

WAFER-PV-D4253/N4553/D5253

On board

WAFER-945GSELVDS2 WAFER-945GSE-R20 WAFER-945GSE2-R20

On board On board On board

WAFER-LX-R12

On board

WAFER-LX2-R11

On board

CPU Type

Intel® Atom™ processor D525 1.8GHz

Intel® Atom™ processor D425 1.8GHz

Intel® Atom™ processor N455 1.66GHz

Intel® Atom™ processor

N270 1.6GHz

Intel® Atom™ processor

N270 1.6GHz

Intel® Atom™ processor

N270 1.6GHz

AMD Geode™ LX800 AMD Geode™ LX800

FSB

Chipset

NA

Intel® ICH8M

533 MHz 533 MHz 533 MHz N/A N/A

Intel® 945GSE + ICH7M Intel® 945GSE + ICH7M Intel® 945GSE + ICH7M AMD Geode™ LX800 +

AMD CS5536

AMD Geode™ LX800 +

AMD CS5536

1

Industrial

Computing

Soluations

Memory

2

Video

Capture

Solutions

Ethernet

1 x 204-pin 800 MHz 4GB (max.) DDR3

SO-DIMM (D525/ D425)

1 x 204-pin 800 MHz 2GB (max.) DDR3

SO-DIMM (N455)

1 x 200-pin 400/533

MHz. 2 GB (max.) DDR2

SO-DIMM

1 x 200-pin 400/533

MHz. 2 GB (max.) DDR2

SO-DIMM

On-board 1GB DDR2

SDRAM

Display Interface

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 18/24-bit dual-channel LVDS

1 x 200-pin 333/400

MHz. 1 GB (max.) DDR

SO-DIMM

1 x 200-pin 400 MHz.

1 GB (max.) DDR SO-

DIMM

Dual display supported

1 x VGA

1 x 18-bit dualchannel LVDS

1 x 18/24-bit dualchannel LVDS

Dual display supported

1 x VGA

1 x 18-bit dual-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit dual-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

1 x 24-bit TTL

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

1 x 24-bit TTL

Single PCIe GbE by Realtek RT8111E support ASF 2.0

Realtek RTL8111CP

PCIe GbE chipset

Dual Realtek RTL8111E PCIe GbE chipset Dual Realtek RTL8100CL GbE chipset

3

Embedded

Computing

Solutions

I/O Interface

3 x RS-232

1 x RS-232/422/485

8 x USB 2.0

1 x KB/MS by pin header

Drive Interface

2 x SATA 3Gb/s

1 x CF Type II

4

Automation

Control

Audio

Realtek ALC888 HD Audio codec

Digital I/O

5

ORing

Network

Communication

Power

Consumption

Watchdog Timer

6

Power Supply/

Peripherals

Operating

Environment

[email protected]

(Intel® Atom™ D525 with 2 GB 1066

MHz DDR3)

Temperature Range:

-10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity:

5% ~ 95% non-condensing

3 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x PS2 for KB/MS

2 x SATA

1 x CF Type II

Realtek ALC655 with

AC’97 codec

5 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x PS2 for KB/MS

2 x SATA 1.5Gb/s

1 x CF Type II

Temperature Range:

0°C ~ 60°C

Relative Humidity:

5% ~ 95%, noncondensing

Temperature Range:

0°C ~ 60°C,

-20°C ~ 70°C (W),

-40°C ~ 85°C (W2)

Relative Humidity:

5% ~ 95% non- condensing

1 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x PS2 for KB/MS

2 x SATA 1.5Gb/s

1 x CF Type II

Realtek ALC662 with HD Audio codec

8-bit digital I/O (4-bit input/4-bit output)

Temperature Range:

0°C ~ 60°C,

-20°C ~ 70°C (W)

Relative Humidity:

5% ~ 95% non- condensing

2 x RS-232

1 x RS-422/485

4 x USB 2.0

1 x LPT

1 x PS/2 for KB/MS

7 x RS-232

1 x RS-232/422/485

4 x USB 2.0

2 x SATA 1.5Gb/s RAID

1 x IDE

1 x CF Type II

1 x IDE

1 x CF Type II

[email protected]

(Intel® Atom™ N270

1.6GHz, 2GB DDR2 533

MHz)

[email protected]

(Intel® Atom™ N270

1.6GHz, 2GB DDR2 533

MHz)

[email protected]

(Intel® Atom™ N270

1.6GHz, 1GB DDR2 533

MHz)

[email protected] (AMD

Geode™ LX 800 1GB

400 MHz DDR)

[email protected] (AMD

Geode™ LX800 512MB

333 MHz DDR)

Software programmable and supports 1~255 sec. system reset

Realtek ALC203 with AC’97 codec

Temperature Range: 0°C ~ 60°C (32°F~140°F)

Relative Humidity: 5% ~ 95% non- condensing

7

Panel

Solutions

Introduction

Expansion Slot 1 x PCIe Mini card slot

Recommended

CPU Cooler

Heatsink

1 x PCIe Mini card slot 1 x PCIe Mini card slot 1 x PC/104

Heat Spreader Heat Spreader Heatsink

1 x PC/104

Heatsink

1 x PC/104

Heatsink

1-116

WAFER-Selection-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

WAFER-NM701-1007U

DDR3 SO-DIMM 1333MHz supports up to 8GB Inverter

LVDS

Front panel

Audio I/F

3.5” SBC with on-board Intel® Celeron® Dual-core 1007U

1.5GHz Processor, DDR3, VGA/LVDS, Dual GbE, USB 2.0, mSATA, SATA 3GB/s and Audio

Cost Effective Performance Solution

The first low power Intel® Celeron® Dual-core platform with on-board processor (TDP=35W) with fanless design.

Solder Side

5V SATA power

NM70

1007U

CPU

2 x SATA

LAN1

5V SATA power

KB/MS

SMBus

12V DC input PCIe Mini card slot

DIO 2 x RS-232 RS-422/485

4 x USB 2.0

Heat Spreader

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s GbE mSATA

Specifications

CPU

On-board 32nm 1.5GHz Intel® Celeron® 1007U dual-core mobile processor

PCH

Intel® NM70

BIOS

UEFI BIOS

Memory

One 204-pin 1333/1066 DDR3 SO-DIMM supported (system max. 8GB)

Graphics

Intel® HD Graphics Gen 6 support for DX10.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode

Display Output

Dual independent display support

VGA integrated in NM70 ([email protected])

Dual channel 24-bit LVDS integrated in NM70 ([email protected])

Ethernet

Dual PCIe GbE by Realtek RTL8111E controller with ASF 2.0 support

Super I/O

Fintek F81867

I/O Interface

2 x USB 2.0 (on rear)

4 x USB 2.0 (by pin header)

1 x RS-422/485 (by pin header)

Audio

2 x SATA 3Gb/s with SATA 5V power connector

1 x 6-pin wafer for PS/2 KB/MS

3 x RS-232 (1 on rear, 2 by pin header)

Realtek ALC662 HDA codec (Line-in, Line-out, Mic)

Front Panel

1 x 10-pin (1x10) header

SMBus

1 x 4-pin (1x4) wafer

Expansion

1 x Full/Half-size PCIe Mini card slot with mSATA support

Digital I/O

8-bit digitial I/O (4-bit input/ 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 3-pin system fan connector (smart fan support)

Power Supply

12V only, AT/ATX support

Power Consumption

[email protected] (Intel® mobile Celeron® 1007U 1.5GHz processor with 1333MHz 8GB

DDR3 memory)

Watchdog Timer

Software programmable support 1~255 sec. System reset

Operating Temperature

-10°C ~ 60°C

Storage Temperature

-20°C ~ 85°C

Operating Humidity

5% ~95%, non-condensing

Dimensions

146 mm x 102 mm

Weight

GW:600g / NW:250g

EPIC board with four serial ports for multiple compliance devices

USB 2.0

Dual LAN VGA RS-232

Features

1. 3.5” SBC with on-board 32nm 1.5GHz Intel® Celeron® 1007U dual-core mobile processor

2. VGA and LVDS support dual display

3. One 204-pin 1333/1066MHz DDR3 SO-DIMM supports up to 8GB memory

4. Easy fanless thermal design by assembling heat spreader on system chassis

5. Supports four COM, six USB 2.0, two SATA 3Gb/s, one mSATA and audio

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x WAFER-NM701-1007U single board computer

2 x Plastic shaft for securing half-size PCIe Mini card (P/N: 43124-0010C2-01-RS)

1 x PS/2 KB/MS Y-cable (P/N: 32000-023800-RS)

2 x SATA with power cable kit (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x RS-232 cable (P/N: 32200-000049-RS)

1 x Heat spreader

1 x Utility CD

1 x QIG (Quick Installation Guide)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

Ordering Information

Part No.

WAFER-NM701-1007U-R10

32001-002700-200-RS

32205-003800-100-RS

32200-000049-RS

Description

3.5” SBC with on-board Intel® Celeron® Dual-core 1007U

1.5GHz Processor, DDR3, VGA/LVDS, Dual GbE, USB 2.0, mSATA, SATA 3GB/s and Audio

Dual port USB cable

RS-422/485 cable, 200mm

RS-232 cable, 200mm, pitch 2.0mm

7

Panel

Solutions

Introduction

WAFER-NM701-1007U-2013-V10

1-117

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

WAFER-CV-

D25502

N26002

Audio I/F DIO 4 x RS-232 Inverter LVDS 12V DC Input

3.5” SBC Supports Intel® Atom™ D2550/N2600

Processor with 2GB DDR3 Memory, VGA/LVDS, Dual

GbE, PCI-104, USB 2.0, SATA 3GB/s and Audio

Fanless design in specific heatsink is for easy installation of the PCI-104 add-in card

PCI-104 screw holes

KB/MS

22 mm

CPU

11 mm

PCI-104

NM10

Power Button

Reset Button

Front Panel

On-board DDR3

1066MHz 2GB SDRAM

LAN1

PCIe Mini slot w/ mSATA

Solder Side

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Dual Core

Atom™

RS-422/485

USB 2.0

2 x SATA 5V SATA

Power

2 x USB 2.0

Features

1. 3.5” form fator supports Intel® Atom™ D2550/N2600 dual-core processor with 2GB DDR3 memory

2. 12V only single voltage design for AT/ATX power

3. 24-bit single-channel LVDS via D2550 CPU or 18-bit single-channel via N2600/N2800 CPU support

4. Supporting PCI-104 and mSATA

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

Dual LAN

(Unit: mm)

RS-232 VGA

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s GbE mSATA

Specifications

CPU

Intel® Atom™ dual core D2550 1.86 GHz/ 10W TDP processor

Intel® Atom™ dual core N2600 1.6 GHz/ 3.5W TDP processor

Intel® Atom™ dual core N2800 1.86 GHz/ 6.5W TDP processor (optional)

System Chipset

Intel® NM10

BIOS

UEFI BIOS

Memory

On-board DDR3 1066MHz 2GB SDRAM

Graphics

GMA 3650 with 640MHz graphics core speed for D2550 and N2800

GMA 3600 with 400MHz graphics core speed for N2600

Display Out

1 x VGA integrated in Intel® CPU (resolution up to 1920x1200 for D2550/N2600/N2800)

1 x LVDS integrated in D2550/N2600

Single-channel 24-bit LVDS by D2550, resolution up to 1440x900

Single-channel 18-bit LVDS by N2600/N2800, resolution up to 1366x768

Ethernet

Dual Realtek RTL8111E PCIe GbE controller, LAN1 with ASF2.0 supported

Super IO

Fintek F81866

I/O Interfaces

5 x RS-232

1 x RS-422/485

1 x 6-pin wafer for PS/2 KB/MS

2 x SATA 3Gb/s with 5V power connector

4 x USB 2.0 (2 on rear I/O, 2 by pin header)

Expansion

1 x Full-size PCIe Mini card slot with mSATA support

1 x PCI-104 slot supports PCI singal

Audio

Realtek ALC662 HDA codec

Digital I/O

8-bit programmable I/O (4-bit in/ 4-bit out)

Fan Connector

1 x 3-pin (1x3) CPU fan connector (smart fan support)

Watchdog Timer

Software programmable support 1~255 sec. system reset

Power Supply

12V only, AT/ATX supported

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Operating Humidity

5%~95%, non-condensing

Power Consumption

[email protected] (1.86GHz Intel® Atom™ D2550 with on-board 1GB 1066MHz DDR3 SDRAM)

[email protected] (1.6GHz Intel® Atom™ N2600 with on-board 2GB 1066MHz DDR3 SDRAM)

Dimensions

146 mm x 102 mm

Weight

GW: 600g/ NW: 250g

Packing List

1 x WAFER-CV-D25502/N26002 single board computer

2 x SATA with 5V output cable kit (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x Mini jumper pack

1 x QIG

1 x PS/2 KB/MS cable (P/N: 32000-023800-RS)

1 x RS-232 cable (P/N: 32200-000049-RS)

1 x Utility CD

1 x One Key Recovery CD

Ordering Information

Part No.

WAFER-CV-D25502-R10

WAFER-CV-N26002-R10

WAFER-CV-N28002-R10

32000-070301-RS

32200-074800-RS

Description

3.5” SBC supports Intel® Atom™ D2550 1.86MHz processor with 2GB DDR3 memory, VGA/LVDS, Dual GbE,

PCI/104, USB 2.0, SATA 3GB/s and Audio

3.5” SBC supports Intel® Atom™ N2600 1.6MHz processor with 2GB DDR3 memory, VGA/LVDS, Dual GbE, PCI/104,

USB 2.0, SATA 3GB/s and Audio

3.5” SBC supports Intel® Atom™ N2800 1.86MHz processor with 2GB DDR3 memory, VGA/LVDS, Dual

GbE, PCI/104, USB 2.0, SATA 3GB/s and Audio (by project support, MOQ 100pcs / lot)

Dual ports USB cable

RS-422/485 cable

1-118

WAFER-CV-D25502/N26002-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

WAFER-CV-

D25501

N26001

LVDS2 Inverter2 Audio I/F

3.5” SBC with Intel® Atom™ D2550/N2600 Processor,

DDR3, VGA/Dual LVDS, Dual GbE, USB 2.0, SATA 3Gb/s,

Audio and RoHS

DDR3 800/1066 MHz

Power input

4 x USB

5V SATA power

2 x SATA 3Gb/s

NM10 D2550/N2600

5V SATA power

KB/MS

2 x PCIe Mini slots

Dual PCIe GbE

12V DC input

Dual Core

Atom™

Inverter1

LVDS1 DIO RS-422/485

2 x RS-232

Fanless

Heat Spreader

SATA 3Gb/s GbE mSATA

Specifications

CPU

Intel® dual core Atom™ D2550 1.86GHz processor

Intel® dual core Atom™ N2600 1.6GHz processor

Intel® dual core Atom™ N2800 1.86GHz processor (optional)

Chipset

Intel® NM10

BIOS

UEFI BIOS

Memory

1 x 1066MHz DDR3 SO-DIMM supporting up to 4GB (for D2550 and N2800)

1 x 800MHz DDR3 SO-DIMM supporting up to 2GB (for N2600)

Graphics

GMA 3650 at 640MHz graphics core speed (for N2550 and N2800)

GMA 3600 at 400MHz graphics core speed (for N2600)

Display Output

Dual display supported

1 x VGA (up to 1920 x 1200 @60Hz)

(Due to Intel GMA driver limitation, the monitor connected to the VGA connector may not have signal to it or become extended desktop after restarting from the graphics driver installation. To solve this problem, press the Ctrl+Alt+F1 hotkey to switch the primary screen to CRT mode.)

LVDS1 integrated in the D2550/N2600

Single-channel 24-bit LVDS by D2550, resolution support up to 1440x900 @60Hz

Single-channel 18-bit LVDS by N2600, resolution support up to 1366x768 @60Hz

LVDS2 supports 24-bit dual-channel by CH7511B DP to LVDS converter, resolution support up to 1920x1200 for D2550, 1600x1200 for N2600/N2800

Ethernet

Dual GbE by Realtek RTL8111E controllers

I/O Interfaces

1 x RS-422/485

3 x RS-232

6 x USB 2.0

1 x 6-pin wafer for PS/2 KB/MS

2 x SATA 3Gb/s with 5V power connector

Super IO

Fintek F81866

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Expansions

1 x Full-size PCIe Mini card slot supporting mSATA SSD storage

1 x Half-size PCIe Mini card slot

Audio

Realtek ALC662 HD audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

12V only, AT/ATX support

Fan Connector (smart fan support)

1 x 3-pin CPU fan connector

1 x 3-pin system fan connector

Power Consumption

[email protected] (Intel® D2550 1.86GHz CPU with 1GB DDR3 1066MHz memory)

[email protected] (Intel® N2600 1.6GHz CPU with 1GB DDR3 1066MHz memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Operating Humidity

5% ~ 95%, non-condensing

Weight: GW: 600g/NW: 250g

Features

Solder Side

2 x USB VGA COM

1. 3.5” form factor with Intel® Atom™ D2550/N2600 dual-core processor supporting DDR3/DDR3L

(1.35V) memory

2. 12V only single voltage design for AT/ATX power

3. Open frame heatsink thermal design for fanless solutions

4. Flexible VGA, 18/24-bit LVDS with dual display support

5. Complete I/O: six USB, two SATA 3Gb/s, one mSATA, four COM and audio

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x WAFER-CV-D25501/N26001 single board computer

2 x SATA with 5V output cable (P/N: 32801-000201-100-RS)

1 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x One Key Recovery CD

1 x Heat spreader

1 x KB/MS cable (P/N: 32000-023800-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x Screw set for PCIe Mini card

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

Description

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

WAFER-CV-N28001-R10

32001-008600-100-RS

32205-003800-100-RS

3.5" SBC with Intel® Atom™ N2800 1.86GHz, DDR3, VGA/ dual LVDS, dual GbE, USB 2.0, SATA 3Gb/s, Audio, RoHS (by project support, MOQ 100pcs / lot)

Dual-port USB cable

RS-422/485 cable, 200mm

7

Panel

Solutions

Introduction

WAFER-CV-D25501/N26001-2013-V10

1-119

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

WAFER-OT-

Z670

Z650

18-bit LVDS Inverter SD card slot

3.5” SBC with Intel® Atom™ Z650/Z670 Processor, 1GB

DDR2 Memory on Board, HDMI/LVDS, 10/100 Mbps LAN,

USB 2.0, SATA 3Gb/s, Audio and RoHS

1GB DDR2 on-board memory

1GB on-board memory and

HDMI support

Solder side

SATA

3Gb/s

5V SATA power

Audio

3 x USB 2.0

1-120

DC 12V input

3 x RS-232

1

Industrial

Computing

Soluations

On-board

DDR2

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

CPU

Intel® Atom™ Z650 processor 1.2GHz

Intel® Atom™ Z670 processor 1.5GHz

Chipset

Intel® SM35

BIOS

AMI BIOS

Memory

On-board 800 MHz 1 GB DDR2 SDRAM

Graphics

Intel® GMA 600 with a 400MHz graphics core

Supports MPEG2, H.264, VC-1/WMV9 up to 1080p decoding

Display Output

Dual display supported

1 x HDMI (up to 1920 x 1200 @60Hz)

1 x 18-bit single-channel LVDS (up to 1366 x 768 @60Hz)

Ethernet

USB interface 10/100 Mbps LAN by AX88772A

I/O Interfaces

4 x RS-232

1 x SATA 3Gb/s with 5V power

1 x SD card slot (only for storage)

7 x USB 2.0/1.1

Audio

Realtek ALC662 HD audio codec

Power Supply

12V input only

AT/ATX mode supported

1 x External power jack

1 x 4-pin (2x2) internal power connector

Power Consumption

[email protected] (1.2GHz Intel® Z650 with 800MHz 1GB DDR2 memory)

[email protected] (1.5GHz Intel® Z670 with 800MHz 1GB DDR2 memory)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

146 mm x 102 mm

Weight

GW: 450g/NW: 130g

DC 12V input COM HDMI 10/100 Mbps LAN 4 x USB 2.0

Features

1. 3.5” form factor with Intel® Atom™ Z650/Z670 processor (up to 1.5 GHz)

2. Delivers significant low power consumption and HD video decoding for

Windows® 7, WES 2011 and MeeGo OS

3. On-board 800 MHz 1 GB DDR2 SDRAM

4. Supports HDMI and 18-bit single-channel LVDS display output

5. Complete I/O with seven USB ports, one SATA 3Gb/s connector, one SD slot, four COM ports and one audio connector

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x WAFER-OT-Z650/Z670 single board computer

1 x SATA with 5V output cable (P/N: 32801-000201-100-RS)

3 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x USB cable (P/N: 19800-003000-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

WAFER-OT-Z670-R10

WAFER-OT-Z650-R10

Description

3.5” SBC with Intel® Atom™ Z670 1.5 GHz processor, on-board 1GB DDR2 memory, HDMI/LVDS, 10/100 Mbps

LAN, USB 2.0, SATA 3Gb/s, Audio, RoHS

3.5” SBC with Intel® Atom™ Z650 1.2 GHz processor, on-board 1GB DDR2 memory, HDMI/LVDS, 10/100 Mbps

LAN, USB 2.0, SATA 3Gb/s, Audio, RoHS

63000-FSP036RAB608-RS 36W/12V power adaptor 90 ~ 264VAC

32000-120100-RS Single USB port cable

WAFER-OT-Z670/Z650-2013-V10

Single Board Computer

Embedded Board

WAFER-PV-D4251/N4551/D5251-R11

3.5” SBC with Intel® Atom™ D425/N455/D525, DDR3 2GB memory on board,

VGA/LVDS, Dual GbE, USB 2.0 and SATA 3Gb/s, Audio, RoHS

2 x SATA 3Gb/s

6 x USB 12V only

Inverter

18-bit LVDS

2GB DDR3 onboard memory

CF Type II

w w w . i e i w o r l d . c o m

WAFER-945GSE2-R20

3.5” SBC with Intel® Atom™ N270 1.6G, VGA/LVDS, Dual GbE, CF Type II,

USB, SATA, 1GB on-board Memory and PC/104

PC/104

Audio KB/MS

RS-232/422/485 2 x SATA

1GB DDR3 on board memory

Audio

KB/MS

2 x USB

LAN 1

PCIe Mini card slot

Solder side

12V memory

2 x RS-232 DIO RS-232/422/485

Solder side

CF Type II

4 x USB

36-bit LVDS

Inverter

2 x USB PCIe GbE COM VGA

Dual PCIe GbE COM VGA

Fanless

Features

1. 3.5” form factor with Intel® Atom™ D525/D425/N455 processor supports DDR3 memory

2. 12V only single voltage design for AT/ATX power

3. On-board DDR3 800 MHz 2GB SDRAM

4. Support VGA and 18-bit single-channel LVDS with dual-display support

5. Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, four COM and audio

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Intel® Atom™ D425 single-core processor

1.8GHz/512KB L2 cache

Intel® Atom™ N455 single-core processor

1.66GHz/512KB L2 cache

Chipset: ICH8M

BIOS: UEFI BIOS

Memory

On-board DDR3 800MHz 2GB SDRAM

Graphic

GMA 3150

Graphic core speed 400MHz for D525/D425

Graphic core speed 200MHz for N455

Display Interface

Analog CRT up to 2048x1536 for D525/D425,

1400x1050 for N455

Support for CRT hotplug

Single-channel 18-bit LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768

Ethernet

Dual GbE by Realtek RTL8111E, LAN1 with

ASF 2.0 support

Audio: Realtek ALC888 HD Audio codec

Expansion: 1 x PCIe Mini card slot

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output

I/O Interfaces

3 x RS-232

1 x KB/MS

1 x CF Type II

2 x SATA 3Gb/s

8 x USB 2.0

1 x RS-232/422/485 with Auto Flow control

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Power Supply

12V input only AT/ATX mode select

4-pin (2x2) power connector

Super IO: Fintek F81865

Fan Connector

1 x 3-pin CPU fan, 1 x 3-pin system fan

Power Consumption

1.7A @ 12V (Intel® Atom™ D525 with 1GB

1066MHz DDR3)

1.52A @ 12V (Intel® Atom™ D425 with 1GB

1066MHz DDR3)

1.33A @ 12V (Intel® Atom™ N455 with 1GB

1066MHz DDR3)

Operating Temperature: -10°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146 mm x 102 mm

Weight: GW: 650g/NW: 170g

Packing List

1 x WAFER-PV-D4251/N4551/D5251 single board computer

1 x SATA with 5V output cable (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x KB/MS cable (P/N: 32000-023800-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Power cable (P/N: 32100-087100-RS) 1 x Utility CD 1 x QIG

Ordering Information

Part No.

WAFER-PV-D5251-2GB-R11

WAFER-PV-D4251-2GB-R11

WAFER-PV-N4551-2GB-R11

Description

3.5" SBC with Intel® Atom™ D525 1.8GHz, 2GB DDR3 memory on board, VGA/LVDS, Dual GbE, USB 2.0 and

SATA 3Gb/s, audio, RoHS

3.5" SBC with Intel® Atom™ D425 1.8GHz, 2GB DDR3 memory on board, VGA/LVDS, Dual GbE, USB 2.0 and

SATA 3Gb/s, audio, RoHS

3.5" SBC with Intel® Atom™ N455 1.66GHz, 2GB DDR3 memory on board, VGA/LVDS, Dual GbE, USB 2.0 and

SATA 3Gb/s, audio, RoHS

32001-008600-100-RS

32801-000703-200-RS

Dual port USB cable

SATA cable

32205-000300-100-RS RS-232/422/485 cable

19FFD124010HB2A7-000001-RS CPU fan

34000-000510-RS 30mm higher heatsink

FSB

533

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA

Features

1. Intel® Atom™ N270 1.6GHz processor for ultra low voltage fanless support

2. Support VGA and LVDS for dual display

3. On-board 1GB DDR2 memory

4. Support two COM, six USB 2.0, two SATA and one CF Type II socket

5. Support PC/104 ISA expansion slot

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

PCIe GbE

Ordering Information

Part No.

WAFER-945GSE2-

N270-R20

WAFER-945GSE2-

N270W-R20

Description

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/LVDS,

Dual GbE, CF Type II, USB, SATA, on board 1GB memory and

PC/104

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/LVDS,

Dual GbE, CF Type II, USB, SATA, on board 1GB memory and

PC/104, -20°C ~ 70°C

32001-008600-100-RS Dual port USB cable

32205-000300-100-RS RS-232/422/485 cable

32100-052100-RS ATX power cable

32102-000100-200-RS SATA power cable

1

Industrial

Computing

Soluations

Specifications

CPU

Intel® Atom™ processor N270 1.6GHz with a

533MHz FSB

System Chipset

Intel® 945GSE

Intel® 82801GBM/ICH7M

BIOS

AMI BIOS

Memory

1GB on-board DDR2 SDRAM

Ethernet

Dual Realtek RTL8111E PCIe GbE controller

I/O Interface

6 x USB 2.0

1 x RS-232

1 x CF Type II

2 x SATA

1 x RS-232/422/485

1 x PS/2 for KB/MS

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Super IO

ITE IT8718

Expansion

PC/104 (ISA Bus, not support ISA DMA Mode)

Packing List

1 x WAFER-945GSE2 single board computer

1 x Audio cable (P/N: 32000-072100-RS)

1 x KB/MS cable (P/N: 32000-023800-RS)

4 x Plastic intermediate pole for PC/104

2 x SATA cable (P/N: 32801-000703-200-RS)

Audio

Realtek ALC662 with HD Audio codec

Display Interface

Intel® Graphics Media Accelerator 950

VGA integrated in Intel® 945GSE

18-bit dual-channel LVDS integrated in Intel®

945GSE

Watchdog Timer

Sofware programmable support 1~255 sec. system reset

Power Supply

5V only, 12V for LCD/system fan, AT/ATX support

Watchdog Timer

Software programmable 1-255 sec. by super I/O

Operating Temperature

0°C ~ 60°C (WAFER-945GSE2-N270-R20)

-20°C ~ 70°C (WAFER-945GSE2-N270W-R20)

Operating Humidity: 5% ~ 95%, non-condensing

Power Consumption

[email protected] (Intel® Atom™ N270 1.6G with onboard 1GB DDR2)

Dimensions: 146 mm x 102 mm

Weight: GW: 700g/NW 230g

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

WAFER-PV-D4251/N4551/D5251-2013-V11

1-121

Single Board Computer

Embedded Board

WAFER-PV-D4252/N4552/D5252

3.5” SBC with Intel® Atom™ D425/N455/D525, DDR3, VGA/LVDS, Dual GbE,

USB 2.0 and SATA 3Gb/s, Audio, RoHS

DDR3 800MHz

PCIe Mini card slot

12V power input CF Type II

2 x SATA 3Gb/s

w w w . i e i w o r l d . c o m

WAFER-945GSE-R20

3.5" SBC with Intel® Atom™ Processor, VGA/LVDS/Dual PCIe GbE,

CF Type II, SATA

533 MHz DDR2

4 x COM

CF Type II

PCIe Mini card

LAN 1

4 x RS-232

Solder side

2 x SATA

LVDS

Audio

SMBus 6 x USB

Audio

ICH8M

4 x USB

DIO

Audio

KB/MS

LVDS RS-232/422/485

2 x USB Dual GbE VGA COM

Intel® 945GSE

ICH7M

Intel® Atom™ processor N270

1.6GHz

DIO

KB/MS

RS-232/422/485

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Heat Spreader

Fanless

Features

1. 3.5” form factor with Intel® Atom™ D525/D425/N455 processor supports DDR3 memory

2. 12V only single voltage design for AT/ATX power

3. Open frame heatsink thermal design for fanless solutions

4. Support VGA and 18-bit single-channel LVDS with dual display support

5. Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, six COM and audio

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

12V only

CPU

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Intel® Atom™ D425 single-core processor

1.8GHz/512KB L2 cache

Intel® Atom™ N455 single-core processor

1.66GHz/512KB L2 cache

Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 4GB for D525/D425)

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 2GB for N455)

Graphic

GMA 3150

Graphic core speed 400MHz for D525/D425

Graphic core speed 200MHz for N455

Display Interface

Analog CRT up to 2048x1536 for D525/D425,

1400x1050 for N455

Support for CRT hotplug

Single-channel 18-bit LVDS

I/O Interfaces

1 x KB/MS

8 x USB 2.0

2 x SATA 3Gb/s

1 x CF Type II

5 x RS-232

1 x RS-232/422/485 with auto flow control

Packing List

Ethernet

Dual GbE by Realtek RTL8111E, LAN1 with ASF

2.0 support

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Expansion

1 x PCIe Mini card slot

Audio

Realtek ALC888 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Power Supply

12V only, AT/ATX support

Super IO

Fintek F81865F

Fan Connector

1 x 3-pin CPU fan, 1 x 3-pin system fan

SMBus: 1 x 4-pin wafer connetor

Power Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with

1GB DDR3)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Weight

GW: 600g/NW: 250g

1 x WAFER-PV-D4252/N4552/D5252 single board computer

1 x SATA with 5V output cable (P/N: 32801-000201-100-RS)

1 x Quad RS-232 cable (P/N: 32200-025401-RS)

1 x KB/MS cable (P/N: 32000-023800-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Heat spreader

1 x Power cable (P/N: 32100-087100-RS)

1 x Utility CD

1 x QIG

Ordering Information

Part No.

WAFER-PV-D5252-R10

WAFER-PV-D4252-R10

WAFER-PV-N4552-R10

32001-008600-100-RS

32205-000300-100-RS

Description

3.5" SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/

LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS

3.5" SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/

LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS

3.5" SBC with Intel® Atom™ N455 1.66GHz, DDR3, VGA/

LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS

Dual-port USB cable

RS-232/RS-422/485 cable

USB PCIe GbE

32001-008600-100-RS

32205-000300-100-RS

32100-052100-RS

32102-000100-200-RS

VGA RS-232

Dual-port USB cable

RS-232/422/485 cable

ATX power cable

SATA power cable

Heat Spreader

Fanless

Features

1. Intel® Atom™ processor N270 1.6 GHz CPU for ultra low voltage fanless support

2. Support dual display for VGA+LVDS

3. System memory supports up to 2 GB 533 MHz DDR2

4. Support six COM, six USB 2.0, two SATA and CF Type II socket

5. Thermal design for easy assembly

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ Processor N270 1.6 GHz with 533 MHz FSB

System Chipset

Intel® 945GSE/Intel® 82801GBM/ICH7M

BIOS

AMI BIOS

Memory

One 200-pin 400/533MHz DDR2 SDRAM

SO-DIMM supported (system max. 2GB)

Ethernet

Dual PCIe Realtek 8111E GbE chipset with ASF 2.0 support

I/O Interface

6 x USB 2.0

5 x RS-232

1 x CF Type II

Digital I/O

2 x SATA

1 x RS-232/422/485

1 x PS/2 for KB/MS

8-bit digital I/O (4-bit input, 4-bit output)

Expansion

1 x PCI Express Mini card

Packing List

1 x WAFER-945GSE single board computer

1 x Quad RS-232 cable (P/N: 32200-025401-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Heat spreader

1 x KB/MS cable (P/N: 32000-023800-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

Audio

Realtek ALC662 with HD Audio codec

Display Interface

Intel® Graphics Media Accelerator 950

VGA intergrated in Intel® 945GSE

18-bit dual-channel LVDS intergrated in Intel® 945GSE

Power Supply

5V only, 12V for LCD/System FAN, AT/ATX support

Super IO

ITE IT8718

Watchdog Timer

Software programmable 1-255 sec. by super I/O

Operating Temperature

0°C ~ 60°C (WAFER-945GSE-N270-R20)

-20°C ~ 70°C (WAFER-945GSE-N270W-R20)

-40°C ~ 85°C (WAFER-945GSE-N270W2-R20)

Operating Humidity: 5% ~ 95%, non-condensing

Power Consumption

[email protected] (Intel® Atom™ N270 1.6G with 1GB DDR2)

Dimensions: 146 mm x 102 mm

Weight: GW: 700g/NW 230g

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

WAFER-945GSE-N270-R20

WAFER-945GSE-N270W-R20

Description

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/

LVDS, dual GbE, CF Type II, USB, SATA

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/

LVDS, dual GbE, CF Type II, USB, SATA, -20°C~70°C

1-122

WAFER-PV-D4252/N4552/D5252-2013-V10

Single Board Computer

WAFER-PV-D4253/N4553/D5253

3.5” SBC with Intel® Atom™ D425/N455/D525, DDR3, VGA/18-bit+48-bit LVDS,

GbE, USB 2.0 and SATA 3Gb/s, Audio, RoHS

18-bit LVDS KB/MS Audio 2 x RS-232

12V

Dual LVDS

RS-232/422/485

24-bit LVDS

Embedded Board w w w . i e i w o r l d . c o m

WAFER-945GSELVDS2

3.5" SBC with Intel® Atom™ processor, 18-bit and 24-bit dual-channel LVDS, four COM ports

Power input

PCIe Mini card slot

DDR2 533 MHz up to 2GB

CF Type II

Support

VDS

DIO

SMBus

PCIe Mini card slot

2x RS-232 RS-232/422/485

4 x USB

Solder side

12V power input

4 x USB GbE COM VGA CF Type II

DDR3 800MHz up to 2GB

Intel®

ICH7M

Intel®

945GSE

Intel® Atom™

N270

KB/MS

USB

SATA

Audio

Digital I/O

36-bit LVDS

RS-232

48-bit LVDS (by Chrontel CH7308)

Fanless

Features

1. 3.5” form factor with Intel® Atom™ D525/D425/N455 processor

2. 12V only single voltage design for AT/ATX power

3. Support 24-bit dual-channel LVDS resolution up to 1920x1080

4. Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, four COM and audio

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Intel® Atom™ D425 single-core processor

1.8GHz/512KB L2 cache

Intel® Atom™ N455 single-core processor

1.66GHz/512KB L2 cache

Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 4GB for D525/D425)

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 2GB for N455)

Graphic

GMA 3150

Graphic core speed 400MHz for D525/D425

Graphic core speed 200MHz for N455

Display Interface

Analog CRT up to 2048x1536 for D525/D425,

1400 x 1050 for N455

Support for CRT hotplug

Dual-channel 24-bit LVDS by scaler chip

Novatek 68667UFG, resolution support up to

1920x1080

Single-channel 18-bit LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768

12V only

Ethernet

Single GbE by Realtek RTL8111E with ASF 2.0 support

I/O Interfaces

1 x KB/MS

8 x USB 2.0

2 x SATA 3Gb/s

1 x CF Type II

3 x RS-232

1 x RS-232/422/485 with auto flow control

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output

Expansion: 1 x PCIe Mini card slot

Audio: Realtek ALC888 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Power Supply

12V only, AT/ATX support

Super IO

Fintek F81865

Fan Connector

1 x 3-pin CPU fan, 1 x 3-pin system fan

SMBus: 1 x 4-pin wafer connetor

Power Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with

DDR3 1GB)

Operating Temperature: -10°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Weight: GW: 600g/NW: 180g

Packing List

1 x WAFER-PV-D4253/N4553/D5253 single board computer

1 x SATA with 5V output cable (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS) 1 x One Key Recovery CD

1 x KB/MS cable (P/N: 32000-023800-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x Mini jumper pack

1 x Utility CD 1 x QIG

Ordering Information

Part No.

Description

32001-008600-100-RS

32801-000703-200-RS

32205-000300-100-RS

32205-002700-100-RS

19FFD124010HB2A7-

000001-RS

34000-000510-RS

Dual port USB cable

SATA cable

RS-232/RS-422/485 cable

RS-232 cable

CPU fan

30mm higher heatsink

4 x USB 2.0

GbE VGA

PCIe GbE

1

Industrial

Computing

Soluations

Fanless

Heat Spreader

SATA

Features

1. Intel® Atom™ N270 1.6GHz CPU for ultra low voltage and fanless support

2. Single 5V low power design, 12V for LCD

3. Dual LVDS support 36-bit and 48-bit for dual independent display

4. Support two SATA, four COM, six USB, PCIe Mini card, CF Type II and audio

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

2

Video

Capture

Solutions

Specifications

CPU

Intel® Atom™ processor N270 1.6GHz with a

533MHz FSB

System Chipset

Intel® 945GSE

Intel® 82801GBM/ICH7M

BIOS

AMI BIOS

Memory

One 200-pin 400/533MHz DDR2 SDRAM SO-

DIMM supported (system max. 2GB)

Ethernet

One Realtek RTL8111CP PCIe GbE controller

I/O Interface

6 x USB 2.0

3 x RS-232

2 x SATA

1 x RS-232/422/485

1 x PS/2 for KB/MS 1 x CF Type II

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Expansion

1x PCI Express Mini card

Audio

Realtek ALC655 with AC'97 codec

Display Interface

Intel® Graphics Media Accelerator 950

VGA integrated in Intel® 945GSE

LVDS1:18-bit dual-channel LVDS intergrated in

Intel® 945GSE

LVDS2:18/24-bit dual-channel LVDS supported by

Chrontel CH7308

Power Supply

5V only, 12V for LCD, AT/ATX support

Super IO

ITE IT8718

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Operating Temperature: 0°C~ 60°C (32°F~140°F)

Operating Humidity: 5% ~95 non-condensing

Power Consumption

[email protected] (Intel® Atom™ N270 1.6G with 2GB

DDR2)

Dimensions

146 mm x 102 mm

Weight

GW: 700g/NW: 350g

Packing List

1 x WAFER-945GSELVDS2 single board computer

1 x Audio cable (P/N: 32000-072100-RS) 1 x Heat spreader

1 x KB/MS cable (P/N: 32000-023800-RS)

2 x RS-232 cable (P/N: 32205-002700-100-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD 1 x QIG

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

Ordering Information

Part No.

WAFER-945GSELVDS2-

N270-R10

32001-008600-100-RS

32205-000300-100-RS

32100-052100-RS

32102-000100-200-RS

Description

3.5" SBC with Intel® Atom™ N270 1.6GHz, VGA/18-bit and

24-bit dual-channel LVDS, GbE, CF Type II, USB, Audio, SATA

Dual-port USB cable

RS-232/422/485 cable

ATX power cable

SATA power cable

7

Panel

Solutions

Introduction

WAFER-PV-D4253/N4553/D5253-2013-V11

1-123

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Single Board Computer

DIO

LPT

Embedded Board

WAFER-LX-R12

3.5” SBC with on-board AMD Geode™ LX 800 processor VGA/LVDS/TTL,

Dual LAN and SATA

PC/104

Audio AMD CS5536

200-pin DDR

SO-DIMM socket

Power input

IDE

AMD Geode LX800 processor

KB/MS

RS-232/422/485 Dual USB 2.0

Dual USB 2.0 Dual LAN COM

TTL

Dual SATA

VGA CF Type II

LVDS

Solder Side w w w . i e i w o r l d . c o m

WAFER-LX2-R12

3.5" SBC with AMD Geode™ LX 800 processor, 8 COM, DDR 400MHz, VGA/

LVDS/TTL display interfaces, PC/104, four USB 2.0, Embedded OS support

PC/104 -5V/-12V power input

GPIO

COM 5~8

IDE Audio Suspend power input

Main power input

LCD inverter

ATX Power button

LED connector

AMD Geode™

LX 800

AMD CS5536

LVDS

TTL

Features

Fanless

1. 3.5” form factor embedded board with AMD Geode™ LX 800 processor and RoHS compliant

2. DDR 333/400MHz SO-DIMM SDRAM up to 1GB

3. Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0

4. 24-bit TTL/18-bit single-channel LVDS

5. Value embedded applications with low power and fanless design. Support Windows® XP/CE/XPe

6. The best choice for thin client Windows® CE 5.0, XPe OS image with ICA, RDP and IE APs ready

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

On board AMD Geode™ LX800 (500MHz) processor

System Chipsets

AMD Geode LX800 + AMD CS5536

BIOS

Award BIOS

System Memory

One 200-pin 400/333MHz DDR SDRAM SO-

DIMM Supported (system max. 1GB)

Ethernet

10/100Mbps dual RTL8100C Ethernet Chipsets

I/O Interface

4 x USB 2.0

2 x SATA with VIA VT6421A RAID 0, 1 function support

1 x LPT

1 x CF Type II

2 x RS-232

1 x RS-422/485

1 x PS/2 for KB/MS

1 x IDE

Expansion

1 x PC/104

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output by super I/O

Super I/O

Winbond W83627EHG

Audio

Realtek ALC203 with AC’97 Codec

Display

VGA integrated in AMD Geode™ LX 800

24-bit TTL

18-bit single-channel LVDS

Infrared Interface

1 x Infrared interface by pin hearer

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

5V only, AT/ATX power support

Power Consumption

[email protected]

(AMD LX800 with DDR 400MHz/1GB)

Operating Temperature: 0°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

146 mm x 102 mm

Weight

GW: 670 g/NW: 230 g

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Packing List

1 x WAFER-LX800 single board computer

1 x IDE flat cable 44p/44p (P/N: 32200-000009-RS)

1 x RS-232/422/485 cable (P/N: 32205-000300-100-RS)

1 x SATA power cable (P/N: 32102-000100-200-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x KB/MS Y cable (P/N: 32000-023800-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x USB cable (P/N: 32001-008600-100-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

WAFER-LX-800-R12

32200-015100-RS

Description

3.5” SBC with AMD Geode™ LX 800 processor, audio, VGA/

LVDS/TTL, dual LAN and SATA connectors

LPT cable

4 x USB 2.0

LAN COM1 VGA

Features

1. 3.5" form factor with AMD Geode™ LX 800 CPU

2. One 333/400MHz DDR SO-DIMM socket supports up to 1GB memory

3. VGA, 24-bit TTL, 18-bit LVDS display interfaces

4. Seven RS-232 and one RS-232/422/485

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Fanless

Specifications

CPU

On-board AMD Geode™ LX 800 (500MHz) processor

System Chipsets

AMD Geode™ LX 800 + CS5536

BIOS

Award BIOS

System Memory

One 200-pin 400/333MHz DDR SDRAM SO-DIMM supported (system max. 1GB)

Ethernet

Single Realtek RTL8100C 10/100Mbps Ethernet chipset

I/O Interface

7 x RS-232 1 x RS-232/422/485

1 x IDE 4 x USB 2.0

Expansion

PC/104 (ISA Bus)

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Display Interface

VGA integrated in AMD Geode™ LX 800

24-bit TTL

18-bit single-channel LVDS

Audio

Realtek ALC203 with AC`97 codec

SSD

CF Type II

Watchdog Timer

Software programmable supports 1 ~255 sec. system reset

Power Supply

5V only, AT/ATX support

Power Consumption

[email protected] (AMD Geode™ LX 800 with 400MHz 1GB DDR)

Operating Temperature

0°C ~ 60°C (32°F~140°F)

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

146 mm x 102 mm

Weight

GW: 670g/NW: 230g

Packing List

1 x WAFER-LX2 single board computer

1 x IDE flat cable 44p/44p (P/N: 32200-000009-RS)

2 x Quad RS-232 adapter cable (P/N: 32200-025401-RS)

1 x Audio cable (P/N: 32200-072100-RS)

1 x Mini jumper pack

1 x One Key Recovery CD

1 x Utility CD 1 x QIG

Ordering Information

Part No.

Description

1-124

WAFER-LX-2013-V10

Single Board Computer

WAFER Dimensions

(Unit: mm)

WAFER-945GSE2-R20

Embedded Board

WAFER-PV-D4252/N4552/D5252 w w w . i e i w o r l d . c o m

WAFER-945GSE-R20

WAFER-LX-R12

WAFER-PV-D4253/N4553/D5253

WAFER-LX2-R12

WAFER-Dimension-2013-V10

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

1-125

Single Board Computer

Embedded Board

PC/104 Selection Guide

w w w . i e i w o r l d . c o m

Model Name

CPU Socket

CPU Type

PM-PV-N4551/D5251-R11

On board

PM-945GSE PM-LX

On board On board

Intel® Atom™ processor D525 1.8GHz

Intel® Atom™ processor N455 1.66GHz

Intel® Atom™ processor N270 1.6GHz

AMD Geode™ LX 800 500MHz processor

PM-LX2

On board

AMD Geode™ LX 800 500MHz processor

FSB

Chipset

NA

ICH8M

533MHz

945GSE + ICH7M

N/A

Geode™ LX800 + CS5536

N/A

Geode™ LX800 + CS5536

1

Industrial

Computing

Soluations

Memory

1 x 204-pin 800 MHz 4GB (max.) DDR3

SO-DIMM (D525)

1 x 204-pin 800 MHz 2GB (max.) DDR3

SO-DIMM (N455)

On-board 1GB 800 MHz DDR2 memory 1 x 200-pin 400 MHz 1GB (max.) DDR

SDRAM SO-DIMM

1 x 200-pin 400 MHz 1GB (max.) DDR

SDRAM SO-DIMM

Display Interface

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

2

Video

Capture

Solutions

Ethernet

GbE by Intel® 82567V Ethernet PHY

3

Embedded

Computing

Solutions

I/O Interface

Drive Interface

1 x RS-232

1 x RS-232/422/485

4 x USB 2.0

1 x KB/MS by pin header

1 x SATA 3Gb/s

1 x CF Type II

Dual display supported

1 x VGA

1 x 18-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x 24-bit TTL

Dual display supported

1 x VGA

1 x 24-bit TTL

10/100Mbps LAN by Realtek RTL8102E 10/100Mbps LAN by Realtek RTL8100C 10/100Mbps LAN by Realtek RTL8100C

4 x RS-232

1 x RS-422/485

4 x USB 2.0

1 x KB/MS by pin header

1 x SATA

1 x CF Type II

2 x RS-232

1 x RS-422/485

2 x USB 2.0

1 x KB/MS by pin header

1 x LPT

1 x IDE

1 x CF Type II

2 x RS-232

1 x RS-422/485

2 x USB 2.0

1 x KB/MS by pin header

1 x LPT

1 x Slim FDD

1 x IDE

1 x CF Type II

4

Automation

Control

Audio

10-pin header on board supports 7.1 channel HD Audio by AC-KIT-888HD

10-pin header on board supports 7.1 channel HD Audio by AC-KIT-888HD or

AC97 audio by AC-KIT08R

N/A N/A

N/A 8-bit digital I/O

(4-bit input/4-bit output)

N/A N/A

Digital I/O

5

ORing

Network

Communication

Power

Consumption

[email protected]

(Intel® Atom™ D525 with 1GB DDR3)

[email protected]

(Intel® Atom™ N455 with 1GB DDR3)

[email protected]

(Intel® Atom™ N270 with 1GB DDR2)

[email protected]

(AMD Geode™ LX 800 with 1GB DDR

400 MHz)

[email protected]

(AMD Geode™ LX 800 with 512MB

DDR 400 MHz)

6

Power Supply/

Peripherals

Watchdog Timer

Operating

Environment

7

Panel

Solutions

Introduction

Expansion Slot

CPU Cooler

Temperature Range

-10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity

5% ~ 95% non-condensing

1 x PCI-104

Heatsink

1 x PCI-104

Heatsink

Software programmable and supports 1~255 sec. system reset

Temperature Range: 0°C ~ 60°C

Relative Humidity: 5% ~ 95%, non-condensing

1 x PCI-104

Heatsink

Temperature Range:

-40°C ~ 70°C (W)

Relative Humidity:

5% ~ 95%, non-condensing

1 x PC-104

Heatsink

1-126

PC/104-Selection-2013-V10

Single Board Computer

Embedded Board

PM-PV-N4551/D5251-R11

PCI-104 SBC with Intel® Atom™ N455/D525, DDR3, VGA/LVDS, GbE, USB 2.0,

SATA 3Gb/s and CF Type II, RoHS

PCI-104

Solder Side

5V power input

4 x USB

RS-232/422/485

18-bit LVDS

RS-232

DIO

KB/MS

Audio I/F

CF Type II DDR3 SO-DIMM

Features

VGA SATA 3Gb/s LAN I/F

Fanless

Heatsink fanless solution

1. Intel® Atom™ N455/D525 proccessor with DDR3 memory

2. Single 5V power input design, 12V for LCD/fan

3. Single-channel 18-bit LVDS/VGA output for display

4. Support two COM, four USB, SATA 3Gb/s and CF Type II socket

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

20mm

Specifications

CPU

Intel® Atom™ N455 single-core processor

1.66GHz/512KB L2 cache

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

Chipset

Intel® ICH8M

BIOS

UEFI BIOS

Memory

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 4GB for D525)

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 2GB for N455)

Graphic

GMA 3150

Graphic core speed 400MHz for D525

Graphic core speed 200MHz for N455

Display interface

Analog CRT up to 2048x1536 for D525,

1400x1050 for N455

Support for CRT hotplug

Single-channel 18-bit LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768

Ethernet

Intel® 82567V GbE Ethernet PHY

Expansion

1 x PCI-104 slot

Dimensions

(mm)

I/O Interface

4 x USB 2.0

1 x RS-232

1 x KB/MS

1 x SATA 3Gb/s

1 x RS-232/422/485

1 x CF card slot

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output

Audio

7.1 channel HD Audio kit with Realtek ALC888 codec supports dual audio streams

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Power Supply

5V power input, AT/ATX support

Super I/O

ITE IT8718F

Power Consumption

[email protected] (Intel® Atom™ D525 with 1GB

DDR3)

[email protected] (Intel® Atom™ N455 with 1GB

DDR3)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

96mm x 90mm

w w w . i e i w o r l d . c o m

PM-945GSE

PCI-104 SBC with Intel® Atom™ 1.6GHz CPU, VGA/LVDS, LAN, USB, SATA, four COM and on-board 1GB memory

On-board DDR2 Memory up to 1GB

36-bit LVDS

Power input

12V fan

Inverter

VGA

LED

LAN

4 x USB

Audio I/F

4 x RS-232

DIO

CF Type II

SATA

KB/MS

RS-422/485

Features

11mm

1. Intel® Atom™ N270 1.6GHz CPU for ultra low voltage fanless support

2. Single 5V power input design, 12V for LCD/fan

3. 18-bit dual-channel LVDS plus VGA support dual independent display

4. On-board memory supports up to 1GB

5. Support four COM, four USB 2.0, one SATA and CF Type II socket

6. Low profile heat sink design

Ship with Heatsink

Fanless

7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ processor N270 1.6GHz with a

533Mhz FSB

System Chipset

Intel® 945GSE/ICH7-M

BIOS

AMI BIOS

Memory

On-board 1GB DDR2 SDRAM supported

Ethernet

One Realtek 8102E PCIe 10/100Mbps chipset

I/O Interface

4 x USB 2.0

1 x PS/2 for KB/MS

1 x SATA

1 x CF Type II

4 x RS-232

1 x RS-422/485 (share with COM2)

Digital I/O

8-bit digital I/O (4-bit input, 4-bit output)

Expansion

PCI-104

Power Supply

5V only, 12V for LCD/fan, AT/ATX support

Super I/O

Fintek F81865

Audio

5.1 channel audio kit with Realtek ALC655

AC'97 codec

7.1 channel HD Audio kit with Realtek ALC888 codec supports dual audio streams

Display Interface

Intel® Graphics Media Accelerator 950

VGA integrated in Intel® 945GSE

18-bit dual-channel LVDS integrated in Intel®

945GSE

Watchdog Timer

Software programmable 1-255 sec. by super

I/O

Operating Temperature

0°C~ 60°C (32°F~140°F)

Operating Humidity

5% ~ 95%, non-condensing

Power Consumption

[email protected] (Intel® Atom™ N270 1.6GHz, 1GB

DDR2)

Dimensions

108.59mm x 116mm (4.275" x 4.55")

Weight

GW: 650g/NW: 250g

Dimensions

(mm)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Packing List

1 x PM-PV-N4551/D5251 single board computer

1 x Dual-port USB cable (P/N: 32001-008600-100-RS)

1 x PS/2 KB/MS cable (P/N: 32000-023800-RS) 1 x SATA cable (P/N: 32000-062800-RS)

1 x VGA cable (P/N: 32000-033804-RS)

1 x LAN cable (P/N: 32013-000400-100-RS)

1 x Power cable (P/N: 32100-130300-RS)

1 x RS-232 cable (P/N: 32200-000049-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

AC-KIT-888HD-R10

CF-PV4010-R10

Description

PM-PV-D5251-R11

PM-PV-N4551-R11

PCI-104 SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/

LVDS, GbE, USB 2.0, SATA 3Gb/s and CF Type II, RoHS

PCI-104 SBC with Intel® Atom™ N455 1.66GHz, DDR3, VGA/

LVDS, GbE, USB 2.0, SATA 3Gb/s and CF Type II, RoHS

32205-000300-100-RS RS-232/422/485 cable

32102-000100-200-RS SATA power cable

7.1 channel HD Audio kit with Realtek ALC888 supports dual audio streams

CPU fan (40mm x 40mm x 10mm)

Packing List

1 x PM-945GSE single board computer

1 x Quad RS-232 cable (P/N: 32100-147900-RS)

2 x Dual USB cable (P/N: 32001-008600-100-RS)

1 x KB/MS cable (P/N: 32000-023800-RS) 1 x VGA cable (P/N: 32000-033804-RS)

1 x LAN cable (P/N: 32000-055702-RS)

1 x Power cable (P/N: 32100-130300-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x SATA cable (P/N: 32801-000703-200-RS) 1 x Utility CD 1 x QIG

Ordering Information

Part No.

PM-945GSE-N270-R10

32205-003800-100-RS

32102-000100-200-RS

32100-052100-RS

AC-KIT08R-R10

AC-KIT-888HD-R10

Description

PCI-104 SBC with Intel® Atom™1.6GHz CPU, VGA/LVDS, LAN,

USB, SATA, four COM and on-board 1GB memory

RS-422/485 cable

SATA power cable

ATX power cable

5.1 channel AC'97 audio kit with Realtek ALC655 codec

7.1 channel HD Audio kit with Realtek ALC888 codec supports dual audio streams

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

PM-PV-N4551/D5251-2013-V10

1-127

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

PM-LX2

AMD Geode™ LX 800 CPU on-board PC/104 Module

PM-LX

PCI-104 Module with on-board AMD Geode™ LX 800 CPU

Solder side

COM

LPT LAN

Solder side

KB/MS

PC/104

VGA

LPT

5V power

IDE

CF Type II

400/333 MHz

DDR supports

USB 2.0

Slim FDD

COM

TTL

IDE

CF Type II

400/333 MHz

DDR SO-DIMM

USB

RS-232

KB/MS

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

RS-232

24-bit TTL

RS-422/485

LAN

Specifications

CPU

AMD Geode™ LX 800 500MHz processor

System Chipset

AMD Geode™ LX 800 + CS5536

BIOS

AMI BIOS

System Memory

One 200-pin 400MHz DDR SDRAM

SO-DIMM supported (system max. 1GB)

Super I/O

SMSC 3114

Ethernet

One Realtek RTL8100C 10/100Mbps

Ethernet chipset

I/O Interface

2 x USB 2.0

2 x RS-232

1 x RS-422/485

1 x PS/2 for KB/MS

1 x LPT

1 x Silm FDD

1 x CF Type II

1 x IDE

Dimensions

(mm)

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

Display Interface

CRT integrated in AMD Geode™ LX 800

24-bit TTL integrated in AMD Geode™ LX 800

Watchdog Timer

Softwafe programmable supports 1~255 sec. system reset.

Expansion

1 x PC/104 supported by ITE IT8888G

Power Supply

5V only, AT support

Power Consumption

[email protected] 1.09A (AMD Geode™ LX 800 with

400MHz 512MB DDR)

Operating Temperature

PM-LX2-800-R10: 0°C ~ 60°C

PM-LX2-800W-R10: -40°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions:

96mm (L) x 90mm (W)

Weight

GW: 500g/NW 110g

Specifications

CPU

On-board AMD Geode™ LX 800 (500MHz) processor

System Chipset

AMD Geode™ LX 800 + AMD CS5536

BIOS

Award BIOS

System Memory

One 200-pin 400/333MHz DDR SDRAM

SO-DIMM supported (system max. 1GB)

Ethernet

10/100Mbps realtek RTL8100C Ethernet chipset

I/O Interface

2 x USB 2.0

1 x LPT

2 x RS-232

1 x RS-422/485

1 x PS/2 for KB/MS

1 x IDE

Expansion

1 x PCI-104

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

Super I/O

Winbond W83627EHG

SSD

CF Type II

Display Interface

VGA integrated in AMD Geode™ LX 800

24-bit TTL

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

5V only, AT support

Power Consumption

[email protected] (AMD Geode™ LX 800

500MHz with 400MHz 1G DDR memory)

Operating Temperature

0°C ~ 60°C

Operating Humidity

5%~95%

Dimensions

95 mm x 95 mm

Weight

GW:500 g/NW:110 g

Dimensions

(mm)

6.75

95.89

85.73

5.09

3

Embedded

Computing

Solutions

VGA

PCI-104

4.30

4

Automation

Control

9.20

7.30

5

ORing

Network

Communication

6

Power Supply/

Peripherals

Packing List

1 x PM-LX2 single board computer

1 x PS/2 KB/MS cable (P/N: 32000-023800-RS) 1 x ATA33 flat cable (P/N: 32200-000009-RS)

1 x Dual USB cable (P/N: 32001-008600-100-RS) 1 x Power cable (P/N: 32100-130300-RS)

1 x LAN cable (P/N: 32000-055702-RS)

1 x One Key Recovery CD

1 x Mini jumper pack

1 x VGA cable (P/N: 32000-033804-RS)

2 x RS-232 cable (P/N: 32205-002700-100-RS)

1 x Utility CD 1 x QIG

7

Panel

Solutions

Introduction

Ordering Information

Part No.

PM-LX2-800-R10

PM-LX2-800W-R10

32400-001100-RS

32200-015100-RS

32205-003800-100-RS

Description

PC/104 SBC with AMD Geode™ LX 800 500 MHz, VGA/TTL,

LAN, USB 2.0 and CF Type II

PC/104 SBC with AMD Geode™ LX 800 500 MHz, VGA/TTL,

LAN, USB 2.0 and CF Type II, Wide Temperature -40°C ~ 70°C

FDD cable

LPT cable

RS-422/485 cable

1-128

PM-LX2-2013-V10

Packing List

1 x PM-LX single board computer

1 x ATA33 flat cable (P/N: 32200-000009-RS)

1 x VGA cable (P/N: 32000-033804-RS)

1 x LAN cable (P/N: 32000-055702-RS)

Layer SILKSCREEN_TOP

1 x KB/MS Y cable (P/N: 32000-023800-RS)

1 x Power cable (P/N: 32100-130300-RS)

Ver

B025

1 x Mini jumper pack

1 x Utility CD

2 x RS-232 cable (P/N: 32205-002700-100-RS) 1 x QIG

Ordering Information

Part No.

PM-LX-800-R11

32200-015100-RS

32205-003800-100-RS

Description

PCI-104 SBC with AMD Geode™ LX 800 processor , VGA/TTL,

LAN, USB 2.0, CF Type II

LPT cable

RS-422/485 cable

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

ETX IEM Series

ETX, Embedded Technology Extended, is a new architecture for industrial applictions. It fulfills the requirements for embedded technology by a compact module with most PC functions:

ETX divides a complete motherboard system into two parts physically:

– ETX MODULE carries CPU system and core ASICs in a small 4.5 x 4-inch size

– BASEBOARD includes all I/O connectors plus some supplementary functions.

IEM Advantages

ETX is an industry standard System-On-Module (SOM) technology. By choosing integrated CPU and memory module and customized baseboard with I/O functionality, embedded product solutions could be incredibly efficiently and economically.

Benefits

■ Time Advantage!

• Complete PC functionality with x86 architecture

• Cost saving in engineering and developing

• Time to market in software design and scheduling

■ Design Advantage!

• Customized design in reliable connectors

• Easily upgraded with no need to re-design when components are endof-life

• Extremely slim low power fanless design

■ Installation/Size Advantage!

Gas-proof connectors and mounting holes enable rugged applications.

Basic Concept of IEI FSEA

ETX modules are scaleable and interchangeable. Thus with a single baseboard, several products can be launched in the same time by the aid of a wide choice of CPU modules.

M (ETX CPU Module) + N (ETX Baseboard) M x N Products

In order to enhance the reliability and flexibility of ETX solutions, IEI moves the Ethernet interface from the CPU module to the baseboard. Testing performance reveals that IEI’s innovative design produces outstanding results.

ETX Module Architecture

ETX CPU MODULE

IEM-DB-7S-RS-R30

Full Function ETX Baseboard with VGA/LVDS/TTL,

Audio, CF Type II and Digital I/O

Dimensions

(mm)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Specifications

CPU Module Interface

LCD Interface

Expansion Slot

SSD

Audio

Ethernet Connector

RS-232

RS-232/422/485

KB/MS

VGA

USB 2.0

IDE Connector

LPT/FDD

Digital I/O

IR Connector

Power Supply

ETX form factor

1 x 30-pin, 18-bit dual-channel LVDS

1 x 40-pin, 24-bit TTL

4 x PCI, 3 x ISA

CF Type II

Line-in, Speaker out, Mic-in

1 x RJ-45

1

1

2 x PS/2

1

4

2

1

4-bit input, 4-bit output

5-pin header

ATX

5

ORing

Network

Communication

Packing List

1 x IEM-Baseboard single board computer

1 x RS-232/422/485 cable (P/N: 32200-000063-RS)

1 x FDD cable (P/N: 32229-000100-100-RS)

1 x Mini jumper pack

1 x HDD cable (P/N: 32200-000052-RS)

1 x User manual

Ordering Information

Part No.

IEM-DB-7S-RS-R30

Description

ATX size 7 slots ETX baseboard

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

IEM-Intro-2013-V10

1-129

Single Board Computer

IEM-945GSE

Embedded Board

ETX 3.0 CPU Module with Intel® Atom™ processor, VGA/LVDS, LAN, SATA,

USB and Audio

DDR2 533 MHz support up to 2GB

IT8888G PCI to ISA

Bridge

Intel® Atom™ processor N270

ETX 3.0

Ship with Heat spreader only

IEM-945GSE ETX 3.0

Module with IEM-DB-7S

ETX Base board w w w . i e i w o r l d . c o m

IEM-LX-R11

AMD Geode™ LX 800 Highly Integrated ETX Module

ETX CPU Module with on-board AMD

Geode™ LX 800, USB 2.0, LAN & Audio

ETX 2.8

33mm

RTL 8102L PCIe

10/100 Ethernet

Dual SATA

Solder Side

33mm

Solder Side

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

Dual

SATA

Features

1. ETX 3.0 CPU module with on-board two SATA 1.5Gb/s ports

2. Support four PCI, one ISA slot for expansion

3. Support dual display for VGA + LVDS

4. Support four USB 2.0, two SATA, one IDE interface

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ processor N270 1.6 GHz with 533

MHz FSB

System Chipset

Intel® 945GSE + Intel® 82801GBM/ICH7M

BIOS

AMI

System Memory

One 200-pin 533/400MHz DDR2 SO-DIMM supported (system max. 2GB)

Ethernet

One 10/100Mbps Realtek RTL8102E Ethernet chipset (PCIe interface)

Super I/O

ITE IT8718

I/O Interface

4 x USB 2.0 (to baseboard)

2 x SATA (on CPU module)

1 x IDE (to baseboard)

1 x LPT (to baseboard)

2 x RS-232 (to baseboard)

1 x PS2 KB/MS (to baseboard)

Expansions

4 x PCI, 32-bit 33MHz PCI bus to baseboard

ISA supported by ITE IT8888G

Display Interface

VGA/TV-Out integrated in Intel® 945GSE

(to baseboard)

18-bit dual-channel LVDS signal (to baseboard)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

AT/ATX supported

Power Consumption

[email protected] (Intel® Atom™ processor N270 with

1GB DDR2)

Operating Temperature

0°C ~ 60°C (IEM-945GSE-N270-R10)

-40°C ~ 85°C (IEM-945GSE-N270W2-R10)

-20°C ~ 70°C (IEM-945GSE-N270W-R10)

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

95 mm x 114 mm

Weight: GW

600g/NW 250g

Dimensions

(mm)

95.00

92.50

53.51

36.49

3.40

CN5

X4

100

X3

5.50

CN1

A2

Fanless

Specifications

CPU

On-board AMD Geode™ LX 800 (500MHz) processor

System Chipset

AMD Geode™ LX 800 + AMD CS5536

BIOS

Award BIOS

System Memory

One 200-pin 400/333 MHz DDR SDRAM

SO-DIMM Supported (system max. 1GB)

Ethernet

10/100Mbps RTL8100C Ethernet chipset

I/O Interface

4 x USB 2.0

1 x IDE

1 x PS/2 KB/MS

1 x LPT/FDD

2 x RS-232

Expansions

4 x PCI bus master

ISA support by ITE IT8888G

Audio

Realtek ALC203 AC’97 codec

SSD

CF Type II

Dimensions

(mm)

Super I/O

Winbond W83627EHG

Display Interface

VGA integrated in AMD Geode™ LX 800

24-bit TTL (optional)

18-bit single-channel LVDS

Watchdog Timer

Software programmable supports 1-255 sec. system reset

Power Supply

AT/ATX support

Power Consumption

[email protected] (AMD Geode™ LX 800 CPU with

DDR 333MHz 256MB RAM)

Operating Temperature

0°C ~ 60°C (32°F~140°F)

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

95 mm x 114 mm

Weight

GW: 650g/NW: 250g

90.00

114.00

90.00

199

AA20

R184

5

ORing

Network

Communication

5.20

100

6

Power Supply/

Peripherals

U3

Packing List

1 x IEM-945GSE single board computer

1 x Heatspreader

1 x One Key Recovery CD

1 x Utility CD 1 x QIG

7

Panel

Solutions

Introduction

Ordering Information

Part No.

IEM-945GSE-N270-R10

IEM-945GSE-N270W2-R10

IEM-945GSE-N270W-R10

IEM-DB-7S-RS-R30

Description

ETX 3.0 module with Intel® Atom™ processor N270 1.6G,

VGA/LVDS, LAN, USB, SATA and audio

ETX 3.0 module with Intel® Atom™ processor N270 1.6G,

VGA/LVDS, LAN, USB, SATA and audio, -40°C ~ 85°C

ETX 3.0 module with Intel® Atom™ processor N270 1.6G,

VGA/LVDS, LAN, USB, SATA and audio, -20°C ~ 70°C

ATX size 7 slots ETX baseboard

1-130

0

0

95.00

0.00

Packing List

1 x IEM-LX single board computer

1 x Screw kit

1 x One Key Recovery CD

1 x Utility CD 1 x QIG

Ordering Information

Part No.

IEM-LX-800-R11

Description

AMD Geode™ LX 800 500MHz processor, VGA/LVDS/TTL, LAN

& Audio

IEM-945GSE-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

IEI COM Express Series

COM Express is a computer-on-module (COM) form factor series. It can be integrated in various customized applications. Each COM Express module integrates CPU, memory and common I/O of a PC/AT including USB, audio, graphics, and Ethernet. All I/O signals are mapped to two high density, low profile connectors on the bottom side of the module. The COM Express specification is hosted by PICMG. The ICE (IEI COM Express) modules provide complete performance range for users to choose. With the IEI COM Express baseboard deign service, users can quickly enjoy the benefits of modulization and efficiency.

ICE-CV-D25501

ICE-QM770

Transfer your ETX Module to IEI COM Express Solution

COM Express provides PCI Express, dual-channel LVDS, GbE, eight USB and four SATA ports for I/O expansion

Platform

Size

ETX COM Express Type 2 Basic Module

95 mm x 114 mm 95 mm x 125 mm

ICE-DB-T6

VGA

LCD

Yes

TTL or LVDS

SDVO N/A

Expansion PCI & ISA

Yes

Up to 2x single LVDS or dual-channel LVDS

Up to 2 SDVO (shared with PCIe x16)

PCIe & PCI

Ethernet 10/100 Mbps 10/100/1000 Mbps

IEI CPU Module

IEI COM Express design baseboard

USB

SATA up to 4 ports up to 2 Ports

(ETX 3.0 only) up to 8 ports up to 4 SATA

COM Express pin-out types

IDE up to 2 channels up to 1 channel

COM Express

, a computer-on-module (COM) form factor, is a highly integrated and compact PC that can be used in a design application much like an integrated circuit component. Each COM Express Module COM integrates core CPU and memory functionality, the common I/O of a PC/AT, USB, audio, graphics (PEG), and Ethernet. All I/O signals are mapped to two high density, low profile connectors on the bottom side of the module.

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

Types

The COM Express specification is hosted by PICMG. There are seven different pinouts defined in the specification. The most common used pin out is Type 2 and Type 1. The latest pin-outs added in the revision 2.0 of the COM Express specification are Type 6 and Type 10.

3

Embedded

Computing

Solutions

Types

Type 1

Type 10

Type 2

Type 6

PCIe Lanes

Up to 6

Up to 4

Up to 22

Up to 24

PEG/SDVO

/1

1/2

1/

Display

VGA, LVDS

DDI, LVDS

VGA, LVDS, PEG, SDVO

VGA, LVDS, PEG, 3*DDI

SATA

4

2

4

4

LAN

1

1

1

1

PCI

IDE

USB 2.0

8

8

8

8

USB 3.0

4

4

Automation

Control

The specification defines three module sizes:

95mm 125mm

5

ORing

Network

Communication

84mm

6

Power Supply/

Peripherals

Compact Basic

Ultra

7

Panel

Solutions

Introduction

Ultra: 84 x 55 mm

For Type 1 and Type 10 pinout

Compact: 95 x 95 mm

For Type 2 and Type 6 pinout

COM Express-Intro-2013-V10

Basic: 125 x 95 mm

For Type 2 and Type 6 pinout

1-131

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

Pinout Comparison of Type 1 and Type 10

Type 1 Pinout

B

A

LPC

SMB

I²C

GBE

4 ports SATA Audio

8 ports

USB 2.0

6 lanes

PCIe x1

LVDS B

LVDS A

VGA

Others

5VSB

SPI

12V

12V

B

A

LPC

SMB

I²C

GBE

2 ports

SATA n/c

Audio

8 ports

USB 2.0

Type 10 Pinout

4 lanes

PCIe x1 n/c

LVDS B

LVDS A

VGA

Others

5VSB

SPI

2 ports serial

12V

12V

Pinout Comparison of Type 2 and Type 6

Type 2 Pinout

D

C

PATA IDE

PCI PCIe x16 (SDVO) 12V

B

A

LPC

SMB

I²C

GBE

4 ports SATA Audio

8 ports

USB 2.0

6 lanes

PCIe x1

LVDS B

LVDS A

VGA

Others

5VSB

SPI

12V

12V

Type 6 Pinout

1

Industrial

Computing

Soluations

D

C

4 ports

USB 3.0/2.0

2 lanes

PCIe x 1

DDI 1 DDI 2 DDI 3

PCIe x16 12V

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

B

A

LPC

SMB

I²C

GBE

4 ports SATA Audio

8 ports

USB 2.0

6 lanes

PCIe x1

LVDS B

LVDS A

VGA

Others

5VSB

SPI

2 ports serial

TPM

12V

12V

Installing the COM Express

Thermal Design of COM Express

COM Express definition includes a heatspreader that acts as a thermal interface between the COM Express module and the system’s cooling solution. The height of a COM Express module, including the heatspreader, has been defined as 18 mm and covers the complete area of the COM Express. All heat generating components are thermally conducted to the heatspreader in order to avoid hot spots.

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

18mm

System’s cooling solution

Heatspreader

COM Express

Carrier board

1. Installing the COM Express

Firmly insert the COM Express into the COM Express socket.

2. Installing the heatspreader

A heatspreader must be installed on the COM Express. Thermal pads must be smeared on the lower side of the heatspreader before it is mounted on the COM Express. Heatspreaders are mounted on the CPU, Northbridge and Southbridge chipsets to ensure the operating temperature of these chips remain low.

Step

1.

Step

2.

7

Panel

Solutions

Introduction

1-132

▲ Installing the COM Express ▲ Installing the heatspreader

COM Express-Intro-2013-V10

Single Board Computer

Embedded Board

3. Installing the system’s cooling solution

In addition to the heatspreader, COM Express needs another heatsink or other thermal solution to cool down the COM

Express.

Before iinstalling the system’s cooling solution, make sure that you have properly applied thermal interface material to the heatspreader.

Operating Temperature

The maximum and minimum operating temperatures for the standard COM Express are listed below.

● Minimum Operating Temperature: 0°C (32°F)

● Maximum Operating Temperature: 60°C (140°F)

WARNING:

Never run the embedded module without the heat sink. The heatspreader plate shipped with the COM Express acts as a thermal interface between the module and the heat sink. The heat sink must be installed on the heatspreader plate to maintain proper operating temperatures. Make sure to maintain the heatspreader plate temperature under 60°C in operation.

Step

3.

▲ Installing the system’s cooling solution

w w w . i e i w o r l d . c o m

Benefits

A: High Compatibility

● IEI ICE modules follow standard COM Express design guide and have high compatibility

● ICE modules are compatible with all baseboards compliant with

COM Express specifications

● Complete performance level for customers’ choice

Embedded Fanless Performance Dual Core

1

Industrial

Computing

Soluations

Embedded, single core, or dual core complete performance level could be immediately applied on the baseboard.

Fanless

Dual Core

B: Strong Support

● With strong R&D resources, IEI provides customers innovative leading products and service to drive successful experience.

● IEI provides complete turnkey solutions from hardware, software and industrial BIOS design support.

R&D Support Service

=

Embedded OS

Service

ICE Solution

Customized BIOS

Service

Compatibility &

Reliability Test

ME & ID Team

*CNC, laser cutting

*Die-cast, punch-press

*Plastic hard-tooling

*Rapid prototyping

*NEMA4/IP65 enclosure

*Customization

*Accessories: VESA arm, rack mount, DIN-rail-mount kit

EE Team

*Schematic design

*Power circuit plan

*Layout design

R&D Support Team

SW Team

*BIOS: Phoenix/Award/AMI

*Windows® CE driver

*Digital Signage SW

*HMI SW

Project

Management

Team

DQV Team

*Product validation

*Environmental testing

*Compatibility testing

*Reliability testing/prediction

5

ORing

Network

Communication

Intelligent Team

*Automobile devices SW, HW

*System integration

*Test and verification

Medical Team

*Medical products SW, HW

*IC design, test and verification

6

Power Supply/

Peripherals

Support Team

*EMC/Safety service

(FCC, UL, CSA, CE..)

*Key parts/Component verification team

7

Panel

Solutions

Introduction

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

COM Express-Intro-2013-V10

1-133

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

ICE-QM871

COM Express Basic Type 6 Module, Intel® Haswell Mobile BGA Processor,

VGA, LVDS, DisplayPort, HDMI, SATA 6Gb/s, USB 3.0, GbE, and HD Audio,

RoHS

Dual-Channel DDR3 1333/1066 MHz

Addition mounting holes

Intel®

QM87

BGA CPU

USB

USB 3.0

SATA 6Gb/s

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

CPU

BGA 1364 type for Intel® 22nm Haswell processor

PCH

Intel® QM87

Memory

Two 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM supported (system max. 16GB)

Support 1.35V DDR3L

BIOS

UEFI BIOS

Graphics Engine

Intel® HD Graphics Gen 7 support for DX11 and OpenCL 1.1

Full MPEG2, VC1, AVC Decode

Display Output

1 x DDI: DisplayPort/HDMI/DVI

1 x DDI: DisplayPort/HDMI/DVI

1 x DDI: embedded DP

1 x CRT up to QXGA (2048x1536)

1 x Dual-channel 18/24-bit LVDS

Ethernet

Intel® Clarkville-V I217LM with Intel® AMT 9.0 support

Embedded Controller iWDD

I/O Interface

2 x RS-232 to baseboard

4 x USB 2.0 to baseboard

Audio

High Definition Audio interface

4 x SATA 6GB/s signal to baseboard

4 x USB 3.0 to baseboard (with 4 x USB 2.0)

SMBus

YES, to base board

I2C

YES, to base board

LPC

YES, to base board

Expansion

1 x PCIe x16 signal to base board

7 x PCIe x1 signal to base board

Watchdog Timer

Software programmable support 1~255 sec. system reset

GPIO

8-bit GPIO to baseboard

TPM

Through baseboard

Intel® AMT

Support Intel® AMT 9.0

Power Consumption

[email protected] 1.86A, [email protected] 3.70A

(Intel® Core™ i7-4700EQ 2.4GHz CPU with two 1333MHz 4GB DDR3 memory)

Operating Temperature

-20°C ~ 65°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

95 mm x 95 mm

Weight

GW: 600g / NW: 250g

GbE

4th Generation Intel® Core™ BGA CPU

Features

1. Intel® Haswell mobile processors supported

2. Intel® HD Graphics technology integrates high-performance graphics and media processing

3. Dual-channel DDR3 1600/1333 supports up to 16GB

4. Support 1.35V DDR3L

5. 18/24-bit dual-channel LVDS, analog CRT, three MHz DDI supported

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

7. Support AMT 9.0

Dimensions

(Unit: mm)

Packing List

1 x ICE-QM871 single board computer

1 x Cooler

1 x Driver CD

1 x Heat Spreader

1 x Utility CD

1 x QIG (Quick Installation Guide)

Ordering Information

Part No.

ICE-QM871-i7-R10

ICE-QM871-i5-R10

ICE-QM871-i3-R10

ICE-QM871-C-R10

ICE-DB-T6R-R10

Description

COM Express Basic Type 6 module, Intel® Core™ i7 processor,

VGA/LVDS, GbE, SATA 6Gb/s, USB 3.0, Audio and RoHS

COM Express Basic Type 6 module, Intel® Core™ i5 processor,

VGA/LVDS, GbE, SATA 6Gb/s, USB 3.0, Audio and RoHS

COM Express Basic Type 6 module, Intel® Core™ i3 processor,

VGA/LVDS, GbE, SATA 6Gb/s, USB 3.0, Audio and RoHS

COM Express Basic Type 6 module, Intel® Celeron® processor,

VGA/LVDS, GbE, SATA 6Gb/s, USB 3.0, Audio and RoHS

Base Board for COM Express Type 6 Module COM.0 Rev. 2.1, support PICMG EAPI R1.0

1-134

ICE-QM871-2013-V11

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

ICE-QM770

COM Express Basic Type 6 Module with Socket G2 Supports Intel®

2nd & 3rd Generation Core™ i7/i5/i3 Celeron® Processor, VGA/LVDS,

DDI, GbE, SATA 6Gb/s, USB 3.0, Audio and RoHS

Dual-Channel DDR3 1333/1066 MHz

Three DDI (Digital Display Interface) by carrier board

Socket G2

Intel®

QM77

Specifications

Form Factor

PICMG COM Express R2.0 Basic Type 6

CPU

Socket G2 for 2nd & 3rd generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor

PCH

Intel® QM77

Memory

Two 204-pin 1600/1333/1066 MHz dual-channel DDR3 SDRAM unbuffered DIMMs supported (system max. 16GB)

Supports 1.35V DDR3L

BIOS

UEFI BIOS

Graphics Engine

Intel® HD Graphics 2000/3000

Supports DX11, OCL 1.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode

Display Output

VGA integrated in Intel® QM77 (signal to baseboard)

3 x DDI (up to 2560 x 1600 @60Hz)

1 x VGA up to QXGA (up to 2048 x 1536 @75Hz)

1 x 18/24-bit dual-channel LVDS up to UXGA (up to 1920 x 1200 @60Hz)

Ethernet

Intel® 82579LM

Embedded Controller iWDD

I/O Interface

2 x RS-232 (to baseboard) (3.3V)

4 x USB 3.0 (to baseboard)

2 x SATA 6Gb/s (signal to baseboard)

8 x USB 2.0 (to baseboard)

2 x SATA 3GB/s (signal to baseboard)

Audio

High Definition Audio

SMBus

Yes (to baseboard)

I2C

Yes (to baseboard)

LPC

Yes (to baseboard)

Expansions

1 x PCIe x16 signal (to baseboard)

7 x PCIe x1 signal (to baseboard)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

GPIO

8-bit GPIO (to baseboard)

TPM

Through the baseboard

Intel® AMT

Supports Intel® AMT 8.0

Power Consumption

[email protected], Vcore [email protected]

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

338 mm x 126 mm

Weight

GW: 700g/NW: 250g

Core i7/i5/i3

2nd & 3rd generation Intel®

Core™ processors supported

SATA 6Gb/s GbE

Features

1. Intel® Core™ i7/i5/i3/Celeron® processors supported

2. Intel® HD Graphics technology integrates high-performance graphics and media processing

3. 1600/1333/1066MHz dual-channel DDR3 memory supports up to 16GB

4. Supports 1.35V DDR3L

5. 18/24-bit dual-channel LVDS, analog CRT and 3 x DDI supported

6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

USB

USB 3.0

Packing List

1 x ICE-QM770-R10 single board computer

1 x Heatspreader for Socket G2 CPU (22nm)

1 x Cooler

1 x Driver CD

1 x Utility CD

1 x QIG (Quick Installation Guide)

Ordering Information

Part No.

ICE-QM770-R10

ICE-DB-T6-R10

Description

COM Express Basic Type 6 Module with Socket G2 Supports Intel®

2nd & 3rd Generation Core™ i7/i5/i3 Celeron® Processor, VGA/

LVDS, DDI, GbE, SATA 6Gb/s, USB 3.0, Audio and RoHS

Baseboard for COM Express Type 6 modules

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

ICE-QM770-2013-V10

1-135

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

ICE-CV-

D25501

N26001

COM Express Rev 2.0 Basic/Compact Type 6 Modules, Intel®

Atom™ N2600/D2550 Processor, VGA/LVDS, DDI, SATA 3Gb/s,

GbE, USB 3.0, Audio and RoHS

Intel®

NM10

Rich Media with 3rd Generation

Intel® Atom™Atom™

Full HD decoding with support for Blu-ray logo.

Additional display capability with support of HDMI,

DisplayPort, LVDS and VGA

LVDS/eDP

D2550

/N2600

Intel® Atom™

N2600/D2550

USB

USB 3.0

DP/HDMI

VGA

Supports USB 3.0

● The SuperSpeed USB 3.0 supports a data transfer rate that is up to 10 times faster than USB 2.0 with optimized power efficiency.

● USB 3.0 is backwards compatible with the USB 2.0 components.

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Single-Channel DDR3 1066/800 MHz

Specifications

Form Factor

PICMG COM Express R2.0 Type 6 for compact size

95 mm x 95 mm

10 layers

CPU

Intel® Atom™ N2600 dual-core processor 1.6GHz (2 x 512 L2 cache)

Intel® Atom™ D2550 dual-core processor 1.86GHz (2 x 512 L2 cache)

PCH

Intel® NM10

Memory

One 204-pin 1066/800MHz DDR3 SDRAM SO-DIMM supported

(D2550 supports 1066MHz DDR3, system max. 4GB)

(N2600 supports 800MHz DDR3, system max. 2GB)

Supports 1.35V DDR3L

BIOS

UEFI BIOS

Graphics Engine

Intel® GMA 3650 with a 640MHz graphics core (for D2550)

Intel® GMA 3600 with a 400MHz graphics core (for N2600)

Supports DX9 and Blu-ray 2.0

MPEG2, H.264, VC-1 and 1080p deconding

Display Output

VGA integrated in the Intel® N2600/D2550 (signal to baseboard)

1 x CRT (up to 2048 x 1536 @75Hz)

LVDS integrated in the D2550/N2600

Single-channel 24-bit LVDS by D2550, up to 1440x900 @60Hz

Single-channel 18-bit LVDS by N2600 and N2800, up to 1366x768 @60Hz

2 x DDI (up to 2560 x 1600 @60Hz)

Ethernet

RTL 8111E GbE

USB 3.0

Asmedia ASM1042 USB 3.0 extended host controller

Embedded Controller iWDD (ITE)

8 x USB 2.0 (signal to baseboard)

2 x SATA 3Gb/s (signal to baseboard)

Audio

High Definition Audio interface (to baseboard)

GPIO

Yes (to baseboard)

SMBus

Yes (to baseboard)

I2C

Yes (to baseboard)

LPC

Yes (to baseboard)

SPI

Yes (to baseboard)

Serial Port

2 x Serial port (to baseboard)

Expansions

4 x PCIe x1 signal (to baseboard)

Watchdog Timer

Software programmable supports 1~255 sec. system reset (by EC)

Power Consumption

[email protected], Vcore [email protected]

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

95 mm x 95 mm

Weight

GW: 600g/NW: 200g

1-136

Fanless

USB

USB 3.0

SATA 3Gb/s

Features

1. Intel® Atom™ N2600/D2700 processors supported

2. Intel® GMA integrates high-performance graphics and media processing

3. Supports DDR3 & DDR3L (1.35V) 1066/800MHz, up to 2GB

4. 18/24-bit single-channel LVDS, analog CRT and two DDI supported

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

GbE

Packing List

1 x ICE-CV-N26001 single board computer

1 x Heatsink

1 x One Key Recovery CD

1 x Heatspreader

1 x Utility CD

1 x QIG (Quick Installation Guide)

Ordering Information

Part No.

ICE-CV-D25501-R10

ICE-CV-N26001-R10

ICE-CV-N28001-R10

ICE-DB-T6-R10

Description

COM Express Rev 2.0 Basic/Compact Type 6 module, Intel®

Atom™ D2550 processor, VGA/LVDS, DDI, GbE, SATA 3Gb/s,

USB 3.0, Audio and RoHS

COM Express Rev 2.0 Basic/Compact Type 6 module, Intel®

Atom™ N2600 processor, VGA/LVDS, DDI, GbE, SATA 3Gb/s,

USB 3.0, Audio and RoHS

COM Express Rev 2.0 Basic/Compact Type 6 module, Intel®

Atom™ N2800 processor, VGA/LVDS, DDI, GbE, SATA 3Gb/s,

USB 3.0, Audio and RoHS (by project support, MOQ 100pcs / lot)

Baseboard for COM Express Type 6 modules

ICE-CV-D25501/N26001-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

DIO

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1

Front Panel

Dual-channel LVDS

4 x SATA 3Gb/s

SD card I2C

SMBus

2 x PCIe Mini

IEI IDP for evaluation of other display interface

Three sizes and two types

(Type 6 & Type 10) compatible

COM Express

TPM

3 x RS-232

DisplayPort VGA

RJ-45

IDP 2 x USB 2.0

PCIe x16 5 x PCIe x1

Front Audio

Port 80

KB/MS HDMI 2 x USB 2.0

Audio

2 x USB 3.0

Specifications

USB

Form Factor

ATX form factor baseboard

CPU

Supports COM Express Compact / Basic module using connector pin out Type 6

Display Interfaces

1 x VGA

1 x HDMI

1 x DisplayPort pin-header

1 x DisplayPort connectors

1 x LVDS 18/24-bit single or dual channel (with PWM back light controller)

Audio

Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic)

TPM 1.2 Support

Expansions

1 x PCIe x16

1 x LPC

I/O Interface

4 x SATA port

2 x RS-232 from SIO

1 x SD card socket

Rear IO

1 x PS2 KB/MS

2 x USB 3.0

1 x RJ-45 connector

1 x HDMI

5 x PCIe x1

2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

1 x PS2 KB/MS

2 x RS-232 from COM Express (only TX, RX, GND)

2 x USB 3.0 (standared USB 3.0 pin-header)

1 x Audio jack (Line-in, Line-out, Mic)

2 x USB 2.0

1 x VGA

1 x DisplayPort connectors

Front Audio

2 x 5-pin pin header

TPM

2 x 10-pin header

80 port

2 x 7 segment display

Front Panel

1 x Front panel (power LED, HDD LED, speaker/Buzzer, power button, reset button)

I2C

1 x 4-pin wafer

SMBus

1 x 4-pin wafer

Internal storage

EEPROM (supports EAPI R1.0)

Watchdog Timer

Software programmable supports 1~255 sec system reset

GPIO

8-bit GPIO

Power Supply

ATX / AT Power Supply

24+4 pins

Fan Connector

1 x 4-pin / 1 x 3-pin CPU module fan connector

1 x 3-pin system fan connector by SIO

Temperature

-40°C ~ 85°C

Humidity

5% ~ 95 non-condensing

Dimensions

304.8 mm x 243.8 mm (12" x 9.6")

Features

1. ATX form factor baseboard for COM.0 Rev. 2.1, pin-out Type 6

3. Support smart battery charger

4. Support PICMG EAPI R1.0

Dimensions

Packing List

(Unit: mm)

1 x COM Express baseboard

1 x Dual-port RS-232 cable (P/N: 19800-000051-RS)

2 x SATA Cable (P/N: 32000-062800-RS)

Ordering Information

Part No.

ICE-DB-T6R-R10

19800-000082-RS

Description

USB 3.0

2. Support one PCIe x16, five PCIe x1, two PCIe Mini and one m-SATA

SATA 6Gb/s

1 x Mini jumper pack

1 x QIG baseboard for COM Express Type 6 Module COM.0 Rev. 2.1, support PICMG EAPI R1.0

RS-232/422/485 cable

32102-000100-200-RS SATA Power cable

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

ICE-DB-T6R-2013-V10

1-137

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

DIO

ICE-DB-T6

Baseboard for COM Express Type 6 Module

Front Panel

Dual-Channel LVDS

4 x SATA 3Gb/s

SD card I2C

SMBus

2 x PCIe Mini

Three DisplayPort for Three DDI

Three Sizes and Two Types

(Type 6 & Type 10) Compatible

COM Express

TPM

3 x RS-232

3 x DisplayPort

GbE

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

2 x USB 2.0

PCIe x16 6 x PCIe x1

Front Audio

KB/MS VGA 4 x USB 3.0 Audio

Specifications

Features

Dimensions

(Unit: mm)

USB

Form Factor

ATX form factor baseboard

CPU

Supports COM Express Compact / Basic module using connector pin out Type 6

Display Interfaces

1 x 18/24-bit single/dual-channel LVDS

1 x VGA

3 x DisplayPort (2 x real connectors, 1 x pin header)

TPM 1.2 Support

Super I/O

W83627DHG

Audio

Realtek ALC892 HD audio codec (Line-in, Line-out, Mic)

Expansions

1 x PCIe x16

2 x PCIe Mini (with USB)

Internal I/O Interface

4 x SATA port

2 x RS-232 from SIO

2 x USB 2.0

6 x PCIe x1

1 x LPC

2 x RS-232 from COM Express (only TX, RX and GND)

1 x PS2 KB/MS

1 x SD

Rear IO

1 x VGA

1 x RJ-45

4 x USB 3.0

3 x DisplayPort

1 x Audio jack (Line-in, Line-out, Mic)

Front Audio

2 x 5-pin header

TPM

2 x 10-pin header

USB 3.0

1. ATX form factor baseboard for COM Express Rev. 2, Pin-out Type 6

2. Supports one PCIe x16, six PCIe x1 and two PCIe Mini

3. Supports smart battery charger

80 port

2 x 7 segment display

Front Panel

1 x Front panel connector (power LED, HDD LED, speaker/buzzer, power button, reset button)

I2C

1 x 4-pin wafer

SMBus

1 x 4-pin wafer

Watchdog Timer

Software programmable supports1~255 sec. system reset

GPIO

8-bit GPIO (GPIO from iwDD co-lay SDIO)

Power Supply

ATX/AT power supply

Battery

Supports smart battery charger connector

Fan Connector

1 x 4-pin / 1 x 3-pin CPU module fan connector

1 x 3-pin system fan connector by SIO

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

304.8 mm x 243.8 mm (12" x 9.6")

Packing List

1 x COM Express baseboard

1 x Dual-port RS232 cable (P/N: 19800-000051-RS)

2 x SATA cable (P/N: 32000-062800-RS)

1 x One Key Recovery CD

Ordering Information

Part No.

ICE-DB-T6-R10

19800-000082-RS

Description

SATA 6Gb/s

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Baseboard for COM Express Type 6 modules

RS-232/422/485 cable

32102-000100-200-RS SATA power cable

1-138

ICE-DB-T6-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

ICE-CV-

D25502

N26002

COM Express Rev 2.0 Basic/Compact Type 2 Modules, Intel®

Atom™ D2550 Processor, VGA/LVDS, PCI, GbE, SATA 3Gb/s,

USB and Audio, RoHS

Dual display by LVDS VGA

Intel®

NM10

D2550

/N2600

Full HD decode with support for Blu-ray logo

Intel® Atom™

N2600/D2550

Dual Core CPU

DX9 Graphics

DDR3 Memory

31nm

LVDS

VGA

Single-channel DDR3 1066/800 MHz

Specifications

Form Factor

PICMG COM Express R2.0 Type 2 for compact size

95 mm x 95 mm

10-layers

CPU

Intel® Atom™ N2600 dual-core processor 1.6 GHz (two 512KB L2 cache)

Intel® Atom™ D2550 dual-core processor 1.86 GHz (two 512KB L2 cache)

PCH

Intel® NM10

Memory

Intel® Atom™ N2600 dual-core processor 1.6 GHz/512 x 2 L2 cache (system max. 2GB)

Intel® Atom™ D2550 dual-core processor 1.86 GHz/512 x 2 L2 cache (system max. 4GB)

Supports 1.35V DDR3L

BIOS

UEFI BIOS

Graphics Engine

Intel® GMA 3650 Griphics core 640 MHz for D2550

Support for DX9,Blu Ray 2.0

MPEG2, h.264, VC-1, 1080p decode

Display Output

VGA integrated in Intel® N2600/D2550 (signal to baseboard)

1 x CRT

1 x 18/24-bit single-channel LVDS (N2600: 18-bit ; D2550: 24-bit)

Ethernet

Realtek RTL8111E-VL-CG GbE contorller

Co- lay RTL8111E-VB-GR

Embedded Controller iWDD (ITE)

USB

8 x USB 2.0 signal to base board

SATA

2 x SATA 3GB/s signal to base board

Audio

High Definition Audio interface interface to base board

GPIO

YES, to base board

SMBus

YES, to base board

I2C

YES, to base board

LPC

YES, to base board

SPI

YES, to base board

Serial port

2 serial ports to base board

Expansion

3 x PCIe x1 signal to base board

PCI

YES, to base board

Watchdog Timer

Software programmable support 1~255 sec. system reset (by EC)

Power Consumption

[email protected], Vcore [email protected]

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~95%, non-condensing

Dimensions

95 mm x 95 mm

Weight

GW: 600g / NW: 200g

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

Features

1. Intel® Atom™ N2600/D2550 processors supported

2. Intel® GMA integrates high-performance graphics and media processing

3. Support DDR3 & DDR3L (1.35V) 1066/800MHz, up to 4GB

4. 18/24-bit single-channel LVDS, analog CRT

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

SATA 3Gb/s

Packing List

1 x ICE-CV-N26002 Single Board Computer 1 x Heatspreader

1 x Heatsink 1 x Utility CD

1 x One Key Recovery CD 1 x QIG (Quick Installation Guide)

GbE

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

Ordering Information

Part No.

ICE-CV-D25502-R10

ICE-CV-N26002-R10

ICE-CV-N28002-R10

ICE-DB-9S-R10

Description

COM Express Rev 2.0 Basic/Compact Type 2 Module,Intel®

Atom™ D2550 Processor,VGA/LVDS, PCI, GbE, SATAII, USB and

Audio, RoHS

COM Express Rev 2.0 Basic/Compact Type 2 Module Intel®

Atom™ N2600 Processor, VGA/LVDS, PCI, GbE, SATAII, USB and

Audio, RoHS

COM Express Rev 2.0 Basic/Compact Type 2 Module Intel®

Atom™ N2800 Processor, VGA/LVDS, PCI, GbE, SATAII, USB and

Audio, RoHS (by project support, MOQ 100pcs / lot)

Baseboard for COM Express Type 2 modules

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

ICE-CV-D25502/N26002-2013-V10

1-139

Single Board Computer

Embedded Board

ICE-PV-N4551/D5251

COM Express Compact Type 2 Module, Intel® Atom™ N455/D525 Processor,

DDR3, VGA/LVDS, GbE, SATA, USB and audio, RoHS

w w w . i e i w o r l d . c o m

ICE-945GSE-R11

COM Express Basic Type 2 Module, Intel® Atom™ Processor, VGA/LVDS,

GbE, SATA, USB and Audio

DDR2 400/533 up to 2 GB

Intel® ICH7M

Intel® Atom™

Processor N270

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s GbE

Features

1. COM Express Type 2 module with compact size (95 mm x 95 mm)

2. Intel® Atom™ N455/D525 proccessor support

3. DDR3 800MHz SO-DIMM socket supports up to 2GB

4. Support eight USB 2.0, three SATA 3Gb/s and one IDE

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ N455 single-core processor

1.66GHz/512KB L2 cache

Intel® Atom™ D525 dual-core processor

1.8GHz/1MB L2 cache

System Chipset

Intel® ICH8M

BIOS

UEFI BIOS

Memory

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 4GB for D525)

One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (system max. 2GB for N455)

GMA

GMA 3150

Graphic core speed 400MHz for D525

Graphic core speed 200MHz for N455

Display Interface

Analog CRT (VGA) integrated in Intel® N455/

D525 (signal to baseboard)

18-bit single-channel LVDS signal

(to baseboard)

Ethernet

Intell® 82567V Gbe Ethernet PHY

Dimensions

(mm)

I/O Interface

1 x IDE channel (signal to baseboard)

3 x SATA 3Gb/s (to baseboard)

8 x USB 2.0 (to baseboard)

Expansions

5 x PCIe x1 signal to baseboard

4 x PCI, 32-bit/33MHz PCI bus to baseboard

Watchdog Timer

Software programmable supports 1~255 sec. system reset by F75111R

Power Supply

12V only, AT/ATX mode support

Power Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with

DDR3 1GB)

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

95mm x 95mm

Weight

GW: 600g/NW:200g

Intel® 82541PI GbE Intel® 945GSE

Intel

®

Atom™

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA GbE

Features

1. Intel® 45nm mobile Atom™ N270 processor supported

2. High-performance MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) supported

3. DDR2 800/667MHz dual-channel SD RAM supported (system max. 4 GB)

4. 18/24-bit dual-channel LVDS, analog CRT, HDTV supported

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ processor N270 1.6GHz with

533MHz FSB

System Chipset

Intel® 945GSE, Intel® 82801GBM/ICH7M

BIOS: AMI BIOS

System Memory

One 200-pin 533/400MHz DDR2 SO-DIMM supported (system max. 2GB)

Ethernet: One Intel® 82541PI GbE chipset

I/O Interface

8 x USB 2.0 (to baseboard)

2 x SATA (to baseboard)

1 x IDE channel (to baseboard)

Expansions

1 x SDVO signal to baseboard

4 x PCIe x1 signal to baseboard

4 x PCI , 32 bit/33 MHz PCI bus to baseboard

Dimensions

(Unit: mm)

Display Interface

VGA/HDTV integrated in Intel® 945GSE signal (to baseboard)

18-bit dual-channel LVDS Signal (to baseboard)

Watchdog Timer

Software programmable supports 1~255 sec. system reset (depend on super I/O of baseboard)

Power Supply

AT/ATX supported

Power Consumption

[email protected] (Intel® Atom™ processor N270 with 1GB

DDR2)

Operating Temperature

0°C ~ 60°C (ICE-945GSE-N270-R10)

-40°C ~ 85°C (ICE-945GSE-N270W2-R10)

-20°C ~ 70°C (ICE-945GSE-N270W-R10)

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 125 mm x 95 mm

Weight: GW: 700g/NW 250g

5

ORing

Network

Communication

6

Power Supply/

Peripherals

Packing List

1 x ICE-PV-N4551/D5251 single board computer

1 x Heat sink

1 x One Key Recovery CD

1 x Heat spreader

1 x Utility CD

1 x QIG

7

Panel

Solutions

Introduction

Ordering Information

Part No.

ICE-PV-D5251-R10

ICE-PV-N4551-R10

ICE-DB-9S-R10

Description

COM Express Compact Type 2 module, Intel® Atom™ D525 processor, DDR3, VGA/LVDS, GbE, SATA, USB and audio, RoHS

COM Express Compact Type 2 module, Intel® Atom™ N455 processor, DDR3, VGA/LVDS, GbE, SATA, USB and audio, RoHS

Baseboard for COM Express Type II modules

1-140

Packing List

1 x ICE-945GSE single board computer

1 x Heatspreader

1 x One Key Recovery CD

1 x Utility CD

1 x QIG

Ordering Information

Part No.

ICE-945GSE-N270-R11

Description

COM Express basic type 2 module with Intel® Atom™ processor

N270 1.6G, VGA/LVDS, GbE, USB, SATA and audio

ICE-945GSE-N270W-R11

ICE-DB-9S-R10

34000-000417-RS

COM Express basic type 2 module with Intel® Atom™ processor

N270 1.6G, VGA/LVDS, GbE, USB, SATA and audio, -20°C ~ 70°C

Baseboard for COM express Type 2 module

Heatsink for COM express module

ICE-PV-N4551/D5251-2013-V10

Single Board Computer

ICE-GM45A-R11

Embedded Board

COM Express Basic Type 2 Module, Intel® 45nm Core™ Duo Processor,

VGA/LVDS, GbE, SATA 3Gb/s, USB and Audio

w w w . i e i w o r l d . c o m

ICE-DB-9S

Baseboard for COM Express Type 2 Module

CF Type II

IDE

FDD

4 x SATA

Express card Mini PCI

Dual-channel

LVDS

PCIe x1

PCIe Mini card

FSB

1066

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s PCIe GbE

Features

1. Intel® 45nm mobile Core™ Duo processor supported

2. High-performance MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) supported

3. DDR2 800/667MHz dual-channel SD RAM supported (system max. 4 GB)

4. 18/24-bit dual-channel LVDS, analog CRT, HDTV supported

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Socket P Intel® Core™ Duo processor with

1066/800 MHz FSB

Socket P Intel® Celeron® M processor with 667

MHz FSB

System Chipset: Intel® GM45/ICH9-M

BIOS: AMI BIOS

System Memory

Two 200-pin 800/667MHz DDR2 SO-DIMM support (system max. 4 GB)

Ethernet

One Intel® 82574L PCIe GbE chipset

I/O Interface

8 x USB 2.0 (to baseboard)

4 x SATA 3Gb/s (to baseboard)

Audio

HD Audio signal to baseboard

(audio codec on baseboard)

Watchdog Timer

Software programmable supports 1~255 sec. system reset (depend on super I/O of baseboard)

Dimensions

(Unit: mm)

Expansions

1 x PCIe x16 or 2 x SDVO signal to baseboard

5 x PCIe x1 signal to baseboard

4 x PCI, 32-bit/33 MHz PCI bus to baseboard

Display Interface

VGA/HDTV integrated in Intel® GM45 signal

(to baseboard)

18/24-bit dual-channel LVDS signal

(to baseboard)

Power Supply

AT/ATX supported

Power Consumption

[email protected] (Intel® Core™2 Duo processor

P8600 2.4 GHz with 1 GB DDR2)

Operating Temperature

0°C ~ 60°C (32°F~140°F)

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 125 mm x 95 mm

Weight: GW: 700g/NW 250g

COM Express

Type II Module

4 x COM

RS-232/422/485

3 x PCI

Three PCIe x1

LPT GbE

AII expansion slots and I/O interfaces are supported by

CPU module

Features

KB/MS

COM

VGA Audio

4 x USB 2.0

1. ATX form factor baseboard for COM Express Type 2 module

2. Support one PCIe x16, four PCIe x1, three PCI for expansions

3. Second I/O interface supports up to six COM ports

4. COM2/COM3 with 5V/12V power by jumper selection

Specifications

CPU Module Interface

Supports COM Express Compact/Basic module using connector pinout Type 2

Display Interface

VGA DB-15 connector

18/24-bit dual-channel LVDS

TV-out interface

Expansions

1 x PCIe x16

1 x Mini PCI

4 x PCIe x1

1 x PCIe Mini card

3 x PCI, 32-bit/33 MHz PCI bus

1 x Express Card

I/O Interface

1 x IDE

1 x FDD

1 x LPT

4 x SATA/SATA 3Gb/s

1 x CF Type II

1 x RS-232/422/485

2 x PS/2 KB/MS 6 x USB 2.0

5 x RS-232 (COM2/COM3 with 5V/12V power)

Ethernet Connector

1 x RJ-45 connector for GbE

Dimensions

(Unit: mm)

PCIe x16

Audio

Realtek ALC888 for 7.1 channels HD Audio

1 x Mic-in, Lin-in, Lin-out connector

1 x Front audio

Super I/O

First Super I/O: Winbond W83627EHG

Sencond Super I/O: Fintek F81216

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output by Winbond

W83627EHG

8-bit digital I/O, 4-bit input/4-bit output by Fintek

F75111R

Infrared Interface

1 x Infrared interface by pin header

Power Supply: ATX/AT support

Fan

3 x Fan connector (FAN1 supports smart fan for CPU)

Operating Temperature: 0°C ~ 60°C (32°F~140°F)

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 304.8 mm x 243.8 mm (12” x 9.6”)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Packing List

1 x ICE-GM45A single board computer

1 x Heatspreader for CPU (45nm)

1 x Cooler

1 x One Key Recovery CD

1 x Utility CD

1 x QIG

Ordering Information

Part No.

ICE-GM45A-R11

ICE-DB-9S-R10

34000-000256-RS

Description

COM Express basic Type 2 module, Intel® 45nm Core™ Duo processor, VGA/LVDS, GbE, SATA 3Gb/s, USB and audio

Baseboard for COM Express Type 2 module

Heatspreader for socket P merom CPU (65nm)

Packing List

1 x COM Express baseboard

1 x Dual ports RS-232 cable (P/N: 19800-000051-RS)

2 x SATA cable (P/N: 32801-000703-200-RS)

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

ICE-DB-9S-R10

19800-000082-RS

32102-000100-200-RS

32200-000052-RS

32229-000100-100-RS

19800-000400-100-RS

ICE-GM45A-2013-V10

Description

Baseboard for COM Express Type 2 modules

RS-232/422/485 cable

SATA power cable

40-pin 3.5" IDE cable

FDD cable

LPT cable

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-141

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

Q7 Introduction

● The Qseven™ concept is an off-the-shelf, multi vendor, Single Board

Computer that integrates all the core components of a common PC and is mounted onto an application specific carrier board.

● Qseven™ modules have a standardized form factor of 70mm x 70mm and have specified pinouts based on the high speed MXM system connector that has a standardized pinout regardless of the vendor.

● The Qseven™ module provides the functional requirements for an embedded application. These functions include, but are not limited to, graphics, sound, mass storage, network and multiple USB ports. A singleruggedized MXM connector provides the carrier board interface to carry all the I/O signals to and from the Qseven™ module.

Q7

Module

70mm

6.7W

70mm

MXM Connector

1

Industrial

Computing

Soluations

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

● 4 x PCI Express x1 Lanes

● DisplayPort, TDMS or SDVO

Interface

● 8 x USB 2.0

● ExpressCard

● High Definition Digital Audio

● 2 x Serial ATA

● LPC interface

● Secure Digital I/O interface

● Gigabit Ethernet

● 2 x 24-bit LVDS Display Interface

1. PCI Express

2. USB 2.0

3. Express Card

4. SATA

5. SDIO

6. Audio

7. Display Port

8. HDMI

9. GbE

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

Embedded Intel® Atom™ Processor

Power Consumption Comparison

Power Consumption

Pin Definition of Q7

Qseven offers the newest I/O technologies on this minimum size form factor. This includes serial high speed buses such as:

H.264 Graphic Performance

CPU Loading with H/W Acceleration

SW: Power DVD V8.0/Video type: H.264 DVD 1080P video file

CPU Z530/1.6G

Z510/1.1G

ATOM N270

CPU Loading (With H/W acceleration) 20%~30% smoothly 60%~80% Laggard Not Support

Benefits of Q7

● Compact size, cost-efficient and low-power consumption (TDP 12W)

● Legacy free and fast serial interface

Platform

Size

Connector

Memory

VGA

LCD

Expansion

Ethernet

USB

SATA

IDE

Audio

Power

ETX/COM Express/Q7 Comparison Table

ETX 3.0

95 x 114 mm

COM Express Type II

Basic Module

95 x 125 mm

Q7

70 x 70 mm

4 x 100-pin

1 x SO-DIMM

Yes

TTL or LVDS

PCI & ISA

10/100 Mbps

2 x 220-pin

1 x SO-DIMM

Yes

Up to 2 x single LVDS or Dual-channel LVDS

PCI & PCI Express

10/100/1000 Mbps

1 x 230-pin on board memory

N/A

SDVO/HDMI/DP

(Shared)

PCI Express

10/100/1000Mbps

4

2 (ETX 3.0 only)

2CH

Mic-In/Lin-in/Lin-Out

5V

8 up to 4 SATA

1CH

AC97/HD interface

12V

8 up to 2 SATA

N/A

HD interface

5V

iQ7-US15W Supported Video Codecs

IEI Q7 module – iQ7-US15W with Intel® US15W chipset graphic video codecs support table

Codec

H.264

H.264

Profile @

Level

[email protected]

[email protected]

H.264

[email protected]

VC-1 (WMV9) [email protected]

Max Bit

Rate (bps) Resolution and Frame Rate

10M

50M

50M

384K

720 x 480 @ 30fps (NTSC), 720 x 576 @ 25fps (PAL)

1920 x 1080 @ 30fps, 1280 x 720 @ 60fps

1920 x 1080 @ 30fps, 1280 x 720 @ 60fps

240 x 176 @ 30fps, 352 x 288 @ 15fps (CIF)

VC-1 (WMV9) [email protected] 20M

VC-1 (WMV9) [email protected]

MPEG-4 Part 2 [email protected]

MPEG-4 Part 2 [email protected]

45M

384K

8M

1920 x 1080 @ 30fps

1920 x 1080p @ 24fps, 1920 x 1080i @ 30,

1280 x 720p @ 60

CIF @ 30fps

720 x 480 @ 30fps (NTSC),

720 x 576 @ 25fps (PAL)

DivX

MPEG-2

MPEG-1

JPEG

Certified HD 4M

[email protected] 80M

CPB

Baseline

1.856M

N/A

1280 x 720 @ 30fps

1920 x 1080 @ 30fps

768 x 576 @ 30fps

Not restricted

LVDS-VGA-R10

36.07mm

Single-channel LVDS to VGA

Converter Board

• Provide 2nd VGA option for dual VGA display

• Resolution adjust by BIOS: Support

640x480, 800x600, 1024x768

• 18-bit LVDS to VGA Converter board

12.50mm

Packing List

32.51mm

1 x LVDS to VGA Converter board

1 x QIG

Ordering Information

Part No.

LVDS-VGA-R10

32600-112300-RS

32600-114400-RS

Description

18-bit LVDS to VGA converter board

30-pin LVDS connecting cable

20-pin LVDS connecting cable

1-142

Q7 Introduction-2013-V10

Single Board Computer iQ7-US15W

Q7 CPU module with Intel® Atom™ processor Z510/530

On-board memory

Embedded Board iQ7-DB-MITX

Baseboard for Q7 modules

IDE to SATA

IDE

Client USB

SD slot

LVDS

CF Type II

IDE

Intel® Atom™ processor

Z510/Z530

US15W

Solder Side

IDE interface

3 x RS-232

2 x SATA

PCIe Mini card slot

w w w . i e i w o r l d . c o m

LPT Dual GbE

● 2 x PCI Express x1 ● 8 x USB 2.0, 1 x SDIO

● 1 x SDVO, 1 x 24bit LVDS ● LPC Bus

Winbond W83L784G supports H/W monitoring

On-board memory

Features

Fanless

1. Intel® Atom™ processor Z510/Z530 low power CPU with single 5V low power design

2. High graphic performance supports H.264, MPEG1/2/4, VC1/WMV9 high-definition decode

3. Single-channel 24-bit LVDS supported

4. On-board memory 1GB supported

5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ processor Z530 1.6GHz with a

533MHz FSB

Intel® Atom™ processor Z510 1.1GHz with a

400MHz FSB

System Chipset

Intel® US15W

BIOS

AMI BIOS

System Memory

On-board 1GB DDR2 SDRAM supported

I/O Interface

8 x USB 2.0 (to baseboard)

1 x IDE (on CPU module)

1 x LPC bus (to baseboard)

1 x Single-channel 18/24-bit LVDS (to baseboard)

1 x SDIO (to baseboard)

1 x SDVO (to baseboard)

1 x SMBUS (to baseboard)

Expansion

2x PCIe x1 (to baseboard)

Audio

1 x HD Audio interface (to baseboard)

HW Monitor

Winbond W83L784G

Display Interface

Intel® Graphics Media Accelerator 500

SDVO/single-channel 24-bit LVDS Integrated in Intel® US15W (to baseboard)

Max Display Resolution:

LVDS: 1366x768 (24-bit color)

SDVO: 1280 x 1024

Watchdog Timer

Software programmable supports 1~255sec. system rest by Winbond W83L784G

Power Supply

5V only AT/ATX supported

Power Consumption

[email protected] (Intel® Atom™ Z530 1.6GHz with

1GB DDR2)

[email protected] (Intel® Atom™ Z510 1.1GHz with 1GB DDR2)

Operating Temperature

0°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

70 mm x 70 mm

Weight

GW: 600g/NW: 100g

Dimensions

(mm)

5.00

15.00

KB/MS COM VGA 4 x USB Audio

TTL

CERTIFIED

Hi-Speed

USB

Features

USB

1. Mini-ITX form factor baseboard for Q7 platform

2. Support audio, SD slot, IDE, CF Type II, single-channel LVDS, TTL

3. Support six USB, four COM, two SATA

4. Support PCIe x1 slot, one PCIe Mini card

SATA

Specifications

Display Interface

VGA DB15 connector (SDVO to VGA by Chrontel

CH7317B)

18/24-bit single-channel LVDS

TTL (LVDS to TTL by TI SN75LVDS) (Option)

Expansion Slot

1 x PCIe Mini card slot shared with LAN1

(selected by switch: SW3)

1 x PCIe x1 slot shared with LAN2

(selected by switch: SW3)

I/O Interface

2 x SATA/SATA 3Gb/s with 5V/12V power output

(not support by iQ7-US15W)

1 x IDE (IDE signal support from iQ7-US15W)

1 x CF Type II (signal support from iQ7-US15W)

1 x SATA with 5V/12V power output

(IDE to SATA Bridge: Jmicron JM20330 Signal support from iQ7-US15W)

1 x SD Slot

6 x USB 2.0

2 x PS2 KB/MS

1 x USB Client

4 x RS-232 1 x LPT

Audio

Realtek ALC883 for 7.1 channels HD Audio

1 x Mic-in, Line-out connector

Dimensions

(mm)

GbE

Ethernet Connector

2 x Realtek RTL8111CP GbE chipsets

LAN1 shared with PCIe Mini card slot

(selected by switch: SW3)

LAN2 shared with PCIe x1 Slot (selected by switch: SW3)

Super I/O

SMSC SCH3114-NU

Digital I/O

8-bit digital I/O, 4-bit input/4-bit output by

SMSC SCH3114-NU

Infrared Interface

N/A

Power Supply

ATX Power, ATX/AT Mode Support

Operating Temperature

0°C ~ 60°C (32°F~140°F)

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

170 mm x 170 mm

Weight

GW: 700g/NW: 350g

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

Packing List

1 x Q7 CPU module

1 x 50mm 1.8" IDE HDD FFC cable (P/N: 32400-029002-RS)

1 x Heatsink 1 x Utility CD

1 x One Key Recovery CD 1 x QIG

Ordering Information

Part No.

iQ7-US15W-Z510-R10 iQ7-US15W-Z530-R10 iQ7-DB-MITX-R10

32400-307900-RS

Description

Q7 module with Intel® Atom™ Z510 1.1GHz, SDVO/LVDS,

USB, SD, IDE, on board 1GB memory

Q7 module with Intel® Atom™ Z530 1.6GHz, SDVO/LVDS,

USB, SD, IDE, on board 1GB memory

Mini-ITX form factor baseboard for Q7 module, RoHS

15cm 1.8" IDE FFC cable

Packing List

1 x Mini-ITX form factor baseboard for Q7 module

1 x One Key Recovery CD 1 x QIG

Ordering Information

Part No.

iQ7-DB-MITX-R10

19800-000051-RS

19800-000047-RS

32400-029000-RS

32400-029002-RS

Description

Mini-ITX form factor baseboard for Q7 module

Dual RS-232 cable

Single RS-232 cable

15cm IDE FFC cable from Q7 module to baseboard

5cm IDE FFC cable from Q7 module to baseboard

iQ7-US15W-2013-V10

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

1-143

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

MPCIE-3G-R10

PCI Express Mini 3G adapter card, RoHS

Features

1. Real time clock: Timer functions via AT commands

2. Phonebook: SIM and phone

3. TTY/CTM support: Integrated CTM modem

Specifications

Form Factor

PCI Express Mini card

Antenna 50Ohms. Main GSM/UMTS antenna

USB

USB 2.0 High Speed (480Mbit/s) device interface, Full Speed (12Mbit/s)

Compatible OS

Windows® XP/Vista/7/8

Linux kernel version 2.4.31 above

Packing List

1 x PCI Express Mini 3G adapter card

Operating Temperature

Normal operation: -30°C to +85°C

Restricted operation: -40°C to +95°C

Dimensions (W x D x H)

50.95 mm x 30 mm x 4.75 mm

Ordering Information

Part No.

MPCIE-3G-R10

32501-001000-200-RS

32503-000100-100-RS

Description

PCI Express Mini 3G adapter card, RoHS

RF Antenna cable

GSM Antenna cable

1

Industrial

Computing

Soluations

MPCIE-LAN-R10

PCI Express Mini GbE LAN module, Full size, RoHs

2

Video

Capture

Solutions

Features

1. Support one GbE LAN by RTL8111E

2. Compliant with PCI Express Mini Card specification 1.2

Dimensions

(mm)

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

Form Factor

PCI Express mini card

Display Controller IC

Realtek RTL8111E

Speed

10/100/1000Mbps

External Connector

1 x 8-pin RJ-45

Power Supply

On board 3.3V

Compitable OS

Windows 2000/ XP/ Server 2003/ Server 2008/ Vista/ 7

Linux kernel version 2.6.32 above

Operating Temperature

-10°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions (LxW)

51 mm x 30 mm

Weight

70g

Packing List

1 x MPCIE-LAN module

1 x Flat Cable (Pitch=1.25mm), 340mm length

1 x QIG

Ordering Information

Part No.

Description

MPCIE-LAN-R10 PCI Express Mini GbE LAN module, Full size, RoHs

1-144

MPCIE-3G-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

Wireless LAN Module

WIFI-RT5392-SB-R10

Features

1. Half-size PCIe Mini card

2. 2.4GHz 802.11b/g/n supports 2Tx/2Rx 2-stream MIMO to enable data rates up to 300Mbps for a 40MHz channel.

3. 20MHz/40MHz bandwidth

4. Solid design with external antenna diversity

5. Low power consumption and high performance

6. Supports 802.11x authentication, WEP 64/128, WPA,

WPA2, TKIP, AES, WAPI encryption

7. Supported operating systems: Windows® XP, CE6.0,

XPE, 2000, Vista 32/64, Windows® 7 32/64, Linux, MAC

Model

Standards

Rate

Interface

Controller Chip

Connectors

Security

Frequency Range

Modulation Type

Supported OS

Receiver Sensitivity

Power Consumption

Temperature

Humidity

Dimensions (W x D x H)

Weight

Safety & EMC

WIFI-RT5392-SB-R10

IEEE 802.11b/g/n, Wi-Fi compliant

300 Mbps PHY rate in 2T2R mode

PCIe Mini card

Ralink RT5392

2 x U.FL (I-PEX) antenna connectors

WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

2.4GHz

802.11b (DSSS): CCK, DQPSK, DBPSK

802.11g (OFDM): BPSK, QPSK, 16-QAM, 64-QAM

802.11n (OFDM): BPSK, QPSK, 16-QAM, 64-QAM

Windows® XP, CE6.0, XPE, 2000, Vista 32/64, Windows® 7

32/64, Linux, MAC

802.11b: -84dBm (Typical) at 11 Mbps

802.11g: -71dBm (Typical) at 54 Mbps

802.11n: -71dBm (Typical) at 300 Mbps

[email protected] in continuous Tx

[email protected] in continuous Rx

Operating: -10°C ~ 70°C Storage: -40°C ~ 150°C

Operating: 10% ~ 90%, non-condensing

Storage: 5% ~ 95%, non-condensing

28 mm x 30 mm x 4 mm

NW: 11g

CE/FCC

Ordering Information

Part No.

Description

WIFI-RT5392-SB-R10 Wi-Fi module with RT5392 single chip, 2T2R, single band, RoHS

WIFI-RT3593-DB-R10 Wi-Fi module with RT3593 single chip, 3T3R, dual band, RoHS

WMUSB-V01-R20

USB embedded module with VIA wireless LAN module

Features

1. IEEE 802.11b DSSS/IEEE 802.11g OFDM high rate compatible

2. USB embedded module

3. Supports RF On/Off mechanism

4. Supports an external or internal LED indicator

5. WEA/WAP support

Model

Standards

Interface

Controller Chip

Connectors

Security

Frequency Range

Modulation Type

Supported OS

Receiver Sensitivity

Power Consumption

Temperature

Humidity

Dimensions

Weight

Compliance

Certifications

WMUSB-V01-R20

IEEE 802.11 b/g

USB 1.1/2.0 interface

VIA VT6656

2 x U.FL (I-PEX) antenna connectors

Supports WEP, WPA 1.0/2.0

2.4 ~ 2.5GHz

802.11b : DQPSK, DBPSK, DSSS and CCK

802.11g : BPSK, QPSK, 16QAM, 64QAM, OFDM

Windows® 98SE/ME/2000/XP

802.11b (8% PER) -83 dBm (Typical) at 11Mpbs

802.11g (10% PER) -68 dBm (Typical) at 54Mpbs

382 [email protected] 5V Tx mode/High speed

305 [email protected] 5V Rx mode/High speed operation: 0°C ~ 60°C operation: 10% ~ 90%, non-condensing

60 mm x 25 mm

NW: 8 g

FCC, CE

Ordering Information

Part No.

Description

WMPCIE-V01-R30 802.11 b+g PCIe Mini card wireless LAN module with Ralink

WMUSB-V01-R20 802.11 b+g USB embedded module with VIA VT6656

32500-000500-RS 2 dBi 109mm antenna

WIFI-RT3593-DB-R10

Features

1. Half-size PCIe Mini card

2. Dual band 802.11a/b/g/n supports 3Tx/3Rx 3-stream MIMO to enable data rates up to 450Mbps for a 40MHz channel.

3. 20MHz/40MHz bandwidth

4. Solid design with external antenna diversity

5. Low power consumption with advanced power management

6. Supports 802.11x authentication, WEP 64/128, WPA, WPA2,

WAPI encryption.

7. Supported operating systems: Windows® XP, CE6.0, XPE,

2000, ME, 98SE, Vista 32/64, Windows® 7 32/64, Linux, MAC

WIFI-RT3593-DB-R10

IEEE 802.11a/b/g/n, Wi-Fi compliant

450 Mbps PHY rate in 3T3R mode

PCIe Mini card

Ralink RT3593

3 x U.FL (I-PEX) antenna connectors

WEP 64/128, WPA, WPA2, WAPI

2.4/5GHz

802.11a (OFDM)

802.11b (DSSS): CCK, DQPSK, DBPSK

802.11g (OFDM): BPSK, QPSK, 16-QAM, 64-QAM

802.11n (OFDM): BPSK, QPSK, 16-QAM, 64-QAM

Windows® XP, CE6.0, XPE, 2000, ME, 98SE, Vista 32/64, Windows® 7 32/64, MAC

802.11a: -71dBm (Typical) at 54 Mbps

802.11b: -80dBm (Typical) at 11 Mbps

802.11g: -73dBm (Typical) at 54 Mbps

802.11n: -71dBm (Typical) at 450 Mbps

[email protected] in continuous Tx

[email protected] in continuous Rx

Operating: -10°C ~ 70°C Storage: -40°C ~ 150°C

Operating: 10% ~ 90%, non-condensing

Storage: 5% ~ 95%, non-condensing

28 mm x 30 mm x 4 mm

NW: 11g

CE/FCC

Part No.

32501-000200-100-RS

32505-000900-100-RS

Description

Antenna; RF cable; outside diameter: 1.13mm; L=128mm; 0-6

GHz; (A)reverse sma jack, nut *1+washer *2; (B)I-PEX; RoHS

External antenna; WLAN; RG 178; 108mm; TANK-700-

QM67-R10; PEAK GAIN 2.0DBI; Exceltek; 2.4-2.5 GHz/5.15-5.85

GHz; reverse SMA plug; RoHS

WMPCIE-V01-R30

PCIe Mini card wireless LAN module

Features

1. PCIe Mini card form factor

2. High speed wireless connection to 54Mbps

3. Solid design with external antenna diversity

4. Low power consumption and high performance

5. Enhanced wireless security

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

WMPCIE-V01-R30

IEEE 802.11 b/g/n

PCIe Mini card

Ralink

2 x U.FL (I-PEX) antenna connectors

64/128-bit WEP, WPA, WPA2, TKIP, AES

2.412-2.472 GHz

IEEE 802.11b (DSSS): CCK, DQPSK, DBPSK

802.11g (OFDM): BPSK, QPSK, 16-QAM, 64-QAM

Windows® 2000/XP/Vista

802.11g: -72 dBm (Typical) at 54 Mbps

802.11b: -88 dBm (Tpyical) at 11 Mbps

[email protected] in continue Tx

[email protected] in continue Rx

Operation: 5°C to 55°C Storage: -20°C to 70°C

Operation: 10% ~ 90% (non-condensing) Storage: 5% ~ 90% (non-condensing)

510 mm x 30 mm

NW: 5 g

FCC

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Part No.

Description

32500-001900-RS RF cable; 300MM; 28AWG; (A) SMA connector; (B) MHF20278-11R-13; ROHS

32000-102500-RS USB cable, 2x4pin 2.0mm to JST SHR-06V 1.00mm, L: 150mm

32500-001000-RS 5 dBi 173mm antenna

1-145

Wireless LAN Module-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

IEI Trusted Platform Module (TPM)

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.

H/W Features Comparison

Features

Secure Startup

Anti H/W Attack

TSS API Support

H/W Certification

Solution

Infineon

SLB9635 TT1.2

Root of Trust Measurement of early boot devices

Sensors and active shield

MS-CAPI/PKCS#11, #12

IEI SBC with TPM support

Form factor Model name

ATX

IMBA-H610

IMBA-C2060

IMBA-Q670

IMBA-G410

IMBA-G412ISA

IMBA-XQ354

IMBA-9454G

IMB-Q770

microATX

5.25" SBC

EPIC

IMB-C2016

IMB-H610

IMB-H612

IMB-C2060

IMB-Q670

IMB-Q354

IMB-9454

NOVA-PV

NOVA945GSE

NANO-QM871

NANO-QM770

NANO-HM650

Form factor

Mimi-ITX

PICMG1.3 SBC

PICMG1.0 SBC

NANO-HM551

Half-size SBC

Model name

KINO-AQ870

KINO-DQM810

KINO-QM770

KINO-AQ670

KINO-DH610

KINO-AH611

KINO-AH612

KINO-PV-D5253

KINO-QM670

KINO-HM551

SPCIE-C2160

SPCIE-C2060

PCIE-H610

PCIE-Q670

PCIE-Q350

PCIE-9652

WSB-H610

WSB-PV

WSB-Q354

WSB-9452

PICOe-B650

PICOe-HM650

Management Tool Function

Market Segment

TCG Specification

Interface

Software Structure

Cryptographic Accelerator

Ordering Information

Model Name Description

1. TPM management

2. File & Folder En/De-cryption

3. Personal secure drive

4. Secure Email

5. Key transferring

6. Security policy configuration

Complete TPM1.2 function

TCG 1.2 compliance trusted platform module

Low pin count

TCG software stack 1.2 complaint

HAS-1/RSA algorithm

TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17

Pin Assignment

1

TPM OS Supported List

OS

Supported Infineon

Linux

20

Fedora 6

(Kemel 2.6.8 or above)

6

7

4

5

Pin

1

2

3

8

9

10

Singnal

LCLK

GND

LFRAME#

KEYWAY

LRST#

VCC5

LAD3#

LAD2#

VCC3

LAD1#

14

15

16

17

Pin

11

12

13

18

19

20

Singnal

LAD0#

GND

SCL

SDA

SB3V

SERIRQ

GND

CLKRUN#

LPCPD#

LDRQ#

MPCIE-USB3

PCIe Mini USB 3.0 adapter card, RoHs

3

Embedded

Computing

Solutions

IEI USB 3.0 Expanded Solution

The MPCIE is applied to add additional super speed USB 3.0 ports for the motherboard with a PCIe Mini slot.

Motherboard with

PCIe Mini Slot

4

Automation

Control

ASM1042

Power adapter cable

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Specifications

Form Factor

PCI Express Mini card

USB 3.0 Controller

Asmedia ASM1042

Internal Connector

1 x 20-pin (2x10) box header

Power Jack

1 x 4-pin box header

Compatible OS

Windows® 2000/XP/Server 2003/Server 2008/Vista/7

Linux kernel version 2.6.32 above

Packing List

USB 3.0 cable

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions (LxW)

50 mm x 30 mm

Weight

70g

1 x MPCIE-USB3 PCIe Mini USB 3.0 adapter card

1 x Dual USB 3.0 type A port cable with bracket (P/N: 19800-010500-100-RS)

1 x Power cable (P/N: 32102-020900-100-RS) 1 x QIG

Ordering Information

Part No.

MPCIE-USB3-R10

19800-010500-100-RS

Description

PCIe Mini USB 3.0 adapter card, RoHs

Dual USB 3.0 type A port cable with bracket

MPCIE-USB3

5V

Power Input

Two USB 3.0 Ports

Features

1. Supports two external USB 3.0 type A ports

2. USB 3.0 provides up to 5Gbps of transferring rate

3. Backward compatible with USB 2.0 and USB 1.0/1.1 devices

4. Fully compliant with USB 3.0 rev 1.0 specifications and Intel® xHCI rev 0.96 specifications, with transfer rates up to 5Gbps

5. Compliant with PCI Express Mini specification 1.2

Dimensions

(mm)

1-146

MPCIE-USB3-2013-V10

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

SATA to CF Type II Converter Board

SACF-KIT01-R10

SATA to CF converter board

Features

1. CF Type ll socket

2. 50-pin CF Type II connector

32801-000100-100-RS

Packing List

1 x SACF-KIT01-R10 1 x QIG

1 x SATA with power cable kit (P/N: 32801-000100-100-RS)

Ordering Information

Part No.

SACF-KIT01-R10

45015-000400-RS

Description

SATA to 50-pin CF socket converter board

CF Type II cover with right side ejector

SATA to IDE/CF Type II Converter Board

SAIDE-KIT01-R10

SATA to IDE/CF converter board

Features

1. CF Type II socket

2. 40-pin IDE connector (master mode)

3. 4-pin 5V input connector

4. Power/5V/HDD LED indicator

5. Support one IDE device or one CF

60.02

32.51

4.5

32100-064401-RS

CF1

Packing List

1 x SAIDE-KIT01-R10 1 x QIG

1 x Power cable (P/N: 32100-171800-RS)

IDE2

Ordering Information

Part No.

SAIDE-KIT01-R10

32801-000703-200-RS

32102-000100-200-RS

32100-064401-RS

Description

SATA to 40-pin IDE/CF socket converter board with bracket

SATA cable

SATA power cable

Power cable

36.91

3.97

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

IDE/CF Type II Converter Board

CF-KIT04-R10

IDE to CF Type II converter board with master/slave mode selection

Features

1. CF Type II socket with master/slave mode selection

2. 4-pin power connector

3. Power/HDD signal LED

IEI CF Solution

5

ORing

Network

Communication

6

Power Supply/

Peripherals iCF1000 Industrial standard grade iCF1000 Wide

Temp. grade

7

Panel

Solutions

Introduction

1-147

SACF-KIT01-2013-V10

Single Board Computer

DP-HDMI-R10

Embedded Board

DisplayPort to HDMI converter board (For iEi IDP connector), RoHs

Dimensions

(Unit: mm)

w w w . i e i w o r l d . c o m

DP-LVDS-R10

DisplayPort to 24-bit dual channel LVDS converter board

(For iEi IDP connector), RoHs

Dimensions

(Unit: mm)

Features

DisplayPort to HDMI output

Support up to 1920x1200 resolution

Specifications

Display Input: 1 x iEi DisplayPort

Display Output: 1 x HDMI

Display IC: Parade - PS161 (DP to HDMI / DVI)

Temperature: -10°C ~ 60°C

Humidity: 5% ~ 95 non-condensing

Dimensions: 50 mm x 50 mm

Packing List

1 x DP-HDMI converte board 1 x QIG

1 x Internal DisplayPort cable, 450 mm length (PN: 32034-000200-100-RS)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

Ordering Information

Part No.

DP-HDMI-R10

Description

DisplayPort to HDMI converter board (For iEi IDP connector), RoHs

DP-VGA-R10

DisplayPort to VGA converter board (For iEi IDP connector), RoHs

3

Embedded

Computing

Solutions

Dimensions

(Unit: mm)

4

Automation

Control

Features

DisplayPort to LVDS output

Supports 24 bit dual channel up to 1920x1200

Specifications

Display Input: 1 x iEi DisplayPort

Display Output: 1 x LVDS 24-bit dual channel

Display IC: Chrontel - CH7511B (DP to LVDS)

Temperature: -10°C ~ 60°C

Humidity: 5% ~ 95 non-condensing

Dimensions: 60 mm x 50 mm

Packing List

1 x DP-LVDS convertor board 1 x QIG

1 x Internal DisplayPort cable, 450 mm length (PN: 32034-000200-100-RS)

Ordering Information

Part No.

DP-LVDS-R10

Description

DisplayPort to 24 bit dual channel LVDS converter board

(For iEi IDP connector), RoHs

DP-DVI-R10

DisplayPort to DVI converter board (For iEi IDP connector), RoHs

Dimensions

(Unit: mm)

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

Features

DisplayPort to VGA output

Support up to 1920x1200 resolution

Specifications

Display Input: 1 x iEi DisplayPort

Display Output: 1 x VGA

Display IC: NXP - PTN3392 ( DP to VGA )

Temperature: -10°C ~ 60°C

Humidity: 5% ~ 95 non-condensing

Dimensions: 50 mm x 50 mm

Packing List

1 x DP-VGA convertor board 1 x QIG

1 x Internal displayport cable, 450 mm length (PN: 32034-000200-100-RS)

Ordering Information

Part No.

DP-VGA-R10

Description

DisplayPort to VGA converter board (For iEi IDP connector), RoHs

1-148

DP-HDMI-2013-V10

Features

DisplayPort to DVI output

Support up to 1920x1200 resolution

Specifications

Display Input: 1 x iEi DisplayPort

Display Output: 1 x DVI

Display IC: Parade - PS161 (DP to HDMI / DVI)

Temperature: -10°C ~ 60°C

Humidity: 5% ~ 95 non-condensing

Dimensions: 50 mm x 50 mm

Packing List

1 x DP-DVI converter board 1 x QIG

1 x Internal DisplayPort cable, 450 mm length (PN: 32034-000200-100-RS)

Ordering Information

Part No.

DP-DVI-R10

Description

DisplayPort to DVI converter board (For iEi IDP connector), RoHs

Single Board Computer

LVDS-DVI

Embedded Board

18-bit LVDS to DVI converter board, resolution support up to 1366x768

(Support IEI Model Only)

w w w . i e i w o r l d . c o m

LVDS-VGA02

18-bit LVDS to VGA converter board, resolution support up to 1366x768

(Support IEI Model Only)

Dimensions

(Unit: mm)

Features

Provide DVI option for dual display output

Resolution supported: 1366x768,

1024x768, 800x600, 640x480

18 or 24-bit LVDS to DVI converter board

Supported Models

WSB-PV-D5251

KINO-PV-D5252

NANO-PV-D5252

PICOe-PV-D5251

NOVA-PV-D5251

WAFER-PV-D5252

Packing List

1 x LVDS to DVI converter board

1 x SMBus cable 1 x QIG

PCISA-PV-D5251

NANO-PV-D5251

Ordering Information

LVDS-DVI-R10

32602-012200-100-RS

32602-012300-100-RS

18/24-bit LVDS to DVI converter board

20-pin to 30-pin LVDS connecting cable for WAFER-PV-D5252 only

20-pin to 20-pin LVDS connecting cable

LVDS-VGA-R10

Single-channel LVDS to VGA converter board (Support IEI Model Only)

Dimensions

(Unit: mm)

Features

Provide VGA option for dual VGA display output

Resolution supported: 1366x768,

1024x768, 800x600, 640x480

18 or 24-bit LVDS to VGA converter board

Supported Models

WSB-PV-D5251

KINO-PV-D5252

NANO-PV-D5252

PICOe-PV-D5251

NOVA-PV-D5251

WAFER-PV-D5252

Packing List

1 x LVDS to VGA converter board

1 x SMBus cable 1 x QIG

PCISA-PV-D5251

NANO-PV-D5251

Ordering Information

LVDS-VGA02-R10

32602-012200-100-RS

32602-012300-100-RS

18/24-bit LVDS to VGA converter board

20-pin to 30-pin LVDS connecting cable for WAFER-PV-D5252 only

20-pin to 20-pin LVDS connecting cable

LVDS24-01

18-bit to 24-bit LVDS converter board

24-bit dual-channel output

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

Dimensions

(Unit: mm)

3

Embedded

Computing

Solutions

36.07mm

12.50mm

4

Automation

Control

32.51mm

Features

Provide 2nd VGA option for dual VGA display

Resolution adjust by BIOS: Support

1024x768, 800x600, 640x480

18-bit LVDS to VGA converter board

Dimensions

(Unit: mm)

Packing List

1 x LVDS to VGA converter board

1 x QIG

Ordering Information

Part No.

Description

LVDS-VGA-R10

32600-112300-RS

32600-114400-RS

18-bit LVDS to VGA converter board

30-pin LVDS connecting cable

20-pin LVDS connecting cable

18-bit single/ dual-channel input

Features

Resolution supports up to 1280x1024

Support below configuration:

» Single-channel 18-bit to single-channel 24-bit

» Single-channel 18-bit to dual-channel 24-bit

» Dual-channel 18-bit to dual-channel 24-bit

* Note: The module does not support dual-channel 18-bit to single-channel 24-bit conversion.

Packing List

1 x 18-bit to 24-bit LVDS converter board

1 x Power cable (P/N: 32100-130300-RS)

1 x QIG

Power cable

P/N: 32100-130300-RS

Ordering Information

Part No.

LVDS24-01-R10

32600-004900-RS

Description

18-bit to 24-bit LVDS converter board

30-pin LVDS connection cable for evaluation

5

ORing

Network

Communication

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

32602-008000-100-RS Dual-channel 18-bit 30-pin to 24-bit 30-pin LVDS connection cable

LVDS-DVI-2013-V10

1-149

Single Board Computer

Embedded Board w w w . i e i w o r l d . c o m

IGCME-1300

IEI Scalable Display Solution

The IGCME-1300 is applied to expand one VGA port for the IEI motherboard with a PCIe Mini slot for multiple display applications.

Compatible models

KINO-QM670-R10 PCIE-Q670-R10

PCIe Mini VGA adapter card, RoHs

Add additional VGA display output via IGCME-1300

1

Industrial

Computing

Soluations

Features

1. Support PCIe VGA/2D Controller, [email protected] 32bpp

2. DDR3 SDRAM supports up to 800 MHz speed

3. Compliant with PCI Express Mini specification 1.2

Specifications

Form Factor

PCI Express Mini card

Display Controller

Aspeed AST1300

Internal Connector

1 x 10-pin (2x5) box header by 2.0mm pitch

Compatible OS

Windows® 2000/XP/Server 2003/Server 2008/ (32bit) Win7

Linux kernel version 2.6.32 above

LVDS HDMI DVI-D 1st VGA 2nd VGA

Multiple Display Configuration

Power Supply

On-board 3.3V

Operating Temperature

-10°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions (LxW)

50mm x 30mm

Weight

70g

Dimensions

(mm)

Packing List

1 x IGCME-1300 PCIe Mini VGA adapter card 1 x QIG

VGA cable, 600 mm length (Pitch=2.0mm) (P/N: 32003-001500-100-RS)

Ordering Information

Part No.

IGCME-1300-R10

Description

PCIe Mini VGA adapter card, RoHs

LCD TTL/LVDS Cable

Scalable VGA

IGCME-1300

Open frame LCD cable for various panel connection evaluation

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

20-pin LVDS

P/N: 32600-004800-RS

I. IEI AMD GX/LX Solutions

1. 1.25 pitch 20-pin connector for 18-bit LVDS panel

2. Connecting to IEI series SBC 20-pin LVDS LCD connector

3. 300 mm length

40-pin TTL

P/N: 32600-004700-RS

II. IEI AMD GX/LX ; VIA MARK/LUKE

1. 1.25 pitch 40-pin connector for 18/24-bit TFT LCD panel

2. Connecting to IEI series SBC 40-pin TFT LCD connector

3. 300 mm length

PCIe x16 SDVO Interface VGA/DVI Graphics Card

5

ORing

Network

Communication

PCIe SDVO add-on card: IEI only Intel® dual display solution by PCIe x16 interface

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

SDVO-100DVI-R10

Ordering Information

Part No.

SDVO-100DVI-R10

SDVO-100VGA-R10

32100-154400-RS

32100-154401-RS

SDVO-100VGA-R10

Description

DVI output, PCIe x16 add-on card by SDVO interface, Max. resolution 1600x1200

VGA output, PCIe x16, add-on card by SDVO interface, Max. resolution 1600x1200

SDVO I²C bus wire cable (Connector pitch 2.0mm to 2.0mm)

(SBC to PE & PXE series backplane only)

SDVO I²C bus wire cable (Connector pitch 2.54mm to 2.0mm)

(SBC to PE & PXE series backplane only)

PCIMG 1.3 Board

Embedded Board

The most cost effective dual display solution for IEI boards with customized BIOS.

IEI SDVO Cards Support List

Model PCIE-G41A2, PCIE-Q350, PCIE-9652

Model IMBA-G410, IMBA-G412ISA, IMBA-Q454, IMBA-XQ354,

IMBA-9454G, IMB-G41A, IMB-Q354, KINO-G410

1-150

LVDS24-01-2013-V10

Single Board Computer

PM-1004/1028-4/1028-8

4-port non-isolated RS-232/422/485 serial communication PC/104 module

PM-1004

I/O Communication Cards w w w . i e i w o r l d . c o m

IPCI-1680-CBM

2-port isolated protection CAN communication bus PCI card supports CANopen

P/N: 32200-026800-RS

Shipped with 4-port RS-422/485 connection cable

4-port/8-port non-isolated RS-232 serial communication

PC/104 modules

PM-1028

P/N: 32200-025400-RS

Shipped with 4-port RS-232 connection cable

Features

1. PC/104 form factor

2. 16C554 UART controller

3. Four jumper selectable RS-232 or RS-422/485 serial communication ports

4. Supports shared IRQ or independent IRQ mode

5. Jumper selectable interrupt level

6. Max. baud rate: 921.6kb/s

7. Windows® NT, Windows® 2000, Windows® XP, Windows® CE and Linux driver support

Specifications

Bus Interface

Number of Ports

Interrupt Level

PM-1004

4-port

PM-1028-4

PC/104

4-port

3, 4, 5, 7, 9, 10, 11, 12

PM-1028-8

8-port

Chipset

Bard Rate

TI 16C554A

921.6 Kbps (max.) at 14.745MHz clock input

Seiral Port

Power Consumption

16C550-compatible UARTs

Connectors

(40-pin; 2.54 box header)

4-port RS-232/

RS-422/RS-485 x 1 4-port RS-232 x 1

[email protected] (max.)

4-port RS-232 x 2

Operating Temperature

Dimensions

0°C ~ 60°C

Driver Support

96 mm x 90 mm

Windows®NT, Windows®2000, Windows®XP, Windows®CE and Linux

Bundle CANopen AP

Features

1. PCI Revision 2.2 compliant

2. Two independent CAN-bus communication ports

3. Compatible with CAN Specifications 2.0

4. On-board optical isolation protection 2500Vrms on CAN side

5. Programmable transfer rate up to 1 Mbps

6. Selective jumper for dual ports select 120 Ω terminator resistor

7. Support CANopen protocol following CiA DS-301 and support CiA DS-401

Specifications

Bus Interface

Number of Ports

CAN Controller

CAN Transceiver

PCI Revision 2.2 compliant

2-port

Philips SJA1000T

Philips PCA82C251

Signal Support

Humidity

Driver Support

CAN_H, CAN_L

Speed (bps)

Connectors

1 Mbps

Two external DB-9 male connectors or two internal 10-pin 2.54 pitch box headers

Isolated Protection 2500Vrms on CAN side

Power

Consumption

Temperature

5 V @ 400 mA

Operating: -5°C~ 65°C (23°F~149°F)

Operating: 5% ~95% Non-condensing

CANopen

Communication

Windows® XP/Windows® XP Embedded/Windows® CE 5.0

Support NMT/EMCY/SYNC/SDO/PDO/Error Control protocols

Follow CiA DS-301 and support CiA DS-401

Support 10K, 20K, 50K, 125K, 250K, 500, 800K, 1M bps Transfer

Rate

Dimensions

(mm)

1

Industrial

Computing

Soluations

2

Video

Capture

Solutions

3

Embedded

Computing

Solutions

4

Automation

Control

5

ORing

Network

Communication

Packing List

1 x 4-port non-isolated RS-232/422/485 serial communication PC/104 module

1 x 4-port RS-422/485 connection cable (P/N: 32200-026800-RS)

1 x Utility CD

1 x RS-232 cable (P/N: 32200-025400-RS)

1 x Mini jumper pack

Ordering Information

Part No.

PM-1004-R20

PM-1028-4-R20

PM-1028-8-R20

Description

4-port non-isolated RS-232/422/485 serial communication PC/104 module

4-port non-isolated RS-232 serial communications PC/104 module

8-port non-isolated RS-232 serial communications PC/104 module

Packing List

1 x IPCI-1680-CBM CAN-bus PCI card

1 x Mini jumper pack

1 x Utility CD (with bundled CANopen software)

1 x QIG

Ordering Information

Part No.

IPCI-1680-CBM-R10

Description

2-port isolated protection CAN communication bus PCI card support CANopen

6

Power Supply/

Peripherals

7

Panel

Solutions

Introduction

PM-1004/1028-4/1028-8-2013-V10

1-151
