QuickSpecs
HP Workstation xw4000

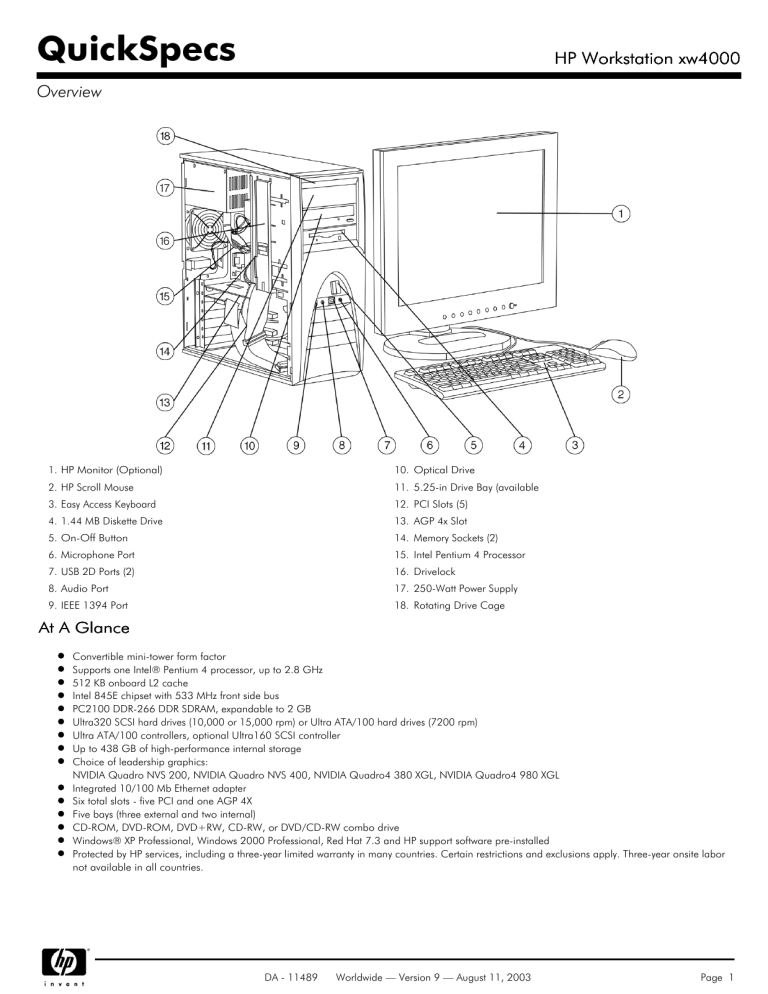

Overview
1. HP Monitor (Optional)
10. Optical Drive
2. HP Scroll Mouse
11. 5.25-in Drive Bay (available
3. Easy Access Keyboard
12. PCI Slots (5)
4. 1.44 MB Diskette Drive
13. AGP 4x Slot
5. On-Off Button
14. Memory Sockets (2)
6. Microphone Port
15. Intel Pentium 4 Processor
7. USB 2D Ports (2)
16. Drivelock
8. Audio Port
17. 250-Watt Power Supply
9. IEEE 1394 Port
18. Rotating Drive Cage
At A Glance
Convertible mini-tower form factor
Supports one Intel® Pentium 4 processor, up to 2.8 GHz
512 KB onboard L2 cache
Intel 845E chipset with 533 MHz front side bus
PC2100 DDR-266 DDR SDRAM, expandable to 2 GB
Ultra320 SCSI hard drives (10,000 or 15,000 rpm) or Ultra ATA/100 hard drives (7200 rpm)
Ultra ATA/100 controllers, optional Ultra160 SCSI controller
Up to 438 GB of high-performance internal storage
Choice of leadership graphics:
NVIDIA Quadro NVS 200, NVIDIA Quadro NVS 400, NVIDIA Quadro4 380 XGL, NVIDIA Quadro4 980 XGL
Integrated 10/100 Mb Ethernet adapter
Six total slots - five PCI and one AGP 4X
Five bays (three external and two internal)
CD-ROM, DVD-ROM, DVD+RW, CD-RW, or DVD/CD-RW combo drive
Windows® XP Professional, Windows 2000 Professional, Red Hat 7.3 and HP support software pre-installed
Protected by HP services, including a three-year limited warranty in many countries. Certain restrictions and exclusions apply. Three-year onsite labor
not available in all countries.
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 1
QuickSpecs
HP Workstation xw4000
Standard Features
Processor
One of the following:
Intel Pentium 4 processor 2.4-GHz, 2.66-GHz, and 2.8-GHz (533-MHz front side bus)
Cache Memory
512-KB integrated, full speed Level 2 cache per processor
Memory
Maximum
2 GB of PC2100 DDR-266
One of the following:
Network Controller
Integrated Intel LAN 10/100 Network Interface
Expansion Slots
I/O (Total)
6/5 total slots available
PCI - 32-bit/33 MHz
5/5 slots available
AGP 4X
1/0 slot available
(Total/Available)
5 total/2 available
Internal 3.5 inch
2 bays/1 available
External 5.25 inch
2 external bays/1 available
Diskette Drive
1.44 MB
Removable Media
CD-ROM, CD-RW, DVDROM, CD-RW/DVD-ROM combo, or DVD+RW/+R
Hard Drive
40 80 or 160-GB Ultra ATA (7200 rpm)
36, 72, or 146-GB Ultra320 SCSI (10K rpm)
36 or 72-GB Ultra320 SCSI (15K rpm)
Ultra320 drives have Ultra160 performance with Ultra160 controller
Parallel
1 25-pin port (rear)
USB 2.0
4 USB ports (2 front, 2 rear)
Serial
2 9-pin connectors (rear)
Ultra320 SCSI
1 with external connector (rear)
Ultra ATA/100
2 connectors (internal)
Keyboard
1 PS/2 keyboard port (rear)
Pointing Device
1 PS/2 mouse port (rear)
Network interface
1 RJ-45 connector (rear)
Microphone Jack
1 (front)
Headphone Jack
1 (front)
Line-In Jack
1 (back)
Line-Out Jack
1 (back)
IEEE 1394 Firewire
Optional – 3 (1 front, 2 rear)
Expansion Bays
Storage
Interfaces
Graphics
One of the following:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
NVIDIA Quadro4 980 XGL
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 2
QuickSpecs
HP Workstation xw4000
Standard Features
Audio
AC97/16-bit stereo full-duplex
Operating System
Microsoft Windows XP Professional preinstall
Microsoft® Windows 2000 Professional, service pack 2, preinstall
Red Hat Linux 7.3 preinstalled
Manageability
System Software Manager
Insight Management Agent
Altiris Express
Asset Control
Alert on LAN (AoL)
Wake on LAN (WoL)
Fault Management
Security Management
Pre-Failure Warranty (hard drives and memory)
Remote Management
Remote Wakeup
Remote ROM Flash
Remote Security
Remote Shut Down
Bios Features
Advanced Configuration and Power Interface (ACPI) 1.0b
Advanced Power Management (APM) 1.2
Desktop Management Interface (DMI) 2.0
System Management (SM) Bios 2.3
Security
Diskette write and boot control
Flash ROM lock
Keyboard password
Network server mode
Parallel interface control
Power-on password
Serial interface control
Setup password
Cable lock provision
Power Supply
250 Watt, with Power Factor Correction
Service and Support
Protected by HP Services including a three-year, limited warranty with three-year parts coverage, three year, on-site service,
and three-year labor (in many countries); 7 x 24 hardware technical phone support and on-line support through the
Internet; Pre-Failure Warranty coverage of hard drives, memory, and processors.
NOTE: Certain restrictions and exclusions apply. Consult the customer support center for details.
Three-year, onsite and labor not available in all countries.
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 3
QuickSpecs
HP Workstation xw4000
Standard Features Pre-Configured Global Models
x4x/2.4F/40/512/Xv
Processor
Intel Pentium 4 processor 2.4-GHz with 533-MHz front side bus
Cache Memory
512-KB
Memory
512-MB ECC DDR; 2.1-GB/sec throughput
Optical Drive
Combo CD-RW/DVD-ROM
Hard Drive
40-GB UATA/100 7200 rpm
Graphics
Not included in base configuration - graphics card options are:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
NVIDIA Quadro4 980 XGL
NOTE: Please see Part Numbers in After market options/Standalone accessories section.
Mouse
HP scroll mouse
OS
Windows XP Professional
x4x/2.4F/40/512/Xv Country Code Key
N. America
470047-281
Spain
AA684A#ABE
Fr. Canadian
470047-299
Europe
AA684A#AK6
L. America
470047-320
Switzerland (Eng, It)
AA684A#ACN
Japan
470047- 340
Switzerland
AA684A#AR8
Japan (English)
470047-354
Dutch
AA684A#ABH
UK
AA684A#ABU
Korea
AA684A#AB1
Germany
AA684A#ABD
China
AA684A#AB2
France
AA684A#ABF
Taiwan
AA684A#AB0
Italy
AA684A#ABZ
Hong Kong
AA684A#AB5
x4x/2.4F/36S/512/Xd
Processor
Intel Pentium 4 processor 2.4-GHz with 533-MHz front side bus
Cache Memory
512-KB
Memory
512-MB ECC DDR; 2.1GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
36-GB Ultra320 SCSI 10,000 rpm
Graphics
Not included in base configuration - graphics card options are:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
NVIDIA Quadro4 980 XGL
NOTE: Please see Part Numbers in After market options/Standalone accessories section.
Mouse
HP scroll mouse
OS
Windows XP Professional
x4x/2.4F/40/512/Xv Country Code Key
N. America
470047-282
Spain
AA665A#ABE
Fr. Canadian
470047-300
Europe
AA665A#AK6
L. America
470047-321
Switzerland (Eng, It)
AA665A#ACN
Japan
470047- 341
Switzerland
AA665A#AR8
Japan (English)
470047-355
Dutch
AA665A#ABH
UK
AA665A#ABU
Korea
AA665A#AB1
Germany
AA665A#ABD
China
AA665A#AB2
France
AA665A#ABF
Taiwan
AA665A#AB0
Italy
AA665A#ABZ
Hong Kong
AA665A#AB5
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 4
QuickSpecs
HP Workstation xw4000
Standard Features Pre-Configured Global Models
x4x/2.8F/80/512/Xv
Processor
Intel Pentium 4 processor 2.8-GHz with 533-MHz front side bus
Cache Memory
512-KB
Memory
512-MB ECC DDR; 2.1-GB/sec throughput
Optical Drive
Combo CD-RW/DVD-ROM
Hard Drive
80-GB UATA/100 7200 rpm
Graphics
Not included in base configuration - graphics card options are:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
NVIDIA Quadro4 980 XGL
NOTE: Please see Part Numbers in After market options/Standalone accessories section.
Mouse
HP scroll mouse
OS
Windows XP Professional
x4x/2.4F/40/512/Xv Country Code Key
N. America
470047-293
Spain
AA672A#ABE
Fr. Canadian
470047-311
Europe
AA672A#AK6
L. America
470047-333
Switzerland (Eng, It)
AA672A#ACN
Japan
470047- 349
Switzerland
AA672A#AR8
Japan (English)
470047-360
Dutch
AA672A#ABH
UK
AA672A#ABU
Korea
AA672A#AB1
Germany
AA672A#ABD
China
AA672A#AB2
France
AA672A#ABF
Taiwan
AA672A#AB0
Italy
AA672A#ABZ
Hong Kong
AA672A#AB5
x4x/2.8F/36S/512/Xd
Processor
Intel Pentium 4 processor 2.8-GHz with 533-MHz front side bus
Cache Memory
512-KB
Memory
512-MB ECC DDR; 2.1-GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
36-GB Ultra320 SCSI 10,000 rpm (UltraI60 controller)
Graphics
Not included in base configuration - graphics card options are:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
NVIDIA Quadro4 980 XGL
NOTE: Please see Part Numbers in After market options/Standalone accessories section.
Mouse
HP scroll mouse
OS
Windows XP Professional
x4x/2.4F/40/512/Xv Country Code Key
N. America
470047-294
Spain
AA674A#ABE
Fr. Canadian
470047-312
Europe
AA674A#AK6
L. America
470047-334
Switzerland (Eng, It)
AA674A#ACN
Japan
470047- 350
Switzerland
AA674A#AR8
Japan (English)
470047-361
Dutch
AA674A#ABH
UK
AA674A#ABU
Korea
AA674A#AB1
Germany
AA674A#ABD
China
AA674A#AB2
France
AA674A#ABF
Taiwan
AA674A#AB0
Italy
AA674A#ABZ
Hong Kong
AA674A#AB5
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 5
QuickSpecs
HP Workstation xw4000
Configure to order options
HP workstation xw4000
Base System
When buying a basic system, you have many configuration options. The basic system includes: Convertible Mini-tower
Chassis, System Board, Floppy Drive, Cable, etc.
Operating System
Windows XP Professional preloaded; incl. Win XP recovery CD
Windows 2000 Professional SP2 preloaded; incl. Win 2000 recovery CD
Red Hat Linux 7.3 preinstalled, preconfigured and supported
Processor
Intel Pentium 4 processor 2.4-GHz, 512-KB cache, 533-MHz front side bus
Intel Pentium 4 processor 2.66-GHz, 512-KB cache, 533-MHz front side bus
Intel Pentium 4 processor 2.8-GHz, 512-KB cache, 533-MHz front side bus
Graphic Card (Video Card)
No Video Card
NVIDIA Quadro NVS 200 (AGP)
NVIDIA Quadro NVS 400 (PCI)
NVIDIA Quadro4 380 XGL (AGP)
NVIDIA Quadro4 980 XGL (AGP)
Memory (DDR-SDRAM)
256-MB (1X256-MB) PC2100 DDR-266 ECC
512-MB (1X512-MB) PC2100 DDR-266 ECC
512-MB (2x256-MB) PC2100 DDR-266 ECC
1-GB (2x512-MB) PC2100 DDR-266 ECC
1-GB (1X1-GB) PC2100 DDR-266 ECC
1.5-GB (1x1-GB + 1x512-MB) PC2100 DDR-266 ECC
2-GB (2x1GB) PC2100 DDR-266 ECC
Monitors
HP L1825 Flat Panel Color Monitor (18-inch, Carbon/Silver)
HP L1925 Flat Panel Color Monitor (19-inch, Carbon/Silver)
HP L2025 Flat Panel Color Monitor (20-inch, Carbon/Silver)
HP p930 Flat screen (19-inch, Carbon/Silver)
HP p1130 Flat screen (21-inch, Carbon/Silver)
NOTE: AssetControl monitor. AssetControl features are accessible with hp workstations featuring Intelligent
Manageability.
Base system
Convertible Mini-tower Chassis, System Board, Floppy Drive, Cable, etc.
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 6
QuickSpecs
HP Workstation xw4000
Configure to order options
Primary hard disks
40-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Ultra ATA/100 EIDE (7,200 rpm)
160-GB Ultra ATA/100 EIDE (7,200 rpm)
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
18-GB Ultra320 SCSI (15,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
Secondary hard disks
40-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Ultra ATA/100 EIDE (7,200 rpm)
160-GB Ultra ATA/100 EIDE (7,200 rpm)
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
18-GB Ultra320 SCSI (15,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
Controller Card
Adaptec 29160N single-channel Ultra160 SCSI controller
Primary removable media
HP 48X CD-ROM
HP 48X Combo (with Roxio and WinDVD software)
HP 48X/24X/48X CDRW Drive (with Roxio software)
HP 16X DVD-ROM
HP 4.7GB DVD+R/RW Drive – 300i
Secondary removable
media
HP 48X CR-RW
HP 16X DVD-ROM
HP 48X/24X/48X CDRW Drive (with Roxio software)
HP 4.7GB DVD+R/RW Drive – 300i
Keyboard
HP Easy Access Keyboard (PS/2)
Input devices
HP 3-Button Mouse (PS/2)
HP Scroll Mouse (PS/2)
I/O PCI Cards and Other IEEE 1394 Firewire Card
USB 2.0 PCI Card
Solenoid/Hood Lock
Lucent V90 56K Modem PCI card
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 7
QuickSpecs
HP Workstation xw4000
After market options/Standalone accessories
Memory (DDR-SDRAM
unbuffered)
Monitors
Part #:
Europe/Asia
Pacific
Part #:
Americas/Japan
256-MB PC-2100 DDR-266 ECC
AA632A
AA632A
512-MB PC-2100 DDR-266 ECC
AA633A
AA633A
1-GB PC-2100 DDR-266 ECC
AA634A
AA634A
1-GB PC-2100 DDR-266 ECC
AA634A
AA634A
P4831D #XXX
303486-003
(NA only)
HP L2025 flat panel color monitor (21-inch, carbon/silver)
HP L1925 flat panel color monitor (19-inch, carbon/silver)
P9626A
P9626A
HP L1825 flat panel color monitor (18-inch, carbon/silver)
P9021A #XXX
303102-003
(NA only)
HP p930 flat screen CRT color monitor (19-inch, carbon/silver)
P9009W#XXX
302268-003
(NA only)
P4819 #XXX
302270-003
(NA only)
NVIDIA Quadro4 200 NVS (AGP)
AA603A
AA603A
NVIDIA Quadro4 200 NVS DVI Cables
AA604A
AA604A
NVIDIA Quadro4 400 NVS (PCI)
AA605A
AA605A
NVIDIA Quadro4 400 NVS DVI Cables
AA606A
AA606A
NVIDIA Quadro4 380 XGL (AGP)
AA653A
AA653A
NVIDIA Quadro4 980 XGL (AGP)
AA623A
AA623A
36 GB Ultra320 SCSI 10,000 rpm
AA612A
AA612A
73 GB Ultra320 SCSI 10,000 rpm
AA613A
AA613A
146 GB Ultra320 SCSI, 10,000 rpm
AA614A
AA614A
36 GB Ultra320 SCSI, 15,000 rpm
AA616A
AA616A
73 GB Ultra320 SCSI, 15,000 rpm
AA617A
AA617A
40 GB ATA/100, 7,200 rpm
DC180A
DC180A
80 GB ATA/100, 7,200 rpm
DC181A
DC181A
160 GB ATA/100, 7,200 rpm
DC189A
DC189A
Adaptec 29160N Ultra160 Single Channel SCSI Controller (PCI)
AA610A
AA610A
Ultra320 Dual Channel SCSI Controller Card (PCI) Cable not included
HP p1130 flat screen CRT color monitor (21-inch, carbon/silver)
NOTE: AssetControl features are accessible with HP workstations featuring
Intelligent Manageability.
Graphics
Hard Drives
Ultra320 SCSI Drives
Ultra ATA/100 Drives
Storage Controllers
AA611A
AA611A
StorageWorks Smart Array Controller 5304/128
N/A
158939-B21
StorageWorks Smart Array Controller 5302/64
N/A
124992-B21
AA832A
AA832A
Cable, 3 part SCSI
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 8
QuickSpecs
HP Workstation xw4000
After market options/Standalone accessories
Backup Devices
Exabyte 33/66-GB VXA-1 IDE Tape Drive
DC136A
237109-B22
Exabyte 33/66-GB VXA-1 SCSI Tape Drive
DC135A
237108-B22
N/A
294243-B22
Iomega ZIP 250-MB (internal, IDE, carbon)
DC140A
294416-B22
HP 48X CD-ROM Drive (carbon)
DC143B
DC143B
48X/24X/48X CD-RW Drive (carbon – Veritas software)
DE205A
DE205A
HP 48X Combo (with Roxio and WinDVD software)
DE206A
DE206A
HP 16X DVD Drive (carbon)
AA620A
AA620A
4.7GB DVD+R/RW Drive – 300i
AA851A
AA851A
HP IEEE 1394/Firewire Card (PCI)
AA638A
AA638A
USB 2.0 PCI Card
AA639A
287636-B21
Intel 10/100 S Management Adapter
DC133A
DC133A
V90 56K PCI WIN Modem
DC131A
239137-xxx
V90 56K International Soft WIN Modem
DC132A
259032-B24
Speakers
Labtec Spin-22 Carbon Speakers
DC186A
246637-0xx
Input devices & other
Easy Access keyboard - carbonite (PS/2)
DC167B
DC167B
Three button mouse-carbon (PS/2)
AA778A
AA778A
252076-B21
252076-B21
Bracket HDD 3.5 to 5.25-WS
AA833A
313039-B21
USB Optical scroll mouse (carbon)
DC172B
DC172B
Spaceball 5000
DE934A
DE934A
TR5 10/20-GB iTape Drive (IDE, carbon)
Multimedia
I/O cards
Communications
Solenoid/Hood Lock
Security
USB Fingerprint Identification
N/A
240238-B21
DC169A
267147-008
N/A
240154-B21
Fixed shelf kit
253449-B21
253449-B21
Sliding Shelf Kit
234672-B21
234672-B21
Depth Adjustable Rails
332558-B21
332558-B21
USB SmartCard Keyboard
Corvadis USB Enhanced SmartCard Reader
Rack kits
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 9
QuickSpecs
HP Workstation xw4000
Memory
Standard Memory
This system supports PC-2100 266-MHz DDR ECC. The mainboard is based on the i845E chipset and has 2 DIMM slots (2.1-GB/s throughput). It can
support a maximum of 2-GB of RAM when optional memory upgrades are included.
Following are memory options available from HP:
Part #:
256-MB upgrade kit PC-2100 DDR-266 ECC (unbuffered)
AA632A
512-MB upgrade kit PC-2100 DDR-266 ECC (unbuffered)
AA633A
1-GB upgrade kit PC-2100 DDR-266 ECC (unbuffered)
AA634A
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 10
QuickSpecs
HP Workstation xw4000
Storage
Drive Support
Quantity
Supported
Position
Supported
Controller
1.44-MB Diskette Drive
Up to 1
3
Integrated
CD-ROM Drive
Up to 1
1, 2
Integrated EIDE
DVD-ROM Drive
Up to 1
1, 2
Integrated EIDE
CD-RW Drive
Up to 1
1, 2
Integrated EIDE
DVD+ RW
Up to 1
1, 2
Integrated EIDE
Combo CD-RW/DVD-ROM
Up to 1
1, 2
Integrated EIDE
Up to 3
1, 2, 4, 5
Optional Ultra160 SCSI Controller
Up to 2
1, 2, 4, 5
Integrated EIDE Controller
Hard Drives
Ultra320 SCSI Drives
1-inch
36-GB Ultra320 SCSI (10K
rpm)
72-GB Ultra320 SCSI (10K
rpm)
146-GB Ultra320 SCSI (10K
rpm)
36-GB Ultra320 SCSI (15K
rpm)
73-GB Ultra320 SCSI (15K
rpm)
Ultra ATA Drives
1-inch
40-GB (7200 rpm)
80-GB (7200 rpm)
160-GB (720 rpm)
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 11
QuickSpecs
HP Workstation xw4000
Storage
Maximum Storage Capacity
Internal
438-GB (SCSI)
320-GB (Ultra ATA)
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 12
QuickSpecs
HP Workstation xw4000
TechSpecs
System Unit
Tower Dimensions (HxWxD) 17.65 x 6.6 x 17.61 in (44.8 x 17 x 44.7 cm)
Weight
26 lb (2 kg)
(standard configuration)
Power Supply
Input current
4.5 A @ 115 VAC
3.0 A @ 230 VAC
HP Easy Access Keyboard
Line Frequency
47 to 63 Hz
Maximum Rated Power
385-Watt input, 250-Watt output
Temperature
(Values are subject to change)
Operating
50° to 95° F (10° to 35° C)
Humidity
(non-condensing)
(Values are subject to change)
Operating
20% to 80%
Non-operating
10% to 90%
Maximum Altitude
(nonpressurized)
Operating
10,000 ft (3,048 m)
Non-operating
30,000 ft (9,144 m)
Dimensions (HxWxD)
18.3 x 6.3 x 1.4 in (46.48 x 16.0 x 3.56 cm)
Weight
Approximately 2 lb (0.9 kg)
Input Specifications
Operating Voltage
+ 5VDC ± 5%
Power Consumption
50 mA maximum (with 3 LEDs on)
System Interface
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Languages
30+ available
Keycaps
Low-profile design
Switch Actuation
55 g nominal peak force with tactile feedback
Switch Life
20 million keystrokes (using Hasco modified tester)
Switch Type
Contamination resistant membrane
Key Leveling Mechanism
For all double wide and greater length keys
Cable Length
6 ft (1.8 m)
PC98-99
Mechanically compliant
Acoustics
50 dBA maximum sound pressure level
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Mechanical
Environmental
DA - 11489
Non-operating
Worldwide — Version 9 — August 11, 2003
Page 13
QuickSpecs
HP Workstation xw4000
TechSpecs
1.44-MB Diskette Drive
Size
3.5 in/8.89 cm
LED Indicators (front panel) Green
HP 3-Button Mouse
Read/Write Capacity per
Diskette (high/low)
1.44 MB/720 KB
Drive Height
One-third
Drive Rotation
300 rpm
Transfer Rate (high/low)
500/250 KB/s
Bytes/Sector
512
Sectors/Track (high/low)
18/9
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track (high/low)
3/6 ms
Average (high/low)
94/173 ms
Settling Time
15 ms
Latency Average
100 ms
Cylinders (high/low)
80/80
Read/Write Heads
Two
Dimensions/Weight
Height
1.42 in (3.6 cm)
Length
4.17 in (10.7 cm)
Width
2.87 in (7.4 cm)
Weight
5.20 oz (150 g)
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Switch Life
1,000,000 operations (using Hasco modified tester)
Switch Type
Micro-switches
Tracking Mechanism Life
155 miles (250 km) at average speed of 10 in/s
Cable Length
6 ft (1.8 m)
PC98-99
Mechanically compliant
Environmental
Mechanical
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 14
QuickSpecs
HP Workstation xw4000
TechSpecs
HP 2-button Scroll Mouse Scroll Wheel
8 mm
Maximum Rotation Speed 30 mm/s
Switch Type
Light force micro-switch
Switch Life
1 million operations
Mechanical Life
Minimum 200,000 revolutions
Environmental
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Operating Voltage
+ 5VDC ± 10%
Power Consumption
15mA
System Consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Acceleration
100 in/s
Switch Actuation
85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified tester)
Cable Length
2m
PC98-99
Mechanically compliant
Electrical
Mechanical
SpaceBall 4000
Regulatory Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C -Tick
Features
Six degrees of freedom motion control through the X, Y, Z axis (pitch, roll, yaw)
Certified for leading CAD and DCC applications
Dimensions/Weight
Mechanical
Serial Specifications
Ultra320 SCSI Hard
Drives
Height
3.0 in/7.6 cm
Length
8.4 in/21.3 cm
Width
6.0 in/15.2 cm
Weight
1.4 lb/0.64 kg
Force range
0.5 - 8.2N (1.8 – 29.5 oz)
Torque range
6.91 Nmm (0.085 – 0.33 oz-in)
Resolution
10-bits
Connector
9-pin D-subminiature receptacle (DB9S)
Cable Length
Approx. 12.8 ft/3.9m captive
Data rate
9600 bps
Flow control
Xon/Xoff
Regulatory Approvals
Compliant
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV,
CISPR 22, EN 50082, IEC 1000 4-2, IEC 1000-4-3,
AS/NZS, VCCI, BSMI, C-Tick
146 GB
Capacity
146,000 MB
Height
1 in (2.5 cm)
Width
3.5 in (8.89 cm)
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 15
QuickSpecs
HP Workstation xw4000
TechSpecs
73 GB
73 GB
36 GB
DA - 11489
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.55 ms
Average
4.9 ms
Full-stroke
9.2 ms
Rotational speed
10,000 rpm
Logical blocks
289,749,488
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
73,000 MB
Height
1 in (2.5 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.55 ms
Average
4.9 ms
Full-stroke
9.2 ms
Rotational speed
10,000 rpm
Logical blocks
143,374,744
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
73,000 MB
Height
1 in (2.5 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.4 ms
Average
3.8 ms
Full-stroke
6.7 ms
Rotational speed
15,000 rpm
Logical blocks
143,337,744
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
36,400 MB
Height
1 in (2.5 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.6 ms
Average
4.5 ms
Full-stroke
11.0 ms
Rotational speed
10,000 rpm
Logical blocks
71,631,920
Operating temperature
41° to 131° F (5° to 55° C)
Worldwide — Version 9 — August 11, 2003
Page 16
QuickSpecs
HP Workstation xw4000
TechSpecs
36 GB
18 GB
DA - 11489
Capacity
36,400 MB
Height
1 in (2.5 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.4 ms
Average
3.7 ms
Full-stroke
7.0 ms
Rotational speed
15,000 rpm
Logical blocks
71,132,000
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
18,209 MB
Height
1 in (2.5 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.4 ms
Average
3.7 ms
Full-stroke
7.0 ms
Rotational speed
15,000 rpm
Logical blocks
35,566,000
Operating temperature
41° to 131° F (5° to 55° C)
Worldwide — Version 9 — August 11, 2003
Page 17
QuickSpecs
HP Workstation xw4000
TechSpecs
Ultra ATA Hard Drives
120 GB
Capacity
120,000 MB
Height
1 in (2.54 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
80 GB
Single track
1.2 ms
Average
8.0 ms
Full-stroke
18.0 ms
Rotational speed
7200 rpm
Logical blocks
234,441,648
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
80,000 MB
Height
1 in (2.54 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
40 GB
Single track
1.2 ms
Average
8.0 ms
Full-stroke
18.0 ms
Rotational speed
7200 rpm
Logical blocks
157,278,240
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
40,000 MB
Height
1 in (2.54 cm)
Width
3.5 in (8.89 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
16/10/40+4/2.4/8x 4.7
GB DVD+ RW – 300i
Single track
1.2 ms
Average
8 ms
Full-stroke
18.0 ms
Rotational speed
7200 rpm
Logical blocks
78,165,360
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
4.7 GB DVD disc /700 MB CD disc
Dimensions (HxWxD)
1.66 x 5.83 x 7.74 in (4.23 x 14.6 x 19.8 cm)
Weight
2.3 lb (1.06 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal (80 or 120 mm discs) or vertical (120 mm discs only)
Data Transfer Rates Read
Digital audio extraction (minimum) —1,200 KB/s (8X)
CD read — up to 6,000 KB/s (40X)
DVD read — up to 10,800 KB/s (8X)
Media and Formats -
CD formats:
formats CD-DA (Red Book), CD-ROM (Modes 1 and 2 - Yellow Book), CD-ROM
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 18
QuickSpecs
HP Workstation xw4000
TechSpecs
Read
XA (Mode 2, Forms 1 and 2), CD-I (FMV), Photo CD (single and multi-session), Video CD,
CD-Text, CD Extra
CD media:
media stamped, CD-R, CD-RW
DVD formats:
formats DVD-ROM, DVD-Video (with application support)
DVD media:
media stamped (single or dual layer, single sided), DVD+ RW, DVD+ R, DVD-R,
DVD-RW
Data Transfer Rates Write
DVD+R write — 5,412 KB/s (4X)
DVD+RW write or rewrite — 3,247 KB/s (2.4X)
CD-R write — 600 KB/s (4X)
CD-R write — 1200 KB/s (8X)
CD-R write — 2,400 KB/s (16X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
Media and Formats Write
CD formats:
formats CD-DA (Red Book), CD-ROM (Modes 1 and 2 - Yellow Book), CD-ROM
XA (Mode 2, Forms 1 and 2), CD-I (FMV), Photo CD (single and multi-session), Video CD,
CD-Text, CD Extra
CD media:
media CD-R, CD-RW
DVD formats:
formats DVD-ROM, DVD-Video (with application support)
DVD media:
media DVD+ RW, DVD+ R
Write Methods
Disc-at-once, track-at-once, incremental fixed and variable packet, random access write
(DVD+RW only), sequential write (DVD +R, +RW)
Data Transfer Modes
ATA PIO mode 4—16.7-Mbps, ATA UltraDMA mode 2—33-Mbps (default)
Access Times (typical)
DVD-ROM Single Layer
Random
140 ms
CD-ROM Random
120 ms
CD-ROM Full stroke
200 ms
Start-up Time (typical)
<5 s
Stop Time (typical)
<6 s
Write Buffer Size
2 MB (minimum)
Audio Output
Line-Out
0.75 VRMS
Signal-to-Noise Ratio
75 dB
Channel Separation
60 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
32° to 122° F (0° to 50° C)
Humidity
10% to 70% (non-condensing)
Approvals/ Environmental UL 1950 (US and Canada), CE, FDA, FCC (B), TUV, C-TICK (B)
Operating Systems
Supported
Microsoft Windows XP Professional, Microsoft Windows 2000 SP3
Supplied Software
Intervideo WInDVD 4.0: Play DVD movies;
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Sonic myDVD Video Suite 4.0: includes myDVD for DVD authoring and ArcSoft ShowBiz
1.3 for video title creation and editing;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 19
QuickSpecs
HP Workstation xw4000
TechSpecs
48X CD-ROM Drive
Disk
Block Size
Applicable Disk
CD-ROM (Mode 1 and 2), CD-R/W, CD-R
Photo CD (Single and Multi-session), Mixed Mode (Audio
and Data combined), CDI Ready, CD-XA Ready, CD
TEXT, CD EXTRA
Capacity
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Rotational Speed
8750 maximum
Diametre
4.7 in, 3.15 in/12 cm, 8 cm
Centre Hole
0.6 in/1.52 cm diametre
Thickness
0.05 in/0.13 cm
Track Pitch
1.6 µm
Mode 1
2,048 bytes
Mode 2
2,340, 2,336 bytes
CD-DA
2,352 bytes
CD-XA
2,328 bytes
Interface
IDE
Access Times (typical)
Random
< 100 ms
Full-Stroke
< 150 ms
Audio Output Level
Line-Out
0.7 VRMS
Data Transfer Rate
Sustained
150 KB/s (1X, using audio disc)
Variable
3,000 to 7,200 KB/s
Cache Buffer
128 KB minimum
Start-up Time (typical)
<7s
Stop Time
<4s
Operating Conditions
Temperature
41° to 113° F/5° to 45° C
Humidity
10% to 80%
(HxWxD, maximum)
1.7 x 5.9 x 8.19 in/4.29 x 15 x 20.8 cm
Weight
2.65 lb/1.2 kg
Dimensions
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 20
QuickSpecs
HP Workstation xw4000
TechSpecs
48/24/48X CD-RW
Capacity
700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,800 KB/s (12X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats Read
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text, Photo CD (single and
multisession)
Media:
Media stamped, CD-R, CD-RW
Data Transfer Rates Write
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3000 KB/s (20X) to 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats Write
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text
Media:
Media CD-R, CD-RW (including ultra-speed)
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
CD-ROM Mode 1
100 ms
Full Stroke CD
160 ms (seek)
Start-up Time (typical)
<4 s (single session), <30 s (multisession)
Stop Time (typical)
<3 s
Write Buffer Size
2 MB
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
70 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 113° F (5° to 45° C)
Humidity
10% to 80%
Approvals/Environmental MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA C22.2
No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
Supplied software
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 21
QuickSpecs
HP Workstation xw4000
TechSpecs
48/24/48+16X Combo
CD-RW/DVD-ROM
Capacity
4.7 and 9.4 GB DVD disc/700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,200 KB/s (8X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats Read
CD Formats:
Formats CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1 and
2), Mixed mode, CD-Extra, CD-I FMV, Video CD, Photo CD (single and multi-session),
CD-Text, CD-Plus; CD Media: stamped, CD-R; CD-RW
DVD Formats:
Formats DVD-ROM, DVD-Video (with application support), DVD-R (version 1.0
and 2.0), DVD-RW (version 1.0 and 1.1), DVD-R multi-border
DVD Media:
Media stamped (single or dual layer, single sided), DVD+ RW, DVD+ R, DVD-R,
DVD-RW
Data Transfer Rates Write
CD-R write — 600 KB/s (4X)
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3600 KB/s (24X)
CD-R write — 4800 KB/s (32X)
CD-R write — 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats Write
CD Formats:
Formats CD-DA, CD-ROM (Mode 1), CD-ROM XA (Mode 2, Form 1 and 2), Mixed
mode, CD-Extra, CD-I FMV, Video CD, CD-Plus
CD Media:
Media CD-R; CD-RW
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
Random
120 ms
CD-ROM Mode 1
110 ms
Full Stroke DVD
210 ms
Full Stroke CD
160 ms
Start-up Time (typical)
<4 seconds (single session), <30 seconds (multisession)
Stop Time (typical)
4s
Write Buffer Size
2 MB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 85%
16X/40X DVD-ROM Drive Height
with + R Read Support
Interface Type
5.25-in, half-height
ATAPI
Dimensions– External,
DA - 11489
5.88 x 1.71 in (14.94 x 4.34 cm)
Worldwide — Version 9 — August 11, 2003
Page 22
QuickSpecs
HP Workstation xw4000
TechSpecs
Excluding Bezel (W x H)
Disc Diameter
12 cm, 8 cm
Disc Thickness
1.2 mm
Track Pitch
1.6 µm (CD), 0.74 µm (DVD)
Disc Center Hole
Diameter
15 mm
Disc Formats
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0; DVD-RW
version 1.0 and 1.1; DVD-R multi-border; DVD+ RW; DVD+ R; CD-ROM Mode 1 and 2;
CD-DA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra; CD-text; CD-I Mode 2, Form 1
and 2; CD-I ready; video CD, CD-bridge; PhotoCD (single and multi-session); CD-R; CDRW
Disc Capacity
DVD-ROM
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB (DVD-10),
3.95 GB (DVD-R version 1.0), 4.7 GB (DVD-R version
2.0), 4.7 GB (DVD-RW version 1.0 and 1.1), 4.7 GB
(DVD+RW), 4.7G (DVD+R)
CD-ROM
540-MB (Mode 1, 12 cm), 640-MB (Mode 2, 12 cm),
700-MB (80 minimum CD-R and CD-RW), 180-MB (8
cm)
Block Size (bytes)
DVD-ROM – 2048; CD-ROM Mode 0 – 2352; CD-ROM Mode 1 – 2352, 2340, 2336,
2048; CD-ROM
Mode 2 – 2352, 2340, 2336, 2048
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
< 120 ms
CD-ROM Mode 1
< 90 ms
Full Stroke DVD
< 240 ms (seek)
Full Stroke CD
< 160 ms (seek)
Data Transfer Rates
2600 – 6000 KB/s (40X CAV CD-ROM mode)
8100 – 21,600 KB/s (16X CAV DVD-ROM mode)
Data Transfer Modes
PIO Mode 4 (16.6-MB/s); Multi-word DMA mode 2 (16.6-MB/s); UltraDMA Mode 3 (44.4MB/s)
Power
Source
Four-pin, DC power receptacle
DC Power Requirement
5 VDC ± 5% – 100 mV ripple p-p
12 VDC ± 5% – 200 mV ripple p-p
DC Current
5 VDC – <800 mA typical, < 1000 mA maximum
12 VDC – < 870 mA typical
Audio Output Level
0.7 Vrms (typical)
Configuration Jumper
Block
Master, slave, and cable select modes
Data Interface Connector 40-pin, shrouded and keyed, flat ribbon
Environmental
(all conditions noncondensing)
Temperature (operating)
41° to 122° F (5° to 50° C)
Relative Humidity
(operating)
10% to 85%
Maximum Wet Bulb
Temperature (operating)
86° F (30° C)
Certifications, Approvals
MMC II support, multi-read certification, Microsoft WHQL certification, ACA AS/NZS
3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950, EN 55022,
EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN 60825-1, UL 60950, and CSA C22.2
60950-2000.
Operating Systems
Supported
Microsoft Windows NT, Microsoft Windows 2000, and Microsoft Windows XP.
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 23
QuickSpecs
HP Workstation xw4000
TechSpecs
Integrated Intel PRO/100 Network Interface
+ Management Adapter
Expansion Bus
Architecture
Network Transfer Rate
10Base-T or 100Base-TX
PCI 2.2
10Base-T (Half-Duplex)
10-Mb/s
10Base-T (Full-Duplex)
20-Mb/s
100Base-TX (Half-Duplex)
100-Mb/s
100Base-TX (Full-Duplex)
200-Mb/s
Connectors
RJ-45
Standards Compliance
IEEE 802.2
IEEE 802.3
I/O Address
Auto-configured
Remote Wakeup
Yes
Operating Temperature
32° to 131° F (-0° to 55° C)
Operating Humidity
(non-condensing)
85% at 131° F (55° C)
Operating Altitude
10,000 ft (3,048 m)
Communication Processor Intel 82559
OS Driver Support
DA - 11489
Windows NT 4.0
NDIS 3.0, 4.0 Compliant
Windows 95, 98, 2000, XP Pro
NDIS 3.0, 4.0, 5.0 Compliant
Novell NetWare Server v. 3.x, 4.x and 5.0
ODI Compliant
SunSoft Solaris
Not supported
SCO UnixWare®, OpenDesktop,
OpenServer
Supported
Worldwide — Version 9 — August 11, 2003
Page 24
QuickSpecs
HP Workstation xw4000
TechSpecs
Lucent V.90 56K PIC Win Dimensions (L X H)
Modem
Complies with PCI low profile specifications—6.7 x 2.3 in (17.0 x 5.8 cm), supports highand low-profile brackets
Data Transmission
V.90/K56flex technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires compatible
modems at server sites. Other conditions may limit modem speed. FCC limitations allow
a maximum of 53 Kbps during download transmissions.
Data Speeds
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/16,800/
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
Data Standards
ITU V.90, ITU-T, V.34bis, V.22bis, V.22bis, V.21, V.23, Bell 212A, and Bell 103
Fax Speeds
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities
Group3 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2, Class 1
Error Correction and Data V.44 (software upgradeable), 4.2bis, V.42 and MNP2-5
Compression
Power Management
APM and ACPI states D0, D1, D2, and D3; meets PCI 2.2 requirements and PC'99
requirements
Upgradeability
Software driver upgradeable for v.92 and future enhancements
Video
ITU-T V.80 video ready interface
Other
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a UARTcompatible interface
Optional ring wakeup signal
Operating Temperature
32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one electrical load
Chipset
Agere Systems 1648C (Mars 3.2)—Integrated PCI interface with 5-V tolerant buffers and
CardBus support
Connection
Dual, parallel RJ-11 support with auxiliary Tip/Ring connector
Other Features
Digital line protection, call progress monitoring via on-board piezo device, transformerbased DAA design, support for high profile and low profile brackets, PnP ID supports via
external EEPROM
Safety
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV, NEMKO,
DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark
EMC
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-4-6, EN
61000-4-8
Telecom
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Health
Bare PCB material compliant to 94V-0 or better (marked as such), Microsoft Windows Me
health compliant
Other
PC'99 compliant, PCI version 2.2, WHQL approved; support for ACPI revision 1.1
Kit Contents
Lucent V.90 56-K PCI Win Modem, brackets/screws, Compaq installation guide
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 25
QuickSpecs
HP Workstation xw4000
TechSpecs
NVIDIA Quadro NVS 200 Form Factor
Graphics Card
Graphics Controller
Low profile
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
AGP 4x
RAMDAC
Dual 350 MHz
Memory
64 MB 166MHz 4 M x 16 SDR 6ns unified frame buffer
Connectors
Single LFH-60
Dimensions
low-profile form factor
Multi-monitor support
Dual monitors with NVIDIA's nView
nView Hardware
Architecture
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
32-bit color
2048 x 1536 @ 60 Hz maximum resolution
2D rendering engine optimized for 32-, 24-, 16-, 15-, and 8-bpp modes
Unified driver architecture (UDA) provides easy installation and manageability
High definition video
processor
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/workstations/support
NVIDIA Quadro NVS 200
display resolutions &
refresh rates
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75Hz
60Hz
60Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 26
QuickSpecs
HP Workstation xw4000
TechSpecs
NVIDIA Quadro NVS 400 Form Factor
Graphics Card
Graphics Controller
ATX
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
PCI
RAMDAC
Dual 350 MHz
Memory
64 MB 220 MHz, 4mx 32 DDR per GPU, 32 MB per GPU unified frame buffer
Connectors
Dual LFH-60
Dimensions
4.2 x 8 in/10.67 x 20.32 cm
Multi-monitor support
1 to 4 displays with nView – with two cards (1 PCI per card), up to 8 monitors can be
driven
nView Hardware
Architecture
32-bit color
2048x1536 @ 75Hz maximum resolution
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
High-definition video
processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT Motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/workstations/support
NVIDIA Quadro NVS 400
display resolutions &
refresh rates
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75Hz
60Hz
60Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 27
QuickSpecs
HP Workstation xw4000
TechSpecs
NVIDIA Quadro4 380
XGL Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV18GL GPU
Bus Type
AGP 8x Version 3.0 compliant AGP 4x/2x Version 2.0 compliant
Memory
64MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
RAMDAC
Dual 350MHz integrated
Connectors
VGA DB-15 and DVI-I analog/digital monitor outputs,
4-pin mini DIN providing TV output
Dimensions
AGP full height ATX card. 4.25" x 6.875"
Multi-monitor support
Dual monitor
Additional product
features
Supported graphics APIs
AGP 8x Version 3.0 compliant and 2x/4x Version 2.0 compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
64 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
NV18GL GPU featuring:
275 MHz engine clock rate
250 MHz memory clock rate
128-bit memory interface
VGA controller
Dual integrated display controllers supporting up to 1920x1440 @ 85 Hz
and 2048x1536 @ 75 Hz on both displays
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable vertex shader technology and NVIDIA OpenGL
extensions
Full hardware support for NVIDIA Cg shader programming language
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
TV Output
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support for Windows 2000 and Windows XP
ACPI Version 1.0b Power Management support (all modes)
OpenGL 1.3 (and OpenGL 2.0 when available) ICD with immediate mode support for all
OGL primitive types
DirectX 8 and above
Available graphics drivers HP-tested Windows 2000, HP-tested Windows XP, HP-tested Linux (1st Calendar Quarter
2003)
HP qualified drivers may be preloaded or available from the HP support Web site:
http://www.hp.com/workstations/support
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 28
QuickSpecs
HP Workstation xw4000
TechSpecs
NVIDIA Quadro4 380 XGL
Graphics Card display
resolutions & refresh rates Resolution
Monitor 1, 2
Analog/Digital
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24,32
800x600
240Hz/200Hz
8, 16, 24,32
1024x768
170Hz/140Hz
8, 16, 24,32
1152x864
170Hz/100Hz
8, 16, 24,32
1280x720
150Hz/120Hz
8, 16, 24,32
1280x960
150Hz/85Hz
8, 16, 24,32
1280x1024
150Hz/75Hz
8, 16, 24,32
1600x900
120Hz/75Hz/
NoDigitalDisplaySupport (unbold)
8, 16, 24,32
1600x1024
100Hz/72Hz/
NoDigitalDisplaySupport
8, 16, 24,32
1600x1200
120Hz/60Hz/
NoDigitalDisplaySupport
8, 16
1600x1200
100Hz/60Hz/
NoDigitalDisplaySupport
24,32
1920x1080
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1080
85Hz/
NoDigitalDisplaySupport
24,32
1920x1200
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1200
85Hz/
NoDigitalDisplaySupport
24,32
1920x1440
85Hz/
NoDigitalDisplaySupport
8, 16
1920x1440
75Hz/
NoDigitalDisplaySupport
24,32
2048x1536
75Hz/
NoDigitalDisplaySupport
8, 16
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 29
QuickSpecs
HP Workstation xw4000
TechSpecs
NVIDIA Quadro4 980
XGL Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV25GL GPU
Bus Type
AGP 8X
RAMDAC
Dual 350MHz integrated
Memory
128MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 8.55 in (10.795 x 21.59 cm)
Multi-monitor support
Dual integrated display controllers supporting up to 1920x1440 @ 85Hz on both displays
Additional product
features
Supported graphics APIs
AGP8xVersion 3.0 compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
NV28GL GPU featuring:
300 MHz engine clock rate
325 MHz memory clock rate
128-bit memory interface
VGA controller
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable vertex and pixel shader technology
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Frame synchronization
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8
Available graphics drivers HP-tested Windows 2000
HP-tested Windows XP
HP-tested Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
http://www.hp.com/workstations/support
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 30
QuickSpecs
HP Workstation xw4000
TechSpecs
NVIDIA Quadro4 980 XGL
Graphics Card display
resolutions & refresh rates Resolution
HP L1825 Flat Panel
Monitor (Carbon/Silver)
Monitor 1, 2
Analog/Digital
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24,32
800x600
240Hz/200Hz
8, 16, 24,32
1024x768
170Hz/140Hz
8, 16, 24,32
1152x864
170Hz/100Hz
8, 16, 24,32
1280x720
150Hz/120Hz
8, 16, 24,32
1280x960
150Hz/85Hz
8, 16, 24,32
1280x1024
150Hz/75Hz
8, 16, 24,32
1600x900
120Hz/75Hz
8, 16, 24,32
1600x1024
100Hz/72Hz
8, 16, 24,32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
24,32
1920x1080
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1080
85Hz/
NoDigitalDisplaySupport
24,32
1920x1200
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1200
85Hz/
NoDigitalDisplaySupport
24,32
1920x1440
85Hz/
NoDigitalDisplaySupport
8, 16
1920x1440
75Hz/
NoDigitalDisplaySupport
24,32
2048x1536
75Hz/
NoDigitalDisplaySupport
8, 16
2048x1536
60Hz/
NoDigitalDisplaySupport
24,32
Display Type
TFT large viewing angle
Viewable Image Size
18.1 in (45.9 cm) maximum viewable
Screen Opening (WxH)
14.2 x 11.4 in (36.2 x 28.9 cm)
Viewing Angle
160 degrees horizontal/160 degrees vertical (10:1 minimum contrast ratio)
Pixel Pitch
0.281 mm
Pixel Clock Speed
135 MHz
Brightness
250 nits (cd/m2)
Contrast Ratio
350:1 (typical
Response Rate
30 ms (typical rise + fall)
Horizontal Frequency
(kHz)
30 to 82 kHz
Vertical Frequency (Hz)
56 to 75 Hz
Color Depth Support
16.7 million colors
Graphics Controller
Genesis gm5020
Factory Preset Modes
15
Graphic Preset Modes
(non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 56 Hz, 60 Hz, 75Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Mac Compatible Modes
832 x 624 @ 75 Hz
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 31
QuickSpecs
HP Workstation xw4000
TechSpecs
(adapter required)
1152 x 870 @75 Hz
Text Mode
720 x 400 @ 70 Hz
VGA Mode
640 x 480 @ 60 Hz, 72 Hz
User-Programmable
Modes
15
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes (accessible on HP desktops featuring Intelligent Manageability)
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Protective Panel
No
Kensington Lock-ready
Yes
Accessories Included
VGA cable, DVI-D cable
VESA Mounting
100 mm x 100 mm screw-mounting option; pedestal is attached
VESA External Mounting
Yes (standard 4-hole pattern, 100 mm)
Detachable Base
Yes
Tilt
Yes (–5° to + 35° )
Swivel
Yes (–35° to + 35° )
Height Adjustable
Yes (130 mm adjustment range)
Portrait Mode Supported
Yes
Touchscreen Option
No
Fail Safe Mode
Yes
Icon Based On-Screen
Controls
Yes
User Controls
Brightness, contrast
Yes
Positioning
Yes
Color temperature
Yes (6500k, 9300k, User)
Individual color control
Yes
Serial number display
Yes
Full screen resolutions
Yes (640 x 480, 800 x 600)
Clock
Yes
Clock phase
Yes
Monitor management
No
Recall
No
Audio recall
No
Input selection
Yes
Factory reset
Yes
English
Yes
Spanish
Yes
French
Yes
German
Yes
Simplified Chinese
Yes
Italian
Yes
Australian ACA Approval
Yes
Canadian Requirements/CSA
Yes
CE Marking
Yes
China CCIB/CCEE Approval
Yes
CISPR Requirements
Yes
Eastern European Approvals
Yes
Energy Star Compliant
Yes
FCC Approval
Yes
Language Selection
Agency Approvals/
Certifications
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 32
QuickSpecs
HP Workstation xw4000
TechSpecs
German Ergonomic
(TUV and GS Mark)
Yes
ISO 9241-3,7,8 VDT
Guidelines
Yes
ISO 13406-2 Compliant
(Pixel Defect Guidelines)
Yes
Mexican NOM Approval
Yes
MIC Requirements
(New Zealand)
Yes
MPR-II Compliant
Yes
Nordic Approvals
(Nemko, Fimko, Demko,
Semko)
Yes
PC2001 Compliant
Yes
PC99 Certified
Yes
S. Korean MIC Approval
Yes
Taiwan BSMI Approval
Yes
TCO 99 (emissions,
ergonomics, environment)
Yes
TUV-Ergo
Yes
UL Listed
Yes
VCCI Approvals
Yes
Windows Certification
Microsoft Windows 98, Windows 2000, and Windows XP
Input Impedance
75 ohms ± 10%
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA; and one DVI-I (VGA analog or
digital)
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on Green
Power Supply ALS
Auto-ranging, 90 to 264 VAC; internal power supply, 60 Hz
Power Rating
Maximum Mode
< 60 W
Power Saving Mode
<5W
Off Mode
<5W
With stand - min height
14.8 x 15.8 x 8.2 in (37.6 x 40.2 x 20.8 cm)
With stand - max height
19.9 x 15.8 x 8.2 in (50.6 x 40.2 x 20.8 cm)
Without stand
13.5 x 15.8 x 2.9 in (34.2 x 40.2 x 7.3 cm)
With height-adjustable stand
22.9 lb (10.4 kg)
Without stand
13.6 lb/6.2 kg
Operating
32° to 95° F (0° to 35° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Operating
20% to 80%
Non-operating
8% to 85%
Dimensions (HxWxD)
Approximate Weight
Temperature
Humidity
Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability varies
by region. Consult HP Customer Service for details.
Compatibility
The following graphics controllers and chipsets have been tested and proven compatible for use with the hp L1825 Flat
Panel Monitor.
Graphic Controllers
Compatible with "VESA Video Signal Standard (VSIS) Compliant" video cards.
NOTE: Features are subject to change without notice.
HP L1925 Flat Panel
Monitor (Carbon/Silver)
Panel
DA - 11489
Type
Thin film transistor (TFT)
Viewable Image Area
19 in (48.25 cm) maximum viewable
Worldwide — Version 9 — August 11, 2003
Page 33
QuickSpecs
HP Workstation xw4000
TechSpecs
(diagonal)
Video Input
Signal Interface/
Performance
Screen Opening (WxH)
14.9 x 11.9 in (37.8 x 30.3 cm)
Viewing Angle (typical)
170 degrees horizontal/170 degrees vertical
(10:1 minimum contrast ratio)
Brightness (typical)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)
Up to 500:1 (typical)
Response Rate (typical)
<20 ms (typical rise + fall)
Pixel Pitch
0.294 mm
Color Depth Support
16.7 million colors
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA;
and one DVI-I (VGA analog or digital)
Input Impedance
75 ohms ± 2%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on
Green
Video Cable
VGA and DVI-D
Video Cable Length
78 in (2.0 m)
Horizontal Frequency
30 to 82 kHz
Vertical Frequency
56 to 75 Hz
Graphics Controller
Pixelworks 131
Native Resolution
1280x1024@75Hz analog
1280x 1024@60Hz digital
Maximum Resolution
(Analog)
1280x1024@75Hz analog
Maximum Resolution
(Digital)
1280x1024@75Hz analog
On Screen Display (OSD) Preset VESA Graphic
Controls
Modes
(non-interlaced)
DA - 11489
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Preset MAC Mode
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz, 72 Hz
Preset SUN Mode
1152x900@66Hz
Fail Safe Mode
Yes (limits out of range signal messages)
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
AssetControl
Yes (accessible on HP/Compaq desktops featuring
Intelligent Manageability)
Default Color
Temperature
Yes (6500k, 9300k, Custom User)
Buttons or Switches
Power on/off; 4-button OSD; second level OSD buttons
include auto adjust and dual-input switch
Languages
English, Spanish, French, German, Dutch, Italian
User Controls
Size and Positioning
Contrast
Brightness
Clock, Clock Phase
Selectable Color Temperature
Worldwide — Version 9 — August 11, 2003
Page 34
QuickSpecs
HP Workstation xw4000
TechSpecs
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Power
Mechanical
Power Supply
Auto-ranging, 90 to 265 VAC; internal power supply,
47.5-63 Hz
Input Power
100 ~ 240 VAC
Nominal Current
1.5 A maximum
Frequency
50 ~ 60 Hz
Average
33 watts when displaying standard office software
Maximum
< 40 watts
Power Saving
< 2 watts
Off Mode
< 1 watts (switch off)
Power Cable Length
70 in (1.8 m); non-captive
Dimensions
(H x W x D)
Unpacked w/ stand
minimum height
14.8 x 16.4 x 8.2 in
(39.8 x 41.6 x 20.8 cm)
Unpacked w/ stand
maximum height
20 x 16.4 x 8.2 in
(50.8 x 41.6 x 20.8 cm)
Base Area (Footprint
d x w)
8.2 x 12.2 in
(20.8 x 30.9 cm)
Panel only (w/o stand)
(h x w x d)
13.5 x 16.4 x 2.6 in
(34.2 x 41.6 x 6.6 cm)
Packaged
26.0 x 26.0 x 26.0 in
(66.0 x 66.0 x 66.0 cm)
Unpacked w/ stand
17.6 lb (8 kg)
Unpacked w/o stand
12 lb (5.5 kg)
Packaged
23.5 l (10.7 kg)
Weight
Environmental
Tilt Range
-5 degrees to +20 degrees
Swivel Range
± 45 degrees horizontal swivel
Height Adjustable
Yes (4.3 in/110 mm adjustment range)
Pivot Rotation
Yes, 90 degrees
Base
Ships attached and is removable after installation
Temperature – Operating
41° to 95° F (5° to 35° C)
Temperature – Nonoperating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80%
Humidity – Non-operating 5% to 95%
Altitude – Operating
0 to 13,000 ft (0 to 4,000 meters)
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 meters)
Options
PC Comm Station
Communication/audio hub that includes two stereo
speakers (8 PMPO each), integrated microphone/dual
function headset (phone and PC support), and USB port.
Optional, part number 304251-008 (US) or P8814A
(EMEA).
Other
Accessories Included
VGA cable, DVI-D cable, user CD-ROM with Portrait
software
User Guide Languages
English
Warranty Languages
English
Color
Carbon/Silver
VESA Mounting
Yes (swing arm/ wall mount not included; base is shipped
attached and must be removed for mounting options)
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 35
QuickSpecs
HP Workstation xw4000
TechSpecs
Kensington Lock-ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC
Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO
13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval, MIC
Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI
Approvals, Windows Certification
Compatibility
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven
compatible for use with the HP Flat Panel Monitor L1925. The HP L1925 has been tested
for use with Compaq Evo PCs and Thin Clients and Compaq D315 Business PCs.
NOTE: Features are subject to change without notice.
HP L2025 Flat Panel
Monitor (Carbon/Silver)
Service and Warranty
Limited three-year parts and repair labor, service provider labor, and on-site service. Next
Business Day advanced exchange direct replacement service available during warranty
period. Certain restrictions and exclusions apply. For details, contact HP Customer Support
at 970-635-1000 (USA) or 905-206-4663 (Canada).
Display Type
TFT large viewing angle
Viewable Image Size
20.1 in (51 cm) maximum viewable
Screen Opening (WxH)
16.2 x 22 in (41.1 x 30.9 cm)
Viewing Angle
170 degrees horizontal/170 degrees vertical (10:1 minimum contrast ratio)
Pixel Pitch
0.255 mm
Pixel Clock Speed
202 MHz
Brightness
250 nits (cd/m2) typical
Contrast Ratio
350:1 typical
Response Rate
25 ms typical (rise + fall)
Color Depth Support
16.7 million colors
Horizontal Frequency
(kHz)
30 to 94 kHz (analog); 30 to 92 KHz (digital)
Vertical Frequency (Hz)
56 to 85 Hz
Graphics Controller
Pixelworks PW171
Factory Preset Modes
18
Graphic Preset Modes
(non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85Hz
640 x 480 @ 60 Hz, 75 Hz
Mac Compatible Modes
(adapter required)
832 x 624 @ 75 Hz
1152 x 870 @ 75 Hz
Text Mode
720 x 400 @ 70 Hz
VGA Mode
640 x 480 @ 60 Hz
User-Programmable
Modes
18
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes (accessible on HP desktops featuring Intelligent Manageability)
Plug and Play
Yes
Kensington Lock-ready
Yes
Accessories Included
VGA cable, DVI-D cable
Protective Panel
No
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 36
QuickSpecs
HP Workstation xw4000
TechSpecs
VESA Mounting
100 mm x 100 mm screw-mounting option; pedestal is attached
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Portrait Mode Supported
No
Touchscreen Option
No
Detachable Base
Yes
Tilt
Yes (–5° to + 35° )
Swivel
Yes (–35° to + 35° )
Height Adjustable
Yes (130 mm adjustment range)
Fail Safe Mode
Yes
Icon Based On-Screen
Controls
Yes
User Controls
Brightness, contrast
Yes
Positioning
Yes
Color temperature
Yes (6500k, 9300k, User)
Individual color control
Yes
Serial number display
Yes
Full screen resolutions
Yes (640 x 480, 800 x 600)
Clock
Yes
Clock phase
Yes
Monitor management
No
Recall
No
Audio recall
No
Video PIP
Yes (size and position)
Input selection
Yes
(includes separate direct access key for dedicated swap
between inputs 1 and 2)
Factory reset
Yes
English
Yes
Spanish
Yes
French
Yes
German
Yes
Simplified Chinese
Yes
Italian
Yes
Australian ACA Approval
Yes
Canadian Requirements/CSA
Yes
CE Marking
Yes
China CCIB/CCEE Approval
Yes
CISPR Requirements
Yes
Eastern European Approvals
Yes
Energy Star Compliant
Yes
FCC Approval
Yes
German Ergonomic
(TUV and GS Mark)
Yes
ISO 9241-3,7,8 VDT
Guidelines
Yes
ISO 13406-2 Compliant
(Pixel Defect Guidelines)
Yes
Mexican NOM Approval
Yes
MIC Requirements
(New Zealand)
Yes
Language Selection
Agency Approvals/
Certifications
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 37
QuickSpecs
HP Workstation xw4000
TechSpecs
MPR-II Compliant
Yes
Nordic Approvals
(Nemko, Fimko, Demko,
Semko)
Yes
PC2001 Compliant
Yes
PC99 Certified
Yes
S. Korean MIC Approval
Yes
Taiwan BSMI Approval
Yes
TCO 99 (emissions,
ergonomics, environment)
Yes
TUV-Ergo
Yes
UL Listed
Yes
VCCI Approvals
Yes
Windows Certification
Microsoft Windows 98, Windows 2000, and Windows XP
Input Impedance
75 ohms ± 10%
Input Signal
Four connectors, including one 15-pin mini D-sub VGA; one DVI-I (VGA analog and
digital input), one composite video, and one s-video
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on Green
Power Supply ALS
Auto-Ranging, 90 to 264 VAC; internal power supply, 60 Hz
Power Rating
Maximum Mode
< 70 W
Power Saving Mode
<5W
Off Mode
<5W
With stand - min height
16.3 x 19.2 x 8.2 in (41.4 x 48.8 x 20.8 cm)
With stand - max height
21.4 x 19.2 x 8.2 in (54.4 x 48.8 x 20.8 cm)
Without stand
16.1 x 19.2 x 3.0 in (40.8 x 48.8 x 7.6 cm)
With height-adjustable stand
26.4 lb (12 kg)
Without stand
17.2 lb (7.8 kg)
Operating
46° to 95° F (10° to 35° C)
Non-operating
6° to 140° F (-10° to 60° C)
Operating
20% to 80%
Non-operating
5% to 85%
Dimensions (HxWxD)
Approximate Weight
Temperature
Humidity
Warranty
Three-year limited warranty parts, including backlight and on-site labor or 48 hour direct
unit replacement. Certain restrictions apply. Some terms vary depending on sales region.
Consult HP Customer Service for details.
Compatibility
The following graphics controllers and chipsets have been tested and proven compatible for use with the HP L2025 Flat
Panel Monitor.
Graphic Controllers
Compatible with "VESA Video Signal Standard (VSIS) Compliant" video cards.
NOTE: Features are subject to change without notice.
HP p930 CRT Monitor
(Carbon/Silver)
Tube Type
Diamondtron Natural Flat (NF) aperture grille tube; anti-reflection, anti-static
Picture Tube Size
(diagonal)
19 in (48.26 cm)
Viewable Image Area
(diagonal)
18 in (45.72 cm)
Aperture Grille Pitch
0.24 mm
Horizontal Frequency
(kHz)
30 to 110 kHz
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
1920 x 1440 @ 60 Hz
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 38
QuickSpecs
HP Workstation xw4000
TechSpecs
Preferred Flicker Free
Resolution
1280 x 1024 @ 85 Hz
Preset Graphic Modes
(non-interlaced)
1600 x 1200 @ 85 Hz and 75 Hz
1280 x 1024 @ 85 Hz and 75 Hz
1024 x 768 @ 85 Hz
800 x 600 @ 85 Hz
640 x 480 @ 85 Hz and 60 Hz
720 x 400 @ 70 Hz
User-Modes
Yes, 8 modes
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes
Plug and Play
VESA DDC2B; PC2001 compliant
Front Panel User Controls Power on/off; menu button; 4 OSD adjustment buttons; OSD exit button, information
button
On-Screen User Controls
Approvals/
Certifications
Brightness, contrast
Yes
Size and Positioning
Yes
Pincushion (barrel)
Yes
Trapezoid
Yes
Moiré Correction
Yes
Tilt (rotation)
Yes
Selectable Color Temperature
Yes
Factory Reset/Recall
Yes
Orthogonality
Yes
Current Display Mode
Yes
Degauss
Yes
Convergence
Yes
UL/CSA/CUL Approval
Yes
ISO9241-3, -7, -8 VDT
Guidelines Approval
Yes
MPR-II Compliant
Yes
TCO ‘99
Yes
FCC Approval
Yes
Microsoft WHQL Certified
Yes
Energy Star Compliant
Yes
CE Compliant
Yes
Signal Cable
Attached 15-pin D-sub connector, 5.9 ft/1.8 m
Maximum Pixel Clock
Speed
290 MHz
Power Supply
Universal; 100–240 V (auto-ranging), 50–60 Hz
Maximum Power Rating
= 120 watts
Low Power Sleep Mode
< 3 watts
Off Mode
0 watts
Dimensions (HxWxD)
Unpacked
18.8 x 18.5 x 18.5 in (47.6 x 46.9 x 46.9 cm)
Packaged
22.0 x 22.3 x 22.8 in (55.9 x 56.5 x 57.8 cm)
Unpacked
55 lb (24.9 kg)
Packaged
61 lb (27.7 kg)
Weight
Tilt/Swivel Base
-5 to + 10 degrees vertical tilt; ± 45 degrees horizontal swivel
Operating Temperature
50° to 95° F (10° to 35° C) non-condensing
Operating Humidity
20% to 80% non-condensing
Warranty
Limited three-year parts and repair labor, three-year service provider labor, and three-year
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 39
QuickSpecs
HP Workstation xw4000
TechSpecs
on-site service warranty. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply. For details,
contact HP Customer Support at 970-635-1000 (USA) or 905-206-4663 (Canada).
HP p1130 CRT Monitor
(Carbon/Silver)
Tube Type
FD Trinitron aperture grille tube
Picture Tube Size
(diagonal)
21 in (53.3 cm)
Viewable Image Area
(diagonal)
19.8 in (50.3 cm)
Aperture Grille Pitch
0.24 mm
Horizontal Frequency
(kHz)
30 to 130 kHz
Vertical Frequency (Hz)
50 to 170 Hz
Maximum Resolution
2048 x 1536 @ 75Hz
Maximum Pixel Clock
Speed
< 370 MHz
Preferred Flicker Free
Resolution
1920 x 1440 @ 85 Hz
Preset Graphic Modes
(non-interlaced)
1920 x 1440 @85Hz
1800 x 1440 @80Hz
1600 x 1200 @75, 85Hz
1280 x 1024 @75, 85Hz
1024 x 768 @75, 85Hz
800 x 600 @75, 85Hz
640 x 480 @65, 75 and 85Hz
640 x 400 @ 70Hz
User-Modes
8 preset modes and 10 additional modes
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes
Front Panel User Controls Power on/off switch; 5-button OSD; dual-input switch
Languages
Nine
English, French, German, Spanish, Italian, Dutch,
Swedish, Russian, Japanese
On-Screen User Controls
Size and Positioning
Yes
Contrast
Yes
Brightness
Yes
Moiré Correction
Yes
Tilt (rotation)
Yes
Selectable Color temperature
Yes
Orthogonality
Yes
Degauss
Yes (automatic at power on; manual)
Convergence (h/v/pre-set)
Yes
Reset
Yes
UL/CSA/CUL Approval
Yes
ISO9241-3, -7, -8 VDT
Guidelines Approval
Yes
MPR-II Compliant
Yes
TCO ‘99
Yes
FCC Approval
Yes
Microsoft WHQL Certified
Yes
Energy Star Compliant
Yes
CE Compliant
Yes
Approvals/
Certifications
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 40
QuickSpecs
HP Workstation xw4000
TechSpecs
Plug and Play
VESA DDC2Bi and DDC2B. PC2001 compliant
Dual Input
Yes, two 15-pin D-sub connections
Signal Cable
Detachable 15-pin D-sub mini connector
Power Supply
Universal; 100–240 V (auto-ranging), 50–60 Hz
Maximum Power Rating
135 watts
Low Power Sleep Mode
< 3 watts
Off Mode
0 watts
Dimensions (HxWxD)
Unpacked
19.7 x 19.6 x 19.3 in (50.2 x 49.7 x 49.0 cm)
Packaged
26.0 x 26.0 x 26.0 in (66.0 x 66.0 x 66.0 cm)
Unpacked
67.2 lb (30.5 kg)
Packaged
72.5 lb (32.9 kg)
Weight
Tilt/Swivel Base
-5 to + 15 degrees vertical tilt; ± 45 degrees horizontal swivel
Operating Temperature
Non-condensing
50° to 104° F (10° to 40° C)
Operating Humidity
Non-condensing
10% to 80%
Altitude
Operating
0 to 13,000 ft (0 to 4,000 m)
Non-Operating
0 to 50,000 ft (0 to 15,250 m)
Warranty
Limited three-year parts and repair labor, three-year service provider labor, and three-year
on-site service warranty. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply. For details,
contact HP Customer Support at 970-635-1000 (USA) or 905-206-4663 (Canada).
© Copyright 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation. Intel and Pentium are U.S. registered trademarks the Intel
Corporation. UnixWare is a registered trademark of The Open Group. All other product names mentioned herein may be trademarks of their respective
companies.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 11489
Worldwide — Version 9 — August 11, 2003
Page 41
Download PDF

advertising
