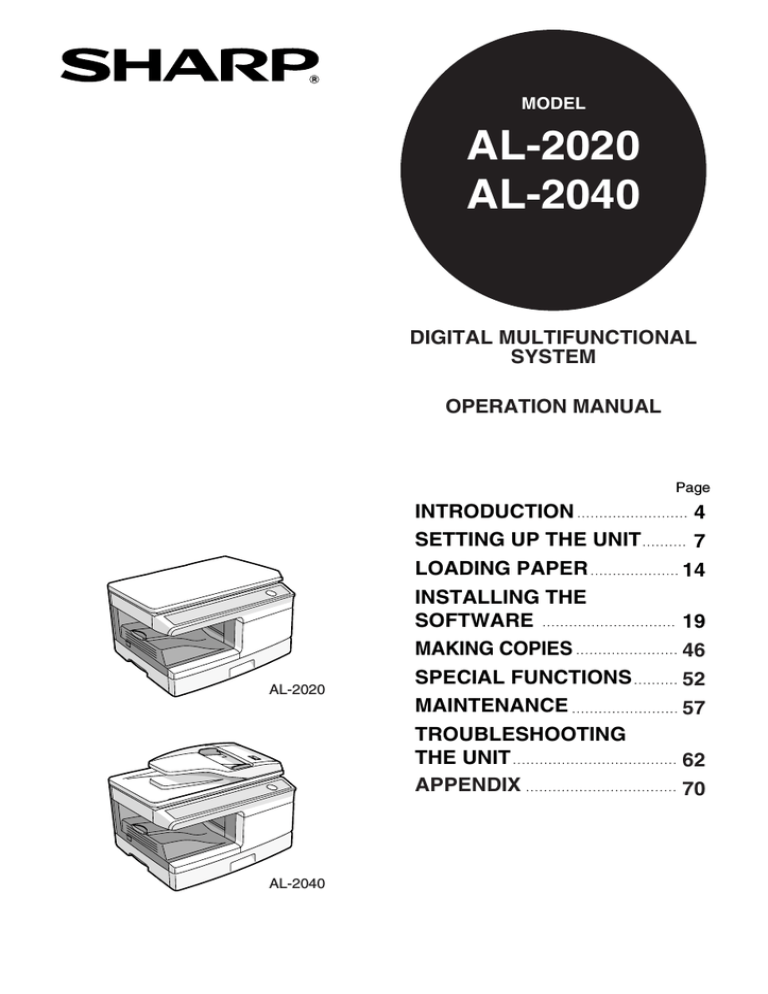

MODEL
AL-2020
AL-2040
DIGITAL MULTIFUNCTIONAL
SYSTEM
OPERATION MANUAL
Page
AL-2020
AL-2040
INTRODUCTION
4
SETTING UP THE UNIT
7
LOADING PAPER
14
INSTALLING THE
SOFTWARE
MAKING COPIES
SPECIAL FUNCTIONS
19
46
MAINTENANCE
57
TROUBLESHOOTING
THE UNIT
APPENDIX
62
52
70
Shielded interface cables must be used with this equipment to maintain
compliance with EMC regulations.
Do not make copies of anything which is prohibited from copying by law. The
following items are normally prohibited from copying by national law. Other
items may be prohibited by local law.
Money
Stamps
Bonds
Stocks
Bank drafts
Checks
Passports
Driver's licenses
In some areas, the "POWER" switch positions are marked "I" and "O" on the
copier instead of "ON" and "OFF".
The symbol "O" denotes the copier is not completely de-energized but in a standby condition at this "POWER" switch position. If your copier is so marked, please
read "I" for "ON" and "O" for "OFF".
Caution!
For a complete electrical disconnection, pull out the main plug.
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
CAUTIONS
Caution label on the unit
The label (
,
) in the fusing area of the unit indicates the following:
: Caution, risk of danger
: Caution, hot surface
Cautions on using
Follow the cautions below when using this unit.
Warning:
• The fusing area is hot. Exercise care in this area when removing misfed paper.
• Do not look directly at the light source. Doing so may damage your eyes.
• Unit power must be turned off before installing any supplies.
Caution:
• Place the unit on a firm, level surface.
• Do not install the unit in a humid or dusty location.
• When the unit is not used for a long time, for example during prolonged holidays,
turn the power switch off and remove the power cord from the outlet.
• When moving the unit, be sure to turn the power switch off and remove the power
cord from the outlet.
• Do not switch the unit rapidly on and off. After turning the unit off, wait 10 to 15
seconds before turning it back on.
• Do not cover the unit with a dust cover, cloth or plastic film while the power is on.
Doing so may prevent heat radiation, damaging the unit.
• Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
• The socket-outlet shall be installed near the unit and shall be easily accessible.
Important points when selecting an installation site
Do not install your unit in areas that are:
• subject to extreme temperature or
• damp, humid, or very dusty
humidity changes, e.g., near an air
• exposed to direct sunlight
conditioner or heater.
• poorly ventilated
Be sure to allow the required space around the
20 cm
machine for servicing and proper ventilation.
10 cm
10 cm
Cautions on handling
Be careful in handling the unit as follows to maintain the performance of this unit.
Do not drop the unit, subject it to shock or strike it against any object.
Do not expose the drum cartridge to direct sunlight.
• Doing so will damage the surface (green portion) of the drum cartridge, causing
smudges on copies.
Store spare supplies such as drum cartridges and TD cartridges in a dark
place without removing from the package before use.
• If they are exposed to direct sunlight, smudges on copies may result.
Do not touch the surface (green portion) of the drum cartridge.
• Doing so will damage the surface of the cartridge, causing smudges on copies.
Supply and Consumables
The supply of spare parts for a repair of the appliance is guaranteed for at least 7 years
following the termination of production. Spare parts are those parts of the apparatus
which may break down within the scope of ordinary use of the product - whereas those
parts which normally exceed the life of the product are not considered spare parts.
Consumables also, are available for 7 years following the termination of production.
1
Trademark acknowledgements
• Microsoft®, Windows®, Windows® 98, Windows® Me, Windows® 2000,
Windows® XP, Windows® Vista and Internet Explorer® are registered trademarks
or trademarks of Microsoft Corporation in the U.S.A. and other countries.
• Adobe®, the Adobe® logo, Acrobat®, the Adobe® PDF logo, and ReaderTM are
registered trademarks or trademarks of Adobe Systems Incorporated in the United
States and other countries.
• IBM, PC/AT, and PowerPC are trademarks of International Business Machines Corporation.
• Sharpdesk is a trademark of Sharp Corporation.
• All other trademarks and copyrights are the property of their respective owners.
Products that have earned the ENERGY STAR® are designed to
protect the environment through superior energy efficiency.
Laser information
Wave length
Pulse times (North America)
Output power
780 nm
+15 nm
(Four laser diodes)
-10 nm
12.88 µs ±12.88 ns/7 mm
Max 0.2 mW (Total Power)
At the production line, the output power of the scanner unit is adjusted to 0.18
MILLIWATT (Total Power) PLUS 5% and is maintained constant by the operation
of the Automatic Power Control (APC).
Caution
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
This Digital Equipment is CLASS 1 LASER PRODUCT (IEC 60825-1 Edition 1.2-2001)
A small amount of ozone is produced within the unit during operation. The
emission level is insufficient to cause any health hazard.
Note:
The present recommended long term exposure limit for ozone is 0.1 ppm
(0.2 mg/m3) calculated as an 8 hr. time-weighted average concentration.
However, since the small amount that is emitted may have an objectionable odor,
it is advisable to place the unit in a ventilated area.
SOFTWARE LICENSE
The SOFTWARE LICENSE will appear when you install the software from the CD-ROM.
By using all or any portion of the software on the CD-ROM or in the machine, you are
agreeing to be bound by the terms of the SOFTWARE LICENSE.
2
CONTENTS
1 INTRODUCTION
USING THE MANUALS ................. 4
PART NAMES ................................ 5
OPERATION PANEL...................... 6
2 SETTING UP THE UNIT
SETUP PROCEDURE ................... 7
CHECKING PACKED
COMPONENTS AND
ACCESSORIES ............................. 8
PREPARING THE UNIT FOR
INSTALLATION .............................. 8
INSTALLING THE
TD CARTRIDGE .......................... 10
CONNECTING THE POWER CORD.. 12
3 LOADING PAPER
PAPER ......................................... 14
LOADING THE PAPER TRAY ..... 15
BYPASS FEED
(including special paper).............. 17
4 INSTALLING THE SOFTWARE
SOFTWARE................................. 19
BEFORE INSTALLATION ............ 20
INSTALLING THE SOFTWARE... 21
INDICATORS ON THE
OPERATION PANEL.................... 33
USING THE PRINTER MODE..... 34
USING THE SCANNER MODE... 36
HOW TO USE THE ONLINE
MANUAL ...................................... 45
6 SPECIAL FUNCTIONS
TWO SIDED COPYING ...............52
DESCRIPTION OF OTHER
SPECIAL FUNCTIONS................54
TONER SAVE MODE ..................54
USER PROGRAMS .....................55
DISPLAYING TOTAL NUMBER
OF COPIES .................................56
2
7 MAINTENANCE
TD CARTRIDGE
REPLACEMENT ..........................57
DRUM CARTRIDGE
REPLACEMENT ..........................58
CLEANING THE UNIT .................60
8 TROUBLESHOOTING THE UNIT
TROUBLESHOOTING .................62
STATUS INDICATORS .................63
MISFEED REMOVAL ...................64
IF A PAPER MISFEED OCCURS
IN THE MAIN UNIT WHILE
USING THE SPF (AL-2040) ........69
3
4
5
9 APPENDIX
SPECIFICATIONS .......................70
ABOUT SUPPLIES AND
OPTIONS.....................................72
MOVING AND STORING
THE UNIT ....................................73
MATERIAL SAFETY
DATA SHEET .................................. 74
5 MAKING COPIES
COPY FLOW ............................... 46
ORIGINAL PLACEMENT............. 47
SET THE COPY QUANTITY ....... 49
EXPOSURE ADJUSTMENT/
PHOTO COPYING....................... 49
REDUCTION/ENLARGEMENT/
ZOOM .......................................... 51
SELECTING THE PAPER TRAY .... 51
1
6
7
INDEX ..........................................82
8
9
3
1
INTRODUCTION
This chapter provides basic information for using the unit.
USING THE MANUALS
In addition to this printed manual an online manual is also provided. To get full use of
all features and functions of this product, be sure to familiarize yourself with both
manuals. This printed manual provides all installation and setup instructions as well
as instructions in the use of all copier functions. The online manual contains the
following information.
Online manual
Provides you with information on how to specify preferences and troubleshooting.
Check the online manual when you use this unit after all the initial setup is
completed.
How to use the online manual
Explains how to use the online manual.
Print
Provides information on how to print a document.
Scan
Explains how to scan using the scanner driver and how to adjust the settings for
the Button Manager.
Troubleshooting
Provides instructions on how to solve driver or software problems.
Conventions used in this manual and online manual
• This operation manual explains the operation of the AL-2020 and AL-2040 models.
In cases where the operation is the same, the AL-2040 is used.
• The illustrations in this manual generally show the AL-2040.
• Wherever "AL-xxxx" appears in this manual, please substitute your model name
for "xxxx".
• Illustrations of driver screens and other computer screens show the screens that
appear in Windows XP Home Edition. Some of the names that appear in these
illustrations may differ slightly from the screens that appear in other operating
systems.
• This operation manual refers to the Single Pass Feeder as the "SPF".
• In this manual, the following icons are used to provide the user with information
pertinent to the use of the unit.
Warns the user that injury may result if the contents of the warning
are not properly followed.
Cautions the user that damage to the unit or one of its components
may result if the contents of the caution are not properly followed.
Notes provide information relevant to the unit regarding
specifications, functions, performance, operation and such, that
may be useful to the user.
Indicates a letter displayed in the display.
4
PART NAMES
SPF (AL-2040)
Exit area
Original cover
Original guide
(AL-2020)
1
Document
feeder cover
Peep hole
Document feeder tray
Interface
Interface
USB
connector
SPF scan area
(AL-2040)
LAN
connector
(AL-2040 only)
1
2
6
9
10
3
11
12
13
4
5
TD cartridge
Drum cartridge
6
14
15
3
16
1
2
3
4
5
6
7
8
9
10
Document glass
Operation panel
Front cover
Paper tray
Multi-bypass tray
Side cover
Side cover open button
Bypass tray paper guides
Paper output tray
Paper output tray extension
11
12
13
14
15
16
Power switch
Handle
Power cord socket
Fusing unit release lever
Transfer charger
Charger cleaner
5
OPERATION PANEL
1
2
3
4
141
A5 A4
86
70
50
A4 B5
A4 A5
Original to copy key and indicators
Two-sided copies from
one-sided originals.
Turn on Long Edge or
Turn on Short Edge
can be selected.
Exposure mode selector key and
indicators
Use to sequentially select the exposure
modes: AUTO, MANUAL or PHOTO.
Selected mode is shown by a lit
indicator. (p.49)
Light and dark keys and indicators
Use to adjust the MANUAL or PHOTO
exposure level. Selected exposure level
is shown by a lit indicator. (p.49) Use to
start and terminate user program
setting. (p.55)
Alarm indicators
Drum replacement required
indicator (p.58)
10
11
12
13
14
15
Misfeed indicator (p.64)
5
6
7
8
9
6
TD cartridge replacement
required indicator (p.57)
SPF indicator (p.48) (AL-2040)
SPF misfeed indicator (p.68) (AL-2040)
Copy ratio selector key and
indicators
Use to sequentially select preset
reduction/enlargement copy ratios.
Selected copy ratio is shown by a lit
indicator. (p.51)
Copy ratio display (%) key
• Use to verify a zoom setting without
changing the zoom ratio. (p.51)
• Use to check the number of originals
that must be returned to the document
feeder tray if a misfeed occurs in the
machine when the SPF is used (AL2040). (p.69)
Display
Displays the specified copy quantity,
zoom copy ratio, user program code
and error code.
16
17
18
SCAN key and indicator
(p.33, p.41)
ONLINE key and indicator
Lights up when the unit is used as a
printer and scanner. For description of
the ONLINE indicator, see
"INDICATORS ON THE OPERATION
PANEL" (p.33).
Start key and indicator
• Copying is possible when the
indicator is on.
• Press to start copying
• Use to set a user program. (p.55)
Power save indicator
Lights up when the unit is in a power
save mode. (p.54, p.55)
Tray select key
Use to select a paper feed station
(paper tray or multi-bypass tray). (p.51)
Paper feed location indicators
Light up to show the selected paper
feed station.
ZOOM keys and indicator
Use to select any reduction or
enlargement copy ratio from 25% to
400% in 1% increments. (When the
SPF is being used, the zoom copy ratio
range is 50% to 200%.(AL-2040)) (p.51)
Copy quantity keys
• Use to select the desired copy
quantity (1 to 99). (p.49)
• Use to make user program entries.
(p.55)
Clear key
• Press to clear the display, or press
during a copy run to terminate
copying. (p.49)
• Press and hold down during standby
to display the total number of copies
made to date. (p.56)
2
SETTING UP THE UNIT
Follow the installation procedure below to use the unit properly.
If the unit does not function properly during setup or use, or if a function
cannot be used, see "TROUBLESHOOTING THE UNIT" (p.62).
SETUP PROCEDURE
2
When using the unit for the first time, setup the unit following the procedure shown
below.
1 Open the package, and make sure that all the accessories are
supplied with the unit. (p.8)
2 Remove the protective materials. (p.9)
3 Install the TD cartridge. (p.10)
4 Load the paper in the paper tray (p.15) or the multi-bypass
tray . (p.17)
5 Plug the other end of the power cord into the nearest outlet. (p.12)
6 Install the software.* (p.19)
7 Connect the interface cable* (p.25) and turn on the unit. (p.12)
8 Now, you can copy (p.46), print (p.35) or scan (p.36) your
document.
* If you are only using the unit for copying, skip this step.
7
CHECKING PACKED COMPONENTS AND
ACCESSORIES
Open the carton and check if the following components and accessories are
included.
If anything is not included or is damaged, contact your authorised service
representative.
Cautions leaflet
Software and
user documentation
CD-ROM
Drum cartridge
(installed in unit)
TD cartridge
PREPARING THE UNIT FOR INSTALLATION
1
8
Be sure to hold the handles on
both sides of the unit to unpack
the unit and carry it to the
installation location.
2
Remove all pieces of tape shown in the illustration below. Then
open the document glass/SPF and remove protective materials.
After that, take out the bag containing the TD cartridge.
AL-2020
2
AL-2040
3
Release the scan head locking switch.
The scan head locking switch is under the document glass.
If the switch is locked ( ), the unit will not operate. Unlock the switch (
as shown below.
)
Grasp here and turn in
the direction of the arrow.
A
Lock
Unlock
To lock the scan head locking switch, hold up the catch in illustration A and
turn the center knob counter-clockwise 90 degrees until you hear a click.
9
INSTALLING THE TD CARTRIDGE
1
Open the multi-bypass tray,
and then open the side
cover.
2
Push gently on both sides of the
front cover to open the cover.
3
Remove the TD cartridge from the bag. Remove the protective
paper. Hold the cartridge on both sides and shake it
horizontally four or five times. Hold the tab of the protective
cover and pull the tab to your side to remove the cover.
4 or 5 times
4
10
Gently insert the TD cartridge
until it locks in place while
pushing the lock release button.
Lock release button
5
Close the front cover and then
the side cover by pressing the
round projections near the
side cover open button.
When closing the covers, be
sure to close the front cover
securely and then close the
side cover. If the covers are
closed in the wrong order, the
covers may be damaged.
2
11
CONNECTING THE POWER CORD
If you use the unit in a country other than the country where the unit was
purchased, you will need to make sure that your local power supply is
compatible with your model. If you plug the unit into an incompatible
power supply, irreparable damage to the unit will result.
1
Ensure that the power switch of
the unit is in the OFF position.
Insert the attached power cord
into the power cord socket at the
rear of the unit.
2
Plug the other end of the power cord into the nearest outlet.
• Only insert the power cord into a properly grounded wall socket.
• Do not use extension cords or power strips.
POWER ON
Ensure that the power switch of the unit is in the OFF position. Plug the other end of
the power cord into the nearest outlet. Turn the power switch on the left side of the
unit to the "ON" position. The start ( ) indicator will light up and other indicators
which show the initial settings of the operation panel will also light up to indicate the
ready condition. For the initial settings, see the "Initial settings of operation panel"
described on the next page.
• The unit will enter a power save mode once the set time has elapsed
without any unit operation. The settings of the power save modes can
be modified. See "USER PROGRAMS" (p.55).
• The unit will return to the initial settings a preset amount of time after
the end of copy or scanner job. The preset amount of time (auto clear
time) can be changed. See "USER PROGRAMS" (p.55).
12
About the scan head
The scan head lamp remains on constantly when the unit is in the ready condition
(when the start ( ) indicator is illuminated).
The unit adjusts the scan head lamp periodically to maintain copying quality. At this
time, the scan head moves automatically. This is normal and does not indicate unit
trouble.
Initial settings of operation panel
When the unit power is on, the operation panel will revert to the initial settings when
the time set with the "Auto clear time" setting (p.55) elapses after a job is finished, or
when the clear key is pressed twice.
The initial settings of the operation panel are shown below.
141
A5 A4
86
70
A4 B5
A4 A5
2
"0" is displayed in the display.
When copying has begun in this state, the settings in the following table are used.
Copy quantity
1 copy
Exposure adjustment
AUTO
Zoom
100%
Tray
Paper tray
Power off methods
If not used for a certain period of time, the unit will automatically enter auto power
shut-off mode (p.54) in order to minimize power consumption. In cases where the
machine will not be used for a long time, turn off the power switch and remove the
power cord from the outlet.
13
3
LOADING PAPER
Follow the steps below to load paper into the tray.
PAPER
For best results, use only paper recommended by SHARP.
Type of paper
feeding
Type of media
Size
Weight
Paper tray
Standard paper
A4
A5
B5
Letter
Legal
Invoice
56g/m2 to
80g/m2
Multi-bypass
tray
Standard paper and
thick paper
A4
A5
A6
B5
B6
Letter (8-1/2" x 11")
Legal (8-1/2" x 14")
Invoice (5-1/2" x 8-1/2")
56g/m2 to
128g/m2*2
Special Transparency A4
media film
Letter (8-1/2" x 11")
Envelope*1
Commercial 10
(4-1/8" x 9-1/2")
Monarch
(3-7/8" x 7-1/2")
DL
C5
*1 Do not use non-standard envelopes, and envelopes that have metal clasps,
plastic snappers, string closures, windows, linings, self-adhesive, patches or
synthetic materials. Do not use envelopes that are filled with air or envelopes that
have labels or stamps attached. These will cause physical damage to the unit.
*2 For paper weighing from 105g/m2 to 128g/m2, A4 is the maximum size that can be
fed through the multi-bypass tray.
• Special papers such as transparency film, labels and envelopes must be fed one
sheet at a time through the multi-bypass tray.
14
LOADING THE PAPER TRAY
1
Raise the handle of the paper tray
and pull the paper tray out until it
stops.
2
Remove the pressure plate lock. Rotate the pressure plate lock
in the direction of the arrow to remove it while pressing down
the pressure plate of the paper tray.
3
3
Store the pressure plate lock which has been removed in step
2. To store the pressure plate lock, rotate the lock to fix it on the
relevant location.
Pressure plate lock
4
Adjust the paper guides on the paper tray to the copy paper
width and length. Squeeze the lever of paper guide A and slide
the guide to match with the width of the paper. Move paper
guide B to the appropriate slot as marked on the tray.
Paper
guide B
Paper
guide A
15
5
Fan the paper and insert it into the tray. Make sure the edges go
under the corner hooks.
Do not load paper above the maximum height line (
the line will cause a paper misfeed.
6
). Exceeding
Gently push the paper tray back into the unit.
• Be sure that paper is free of rips, dust, wrinkles, and curled or bent
edges.
• Make sure all the paper in the stack is the same size and type.
• When loading paper, ensure there is no space between the paper and
the guide, and check if the guide is not set too narrow causing the
paper to bend. Loading paper in these ways will result in document
skew or a paper jam.
• When not using the unit for an extended period, remove all paper from
the paper tray and store it in a dry place. If paper is left in the unit for
an extended period, the paper will absorb moisture from the air,
resulting in paper jams.
• When adding new paper to the paper tray, remove the old paper
already contained in the tray. Placing new paper on top of the paper
already contained in the tray may result in feeding two sheets at one
time.
• If output paper curls, it may help to turn the paper over when loading it
in the tray.
16
BYPASS FEED (including special paper)
The multi-bypass tray can be used to feed standard paper, transparency film, labels,
envelopes, and other special purpose paper. Paper measuring from A6 to A4 and in
the weight range of 56g/m2 to 128g/m2 can be used in this tray. (For paper weighing
from 105g/m2 to 128g/m2, A4 is the maximum size.)
• The multi-bypass tray can hold maximum of 50 sheets of paper.
(Capacity will vary depending on the type of paper loaded.)
• The original image must be smaller than the paper or media for
copying. If the original image is bigger than the paper or media, this
may cause smudges on the edges of the copies.
The multi-bypass tray
1
Open the multi-bypass tray and extend the tray.
3
To close the multi-bypass tray, perform step 1 and then step
2 in the illustration and push the round projections at the right
of the tray until they click.
17
2
Set the paper guides to the paper width. Insert the paper (print
face down) all the way into the multi-bypass tray.
Print face
• Paper must be fed narrow side into the feed slot.
• Special papers such as transparency film, labels, and envelopes
must be fed one sheet at a time through the multi-bypass tray.
• When copying onto transparency film, remove each copy
promptly. Do not let copies stack up.
3
Press the tray select (
) key to select the multi-bypass tray.
Note for loading envelopes
• Envelopes must be fed narrow side into the feed slot at a time.
• Do not use non-standard envelopes, and envelopes that have metal clasps, plastic
snappers, string closures, windows, linings, self-adhesive, patches or synthetic
materials. Do not use envelopes that are filled with air or envelopes that have
labels or stamps attached.
• Envelopes of which the surface is not flat because of embossing may cause the
copies/prints to become smudged.
• Under high humidity and temperature conditions the glue flaps on some envelopes
may become sticky and be sealed when copied/printed.
• Use only envelopes which are flat and crisply folded. Curled or poorly formed
envelopes may be poorly printed or may cause misfeeds.
• Be sure to select either Com10, DL, C5 or Monarch on the paper size setting of the
printer driver. (For detailed information on printer driver, refer to the online manual.)
• It is recommended that you perform a test print before performing the actual copy/
print job.
Note for loading thick paper
Copying on thick paper requires higher fusing temperature setting. Set the user
program 29 to "2 (High)" when using thick paper. (See page 55 and 56.)
18
4
INSTALLING THE SOFTWARE
This chapter explains how to install and configure the software that is required for the
printer and scanner functions of the machine. The procedure for viewing the Online
Manual is also explained.
• The screen images in this manual are mainly for Windows XP. With
other versions of Windows, some screen images may be different from
those in this manual.
• This manual refers to the CD-ROM that accompanied the machine
simply as "CD-ROM".
SOFTWARE
The CD-ROM that accompanies the machine contains the following software:
MFP driver
Printer driver
The printer driver enables you to use the printer function of the machine.
The printer driver includes the Print Status Window. This is a utility that monitors
the machine and informs you of the printing status, the name of the document
currently being printed, and error messages.
Please note that the Print Status Window does not operate when the machine is
used as a network printer.
4
Scanner driver*
The scanner driver allows you to use the scanning function of the machine with
TWAIN-compliant and WIA-compliant applications.
Sharpdesk*
Sharpdesk is an integrated software environment that makes it easy to manage
documents and image files, and launch applications.
Button Manager*
Button Manager allows you to use the scanner menus on the machine to scan a
document.
*The scanning feature can only be used with computers that are connected to the
machine by a USB cable. If you are connected to the machine by a LAN
connection, only the printer function can be used.
19
BEFORE INSTALLATION
Hardware and software requirements
Check the following hardware and software requirements in order to install the software.
Computer type
IBM PC/AT or compatible computer equipped with a
USB 2.0/1.1*1 or 10Base-T LAN interface
4
Operating system*2 *3 Windows 98, Windows Me, Windows 2000 Professional* ,
Windows XP*4, Windows Vista*4*
Display
800 x 600 dots (SVGA) display with 256 colors (or better)
Hard disk free space 150 MB or more
Other hardware
requirements
An environment on which any of the operating systems
listed above can fully operate
*1 Compatible with Windows 98, Windows Me, Windows 2000 Professional,
Windows XP or Windows Vista preinstalled model standardly equipped with a
USB port.
*2 Printing is not available in MS-DOS mode.
*3 The machine does not support printing from a Macintosh environment.
*4 Administrator's rights are required to install the software using the installer.
Installation environment and usable software
The following table shows the drivers and software that can be installed for each
version of Windows and interface connection method.
Cable
USB
LAN
Operating system
Printer
driver
Windows 98/Me/
2000/XP/Vista
Windows 98/Me/
2000/XP/Vista
Available*1
Scanner
driver
Button
Manager
Sharpdesk
Available
Not available*2
*1 The printer driver that is installed will vary depending on the type of connection
between the machine and your computer.
*2 Although it is possible to install Button Manager and Sharpdesk on Windows
98/Me/2000/XP/Vista, neither Button Manager nor the scanner function of
Sharpdesk can actually be used.
20
INSTALLING THE SOFTWARE
• If you need to use a different connection method after installing the
software using a USB or network connection, you must first uninstall
the software and then install it using the new connection method.
• In the following explanations it is assumed that the mouse is
configured for right hand operation.
• The scanner function only works when using a USB cable.
• If an error message appears, follow the instructions on the screen to
solve the problem. After the problem is solved, the installation
procedure will continue. Depending on the problem, you may have to
click the "Cancel" button to exit the installer. In this case, reinstall the
software from the beginning after solving the problem.
Using the machine with a USB connection
1
The USB cable must not be connected to the machine. Make
sure that the cable is not connected before proceeding.
If the cable is connected, a Plug and Play window will appear. If this
happens, click the "Cancel" button to close the window and disconnect the
cable.
4
The cable will be connected in step 13.
2
Insert the CD-ROM into your computer's CD-ROM drive.
3
Click the "start" button, click "My Computer" (
double-click the CD-ROM icon ( ).
), and then
• On Windows Vista, click the "Start" button, click "Computer" and then
double-click the CD-ROM icon (
).
• On Windows 98/Me/2000, double-click "My Computer", and then
double-click the CD-ROM icon.
4
Double-click the "setup" icon (
5
The "SOFTWARE LICENSE" window will appear. Make sure
that you understand the contents of the software license, and
then click the "Yes" button.
).
On Windows Vista, if a message screen appears asking you for
confirmation, click "Allow".
You can show the "SOFTWARE LICENSE" in a different language by
selecting the desired language from the language menu. To install the
software in the selected language, continue the installation with that
language selected.
6
Read the "Readme First" in the "Welcome" window and then
click the "Next" button.
21
AL-2020
7
To install all of the software,
click the "Standard" button
and go to step 12.
To install particular packages,
click the "Custom" button and
go to next step.
7
To install all of the software,
click the "Standard" button
and go to step 12.
To install particular packages,
click the "Custom" button and
go to next step.
8
Click the "MFP Driver"
button.
8
Click the "MFP Driver"
button.
Click the "Display Readme"
button to show information on
packages that are selected.
22
AL-2040
Click the "Display Readme"
button to show information on
packages that are selected.
AL-2020
9
Select "Connected to this
computer" and click the
"Next" button.
AL-2040
9
The files required for
installation of the MFP
driver are copied.
Follow the on-screen instructions.
When "The installation of the
SHARP software is complete."
appears, click the "OK" button.
Follow the on-screen instructions.
When "The installation of the
SHARP software is complete."
appears, click the "OK" button
and go to step 12.
• If you are using Windows Vista and a security warning window
appears, be sure to click "Install this driver software anyway".
• If you are running Windows 2000/XP and a warning message appears
regarding the Windows logo test or digital signature, be sure to click
"Continue Anyway" or "Yes".
10
4
You will return to the window of step 8. If you wish to install
Button Manager or Sharpdesk, click the "Utility Software" button.
If you do not wish to install the Utility Software, click the "Close" button and
go to step 12.
After the installation, a message prompting you to restart your computer
may appear. In this case, click the "Yes" button to restart your computer.
Installing the Utility Software
11
Click the "Button Manager" or the
"Sharpdesk" button.
Click the "Display Readme" button to
show information on packages that are
selected.
Follow the on-screen instructions.
23
In Windows 98/Me/2000, if the following screen appears, click the "Skip"
button or the "Continue" button as appropriate to continue the
Sharpdesk installation.
If "Skip" is selected, the Sharpdesk
installation will continue without
installing Sharpdesk Imaging.
If "Continue" is selected, Sharpdesk
Imaging will be installed. If Imaging for
Windows is installed on your computer,
Sharpdesk Imaging will overwrite
Imaging for Windows.
12
When installing is finished, click the "Close" button.
• If you are using Windows Vista and a security warning window appears, be
sure to click "Install this driver software anyway".
• If you are running Windows 2000/XP and a warning message appears
regarding the Windows logo test or digital signature, be sure to click "Continue
Anyway" or "Yes".
A message will appear instructing you to connect the machine to your
computer. Click the "OK" button.
After the installation, a message prompting you to restart your computer may
appear. In this case, click the "Yes" button to restart your computer.
13
Make sure that the power of the machine is turned on, and then
connect the USB cable (p. 25).
Windows will detect the machine and a Plug and Play screen will appear.
14
Follow the instructions in the plug and play window to install the driver.
Follow the on-screen instructions.
• If you are using Windows Vista and a security warning window appears, be
sure to click "Install this driver software anyway".
• If you are running Windows 2000/XP and a warning message appears
regarding the Windows logo test or digital signature, be sure to click "Continue
Anyway" or "Yes".
A "USB 2.0 Composite Device" installation window may appear prior to this
procedure. In this case, follow the instructions in the window to install the USB 2.0
Composite Device.
This completes the installation of the software.
• If you installed Button Manager, set up Button Manager as explained in "Setting up
the Button Manager" (p.36).
• If you installed Sharpdesk, the Sharpdesk setup screen will appear. Follow the
instructions in the screen to set up Sharpdesk.
24
Connecting a USB cable
Follow the procedure below to connect the machine to your computer.
A USB cable for connecting the machine to your computer is not included with the
machine. Please purchase the appropriate cable for your computer.
• USB is available with a PC/AT compatible computer that was originally
equipped with USB and had Windows 98, Windows Me, Windows 2000
Professional, Windows XP Professional or Windows Vista preinstalled.
• Do not connect the USB cable before installing the printer driver. The
USB cable should be connected during installation of the printer driver.
1
Insert the cable into the USB
connector on the machine.
2
Insert the other end of the cable into your computer's USB port.
4
Using the machine as a network printer (AL-2040 only)
• Interface cables for connecting the machine to your computer are not
included with the machine. Please purchase the appropriate cable for
your computer.
• If you intend to use the machine as a scanner, it must be connected to
your computer with a USB interface cable. The scanner function
cannot be used if the machine is connected with a LAN cable.
1
Insert the LAN cable into the LAN
connector on the machine.
Use a network cable that is shielded.
2
Turn on the machine.
3
Insert the CD-ROM into your computer's CD-ROM drive.
4
Click the "start" button, click "My Computer" (
double-click the CD-ROM icon ( ).
), and then
• On Windows Vista, click the "Start" button, click "Computer" and then
double-click the CD-ROM icon (
).
• In Windows 98/Me/2000, double-click "My Computer", and then
double-click the CD-ROM icon.
25
5
Double-click the "setup" icon (
).
On Windows Vista, if a message screen appears asking you for
confirmation, click "Allow".
6
The "SOFTWARE LICENSE" window will appear. Make sure
that you understand the contents of the software license, and
then click the "Yes" button.
You can show the "SOFTWARE LICENSE" in a different language by
selecting the desired language from the language menu. To install the
software in the selected language, continue the installation with that
language selected.
7
Read the "Readme First" in the "Welcome" window and then
click the "Next" button.
To set the IP address of the machine, follow the steps below. If the
machine is already connected to the network and its IP address has
been set, go to "LPR (TCP/IP) direct printing" (p.27).
Set the IP Address
This setting is only required once when using the machine on a network.
8
Click the "Set the IP Address"
button.
9
The printer or printers connected
to the network will be detected.
Click the printer to be configured
(the machine) and click the "Next"
button.
AL-xxxx
26
• The "Ethernet Address" is indicated on the left side of the machine
near the LAN connector.
• If the machine is used on a different network after the IP address is set,
the machine will not be recognized. Enter the Ethernet Address and click
the "Initialize" button to initialize the IP address. Follow the on-screen
instructions to click the "OK" button and then the "Search" button.
10
Enter the IP address, subnet
mask, and default gateway.
The settings in the above window are
examples.
Be sure to ask your network
administrator for the correct IP address,
subnet mask, and default gateway to be
entered.
When "Get IP Address Automatically" is selected, the IP address may at
times change automatically. This will prevent printing. In this event,
select "Assign IP Address" and enter the IP address.
11
Click the "Next" button.
12
Click the "Yes" button when a confirmation dialogue box appears.
4
Go to step 11 on page 28.
LPR (TCP/IP) direct printing
After step 1-7 on page 25-26
8
Click the "Printer Driver" button.
If you have not set the IP Address, click
the "Set the IP Address" button first and
go to step 8 on page 26.
27
9
Read the message in the "Welcome" window and then click the
"Next" button.
10
Select "LPR Direct Print" and
click the "Next" button.
11
The printer or printers connected
to the network will be detected.
Click the printer to be configured
(the machine) and click the "Next"
button.
If the machine's IP address cannot be found, make sure the machine is
powered on, make sure the network cable is connected correctly, and
then click the "Search" button.
12
In the window for setting the
destination print port name, make
sure that ":lp" appears at the end
of the IP address and click the
"Next" button.
Any name can be entered in "Printer Port Name" (maximum of 38
characters).
13
A window appears to let you
check your entries. Make sure
that the entries are correct and
then click the "Finish" button.
If any of the entries are incorrect, click
the "Back" button to return to the
appropriate window and correct the
entry.
28
14
Select the port you want to use with the machine, and click the
"Next" button.
15
Select whether or not you wish the printer to be your default
printer and click the "Next" button.
Follow the on-screen instructions.
• If you are using Windows Vista and a security warning window
appears, be sure to click "Install this driver software anyway".
• If you are running Windows 2000/XP and a warning message appears
regarding the Windows logo test or digital signature, be sure to click
"Continue Anyway" or "Yes".
16
When "The installation of the SHARP software is complete."
appears, click the "OK" button.
17
When the "Finish" screen appears, click the "Close" button.
After the installation, a message prompting you to restart your computer
may appear. In this case, click the "Yes" button to restart your computer.
4
This completes the installation of the software.
Using the machine as a shared printer
If the machine will be used as a shared printer on a network, follow these steps to
install the printer driver in the client computer.
To configure the appropriate settings in the print server, see the
operation manual or help file of your operating system.
1
Perform steps 2 through 6 in "Using the machine with a USB
connection" (p.21).
2
Click the "Custom" button.
29
3
Click the "Printer Driver" button.
4
Select "Connected via the
network" and click the "Next"
button.
5
Click the "Add Network Port"
button.
Click the "Display Readme" button to
show information on packages that are
selected.
If you are using Windows
98/Me/2000/XP, you can also click the
"Add Network Port" button and select
the printer to be shared by browsing the
network in the window that appears. (On
Windows Vista, the "Add Network" Port"
button does not appear.
6
Select the network printer that is
shared and click the "OK" button.
Ask your network administrator for the
server name and printer name of the
machine on the network.
30
7
In the printer port selection window, verify the network printer
that is shared and whether the machine is to be used as the
default printer, make the selections and click the "Next" button.
Follow the on-screen instructions.
• If you are using Windows Vista and a security warning window
appears, be sure to click "Install this driver software anyway".
• If you are running Windows 2000/XP and a warning message appears
regarding the Windows logo test or digital signature, be sure to click
"Continue Anyway" or "Yes".
8
You will return to the window of step 3. Click the "Close" button.
After the installation, a message prompting you to restart your computer
may appear. In this case, click the "Yes" button to restart your computer.
This completes the installation of the software.
Sharing the printer using windows networking (AL-2040)
4
If the machine will be used as a shared printer on a network, follow these steps to
install the printer driver in the client computer.
To configure the appropriate settings in the print server, see the
operation manual or help file of your operating system.
1
Perform steps 3 through 7 in "Using the machine as a network
printer" (p.25 - p.26).
2
Click the "Printer Driver" button.
31
3
Select "Shared Printer" and click
the "Next" button.
4
For the port to be used, select the
machine set as a shared printer,
and click the "Next" button.
If you are using Windows
98/Me/2000/XP, you can also click the
"Add Network Port" button and select
the printer to be shared by browsing the
network in the window that appears. (On
Windows Vista, the "Add Network" Port"
button does not appear.
If the shared printer does not appear in the list, check the settings in the
printer server.
5
Follow the on-screen instructions.
6
When the "Finish" screen appears, click the "Close" button.
After the installation, a message prompting you to restart your computer
may appear. In this case, click the "Yes" button to restart your computer.
This completes the installation of the software.
32
INDICATORS ON THE OPERATION PANEL
The ONLINE indicator and the start (
scanner.
) indicator indicate the state of the printer or
SCAN indicator
ONLINE indicator
Start indicator
Power save indicator
Start indicator
On:
Indicates the unit is ready for copying or scanning is being performed.
Blinking: The indicator blinks in the following situations:
• When a print job is interrupted.
• When reserving a copy job.
• When toner is being replenished during a copy or print job.
Off:
The indicator is off in the following situations:
• During copying or scanning.
• The unit is in the auto power shut-off mode.
• When a misfeed or error has occurred.
• During print online.
4
ONLINE indicator
The ONLINE key is pressed and on line and off line are changed.
On:
Indicates the unit is ready for printing or scanning is being performed.
(On line)
Blinking: Printing or data is being received from a computer.
Off:
Copying is being performed. (Off line)
Power save indicator
On:
Indicates the unit is in a power save mode.
Blinking: Indicates that the unit is initializing (when the side cover is opened and
closed or the power turned off and on).
SCAN indicator
On:
The SCAN (
) key has been pressed and the unit is in scanner mode.
Blinking: A scan job is being executed from the computer, or scan data is stored
in the unit's memory.
Off:
The unit is in the copy mode.
33
USING THE PRINTER MODE
For problems with the printer function, see the online manual or the help
file for the driver.
Opening the printer driver from the start menu
Open the printer driver setup screen by the method shown below.
1
Click the "start" button.
2
Click "Control Panel", select "Printers and Other Hardware",
and then click "Printers and Faxes".
• On Windows Vista, click "Control Panel", and then click "Printer".
• On Windows 98/Me/2000, select "Settings" and click "Printers".
3
Click the "SHARP AL-xxxx" printer driver icon and from the
"File" menu select "Properties".
4
4
On Windows Vista, select "Properties" from the "Organize" menu.
Click "Printing Preferences" button in the "General" tab.
On Windows 98/Me, click the "Setup" tab.
The printer driver setup screen will appear.
Refer to the Windows manual or help file for more information on
the "General" tab, "Details" tab, "Color Management" tab and
"Sharing" tab.
34
How to print
1
Make sure that the paper of the desired size and type is loaded
in the tray.
The procedure for loading paper is the same as for loading copy paper. See
"LOADING PAPER" (p.14).
2
Open the document you intend to print, and select "Print" from
the application's "File" menu.
3
Make sure that "SHARP AL-xxxx" is selected as the current
printer. If you intend to change any print setting, click the
"Preferences" button to open the setting dialog.
On Windows 98/Me, click the "Properties" button.
On Windows 2000, the "Properties" button does not appear. Set your
preferences by switching the tab in the "Print" dialog box.
4
Specify the print settings including the number of copies,
media type, and print quality, and then click the "Print" button
to start printing.
On Windows 98/Me, click the "OK" button to start printing.
For details on print settings, see the online manual or the help file for the
printer driver.
4
• If copying is being performed when printing is started, copying will
continue. After copying is complete, printing will be executed when the
clear key is pressed twice, the ONLINE key is pressed to switch the
unit to the online state or approximately 60 seconds (auto clear time)*
elapse.
* The auto clear time varies with a user program setting. See "USER
PROGRAMS" (p.55).
• Preheat mode and auto power shut-off mode will be canceled when
printing is started.
• If the paper size specified from the software application is larger than
the paper size in the printer, part of the image that is not transferred to
the paper may remain on the surface of the drum. In this case, the
backside of the paper may become dirty. If this occurs, change to the
correct size paper and print two or three pages to clean the image.
• If you start a print job while a scan job is in progress, the print data will
be stored in the unit's memory. When the scan job or copy job is
completed, printing will begin.
35
USING THE SCANNER MODE
Button Manager is a software program that works with the scanner driver to enable
scanning from the machine. To scan using the machine, Button Manager must be
linked with the scan menu on the machine.
Follow the steps below to link Button Manager to scanner events.
For problems with the scanner function, see the online manual or the
help file for the driver.
Using the Button Manager
Setting up the Button Manager
Windows XP/Vista
1
Click the "start" button, select "Control Panel" and click
"Printers and Other Hardware", and then click "Scanners and
Cameras" in the start menu. Right click the "SHARP AL-xxxx"
icon and click "Properties" in the menu that appears.
On Windows Vista, click the "start" button, select "Control Panel" and click
"Hardware and sound", and then click "Scanners and Cameras".
2
In the "Properties" screen, click the
"Events" tab.
3
Click the "Select an event" button and
select "ScanMenu SC1" from the pull-down
menu. Select "Sharp Button Manager P" in
"Start this program" and click "Apply".
4
Repeat step 3 to set "ScanMenu SC2" through "ScanMenu
SC6".
Click the "Select an event" button and select "ScanMenu SC2" from the
pull-down menu. Select "Sharp Button Manager P" in "Start this program" and
click "Apply". Do the same for each ScanMenu through "ScanMenu SC6".
When the settings have been completed, click the "OK" button to close the
screen. When the settings have been completed in Windows, start the
Button Manager. Adjust detailed settings and then scan an image from the
unit. For the procedures for starting Button Manager and adjusting settings,
see "Scan Button Destination Setting Dialog Box" (p.38).
36
Windows 98/Me/2000
To scan directly into an application using the Button Manager on Windows 98,
Windows Me and Windows 2000. Set the Event Manager properties to send only to
Button Manager as shown below.
1
Click the "Start" button, select "Control Panel" from "Settings",
and open "Scanners and Cameras" in start menu.
In Windows Me, it occasionally happens that the "Scanners and
Cameras" icon does not appear immediately after installation of the MFP
driver is completed. If the icon does not appear, click "View all Control
Panel options" in the Control Panel and display the "Scanner and
Cameras" icon.
2
Select "SHARP AL-xxxx", and click the "Properties" button.
3
In the "Properties" screen, click the
"Events" tab.
4
In Windows Me, right click "SHARP AL-xxxx" and click "Properties" in the
menu that appears.
Click the "Scanner events" button and
select "ScanMenu SC1" from the pull-down
menu. Select "Sharp Button Manager P" in
"Send to this application" and click "Apply".
SHARP AR-xxxx
4
SHARP AR-xxxx
If other applications are shown,
deselect the checkboxes for the other
applications and leave only the Button
Manager checkbox selected.
5
Repeat step 4 to set "ScanMenu SC2" through "ScanMenu
SC6".
Click the "Scanner events" and select "ScanMenu SC2" from the pull-down
menu. Select "Sharp Button Manager P" in "Start this program" and click
"Apply". Do the same for each ScanMenu through "ScanMenu SC6".
When the settings have been completed, click the "OK" button to close the
screen. When the settings have been completed in Windows, start the
Button Manager. Adjust detailed settings and then scan an image from the
unit. For the procedures for starting Button Manager and adjusting settings,
see "Scan Button Destination Setting Dialog Box" (Next page).
37
Scan Button Destination Setting Dialog Box
After you have completed the Button Manager settings in
Windows, configure the scan settings in Button Manager.
To configure the scan settings in Button Manager, right click
the (
) icon in the Taskbar and select "Setting" from the
menu that appears.
For details on configuring the scan settings in Button
Manager, see the online manual or the help file.
This is the corresponding setting in the Button
Manager to automatically send multiple images
from the SPF at 75 dpi to Sharpdesk using the
operation panel "SC1" SCAN (
) key
selection.
This dialog shows the SC1 event set to go directly to Button Manager.
With the Button Manager set to send the image to Sharpdesk. (factory
default setting) Sharpdesk will open after acquiring the image
automatically.
38
Flow of the Button Manager setting
The Button Manager can directly handle an AL-xxxx (where xxxx is the model name
of your unit) series device event and start your selected application according to the
scan setting made on the AL-xxxx (where xxxx is the model name of your unit)
operation panel (SC1, SC2, SC3, SC4, SC5, SC6).
This will scan directly into your application from the device.
Scanner
SCAN key
pressed.
Event
Manager
Button
Manager
Windows OS
No Selection
dialog is
displayed.
The settings for the Windows Event Manager for
the SHARP AL-xxxx (where xxxx is the model
name of your unit) device allow the user to take
advantage of the Sharp Button Manager to take
control of events from Windows and send
scanned images to any application that can be
selected in Button Manager.
This can be done with the Windows OS showing
the Event Manager selection dialog or directly
into a selected application if the Button Manager
is the only allowed handler for device events
from the SHARP AL-xxxx (where xxxx is the
model name of your unit).
This is done by changing the Windows device
settings for the AL-xxxx (where xxxx is the model
name of your unit) in the Scanner and Camera
device settings in the Control Panel.
User
selected
application
The user
application
opens.
SHARP AL-xxxx
4
This is the Control Panel
Properties dialog for "Scanners and
Cameras".
The AL-xxxx is shown selected.
39
All About The Windows Event Manager and scanner events in
Windows 98, Windows Me, Windows 2000, Windows XP and Windows
Vista
Windows Platforms provide a mechanism for software to handle external events for
a scanner device like the SHARP AL-xxxx (where xxxx is the model name of your
unit) series products. This mechanism is controlled by the device manager on a
device basis. Applications that can handle events from a scanner/camera device
register with the Windows Event Manager and shown as available in the registered
applications. The path an event takes to get to the user's selected application
depends upon the event settings for the device.
Scanner
SCAN key
pressed.
Event
Manager
Windows OS
Event
Manager
selection
dialog
Displayed on
screen
User selects
an
application.
The user
application
opens.
This is the Windows Event Manager
Selection Dialog.
Shown are two applications registered
to handle the scanner event from
AL-xxxx (where xxxx is the model name
of your unit) device.
40
Using the SCAN key to begin scanning
• Scanning is not possible during a copy job.
• If the SCAN (
) key is pressed during a print job, the scan job will be
stored.
• When scanning an original that has been placed in the SPF, only one
original can be placed unless you are using Sharpdesk.
1
Press the SCAN (
) key.
The unit enters scan mode.
2
Place the original you wish to scan on the document glass/SPF.
3
Press the right copy quantity
key to display the number of
the application that you wish to
use for scanning.
For the procedure for placing the original, see "ORIGINAL PLACEMENT"
(p.47).
4
The application numbers are initially
as follows.
Application
number
Application launched
SC1
Sharpdesk
SC2
E-mail
SC3
Fax
SC4
OCR
SC5
Microsoft Word
SC6
Filing
To check the settings, see "Scan Button Destination Setting Dialog Box"
(p.38) and then open the settings window of the Button Manager.
41
4
Press the start (
) key.
Scanning will start and the scanned data will be transferred to the
application.
• If the following screen appears, select
Button Manager and click "OK". Button
Manager starts and the application
associated with Button Manager starts. If
you want only Button Manager to start in
this case, set up Button Manager for use in
Windows as explained in "Setting up the
Button Manager" (p.36).
• If step 4 is performed with the "Show
TWAIN setting screen when scanning"
checkbox selected in the Scan Button Destination Setting Dialog Box
(p.38), the TWAIN settings screen (p.43) will automatically appear.
Check the settings, and then press the start (
) key again or click
the "Scan" button in the TWAIN setting screen to start scanning. The
scanned data will be transferred to the application.
Opening the scanner driver and scanning from your
computer
Follow the steps below to open the scanner driver setup screen. As an example, this
instruction is given using Sharpdesk as an image capture application.
• Scanning is not possible during a copy and print job.
• The method for starting the scanner driver differs depending on the
type of application. Refer to the manual or the help file of your
application.
• When using the scanner driver to scan an original that has been
placed in the SPF. If you perform "preview" (see the online manual or
the help file for the scanner driver), the original in the SPF will be
output to the exit area after previewing. To scan the original after
previewing, place the original in the SPF once again.
42
Using the SHARP TWAIN
1
Place the original(s) you wish to scan on the document
glass/SPF.
For the procedure for placing the original, see "ORIGINAL PLACEMENT"
(p.47).
2
After starting Sharpdesk, click the "File" menu
and select "Select Scanner".
3
Select "SHARP MFP TWAIN P", and click
the "Select" button.
WIA-SHARP AL-xxxx
If you use more than one scanning device, select the scanner
you want to use through the application. The method for
accessing the "Select Scanner" option, depends upon the
application. For more information, see the online manual or the
help file of your application.
4
Select "Acquire Image"
from the "File" menu,
or click the "Acquire"
button (
).
5
Set the configuration for scanning (refer to the online manual
and help file), and click the "Scan" button.
4
Scan is started.
43
Scanning with the "Scanner and Camera Wizard" in Windows XP
Windows XP includes as a standard feature an image scanning function. The
procedure for scanning with the "Scanner and Camera Wizard" is explained here.
To cancel scanning, click the "Cancel" button in the screen that is
displayed.
1
Place the original you wish to scan on the document glass/SPF.
2
Click the "start" button, select "Control
Panel", and click "Printers and Other
Hardware", and then click "Scanners
and Cameras" in the start menu. Click
the "SHARP AL-xxxx" icon and click
"Get picture" in "Imaging Tasks".
3
The "Scanner and Camera Wizard"
appears. Click "Next" and establish the
basic settings for scanning.
For the procedure for placing the original, see "ORIGINAL PLACEMENT"
(p.47).
For information on the settings, see the
Windows XP help file. After completing each
setting, click "Next".
4
Select a name, format, and folder for the
scanned image.
For information on the image name, file format,
and folder, see the Windows XP help file.
5
Scanning begins. When scanning ends,
select the next task you wish to perform.
For information on each selection, see the
Windows XP help file. To quit the "Scanner and
Camera Wizard", select "Nothing. I’m finished
working with these pictures." and click "Next".
6
44
Click "Finish" in the screen that appears.
The "Scanner and Camera Wizard" closes and the scanned image is saved.
HOW TO USE THE ONLINE MANUAL
The online manual provides detailed instructions for operating the unit as a printer or
scanner and a list of methods for dealing with printing or scanner problems.
To access the online manual, your computer must have Acrobat Reader 6.0 or a
later version.
1
Turn on your computer.
2
Insert the supplied CD-ROM into your CD-ROM drive.
3
Click the "start" button, click "My Computer" (
double-click the CD-ROM ( ) icon.
), and then
• On Windows Vista, click the "Start" button, click "Computer" and then
double-click the CD-ROM icon (
).
• On Windows 98/Me/2000, double-click "My Computer" ( ), and then
double-click the CD-ROM ( ) icon.
4
Double-click the "Manual" folder, double-click the "English"
folder, and then double-click the "AL_2020_2040.pdf" icon.
5
Click
to read the online manual.
To close the online manual, click the (
the window.
4
) button located at the top-right of
• The online manual can be printed out using Acrobat Reader. SHARP
recommends printing out the sections which you refer to frequently.
• Refer to "Help" of Acrobat Reader for more details on the operation
and function of Acrobat Reader.
VIEWING THE ONLINE MANUAL
The "Software CD-ROM" that accompanies the machine contains an online manual
in PDF format. To view the manual in PDF format, Acrobat Reader or Adobe Reader
of Adobe Systems Incorporated is required. If neither program is installed on your
computer, the programs can be downloaded from the following URL:
http://www.adobe.com/
45
5
MAKING COPIES
This chapter explains basic and other copying functions.
The unit is equipped with a one-page memory buffer. This memory allows the unit to
scan an original once only and make up to 99 copies. This feature improves
workflow, reduces operation noise from the copier, and provides higher reliability by
reducing wear and tear on the scanning mechanism.
If the unit does not function properly during use, or if a function cannot
be used, see "TROUBLESHOOTING THE UNIT" (p.62).
COPY FLOW
1 Make sure that paper has been loaded in the paper tray (p.15)
or multi-bypass tray (p.17), and check the paper size (p.14).
If paper is not loaded, see page 15.
2 Place the original.
If you are using the document glass, see "Using the document glass" (p.47).
If you are using the SPF, see "Using the SPF (AL-2040)" (p.48).
When copying onto paper larger than A4 size, pull out the paper output tray
extension.
3 Select the copy settings.
To set the number of copies, see page 49.
To adjust the resolution and contrast settings, see page 49.
To enlarge or reduce the copy, see page 51.
To change the tray used, see page 51.
To print on both sides of the paper, see page 52.
4 Start copying.
Press the start (
46
) key.
• If you start a print job while a copy job is in progress, the print job will
begin when the copy job is completed.
• The scanning function cannot be used while a copy job is in progress.
About interrupt copying
If you press the start (
) key to begin a copy job while a print job using the paper
tray or multi-bypass tray is in progress, the copy job will begin automatically after the
print data in the unit's memory is printed (interrupt copying). When this is done, the
print data remaining in the computer is not sent to the unit. When the copy job ends,
press the clear key twice, or press the ONLINE key once to change the unit to the
online state (p.33), or wait until the set auto clear time (p.55) elapses. The remaining
print data will be sent to the unit and printing will resume.
* Interrupt copying during two-sided printing is not possible until the print job is finished.
ORIGINAL PLACEMENT
Using the document glass
• The document glass can read up to A4 original.
• Image loss 4mm can occur at the leading and trailing edges of the
copies. Also image loss 4.5mm in total can occur along the other
edges of the copies.
• When copying a book or an original which has been folded or a
crumpled original, press down the original cover/SPF lightly. If the
original cover/SPF is not securely closed, the copies may be striped or
blurred.
• When using the document glass to scan an original, make sure that an
original is not placed in the SPF (AL-2040).
1
Open the original cover/SPF, and place the original.
2
Place an original face down on the document glass. Align it with the
original scale and the centering ( ) mark. Gently close the original
cover/SPF.
5
After placing the original, be sure to close the SPF. If left open, parts outside of
the original will be copied black, causing excessive use of toner. In addition,
toner may scatter inside the machine or the drum cartridge may suffer damage.
Original scale
mark
47
Using the SPF (AL-2040)
The SPF is designed to hold up to 50 originals measuring from A5 to A4 and
weighting from 56g/m2 to 90g/m2.
• Before feeding originals in the document feeder tray, be sure to
remove any staples or paper clips from them.
• Before placing curled or wavy originals into the document feeder tray,
be sure to flatten them. If not, original misfeeds may result.
• If the original is placed correctly in the SPF, the SPF indicator will light
up. If the original is not placed correctly, the SPF indicator will not
light. If the SPF is not closed correctly, the indicator will blink.
• Badly damaged originals may misfeed in the SPF. It is recommended
that such originals be copied from the document glass.
• Special originals such as transparency film should not be fed through
the SPF, but should be placed directly on the document glass.
• Image loss (max. 4mm) can occur at the leading and trailing edges of
the copies. Also image loss (max. 4.5mm in total) can occur along the
other edges of the copies. It can be 6mm (max.) at the trailing edge of
the second copy of two-sided copying.
• To stop continuous copying using the SPF, press the clear key.
• Copying using one-sided to one-sided mode:
Ensure that no indicator is lit among the original to copy indicators.
1
Make sure that no original is left on the document glass.
2
Adjust the original guides to the
size of originals.
3
Set the originals face up in the
document feeder tray.
Use the peep hole (see the illustration at
right) to check the position of the original.
There is an original top edge mark ▲ in the
peep hole. Align the top edge of the
original with this mark.
48
Original face up
Peep hole
SET THE COPY QUANTITY
Set the number of copies using the two copy quantity (
from the document glass or copying from SPF.
,
) keys when copying
• Press the clear key to clear an entry if a mistake is made.
• A single copy can be made with the initial setting, i.e., when "0" is
displayed.
• Press the right copy quantity key to set the unit digit
from 0 to 9. This key will not change the tens digit.
• Press the left copy quantity key to set the tens digit
from 1 to 9.
A4
B5
A5
Tens digit
Unit digit
EXPOSURE ADJUSTMENT/PHOTO COPYING
Exposure adjustment
Copy density adjustment is not required for most originals in the automatic exposure
mode. To adjust the copy density manually or to copy photographs, the exposure
level can be adjusted in five steps manually.
The copy resolution used for AUTO and MANUAL (
changed. (p.55)
1
Press the exposure mode selector key to
select the MANUAL (
) mode or
PHOTO (
) mode.
2
Use the light (
) and dark (
) keys to
adjust the exposure level. If exposure level
2 is selected, the two left-handmost
indicators for that level will light up
simultaneously. Also, if level 4 is selected,
the two right-handmost indicators for that
level will light up simultaneously.
) mode can be
5
49
Automatic exposure adjustment
This automatic exposure level will remain in effect until you change it
again by this procedure.
The automatic exposure level can be adjusted to suit your copying needs. This level is
set for copying from the document glass and copying from the SPF respectively.
50
1
When adjusting the automatic exposure level for copying from
the SPF, place an original in the document feeder tray and
make sure that the SPF indicator lights up. When adjusting the
level for copying from the document glass, make sure that no
original is left in the document feeder tray.
2
Press the exposure mode selector key to
select the PHOTO (
) mode.
3
Press and hold down the exposure mode
selector key for approximately 5 seconds.
The PHOTO (
) indicator will go out and
the AUTO indicator will begin to blink. One
or two light and dark indicators
corresponding to the automatic exposure
level which has been selected will light up.
4
Press the light (
) or dark (
) key to
lighten or darken the automatic exposure
level as desired. If exposure level 2 is
selected, the two left-handmost indicators
for that level will light up simultaneously.
Also, if level 4 is selected, the two righthandmost indicators for that level will
light up simultaneously.
5
Press the exposure selector key. The AUTO indicator will stop
blinking and light up steadily.
REDUCTION/ENLARGEMENT/ZOOM
Three preset reduction ratios and two enlargement ratios can be selected. The zoom
function enables copy ratio selection from 25% to 400% in 1% increments. (When
the SPF is being used, the zoom copy ratio range is 50% to 200%.)
1
Set the original and check the paper size.
2
Use the copy ratio selector key and/or ZOOM (
select the desired copy ratio.
,
) keys to
• To verify a zoom setting without changing the zoom ratio,
press and hold down the copy ratio display (%) key. When the
key is released, the display will return to the copy quantity
display.
• To reset the ratio to 100%, press the copy ratio selector key
repeatedly until the 100% indicator lights up.
3
Set the reduction/enlargement ratio.
To decrease or increase the zoom ratio rapidly, press and hold
down the ZOOM (
) or (
) key. However the value will stop
at the preset reduction or enlargement ratios. To move beyond
these ratios, release the key and then press and hold it down
again.
To select a preset copy ratio:
Preset reduction and enlargement ratios are:
50%, 70%, 86%, 129%, and 200%.
To select a zoom ratio:
or
) key is pressed, the
When a ZOOM (
ZOOM indicator will light up and the zoom ratio will
be displayed in the display.
141
A5 A4
86
70
A4 B5
A4 A5
5
A4
B5
A5
SELECTING THE PAPER TRAY
Press the tray select (
) key.
Each time you press the tray select (
) key, the location
indicated by the paper feed location indicator changes in
the following order: paper tray, multi-bypass tray.
141
A5 A4
86
70
A4 B5
A4 A5
51
6
SPECIAL FUNCTIONS
This chapter describes the special functions of this unit. Use these functions as
needed.
TWO SIDED COPYING
When copying from the SPF, two-side originals can be copied automatically without
having to manually turn them over. Automatic two-sided copying can also be
performed without using the SPF. When copying from one-sided originals to twosided copies, copying orientation can be selected between Turn on Long Edge and
Turn on Short Edge.
• When making two-sided copies from the original table, the paper size
must be A4, letter. When making two-sided copies from the
SPF (AL-2040), A4, B5, A5, letter, legal, and invoice sizes can be
used. Non-standard size paper cannot be used.
• When making two-sided copies, the multi-bypass tray cannot be used.
• When using two-sided invoice size originals from the SPF (AL-2040),
be sure to place them in the landscape orientation. Otherwise, an
original misfeed will occur.
A A
A
A
Turn on Long Edge
52
A
A
A
A
Turn on Short Edge
Making two-sided copies
1
Place the original(s) on the document glass or in the SPF. (see
"ORIGINAL PLACEMENT" (p.47).
2
Select two-sided copy mode.
When copying in a one-sided to two-sided mode:
Use the original to copy key to select the desired one-sided to two-sided
copying mode (Turn on Long Edge or Turn on Short Edge). See the
illustrations on page 52.
3
Select the copy settings. See "SET THE COPY QUANTITY"
(p.49), "EXPOSURE ADJUSTMENT/PHOTO COPYING" (p.49),
and "REDUCTION/ENLARGEMENT/ZOOM" (p.51).
Using the document glass
1
2
Press the start ( ) key.
The original is scanned into the unit's memory and the number of the
copy quantity blinks in the display.
Place the original that you wish to copy onto the rear side of the
paper, and press the start ( ) key again.
Copying begins.
Using the SPF (AL-2040)
Press the start ( ) key. Copying begins in the selected two-sided copy mode.
6
53
DESCRIPTION OF OTHER SPECIAL FUNCTIONS
Toner save mode
Reduces toner consumption by approximately 10%.
Power save modes
The unit has two power save modes of operation: preheat mode and auto power
shut-off mode.
Preheat mode
When the unit enters the preheat mode, the power save ( ) indicator will light up
and other indicators will remain on or off as before. In this condition, the fuser in
the unit is maintained at a lower heat level, thereby saving power. To copy from
the preheat mode, make desired copier selections and press the start ( ) key
using the normal copying procedure.
Auto power shut-off mode
When the unit enters the auto power shut-off mode, the power save ( ) indicator
will light up and other indicators except the ONLINE indicator will go out. The auto
power shut-off mode saves more power than the preheat mode but requires a
longer time before starting copying. To copy from the auto power shut-off mode,
press the start ( ) key. Then make desired copier selections and press the start
( ) key using the normal copying procedure.
Auto clear
The unit returns to the initial settings a preset amount of time after the end of job.
This preset amount of time (auto clear time) can be changed.
Resolution of AUTO & MANUAL mode
You can set the copy resolution used for AUTO and MANUAL (
) exposure mode.
Prevention of OC copies when the SPF is up function (AL-2040)
When enabled, this function may help prevent wasteful use of toner that occurs
when the OC cover is not completely closed.
If the start ( ) key is pressed when the OC cover is not completely closed, "
"
will appear in the display and copying may not take place. If copying does not take
place, copying can be performed by pressing the start ( ) key again, however, the
scan size set in "Copy effective paper width setting function" (program numbers 25,
26) will be used.
If the OC cover is completely closed after "
" appears, copying will take place at
the normal size.
TONER SAVE MODE
54
1
Press the exposure mode selector key
to select the MANUAL (
) mode.
2
Press and hold down the exposure mode
selector key for approximately 5 seconds.
The MANUAL (
) indicator will go out
and the PHOTO (
) indicator will begin
to blink. The light and dark indicator
marked "5" will light up, indicating the
standard toner mode is active.
3
To enter the toner save mode, press the
light (
) key. The light and dark
indicator marked "1" will light up,
indicating the toner save mode is
selected.
4
Press the exposure mode selector key. The PHOTO (
) indicator
will stop blinking and light up steadily. The light and dark indicator
marked "3" will light up. The toner save mode is now active.
To return to the standard mode, repeat the procedure but use the dark
(
) key to select exposure level "5" in step 3.
USER PROGRAMS
The user programs allow the parameters of certain functions to be set, changed, or
canceled as desired.
Setting the user programs
1
Press and hold down the light (
) key for more than 5
seconds until all the alarm indicators (
,
, ) blink and
"
" appears in the display.
2
Use the left copy quantity (
) key to select a user program
number (For the user program numbers, see the following table.).
The selected number will blink in the left side of the display.
3
Press the start (
) key. The entered program number will be
steadily lit and the currently selected parameter number for the
program will blink on the right side of the display.
4
Select the desired parameter using the right copy quantity (
) key.
The entered parameter number will blink on the right of the display.
Program
No.
Mode
6
Parameters
1
Auto clear time
1
4
10 sec., 2
90 sec., 5
30 sec., *3
120 sec., 6
60 sec.,
OFF
2
Preheat mode
*1
4
7
30 sec., 2
30 min., 5
240 min.
60 sec., 3
60 min., 6
5 min.,
120 min.,
3
Auto power shut- off
mode
*1
4
Auto power shut- off
timer
*1
4
ON, 2
OFF
5 min., 2
30min., 3
120 min., 5
240 min.
60 min.,
55
Program
No.
Mode
Parameters
6
SPF automatic
original discharge
time (AL-2040)
1
3
5
5 min., *2
30 min.,
60 min., 4
120 min.,
240 min., 6
OFF
10
Resolution of AUTO
& MANUAL mode
*1
21
Reset factory
1
YES, *2
NO
24
Prevention of OC
copies when the
SPF is up function
*1
ON, 2
OFF
25
Copy effective paper
width setting function
(Bypass tray)
*1
2
Large (A4 width),
Small (B5R width)
26
Copy effective paper
width setting function
*1
2
Large (A4 width),
Small (B5R width)
28
Selection of copy
start state (Polygon
rotation on/off)
*1
ON, 2
OFF
29
Fusing temperature
setting when the
bypass tray is used
1
Low, *2
High
300dpi, 2
600dpi
* Factory default settings are indicated with an asterisk (*).
5
Press the start (
) key. The right-hand number in the display
will be steadily lit and the entered value will be stored.
To change the setting or to set another mode, press the clear
key. The unit will return to step 2.
6
Press the light (
) key to return to the normal copy mode.
DISPLAYING TOTAL NUMBER OF COPIES
Use the following procedure to display the total number of copies.
Press and hold down the clear key for approximately 5 seconds. The
total number of copies will appear in two steps, each with three digits.
Example: Total number of copies is 1,234.
56
7
MAINTENANCE
This chapter describes how to replace the TD cartridge and drum cartridge and how
to clean the unit.
Be sure to use only genuine SHARP parts and supplies.
TD CARTRIDGE REPLACEMENT
The TD cartridge replacement required ( ) indicator will light up when toner is
needed. For more information on purchasing the TD cartridge, see "ABOUT
SUPPLIES AND OPTIONS" (p.72). If copying is continued while the indicator is lit,
copies will gradually become lighter until the unit stops and the indicator begins
blinking. Replace the old TD cartridge by following the procedure below.
• After the unit stops, it may be possible to make a few more copies by taking
the TD cartridge out of the unit, shaking it horizontally, then reinstalling it. If
copying is not possible after this operation, replace the TD cartridge.
• During long copy run of a dark original, the TD cartridge replacement
required ( ) indicator may light up, the start (
) indicator blink,
and the unit stops, even though toner is left. The unit will feed toner up
to 2 minutes and then the start (
) indicator will light up. Press the
start (
) key to restart copying.
1
Open the multi-bypass tray, side cover, and front cover, in that
order.
To open the multi-bypass tray, see "The multi-bypass tray" (p.17). To open
the side cover and front cover, see "INSTALLING THE TD CARTRIDGE"
(p.10).
2
Gently pull the TD cartridge out
while pressing the lock release
button.
Lock release button
7
Dispose of the old TD cartridge in accordance with local regulations.
3
Install a new TD cartridge. To install the new cartridge, see
"INSTALLING THE TD CARTRIDGE" (p.10).
57
4
Close the front cover and then the side cover by pressing the
round projections near the side cover open button. The indicator
( ) will go out and the start (
) indicator will light up.
When closing the covers, be sure to close the front cover securely and
then close the side cover. If the covers are closed in the wrong order, the
covers may be damaged.
DRUM CARTRIDGE REPLACEMENT
The useful life of the drum cartridge is approximately 18,000 copies*. When the internal
counter reaches approximately 17,000 copies, the drum replacement required (
)
indicator will light up indicating that replacement of the drum cartridge will be needed
soon. For more information on purchasing the drum cartridge, see "ABOUT SUPPLIES
AND OPTIONS" (p.72). When the indicator begins to blink, the unit will stop operating
until the cartridge is replaced. Replace the drum cartridge at this time.
*Based on copying onto A4 size paper at 5% toned area.
Do not remove the protective cover on the drum portion (black paper) of a new
drum cartridge before use. The cover protects the drum against external light.
1
Remove the TD cartridge (see step 1 and 2 in "TD CARTRIDGE
REPLACEMENT" (p.57)).
2
Hold the drum cartridge handle and
gently pull the cartridge out. Dispose
of the old drum cartridge in
accordance with local regulations.
Drum cartridge handle
Dispose of the old drum cartridge in accordance with local regulations.
58
3
Remove the new drum cartridge from the protective bag and
remove the protective cover from the cartridge. Then gently
install the new drum cartridge.
Do not touch the surface of the drum (green portion) of the
cartridge. Doing so may cause smudges on the copies.
4
Gently install the TD cartridge. To install the TD cartridge, see
step 5 in "INSTALLING THE TD CARTRIDGE" (p.10).
5
Close the front cover and then the side cover by pressing the
round projections near the side cover open button. The drum
replacement required (
) indicator will go out and the start (
indicator will light up.
)
When closing the covers, be sure to close the front cover securely and
then close the side cover. If the covers are closed in the wrong order, the
covers may be damaged.
7
59
CLEANING THE UNIT
Proper care is essential in order to get clean, sharp copies. Be sure to take a few
minutes to regularly clean the unit.
Do not spray flammable cleaner gas. Gas from the spray may come in
contact with the internal electrical components or high-temperature
parts of the fusing unit, creating a risk of fire or electrical shock.
• Before cleaning, be sure to turn the power switch off and remove the
power cord from the outlet.
• Do not use thinner, benzene or other volatile cleaning agents. Doing
so may cause deformation, discoloration, deterioration or malfunction.
Cabinet
Wipe the cabinet with a soft, clean cloth.
Document glass and the back side of the SPF
Stains on the document glass, SPF scanning window or SPF roller will also be
copied. Wipe the document glass, SPF scanning window and SPF roller with a soft,
clean cloth. If necessary, dampen the cloth with a glass cleaner.
Document glass/SPF scanning window
Orignal cover/SPF
SPF roller
SPF scanning window
60
Transfer charger
If copies start becoming streaky or blotchy, the transfer charger may be dirty. Clean
the charger using the following procedure.
1
Turn the power switch off. (p.13)
2
Ensure that the multi-bypass tray is open and then open the
side cover while pressing the side cover open button.
3
Take the charger cleaner out by holding the tab. Set the charger
cleaner onto the right end of the transfer charger, gently slide
the cleaner to the left end, and then remove it. Repeat this
operation two or three times.
Slide the charger cleaner from the right end to the left end along
the groove of the transfer charger. If the cleaner is stopped on
the way, smudges on copies may occur.
4
5
Return the charger cleaner
to its original position.
Close the side cover by
pressing the round
projections near the side
cover open button.
7
Turn the power switch on. (p.12)
61
8
TROUBLESHOOTING THE UNIT
This chapter describes misfeed removal and troubleshooting.
For problems with the printer function or the scanner function, see the online manual
or the Help file for the printer/scanner driver.
TROUBLESHOOTING
If any problem occurs, check the list below before your authorised service representative.
Problem
Unit does not
operate.
Blank copies
Copies are too
dark or too light.
Dust, dirt,
smudges appear
on copies.
Striped copies
Possible cause
Unit plugged in?
Power switch on?
Side cover closed securely?
Front cover closed?
Solution
Page
Plug the unit into a grounded outlet.
12
Turn the power switch on.
12
Gently close the side cover.
10
Gently close the front cover and then
10
close the side cover.
Is the original placed face Place the original face down on the
document glass or face up in the
47, 48
down on the document
glass or face up in the SPF? SPF.
Is the scan head locking
Unlock the scan head locking switch.
9
switch locked?
Is original image too dark or Adjust the exposure manually.
49
too light?
Is the unit in the automatic Adjust the automatic exposure level.
50
exposure mode?
Is the unit in the photo
Cancel the photo exposure mode.
49
exposure mode?
Document glass or SPF dirty? Clean regularly.
60
Original smudged or blotchy? Use a clean original.
–
Is transfer charger clean? Clean the transfer charger.
61
Non-standard paper used? Use standard paper. If using special
papers, feed the paper through the
14
multi-bypass tray.
Paper curled or damp?
Store paper flat in the wrapper in a
–
dry location.
Paper misfeeds
Pieces of paper inside unit? Remove all pieces of misfed paper.
64
frequently.
Paper guides in the paper Set the guides properly depending on
15, 18
tray not set properly?
the paper size.
Too much paper in the paper Remove excessive paper from the
15, 17
tray or multi-bypass tray?
tray.
Is the paper too heavy?
Use paper within the specified range.
14
The fusing temperature is In the user programs, set "Fusing
not appropriate.
temperature setting when the bypass
56
Images rub off the
tray is used" (program 29) to "2 (High)".
copy easily.
Paper damp?
Replace with dry paper. If the unit is
not used for long time, remove the
73
paper from the paper tray and store it
in its wrapper in a dry location.
Printing is not
The fusing temperature is In the user programs, set "Fusing
uniform between the not appropriate.
temperature setting when the bypass
56
edges of the paper
tray is used" (program 29) to "1 (Low)".
and the center.
62
STATUS INDICATORS
When the following indicators light up or blink on the operation panel or the following
alphanumeric codes appear in the display, solve the problem immediately referring
to both the table below and the relevant page.
Be sure to use only genuine SHARP parts and supplies.
Indication
Cause and remedy
Page
Replacement of drum cartridge will be needed
72
soon. Prepare a new cartridge.
Drum cartridge must be replaced. Replace it with a new one. 58
Replacement of TD cartridge will be needed
72
soon. Prepare a new cartridge.
TD cartridge must be replaced. Replace it with a new one. 57
A misfeed has occurred. Remove the misfed paper
64
Misfeed indicator
Blinking
referring to the description of "MISFEED REMOVAL".
Steadily
When the document feeder cover is open.
–
lit
SPF misfeed
An original misfeed has occurred in the SPF.
indicator
Blinking Remove the misfed originals referring to the
68
description of "D: Misfeed in the SPF (AL-2040)".
The unit is in the preheat mode. Press any key to
54
cancel the preheat mode.
Power save indicator is
The
unit
is
in
the
auto
power
shut-off
mode.
steadily lit.
Press the start ( ) key to cancel the auto power
54
shut-off mode.
The paper tray is not pushed in correctly, or there
The paper tray indicator is
is no paper in the tray. Push the tray all the way
–
blinking.
in or load paper in the tray.
The TD cartridge is not installed. Check if the
57
"CH" is blinking in the display.
cartridge is installed.
Side cover is open. Close the side cover securely
"CH" is steadily lit in the
by pressing the round projections near the side
–
display.
cover open button.
This appears if it is detected that the OC cover is
open when copying is started. Completely close
the OC cover, or press the start ( ) key again.
–
"OP" is blinking in the display. Depending on the color and the density of the
original, "OP" blinking may appear even when
the OC cover is closed. In such a case, press the
start key again to make a copy.
The paper tray or multi-bypass tray is empty.
15, 17
Load paper.
"P" is blinking in the display.
A misfeed has occurred in the paper tray or
64
multi-bypass tray. Remove the misfed paper.
Steadily
Drum replacement lit
required indicator
Blinking
Steadily
TD cartridge
lit
replacement
required indicator Blinking
A letter and a number appear The scan head locking switch is locked. Unlock
alternately.
the scan head locking switch.
9
The unit will not function. Turn the power switch off
A letter and a number appear and then switch it on, and if there is again an error,
alternately.
remove the power cord from the outlet, and contact
your authorized service representative.
–
8
63
MISFEED REMOVAL
When the misfeed ( ) indicator blinks or
blinks in the display, the unit will
stop because of a misfeed. If a misfeed occurs when using the SPF, a number may
appear in the display after a minus sign. This indicates the number of the originals
that must be returned to the original feeder tray after a misfeed. Return the required
number of originals. Then this number will disappear when copying is resumed or the
clear (
) key is pressed. When the SPF misfeeds an original sheet, the unit will
stop and the SPF misfeed (
) indicator will blink, while the misfeed ( ) indicator
will remain off. For a misfeed of originals in the SPF, see "D: Misfeed in the SPF (AL2040)" (p.68).
1
Open the multi-bypass tray,
and then open the side
cover.
2
Check the misfeed location. Remove the misfed paper
following the instructions for each location in the illustration
below. If the misfeed ( ) indicator blinks, proceed to "A:
Misfeed in the paper feed area" (p.65).
If the misfed paper is seen from
this side, proceed to "C: Misfeed
in the transport area". (p.67)
If paper is misfed here, proceed to "B:
Misfeed in the fusing area". (p.66)
If paper is misfed here, proceed to "A:
Misfeed in the paper feed area". (p.65)
64
A: Misfeed in the paper feed area
1
Gently remove the misfed paper from the paper feed area as
shown in the illustration. When the misfeed ( ) indicator
blinks, and the misfed paper is not seen from the paper feed
area, pull out the paper tray and remove the misfed paper. If the
paper cannot be removed, proceed to "B: Misfeed in the fusing
area".
The fusing unit is hot. Do not touch the fusing unit when
removing misfed paper. Doing so may cause a burn or other
injury.
• Do not touch the surface (green portion) of the drum cartridge
when removing the misfed paper. Doing so may damage the
drum and cause smudges on copies.
• If the paper has been fed through the multi-bypass tray, do not
remove the misfed paper through the multi-bypass tray. Toner
on the paper may stain the paper transport area, resulting in
smudges on copies.
2
Close the side cover by pressing the round projections near
the side cover open button. The misfeed ( ) indicator will go
out and the start (
) indicator will light up.
8
65
B: Misfeed in the fusing area
1
Lower the fusing unit release
lever.
2
Gently remove the misfed paper
from under the fusing unit as
shown in the illustration. If the
paper cannot be removed, proceed
to "C: Misfeed in the transport
area".
Fusing unit release lever
The fusing unit is hot. Do not
touch the fusing unit when
removing misfed paper. Doing
so may cause a burn or other
injury.
• Do not touch the surface (green portion) of the drum cartridge
when removing the misfed paper. Doing so may cause
smudges on copies.
• Do not remove the misfed paper from above the fusing unit.
Unfixed toner on the paper may stain the paper transport
area, resulting in smudges on copies.
3
66
Raise the fusing unit release lever and then close the side
cover by pressing the round projections near the side cover
open button. The misfeed ( ) indicator will go out and the start
(
) indicator will light up.
C: Misfeed in the transport area
1
Lower the fusing unit release lever.
See "B: Misfeed in the fusing area" (p.66).
2
Open the front cover.
To open the front cover, see "INSTALLING THE TD CARTRIDGE" (p.10).
3
4
Rotate the roller rotating
knob in the direction of the
arrow and gently remove
the misfed paper from the
exit area.
Roller rotating knob
Raise the fusing unit release lever, close the front cover and
then close the side cover by pressing the round projections
near the side cover open button. The misfeed ( ) indicator will
go out and the start (
) indicator will light up.
When closing the covers, be sure to close the front cover securely and
then close the side cover. If the covers are closed in the wrong order, the
covers may be damaged.
8
67
D: Misfeed in the SPF (AL-2040)
An original misfeed may occur at one of three locations: if the misfed original is seen
from the document feeder tray, (A) in the document feeder tray; if the misfed original is
not seen from the document feeder tray, (B) in the exit area or (C) under the document
feeder cover. Remove the misfed original following the instructions for each location.
After removing the jammed paper, be sure to press the clear key to clear
the misfeed error state.
(A) Open the document feeder cover and pull the misfed original out from the
document feeder tray. Press the SPF jam release lever (see below) while
you remove the original. Close the document feeder cover. Open and close
the SPF to clear the SPF misfeed (
) indicator. If the misfed original
cannot be easily removed, proceed to (C).
Document feeder cover
SPF jam release lever
(B) Open the SPF and rotate the roller to remove the misfed original from the
exit area. If the misfed original cannot be easily removed, proceed to (C).
Roller
(C) If the original does not move easily into the exit area, remove it in the
direction of the arrow while rotating the knob.
68
IF A PAPER MISFEED OCCURS IN THE MAIN UNIT
WHEN USING THE SPF (AL-2040)
If a paper misfeed occurs in the main unit paper path when making copies with
original(s) through the SPF, the SPF will automatically stop scanning. Manually
remove the misfed paper(s) in the main unit. You can check the number of originals
that must be returned to the document feeder tray in the display on the operation
panel. Follow the steps below to display the number of originals to be returned.
The following procedure omits removal of the misfeed. Be sure to remove
the misfeed before displaying the number of originals to be returned. For
the misfeed removal procedure, see "MISFEED REMOVAL" (p.64).
1
When a paper misfeed occurs in the
main unit, the SPF stops and the ZOOM
indicator blinks.
A5 A4
A4 B5
A4 A5
The remaining number of sets will blink in the
display.
Be sure to remove misfed paper(s) at the main
unit paper path first. Then follow the step 2
onwards.
2
Remove any originals that have not yet
been scanned from the document
feeder tray.
For the original(s) stuck in the SPF, do not
remove manually. This may cause a machine
malfunction. See the step 3.
3
Press the copy ratio display (%) key.
The originals that were being scanned in the SPF
will be discharged and the number of original
sheets to be returned will blink in the display.
Place the displayed number of original sheets
back in the document feeder tray together with
the original sheets removed in step 2.
A5 A4
A4 B5
A4 A5
A4
B5
A5
8
Display of number of original
sheets to be returned
If "SPF automatic original discharge time" is enabled in the user
programs, the originals in the SPF will be automatically discharged after
the set time elapses. ("USER PROGRAMS" (p.55))
69
9
APPENDIX
SPECIFICATIONS
Type
Copy / printer system
Originals
Printer function
AL-2020
AL-2040
Digital multifunctional system, desk-top type
Dry, electrostatic transfer
Sheets, bound documents
Available - Cable required (USB) Available - Cable required (USB
or LAN)
Available - Cable required (USB)
250 sheets x 1
50 sheets
200 sheets *1
SPF
Scanner function
Paper tray
Multi-bypass tray
Paper output tray
SPF
Original
Document
Max. A4
sizes
glass/SPF
Document
1 sheet
Original
glass
feed
SPF
Up to 50 sheets
Copy / printing size
A6 to A4 *2
Max. 4mm *3
Image loss
Max. 4.5mm *4
5
Copy speed *
20 pages/min. (A4)
Print speed *6
16 pages/min. (A4)
Continuous copying
Max. 99 pages subtractive counter
8.0 seconds (When user program 24 is set to OFF)
First-copy time *7
10.7 seconds (When user program 24 is set to ON)
(Approximately)
(paper: A4, exposure mode: AUTO, copy ratio: 100%)
Document glass:
Variable: 25% to 400% in 1% increments (total 376 steps)
Fixed: 50%, 70%, 86%, 100%, 141%, 200%
Copy ratio
SPF:
Variable: 50% to 200% in 1% increments (total 151 steps)
Fixed: 50%, 70%, 86%, 100%, 141%, 200%
Document Moving optical source, slit exposure (stationary platen) with
Exposure glass
automatic exposure
system
SPF
Moving original
Fusing system
Heat rollers
Development system Magnetic brush development
Light source
Cold cathode fluorescent lamp
600 x 300dpi (Auto/Manual mode)
Copier
600 x 600dpi (Photo mode)
Resolution
Printer
600dpi
Scanner
600 x 1200dpi
Scan
256 levels
Gradation
Output
2 levels
70
Bit depth
Sensor
Scanning speed
Memory
Power supply
Power consumption
Width
Overall
dimensions Depth
Weight
(Approximately) *8
Width
Unit
Depth
dimensions
Height
Operating conditions
Emulation
Interface port
Noise level
AL-2020
AL-2040
1 bit or 8 bit/pixel
Color CCD
Max. 2.88ms/line
16 MB
Local voltage ±10% (For this copier’s power supply requirement, see
the name plate located on the back of the unit.)
Max. 1.0kW
607.6mm
809mm
462.5mm
492.5mm
16.0kg
23.0kg
518.0mm
462.5mm
492.5mm
295.6mm
465.4mm
Temperature: 10°C to 30°C
Humidity: 20% to 85%
SHARP GDI
USB interface (USB 2.0 Full Speed)
Sound power level LwA
Copying mode: 6.4B
Standby mode: 3.3B
Sound pressure level LpA (reference) (Bystander positions)
Copying mode: 48dB(A)
Standby mode: 17dB(A)
Sound pressure level LpA (reference) (Operator position)
Copying mode: 52dB(A)
Standby mode: 17dB(A)
Noise emission measurement in accordance with ISO7779.
Emission concentration
Ozone:0.02 mg/m3 or less
(measurement according
Dust:0.075 mg/m3 or less
to RAL-UZ 62: Edition
Styrene:0.07 mg/m3 or less
Jan. 2002)
*1
*2
*3
*4
*5
*6
When standard A4 paper is used under the operating conditions.
Feed paper lengthwise only.
Leading and trailing edges.
Along the other edges in totals.
When making multiple duplex copies, the copy speed will vary based on the environment conditions.
Print speed during printing of the second sheet and following sheets when using A4 plain
paper in the tray 1 and performing continuous one-sided printing of the same page.
*7 The first-copy time is measured after the power save indicator turns off following power on,
using the document glass with the polygon rotating in the copy ready state and "Selection of
copy start state" set to ON in the user programs (A4), paper fed from paper tray).
The first-copy time may vary depending on machine operating conditions and ambient
conditions such as temperature.
*8 Not including TD and drum cartridges.
As a part of our policy of continuous improvement, SHARP reserves the
right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are
nominal values of production units. There may be some deviations from
these values in individual units.
9
71
ABOUT SUPPLIES AND OPTIONS
When ordering supplies, please use the correct part numbers as listed below.
Be sure to use only genuine SHARP parts and supplies.
For best copying results, be sure to use only SHARP Genuine
Supplies which are designed, engineered, and tested to maximize the
life and performance of SHARP copiers. Look for the Genuine
Supplies label on the toner package.
Supply list
Supply
Part number
Usable life
TD cartridge
AL-110DC
Approx. 4,000 sheets *
Drum cartridge
AL-100DR
Approx. 18,000 sheets
* Based on copying onto A4 size paper at 5% toned area
(The life of the TD cartridge which has been included in the unit at the factory is
approximately 2,000 sheets.)
Interface cable
Please purchase the appropriate cable for your computer.
USB interface cable
Use a shielded cable.
LAN interface cable (AL-2040 only)
Use a shielded type cable.
72
MOVING AND STORING THE UNIT
Moving instructions
When moving the unit, follow the procedure below.
When moving this unit, be sure to remove the TD cartridge in advance.
1
Turn the power switch off and remove the power cord from the
outlet.
2
Open the side cover and front cover, in that order. Remove the
TD cartridge and close the front cover and side cover, in that
order.
To open and close the side cover and front cover, and to remove the TD
cartridge, see "TD CARTRIDGE REPLACEMENT" (p.57).
3
Raise the handle of the paper tray and pull the paper tray out
until it stops.
4
Push the center of the pressure plate down until it locks in
place and lock the plate using the pressure plate lock which
has been stored in the front of the paper tray.
5
Push the paper tray back into the unit.
6
Lock the scan head locking switch (p.9).
When shipping the unit, the scan head locking switch must be locked to
prevent shipping damage.
7
Close the multi-bypass tray and the paper output tray
extension, and attach the packing materials and tape which
were removed during installation of the unit. See "PREPARING
THE UNIT FOR INSTALLATION" (p.8).
8
Pack the unit into the carton. See "CHECKING PACKED
COMPONENTS AND ACCESSORIES" (p.8).
Proper storage
Store the supplies in a location that is:
• clean and dry,
• at a stable temperature,
• not exposed to direct sunlight
Store paper in the wrapper and lying flat.
• Paper stored out of the wrapper or in packages standing on end may curl or get
damp, resulting in paper misfeeds.
9
73
MATERIAL SAFETY DATA SHEET
Page : 1/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-01231
1.PRODUCT AND COMPANY IDENTIFICATION
Product Name
: AL-1651CS/AL-1661CS/AL-1631/AL-1641CS/AL-1642CS/AL-1217D
AL-1457D/FO-DC550/AL-1655CS/
FO-55ND/AL-100TD/AL-110TD/AL-100TDN(Black Toner)
Supplier Identification : Sharp Corporation
22-22 Nagaike-cho, Abeno-ku, Osaka, Japan
Local suppliers are listed below. Please contact the nearest supplier for additional information.
Area
(Country)
(Name and Telephone Number)
U.S.A.
Sharp Electronics Corporation
Sharp Plaza, Mahwah, NJ
Telephone number for information
: 1-800-237-4277
North
Emergency telephone number
: 1-800-255-3924
America
Canada
Sharp Electronics of Canada Ltd.
Telephone number for information
: 905-890-2100
Emergency telephone number
: 1-800-255-3924
Australia
Sharp Corporation of Australia PTY. Ltd.
Oceania
No1 Huntingwood Drive Huntingwood Blacktown N.S.W.
Telephone number for information
: 1300-13-50-22
Germany
Sharp Electronics (Europe) GMBH
Sonninstrasse 3, 20097 Hamburg
Telephone number to access MSDS
: 040-2376-2185
For more information
: 040-2376-2613
United
Sharp Electronics (U. K.) Ltd.
Kingdom
Telephone number for information
: 08705-274-277
France
Sharp Electronics France S.A.
Telephone number for information
: 01-49-90-34-00
Austria
Sharp Electronics GMBH
Telephone number for information
: 01-727-19-0
Europe
Italy
Sharp Electronics (Italy) S.P.A.
Telephone number for information
: 02895951
Spain
Sharp Electronics (Espana) S.A.
Telephone number for information
: 93-581-97-00
Netherlands
Sharp Electronics Benelux B.V.
Telephone number for information
: 30-6359500
Sweden
Sharp Electronics Nordic AB
Telephone number for information
: 08-634-36-00
Switzerland
Sharp Electronics(Schweiz)AG
Telephone number for information
: 01-846-6111
U.A.E.
Sharp Middle East FZE
Middle
P.O.Box 17115 Jebel Ali, Dubai
East
Telephone number for information
: 04-815311
2.COMPOSITION / INFORMATION ON INGREDIENTS
Preparation[X]
Substance[ ]
Ingredient
Styrene-Acrylate
copolymer
Carbon black
Iron oxide
Paraffin wax
Polypropylene
74
CAS No.
Confidential
1333-86-4
1317-61-9
8002-74-2
Confidential
Proportion
85-90%
OSHA PEL
Not listed
ACGIH TLV
Not listed
MAK-TWA
Not listed
NOHSC- TWA
Not listed
5-8%
1-5%
1-3%
0.5-3%
3.5mg/m3
Not listed
Not listed
Not listed
3.5mg/m3
Not listed
Not listed
Not listed
Not listed
Not listed
Not listed
Not listed
3mg/m3
Not listed
Not listed
Not listed
MATERIAL SAFETY DATA SHEET
Page : 2/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-01231
3.HAZARDS IDENTIFICATION
Most Important Hazards and Effects of the Products
Human Health Effects : There are no anticipated carcinogenic effects from exposure based on animal tests
performed using toner. When used as intended according to instructions, studies do not
indicate any symptoms of fibrosis will occur.
Environmental Effects : No data are available.
Specific Hazards
: Dust explosion (like most finely divided organic powders)
Directive 1999/45/EC(Europe) : Not classified as dangerous
4.FIRST-AID MEASURES
Route(s) of Entry : Inhalation?
Yes
Skin?
No
Ingestion?
Possible but very unusual.
Inhalation
: Remove to fresh air. If symptoms occur, consult medical personnel.
Skin Contact : Wash with soap and water for 15 minutes or until particle is removed.
If irritation does occur, consult medical personnel.
Eye Contact : Flush eyes immediately with water for 15 minutes. If irritation does occur, consult medical personnel.
Ingestion
: Rinse with water and drink several glasses of water. If irritation or discomfort does occur, consult
medical personnel.
5.FIRE-FIGHTING MEASURES
Extinguishing Media
: Water, CO2, foam and dry chemicals
Special Fire Fighting Procedures : None
Fire and Explosion Hazards
: Toner material, like most finely divided organic powders, may form an explosive
mixture.
6.ACCIDENTAL RELEASE MEASURES
Personal Precautions
: None
Environmental Precautions
: None
Methods for Cleaning Up
: Wipe off with paper or cloth. Do not use vacuum cleaner when a large amount is
released. It, like most finely divided organic powders, is capable of creating a
dust explosion.
7.HANDLING AND STORAGE
Handling
Technical Measures
: None
Precautions
: None
Safe Handling Advice : Use of a dust mask is recommended when handling a large quantity of toner or during long
term exposure, as with any non-toxic dust. Try not to disperse the particles.
Storage
Technical Measures
: None
Storage Conditions
: Keep container closed and Store in a cool and dry place.
Keep out of the reach of children.
Incompatible Products : None
75
MATERIAL SAFETY DATA SHEET
Page : 3/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-01231
8.EXPOSURE CONTROLS / PERSONAL PROTECTION
Engineering Measures
Ventilation
: Not required under intended use.
Exposure Limit Values
OSHA-PEL(USA)
: 15mg/m3 (Total Dust), 5mg/m3 (Respirable Dust)
ACGIH-TLV(USA)
: 10mg/m3 (Total Dust), 3mg/m3 (Respirable Dust)
Personal Protective Equipment
Respiratory Protection
: Not required under intended use.
Hand Protection
: Not required under intended use.
Eye Protection
: Not required under intended use.
Skin Protection
: Not required under intended use.
Other Protective Equipment
: Use of a dust mask and goggles are recommended when handling a large
quantity of toner or during long term exposure, as with any non-toxic dust.
9.PHYSICAL AND CHEMICAL PROPERTIES
Appearance
Physical State : Solid
Form : Powder
Ph
: Not applicable
Boiling / Melting Point
: Not applicable
Softening Point(°C)
: 130͠
Flash Point(°C)
: Not applicable
Ignition Point(°C )
: No data
Explosion Properties
: No data
Density(g/cm³)
: 1.1
Solubility in Water
: Negligible
Color : Black
Odor : faint odor
10.STABILITY AND REACTIVITY
Stability
: Stable
Hazardous Reactions
: Dust explosion, like most finely divided organic powders.
Conditions to Avoid
: Electric discharge, throwing into fire.
Materials to Avoid
: Oxidizing Materials
Hazardous Decomposition Products : CO, CO2 and NOX
Further Information
: None
11.TOXICOLOGICAL INFORMATION
Acute Toxicity
Ingestion(oral)
: LD50 > 2000mg/kg (Rats)
Inhalation
: LC50>5.14mg/L㧔Rats㧕
Eye irritation
: Not an irritant (Rabbits)
Skin irritation
: Not an irritant (Rabbits)
Skin sensitizer
: No sensitization
Mutagenicity
: Negative(Ames Test).
Carcinogenicity : In 1996 the IARC reevaluated carbon black as a Group 2B carcinogen (possible human
carcinogen). This classification is given to chemicals for which there is inadequate human
evidence, but sufficient animal evidence on which to base an opinion of carcinogenicity. The
classification is based upon the development of lung tumors in rats receiving chronic inhalation
exposures to free carbon black at levels that induce particle overload of the lung. Studies
performed in animal models other than rats did not show any association between carbon black
76
MATERIAL SAFETY DATA SHEET
Chronic Effect
Page : 4/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-01231
and lung tumors. Moreover, a two-year cancer bioassay using a typical toner preparation
containing carbon black demonstrated no association between toner exposure and tumor
development in rats.
: In a study in rats of chronic inhalation exposure to a typical toner, a mild to moderate degree of
lung fibrosis was observed in 92% of the rats in the high concentration (16mg/m3) exposure
group, and a minimal to mild degree of fibrosis was noted in 22% of the animals in the middle
(4mg/m3) exposure group, but no pulmonary change was reported in the lowest (1mg/m3)
exposure group, the most relevant level to potential human exposures.
12.ECOLOGICAL INFORMATION
No data are available.
13.DISPOSAL CONSIDERATIONS
Waste from Residues
: Waste material may be dumped or incinerated under conditions which meet all federal,
state and local environmental regulations.
Contaminated Packaging : Waste may be disposed or incinerated under conditions which meet all federal, state
and local environmental regulations.
14.TRANSPORT INFORMATION
UN Classification
: None
Not classified as hazardous for transport.
15.REGULATORY INFORMATION
US Information
TSCA(Toxic Substances Control Act) :
All chemical substances in this product comply with all applicable rules or order under TSCA.
SARA(Superfund Amendments and Reauthorization Act) Title III
302 Extreme Hazardous Substance : None
311/312 Hazard Classification
: None
EU Information
1999/45/EC and 67/548/EEC
Symbol & Indication
: Not required
R-Phrase
: Not required
76/769/EEC
: All chemical substances in this product comply with all applicable rules or
order under 76/769/EEC.
16.OTHER INFORMATION
NFPA Rating (USA)
: Health=1
Flammability=1
Reactivity=0
WHMIS Legislation (Canada) : This product is not a controlled product.
References
IARC(1996) : IARC monographs on the Evaluation of the Carcinogenic Risk of Chemicals to Humans, Vol. 65,
Printing Process And Printing Inks, Carbon Black and Some Nitro Compounds, Lyon, pp.149-261
H.Muhle, B.Bellmann, O.Creutzenberg, C.Dasenbrock, H.Ernst, R.Kilpper, J.C.MacKenzie, P.Morrow, U.Mohr,
S.Takenaka, and R.Mermelstein(1991) Pulmonary Response to Toner upon Chronic Inhalation Exposure in Rats.
Fundamental and Applied Toxicology 17, pp.280-299.
The information on this data sheet represents our current data and best opinion as to the proper use in handling of this
product under normal conditions. However, all materials may present unknown hazards and should be used with
caution. Although certain hazards are described herein, we do not guarantee that these are the only hazards which
exist.
77
MATERIAL SAFETY DATA SHEET
Page : 1/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-31231
1.PRODUCT AND COMPANY IDENTIFICATION
Product Name
: AL-1651CS/AL-1661CS/AL-1631/AL-1641CS/AL-1642CS/AL-1217D
AL-1457D/FO-DC550/AL-1655CS/
FO-55ND/AL-100TD/AL-110TD/AL-100TDN(Black Developer)
Supplier Identification : Sharp Corporation
22-22 Nagaike-cho, Abeno-ku, Osaka, Japan
Local suppliers are listed below. Please contact the nearest supplier for additional information.
Area
(Country)
(Name and Telephone Number)
U.S.A.
Sharp Electronics Corporation
Sharp Plaza, Mahwah, NJ
Telephone number for information
: 1-800-237-4277
North
Emergency telephone number
: 1-800-255-3924
America
Canada
Sharp Electronics of Canada Ltd.
Telephone number for information
: 905-890-2100
Emergency telephone number
: 1-800-255-3924
Australia
Sharp Corporation of Australia PTY. Ltd.
Oceania
No1 Huntingwood Drive Huntingwood Blacktown N.S.W.
Telephone number for information
: 1300-13-50-22
Germany
Sharp Electronics (Europe) GMBH
Sonninstrasse 3, 20097 Hamburg
Telephone number to access MSDS
: 040-2376-2185
For more information
: 040-2376-2613
United
Sharp Electronics (U. K.) Ltd.
Kingdom
Telephone number for information
: 08705-274-277
France
Sharp Electronics France S.A.
Telephone number for information
: 01-49-90-34-00
Austria
Sharp Electronics GMBH
Telephone number for information
: 01-727-19-0
Europe
Italy
Sharp Electronics (Italy) S.P.A.
Telephone number for information
: 02895951
Spain
Sharp Electronics (Espana) S.A.
Telephone number for information
: 93-581-97-00
Netherlands
Sharp Electronics Benelux B.V.
Telephone number for information
: 30-6359500
Sweden
Sharp Electronics Nordic AB
Telephone number for information
: 08-634-36-00
Switzerland
Sharp Electronics(Schweiz)AG
Telephone number for information
: 01-846-6111
U.A.E.
Sharp Middle East FZE
Middle
P.O.Box 17115 Jebel Ali, Dubai
East
Telephone number for information
: 04-815311
2.COMPOSITION / INFORMATION ON INGREDIENTS
Preparation[X]
Substance[ ]
Ingredient
Iron powder
Styrene-Acrylate
copolymer
Carbon black
78
CAS No.
7439-89-6
Confidential
1333-86-4
Proportion
90-95%
5-10%
0.1-0.9%
OSHA PEL
Not listed
Not listed
ACGIH TLV
Not listed
Not listed
MAK-TWA
Not listed
Not listed
NOHSC- TWA
Not listed
Not listed
3.5mg/m3
3.5mg/m3
Not listed
3mg/m3
MATERIAL SAFETY DATA SHEET
Page : 2/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-31231
3.HAZARDS IDENTIFICATION
Most Important Hazards and Effects of the Products
Human Health Effects : There are no anticipated carcinogenic effects from exposure based on animal tests
performed using toner. When used as intended according to instructions, studies do not
indicate any symptoms of fibrosis will occur.
Environmental Effects : No data are available.
Specific Hazards
: Dust explosion (like most finely divided organic powders)
Directive 1999/45/EC(Europe) : Not classified as dangerous
4.FIRST-AID MEASURES
Route(s) of Entry : Inhalation?
No
Skin?
No
Ingestion?
Possible but very unusual.
Inhalation
: Remove to fresh air. If symptoms occur, consult medical personnel.
Skin Contact : Wash with soap and water for 15 minutes or until particle is removed.
If irritation does occur, consult medical personnel.
Eye Contact : Flush eyes immediately with water for 15 minutes. If irritation does occur, consult medical personnel.
Ingestion
: Rinse with water and drink several glasses of water. If irritation or discomfort does occur, consult
medical personnel.
5.FIRE-FIGHTING MEASURES
Extinguishing Media
: Water, CO2, foam and dry chemicals
Special Fire Fighting Procedures : None
Fire and Explosion Hazards
: Toner material, like most finely divided organic powders, may form an explosive
mixture.
6.ACCIDENTAL RELEASE MEASURES
Personal Precautions
: None
Environmental Precautions
: None
Methods for Cleaning Up
: Wipe off with paper or cloth. Do not use vacuum cleaner when a large amount is
released. It, like most finely divided organic powders, is capable of creating a
dust explosion.
7.HANDLING AND STORAGE
Handling
Technical Measures
: None
Precautions
: None
Safe Handling Advice : Use of a dust mask is recommended when handling a large quantity of toner or during long
term exposure, as with any non-toxic dust. Try not to disperse the particles.
Storage
Technical Measures
: None
Storage Conditions
: Keep container closed and Store in a cool and dry place.
Keep out of the reach of children.
Incompatible Products : None
8.EXPOSURE CONTROLS / PERSONAL PROTECTION
Engineering Measures
Ventilation
: Not required under intended use.
79
MATERIAL SAFETY DATA SHEET
Page : 3/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-31231
Exposure Limit Values
OSHA-PEL(USA)
ACGIH-TLV(USA)
Personal Protective Equipment
Respiratory Protection
Hand Protection
Eye Protection
Skin Protection
Other Protective Equipment
: 15mg/m3 (Total Dust), 5mg/m3 (Respirable Dust)
: 10mg/m3 (Total Dust), 3mg/m3 (Respirable Dust)
: Not required under intended use.
: Not required under intended use.
: Not required under intended use.
: Not required under intended use.
: Use of a dust mask and goggles are recommended when handling a large
quantity of toner or during long term exposure, as with any non-toxic dust.
9.PHYSICAL AND CHEMICAL PROPERTIES
Appearance
Physical State : Solid
Form : Powder
Ph
: Not applicable
Boiling / Melting Point
: Not applicable
Softening Point(°C)
: 130͠(toner)
Flash Point(°C)
: Not applicable
Ignition Point(°C )
: No data
Explosion Properties
: No data
Density(g/cm³)
:7
Solubility in Water
: Negligible
10.STABILITY AND REACTIVITY
Stability
Hazardous Reactions
Conditions to Avoid
Materials to Avoid
Hazardous Decomposition Products
Further Information
Color : Black
Odor : faint odor
: Stable
: Dust explosion, like most finely divided organic powders.
: Electric discharge, throwing into fire.
: Oxidizing Materials
: CO, CO2 and NOX
: None
11.TOXICOLOGICAL INFORMATION
Acute Toxicity
Ingestion(oral)
: LD50 > 2000mg/kg (Rats)
Inhalation
: LC50>5.14mg/L㧔Rats㧕
Eye irritation
: Not an irritant (Rabbits)
Skin irritation
: Not an irritant (Rabbits)
Skin sensitizer
: No sensitization
Mutagenicity
: Negative(Ames Test).
Carcinogenicity : In 1996 the IARC reevaluated carbon black as a Group 2B carcinogen (possible human
carcinogen). This classification is given to chemicals for which there is inadequate human
evidence, but sufficient animal evidence on which to base an opinion of carcinogenicity. The
classification is based upon the development of lung tumors in rats receiving chronic inhalation
exposures to free carbon black at levels that induce particle overload of the lung. Studies
performed in animal models other than rats did not show any association between carbon black
and lung tumors. Moreover, a two-year cancer bioassay using a typical toner preparation
containing carbon black demonstrated no association between toner exposure and tumor
development in rats.
80
MATERIAL SAFETY DATA SHEET
Chronic Effect
Page : 4/4
Date Revised : Mar . 1. 2007
Date Issued : Sep . 1. 2003
MSDS No. F-31231
: In a study in rats of chronic inhalation exposure to a typical toner, a mild to moderate degree of
lung fibrosis was observed in 92% of the rats in the high concentration (16mg/m3) exposure
group, and a minimal to mild degree of fibrosis was noted in 22% of the animals in the middle
(4mg/m3) exposure group, but no pulmonary change was reported in the lowest (1mg/m3)
exposure group, the most relevant level to potential human exposures.
12.ECOLOGICAL INFORMATION
No data are available.
13.DISPOSAL CONSIDERATIONS
Waste from Residues
: Waste material may be dumped or incinerated under conditions which meet all federal,
state and local environmental regulations.
Contaminated Packaging : Waste may be disposed or incinerated under conditions which meet all federal, state
and local environmental regulations.
14.TRANSPORT INFORMATION
UN Classification
: None
Not classified as hazardous for transport.
15.REGULATORY INFORMATION
US Information
TSCA(Toxic Substances Control Act) :
All chemical substances in this product comply with all applicable rules or order under TSCA.
SARA(Superfund Amendments and Reauthorization Act) Title III
302 Extreme Hazardous Substance : None
311/312 Hazard Classification
: None
EU Information
1999/45/EC and 67/548/EEC
Symbol & Indication
: Not required
R-Phrase
: Not required
76/769/EEC
: All chemical substances in this product comply with all applicable rules or
order under 76/769/EEC.
16.OTHER INFORMATION
NFPA Rating (USA)
: Health=1
Flammability=1
Reactivity=0
WHMIS Legislation (Canada) : This product is not a controlled product.
References
IARC(1996) : IARC monographs on the Evaluation of the Carcinogenic Risk of Chemicals to Humans, Vol. 65,
Printing Process And Printing Inks, Carbon Black and Some Nitro Compounds, Lyon, pp.149-261
H.Muhle, B.Bellmann, O.Creutzenberg, C.Dasenbrock, H.Ernst, R.Kilpper, J.C.MacKenzie, P.Morrow, U.Mohr,
S.Takenaka, and R.Mermelstein(1991) Pulmonary Response to Toner upon Chronic Inhalation Exposure in Rats.
Fundamental and Applied Toxicology 17, pp.280-299.
The information on this data sheet represents our current data and best opinion as to the proper use in handling of this
product under normal conditions. However, all materials may present unknown hazards and should be used with
caution. Although certain hazards are described herein, we do not guarantee that these are the only hazards which
exist.
81
INDEX
A
D
Acrobat Reader ................................. 45
Alarm indicator
- Drum replacement required
indicator.............................. 6, 58, 63
- Misfeed indicator ................ 6, 63, 64
- TD cartridge replacement required
indicator.............................. 6, 57, 63
Appendix ........................................... 70
Auto clear time ............................ 54, 55
Auto power shut-off mode ........... 54, 55
Automatic exposure adjustment ........ 50
Dark key ........................................ 6, 49
Display................................................. 6
Displaying total number of copies ..... 56
Disposing of TD cartridge.................. 57
Document glass............................. 5, 47
Drum cartridge............................... 5, 58
Drum cartridge replacement ............. 58
Drum replacement required
indicator................................... 6, 58, 63
B
Before installation .............................. 20
Button Manager ........................... 19, 36
Bypass feed....................................... 17
Bypass tray paper guides .............. 5, 18
C
Cautions
- Handling ......................................... 1
- Label............................................... 1
- Using .............................................. 1
Charger cleaner............................. 5, 61
Checking packed components and
accessories ......................................... 8
Cleaning the unit
- Cabinet ......................................... 60
- Document glass............................ 60
- SPF .............................................. 60
- SPF scanning window .................. 60
- Transfer charger........................... 61
Clear key ................................. 6, 49, 56
Conventions used in this manual and
online manual ...................................... 4
Copy flow........................................... 46
Copy quantity .................................... 49
Copy quantity key .................... 6, 49, 55
Copy ratio display key ................... 6, 51
Copy ratio selector indicator .......... 6, 51
Copy ratio selector key .................. 6, 51
82
E
Exposure adjustment......................... 49
Exposure mode indicator............... 6, 49
Exposure mode selector key ......... 6, 49
F
Flow of installation............................. 21
Front cover .......................................... 5
Fusing unit release lever ............... 5, 66
H
Handle ................................................. 5
Hardware and software
requirements ..................................... 20
How to print ....................................... 35
How to use the online manual ........... 45
I
Indicators on the operation panel ...... 33
Initial settings of operation panel....... 13
Installing the software.................. 19, 21
Installing the TD cartridge ................. 10
Interface
- LAN interface................................ 25
- USB interface ............................... 25
Interface cable................................... 72
Interrupt copying................................ 47
Introduction.......................................... 4
L
LAN interface connector.............. 25, 72
Light and dark indicator ................. 6, 49
Light key ........................................ 6, 49
Loading paper ................................... 14
Loading the paper tray ...................... 15
M
R
Making copies ................................... 46
MFP driver
- Print Status Window ..................... 19
- Printer driver................................. 19
- Scanner driver .............................. 19
Misfeed indicator ..................... 6, 63, 64
Misfeed removal
- Fusing area .................................. 66
- Paper feed area............................ 65
- SPF .............................................. 68
- Transport area.............................. 67
Moving instructions............................ 73
Multi-bypass tray ............................... 17
Reduction/enlargement/zoom ........... 51
Resolution of AUTO & MANUAL
mode ........................................... 54, 56
N
Name
- Operation panel.............................. 6
- Part names ..................................... 5
O
ONLINE indicator .......................... 6, 33
ONLINE key .................................. 6, 33
Online manual ............................... 4, 45
Opening the printer driver.................. 34
Opening the scanner driver ............... 42
Operation panel ............................... 5, 6
Original placement
- Document glass............................ 47
- SPF .............................................. 48
Original to copy key ....................... 6, 53
P
Paper ................................................. 14
Paper feed location indicator ......... 6, 51
Paper output tray ................................. 5
Paper output tray extension .......... 5, 46
Paper tray ...................................... 5, 15
Photo copying.................................... 49
Power cord .......................................... 5
Power off ........................................... 13
Power on ........................................... 12
Power save indicator ..................... 6, 33
Power switch ................................. 5, 12
Preheat mode .............................. 54, 55
Preparing the unit for installation ......... 8
Prevention of OC copies when the SPF
is up function ............................... 54, 56
Printer driver ...................................... 19
Proper storage................................... 73
S
Scan head locking switch .................... 9
Scanner driver ................................... 19
SCAN indicator.............................. 6, 33
SCAN key...................................... 6, 41
Scanning from your computer ........... 42
Scanning with the "Scanner
and Camera Wizard" ......................... 44
Setting up the unit ............................... 7
Setup procedure.................................. 7
Sharpdesk ......................................... 19
Side cover ........................................... 5
Side cover open button ....................... 5
Specifications .................................... 70
SPF ............................................... 5, 48
SPF indicator................................. 6, 48
SPF misfeed indicator ................... 6, 68
Start indicator ................................ 6, 33
Start key .................................. 6, 46, 56
Status indicators................................ 63
Supplies and options ......................... 72
Supply list
- Drum cartridge.............................. 72
- TD cartridge.................................. 72
T
TD cartridge............................. 5, 10, 57
TD cartridge replacement.................. 57
TD cartridge replacement required
indicator................................... 6, 57, 63
Transfer charger............................ 5, 61
Tray select key .............................. 6, 51
Troubleshooting................................. 62
Troubleshooting the unit ................... 62
83
U
Z
USB interface cable..................... 25, 72
Using the manuals............................... 4
Using the printer mode ...................... 34
Using the scanner mode ................... 36
Using the SHARP TWAIN ................. 42
ZOOM indicator ............................. 6, 51
ZOOM key ..................................... 6, 51
INDEX BY PURPOSE
Checking the package ......................... 8
Cleaning the unit
- Cabinet ......................................... 60
- Document glass............................ 60
- SPF .............................................. 60
- Transfer changer .......................... 60
Connecting the interface cable
- LAN interface cable ...................... 25
- USB interface cable...................... 25
Copying ............................................. 46
Displaying total number of copies...... 56
Enlarging/reducing copies ................. 51
Installing the software
- Acrobat ......................................... 45
- Button Manager............................ 19
- MFP driver.................................... 19
- Printer driver................................. 19
- Sharpdesk .................................... 19
Installing the TD cartridge ................. 10
Loading paper
- Multi-bypass tray .......................... 17
- Paper tray..................................... 15
Loading the original
- Document glass............................ 47
- SPF .............................................. 48
Moving the unit .................................. 73
Opening the printer driver.................. 34
Power off ........................................... 13
Power on ........................................... 12
Preparing for installation...................... 8
Printing .............................................. 35
84
Removing paper jams
- Fusing area .................................. 66
- Paper feed area............................ 65
- SPF .............................................. 68
- Transport area.............................. 67
Replacing the drum cartridge ............ 58
Replacing the TD cartridge................ 57
Scanning
- Button Manager............................ 39
- Scanner and Camera Wizard ....... 44
- SHARP TWAIN ............................ 42
Selecting the paper tray .................... 51
Setting the copy quality
- AUTO ........................................... 50
- MANUAL ...................................... 49
- PHOTO......................................... 49
Setting the copy quantity ................... 49
Setting the toner save mode ............. 54
Setting the user program................... 55
Setting up the Button Manager.......... 36
Storing the unit .................................. 73
Two-sided copying ............................ 52
Using the online manual.................... 45
A. Information on Disposal for Users (private households)
1. In the European Union
Attention: If you want to dispose of this
equipment, please do not use the ordinary dust
bin!
Used electrical and electronic equipment must
be treated separately and in accordance with
legislation that requires proper treatment,
recovery and recycling of used electrical and
electronic equipment.
Following the implementation by member states,
private households within the EU states may
return their used electrical and electronic
equipment to designated collection facilities free
of charge*. In some countries* your local retailer
may also take back your old product free of
charge if you purchase a similar new one.
Attention: Your product is
marked with this symbol. It
means that used electrical
and electronic products
should not be mixed with
general household waste.
There is a separate
collection system for these
products.
*) Please contact your local authority for further details.
If your used electrical or electronic equipment
has batteries or accumulators, please dispose of these separately beforehand
according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes
the necessary treatment, recovery and recycling and thus prevent potential
negative effects on the environment and human health which could otherwise arise
due to inappropriate waste handling.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authorities and ask for
the correct method of disposal.
For Switzerland: Used electrical or electronic equipment can be returned free of
charge to the dealer, even if you don’t purchase a new product. Further collection
facilities are listed on the homepage of www.swico.ch or www.sens.ch.
B. Information on Disposal for Business Users.
1. In the European Union
If the product is used for business purposes and you want to discard it:
Please contact your SHARP dealer who will inform you about the take-back of the
product. You might be charged for the costs arising from take-back and recycling.
Small products (and small amounts) might be taken back by your local collection
facilities.
For Spain: Please contact the established collection system or your local authority
for take-back of your used products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for the
correct method of disposal.
CAUTION
CLASS 3B INVISIBLE LASER
RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM.
VORSICHT
UNSICHTBARE
LASERSTRAHLUNG DER
KLASSE 3B, WENN
ABDECKUNG GEÖFFNET UND
SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT. NICHT DEM
STRAHL AUSSETZEN.
ADVARSEL
USYNLIG LASERSTRÅLING AF
KLASSE 3B VED ÅBNING, NÅR
SIKKERHEDSBRYDERE ER
UDE AF FUNKTION. UNDGÅ
UDSÆTTELSE FOR STRÅLING.
Laserstrahl
ADVARSEL
USYNLIG KLASSE 3B
LASERSTRÅLING NÅR DEKSEL
ÅPNES OG SIKKERHEDSLÅS
BRYTES. UNNGÅ
EKSPONERING FOR STRÅLEN.
VARNING
OSYNLIG LASERSTRÅLNING
KLASS 3B NÄR DENNA DEL ÄR
ÖPPNAD OCH SPÄRRAR ÄR
URKOPPLADE. UNDVIK
EXPONERING FÖR STRÅLEN.
VARO!
AVATTAESSA JA
SUOJALUKITUS OHITETTAESSA
OLET ALTTIINA NÄKYMÄTÖNTÄ
LUOKAN 3B LASERSÄTEILYLLE.
ÄLÄ KATSO SÄTEESEEN.
KLASSE 3B LASERSTRÅLING NÅR DEKSEL ÅPNES
3B INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.
CAUTION CLASS
OG SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
ADVERSEL USYNLIG
AVOID EXPOSURE TO BEAM.
OSYNLIG LASERSTRÅLNING KLASS 3B NÄR DENNA DEL ÄR ÖPPNAD OCH
LASERSTRAHLUNG DER KLASSE 3B, WENN ABDECKUNG GEÖFFNET UND
VORSICHT UNSICHTBARE
SICHERHEITSVERRIEGELUNG ÜBERERÜCKT. NICHT DEM STRAHL AUSSETZEN. VARNING SPÄRRAR ÄR URKOPPLADE. UNDVIK FÖR STRÅLEN
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTÖNTÄ
USYNLIG LASERSTRÅLING AF KLASSE 3B VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER
ADVARSEL UDE
VARO! LUOKAN
3 B LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
AF FUNKTION. UNDGA UDSAETTELSE FOR STRÅLING.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CLASS 1
LASER PRODUCT
LASER KLASSE 1
SHARP Manufacturing France S.A.
Route de Bollwiller 68360 SOULTZ FRANCE
AL-2020/AL-2040
OPERATION MANUAL
AL-2020/AL-2040_v1
Download PDF

advertising
