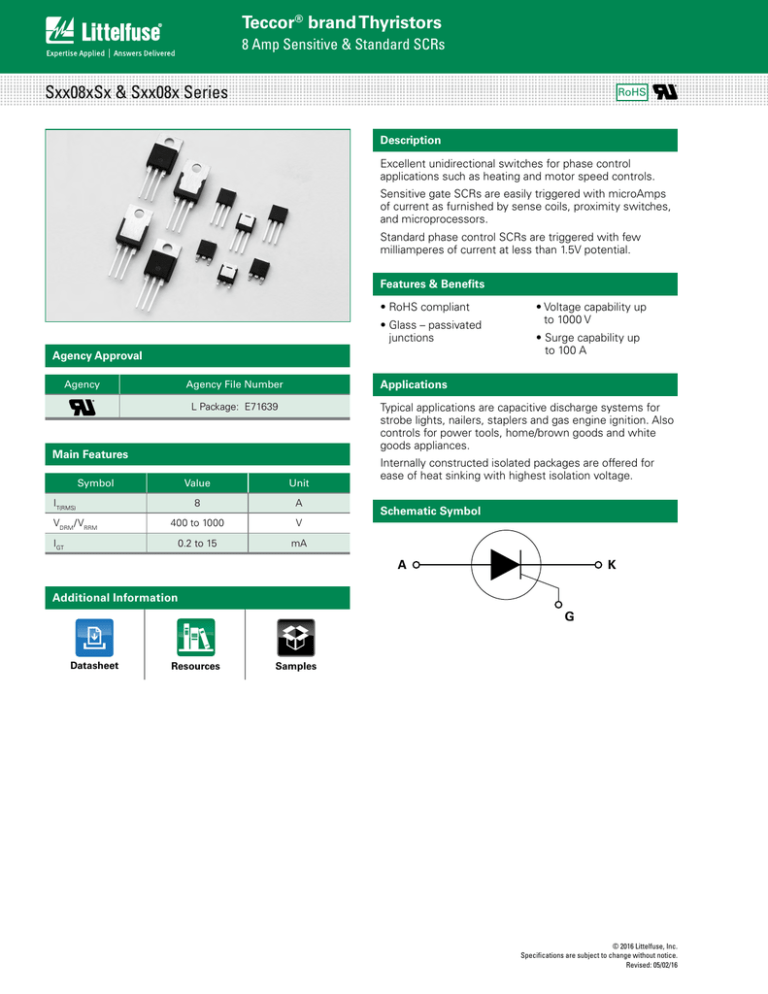

Teccor brand Thyristors Sxx08xSx & Sxx08x Series 8 Amp Sensitive & Standard SCRs

Teccor brand Thyristors Sxx08xSx & Sxx08x Series 8 Amp Sensitive & Standard SCRs

Sxx08xSx & Sxx08x Series

Agency Approval

Agency

Main Features

Symbol

I

T(RMS)

V

DRM

/V

RRM

I

GT

Value

8

400 to 1000

0.2 to 15

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Agency File Number

L Package: E71639

Unit

A

V mA

RoHS

Description

Excellent unidirectional switches for phase control applications such as heating and motor speed controls.

Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.

Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential.

Features & Benefits

• RoHS compliant

• Glass – passivated junctions

• Voltage capability up to 1000 V

• Surge capability up to 100 A

Applications

Typical applications are capacitive discharge systems for strobe lights, nailers, staplers and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances.

Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage.

Schematic Symbol

A K

Additional Information

G

Datasheet Resources Samples

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Absolute Maximum Ratings — Sensitive SCRs

Symbol Parameter

I

T(RMS)

RMS on-state current

I

T(AV)

Average on-state current

I

TSM

Peak non-repetitive surge current

I

2 t di/dt

I

2 t Value for fusing

Critical rate of rise of on-state current

I

GTM

P

G(AV)

T stg

T

J

Note: xx = voltage, y = sensitivity

Peak gate current

Average gate power dissipation

Storage temperature range

Operating junction temperature range

Absolute Maximum Ratings — Standard SCRs

Symbol Parameter

I

T(RMS)

RMS on-state current

I

T(AV)

Average on-state current

I

TSM

I

2 t di/dt

I

GM

P

G(AV)

T stg

T

J

Note: xx = voltage

Peak non-repetitive surge current

I

2 t Value for fusing

Critical rate-of-rise of on-state current

Peak gate current

Average gate power dissipation

Storage temperature range

Operating junction temperature range

Test Conditions

Sxx08LSy

Sxx08RSy

Sxx08DSy

Sxx08VSy

Sxx08LSy

Sxx08RSy

Sxx08DSy

Sxx08VSy

T

C

= 80°C

T

T

T

C

C

C

= 95°C

= 80°C

= 95°C single half cycle; f = 50Hz;

T

J

(initial) = 25°C single half cycle; f = 60Hz;

T

J

(initial) = 25°C t p

= 8.3 ms f = 60 Hz ; T

J

= 110°C

T

J

= 110°C

T

J

= 110°C

Value

8

5.1

83

100

41

70

1.6

0.4

-40 to 150

-40 to 110

Unit

A

A

A

A

2 s

A/μs

A

W

°C

°C

Test Conditions

Sxx08L T

C

= 100°C

Sxx08R

Sxx08D

Sxx08V

T

C

= 110°C

Sxx08L T

C

= 100°C

Sxx08R

Sxx08D

Sxx08V

T

C

= 110°C single half cycle; f = 50Hz;

T

J

(initial) = 25°C single half cycle; f = 60Hz;

T

J

(initial) = 25°C t p

= 8.3 ms f = 60 Hz T

J

= 125°C

T

J

= 125°C

T

J

= 125°C

Value

8

5.1

83

100

41

100

2

0.5

-40 to 150

-40 to 125

Unit

A

A

A

A

2 s

A/μs

A

W

°C

°C

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Electrical Characteristics

(T

J

= 25°C, unless otherwise specified)

– Sensitive SCRs

Symbol Test Conditions

I

GT

V

GT dv/dt

I

H t q t gt

V

GD

V

GRM

V

D

= 6V R

L

= 100 Ω

V

D

= 6V R

L

= 100 Ω

V

D

= V

DRM

; R

GK

= 1kΩ; T

J

= 110°C

V

D

= V

DRM

R

L

= 3.3 kΩ T

J

= 110°C

I

GR

= 10μA

I

T

= 20mA (initial)

I

T

=2A; t p

=50µs; dv/dt=5V/µs; di/dt=-30A/µs

I

G

= 2 x I

GT

PW = 15µs I

T

= 12A

Note: xx = voltage x = package

MAX.

MAX.

TYP.

MIN.

MIN.

MAX.

MAX.

TYP.

Electrical Characteristics

(T

J

= 25°C, unless otherwise specified)

– Standard SCRs

Symbol

I

GT

V

GT

V

D

= 12V R

L

= 60 Ω

V

D

= 12V R

L

= 60 Ω

Test Conditions dv/dt

V

D

= V

DRM

; gate open; T

J

= 100°C

400V

600V

800V

1000V

400V

600V

800V

V

D

= V

DRM

; gate open; T

J

= 125°C t q t gt

V

GD

I

H

V

D

= V

DRM

Note: xx = voltage x = package

R

L

= 3.3 kΩ T

J

= 125°C

I

T

= 200mA (initial)

I

T

=2A; t p

=50µs; dv/dt=5V/µs; di/dt=-30A/µs

I

G

= 2 x I

GT

PW = 15µs I

T

= 16A

MAX.

MAX.

MIN.

MIN.

MAX.

MAX.

TYP.

Sxx08xS2

Value

Sxx08xS3

200 500

0.8

8

0.2

6

6

50

4

8

45

5

Value

Sxx08x

15

1.5

350

300

250

100

250

225

200

0.2

30

35

2

Static Characteristics

I

V

Symbol

TM

DRM

/ I

RRM

V

DRM

= V

RRM

Note: xx = voltage, x = package, yy = sensitivity

Test Conditions

I

T

= 16A; t p

= 380 µs

Sxx08xyy

T

J

= 25°C

T

J

= 110°C

400 - 600V

400 - 600V

T

J

= 25°C

400 - 800V

1000V

Sxx08x

T

J

= 100°C

T

J

= 125°C

400 - 800V

1000V

400 - 800V

MAX.

MAX.

Value

1.6

5

250

10

20

200

3000

500

Unit mA

V

V/μs

μA

V mA

μs

μs

Unit

μA

V

V/μs

V

V mA

μs

μs

Unit

V

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Thermal Resistances

Symbol

R

θ(J-C)

R

θ(J-A)

Junction to case (AC)

Junction to ambient

Parameter

Sxx08RSy

Sxx08LSy

Sxx08VSy

Sxx08DSy

Sxx08R

Sxx08L

Sxx08V

Sxx08D

Sxx08RSy

Sxx08LSy

Sxx08VSy

Sxx08R

Sxx08L

Sxx08V

40

50

70

1.5

40

65

85

1.5

1.8

3.4

2.0

Value

1.8

3.4

2.1

Unit

°C/W

°C/W

Note: xx = voltage, y = sensitivity

Figure 1: Normalized DC Gate Trigger Current vs. Junction Temperature (Sensitive SCR)

4.0

3.0

2.0

1.0

0.0

-40 -15 10 35 60

Junction Temperature (T

J

) - (°C)

85 110

Figure 2: Normalized DC Gate Trigger Current vs. Junction Temperature (Standard SCR)

4.0

3.0

2.0

1.0

0.0

-40 -15 10 35 60

Junction Temperature (T

J

) - (°C)

85 110 125

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Figure 3: Normalized DC Gate Trigger Voltage vs. Junction Temperature

2.0

1.5

1.0

0.5

0.0

-40 -15 10 35 60 85 110

Junction Temperature (T

J

) - (°C)

125

Figure 5: On-State Current vs. On-State Voltage (Typical)

32

28

24

20

16

12

8

4

T

J

= 25°C

0

0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6

Instantaneous On-state Voltage (v

T

) – Volts

Figure 7: Maximum Allowable Case Temperature vs. RMS On-State Current

130

125

120

115

110

105

100

Sxx08RSy

Sxx08DSy

Sxx08VSy

Sxx08R

Sxx08D

Sxx08V

Sxx08L

95

90

85

CURRENT WAVEFORM: Sinusoidal

LOAD: Resistive or Inductive

Conduction Angle: 180°

FREE AIR RATING

Sxx08LSy

80

0 1 2 3 4 5 6 7 8 9

RMS On-State Current [I

T(RMS)

] - Amps

Figure 4: Normalized DC Holding Current vs. Junction Temperature

2.0

1.5

1.0

0.5

0.0

-40 -15 10 35 60

Junction Temperature (T

J

) - (°C)

85 110 125

Figure 6: Power Dissipation (Typical) vs. RMS On-State Current

8

7

6

5

4

3

2

1

0

0 1 2 3 4 5 6 7 8

RMS On-State Current [I

T(RMS)

] - (Amps)

Figure 8: Maximum Allowable Case Temperature vs. Average On-State Current

130

125

120

115

110

105

100

Sxx08RSy

Sxx08DSy

Sxx08VSy

Sxx08R

Sxx08D

Sxx08V

Sxx08L

95

90

85

80

0

CURRENT WAVEFORM: Sinusoidal

LOAD: Resistive or Inductive

Conduction Angle: 180°

FREE AIR RATING

1

Sx08LSy

2 3

4

Average On-State Current [I

T(AVE)

] - Amps

5

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Figure 9: Maximum Allowable Ambient Temperature vs. RMS On-State Current

120

100

80

60

Sxx08RSy

Sxx08LSy

Sxx08R

Sxx08L

CURRENT WAVEFORM: Sinusoidal

LOAD: Resistive or Inductive

CONDUCTION ANGLE: 180°

FREE AIR RATING

Sxx08V

40

Sxx08VSy

20

0

0.0 0.5 1.0 1.5 2.0 2.5

RMS On-State Current [I

T(RMS)

] - Amps

Note: xx = voltage, y = sensitivity

Figure 11: Peak Capacitor Discharge Current

1000

100

I

TRM

10

0 .

5

t

W

1.0

10 .

0

Pulse Current Duration (t w

) - ms

5 0 .

0

Figure 13: Surge Peak On-State Current vs. Number of Cycles

100

Figure 10: Maximum Allowable Ambient Temperature vs. Average On-State Current

120

100

80

60

Sxx08RSy

Sxx08LSy

40

20

0

0 .

0

Sxx08VSy

Sxx08R

0 .

5

CURRENT WAVEFORM: Sinusoidal

LOAD: Resistive or Inductive

CONDUCTION ANGLE: 180°

FREE AIR RATING

Sxx08L

Sxx08V

1 .

0

Average On-State Current [I

T(AVE)

] - Amps

1 .

5

Figure 12: Peak Capacitor Discharge Current Derating

1.2

1.0

0.8

0.6

0.4

0.2

Sensitive SCR

Standard SCR

0.0

0 25 50 75 100 125 150

Case Temperature (T

C

) - °C

10

SUPPLY FREQUENCY: 60 Hz Sinusoidal

LOAD: Resistive

RMS On-State Current: [I

T(RMS)

]: Maximum Rated

Value at Specified Case Temperature

Notes:

1. Gate control may be lost during and immediately following surge current interval.

2. Overload may not be repeated until junction temperature has returned to steady-state rated value.

1

1 1 0 1 0 0

Surge Current Duration -- Full Cycles

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

1 0 0 0

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Soldering Parameters

Reflow Condition Pb – Free assembly

Pre Heat

- Temperature Min (T s(min)

)

- Temperature Max (T s(max)

)

- Time (min to max) (t s

)

Average ramp up rate (Liquidus Temp)

(T

L

) to peak

150°C

200°C

60 – 180 secs

5°C/second max

T

S(max)

to T

L

- Ramp-up Rate

Reflow

- Temperature (t

L

)

5°C/second max

- Temperature (T

L

) (Liquidus) 217°C

60 – 150 seconds

Peak Temperature (T

P

) 260 +0/-5 °C

Time within 5°C of actual peak

Temperature (t p

)

Ramp-down Rate

20 – 40 seconds

5°C/second max

Time 25°C to peak Temperature (T

P

)

Do not exceed

8 minutes Max.

280°C

T

P

T

L

T

S(max)

T

S(min)

25 t

S

time to peak temperature t

P

t

L

Time

Physical Specifications

Terminal Finish

Body Material

Lead Material

100% Matte Tin-plated

UL recognized epoxy meeting flammability classification 94V-0

Copper Alloy

Design Considerations

Careful selection of the correct device for the application’s operating parameters and environment will go a long way toward extending the operating life of the Thyristor. Good design practice should limit the maximum continuous current through the main terminals to 75% of the device rating. Other ways to ensure long life for a power discrete semiconductor are proper heat sinking and selection of voltage ratings for worst case conditions. Overheating, overvoltage (including dv/dt), and surge currents are the main killers of semiconductors. Correct mounting, soldering, and forming of the leads also help protect against component damage.

Environmental Specifications

Test

AC Blocking

Temperature Cycling

Temperature/

Humidity

High Temp Storage

Low-Temp Storage

Resistance to

Solder Heat

Solderability

Lead Bend

Specifications and Conditions

MIL-STD-750, M-1040, Cond A Applied

Peak AC voltage @ 125°C for 1008 hours

MIL-STD-750, M-1051,

100 cycles; -40°C to +150°C; 15-min dwell-time

EIA / JEDEC, JESD22-A101

1008 hours; 320V - DC: 85°C; 85% rel humidity

MIL-STD-750, M-1031,

1008 hours; 150°C

1008 hours; -40°C

MIL-STD-750 Method 2031

ANSI/J-STD-002, category 3, Test A

MIL-STD-750, M-2036 Cond E

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

E

Dimensions — TO-220AB (R-Package) — Non-Isolated Mounting Tab Common with Center Lead

AREA (REF.) 0.17 IN

2

D

C

B

G

F

L

H

A

ANODE

R

CATHODE ANODE

K

J

GATE

N

T

C

MEASURING POINT

O

P

M

NOTCH IN

GATE LEAD

TO ID.

NON-ISOLATED

TAB

8.13

.320

7.01

.276

13.36

.526

Note: Maximum torque to be applied to mounting tab is 8 in-lbs. (0.904 Nm).

Dimension

P

R

N

O

L

M

J

K

G

H

E

F

C

D

A

B

Min

0.195

0.095

0.060

0.085

0.018

0.178

0.045

0.038

0.380

0.105

0.230

0.590

0.142

0.110

0.540

0.025

Inches

Max

0.205

0.105

0.075

0.095

0.024

0.188

0.060

0.048

0.420

0.115

0.250

0.620

0.147

0.130

0.575

0.035

Millimeters

Min Max

0.46

4.52

1.14

0.97

4.95

2.41

1.52

2.16

9.65

2.67

5.84

14.99

3.61

2.79

13.72

0.64

0.61

4.78

1.52

1.22

5.21

2.67

1.91

2.41

10.67

2.92

6.35

15.75

3.73

3.30

14.61

0.89

E

Dimensions — TO-220AB (L-Package) — Isolated Mounting Tab

AREA (REF.) 0.17 IN

2

A

T

C

MEASURING POINT

O

P

8.13

.320

Dimension

D

G

C

B

F

L

H

R

CATHODE ANODE

K

J

GATE

N

M

7.01

.276

Note: Maximum torque to be applied to mounting tab is 8 in-lbs. (0.904 Nm).

13.36

.526

P

R

N

O

L

M

J

K

G

H

E

F

C

D

A

B

Min

0.195

0.095

0.060

0.085

0.018

0.178

0.045

0.038

0.380

0.105

0.230

0.590

0.142

0.110

0.540

0.025

Inches

Max

0.205

0.105

0.075

0.095

0.024

0.188

0.060

0.048

0.420

0.115

0.250

0.620

0.147

0.130

0.575

0.035

Millimeters

Min Max

0.46

4.52

1.14

0.97

4.95

2.41

1.52

2.16

9.65

2.67

5.84

14.99

3.61

2.79

13.72

0.64

0.61

4.78

1.52

1.22

5.21

2.67

1.91

2.41

10.67

2.92

6.35

15.75

3.73

3.30

14.61

0.89

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Dimensions — TO-251AA (V/I-Package) — V/I-PAK Through Hole

AREA: 0.040 IN

2

Anode

A

B

C

P

Q

Cathode

Anode

GATE

E

D

I

G

R

S

F

T

C

MEASURING POINT

H

J

K

L

5.28

.208

5.34

.210

P

Q

R

S

K

L

I

J

G

H

E

F

C

D

A

B

Dimension

Min

Inches

Typ Max Min

Millimeters

Typ Max

0.037

0.040

0.043

0.94

0.235

0.242

0.245

5.97

0.350

0.361

0.375

8.89

0.205

0.208

0.213

5.21

0.255

0.262

0.265

6.48

0.027

0.031

0.033

0.69

0.087

0.090

0.093

2.21

0.085

0.092

0.095

2.16

0.176

0.180

0.184

4.47

0.018

0.020

0.023

0.46

0.035

0.037

0.039

0.90

0.018

0.020

0.023

0.46

0.042

0.047

0.052

1.06

0.034

0.039

0.044

0.86

0.034

0.039

0.044

0.86

0.074

0.079

0.084

1.86

4.57

0.51

0.95

0.52

1.20

1.00

1.00

2.00

6.66

0.80

2.28

2.34

1.01

6.15

9.18

5.29

1.32

1.11

1.11

2.11

4.67

0.58

1.00

0.58

1.09

6.22

9.53

5.41

6.73

0.84

2.36

2.41

A

B

Dimensions — TO-252AA (D-Package) — D-PAK Surface Mount

Anode

C

Cathode

Anode

D

E

I

G

P

Q

GATE

F

T

C

MEASURING POINT

5.28

.208

O

L

AREA : 0.040 IN

2

N

M

K

5.34

.210

J

H

1.60

.063

3

.118

6.71

.264

4.60

.181

6.71

.264

1.80

.071

O

P

M

N

Q

K

L

I

J

G

H

E

F

C

D

A

B

Dimension

Min

Inches

Typ Max Min

Millimeters

Typ Max

0.037

0.040

0.043

0.94

0.235

0.243

0.245

5.97

0.106

0.108

0.113

0.205

0.208

0.213

2.69

5.21

0.255

0.262

0.265

6.48

0.027

0.031

0.033

0.69

0.087

0.090

0.093

2.21

0.085

0.092

0.095

2.16

0.176

0.179

0.184

4.47

0.018

0.020

0.023

0.46

1.01

6.16

2.74

5.29

6.65

0.80

2.28

2.33

4.55

0.51

1.09

6.22

2.87

5.41

6.73

0.84

2.36

2.41

4.67

0.58

0.035

0.037

0.039

0.90

0.018

0.020

0.023

0.46

0.000

0.000

0.004

0.00

0.021

0.026

0.027

0.53

0° 0° 5° 0°

0.042

0.047

0.052

1.06

0.034

0.039

0.044

0.86

0.95

0.51

0.00

0.67

1.20

1.00

1.00

0.58

0.10

0.69

1.32

1.11

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

Product Selector

Part Number

Sxx08RS2

Sxx08LS2

Sxx08VS2

Sxx08DS2

Sxx08RS3

Sxx08LS3

Sxx08VS3

Sxx08DS3

Sxx08R

Sxx08L

Sxx08V

Sxx08D

Note: xx = Voltage

X

X

X

X

400V

X

X

X

X

X

X

X

X

Packing Options

Part Number

Sxx08L/RyyTP

Sxx08DyyTP

Sxx08DyyRP

Sxx08VyyTP

Sxx08L/RTP

Sxx08DTP

Sxx08DRP

Sxx08VTP

Note: xx = Voltage; yy = Sensitivity

Marking

Sxx08L/Ryy

Sxx08Dyy

Sxx08Dyy

Sxx08Vyy

Sxx08L/R

Sxx08D

Sxx08D

Sxx08V

X

X

X

X

600V

X

X

X

X

X

X

X

X

Voltage

800V

X

X

X

X

1000V

X

X

X

X

Weight

2.2 g

0.3 g

0.3 g

0.4 g

2.2 g

0.3 g

0.3 g

0.4 g

Gate Sensitivity

0.2mA

0.2mA

0.2mA

0.2mA

0.5mA

0.5mA

0.5mA

0.5mA

15mA

15mA

15mA

15mA

Packing Mode

Tube

Tube

Embossed Carrier

Tube

Tube

Tube

Embossed Carrier

Tube

Base Quantity

500 (50 per tube)

750 (75 per tube)

2500

750 (75 per tube)

500 (50 per tube)

750 (75 per tube)

2500

750 (75 per tube)

Type

Sensitive SCR

Sensitive SCR

Sensitive SCR

Sensitive SCR

Sensitive SCR

Sensitive SCR

Sensitive SCR

Sensitive SCR

Standard SCR

Standard SCR

Standard SCR

Standard SCR

Package

TO-220R

TO-220L

TO-251

TO-252

TO-220R

TO-220L

TO-251

TO-252

TO-220R

TO-220L

TO-251

TO-252

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Teccor

®

brand Thyristors

8 Amp Sensitive & Standard SCRs

TO-252 Embossed Carrier Reel Pack (RP) Specifications

Meets all EIA-481-2 Standards

0.157

(4.0)

Gate Cathode

0.63

(16.0)

0.524

(13.3)

*

*

Cover tape

0.512 (13.0)

Arbor Hole

Diameter

0.315

(8.0)

12.99

(330.0)

Anode

Dimensions are in inches

(and millimeters).

0.64

(16.3)

Direction of Feed

TO-202 Type 1 (F Package) TO-202 Type 1 (F Package)

Part Numbering System

DEVICE TYPE

S: SCR

VOLTAGE RATING

40: 400V

60: 600V

80: 800V

K0: 1000V

CURRENT RATING

08: 8A

®

yxxxx

LEAD FORM DIMENSIONS

xx: Lead Form Option

SENSITIVITY & TYPE

Sensitive SCR:

S2: 200µA

S3: 500µA

Standard SCR:

TO-220 AB - (L and R Package)

PACKAGE TYPE

L: TO-220 Isolated

R: TO-220 Non-Isolated

D: TO-252 (D-Pak)

®

Part Marking System

TO-251AA - (V Package)

TO-252AA - (D Package)

S6008F1

S6008DS2 S6008DS2 yxxxx

®

YMLDD YMLDD

®

Date Code Marking

Y:Year Code

M: Month Code

L: Location Code

DD: Calendar Code

®

TO-220 AB - (L and R Package)

TO-251AA - (V Package)

TO-252AA - (D Package)

S6008DS2

S6008DS2

YMLDD

®

Date Code Marking

Y:Year Code

M: Month Code

L: Location Code

DD: Calendar Code

YMLDD

®

Date Code Marking

Y:Year Code

M: Month Code

XXX: Lot Trace Code

S6008RS2

Y MXXX

®

Date Code Marking

Y:Year Code

M: Month Code

XXX: Lot Trace Code

© 2016 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 05/02/16

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
