Motor-protective�circuit-breaker,�3p,�Ir=1.6-2.5A Part�no. PKZM01-2,5 Article�no.

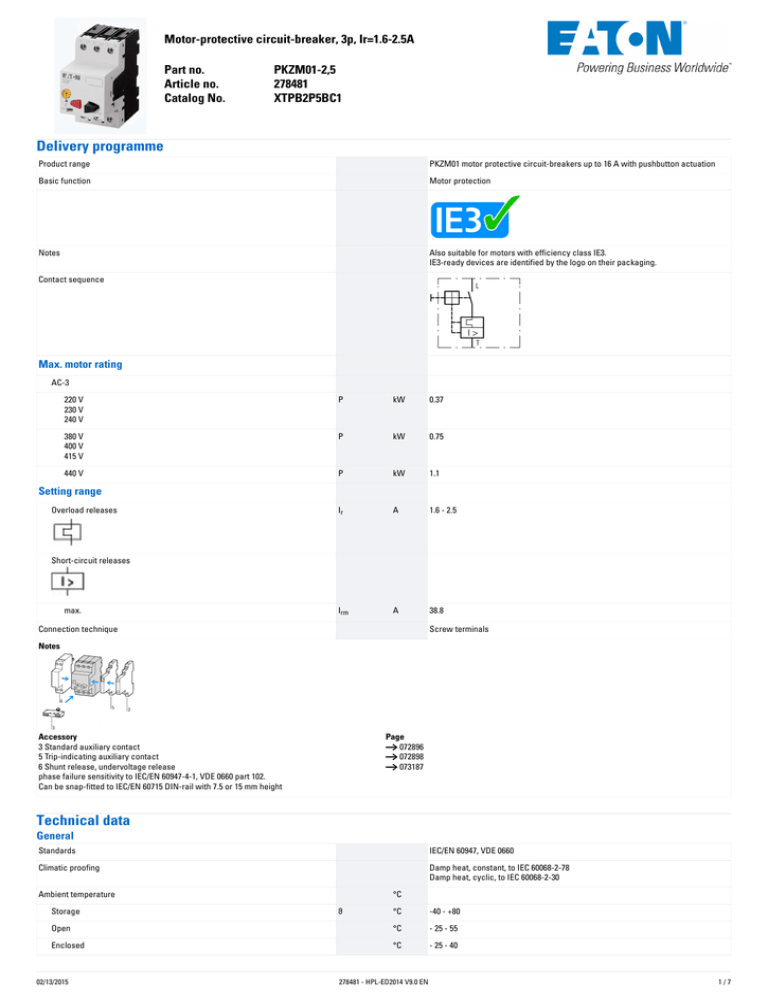

Motor-protective�circuit-breaker,�3p,�Ir=1.6-2.5A Part�no. Article�no. Catalog�No. PKZM01-2,5 278481 XTPB2P5BC1 Delivery�programme Product range PKZM01 motor protective circuit-breakers up to 16 A with pushbutton actuation Basic function Motor protection Notes Contact sequence Max.�motor�rating 220 V 230 V 240 V P kW 0.37 380 V 400 V 415 V P kW 0.75 440 V P kW 1.1 Overload releases Ir A 1.6 - 2.5 Short-circuit releases Irm A 38.8 Screw terminals AC-3 Setting�range max. Connection technique Notes Also suitable for motors with efficiency class IE3. IE3-ready devices are identified by the logo on their packaging. Accessory 3 Standard auxiliary contact 5 Trip-indicating auxiliary contact 6 Shunt release, undervoltage release phase failure sensitivity to IEC/EN 60947-4-1, VDE 0660 part 102. Can be snap-fitted to IEC/EN 60715 DIN-rail with 7.5 or 15 mm height Page ￫ 072896 ￫ 072898 ￫ 073187 Technical�data General Standards IEC/EN 60947, VDE 0660 Climatic proofing Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature °C Storage ϑ °C -40 - +80 Open °C - 25 - 55 Enclosed °C - 25 - 40 02/13/2015 278481 - HPL-ED2014 V9.0 EN 1/7 Mounting position Direction of incoming supply as required Degree of protection Device IP20 Terminations IP00 Protection against direct contact Finger and back-of-hand proof Mechanical shock resistance half-sinusoidal shock 10 ms to IEC 60068-2-27 g 25 Altitude m Terminal capacity screw terminals mm Solid mm Flexible with ferrule to DIN 46228 Solid or stranded Specified tightening torque for terminal screws 2000 2 2 1 x (1 - 6) 2 x (1 - 6) mm 2 1 x (1 - 6) 2 x (1 - 6) AWG 18 - 10 Main cable Nm 1.7 Control circuit cables Nm 1 Rated impulse withstand voltage Uimp V AC 6000 Overvoltage category/pollution degree III/3 Rated operational voltage Ue V AC 690 Rated uninterrupted current = rated operational current Iu = Ie A 16 or current setting of the overcurrent release Rated frequency f Hz 40 - 60 Rated frequency Hz 40 - 60 Current heat loss (3 pole at operating temperature) W Lifespan, mechanical Operations Lifespan, electrical (AC-3 at 400 V) Maximum operating frequency Main�conducting�paths 6 x 10 6 0.05 Operations x 10 6 0.05 Ops./h Ops/h 25 Short-circuit rating kA 60 Max. operating frequency Short-circuit rating DC Short-circuit rating 60 Motor switching capacity kArms AC-3 (up to 690 V) A 16 DC-5 (up to 250 V) A 16 (3 contacts in series) Trip�blocks Temperature compensation to IEC/EN 60947, VDE 0660 °C - 5 … 40 Operating range °C - 25 … 55 Temperature compensation residual error for T > 40 °C Setting range of overload releases x Iu 0.6 - 1 Short-circuit release fixed x Iu 15 Fixed short-circuit release Basic device 15.5 x Iu Short-circuit release tolerance ± 20% Phase-failure sensitivity IEC/EN 60947-1-1, VDE 0660 Part 102 Data�for�design�verification�according�to�IEC/EN�61439 Technical data for design verification 0.25 %/K Rated operational current for specified heat dissipation In A 2.5 Equipment heat dissipation, current-dependent Pvid W 5.16 Heat dissipation capacity Pdiss W 0 02/13/2015 278481 - HPL-ED2014 V9.0 EN 2/7 IEC/EN 61439 design verification 10.2 Strength of materials and parts 10.2.2 Corrosion resistance Meets the product standard's requirements. 10.2.3.1 Verification of thermal stability of enclosures Meets the product standard's requirements. 10.2.3.2 Verification of resistance of insulating materials to normal heat Meets the product standard's requirements. 10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects Meets the product standard's requirements. 10.2.4 Resistance to ultra-violet (UV) radiation Meets the product standard's requirements. 10.2.5 Lifting Does not apply, since the entire switchgear needs to be evaluated. 10.2.6 Mechanical impact Does not apply, since the entire switchgear needs to be evaluated. 10.2.7 Inscriptions Meets the product standard's requirements. 10.3 Degree of protection of ASSEMBLIES Does not apply, since the entire switchgear needs to be evaluated. 10.4 Clearances and creepage distances Meets the product standard's requirements. 10.5 Protection against electric shock Does not apply, since the entire switchgear needs to be evaluated. 10.6 Incorporation of switching devices and components Does not apply, since the entire switchgear needs to be evaluated. 10.7 Internal electrical circuits and connections Is the panel builder's responsibility. 10.8 Connections for external conductors Is the panel builder's responsibility. 10.9 Insulation properties 10.9.2 Power-frequency electric strength Is the panel builder's responsibility. 10.9.3 Impulse withstand voltage Is the panel builder's responsibility. 10.9.4 Testing of enclosures made of insulating material Is the panel builder's responsibility. 10.10 Temperature rise The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. 10.11 Short-circuit rating Is the panel builder's responsibility. The specifications for the switchgear must be observed. 10.12 Electromagnetic compatibility Is the panel builder's responsibility. The specifications for the switchgear must be observed. 10.13 Mechanical function The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. Technical�data�ETIM�5.0 Low-voltage industrial components (EG000017) / Motor protective circuit-breaker (EC000074) Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Circuit breaker motor protection ([email protected] [AGZ529012]) Setting range overload protector A 1.6 - 2.5 Adjustment range undelayed short-circuit release A 39 - 39 Phase failure sensitive Yes Switch off technique Thermomagnetic Rated operating voltage V 690 - 690 Rated permanent current Iu A 2.5 Rated operation power at AC-3, 230 V kW 0.37 Rated operation power at AC-3, 400 V kW 0.75 Connection type main current circuit Screw connection Device construction Built-in device fixed built-in technique With integrated auxiliary switch No With integrated under voltage release No Number of poles 3 Rated short-circuit breaking capacity lcu at 400 V, AC kA 50 Degree of protection (IP) IP20 Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking UL File No. E36332 UL Category Control No. NLRV CSA File No. 165628 CSA Class No. 3211-05 North America Certification UL listed, CSA certified Specially designed for North America No 02/13/2015 278481 - HPL-ED2014 V9.0 EN Approvals 3/7 Suitable for Branch circuit: Manual type E if used with terminal, or suitable for group installations Characteristics Motor-protective circuit-breaker tripping characteristic (high-capacity) compact starter, PKZM0-…T (not for PKM0-…), PKZM01 02/13/2015 278481 - HPL-ED2014 V9.0 EN 4/7 02/13/2015 278481 - HPL-ED2014 V9.0 EN 5/7 Let-through characteristics 02/13/2015 278481 - HPL-ED2014 V9.0 EN 6/7 Dimensions Additional�product�information�(links) IL03407010Z�(AWA1210-2138)�Motor-protective�circuit-breaker IL03407010Z (AWA1210-2138) Motor-protective ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL03407010Z2014_02.pdf circuit-breaker Motor starters and "Special Purpose Ratings" for the North American market http://www.moeller.net/binary/ver_techpapers/ver953en.pdf Busbar Component Adapters for modern Industrial control panels http://www.moeller.net/binary/ver_techpapers/ver960en.pdf 02/13/2015 Eaton Industries GmbH http://www.eaton.eu © 12/2014 by Eaton Industries GmbH 278481 - HPL-ED2014 V9.0 EN 7/7
