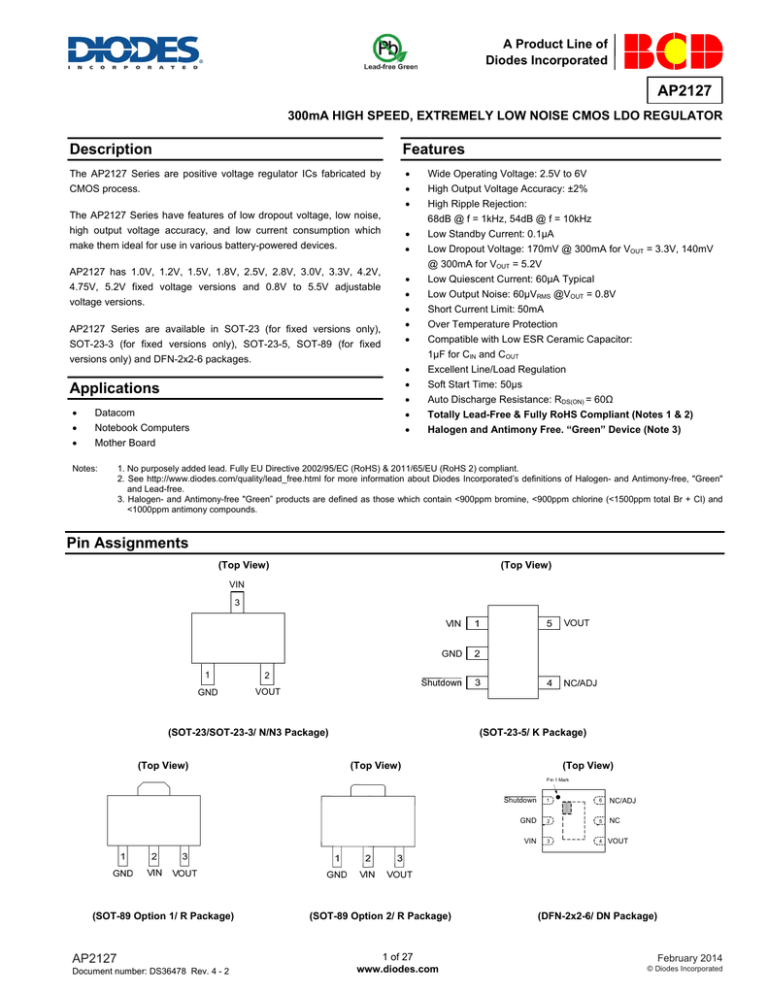

AP2127 Description Features

AP2127 Description Features

A Product Line of

Diodes Incorporated

AP2127

300mA HIGH SPEED, EXTREMELY LOW NOISE CMOS LDO REGULATOR

Features Description

The AP2127 Series are positive voltage regulator ICs fabricated by

CMOS process.

The AP2127 Series have features of low dropout voltage, low noise, high output voltage accuracy, and low current consumption which make them ideal for use in various battery-powered devices.

AP2127 has 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.2V,

4.75V, 5.2V fixed voltage versions and 0.8V to 5.5V adjustable voltage versions.

AP2127 Series are available in SOT-23 (for fixed versions only),

SOT-23-3 (for fixed versions only), SOT-23-5, SOT-89 (for fixed versions only) and DFN-2x2-6 packages.

Applications

• Datacom

Wide Operating Voltage: 2.5V to 6V

High Output Voltage Accuracy: ±2%

High Ripple Rejection:

68dB @ f = 1kHz, 54dB @ f = 10kHz

Low Standby Current: 0.1μA

Low Dropout Voltage: 170mV @ 300mA for V

OUT

= 3.3V, 140mV

@ 300mA for V

OUT

= 5.2V

Low Quiescent Current: 60μA Typical

Low Output Noise: 60μV

RMS

@V

OUT

= 0.8V

Short Current Limit: 50mA

Over Temperature Protection

Compatible with Low ESR Ceramic Capacitor:

1μF for C

IN

and C

OUT

Excellent Line/Load Regulation

Soft Start Time: 50μs

Auto Discharge Resistance: R

DS(ON)

= 60Ω

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

Pin Assignments

(Top View) (Top View)

VIN

3

1

GND

2

VOUT

(SOT-23/SOT-23-3/ N/N3 Package) (SOT-23-5/ K Package)

(Top View) (Top View) (Top View)

P in 1 Mark

Shutdown

1 6

NC/ADJ

GND NC

2 5

VIN VOUT

3 4

(SOT-89 Option 1/ R Package) (SOT-89 Option 2/ R Package) (DFN-2x2-6/ DN Package)

AP2127

Document number: DS36478 Rev. 4 - 2

1 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Typical Applications Circuit

A Product Line of

Diodes Incorporated

AP2127

V

OUT

= 0.8(1+R1/R2)V

AP2127

Document number: DS36478 Rev. 4 - 2

For 1.0V to 5.2V Fixed Voltage Versions

2 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

Pin Descriptions

Pin

Name

Pin Number

SOT23

SOT23-3

SOT23-5 SOT89 DFN-2-2-6

VOUT 2 5 3 4 Output

Function

ADJ 4

Shutdown 3

PAD

Functional Block Diagram

6 VOUT feedback input, connect resistor divider.

1 Enable

PAD Exposed PAD for thermal performance improvement connect to GND

AP2127

Fixed Version (SOT-23-5 Package)

AP2127

Document number: DS36478 Rev. 4 - 2

Adjustable Version (SOT-23-5 Package)

3 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Absolute Maximum Ratings

(Note 4) (@T

A

= +25°C, unless otherwise specified.)

Parameter Symbol

Input Voltage

Shutdown Input Voltage

Output Current

Junction Temperature

Storage Temperature Range

Lead Temperature (Soldering, 10sec)

V

V

IN

CE

I

OUT

T

J

T

STG

T

LEAD

Thermal Resistance

(Junction to Ambient)

ESD (Human Body Model)

ESD (Machine Model)

θ

JA

ESD

ESD

Value

6.5 V

-0.3 to V

IN

+0.3

Unit

V

450 mA

+150 °C

-65 to +150 °C

+260 °C

SOT-23 180

SOT-23-3 250

SOT-23-5 250

SOT-89 100

DFN-2X2-6 85

6000

200

°C/W

V

V

Note: 4. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and

functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied.

Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.

Recommended Operating Conditions

(@T

A

= +25°C, unless otherwise specified.)

Input Voltage

V

IN

2.5 6 V

Operating Ambient Temperature Range T

A

-40 +85 °C

Electrical Characteristics

(V

IN

= 2.5V (for 0.8V to 1.8V voltage versions), V

IN

= V

OUT

+1V (for 2.5V to 4.75V voltage versions),

V

IN

= 6V @ V

OUT

= 5.2V, T

A

= +25°C, C

IN

= 1μF, C

OUT

= 1μF, Bold typeface applies over -40°C ≤ T

A

≤ +85°C unless otherwise specified.)

Reference Voltage

Output Voltage

Input Voltage

Maximum Output Current

Load Regulation

Line Regulation

Dropout Voltage

Quiescent Current

Standby Current

AP2127

Document number: DS36478 Rev. 4 - 2

V

REF

V

OUT

V

IN

I

OUT(MAX)

∆V

OUT

∆V

OUT

V

I

DROP

I

Q

STD

V

IN

= V

OUT

+1V

1mA ≤ I

OUT

≤ 300mA

V

IN

= V

OUT

+1V

1mA ≤ I

OUT

≤ 300mA

V

IN

- V

OUT

= 1V

V

OUT

= 0.98 x V

OUT

V

IN

- V

OUT

= 1V

1mA ≤ I

OUT

≤ 300mA

V

OUT

+ 0.5V ≤ V

IN

≤6V

I

OUT

= 30mA

V

OUT

= 1.0V, I

OUT

= 300mA

V

OUT

= 1.2V, I

OUT

= 300mA

V

OUT

= 1.5V, I

OUT

= 300mA

V

OUT

= 1.8V, I

OUT

= 300mA

V

OUT

= 2.5V, 2.8V, 3.0V, 3.3V,

4.2V, I

OUT

= 300mA

V

OUT

= 4.75 and 5.2V,

I

OUT

= 300mA

V

IN

= V

OUT

+1V, I

OUT

= 0mA

V

IN

= V

OUT

+1V

V

SHUTDOWN

in off mode

0.784 0.8 0.816 V

98% x

V

OUT

102% x

V

OUT

V

2.5 — 6 V

300 400 — mA

— 4 10 mV

— 0.5 5 mV

1400 1500

1200 1300

900 1000

600 700 mV

170 300

140 300

60 90 µA

0.1 1.0 µA

4 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Electrical Characteristics

(V

IN

= 2.5V (for 0.8V to 1.8V voltage versions), V

IN

= V

OUT

+1V (for 2.5V to 4.75V voltage versions),

V

IN

= 6V @ V

OUT

= 5.2V, T

A

= +25°C, C

IN

= 1μF, C

OUT

= 1μF, Bold typeface applies over -40°C ≤ T

A

≤ +85°C unless otherwise specified.)

Power Supply Rejection Ration

Output Voltage Temperature

Coefficient

Short Current Limit

Soft Start Time

RMS Output Noise

Shutdown High Voltage

Shutdown Low Voltage

V

OUT

Discharge MOSFET R

DS(ON)

Shutdown Pull Down Resistance

Thermal Shutdown

Thermal Shutdown Hysteresis

Thermal Resistance

PSRR

∆V

OUT

/V

OUT

/∆T

I

SHORT t

SS

V

NOISE

I

AP2127-1.0V to

4.2V, Ripple 1V

P-P

V

IN

= V

OUT

+1V

AP2127-4.75V and

5.2V, Ripple 0.5V

P-P

V

IN

= V

OUT

+1V f = 100Hz f = 1kHz f = 10kHz f = 100Hz f = 1kHz f = 10kHz

OUT

V

= 30mA, -40°C ≤ T

OUT

= 0V

A

≤ +85°C

T

A

= +25°C, 10Hz ≤ f ≤ 100kHz,

V

OUT

= 0.8V

Shutdown Input Voltage High

Shutdown Input Voltage Low

Shutdown Input Voltage Low

θ

JC

SOT-23-3

SOT-23-5

SOT-89

DFN-2x2-6

— 68 — dB

— 68 — dB

— 54 — dB

— 63 — dB

— 63 — dB

— 45 — dB

±100

— ppm/°C

— 50 — mA

1.5

0

60

3

+165

+30

— 150 —

— 75 —

— 60 —

µV

RMS

V

V

MΩ

°C

AP2127

Document number: DS36478 Rev. 4 - 2

5 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Case Temperature ( o

C)

Performance Characteristics

Output Voltage vs. Case Temperature Output Voltage vs. Case Temperature

1.010

1.009

1.008

1.007

V

IN

I

I

OUT

=10mA

OUT

=150mA

I

OUT

=300mA

=2.5V

V

OUT

=1.0V

3.340

3.338

3.336

I

OUT

=10mA

I

OUT

V

IN

I

OUT

=4.3V

V

OUT

=3.3V

=150mA

=300mA

1.006

1.005

1.004

1.003

3.334

3.332

3.330

3.328

1.002

1.001

1.000

-40 -20 0 20 40 60 80 100 120

3.326

3.324

-40 -20 0 20 40 60 80 100 120

Case Temperature ( o

C)

5.275

5.270

5.265

5.260

5.255

5.250

5.245

5.240

5.235

5.230

5.225

-40

Output Voltage vs. Case Temperature Output Voltage vs. Input Voltage

V

IN

I

I

I

OUT

=10mA

OUT

=150mA

OUT

=300mA

=6V, V

OUT

=5.2V

-20 0 20 40 60

Case Temperature ( o

C)

80 100 120

1.0

0.8

0.6

0.4

0.2

0.0

T

C

I

OUT

=0

I

=25

OUT o

C

=300mA

V

OUT

=1.0V

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

Input Voltage (V)

Output Voltage vs. Input Voltage Output Voltage vs. Input Voltage

6.0

3.5

3.0

2.5

5.5

5.0

4.0

3.5

T

C

I

OUT

=0

I

=25

OUT o

=300mA

C, V

OUT

=5.2V

2.0

4.5

3.0

1.5

1.0

2.5

2.0

1.5

0.5

0.0

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

T

C

I

I

=25 o

OUT

=0

OUT

=300mA

C, V

OUT

=3.3V

4.0

4.5

5.0

5.5

6.0

1.0

0.5

0.0

0 1 2 3 4 5

Input Voltage (V)

Input Voltage (V)

6

AP2127

Document number: DS36478 Rev. 4 - 2

6 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Performance Characteristics

(cont.)

1.0

0.8

0.6

0.4

0.2

0.0

0.00

Output Voltage vs. Output Current Output Voltage vs. Output Current

0.05

0.10

0.15

0.20

0.25

0.30

Output Current (A)

0.35

V

V

T

C

=-40 o

C

T

C

=25 o

C

T

C

=85 o

C

IN

=2.5V

OUT

=1.0V

0.40

0.45

0.50

3.5

3.0

2.5

2.0

1.5

1.0

0.5

T

C

=-40 o

C

T

C

=25 o

C

T

C

=85 o

C

V

IN

=4.3V, V

OUT

=3.3V

0.0

0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60

Output Current (A)

3.5

3.0

2.5

2.0

Output Voltage vs. Output Current Output Voltage vs. Output Current

6

5

4

3

1.5

1.0

0.5

T

C

V

IN

V

IN

V

IN

=25 o

=3.8V

=4.3V

=6V

C, V

OUT

=3.3V

2

1

T

C

T

C

=-40

=25 o o

C

C

V

IN

T

C

=85 o

=6V, V

OUT

C

=5.2V

0.0

0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60

Output Current (A)

0

0.0

0.1

0.2

0.3

Output Current (A)

0.4

0.5

Quiescent Current vs. Input Voltage Quiescent Current vs. Input Voltage

80

80

70

60

50

40

30

20

10

0

-10

1 2 3

Input Voltage (V)

4

AP2127

Document number: DS36478 Rev. 4 - 2

I

OUT

V

=0

OUT

T

C

T

C

T

C

=-40 o

C

=25

=85

=1.0V

o o

C

C

5 6

7 of 27

www.diodes.com

70

60

50

40

30

20

10

0

0 1 2 3

Input Voltage (V)

4

T

C

=-40 o

C

T

C

=25 o

C

T

C

=85 o

C

I

OUT

=0, V

OUT

=3.3V

5 6

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Performance Characteristics

(cont.)

Quiescent Current vs. Input Voltage Quiescent Current vs. Output Current

80

70

60

50

120

110

100

90

T

C

=-40 o

C

V

IN

T

C

T

C

=25

=85

=2.5V

V

OUT

=1.0V

o

C o

C

40

30

20

10

0

0 1 2 3

Input Voltage (V)

4

I

OUT

T

C

=-40 o

C

T

T

C

C

=25

=85

=0, V

OUT o

C o

C

=5.2V

5 6

80

70

60

0.00

0.05

0.10

0.15

Output Current (A)

0.20

0.25

Quiescent Current vs. Output Current Quiescent Current vs. Output Current

0.30

115

110

105

100

95

T

C

T

C

=-40

=25 o o

C

C

T

C

=85 o

C

V

IN

=4.3V, V

OUT

=3.3V

110

105

100

95

V

T

C

=-40 o

C

T

C

T

C

=25

=85

IN

=6V, V o o

OUT

C

C

=5.2V

90

85

80

75

70

65

0.00

0.05

0.10

0.15

Output Current (A)

0.20

0.25

0.30

90

85

80

75

70

0.00

0.05

0.10

0.15

Output Current (A)

0.20

0.25

0.30

Quiescent Current vs. Case Temperature Quiescent Current vs. Case Temperature

64

62

V

IN

=2.5V

I

OUT

=0

V

OUT

=1.0V

73

72

60

71

58

56

54

52

-40 -20 0 20 40 60

Case Temperature ( o

C)

80 100 120

70

69

68

67

-40

I

OUT

V

IN

=0

=4.3V

V

OUT

=3.3V

-20 0 20 40 60

Case Temperature ( o

C)

80 100 120

AP2127

Document number: DS36478 Rev. 4 - 2

8 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Performance Characteristics

(cont.)

Quiescent Current vs. Case Temperature Dropout Voltage vs. Output Current

80

79

78

77

76

75

74

73

72

71

70

69

I

OUT

V

V

=0

IN

=6V

OUT

=5.2V

0.26

0.24

0.22

0.20

0.18

0.16

0.14

0.12

0.10

0.08

0.06

0.04

0.02

V

OUT

T

C

=-40 o

C

T

C

=25 o

C

T

C

=85 o

C

=3.3V

68

-40 -20 0 20 40 60

Case Temperature ( o

C)

80 100 120

0.00

0.00

0.05

0.10

0.15

Output Current (A)

0.20

0.25

0.30

0.18

0.16

0.14

0.12

0.10

Dropout Voltage vs. Output Current Dropout Voltage vs. Case Temperature

V

OUT

T

C

=-40 o

C

T

C

=25 o

C

T

C

=85 o

C

=5.2V

0.08

0.06

0.04

0.02

0.00

0.00

0.05

0.10

0.15

Output Current (A)

0.20

0.25

0.30

0.24

0.22

0.20

0.18

0.16

0.14

0.12

0.10

0.08

0.06

0.04

0.02

0.00

-40 -20

V

OUT

I

OUT

I

OUT

I

OUT

=10mA

=150mA

=300mA

=3.3V

0 20 40

Case Temperature ( o

C)

60 80 100

Dropout Voltage vs. Case Temperature Power Dissipation vs. Case Temperature

0.18

2.0

0.16

1.8

V

OUT

=1.0V

No heatsink

0.14

0.12

0.10

0.08

0.06

V

I

OUT

I

OUT

I

OUT

=10mA

=150mA

=300mA

OUT

=5.2V

1.6

1.4

1.2

1.0

0.8

0.6

0.04

0.02

0.00

-40 -20 0 20 40

Case Temperature ( o

C)

60 80

0.4

0.2

0.0

-40 -20 0 20 40 60

Case Temperature ( o

C)

80 100 120

AP2127

Document number: DS36478 Rev. 4 - 2

9 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Performance Characteristics

(cont.)

V

IN

500mV/div

V

OUT

50mV/div

Line Transient Load Transient

(Condition: C

IN

= C

OUT

=1µF, I

OUT

=10mA, (Condition: C

IN

=C

OUT

=1µF, Slew Rate=20mA/µs,

V

IN

=2.5V to 3.3V, V

OUT

=1V) V

IN

=2.5V, V

OUT

=1V, I

OUT

=10mA to 300mA)

I

OUT

200mA/div

V

OUT

50mV/div

(Condition: C

IN

V

=C

IN

Load Transient Load Transient

OUT

=1µF, I

OUT

=10mA to 300mA, (Condition: C

=4.3V, V

OUT

=3.3V) V

IN

=6V, V

IN

=C

OUT

OUT

=1µF, Slew Rate=20mA/µs,

=5.2V, I

OUT

=10mA to 300mA)

I

OUT

200mA/div

V

OUT

50mV/div

I

OUT

200mA/div

V

OUT

50mV/div

PSRR vs. Frequency PSRR vs. Frequency

(Condition: C

IN

=C

OUT

=1µF, V

IN

=2.5V, V

OUT

=1V (Condition: C

IN

=C

OUT

=1µF, V

IN

=4.3V, V

OUT

=3.3V,

Ripple=1V

PP

) Ripple=1V

PP

)

90

80

70

V

I

OUT

I

OUT

=10mA

=300mA

OUT

=1V,Ripple=1V

PP

70

60

60

50

50

40

30

20

10

0

100 1000 10000 100000

40

30

20

10

V

OUT

I

OUT

I

OUT

=10mA

=300mA

=3.3V, Ripple=1V

PP

100 1k 10k 100k

Frequency (Hz)

AP2127

Document number: DS36478 Rev. 4 - 2

10 of 27

www.diodes.com

Frequency (Hz)

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Performance Characteristics

(Cont.)

PSRR vs. Frequency Region of Stable C

OUT

ESR vs.

(Condition: C

IN

=C

OUT

=1µF, V

IN

=6V, V

Ripple=0.5V

PP

)

OUT

=5.2V, Output Current (C

OUT

= 1µF)

70

60

50

40

30

20

10

I

I

OUT

=10mA

OUT

=300mA

V

OUT

=5.2V, Ripple=0.5V

PP

100 1k

Frequency (Hz)

10k 100k

Region of Stable C

OUT

ESR vs.

Output Current (C

OUT

= 4.7µF)

AP2127

Document number: DS36478 Rev. 4 - 2

11 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Application Notes

Input Capacitor

A 1µF ceramic capacitor is recommended to connect between V

IN

and GND pins to decouple input power supply glitch and noise. The amount of the capacitance may be increased without limit. This input capacitor must be located as close as possible to the device to assure input stability and less noise. For PCB layout, a wide copper trace is required for both V

IN

and GND.

Output Capacitor

The output capacitor is required to stabilize and help transient response for LDO. The AP2127 is stable with very small ceramic output capacitor with a low ESR 1µF or higher of X7R or X5R MLCC capacitor, which will be sufficient at full temperature ranges. Additional capacitance helps to reduce undershoot and overshoot during transient. Place output capacitor as close as possible to V

OUT

and GND pins, and keep the leads as short as possible.

Adjustable Operation

For adjustable version, the output voltage is calculated by:

V

OUT

=

V

REF

⎜⎜

1

+

R

1

R

2

⎟⎟

Where V

REF

= 0.8V (the internal reference voltage)

Rearranging the equation will give the following that is used for adjusting the output to a particular voltage:

R

1

=

R

2

⎜⎜

V

OUT

V

REF

1

⎟⎟

For AP2127, the resistor at the low side (R

2

) can be selected from 5kΩ to 200kΩ.

In order to improve the stability and to decrease the noise level of the adjustable version, a feed-forward capacitor is suggested to be placed between V

OUT

and ADJ pins (Figure 1). It’s recommended that this feed-forward capacitor value can be calculated as:

0.7kHz

1

×

R

1

×

C ff

15kHz

The recommended value of the feed-forward capacitor for different resistor divider ratios is shown in the table below.

Output Voltage R1 R2 C ff

1.2V 7.5kΩ 15kΩ 2.7nF

1.6V 7.5kΩ 7.5kΩ 2.7nF

1.8V 22.5kΩ 18kΩ 1nF

1.9V 7.5kΩ 5.49kΩ 2.7nF

2.5V 38.3kΩ 18kΩ 560pF

3.3V 56.2kΩ 18kΩ 390pF

4.0V 120kΩ 30.1kΩ 180pF

Table 1 Output Voltage Setting Guide

AP2127

Document number: DS36478 Rev. 4 - 2

12 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Application Notes

(cont.)

A Product Line of

Diodes Incorporated

AP2127

Figure 1. Application Circuit with Feed-forward Capacitor

Current Limit Protection

When output current at V

OUT

pin is higher than current limit threshold, the current limit protection will be triggered and clamp the output current to prevent over-current and to protect the regulator and load from damaged due to overheating.

Short Circuit Protection

When V

OUT

pin is shorted to GND, short circuit protection will be triggered and clamp the output current to approximately 50mA.

Auto discharge with Shutdown Version

For shutdown version, an auto discharge MOSFET with R

DS(ON)

of 60Ω typical is integrated between V

OUT

and GND pins, which can discharge the charge of the output capacitors quickly when turning off AP2127 with Shutdown pin.

Thermal Consideration

Internal thermal protection circuitry of AP2127 is used to protect device during overload conditions. For continuous operation, ensure not to exceed the operating junction temperature range of +125°C.

The power dissipation definition in the device is:

P

D

= (V

IN

- V

OUT

) x I

OUT

+ V

IN

x I

Q

The maximum power dissipation depends on the thermal resistance of IC package, PCB layout and the surrounding airflow. The maximum power dissipation can also be calculated as:

P

D(MAX)

= (T

J(MAX)

- T

A

) / θ

JA

The maximum power dissipation for SOT-23-5 package (least copper size) at T

A

= +25°C can be calculated as:

P

D(MAX)

= (125°C - 25°C) / (250°C/W) = 0.4W

AP2127

Document number: DS36478 Rev. 4 - 2

2 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Ordering Information

A Product Line of

Diodes Incorporated

AP2127

Part Number

AP2127N-1.0TRG1

AP2127N-1.2TRG1

AP2127N-1.5TRG1

AP2127N-1.8TRG1

AP2127N-2.5TRG1

AP2127N-2.8TRG1

AP2127N-3.0TRG1

AP2127N-3.3TRG1

AP2127N-4.2TRG1

AP2127N-4.75TRG1

AP2127N-5.2TRG1

AP2127N3-1.0TRG1

AP2127N3-1.2TRG1

AP2127N3-1.5TRG1

AP2127N3-1.8TRG1

AP2127N3-2.5TRG1

AP2127N3-2.8TRG1

AP2127N3-3.0TRG1

AP2127N3-3.3TRG1

AP2127N3-4.2TRG1

AP2127N3-4.75TRG1

AP2127N3-5.2TRG1

AP2127K-ADJTRG1

AP2127K-1.0TRG1

AP2127K-1.5TRG1

AP2127K-1.8TRG1

AP2127K-2.5TRG1

AP2127K-2.8TRG1

AP2127K-3.0TRG1

AP2127K-3.3TRG1

AP2127K-4.2TRG1

AP2127K-4.75TRG1

AP2127K-5.2TRG1

GV5

GW1

GEH

GEG

GEP

GEQ

GER

GES

GHF

GET

GEU

GEZ

GEW

Marking ID

GU8

GS8

GV8

GW8

GT9

GU9

GV9

GW9

GS9

GV7

GW7

GU1

GU2

GU3

GU4

GU5

GV1

GV2

GV3

GV4

AP2127

Document number: DS36478 Rev. 4 - 2

Temperature Range

-40°C to +85°C

14 of 27

www.diodes.com

Package

SOT-23

SOT-23-3

SOT-23-5

Package

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

Ordering Information

(cont.)

Part Number

AP2127R-1.0TRG1

AP2127R-1.2TRG1

AP2127R-1.5TRG1

AP2127R-1.8TRG1

AP2127R-2.5TRG1

AP2127R-2.8TRG1

AP2127R-3.0TRG1

AP2127R-3.3TRG1

AP2127R-4.2TRG1

Marking ID

G22P

G27P

G28P

G31P

G33P

G37P

G41P

G42P

G43P

AP2127R-4.75TRG1

AP2127R-5.2TRG1

G70P

G78P

AP2127DN-ADJTRG1 BV

AP2127DN-1.0TRG1 CA

AP2127DN-1.2TRG1 CB

AP2127DN-1.5TRG1 CC

AP2127DN-1.8TRG1

AP2127DN-2.5TRG1

AP2127DN-2.8TRG1

CD

BP

BS

AP2127DN-3.0TRG1

AP2127DN-3.3TRG1

BU

CE

AP2127DN-4.2TRG1 CF

AP2127DN-4.75TRG1 CG

AP2127DN-5.2TRG1 CH

Temperature Range

-40°C to +85°C

AP2127

Document number: DS36478 Rev. 4 - 2

15 of 27

www.diodes.com

Package

SOT-89

DFN-2x2-6

AP2127

Package

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

1000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

3000/Tape & Reel

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

Marking Information

SOT-23-3

(Top View)

(2) SOT-23-5

XXX

(Top View)

(3) SOT-89

XXX

(Top View)

(4) DFN-2x2-6

XXXX

YWWAXX

(Top View)

AP2127

Document number: DS36478 Rev. 4 - 2

XX

: Logo

XXX: Marking ID (See Ordering Information)

: Logo

XXX: Marking ID (See Ordering Information)

First Line: Logo and Marking ID (See Ordering Information)

Second Line: Date Code

Y: Year

WW: Work Week of Molding

A: Assembly House Code

XX: 7th and 8th Digits of Batch Number

XX: Marking ID (See Ordering Information)

16 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Package Outline Dimensions

(All dimensions in mm.)

(1) Package Type: SOT-23

A Product Line of

Diodes Incorporated

AP2127

AP2127

Document number: DS36478 Rev. 4 - 2

17 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Package Outline Dimensions

(cont.) (All dimensions in mm.)

(2) Package Type: SOT-23-3

A Product Line of

Diodes Incorporated

AP2127

AP2127

Document number: DS36478 Rev. 4 - 2

18 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Package Outline Dimensions

(cont.) (All dimensions in mm.)

(3) Package Type: SOT-23-5

A Product Line of

Diodes Incorporated

AP2127

AP2127

Document number: DS36478 Rev. 4 - 2

19 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Package Outline Dimensions

(cont.) (All dimensions in mm.)

(4) Package Type: SOT-89

A Product Line of

Diodes Incorporated

AP2127

AP2127

Document number: DS36478 Rev. 4 - 2

20 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Package Outline Dimensions

(cont.) (All dimensions in mm.)

(5) Package Type: DFN-2x2-6

A Product Line of

Diodes Incorporated

AP2127

AP2127

Document number: DS36478 Rev. 4 - 2

21 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Suggested Pad Layout

(All dimensions in mm.)

(1) Package Type: SOT-23

A Product Line of

Diodes Incorporated

AP2127

AP2127

Dimensions

Z

(mm)/(inch)

G

(mm)/(inch)

X

(mm)/(inch)

Y

(mm)/(inch)

E

(mm)/(inch)

Value 2.900/0.114 1.100/0.043 0.800/0.031 0.900/0.035 0.950/0.037

Document number: DS36478 Rev. 4 - 2

22 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Suggested Pad Layout

(cont.) (All dimensions in mm.)

(2) Package Type: SOT-23-3

X

A Product Line of

Diodes Incorporated

AP2127

G

E1

Z

E2

Y

AP2127

Dimensions

Z

(mm)/(inch)

G

(mm)/(inch)

X

(mm)/(inch)

Y

(mm)/(inch)

E1

(mm)/(inch)

E2

(mm)/(inch)

Value 3.600/0.142 1.600/0.063 0.700/0.028 1.000/0.039 0.950/0.037 1.900/0.075

Document number: DS36478 Rev. 4 - 2

23 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Suggested Pad Layout

(cont.) (All dimensions in mm.)

(3) Package Type: SOT-23-5

A Product Line of

Diodes Incorporated

AP2127

AP2127

Dimensions

Z

(mm)/(inch)

G

(mm)/(inch)

X

(mm)/(inch)

Y

(mm)/(inch)

E1

(mm)/(inch)

E2

(mm)/(inch)

Value 3.600/0.142 1.600/0.063 0.700/0.028 1.000/0.039 0.950/0.037 1.900/0.075

Document number: DS36478 Rev. 4 - 2

24 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Suggested Pad Layout

(cont.) (All dimensions in mm.)

(4) Package Type: SOT-89

X1

A Product Line of

Diodes Incorporated

AP2127

Z

Y

X2

Y1

Dimensions

Value

X E

Z

(mm)/(inch)

X

(mm)/(inch)

X1

(mm)/(inch)

X2

(mm)/(inch)

Y

(mm)/(inch)

Y1

(mm)/(inch)

E

(mm)/(inch)

4.600/0.181 0.550/0.022 1.850/0.073 0.800/0.031 1.300/0.051 1.475/0.058 1.500/0.059

AP2127

Document number: DS36478 Rev. 4 - 2

25 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Suggested Pad Layout

(cont.) (All dimensions in mm.)

(5) Package Type: DFN-2x2-6

A Product Line of

Diodes Incorporated

AP2127

Dimensions

Value

AP2127

Document number: DS36478 Rev. 4 - 2

Y

(mm)/(inch)

X1

(mm)/(inch)

Y1=E

(mm)/(inch)

X2

(mm)/(inch)

Y2

(mm)/(inch)

2.400/0.094 0.300/0.012 0.500/0.020 1.600/0.063 1.000/0.039

26 of 27

www.diodes.com

February 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

AP2127

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

Copyright © 2014, Diodes Incorporated

www.diodes.com

AP2127

Document number: DS36478 Rev. 4 - 2

27 of 27

www.diodes.com

February 2014

© Diodes Incorporated

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
