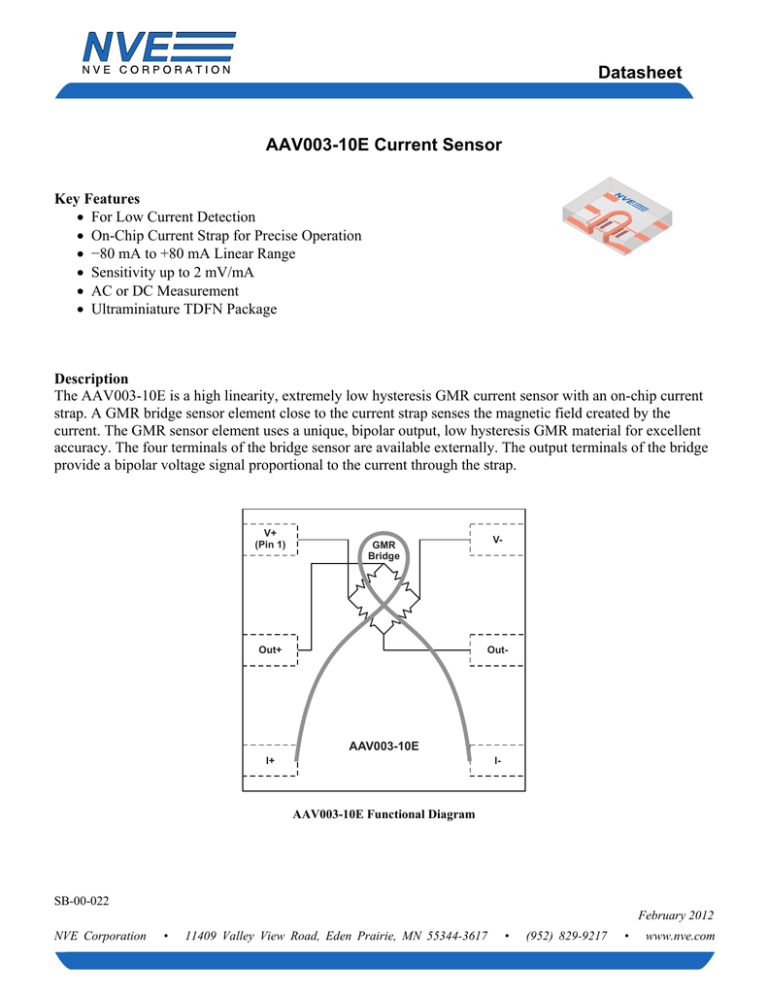

Datasheet
AAV003-10E Current Sensor
Key Features
• For Low Current Detection
• On-Chip Current Strap for Precise Operation
• −80 mA to +80 mA Linear Range
• Sensitivity up to 2 mV/mA
• AC or DC Measurement
• Ultraminiature TDFN Package
Description
The AAV003-10E is a high linearity, extremely low hysteresis GMR current sensor with an on-chip current
strap. A GMR bridge sensor element close to the current strap senses the magnetic field created by the
current. The GMR sensor element uses a unique, bipolar output, low hysteresis GMR material for excellent
accuracy. The four terminals of the bridge sensor are available externally. The output terminals of the bridge
provide a bipolar voltage signal proportional to the current through the strap.
V+
(Pin 1)
V-
GMR
Bridge
Out+
Out-
AAV003-10E
I+
I-
AAV003-10E Functional Diagram
SB-00-022
February 2012
NVE Corporation
•
11409 Valley View Road, Eden Prairie, MN 55344-3617
•
(952) 829-9217
•
www.nve.com
AAV003-10E Current Sensor
Operation
A representative transfer curve is shown below:
AAV003‐10E B ridg e O utput vs Input C urrent
5V S upply Voltag e, 25C
0.175
0.15
0.125
0.1
0.075
B ridg e O utput (V)
0.05
0.025
0
‐0.025
‐0.05
‐0.075
‐0.1
‐0.125
‐0.15
‐0.175
‐0.6000
‐0.5000
‐0.4000
‐0.3000
‐0.2000
‐0.1000
0.0000
0.1000
0.2000
0.3000
0.4000
0.5000
0.6000
Input C urrent (A)
Operating Specifications:
Parameter
Nominal Bridge Resistance
Sensitivity
Frequency Response
Linear Range of Current Measurement
Output Linearity
Bridge Electrical Offset
Offset Drift over Full Temperature Range
Bridge Supply Voltage
Isolation Voltage
On-Chip Current Strap Resistance
On-Chip Current Strap Resistance
Temperature Coefficient
Temperature Range of Operation
Bridge Resistance Temperature Coeff.
Bridge TCOV2
Test Conditions
25°C
Operating; 5 V Supply, 25°C
Min.
5500
0.06
100
Operating; Full Voltage and
Temperature Range
Over Linear Current Range;
Full Oper. Temperature Range
25°C
Zero Current
−80
99%
See Note 1
25°C
240
0.25
Typ.
7000
0.08
−4
−1.0
Max.
8500
0.10
Units
Ohms
mV/V-mA
KHz
80
mA
+4
1.0
24
mV/V
mV/V
|Volts|
0.35
Ohms
VRMS
+0.6
−40
Operating
Operating
Operating
%/°C
°C
%/°C
%/°C
85
+0.1
−0.21
Notes:
1. For isolation measurement, the sensor is considered a two terminal device:
I+ and I- pins (pins 3 and 4) are shorted, and bridge pins (pins 1, 2, 5, and 6) are shorted.
2.
TCOV is the percent change in output signal over temperature, with a constant voltage source powering the part.
Absolute Maximum Ratings:
Parameter
Absolute Maximum Current
Bridge Supply Voltage
Storage Temperature
Ambient Magnetic Field
Min.
−600
−40
Typ.
Max.
600
30
170
Unlimited
Units
mA
Volts
°C
Note: Exceeding Absolute Maximum Ratings may cause permanent damage.
NVE Corporation
•
11409 Valley View Road, Eden Prairie, MN 55344-3617
•
(952) 829-9217
•
www.nve.com
AAV003-10E Current Sensor
External Magnetic Fields and Hysteresis Effects
The AAV003-10E sensor elements are shielded to make them insensitive to external magnetic fields,
however, shielding is not 100% effective, so external fields applied to the sensor should be avoided for the
most repeatable, accurate operation.
When exposed to magnetic fields over 50 Oe (5 mT), the characteristic of the sensor can be disturbed,
causing a hysteresis effect that will produce a non-linear response. A magnetic field of 50 Oe is a large field
that should not be encountered during normal operation. However, in case the sensor is exposed to such a
field, a degauss pulse train can be applied to the sensor to restore the original response. The sensor cannot be
permanently damaged by any magnetic field, no matter how large and it can always be restored after
exposure to a large field with a degauss signal.
This same effect can be observed when a large constant current (>200 mA) is applied to the on-chip current
strap, or a smaller constant current (>100 mA) at high temperatures (>85°C). Again in these cases, correct
operation of the sensor is restored with a degauss signal.
The degauss signal should consist of at least four current pulses of alternating polarity, with a pulse width of
at least 50 µs and an initial current pulse of 600 mA:
Typical Degauss Pulse
900
750
Minimum Duration at Peak
50 μs
600
Current (mA)
450
300
150
0
100
-150
200
300
400
500
-300
-450
-600
Time (μs)
Temperature Characteristics
Typical output over temperature is shown in the graph below:
AAV003‐10E O utput over Temperature ‐ Typic al
0.200
0.150
0.100
O utput S ig nal (V)
0.050
0.000
‐0.050
‐0.100
‐0.150
‐0.200
‐0.5
‐0.4
‐0.3
‐0.2
‐0.1
0
0.1
0.2
0.3
0.4
0.5
O n‐C hip S trap C urrent (A)
‐50
NVE Corporation
•
‐20
25 C
85 C
11409 Valley View Road, Eden Prairie, MN 55344-3617
125 C
•
(952) 829-9217
•
www.nve.com
AAV003-10E Current Sensor
Pinout
The AAV003-10E pinout is as follows:
Pin
1
2
3
4
5
6
Terminal
V+
Out+
I+
I−
Out−
V−
Description
Supply Voltage
Positive Differential Bridge Output
Current Terminal 1
Current Terminal 2
Negative Differential Bridge Output
Ground
Notes:
1. Pins are numbered counterclockwise around the package.
2. Current entering the chip via terminal I+ and leaving the chip via terminal I− produces a positive bridge output.
Package Drawing – TDFN6 2.5 mm x 2.5 mm
Notes:
•
•
•
•
Dimensions in mm.
TDFN6 package has thermal power dissipation of 320°C/Watt in free air.
Attaching the package to a circuit board improves thermal performance, especially if the center pad is also soldered to the board.
The center pad may be left floating or connected to ground.
©NVE Corporation
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
SB-00-022
February 2012
NVE Corporation
•
11409 Valley View Road, Eden Prairie, MN 55344-3617
•
(952) 829-9217
•
www.nve.com
AAV003-10E Current Sensor
