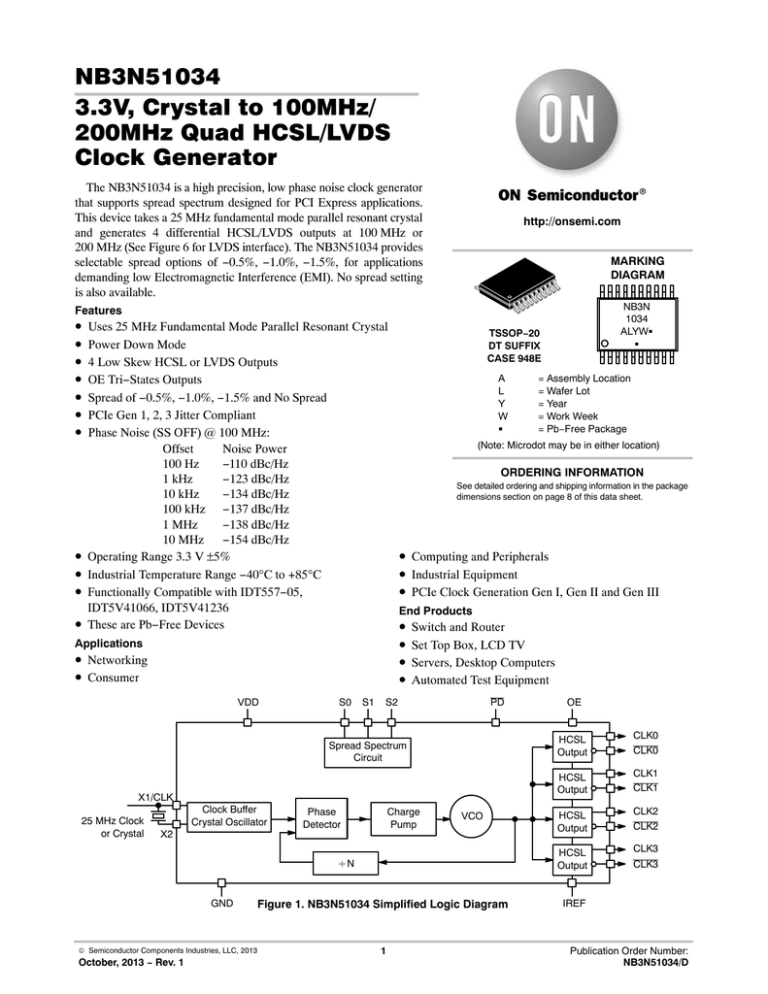

NB3N51034
3.3V, Crystal to 100MHz/
200MHz Quad HCSL/LVDS
Clock Generator
The NB3N51034 is a high precision, low phase noise clock generator
that supports spread spectrum designed for PCI Express applications.
This device takes a 25 MHz fundamental mode parallel resonant crystal
and generates 4 differential HCSL/LVDS outputs at 100 MHz or
200 MHz (See Figure 6 for LVDS interface). The NB3N51034 provides
selectable spread options of −0.5%, −1.0%, −1.5%, for applications
demanding low Electromagnetic Interference (EMI). No spread setting
is also available.
http://onsemi.com
MARKING
DIAGRAM
NB3N
1034
ALYWG
G
Features
•
•
•
•
•
•
•
Uses 25 MHz Fundamental Mode Parallel Resonant Crystal
TSSOP−20
Power Down Mode
DT SUFFIX
CASE 948E
4 Low Skew HCSL or LVDS Outputs
A
= Assembly Location
OE Tri−States Outputs
L
= Wafer Lot
Spread of −0.5%, −1.0%, −1.5% and No Spread
Y
= Year
PCIe Gen 1, 2, 3 Jitter Compliant
W
= Work Week
G
=
Pb−Free Package
Phase Noise (SS OFF) @ 100 MHz:
(Note:
Microdot
may be in either location)
Offset
Noise Power
100 Hz
−110 dBc/Hz
ORDERING INFORMATION
1 kHz
−123 dBc/Hz
See detailed ordering and shipping information in the package
10 kHz
−134 dBc/Hz
dimensions section on page 8 of this data sheet.
100 kHz −137 dBc/Hz
1 MHz
−138 dBc/Hz
10 MHz −154 dBc/Hz
• Operating Range 3.3 V ±5%
• Computing and Peripherals
• Industrial Temperature Range −40°C to +85°C
• Industrial Equipment
• Functionally Compatible with IDT557−05,
• PCIe Clock Generation Gen I, Gen II and Gen III
IDT5V41066, IDT5V41236
End Products
• These are Pb−Free Devices
• Switch and Router
Applications
• Set Top Box, LCD TV
• Networking
• Servers, Desktop Computers
• Consumer
• Automated Test Equipment
VDD
S0
S1
S2
PD
Spread Spectrum
Circuit
X1/CLK
25 MHz Clock
or Crystal
X2
Clock Buffer
Crystal Oscillator
Charge
Pump
Phase
Detector
VCO
BN
GND
Figure 1. NB3N51034 Simplified Logic Diagram
© Semiconductor Components Industries, LLC, 2013
October, 2013 − Rev. 1
1
OE
HCSL
Output
CLK0
CLK0
HCSL
Output
CLK1
CLK1
HCSL
Output
CLK2
CLK2
HCSL
Output
CLK3
CLK3
IREF
Publication Order Number:
NB3N51034/D
NB3N51034
VDDXD
1
20
CLK0
S0
2
19
CLK0
S1
3
18
CLK1
S2
4
17
CLK1
X1/CLK
5
16
GNDODA
X2
6
15
VDDODA
PD
7
14
CLK2
OE
8
13
CLK2
GNDXD
9
12
CLK3
10
11
CLK3
IREF
Figure 2. Pin Configuration (Top View)
Table 1. PIN DESCRIPTION
Pin
Symbol
I/O
Description
1
VDDXD
Power
2
S0
Input
Spread Spectrum Select pin 0. See Spread Spectrum Select table. Internal pull−up resistor.
3
S1
Input
Spread Spectrum Select pin 1. See Spread Spectrum Select table. Internal pull−up resistor.
4
S2
Input
Spread Spectrum Select pin 2. See Spread Spectrum Select table. Internal pull−up resistor.
5
X1/CLK
Input
Crystal interface or single−ended reference clock input.
6
X2
Output
7
PD
Input
Power down. Internal pull−up resistor.
Output enable. Tri−state output (High=enable outputs, Low=disable outputs). Internal pull−up resistor.
Connect to a +3.3 V source.
Crystal interface. Float this pin for reference clock input CLK.
8
OE
Input
9
GNDXD
Power
Connect to digital circuit ground.
10
IREF
Output
Precision resistor attached to this pin is connected to the internal current reference.
11
CLK3
Output
Selectable 100/200 MHz Spread Spectrum differential compliment output clock 3.
12
CLK3
Output
Selectable 100/200 MHz Spread Spectrum differential true output clock 3.
13
CLK2
Output
Selectable 100/200 MHz Spread Spectrum differential compliment output clock 2.
14
CLK2
Output
Selectable 100/200 MHz Spread Spectrum differential true output clock 2.
15
VDDODA
Power
Connect to a +3.3 V analog source.
16
GNDODA
Power
Output and analog circuit ground.
17
CLK1
Output
Selectable 100/200 MHz Spread Spectrum differential compliment output clock 1.
18
CLK1
Output
Selectable 100/200 MHz Spread Spectrum differential true output clock 1.
19
CLK0
Output
Selectable 100/200 MHz Spread Spectrum differential compliment output clock 0.
20
CLK0
Output
Selectable 100/200 MHz Spread Spectrum differential true output clock 0.
Recommended Crystal Parameters
Table 2. OUTPUT FREQUENCY AND SPREAD
SPECTRUM SELECT TABLE
S2
S1
S0
Spread%
Spread
Type
Output
Frequency
0
0
0
−0.5
Down
100
0
0
1
−1.0
Down
100
0
1
0
−1.5
Down
100
0
1
1
No Spread
N/A
100
1
0
0
−0.5
Down
200
1
0
1
−1.0
Down
200
1
1
0
−1.5
Down
200
1
1
1
No Spread
N/A
200
Crystal
Frequency
Load Capacitance
Shunt Capacitance, C0
Equivalent Series Resistance
Initial Accuracy at 25 °C
Temperature Stability
Aging
http://onsemi.com
2
Fundamental AT−Cut
25 MHz
16−20 pF
7 pF Max
50 W Max
±20 ppm
±30 ppm
±20 ppm
NB3N51034
Table 3. ATTRIBUTES
Characteristic
Value
Internal Input Default State Resistor (OE, Sx, PD)
ESD Protection
110 kW
Human Body Model
2 kV
Moisture Sensitivity, Indefinite Time Out of Dray Pack (Note 1)
Flammability Rating
Level 1
Oxygen Index: 28 to 34
UL 94 V−0 @ 0.125 in
Transistor Count
132,000
Meets or exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
1. For additional information, see Application Note AND8003/D.
Table 4. MAXIMUM RATINGS (Note 2)
Symbol
Parameter
Condition 1
Condition 2
Rating
Units
4.6
V
−0.5 V to VDD+0.5 V
V
VDD
Positive Power Supply
GND = 0 V
VI
Input Voltage (VIN)
GND = 0 V
TA
Operating Temperature Range
−40 to +85
°C
Tstg
Storage Temperature Range
−65 to +150
°C
qJA
Thermal Resistance (Junction−to−Ambient)
0 lfpm
500 lfpm
TSSOP–20
TSSOP–20
140
50
°C/W
°C/W
qJC
Thermal Resistance (Junction−to−Case)
(Note 3)
TSSOP−20
23 to 41
°C/W
Tsol
Wave Solder
265
°C
GND v VI v VDD
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
2. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and not valid simultaneously. If
stress limits are exceeded device functional operation is not implied, damage may occur and reliability may be affected.
3. JEDEC standard multilayer board − 2S2P (2 signal, 2 power).
Table 5. DC CHARACTERISTICS (VDD = 3.3 V ±5%, GND = 0 V, TA = −40°C to +85°C, Note 4)
Symbol
Characteristic
Min
Typ
Max
Unit
3.135
3.3
3.465
V
VDD
Power Supply Voltage
IDD
Power Supply Current, 200 Mhz output, SSON
135
mA
IDDOE
Power Supply Current when OE is Set Low
60
mA
IDDPD
Power Supply Current (PD = Low, no load)
1.5
mA
VIH
Input HIGH Voltage (X1/CLK, S0, S1, S2 and OE)
2000
VDD + 300
mV
VIL
Input LOW Voltage (X1/CLK, S0, S1, S2 and OE)
GND − 300
800
mV
NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit
board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared
operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit
values are applied individually under normal operating conditions and not valid simultaneously.
4. Measurement taken with outputs terminated with RS = 33.2 W, RL = 50 W, with test load capacitance of 2 pF and current biasing resistor set
at 475 W. See Figure 5. Guaranteed by characterization.
http://onsemi.com
3
NB3N51034
Table 6. AC CHARACTERISTICS (VDD = 3.3 V ±5%, GND = 0 V, TA = −40°C to +85°C; Note 5)
Characteristic
Symbol
Min
Typ
Max
Unit
fCLKIN
Clock/Crystal Input Frequency
25
MHz
fCLKOUT
Output Clock Frequency
100/200
MHz
Vmax
Absolute Maximum Output Voltage (Notes 6, 7)
Vmin
Absolute Minimum Output Voltage (Notes 6, 8)
−300
Vrb
Ringback Voltage (Notes 9, 10)
−100
100
mV
VOH
Output High Voltage (Note 6)
660
850
mV
VOL
Output Low Voltage (Note 6)
−150
27
mV
VCROSS
Absolute Crossing Voltage (Notes 6, 10, 11)
250
550
mV
DVCROSS
Total Variation of VCROSS (Notes 6, 10, 12)
140
mV
fMOD
Spread Spectrum Modulation Frequency
33.33
kHz
SSCRED
Spectral Reduction (Note 13), 3rd harmonic
tSKEW
Within Device Output to Output Skew
fNOISE
Phase−Noise Performance SS OFF
1150
30
mV
mV
31.5
−10
dB
40
ps
dBc/Hz
fCLKout = 100 MHz
@ 100 Hz offset from carrier
−110
@ 1 kHz offset from carrier
−123
@ 10 kHz offset from carrier
−134
@ 100 kHz offset from carrier
−137
@ 1 MHz offset from carrier
−138
@ 10 MHz offset from carrier
−154
tOE
Output Enable/Disable Time (All outputs) (Note 14)
10
ms
tDUTY_CYCLE
Output Clock Duty Cycle (Measured at cross point)
45
50
55
%
tR
Output Risetime (Measured from 175 mV to 525 mV, Figure 7)
tF
Output Falltime (Measured from 525 mV to 175 mV, Figure 7)
175
340
700
ps
175
400
700
ps
DtR
Output Risetime Variation (Single−Ended)
125
ps
DtF
Output Falltime Variation (Single−Ended)
125
ps
Stabilization
Time
Stabilization Time From Powerup VDD = 3.3 V
3.0
ms
NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit
board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared
operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit
values are applied individually under normal operating conditions and not valid simultaneously.
5. Measurement taken from differential output on single−ended channel terminated with RS = 33.2 W, RL = 50 W, with test load capacitance
of 2 pF and current biasing resistor set at 475 W. See Figure 5. Guaranteed by characterization.
6. Measurement taken from single-ended waveform
7. Defined as the maximum instantaneous voltage value including positive overshoot
8. Defined as the maximum instantaneous voltage value including negative overshoot
9. Measurement taken from differential waveform
10. Measured at crossing point where the instantaneous voltage value of the rising edge of CLKx+ equals the falling edge of CLKx-.
11. Refers to the total variation from the lowest crossing point to the highest, regardless of which edge is crossing. Refers to all crossing points
for this measurement.
12. Defined as the total variation of all crossing voltage of rising CLKx+ and falling CLKx-. This is maximum allowed variance in the VCROSS
for any particular system.
13. Spread spectrum clocking enabled.
14. Output pins are tri−stated when OE is asserted LOW. Output pins are driven differentially when OE is HIGH unless device is in power down
mode, PD = Low.
http://onsemi.com
4
NB3N51034
Table 7. AC ELECTRICAL CHARACTERISTICS − PCI EXPRESS JITTER SPECIFICATIONS,
VDD = 3.3 V ± 5%, TA = −40°C to 85°C
Symbol
tj (PCIe Gen 1)
Parameter
Typ
Max
PCIe
Industry
Spec
SSOFF
10
20
86
ps
SSON
(−0.5%)
19
28
SSOFF
1.0
1.8
3.1
ps
SSON
(−0.5%)
1.1
1.9
SSOFF
0.1
0.15
3.0
ps
SSON
(−0.5%)
0.8
1.1
SSOFF
0.35
0.7
1.0
ps
SSON
(−0.5%)
0.55
0.8
Test Conditions
Phase Jitter
Peak−to−Peak
(Notes 16
and 19)
f = 100 MHz, 25 MHz Crystal
Input Evaluation Band:
0 Hz − Nyquist (clock
frequency/2)
tREFCLK_HF_RMS
(PCIe Gen 2)
Phase Jitter
RMS (Notes 17
and 19)
f = 100 MHz, 25 MHz Crystal
Input High Band:
1.5 MHz − Nyquist (clock
frequency/2)
tREFCLK_LF_RMS
(PCIe Gen 2)
Phase Jitter
RMS (Notes 17
and 19)
f = 100 MHz, 25 MHz Crystal
Input Low Band:
10 kHz − 1.5 MHz
tREFCLK_RMS
(PCIe Gen 3)
Phase Jitter
RMS (Notes 18
and 19)
f = 100 MHz, 25 MHz Crystal
Input Evaluation Band: 0 Hz −
Nyquist (clock frequency/2)
Min
Unit
15. Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal
equilibrium has been reached under these conditions.
16. Peak−to−Peak jitter after applying system transfer function for the Common Clock Architecture. Maximum limit for PCI Express Gen 1 is 86 ps
peak−to−peak for a sample size of 106 clock periods.
17. RMS jitter after applying the two evaluation bands to the two transfer functions defined in the Common Clock Architecture and reporting the
worst case results for each evaluation band. Maximum limit for PCI Express Generation 2 is 3.1 ps RMS for tREFCLK_HF_RMS (High Band)
and 3.0ps RMS for tREFCLK_LF_RMS (Low Band).
18. RMS jitter after applying system transfer function for the common clock architecture.
19. Measurement taken from differential output on single−ended channel terminated with RS = 33.2 W, RL = 50 W, with test load capacitance
of 2 pF and current biasing resistor set at 475 W. See Figure 5. This parameter is guaranteed by characterization. Not tested in production.
http://onsemi.com
5
NB3N51034
NOISE POWEER (dBc/Hz)
PHASE NOISE
OFFSET FREQUENCY (Hz)
NOISE POWEER (dBc/Hz)
Figure 3. Typical Phase Noise at 100 MHz; integration range 12 kHz to 20 MHz
(Input source at 25 MHz and HCSL output termination)
OFFSET FREQUENCY (Hz)
Figure 4. Typical Phase Noise at 200 MHz; integration range 12 kHz to 20 MHz
(Input source at 25 MHz and HCSL output termination)
http://onsemi.com
6
NB3N51034
HCSL INTERFACE
CLK0
RL* = 33.2 W
Zo = 50 W
RL* = 33.2 W
Zo = 50 W
CLK0
RL = 50 W
RL = 50 W
NB3N51034
Receiver
CLK3
RL* = 33.2 W
Zo = 50 W
RL* = 33.2 W
Zo = 50 W
CLK3
IREF
RL = 50 W
*Optional
RL = 50 W
RREF = 475 W
Figure 5. Typical Termination for HCSL Output Driver and Device Evaluation
LVDS COMPATIBLE INTERFACE
CLK0
RL* = 33.2 W
Zo = 50 W
100 W
RL* = 33.2 W
100 W
Zo = 50 W
CLK0
RL = 150 W
RL = 150 W
NB3N51034
Receiver
CLK3
RL* = 33.2 W
Zo = 50 W
100 W
RL* = 33.2 W
100 W
Zo = 50 W
CLK3
IREF
RL = 150 W
*Optional
RL = 150 W
LVDS Device Load
RREF = 475 W
Figure 6. Typical Termination for LVDS Device Load
700 mV
525 mV
525 mV
175 mV
175 mV
0 mV
tR
tF
Figure 7. HCSL Output Parameter Characteristics
http://onsemi.com
7
NB3N51034
ORDERING INFORMATION
Package
Shipping†
NB3N51034DTG
TSSOP−20
(Pb−Free)
75 Units / Rail
NB3N51034DTR2G
TSSOP−20
(Pb−Free)
2500 / Tape & Reel
Device
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
http://onsemi.com
8
NB3N51034
PACKAGE DIMENSIONS
20X
0.15 (0.006) T U
2X
L
TSSOP−20
CASE 948E−02
ISSUE C
K REF
0.10 (0.004)
S
L/2
20
M
T U
S
V
ÍÍÍÍ
ÍÍÍÍ
ÍÍÍÍ
S
J J1
11
B
−U−
PIN 1
IDENT
SECTION N−N
0.25 (0.010)
N
1
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION A DOES NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS.
MOLD FLASH OR GATE BURRS SHALL NOT
EXCEED 0.15 (0.006) PER SIDE.
4. DIMENSION B DOES NOT INCLUDE
INTERLEAD FLASH OR PROTRUSION.
INTERLEAD FLASH OR PROTRUSION
SHALL NOT EXCEED 0.25 (0.010) PER SIDE.
5. DIMENSION K DOES NOT INCLUDE
DAMBAR PROTRUSION. ALLOWABLE
DAMBAR PROTRUSION SHALL BE 0.08
(0.003) TOTAL IN EXCESS OF THE K
DIMENSION AT MAXIMUM MATERIAL
CONDITION.
6. TERMINAL NUMBERS ARE SHOWN FOR
REFERENCE ONLY.
7. DIMENSION A AND B ARE TO BE
DETERMINED AT DATUM PLANE −W−.
K
K1
10
M
0.15 (0.006) T U
S
A
−V−
N
F
DETAIL E
−W−
C
G
D
H
0.100 (0.004)
−T− SEATING
DETAIL E
SOLDERING FOOTPRINT
PLANE
DIM
A
B
C
D
F
G
H
J
J1
K
K1
L
M
MILLIMETERS
MIN
MAX
6.40
6.60
4.30
4.50
--1.20
0.05
0.15
0.50
0.75
0.65 BSC
0.27
0.37
0.09
0.20
0.09
0.16
0.19
0.30
0.19
0.25
6.40 BSC
0_
8_
INCHES
MIN
MAX
0.252
0.260
0.169
0.177
--0.047
0.002
0.006
0.020
0.030
0.026 BSC
0.011
0.015
0.004
0.008
0.004
0.006
0.007
0.012
0.007
0.010
0.252 BSC
0_
8_
7.06
1
0.65
PITCH
16X
0.36
16X
DIMENSIONS: MILLIMETERS
1.26
ON Semiconductor and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks,
copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC
reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without
limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications
and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC
does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where
personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture
of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: [email protected]
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
http://onsemi.com
9
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
NB3N51034/D
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
